L6 Nex ROBOT VACUUM CLEANER APP QUICK START GUIDE L6 Nex ROBOT VACUUM CLEANER APP QUICK START GUIDE
L6 Nex ROBOT VACUUM CLEANER APP QUICK START GUIDE
If you have any problem of this device,
please feel free to contact us:
support[email protected]
APP Connection
APP Download

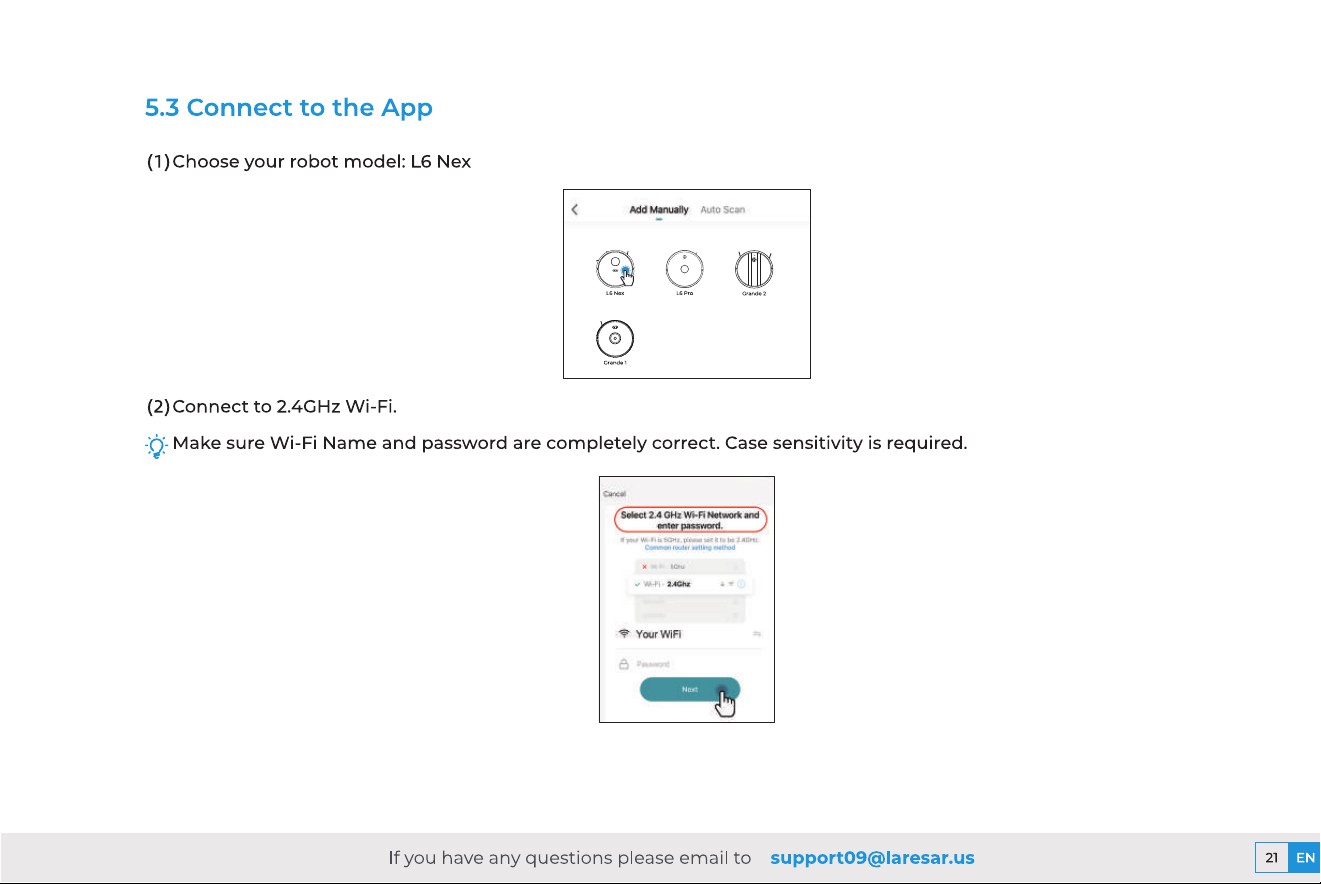

Add L6 Nex device
Press both 2 buttons for 5s at the same
time until you hear the sound "di di" and
see the wifi indicator light flash
L6 Nex
Note: Net work should be 2.4 GHz.
Make sure Wi-Fi account and password
are completely correct.
L6 Nex
L6 Pro
Grande 1
Grande 2
Compatible with iOS 10.0 and higher.
Compatible with Android 8.0 and higher.
Note: The router, mobile phone, and robot vacuum cleaner should be as close as possible to ensure smooth connection.
Connect "SmartLife-
XXXX" hotspot

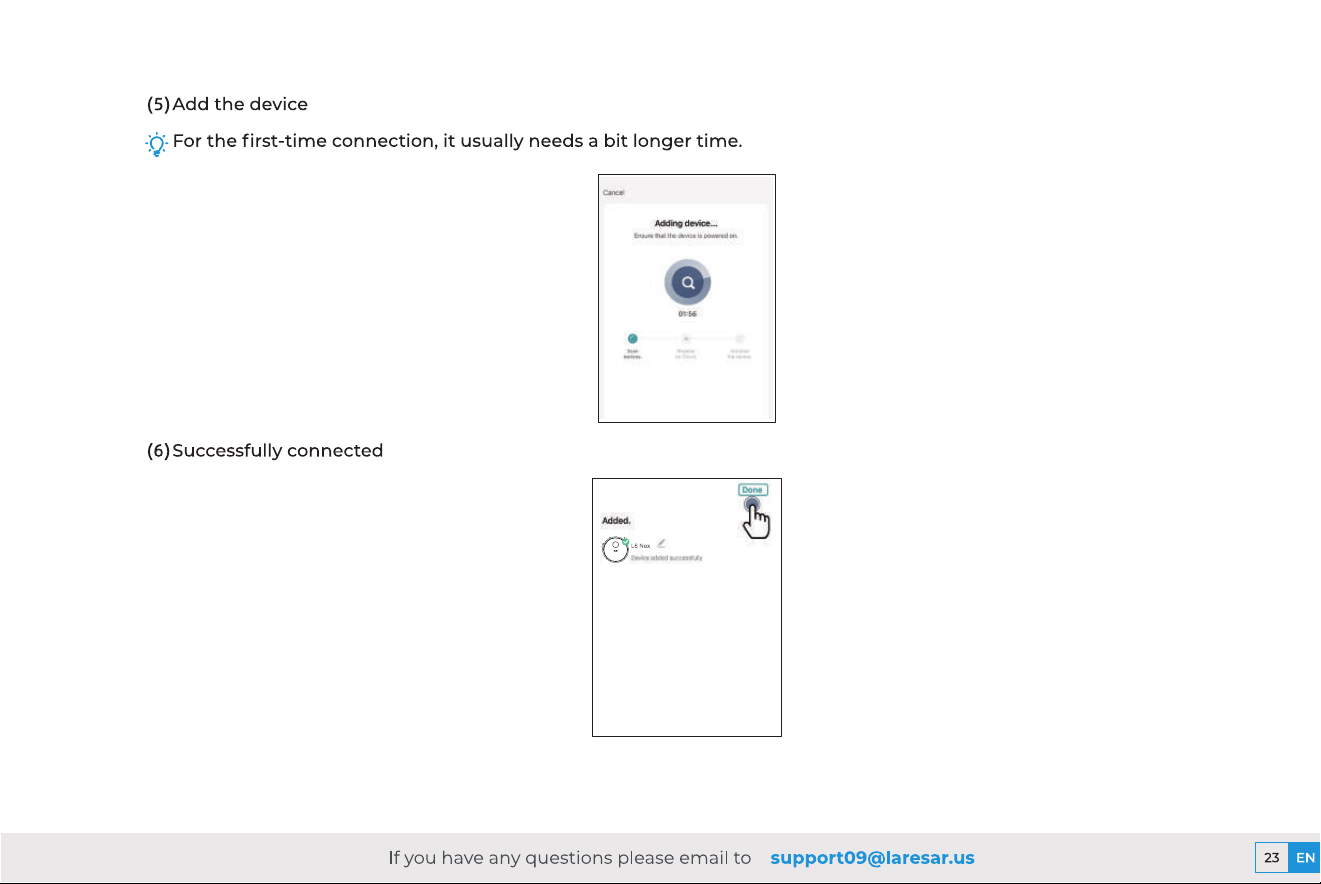

Successfully connected
Add the device
Connect to 2.4GHz Wi-Fi

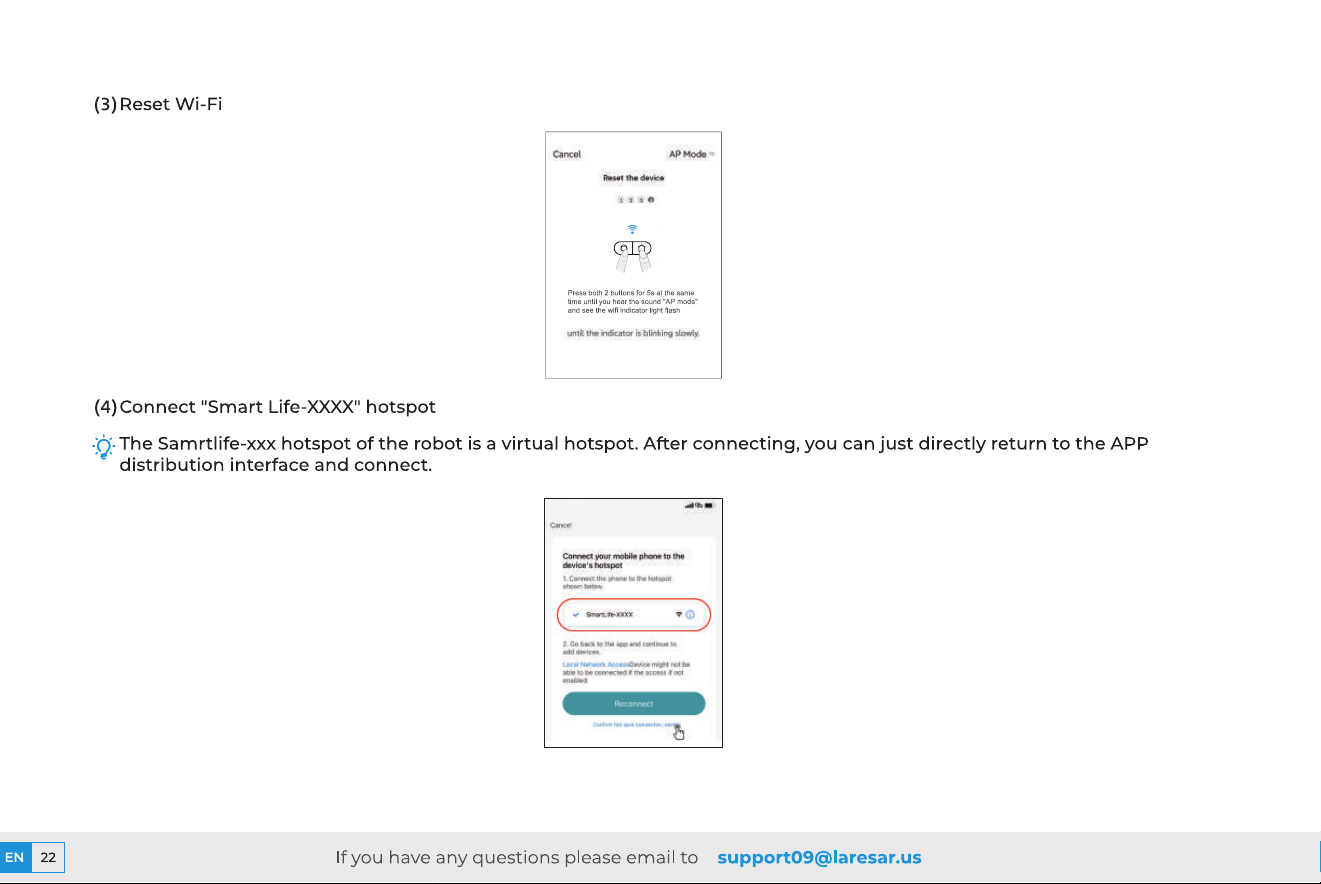

Reset Wi-Fi
How to Use Your L6 NexApp Function Introduction

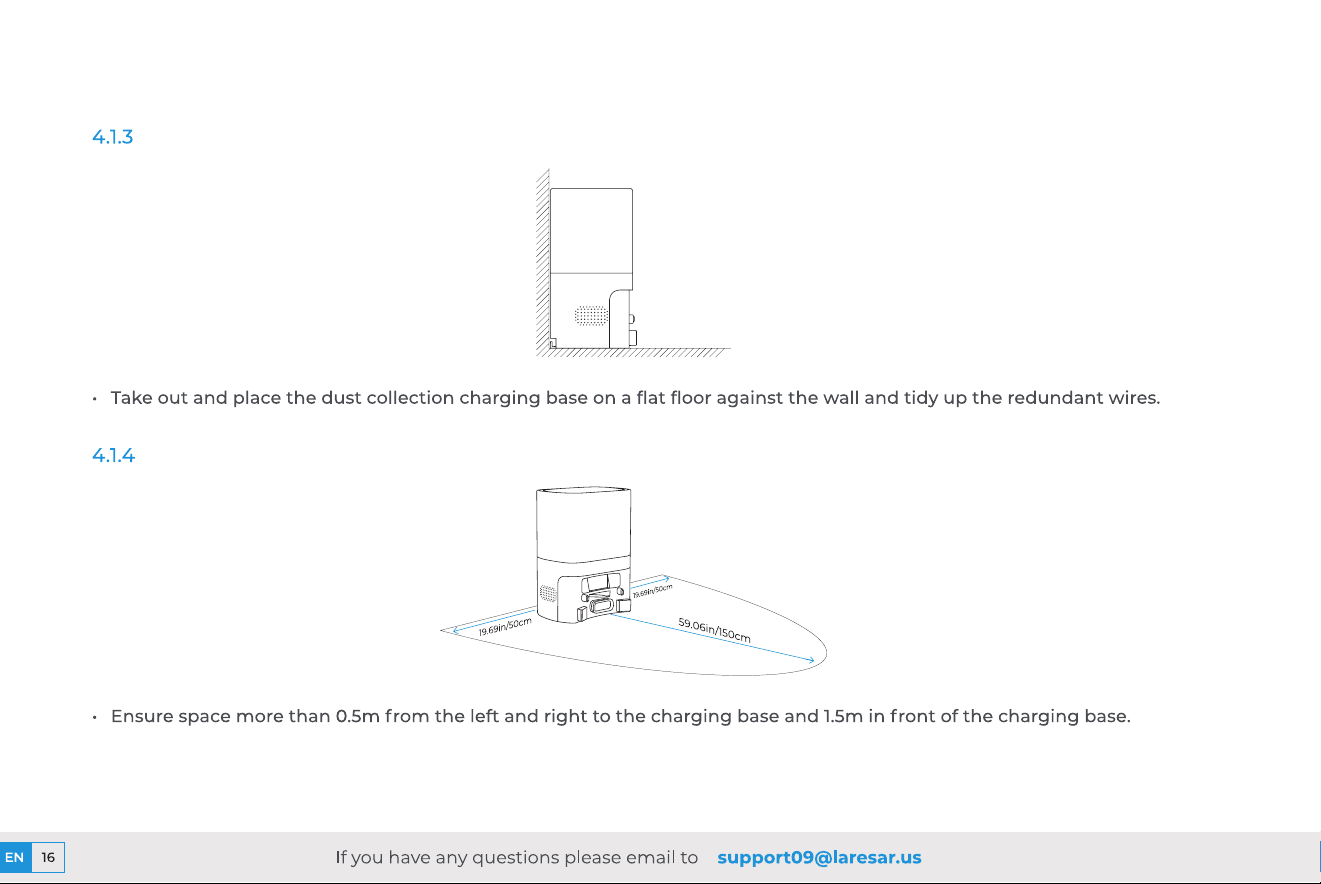

Note: Place the remaining wire into the trunking at the back of the Charging Dock.
19.69in/50cm
59.06in/150cm
19.69in/50cm
B
A
L6 Nex
Press the power button on the machine or
app control to start cleaning.
Automatically recharge after cleaning
Automatically recharge when battery power ≤ 15%
Manually recharge at any time
A
B
C

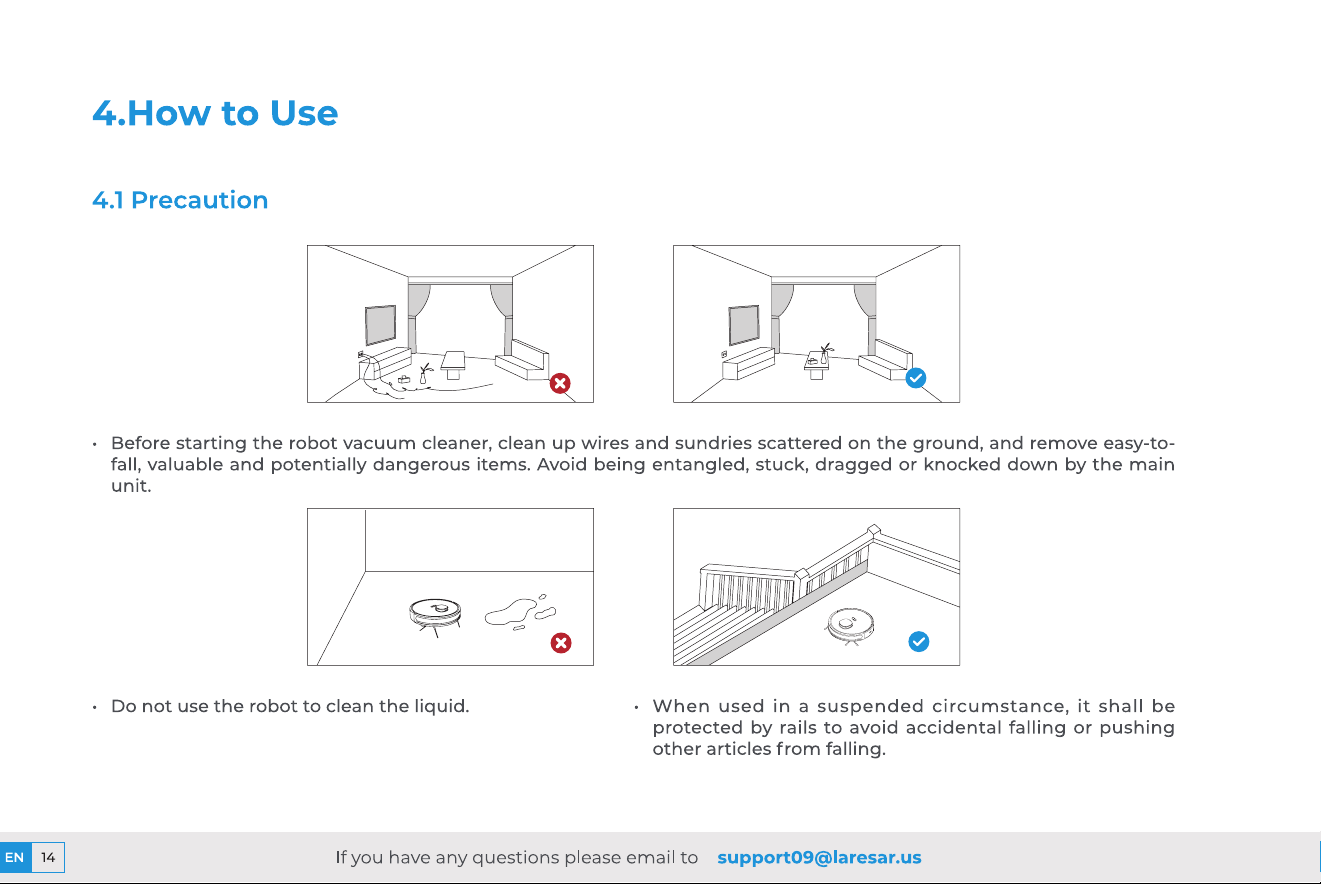

1. Power lines and other debris
scattered on the ground may trip up
the robot, please remove them.
2. Please clean the carpet tassels
or work on short-hair rugs.
3. A gap of less than 8cm on the bottom of the
furniture may catch the product. If you need to
clean it, please remove the furniture.
4. A guardrail should be placed at the edge of
the duplex to ensure the safe operation of the
product.
1
Place Charging Dock and Power It
2

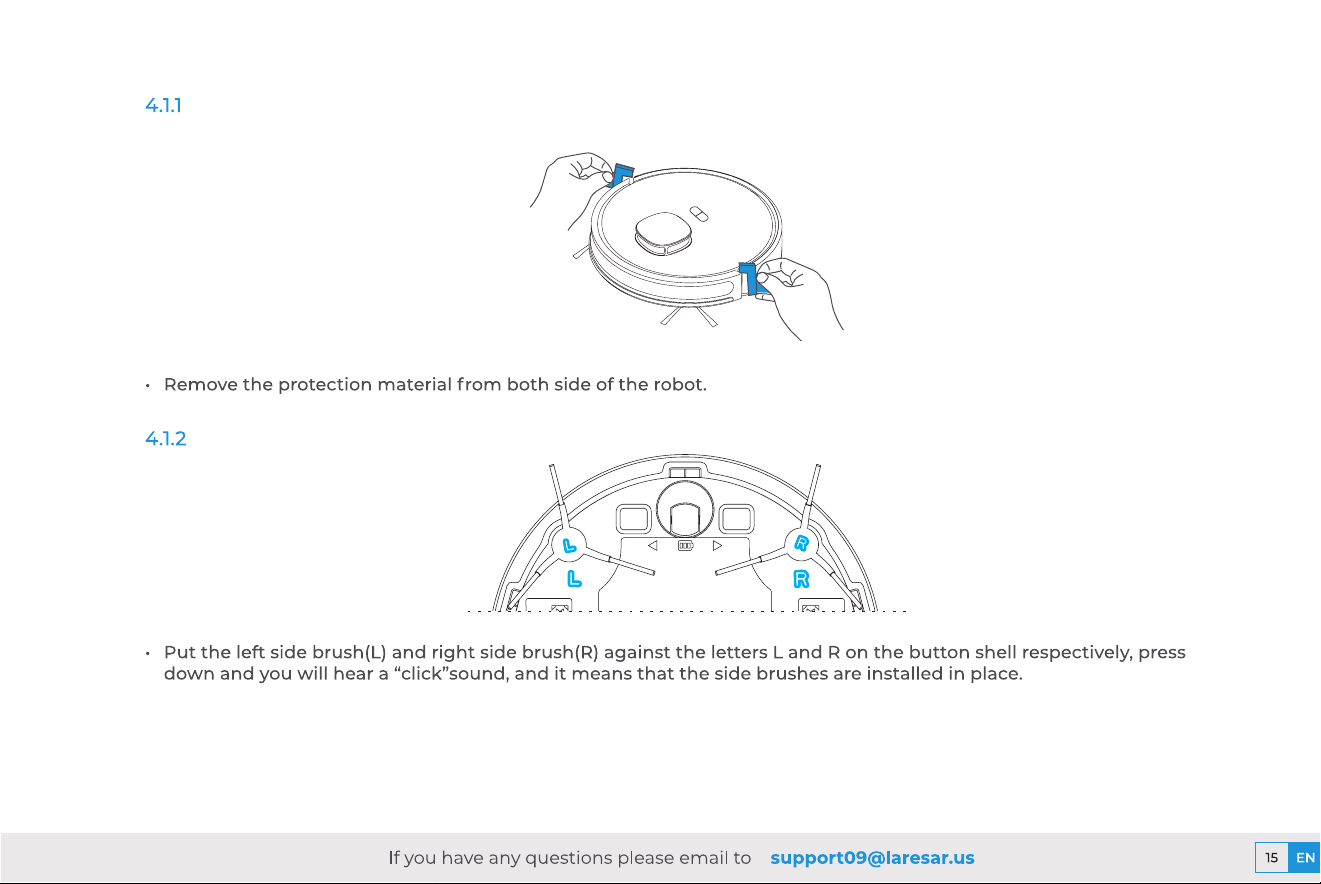

Install the Side Brushes
5
Attention
3
Start Cleaning
4

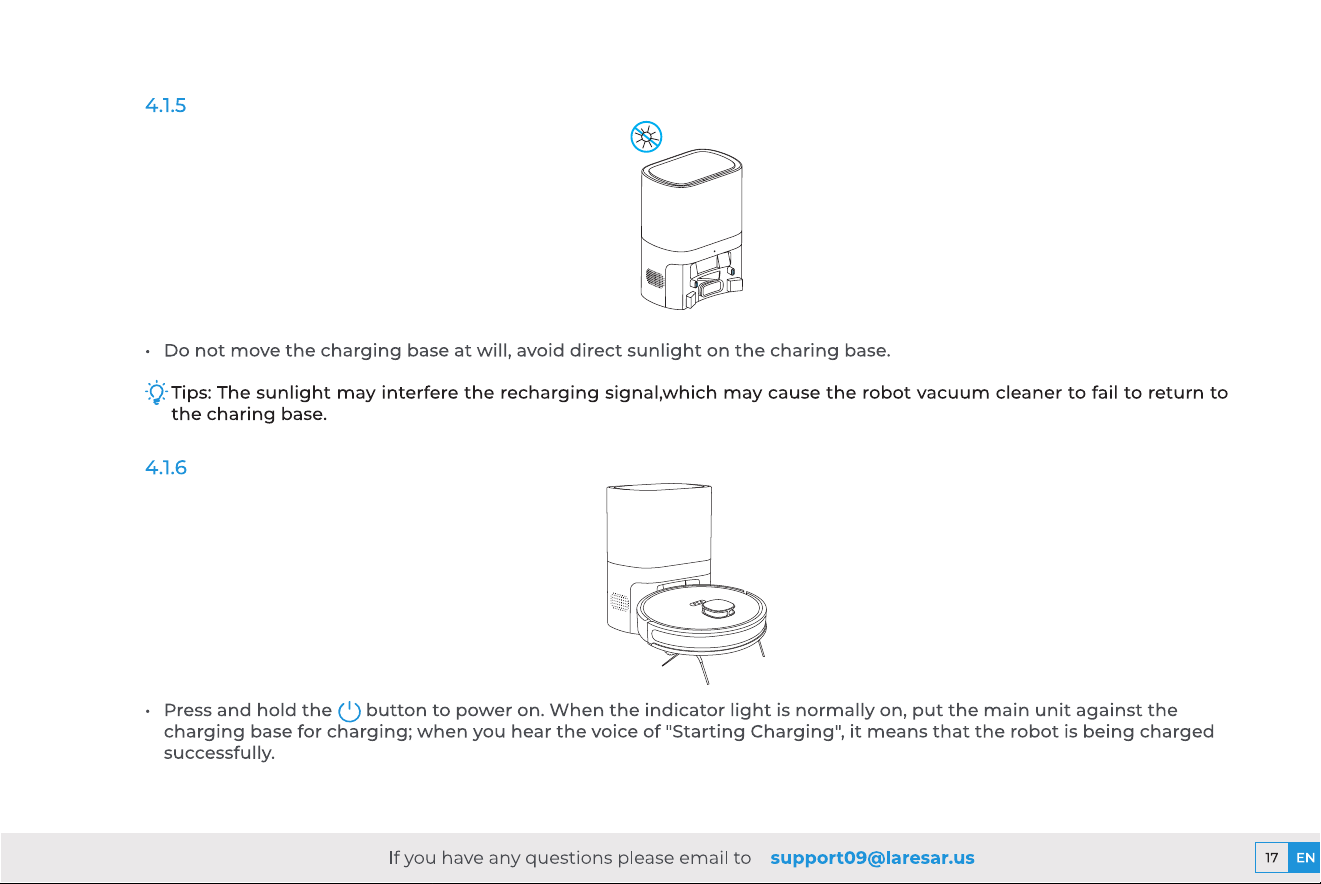

Recharge Method
L6 Nex
2
Intelligent Cleaning (Default Mode)
1
APP Main Interface Introduction
3
Cleaning as Required
4
Cleaning of Selected Area
5
Cleaning of Defined Area
Use the Laresmart APP to select the function of
cleaning of the selected area, select the area to be
cleaned on the map, and the robot vacuum cleaner
will clean the selected area.
Note:The main unit might enter the unplanned
area, so please clear the obstacles on the ground
around the planned area, and this area cannot
play a role of safety isolation.

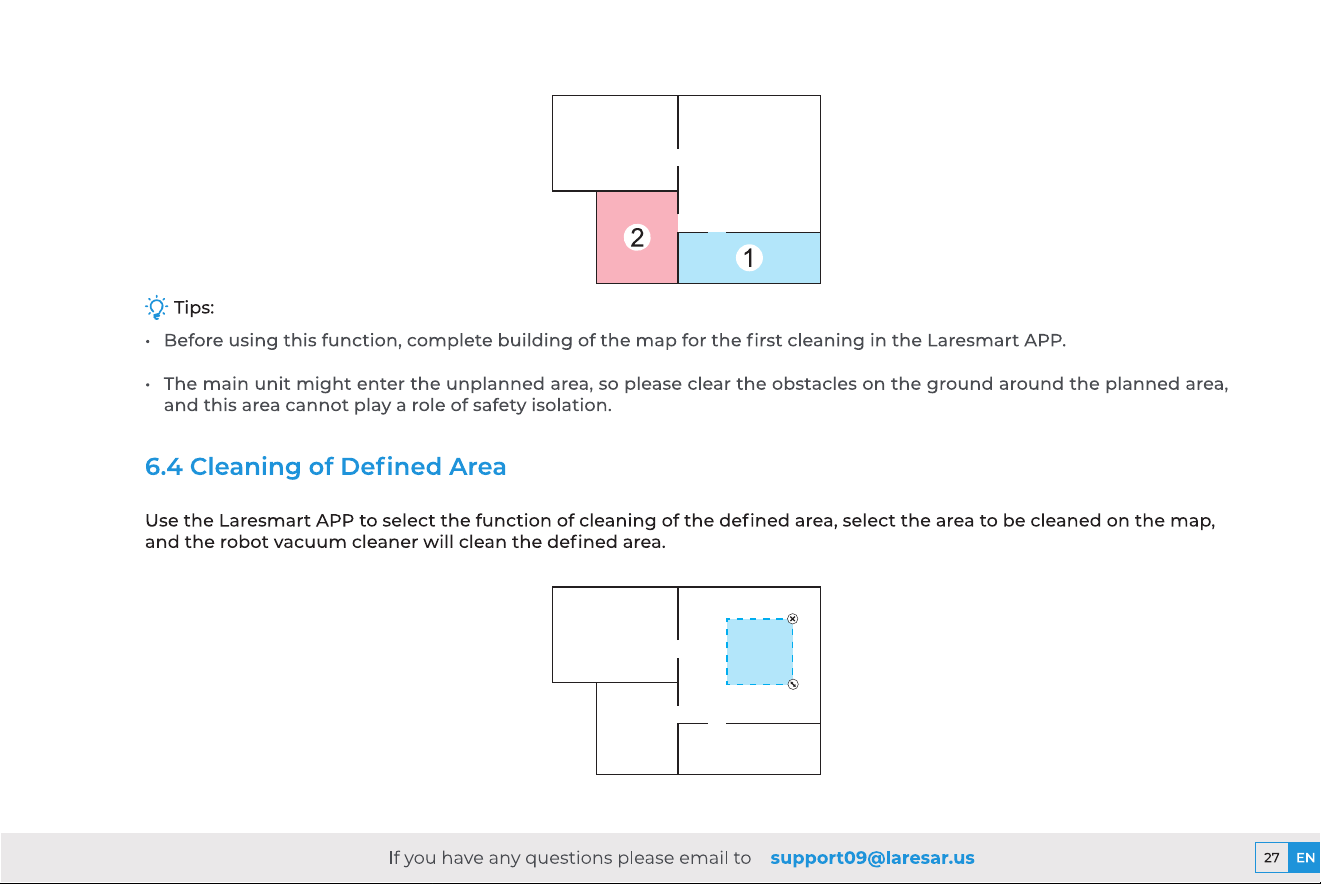

Use the Laresmart APP to select the function of
cleaning of the defined area, select the area to be
cleaned on the map, and the robot vacuum cleaner
will clean the defined area.
Note:The main unit might enter the unplanned
area,so please clear the obstacles on the ground
around the planned area,and this area cannot play a
role in safety isolation.
Note:
In order to better build the map,the robot needs to start
from the charging base at the first cleaning.
1-Restricted area setting
Note: Before using this function, complete building of the map for the first cleaning
in the Laresmart APP.
Cleaned area
Area being cleaned
Area to be cleaned
Cleaned area
63 in/160cm
63 in
/160cm
6

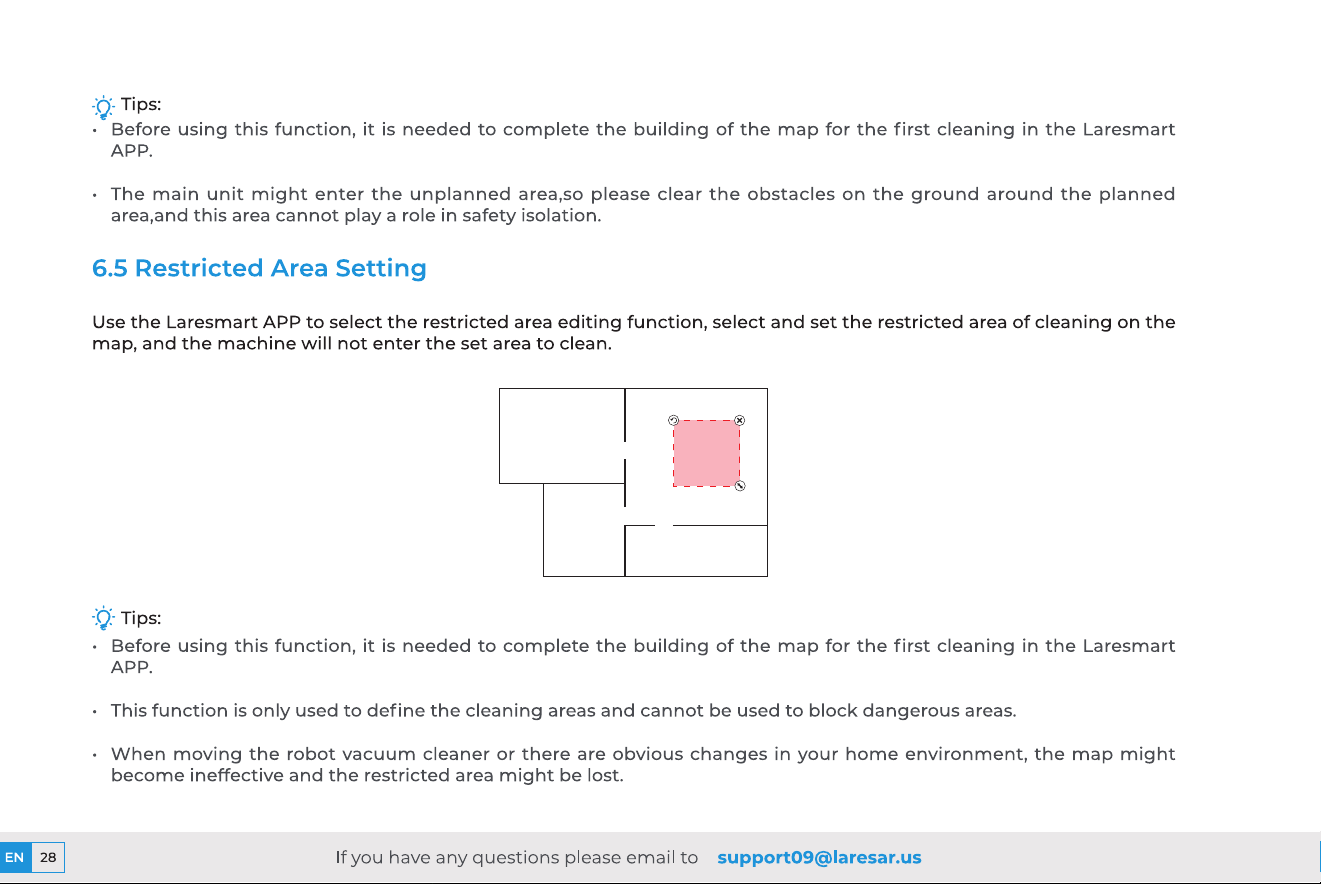

Restricted Area Setting
Use the Laresmart APP to select the restricted area
editing function, select and set the restricted area of
cleaning on the map, and the machine will not enter
the set area to clean.
Note:
1. This function is only used to define the cleaning
areas and cannot be used to block dangerous areas.
2. When moving the robot vacuum cleaner or there
are obvious changes in your home environment, the
map might become ineffective and the restricted
area might be lost.
2-Map editing
3-More function
6-Remaining power
11-Recharge
10-Cleaning of defined area
5-Cleaned area
4-Worked time
7-Switch on/off
8-Cleaning as required
9-Cleaning of selected area
Scan the QR code below or search the APP named "Laresmart" in Google play or APP store.

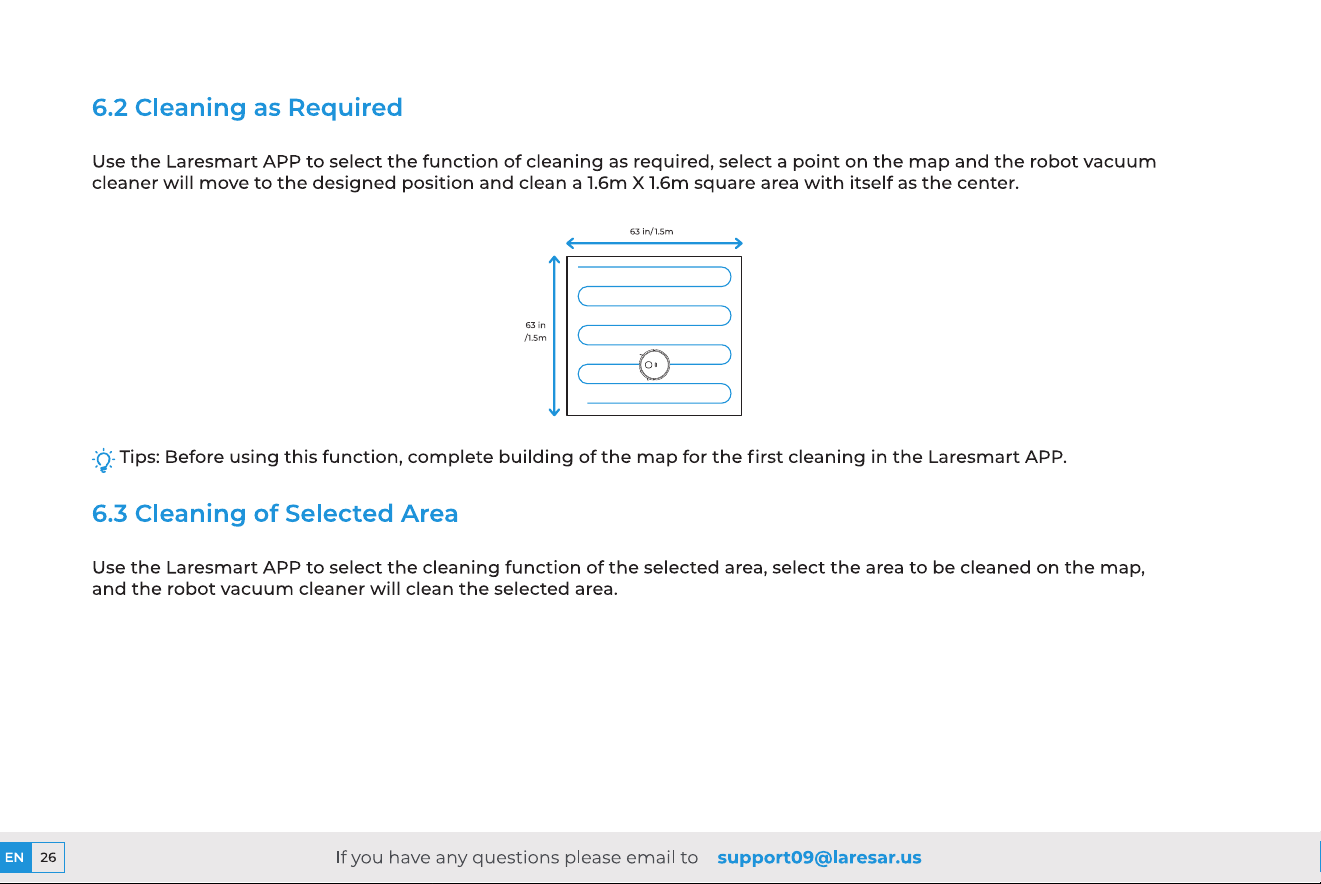

Use the Laresmart APP to select the function of
cleaning as required; select a point on the map and
the robot vacuum cleaner will move to the designed
position and clean a 1.6m X 1.6m square area with
itself as the center.

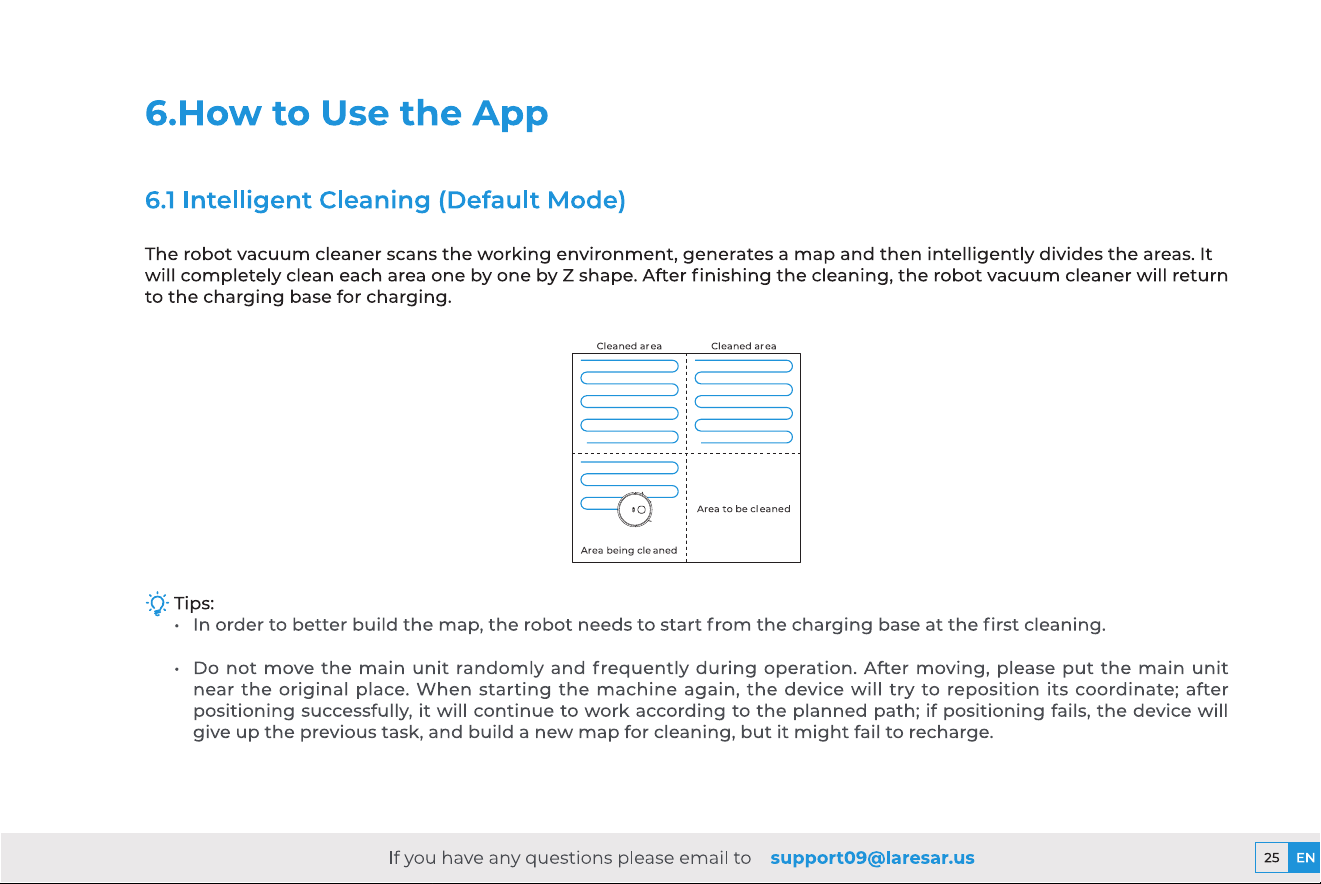

The robot vacuum cleaner scans the working environment,
generates a map and intelligently divides the areas. It will
complete cleaning of each area one by one by filling along
the Z shape behind the wall. After finishing cleaning, the
robot vacuum cleaner will return to the charging base for
charging.
