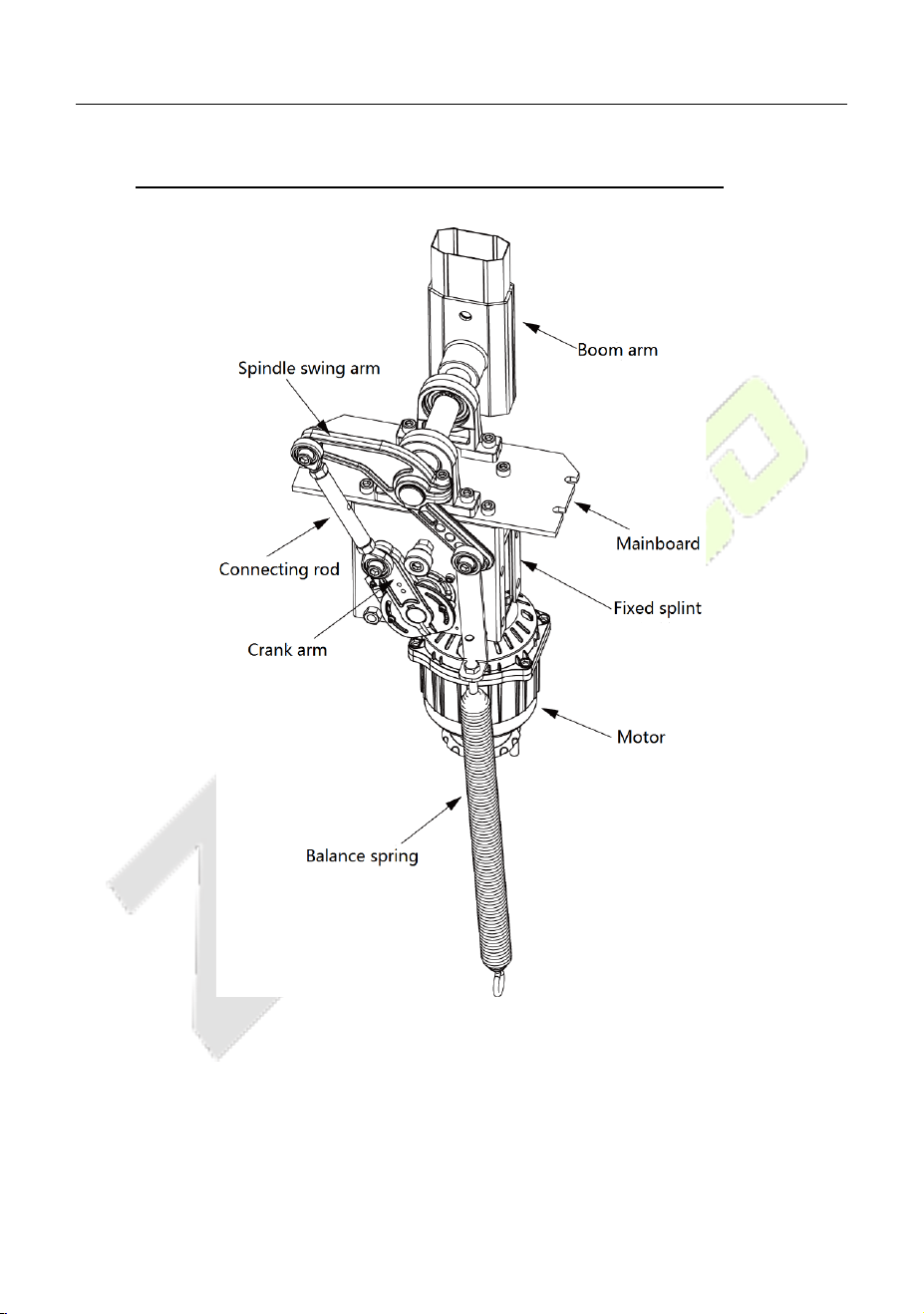

6 MOVEMENT TRANSMISSION STRUCTURE ................................. 14

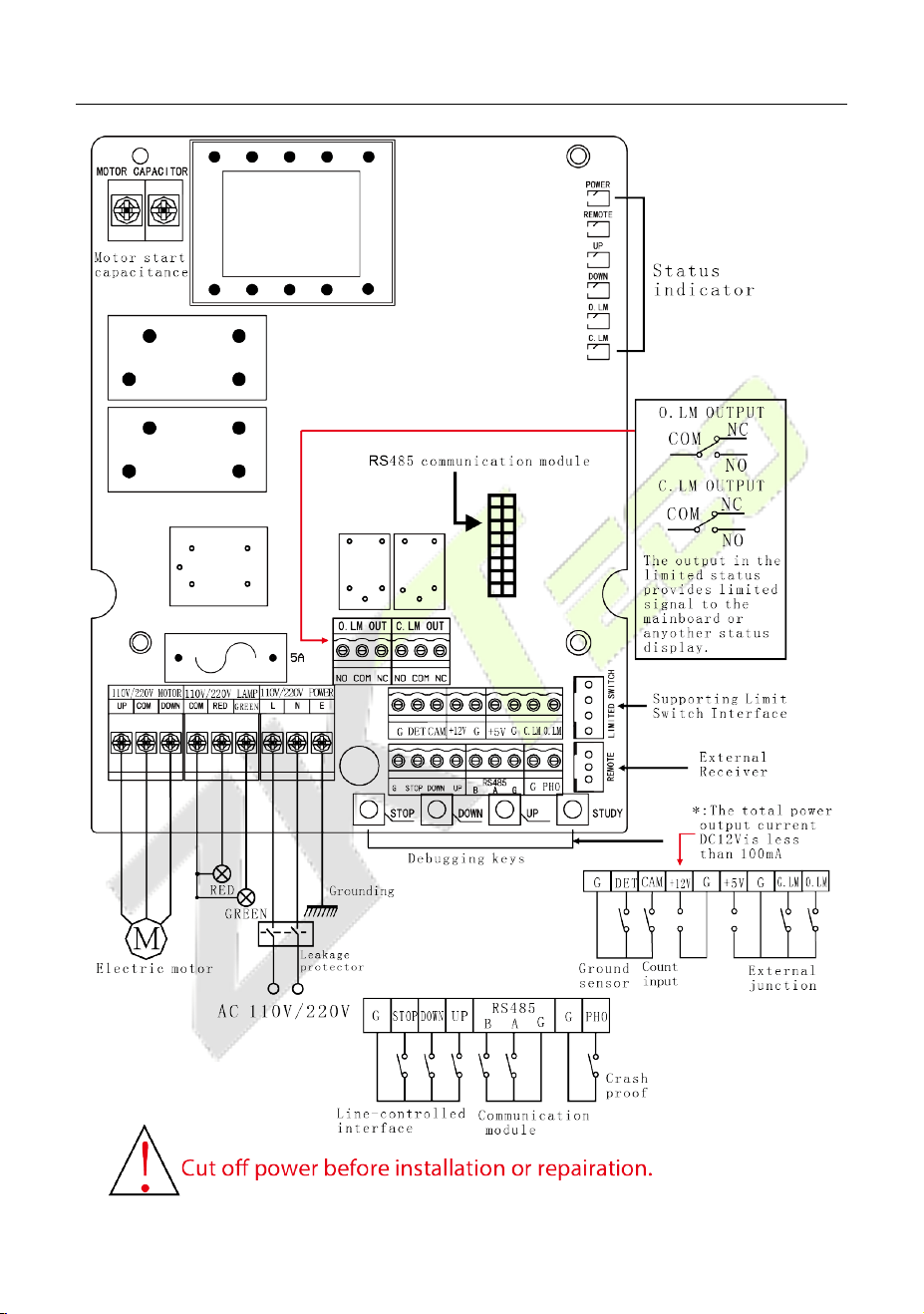

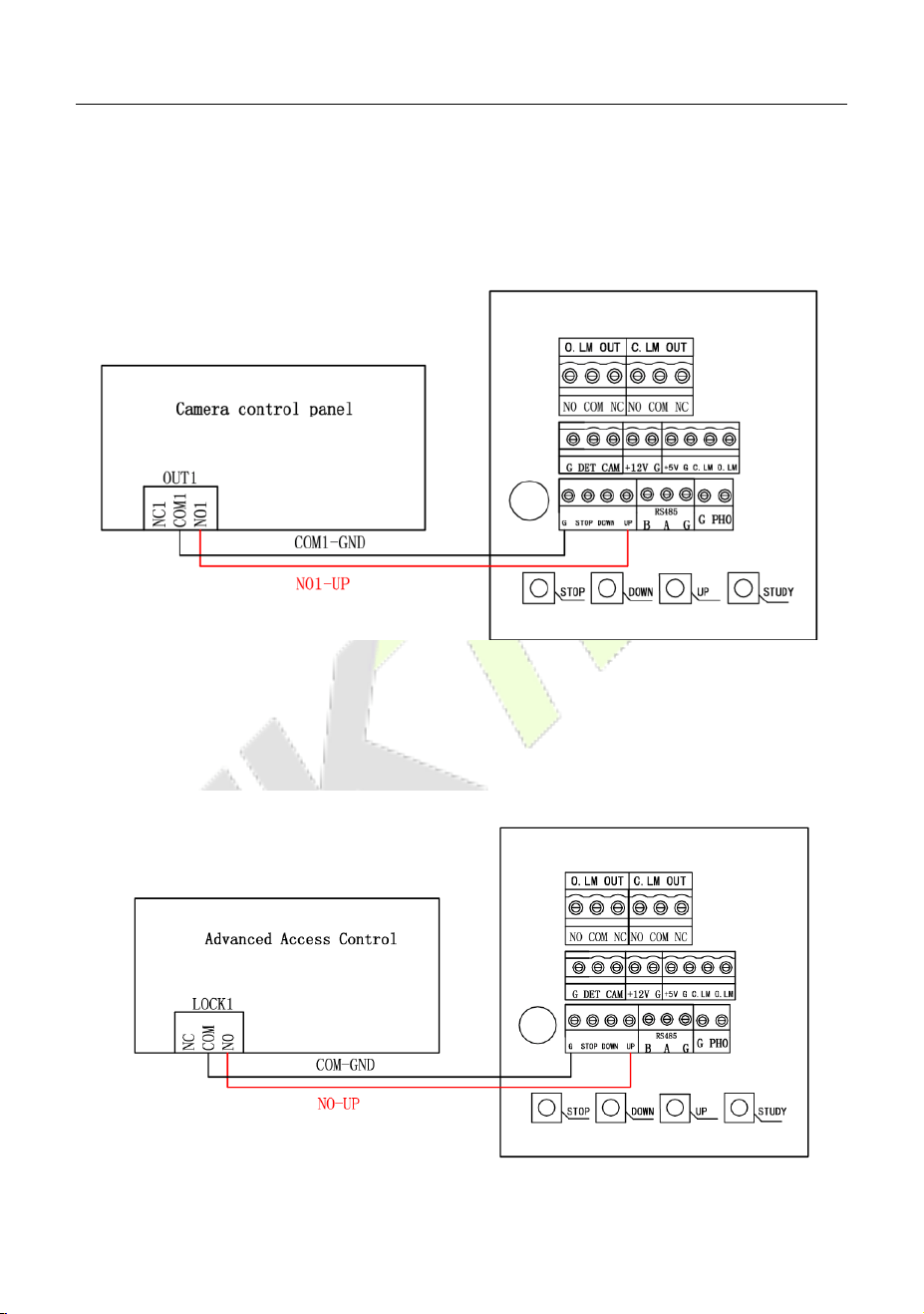

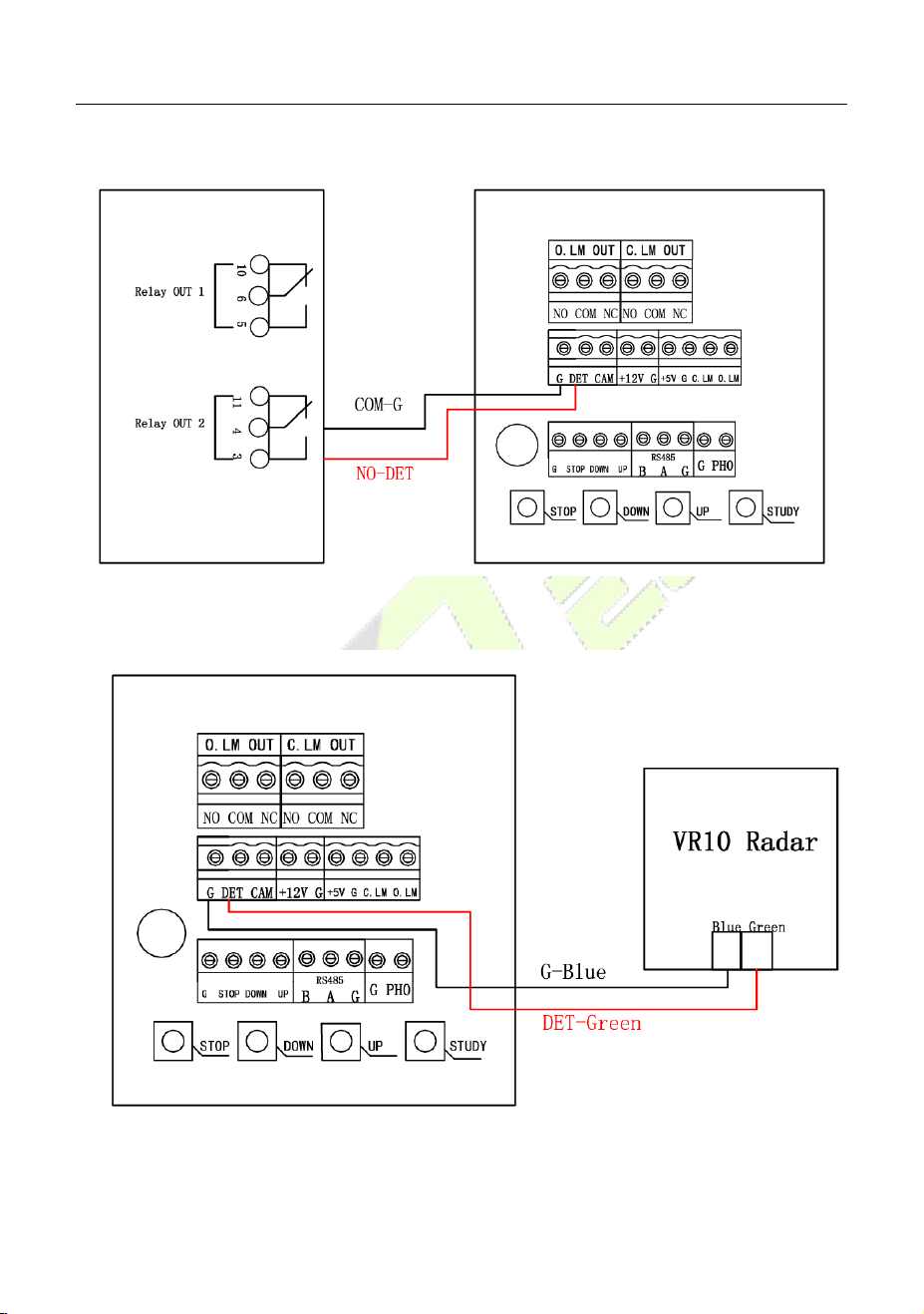

7 CONTROL BOARD WIRING INSTALLATION ................................ 15

8 COMMISSIONING INSTRUCTIONS ............................................. 20

9 TROUBLESHOOTING ................................................................... 23

CMP200 User Manual

1 Product Introduction

The Automatic Barrier Gate CMP200 series is a modern barrier gate

technology combined with the practical implementation of automated

barrier gate products in the industry. This product’s appearance and structure

design are adapted to the market, and the industry requirements and the

traffic light indication has the humanized experience. As an economical

automatic barrier gate device, the user can adjust the telescopic straight

boom according to the actual requirement to meet various application

scenarios.

Note: The intensivity of the product is 30% "low intensivity", it is suitable for

places where traffic flow and people flow are not dense.

2 What is in the box

The box comes with;

• The barrier gate*1

• The boom*1

• The remote control*2

• The barrier fixed screw*4

• The boom fixed plate*1

• The boom fixed screw*2

• The key*2

• The user manual*1

CMP200 User Manual

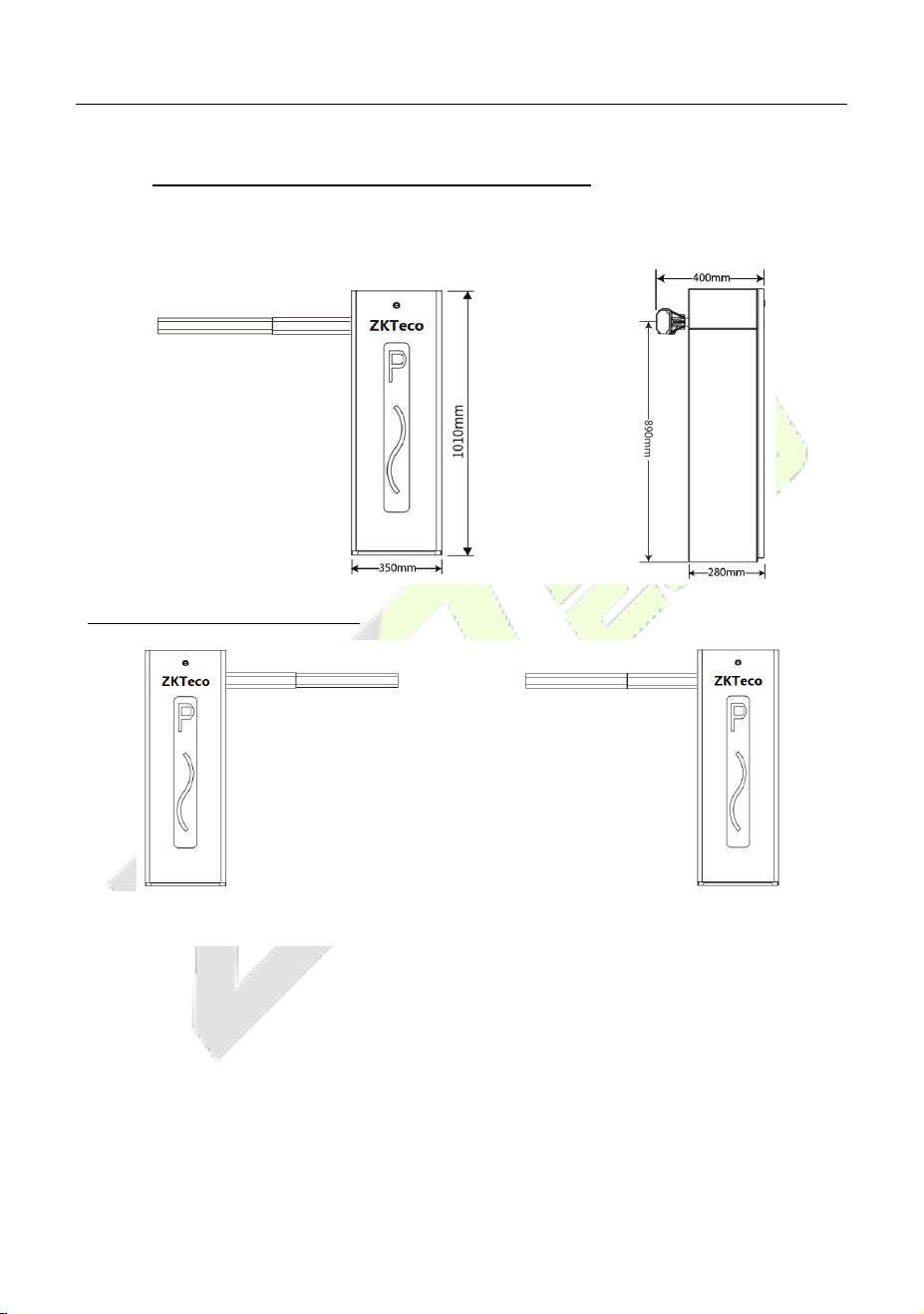

Appearance and Dimensions 2.1

Left and Right Cabinet View

L: The cabinet on the left R: The cabinet on the right

CMP200 User Manual

3 Product Installation

Installation Precautions 3.1

• Install the parking barrier on level ground. If the ground is not firm and

steady, then a cement base is required before installation.

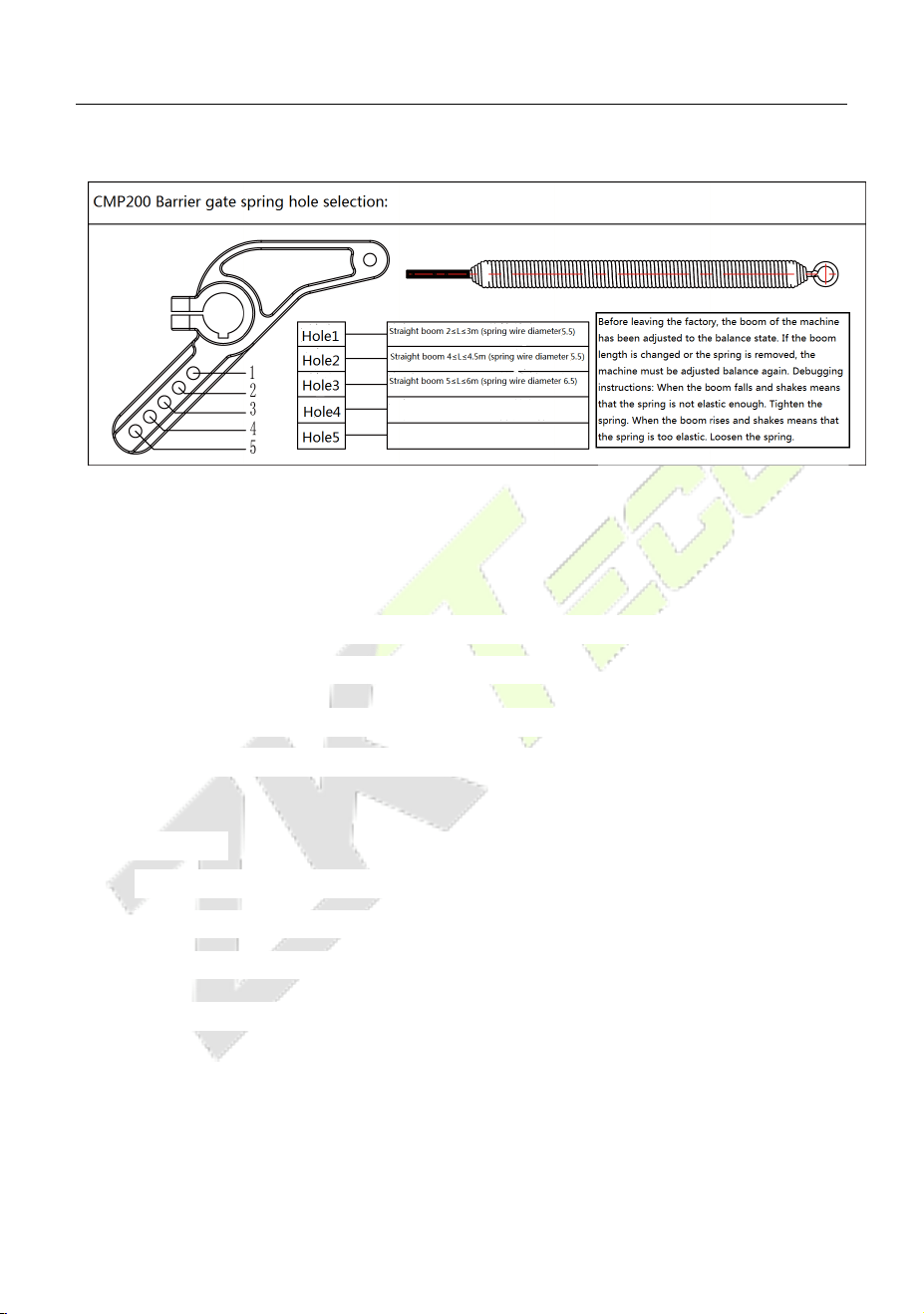

• The boom can be cut, but cannot be increased. Cut the boom to the

required length, and then set the spring to balance and achieve the new

height. Two plastic nuts that lie in the bottom of the spring is designed

for adjusting the new balance.

• Do not change the wire connection inside when the power is on.

• The GND should be connected to the cabinet for secure protection.

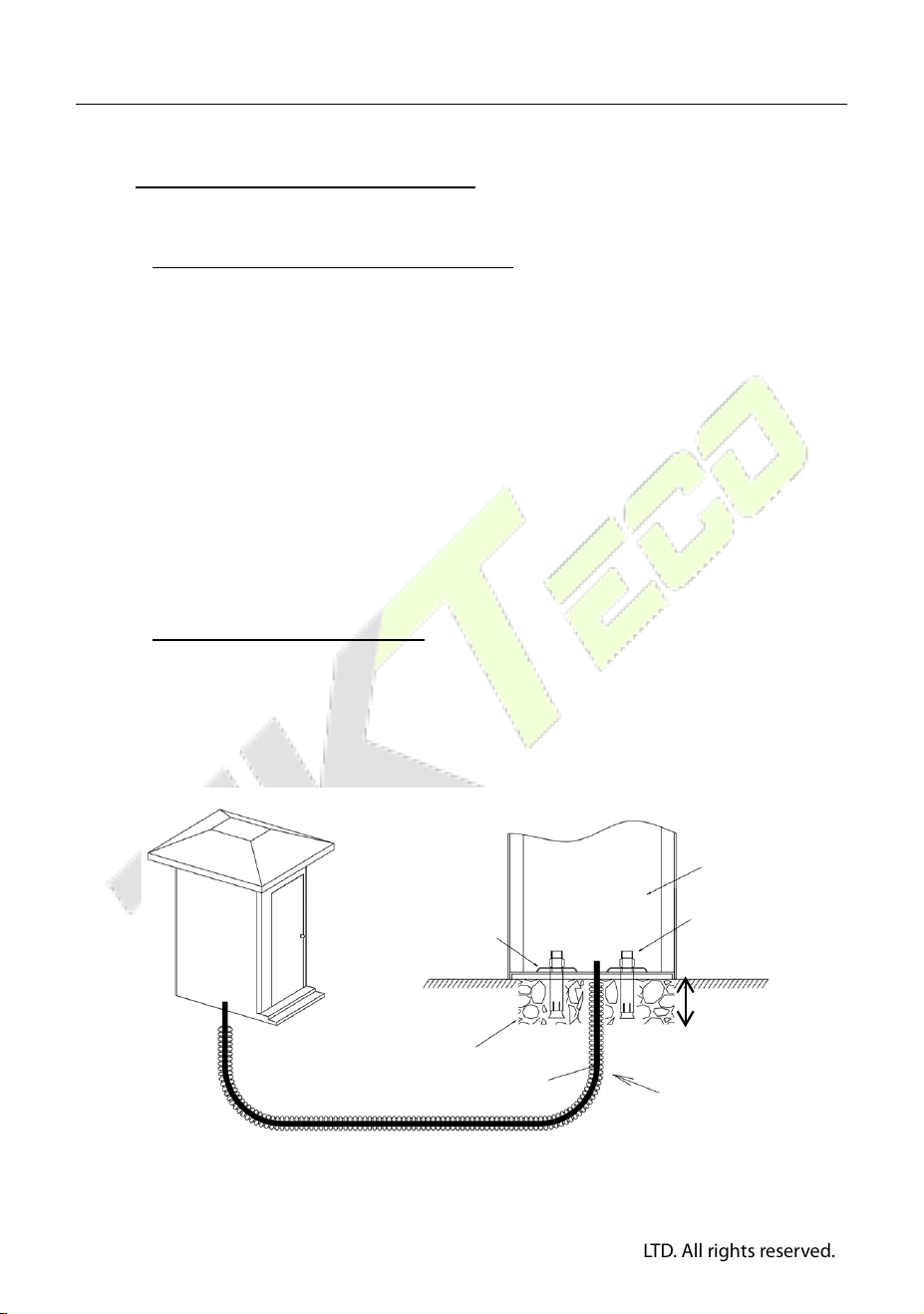

Cable Embedding 3.2

• Prepare φ25 protective sleeve and cable in advance.

• Route the cables to be connected through the protective sleeves.

• Use a tool to open the cable board in the ground.

Control

room

Screw pad

Ground

Cabinet

Expansion bolt

4-M12

Ground

Base concrete

A standard power wire RVV3*1.0

Signal line RVV4*0.5

The power wire is wrapped

and protected using the

wire sleeve when laid out

under the ground (the

strong current should be

separated from the weak

current)

Minimum 800mm

CMP200 User Manual

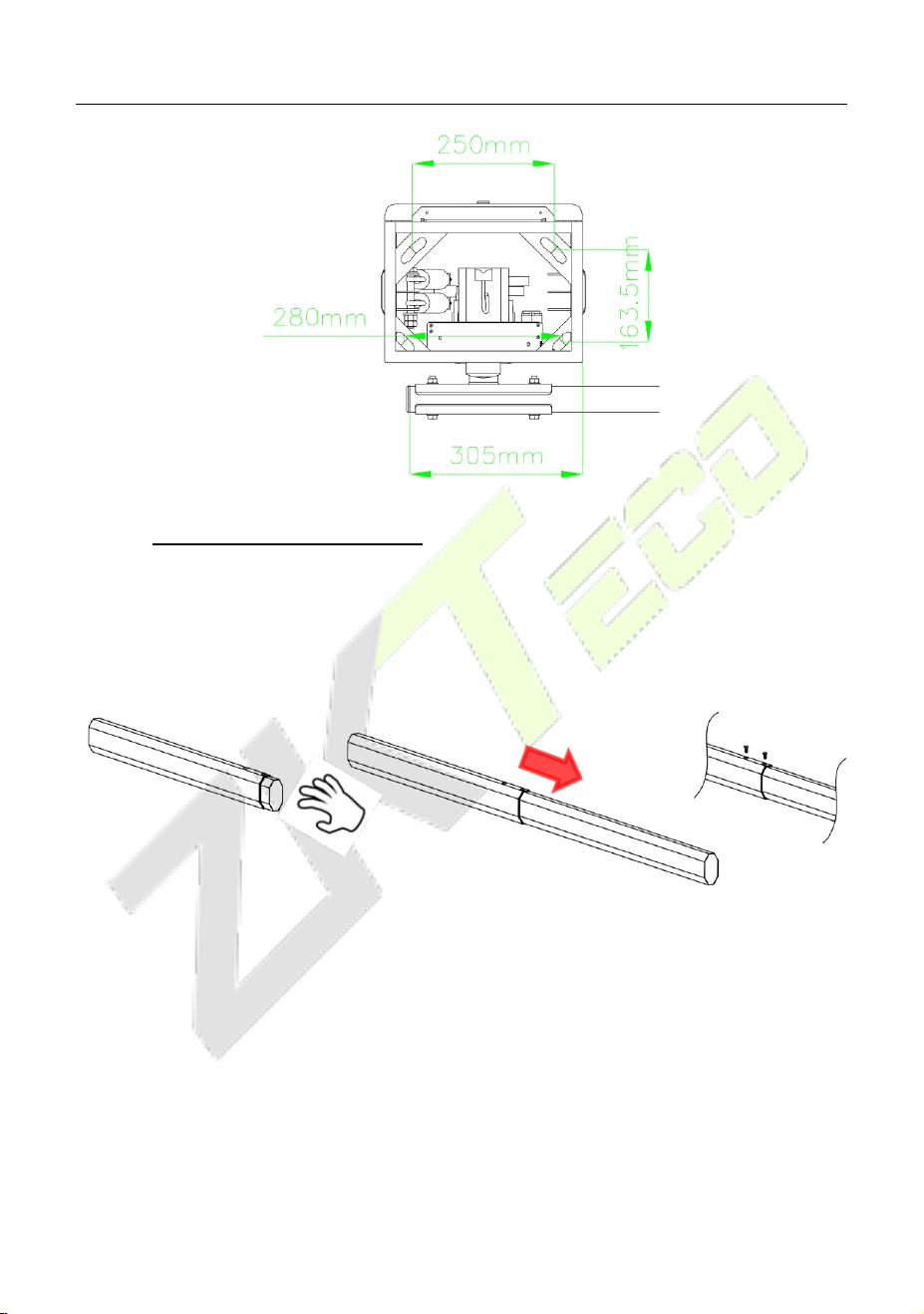

Boom Installation 3.3

Boom Installation Procedure

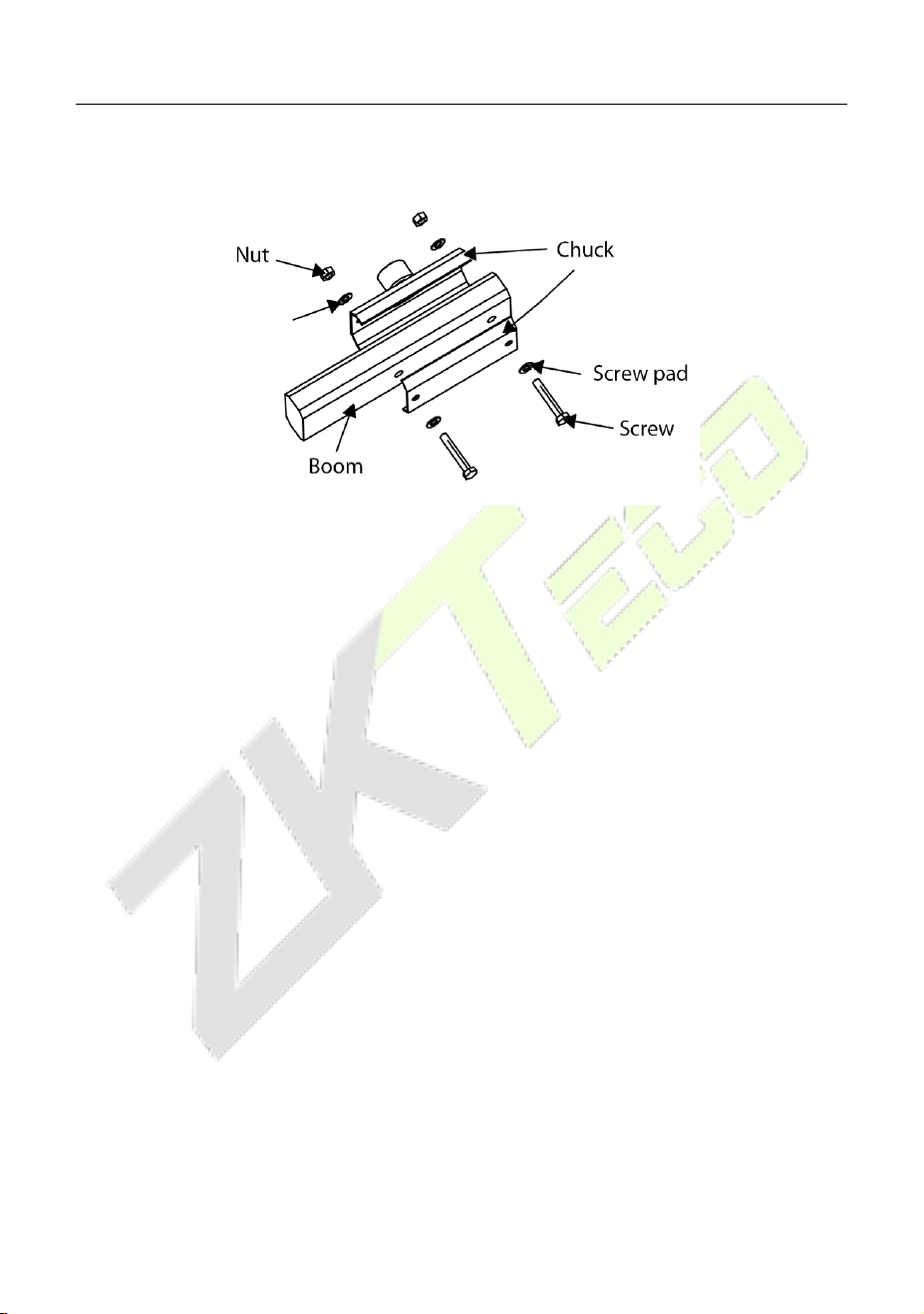

• Pull the barrier arm out from the main boom, and then fasten it with 2

screws as shown in Figure 1.

Figure 1 Connect the main boom with vice together by 2 screws

CMP200 User Manual

• Install the boom to the chassis (the frame), as shown in Figure 2.

Figure 2 Installing the Boom to the Chassis

CMP200 User Manual

4 Technical Parameters

Power adaptability

Input voltage AC 220V/110V±20%, 50/60Hz

Rated power

100W

Max power

120W

Remote control

distance

Open field≤30m

Remote control

frequency

430MHZ, Learning code

Chassis material

Cold gadolinium steel plate

Boom material

Aluminum

Working

temperature

-25

℃

~+75

℃

Working humidity

<90%RH (no condensation)

Protection grade

IP54

Shell size (W*D*H)

1010*350*280 (mm)

Package size

(W*D*H)

1100*375*430 (mm)

Chassis net weight

45KG

Chassis gross

weight

47KG

Boom type

(The mainboard is

the same)

Telescopic straight boom, boom length≤4.5m, red

and white color, the rise/fall speed is 3s

Telescopic straight boom, boom length: 4.5m~6m,

red and white color, the rise/fall speed is 6s

CMP200 User Manual

5 Functions

• The opening and closing angles are 90°±2°.

• Up, Down and Stop operations interfaced with standard switch input.

• Anti-smash function: Supports loop detector, infrared detector, and

radar functions.

• Controller timeout protection: When the boom operation is abnormal

and exceeds the rise and fall time, the boom will stop the operation

automatically.

• The barrier gate can be controlled by wireless remote control and wired

control buttons to meet the needs of different field applications.

• It supports traffic lights with AC voltage and DC voltage of 5V or 12V.

• Mainboard built-in fuse, secure from overvoltage.

• Supports the connection of LPR, UHF reader controller, and other

devices to recognize and control the automatic door opening.

CMP200 User Manual

6 Movement Transmission Structure

CMP200 User Manual

7 Control Board Wiring Installation

• Remove the wiring cover of the barrier gate main controller.

• Refer to the wiring diagram of the barrier gate controller and connect

the lines one by one firmly. (Note: Power must be disconnected before

installation or maintenance.)

• After checking and confirming reliable wiring, install the wiring cover

back.

• Install the Desktop Remote Control: Place the Desktop Remote

Control on the table in the guard room or attach it to the wall and

plug-in the power.

The wiring diagram of the controller is as follows:

CMP200 User Manual

• Connect to the LPR camera:

• Connection with the UHF controller.

Note: The Reader1 and 2 of the inbio260 controller are corresponding to

LOCK1, Reader3, and 4 are corresponding to LOCK2.

CMP200 User Manual

• Connection with the loop detector.

• Connection with VR10 radar

CMP200 User Manual

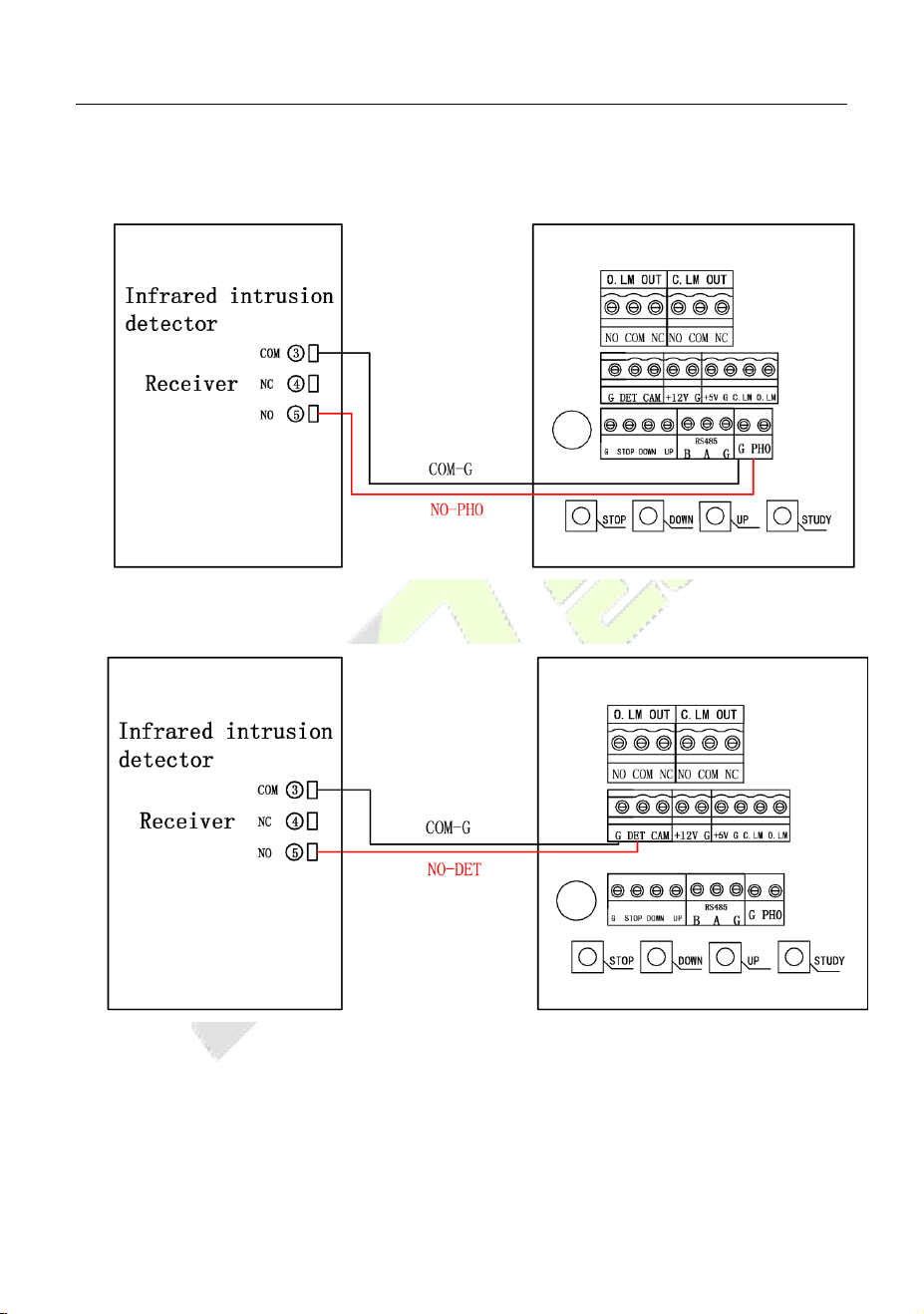

• Connection with the infrared detector

(Only Anti-smash function):

(Anti-smash and auto closing function):

CMP200 User Manual

8 Commissioning Instructions

1) Check all the connections and make sure the connections are correct

before connecting the power.

Please use the remote control or press the switch button on the

mainboard to test whether the machine is running normally.

Warning: Be sure to install the corresponding length of the boom

before the power-on test. To avoid accidents, no one is allowed to stand

under the boom during testing.

In the process of boom falling, short connect the infrared detector and

public interface, so that the falling boom will start rising immediately,

and will stop automatically after the rising limit. This is mimic the effect

of infrared detectors.

5) In the process of boom falling, short connect the loop detector and

public interface, the falling boom is transferred to rising immediately,

which will fall automatically after the rising limit and stop automatically

after the falling limit. In the process of boom rising, short connect the

loop detector and public interface, the boom will fall automatically after

the rising limit and stop automatically after the falling limit. In the open

state, short connect the loop detector and public interface; the boom

will automatically fall to the limit and stop.

This is imitate the effect of

the loop detector.

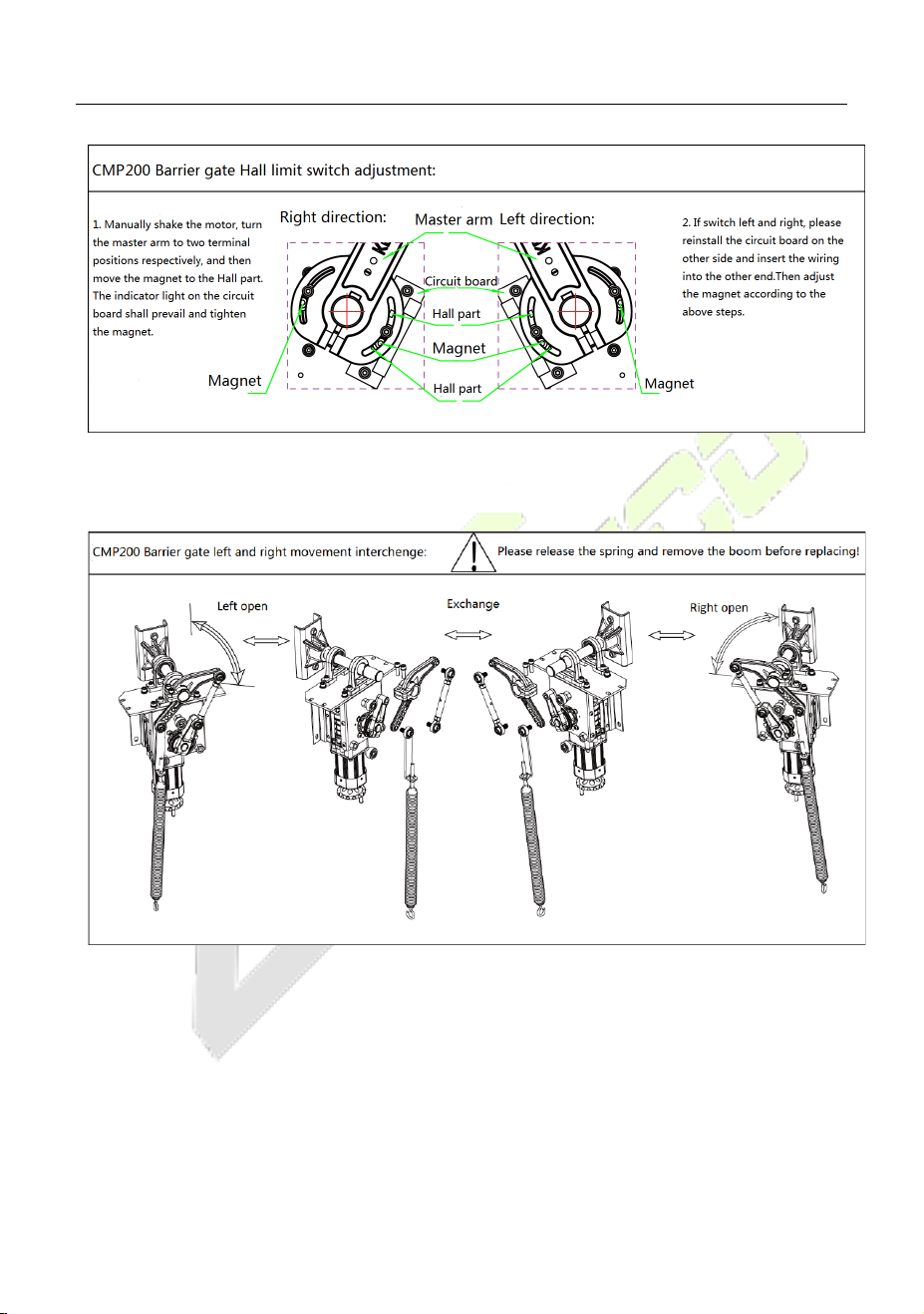

6) Barrier gate Hall limit switch adjustment:

CMP200 User Manual

7) Left and right movement interchange method:

CMP200 User Manual

8) Barrier gate spring and the corresponding boom length type:

9) Study/Delete Remote Control Code

Study code:

• In the Stop state, press the “Study” button on the main controller until

the REMOTE indicator is ON and then release it.

• Then press any button on the remote control, the REMOTE indicator

turns OFF. In this process, the code of studying will be completed.

Delete code:

• To process the Code deletion, in the STOP state, press the Study button

on the main controller until the REMOTE indicator is ON, continue to

press the ‘Study’ button, and hold on until the REMOTE indicator is OFF.

• Note: All the codes will be deleted in this process).

Note: One barrier can only study to 20 remote controls. The matching remote

control will be studied already, and there is no need to read again.

CMP200 User Manual

9 Troubleshooting

No.

Troubles Fault Cause Solution

The POWER indicator is not

on, and the button is not

responding.

1) The power supply

is not connected.

2) The fuse blew off.

1) Connect the

power.

2) Replace the

fuse.

The POWER indicator is on,

no response by remote

control.

1) The remote

control code is

wrong.

2) Poor receiving

module.

3) The same

frequency

interference exists.

1) Recode.

2) Replace the

receiving

module.

3) Change to

other

frequencies.

The POWER indicator is on,

the boom UP and DOWN

indicator is normal, the

motor is not running.

1) The motor wire is

open or incorrectly

connected.

2) The motor is stuck.

1) Connect the

motor wire.

2) Manual release

motor.

Unable to rise or fall boom

to limit.

1) The limit line is

misconnected.

2) Limit switch is

broken.

1) Reconnect the

rising and falling

limit line.

2) Replace limit

switch.

The remote control handle

is not responding.

1) The battery of the

handle is low.

2) Handle broken.

1) Replace

battery.

2) Replace the

handle.

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

ZKTeco CMP200

Product's Documents

PDF CMP 200 User Manual User Manual 2.12MB 2022-03-02

Specifications

ZKTeco CMP200 Questions and Answers
