I
mportant!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the product.
Subject to technical modifications.
4
4
1
4
2
3
8
5
6
7
9
1. Front handle
2. Lock on button
3. Trigger
4. Main handle
5. Vacuum cleaner hose
6. Battery port
7. Sanding belt adjustment knob
8. Speed selector
9. Sanding belt release lever
5
5
VI
I II
IV
III
V
10
6
6
I
1.
2.1.
2.
7
7
I
78-100 %
33-54 %
55-77 %
10-32 %
<10 %

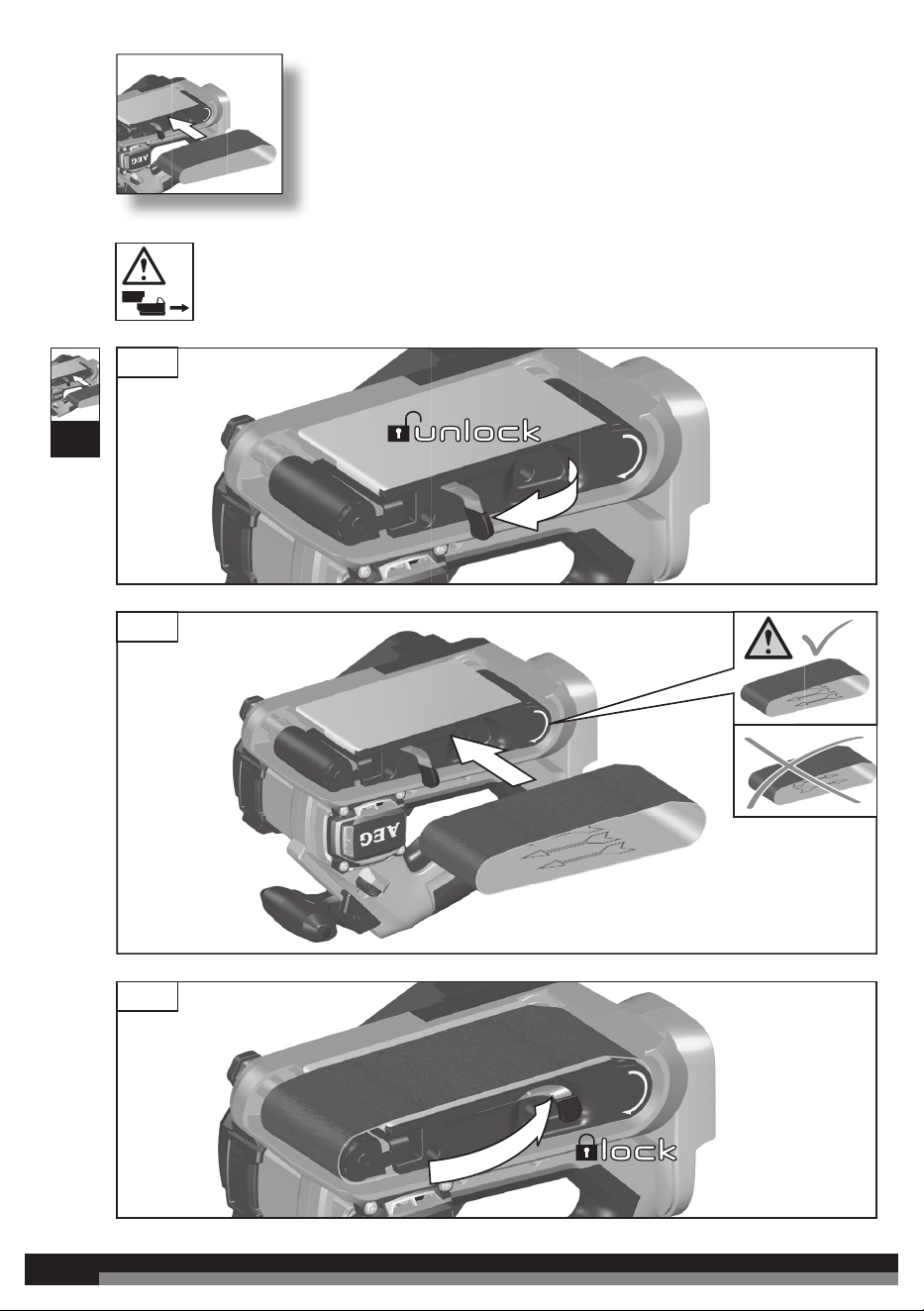

8
8
II
1.
2.
3.

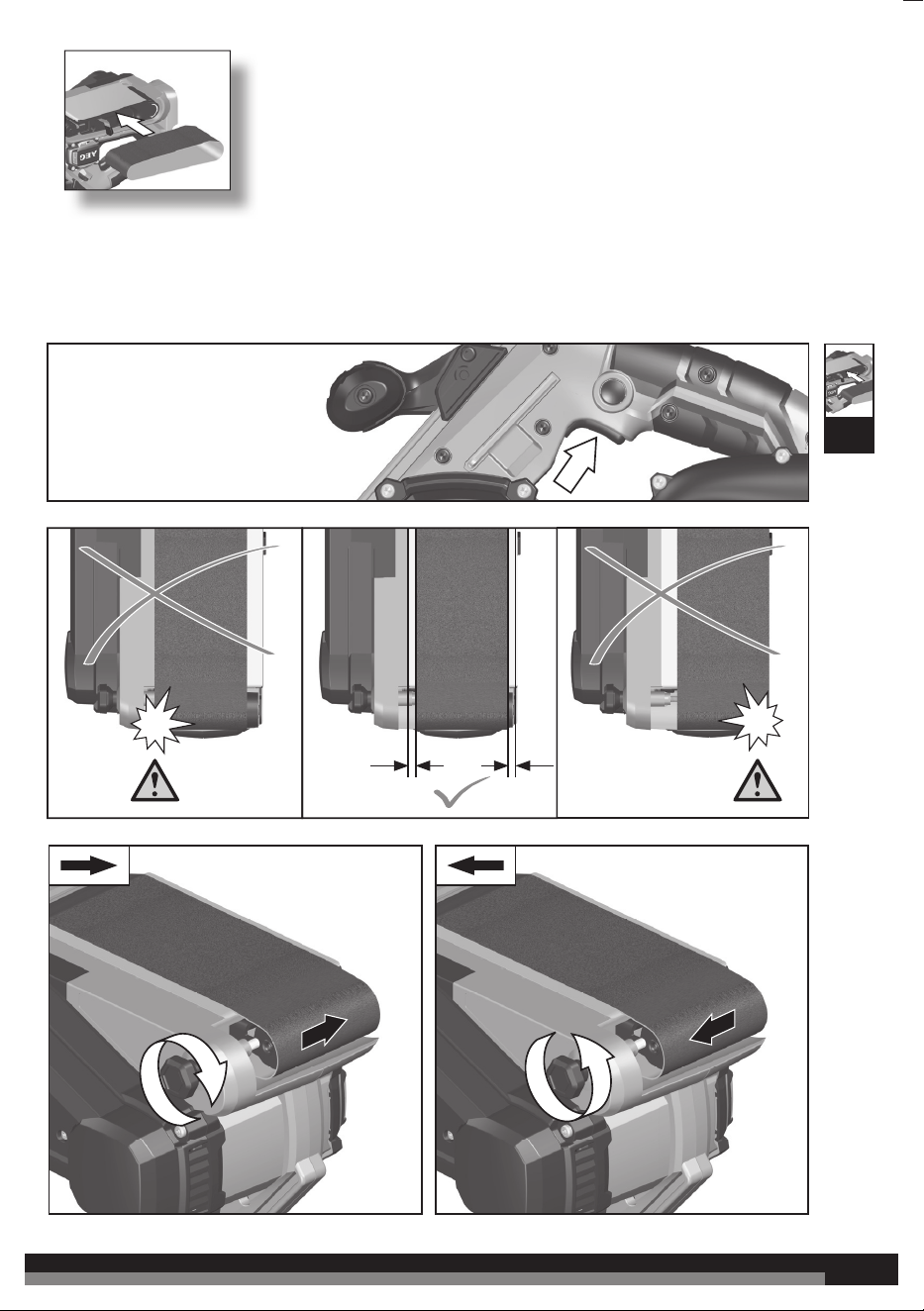

9
9
II
=
Press the trigger and wait one second.

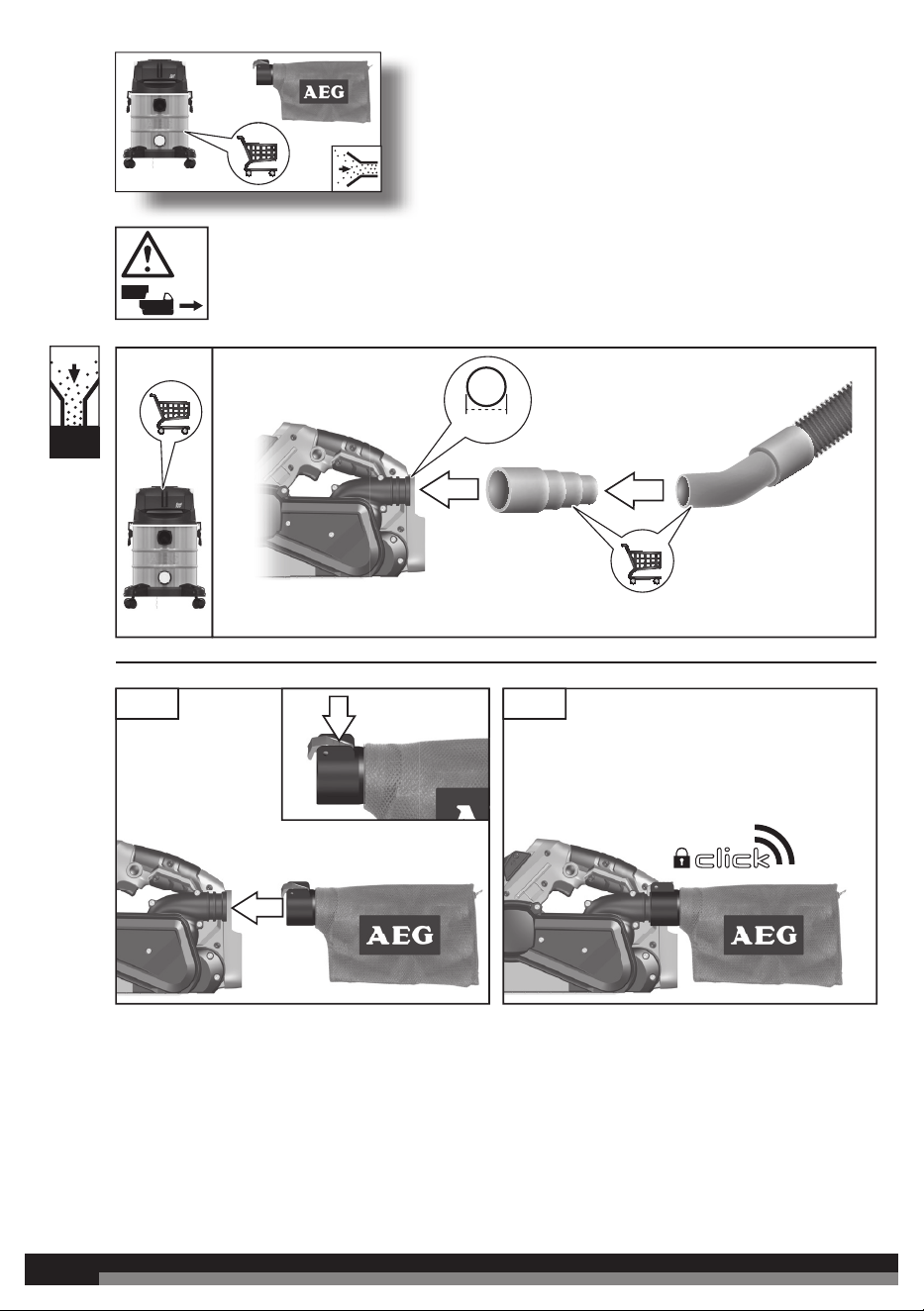

10
10
III
1. 2.
2
1
AP218E
AP218E
The dust port adaptor and hose are not included with the belt sander.
36.8 mm

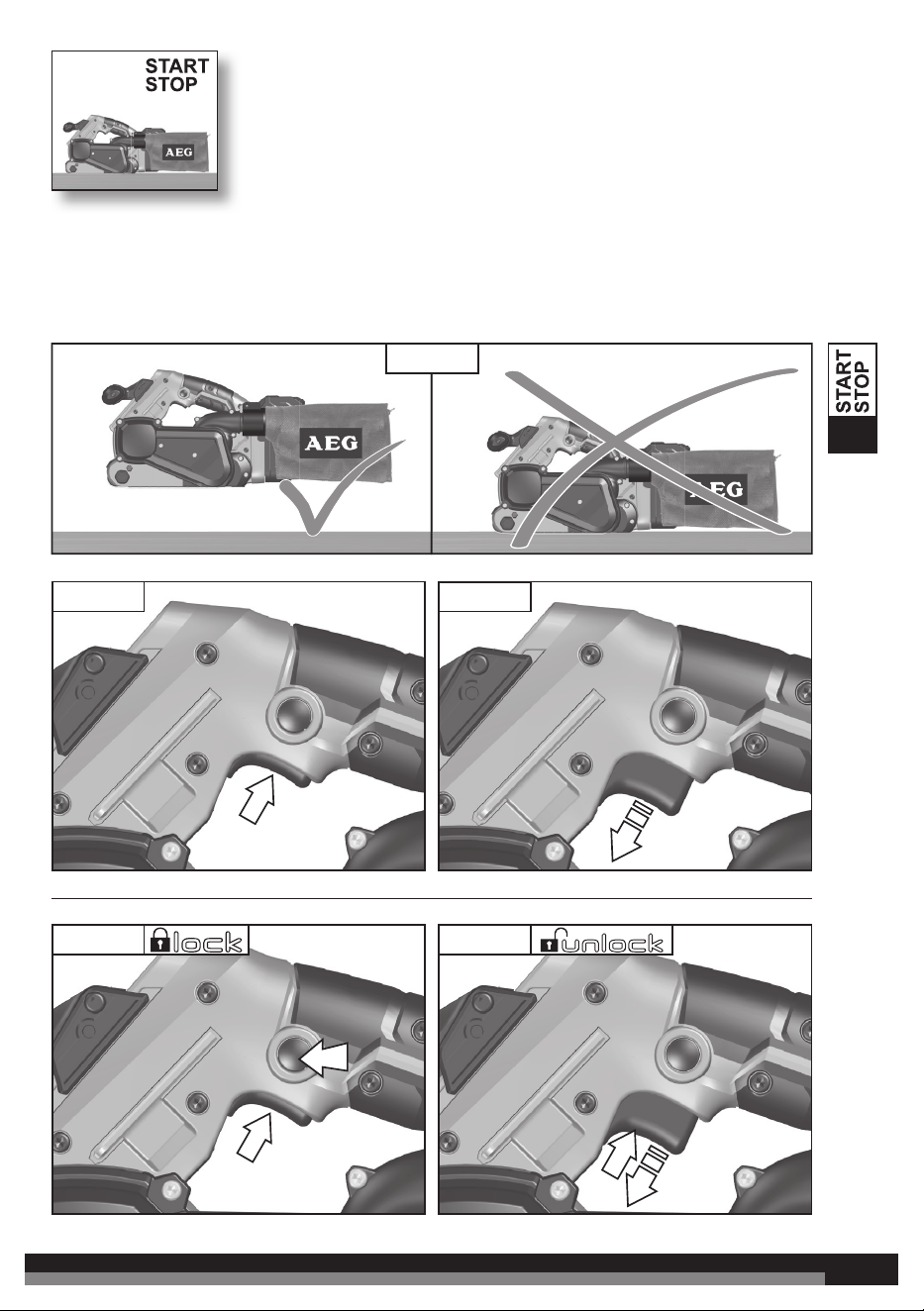

11
11
IV
STOP
START STOP
1
2
2
1
START
START
12
12

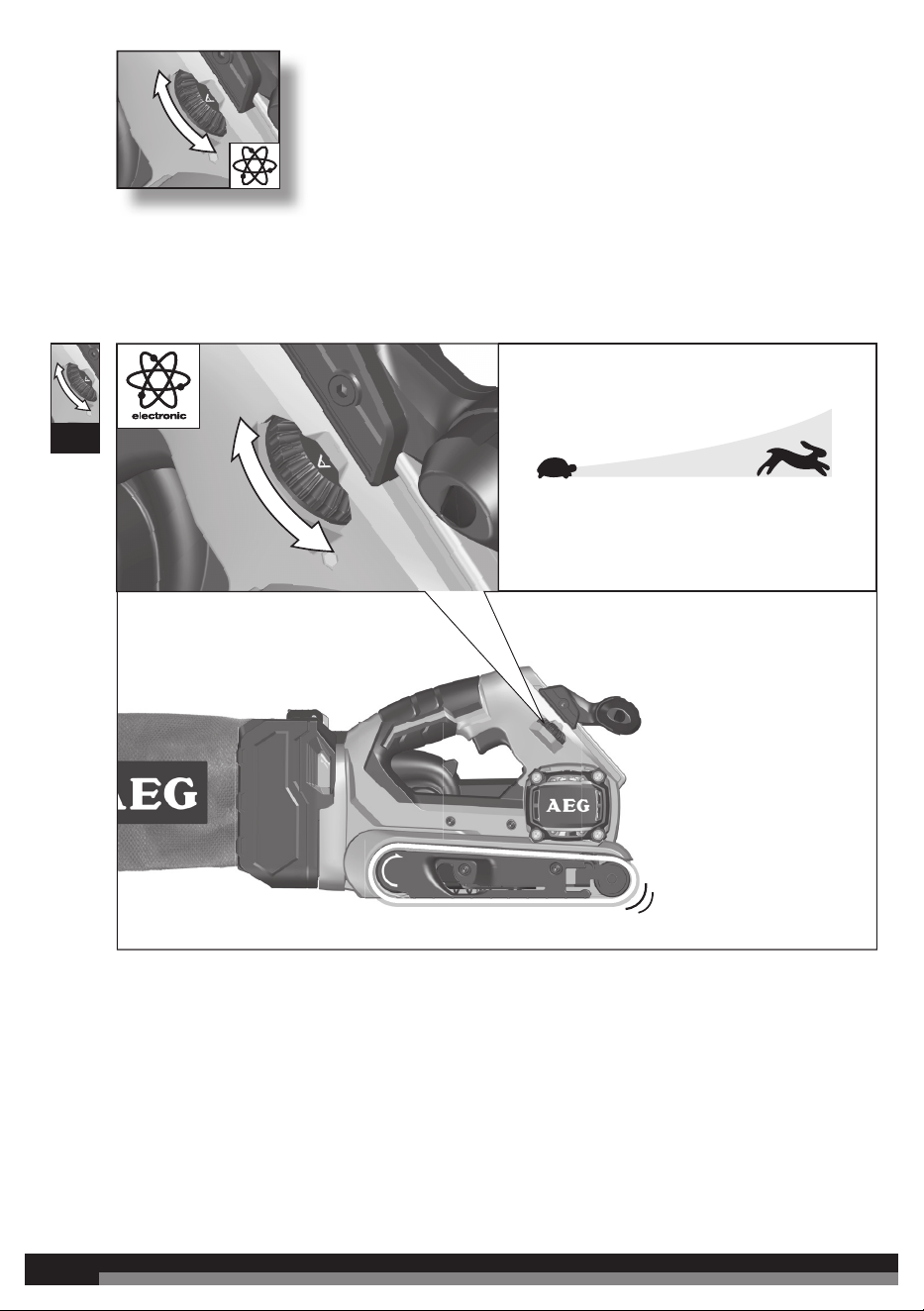

VII
A...B...C...D...E...F
13
13
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
HOHFWULF VKRFN ¿UH DQGRU VHULRXV LQMXU\ Save all warnings and
instructions for future reference.
BELT SANDER SAFETY WARNINGS
Always wear safety goggles and a dust mask.
A suitable breathing respirator must be worn while sanding
lead paint, some woods and metal to avoid breathing the
harmful/toxic dust or air.
The product is not suitable for wet sanding.
Do not use sanding belt larger than needed.
Wear ear protectors. Exposure to noise can cause hearing
loss.
Do not reach into the product while it is running.
Chips and splinters must not be removed while the product
is running.
The dust produced when using the product may be harmful to
health. Do not inhale the dust. Use a dust absorption system
and wear a suitable dust protection mask. Remove deposited
dust thoroughly, e.g. with a vacuum cleaner. (The dust port
adaptor and hose are not included with the belt sander.)
Do not machine any materials that present a danger to health
(e.g. asbestos).
:KHQ VDQGLQJ PHWDO À\LQJ VSDUNV DUH SURGXFHG 7DNH FDUH
that no persons are endangered. Because of the danger of
¿UHQRFRPEXVWLEOHPDWHULDOVVKRXOGEHORFDWHGLQWKHYLFLQLW\
VSDUNÀLJKW]RQH'RQRWXVHGXVWH[WUDFWLRQ
Do not let any metal parts enter the airing slots - danger of
short circuit!
BATTERIES
New battery packs reach full loading capacity after 4 - 5 chargings
and dischargings. Battery packs which have not been used for
some time should be recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance
of the battery pack. Avoid extended exposure to heat or sunshine
(risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully charged,
after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below 27°C
and away from moisture.
Store the battery packs in a 30% - 50% charged condition.
Every six months of storage, charge the pack as normal.
SPECIFIED CONDITIONS OF USE
The belt sander can be used for sanding wood, plastics and metal.
The product is suitable only for dry sanding.
OPERATION
'R QRW RSHUDWH WKH SURGXFW ZLWKRXW D SURSHUO\ WUDFNHG DQG ¿WWHG
belt. An incorrectly tracked belt may come off the product and cause
personal injury or damage to the sander.
Secure the workpiece with a vice or clamp to a suitable work bench.
This helps to prevent the workpiece from becoming a thrown object.
Use the supplied handles to hold and control the product with both
hands.
Do not force the product. Use the correct product for your
application. The correct product will do the job better and safer at
the rate for which it was designed.
Do not apply excessive pressure to the product. Let the weight
of the product apply the correct pressure and use your hands to
guide the sander. Excessive pressure will overload the product and
damage the motor. Applying more pressure will not remove more
PDWHULDODQGZLOOUHGXFHVDQGLQJHI¿FLHQF\LQVWHDG
Change the sanding belt often to maintain the product’s ability to
effectively remove material.
Start the product using the trigger switch and allow the belt to gain
the correct speed. Then lower the belt onto the workpiece. Hold the
product securely in both hands because the movement of the belt
will drive the product forwards.
Choose a belt of the correct size and appropriate roughness for the
task. Use belts with a lower grit number for removing more material,
TECHNICAL DATA BELT SANDER
BHBS18B
Rated voltage 18 V
No-load speed PPLQ
Sanding belt size 75 x 457 mm
Dimensions of sanding plate 89 x 151 mm
Weight - not including battery pack 2.94 kg
Vacuum cleaner hose diameter 36.8 mm
BATTERY AND CHARGER
Compatible battery pack
(not included)
Compatible charger
(not included)
L1815R
L1820R
L1825R
L1830R
L1840R
L1850R
L1860R
AL1218G
BL1218
BLK1218
BL18DP-X5
Use AEG 18V battery and charger only
14
14
KLJKHUJULWQXPEHUIRUUHPRYLQJOHVVPDWHULDODQGIRUD¿QHU¿QLVK
Replace the belt if it becomes damaged, clogged with debris or is
worn.
It is normal to sand and move the product back and forth along
the grain of the material. Sanding across the grain will work, but
produces a scratched and damaged surface.
WARNING
Dust from certain paints, coatings, and materials may cause
irritation or allergic reactions to the respiratory system. Dust from
wood, such as oak, beech, MDF, and others are carcinogenic.
Materials containing asbestos should only be worked or
SURFHVVHGE\TXDOL¿HGVSHFLDOLVWRSHUDWRUV
Use the dust collector or connect the dust port to a vacuum device
to reduce risks associated with dust particles.
All persons within the work area or nearby should wear dust masks
which offer appropriate protection.
Always wear safety goggles or safety glasses with side shields
during operation.
WARNING
Injuries may be caused, or aggravated, by prolonged use of a
tool. When using any tool for prolonged periods, ensure you take
regular breaks.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
Ŷ The user can transport the batteries by road without further
requirements.
Ŷ Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately.
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
Ŷ Ensure that battery contact terminals are protected and
insulated to prevent short circuit.
Ŷ Ensure that battery pack is secured against movement within
packaging.
Ŷ Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life. Under extreme stress the
battery electronics switch off the product automatically. To restart,
switch the product off and then on again. If the product does not
start up again, the battery pack may have discharged completely. In
this case it must be recharged in the battery charger.
MAINTENANCE
Remove the battery pack before starting any work on the product.
Always remove the sanding belt from the product before cleaning.
Failure to do so could cause serious personal injury.
$IWHUHDFK XVH UHPRYH WKHEHOWDQG GXVW FROOHFWRU LI¿WWHG&OHDQ
the product thoroughly with a brush, dry cloth and vacuum cleaner.
WARNING
Do not use compressed air to blow dust from the product to
prevent serious eye injury.
The ventilation slots of the machine must be kept clear at all times.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
JXDUDQWHHVHUYLFHDGGUHVVHV
If needed, an exploded view of the tool can be ordered. Please state
the Article No. as well as the machine type printed on the label and
order the drawing at your local service agents or directly at:
Techtronic Industries (Australia) Pty. Ltd.
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 361 505
Australia
Techtronic Industries N.Z. Ltd.
PO Box 12-806
Penrose AUCKLAND 1642
Tel no. 0800 279 624
New Zealand
SYMBOLS
Safety alert
No-load speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Please read the instructions carefully before
starting the machine.
Wear ear protection
Wear eye protection
Do not dispose of electric tools together with
household waste material. Electric tools and
electronic equipment that have reached the end of
their life must be collected separately and returned
to an environmentally compatible recycling facility.
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere
Auckland, 2022, New Zealand
961096311-01A
