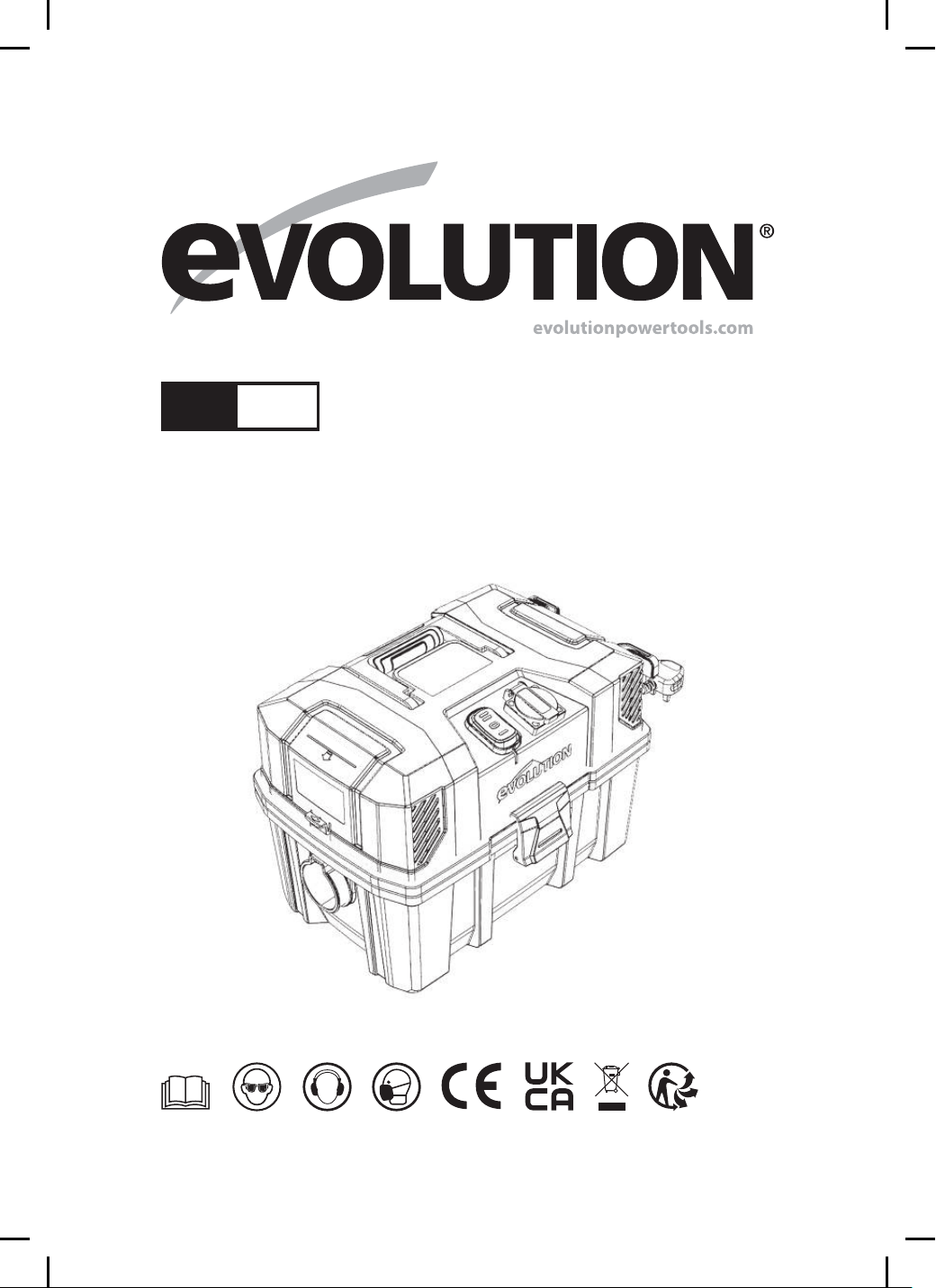

Evolution 086-0001 R15VAC Wet & Dry Workshop Vacuum Cleaner User Manual

Original written in UK English Date Published: 18/08/2020

GB2438285

VAC

R15

Original Instructions

Original-Anleitung

Instrucciones Originales

Instructions Originales

Istruzioni Originali

Oryginalna Instrukcja

Originele Instructies

Instrucțiuni Iniţiale

www.evolutionpowertools.com

This Instruction Manual was originally

written in English.

IMPORTANT

Please read these operating and safety

instructions carefully and completely.

For your own safety, if you are uncertain

about any aspect of using this equipment

please access the relevant Technical Helpline,

the number of which can be found on the

Evolution Power Tools website. We operate

several Helplines throughout our worldwide

organisation, but Technical help is also

available from your supplier.

WEB: www.evolutionpowertools.com

GUARANTEE

Congratulations on your purchase of an

Evolution Power Tools Machine. Please

complete your product registration

‘online’ as explained in the A4 online

guarantee registration leaflet included

with this machine. You can also scan the

QR code found on the A4 leaflet with

a Smart Phone. This will enable you to

validate your machine’s guarantee period

via Evolutions website by entering your

details and thus ensure prompt service if

ever needed. We sincerely thank you for

selecting a product from Evolution Power

Tools.

Evolution Power Tools reserves the right

to make improvements and modifications

to the product design without prior

notice.

Please refer to the guarantee registration

leaflet and/or the packaging for details

of the terms and conditions of the

guarantee.

Evolution Power Tools will, within the

guarantee period, and from the original

date of purchase, repair or replace any

goods found to be defective in materials

or workmanship. This guarantee is void

if the machine being returned has been

used beyond the recommendations in the

Instruction Manual or if the machine has been

damaged by accident, neglect, or improper

service. This guarantee does not apply

to machines and / or components which

have been altered, changed, or modified

in any way, or subjected to use beyond

recommended capacities and specifications.

Electrical components are subject to

respective manufacturers’ warranties. All

goods returned defective shall be returned

prepaid freight to Evolution Power Tools.

Evolution Power Tools reserves the right to

optionally repair or replace it with the same

or equivalent item. There is no warranty –

written or verbal – for consumable accessories

such as (following list not exhaustive) blades,

cutters, drills, chisels or paddles etc. In no

event shall Evolution Power Tools be liable

for loss or damage resulting directly or

indirectly from the use of our merchandise or

from any other cause. Evolution Power Tools

is not liable for any costs incurred on such

goods or consequential damages. No officer,

employee or agent of Evolution Power Tools

is authorised to make oral representations of

fitness or to waive any of the foregoing terms

of sale and none shall be binding on Evolution

Power Tools.

Questions relating to this limited

guarantee should be directed to the

company’s head office, or call the

appropriate Helpline number.

WARNING: This appliance can be used by

children aged from 8 years and above and

persons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

WARNING: If the supply cord is damaged,

it must be replaced by the manufacturer, its

service agent or similarly qualified persons in

order to avoid a hazard.

www.evolutionpowertools.com

WARNING: Use only extension cords that are

rated for outdoor use. Extension cords in poor

condition or that are too small in wire size can

pose fire and shock hazards. To reduce the

risk of these hazards when using an extension

cord, be sure it is in good condition and that

the connection does not come into contact

with liquid.

MACHINE SPECIFICATIONS R15VAC

Product Code UK/EU 086-0001, 086-0003

Motor EU/UK (220-240V ~ 50Hz) 1000W

For socket Max 1700W

Total Power Input 2700W

Tank capacity 15litre

Hose length 1.8m

Cable length 3m

Gross weight 6.4kg

Net weight 5.23kg

Airflow 42.5L/S

NOISE & VIBRATION DATA

Sound Pressure L

A 73.4

Sound Power Level L

A 87. 4

Noise Level dBA 80

MACHINE SPECIFICATIONS

www.evolutionpowertools.com

LABELS & SYMBOLS

WARNING: Do not operate this machine if

warning and/or instruction labels are missing

or damaged. Contact Evolution Power Tools for

replacement labels.

Note: All or some of the following symbols may

appear in the manual or on the product.

SYMBOL DESCRIPTION

V Volts

Hz Hertz

Min

-1

Speed

~ Alternating Current

n Rated Speed

Warning!

Read Instructions

Wear Safety Goggles

Wear Ear Protection

Wear Dust Protection

Wear Safety Gloves

Wear Safety Boots

CE Certification

UKCA Certification

Waste Electrical &

Electronic Equipment

ELECTRICAL SAFETY

This machine is fitted with the correct moulded

plug and mains lead for the designated market.

If the mains lead or the plug are damaged in

any way, they must be replaced with original

replacement parts by a competent technician.

OUTDOOR USE

WARNING

: For your protection if this tool is to

be used outdoors it should not be exposed to

rain, or used in damp locations. Do not place

the tool on damp surfaces. Use a clean, dry

workbench if available. For added protection

use a residual current device (R.C.D.) that will

interrupt the supply if the leakage current to

earth exceeds 30mA for 30ms. Always check the

operation of the residual current device (R.C.D.)

before using the machine. If an extension cable

is required it must be a suitable type for use

outdoors and so labelled. The manufacturers

instructions should be followed when using an

extension cable.

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS &

GROUNDING INSTRUCTIONS

When using an electrical appliance, basic

precautions should be always followed,

including the following: READ ALL

INSTRUCTIONS BEFORE USING THIS

APPLIANCE.

NOTE: Read all safety rules carefully before

attempting to operate. Retain for future

reference.

WARNING: Never operate this unit when

flammable materials or vapors are present

because electrical devices produce arcs or

sparks that can cause a fire or explosion.

NEVER LEAVE OPERATING VACUUM

UNATTENDED!

www.evolutionpowertools.com

WARNING: To reduce the risk of fire, electric

shock, or injury:

• Do not leave appliance when plugged

in. Unplug from outlet when not in

use and before servicing. Connect to

a properly grounded outlet only. See

grounding instructions.

• Do not expose to rain. Store indoors.

• Always disconnect the plug from the

wall outlet before removing the tank

cover.

• Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

• Do not use with damaged cord or

plug. If appliance is not working as it

should, has been dropped, damaged, left

outdoors or dropped into water, contact

service center for assistance.

• Do not pull or carry by cord, use cord

as a handle, close a door on cord or pull

cord around sharp edges or corners.

Do not run appliance over cord. Keep cord

away from heated surfaces.

• Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with

wet hands.

• Do not put any object into openings.

Do not use with any openings blocked;

keep the openings free of dust, lint, hair

and anything that may reduce airflow.

• Keep hair, loose clothing, fingers and

all parts of body away from openings

and moving parts.

• Do not pick up anything that is burning

or smoking, such as cigarettes,

matches or hot ashes.

• Do not use without dust bag and/or

filters in place.

• Turn off all controls before

unplugging.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or

combustible liquids such as gasoline

or use in areas where they may be

present.

• Do not use your cleaner as a sprayer

of flammable liquids such as oil-based

paint, lacquers, etc.

• Do not vacuum toxic, carcinogenic,

combustible or other hazardous

materials such as asbestos, arsenic,

barium, beryllium, lead, pesticides or

other health endangering materials.

• Do not pick up soot, cement, plaster

or drywall dust without filter and dust

bag in place. These are very fine particles

that may affect the performance of the

motor or be exhausted back into the air.

Additional dust bags are available.

• Do not leave the cord lying on the floor

once you have finished the cleaning

job. It can become a tripping hazard.

• Use special care when emptying

heavily loaded tanks.

• To avoid spontaneous combustion,

empty tank after each use.

• The operation of a utility vacuum can

result in foreign objects being blown

into eyes, which can result in eye

damage. Always wear safety goggles

when operating vacuum.

• This appliance is provided with

double insulation. Use only identical

replacement parts. See instructions for

servicing double insulated appliances.

• Unplug before connecting the hose,

nozzles, filters, or other accessories.

NOTE: Use only as described in this manual.

Use only manufacturer’s recommended

attachments.

www.evolutionpowertools.com

SERVICING OF A DOUBLE-INSULATED

WET/DRY VACUUM

In a double-insulated Wet/Dry Vacuum, two

systems of insulation are provided instead

of grounding. This means that no grounding is

provided on a double-insulated appliance,

nor should a means for grounding be added.

Servicing a double-insulated Wet/Dry

Vacuum requires extreme care and knowledge

of the system and should be done only by

qualified service personnel. Replacement parts

for a double-insulated Wet/Dry Vacuum must

be identical to the parts they replace. Your

double-insulated Wet/Dry Vacuum is marked

with the words “DOUBLE INSULATED” and the

symbol (square within a square) may also be

marked on the appliance.

To reduce the risk of injury from electrical

shock:

• This appliance has a polarized plug (one

blade is wider than the other). This plug

will fit in a polarized outlet only one way.

If the plug does not fit fully in the outlet,

reverse the plug. If it still does not fit,

contact a qualified electrician to install

the proper outlet. Do not change the plug

in any way.

• Unplug power cord before servicing the

electrical parts of the Wet/Dry Vacuum.

NOTE: If the supply cord is damaged, it must

be replaced by the manufacturer or its service

agent or a similarly qualified person in order to

avoid a hazard.

NOTE: Remove the plug from the socket before

performing maintenance. Before using the

machine make sure that the frequency and

voltage shown on the rating plate correspond

with the mains voltage. Specifications and

details are subject to change without prior

notice. The accessories shown in the pictures

may vary from model to model.

GETTING STARTED - UNPACKING

Caution: This packaging contains sharp

objects. Take care when unpacking. Remove

the machine, together with the accessories

supplied, from the packaging. Check carefully

to ensure that the machine is in good condition

and account for all the accessories listed in this

manual. Also make sure that all the accessories

are complete. If any parts are found to be

missing, the machine and its accessories should

be returned together in their original packaging

to the retailer. Do not throw the packaging

away; keep it safe throughout the guarantee

period. Dispose of the packaging in an

environmentally responsible manner. Recycle

if possible. Do not let children play with empty

plastic bags due to the risk of suffocation.

ITEMS SUPPLIED

DESCRIPTION QUANTITY

Instruction Manual

Flexible hose

Extension wand

Foam filter (wet)

Crevice nozzle

Gulper nozzle

Cartridge filter

ADDITIONAL ACCESSORIES

In addition to the standard items supplied with

this machine the following accessories are also

available from the Evolution online shop at

www.evolutionpowertools.com or from your

local retailer.

(4.4)

DESCRIPTION PART NO

Foam filter

086-0103

www.evolutionpowertools.com

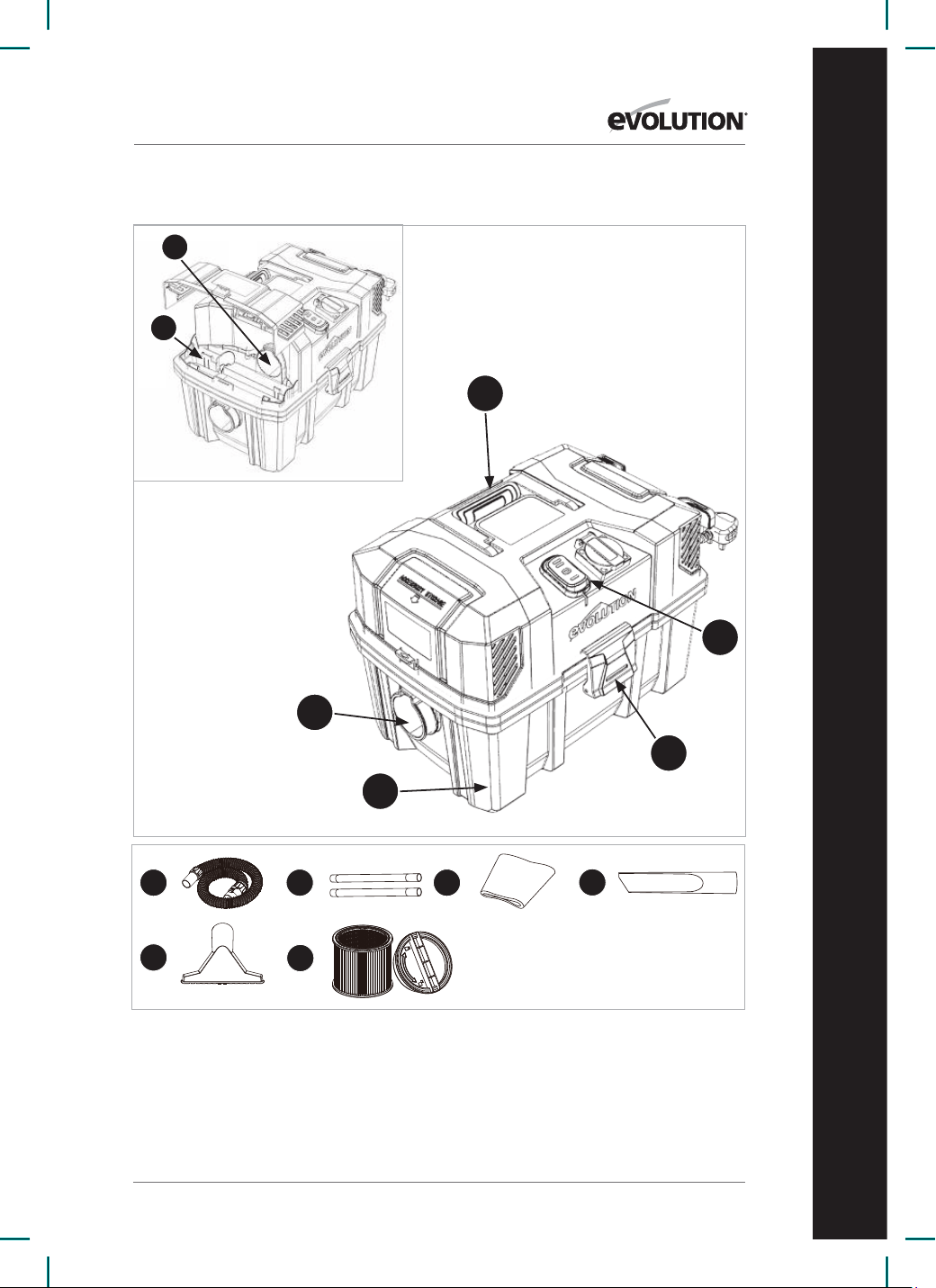

MACHINE OVERVIEW R15VAC

J K L

M N O

1. HANDLE

2. ON/OFF SWITCH

3. LID LATCH

4. VACUUM PORT

5. DUST TANK

6. BLOWING PORT

7. ACCESSORY STORAGE BOX

8. FLEXIBLE HOSE

9. EXTENSION WAND

10. FOAM FILTER (WET)

11. CREVICE NOZZLE

12. GULPER NOZZLE

13. CARTRIDGE FILTER

8 9 10

www.evolutionpowertools.com

FIG. 1

FIG. 4

FIG. 3

OPERATING INSTRUCTIONS

WARNING: To reduce the risk of fire or explosion, do not operate

this vac in areas with flammable gases, vapors or explosive dust

in the air. Flammable gases or vapors include but are not limited

to: lighter fluid, solvent-type cleaners, oil-based paints, gasoline,

alcohol or aerosol sprays. Explosive dusts include but are not

limited to: coal, magnesium, aluminium, and grain or gun powder.

Do not vacuum explosive dust, flammable or combustible liquids

or hot ashes. Do not use this vac as a sprayer for any flammable

or combustible liquid. To reduce the risk of health hazards from

vapors or dusts, do not vacuum toxic materials.

CAUTION: To reduce risk of hearing damage, wear ear protectors

when using the vac for extended hours or when using it in a noisy

area. This 15L wet/dry vac is assembled at the factory and ready

for use when you remove it from the packaging. The unit is ready

for dry vacuuming or blowing. After you plug the power cord into

the wall receptacle, turn the unit “ON” by pushing the switch from

position “O” to position “I”. The “O” is the “OFF” position and the

“I” is the “ON” position.

POWER TAKE OFF FUNCTION

WARNING: Danger, Risk of injury and damage!

Power take off switch for automatic vacuum. This function allows

for the vacuum cleaner to turn on when you turn on your power

tool, so the unit is not running in between cuts.

NOTE: The socket outlet is only for the connection of power tools

to the vacuum cleaner. Any other use of the socket outlet is not

permitted.

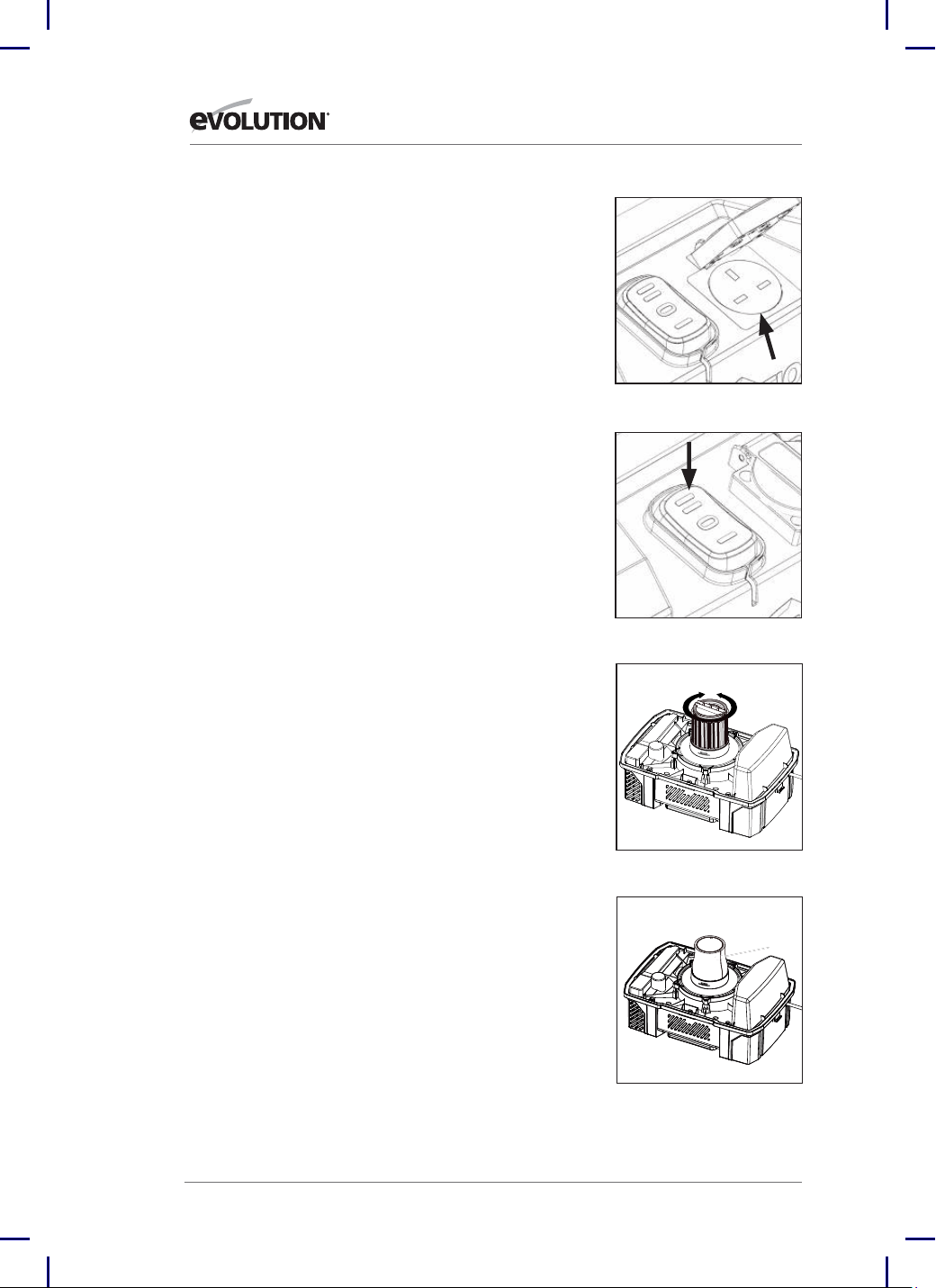

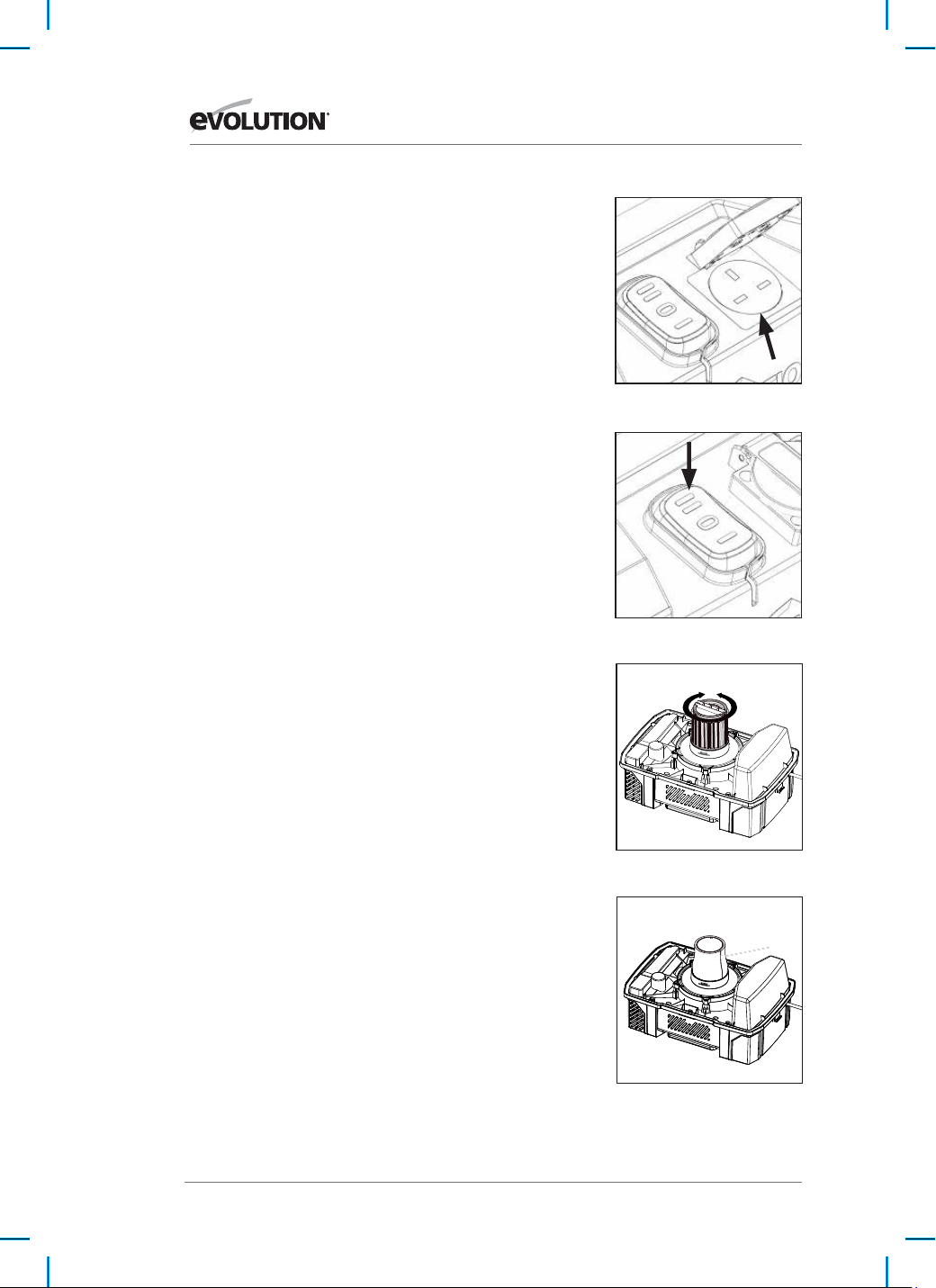

• Connect the open dust hose from the vacuum cleaner to the

dust port of your power tool.

• Connect the mains plug of the electric power tool to the

vacuum cleaner plug socket on the main body. (Fig. 1)

• Connect vacuum cleaner cable to the main switch on wall

socket.

• Now switch the rocker switch to setting II - Vacuum cleaner

is in the standby mode. (Fig. 2)

• When you turn on your power tool the vacuum will

automatically start up – use the tool as intended to

complete the job.

• When you turn off the power tool the vacuum clearer will

automatically stop.

• Setting II power take off is not suitable for 110V

transformers.

Foam fi

LOCK

UNLOCK

FIG. 2

www.evolutionpowertools.com

FIG. 5

FLOAT IN RAISED POSITION

FIG. 6

FIG. 7

DRY PICK UP

NOTE: If foam filter is in position over filter cage, it must be

removed before installing cartridge filter. The cartridge filter can

be used for wet or dry pick up; installation is the

same for both. When picking up large quantities of liquid please

refer to the wet pick up operation section in this manual. Use the

cartridge filter in position over the filter cage for most general dry

material pick up.

• With the power head in an upside down position, slide the

cartridge filter down over the filter cage, push the filter seals

against the power head.

• Place filter retainer into the top of the cartridge filter, hold

the power head with one hand, turn the handle on the filter

retainer clockwise to tighten, locking the filter into place.

(Fig. 3)

• To remove the cartridge filter for cleaning, again hold the

power head and turn the filter retainer counter-clockwise

to loosen and remove, slide the cartridge filter off the filter

cage.

• To clean the cartridge filter shake or brush off excess dirt or

rinse (from the inside of the filter) with water, dry completely

(approximately 24 hours) and re-install.

WET PICK UP

• Remove cartridge filter and replace it with foam filter when

you do wet pickups. (Fig. 4)

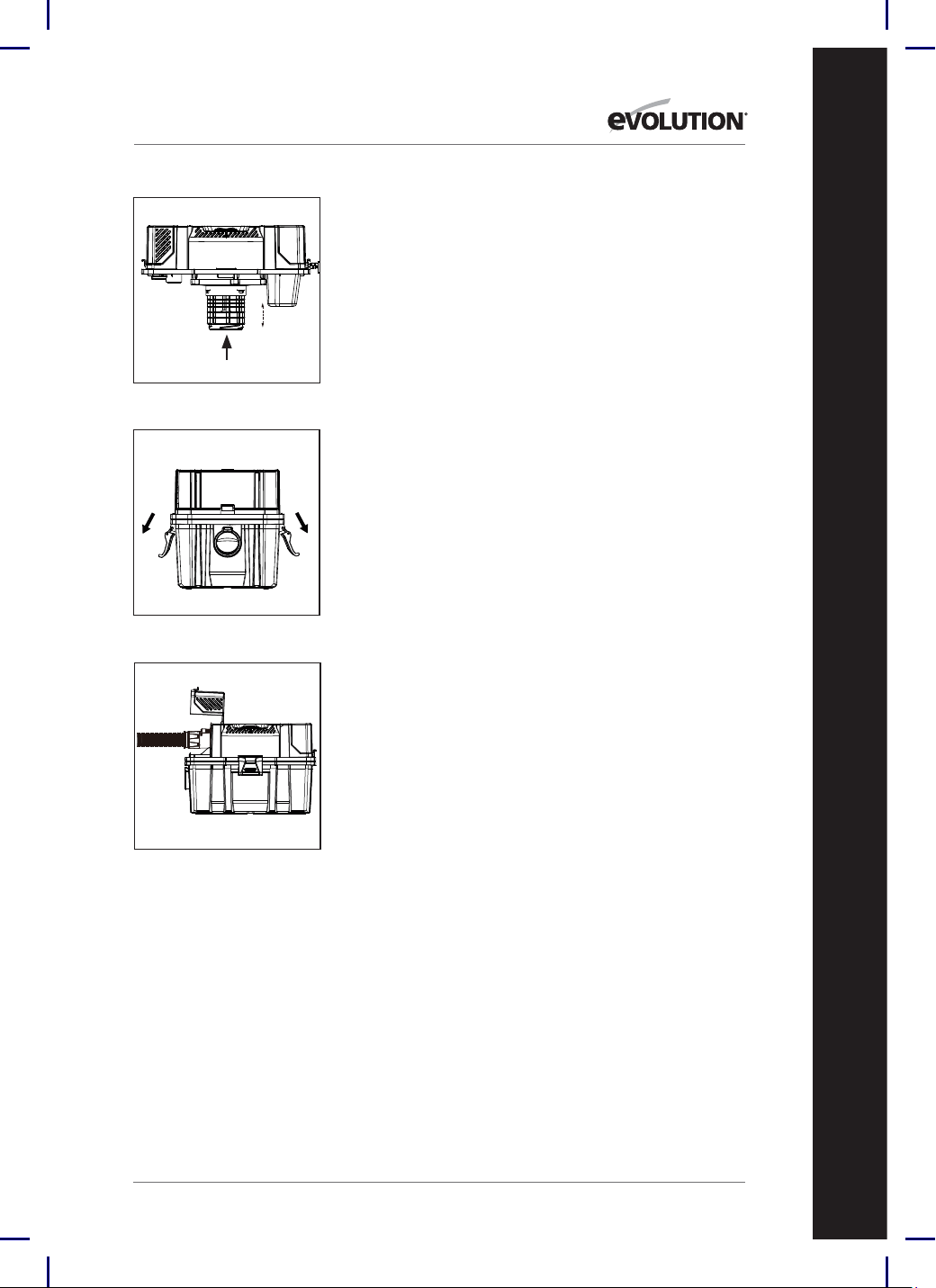

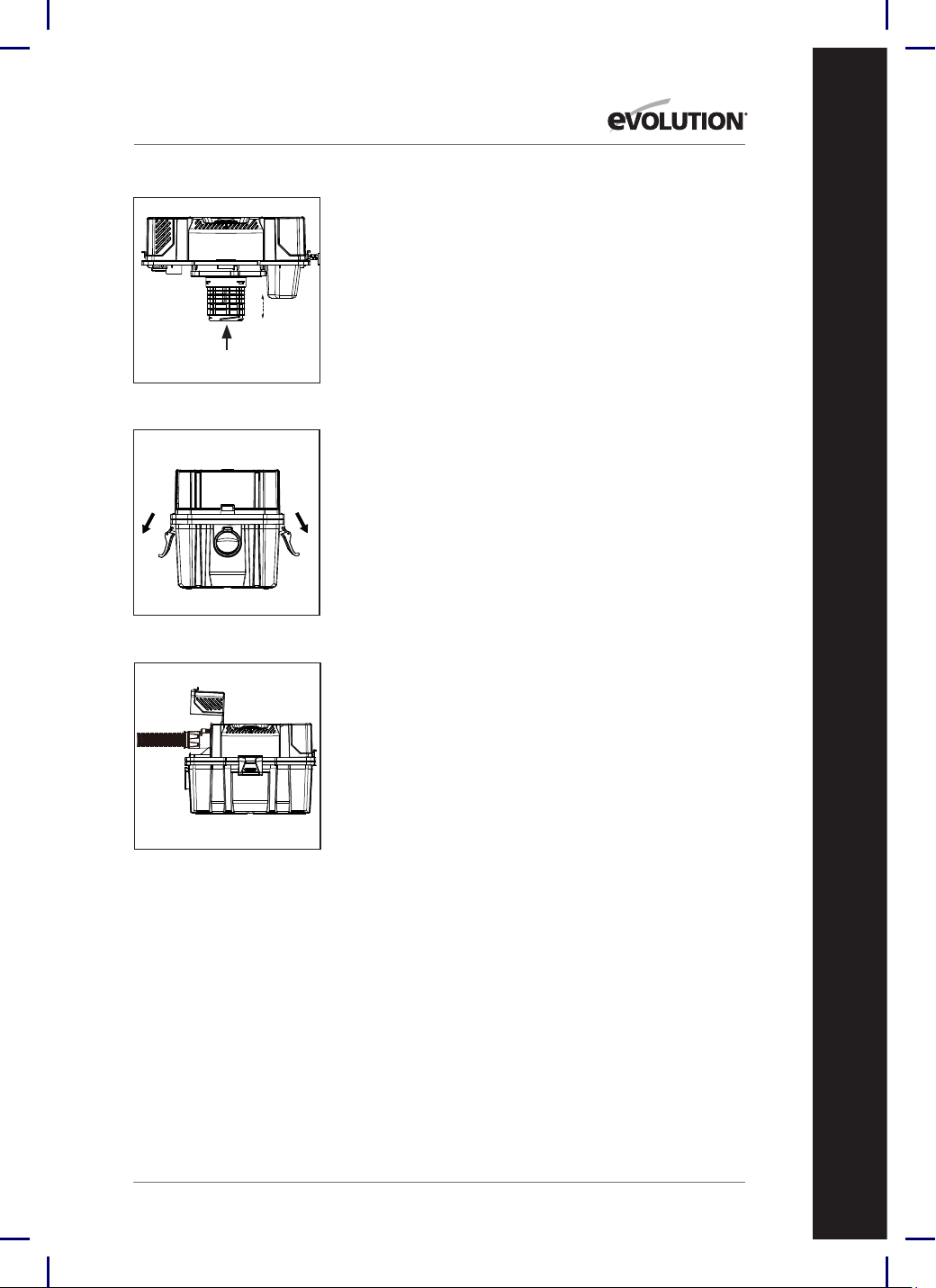

• This wet/dry vac is equipped with a float mechanism which

will rise automatically to cut off the airflow when the liquid in

the tank reaches a predetermined level. When this happens,

turn off the vac, unplug the power cord, and empty the dust

tank. You will know that the float has shut the airflow off

because the suction ceases and the motor noise becomes

higher in pitch due to increased motor speed. The liquid

capacity may vary with the rate of pickup. (Fig. 5)

EMPTYING THE TANK

WARNING: To reduce the risk of injury from accidental starting,

unplug power cord before emptying the dust tank.

• Remove the power head assembly of the wet/dry vac by

pulling outward on the lid clips located on each side of the

vac. Lift off the power head assembly. (Fig. 6)

• Dump the tank contents into the proper waste disposal

container.

BLOWING OPERATION

WARNING: To reduce the risk of injury from accidental starting,

unplug power cord before changing. To avoid injury to bystanders,

keep them clear of blowing debris.

CAUTION: Wear a dust mask if blowing creates dust which

might be inhaled. To reduce the risk of hearing damage, wear ear

protectors when using the vac/blower for extended hours or when

using it in a noisy area.

Your vac contains a blowing feature. It has the capability to blow

sawdust and other debris. It can be used to blow dust and debris

out of garages or off patios and driveways. Follow the steps below

to use your vac as a blower.

• Locate blowing port on your vac.

• Insert one end of the hose into the blowing port. (Fig. 7)

• Turn vac “ON”.

www.evolutionpowertools.com

FILTER REPLACEMENT

WARNING: To reduce the risk of injury from

accidental starting, unplug power cord before

changing or cleaning filter. Your filter should

be cleaned often to maintain peak vacuum

performance.

NOTE: To avoid damage to the blower wheel

and motor, always reinstall the reusable dry

filter before using the vacuum for dry pickups

and always reinstall the foam filter before using

the vacuum for wet pickups.

NOTE: After cleaning, check the filter for

tears or small holes. Do not use a filter with

holes or tears in it. Even a small hole can cause

dust to come out of your vacuum. Replace it

immediately.

NOTE: Before installing the filter on the

vacuum, clean the area of the lid so that the

clamp ring will seal the bag against the lid and

stop small particles from bypassing the filter

bag. If the filter is clean and not damaged,

replace it on the filter cage. If it cannot be

reused, place a new filter over the filter cage.

NOTE: Clean the filter in an open area.

WARNING: Do not remove filter cage and float.

The float prevents water from entering the

impeller and damaging the motor. The cage

prevents fingers from touching the moving

impeller.

MAINTENANCE

WARNING: Any maintenance must be carried

out with the machine switched off and

disconnected from the mains power supply.

CLEANING

To keep your wet/dry vacuum looking its best,

clean the outside with a cloth dampened with

warm water and mild soap. To clean the tank:

• Dump out debris.

• Wash tank thoroughly with warm water

and mild soap.

• Wipe out with dry cloth.

STORAGE

Before storing your vacuum, the dust tank

should be emptied and cleaned. The cord

should be wrapped and hung on the unit and

the accessories should be kept in the accessory

holder so they can be readily available. The

vacuum should be stored indoors.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be

disposed of with household waste. Please

recycle where facilities exist. Check with your

Local Authority or retailer for recycling advice.

www.evolutionpowertools.com

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Vacuum can not run No electricity

Make sure electrical outlet has voltage (a qualified

electrician may need to be contacted)

Loss of suction,

wet pick-up

1. Full tank

2. Clogged hose

3. Clogged filter

1. Drain and clean tank

2. Remove hose and clean debris

3. Clean or replace filter

Loss of suction,

dry pick-up

1. Full tank

2. Clogged hose

3. Clogged filter

1. Drain and clean tank

2. Remove hose and clean debris

3. Clean or replace filter

WARNING: To reduce the risk of injury from

moving parts and/or electrical shock, turn

power switch off and disconnect grounded

plug from electrical outlet before performing

troubleshooting checks. Minor problems often

can be fixed without calling customer service.

TROUBLESHOOTING

www.evolutionpowertools.com

DECLARATION OF CONFORMITY

The manufacturer of the product covered by this Declaration is:

UK: Evolution Power Tools Ltd. Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant

provisions of the Machinery Directive and other appropriate directives as detailed below.

The manufacture further declares that the machine as detailed in this declaration, where applicable,

fulfils the relevant provisions of the Essential Health and Safety requirements.

The Directives covered by this Declaration are as detailed below:

And is in conformity with the applicable requirements of the following documents

Product Details

Description: Evolution R15VAC 15L Wet and Dry Vacuum Cleaner

Product Number: 086-0003, 086-0001

Brand Name: Evolution Build

Voltage:

220-240V ~ 50Hz

Input: 220-240V: 1000W

The technical documentation required to demonstrate that the product meets the requirements of

directive has been compiled and is available for inspection by the relevant enforcement authorities,

and verifies that our technical file contains the documents listed above and that they are the correct

standards for the product as detailed above.

Name and address of technical documentation holder.

Signed: Print: Barry Bloomer

CEO

Date: 16/09/20

UK: Evolution Power Tools Ltd. Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

2006/42/EC. Machinery Directive.

2014/30/EU. Electromagnetic Compatibility Directive.

The Restriction of the Use of certain Hazardous Substances in Electrical Equipment (RoHS) Directive.

2002/96/EC. as amended by 2003/108/EC The Waste Electrical and Electronic Equipment (WEEE) Directive.

IEC 60335-2-2: 2009(sixth Edition)+A1: 2012 • IEC 60335-1:2010(Fifth Edition) (incl. Corrigendum

1:2010 and Corrigendum 2:2011)+ AMD1:2013, COR1:2014, AMD2:2016, COR1:2016 •

EN 60335- 2-2:2010+A11:2012+A1:2013 • EN 60335-1:2012+A11:2014+AC:2014+A13:2017+A1:2019

+A14:2019+A2:2019 • EN 55014-1:2017+A11:2020 • EN 55014-2:2015 • EN IEC 61000-3-2: 2019 •

EN 61000-3-3: 2013/+A1:2019

2011/65/EU. &

2015/863/EU.
