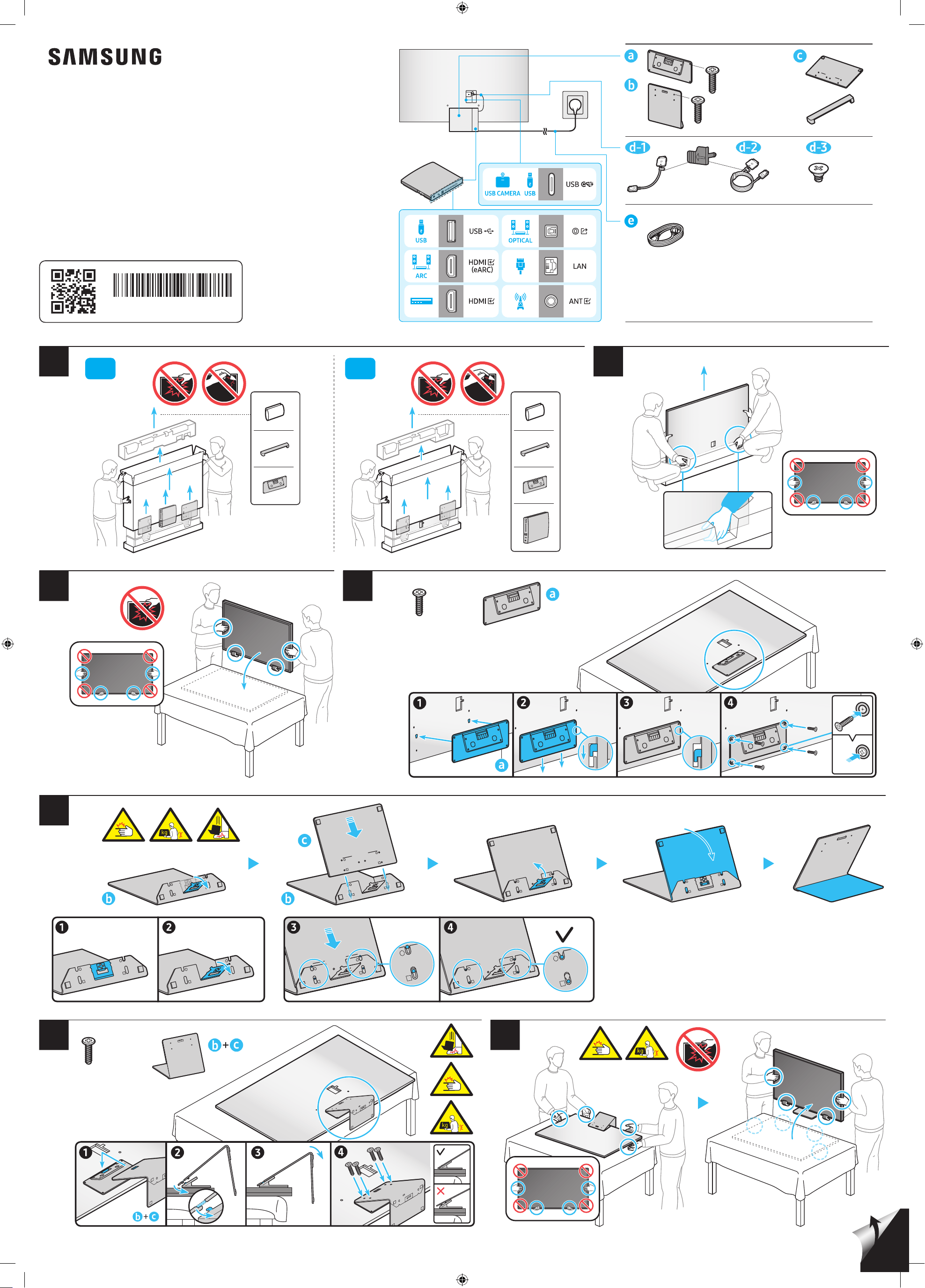

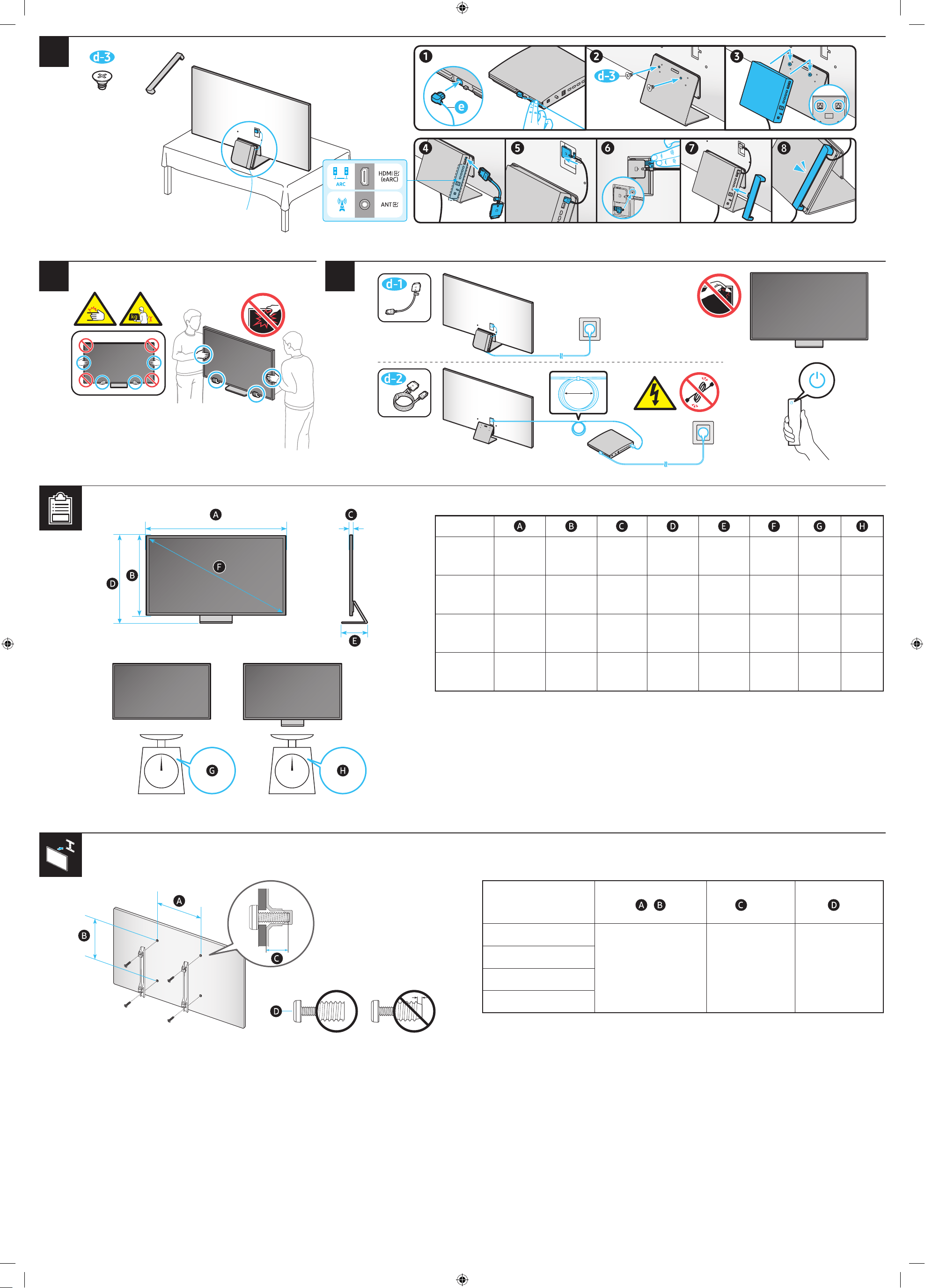

Unpacking and Installation Guide
Guide de déballage et d’installation
Guía de desembalaje e instalación
Manual de desempacotamento e instalação
Auspacken und Installationsanleitung
Guida al disimballaggio e all’installazione
x 4
(M4 x L12)
x 2
x 4
(M4 x L12)
x 4
(M4 x L12)
x 4
(M4 x L12)
55″ 65″
8
9 10
55QN7**C
55QNC7**
48.2 inches
(1224.8 mm)
(122.48 cm)
27.8 inches
(705.3 mm)
(70.53 cm)
0.7 inches
(17.9 mm)
(1.79 cm)
30.5 inches
(775.4 mm)
(77.54 cm)
10.5 inches
(267.9 mm)
(26.79 cm)
54.6 inches
(138 cm)
36.2 lbs
(16.4 kg)
58.4 lbs
(26.5 kg)
65QN7**C
65QNC7**
56.8 inches
(1443.7 mm)
(144.37 cm)
32.6 inches
(828.4 mm)
(82.84 cm)
0.7 inches
(17.9 mm)
(1.79 cm)
35.4 inches
(898.2 mm)
(89.82 cm)
10.5 inches
(267.9 mm)
(26.79 cm)
64.5 inches
(163 cm)
49.4 lbs
(22.4 kg)
71.7 lbs
(32.5 kg)
65QN8**C
65QNC8**
56.8 inches
(1443.7 mm)
(144.37 cm)
32.6 inches
(828.4 mm)
(82.84 cm)
0.7 inches
(17.2 mm)
(1.72 cm)
35.4 inches
(898.2 mm)
(89.82 cm)
10.5 inches
(267.9 mm)
(26.79 cm)
64.5 inches
(163 cm)
49.6lbs
(22.5 kg)
71.9 lbs
(32.6 kg)
65QN9**C
65QNC9**
56.4 inches
(1433.1 mm)
(143.31 cm)
32.3 inches
(819.9 mm)
(81.99 cm)
0.6 inches
(15.2 mm)
(1.52 cm)
35.1 inches
(892.7 mm)
(89.27 cm)
10.5 inches
(267.9 mm)
(26.79 cm)
64.5 inches
(163 cm)
49.4 lbs
(22.4 kg)
71.7 lbs
(32.5 kg)
* : 0~9, A~Z
VESA
x (mm) (mm) x 4
55QN7**C
55QNC7**
400 x 300 5-6 M8
65QN7**C
65QNC7**
65QN8**C
65QNC8**
65QN9**C
65QNC9**
* : 0~9, A~Z
15 cm
6 inches
x 2
