CONTENTS
What's in the Box
Safety Instructions
System Connection
Front Panel Functions
Rear Panel Functions
Remote Functions
System Setup
Bluetooth Operation/USB Copy
Common Operation
Radio Station/Audio Input Operation
Troubleshooting
Features and Technical Specs
WHAT'S IN THE BOX
• BT Stereo System
• Remote Control
• AV Connection Cable
• One Wireless Microphones
• Power Cord
• FM Antenna Cable
SAFETY INSTRUCTIONS
Read carefully and keep in a safe place for future reference. To avoid the risk
of electric shock, do not disassemble the enclosure. Refer all servicing to
qualied service personnel.
Only use in altitudes below 5,000m.
Power Supply: Operate only from the power source specied on the unit.
Ventilation: The ventilation holes in the shell of the unit are designed for heat
dissipation to prevent overheating. Do not block or cover the ventilation holes.
Avoid placing the unit on a bed or sofa.
Heat Sources: Do not place the unit near heat sources such as a boiler, electric
furnace, etc. Avoid direct sunlight.
Water and Moisture: Never use the unit in areas like the bathroom, kitchen, or
any area where it may be exposed to water. Do not place a vessel containing
liquid on the unit.
Foreign Matters: Do not insert foreign objects like metal articles into the unit.
Cleaning: Unplug the power plug before cleaning. Do not use a solution with
corrosive substances, volatile solutions, or spray cleaning agents to clean the unit.
Use a soft and damp cloth for cleaning.
Power Cable: When plugging or unplugging the power cable, please hold the
plug tightly, and do not pull the cable. If the unit is not used for a long time or in
use during a thunderstorm, please immediately unplug it from the socket.
Disc Door: When the disc door closes, keep ngers away from the door to avoid
injury or damage to the unit.
www.PyleUSA.com
1
www.PyleUSA.com
2
1
2
6
7
8
9
10
14
15
19
21
22
Loading of Weight: To avoid damage, do not place heavy objects on the unit or
step on it.
Connection with Other Equipment: When connecting other equipment, ensure
that the power plug of each unit is unplugged to prevent the risk of damage to
equipment and personal injury.
Laser: When the cover is opened and the unit is working, do not look directly at
the laser to avoid damage to one's eyesight.
Discs: Do not use broken, deformed, or amended discs, as it may cause the unit
to operate faulty and shorten the service life.
Maintenance Service for Faults: If any of the following situations arise, please
unplug the unit and contact qualied maintenance personnel:
• When the power wire or plug is damaged.
• When liquid or foreign matter has fallen into the unit.
• When the unit has been exposed to water or rain.
• When the unit doesn't work normally in accordance with the operating instructions.
• Do not adjust any control buttons not stipulated in the instructions, as it can
cause damage to the unit.
• When the unit falls from a high place or is damaged due to other reasons.
• When smoke is emitted from the unit.
Maintenance: Please do not attempt to maintain or repair the unit yourself.
Contact qualied maintenance personnel for assistance.
Replacement of Components: When a component needs replacement, ask
maintenance personnel to replace it with a component from the same model.
Using a component from a dierent model may cause further damage, electric
shock, or decrease the service life of the unit.
Safety Check: After the completion of maintenance, ask maintenance personnel
to check the unit and ensure its safety.
CAUTION
Please Note:
1. When the unit is moved, use the original paper box and packing materials,
employing the factory packing method to optimally protect the unit.
2. Do not place volatile liquids beside the unit, and avoid prolonged contact with
rubber or plastic, as these products may mark the unit's surface.
3. After the unit has been in use for a lengthy period, it may heat up on top and at
the rear plate. This is normal.
4. When the unit is not used, take out the disc, close the disc door, and turn the
power o. If the unit has not been used for a long time and certain function keys
are not working, refer to qualied service personnel for maintenance.
Location: When the unit is placed near the TV, radio, or video tape recorder, poor
image quality and sound distortion may occur. In that case, please relocate the unit
away from such equipment.
Cleaning
1. Use a soft cloth to clean the unit.
2. Use the cloth with a small amount of diluted cleaning agent to deal with dirty
spots that are not easily cleaned. Do not use solvents with corrosive substances
like diluted gasoline, abrasive solution, etc., as they may damage the surface of
the unit.
Warning: The cleaning and adjustment of internal parts should be conducted
by trained authorized personnel.
Discs
1. How to take care of your discs: Do not touch the playing side of the disc.
2. How to clean your discs: Use a soft cloth to wipe the disc from the center out.
Fingerprints and dust remaining on the disc will aect the quality of the image
and sound. When cleaning stubborn dirt, use a clean soft cloth dipped into a
little water to wipe the disc, then use a dry soft cloth to dry it.
Do not use solutions like methylbenzene, cleaning agents, or antistatic spray to
clean the disc.
www.PyleUSA.com
3
www.PyleUSA.com
4
3. How to store your discs: Do not place the discs in a place with heavy moisture,
dust, or direct sunlight. When the discs are not used, please place them in their
boxes.
Batteries:
Using the batteries incorrectly will cause leakage or corrosion of the battery
uid. Please use the batteries in accordance with the following instructions:
1. Do not reverse the positive and negative polarity when the batteries are inserted.
2. Do not recharge non-rechargeable batteries, disassemble the batteries, make
them short circuit, or throw them into a re.
3. Do not mix dierent types of batteries or old and new batteries.
4. Do not keep damaged batteries in the remote.
5. If the remote is not used for a long time, please remove the batteries to avoid
damage caused by the leaking of the battery uid.
6. If the remote is faulty or its eective scope is reduced, please replace with new
batteries.
7. If the batteries have leaked battery uid, please dry the battery box and replace
with new batteries.
Remote Control
Using the remote incorrectly will result in poor performance.
Please use the remote in accordance with the following instructions:
1. The emitter of the remote should not be exposed to sunlight.
2. Please aim the remote at the reception window of the unit.
3. Do not drop the remote as it may get damaged.
4. Do not allow water or any other liquids to come into contact with the remote.
5. Do not disassemble the remote.
Tips:
1. Correctly place the batteries inside the battery box of the remote.
2. The maximum reception distance between the remote and the unit is about 7m.
3. The maximum eective angle of the remote aligning at the reception window
is 30°.

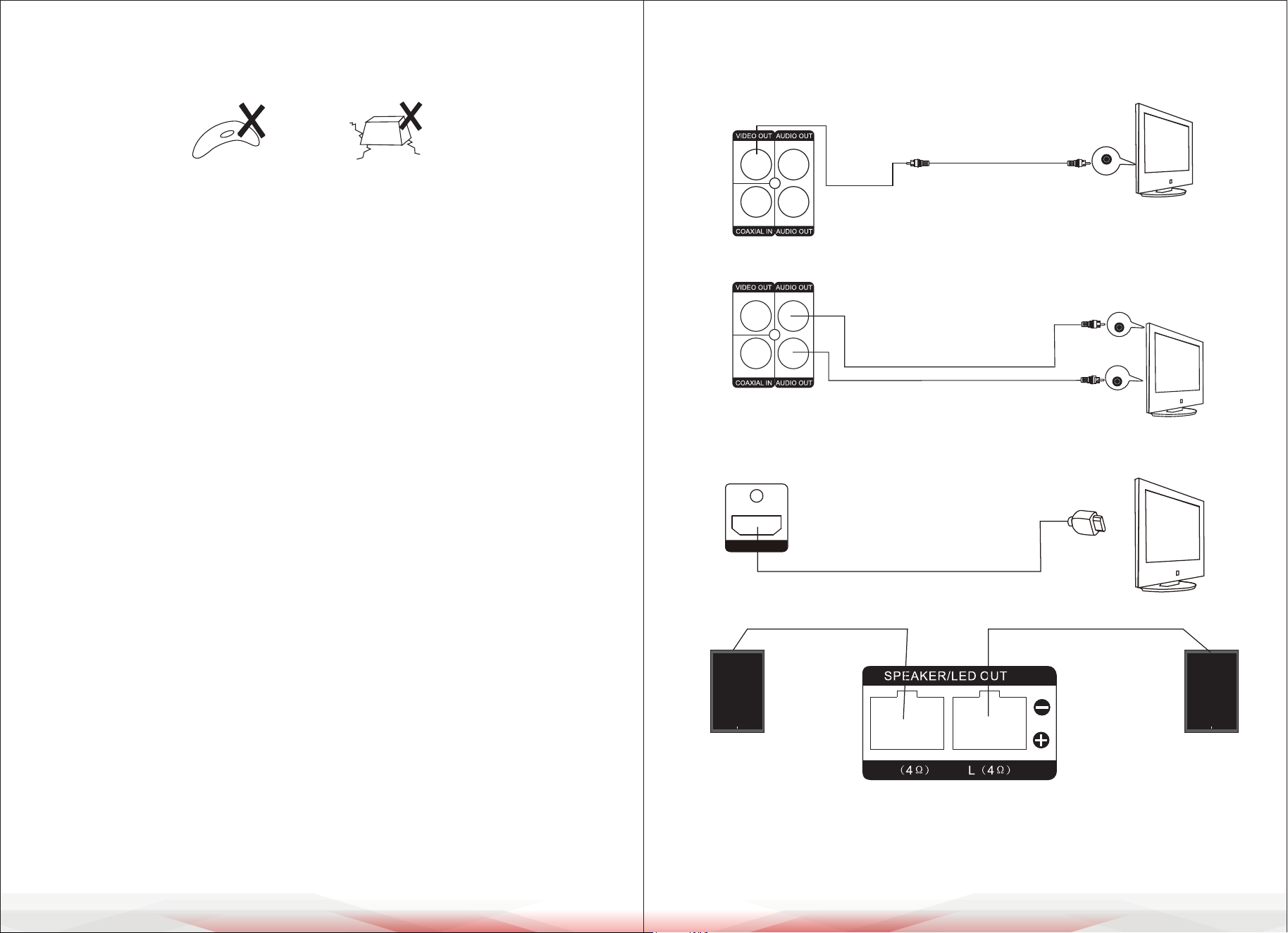

SYSTEM CONNECTION
Description of Video Output Port
Video Output: Connect to the video terminal of the TV.
TV Audio Cable: Connect the audio cable to the TV audio terminal.
TV HDMI Connection: Connect one end of the HDMI cable (not included) to the
Mini System host and the other end to the HDMI port on your TV.
Stereo Speaker Connecting Guide:
Please note:
1. When connecting speakers, please make sure the front, center, and surround
speakers are connected correctly to the terminals. Do not short circuit the
connections as this will cause damage to the system.
2. To connect correctly, connect the red wire to “+”, and the black wire to “-”.
www.PyleUSA.com
5
www.PyleUSA.com
6
VIDEO I N
TV
(yellow)
(yellow)
Video connecting wire
Right speaker Left speaker
TV
R
L
(red)
(red)
This wire is included
in the accessories
TV audio terminal
(white)
(white)
TV
Cable are not included
in the accessories
HDMI OUT
FRONT PANEL FUNCTIONS
1. MIC Volume Rotary
2. MIC VOICE (+)
3. MIC VOICE 0
4. MIC Mode Button
5. Power Switch
6. EQ Presets
7. USB 1 Record
8. Repeat Button
9. EQ Tuning
10. Main Volume Rotary
11. MIC Input
12. USB 1
13. Mic Priority

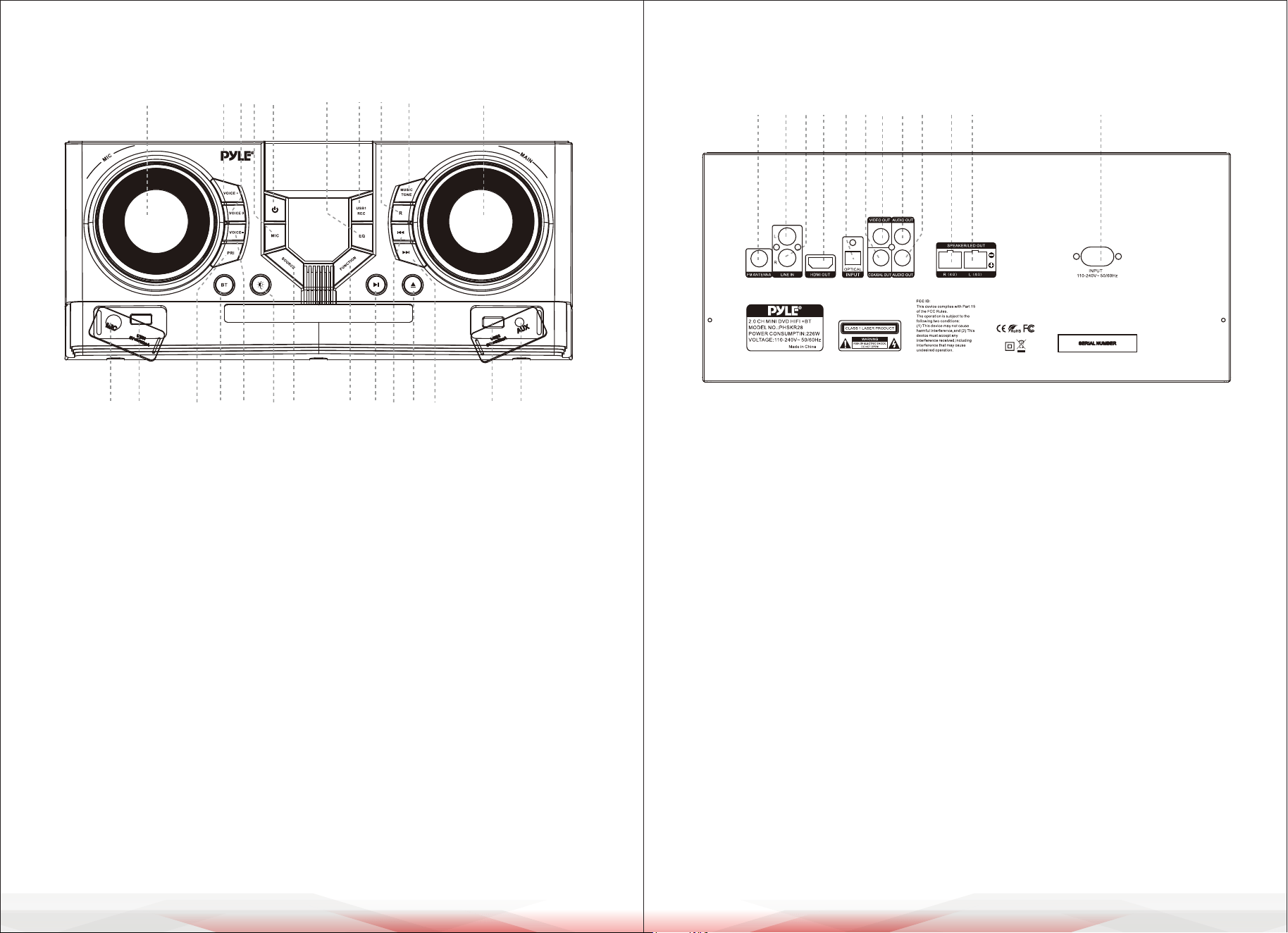

REAR PANEL FUNCTIONS
1. FM Antenna
2. RCA Line Input (Left)
3. RCA Line Input (Right)
4. HDMI Output
5. S/PDIF Optical Input
6. Coaxial Output
7. Video Output
8. RCA Line Output (Left)
9. RCA Line Output (Right)
10. Right Speaker Terminal
11. Left Speaker Terminal
12. Power Input
www.PyleUSA.com
7
www.PyleUSA.com
8
1 2 3 5 6 7 8 9 10
11 12 13 14 15 16 17 18 1920 21 22 23 24
4
14. Bluetooth Mode
15. MIC VOICE (-)
16. LED Lighting
17. Source Button (DISC/USB Switch)
18. Function Button (DISC/BT/FM/
AUX/LINE IN/USB Switch)
19. Play/Pause Button
20. Previous Button
21. Open/Close Button
22. Next Button
23. USB 2
24. AUX Input
1 2 3 65
7
8 9 10 11 124

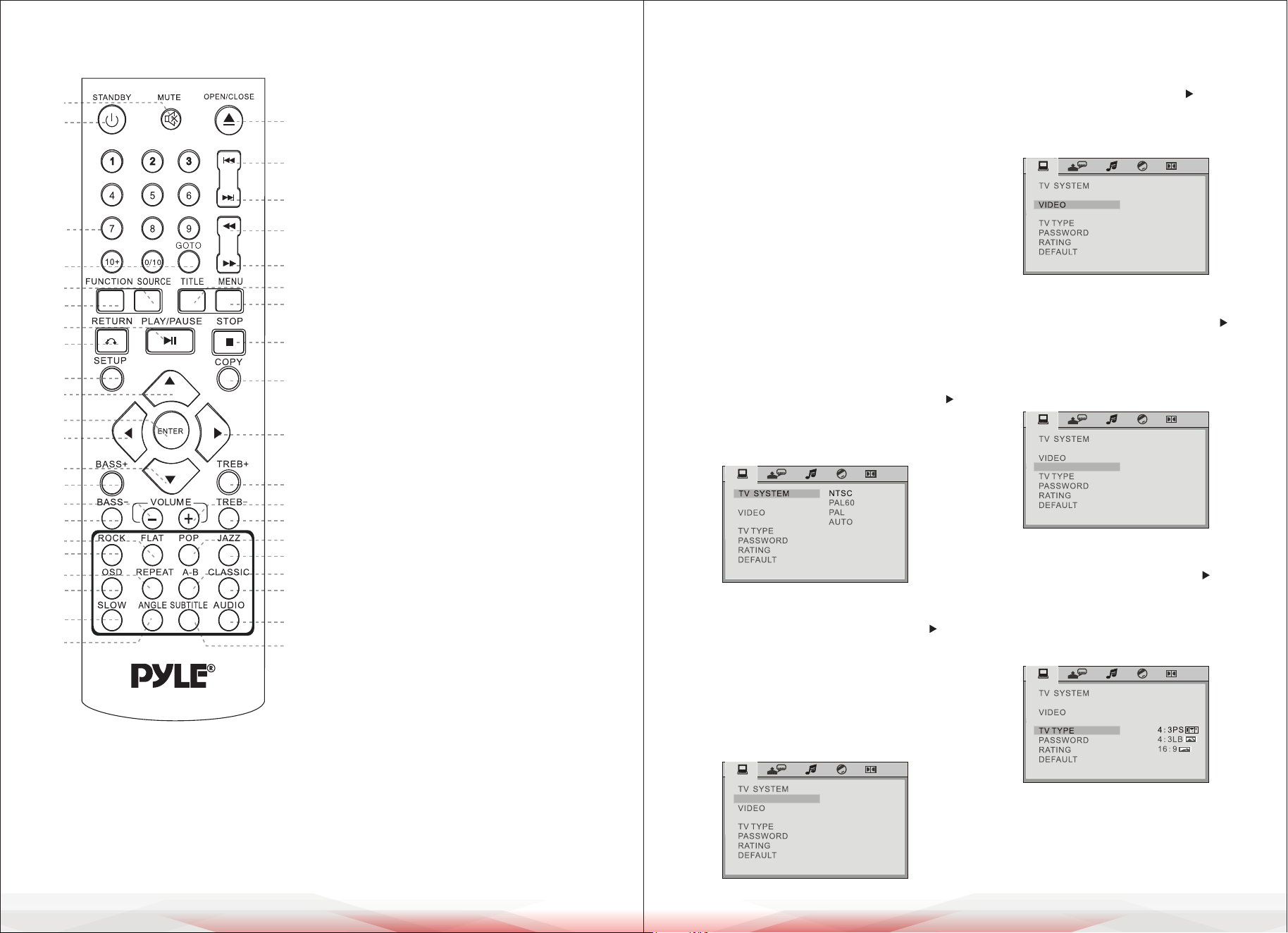

REMOTE FUNCTIONS SYSTEM SETUP
www.PyleUSA.com
9
www.PyleUSA.com
10
1. Mute Button
2. Power Button
3. Numerical Keys
4. GOTO (Time Selection Button)
5. DISC/USB2
6. MODE (DISC/BT/FM/COAX/
AUX/LINE IN/USB)
7. Play/Pause Button
8. Return Button
9. Setup Button
10. Up Button
11. Enter/Radio Auto Search Button
12. Left Button (FM- Button)
13. Down Button
14. Bass+ Button
15. Volume- Button
16. Bass- Button
17. EQ: Flat Mode
18. EQ: Rock Mode
19. Repeat Button
20. SD Display Button
21. Slow Button
22. Angle Function
23. Open/Close Button
24. Previous Button (FM CH-)
25. Next Button (FM CH+)
26. Backward Button
(Radio Frequency Trim-)
27. Forward Button
(Radio Frequency Trim+)
28. Title Button
29. Menu Button
30. Stop Button
31. CD Copy Button
32. Right Button
33. Treble+ Button
34. Volume+ Button
35. Treble- Button
36. EQ: POP Mode
37. EQ: JAZZ Mode
38. A-B Repeat Button
39. EQ: CLASSIC Mode
40. Audio Switch Function Button
41. Subtitle Function Switch Button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

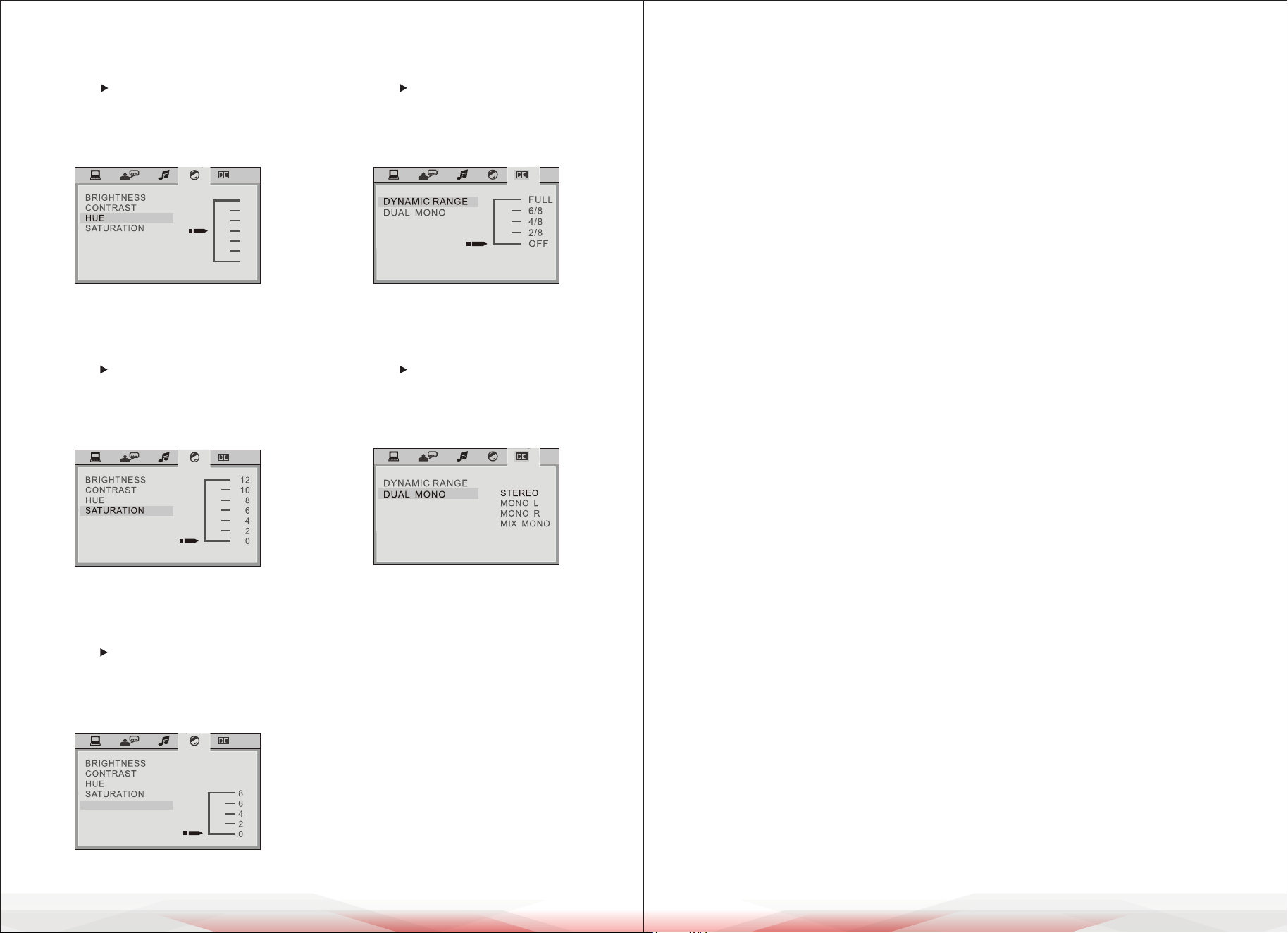

To access the System Setup, follow
these steps:
1. Press the Setup key on the remote
control.
2. Navigate through the menu using
the Up, Down, Left, or Right keys to
highlight the option you want to
adjust.
3. Press Enter to enter a specic option
in the menu.
4. Press the Setup key again to exit the
setup menu.
The setup operations include:
1. TV System
Enter the TV System option, press the
key to access the sub-menu, and choose
between NTSC, PAL, or AUTO.
Resume
Enter the Resume option, press the
key to access the sub-menu, and
choose between ON or OFF. If set to
ON, playback will resume from the
previous point after power resumption
or CD door closure.
Video
Enter the Video option, press key to
access the sub-menu, and select the
desired output mode.
Resolution (HDMI)
Enter the Resolution option, press
key to access the sub-menu, and
choose the high denition output from
options like 480/576P, 720, 1080P.
TV Type
Enter the TV Type option, press key
to access the sub-menu, and choose
from 4:3 PS, 4:3 LB, or 16:9 modes
based on your TV compatibility.
RESOLUTION
RESUME
RESOLUTION
RESUME
ON
OFF
RESOLUTION
RESUME
CVBS
YUV
RESOLUTION
RESUME
480I/576I
480P/576P
720P
1080 I
1080P
RESOLUTION
RESUME
RESOLUTION
RESUME
www.PyleUSA.com
11
www.PyleUSA.com
12

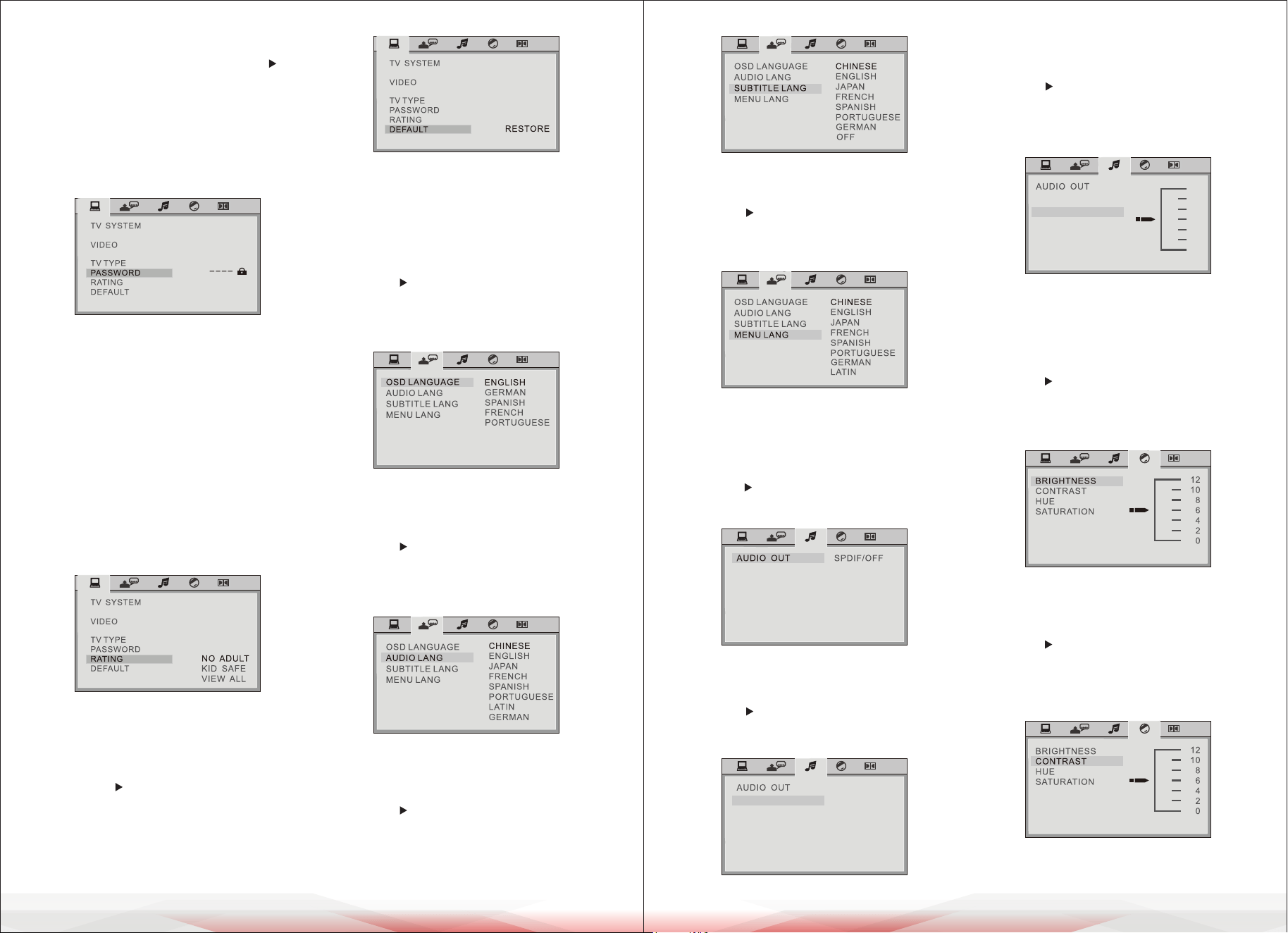

Password
Enter the Password option, press key
to access the sub-menu. If in "Password
Lock" state, unlock it by entering the
initial password (usually 0000 or 1234).
Modify the password as needed (four
digits) and press Enter to conrm.
Rating
To set the suitable play control rating
when playing a disc with a locking
function:
1. Ensure that the password lock is o.
2. Select the appropriate play control
rating.
3. Remember to switch the password
lock back on after completing the
setup to apply the rating restrictions.
Default
To restore all setups to factory defaults:
1. Enter the Default option.
2. Press the key to select "Restore."
3. Press the Enter key again to conrm.
This will restore all settings to their
original factory defaults.
2. Language Setup
To set up language preferences:
OSD Language
Enter the OSD Language option.
Press the key to enter the sub-menu.
Select the interface display language
you prefer.
Audio Language
Enter the Audio Lang option.
Press the key to enter the sub-menu.
Select the audio language you need
(ensure compatibility with the disc).
Subtitle Language
Enter the Subtitle Lang option.
Press the key to enter the sub-menu.
Select the subtitle language you prefer
(ensure compatibility with the disc).
RESOLUTION
RESUME
RESOLUTION
RESUME
Menu Language
Enter the Menu Lang option.
Press the key to enter the sub-menu.
Select the menu language you need
(ensure compatibility with the disc).
3. Audio Setup
Audio Out
Enter the Audio Out option.
Press the key to enter the sub-menu.
Select the desired audio out mode.
HDMI Audio
Enter the HDMI Audio option.
Press the key to enter the sub-menu.
Choose between AUTO or PCM.
Key
Enter the Key option.
Press the key to enter the sub-menu.
Use the directional keys Up or Down to
adjust the key volume.
4. Video Setup
Brightness
Enter the Brightness option.
Press the key to enter the sub-menu.
Press the Up or Down key to adjust
brightness parameters.
Contrast
Enter the Contrast option.
Press the key to enter the sub-menu.
Press the Up or Down key to adjust
contrast parameters.
HDMI AUDIO SPDIF/PCM
KEY
HDMI AUDIO AUTO
KEY PCM
HDMI AUDIO
KEY
#
+4
+2
0
-2
-4
b
SHARPNESS
SHARPNESS
Dynamic Range
Enter the Dynamic Range option.
Press the key to enter the sub-menu.
Use the directional keys Up or Down to
select your required option.
Dual Mono
Enter the Dual Mono option.
Press the key to enter the sub-menu.
Choose from four modes: STEREO,
MONO L, MONO R, MIX MONO.
+6
+4
+2
0
-2
-4
-6
SHARPNESS
www.PyleUSA.com
13
www.PyleUSA.com
14
BLUETOOTH OPERATION/USB COPY
Bluetooth Reception
To connect an external device to this
unit via Bluetooth:
1. Press the "Function Switch" on the
remote control or on the panel to
select the Bluetooth function.
The corresponding screen will then
display "BT," indicating that the
Bluetooth function is on.
2. Ensure the Bluetooth function is on
the external device and search for
"PYLEUSA." Once found, click on it
and pair. Some devices may need a
pin code to connect; try 0000 or 1234.
Once connected, you will hear a signal
indicating that the connection is
successful.
• Compatible with All of Today’s Latest
Bluetooth Devices (Smartphones,
Tablets, Laptops, Computers, etc.)
• Bluetooth Version: 5.0V
• Wireless Bluetooth Range:
Up to 30.0’ ft.
USB COPY
CD File Copy
When playing a CD disc, press the "Copy"
key on the remote to enter the copy
operation interface.
Multiple Setup
Move the highlight bar to the "SPEED"
option. Press the [ENTER] key and select
the desired multiple (i.e., copy speed).
During the copying process, select the
"CHANGE SPEED" option or press
[ENTER] to switch the copy speed.
Bit Rate Setup
Move the highlight bar to the "BITRATE"
option and press [ENTER] to set up.
For les with a high bit rate, the capacity
will be enlarged, and the le's quality
will be closer to that of the original le.
The system default is 128 KBPS.
Create ID3 Information
Move the highlight bar to "CREATE ID3
TAG" option and press [ENTER] to select
or cancel. By selecting this option during
the copying process, the le will be
created with ID3 information
automatically generated by the system.
Create File List
Move the highlight bar to "CREATE FILE
LIST" option, then press [ENTER] to
select or cancel. By selecting this option
during the copying process, a le list
will be produced automatically.
Create Playlist
Move the highlight bar to the "TRACK"
option, press the right key to select the
track option, then press [ENTER] key to
choose the song to be copied or
canceled
Hue
Enter the Hue option.
Press the key to enter the sub-menu.
Press the Up or Down key to adjust hue
parameters.
Saturation
Enter the Saturation option.
Press the key to enter the sub-menu.
Use the directional keys Up or Down to
adjust saturation parameters.
Sharpness
Enter the Sharpness option.
Press the key to enter the sub-menu.
Use the directional keys Up or Down to
adjust sharpness parameters.
SHARPNESS
SHARPNESS

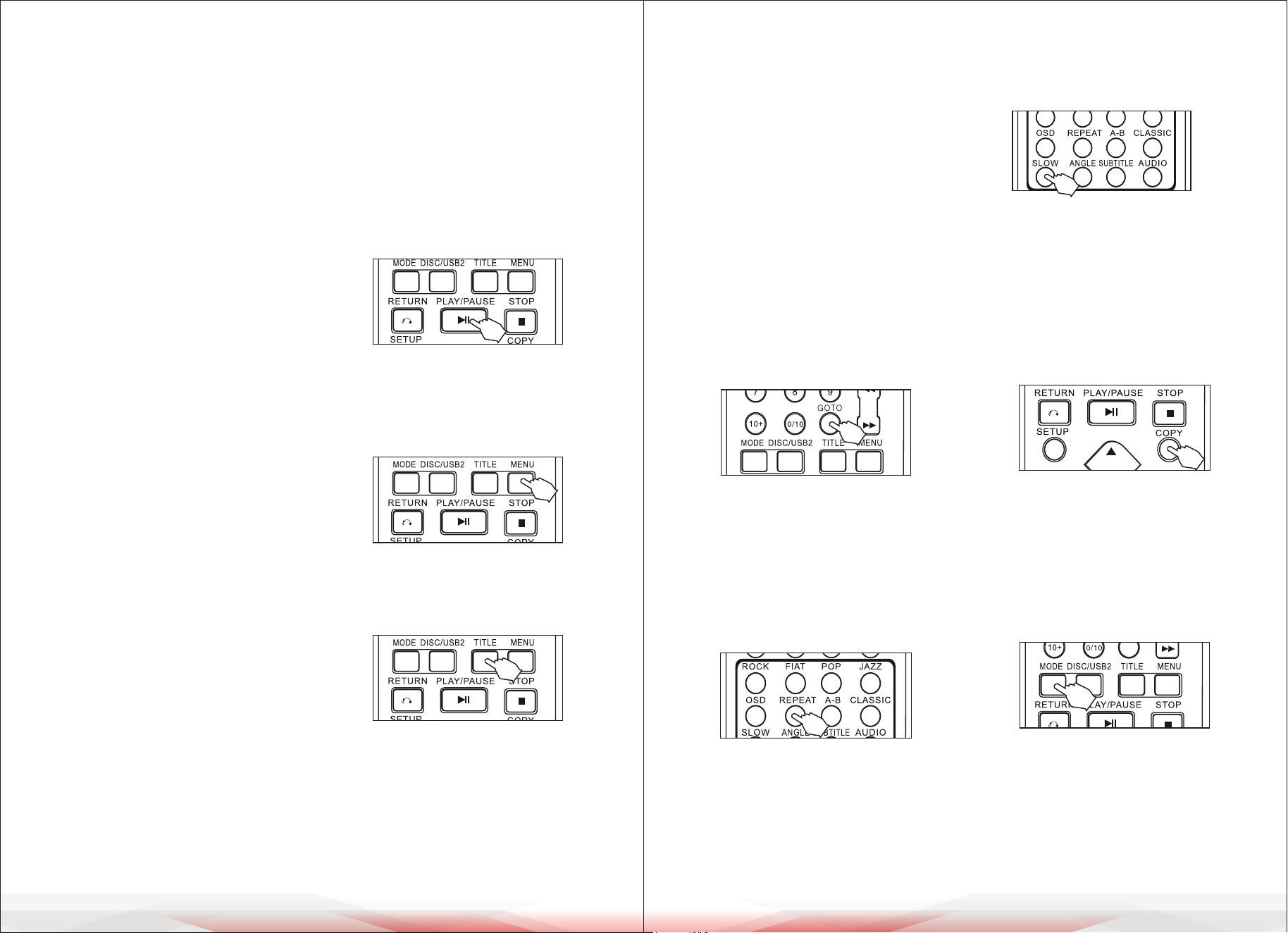

COMMON OPERATION
Disc Playing Operation
Sequence
1. After reading the disc, the unit will
automatically go into sequence play
mode.
2. Press [PLAY/PAUSE] key in pause
mode, and play mode will be
recovered.
Menu
Press [MENU] when using discs with
VCD 2.0 or DVD format. Dierent
formats of discs have dierent menus.
Title
When playing a DVD, you can choose
this play mode.
Select
You can press the number keys on the
remote to directly select the required
track that you want to play. When VCD
is in MENU mode, the track cannot be
selected and can only be selected when
the MENU mode is o.
www.PyleUSA.com
15
www.PyleUSA.com
16
Dierent formats of discs have dierent
selecting approaches (for example,
press number key “5” to select the 5th
track. When selecting “23”, press “10+”
twice, and the screen will show “20+”;
then press number key “3” or try to
press “2” then hold “3” and the unit will
select 23).
GOTO
Press [GOTO] key on the remote and
use direction keys and number keys to
nish time or track selecting function,
then press [ENTER] key.
Repeat
While playing, press [REPEAT] key on
the remote. Dierent formats of discs
have dierent repeating approaches to
be selected: single cycle, title cycle, or
disc cycle.
Slow
During play, press [SLOW] key on the
remote control. To go back to the normal
speed, press [PLAY].
Please note: In this mode, no audio will
be heard, and it only aects the video
les.
COPY
Please note: For CD discs, the unit will
copy in MP3 format onto the USB. It will
copy directly.
Please see the Copy Function Introduction
for specic operating instructions.
Function Switching
When you turn the unit on, you can
press “FUNCTION” to switch between
the dierent function modes:
DISC/BT/FM/COAXIAL/AUX IN/LINE
IN/USB.
Please note: Please see function
introduction for specic operation of
FM and audio input.
Copy
Move the highlight bar to the "START"
option; the information about this copy
will be shown on the right side (TOTAL
TRACKS, TOTAL TIME, and TOTAL SIZE).
Press the [ENTER] key to start copying,
and the system will write the CD in MP3
format onto the designated USB. When
copying at normal speed, you can listen
to the content simultaneously; when
selecting 4 times speed, it will be mute.
Please note: When you press the [ENTER]
key to switch speed, there will be a slight
sound which continues for a few seconds.
Return from Copying Screen
Move the highlight bar to the "QUIT"
option and press [ENTER] key to
conrm QUIT.
Please note: During copy, ensure that
the available space on the USB is
enough for the size of the le(s) to be
copied, then insert the USB into the
USB interface. If you have two tracks
with the same title, rename one of the
tracks; otherwise, one track will overwrite
the other. While copying, do not pull
the USB out or shut the unit down, as
this could damage the unit or USB.
If the USB cannot be read after it has
been copied, please format the USB
on your computer. Before you format,
save the important data from the USB.
The unit will then play the tracks of this
directory in sequence. At this time, you
can press number keys to select which
song you want to play.

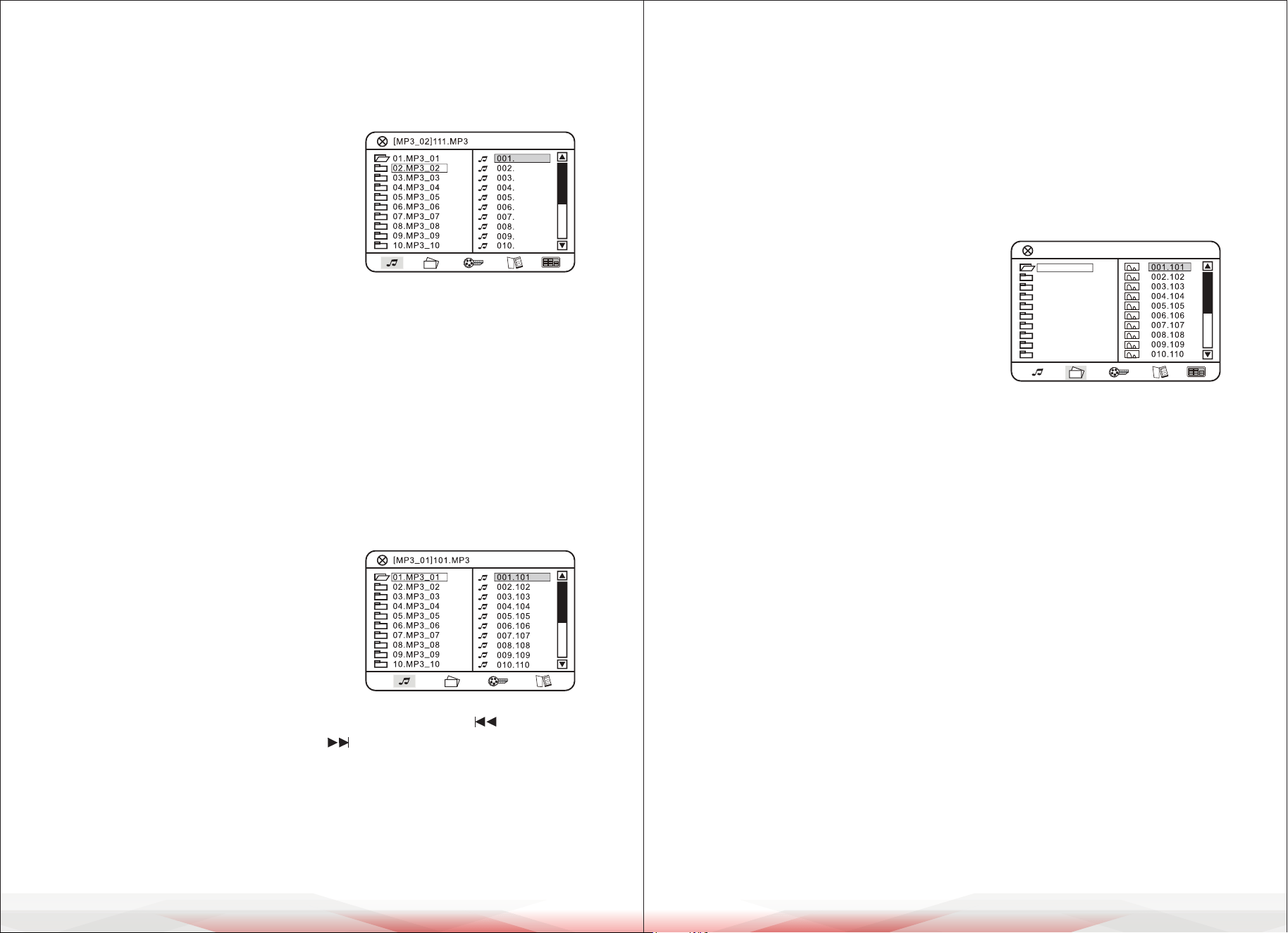

Directory Selecting
Press the Left key to return to the
directory list on the left-hand side.
Then use the Up/Down keys to select a
folder directory on the left-hand side.
After the selection process is complete,
press the ENTER key to enter the playlist
of the folder, and the tracks of the
playlist will automatically be played in
sequence. Alternatively, you can press
number keys to select a specic song.
While playing, press /PREVIOUS or
/NEXT key to select the previous or
next song.
• Press the REPEAT key to select single
cycle, directory cycle, or disc cycle
modes.
111
112
113
114
115
116
117
118
119
120
www.PyleUSA.com
17
www.PyleUSA.com
18
• While playing, press the PAUSE key to
enter the "Pause" state; press the PLAY
key to recover from that state.
Note: Pressing the PAUSE key twice
activates the "Pause" function.

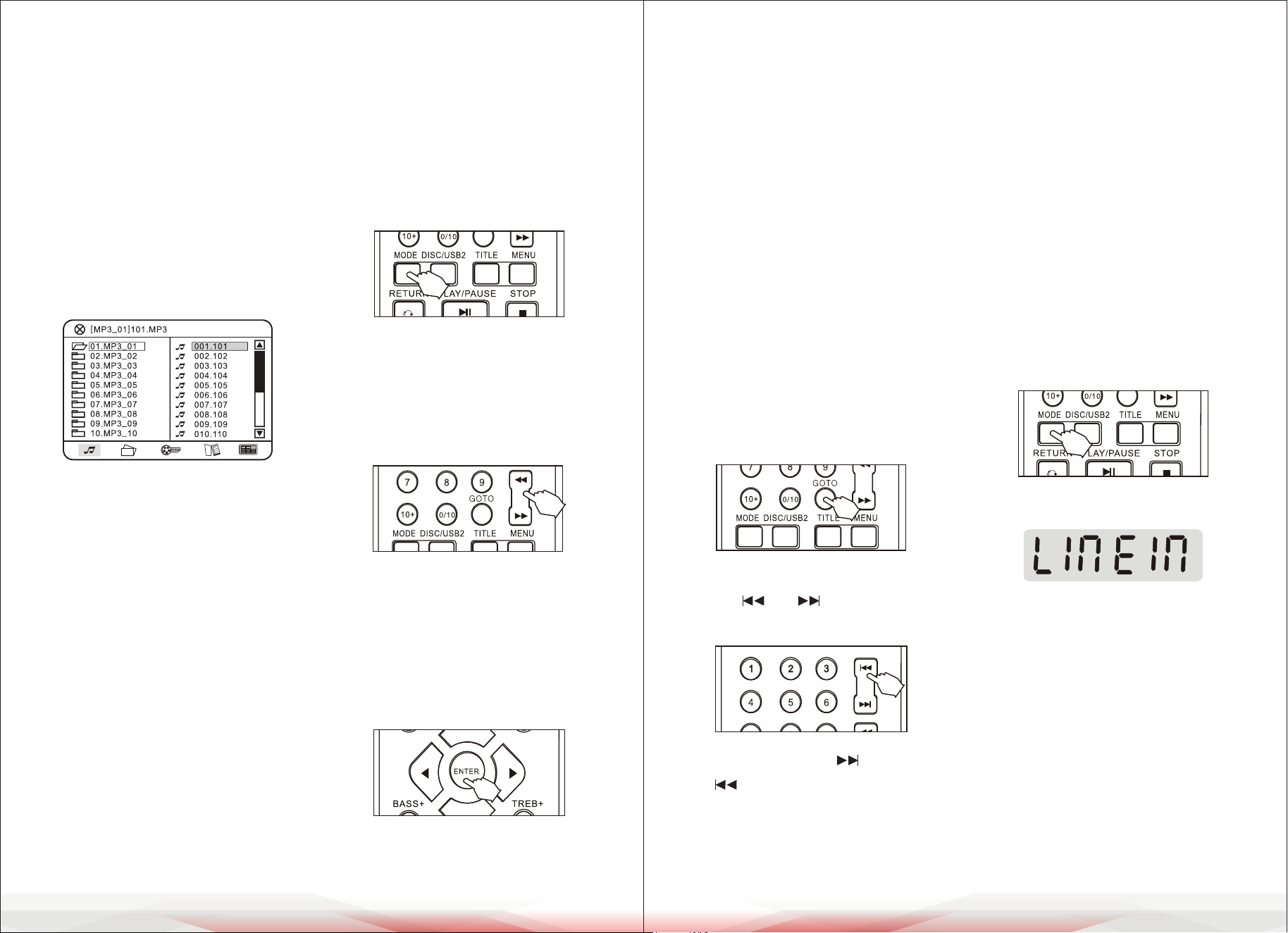

Play JPEG Disc
• After inserting a JPEG disc, the unit will
automatically search and stop at the
rst image of the rst directory found.
Use the Up/Down keys to select image
les. After nishing the selection, press
the PLAY key to play from the current
image.
• Use the Up/Down keys to select image
les. After nishing the selection, press
the ENTER key to view the image.
At this time, the image is in an idle
state. You can press the ZOOM key to
zoom in on the image or press direction
keys to move the image in dierent
directions.
• When the image is idle and not
zoomed in, press the direction keys to
rotate the image.
• Press the PLAY key to play the images
in sequence.
• After entering the le menu on the
right-hand side, press the Up/Down
keys, and image content will be shown
on the left-hand side of the screen.
You can also use this approach to
view le(s).
Play MP3-JPEG Disc
• If you want to view images while
playing MP3-JPEG mixed directory
discs, use the Left/Right keys to select
modes. Then use the direction keys to
move the cursor to the icon of the
required image and press ENTER to
view the image.
• The method for viewing images is the
same as that for playing JPEG discs.
• If you want to view other types of les
while playing MP3-other mixed
directory discs, use the Left/Right keys
to select mode. Then use the direction
keys to move the cursor to the icon
you want to view and press ENTER to
play the selected le.
• While playing discs with mixed
directories, the approach to select a
le is the same as playing an MP3 disc.
• The unit will automatically load the
les to be played when a disc is
inserted. The music les will play by
default if there are also supported
photo, movie, and Ebook les on the
disc.
Volume Adjustment
Master Volume
Press “VOLUME +” or “VOLUME -” on the
remote or turn the volume control knob
on the panel to adjust the volume.
Low Pitch
1. Press [VOLUME] key on the panel,
select “LOW PITCH BA” adjusting
state, then press “VOLUME +” or
“VOLUME -" key on the remote, or
turn the volume control knob on the
panel to adjust low pitch.
2. Press ”BASS +” or ”BASS -" key on the
remote to directly adjust low pitch.
3. Adjustable range of low pitch:
from -10 to +10.
High Pitch
1. Press [VOLUME] key on the panel,
select “HIGH PITCH TR” adjusting
state, then press “VOLUME +” or
“VOLUME -” key on the remote or
turn the volume control knob on the
panel to adjust high pitch.
2. Press ”TREB +” or ”TREB -" key on the
remote to directly adjust high pitch.
3. Adjustable range of high pitch:
from -10 to +10.
Disc Playing Operation
Play MP3 Disc
After inserting an MP3 disc, the system
will automatically search all directories
containing MP3 les. Once the search is
complete, the system will enter the rst
directory by preference and play the
rst track of this directory (cursor stops
in 01 position).
[01 JPG]101 JPG
Play MP3-JPEG Disc
• If you want to view images while
playing MP3-JPEG mixed directory
discs, use the Left/Right keys to select
modes. Then use the direction keys to
move the cursor to the icon of the
required image and press ENTER to
view the image.
• The method for viewing images is the
same as that for playing JPEG discs.
• If you want to view other types of les
while playing MP3-other mixed
directory discs, use the Left/Right keys
to select mode. Then use the direction
keys to move the cursor to the icon
you want to view and press ENTER to
play the selected le.
• While playing discs with mixed
directories, the approach to select a
le is the same as playing an MP3 disc.
• The unit will automatically load the
les to be played when a disc is
inserted. The music les will play by
default if there are also supported
photo, movie, and Ebook les on the
disc.
RADIO STATION/AUDIO INPUT
OPERATION
FM Operation
FM Radio
Press FUNCTION or FM key on the
panel or remote to switch the unit to
FM operation mode.
Manual Search
Press Fast Backward or Fast Forward keys
on the panel or remote to manually tune
and search. You can search desired radio
stations backward or forwards.
Auto Search
Press ENTER key on the panel or press
and hold ENTER key on the remote
control. The unit will automatically
search in full band. FM frequency range:
87-108 MHz (100 kHz for each step).
www.PyleUSA.com
19
www.PyleUSA.com
20
Please note:
After you have found your specic station,
the unit will automatically store it into
the current program. The FM search is
aected by the radio signal strength.
If no program is found during auto
search or an oset frequency occurs,
please use manual search, frequency
selecting search, or adjust the antenna
position for the best signal.
Frequency-Selecting Search
Press the [GOTO] key on the remote.
The unit will display the frequency-
selecting state. Use number keys to
input your desired radio frequency.
FM frequency range: 87-108 MHz.
Radio Program Selection
Press the and keys on the
remote.
Alternatively, use the [ /PREVIOUS]
and [ /NEXT] keys on the panel to
select stored radio programs.
Radio Storage
After operating the "Auto Search", the
unit will automatically store the found
radio programs in sequence.
After operating “manual search” or
“frequency-selecting search,” the unit
will automatically store the current
radio frequency into the current
program.
External Audio Input Setting
Press the [FUNCTION] key on the
remote or panel to switch the unit into
audio input state.
The unit will display "LINE IN" at this time.
Ensure that the ”AUX” or “Line in” channel
interface of the unit is connected to the
AF generator input of any machine.
Play USB
• When the USB contains only one type
of le, the playing method is the same
as when you play a disc.
• When the USB contains various types
of les, the unit will play the audio
les with the MP3 or WMA formats
after it has nished its search.
The method for playing other types of
les is the same as when you play a
disc.
Remark: Support Max capacity for USB
is 32GB
Source Switching
1. While the disc is playing, press the
SOURCE key on the remote control to
switch to USB mode.
2. An interface will appear when
switching from disc to USB.
Press direction keys to select the le,
then press ENTER key for conrmation.
3. The system will automatically load
the USB les when there is no disc
loaded.
TROUBLESHOOTING
Before repairing, please take a look at the following problems and possible
solutions rst.
FEATURES
• Compatible with DVD/VCD/CD/CD-R/CD-RW/MP3
• Built-in FM Radio
• USBX2 Ports: USB1 Input for Play and Recording, USB2 Input for CD Ripping/
Video Input
• Digital Amplier for Strong Sound
• With Bluetooth Function and Line In Port
• HDMI Output/Coaxial Output/Video Output/Audio Output
• Includes Two Stereo Speakers and a Subwoofer
• Record Functions: BT, AUX, FM Audio
• Source Signals Can be Recorded Together with Mic Signals to USB for Storage
and Playback
• With Microphone Voice Changing Eects
• Compatible with Bluetooth-Enabled Devices
• Sleek and Modern Design with LED Indicator
• Featured with Equalizer Eects such as (Jazz, Class, Rock, Flat, Pop and Bass)
• Microphone Inputs with Mic Vol/Bass/Treble/Reverb/Echo Function Adjustment
• Clear and Powerful Sound and Deep Bass
• Convenient Control Unit with Remote Control
• Allows Easy Access to Volume, Bass, and Treble Controls
• Includes 3.5mm Aux-in and Optical Input
• Compact Size for Easy Placement
• Two-Way Wooden Speaker Box
TECHNICAL SPECS
• Constructional Material: Plastic Front Body + Wooden Cabinet
• Power Output: 160W (80Wx2) RMS
• Impedance: 4 Ohm
• FM Frequency Response: 87.9 - 107.9Mhz
• Sensitivity (1w/1m): 900mV
• Signal Noise Ratio: 76dB
• T.H.D.: <1%
• Frequency Response: 40-20KHz
• Wireless Microphone Range: Up to 60’ ft.
• Remote Control Battery Operated, Requires (2) x 'AAA' Batteries (not Included)
• Maximum USB Flash Support: 128GB
• Power Supply: 110-240V~50/60Hz
• Frequency Range: 40-20KHz
• Microphone Battery Type: UM-4 1.5V Dry Battery (2), Not Included
• Battery Construction Material: Carbon Zinc Battery
• Battery Voltage: 1.5V
• AV Connection Cable Length: 1M
• Milliamp Hours (mAh): 900mAh
• Unit Product Dimensions (L x W x H): 13.7" x 10.1" x 6.14" –inches
• Speaker Product Dimensions (L x W x H): 10.8" x 12.0" x 15.5” –inches
www.PyleUSA.com
21
www.PyleUSA.com
22
PROBLEM REASON SOLUTION
No power Plug not properly connected Plug in the appliance properly
The unit doesn't work
after the power has
been switched on
No disc or USB inserted Insert disc or USB
No image
TV isn't set to DVD output
Set TV to the current output platform
Bad video connection
or not connected well
Replace TV connection
or connect correctly
Connected TV doesn't work Ensure TV works properly
No sound
Not set to the current
connecting channel
Set to the current
connecting channel
Bad audio connection
or not connected well
Replace audio connection
or connect correctly
Connected unit doesn't work
or volume shutdown
Ensure connected unit works
properly or turn the volume up
Bad image quality
Disc is dirty Clean disc
Bad image quality of disc Replace disc with good image quality
DVD player is not
activated
No disc inserted Insert disc
Disc installed upside down Place the silk-screen side upwards
Disc installed incorrectly into it's slot Place disc into it's slot correctly
Disc is dirty Clean disc
TV displays setting screen Quit setting state
Locking level is activated Unlock or change locking level
Remote is not aimed at the
receiving window
Aim remote at the
receiving window
There is a large obstacle between
the remote and the receiving window
Please move obstacle
Remote has low batteries Please replace with new batteries
Remote
Malfunction
Unsupported le format Skip the le
Mp3 no sound or
with noise
No le on the USB or the
format is incorrect
Please store supportable le
formats or format the USB then
re-copy the les
USB is damaged Repair or replace the USB
USB les are
unavailable
