Respiray Wear A+ Quick Start Guide
Thank you for purchasing Respiray Wear A+!
Scan the QR code below to watch our tutorial video
on how to get started with Wear A+.
www.respiray.com/start
respiray.com
2
Table of Contents
1. Important Safety Instructions ....................................... 3
2. Overview of the Device .................................................. 5
2.1 Intended Use ................................................................ 5
2.2 Items Included in the Package.................................... 5
2.3 Device Description ....................................................... 5
3. Assembly ........................................................................ 8
3.1 Assembling the Straps with the Main Unit .................... 8
3.2 Inserting the Main Filter ................................................ 9
3.3 Inserting the Pre-Filter ................................................. 10
4. Operation ...................................................................... 11
4.1 Charging ..................................................................... 11
4.2 Indicator Lights .......................................................... 12
5. Maintenance ................................................................. 14
5.1 Cleaning ...................................................................... 14
5.2 Replacing the Main HEPA Filter ................................ 14
5.3 Cleaning and Replacing the Washable Pre-Filter .... 16
5.4 Storing the Device ...................................................... 17
6. Frequently Asked Questions........................................ 18
7. Troubleshooting ........................................................... 20
8. Warranty Information ................................................... 21
8.1 Customer Care ............................................................. 22
9. Specifications ............................................................... 23
10. Disposal ...................................................................... 24
11. Copyright .................................................................... 24
12. Declaration of Conformity ......................................... 25
Respiray Wear A+ User Manual ver. 1.4
3
1. Important Safety Instructions
Please read these precautions carefully before use.
Remove jewelry or other accessories from areas that will come into contact
with the device.
Do not operate this product when driving or in a vehicle.
The device is not waterproof. Keep the device away from water.
o Avoid situations where liquids may spill onto the device.
o Do not place or store the device or charging adapter where they can
fall or be knocked or pulled into water or any other liquid.
o Do not use the device while bathing or showering.
o Do not attempt to charge the device if it is wet.
As a safety precaution, do not operate the device if it is obviously
damaged.
Only authorized personnel are permitted to perform repairs. No
changes or modifications to the device are permitted.
o Do not attempt to repair the device. You may expose yourself to
dangerous electrical components and cause harm to yourself.
o Do not use the device if the parts or accessories are not supplied
by the manufacturer as defined in this manual.
o Contact Respiray Customer Service (sup[email protected]) if the
device is damaged or does not appear to be working properly.
The device contains a rechargeable lithium-ion battery, which is a
sensitive component that can cause injury if damaged.
o Do not attempt to remove the battery. Damaging the battery
creates a risk of fire or explosion.
o To replace the battery, contact Respiray or an authorized reseller
only. Replacement by a third party may lead to damage to the
respiray.com
4
device. Use of an unqualified battery may create a risk of fire,
leakage, explosion, or other hazards.
The WEEE directive requires that you dispose of this electrical
device (including all accessories and parts except for filters) at a
designated recycling collection point for electrical devices.
o Do not dispose of the device (or any of its accessories or parts
except for filters) in domestic waste!
o The battery unit should be disposed of and recycled in a safe
manner.
Contraindications
Do not use if you have:
o a pacemaker or a serious problems with blood circulation in the
chest or neck area
o broken or irritated skin, potential skin malignancies, or swollen,
infected, or inflamed zones in places that may come into contact
with the device
o chronic pain from osteochondrosis
o epilepsy
Respiray Wear A+ User Manual ver. 1.4
5
2. Overview of the Device
2.1 Intended Use
This wearable air purifier is designed for personal use. It catches and filters
airborne allergens (such as pet dander, dust, pollen and mold) and harmful
pathogens, including virus particles, from the air. It also provides effective
protection against various pollutants like smoke, dust and chemicals. The
device minimizes exposure to airborne particles and combats pollution by
creating a zone of purified air in front of the wearer's face.
The product may only be used according to the instructions in this manual. Any
use other than that described in this manual is seen as an unintended use. The
product and this manual are subject to change. For the most recent version of
the manual, visit www.respiray.com/start.
2.2 Items Included in the Package
o 1 × Respiray Wear A+
o 2 × HEPA main filter
o 1 x washable pre-filter
o 1 x adjustable strap
o 1 x strap cushion
o 1 × charging cable
o 1 × user manual

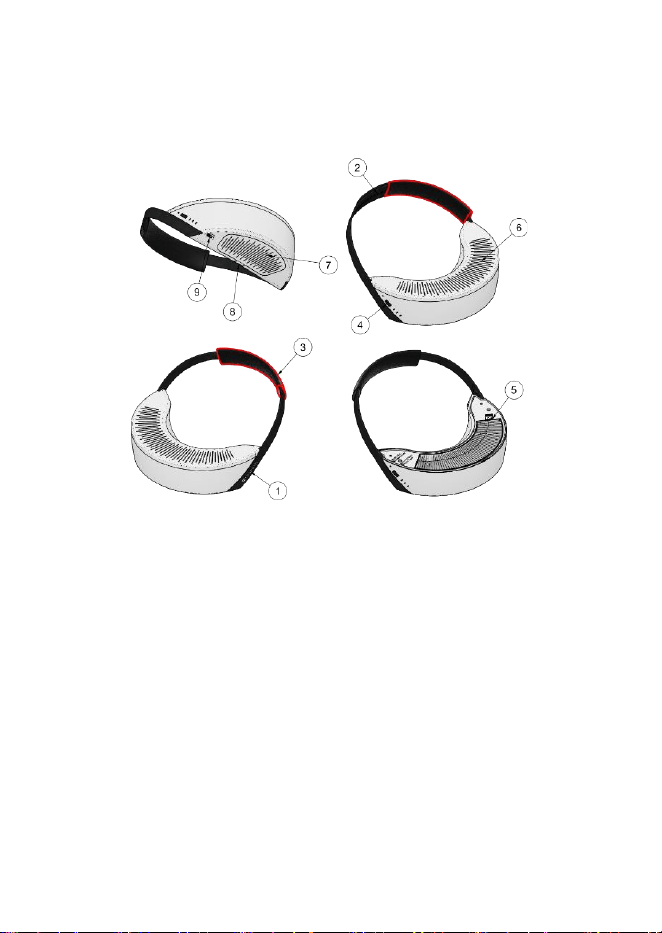

2.3 Device Description
The device consists of the main unit, incorporating the HEPA filter, ventilators,
battery, and the accompanying strap. The individual components are
illustrated below.
respiray.com
6
Respiray Wear A+ User Manual ver. 1.4
7
Part Name
Description
1
Magnetic closure
For quickly opening and closing the strap.
2
Strap adjuster
For regulating the strap length to ensure the
device is in the most effective position.
For maximum comfort, place the strap
cushion over the strap.
3.
Neck strap cushion
For maximum comfort.
4
Power button
For turning the device on or off and
regulating the airflow.
5
Main HEPA filter
Filters out airborne allergens, pathogens and
pollution particles. The main filter is located
beneath the top cover.
6
Top cover
Protects the main filter and holds it in place.
7
Washable pre-filter
Filters large particles and hair from the air to
prevent them from entering the device.
8
Pre-filter cover
Encloses the washable pre-filter.
9
USB charging port
For charging the device.
respiray.com
8
3. Assembly
Watch the tutorial video at www.respiray.com/start.

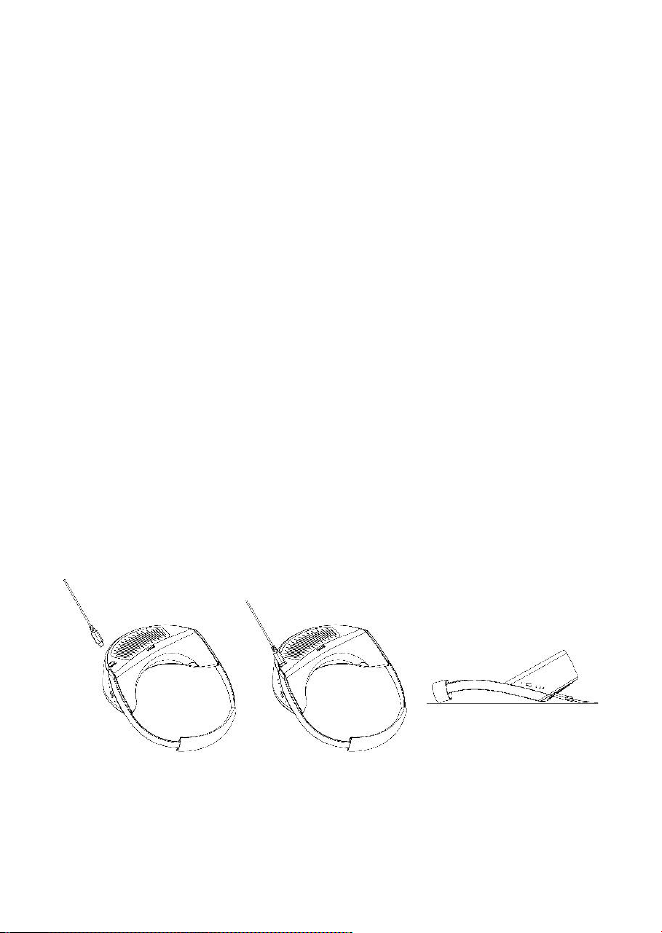

3.1 Assembling the Straps with the Main Unit
STEP 1: Take the right side of the strap and push the plastic ball joints
into the holes on the right side of the main unit.
STEP 2: Take the left side of the strap (with the logo) and place the
magnets into the magnetic slots on the device.
STEP 3: Adjust the strap length to the position where the device is
blowing the most air towards your mouth and nose.
STEP 4: Slide the strap cushion from position 4-A to position 4-B so that it
covers the strap connection.
Respiray Wear A+ User Manual ver. 1.4
9

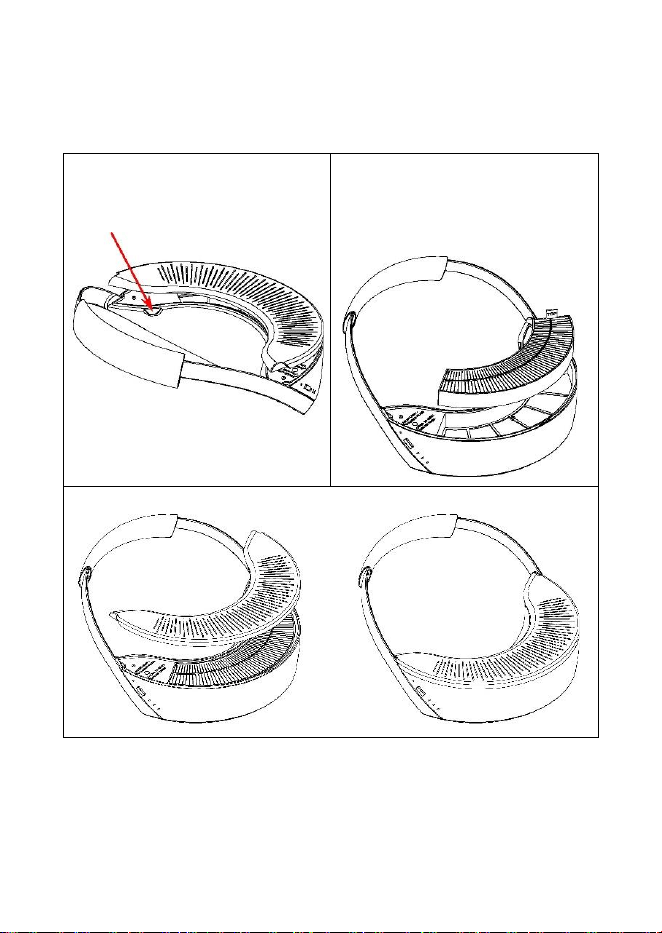

3.2 Inserting the Main Filter
STEP 1: Open the top cover by
pulling it up from the left side.
STEP 2: Insert the main HEPA filter
into the designated filter slot with
the pulling strip at the top. Make
sure you insert the filter straight
(not at an angle).
STEP 3: Place the top cover back onto the device.
respiray.com
10

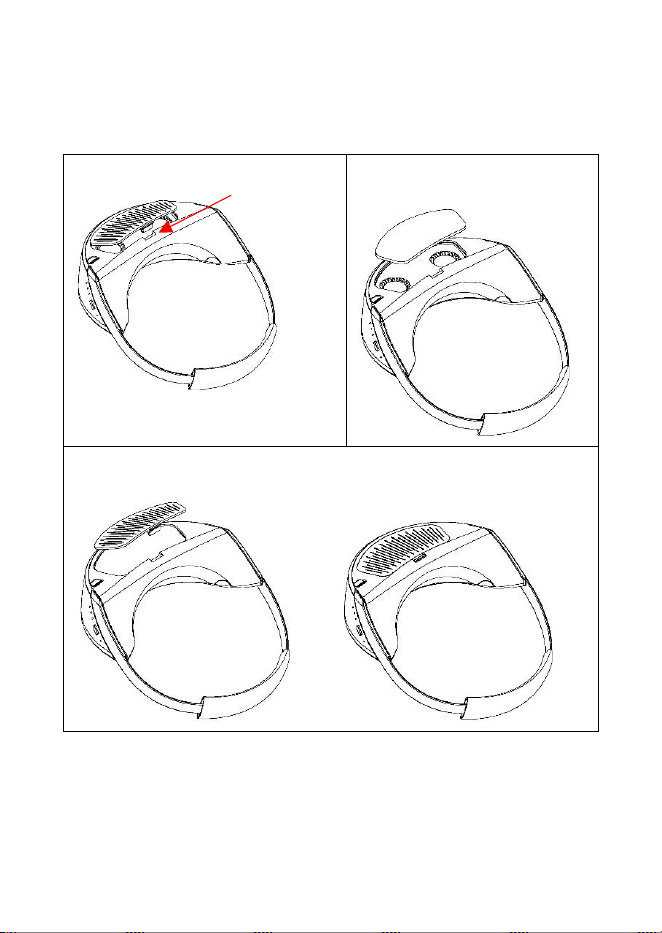

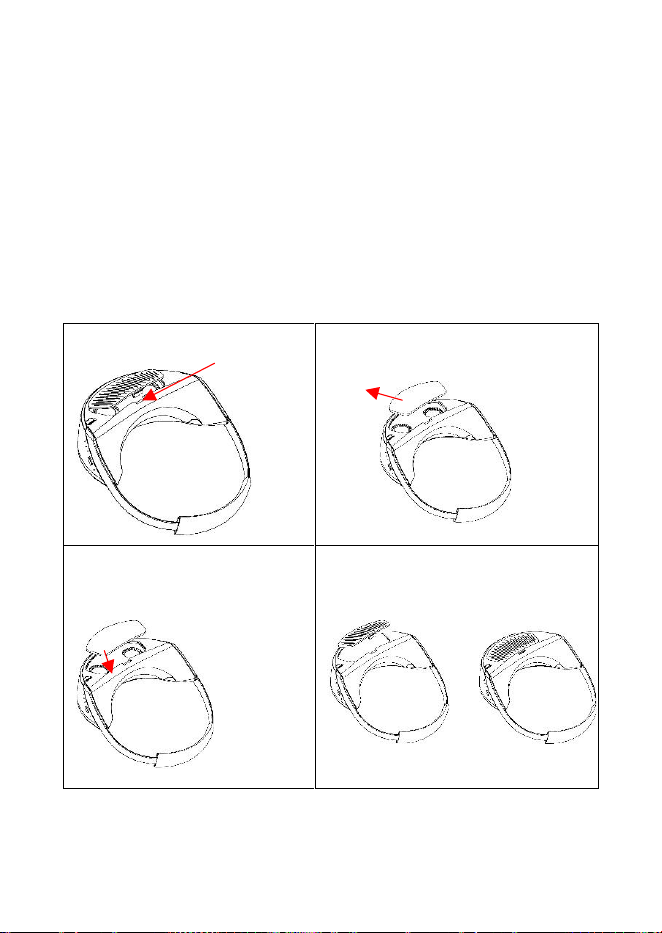

3.3 Inserting the Pre-Filter
STEP 1: Open the pre-filter cover
using the release mechanism.
STEP 2: Insert the pre-filter into
the designated filter slot.
STEP 3: Close the cover by inserting the studs into the designated slots
and then pushing the release mechanism back into place.
Respiray Wear A+ User Manual ver. 1.4
11
4. Operation
STEP 1: Open the magnetic strap on the left side of the device.
STEP 2: Place the device on your chest.
STEP 3: Guide the strap around your neck and back into place.
STEP 4: Place the device in a comfortable position. If necessary, adjust the
strap length and slide the strap cushion to a position that satisfies you.
STEP 5: Turn the device on or off by holding down the power button on the
right side.
STEP 6: Press the power button to switch between the two airflow speeds.
We recommend using the normal speed when you are sitting in one place and
the higher speed for moving around.
STEP 7: Open the magnetic strap to remove the device.
4.1 Charging
Charge the device using a USB Type-C charging cable and a power connector.
Charging time is approximately 2 hours.
respiray.com
12
4.2 Indicator Lights
Next to the power button are three white lights, which are used to indicate the
battery level. There is also a blue light above the power button that indicates
when it’s time to change the main filter.
Whenever you turn on your Respiray Wear A+ or change the airflow speed, the
battery indicator lights will show for 5 seconds. Here is what they mean:
Battery Indicator Light Status
Battery Status
Three white lights (solid)
Remaining battery level 67–100%
Two white lights (solid)
Remaining battery level 34–66%
One white light (solid)
Remaining battery level 10–33%
Three white lights (pulsing)
Remaining battery level <10%
Respiray Wear A+ User Manual ver. 1.4
13
When Respiray Wear A+ is charging, the indicator lights show the following:
Battery Indicator Light Status
Battery Status
Three white lights (solid)
Battery is fully charged
Two solid white lights with one
light blinking
Battery is charging and at 67–99%
One solid white light with two
lights blinking
Battery is charging and at 33–66%
Three white lights (blinking)
Battery is charging and at <33%
respiray.com
14
5. Maintenance
5.1 Cleaning
Before cleaning the device, make sure it is turned off. Then, gently wipe it with
a soft, slightly dampened cloth. Do not use any abrasive cleaning products or
detergents. To disinfect the surface of the device, use rubbing alcohol and a
microfiber cloth.
Be careful not to allow any water inside the device, as this can cause
damage. Do not turn the device on before it is completely dry.

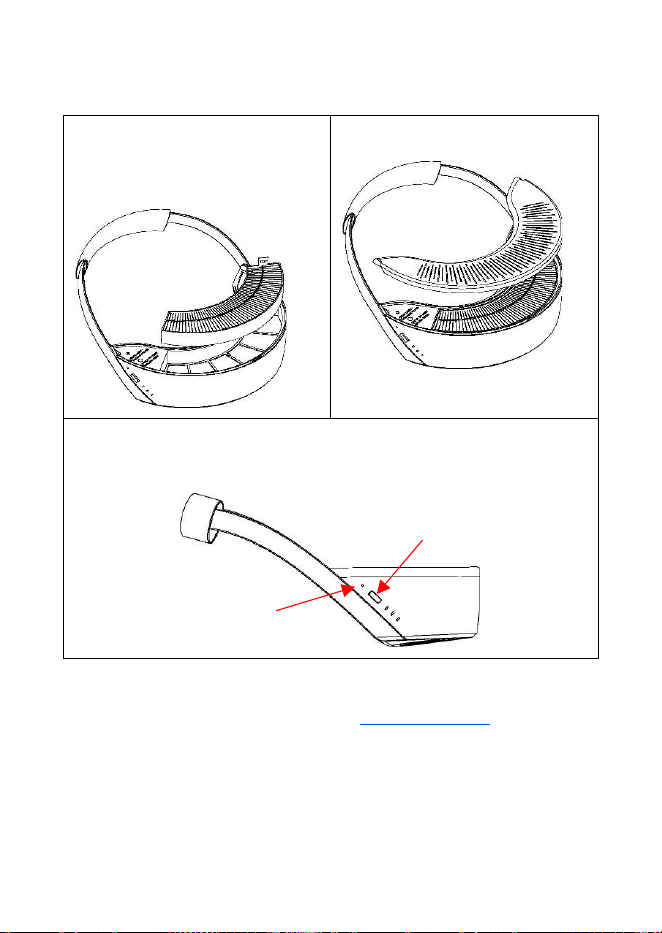

5.2 Replacing the Main HEPA Filter
STEP 1: Turn the device off and
open the top cover by pulling it up
from the left side.
STEP 2: Carefully remove the used
filter using the pulling strip, then
place it in a plastic bag and
dispose of it as general waste.
NOTE: If the previously inserted filter is stuck with the plastic edge, remove the
filter and the filter's foam. Make sure to remove the foam's glue on the plastic
surface before inserting the new filter. Ensure you insert the new filter straight,
not at an angle, so it will not get stuck next time.
Respiray Wear A+ User Manual ver. 1.4
15
STEP 3: Insert a new filter into the
designated filter slot with the
pulling strip at the top. Make sure
you insert the filter straight (not at
an angle).
STEP 4: Place the top cover back
onto the device.
STEP 5: To reset the filter timer, hold the power button down until the blue
indicator light turns off (approximately 8 seconds).
Replacement HEPA filters can be ordered from our website
(www.respiray.com) or by contacting us at info@respiray.com.
…until the blue
indicator light turns off.
Hold the power button
down for 8 seconds…
respiray.com
16
5.3 Cleaning and Replacing the Washable Pre-Filter
The role of the pre-filter is to prevent larger particles from reaching the
ventilators and prolong the lifetime of the main filter.
We recommend cleaning the pre-filter once a month by vacuum cleaning in the
gaps of the bottom cover, which will remove any large particles.
The pre-filter should be changed after every 400 hours of operation – or at the
same time as every second main filter change. To replace the filter, perform
the following steps:
STEP 1: Open the pre-filter cover
using the release mechanism.
STEP 2: Remove the used washable
pre-filter and clean it, or dispose of it
as general waste if it is damaged.
STEP 3: Insert the cleaned or
new pre-filter into the designated
filter slot.
STEP 4: Close the cover by inserting
the studs into the designated slots
and then pushing the release
mechanism back into place.
Respiray Wear A+ User Manual ver. 1.4
17
Replacement pre-filters can be ordered from our website (www.respiray.com)
or by contacting us at info@respiray.com.
5.4 Storing the Device
The device should be stored at room temperature (64–82 °F / 18–28 °C) and
in a low-humidity environment (30–50% relative humidity). To preserve the
battery during longer periods of storage, we also recommended that you first
charge the device to around 33–67% (so that one LED is lit and two are blinking).
Do not store the device around combustible or inflammable objects.
respiray.com
18
6. Frequently Asked Questions
1. What does Respiray Wear A+ do?
The wearable air purifier Wear A+ relieves airborne allergies and protects the wearer
from airborne pollutants and pathogens, including viruses and bacteria, by creating a
clean air zone around the face without covering the face or restricting breathing.
2. How does it work?
Respiray Wear A+ uses a highly effective HEPA filter that filters out most of the
allergens that can cause irritation and distress: pollen, dust mites, pet dander, etc. It is
also effective against air pollution and pathogens like viruses and bacteria.
3. Is the device safe for children?
This depends on each child´s age and activity levels. If they feel comfortable while
wearing the device, it will not pose them any harm with normal use. However, if the child
falls and lands on top of the device, they could potentially be hurt or injured.
4. Is the device’s battery replaceable?
No, the battery is currently integrated into the device and therefore not replaceable.
Please do not attempt to separate the battery from the casing or replace it.
5. How much air does the device clean?
In the normal mode, the device cleans 2.4 cubic feet / 70 liters of air per minute.
In the higher mode, the device cleans 4.2 cubic feet / 120 liters of air every minute.
6. Is the device water resistant?
No, the device is not water resistant, and it is not intended for use in humid or wet
environments.
7. How long does the HEPA filter last?
The HEPA filter should be replaced after every 200 hours of operation. We generally
recommend replacing the filter after 3 months if it has been used less than 200 hours
during this period. The filter should also be replaced if accumulated dust or other
particles are visible on the device or if the filter is clogged and causes the ventilators to
produce more noise.
Respiray Wear A+ User Manual ver. 1.4
19
8. Can the device be used while charging?
Yes, the device can be used while charging.
9. What material is the device casing?
The casing is made from high-quality PC/ABS plastic.
10. Are the straps replaceable?
Yes, replacement straps can be ordered from our website (www.respiray.com) or by
contacting us at [email protected].
respiray.com
20
7. Troubleshooting
Problem
Explanation / Solution
The device is not turning on
o The battery is discharged. Charge
the device as instructed in section
4.1 Charging.
The device is not charging
o The device is not correctly
connected to the power outlet.
Check the connections between
the device, the charging cable, and
the wall adapter.
o Something is obstructing the
device’s charging port. Try
clearing the port with a thin
wooden or plastic tool. DO NOT
use a metal tool as it may damage
the port.
The device turns off unexpectedly
o The device has become
discharged. Please see section 4.1
Charging.
Respiray Wear A+ User Manual ver. 1.4
21
8. Warranty Information
Respiray OÜ, Mõisa 4, 13522, Tallinn (hereinafter referred to as ”Respiray”)
warrants that the product is free from defective workmanship and parts for a
period of one (1) year from the date of the original purchase or the date of
delivery, provided the product has been used, cleaned, and maintained in
accordance with these instructions and Respiray’s recommendations. This
warranty does not include consumable parts, such as the filters, which must
be replaced regularly by the user.
This warranty does not cover:
o Instances where the product has been used outside of the intended
use and/or our recommendations;
o Instances where damage has been caused by misuse, mishandling,
accident, or excessive wear and tear.
Any claim under this warranty must be made within one (1) year of the date of
purchase or delivery of the product.
If the buyer wishes to make a warranty claim, they should contact the relevant
support center. The buyer will then receive further information about the
processing of the warranty claim, e.g. where they can send the product and
what documentation is required.
A warranty claim shall only be considered if the buyer can provide a copy of the
invoice / purchase receipt and the original product to Respiray, or an authorized
Respiray partner.
The following are explicitly excluded from this warranty:
o Deterioration due to normal use of the product;
o Products that are used, cleaned, stored, or maintained improperly
and/or contrary to the provisions of the instructions for use;
o Products that have been opened, repaired, or modified by the buyer
or by a service provider that is not authorized by Respiray;
o Damage that arises during transport between the manufacturer
and customer, or between the service center and customer;
respiray.com
22
o Damage arising as a consequence of a fault in this product
(however, in this case claims may be made under product liability
or other compulsory statutory liability provisions).
8.1 Customer Care
Please contact Respiray Customer Service to report unexpected operations,
events, or any other problems with your device. Our contact details are:
Country
Service number
Email
Estonia
+372 5355 1952
Respiray Wear A+ User Manual ver. 1.4
23
9. Specifications
Technology
High-efficiency HEPA filter
Active Allergen
Filtration
>99.9% at 70 liters/min
Airflow Rate
Rate 1: 2.5 cubic feet per minute | 70 liters/min
Rate 2: 4.2 cubic feet per minute | 120 liters/min
Noise Level
~45 dBA
Weight
Main Unit: 9.17 oz | 260 g
Strap: 0.85 oz | 24 g
Filters: 0.50 oz | 14 g
Total: 10.51 oz | 298 g
Dimensions
4.7 x 7.8 x 2.7 inch | 12 x 20 x 6 cm
Battery
Li-Ion battery 3.7 V | 2000mAh | 7.4 Wh
Operating
Conditions
Temperature: 50–105 °F | 10–40 °C
Relative humidity: 15%–75%
respiray.com
24
10. Disposal
Do not dispose of this product in household waste!
If your device reaches its end-of-life stage, be sure to follow your
country’s laws for the disposal of electrical items.
The WEEE directive requires that you dispose of this electrical
device (including all accessories and parts) at a designated
recycling collection point for electrical devices. Please separate the
battery module from the main unit. This helps to conserve natural
resources and to protect human health and the environment. Make
sure that the device is in an uncharged state before disposal. Do
not place the device in the trash.
Before disposing of the packaging, separate it into individual
material types.
Where possible, dispose of the cardboard and carton parts of the
packaging as wastepaper.
11. Copyright
Respiray and related marks and logos are trademarks and/or registered
trademarks of Respiray OÜ. © 2022 Respiray OÜ.
Respiray Wear A+ User Manual ver. 1.4
25
12. Declaration of Conformity
Product Name
Respiray Wear A+
Brand Name
Respiray
Model
RSWA01
Series Models
RSWA
This product is herewith confirmed to comply with the
requirements of ICES-003:Issue 7.
The result has been evaluated by Attestation of Global Compliance (Shenzhen)
Co., Ltd. and shown in the following test report:
Requirement
Test Report No.
Result
ICES-003:Issue 7
AGC14659221119CE01
Conform
It is understood that each unit marketed is identical to the device as tested,
and any changes to the device that could adversely affect the emission
characteristics will require retest.
The following manufacturer is responsible for this declaration:
Company Name
Respiray OÜ
Address
Mõisa 4, Tallinn, 13522, Harjumaa, Estonia
Contact Name
Karl Annus
Position
CEO
Telephone
+372 5355 1952
Email
respiray.com
26
CE marking: Respiray declares that this product conforms with the
basic requirements and relevant provisions of the European
guidelines.
FCC marking: Respiray declares that this product is herewith
confirmed to comply with the requirements of FCC Part 15 rules.
Operation is subject to the following two conditions:
(1) The device may not cause harmful interference, and
(2) The device must accept any interference received, including
interference that may cause undesired operation.
The result has been evaluated by Attestation of Global Compliance (Shenzhen)
Co., Ltd. and shown in the following test report:
Requirement
Test Report No.
Result
FCC Part 15 Rules
AGC14659221119FE01
Conform
Copyright 2024 Respiray OÜ. All rights reserved.
INSTANT CLEAN AIR
WWW.RESPIRAY.COM
