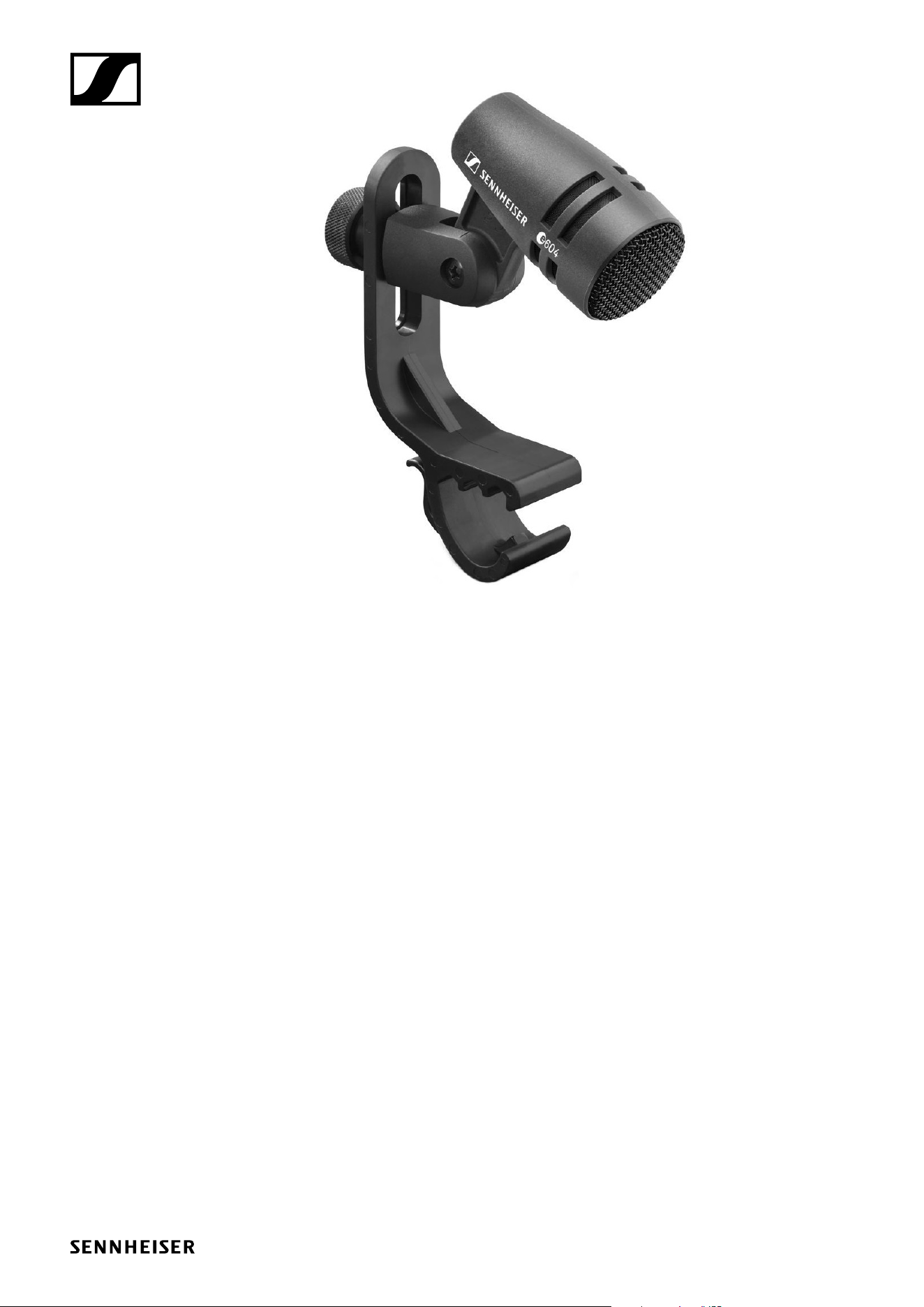

e 604
Instruction manual
e 604 | 2/7
Delivery includes
Delivery includes
• e 604
• MZH 604 microphone clamp
• pouch
• quick guide
• safety guide

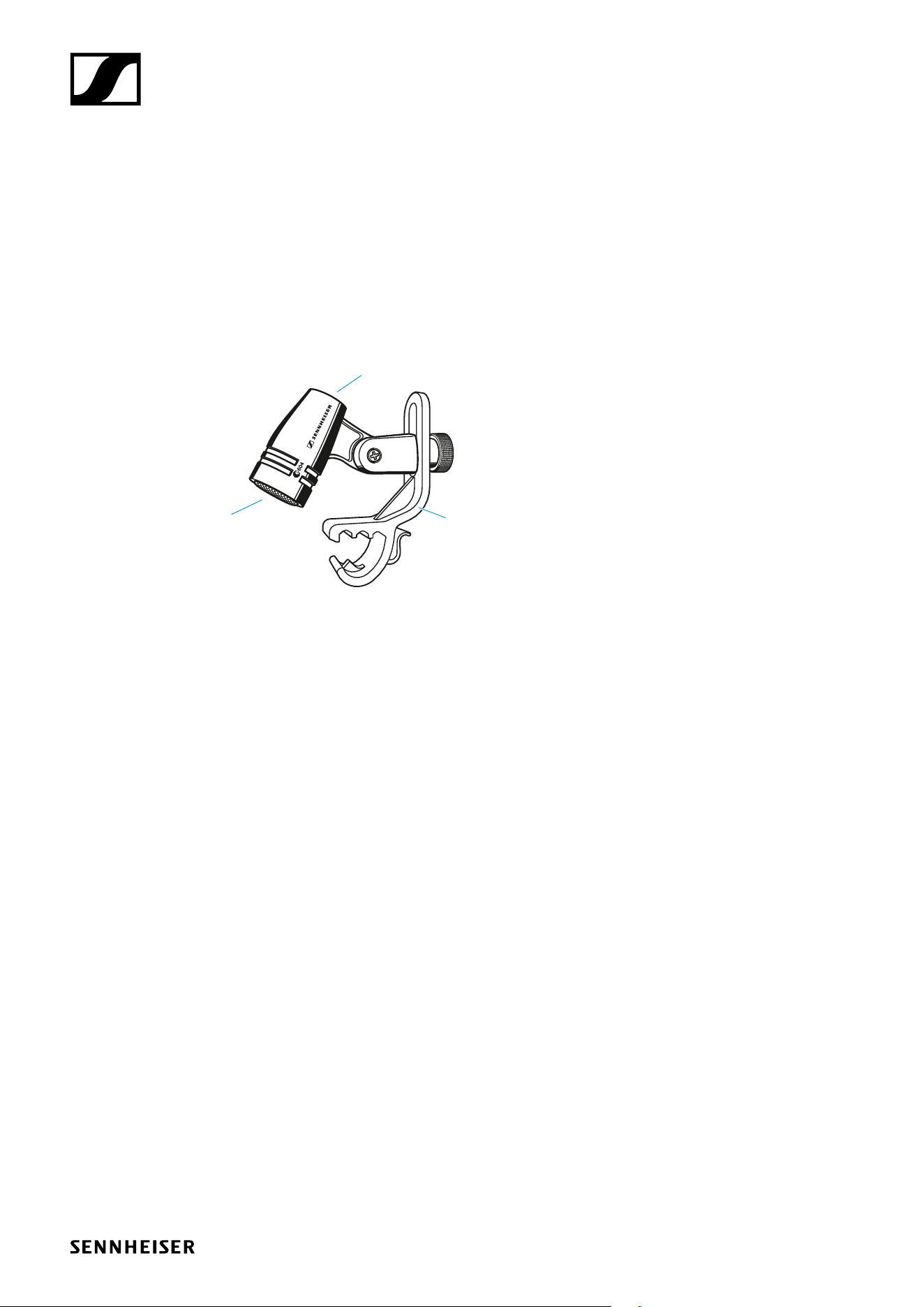

Product overview
1
2
3
1. Sound inlet basket
2. XLR-3 connector
3. Microphone clamp
e 604 | 3/7
Installation
Installation

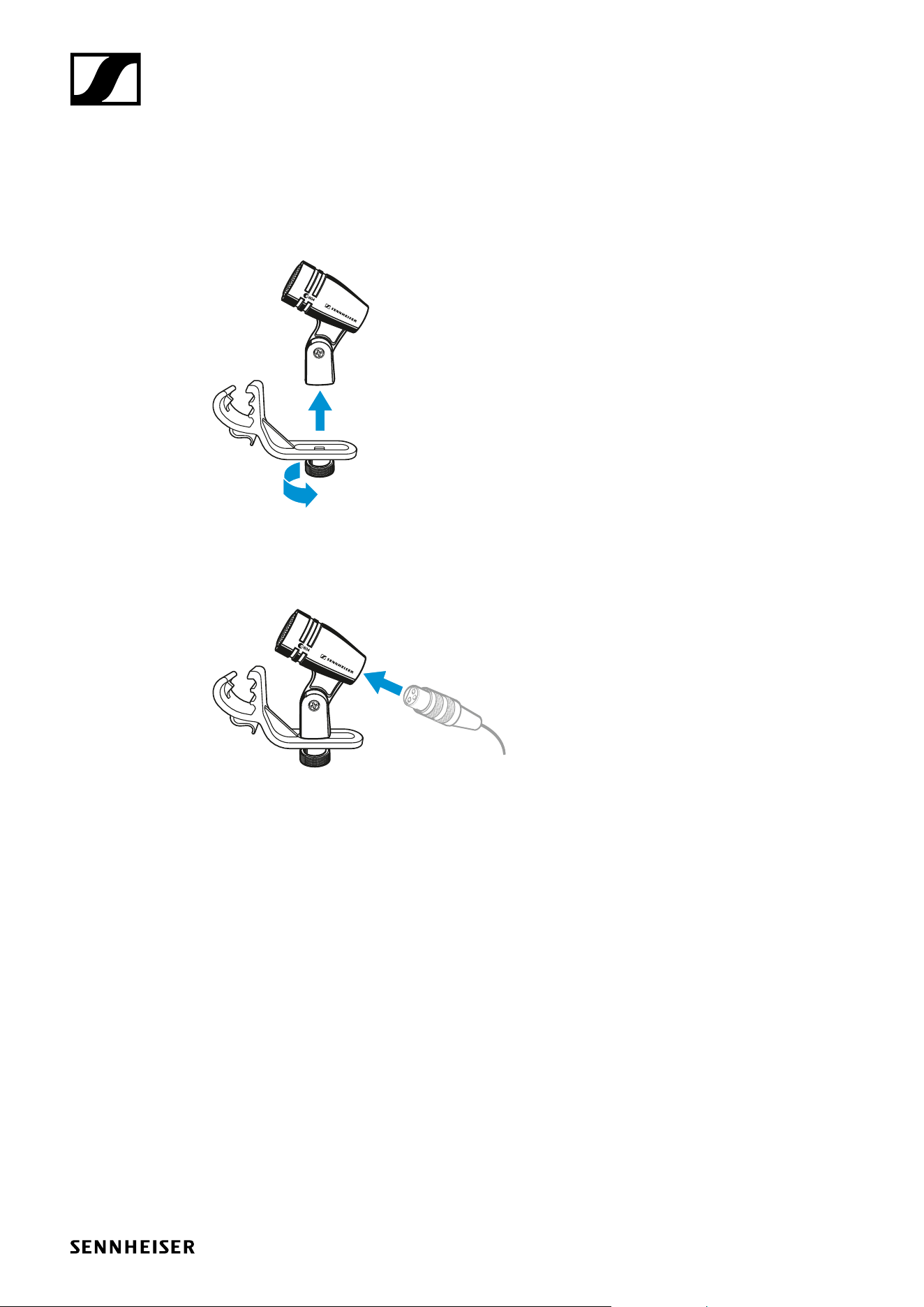

Attaching the microphone
f Fasten the holder to the microphone using the screw.
Connecting the microphone
f Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of
the microphone.
e 604 | 4/7
Operation
Operation

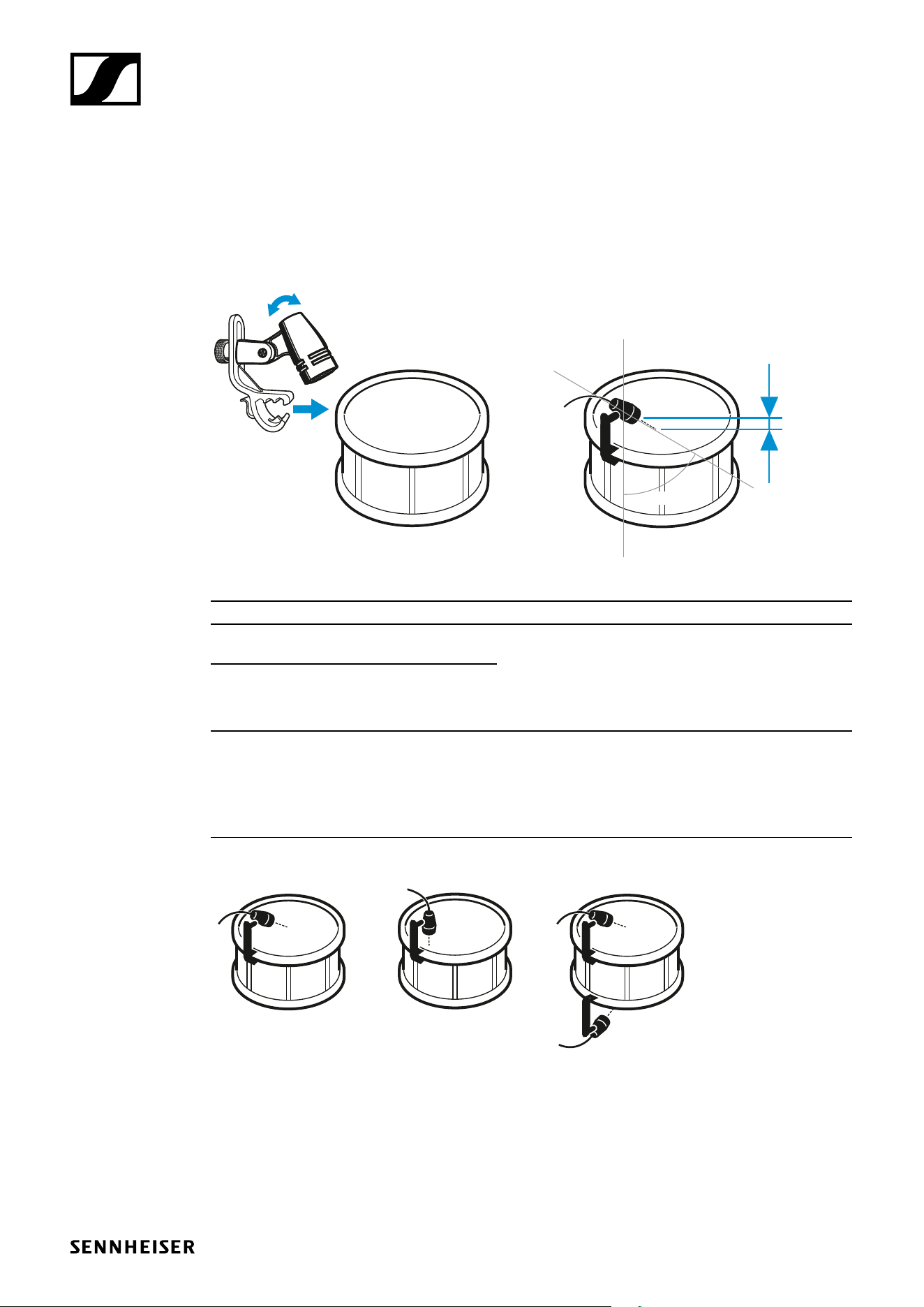

Positioning the microphone on a drum
f Use the microphone clamp to attach the e 604 to the rim of the drum.
f Position the microphone on the drum so that it is 3 to 5 cm above the drumhead.
3 – 5 cm
(1.2 – 2")
30 – 60°
f It is vital to observe the following notes:
Position Resulting sound Commentary
A More fundamental
Little overtones
Position on the drum:
3 to 5 cm above the drumskin
The fundamental to overtones ratio can be adjus-
ted by changing the angle of the microphone. The
most balanced results are obtained at an angle of
30 to 60°.
B Less fundamental
Many overtones
C Use of a second e 604 for picking up the bottom of
the drumskin and the snares.
NB: The lower microphone must be phase-rever-
sed to avoid phase-cancellation effects due to the
second microphone being on the other side of the
drumskin.
A B C
e 604 | 5/7
Cleaning and maintaining the e 604

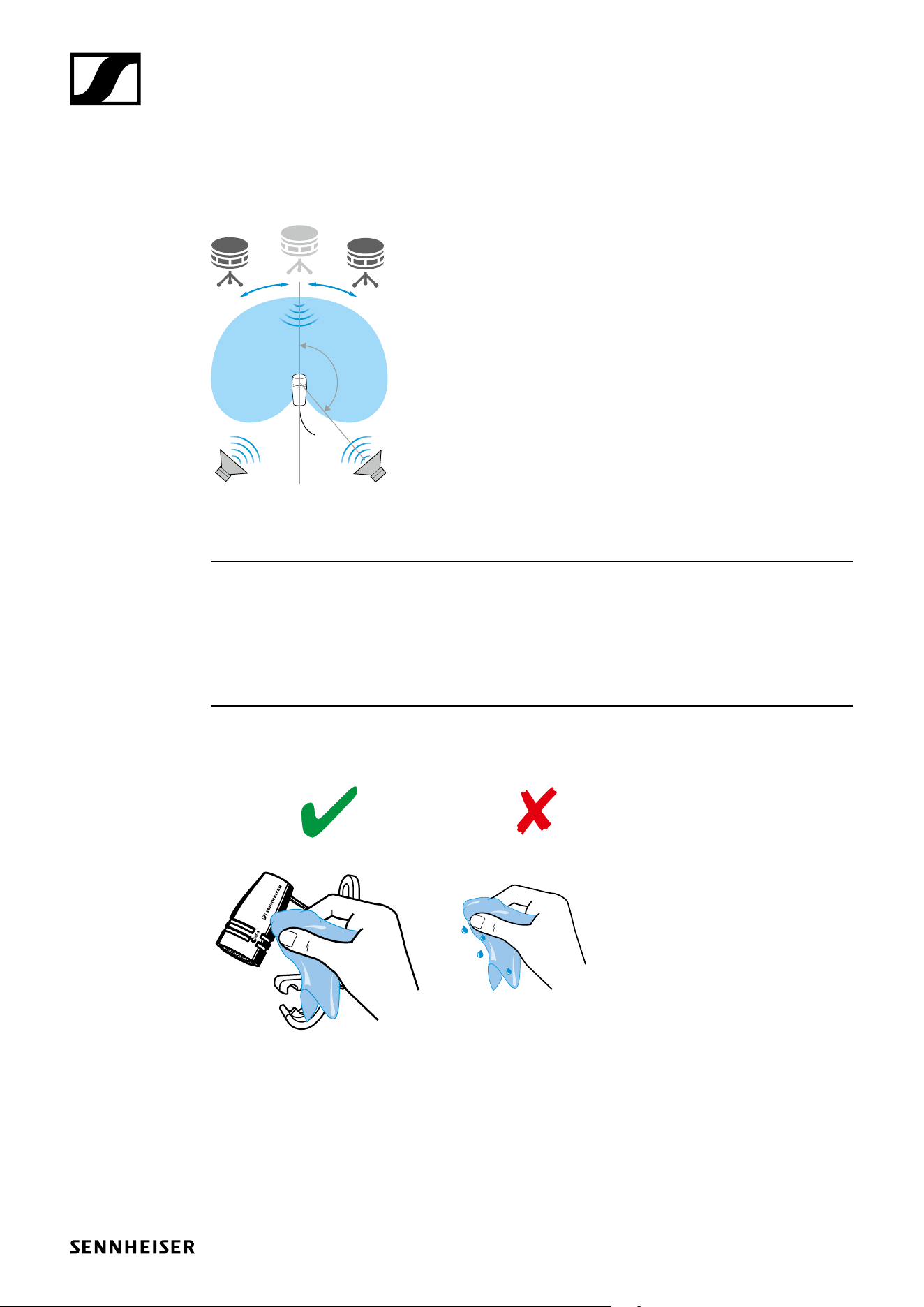

Positioning the monitor loudspeakers
f To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the
highest cancellation of the microphone (approx. 135°).
135°
Cleaning and maintaining the e 604
CAUTION
LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!
Liquids entering the housing of the product can cause a short-circuit and damage the electronics.
f Keep all liquids away from the product.
f Do not use any solvents or cleansing agents.
f Disconnect the products from the power supply system and remove rechargeable batteries and
batteries before you begin cleaning.
f Clean all products only with a soft, dry cloth.
e 604 | 6/7

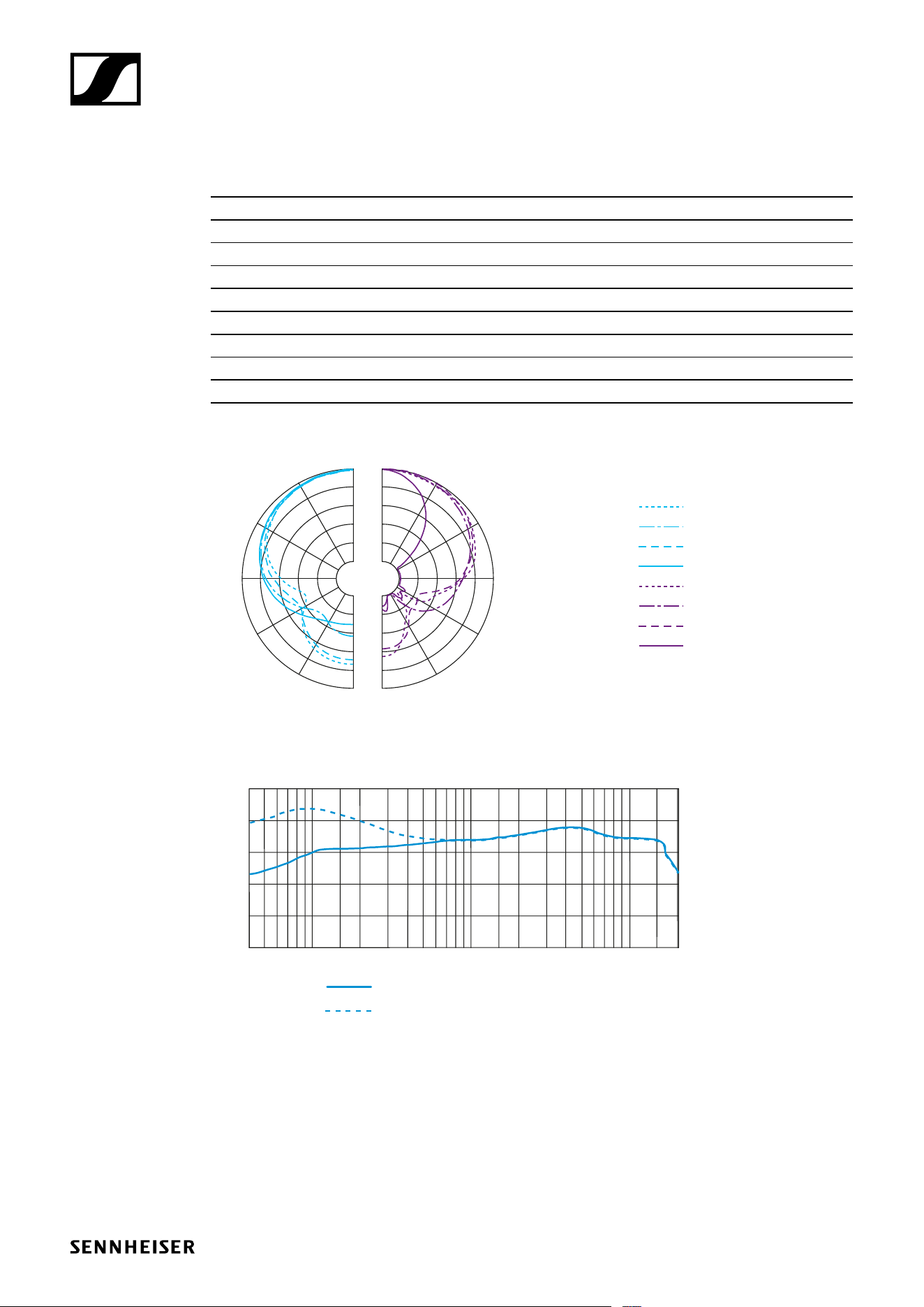

Specifications
Specifications
Transducer principle dynamic
Frequency response 40 - 18,000 Hz
Pick-up pattern cardioid
Sensitivity (free field, no load) 1.8 mV/Pa
Nominal impedance (at 1 kHz) 350 Ω
Min. terminating impedance 1 kΩ
Connector XLR-3
Dimensions Ø 33 mm, length 59 mm
Weight 60 g
Polar pattern
125 Hz
250 Hz
500 Hz
1,000 Hz
2,000 Hz
4,000 Hz
8,000 Hz
16,000 Hz
30°
0°
180°
150°
120°
60°
90°
0
5
10
15
20
25
dB
30°
0°
180°
150°
120°
60°
90°
Frequency response
dBV
50
100
200
500
1,000
2,000
5,000
10,000
20,000
Hz
- 50
- 60
- 70
- 80
- 90
- 40
0°, 1 m
0°, 5 cm
e 604 | 7/7
Overview of applications

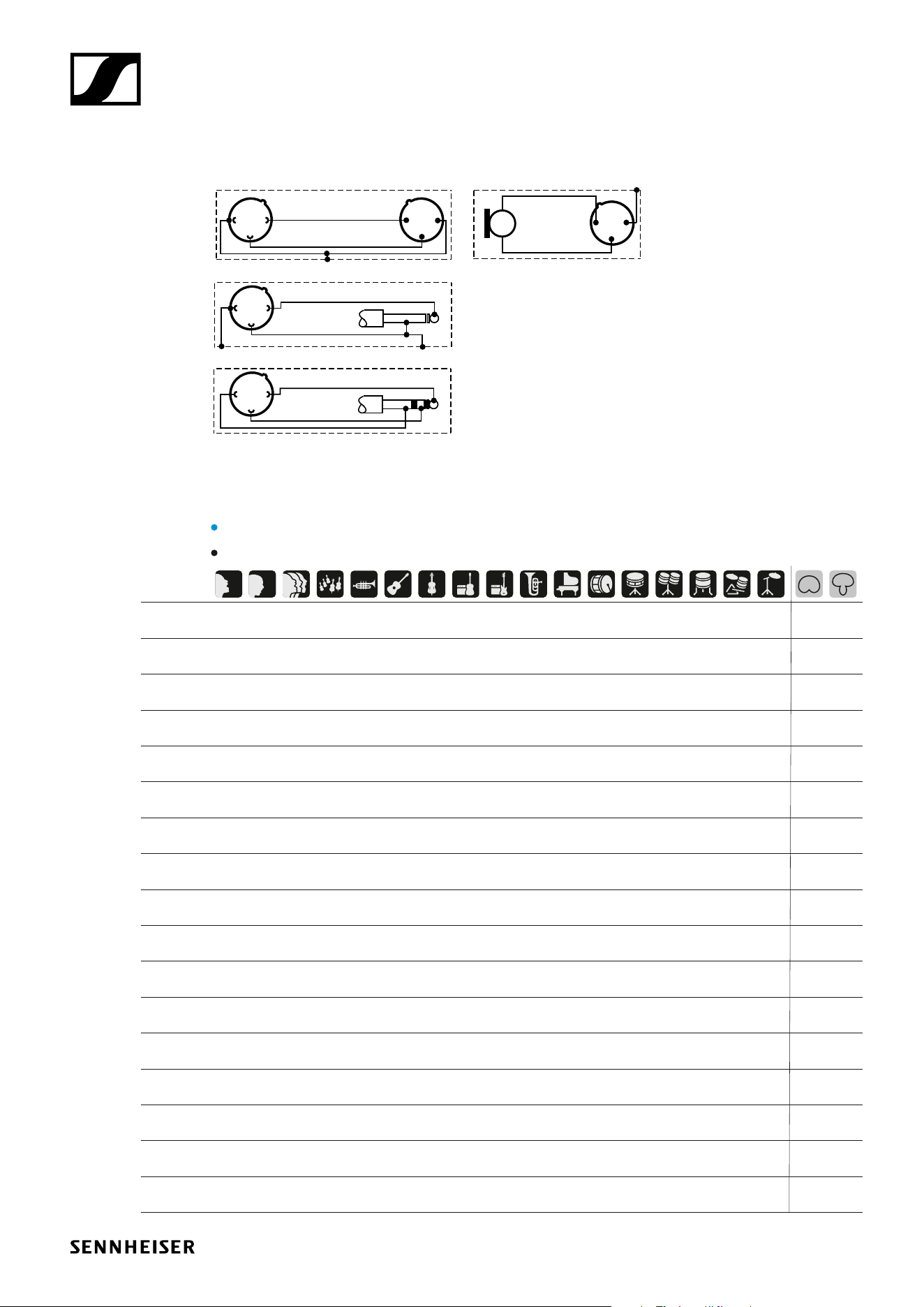

Connector assignment
12
3
+
+
12
3
1
2
3
+ +
1
2
3
+
+
1
2
3
+
+
XLR 6.3 mm
XLR
6.3 mm
XLR
XLR
XLR
UNBALANCED
BALANCED
Overview of applications
Primary application
Secondary application
•••• •
••
• •••
••
• ••
••
• • ••• •
•• • •• • • •
•• •
•• •
•• •
• • •
•• •
••
• •••
••
• • ••• •
••
••• •
• • • •• • • •
• •
• •
• •• ••
e 602 II
e 604
e 608
e 609
silver
e 614
e 835
e 845
e 865
e 901
e 902
e 904
e 906
e 908
e 914
e 935
e 945
e 965
