FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 06-82-9220 M4 x 16mm Pan Hd. PT T-20 Screw (27)
2 --------------- Top Handle (1)
3 --------------- Packout Top (1)
4 05-78-0003 M5 x 17mm Pan Hd. Tapt. T-25 Screw (4)
5 --------------- Head Shell (1)
6 05-78-0044 M3 x 12mm Pan Hd. Tapt. T-10 Screw (10)
7 22-56-0002 Terminal Block Cover (2)
8 31-01-0118 Battery Rail (2)
10 45-06-0002 Rubber Tank Gasket (1)
28 43-33-0001 Inlet Elbow (1)
30 31-01-0121 CD Volute Top (1)
31 31-50-0109 Upper Motor Isolator (1)
32 31-50-9005 Motor (1)
33 31-50-0116 Lower Motor Isolator (1)
34 14-20-1106 Main PCBA (1)
35 31-01-0122 Tank Buckle (2)
36 31-01-0123 Hose Reset (2)
37 31-01-0109 Pin (2)
38 31-01-0126 Mid Frame (1)
39 42-46-0001 Ball Float (1)
40 45-06-0004 Filter Seal (1)
41 42-46-0002 Float Ball Cage (1)
42 49-90-1978 Filter Assembly (Available in Stores) (1)
44 23-94-0104 Wire Assembly (Not Shown) (1)
45 --------------- Rubber Button Pad (1)
46 --------------- UI Cover (1)
47 05-78-0004 M2 x 7mm Pan Hd. ST Phillips Screw (4)
48 --------------- UI PCBA (1)
52 05-78-0005 M4 x 14mm Pan Hd. ST T-20 Screw (28)
55 49-90-1996 9' Hose (1)
62 14-37-0001 Nozzle (1)
72 14-46-1108 Packout Top Service Kit (1)
83 14-46-1107 UI Service Assembly (1)
12-20-1104 Service Nameplate (Not Shown) (1)
90 0952-20 VACLINK™ Wireless Remote (1)
91 31-01-0127 Dust Extraction Tool (1)
#90: For VACLINK™
Wireless Remote
service parts, refer to
the 0952-20 SPL.
#55: You must order
the VacLink nozzle (62)
when replacing the
hose assembly (55).
Refer to the next page for:
The corresponding Parts
List, Torque Specications
Chart, and Wire Routing.
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

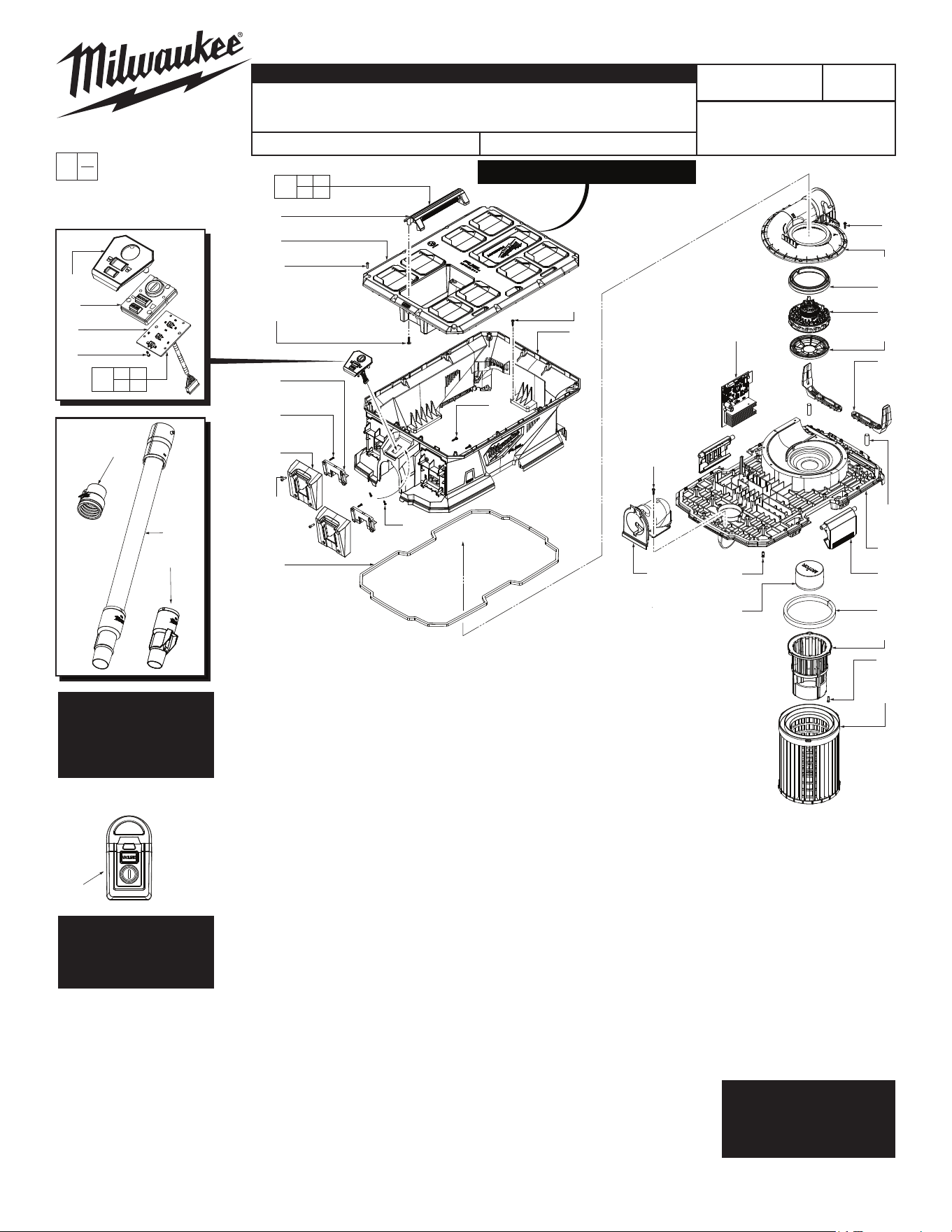

Drwg. 1
PACKOUT™ Compatibility
7
(2x)
6
(8x)
8
(2x)
52
(8x)
10
6
(2x)
1
(2x)
1
(12x)
5
1
(8x)
30
31
32
33
36
(2x)
37
(2x)
38
35
(2x)
40
41
52
(3x)
42
52
(5x)
39
34
1
(5x)
28
46
45
48
47
(4x)
45 46
47 48
83
2
3
52
(12x)
4
(4x)
2 3
4
72
55
62
91
90
SERVICE PARTS LIST
BULLETIN NO.
PN0005062
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
REVISED BULLETIN
DATE
Aug. 2025
M18 FUEL™ NEXUS™ Dual Battery Wet/Dry
Vacuum Motor Head w/ VACLINK™ (36V)

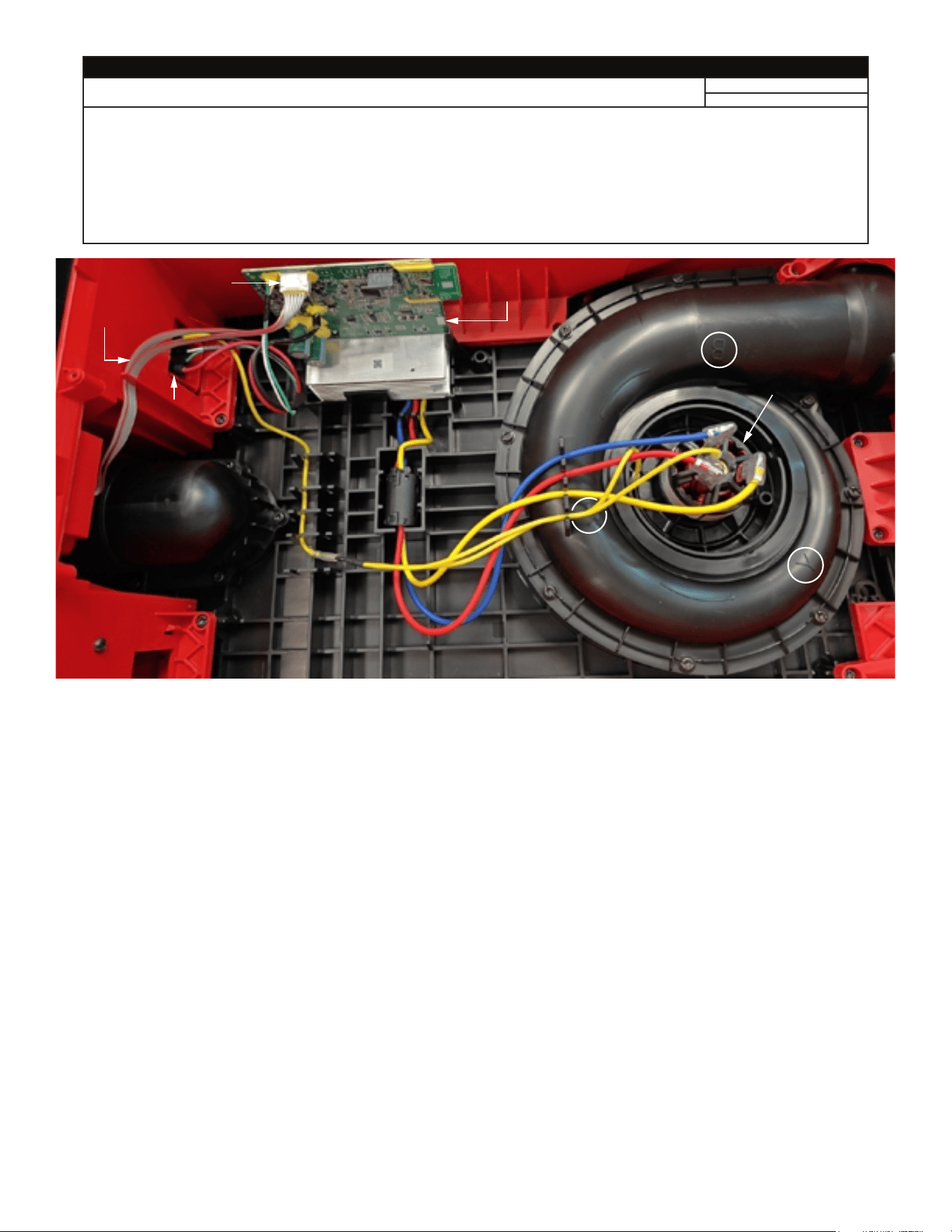

WIRING INSTRUCTION
See Page 2
CATALOG NO. 0926-20 SERIAL NO. R12A
Before you disassemble the tool, record the wire routings and their
positions in the wire guides and traps.
Make sure that all components of the electronics kit are aligned and
installed correctly in the housing recesses.
Do not strain or stretch wires. Make sure that all wires and sleeves are
pushed fully down into wire guides and traps.
Before you install the mid-frame onto the head, make sure they align
correctly with no interferences.
Before you install the battery, check that the switch operates correctly.
After you install the battery, make sure the switch triggers move freely and
function correctly before you operate the tool.
CD Volute Top has letter designations
that correspond to motor terminal
wire connections from Main PCBA
and Battery Terminal Block:
B = Blue
Y = Yellow
R = Red
UI connector to MainPCBA
UI PCBA wires
Main
PCBA
Ferrite
Bead
Battery
Terminal
Block
Motor
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. DESCRIPTION OF FASTENER WHERE USED (lb-in) (kgf-cm)
1 06-82-9220 M4 x 16mm Pan Hd. PT T-20 Screw Volute, Elbow, Battery Cover, Head Shell 5.2-6.9 6-8
1 06-82-9220 M4 x 16mm Pan Hd. PT T-20 Screw Feet 4.7-5.6 5.5-6.5
4 05-78-0003 M5 x 17mm Pan Hd. Tapt. T-25 Screw Top Handle, Packout Top 9.5-11.2 11-13
6 05-78-0044 M3 x 12mm Pan Hd. Tapt. T-10 Screw Terminal Block Cover, Battery Cover 4.7-5.6 5.5-6.5
16 05-81-0013 M4 x 10mm Pan Hd. ST Phillips Screw Tank Handles 4.7-5.6 5.5-6.5
47 05-78-0004 M2 x 7mm Pan Hd. ST Phillips Screw UI PCBA 1.3-2.1 1.5-2.5
52 05-78-0005 M4 x 14mm Pan Hd. ST T-20 Screw Packout Top, Batt. Rail, Bag Holder, Cage 5.2-6.9 6-8
