ZKTeco F35 User Manual

Product Name and Model Number User Manual

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

For further details, please visit our Company’s website

www.zkteco.com

User Manual

F35

Date: September 2024

Doc Version: 1.2

English

F35 User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any

way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or

"ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by

their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third

party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of the

supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact

ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the

safe operation of the machine/unit/equipment that personnel has read, understood and followed the

safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract conditions/documents

shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty

of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular

purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents which

are referenced by or linked to this manual. The entire risk as to the results and performance obtained from

using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,

special, or exemplary damages, including, without limitation, loss of business, loss of profits, business

interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or

F35 User Manual

relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been

advised of the possibility of such damages.

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated into

new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the

information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better

operation and safety of the machine/unit/equipment. The said additions or amendments are meant for

improvement /better operations of the machine/unit/equipment and such amendments shall not give any

right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in

conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures and

relevant documents are available on http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business related queries, please write to us at: sales@zkteco.com

To know more about our global branches, visit www.zkteco.com.

F35 User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition

Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security

solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art

700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of biometric

verification procedures and the productization of biometric verification SDK, which was initially widely

applied in PC security and identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually constructed an identity

authentication ecosystem and smart security ecosystem, which are based on biometric verification

techniques. With years of experience in the industrialization of biometric verifications, ZKTeco was

officially established in 2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National High-tech Enterprise for 6

consecutive years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of F35.

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent

with the actual products.

Features and parameters with

★ are not available in all devices.

F35 User Manual

Document Conventions

Conventions used in this manual are listed below:

GUI Conventions

For Software

Convention Description

Bold font Used to identify software interface names e.g. OK, Confirm, Cancel.

Multi-level menus are separated by these brackets. For example, File > Create >

Folder.

For Device

Convention Description

< >

Button or key names for devices. For example, press <OK>.

[ ]

Window names, menu items, data table, and field names are inside square

brackets. For example, pop up the [New User] window.

Multi-

level menus are separated by forwarding slashes. For example,

[File/Create/Folder].

Symbols

Convention Description

This represents a note that needs to pay more attention to.

The general information which helps in performing the operations faster.

The information which is significant.

Care taken to avoid danger or mistakes.

The statement or event that warns of something or that serves as a cautionary

example.

F35 User Manual

Table of Contents

1 SAFETY MEASURES.............................................................................................................................. 9

2 ELECTRICAL SAFETY .......................................................................................................................... 10

3 OPERATION SAFETY .......................................................................................................................... 10

4 INSTRUCTION FOR USE ..................................................................................................................... 11

FINGER POSITIONING .................................................................................................................................................................................... 11 4.1

STANDBY INTERFACE .................................................................................................................................................................................... 11 4.2

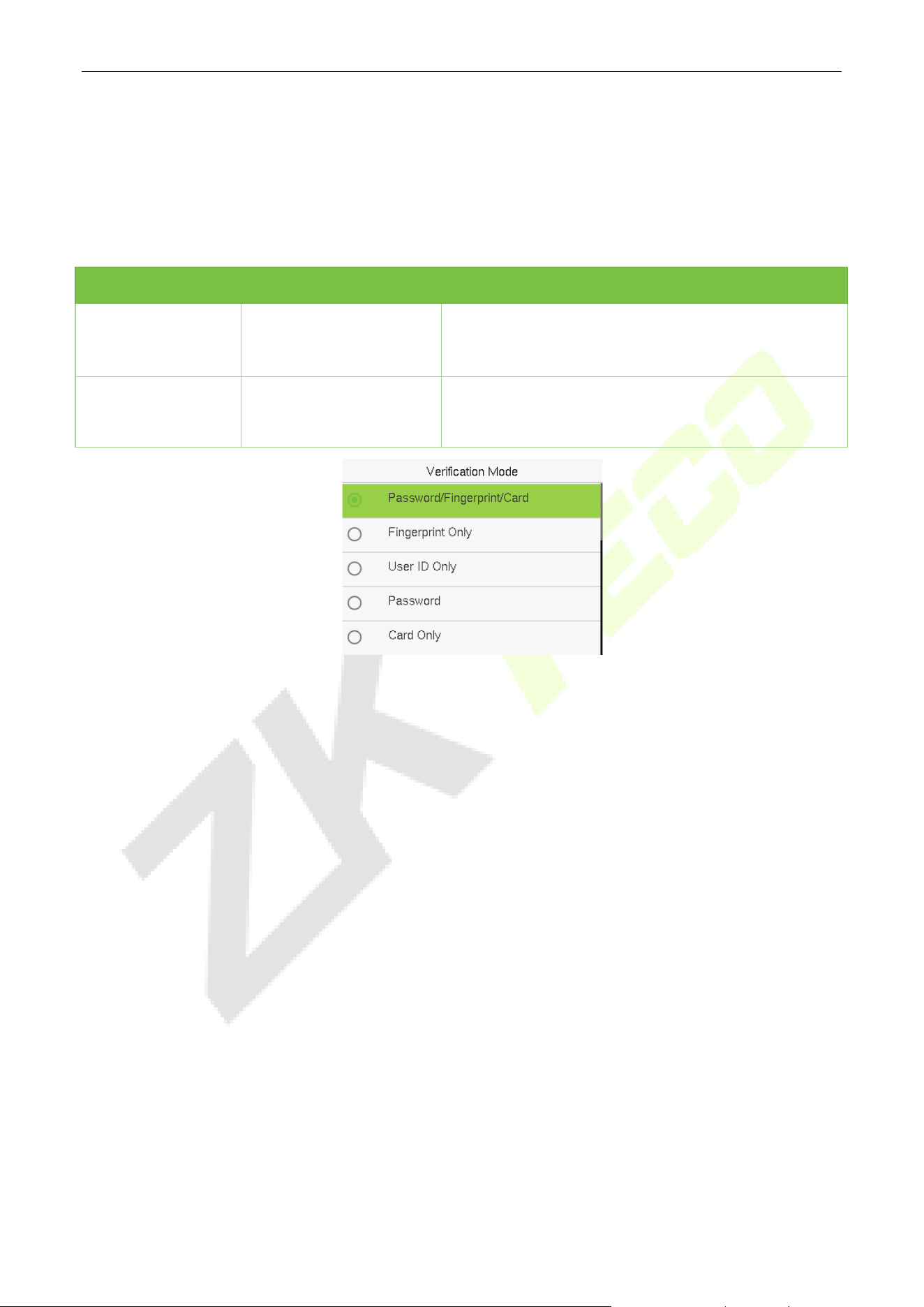

VERIFICATION MODE .................................................................................................................................................................................... 13 4.3

4.3.1 FINGERPRINT VERIFICATION ..................................................................................................................................................................... 13

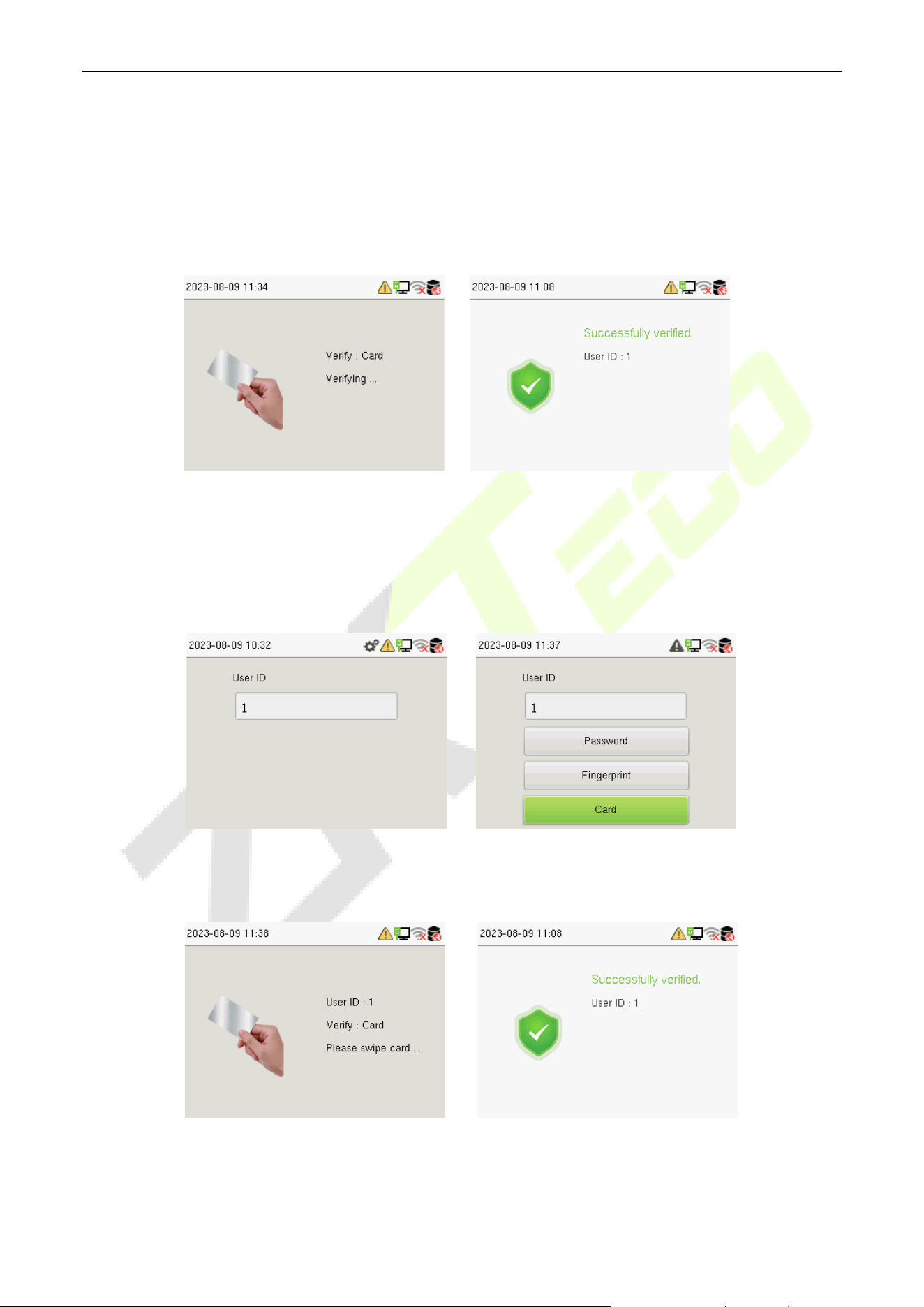

4.3.2 CARD VERIFICATION ................................................................................................................................................................................... 15

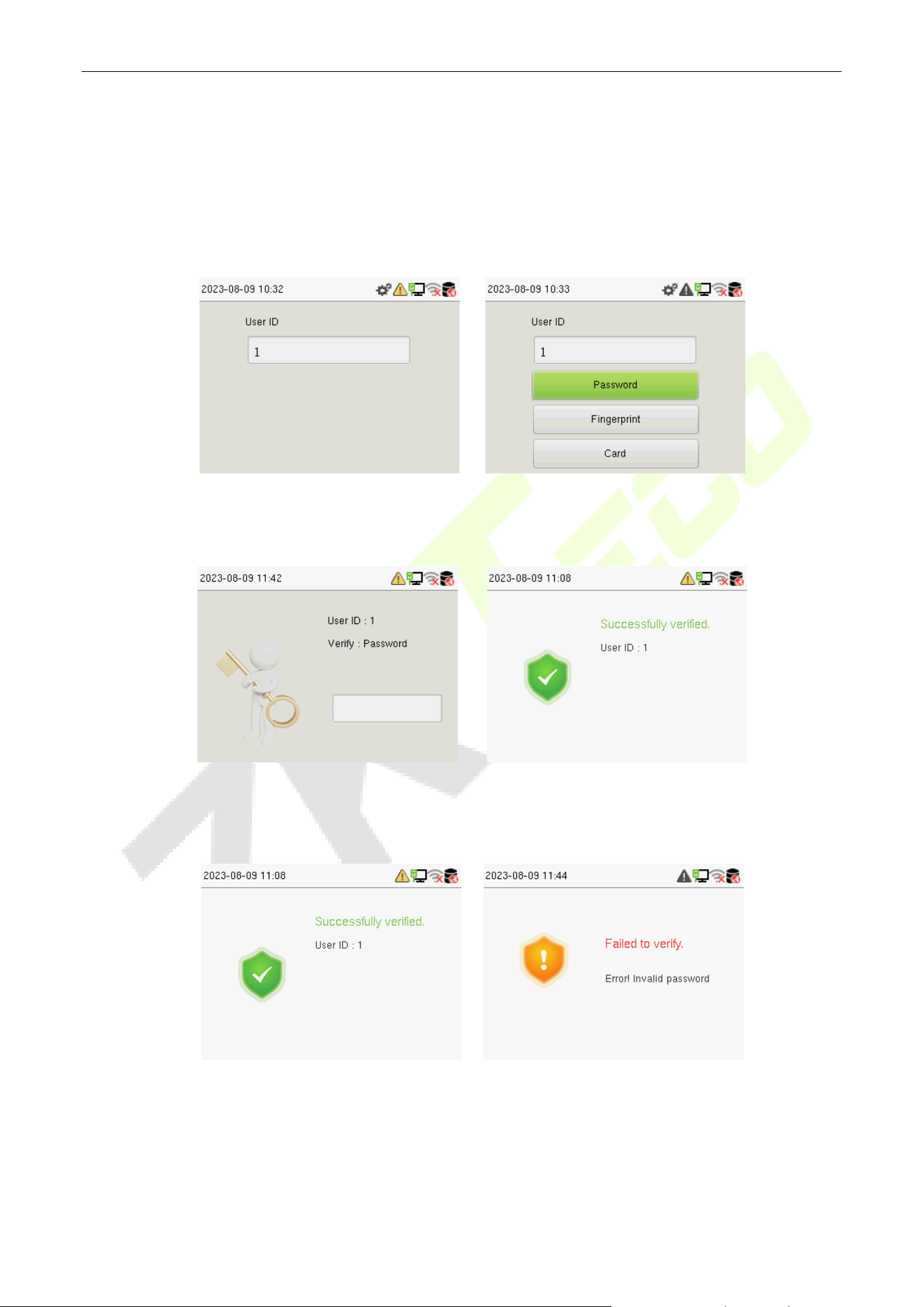

4.3.3 PASSWORD VERIFICATION ........................................................................................................................................................................ 16

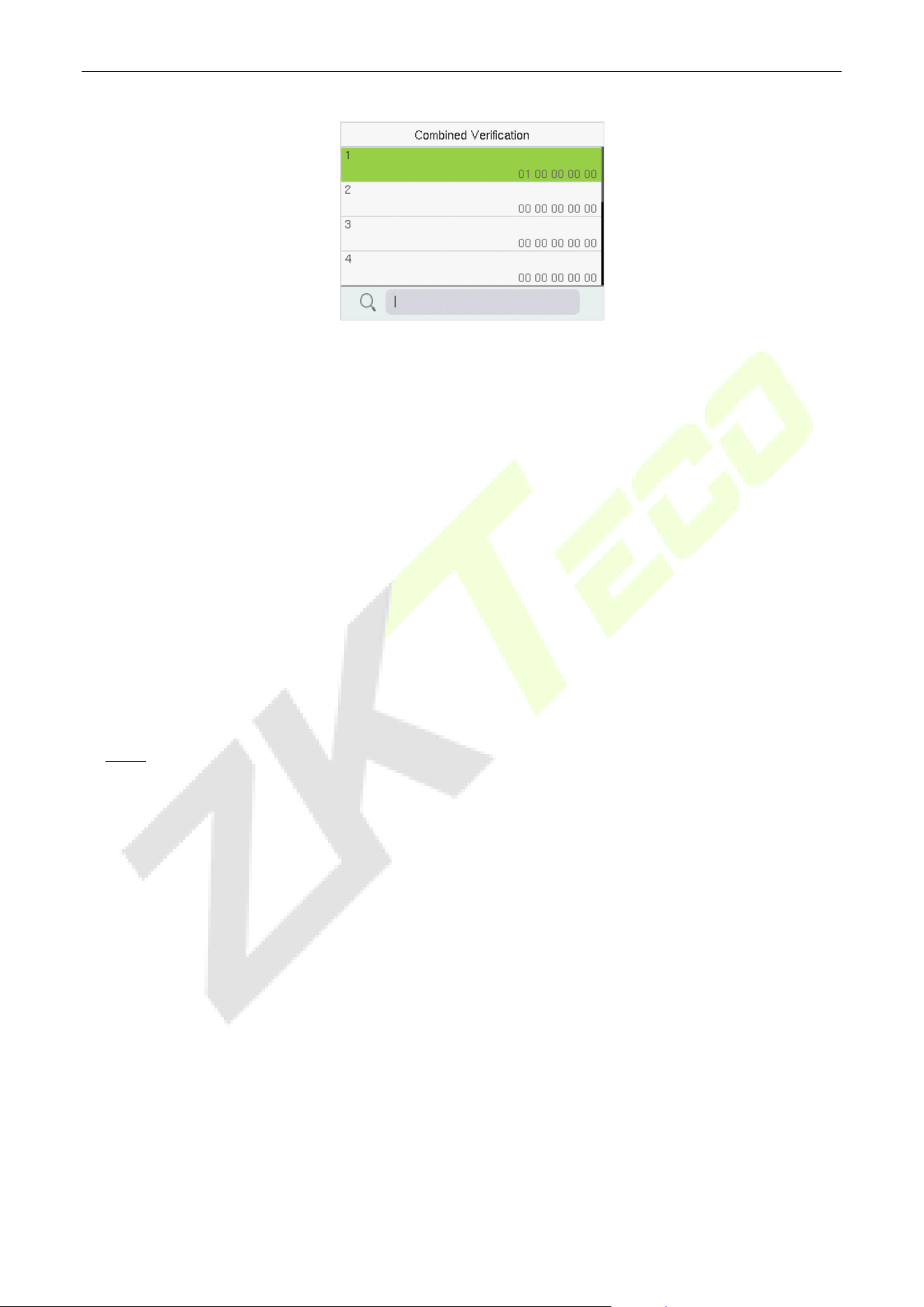

4.3.4 COMBINED VERIFICATION ......................................................................................................................................................................... 17

5 OVERVIEW .......................................................................................................................................... 18

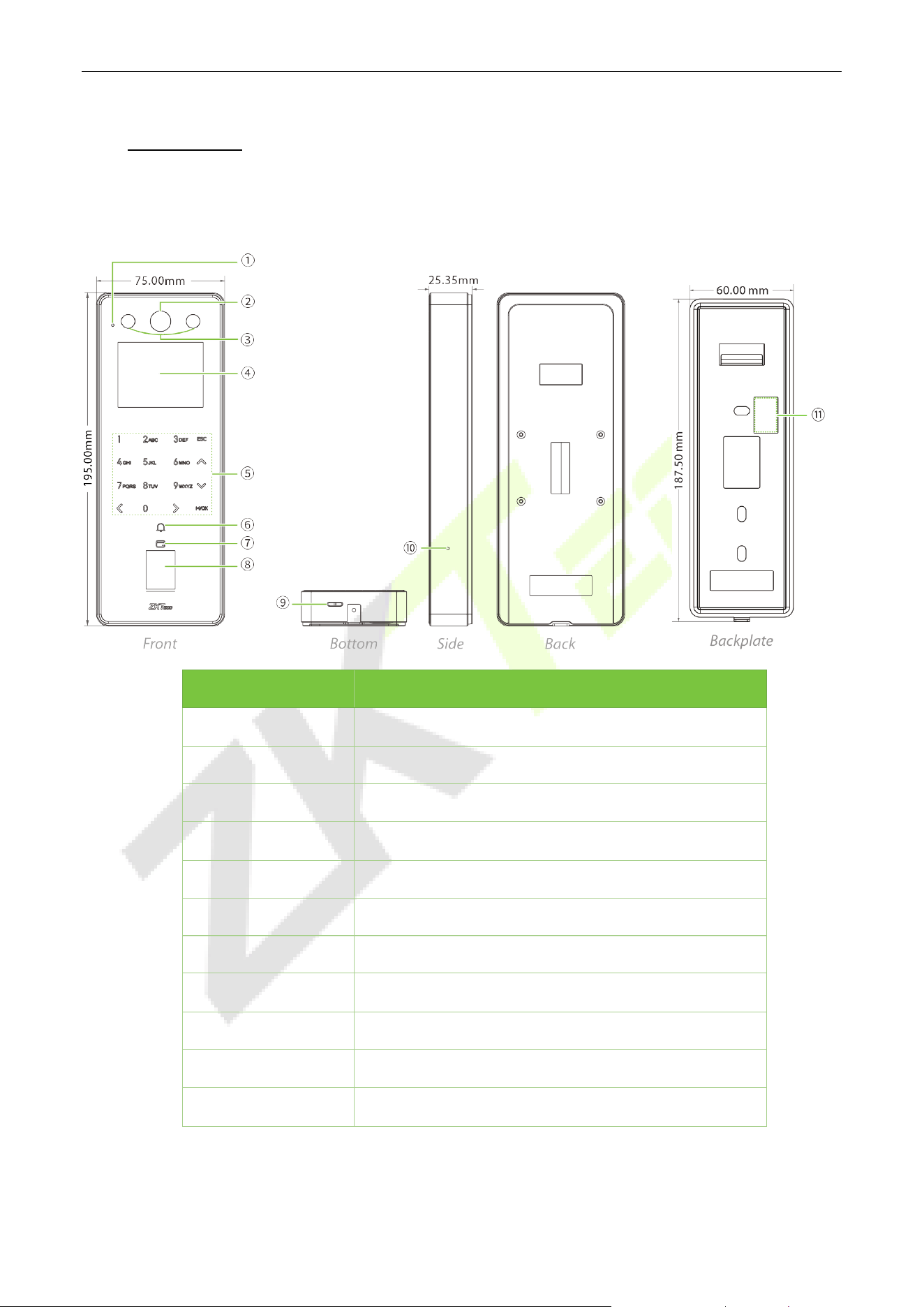

APPEARANCE ................................................................................................................................................................................................. 18 5.1

TERMINAL AND WIRING DESCRIPTION ........................................................................................................................................................ 19 5.2

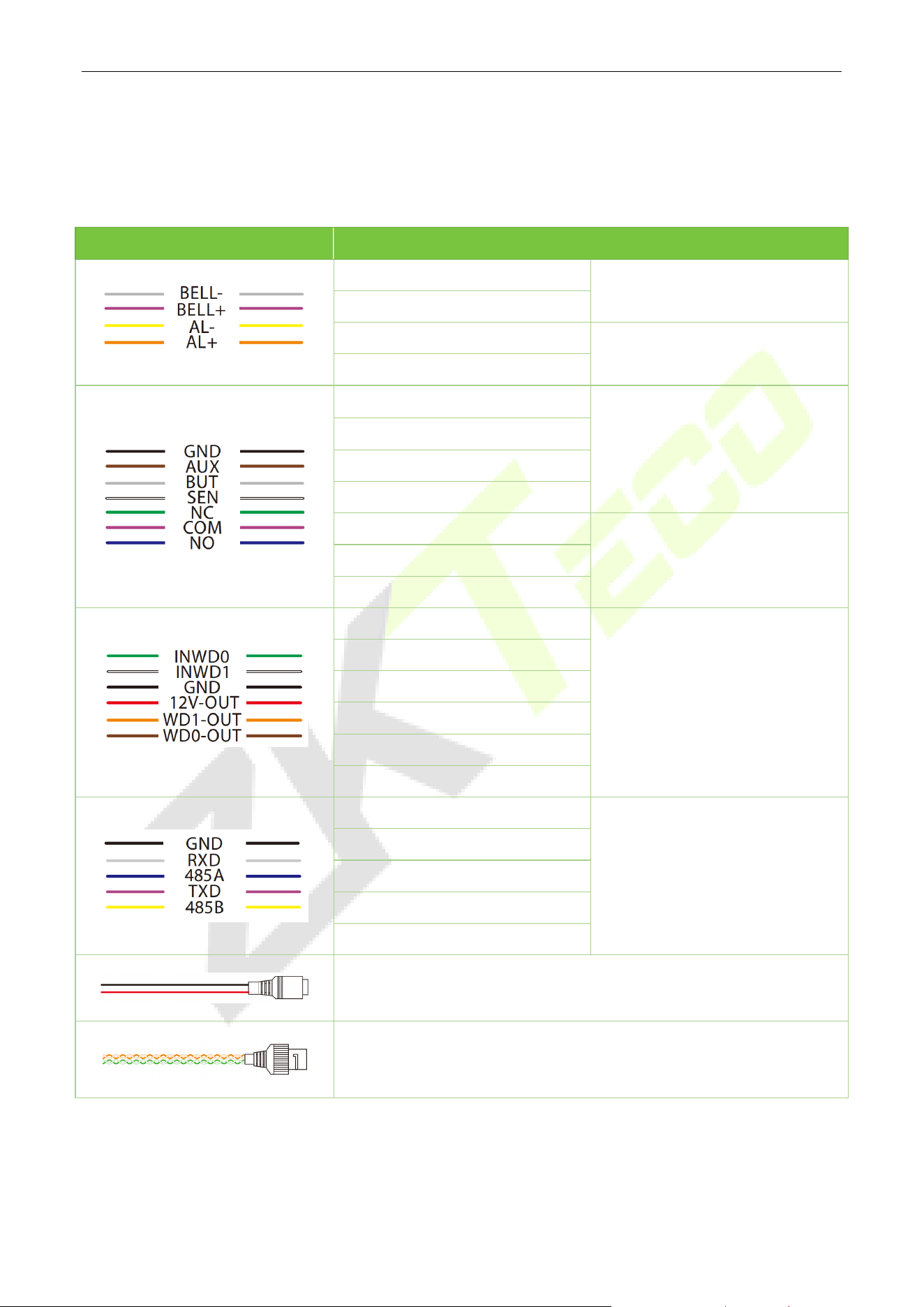

5.2.1 TERMINAL DESCRIPTION ........................................................................................................................................................................... 19

WIRING DESCRIPTION ................................................................................................................................................................................... 20 5.3

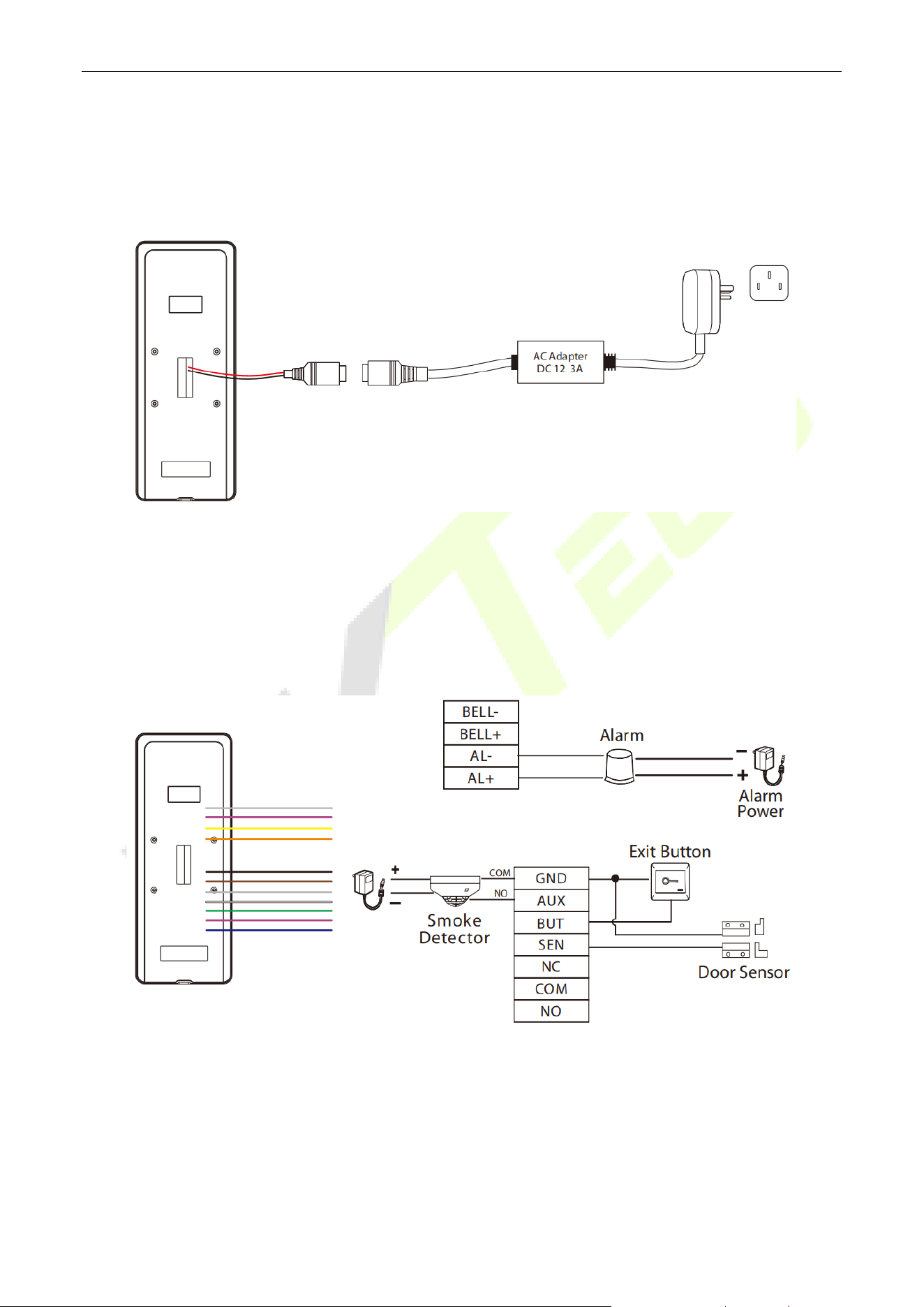

5.3.1 POWER CONNECTION ................................................................................................................................................................................ 20

5.3.2 DOOR SENSOR, EXIT BUTTON, ALARM AND AUXILIARY CONNECTION ...................................................................................... 20

5.3.3 LOCK RELAY CONNECTION ....................................................................................................................................................................... 20

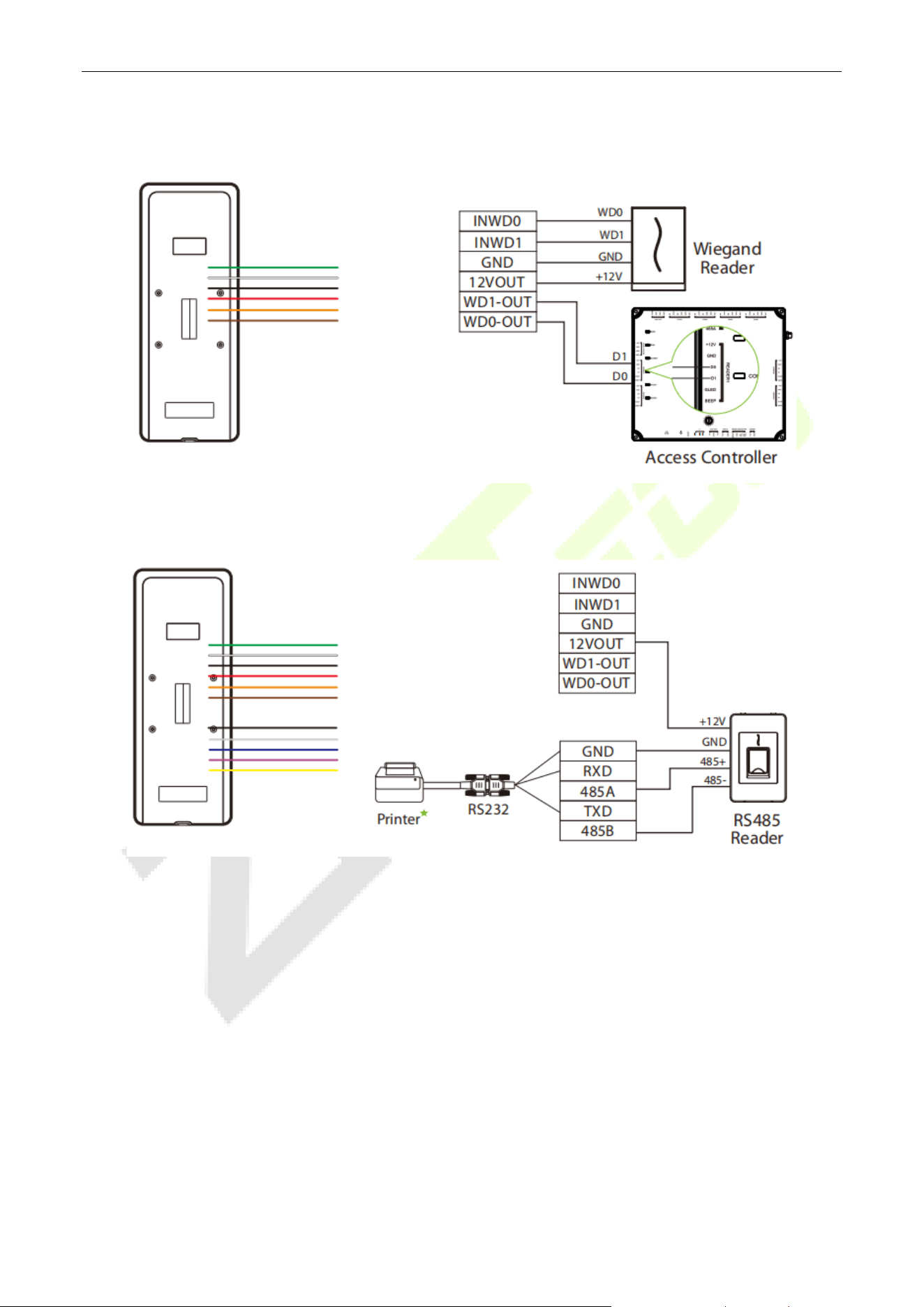

5.3.4 WIEGAND CONNECTION ........................................................................................................................................................................... 23

5.3.5 RS485 & RS232 CONNECTION .................................................................................................................................................................. 23

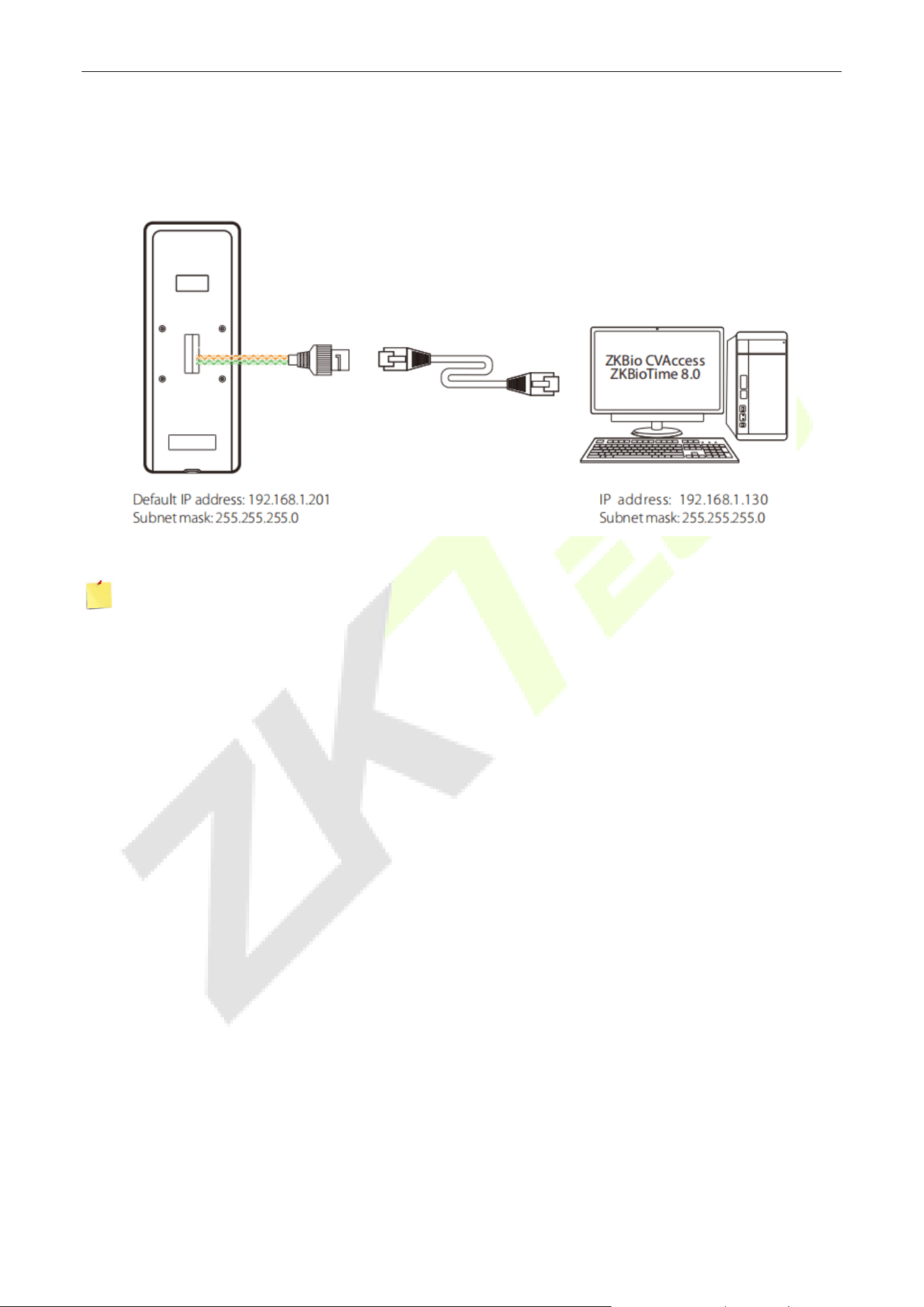

5.3.6 ETHERNET CONNECTION ........................................................................................................................................................................... 24

6 INSTALLATION ................................................................................................................................... 25

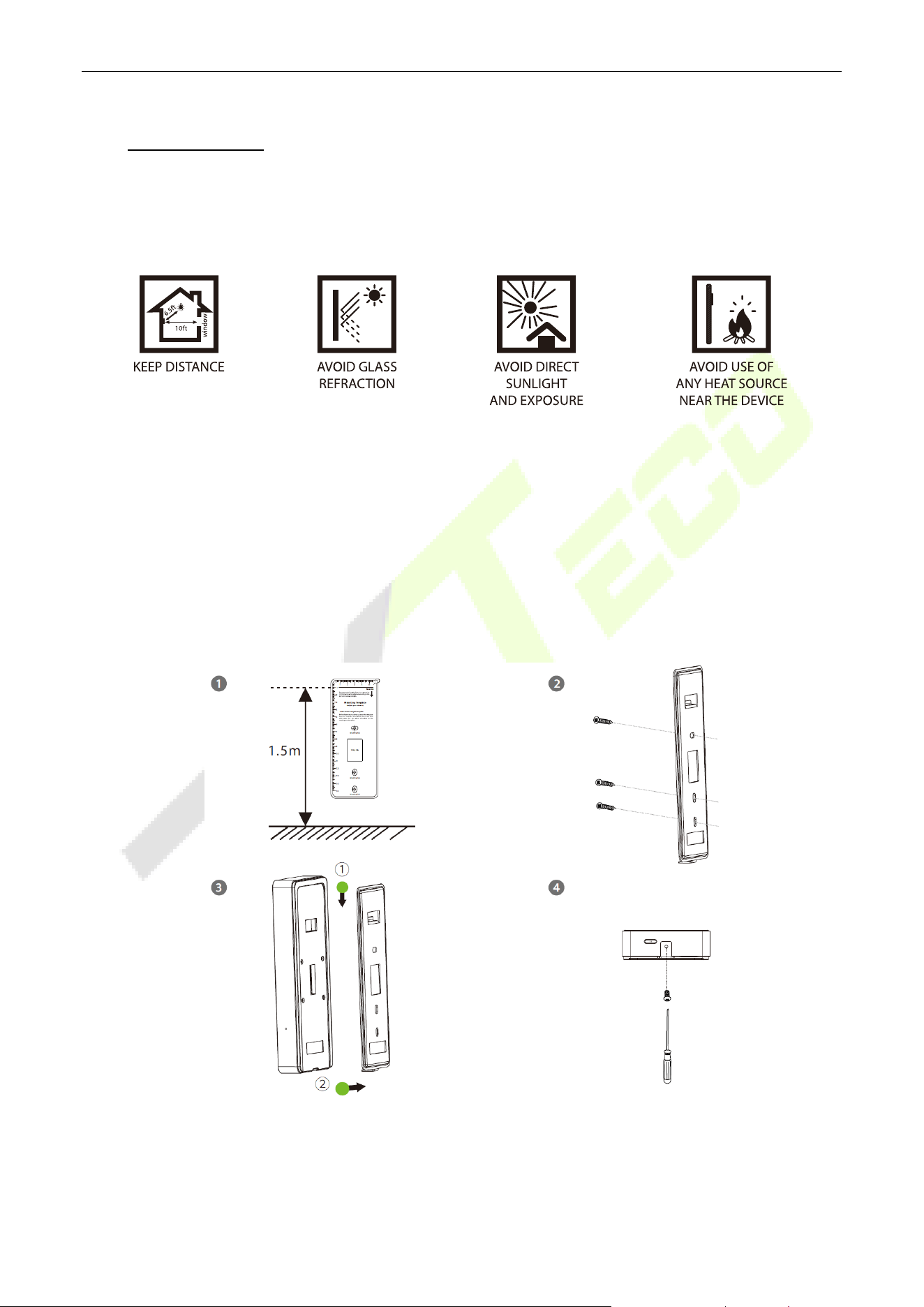

INSTALLATION ENVIRONMENT ..................................................................................................................................................................... 25 6.1

DEVICE INSTALLATION .................................................................................................................................................................................. 25 6.2

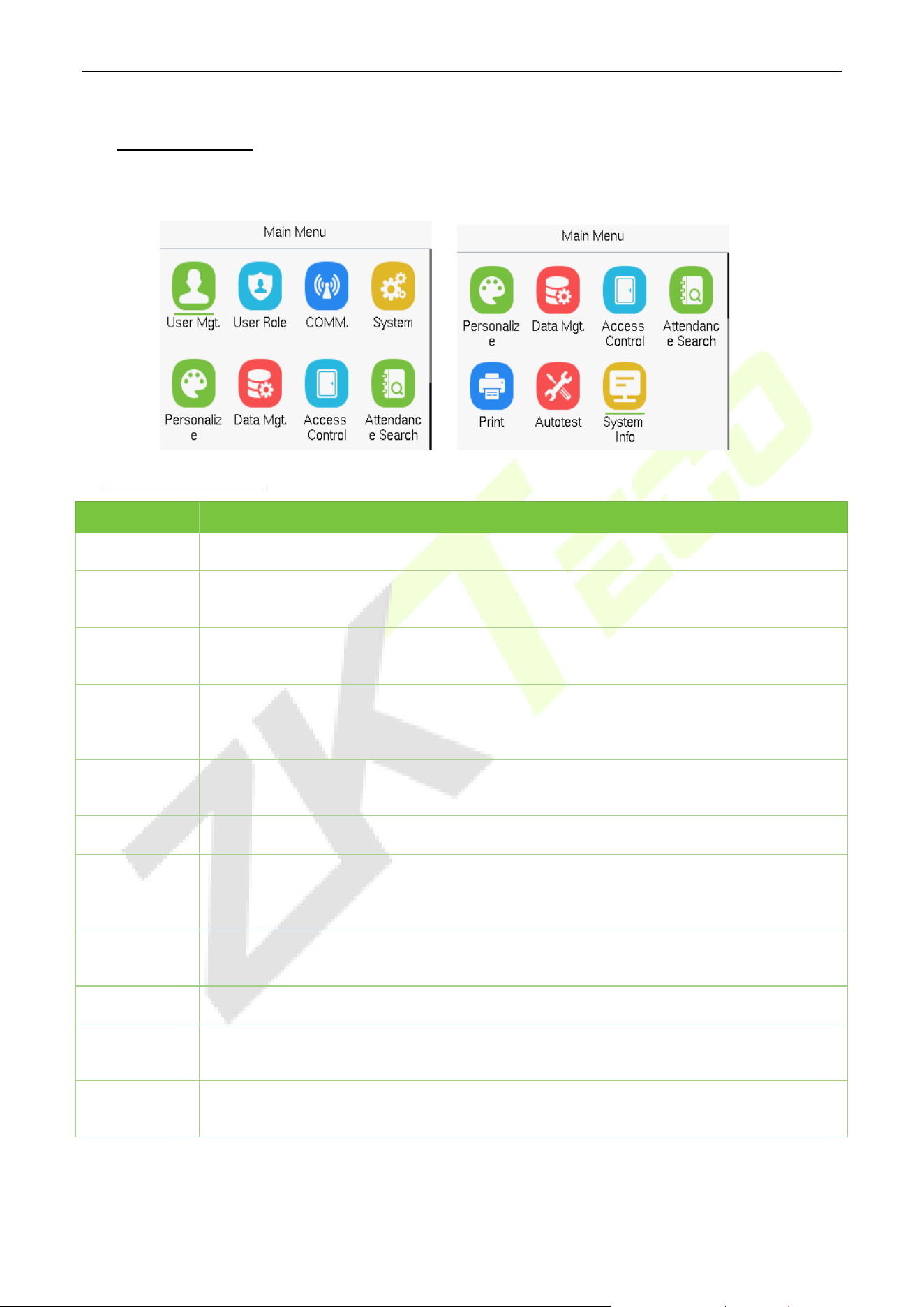

7 MAIN MENU ....................................................................................................................................... 26

8 USER MANAGEMENT ......................................................................................................................... 27

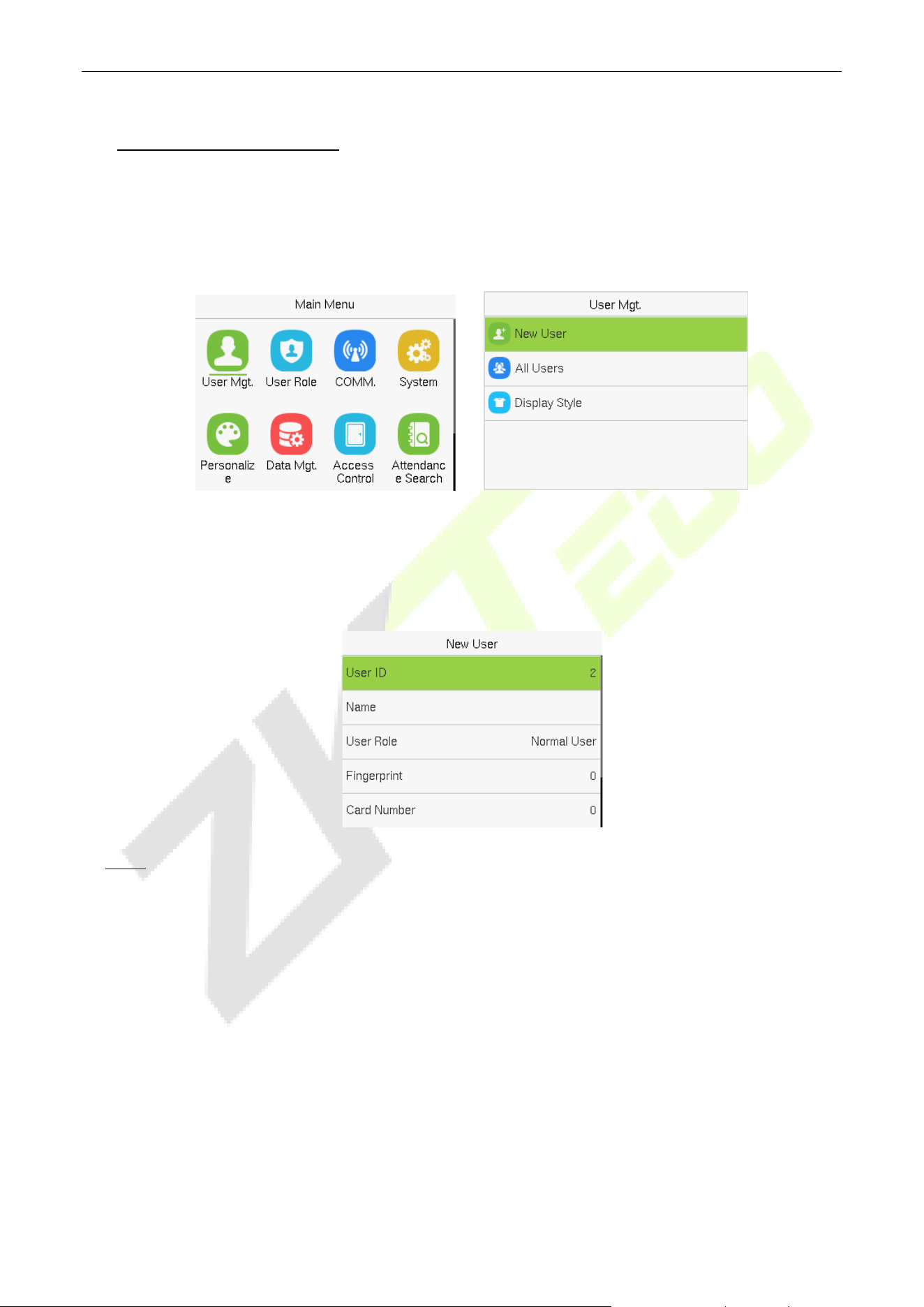

NEW USER REGISTRATION ............................................................................................................................................................................ 27 8.1

8.1.1 REGISTER A USER ID AND NAME ............................................................................................................................................................. 27

8.1.2 USER ROLE ..................................................................................................................................................................................................... 28

8.1.3 REGISTER FINGERPRINT ............................................................................................................................................................................. 28

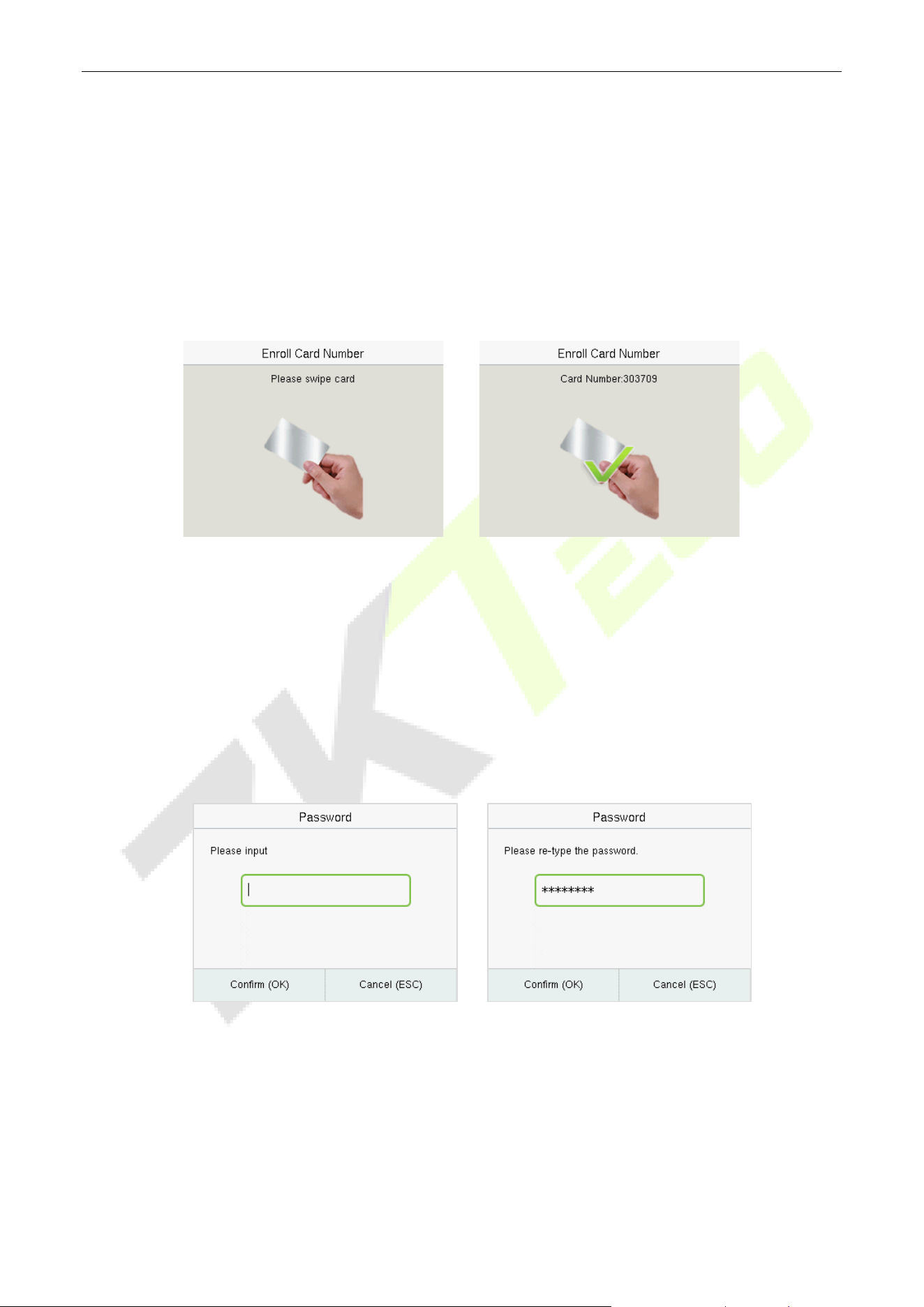

8.1.4 CARD NUMBER ............................................................................................................................................................................................. 29

8.1.5 PASSWORD .................................................................................................................................................................................................... 29

8.1.6 ACCESS CONTROL ROLE ............................................................................................................................................................................ 30

ALL USERS ..................................................................................................................................................................................................... 30 8.2

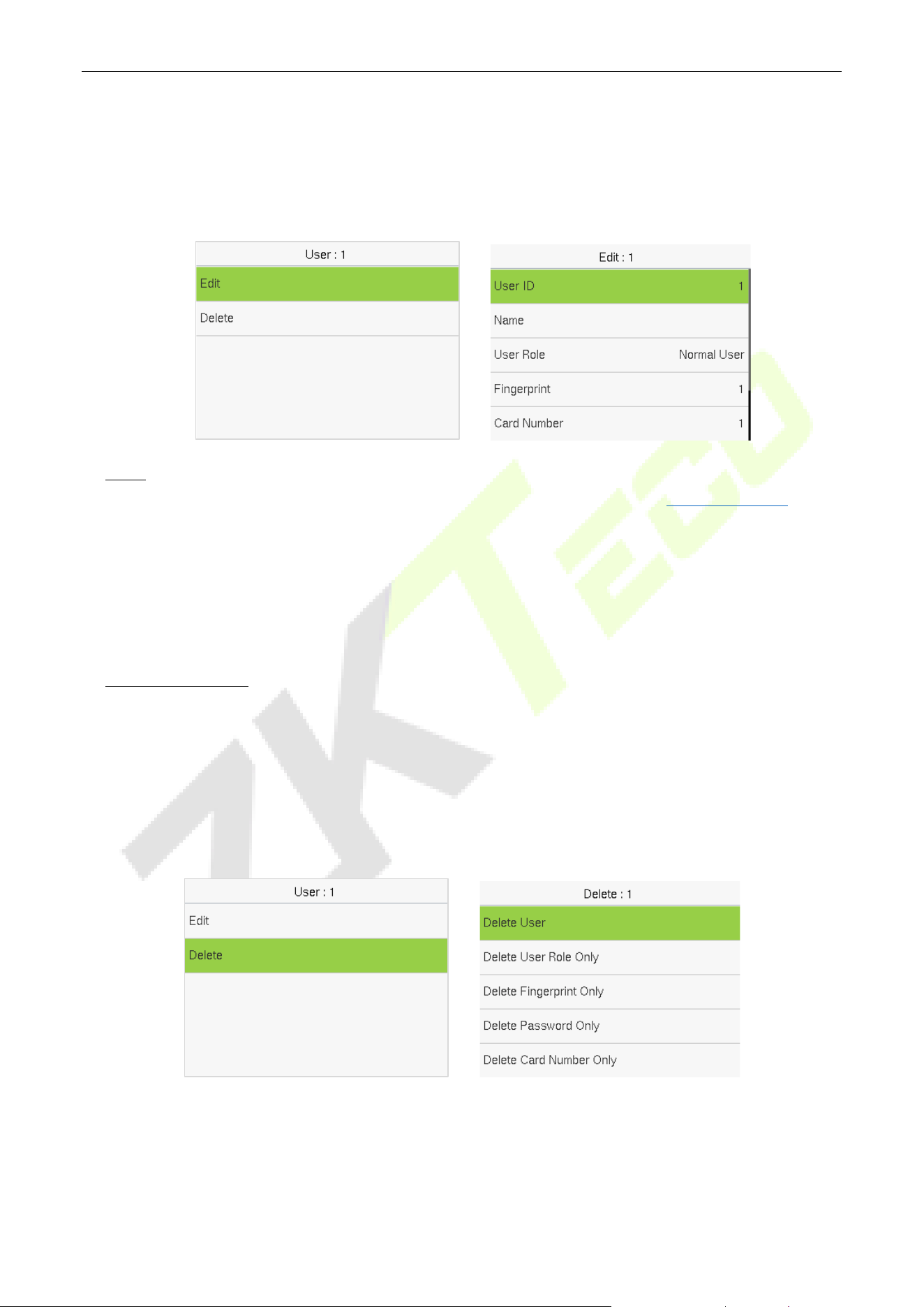

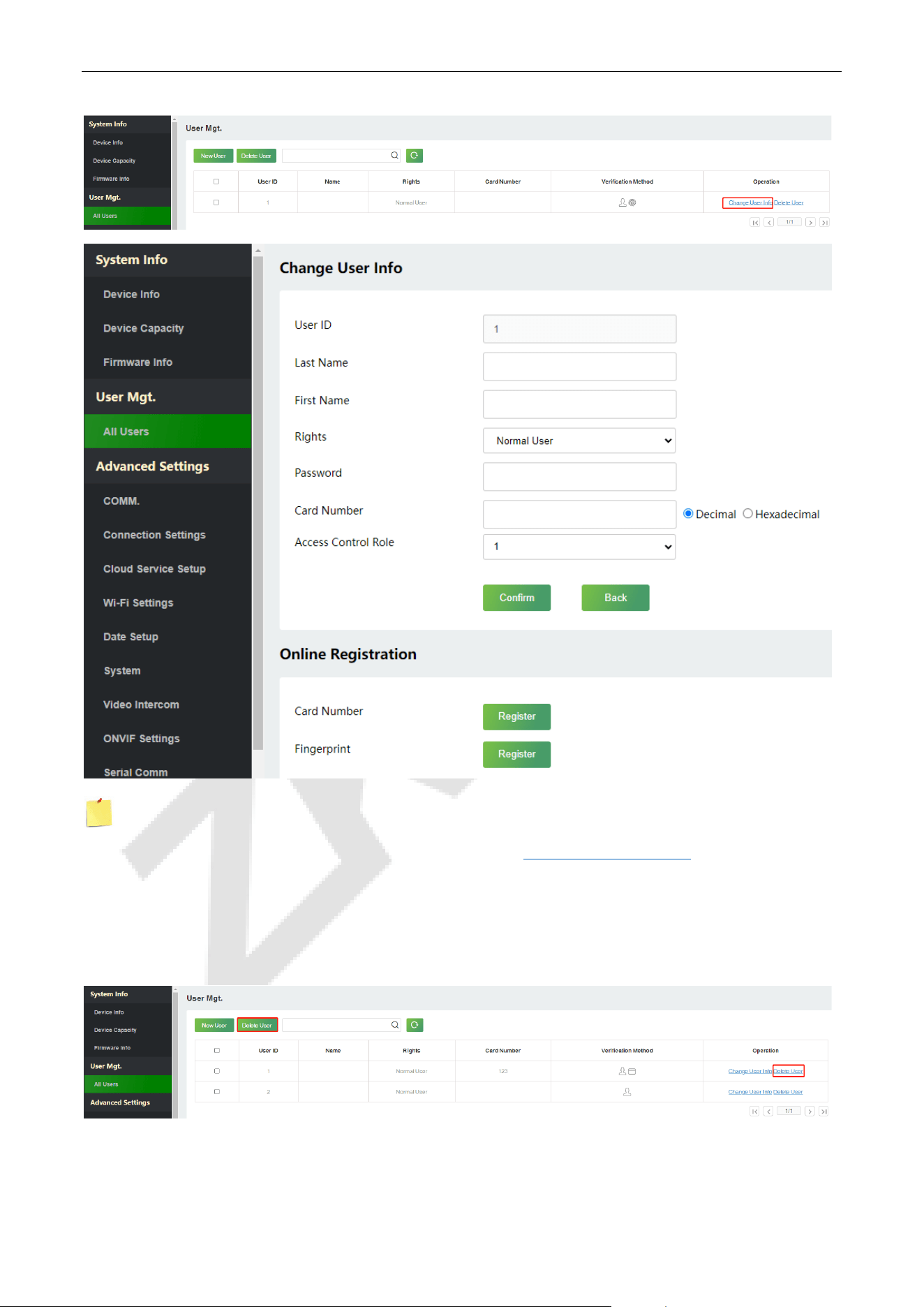

8.2.1 EDIT USER ....................................................................................................................................................................................................... 31

8.2.2 DELETE USER ................................................................................................................................................................................................. 31

DISPLAY STYLE .............................................................................................................................................................................................. 32 8.3

F35 User Manual

9 USER ROLE ......................................................................................................................................... 33

10 COMMUNICATION ......................................................................................................................... 35

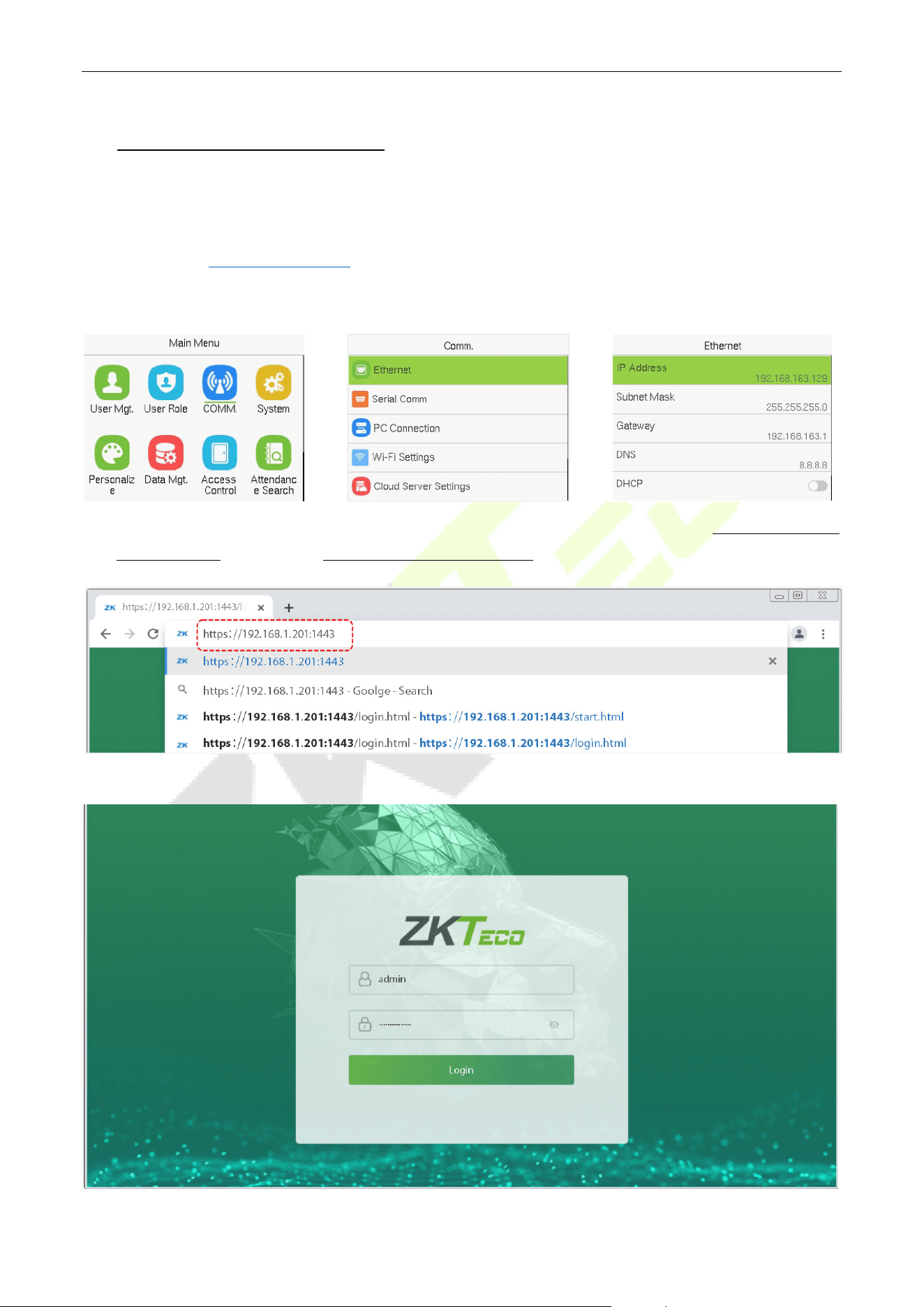

ETHERNET ...................................................................................................................................................................................................... 35 10.1

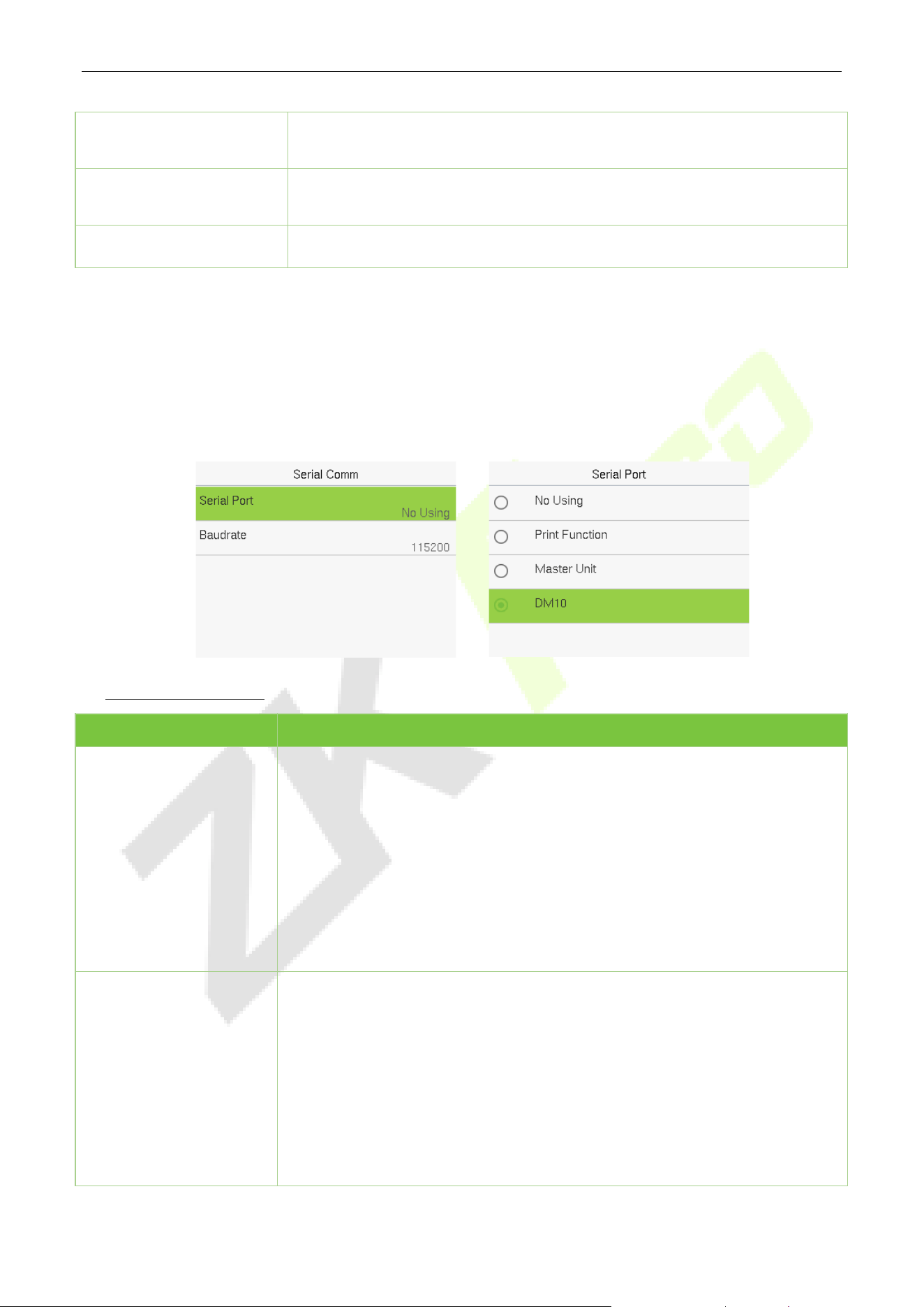

SERIAL COMM ............................................................................................................................................................................................... 36 10.2

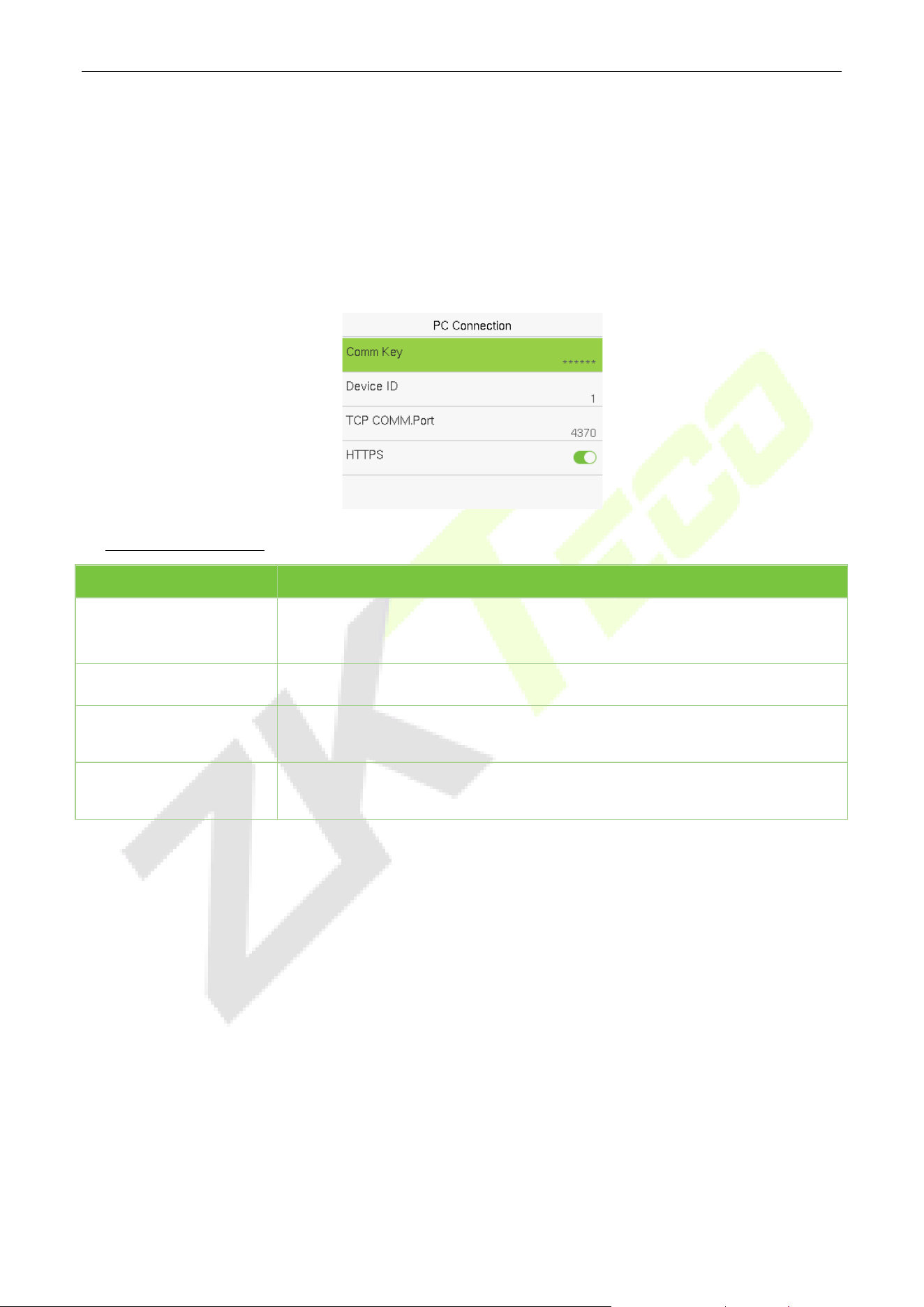

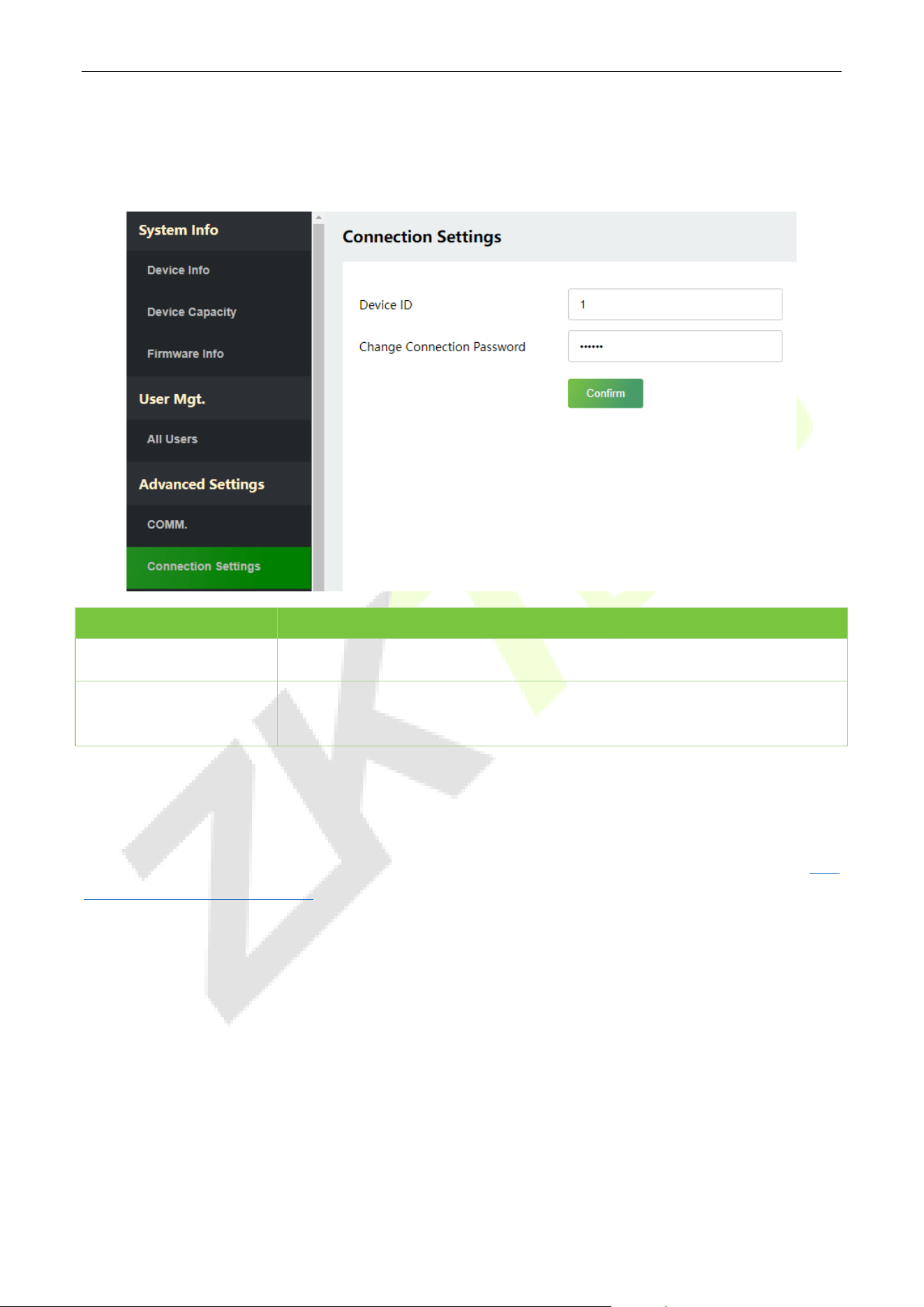

PC CONNECTION .......................................................................................................................................................................................... 37 10.3

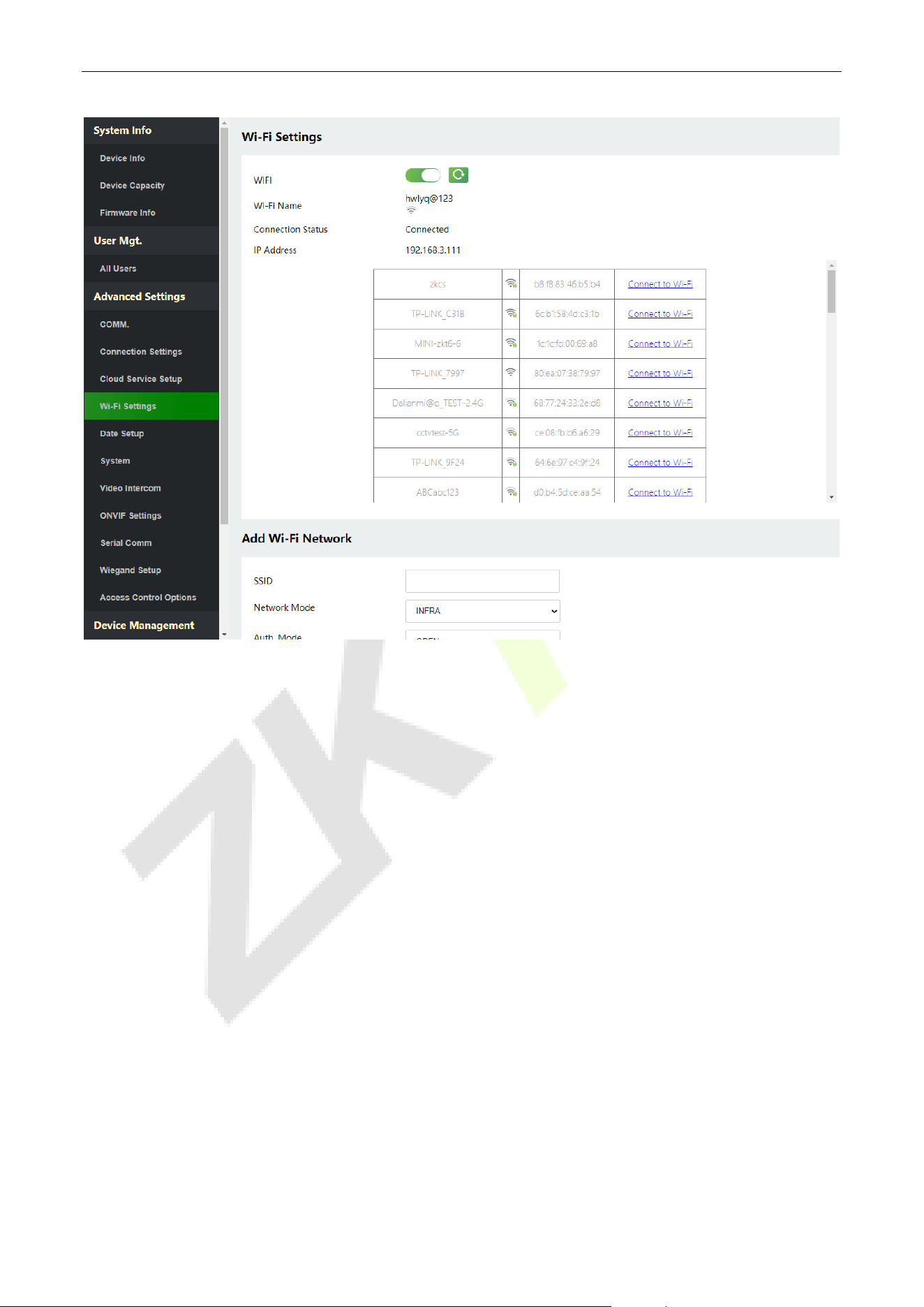

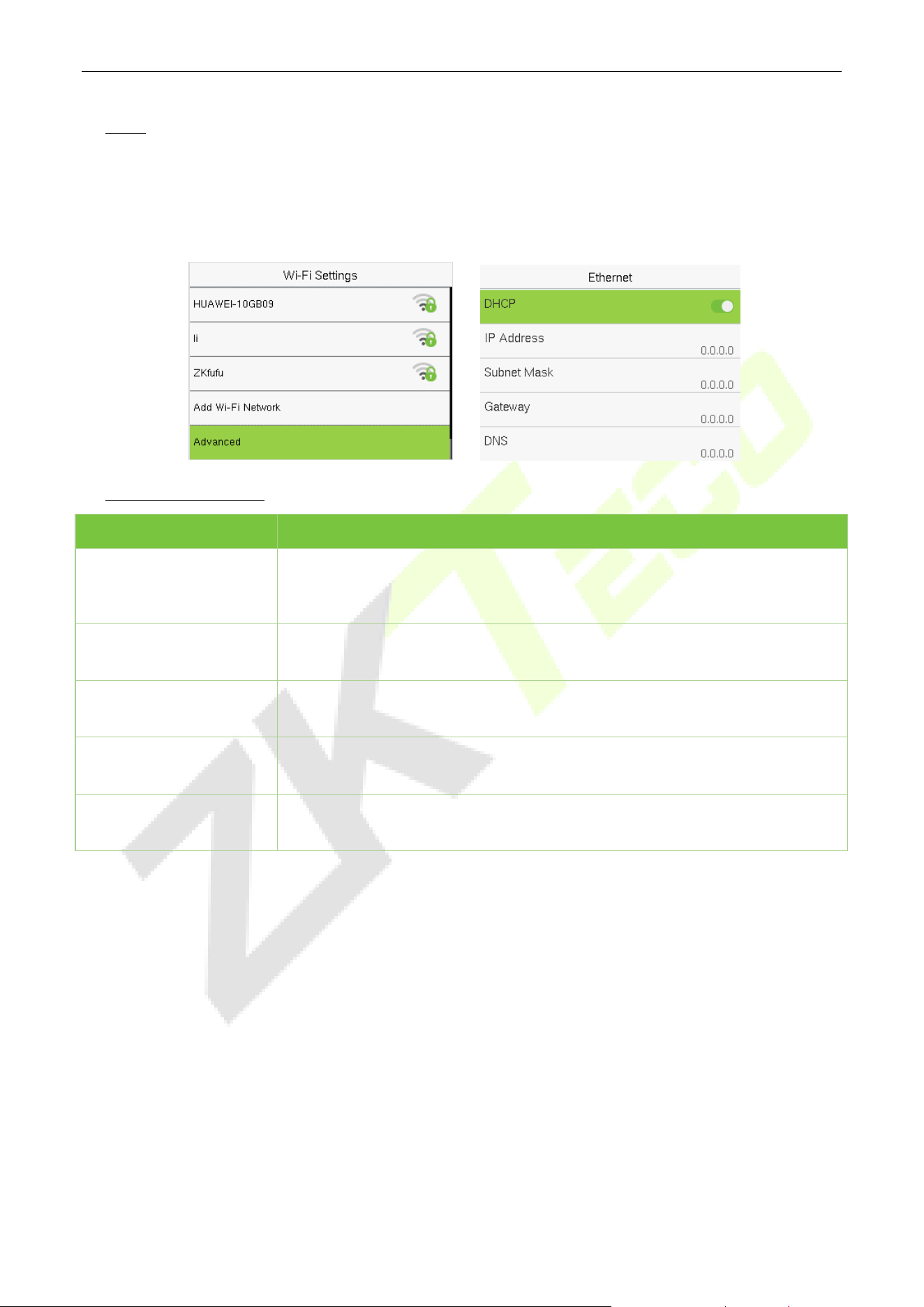

WI-FI SETTINGS★ ......................................................................................................................................................................................... 37 10.4

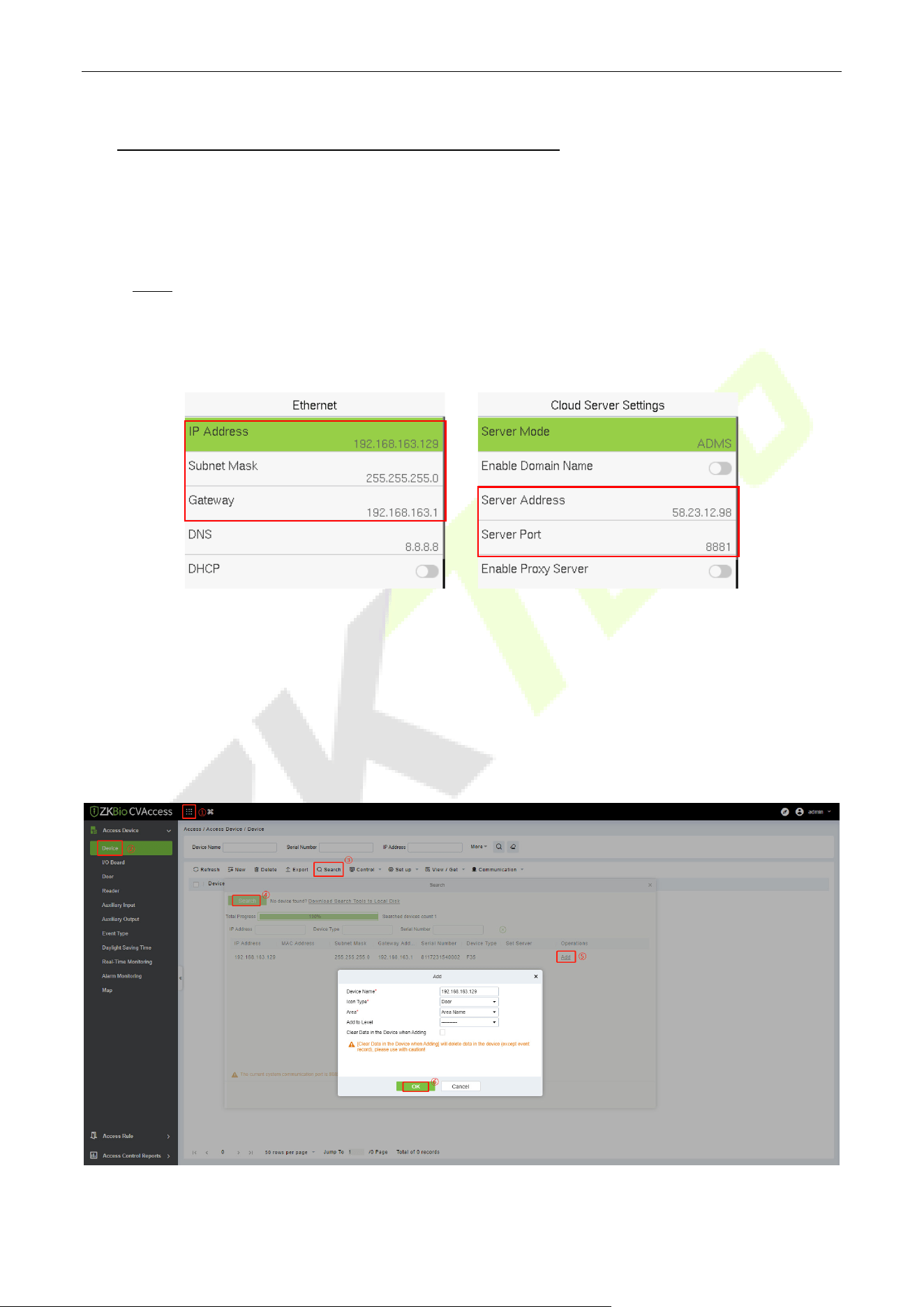

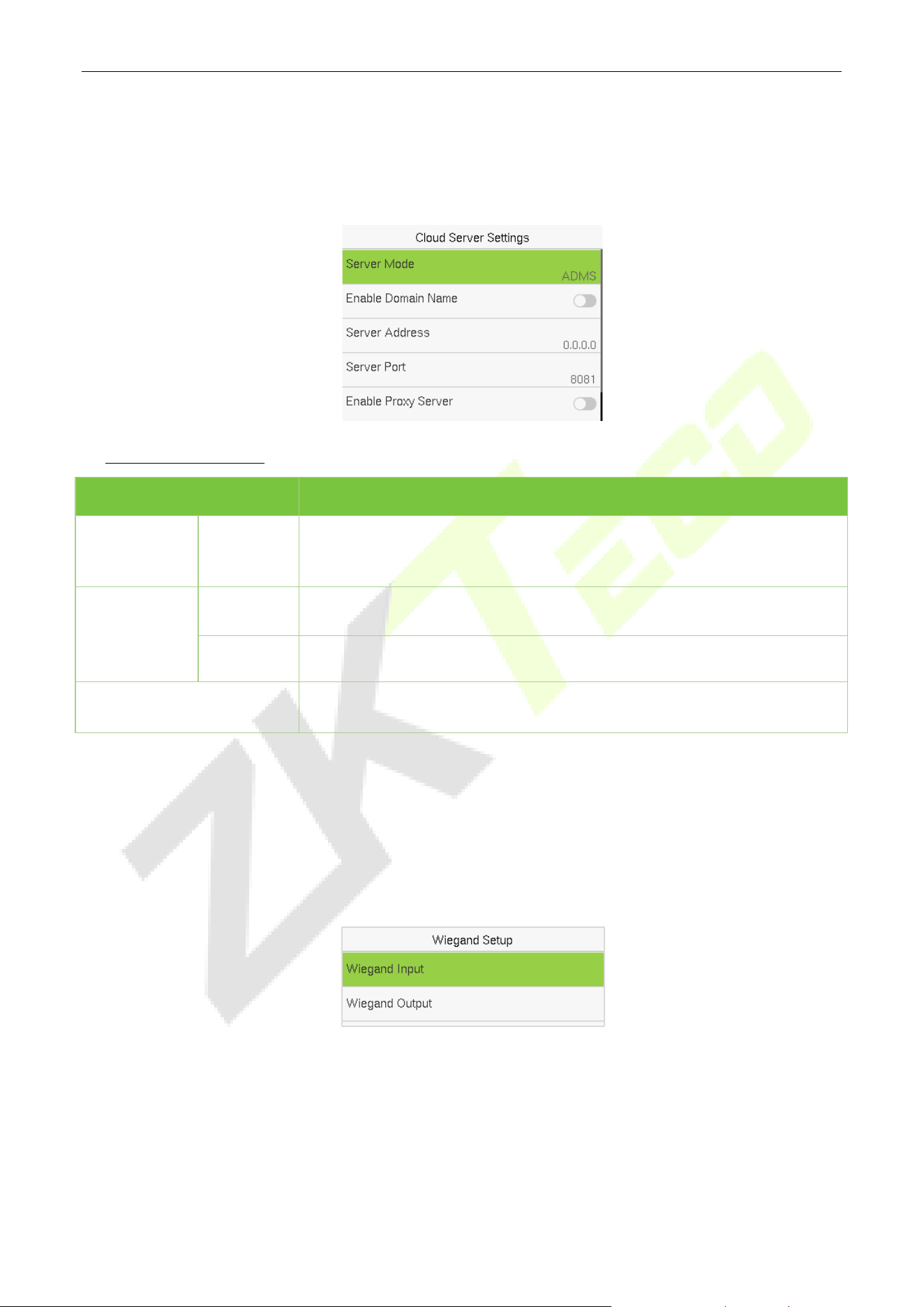

CLOUD SERVER SETTINGS ............................................................................................................................................................................. 40 10.5

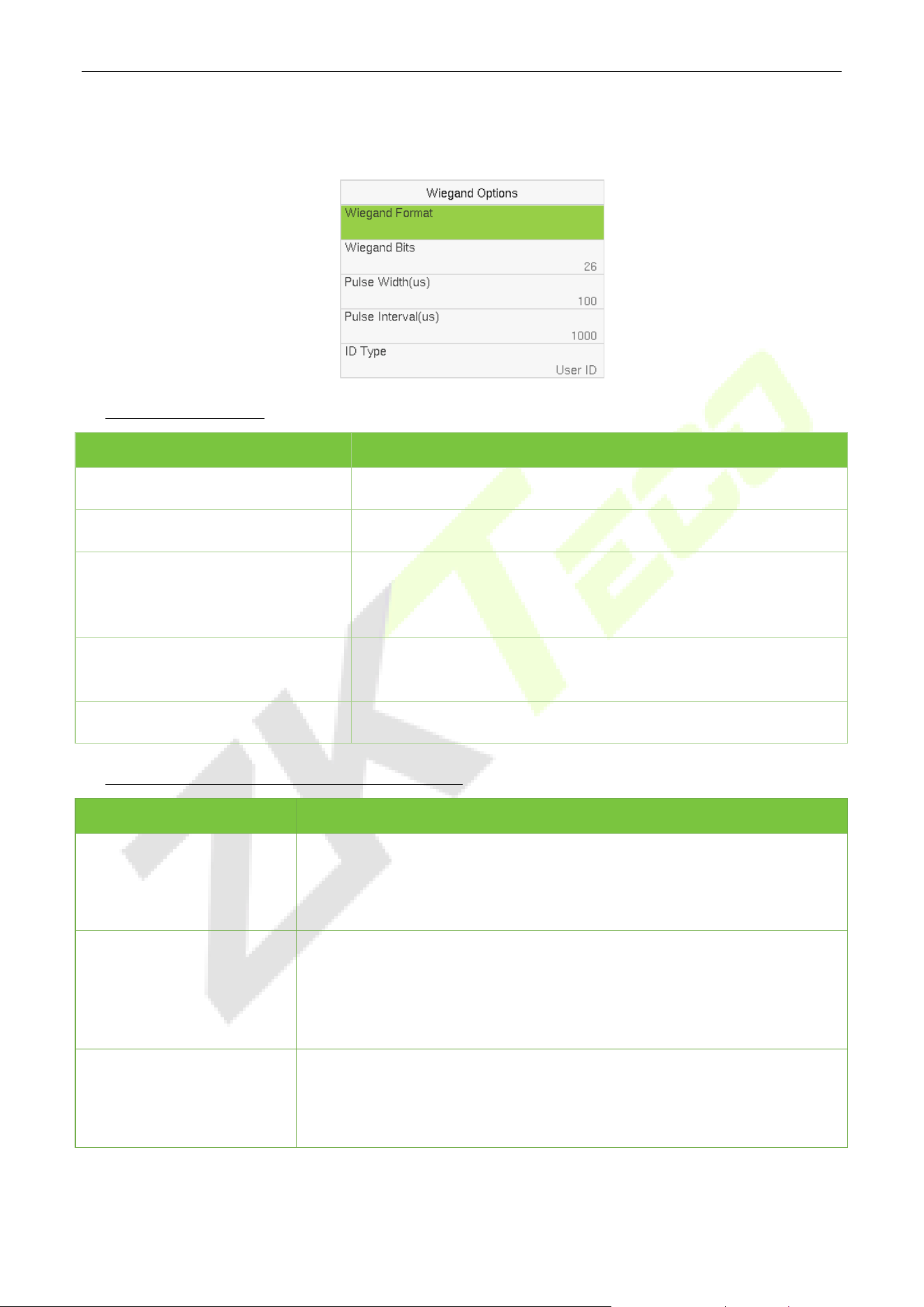

WIEGAND SETUP ........................................................................................................................................................................................... 40 10.6

10.6.1 WIEGAND INPUT .......................................................................................................................................................................................... 41

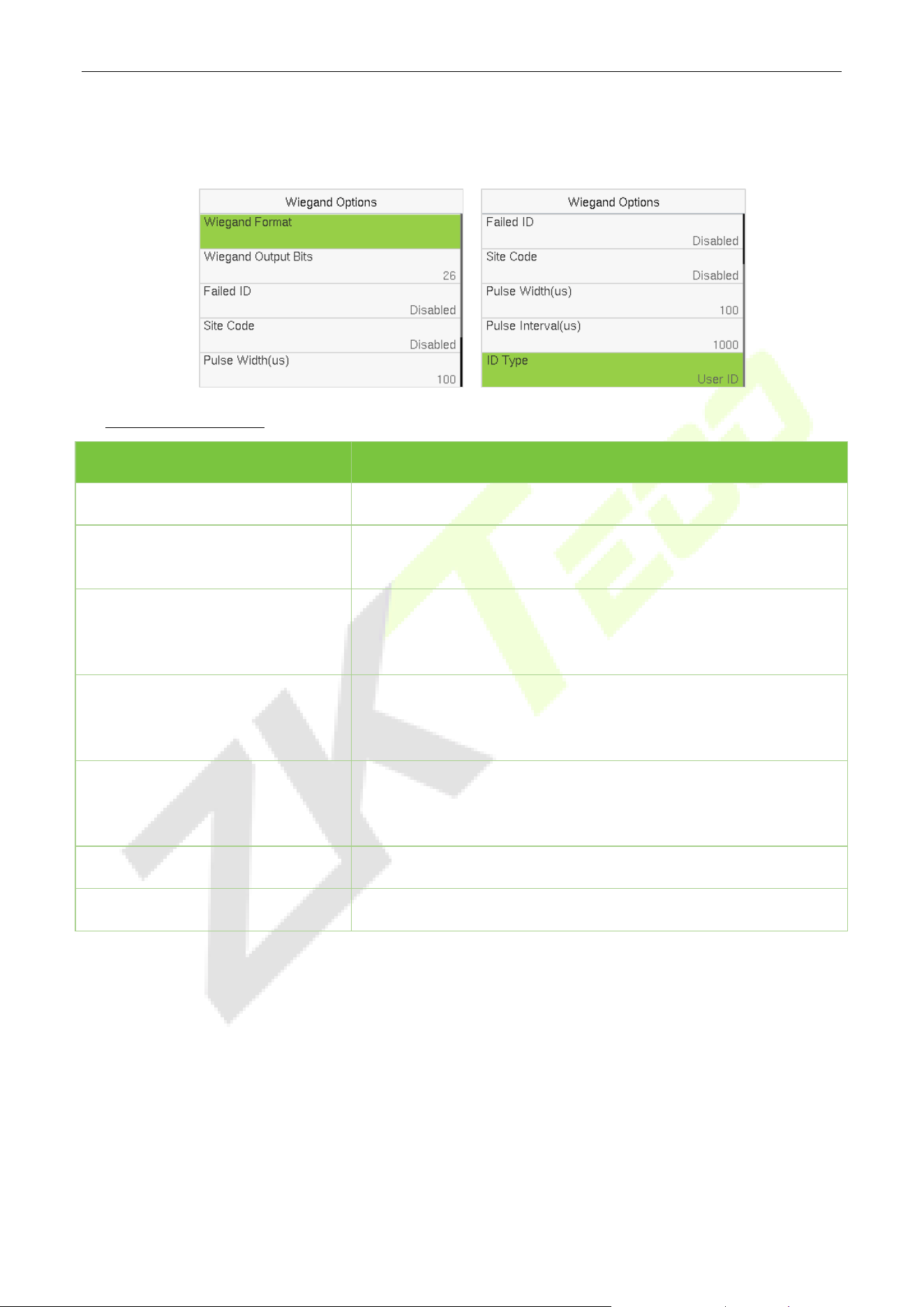

10.6.2 WIEGAND OUTPUT ...................................................................................................................................................................................... 43

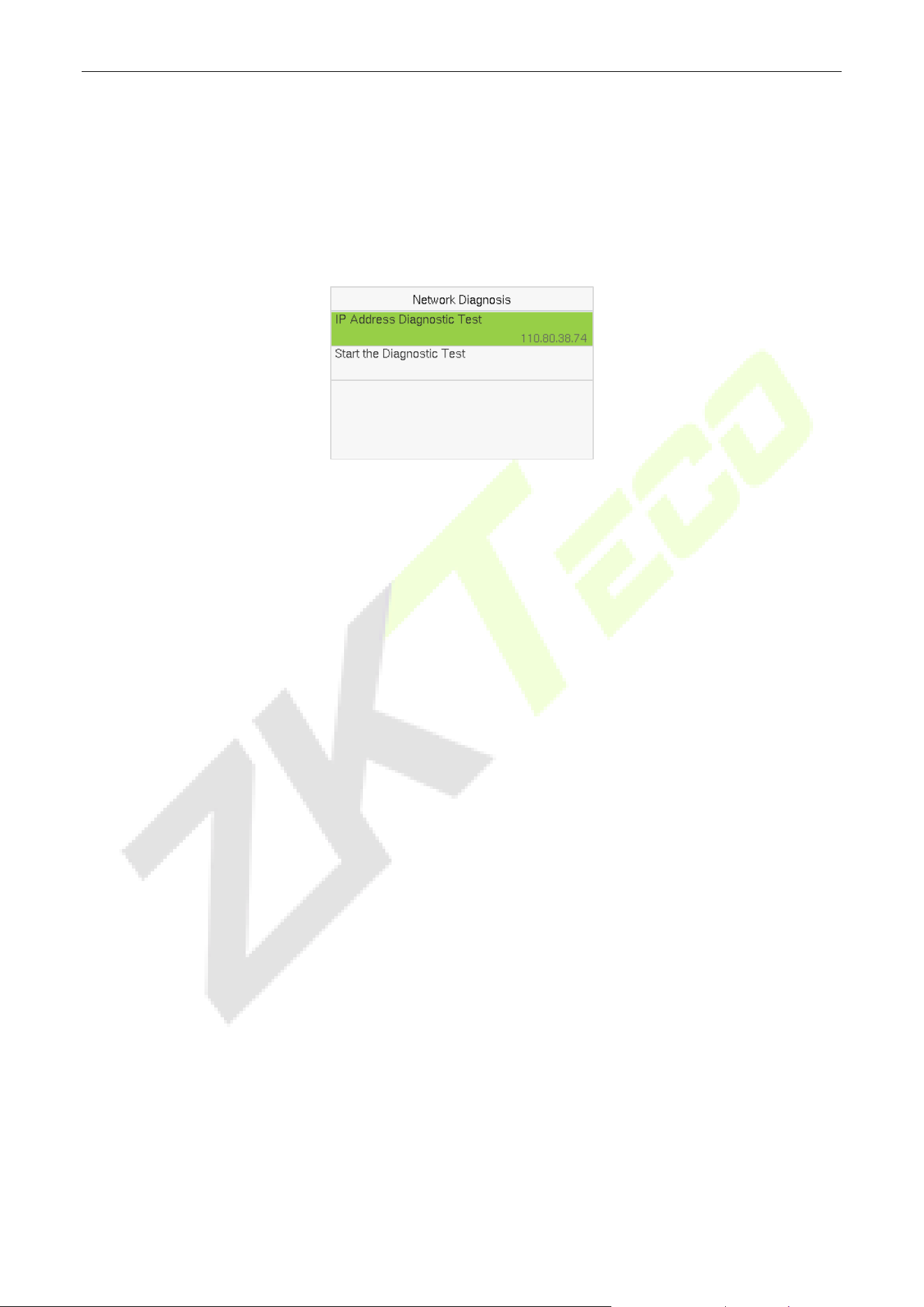

NETWORK DIAGNOSIS .................................................................................................................................................................................. 44 10.7

11 SYSTEM SETTINGS ......................................................................................................................... 45

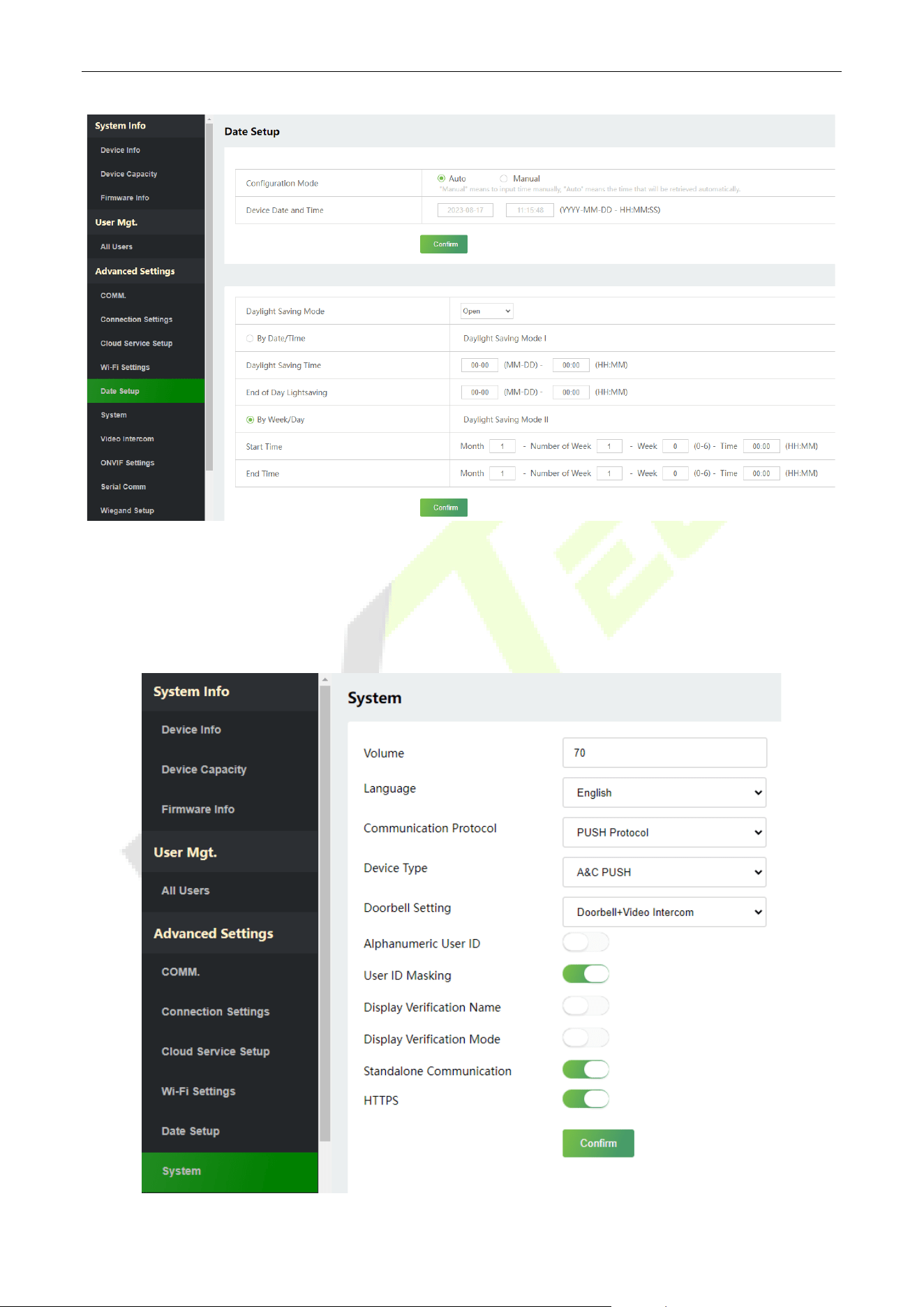

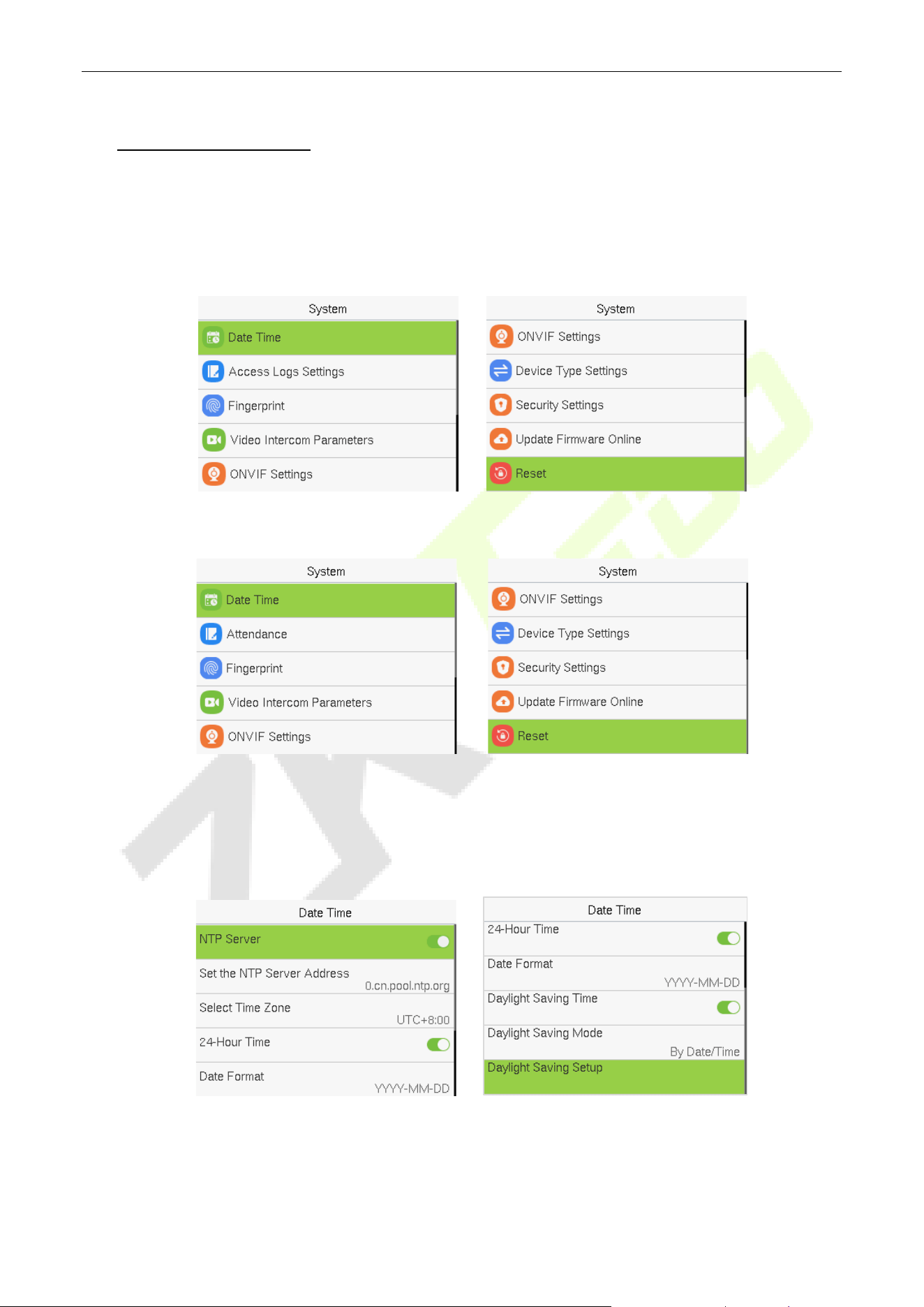

DATE AND TIME ............................................................................................................................................................................................ 45 11.1

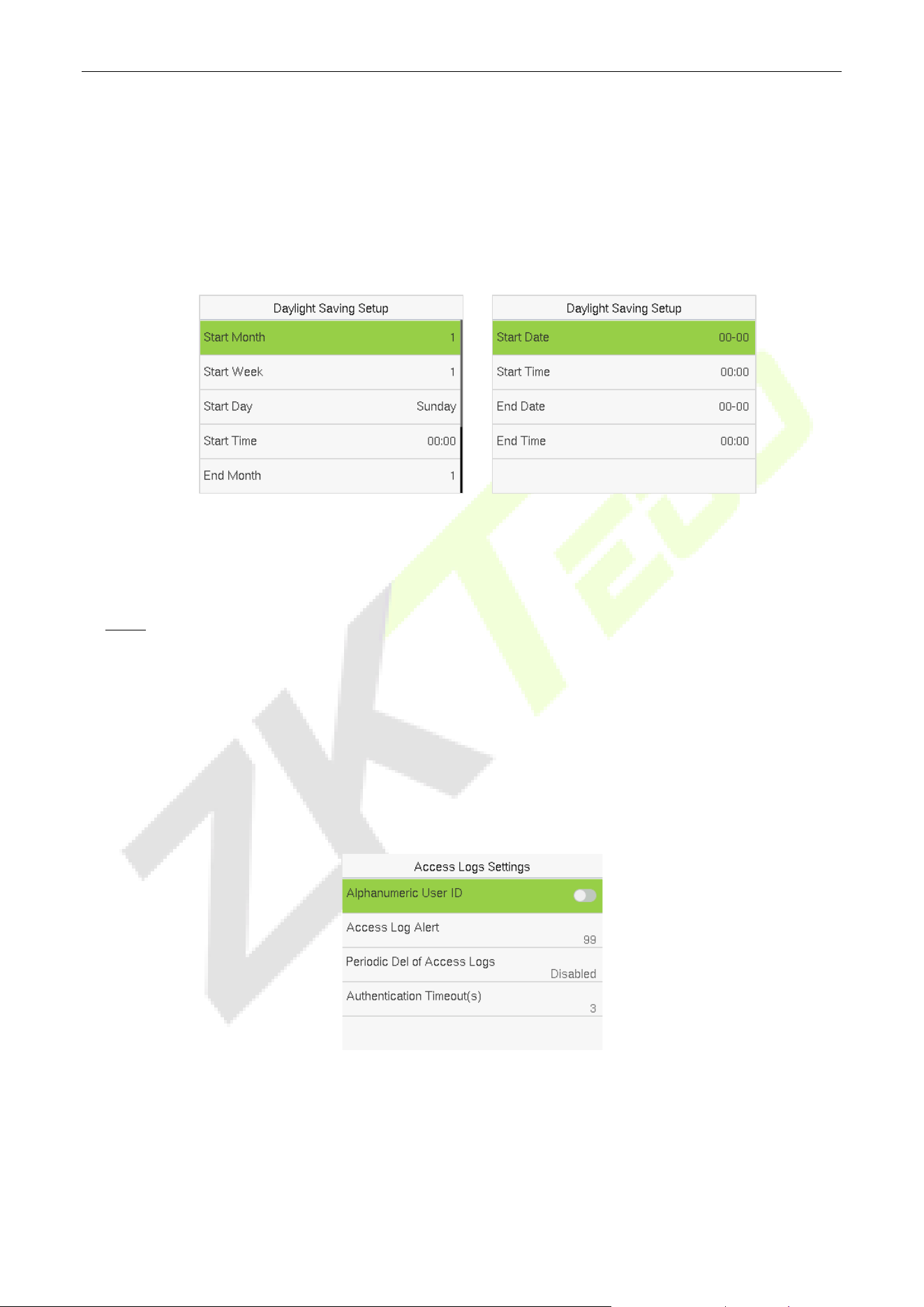

ACCESS LOGS SETTINGS / ATTENDANCE .................................................................................................................................................... 46 11.2

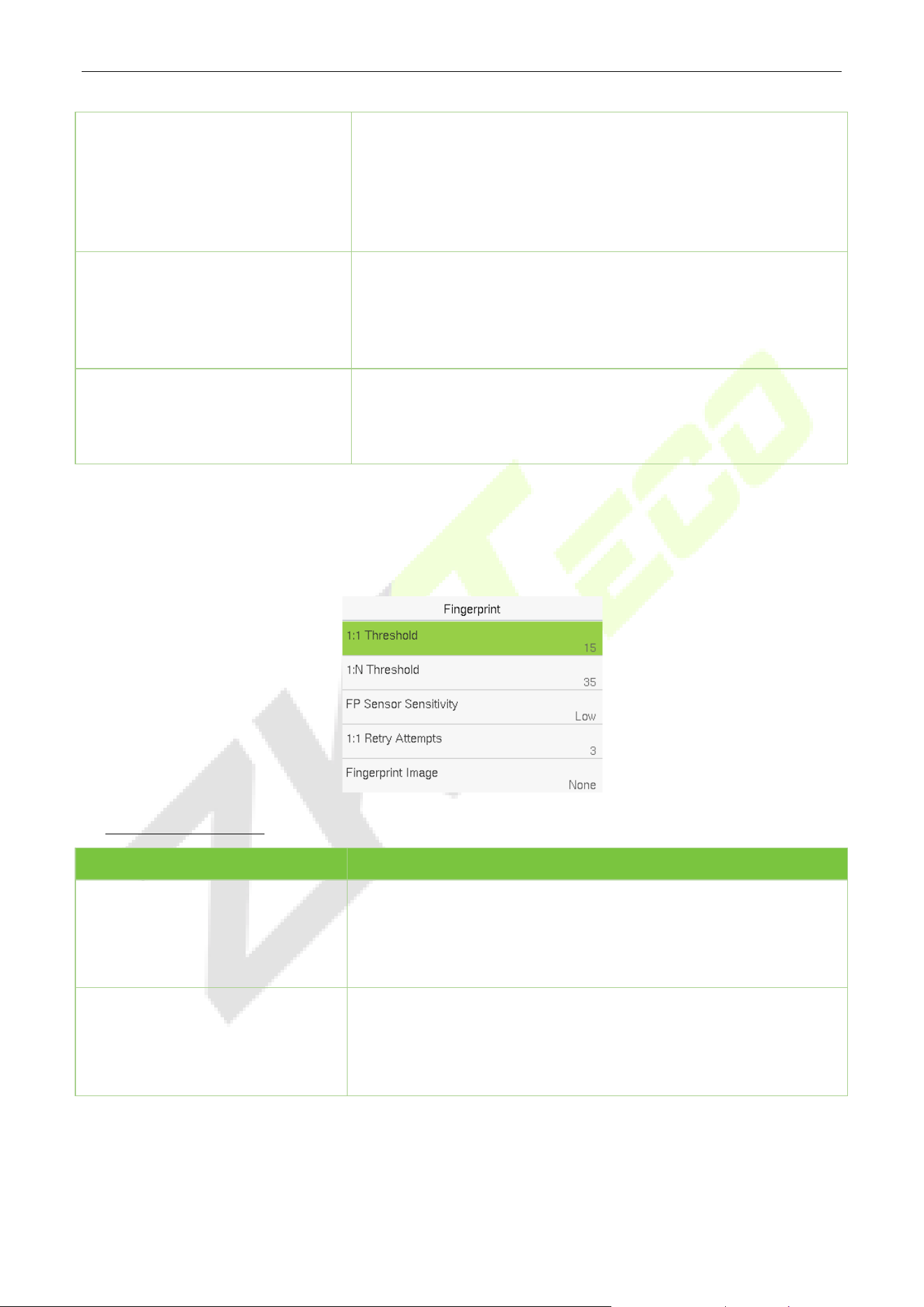

FINGERPRINT .................................................................................................................................................................................................. 48 11.3

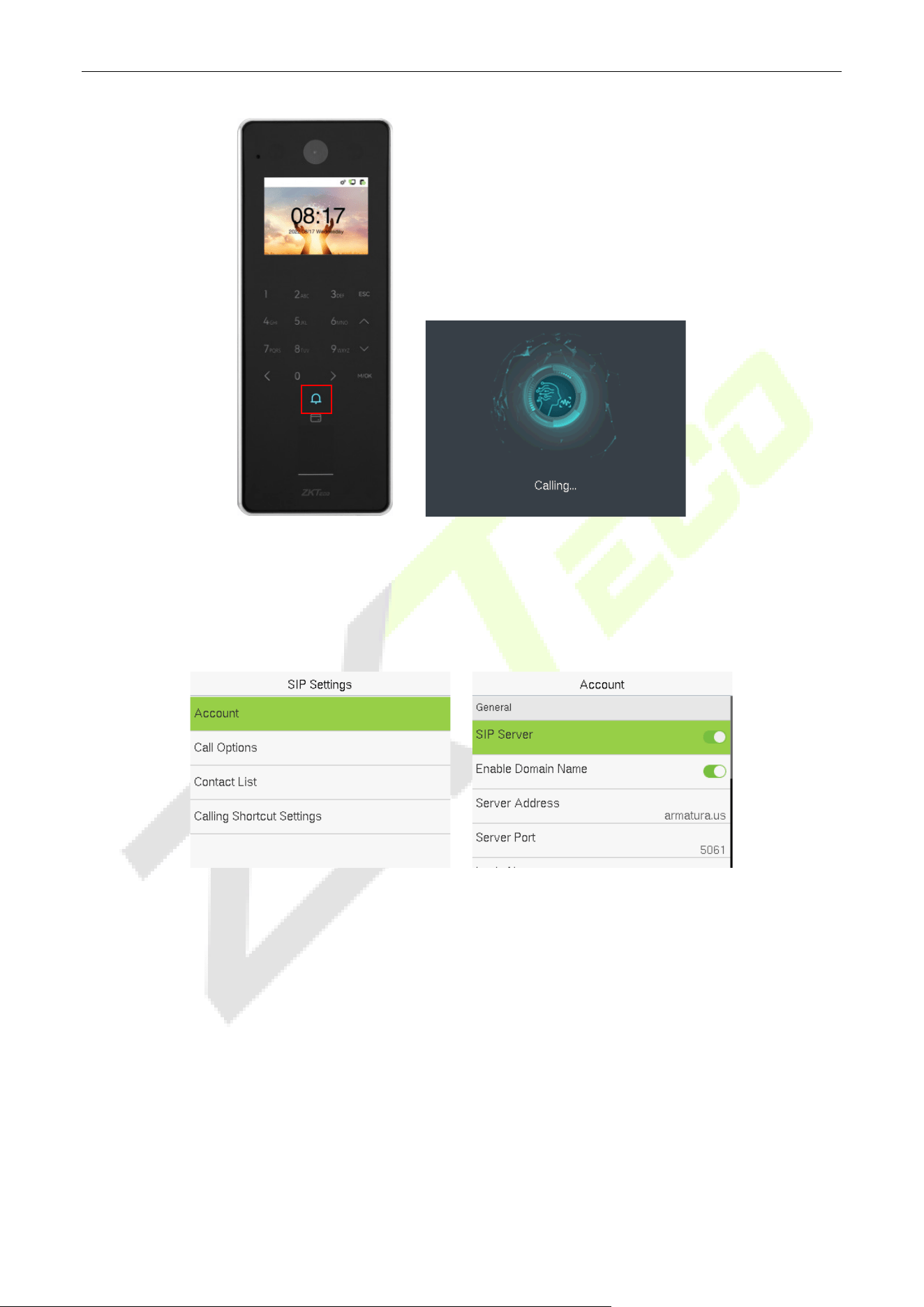

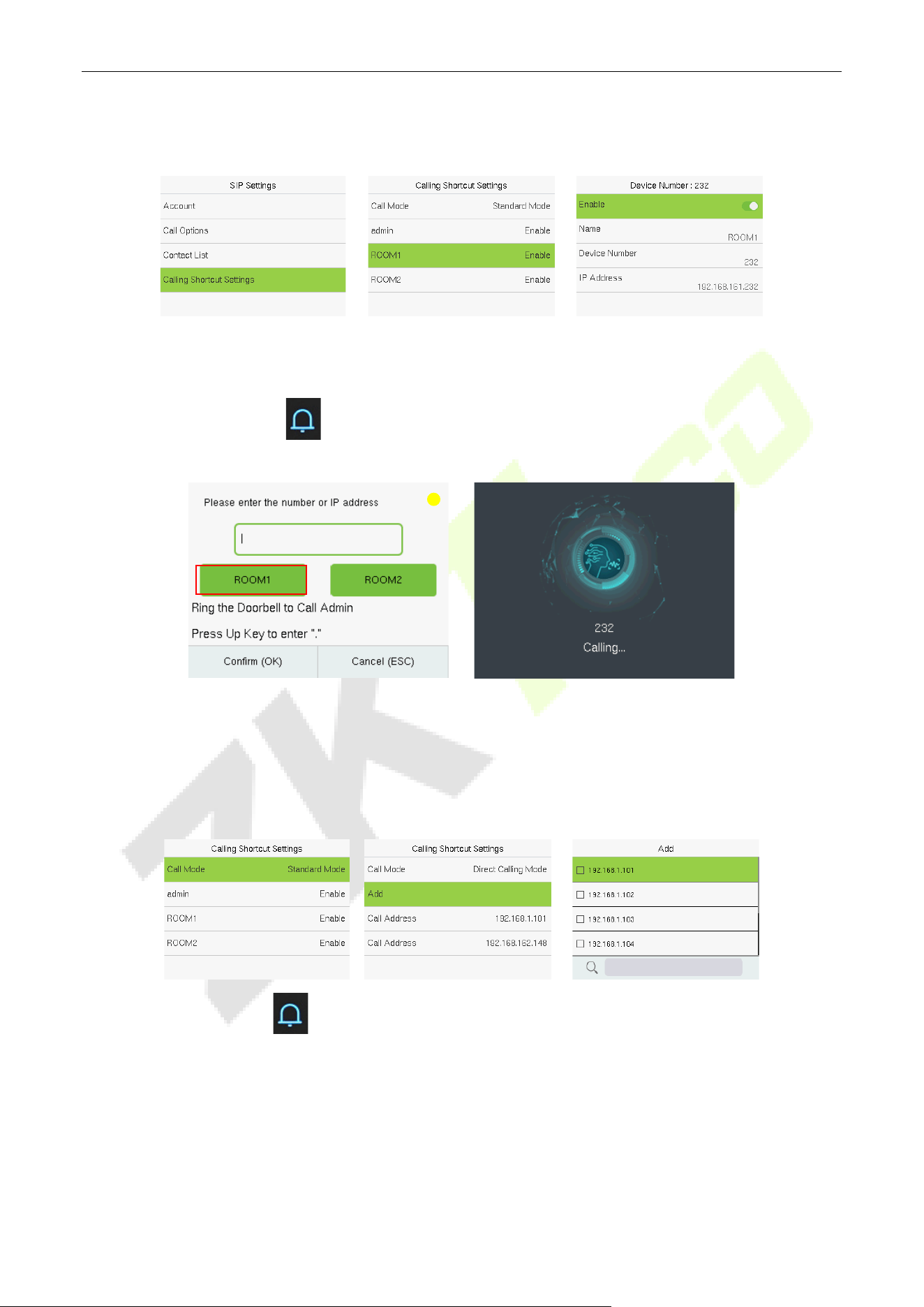

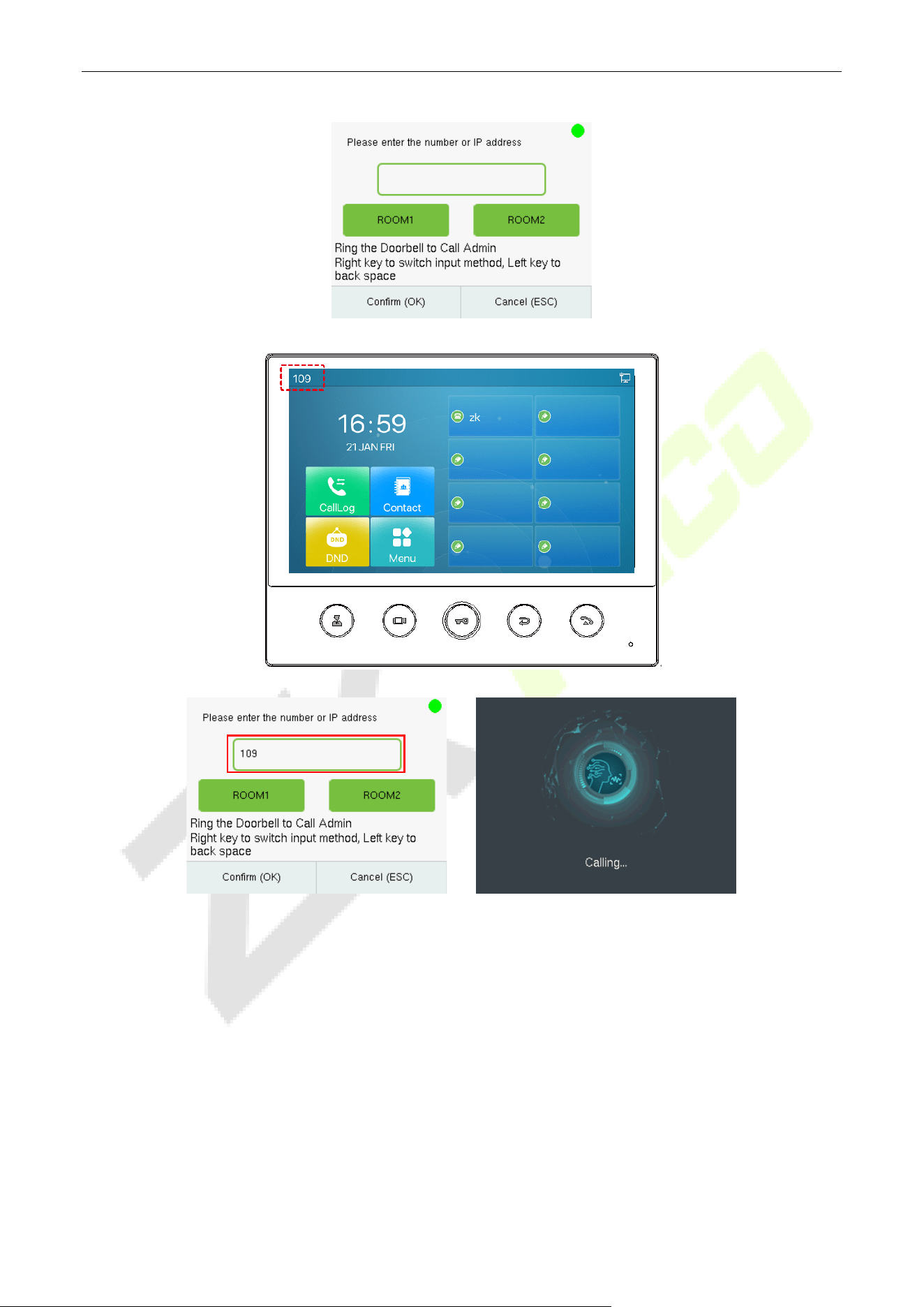

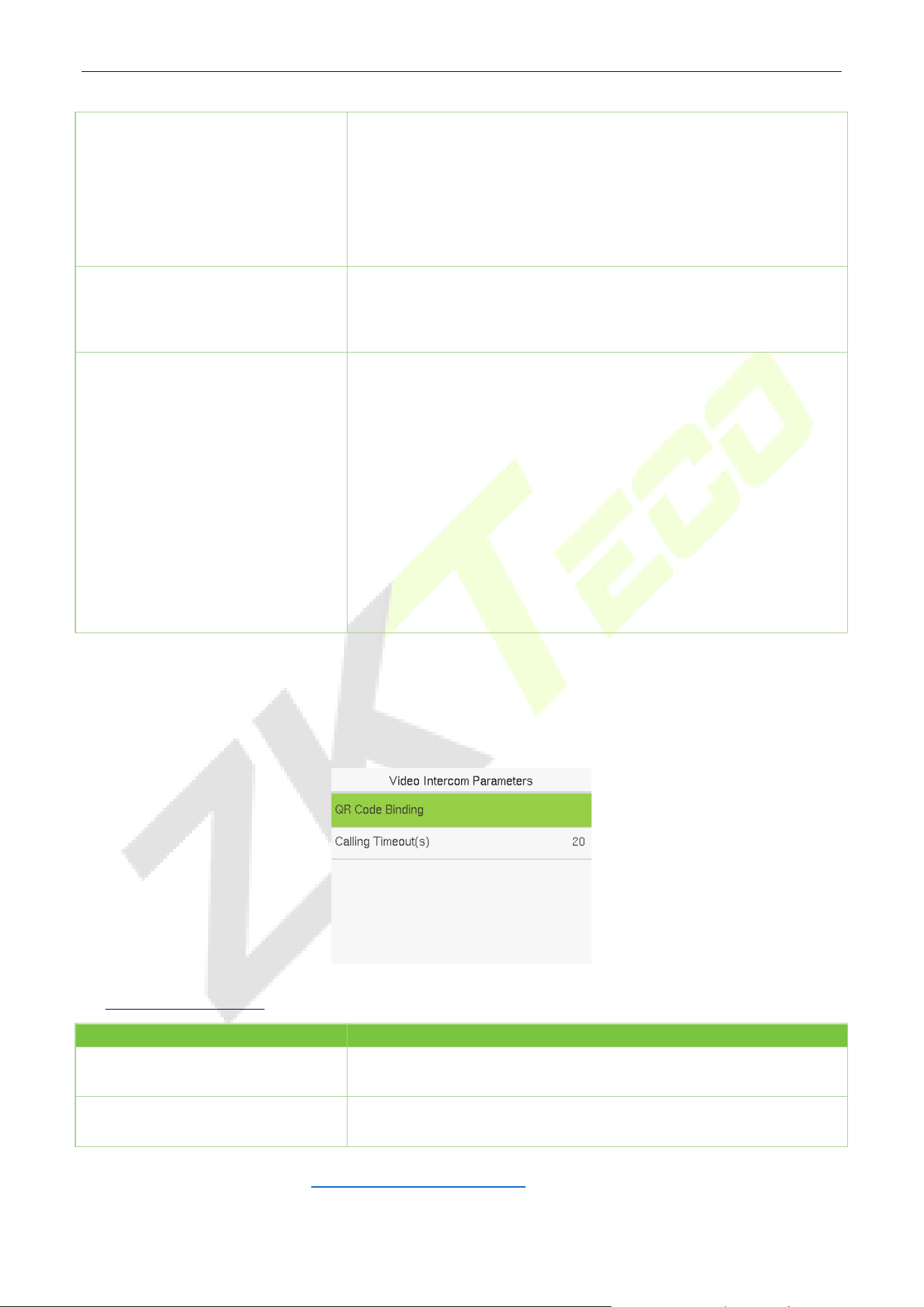

VIDEO INTERCOM PARAMETERS★ ............................................................................................................................................................... 49 11.4

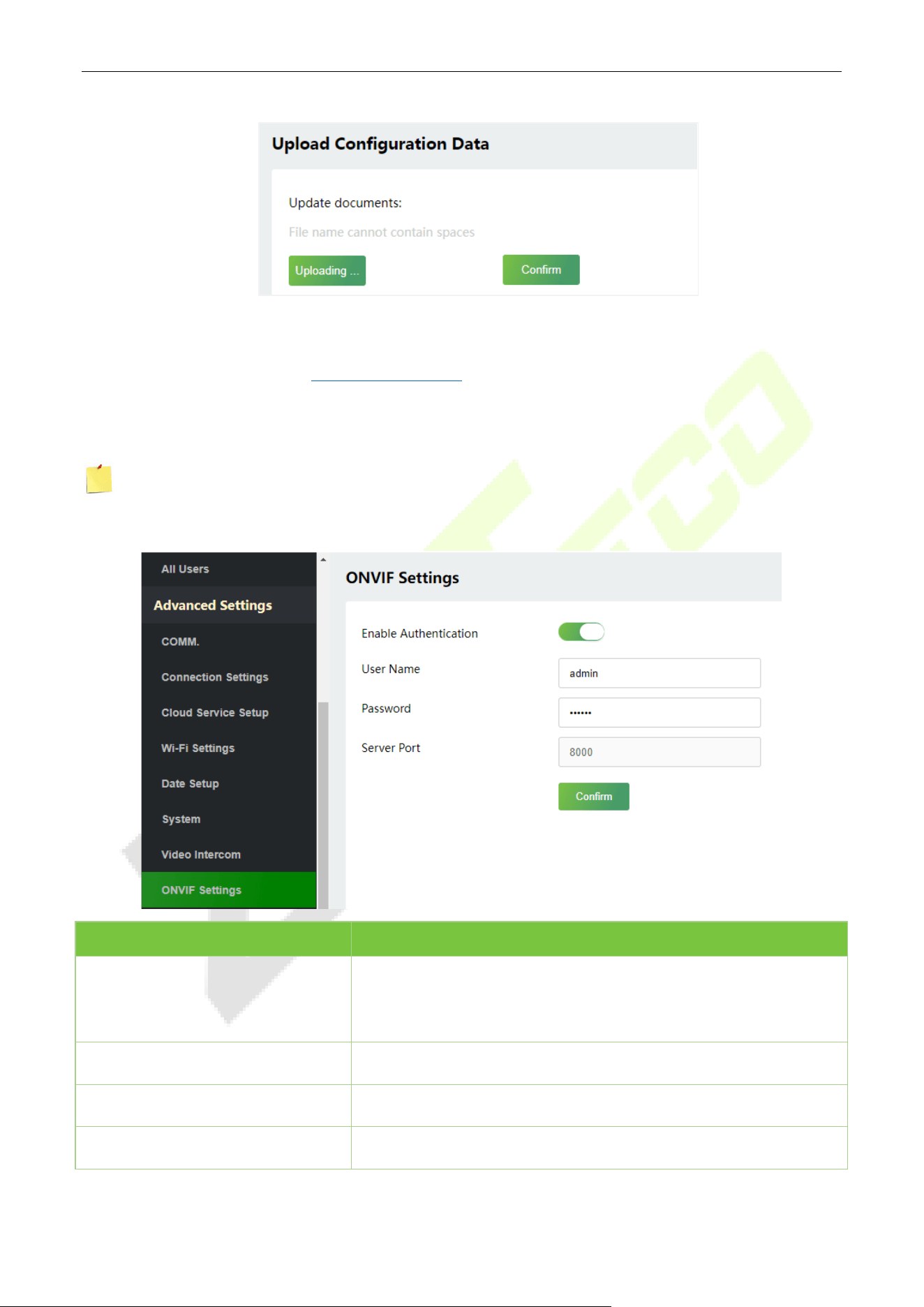

ONVIF SETTINGS★ ...................................................................................................................................................................................... 50 11.5

DEVICE TYPE SETTINGS ................................................................................................................................................................................. 52 11.6

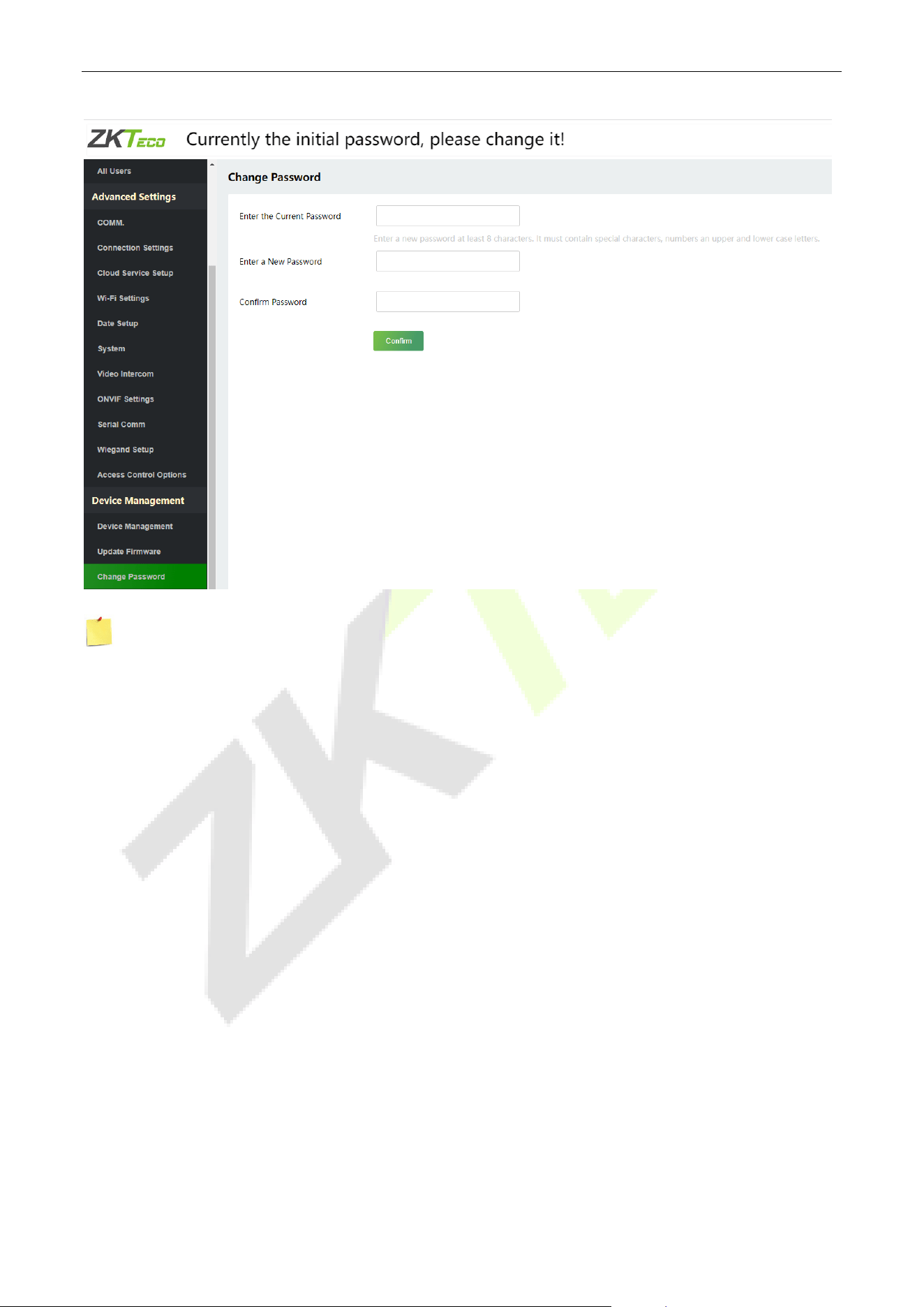

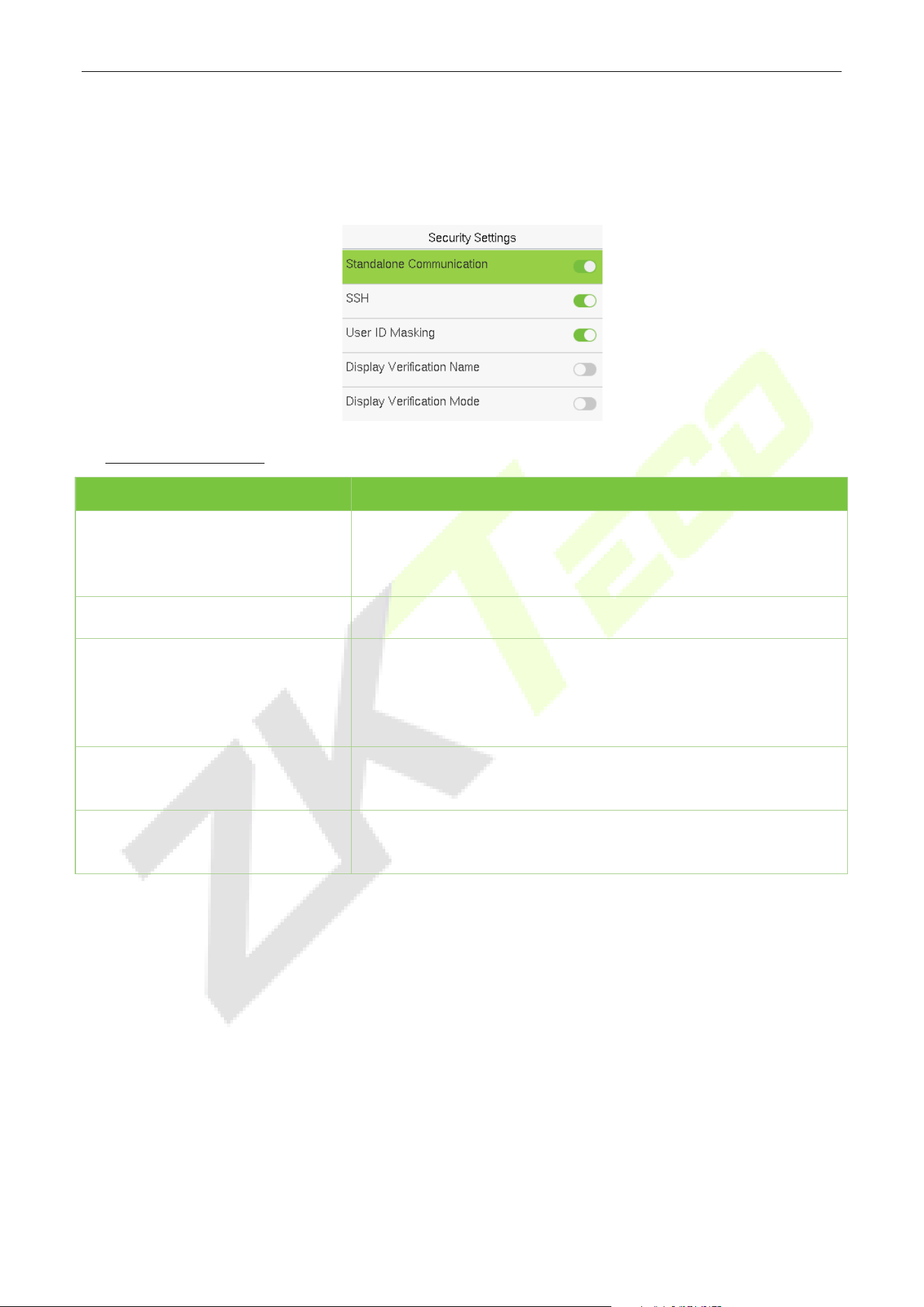

SECURITY SETTINGS ...................................................................................................................................................................................... 53 11.7

UPDATE FIRMWARE ONLINE ........................................................................................................................................................................ 54 11.8

FACTORY RESET............................................................................................................................................................................................. 54 11.9

12 PERSONALIZE SETTINGS ............................................................................................................... 55

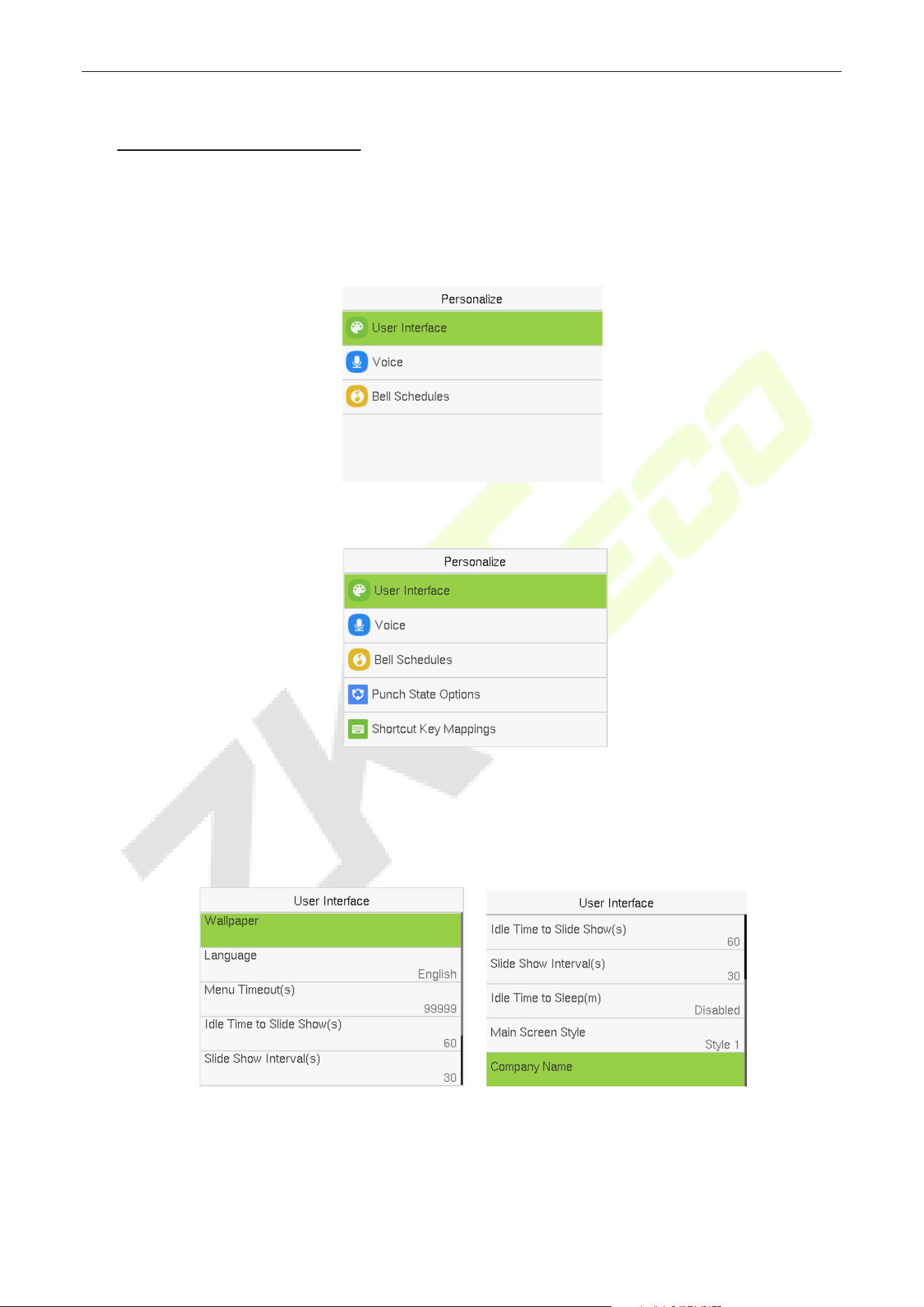

USER INTERFACE ........................................................................................................................................................................................... 55 12.1

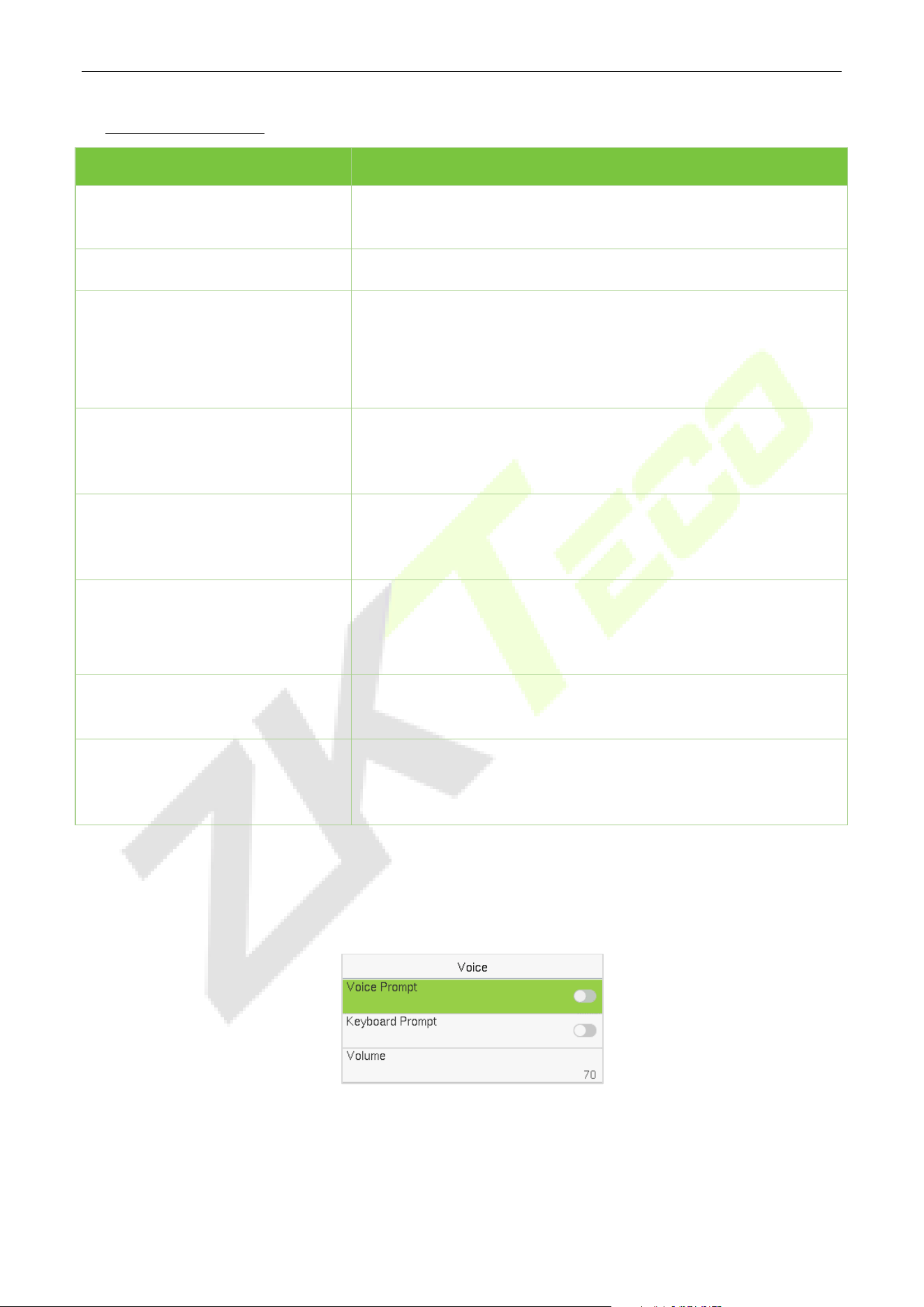

VOICE ............................................................................................................................................................................................................. 56 12.2

BELL SCHEDULES........................................................................................................................................................................................... 57 12.3

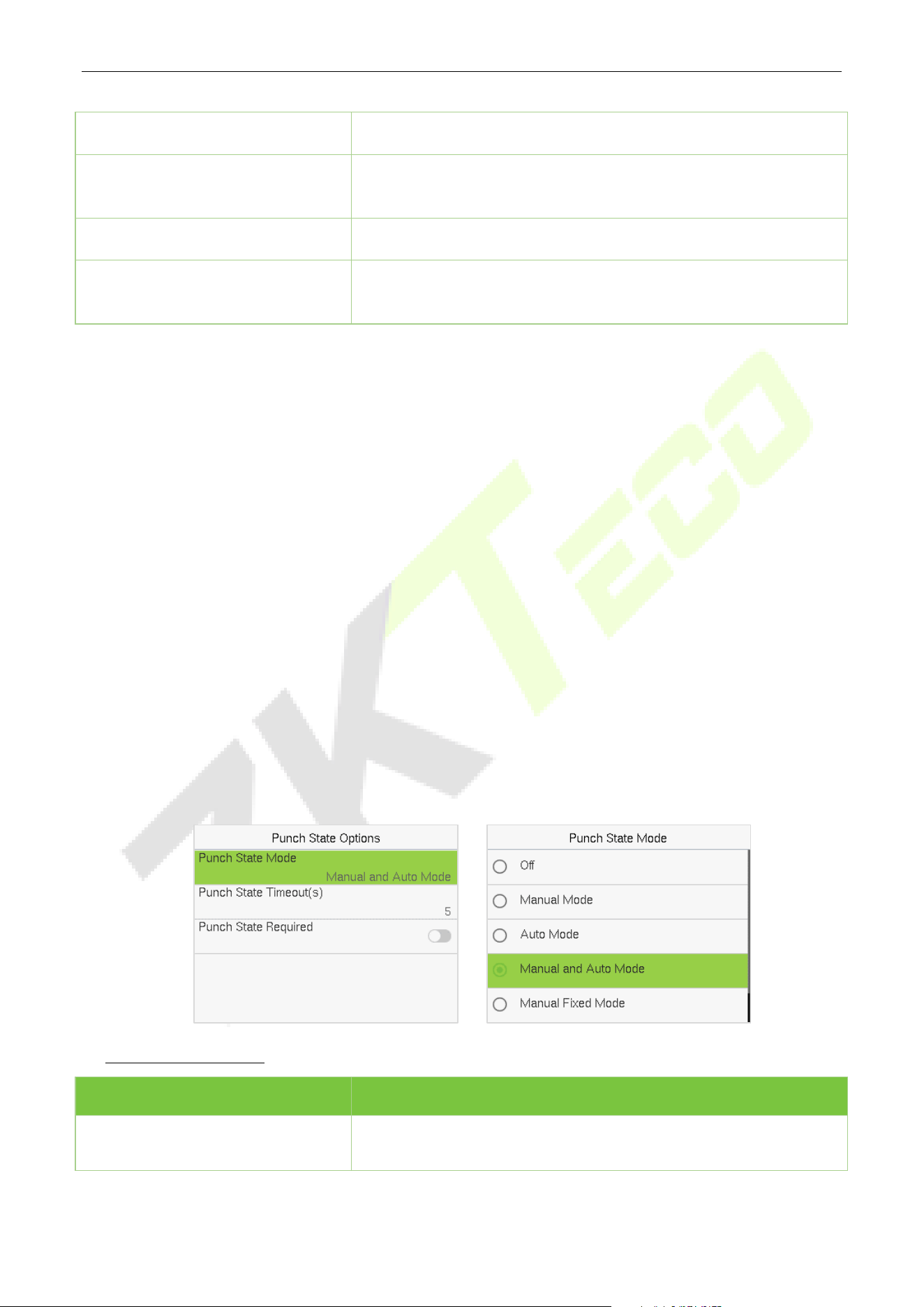

PUNCH STATES OPTIONS ............................................................................................................................................................................. 58 12.4

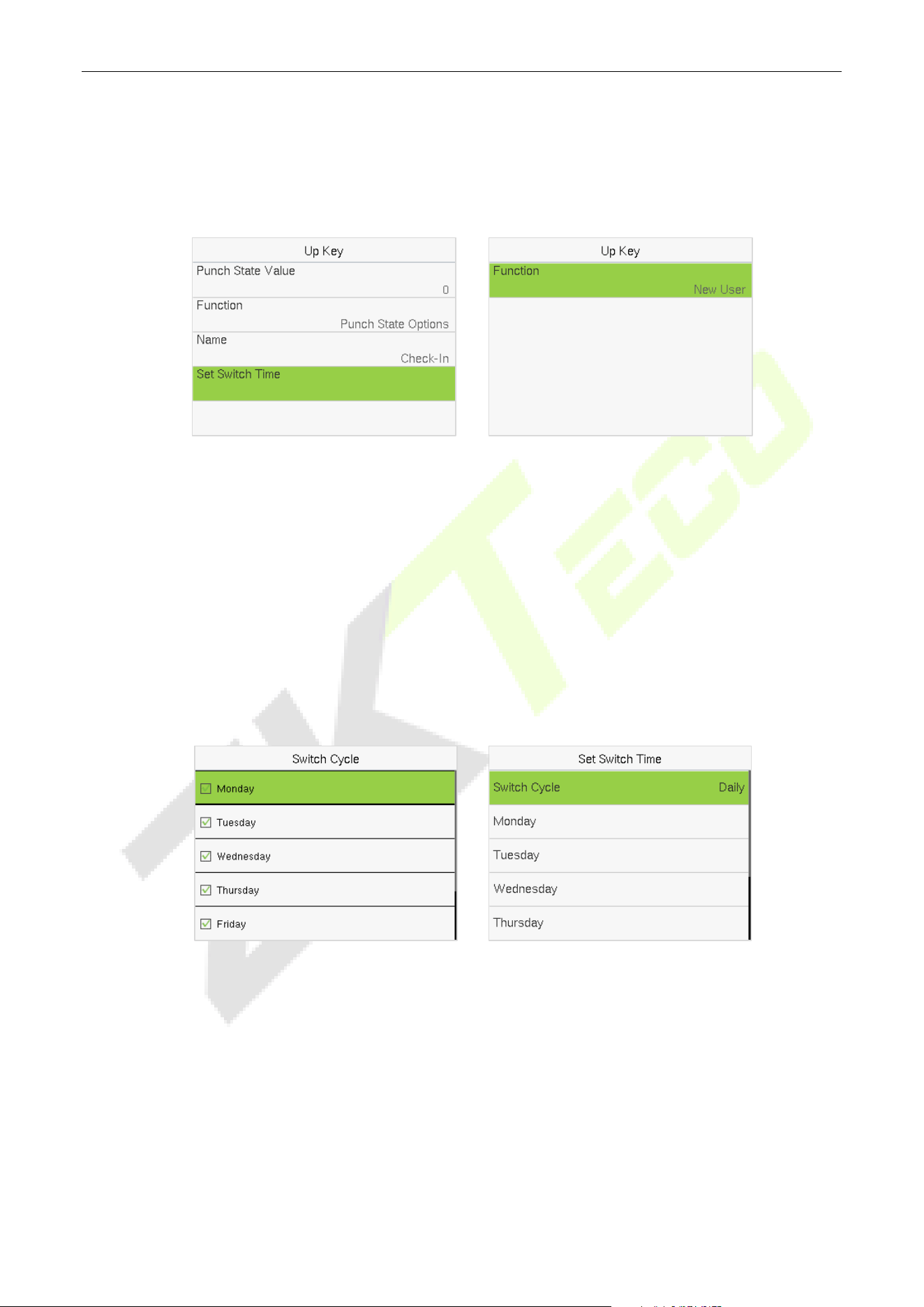

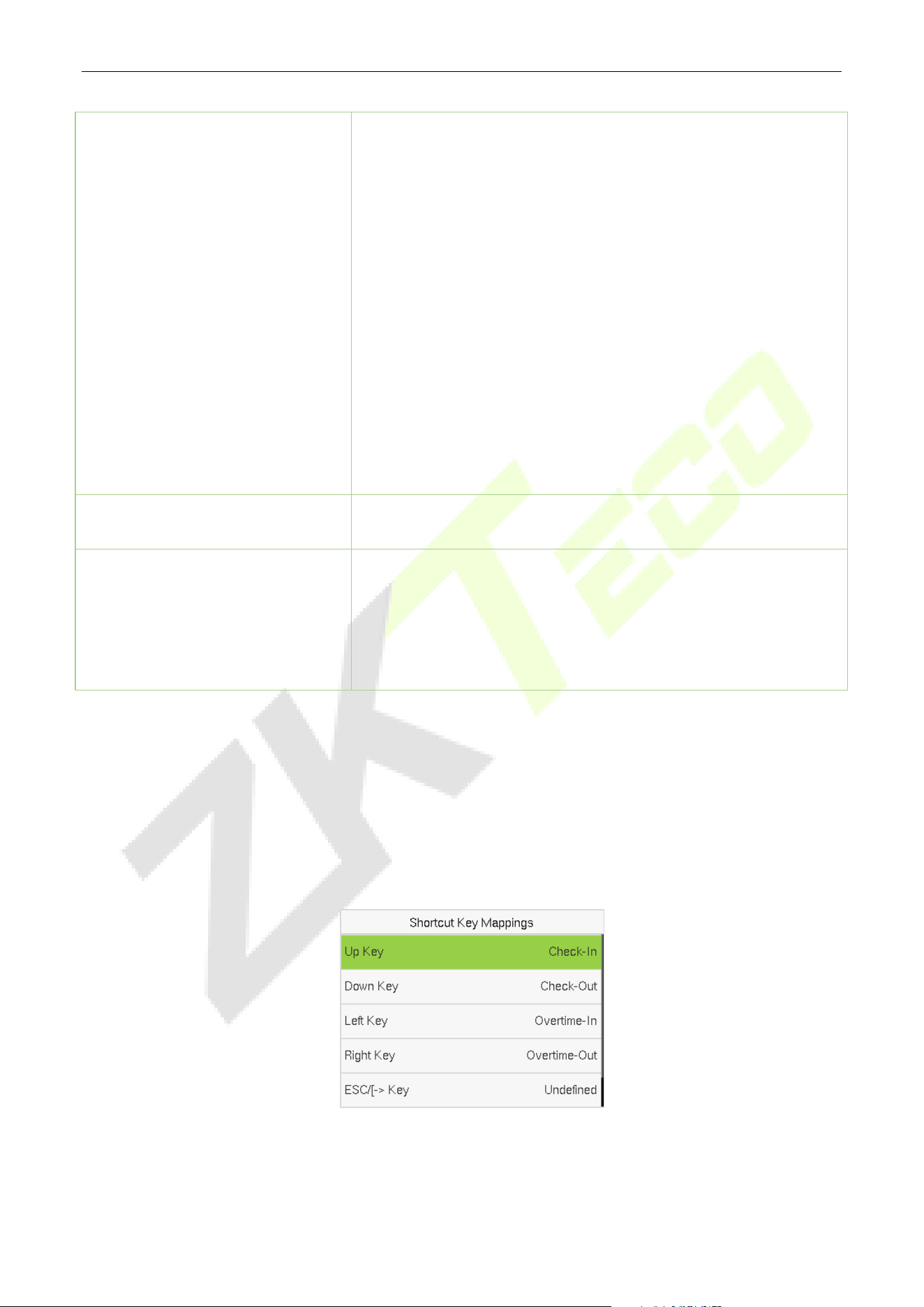

SHORTCUT KEY MAPPINGS .......................................................................................................................................................................... 59 12.5

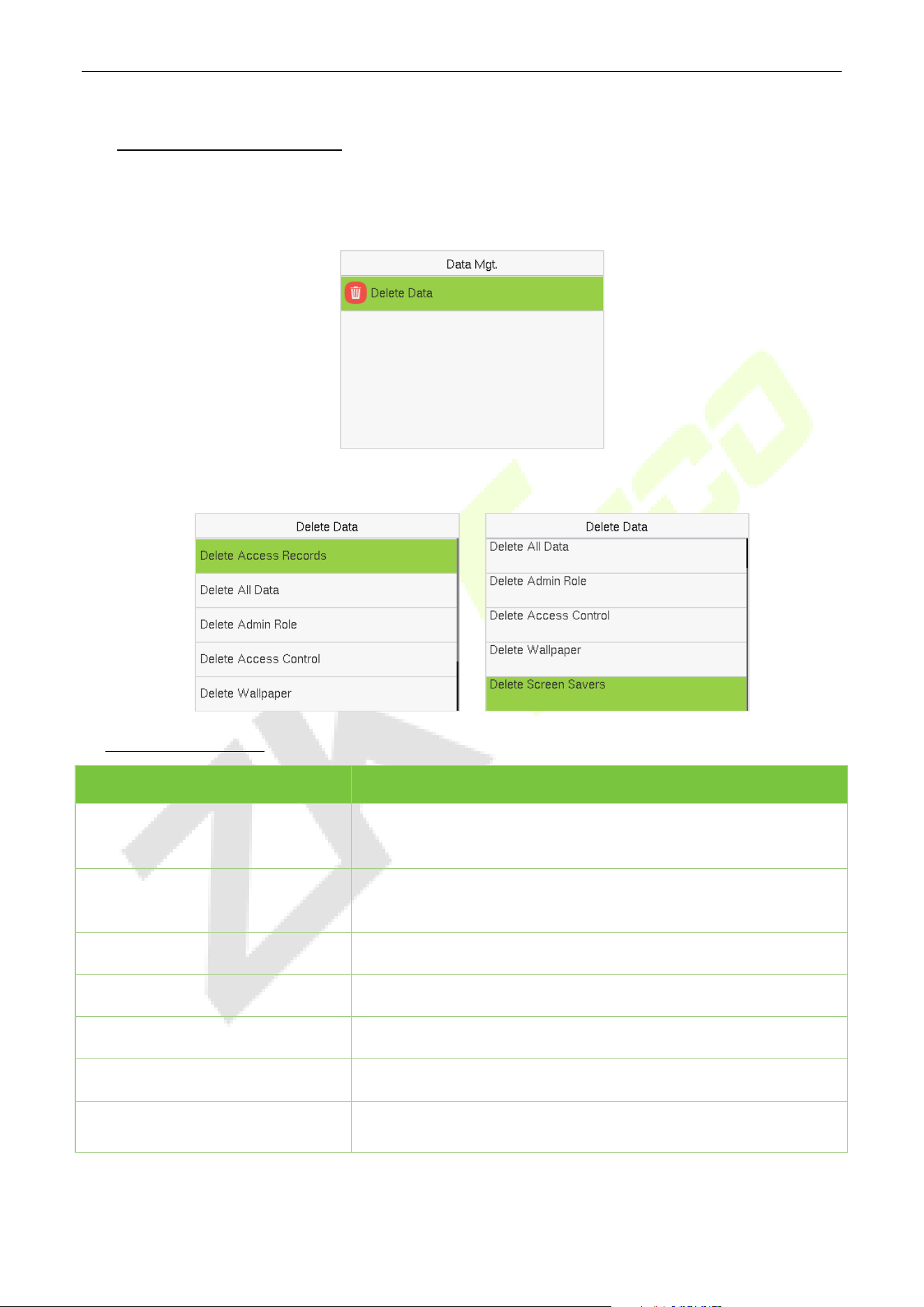

13 DATA MANAGEMENT .................................................................................................................... 62

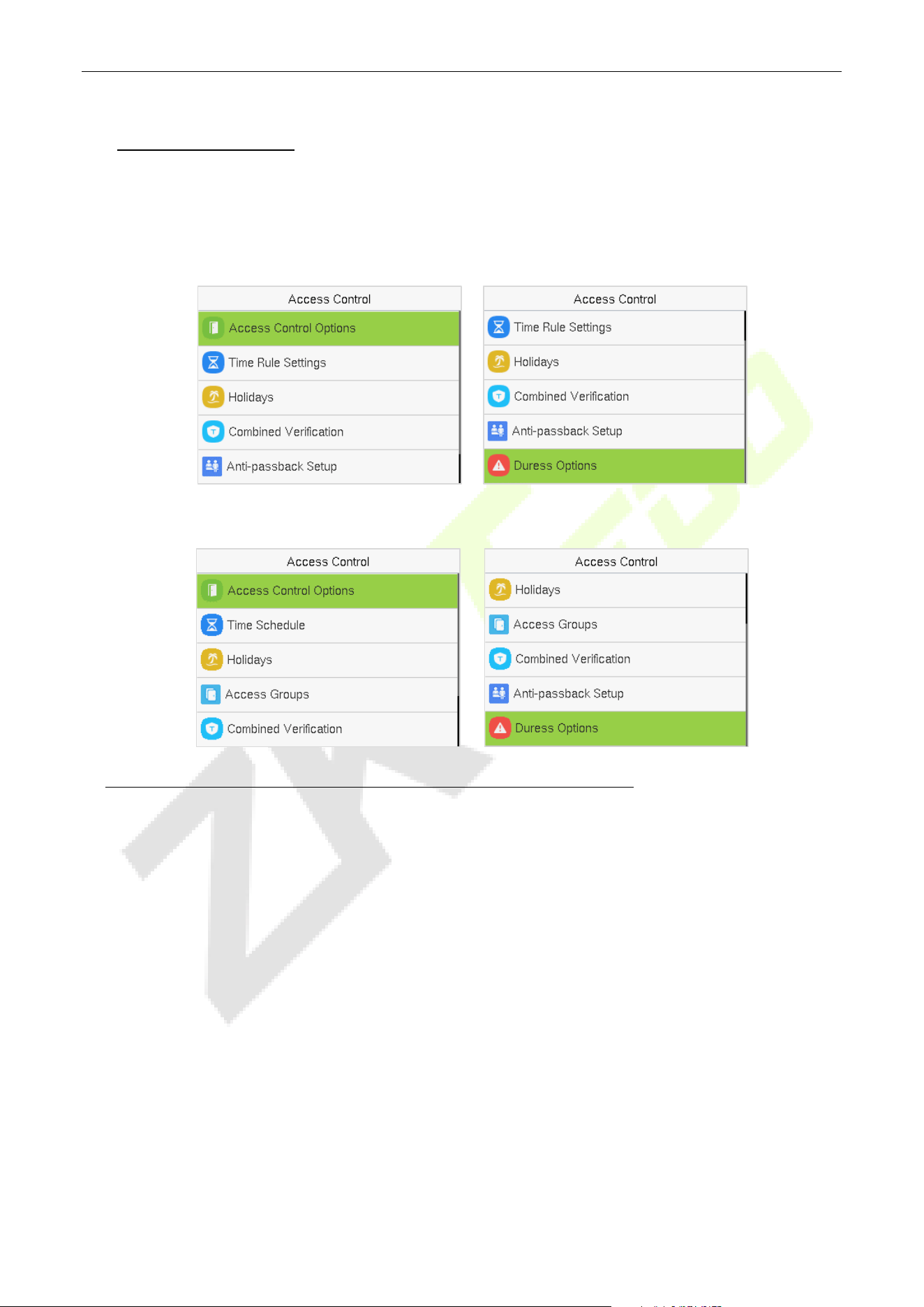

14 ACCESS CONTROL .......................................................................................................................... 64

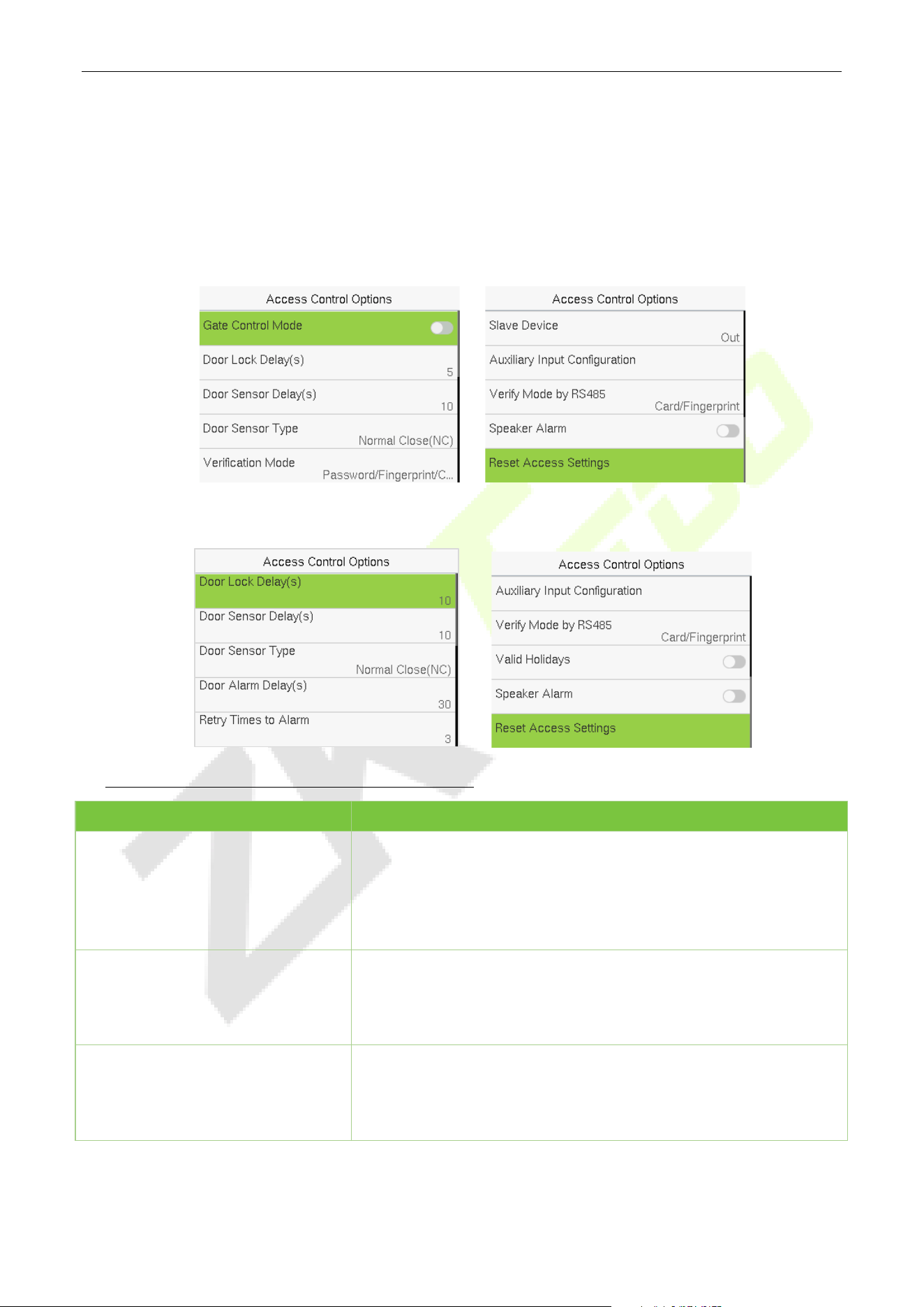

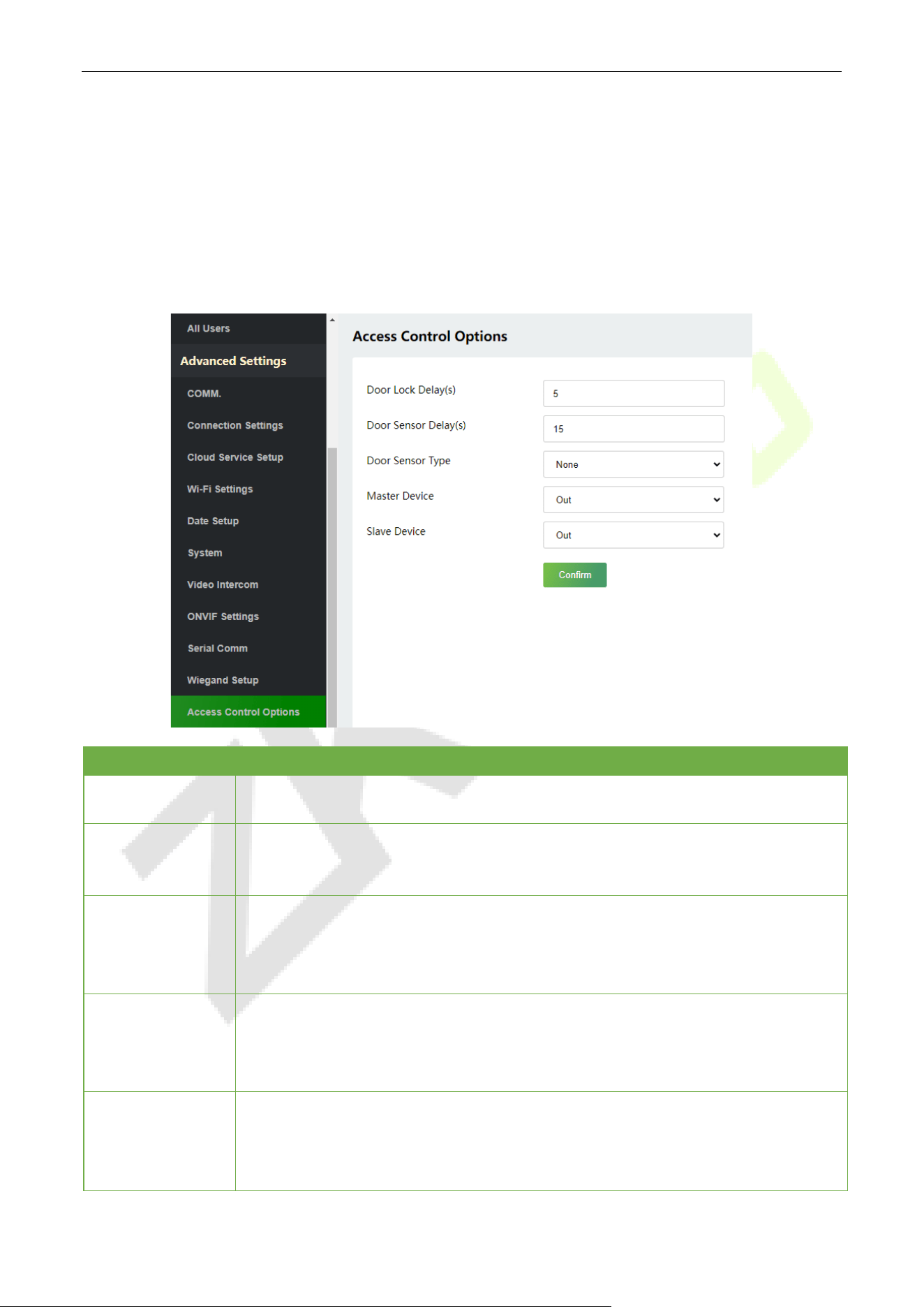

ACCESS CONTROL OPTIONS ........................................................................................................................................................................ 65 14.1

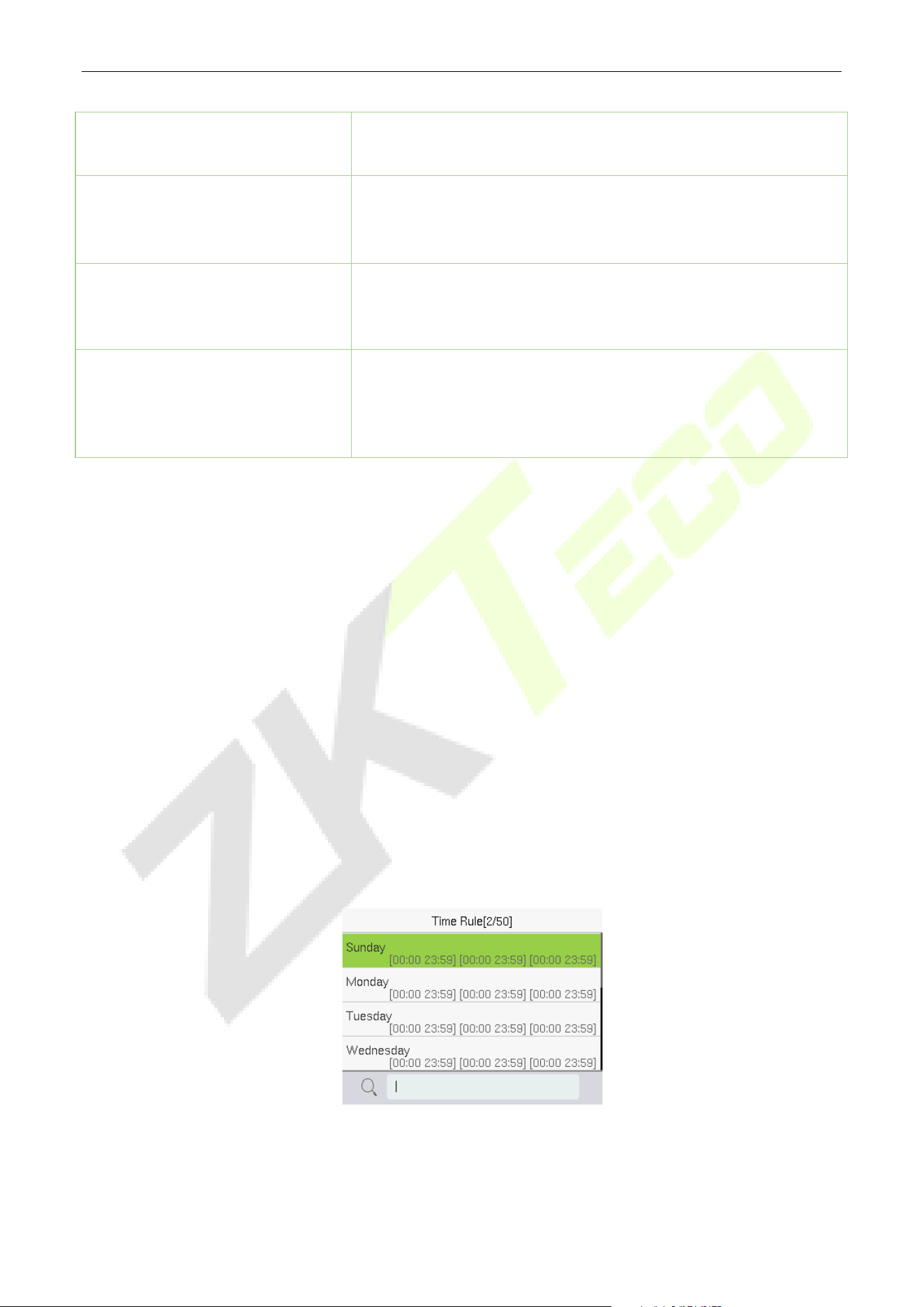

TIME RULE SETTINGS / TIME SCHEDULE ...................................................................................................................................................... 68 14.2

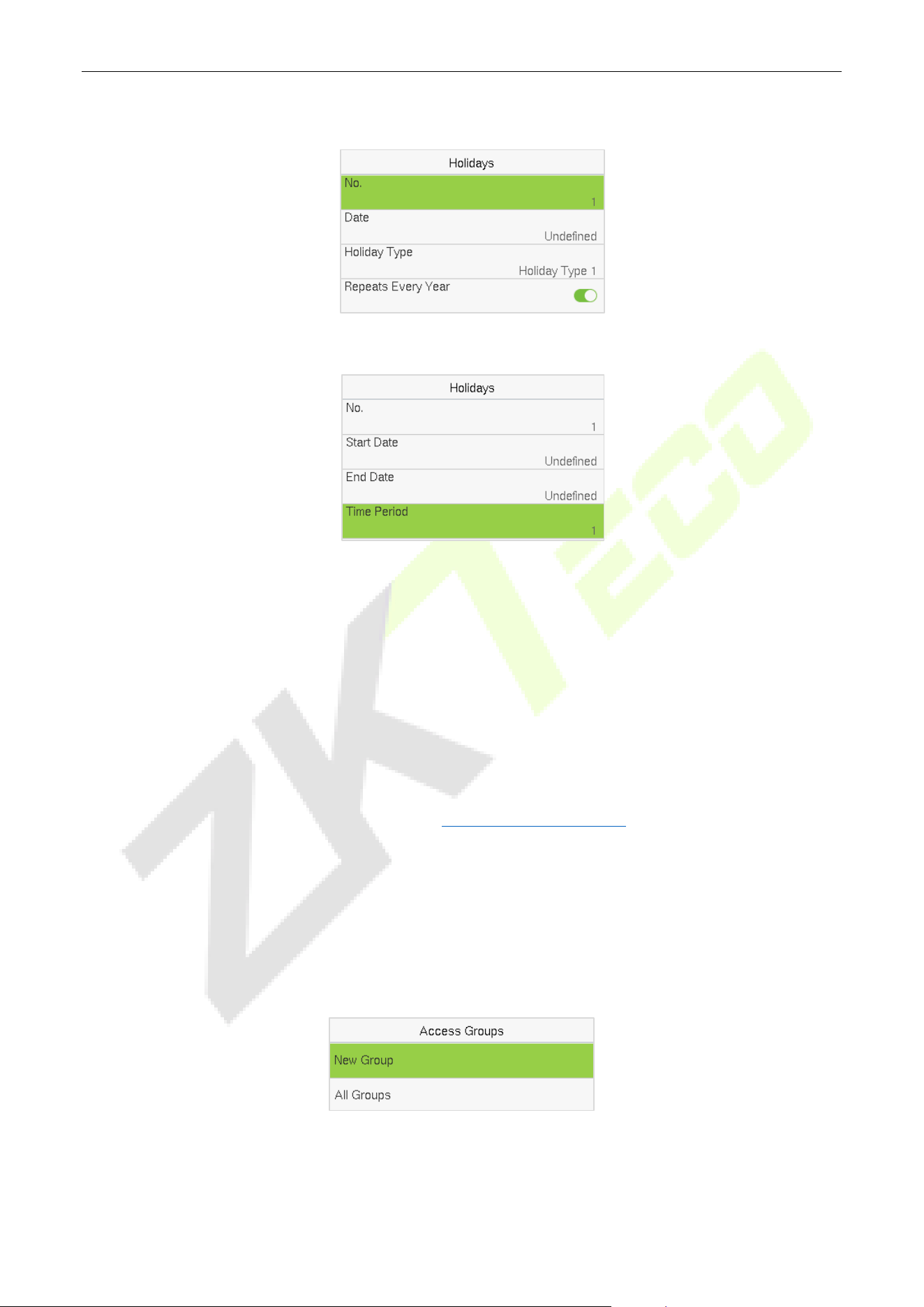

HOLIDAYS ...................................................................................................................................................................................................... 69 14.3

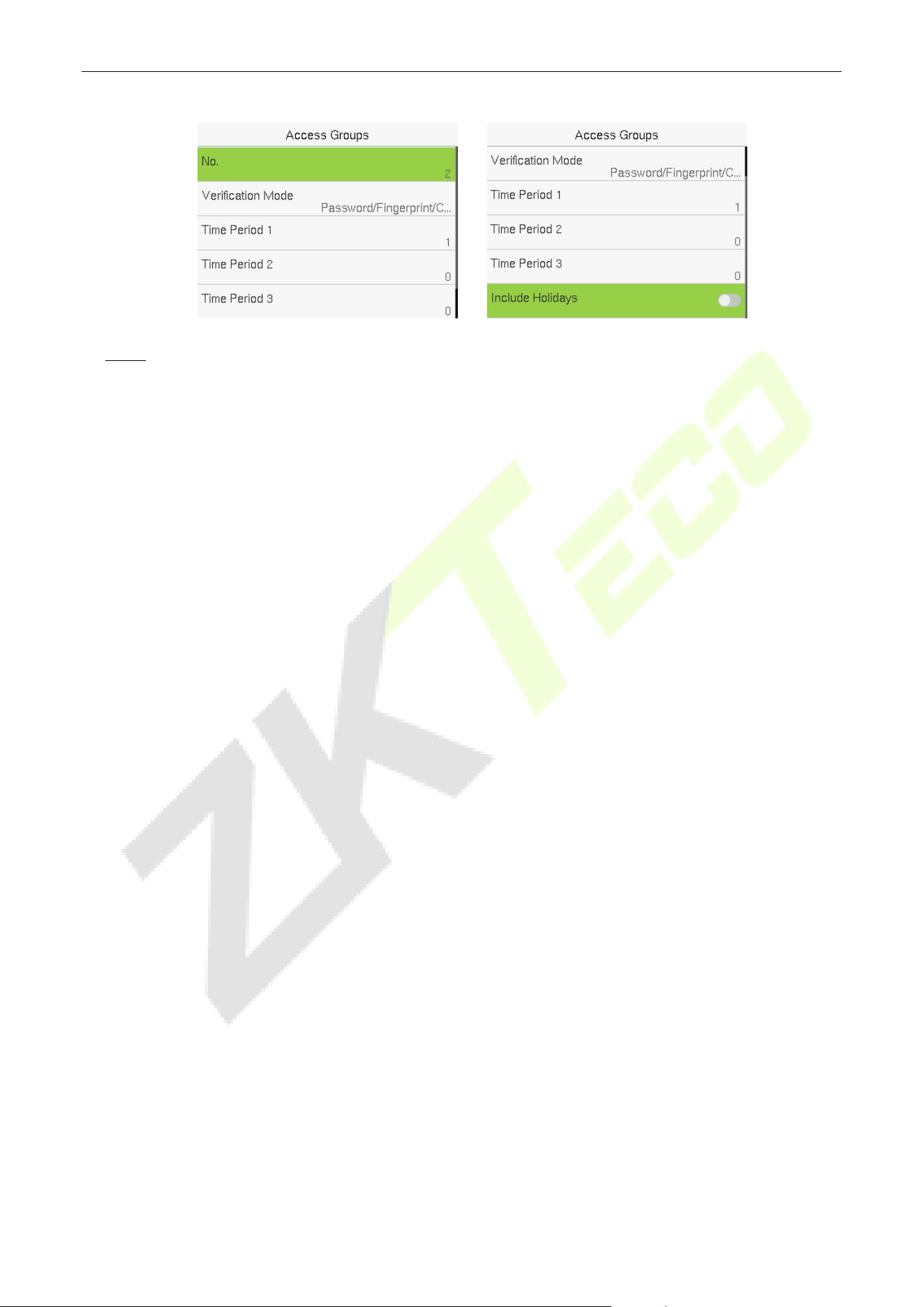

ACCESS GROUPS ........................................................................................................................................................................................... 70 14.4

COMBINED VERIFICATION ............................................................................................................................................................................. 71 14.5

ANTI-PASSBACK SETUP ................................................................................................................................................................................. 72 14.6

DURESS OPTIONS SETTINGS......................................................................................................................................................................... 73 14.7

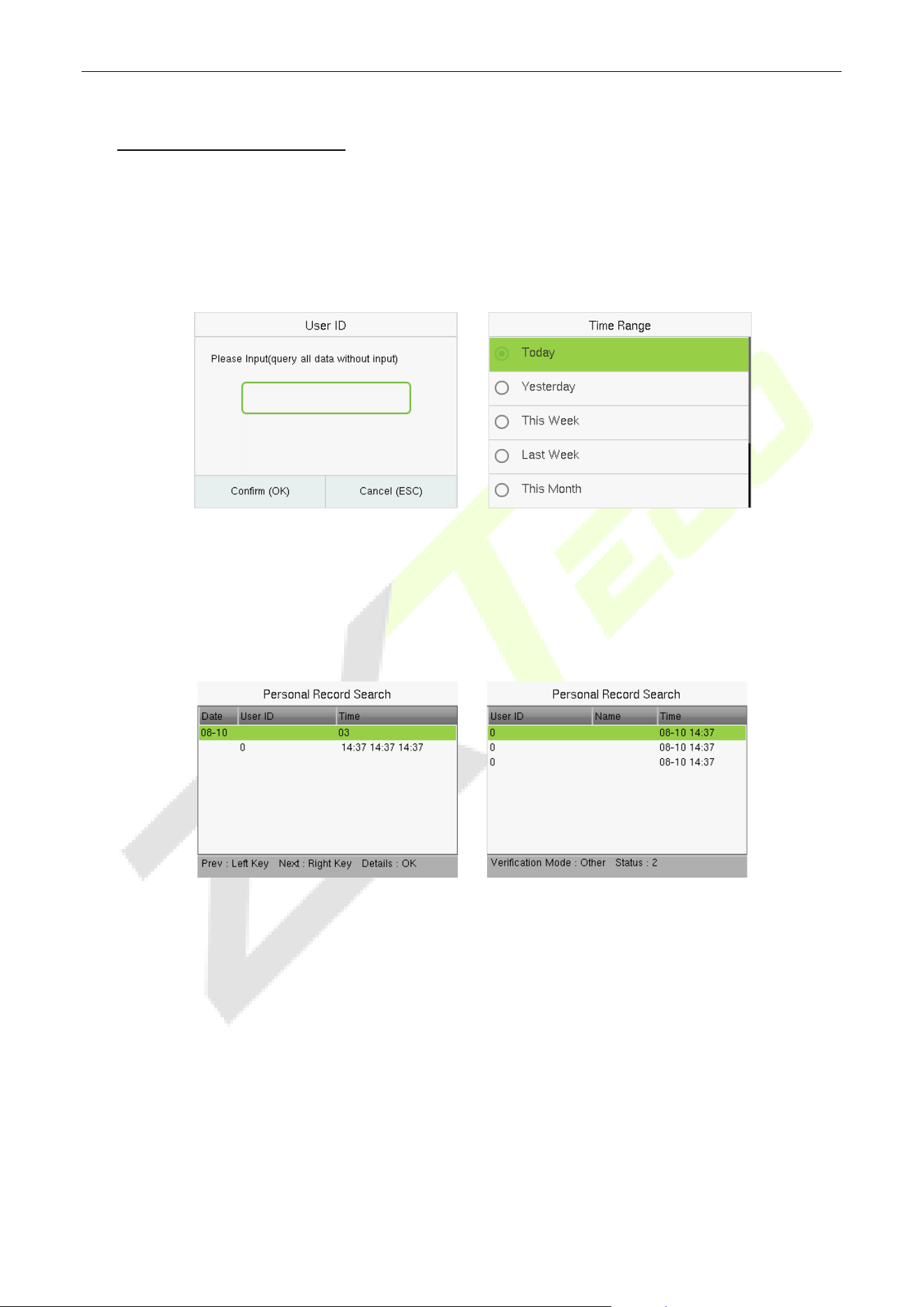

15 ATTENDANCE SEARCH .................................................................................................................. 76

F35 User Manual

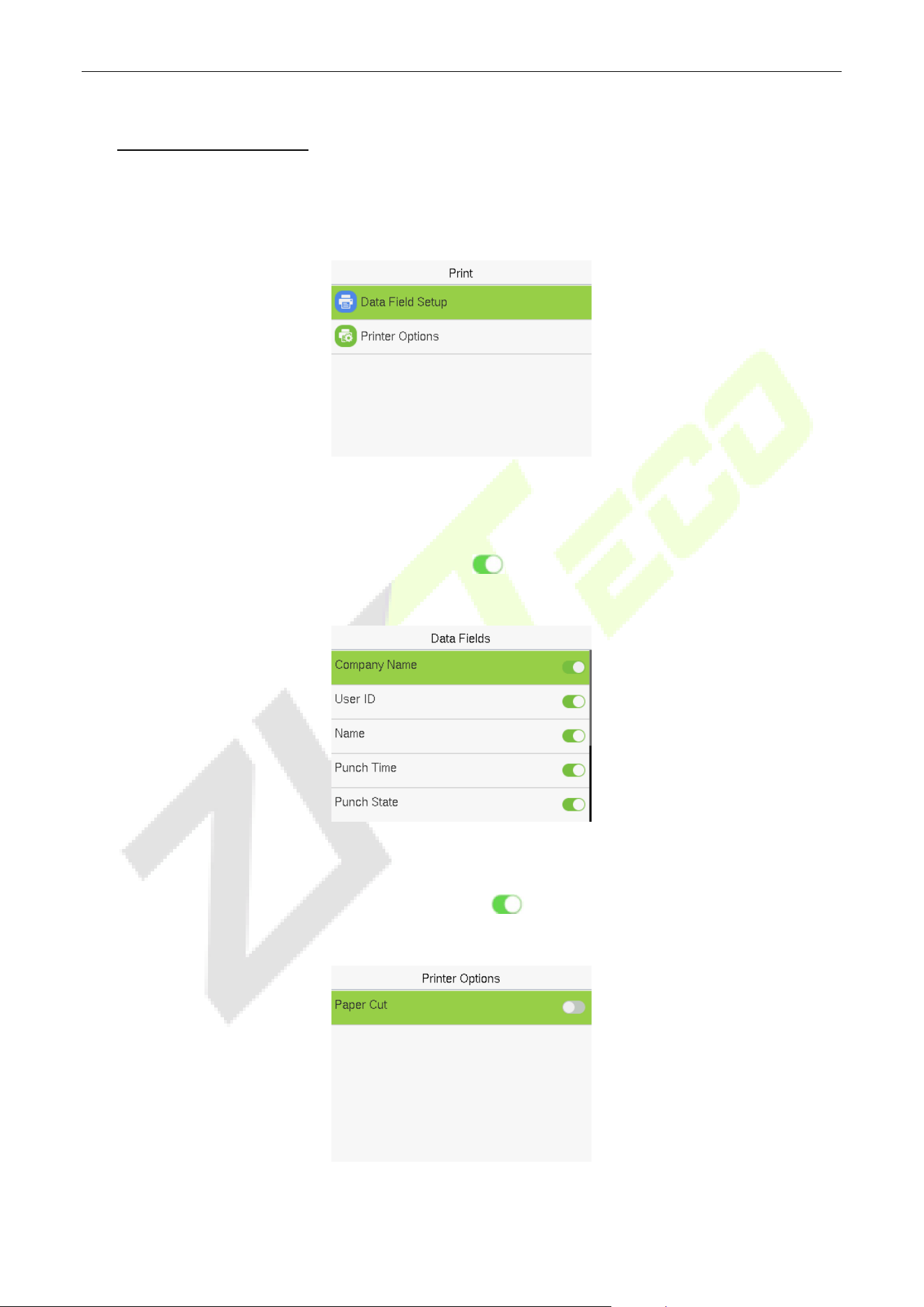

16 PRINT SETTINGS

★

......................................................................................................................... 77

DATA FIELD SETUP ....................................................................................................................................................................................... 77 16.1

PRINT OPTIONS SETTINGS .......................................................................................................................................................................... 77 16.2

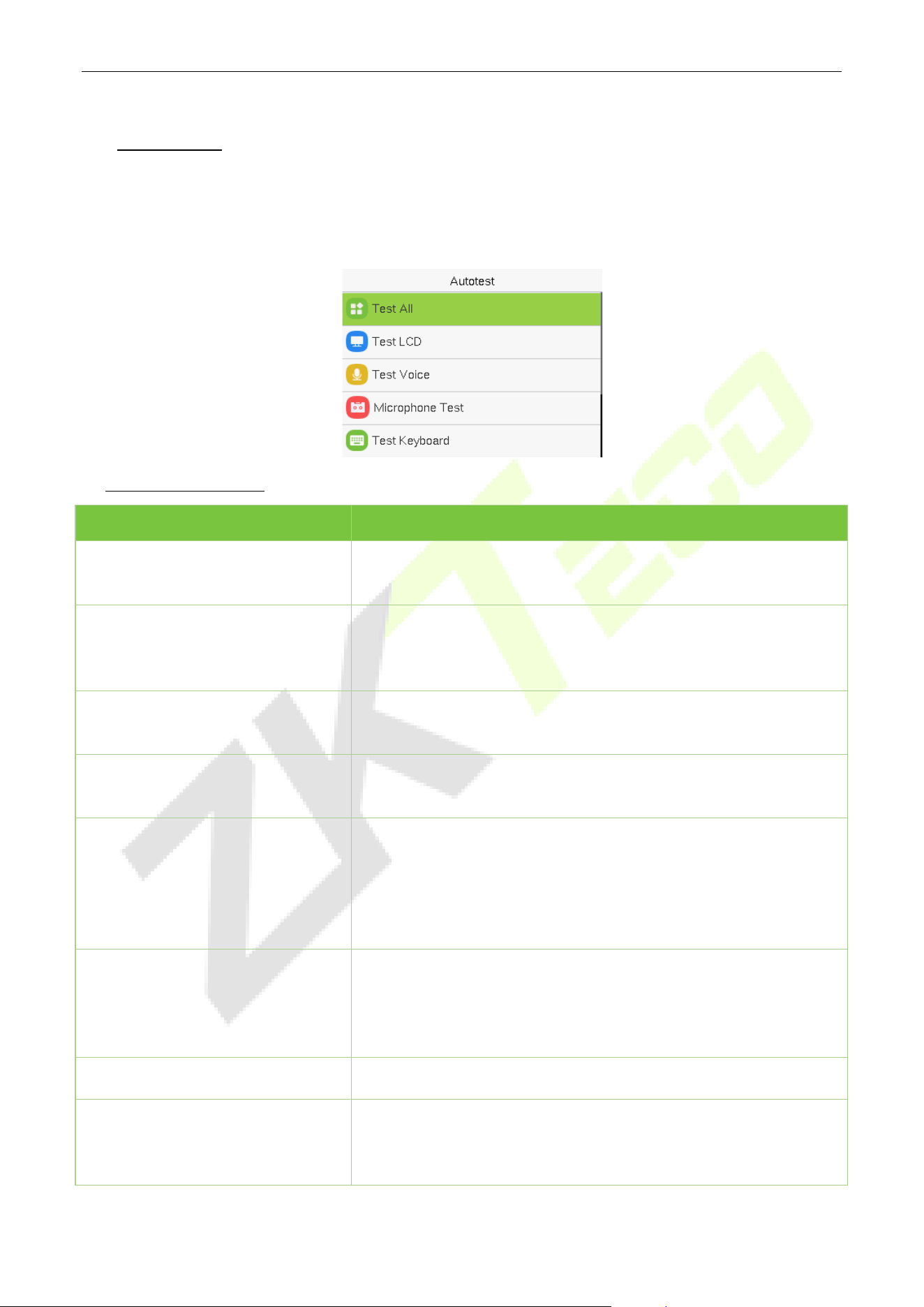

17 AUTOTEST ...................................................................................................................................... 79

18 SYSTEM INFORMATION ................................................................................................................. 80

19 CONNECT TO WEBSERVER ............................................................................................................ 81

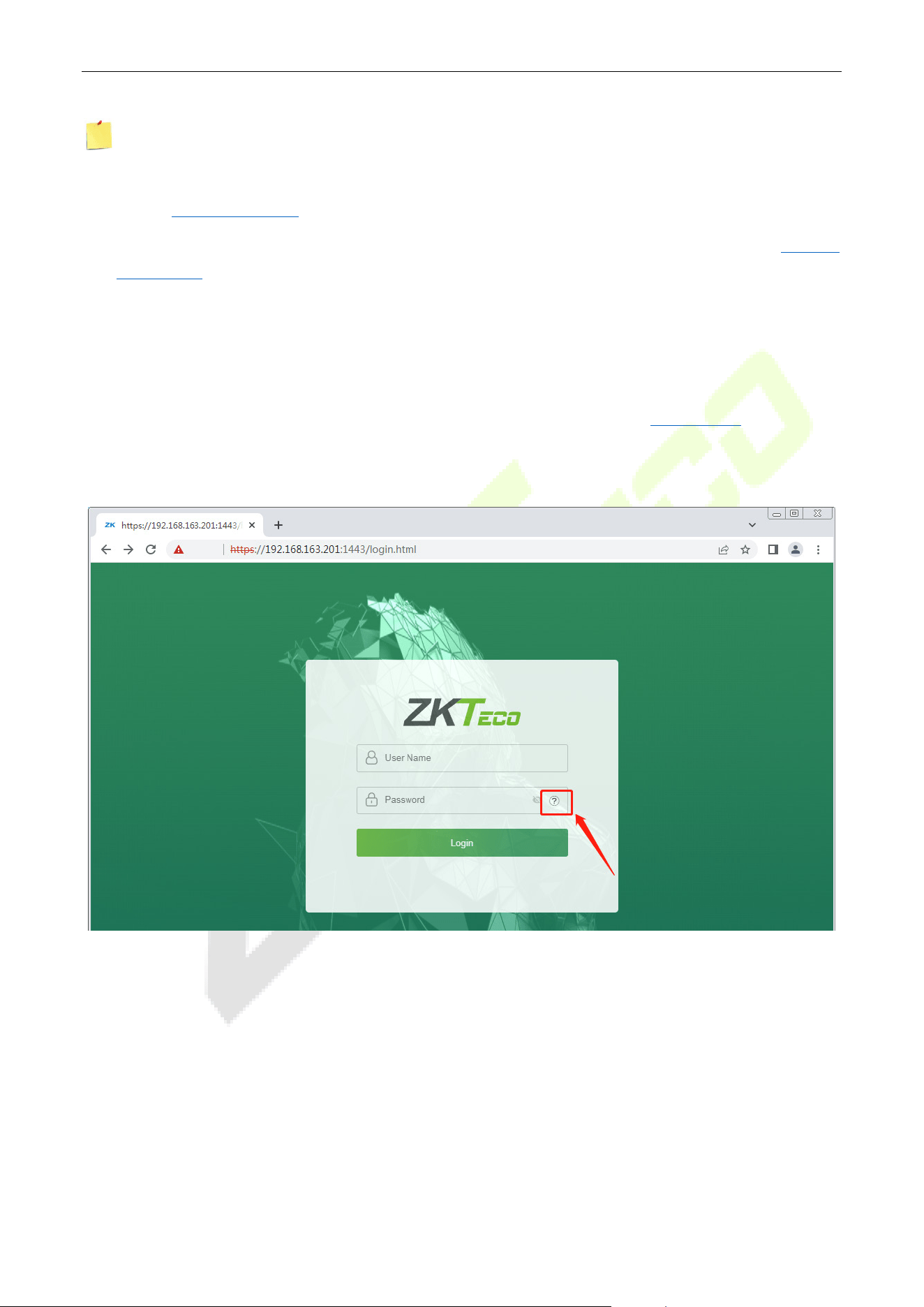

LOGIN WEBSERVER ....................................................................................................................................................................................... 81 19.1

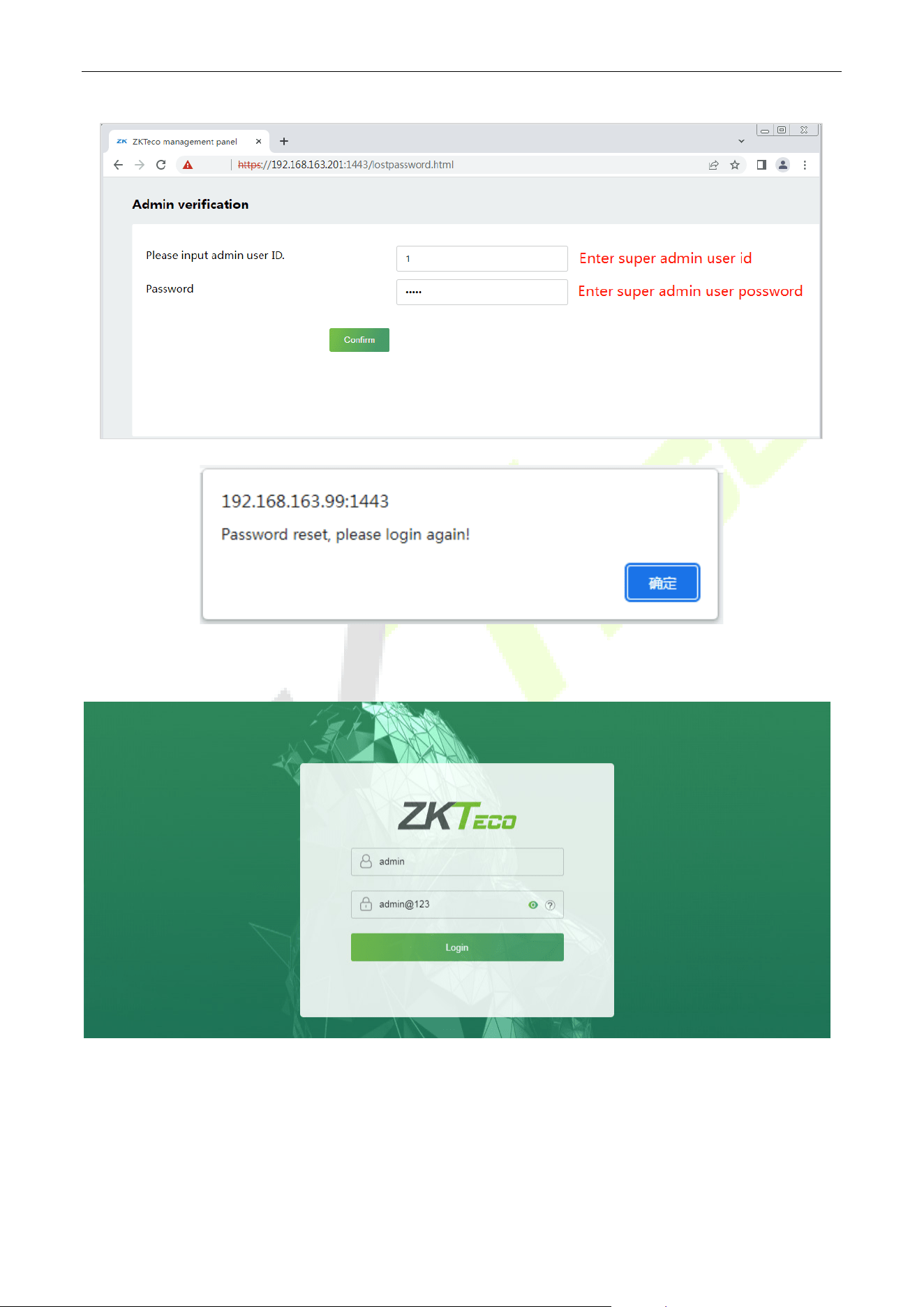

FORGOT PASSWORD ..................................................................................................................................................................................... 82 19.2

USER MANAGEMENT .................................................................................................................................................................................... 86 19.3

19.3.1 USER REGISTRATION ................................................................................................................................................................................... 86

19.3.2 SEARCH FOR USERS .................................................................................................................................................................................... 88

19.3.3 EDIT USER ....................................................................................................................................................................................................... 88

19.3.4 DELETE USER ................................................................................................................................................................................................. 89

ADVANCED SETTINGS ................................................................................................................................................................................... 90 19.4

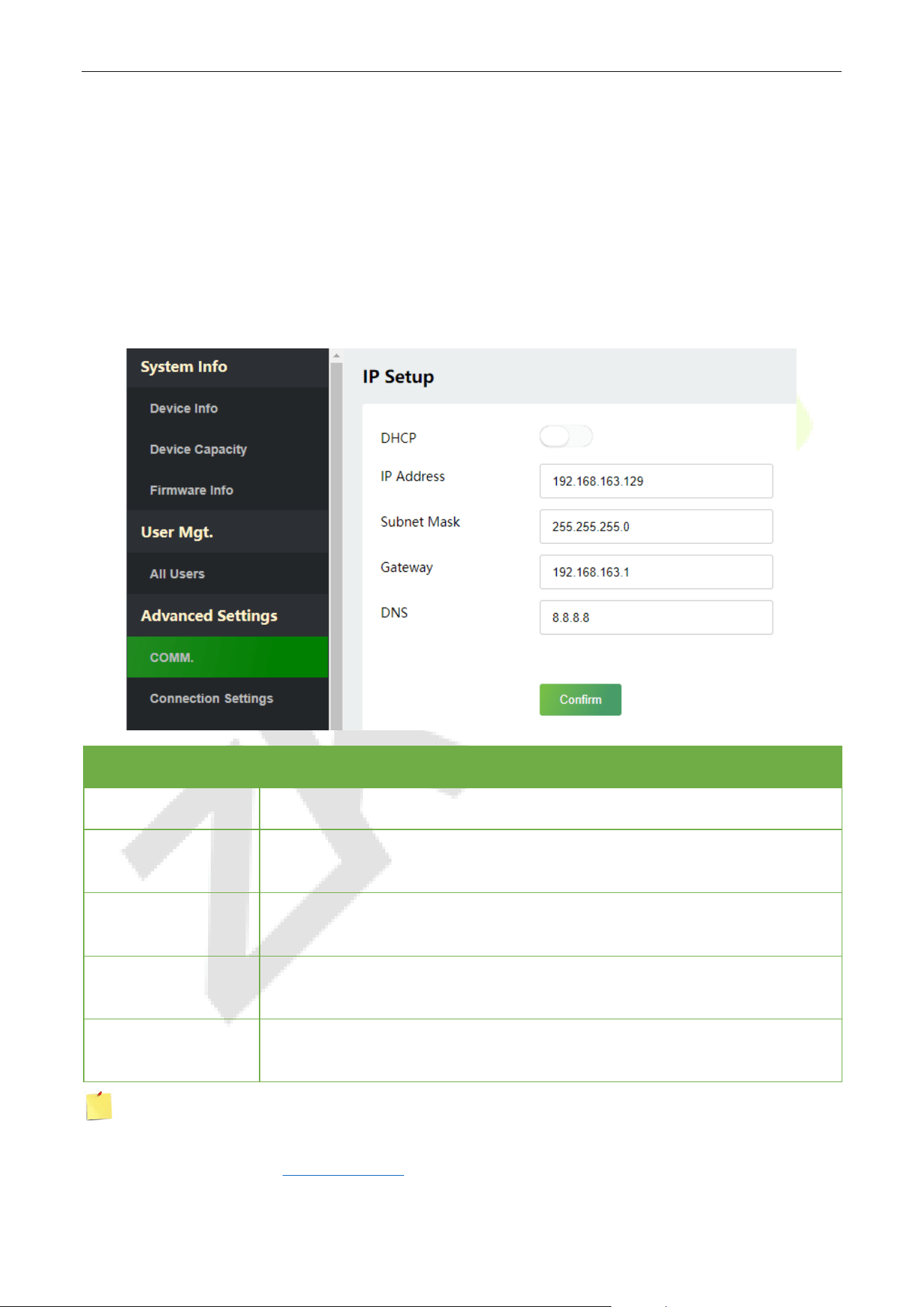

19.4.1 COMMUNICATION SETTINGS ................................................................................................................................................................... 90

19.4.2 CONNECTION SETTINGS ............................................................................................................................................................................ 91

19.4.3 CLOUD SERVICE SETUP .............................................................................................................................................................................. 91

19.4.4 WI-FI SETTINGS★ ........................................................................................................................................................................................ 92

19.4.5 DATE SETUP ................................................................................................................................................................................................... 93

19.4.6 SYSTEM SETTINGS ....................................................................................................................................................................................... 94

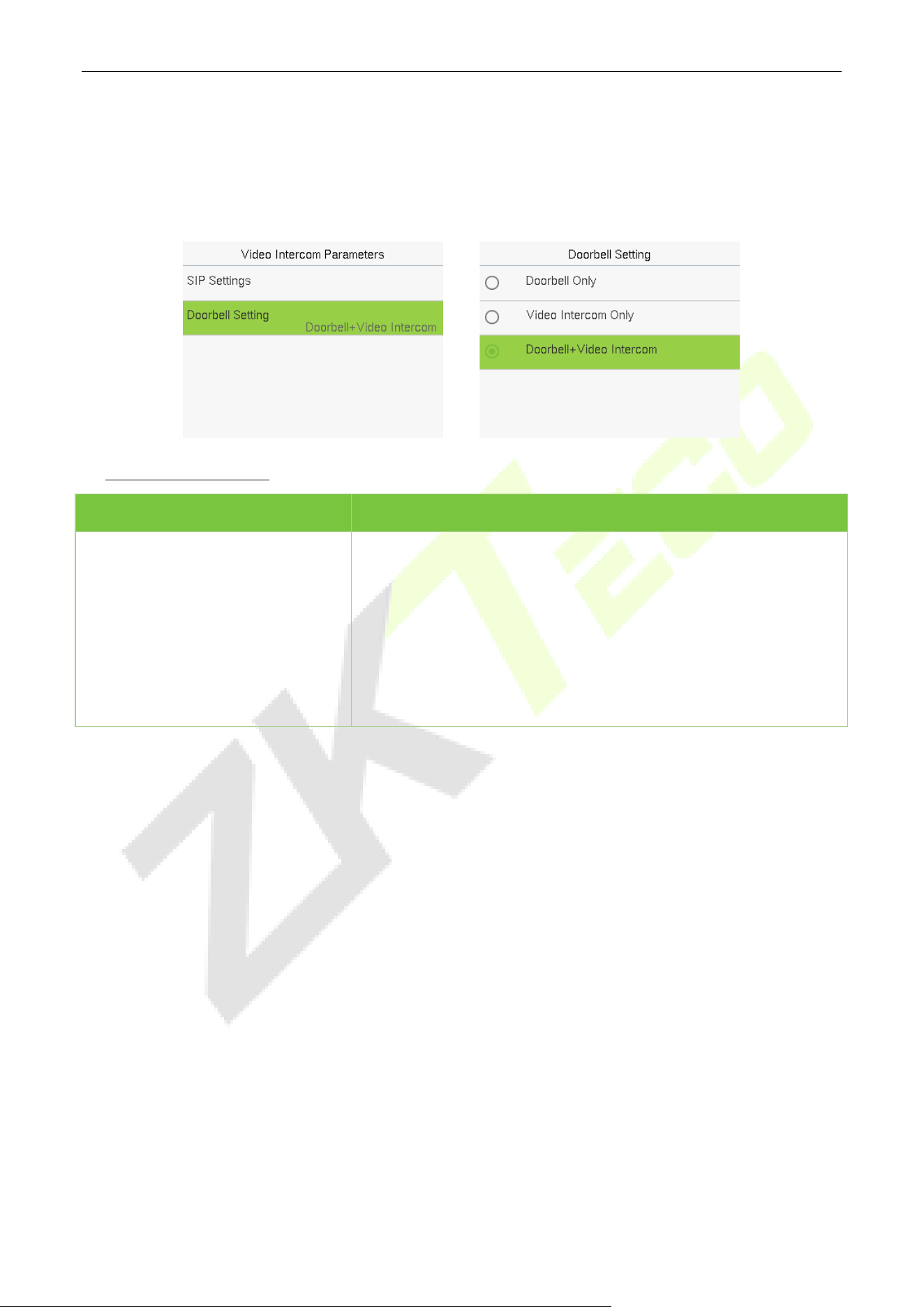

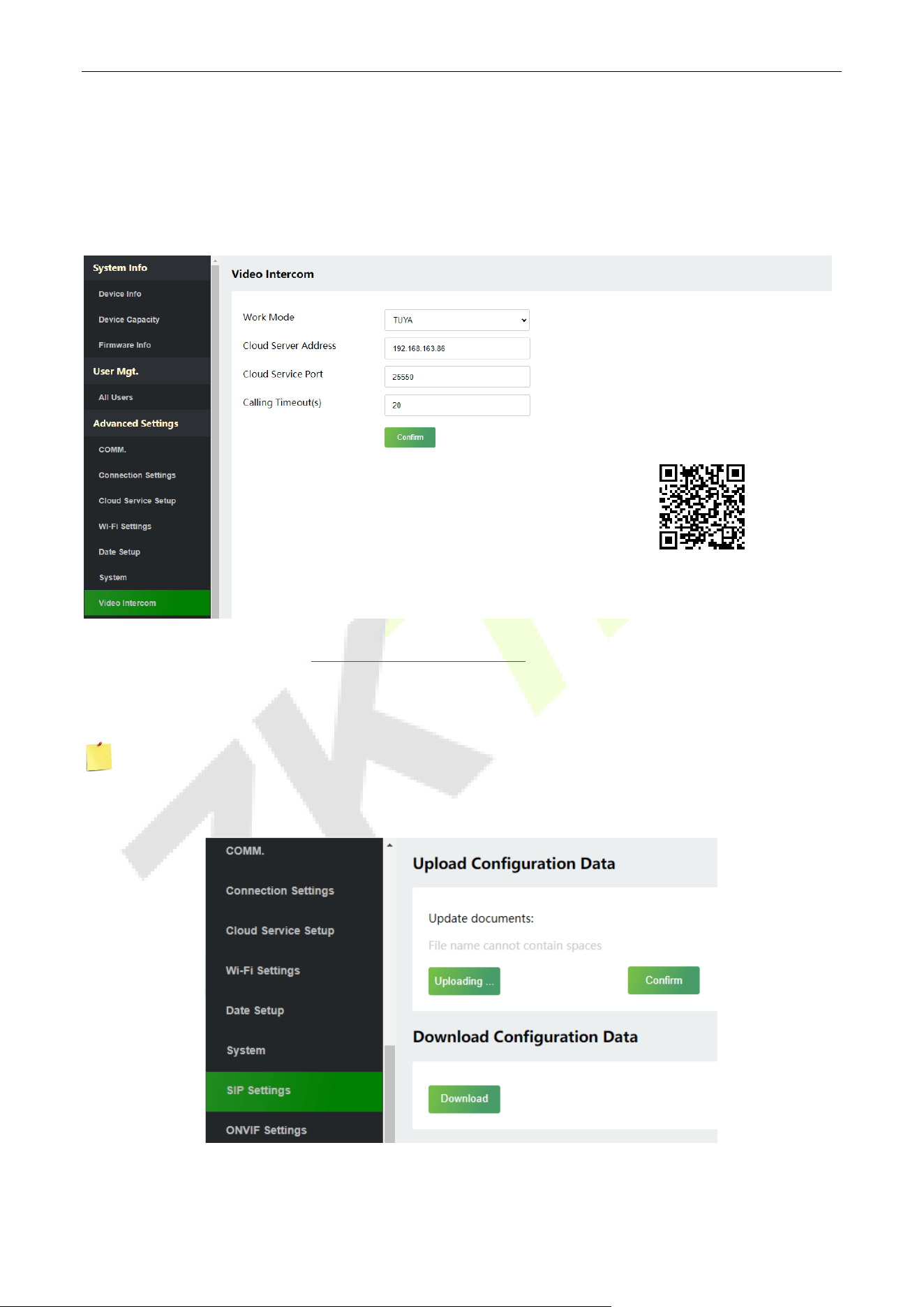

19.4.7 VIDEO INTERCOM★ .................................................................................................................................................................................... 96

19.4.8 SIP SETTINGS★ ............................................................................................................................................................................................. 96

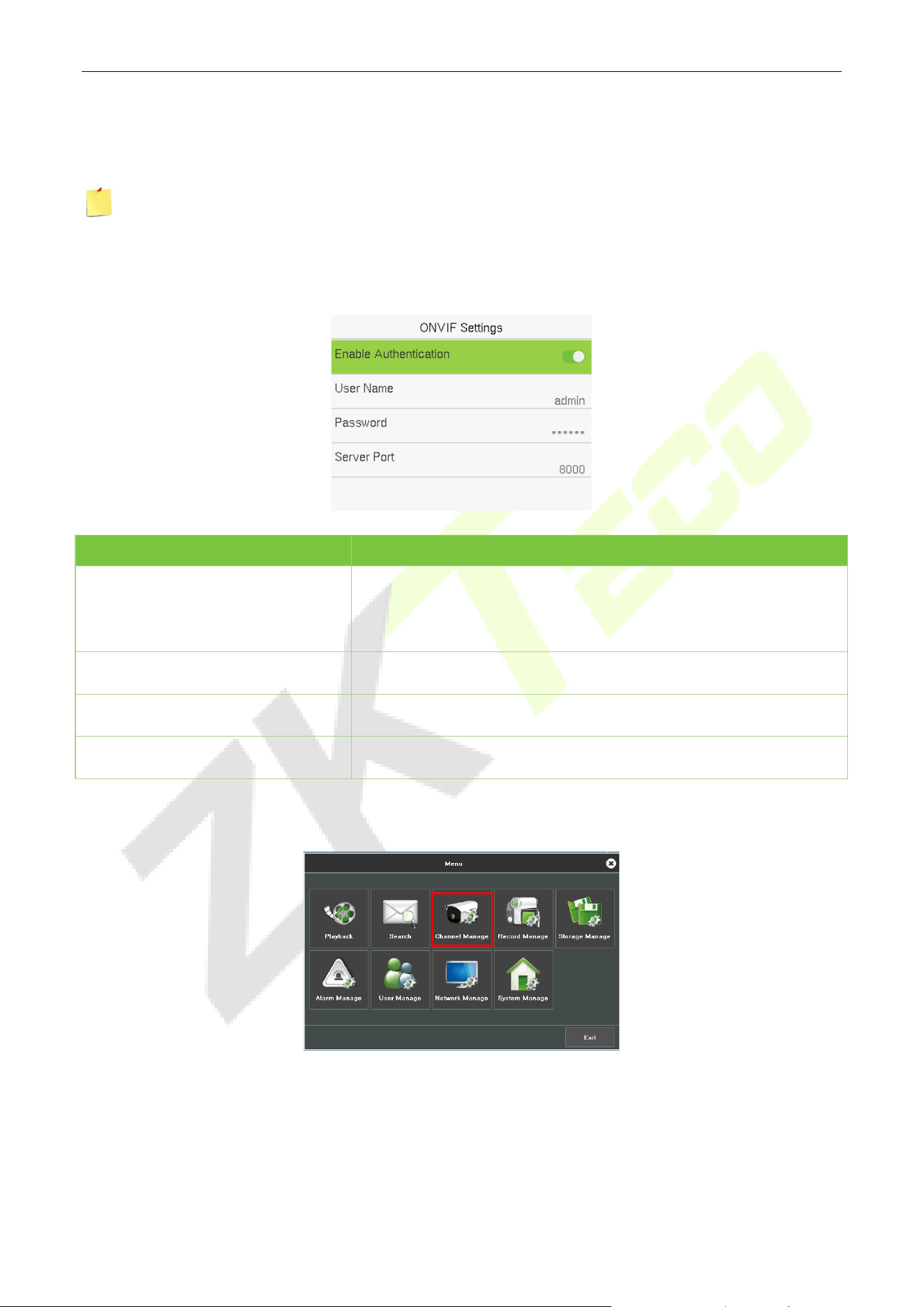

19.4.9 ONVIF SETTINGS★ ....................................................................................................................................................................................... 98

19.4.10 SERIAL COMM ............................................................................................................................................................................................... 99

19.4.11 WIEGAND SETUP ........................................................................................................................................................................................ 100

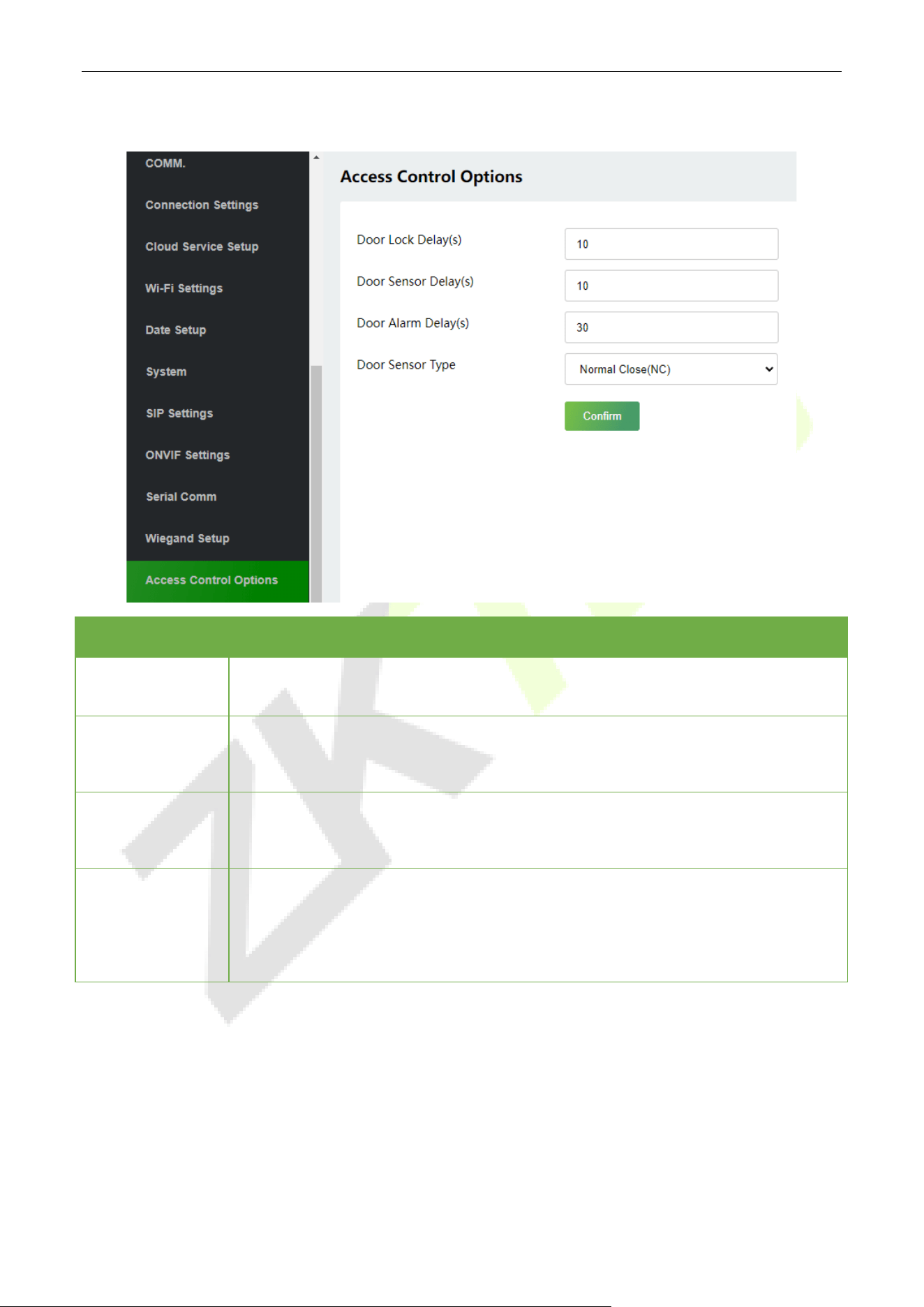

19.4.12 ACCESS CONTROL OPTIONS .................................................................................................................................................................. 101

DEVICE MANAGEMENT .............................................................................................................................................................................. 103 19.5

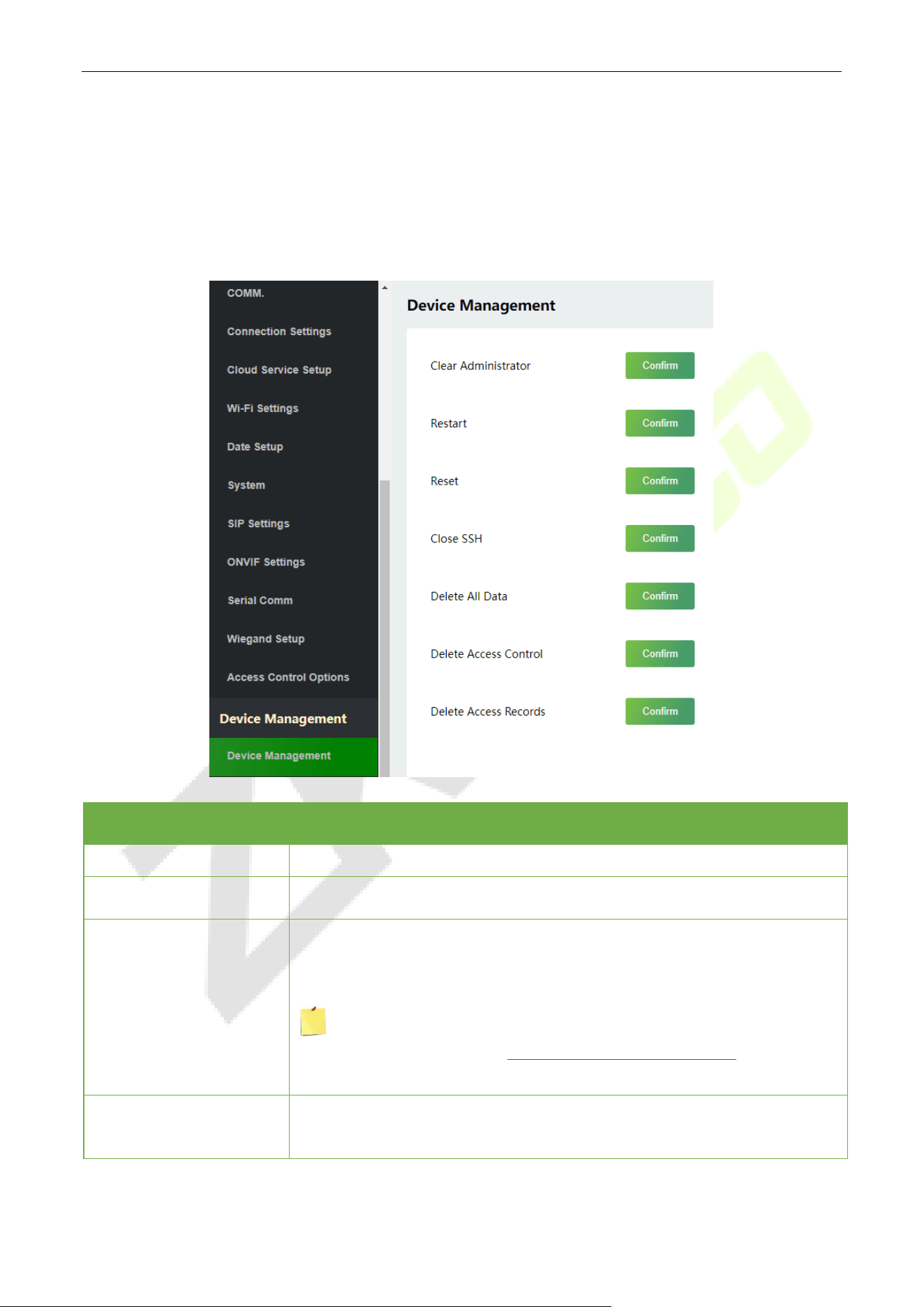

19.5.1 DEVICE MANAGEMENT ............................................................................................................................................................................ 103

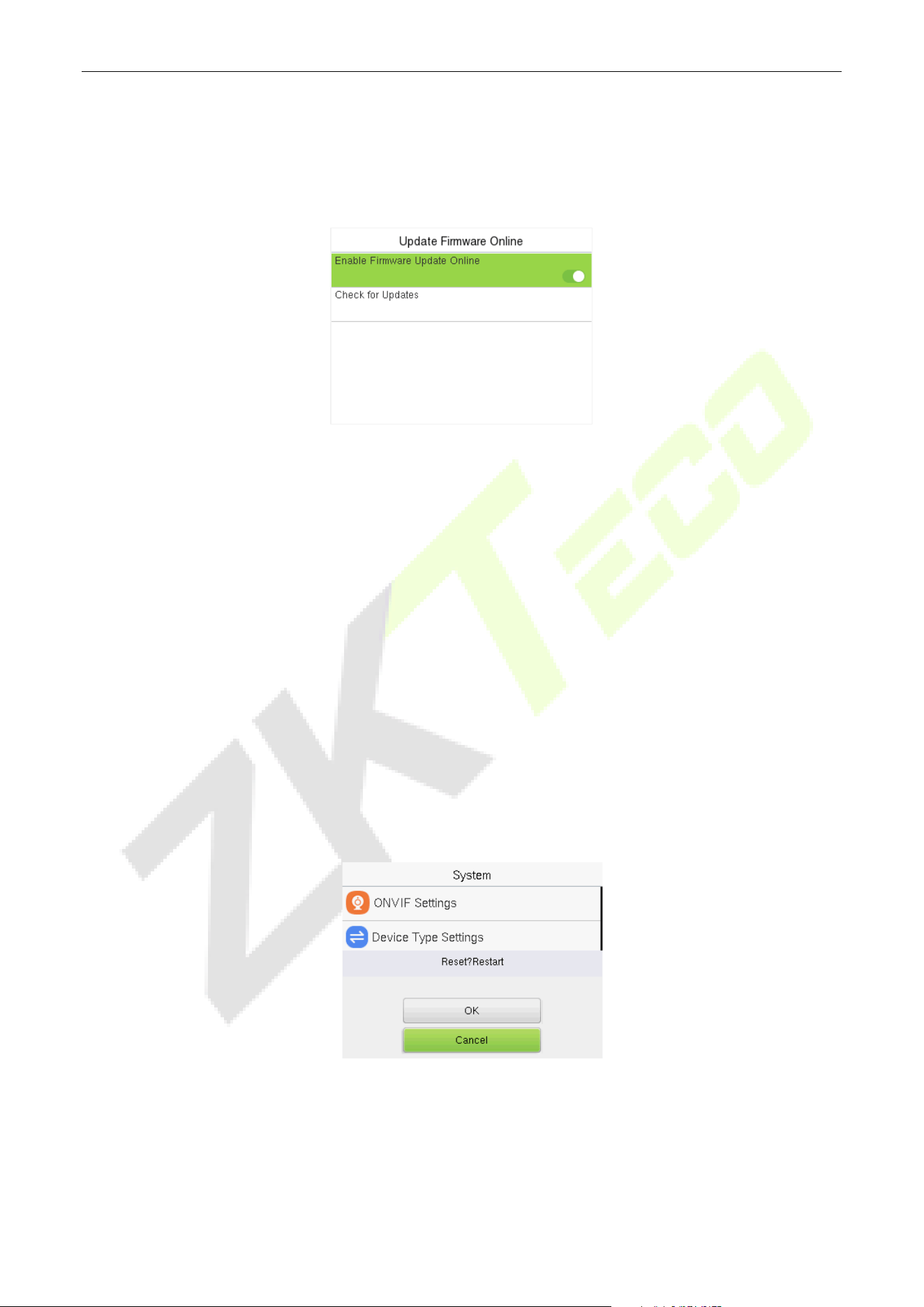

19.5.2 UPDATA FIRMWARE .................................................................................................................................................................................. 104

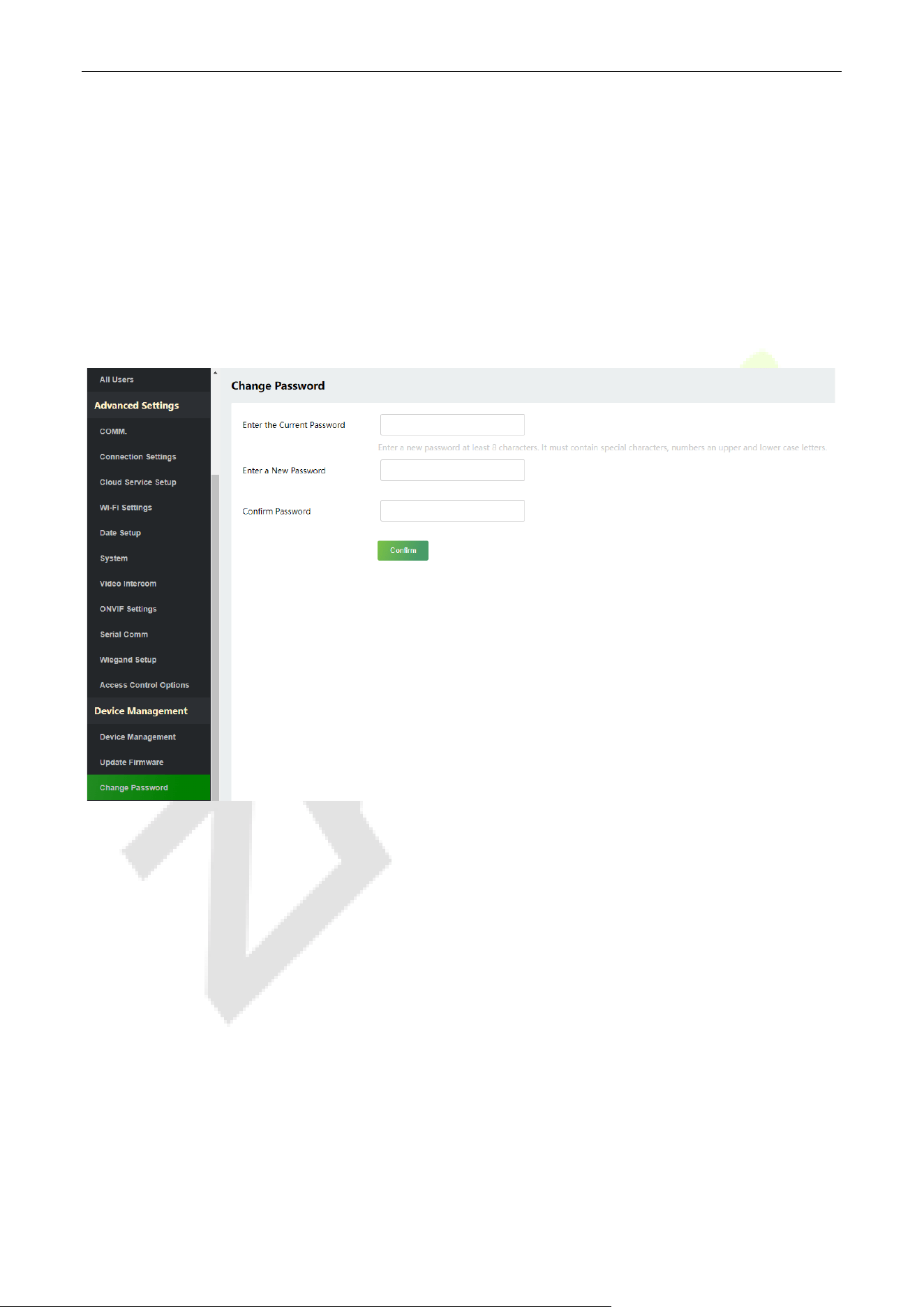

19.5.3 CHANGE PASSWORD ................................................................................................................................................................................ 105

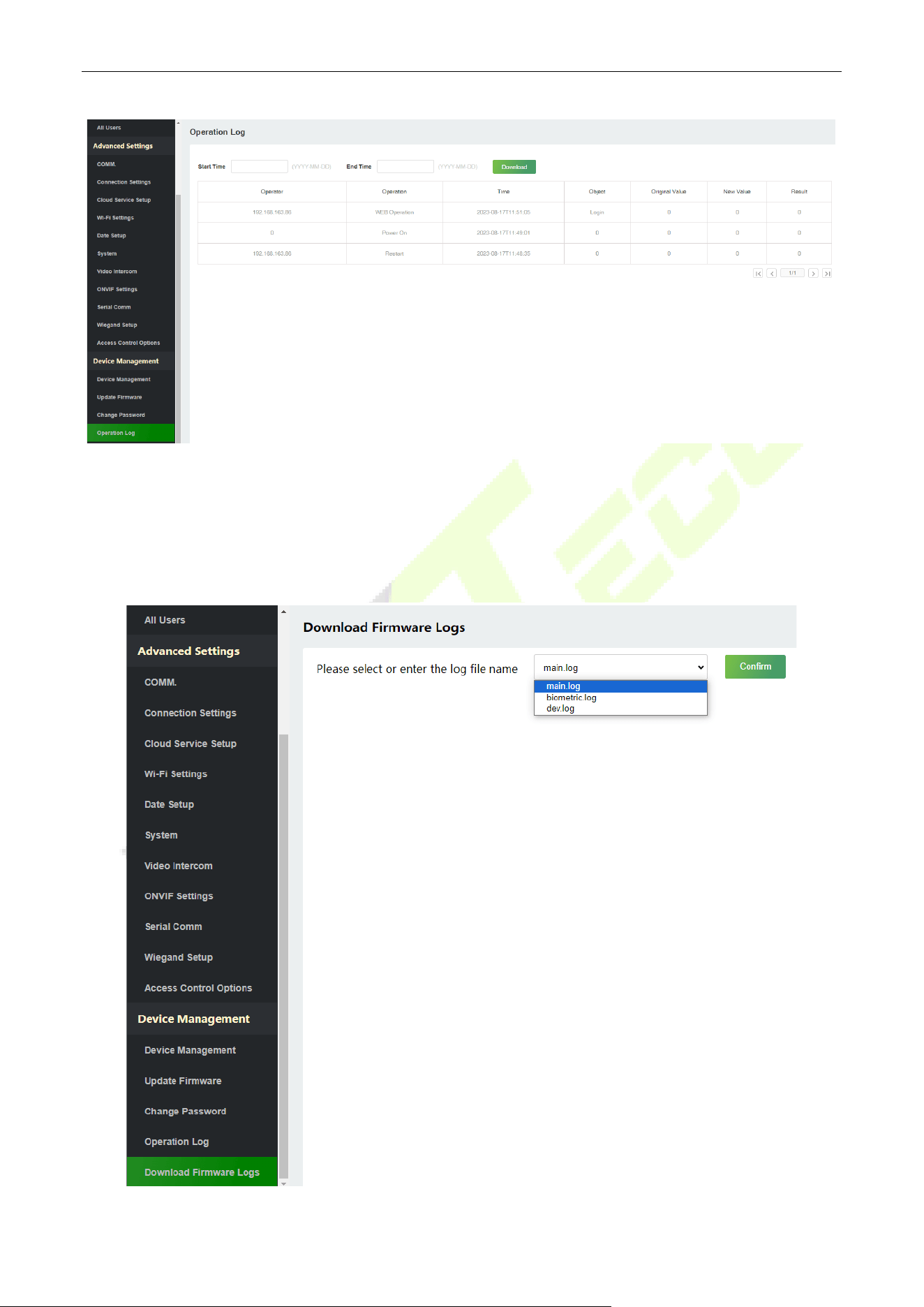

19.5.4 OPERATION LOG ........................................................................................................................................................................................ 105

19.5.5 DOWNLOAD FIRMWARE LOGS .............................................................................................................................................................. 106

SYSTEM INFORMATION .............................................................................................................................................................................. 107 19.6

20 CONNECT TO ZKBIO CVACCESS SOFTWARE .............................................................................. 108

SET THE COMMUNICATION ADDRESS ....................................................................................................................................................... 108 20.1

ADD DEVICE ON THE SOFTWARE .............................................................................................................................................................. 108 20.2

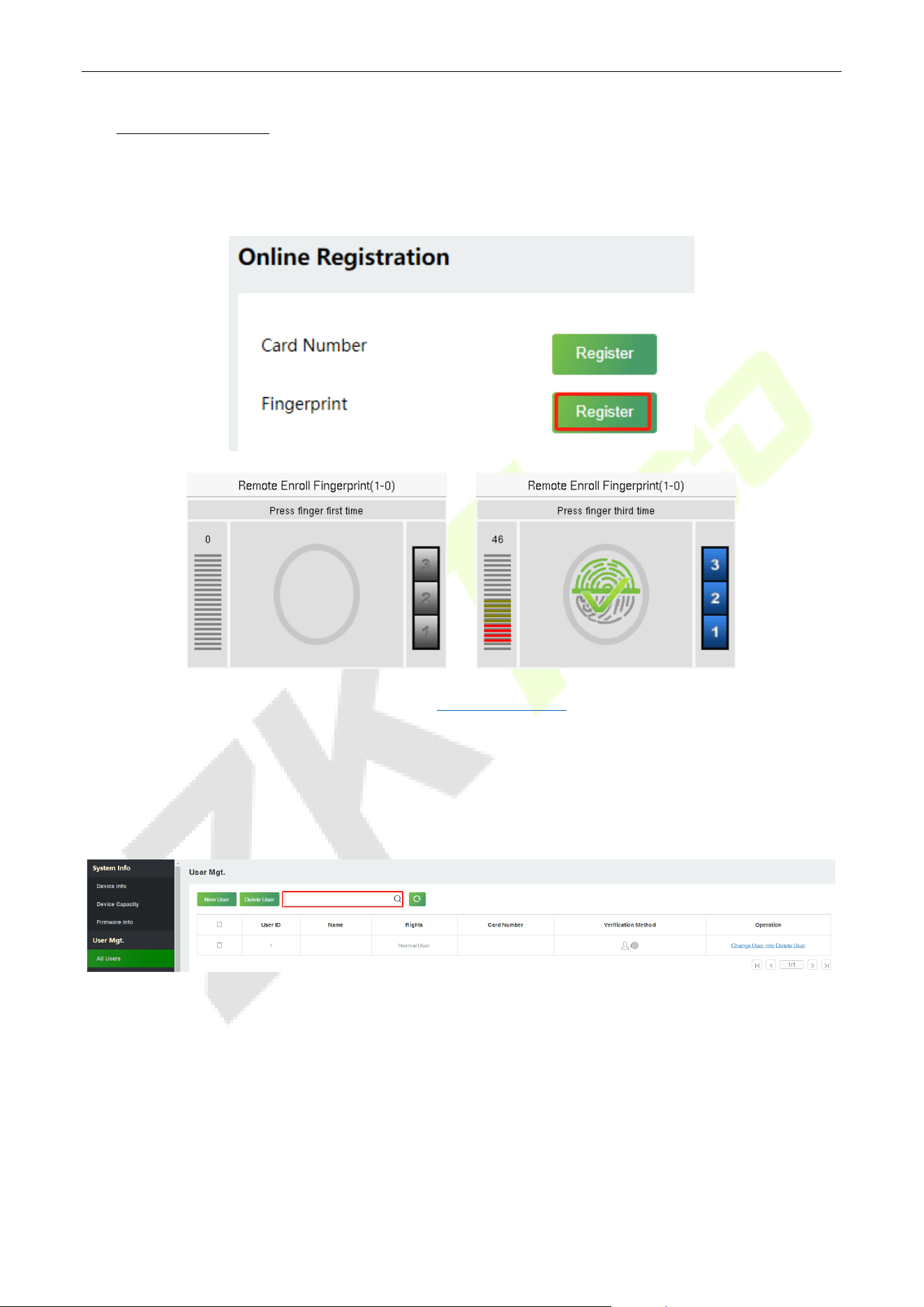

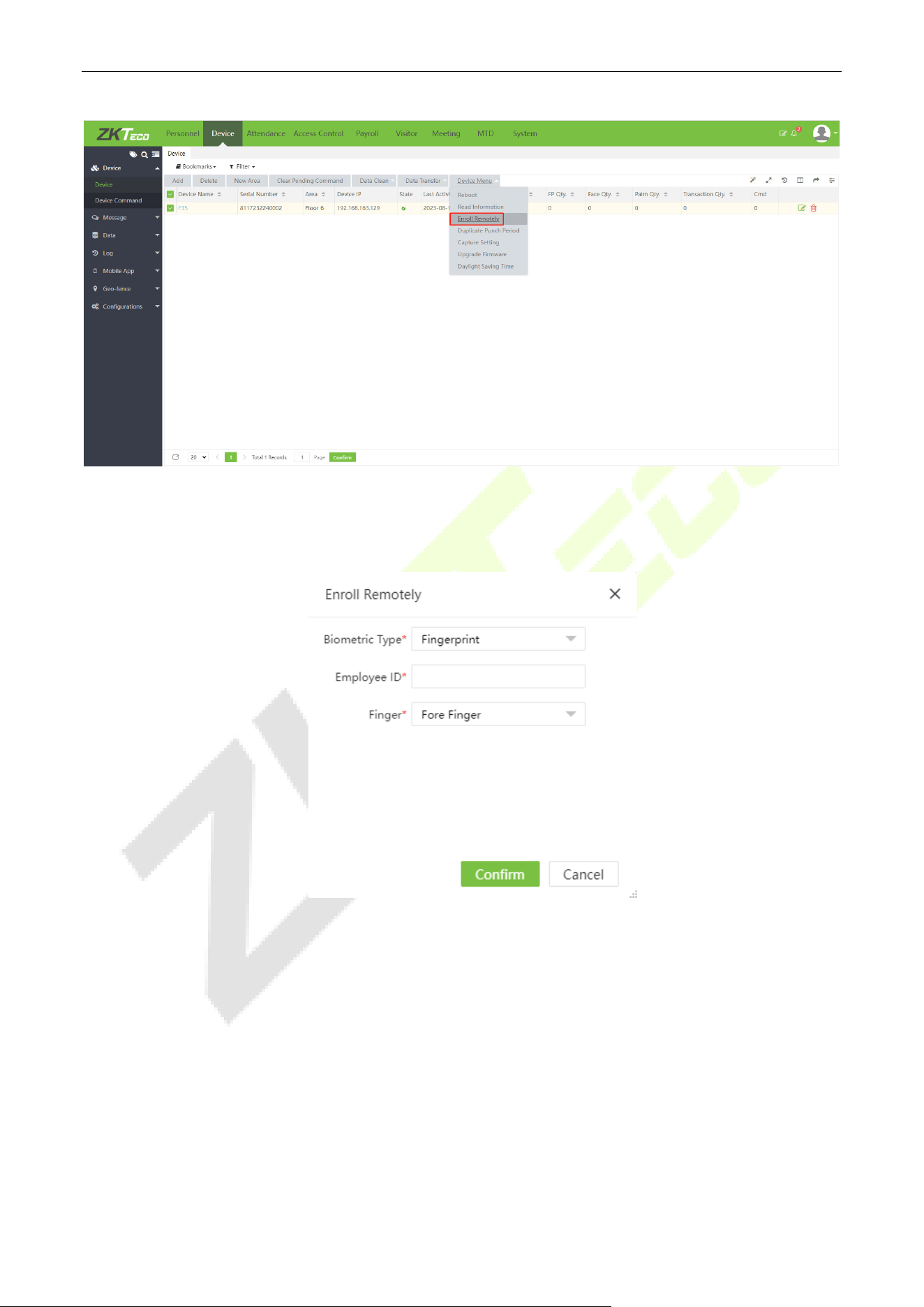

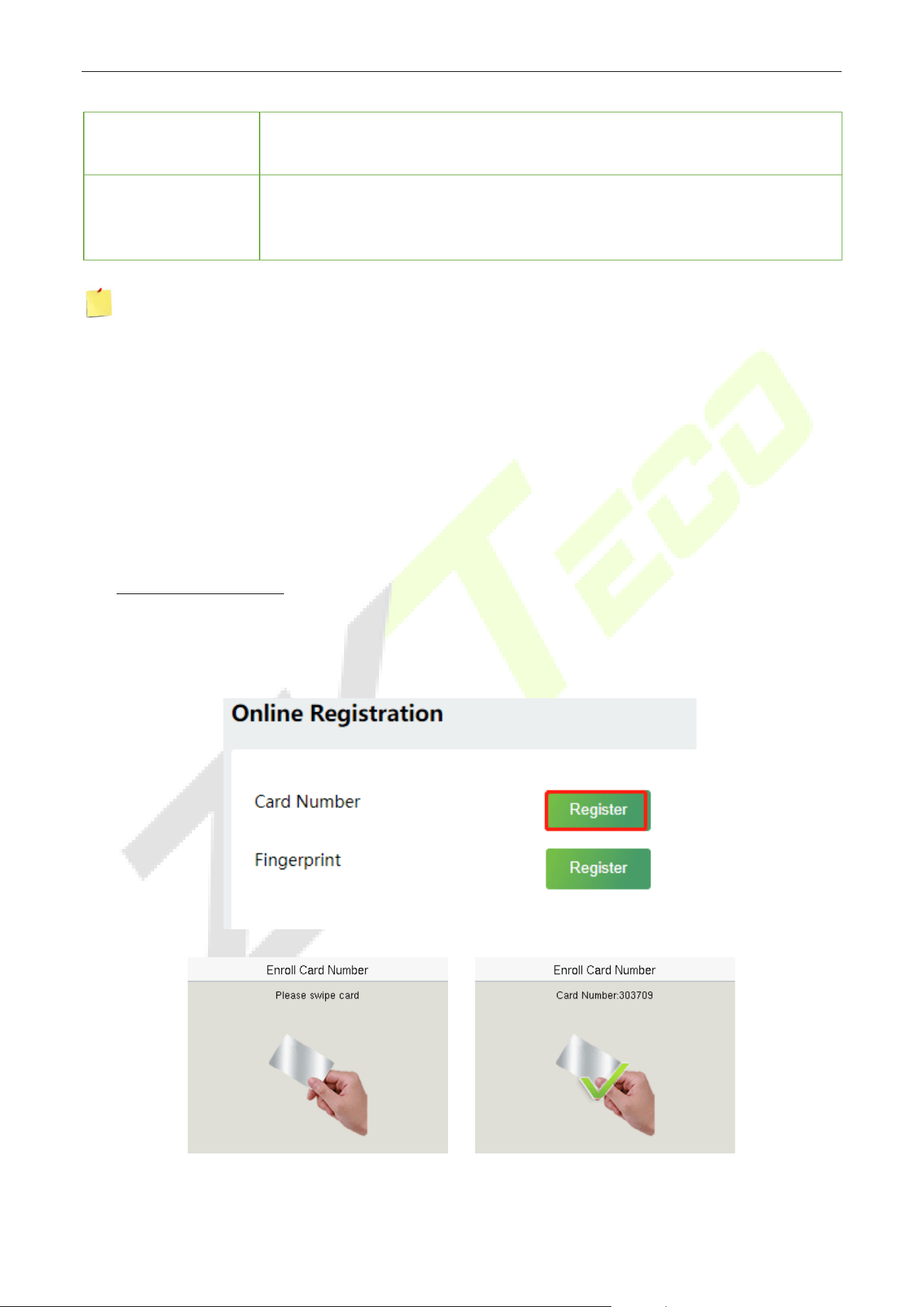

ADD PERSONNEL ON THE SOFTWARE AND ONLINE FINGERPRINT REGISTRATION................................................................................ 109 20.3

21 CONNECT TO ZKBIOTIME 8.0 SOFTWARE .................................................................................. 111

SET THE COMMUNICATION ADDRESS ....................................................................................................................................................... 111 21.1

ADD DEVICE ON THE SOFTWARE .............................................................................................................................................................. 111 21.2

F35 User Manual

ADD PERSONNEL ON THE SOFTWARE AND ONLINE FINGERPRINT REGISTRATION................................................................................ 112 21.3

22 CONNECTING TO ZSMART APP★ ............................................................................................... 114

ADDING DEVICE ON THE ZSMART APP .................................................................................................................................................. 114 22.1

VIDEO PHONE CONNECTION ................................................................................................................................................................... 115 22.2

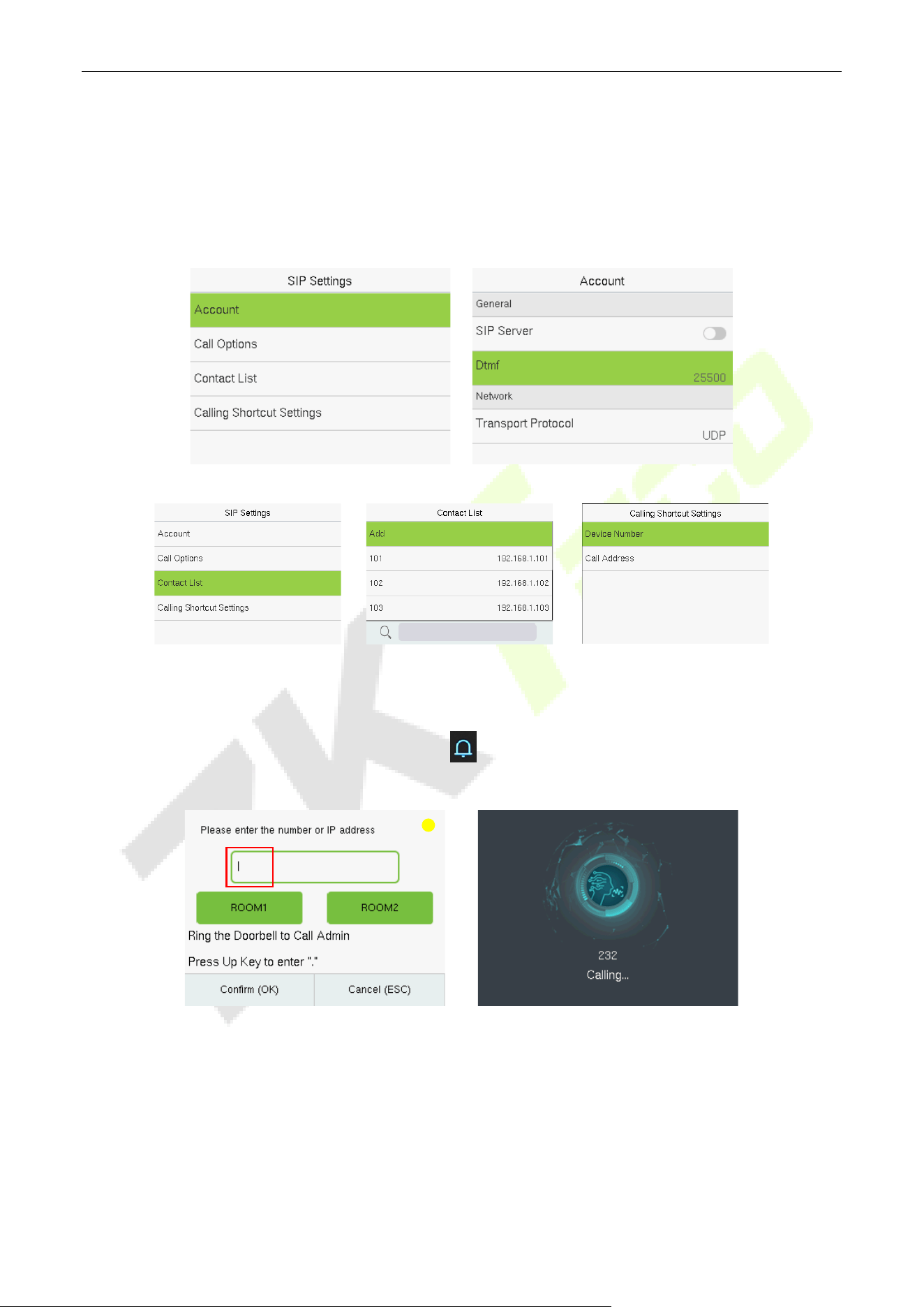

23 CONNECTING TO SIP★ ................................................................................................................. 116

LOCAL AREA NETWORK USE ................................................................................................................................................................... 118 23.1

SIP SERVER ................................................................................................................................................................................................ 120 23.2

24 CONNECTING TO WIRELESS DOORBELL★ ................................................................................... 122

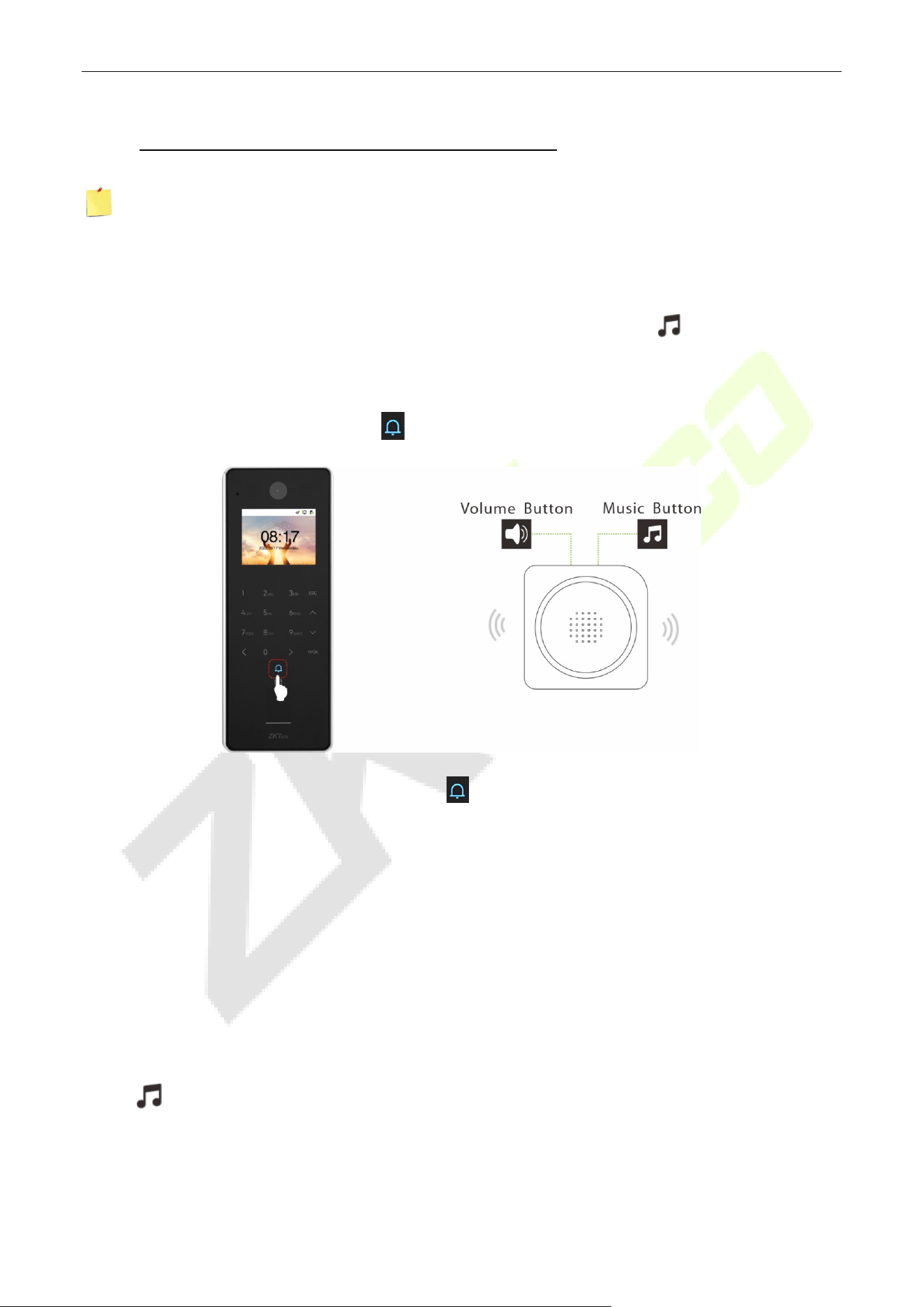

CONNECT THE WIRELESS DOORBELL ..................................................................................................................................................... 122 24.1

UNBINDING THE WIRELESS DOORBELL .................................................................................................................................................. 122 24.2

SETTINGS .................................................................................................................................................................................................... 123 24.3

APPENDIX 1 ............................................................................................................................................. 124

PRIVACY POLICY ..................................................................................................................................................................................................... 124

ECO-FRIENDLY OPERATION ................................................................................................................................................................................... 127

F35 User Manual

1 Safety Measures

The below instructions intend to ensure that the user can use the product correctly to avoid danger or

property loss. The following precautions are to keep users safe and prevent any damage. Please read

carefully before installation.

Noncompliance with instructions could lead to product damage or physical injury (may even cause

death).

1. Read, follow, and retain instructions - All safety and operational instructions must be properly

read and followed before bringing the device into service.

2. Do not ignore warnings - Adhere to all warnings on the unit and in the operating instructions.

3. Accessories - Use only manufacturer-recommended or product-sold accessories. Please do not use

any other components other than manufacturer suggested materials.

4. Precautions for the installation – Do not place this device on an unstable stand or frame. It may

fall and cause serious injury to persons and damage to the device.

5. Service - Do not try to service this unit yourself. Opening or removing covers may expose you to

hazardous voltages or other hazards.

6. Damage requiring service - Disconnect the system from the Mains AC or DC power source and

refer service personnel under the following conditions:

 When cord or connection control is affected.

 When the liquid spilled, or an item dropped into the system.

 If the system is exposed to water or inclement weather conditions (rain, snow, and more).

 If the system is not operating normally, under operating instructions.

Just change controls defined in operating instructions. Improper adjustment of the controls may

result in damage and involve a qualified technician to return the device to normal operation.

And do not connect multiple devices to one power adapter as adapter overload can cause over-

heat or fire hazard.

7. Replacement parts - When replacement parts are required, service technicians must only use

replacement parts provided by the supplier. Unauthorized substitutes can result in a burn, shock,

or other hazards.

8. Safety check - On completion of service or repair work on the unit, ask the service technician to

perform safety checks to ensure proper operation of the device.

9. Power sources - Operate the system only from the label's power source form. If the sort of power

supply to use is unclear, call your dealer.

10. Lightning - Can install external lightning conductors to protect against electrical storms. It stops

power-ups from destroying the system.

Recommended installing the devices in areas with limited access.

F35 User Manual

2 Electrical Safety

 Before connecting an external cable to the device, complete grounding properly, and set up surge

protection; otherwise, static electricity will damage the mainboard.

 Make sure that the power has been disconnected before you wire, install, or dismantle the device.

 Ensure that the signal connected to the device is a weak-current (switch) signal; otherwise,

components of the device will get damaged.

 Ensure that the standard voltage applicable in your country or region is applied. If you are not sure

about the endorsed standard voltage, please consult your local electric power company. Power

mismatch may cause a short circuit or device damage.

 In the case of power supply damage, return the device to the professional technical personnel or

your dealer for handling.

 To avoid interference, keep the device far from high electromagnetic radiation devices, such as

generators (including electric generators), radios, televisions, (especially CRT) monitors, or speakers.

3 Operation Safety

 If smoke, odour, or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service centre.

 Transportation and other unpredictable causes may damage the device hardware. Check whether

the device has any intense damage before installation.

 If the device has major defects that you cannot solve, contact your dealer as soon as possible.

 Dust, moisture, and abrupt temperature changes can affect the device's service life. You are

advised not to keep the device under such conditions.

 Do not keep the device in a place that vibrates. Handle the device with care. Do not place heavy

objects on top of the device.

 Do not apply rosin, alcohol, benzene, pesticides, and other volatile substances that may damage

the device enclosure. Clean the device accessories with a piece of soft cloth or a small amount of

cleaning agent.

 If you have any technical questions regarding usage, contact certified or experienced technical

personnel.

te:

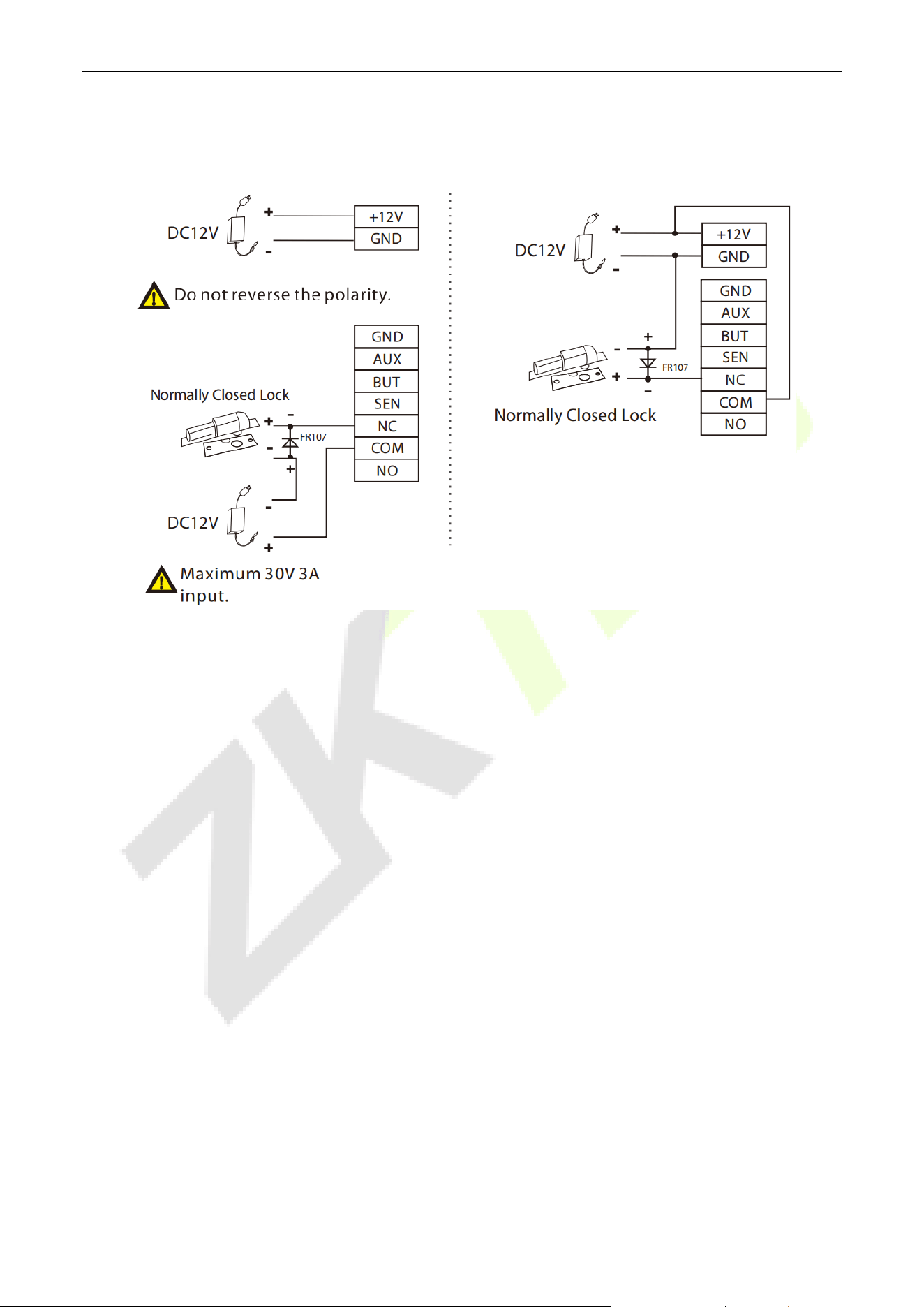

 Make sure whether the positive polarity and negative polarity of the DC 12V power supply is

connected correctly. A reverse connection may damage the device. It is not advisable to connect

the AC 24V power supply to the DC 12V input port.

 Make sure to connect the wires following the positive polarity and negative polarity shown on the

F35 User Manual

device's nameplate.

 The warranty service does not cover accidental damage, damage caused by mis-operation, and

damage due to independent installation or repair of the product by the user.

4 Instruction for Use

Before getting into the device features and functions, it is recommended to be familiar with the below

fundamentals.

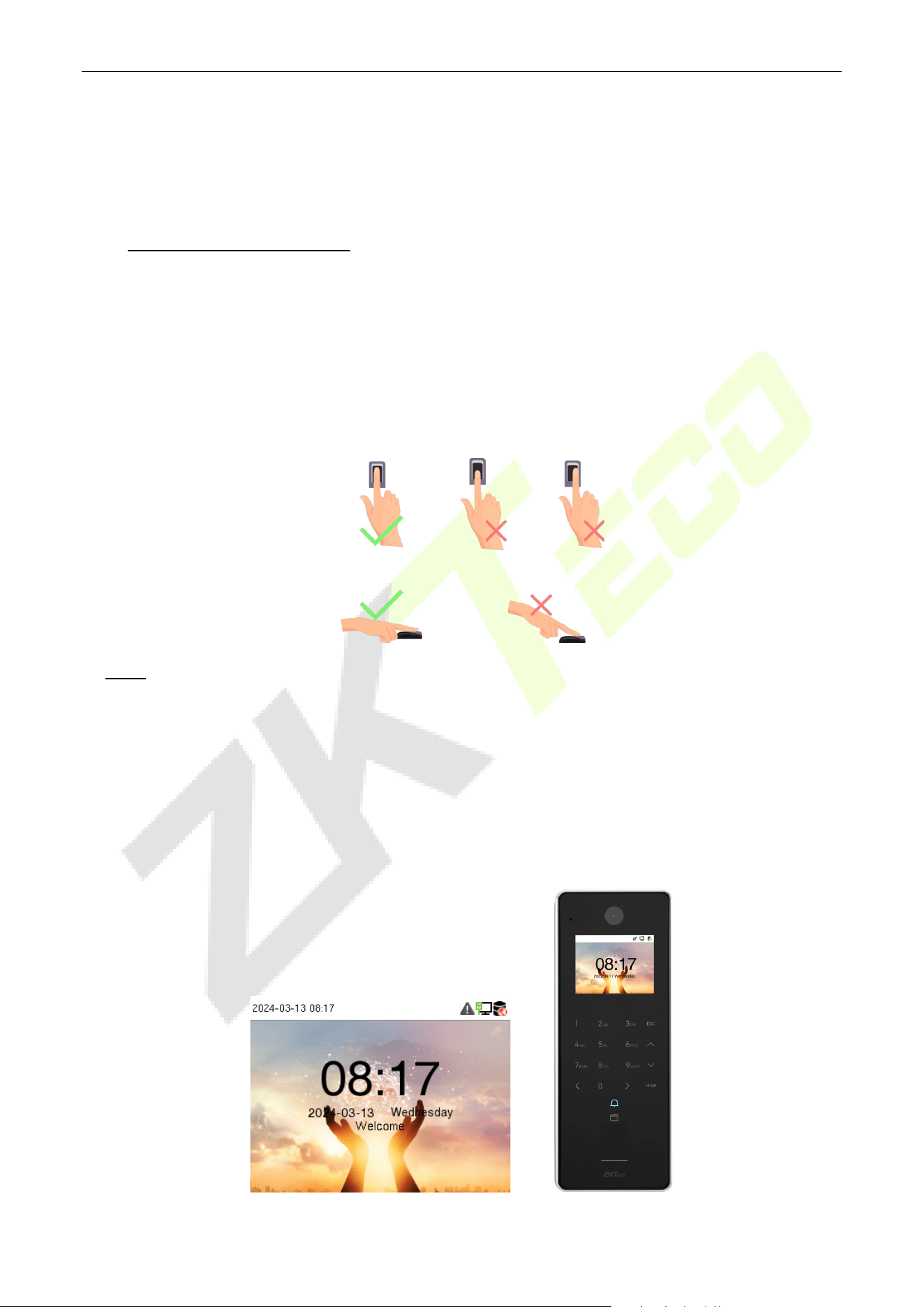

Finger Positioning 4.1

Recommended fingers: The index, middle, or ring finger and avoid using the thumb or pinky fingers,

as they are difficult to accurately press onto the fingerprint reader.

Note: P

lease use the correct method when pressing your fingers onto the fingerprint reader for

registration and identification. Our company will assume no liability for recognition issues that may

result from incorrect usage of the product. We reserve the right of final interpretation and modification

concerning this point.

Standby Interface 4.2

The device uses a 2.4-inch color screen, which all operations are performed through hidden touch

keypad. After connecting the power supply, the following standby interface is displayed:

Too low

Too close to the edge

Vertical

F35 User Manual

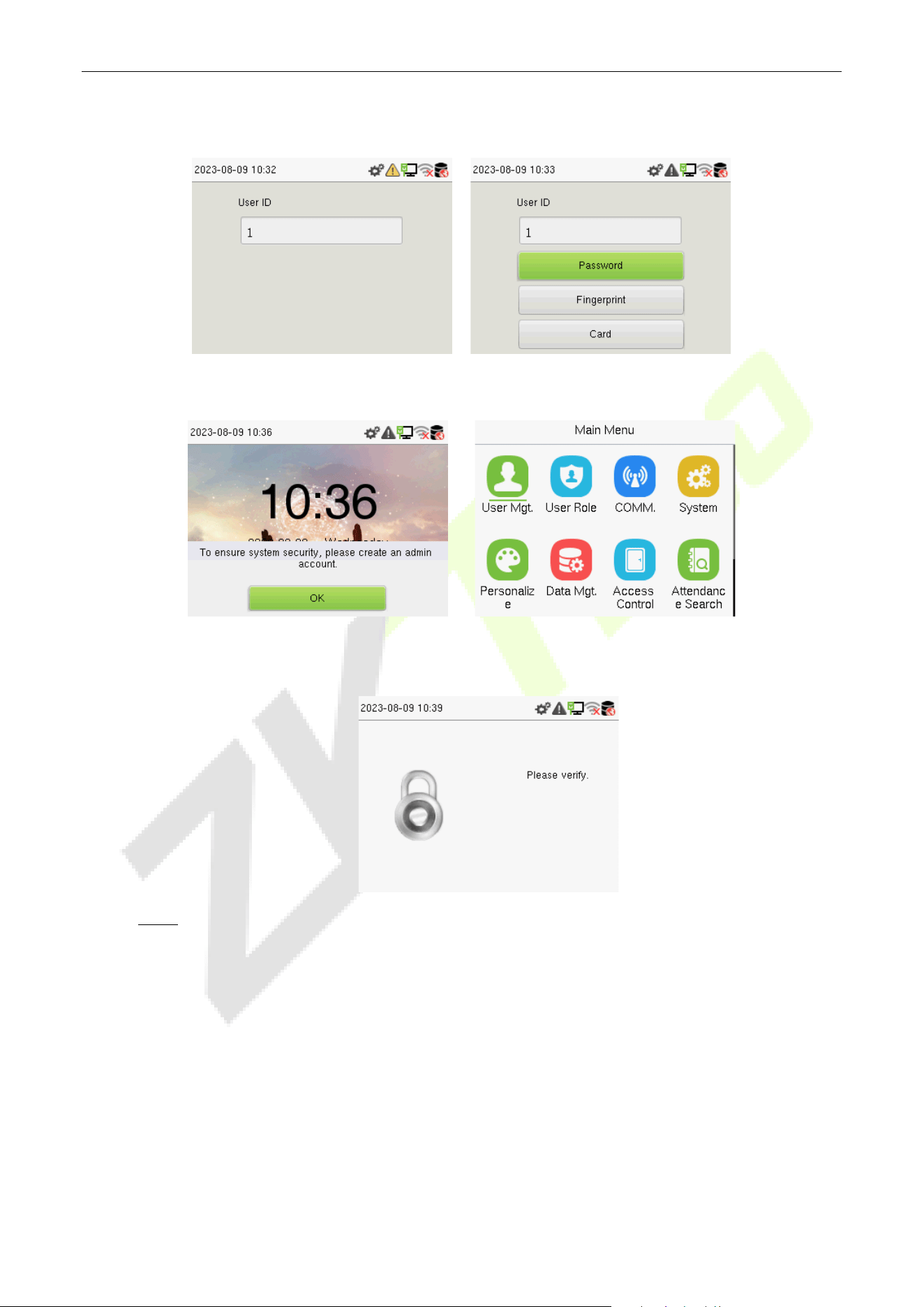

 Enter any number to access the User ID input interface.

 When there is no Super Administrator set in the device, tap M/OK to go to the menu.

 After adding a Super Administrator on the device, it requires the Super Administrator’s verification

before opening the menu functions.

Note: For the security of the device, it is recommended to register a super administrator the first

time you use the device.

 O

n the standby interface, the punch state options can also be shown and used directly. The black

bold shortcut key mappings will be displayed on the screen if you tap the relevant shortcut key on

the hidden touch keypad, as shown in the picture below. For the specific operation method, please

see "Shortcut Key Mappings."

F35 User Manual

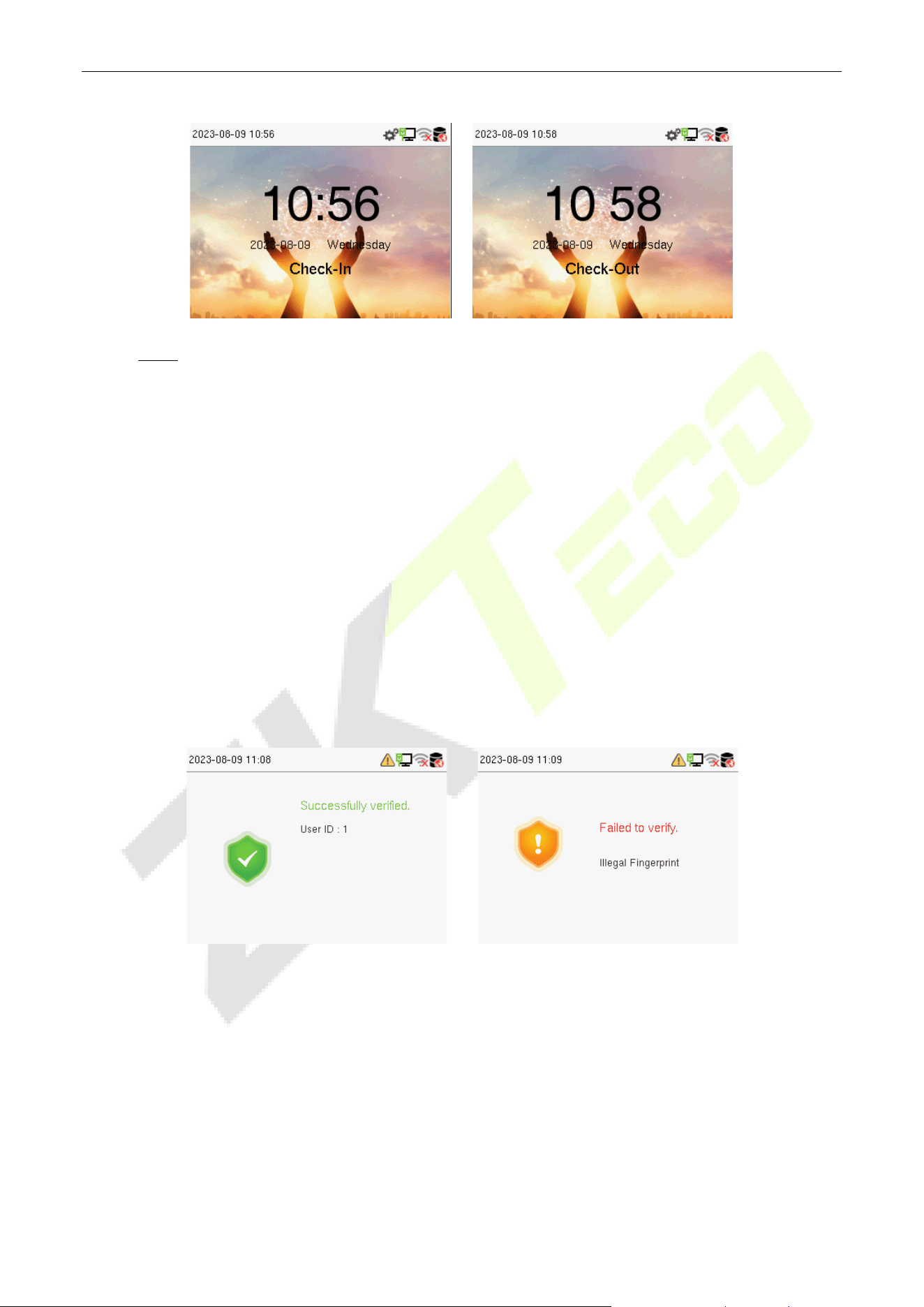

Note: The punch state options are enabled by default w

hen the device type is set as an attendance

terminal.

Verification Mode 4.3

4.3.1 Fingerprint Verification

 1: N Fingerprint Verification Mode

The device compares the current fingerprint with the available fingerprint data stored in its database.

Fingerprint authentication mode is activated when a user places their finger onto the fingerprint

scanner.

Please follow the recommended way to place your finger onto the sensor. For details, refer to section

Finger Positioning.

Verification is successful: Verification is failed:

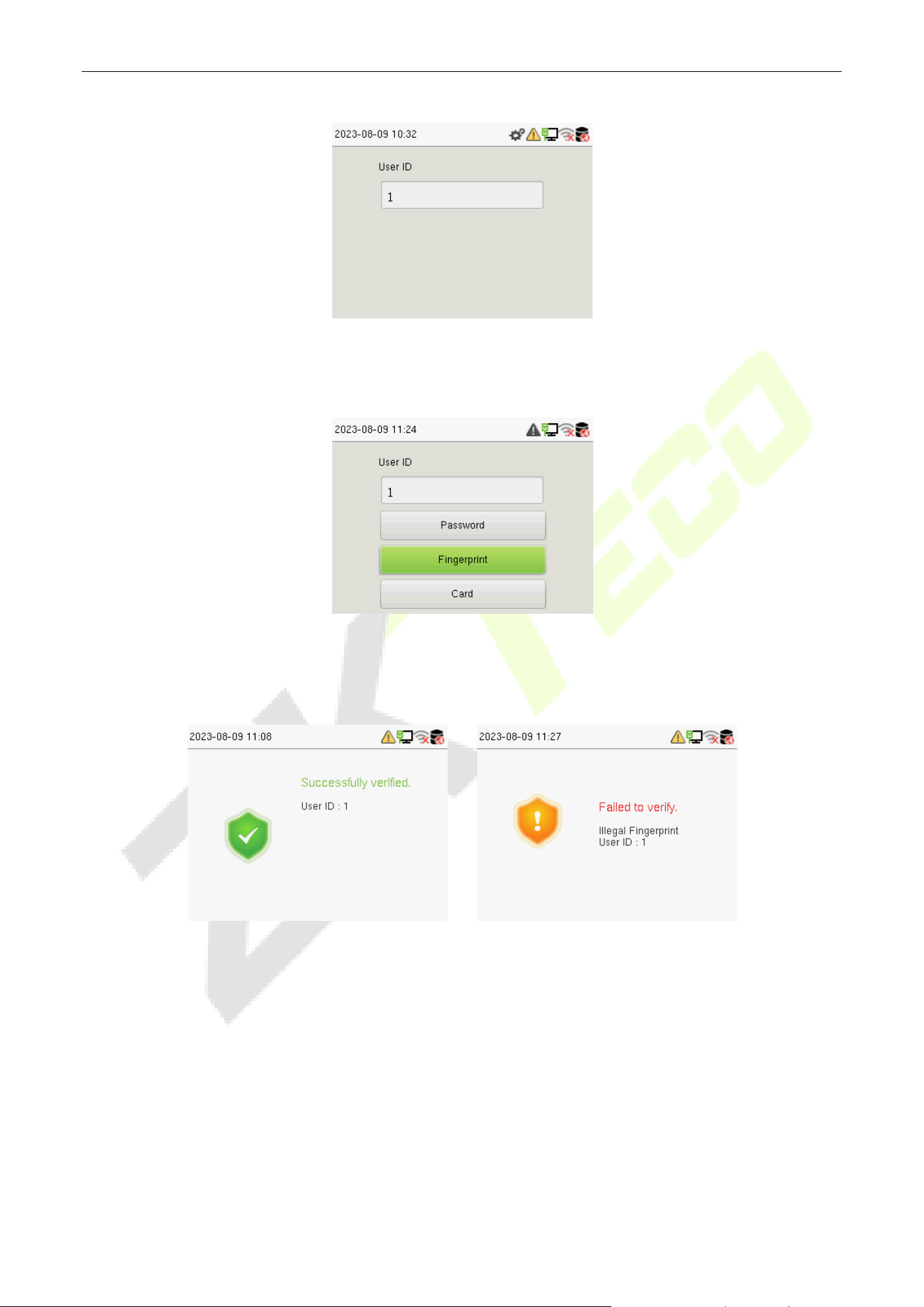

 1:1 Fingerprint Verification Mode

The device compares the current fingerprint with the fingerprints linked to the entered User ID through

the virtual keyboard.

In case users are unable to gain access using the 1:N authentication method, they can attempt to verify

their identity using the 1:1 verification mode.

Enter the user ID and tap M/OK to enter the 1:1 fingerprint verification mode.

F35 User Manual

If an employee registers a password and card in addition to the fingerprint, the following screen will

appear. Select the fingerprint to enter fingerprint verification mode.

Press the fingerprint to verify.

Verification is successful: Verification is failed:

F35 User Manual

4.3.2 Card Verification

 1: N Card Verification Mode

The 1: N Card Verification Mode compares the card number in the card induction area with all the card

number data registered in the device. The following screen displays on the card verification screen.

 1:1 Card Verification Mode

The 1:1 Card Verification mode compares the card number in the card induction area with the number

associated with the employee's User ID registered in the device.

Enter the user ID and tap M/OK to enter the 1:1 card verification mode.

If an employee registers a fingerprint and password in addition to the card, the following screen will

appear. Select the card to enter card verification mode.

F35 User Manual

4.3.3 Password Verification

The device compares the entered password with the registered password and User ID.

Enter the user ID and tap M/OK to enter the 1:1 password verification mode. Then, input the user ID

and tap M/OK.

If an employee registers a fingerprint and card in addition to the password, the following screen will

appear. Select the password to enter card verification mode.

Below are the display screens after entering a correct password and a wrong password, respectively.

Verification is successful: Verification is failed:

F35 User Manual

4.3.4 Combined Verification

This device allows you to use different types of verification methods to increase security. There are a

total of 15 different verification combinations that can be implemented, as listed below:

Combined Verification Symbol Definition

Symbol Definition Explanation

/ or

This method compares the entered verification of a

person with the related verification template

previously stored to that Personnel ID in the Device.

and

This method compares the entered verification of a

person with all the verification templates previously

stored to that Personnel ID in the Device.

Combined Verification Mode set up procedure:

 Combined verification requires personnel to register all the different verification methods.

Otherwise, employees will not be able to successfully verify the combined verification process.

 For example, if an employee has only registered for password data but the Device verification mode

is set to "Password + Card", the employee will not be able to successfully complete the verification

procedure.

Reason:

 This is because the Device compares the password template of the person with the registered

verification template (both the Card and the Password) previously stored to that Personnel ID in

the Device.

 But, since the employee has only registered their password and not their card, the verification

process will not be successful, and the device will display the "Verification Failed."

F35 User Manual

5 Overview

Appearance 5.1

No. Description

1 Microphone

2 Camera

3 Near-infrared Flash

4 2.4-inch Color Screen

5 Hidden Touch Keypad

6 Doorbell Button

7 Card Reading Area

8 Fingerprint Sensor

9 Speaker

10 Restart Button

11 Magnetic Tamper Switch

F35 User Manual

Terminal and Wiring Description 5.2

5.2.1 Terminal Description

Interface Description

BELL-

Bell

BELL+

AL-

Alarm

AL+

GND

Sensor / Exit Button /

Auxiliary Input

AUX

BUT

SEN

Lock

COM

INWD0

Wiegand

INWD1

GND

12VOUT

WD1-OUT

WD0-OUT

GND

RS232 / RS485

RXD

485A

TXD

485B

12V Power in

Network Interface

F35 User Manual

Wiring Description 5.3

5.3.1 Power Connection

Recommended power supply

 Rating of 12V and 3A.

 To share the device’s power with other devices, use a power supply with higher current ratings.

5.3.2 Door Sensor, Exit Button, Alarm and Auxiliary Connection

5.3.3 Lock Relay Connection

 Method 1: Connecting as a standalone

The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock (normally

opened when powered) is connected with ‘NO1’ and ‘COM1’ terminals, and the NC Lock (normally closed

F35 User Manual

when powered) is connected with ‘NC1’ and ‘COM1’ terminals. The power can be shared with the lock or

can be used separately for the lock, as shown in the example with NC Lock below:

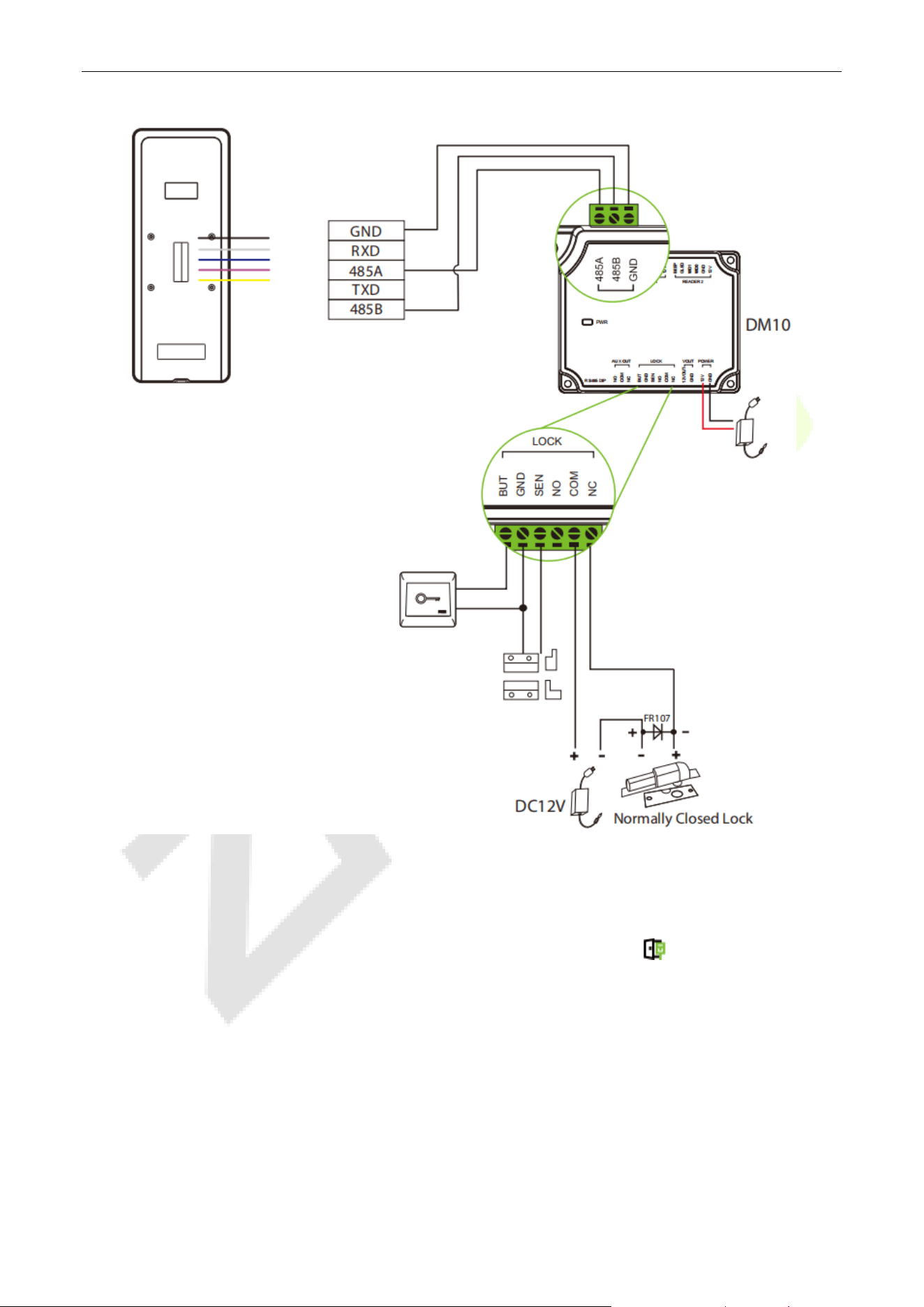

 Method 2: Connecting to DM10

DM10 can be connected to F35 with the RS485 cable. Security can be maintained even if the connection

between F35 and DM10 has been lost or the power supply to F35 has been shut off due to external factors.

F35 User Manual

Note:

1) To use this function, you need to enter the menu ([COMM.] > [Serial Comm] > [Serial Port]) and set it

as DM10. If the connection between F35 and DM10 is successful, the icon will be displayed in the

upper right corner of the standby interface.

2) The two lock relay connection methods cannot be used simultaneously, only one can be selected.

F35 User Manual

5.3.4 Wiegand Connection

5.3.5 RS485 & RS232 Connection

F35 User Manual

5.3.6 Ethernet Connection

Connect the device to the computer software using an Ethernet cable. An example is shown below:

Note: In a LAN, the IP addresses of the server (PC) and the device must be in the same network

segment when connecting to the software.

F35 User Manual

6 Installation

Installation Environment 6.1

Please refer to the following recommendations for installation.

Device Installation 6.2

1. Stick the mounting template sticker to the wall and drill holes according to the mounting template

sticker.

2. Fix the backplate on the wall using wall mounting screws.

3. Attach the device to the backplate.

4. Attach the device to the backplate with a security screw.

F35 User Manual

7 Main Menu

Tap M/OK on the initial interface to enter the main menu, as shown below:

Function Description

Menu Description

User Mgt. To Add, Edit, View, and Delete information of a User.

User Role

To set the permission scope of the custom role and enroller for the users, for example the

system's operating rights.

COMM.

To set the relevant parameters of Network, Serial Comm., PC Connection, Wi-Fi★, Cloud

Server, Wiegand and Network Diagnosis.

System

To set parameters related to the system, including Date Time, Attendance/Access Logs

Settings, Fingerprint, Video Intercom Parameters★, ONVIF Settings★,

Device Type

Settings, Security Settings, Update Firmware Online and resetting to factory settings.

Personalize

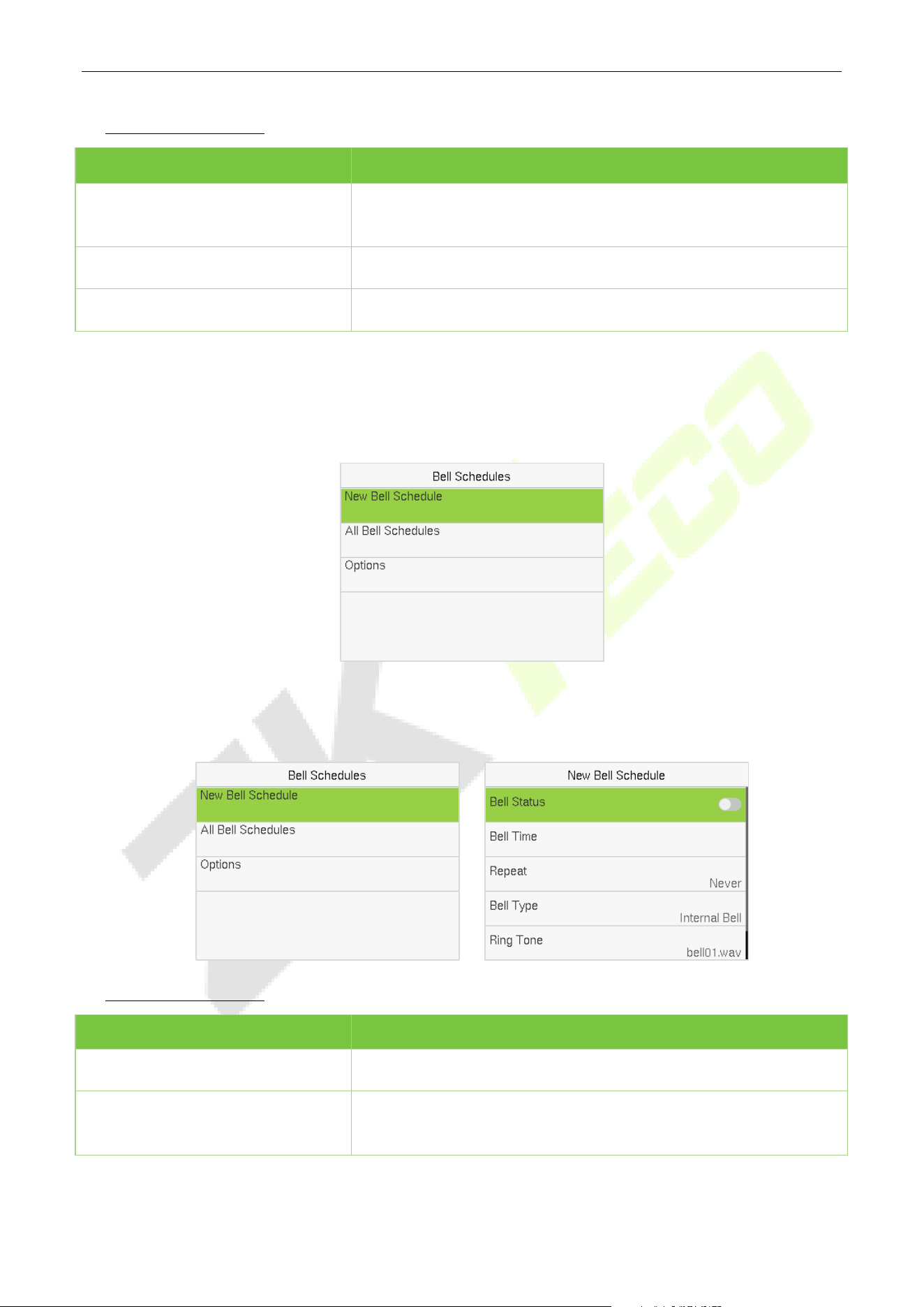

To customize settings of User Interface, Voice, Bell Schedules, Punch State Options and

Shortcut Key Mappings settings.

Data Mgt. To delete the data.

Access

Control

To set the parameters of the lock and the relevant access control device including

options like Time schedule, Holiday Settings, Access groups, Combine verification, Anti-

Passback Setup, and Duress Option Settings.

Attendance

To query the specified event logs.

★

To set printing information and functions (if the printer is connected to the device).

Autotest

To automatically test whether each module functions properly, including the LCD

Screen, Audio, Microphone, Keyboard, fingerprint sensor, camera and Real-Time Clock.

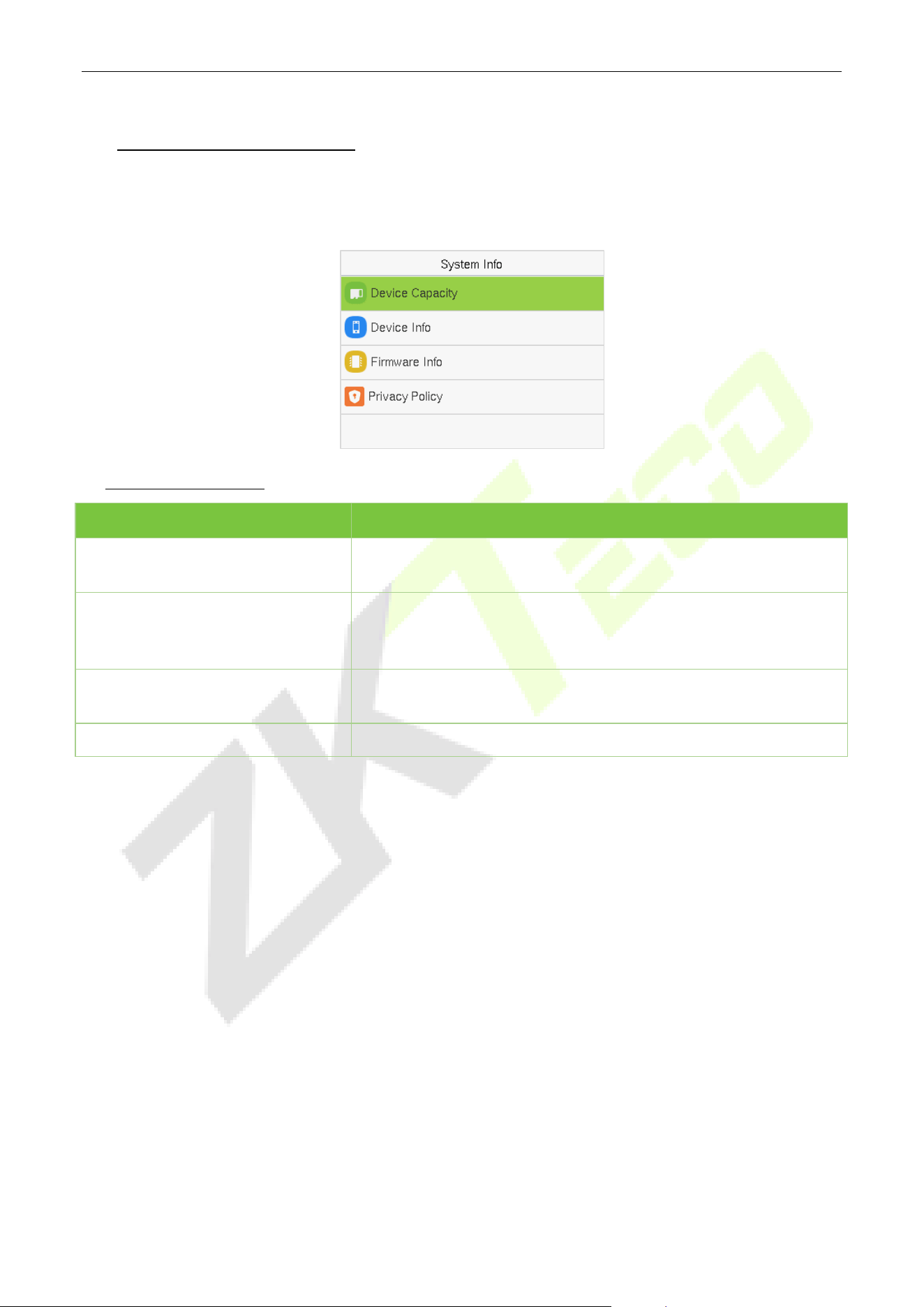

System Info

To view Privacy Policy, Data Capacity and Device and Firmware information of the

current device.

F35 User Manual

8 User Management

New User Registration 8.1

When the device is on the initial interface, press [M/OK] button > User Mgt. > New User.

8.1.1 Register a User ID and Name

Enter the User ID and Name.

Note:

1. A name can be taken up to 36 characters long.

2. The user ID may contain 1 to 14 digits by default, supporting both numbers and alphabetic

characters.

3. During the initial registration, you can modify your ID, but not after registration.

4. If the message "Duplicated!" appears, you must choose a different User ID because the one you

entered already exists.

F35 User Manual

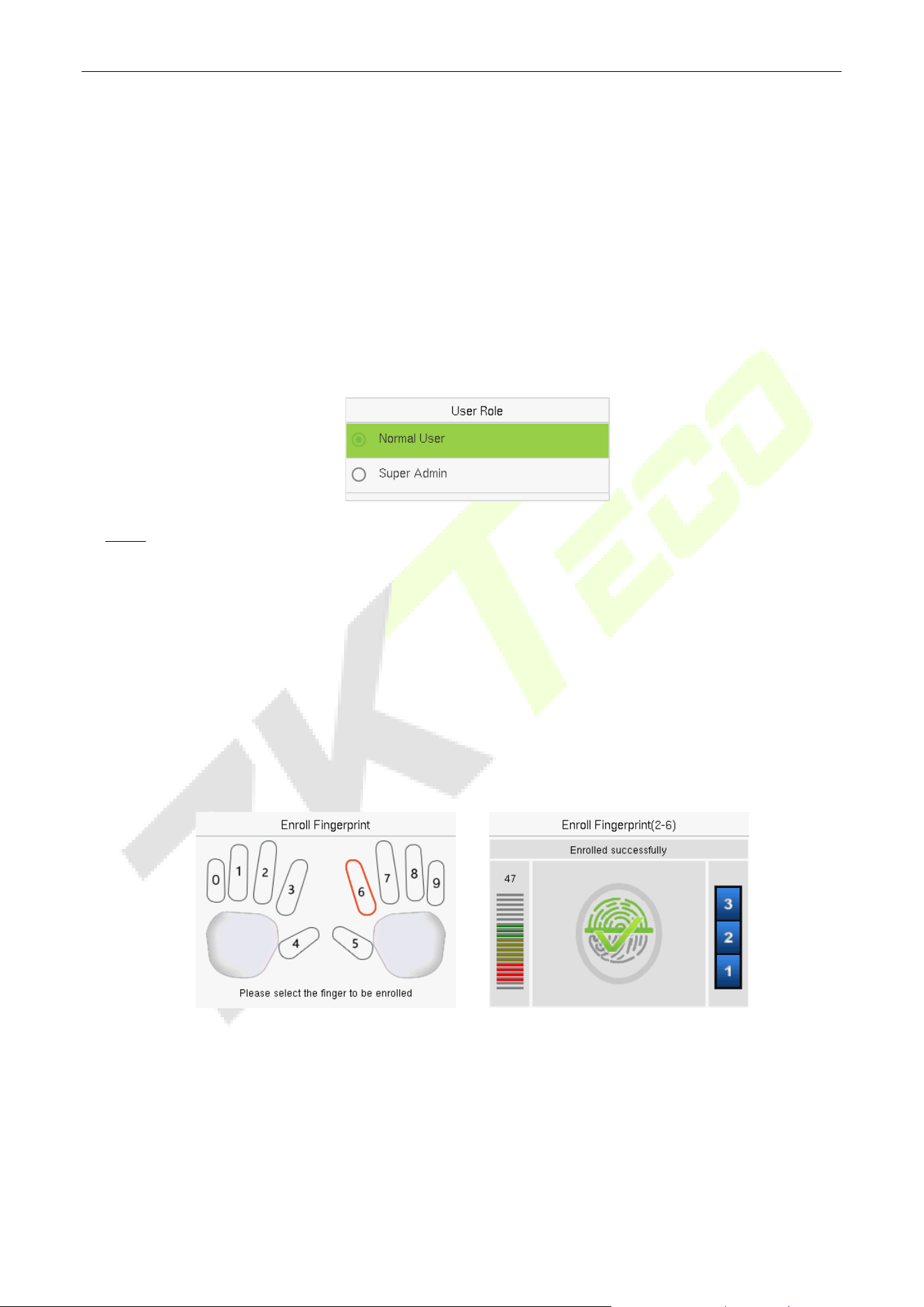

8.1.2 User Role

On the New User interface, tap on User Role to set the user’s role as either Normal User or Super

Admin.

 Super Admin: The Super Administrator owns all management privileges in the Device.

 Normal User: If the Super Admin is registered already in the device, then the Normal Users will

not have the privilege to manage the system and can only access authentic verifications.

 User Defined Roles: The Normal User can also be assigned custom roles with User Defined Role.

The user can be permitted to access several menu options as required.

Note: If the selected user role is the Super Admin, then the user must pass the identity authentication

to access the main menu. The authentication is based on the authentication method(s) that the super

administrator has registered.

8.1.3 Register Fingerprint

Tap Fingerprint in the New User interface to enter the fingerprint registration page.

 Select the finger to be enrolled.

 Press the same finger on the fingerprint reader three times.

 Green indicates that the fingerprint was enrolled successfully.

F35 User Manual

8.1.4 Card Number

Tap Card Number in the New User interface to enter the card registration page.

 On the card interface, swipe the card under the card reading area. The registration of the card will be

successful.

 If the card has already been registered, the message "Error! Card already enrolled" appears. The

registration interface appears as follows:

8.1.5 Password

Tap Password in the New User interface to enter the password registration page.

 On the Password interface, enter the required password and re-enter to confirm it and tap M/OK.

 If the re-entered password is different from the initially entered password, then the device prompts

the message as "Password not match!", where the user needs to re-confirm the password again.

 The password may contain 6 to 8 digits by default.

F35 User Manual

8.1.6 Access Control Role

The Access Control Role sets the door access privilege for each user. It includes the access group, time

period and duress fingerprint.

 Tap Access Control Role > Access Group to assign the registered users to different groups for

better management. New users belong to Group 1 by default and can be reassigned to other

groups. The device supports up to 99 Access Control groups.

 Tap Time Period, to select the time to use.

 The user may specify one or more fingerprints that have been registered as a duress fingerprint(s).

When press the finger corresponding to the duress fingerprint on the sensor and pass the

verification, the system will immediately generate a duress alarm.

All Users 8.2

When the device is on the initial interface, press [M/OK] button > User Mgt. > All Users.

 On the All-Users interface, tap on the search bar on the user’s list to enter the required retrieval

keyword (where the keyword may be the user ID, surname, or full name) and the system will search

for the related user information.

F35 User Manual

8.2.1 Edit User

On the All-Users interface, tap on the required user from the list and tap Edit to edit the user

information.

Note: The process of editing the user information is the same as adding a new user, except that the

User ID cannot be modified while editing a user. The process in detail refers to "User Registration".

8.2.2 Delete User

On the All Users interface, tap on the required user from the list and tap Delete to delete the user or

specific user information from the device. On the Delete interface, tap on the required operation, and

then tap M/OK to confirm the deletion.

Delete Operations:

 Delete User: Deletes all the user information (deletes the selected User as a whole) from the Device.

 Delete User Role Only: Deletes the user's administrator privileges and make the user a normal user.

 Delete Fingerprint Only: Deletes the fingerprint information of the selected user.

 Delete Password Only: Deletes the password information of the selected user.

 Delete Card Number Only: Deletes the card information of the selected user.

F35 User Manual

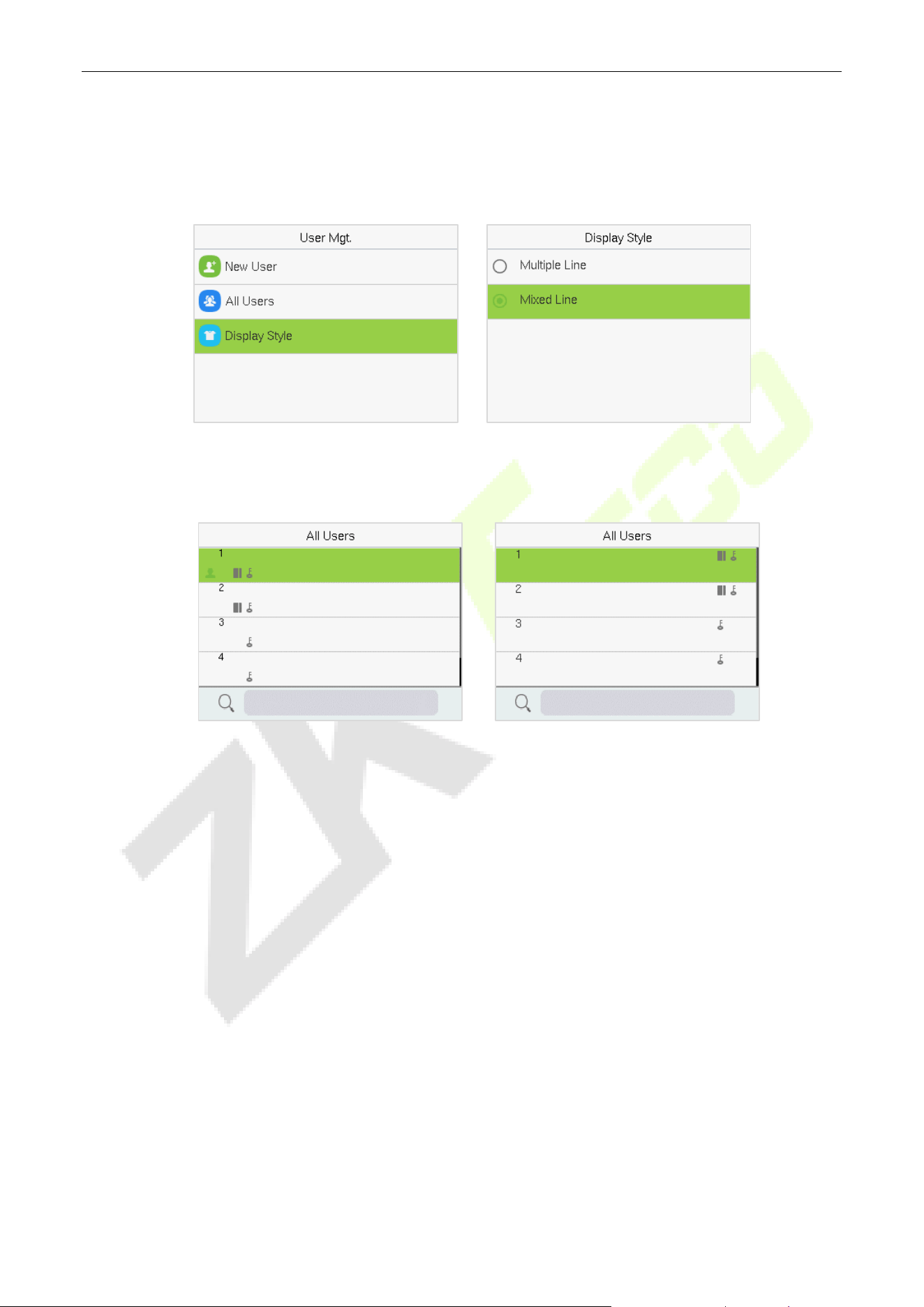

Display Style 8.3

When the device is on the initial interface, press [M/OK] button > User Mgt. > Display Style.

All the Display Styles are shown as below:

Multiple Line: Mixed Line:

F35 User Manual

9 User Role

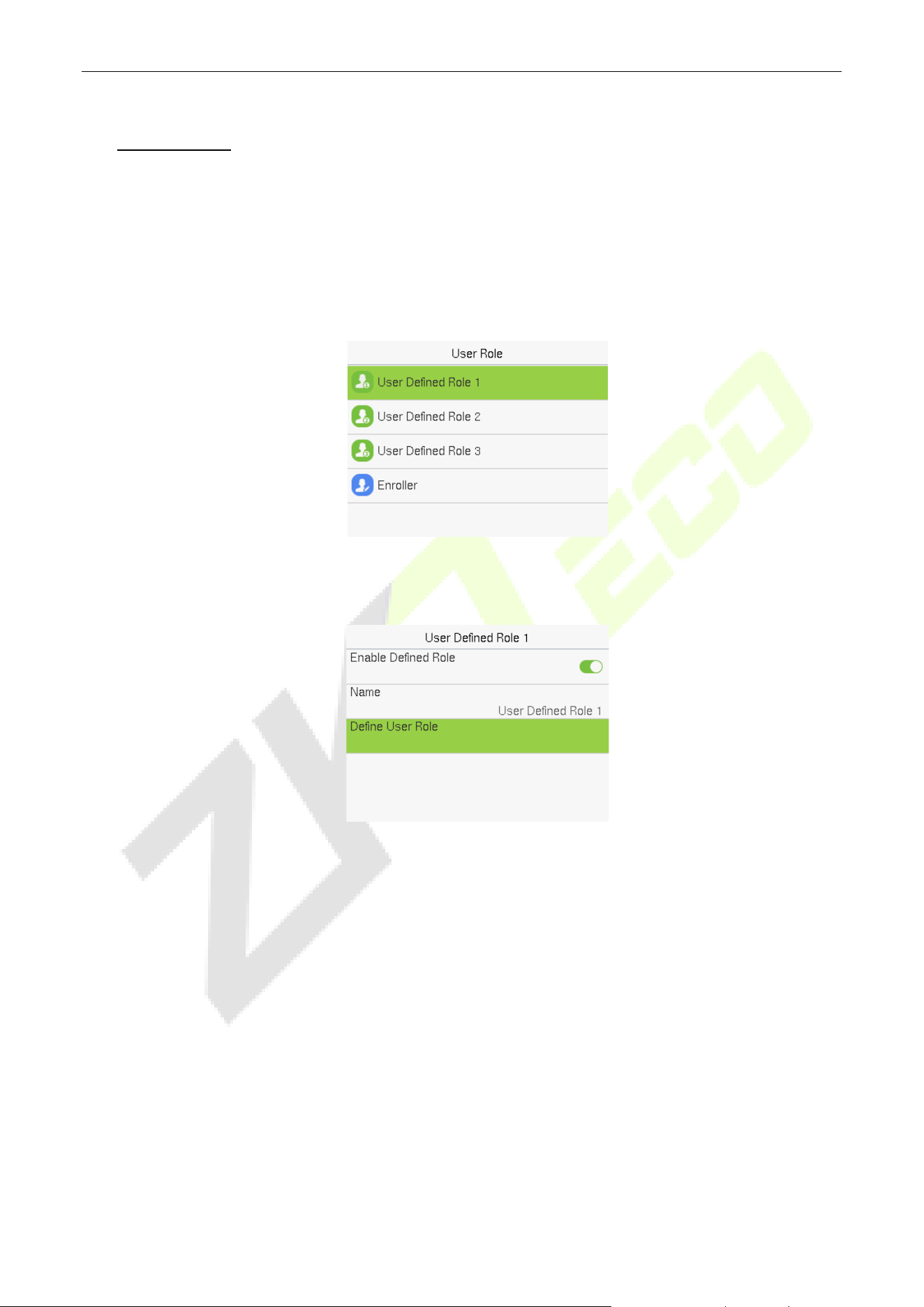

User Role allows you to assign specific permissions to certain users based on their requirements.

 When the device is on the initial interface, press [M/OK] button > User Role > User Defined Role to

set the user defined permissions.

 The permission scope of the custom role can be set up into 3 roles, that is, the custom operating

scope of the menu functions of the user.

 On the User Defined Role interface, toggle Enable Defined Role to enable or disable the user

defined role.

 Then, by selecting on Define User Role, select the required privileges for the new role, and then tap

the M/OK key.

 When assigning privileges, the main menu function names will be displayed on the left and its sub-

menus will be listed on the right.

 First tap on the required Main Menu function name, and then select its required sub-menus from

the list.

F35 User Manual

Note: If the User Role is enabled for the Device, tap on User Mgt. > New User > User Role to assign the

created roles to the required users. But if there is no super administrator registered in the Device, then the

device will prompt "Please enroll super admin first!" when enabling the User Role function.

F35 User Manual

10 Communication

Communication Settings are used to set the parameters of the Network, Serial Comm, PC Connection,

Wi-Fi★, Cloud Server, Wiegand, and Network Diagnosis.

When the device is on the initial interface, press [M/OK] button > COMM.

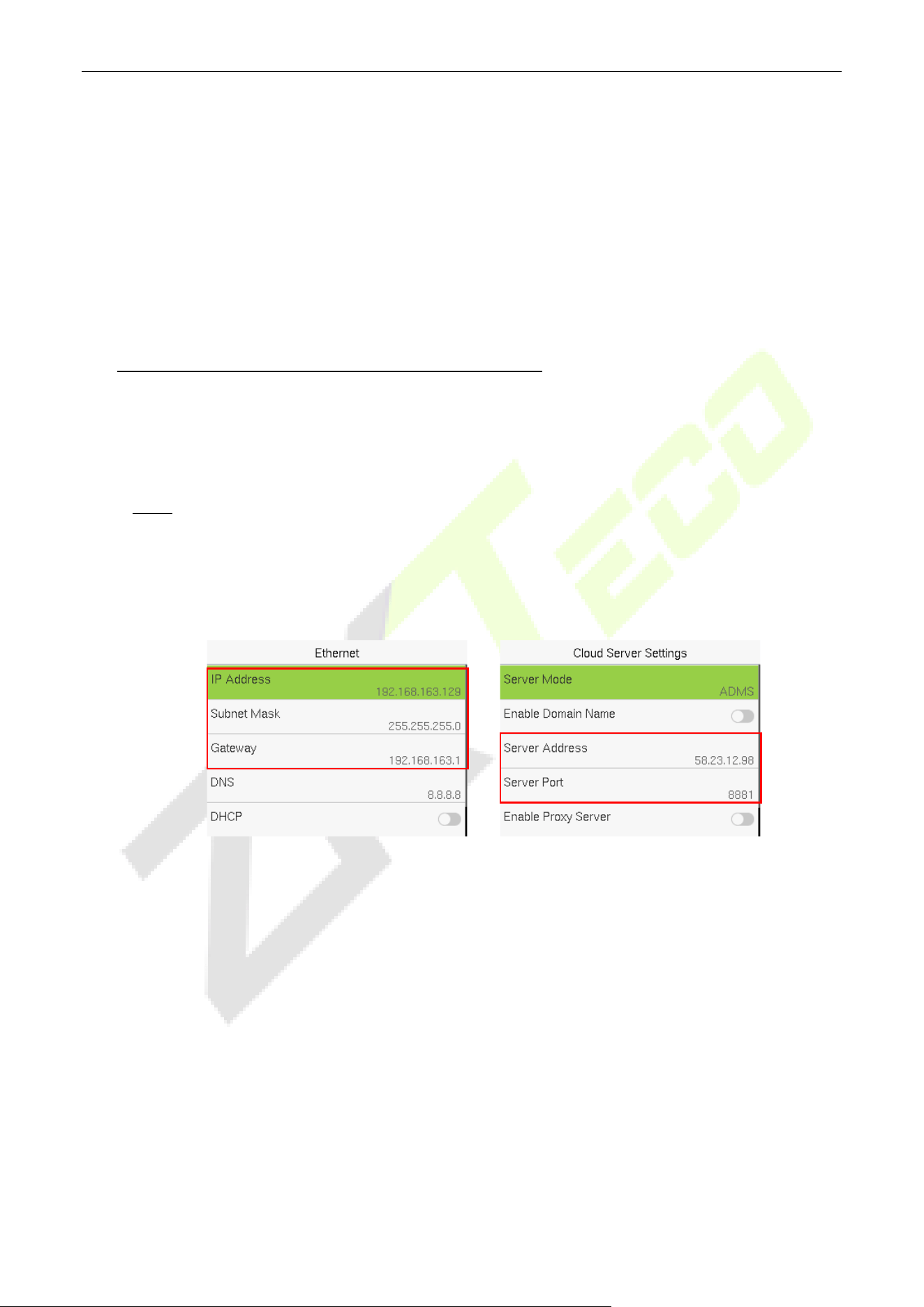

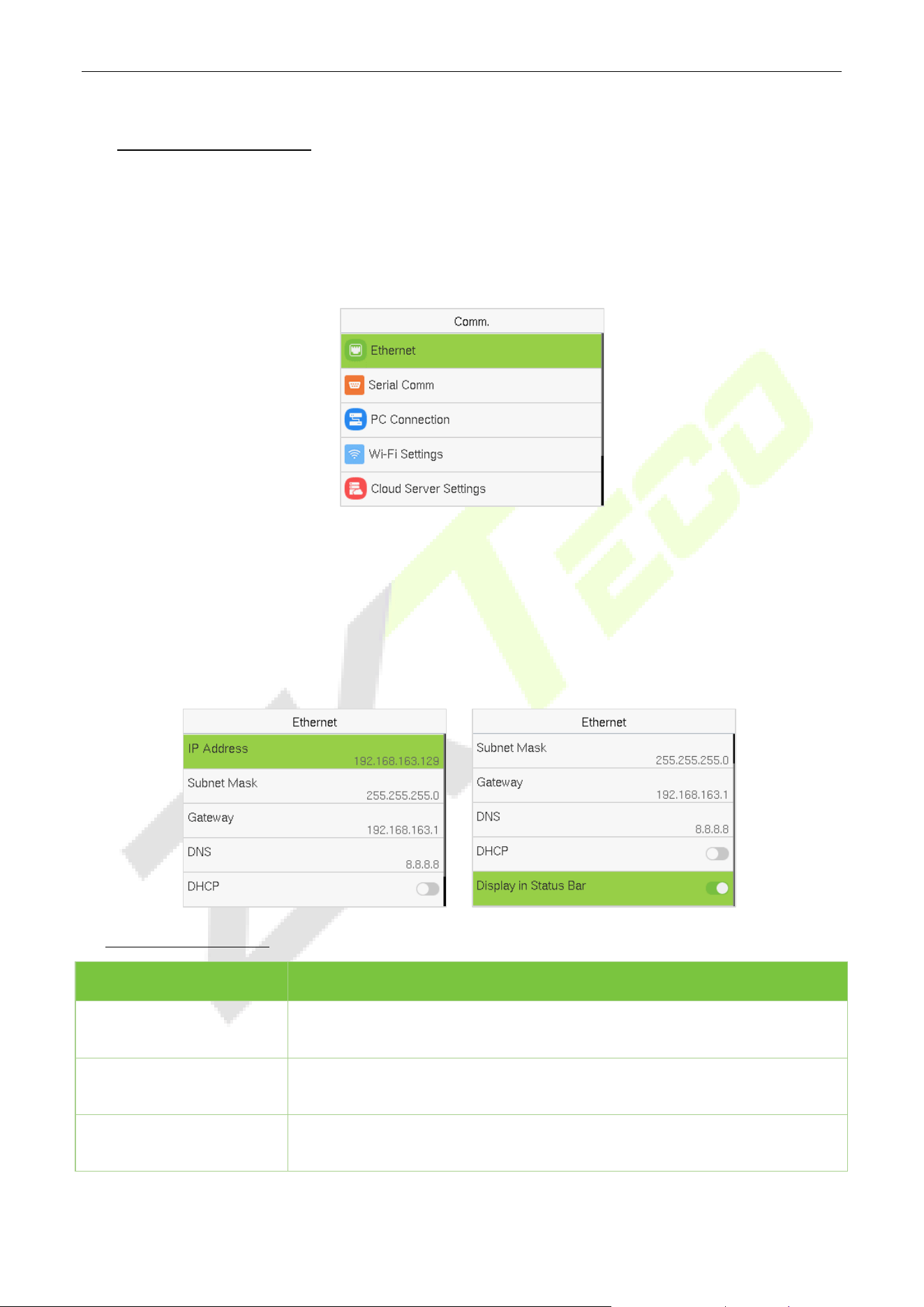

Ethernet 10.1

When the device needs to communicate with a PC via the Ethernet, you need to configure network

settings and make sure that the device and the PC connecting to the same network segment.

Tap Ethernet on the COMM. Settings interface to configure the settings.

Function Description:

Function Name Description

IP Address

The default IP address is 192.168.1.201. It can be modified according to the

network availability.

Subnet Mask

The default Subnet Mask is 255.255.255.0. It can be modified according to

the network availability.

Gateway

The Default Gateway address is 0.0.0.0. It can be modified according to the

network availability.

F35 User Manual

DNS

The default DNS address is 0.0.0.0. It can be modified according to the

network availability.

DHCP

Dynamic Host Configuration Protocol dynamically allocates IP addresses for

clients via server.

Display in Status Bar

Toggle to set whether to display the network icon on the status bar.

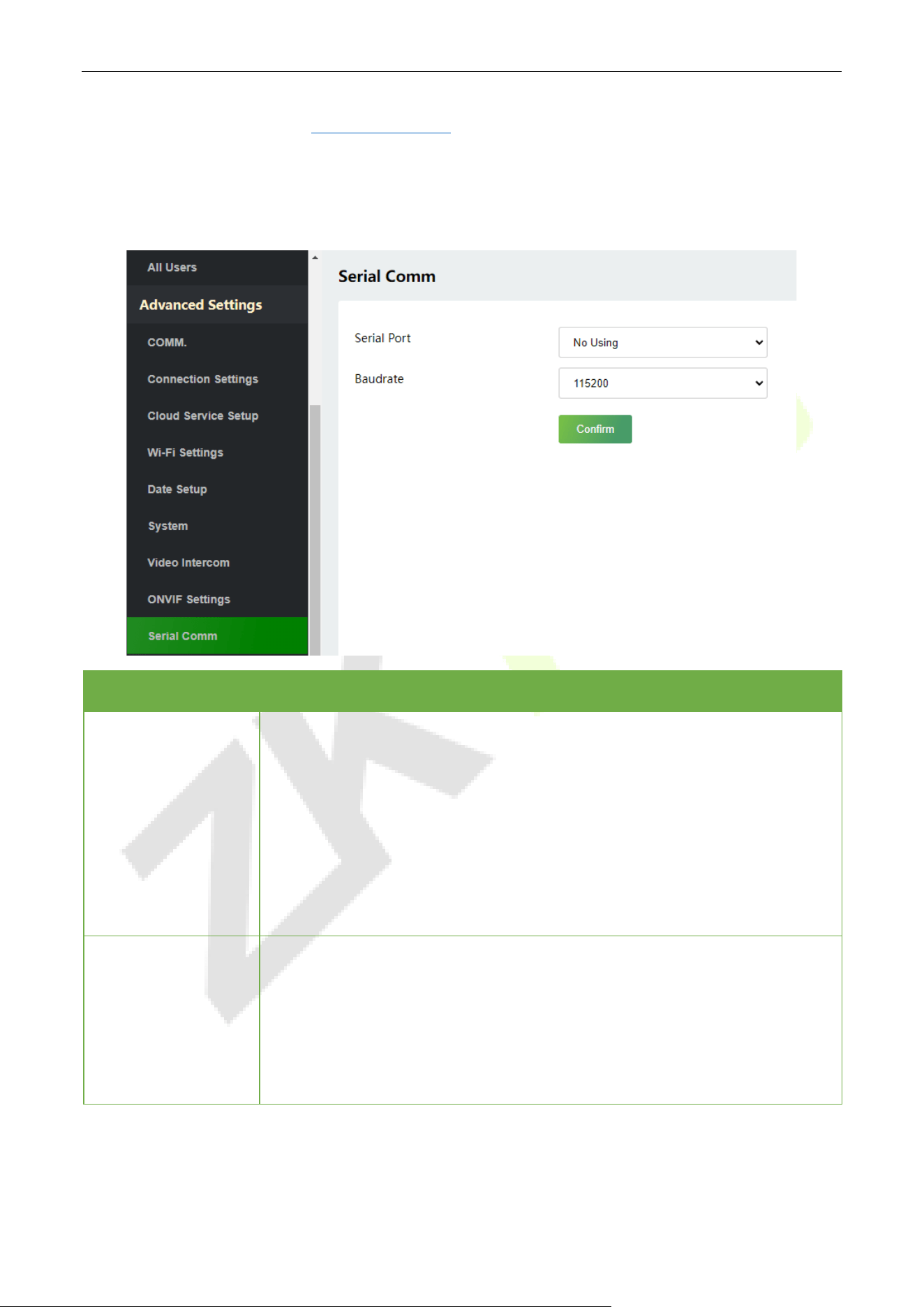

Serial Comm 10.2

Serial Comm function establishes communication with the device through a serial port (Master

Unit/DM10/Print function).

Tap Serial Comm. on the COMM. Settings interface.

Function Description

Function Name Description

Serial Port

No Using: No communication with the device through the serial port.

Master Unit: When RS485 is used as the function of "Master Unit", it can be

connected to a reader.

Print Function: The device can be connected to the printer when RS232

enables the print function.

DM10: When RS485 is used as the function of “DM10”, it can be connected to

DM10 to control the lock relay.

(Note: When selecting DM10 or switching from DM10 to other option, the

device will restart to take effect.)

Baudrate

When the serial port is set as Master Unit or DM10, the baudrate is 115200 by

default and cannot be modified.

When the serial port is set as Print Function, there are 5 baudrate options.

They are: 115200 (default), 57600, 38400, 19200 and 9600.

The higher the baudrate, the faster is the communication speed, but also less

reliable.

Hence, a higher baudrate can be used when the communication distance is

short; when the communication distance is long, choosing a lower baudrate is

more reliable.

F35 User Manual

PC Connection 10.3

Comm Key facilitates to improve the security of the data by setting up the communication between the

device and the PC. Once the Comm Key is set, a password is required to connect the device to the PC

software.

Tap PC Connection on the COMM. Settings interface to configure the communication settings.

Function Description

Function Name Description

Comm Key

The default password is 0 and can be changed.

The Comm Key can contain 1 to 6 digits.

Device ID

It is the identification number of the device, which ranges between 1 and 254.

TCP COMM.Port

The default TCP COMM Port value is 4370. It can be modified according to the

network availability.

HTTPS

Based on HTTP, transmission encryption and identity authentication ensure

the security of the transmission process.

Wi-Fi Settings★ 10.4

The device provides a Wi-Fi module, which can be built-in within the device module or can be

externally connected.

The Wi-Fi module enables data transmission via Wi-Fi (Wireless Fidelity) and establishes a wireless

network environment. Wi-Fi is enabled by default in the device. If you don't need to use the Wi-Fi

network, you can toggle the Wi-Fi to disable the button.

Tap Wi-Fi Settings on the COMM. Settings interface to configure the Wi-Fi settings.

F35 User Manual

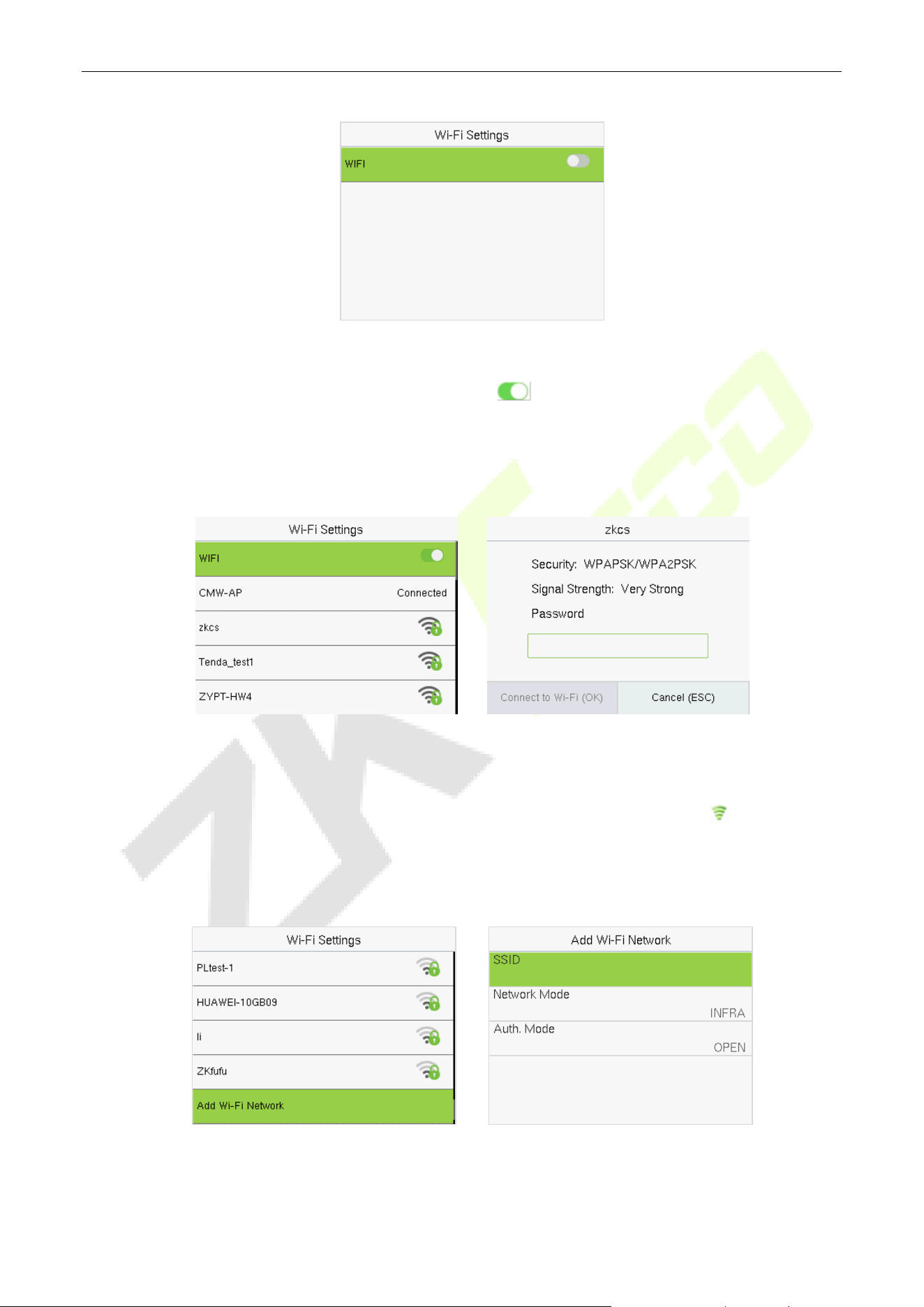

 Searching the Wi-Fi Network

 Wi-Fi is enabled in the device by default. Toggle the button to enable or disable Wi-Fi.

 Once the Wi-Fi is turned on, the device will search for the available Wi-Fi within the network range.

 Tap on the required Wi-Fi name from the available list and input the correct password in the

password interface, and then tap M/OK.

 When the Wi-Fi is connected successfully, the initial interface will display the Wi-Fi logo.

 Adding Wi-Fi Network Manually

The Wi-Fi can also be added manually if the required Wi-Fi does not show on the list.

WIFI Enabled: Tap on the required

network from the searched network list.

Tap on the password field to enter the

password and tap M/OK.

Tap on Add Wi-Fi Network to add the

Wi-Fi manually.

On this interface, enter the Wi-Fi network

parameters. (The added network must

exist.)

F35 User Manual

Note: After successfully adding the Wi-Fi manually, follow the same process to search for the added Wi-

Fi name.

 Advanced Setting

On the Wi-Fi Settings interface, tap on Advanced to set the relevant parameters as required.

Function Description

Function Name Description

DHCP

Dynamic Host Configuration Protocol (DHCP) dynamically allocates IP

addresses to network clients. If the DHCP is enabled, then the IP cannot be set

manually.

IP Address

The IP address for the Wi-Fi network, the default is 0.0.0.0. It can be modified

according to the network availability.

Subnet Mask

The default Subnet Mask of the Wi-

Fi network is 255.255.255.0. It can be

modified according to the network availability.

Gateway

The Default Gateway address is 0.0.0.0. It can be modified according to the

network availability.

DNS

The default DNS

is 0.0.0.0. It can be modified according to the network

availability.

F35 User Manual

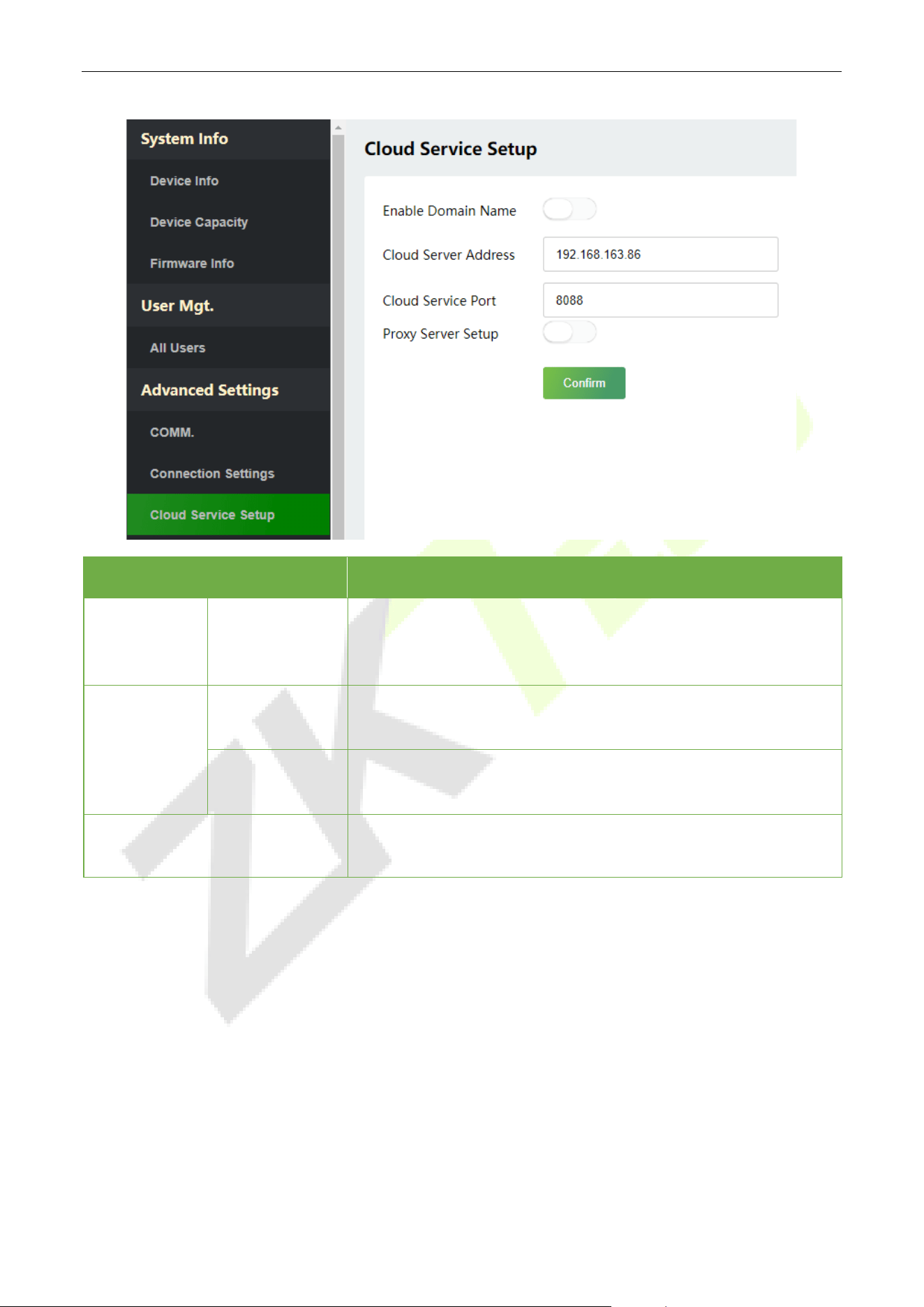

Cloud Server Settings 10.5

Tap Cloud Server Settings on the COMM. Settings interface to connect with the ADMS server.

Function Description

Function Name Description

Enable

Domain

Name

Server

Address

Once this mode is turned ON, the domain name mode "http://... " will be

used, such as http://www.XYZ.com, while "XYZ" denotes the domain name.

Disable

Domain

Name

Server

Address

The IP address of the ADMS server.

Server

Port

Port used by the ADMS server.

Enable Proxy Server

The IP address and the port number of the proxy server is set manually

when the proxy is enabled.

Wiegand Setup 10.6

It is used to set the Wiegand input and output parameters.

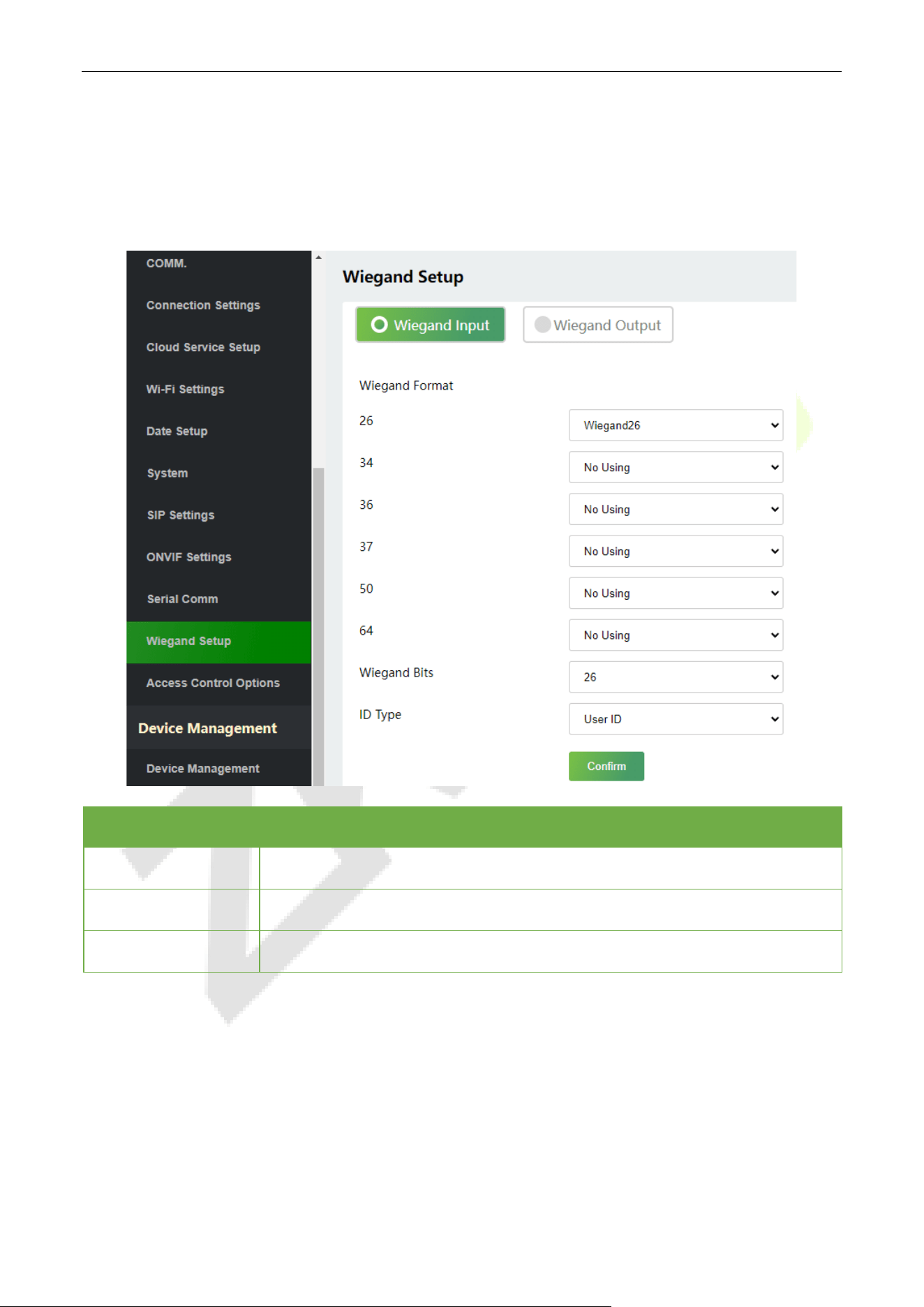

Tap Wiegand Setup on the COMM. Settings interface to set up the Wiegand input and output

parameters.

F35 User Manual

10.6.1 Wiegand Input

Function Description

Function Name Description

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits, 50 bits and 64 bits.

Wiegand Bits

The number of bits of the Wiegand data.

Pulse Width(us)

The value of the pulse width sent by Wiegand is 100 microseconds

by default, which can be adjusted within the range of 20 to 400

microseconds.

Pulse Interval(us)

The default value is 1000 microseconds and can be adjusted within

the range of 200 to 20000 microseconds.

ID Type

Select between the User ID and card number.

Various Common Wiegand Format Description:

Wiegand Format Description

Wiegand26

ECCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 26 bits of binary code. The 1

bit is the even parity bit of the

to 13

bits, while the 26

bit is the odd parity bit of the 14

to 25

bits.

The 2

to 25

bits is the card numbers.

Wiegand26a

ESSSSSSSSCCCCCCCCCCCCCCCCO

It consists of 26 bits of binary code. The 1

bit is the even parity bit of the

to 13

bits, while the 26

bit is the odd parity bit of the 14

to 25

bits.

The 2

to 9

bits is the site codes, while the 10

to 25

bits are the card

numbers.

Wiegand34

ECCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 34 bits of binary code. The 1

bit is the even parity bit of the

to 17

bits, while the 34

bit is the odd parity bit of the 18

to 33

bits.

The 2

to 25

bits is the card numbers.

F35 User Manual

Wiegand34a

ESSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 34 bits of binary code. The 1

bit is the even parity bit of the

to 17

bits, while the 34

bit is the odd parity bit of the 18

to 33

bits.

The 2

to 9

bits is the site codes, while the 10

to 25

bits are the card

numbers.

Wiegand36

OFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCMME

It consists of 36 bits of binary code. The 1

bit is the odd parity bit of the 2

to 18

bits, while the 36

bit is the even parity bit of the 19

to 35

bits.

The 2

to 17

bits is the device codes. The 18

to 33

bits is the card

numbers, and the 34

to 35

bits are the manufacturer codes.

Wiegand36a

EFFFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCO

It consists of 36 bits of binary code. The 1

bit is the even parity bit of the

to 18

bits, while the 36

bit is the odd parity bit of the 19

to 35

bits.

The 2

to 19

bits is the device codes, and the 20

to 35

bits are the card

numbers.

Wiegand37

OMMMMSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCE

It consists of 37 bits of binary code. The 1

bit is the odd parity bit of the 2

to 18

bits, while the 37

bit is the even parity bit of the 19

to 36

bits.

The 2

to 4

bits is the manufacturer codes. The 5

to 16

bits is the site

codes, and the 21

to 36

bits are the card numbers.

Wiegand37a

EMMMFFFFFFFFFFSSSSSSCCCCCCCCCCCCCCCCO

It consists of 37 bits of binary code. The 1

bit is the even parity bit of the

to 18

bits, while the 37

bit is the odd parity bit of the 19

to 36

bits.

The 2

to 4

bits is the manufacturer codes. The 5

to 14

bits is the device

codes, and15

to 20

bits are the site codes, and the 21

to 36

bits are the

card numbers.

Wiegand50

ESSSSSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 50 bits of binary code. The 1

bit is the even parity bit of the

to 25

bits, while the 50

bit is the odd parity bit of the 26

to 49

bits.

The 2

to 17

bits is the site codes, and the 18

to 49

bits are the card

numbers.

"C" denotes the card number; "E" denotes the even parity bit; "O" denotes the odd parity bit.

"F" denotes the facility code; "M" denotes the manufacturer code; "P" denotes the parity bit; and "S"

denotes the site code.

F35 User Manual

10.6.2 Wiegand Output

Function Description

Function Name Description

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits, 50 bits and 64 bits.

Wiegand Output Bits

After selecting the required Wiegand format, select the

corresponding output bit digits from the Wiegand format.

Failed ID

If the verification fails, the system will send the failed ID to the

device and replace the card number or personnel ID with the new

one.

Site Code

It is similar to the device ID. The difference is that a site code can be

set manually and is repeatable on a different device. The valid value

ranges from 0 to 256 by default.

Pulse Width(us)

The time width represents the changes in the quantity of electric

charge with regular high-frequency capacitance within a specified

time.

Pulse Interval(us)

The time interval between pulses.

ID Type

Select the ID types as either User ID or card number.

F35 User Manual

Network Diagnosis 10.7

It helps to set the network diagnosis parameters.

Tap Network Diagnosis on the COMM. Settings interface. Enter the IP address that needs to be

diagnosed and tap Start the Diagnostic Test to check whether the network can connect to the device.

F35 User Manual

11 System Settings

It helps to set related system parameters to optimize the accessibility of the device.

When the device is on the initial interface, press [M/OK] button > System.

Access Control Terminal:

Time Attendance Terminal:

Date and Time 11.1

Tap Date Time on the System interface to set the date and time.

 Tap NTP Server to enable automatic time synchronization based on the service address you enter.

 Tap Manual Date and Time to manually set the date and time and then tap Confirm and save.

F35 User Manual

 Tap Select Time Zone to manually select the time zone where the device is located.

 Enable or disable this format by tapping 24-Hour Time. If enabled, then select the Date Format to

set the date.

 Tap Daylight Saving Time to enable or disable the function. If enabled, tap Daylight Saving

Mode to select a daylight-saving mode and then tap Daylight Saving Setup to set the switch

time.

Week Mode Date Mode

 When restoring the factory settings, the time (24-hour) and date format (YYYY-MM-DD) can be

restored, but the device date and time cannot be restored.

Note: For example, if a user sets the time of the device from 18:35 on March 15, 2020 to 18:30 on

January 1, 2021. After restoring the factory settings, the time of the device will remain at 18:30 on

January 1, 2021.

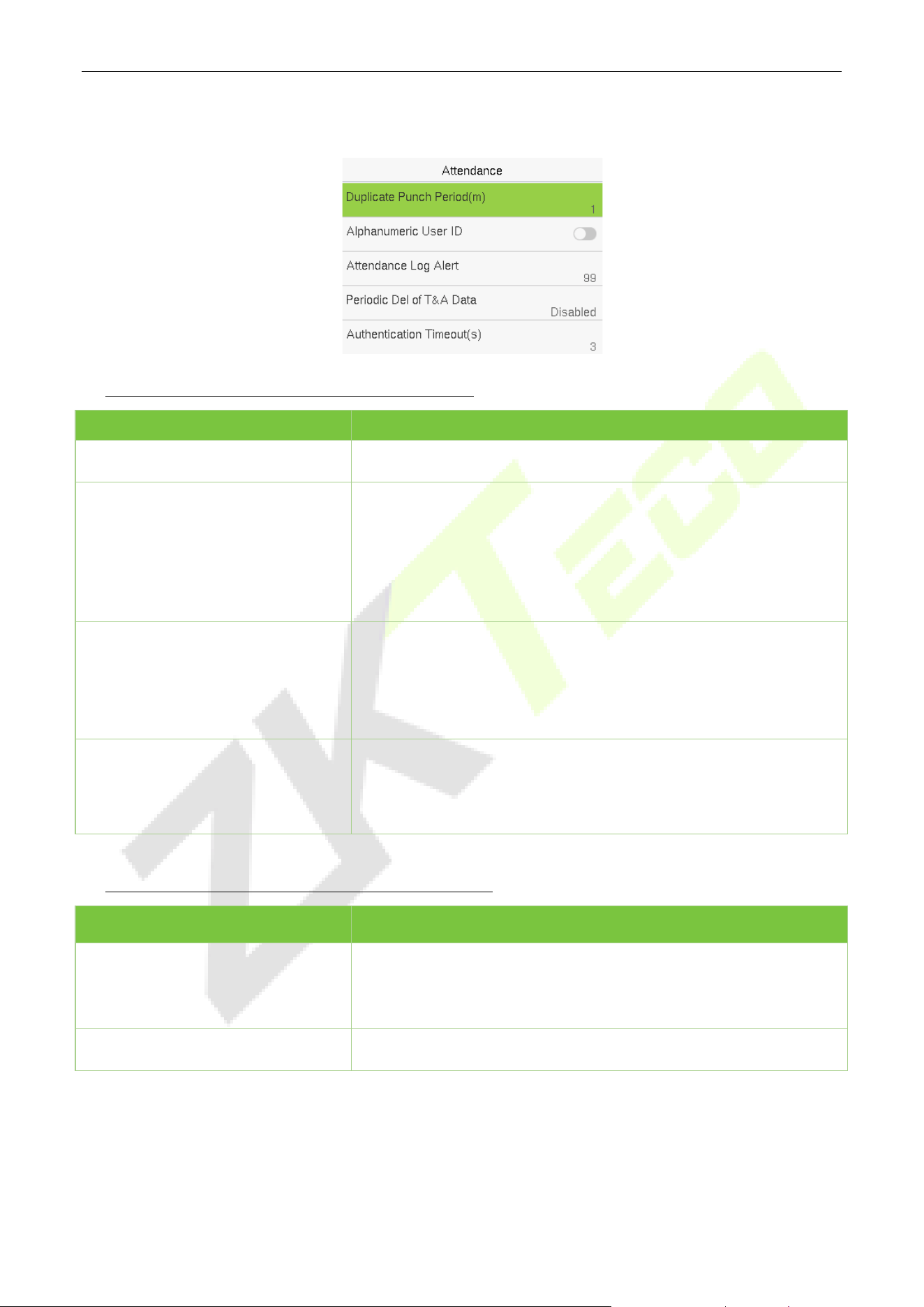

Access Logs Settings / Attendance 11.2

Tap Access Logs Settings / Attendance on the System interface.

Access Control Terminal:

F35 User Manual

Time Attendance Terminal:

Function Description of Access Control Terminal:

Function Name Description

Alphanumeric User ID

Enable/Disable the alphanumeric as User ID.

Access Log Alert

When the record space of the attendance access reaches the

maximum threshold value, the device automatically displays the

memory space warning.

Users may disable the function or set a valid value between 1 and

9999.

Periodic Del of Access Logs

When access logs reach its maximum capacity, the device

automatically deletes a set of old access logs.

Users may disable the function or set a valid value between 1 and

999.

Authentication Timeout(s)

The amount of time taken to display a successful verification

message.

Valid value: 1 to 9 seconds.

Function Description of Time Attendance Terminal:

Function Name Description

Duplicate Punch Period(m)

Within a set time period (unit: minutes), the duplicated attendance

record will not be reserved (value ranges from 1 to 999999

minutes).

Alphanumeric User ID

Enable/Disable the alphanumeric as User ID.

F35 User Manual

Attendance Log Alert

When the record space of the attendance reaches the maximum

threshold value, the device automatically displays the memory

space warning.

Users may disable the function or set a valid value between 1 and

9999.

Periodic Del of T&A Data

When attendance records reach its maximum storage capacity, the

device automatically deletes a set of old attendance records.

Users may disable the function or set a valid value between 1 and

999.

Authentication Timeout(s)

The amount of time taken to display a successful verification

message.

Valid value: 1 to 9 seconds.

Fingerprint 11.3

Tap Fingerprint on the System interface to go to the Fingerprint parameter settings.

Function Description

Function Name Description

1:1 Threshold Value

Under 1:1 verification method, the verification will only be

successful when the similarity between the acquired fingerprint

data and the fingerprint template associated with the entered user

ID enrolled in the device is greater than the set value.

1:N Threshold Value

Under 1:N verification method, the verification will only be

successful when the similarity between the acquired fingerprint

data and the fingerprint templates enrolled in the device is greater

than the set value.

F35 User Manual

FP Sensor Sensitivity

To set the sensibility of fingerprint acquisition. It is recommended to

use the default level "Medium". When the environment is dry,

resulting in slow fingerprint detection, you can set the level to

"High" to raise the sensibility; when the environment is humid,

making it hard to identify the fingerprint, you can set the level to

"Low".

1:1 Retry Times

In 1:1 Verification, users might forget the registered fingerprint, or

press the finger improperly. To reduce the process of re-entering

user ID, retry is allowed.

Fingerprint Image

To set whether to display the fingerprint image on the screen

during fingerprint enrollment or verification. Four choices are

available:

Show for Enroll: to display the fingerprint image on the screen only

during enrollment.

Show for Match: to display the fingerprint image on the screen

only during verification.

Always Show: to display the fingerprint image on screen during

enrollment and verification.

None: not to display the fingerprint image.

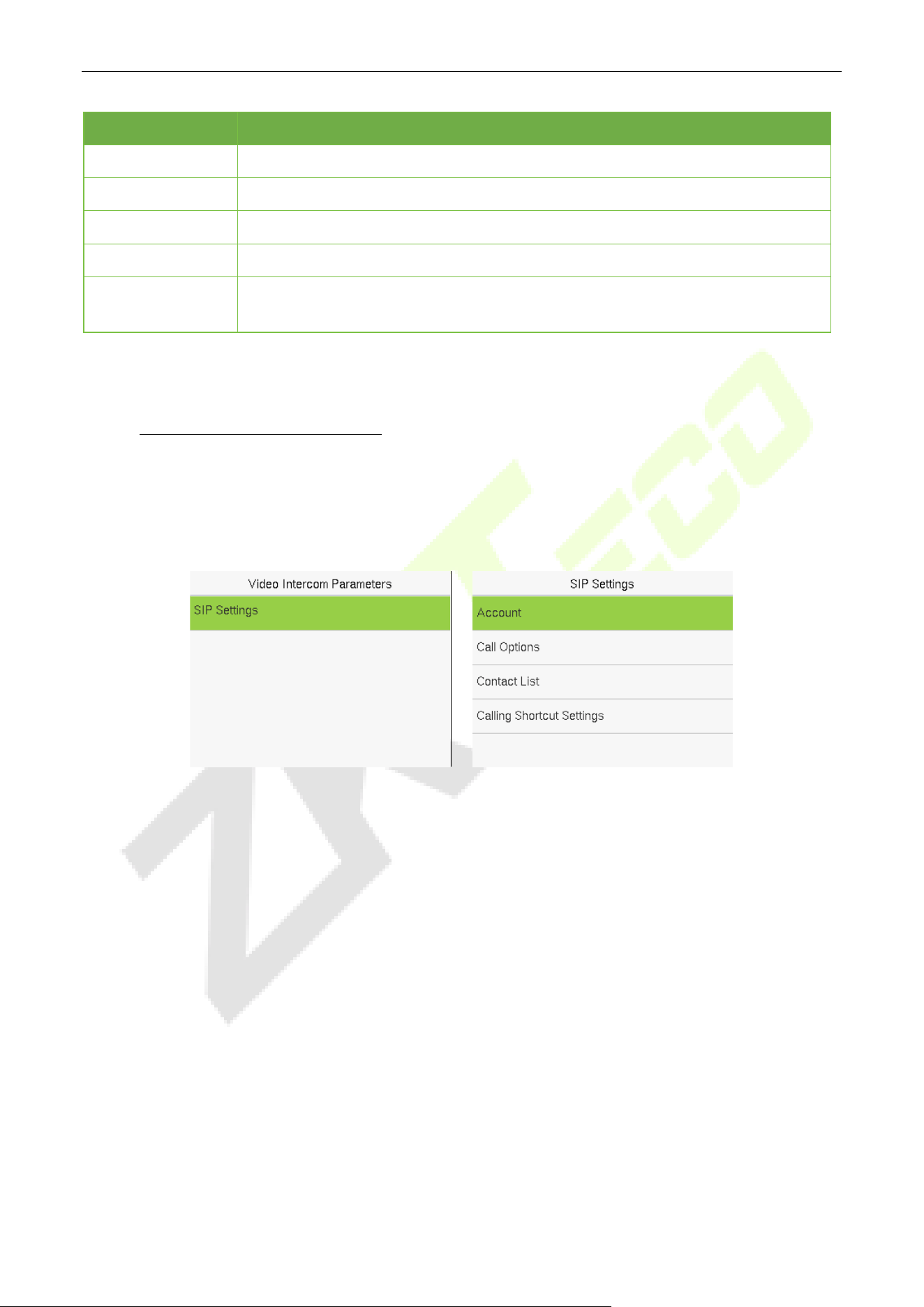

Video Intercom Parameters

★

11.4

Tap Video Intercom Parameters on the System interface.

Function Description

Function Name

Description

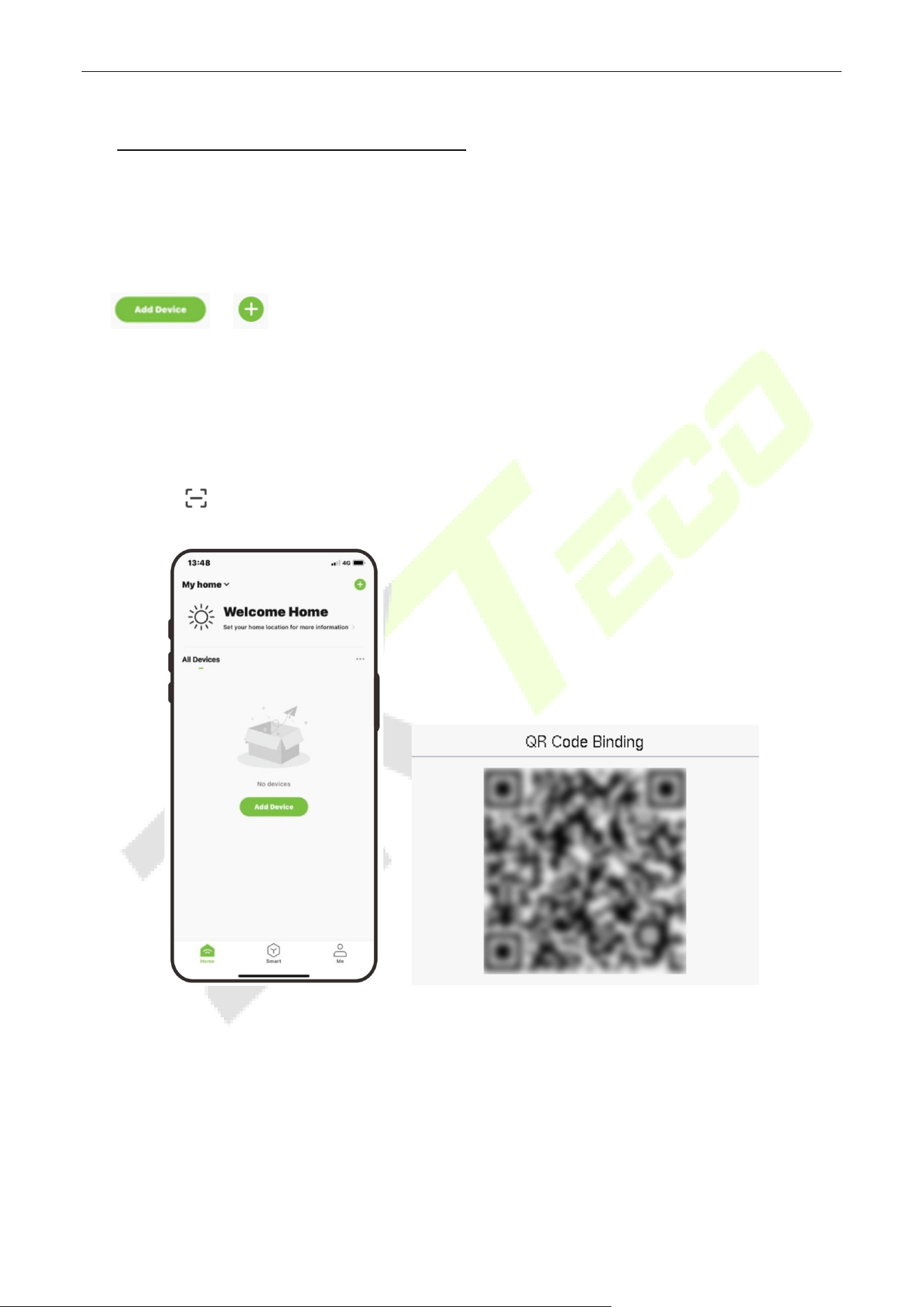

QR Code Binding

Use the ZSmart App client to scan the QR code to connect and bind

the device.

Calling Timeout (s)

If the call is not answered within a specified time, it exits to the main

interface.

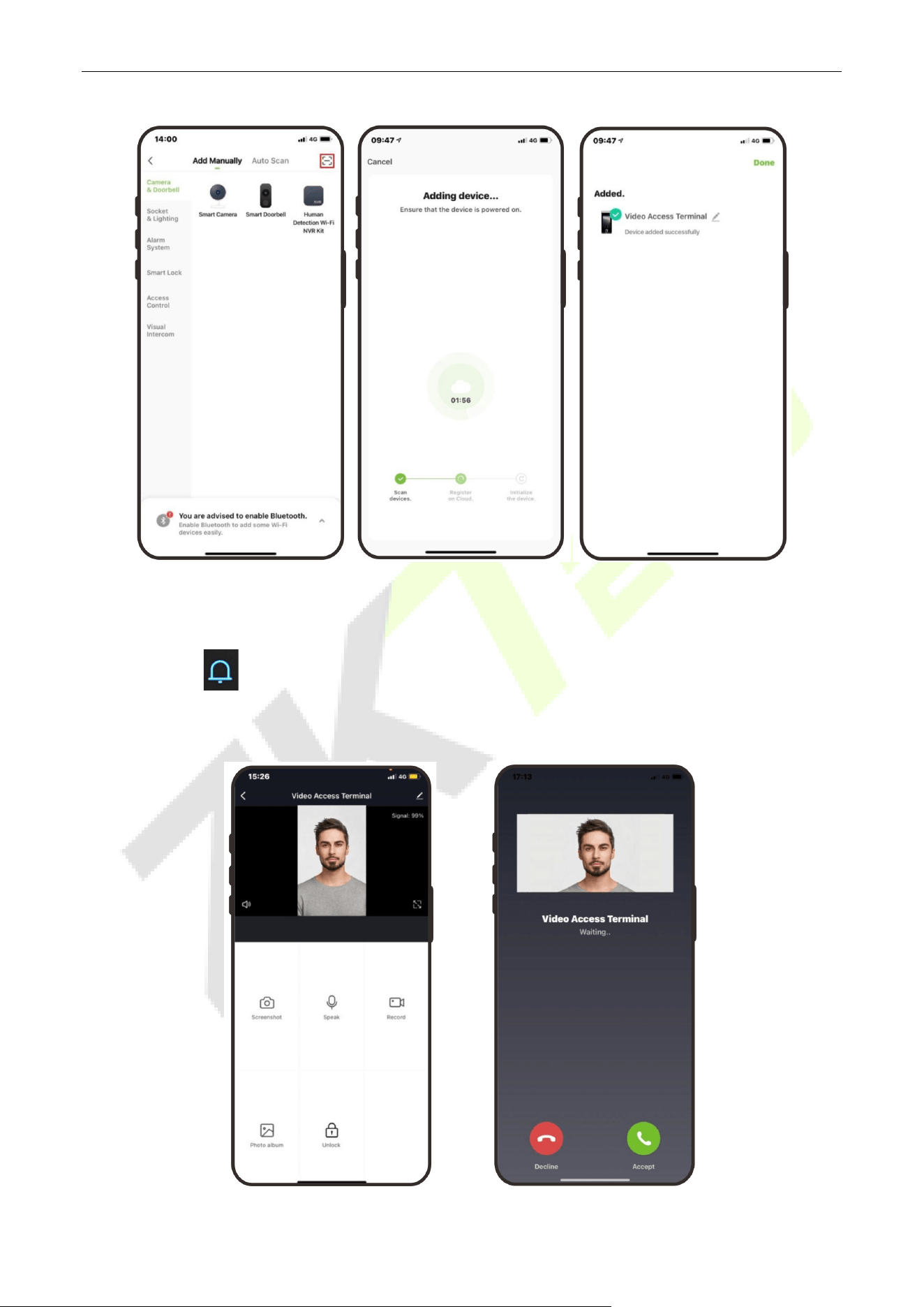

For more details, please refer to 22. Connecting to ZSmart App.

F35 User Manual

ONVIF Settings

★

11.5

Note: This function needs to be used with the network video recorder (NVR).

1. Set the device to the same network segment as the NVR.

2. Tap ONVIF Settings on the System interface.

Function Name Description

Enable Authentication

Enable/Disable the Authentication Function. When it is disabled,

there is no need to input the User Name and Password when

adding the device to the NVR.

User Name

Set the User Name. The default is admin.

Password

Set the password. The default is admin.

Server Port

The default is 8000, and cannot be modified.

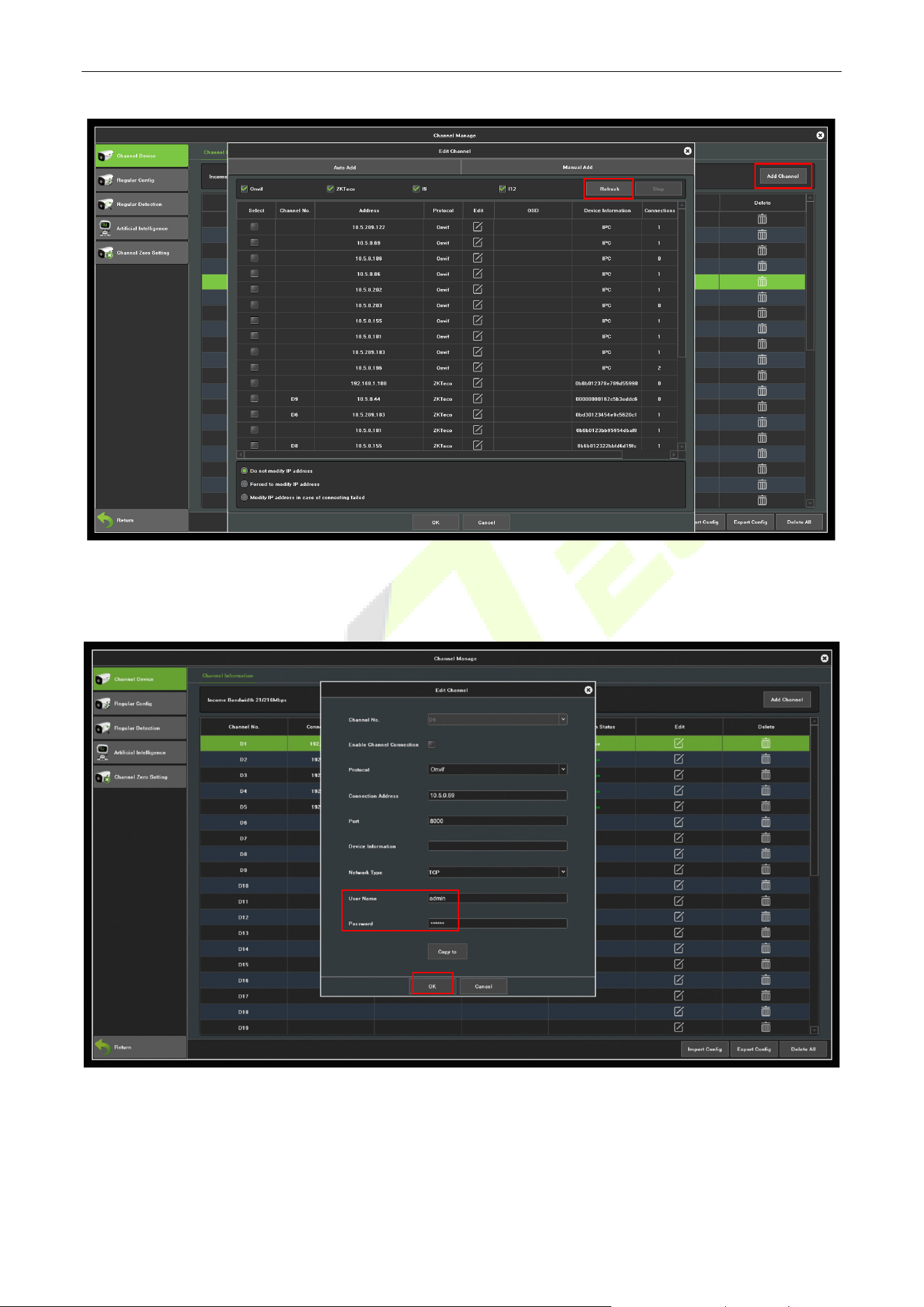

3. On the NVR system, click on [Start] > [Menu], then the main menu will pop up.

4. Click [Channel Manage] > [Add Channel] > [Refresh] to search for the device.

F35 User Manual

5. Select the checkbox for the device you want to add and edit the parameters in the corresponding text

field, then click on OK to add it to the connection list.

Note: The User Name and Password is set in the ONVIF Settings of the device.

6. After adding successfully, the video image obtaining from the device can be viewed in real-time.

F35 User Manual

For more details, please refer to the NVR User Manual.

Device Type Settings 11.6

Tap Device Type Setting on the System interface to configure the Device Type Settings.

Function Name Description

Communication Protocol

Set the PUSH protocol.

Device Type

Set the device as an access control terminal or attendance terminal.

Note: After changing the device type, the device will delete all the data and restart, and some functions

will be adjusted accordingly.

F35 User Manual

Security Settings 11.7

Tap Security Settings on the System interface to go to the Security settings.

Function Description

Function Name Description

Standalone Communication

To avoid being unable to use when the device is offline, you can

download the C/S software (such as ZKAccess 3.5) on your

computer in advance for offline use.

SSH

SSH is used to enter the background of the device for maintenance.

User ID Masking

When enabled, and then the user is successfully compared and

verified, the User ID in the displayed verification result will be

replaced with an * to achieve secure protection of sensitive private

data.

Display Verification Name

Set whether to display the username in the verification result

interface.

Display Verification Mode

Set whether to display the verification mode in the verification

result interface.

F35 User Manual

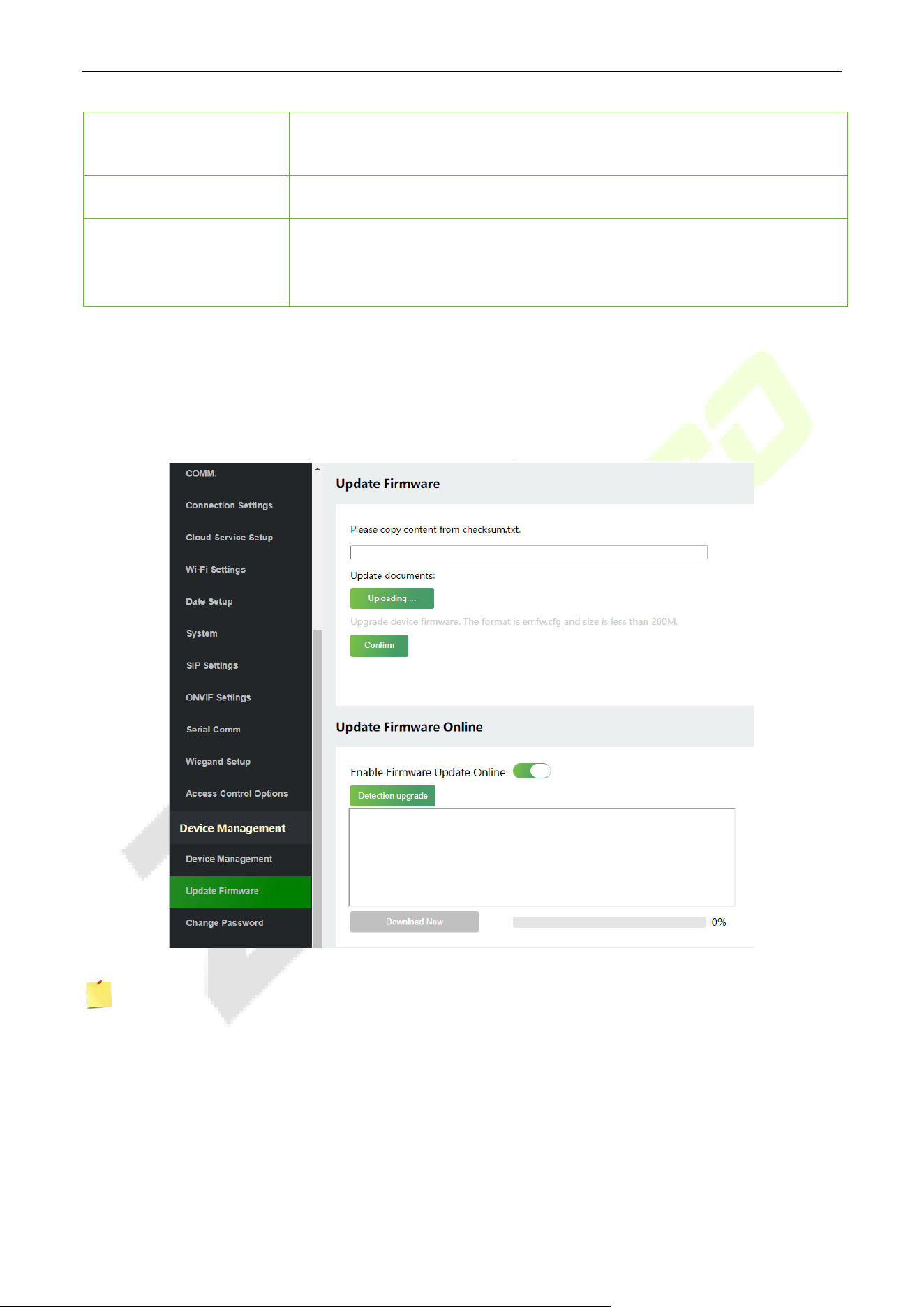

Update Firmware Online 11.8

Tap Update Firmware Online on the System interface.

The Firmware Update Online function is enabled by default. Tap Check for Updates it may have the

following 3 scenarios:

 If the query fails, the interface will prompt "Query failed".

 If the firmware version of the device is latest, it will prompt that the current firmware version

is already the latest.

 If the firmware version of the device is not the latest, the version number and change log of

the latest version will be displayed. Users can choose whether to update to the latest

firmware version.

Factory Reset 11.9

The Factory Reset function restores the device settings such as communication settings and system

settings, to the default factory settings (this function does not clear registered user data).

Tap Reset on the System interface and then tap OK to restore the default factory settings.

F35 User Manual

12 Personalize Settings

When the device is on the initial interface, press [M/OK] button > Personalize to customize the

interface settings, voice, bell, punch state options, and shortcut key mappings.

Access Control Terminal:

Time Attendance Terminal:

User Interface 12.1

Tap User Interface on the Personalize interface to customize the display style of the main interface.

F35 User Manual

Function Description

Function Name Description

Wallpaper

It helps to select the main screen wallpaper according to the user

preference.

Language

It helps to select the language of the device.

Menu Timeout (s)

When there is no operation, and the time exceeds the set value, the

device automatically goes back to the initial interface.

The function can either be disabled or set the required value

between 60 and 99999 seconds.

Idle Time to Slide Show (s)

When there is no operation, and the time exceeds the set value, a

slide show is displayed. The function can be disabled, or you may

set the value between 3 and 999 seconds.

Slide Show Interval (s)

It is the time interval in switching between different slide show

pictures. The function can be disabled, or you may set the interval

between 3 and 999 seconds.

Idle Time to Sleep (m)

If the sleep mode is activated, and when there is no operation in

the device, then the device will enter standby mode.

This function can be disabled or set a value within 1 to 999 minutes.

Main Screen Style

The style of the main screen can be selected according to the user

preference.

Company Name

Enter the company name here. When the company name option is

turned on in the print information setting, the company name is

printed.

Voice 12.2

Tap Voice on the Personalize interface to configure the voice settings.

F35 User Manual

Function Description

Function Name Description

Voice Prompt

Toggle to enable or disable the voice prompts during function

operations.

Keyboard Prompt

Toggle to enable or disable the keypad sounds.

Volume

Adjust the volume of the device which can be set between 0 to 100.

Bell Schedules 12.3

Tap Bell Schedules on the Personalize interface to configure the Bell settings.

 New Bell Schedule:

Tap New Bell Schedule on the Bell Schedule interface to add a new bell schedule.

Function Description

Function Name Description

Bell Status

Toggle to enable or disable the bell status.

Bell Time

Once the required time is set, the device automatically triggers to

ring the bell during that time.

F35 User Manual

Repeat

Set the required number of counts to repeat the scheduled bell.

Bell Type

Select the bell type: Internal Bell, External Bell or Internal and

External Bell.

Ring Tone

Select a ringtone.

Internal Bell Delay(s)

Set the replay time of the internal bell. Valid values range from 1 to

999 seconds.

 All Bell Schedules:

Once the bell is scheduled, on the Bell Schedules interface, tap All Bell Schedules to view the newly

scheduled bell.

 Edit the Scheduled Bell:

On the All Bell Schedules interface, tap on the required bell schedule, and tap Edit to edit the selected

bell schedule. The editing method is the same as the operations of adding a new bell schedule.

 Delete a Bell Schedules:

On the All Bell Schedules interface, tap the required bell schedule, tap Delete, and then tap Yes to

delete the selected bell.

 Options:

Tap Options on the Bell Schedule interface to set the external bell output terminal NC1 or NC2, which

can be disabled.

Punch States Options 12.4

Tap Punch States Options on the Personalize interface to configure the punch state settings.

Function Description

Function Name Description

Punch State Mode

Off: Disable the punch state function. Therefore, the punch state

key set under Shortcut Key Mappings menu will become invalid.

F35 User Manual

Manual Mode:

Switch the punch state key manually, and the

punch state key will disappear after Punch State Timeout.

Auto Mode: The punch state key will automatically switch to a

specific punch status according to the predefined time schedule

which can be set in the Shortcut Key Mappings.

Manual and Auto Mode: The main interface will display the auto-

switch punch state ke

y. However, the users will still be able to

select alternative that is the manual attendance status. After

timeout, the manual switching to punch state key will become

auto-switch punch state key.

Manual Fixed Mode: After the punch state key is set manually to a

particular punch status, the function will remain unchanged until it

is being manually switched again.

Fixed Mode:

Only the manually fixed punch state key will be

shown. Users cannot change the status by taping any other keys.

Punch State Timeout(s)

It is the time for which the punch state displays. The value ranges

from 5 to 999 seconds.

Punch State Required

Select whether an attendance state needs to be selected after

verification.

ON: Attendance state needs to be selected after verification.

OFF:

Attendance state need not requires to be selected after

verification.

Shortcut Key Mappings 12.5

Users may define shortcut keys for attendance status and functional keys which will be defined on the

main interface. So, on the main interface, when the shortcut keys are tapped, the corresponding

attendance status or the function interface will be displayed directly.

Tap Shortcut Key Mappings on the Personalize interface to set the required shortcut keys.

 On the Shortcut Key Mappings interface, tap on the required shortcut key to configure the

shortcut key settings.

F35 User Manual

 On the Shortcut Key (example, "Up Key") interface, tap function to set the functional process of

the shortcut key either as punch state key or function key.

 If the Shortcut key is defined as a function key (such as New user, All users, etc.), the configuration

is completed as shown in the image below.

 If the Shortcut key is set as a punch state key (such as check in, check out, etc.), then it is required

to set the punch state value (valid value 0 to 250), name.

 Set the Switch Time

 The switch time is set in accordance with the punch state options.

 When the Punch State Mode is set to Auto Mode, the switch time should be set.

 On the Shortcut Key interface, tap Set Switch Time to set the switch time.

 On the Switch Cycle interface, select the switch cycle (Monday, Tuesday, etc.) as shown in the

image below.

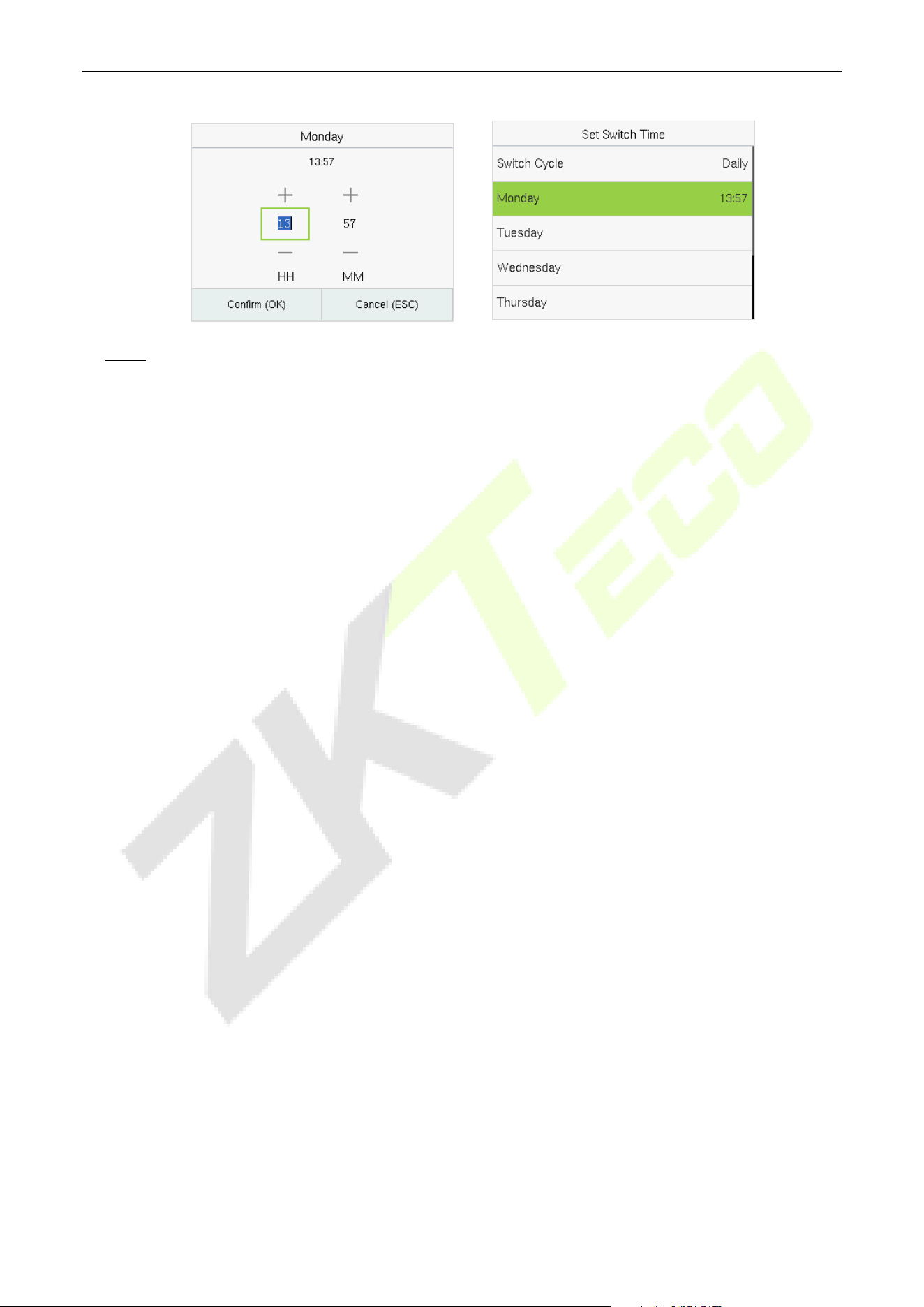

 Once the Switch cycle is selected, set the switch time for each day, and tap OK to confirm, as

shown in the image below.

F35 User Manual

Note: When the function is set to Undefined, the device will not enable the punch state key.

F35 User Manual

13 Data Management

When the device is on the initial interface, press [M/OK] button > Data Mgt. to manage the relevant

data in the device.

Tap Delete Data on the Data Mgt. interface to delete the required data.

Function Description

Function Name Description

Delete Access Records /

Attendance Data

To delete the access records & attendance data conditionally.

Delete All Data

To delete the information and access records & attendance data of

all registered users.

Delete Admin Role

To remove all the administrator privileges.

Delete Access Control

To delete all the access data.

Delete Wallpaper

To delete all the wallpapers in the device.

Delete Screen Savers

To delete all the screen savers in the device.

Delete Contact List★

To delete all contact list of video intercom in the device.

F35 User Manual

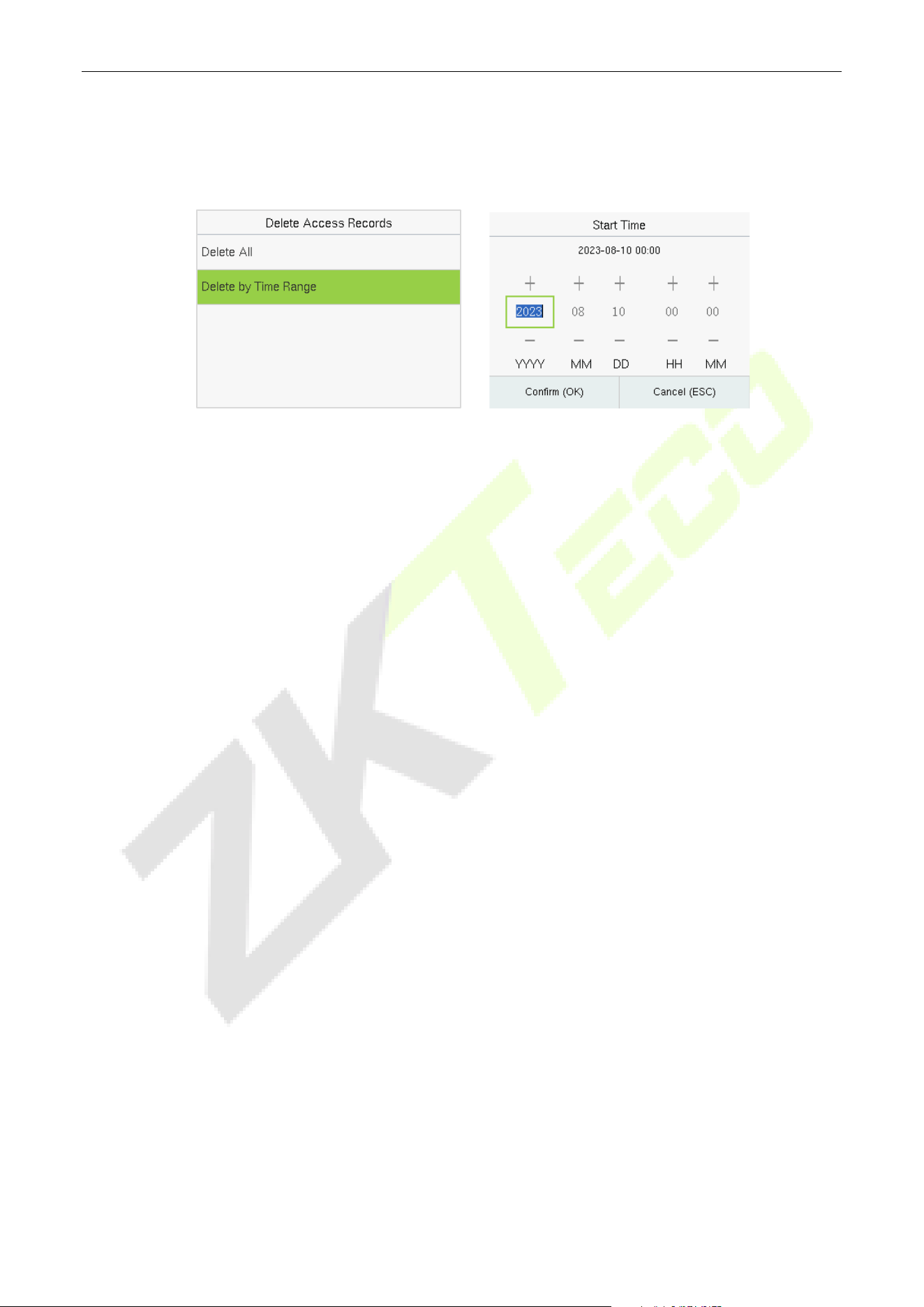

The user may select Delete All or Delete by Time Range when deleting the access records /

attendance data, to Delete by Time Range, you need to set a specific time range to delete all data

within a specific period.

F35 User Manual

14 Access Control

When the device is on the initial interface, press [M/OK] button > Access Control to set the schedule of

the door opening, locks control and to configure other parameters settings related to access control.

Access Control Terminal:

Time Attendance Terminal:

To get access, the registered user must meet the following conditions:

1. The relevant door’s current unlock time should be within any valid time zone of the user’s time

period.

2. The corresponding user’s group must be already set in the door unlock combination (and if there

are other groups, being set in the same access combo, then the verification of those group’s

members is also required to unlock the door).

3. In default settings, new users are allocated into the first group with the default group time zone,

where the access combo is "1" and is set in unlock state by default.

F35 User Manual

Access Control Options 14.1

Tap Access Control Options on the Access Control interface to set the parameters of the control lock

of the terminal and related equipment.

Access Control Terminal:

Time Attendance Terminal:

Function Description of Access Control Terminal:

Function Name Description

Gate Control Mode

It toggles between ON or OFF switch to get into gate control mode

or not.

When set to ON, the interface removes the Door Lock Delay, Door

Sensor Delay, and Door Sensor Type options.

Door Lock Delay (s)

The length of time that the device controls the electric lock to be in

unlock state.

Valid value: 1~99 seconds.

Door Sensor Delay (s)

If the door is not locked and is left open for a certain duration (Door

Sensor Delay), an alarm will be triggered.

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

F35 User Manual

Door Sensor Type

There are three Sensor types: None, Normal Open, and Normal

Closed.

None: It means the door sensor is not in use.

Normally Open: It means the door is always left open when

electric power is on.

Normally Closed: It means the door is always left closed when

electric power is on.

Verification Mode

The supported verification mode includes

Password/Fingerprint/Card, Fingerprint Only, User ID Only,

Password, Card Only, Fingerprint/Password, Fingerprint/Card, User

ID + Fingerprint, Fingerprint + Password, Fingerprint + Card,

Fingerprint + Password + Card, Password + Card, Password/Card,

User ID + Fingerprint + Password, Fingerprint + (Card/User ID).

Door Available Time Period

It sets the timing for the door so that the door is accessible only

during that period.

Normal Open Time Period

It is the scheduled time-period for "Normal Open" mode so that the

door is always open during this period.

Master Device

While configuring the master and slave devices, you may set the

state of the master as Out or In.

Out: A record of verification on the master device is a check-out

record.

In: A record of verification on the master device is a check-in

record.

Slave Device

While configuring the master and slave devices, you may set the

state of the slave as Out or In.

Out: A record of verification on the slave device is a check-out

record.

In: A record of verification on the slave device is a check-in record.

Auxiliary Input Configuration

Sets the door unlock time period and auxiliary output type of the

auxiliary terminal device. Auxiliary output types include None,

Trigger door open, Trigger Alarm, Trigger door open and Alarm.

Verify Mode by RS485

When the RS485 reader function is turned on, the verification

method is used when the device is used as a master or a slave.

Speaker Alarm

It transmits a sound alarm or disassembly alarm from the local.

When the door is closed or the verification is successful, the system

cancels the alarm from the local.

F35 User Manual

Reset Access Setting

The access control reset parameters include door lock delay, door

sensor delay, door sensor type, verification mode, door available

time period, normal open time period, master device, and alarm.

However, erased access control data in Data Mgt. is excluded.

Function Description of Time Attendance Terminal:

Function Name Description

Door Lock Delay (s)

The length of time that the device controls the electric lock to be in

unlock state.

Valid value: 0 to 10 seconds.

Door Sensor Delay (s)

If the door is not locked and is left open for a certain duration (Door

Sensor Delay), an alarm will be triggered.

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

Door Sensor Type

There are three Sensor types: None, Normal Open, and Normal

Closed.

None: It means the door sensor is not in use.

Normally Open (NO): It means the door is always left open when

electric power is on.

Normally Closed (NC): It means the door is always left closed

when electric power is on.

Door Alarm Delay(s)

When the state of the door sensor is inconsistent with that of the

door sensor type, alarm will be triggered after a time period; this

time period is the Door Alarm Delay (the value ranges from 1 to 999

seconds).

Retry Times to Alarm

When the number of failed verifications reach the set value (value

ranges from 1 to 9 times), the alarm will be triggered. If the set

value is None, the alarm will not be triggered after failed

verification.

Normal Close Time Period

It is the scheduled time-period for "Normal Close" mode so that the

door is always closed during this period.

Normal Open Time Period

It is the scheduled time-period for "Normal Open" mode so that the

door is always open during this period.

Auxiliary Input Configuration

Sets the door unlock time period and auxiliary output type of the

auxiliary terminal device. Auxiliary output types include None,

Trigger door open, Trigger Alarm, Trigger door open and Alarm.

F35 User Manual

Verify Mode by RS485

When the RS485 reader function is turned on, the verification

method is used when the device is used as a master or a slave.

Valid Holidays

To set if Normal Close Time Period or Normal Open Time Period

settings are valid in set holiday time period. Choose [ON] to enable

the set NC or NO time period in holiday.

Speaker Alarm

It transmits a sound alarm or disassembly alarm from the local.

When the door is closed or the verification is successful, the system

cancels the alarm from the local.

Reset Access Setting

The access control reset parameters include door lock delay, door

sensor delay, door sensor type, door alarm delay, normal close time

period, normal open time period, and alarm. However, erased

access control data in Data Mgt. is excluded.

Time Rule Settings / Time Schedule 14.2

Tap Time Rule Settings / Time Schedule on the Access Control interface to configure the time

settings.

 The entire system can define up to 50 Time Periods.

 Each time-period represents 10 Time Zones, i.e., 1 week and 3 holidays, and each time zone is a

standard 24 hour period per day and the user can only verify within the valid time-period.

 One can set a maximum of 3 time periods for every time zone. The relationship among these time-

periods is "OR". Thus, when the verification time falls in any one of these time-periods, the

verification is valid.

 The Time Zone format of each time-period is HH MM-HH MM, which is accurate to minutes

according to the 24-hour clock.

Tap the grey box to search the required Time Zone and specify the required Time Zone number

(maximum up to 50 zones).

On the selected Time Zone number interface, tap on the required day (that is Monday, Tuesday, etc.) to

set the time.

F35 User Manual

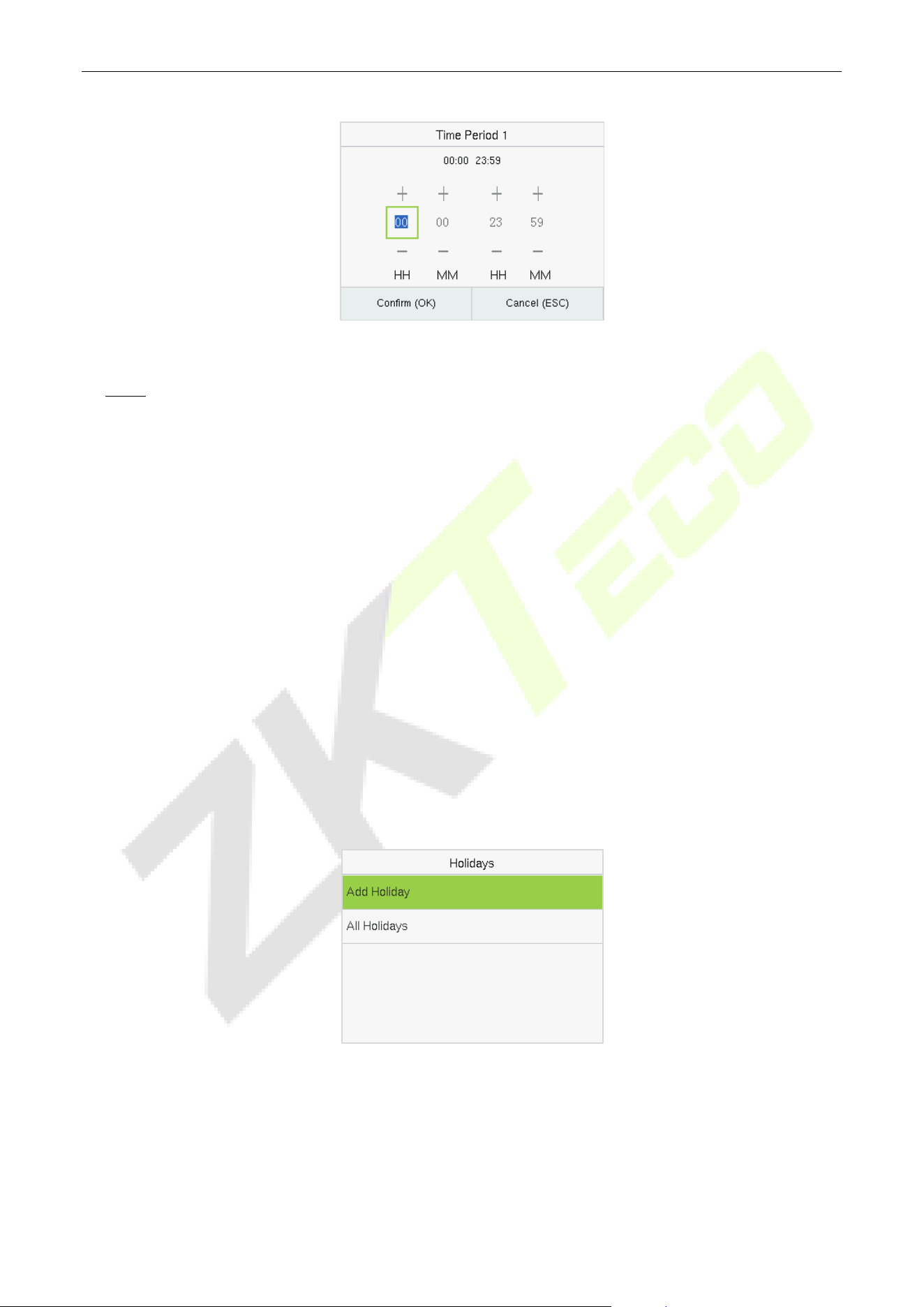

Specify the start and the end time, and then tap M/OK.

Note:

1. The door is inaccessible for the whole day when the End Time occurs before the Start Time (such as

23:57 to 23:56).

2. It is the time interval for valid access when the End Time occurs after the Start Time (such as 08:00

to 23:59).

3. The door is accessible for the whole day when the End Time occurs after the Start Time (such that

Start Time is 00:00 and End Time is 23:59).

4. The default Time Zone 1 indicates that the door is open all day long.

Holidays 14.3

When there is a holiday, you may need a different access time; however, altering everyone's access time

one by one is extremely time-consuming. Thus, a holiday access time that applies to all workers can be

set, and the user will be able to open the door during the holidays.

Tap Holidays on the Access Control interface to set the holiday access.

 Add a New Holiday:

Tap Add Holiday on the Holidays interface and set the holiday parameters.

F35 User Manual

Access Control Terminal:

Time Attendance Terminal:

 Edit a Holiday:

On the Holidays interface, select a holiday item to be modified. Tap Edit to modify holiday parameters.

 Delete a Holiday:

On the Holidays interface, select a holiday item to be deleted and tap Delete. Tap M/OK to confirm the

deletion. After deletion, this holiday does not display on the All Holidays interface.

Access Groups 14.4

Grouping is to manage users in groups, only for time attendance terminal.

The default time zone for group members is the group time zone, while users can set their personal

time zone. When the group verification mode and the user verification mode overlap, the user

verification mode takes priority. Each group can set a maximum of 3 time zones; as long as one of them

is valid, the group can be successfully verified. The newly enrolled user is assigned to Access Group 1 by

default, but can be assigned to another access group.

Tap Access Groups on the Access Control interface.

 Add a New Holiday:

Tap New Group on the Access Group interface.

F35 User Manual

Note:

1. The system has a default access group numbered 1, which cannot be deleted but can be modified.

2. A number cannot be modified again after being set.

3. When the holiday is set to be valid, the personnel in a group can open the door only when group

time period overlaps with the holiday time period.

4. When the holiday is set to be invalid, the access control time of the personnel in this group is not

affected by holidays.

 Edit Group:

On the All Group interface, tap to select the access group item to be modified. Tap Edit to modify

group parameters.

 Delete a Group:

On the All Group interface, select an access group item to be deleted and tap Delete. Tap M/OK to

confirm the deletion. After deletion, this group does not display on the All Group interface.

Combined Verification 14.5

Access groups are arranged into different door-unlocking combinations to achieve multiple

verifications and strengthen security.

In a door-unlocking combination, the range of the combined number N is 0

≤ N ≤ 5 and the number of

members N may all belong to one access group or may belong to five different access groups.

Tap Combined Verification on the Access Control interface to configure the combined verification

setting.

F35 User Manual

On the combined verification interface, tap the Door-unlock combination to be set, and tap the up and

down arrows to input the combination number, and then tap M/OK.

For Example:

 If the Door-unlock combination 1 is set as (01 03 05 06 08). It indicates that the unlock

combination 1 consists of 5 people and all the 5 individuals are from 5 groups, namely, AC Group 1,

AC Group 3, AC Group 5, AC Group 6, and AC Group 8, respectively.

 If the Door-unlock combination 2 is set as (02 02 04 04 07). It indicates that the unlock

combination 2 consists of 5 people; the first two are from AC Group 2, the next two are from AC

Group 4, and the last person is from AC Group 7.

 If the Door-unlock combination 3 is set as (09 09 09 09 09). It indicates that there are 5 people in

this combination; all of which are from AC Group 9.

 If the Door-unlock combination 4 is set as (03 05 08 00 00). It indicates that the unlock

combination 4 consists of only three people. The first person is from AC Group 3, the second

person is from AC Group 5, and the third person is from AC Group 8.

Note: To delete the door-unlock combination, set all Door-unlock combinations to 0.

Anti-passback Setup 14.6

A user may be followed by some person(s) to enter the door without verification, resulting in a security

breach. So, to avoid such situations, the Anti-Passback option was developed. Once it is enabled, the

check-in and check-out record must occur alternatively to open the door to represent a consistent

pattern.

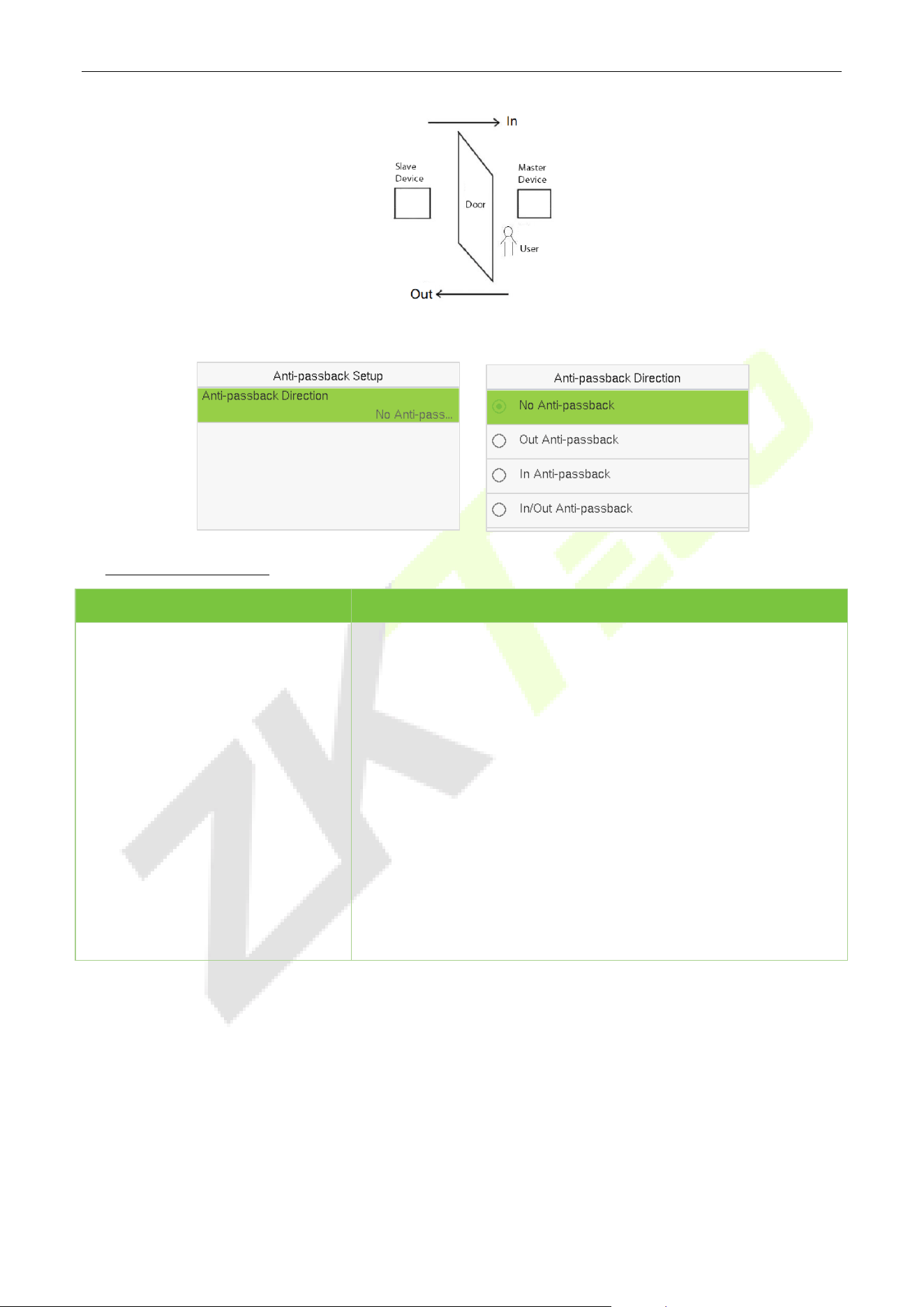

This function requires two devices to work together:

One device is installed on the indoor side of the door (master device), and the other one is installed on

the outdoor side of the door (the slave device). The two devices communicate via the Wiegand signal.

The Wiegand format and Output type (User ID/Card Number) adopted by the master device and slave

device must be consistent.

F35 User Manual

Tap Anti-passback Setup on the Access Control interface.

Function Description:

Function Name Description

Anti-passback Direction

No Anti-passback: The Anti-Passback function is disabled, which

means successful verification through either the master device or

slave device can unlock the door. The attendance state is not saved

in this option.

Out Anti-passback: The user can check-out only if the last record is

a check-in record otherwise an alarm is raised. However, the user

can check-in freely.

In Anti-Passback: The user can check-in again only if the last

record is a check-out record otherwise an alarm is raised. However,

the user can check-out freely.

In/Out Anti-passback: In this case, a user can check-in only if the

last record is a check-out or the user can check-out only if the last

record is a check-in otherwise the alarm is triggered.

Duress Options Settings 14.7

Once a user activates the duress verification function with a specific authentication method(s), and

when he/she is under coercion and authenticates using duress verification, the device unlocks the door

as usual. At the same time, a signal is sent to activate the alarm as well.

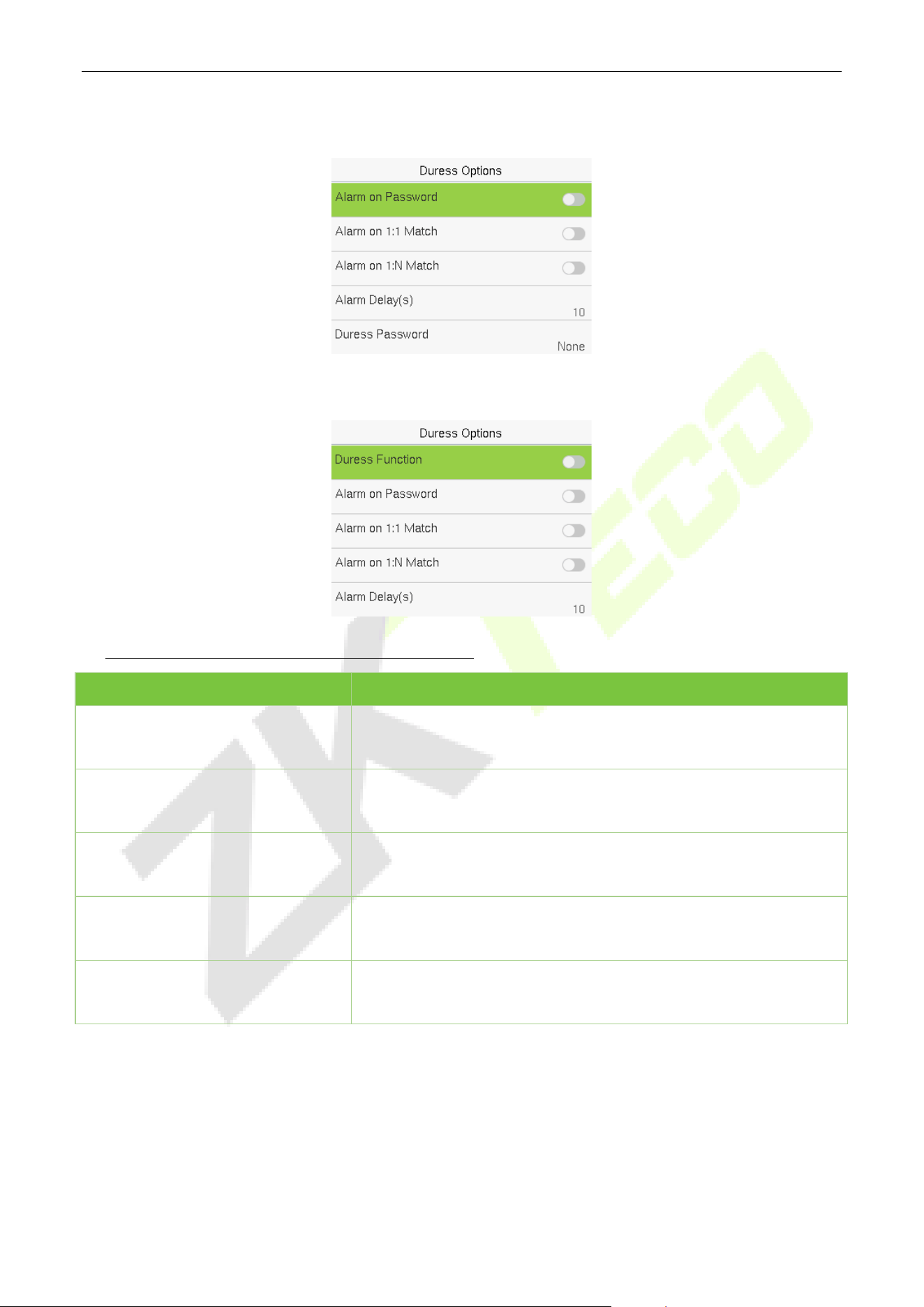

On the Access Control interface, tap Duress Options to configure the duress settings.

F35 User Manual

Access Control Terminal:

Time Attendance Terminal:

Function Description of Access Control Terminal:

Function Name Description

Alarm on Password

When a user uses the password verification method, an alarm

signal will be generated, otherwise there will be no alarm signal.

Alarm on 1:1 Match

When a user uses the 1:1 verification method, an alarm signal will

be generated, otherwise there will be no alarm signal.

Alarm on 1:N Match

When a user uses the 1:N verification method, an alarm signal will

be generated, otherwise there will be no alarm signal.

Alarm Delay (s)

Alarm signal will not be transmitted until the alarm delay time is

elapsed. The value ranges from 1 to 999 seconds.

Duress Password

Set the 6-digit duress password. When the user enters this duress

password for verification, an alarm signal will be generated.

F35 User Manual

Function Description of Time Attendance Terminal:

Function Name Description

Duress

Function

Enable/Disable the duress function.

Alarm on

Password

In [ON] state, when a user uses password verification method, alarm will be

triggered. In [OFF] state, no alarm signal will be triggered.

Alarm on 1:1

Match

When a user uses the 1:1 verification method, an alarm signal will be generated,

otherwise there will be no alarm signal.

Alarm on 1:N

Match

When a user uses the 1:N verification method, an alarm signal will be generated,

otherwise there will be no alarm signal.

Alarm Delay (s)

Alarm signal will not be transmitted until the alarm delay time is elapsed. The value

ranges from 1 to 999 seconds.

F35 User Manual

15 Attendance Search

Once the identity of a user is verified, the access record/attendance data is saved in the device. This

function enables users to check their event logs.

When the device is on the initial interface, press [M/OK] button > Attendance Search to search for the

required event Logs.

1. Enter the user ID to be searched

and tap M/OK. If you want to

search for records of all users,

tap M/OK without entering any

user ID.

2. Select the time range in which

the records need to be

searched.

3. Once the record search completes.

Tap the record highlighted in

green to view its details.

4. The figure shows the details of

the selected record.

F35 User Manual

16 Print Settings★

Devices with a printing function can print attendance records when a printer is connected.

When the device is on the initial interface, press [M/OK] button > Print.

Data Field Setup 16.1

Select Data Field Setup on the Print interface. Toggle button to turn on/off the fields requiring a

print.

Print Options Settings 16.2

Select the Printer Options on the Print interface. Toggle button to enable or disable the Paper Cut

function.

F35 User Manual

Remarks: To turn on the Paper Cut function, it is required to connect the device with a printer with paper

cutting function, so that the printer will cut papers according to the selected printing information while

printing.

F35 User Manual

17 Autotest

When the device is on the initial interface, press [M/OK] button > Autotest, it enables the system to

automatically test whether the functions of various modules are working normally, including the LCD,

Voice, Microphone, Keyboard, Fingerprint, Camera and Real-Time Clock (RTC).

Function Description

Function Name Description

Test All

To automatically test whether the LCD, Voice, Microphone,

Fingerprint, Camera and Real-Time Clock (RTC) are normal.

Test LCD

To automatically test the display effect of LCD screen by displaying

full-color, pure white, and pure black to check whether the screen

displays colors normally.

Test Voice

To automatically test whether the audio files stored in the device

are complete and the voice quality is good.

Microphone test

To test if the microphone is working properly by speaking into the

microphone.

Test Keyboard

The terminal tests whether every key on the keyboard works

normally. Tap any key on the Test Keyboard interface to check

whether the tapped key matches the key displayed on the screen.

The keys are displayed as dark grey before and turn blue after

tapped. Tap ESC to exit the test.

Test Fingerprint Sensor

To test the fingerprint sensor by pressing a finger on the scanner to

check if the acquired fingerprint image is clear. When you are

pressing a finger on the scanner, the fingerprint image will display

on the screen.

Cam Test

To test if the camera functions properly.

Test Clock RTC

To test the RTC. The device tests whether the clock works normally

and accurately with a stopwatch. Touch the screen to start

counting and tap it again to stop counting.

F35 User Manual

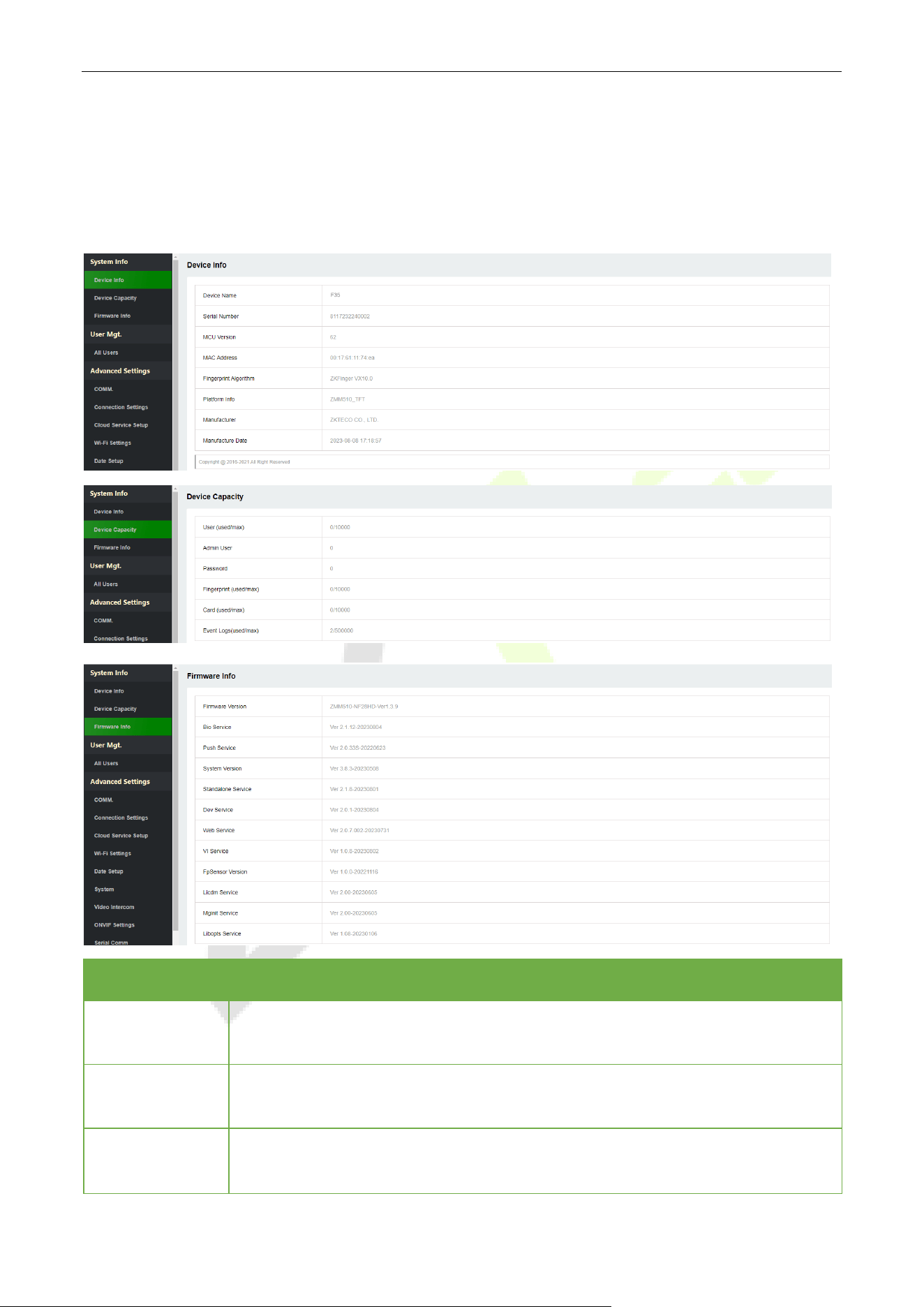

18 System Information

When the device is on the initial interface, press [M/OK] button > System Info to view the storage

status, version information of the device, firmware information and privacy policy.

Function Description

Function Name Description

Device Capacity

Displays the current device's user storage, fingerprint, card and

password storage, administrators and records.

Device Info

Displays the device's name, serial number, MAC address,

Fingerprint algorithm, Platform information, MCU Version and

Manufacturer.

Firmware Info

Displays the firmware version and other version information of the

device.

Display the device's privacy policy.

F35 User Manual

19 Connect to Webserver

According to the configured network login, allows the Webserver to remotely view the information of the

device (hardware, software, capacity and data, etc.), set up the system (communication, access control and

system functions, etc.), add users and upgrade the system.

1. Open a browser to enter the address to log in to the WebServer, the address is https:// Serial IP

Address:1443. For example: https://192.168.1.201:1443.

2. Enter the WebServer account and password, the default account is: admin, password: admin@123.

F35 User Manual

Note:

1. After logging in for the first time, it is suggested that the users change their original password, please

refer to Change Password.

2. In order to retrieve the password easily, please register a super admin first, please refer to 8.1 User

Registration.

Forgot Password 19.2

 Method 1 (When there is a super admin):

If you forgot the password of WebServer, you could reset it by the registered super admin. The detailed

steps are as follows:

1. C

lick the icon on the login interface.

2. On the pop-up page, enter the relevant information of the super admin user as prompted.

F35 User Manual

3. After a successful reset, enter the default account and password (account: admin, password:

admin@123) on the login interface to log in.

4. For security reasons, please change your password after successfully logging in.

F35 User Manual

Note: The super admin must exist.

 Method 2 (When there is not a super admin):

If the network of the device is normal and ZKBio CVAccess / ZKBioTime 8.0 has been connected, you can

reset the password by sending the super admin account and password from the server.

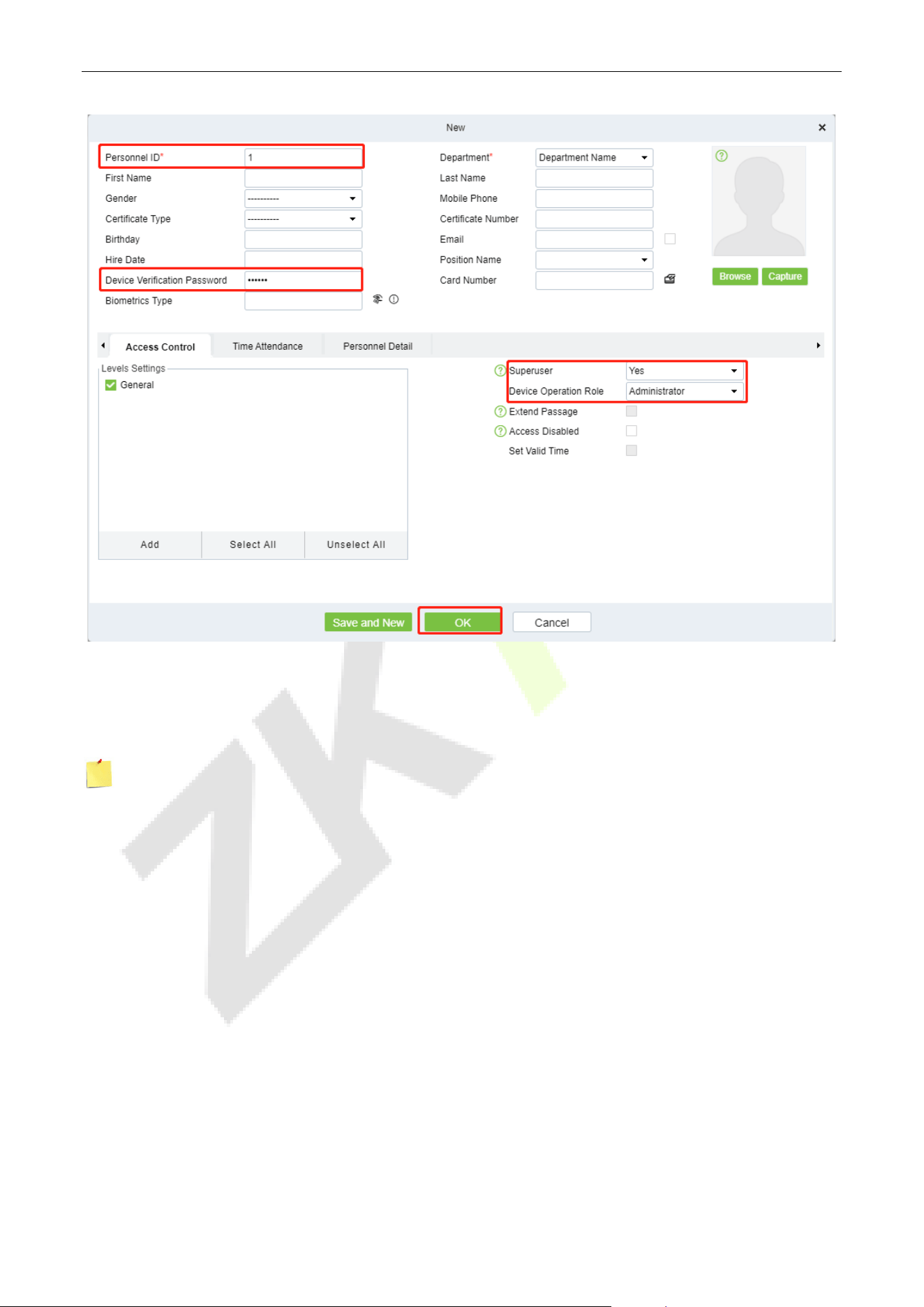

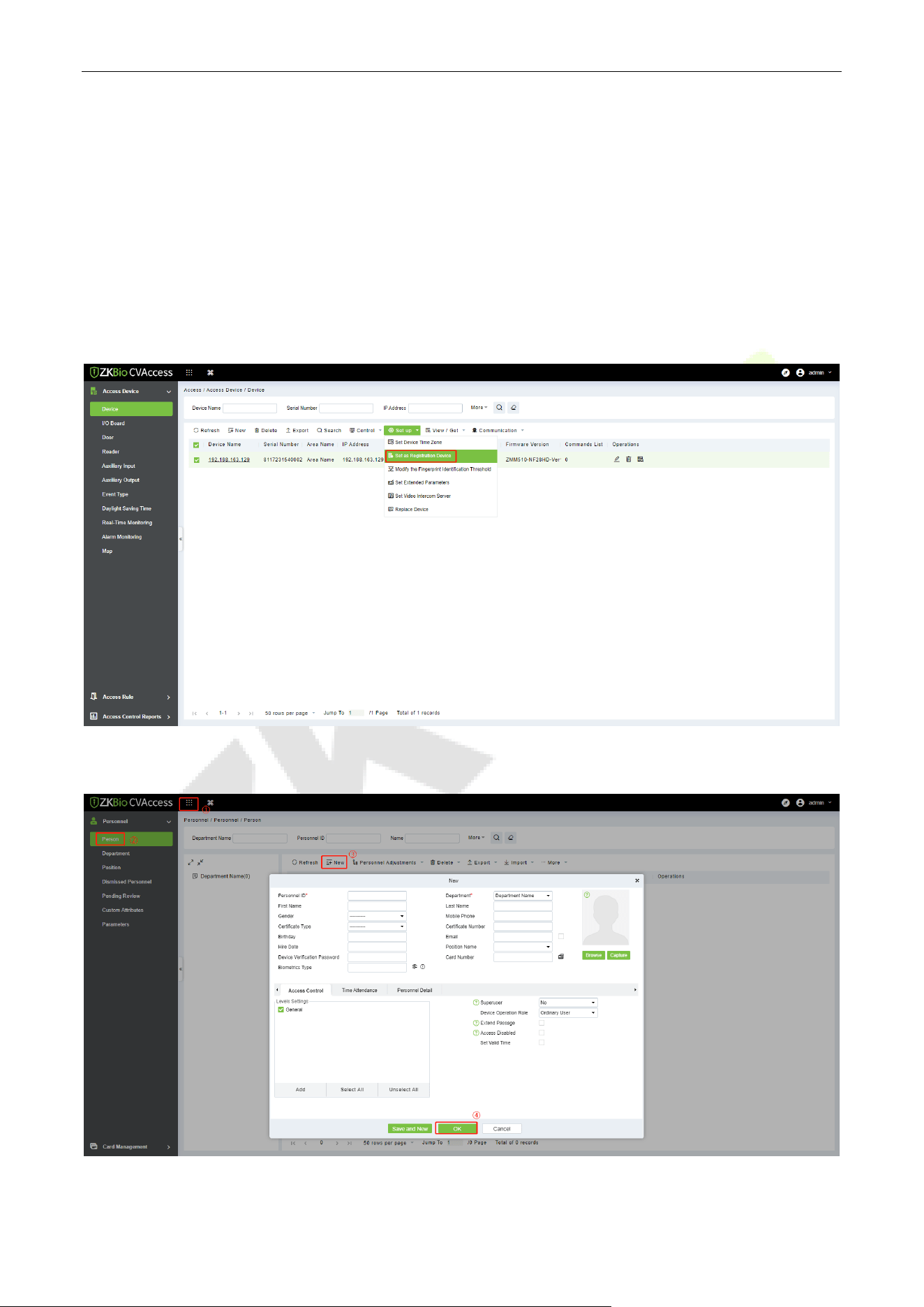

1. Click Personnel > Person > New on the ZKBio CVAccess / ZKBioTime 8.0 Server; register the super

admin information and set the super admin role on the new interface as required.

F35 User Manual

2. After registering the information of the super admin, click OK.

3. Click Access > Device > Control > Synchronize All Data to Devices to synchronize all the data to

the device including the new users.

Note: For other specific operations, please refer ZKBio CVAccess User Manual or ZKBioTime8.0 User

Manual.

4. After the data synchronization is successful, you can reset the password with the newly registered

super admin. The operation steps are the same as method 1.

 Method 3:

If the device has not registered a super admin and cannot connect to the server, please contact our after-

sales technicians to help retrieve the password.

F35 User Manual

User Management 19.3

19.3.1 User Registration

 Basic Information

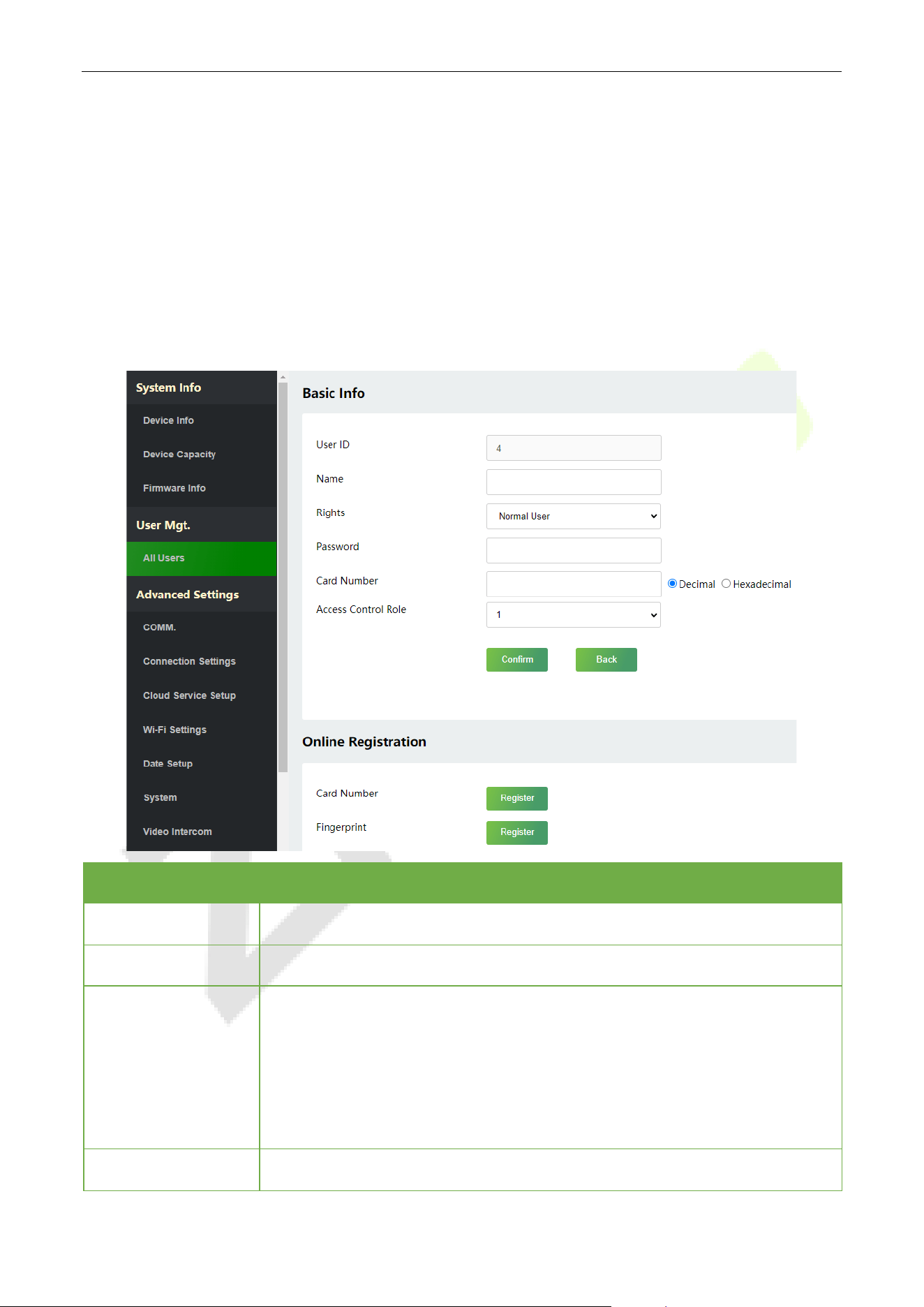

Click All Users > New User on the WebServer.

In this interface, you can register the User ID, Name, Rights, Password, Card Number and Access Control

Role of the new user, click Confirm to save.

Function Name Description

User ID

The user ID may contain 1 to 14 characters by default.

Name

A name can be up to 63 characters.

Rights

Set the role for the user as either Normal User or Super Admin.

 Super Admin: The Super Admin owns all management privileges in the

WebServer.

 Normal User: If the Super Admin is already registered in the WebServer,

then the Normal Users will not have the privileges to manage the system

and can only access authentication verifications.

Password Set the user's registration password.

F35 User Manual

Card Number

Select the type of the card number and enter it manually, after registering the

user's card number, the user can swipe the card for verification.

Access Control Role

The Access Control Role sets the door access privilege for each user, new users

will be added to Group 1 by default, which can be reassigned to other required

groups. The system supports up to 10 access control groups.

Note:

1. During the initial registration, you can modify your ID; you cannot be modifying the registered ID

once after the successful registration.

2. If the message "Registration failed!" pops up, you must choose a different User ID because the one

you entered already exists.

 Online Registration

In this interface, you can register the User’s Card Number and Fingerprint. The verification mode can only

be registered after the basic information is confirmed.

 Register C

ard Number

In the current interface, behind the card number bar, click Register, and the device will display the card

number registration interface in real time, swipe the card underneath the card reading area. The

registration of the card will be successful.

F35 User Manual

 Register Fingerprint

In the current interface, behind the fingerprint bar, click Register, and the device will display the

fingerprint registration interface in real time, press your finger onto the fingerprint sensor of the device,

and follow the instructions to complete the registration.

For fingerprint pressing operation, please refer to Finger Positioning

19.3.2 Search for Users

Click All Users on the WebServer, click the search bar to enter the required retrieval keyword (where the

keyword may be the user ID, surname or full name) and the system will search for the related user

information.

19.3.3 Edit User

On the All Users interface, select the required user from the list and click Change User Info to edit the

user information.

F35 User Manual

Note: The process of editing the user information is the same as that of adding a new user, except that

the User ID cannot be modified. The process in detail refers to 19.3.1 User Registration.

19.3.4 Delete User

On the All Users interface, select the required user from the list and click Delete User to delete the user.

Here individual deletion and batch deletion is available.

F35 User Manual

Advanced Settings 19.4

19.4.1 Communication Settings

Click COMM. on the WebServer.

Change the IP address of the device as needed, click Confirm to save, and the device will automatically

synchronize the IP information.

Function Name Description

DHCP

Select whether to obtain the IP Address by automatically.

IP Address

The default IP address is 192.168.1.201. It can be modified according to network

availability.

Subnet Mask

The default Subnet Mask is 255.255.255.0. It can be modified according to

network availability.

Gateway

The Default Gateway address is 0.0.0.0. It can be modified according to network

availability.

DNS

The default DNS address is 0.0.0.0. It can be modified according to network

availability.

Note: After the IP address of the device is changed successfully, you need to log out of the currently

WebServer and log in again to the IP address you just changed to connect to the device. For WebServer

F35 User Manual

19.4.2 Connection Settings

Click Connection Settings on the WebServer.

Function Name Description

Device ID

It is the identification number of the device, which ranges between 0 and 255.

Change Connection

Password

The connection password should be 6-digit.

19.4.3 Cloud Service Setup

Click Cloud Service Setup on the WebServer.

Cloud Server Setup was used to connect to the ZKBio CVAccess and ZKBioTime 8.0 software, please refer to

12.1

Set the Communication Address.

F35 User Manual

Function Name Description

Enable

Domain

Name

Cloud Server

Address

Once this function is enabled, the domain name mode “http://...”

will be used, such as http://www.XYZ.com, while “XYZ” denotes the

domain name (when this mode is turned ON).

Disable

Domain

Name

Cloud Server

Address

IP address of the ADMS server.

Cloud Server

Port

Port used by the ADMS server.

Proxy Server Setup

When you choose to enable the proxy, you need to set the IP

address and port number of the proxy server.

19.4.4 Wi-Fi Settings★

The device supports the Wi-Fi module, which is built-in within the hardware, to enable data transmission

via Wi-Fi and establish a wireless network environment. By default, the Wi-Fi is turned off. The user needs

to enable and set the related parameters on the WebServer.

F35 User Manual

 Click the button to enable Wi-Fi function.

 When Wi-Fi is enabled, the device will search for the available Wi-Fi within the network range.

 Click Connect to Wi-Fi after the required Wi-Fi name from the available list and input the correct

password, and then click [Confirm].

 After successful verification, the connection status will display “Connected”.

19.4.5 Date Setup

Click Date Setup on the WebServer.

 Click Manual to manually set the date and time and click Confirm to save.

 Select Open or Close the Daylight Saving Mode function. If opened, set the Daylight Saving Time

and End of Daylight Saving.

F35 User Manual

19.4.6 System Settings

Click System on the WebServer.

It helps to set related system parameters to optimize the accessibility of the device.

F35 User Manual

Function Name Description

Volume

Adjust the volume of the device which can be set between 0 and 100.

Duplicate Punch

Period(m)

Within a set time period (unit: minutes), the duplicated attendance record will

not be reserved (value ranges from 1 to 999999 minutes).

Language

Select the language of the WebServer and device.

Communication

Protocol

Set the communication protocol of the device.

Device Type

Set the device as an access control terminal or attendance terminal.

Note: After changing the device type, the device will delete all the data and

restart, and some functions will be adjusted accordingly.

Doorbell Setting

Doorbell Only: When the user clicks on the doorbell button, only the doorbell

rings.

Video Intercom Only: When the user clicks on the doorbell button, only the

device makes a call.

Doorbell+Video Intercom: When the user clicks on the doorbell button, the

doorbell rings and the device makes a call at the same time.

Alphanumeric User

Enable/Disable the alphanumeric as User ID.

User ID Masking

When enabled, and then the user is successfully compared and verified, the

User ID in the displayed verification result will be replaced with an * to achieve

secure protection of sensitive private data.

Display Verification

Name

Set whether to display the username in the verification result interface.

Display Verification

Mode

Set whether to display the verification mode in the verification result interface.

Standalone

Communication

To avoid being unable to use when the device is offline, you can download the

C/S software (such as ZKAccess 3.5) on your computer in advance for offline

use.

HTTPS

Based on HTTP, transmission encryption and identity authentication ensure the

security of the transmission process.

Note:

1. After selecting the language and clicking Confirm, the device will automatically reboot and display

the changed language.

2. Then WebServer will not display the switched language until the device reboots and log in again.

F35 User Manual

19.4.7 Video Intercom

★

Click Video Intercom on the WebServer.

The video intercom function supports WAN, WAN is suitable for mobile phone.

For more details, please refer to 22. Connecting to ZSmart App

19.4.8 SIP Settings★

Note: This function needs to be used with the indoor station.

Click SIP Settings on the WebServer.

F35 User Manual

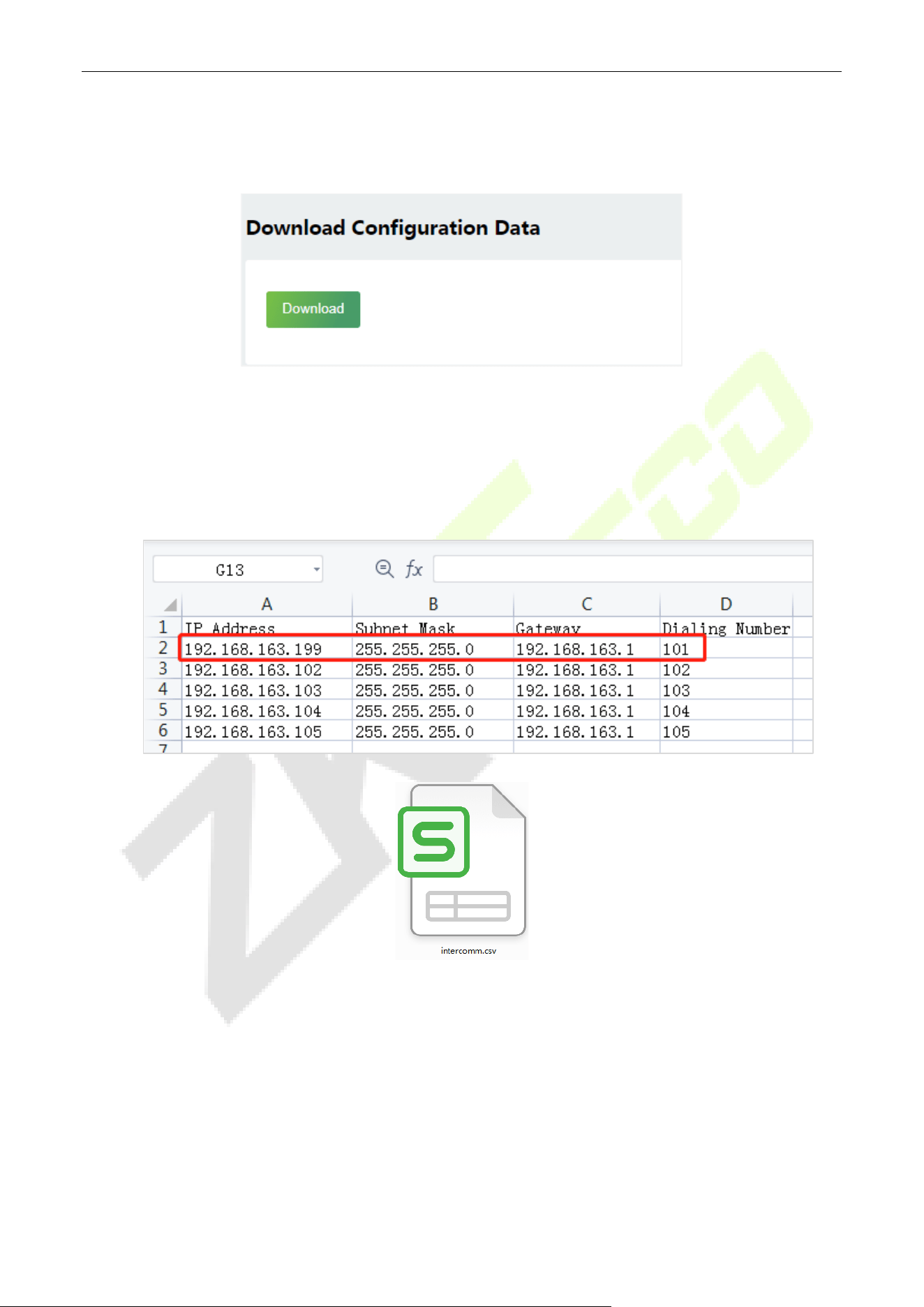

 Download Configuration Data

1. Click Download to download the file.

2. Open the downloaded file and manually modify the indoor station's communication address and

device number.

IP Address/Subnet Mask/Gateway: Must be the same as the indoor station to be connected.

Dialling Number: Customize the number of the indoor station, you can enter the value on F35 to call

the indoor station quickly for video intercom.

 Upload Configuration Data

1. Once the form is set up and saved, click Uploading... to upload the configuration form.

F35 User Manual

2. Click Confirm to sync the parameters to F35.

For more details, please refer to 23. Connecting to SIP.

19.4.9 ONVIF Settings★

Note: This function needs to be used with the network video recorder (NVR).

Click ONVIF Settings on the WebServer.

Function Name Description

Enable Authentication

Enable/Disable the Authentication Function. When it is disabled,

there is no need to input the User Name and Password when

adding the device to the NVR.

User Name

Set the User Name. The default is admin.

Password

Set the password.

Server Port

The default is 8000, and cannot be modified.

F35 User Manual

For more details, please refer to 11.5 ONVIF Settings.

19.4.10 Serial Comm

Click Serial Comm on the WebServer.

Function Name Description

Serial Port

No Using: No communication with the device through the serial port.

Master Unit: When RS485 is used as the function of "Master Unit", it can be

connected to a reader.

Print Function: The device can be connected to the printer when RS232

enables the print function.

DM10: When RS485 is used as the function of “DM10”, it can be connected to

DM10 to control the lock relay.

(Note: When selecting DM10 or switching from DM10 to other option

, the

device will restart to take effect.)

Baudrate

There are 4 baudrate options at which the data communicates with PC. They

are: 115200 (default), 57600, 38400, and 19200.

The higher the baudrate, the faster is the communication speed, but also less

reliable.

Hence, a higher baudrate can be used when the communication distance is

short; when the communication distance is long, choosing a lower baudrate is

more reliable.

F35 User Manual

19.4.11 Wiegand Setup

Click Wiegand Setup on the WebServer.

It is used to set the Wiegand input and output parameters.

Function Name Description

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits, 50 bits and 64 bits.

Wiegand Bits

The number of bits of the Wiegand data.

ID Type

Select between the User ID and card number.

F35 User Manual

19.4.12 Access Control Options

Click Access Control Options on the WebServer.

On the Access Control interface to set the parameters of the control lock of the terminal and related

equipment.

Access Control Terminal:

Function Name Description

Door Lock

Delay(s)

The length of time that the device controls the electric lock to be in unlock state.

Valid value: 1~99 seconds; 0 seconds represents disabling the function.

Door Sensor

Delay(s)

If the door is not locked and is left open for a certain duration (Door Sensor Delay),

an alarm will be triggered.

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

Door Sensor Type

There are three Sensor types: None, Normal Open, and Normal Closed.

None: It means the door sensor is not in use.

Normally Open: It means the door is always left open when electric power is on.

Normally Closed: It means the door is always left closed when electric power is on.

Master Device

While configuring the master and slave devices, you may set the state of the master

as Out or In.

Out: A record of verification on the master device is a check-out record.

In: A record of verification on the master device is a check-in record.

Slave Device

While configuring the master and slave devices, you may set the state of the slave

as Out or In.

Out: A record of verification on the slave device is a check-out record.

In: A record of verification on the slave device is a check-in record.

F35 User Manual

Attendance Terminal:

Function Name Description

Door Lock

Delay(s)

The length of time that the device controls the electric lock to be in unlock state.

Valid value: 1~255 seconds; 0 seconds represents disabling the function.

Door Sensor

Delay(s)

If the door is not locked and is left open for a certain duration (Door Sensor Delay),

an alarm will be triggered.

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

Door Alarm

Delay(s)

When the state of the door sensor is inconsistent with that of the door sensor type,

alarm will be triggered after a time period; this time period is the Door Alarm Delay

(the value ranges from 1 to 999 seconds).

Door Sensor Type

There are three Sensor types: None, Normal Open, and Normal Closed.

None: It means the door sensor is not in use.

Normally Open: It means the door is always left open when electric power is on.

Normally Closed: It means the door is always left closed when electric power is on.

F35 User Manual

Device Management 19.5

19.5.1 Device Management

Click Device Management on the WebServer.

Function Name Description

Clear Administrator

Choose whether to change the super administrator into a normal user.

Restart

Choose whether to restart the device.

Reset

The Reset function restores the device settings such as communication and

system settings to the default factory settings (this function does not clear

registered user data).

Note: After reset,

the IP of the device is restored to the original

192.168.1.201, please refer to 19.4.1 Communication Settings to modify the

IP.

Close SSH

SSH is used to enter the background of the device for maintenance, choose

whether to close the SSH.

F35 User Manual

Delete All Data

To delete the

information and attendance logs/access records of all

registered users.

Delete Access Control

To delete all the access data.

Delete

Access/Attendance

Records

To delete all the access/attendance records.

19.5.2 Updata Firmware

Click Updata Firmware on the WebServer.

Select an upgrade file and click Confirm to complete firmware upgrade operation.

Note: If the upgrade file is needed, please contact our technical support. Firmware upgrade is not

recommenced under normal circumstances.

You can also choose to update firmware online. Click Detection upgrade it may have the following 3

scenarios:

 If the query fails, the interface will prompt "Query Failed".

F35 User Manual

 If the firmware version of the device is latest, it will prompt that the current firmware version is

already the latest.

 If the firmware version of the device is not the latest, the version number and change log of the latest

version will be displayed. Users can choose whether to update to the latest firmware version.

19.5.3 Change Password

Click Change Password on the WebServer.

In this interface, you can change the password of WebServer.

19.5.4 Operation Log

Click Operation Log on the WebServer.

All the user’s operation records on the device or WebServer are saved. Users can search and download these logs

by time.

F35 User Manual

19.5.5 Download Firmware Logs

Click Download Firmware Logs on the WebServer.

In this interface, you can select download the main, biometric, or dev.log.

F35 User Manual

System Information 19.6

Click System Information on the WebServer.

In this interface, you can view the data capacity, device and firmware information of the current device.

Function Name Description

Device Info

Displays the device's name, serial number, MCU version, MAC address, fingerprint

algorithm version information, platform and manufacturer information.

Device Capacity

Displays the current device's user storage, password, fingerprint, card storage,

administrators, and event logs.

Firmware

Information

Displays the firmware version and other version information of the device.

F35 User Manual

20 Connect to ZKBio CVAccess Software

Set the Communication Address 20.1

1. Tap COMM. > Ethernet in the main menu to set the IP address and gateway of the device.

(Note: The IP address should be able to communicate with the ZKBio CVAccess server)

2. In the main menu, click COMM. > Cloud Server Setting to set the server address and server port.

Server address: Set the IP address as of ZKBio CVAccess server.

Server port: Set the server port as of ZKBio CVAccess.

Add Device on the Software 20.2

Add the device by searching. The process is as follows:

1. Click Access > Device > Search > Search, to open the Search interface in the software.

2. Click Search, and it will prompt [Searching……].

3. After searching, the list and total number of access controllers will be displayed.

F35 User Manual

4. Click [Add] in operation column, a new window will pop-up. Select Icon type, Area, and Add to Level

from each dropdown and click [OK] to add the device.

5. After the addition is successful, the device will be displayed in the device list.

Add Personnel on the Software and Online Fingerprint 20.3

Registration

1. In the device list, select the device and click Set up > Set as Registration Device.

2. Click Personnel > Person > New:

F35 User Manual

3. Fill in all the required fields of the user and click to enter the online fingerprint registration

interface.

4. Click Driver Download to install the driver first.

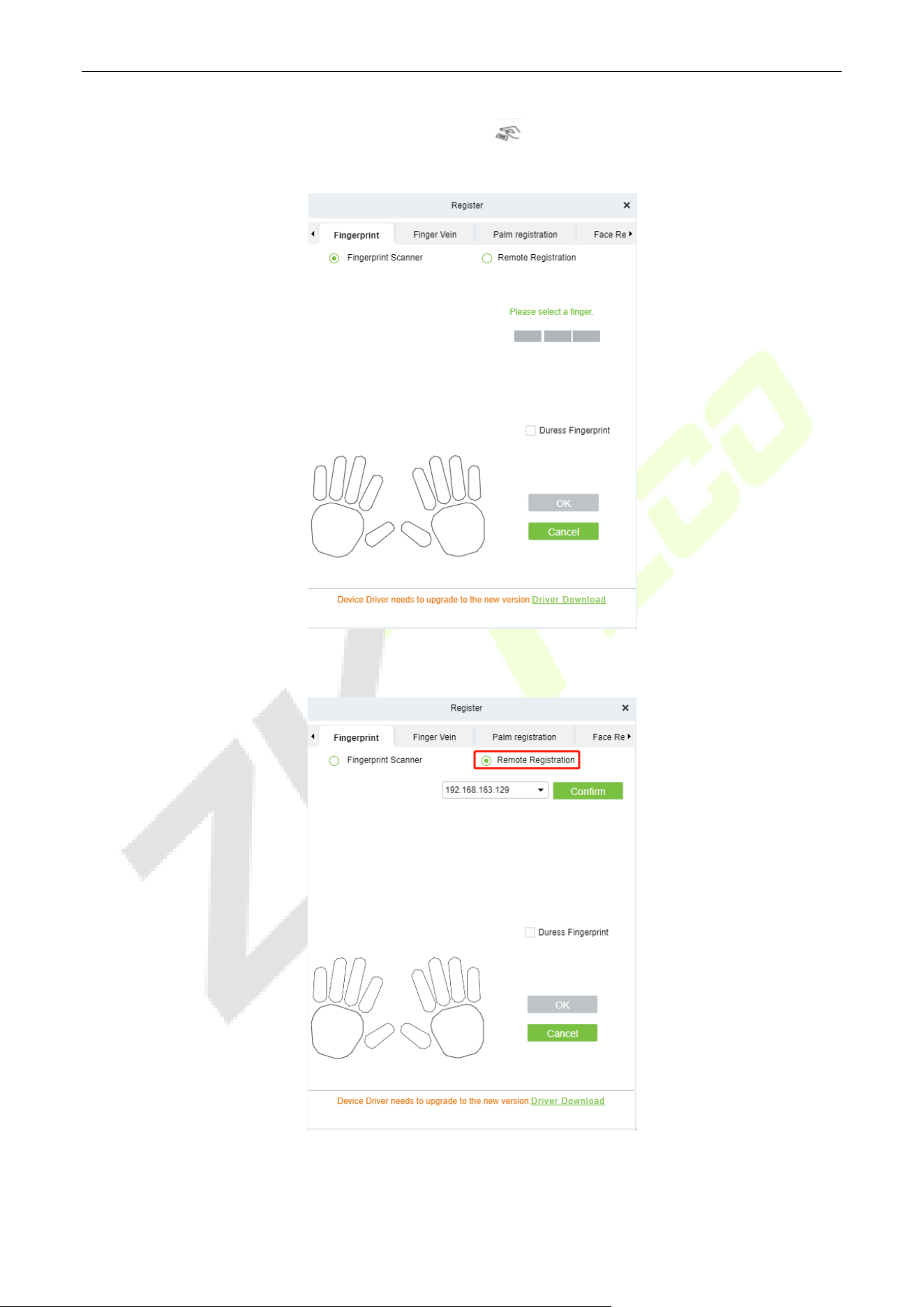

5. Select Remote Registration, then select the IP address of the device and click Confirm.

6. Select the finger you want to register and press your finger on the fingerprint sensor of the device

three times. If the fingerprint is successfully registered, the device will prompt "Enrolled successfully".

F35 User Manual

7. If you want to register a duress fingerprint, you can click Duress Fingerprint before registering the

fingerprint.

 Duress fingerprint: In any case, a duress alarm is generated when a fingerprint matches a

duress fingerprint.

8. Click OK to save the user.

9. Click Access > Device > Control > Synchronize All Data to Devices to synchronize all the data to

the device including the new users.

Note: For other specific operations, please refer the ZKBio CVAccess User Manual.

21 Connect to ZKBioTime 8.0 Software

Set the Communication Address 21.1

1. Tap COMM. > Ethernet in the main menu to set the IP address and gateway of the device.

(Note: The IP address should be able to communicate with the ZKBioTime 8.0 server, preferably in

the same network segment with the server address)

2. In the main menu, click COMM. > Cloud Server Setting to set the server address and server port.

Server address: Set the IP address as of ZKBioTime 8.0 server.

Server port: Set the server port as of ZKBioTime 8.0 server.

Add Device on the Software 21.2

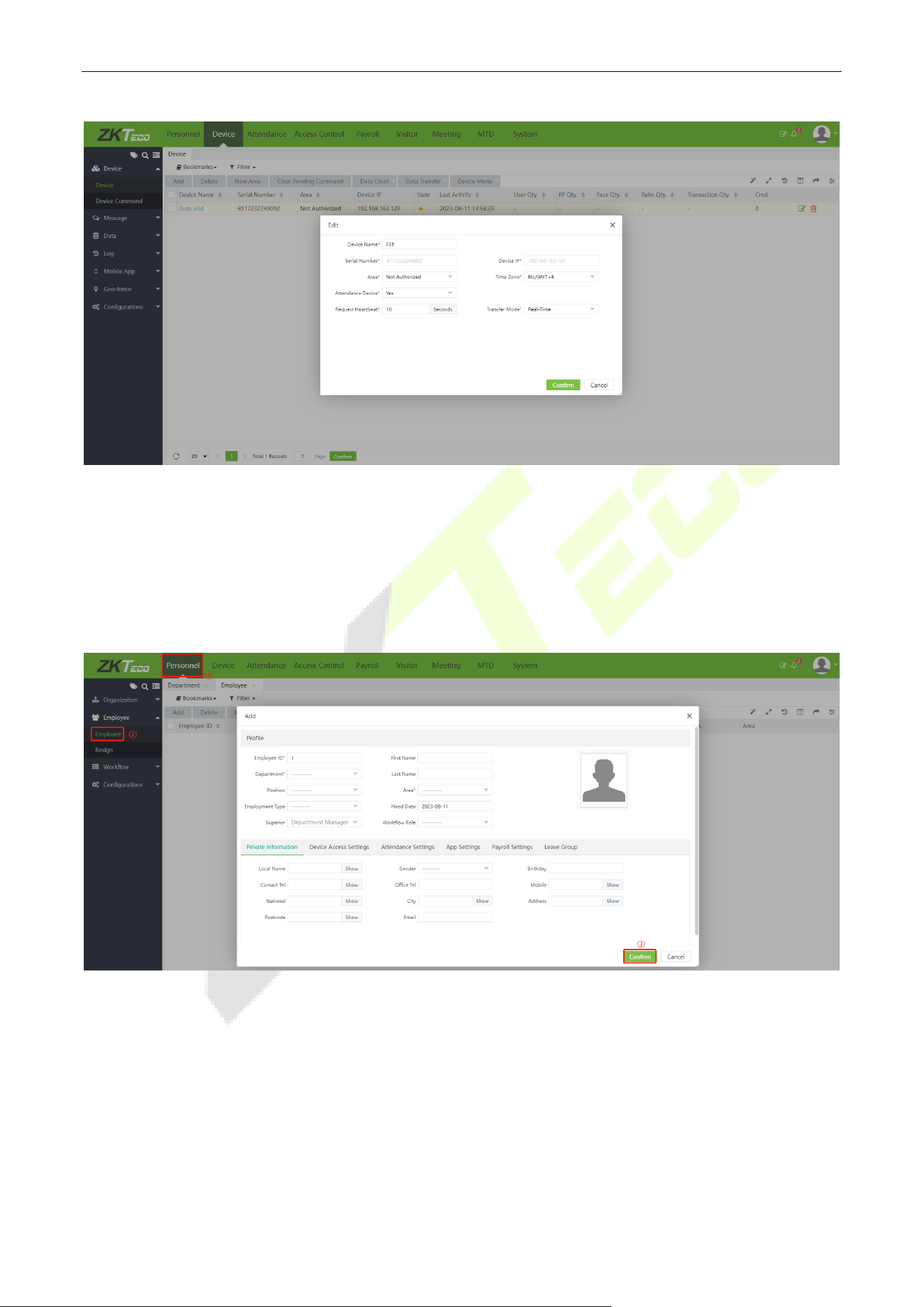

After setting on the device, the device will be automatically added to the software. Open the ZKBioTime

software then select [Device Module] > [Device] > [Device], click the device in the list, change the Device

Name and Area.

Note: The devices added automatically must be assigned to custom areas to communicate with the

software.

F35 User Manual

Add Personnel on the Software and Online Fingerprint 21.3

Registration

1. Click Personnel > Employee > Add:

2. Fill in all the required fields and click [Confirm] to register a new user.

3. Click Device > Device, select the device and click Device Menu > Enroll Remotely.

F35 User Manual

4. Enter the Employee ID and select the finger you want to register and press your finger on the

fingerprint sensor of the device three times. If the fingerprint is successfully registered, the device

will prompt "Enrolled successfully".

5. Click Device > Device > Data Transfer > Sync Data to the Device to synchronize all the data to the

device including the new users.

Note: For other specific operations, please refer the ZKBioTime 8.0 User Manual.

F35 User Manual

22 Connecting to ZSmart App★

Adding Device on the ZSmart App 22.1

After downloading and installing the ZSmart App on your phone, start by setting up a user account using

your Email ID. After completing the User account creation, proceed to log in to the App. Next, click either

the or icon situated at the top right corner of the screen to initiate the device addition

process. The step-by-step process is as follows:

1. Click Add Device on the Home page.

2. On the device, tap on [M/OK] > System > Video Intercom Parameters > QR Code Binding to show

the QR code of the device.

3. Click the icon in the upper right corner.

F35 User Manual

Video Phone Connection 22.2

Visitors click the icon on the device to make a call and then phone will ring. The user can accept or

decline the call. After the user accepts the call, it will open the video door phone interface. Enter the

password to unlock the door.

F35 User Manual

Parameter Description

Screenshot

Click to take a screenshot.

Speak

The icon becomes blue when click it, and you can talk to the device at this time.

Record

Click to make a record video.

Photo album

View and delete screenshots and recorded videos.

Unlock

Click to open the door remotely. The unlocking record is saved in Me > Message

Center.

Note: For other specific operations, please refer to the ZSmart App User Manual.

23 Connecting to SIP

★

On the device, tap on [M/OK] >System > Video Intercom Parameters > SIP Settings to go to the

monitoring parameter settings.

Note: This function needs to be used with the indoor station.

F35 User Manual

Function Description

Function Name Description

Account

SIP Server

Select whether to enable the SIP server. When it is enabled, the server

address, server port, Login Name, User Name and Password need to be

set. (Note: Each time it is switched ON/OFF, the device will restart to take

effect.)

Enable

Domain

Name

Select whether to enable the domain name mode.

Server

Address

Enter the server address.

Server

Port

Enter the server port.

Name

Enter the login name of server.

User Name

Enter the username of server.

Password

Enter the password of server.

Dtmf

The value should be set as same as the value of DTMF in the indoor

station

Transport

Protocol

Set the transport protocol between F35 and indoor station.

Call Options

Calling

Delay(s)

Set the time of call, valid value 30 to 60 seconds.

Talking

Delay(s)

Set the time of intercom, valid value 60 to 120 seconds.

Encryption

It is disabled by default.

Contact List

When the SIP server is disabled, the device number and call address of the indoor

stations can be added here.

Calling

Shortcut

Settings

Call Mode

When the SIP server is enabled, it is Standard Mode by default and cannot

be modified;

When the SIP server is disabled, it can be set as Standard Mode/ Direct

Calling Mode.

In Direct Calling mode, the user can call multiple indoor stations at the

same time.

There are 3 shortcut keys that can be defined in the device: admin, ROOM1 and

ROOM2. You can set a shortcut key to call the indoor station quickly without entering

the IP address or room number of the indoor unit each time.

The F35 and the indoor station to achieve video intercom there are two modes, respectively, the LAN and

SIP server.

F35 User Manual

Local Area Network Use 23.1

1. Set the indoor station to the same network segment as the device.

2. On the SIP Settings interface, click on Account > Dtmf to set the value as same as the value of DTMF

in the indoor station.

3. On the SIP Settings interface, click on Contact List> Add to add the connected indoor station.

Device Number: Customize the number of the indoor station, you can enter this number on the

device to call the indoor station quickly for video intercom.

Call Address: It is the IP Address of the indoor station.

4. To enable the video intercom function, tap the icon on the F35 and enter the IP address or device

number of the indoor station in the provided interface.

232

F35 User Manual

 Custom the Calling Shortcut Keys

1. On the SIP Settings interface, click on Calling Shortcut Settings to define the shortcut keys.

Name: Customize the name of the shortcut keys.

Device Number: It is the device number that set in the Contact List Menu.

IP Address: Once the device number is set, it will be automatically displayed.

2. Then you can tap the icon on the F35 and click the calling shortcut keys to call the indoor

station.

 Direct Calling

1. On the SIP Settings interface, click on Calling Shortcut Settings > Call Mode > Direct Calling

Mode > Add. Select the IP addresses of the indoor stations that you want to call, then the indoor

stations will be displayed in the list.

2. Then you can tap the icon on the F35 to call the indoor stations at the same time.

F35 User Manual

SIP Server 23.2

1. On the SIP Settings interface, click on Account > SIP Server to enable it, enter the server-related

parameters, as shown below:

2. After correctly setting up the SIP, the yellow dot in the upper right corner of the call page will become

green, indicating that the F35 is connected to the server. You can then initiate a call to the account

name of the indoor station."

Note: Customers create their own SIP server.

F35 User Manual

For details on the operation and use of the indoor station, please refer to the Indoor Station User Manual.

F35 User Manual

24 Connecting to Wireless Doorbell

★

Note: This function needs to be used with the wireless doorbell.

Connect the Wireless Doorbell 24.1

1. First, power on the wireless doorbell. Then, press and hold the music button for 1.5 seconds until

you see the indicator start flashing. The flashing indicator shows that the doorbell is now in pairing

mode. If the wireless doorbell rings and the indicator flashes, the connection has been successful, and

you can then click on the device icon to finish the process.

2. After a successful pairing, click the device icon will ring the wireless doorbell.

Note:

1) To use this function, you need to enter the menu ([System] > [Video Intercom Parameters] >

[Doorbell Setting]) and set it as Doorbell Only or Doorbell + Video Intercom.

2) Each F35 only supports one wireless doorbell.

3) Wireless doorbell needs to be purchased by the customers themselves.

Unbinding the Wireless Doorbell 24.2

Power off the wireless doorbell first, then re-installing the batteries while pressing and holding the music

button until the indicator is on, indicating that the unbinding is successful.

F35 User Manual

Settings 24.3

On the device, tap on [M/OK] >System > Video Intercom Parameters > Doorbell Setting to set the

doorbell.

Function Description:

Function Name Description

Doorbell Setting

Doorbell Only: When the user clicks on the doorbell button, only

the doorbell rings.

Video Intercom Only: When the user clicks on the doorbell button,

only the device makes a call.

Doorbell+Video Intercom: When the user clicks on the doorbell

button, the doorbell rings and the device makes a call at the same

time.

F35 User Manual

Appendix 1

Notice:

To help you better use the products and services of ZKTeco and its affiliates, hereinafter referred as "we",

"our", or "us", the smart service provider, we consistently collect your personal information. Since we

understand the importance of your personal information, we took your privacy sincerely and we have

formulated this privacy policy to protect your personal information. We have listed the privacy policies

below to precisely understand the data and privacy protection measures related to our smart products

and services.

Before using our products and services, please read carefully and understand all the rules and

provisions of this Privacy Policy. If you do not agree to the relevant agreement or any of its terms,

you must stop using our products and services.

I. Collected Information

To ensure the normal product operation and help the service improvement, we will collect the

information voluntarily provided by you or provided as authorized by you during registration and use

or generated as a result of your use of services.

1. User Registration Information: At your first registration, the feature template (Fingerprint

template/Face template/Palm template) will be saved on the device according to the device

type you have selected to verify the unique similarity between you and the User ID you have

registered. You can optionally enter your Name and Code. The above information is necessary for

you to use our products. If you do not provide such information, you cannot use some features of

the product regularly.

2. Product information: According to the product model and your granted permission when you

install and use our services, the related information of the product on which our services are used

will be collected when the product is connected to the software, including the Product Model,

Firmware Version Number, Product Serial Number, and Product Capacity Information. When you

connect your product to the software, please carefully read the privacy policy for the

specific software.

II. Product Security and Management

1. When you use our products for the first time, you shall set the Administrator privilege before

performing specific operations. Otherwise, you will be frequently reminded to set the

F35 User Manual

Administrator privilege when you enter the main menu interface. If you still do not set the

Administrator privilege after receiving the system prompt, you should be aware of the

possible security risk (for example, the data may be manually modified).

2. All the functions of displaying the biometric information are disabled in our products by default.

You can choose Menu > System Settings to set whether to display the biometric information. If

you enable these functions, we assume that you are aware of the personal privacy security risks

specified in the privacy policy.

3. Only your user ID is displayed by default. You can set whether to display other user verification

information (such as Name, Department, Photo, etc.) under the Administrator privilege. If you

choose to display such information, we assume that you are aware of the potential security

risks (for example, your photo will be displayed on the device interface).

4. The camera function is disabled in our products by default. If you want to enable this function to

take pictures of yourself for attendance recording or take pictures of strangers for access control,

the product will enable the prompt tone of the camera. Once you enable this function, we

assume that you are aware of the potential security risks.

5. All the data collected by our products is encrypted using the AES 256 algorithm. All the data

uploaded by the Administrator to our products are automatically encrypted using the AES 256

algorithm and stored securely. If the Administrator downloads data from our products, we

assume that you need to process the data and you have known the potential security risk. In such

a case, you shall take the responsibility for storing the data. You shall know that some data

cannot be downloaded for sake of data security.

6. All the personal information in our products can be queried, modified, or deleted. If you no

longer use our products, please clear your personal data.

III. How we handle personal information of minors

Our products, website and services are mainly designed for adults. Without consent of parents or

guardians, minors shall not create their own account. If you are a minor, it is recommended that you

ask your parents or guardian to read this Policy carefully, and only use our services or information

provided by us with consent of your parents or guardian.

We will only use or disclose personal information of minors collected with their parents' or guardians'

consent if and to the extent that such use or disclosure is permitted by law or we have obtained their

parents' or guardians' explicit consent, and such use or disclosure is for the purpose of protecting

minors.

Upon noticing that we have collected personal information of minors without the prior consent from

verifiable parents, we will delete such information as soon as possible.

F35 User Manual

IV. Others

You can visit https://www.zkteco.com/cn/index/Index/privacy_protection.html

to learn more about

how we collect, use, and securely store your personal information. To keep pace with the rapid

development of technology, adjustment of business operations, and to cope with customer needs, we

will constantly deliberate and optimize our privacy protection measures and policies. Welcome to visit

our official website at any time to learn our latest privacy policy.

F35 User Manual

Eco-friendly Operation

The product's "eco-friendly operational period" refers to the time during which this

product will not discharge any toxic or hazardous substances when used in accordance

with the prerequisites in this manual.

The eco-friendly operational period specified for this product does not include batteries

or other components that are easily worn down and must be periodically replaced. The

battery's eco-friendly operational period is 5 years.

Hazardous or Toxic substances and their quantities

Component

Name

Hazardous/Toxic Substance/Element

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr6+)

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Chip

Resistor

○ ○ ○ ○ ○

Chip

Capacitor

○ ○ ○ ○ ○

Chip

Inductor

○ ○ ○ ○ ○

Diode

○ ○ ○ ○ ○

ESD

component

○ ○ ○ ○ ○

Buzzer

○ ○ ○ ○ ○

Adapter

○ ○ ○ ○ ○

Screws

○

○ ○

This table is prepared in accordance with the provisions of SJ/T 11364.

○ indicates that the total amount of toxic content in all the homogeneous materials is below the limit as

specified in GB/T 26572.

× indicates that the total amount of toxic content in all the homogeneous materials exceeds the limit as

specified in GB/T 26572.

Note: 80% of this product’s components are manufactured using non-toxic and eco-friendly materials. The

components which contain toxins or harmful elements are included due to the current economic or

technical limitations which prevent their replacement with non-toxic materials or elements.
