ZKTeco SC800 User Manual

Product Name and Model Number User

Manual

Thank you for choosing our product. Please read the instructions

carefully before operation. Follow these instructions to ensure that the

product is functioning properly. The images shown in this manual are for

illustrative purposes only.

For further details, please visit our Company’s website

www.zkteco.com.

User Manual

SC800

Date: November 2022

Doc Version: 1.1

English

SC800 User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be

copied or forwarded in any way or form. All parts of this manual belong to ZKTeco

and its subsidiaries (hereinafter the "Company" or "ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this

manual are owned by their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco

equipment. The copyright in all the documents, drawings, etc. in relation to the

ZKTeco supplied equipment vests in and is the property of ZKTeco. The contents

hereof should not be used or shared by the receiver with any third party without

express written permission of ZKTeco.

The contents of this manual must be read before starting the operation and

maintenance of the supplied equipment. If any of the content(s) of the manual

seems unclear or incomplete, please contact ZKTeco before starting the operation

and any information contained in this manual or any of the amendments made

thereto. ZKTeco does not extend the warranty of any kind, including, without

limitation, any warranty of design, merchantability, or fitness for a particular

purpose. ZKTeco does not assume responsibility for any errors or omissions in the

information or documents which are referenced by or linked to this manual. The

entire risk as to the results and performance obtained from using the information is

assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental,

consequential, indirect, special, or exemplary damages, including, without

limitation, loss of business, loss of profits, business interruption, loss of business

information or any pecuniary loss, arising out of, in connection with, or relating to

the use of the information contained in or referenced by this manual, even if

ZKTeco has been advised of the possibility of such damages.

SC800 User Manual

This manual and the information contained therein may include technical, other

inaccuracies or typographical errors. ZKTeco periodically changes the information

herein which will be incorporated into new additions/amendments to the manual.

ZKTeco reserves the right to add, delete, amend, or modify the information

contained in the manual from time to time in the form of circulars, letters, notes,

etc. for better operation and safety of the machine/unit/equipment. The said

additions or amendments are meant for improvement /better operations of the

machine/unit/equipment and such amendments shall not give any right to claim

any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment

malfunctions due to any non-compliance of the instructions contained in this

manual (ii) in case of operation of the machine/unit/equipment beyond the rate

limits (iii) in case of operation of the machine and equipment in conditions

different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest

operation procedures and relevant documents are available on

http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business-related queries, please write to us at sales@zkteco.com.

To know more about our global branches, visit www.zkteco.com.

SC800 User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric

(Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control

readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor

access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door

Locks. Our security solutions are multi-lingual and localized in over 18 different

languages. At the ZKTeco state-of-the-art 700,000 square foot ISO9001-certified

manufacturing facility, we control manufacturing, product design, component

assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and

development of biometric verification procedures and the productization of

biometric verification SDK, which was initially widely applied in PC security and

identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually

constructed an identity authentication ecosystem and smart security ecosystem,

which are based on biometric verification techniques. With years of experience in

the industrialization of biometric verifications, ZKTeco was officially established in

2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National

High-tech Enterprise for 6 consecutive years. Its products are protected by

intellectual property rights.

About the Manual

This manual introduces the operations of SC800.

All figures displayed are for illustration purposes only. Figures in this manual may

not be exactly consistent with the actual products.

Features and parameters with ★ are not available in all devices.

SC800 User Manual

Document Conventions

Conventions used in this manual are listed below:

GUI Conventions

For Software

Convention Description

Bold font

Used to identify software interface names e.g., OK, Confirm,

Cancel.

Multi-

level menus are separated by these brackets. For

example, File > Create > Folder.

For Device

Convention Description

< >

Button or key names for devices. For example, press <OK>.

[ ]

Window names, menu items, data table, and field names are

inside square brackets. For example, pop up the [New User]

window.

Multi-level menus are separated by forwarding slashes. For

example, [File/Create/Folder].

Symbols

Convention Description

This represents a note that needs to pay more attention to.

The general information which helps in performing the

operations faster.

The information which is significant.

Care taken to avoid danger or mistakes.

The statement or event that warns of something or that serves

as a cautionary example.

SC800 User Manual

Table of Contents

1 SAFETY MEASURES ............................................................................................ 9

2 ELECTRICAL SAFETY ........................................................................................ 10

3 OPERATION SAFETY ......................................................................................... 11

4 INSTRUCTIONS FOR USE .................................................................................. 13

NSTALLATION .............................................................................................. 13 4.1

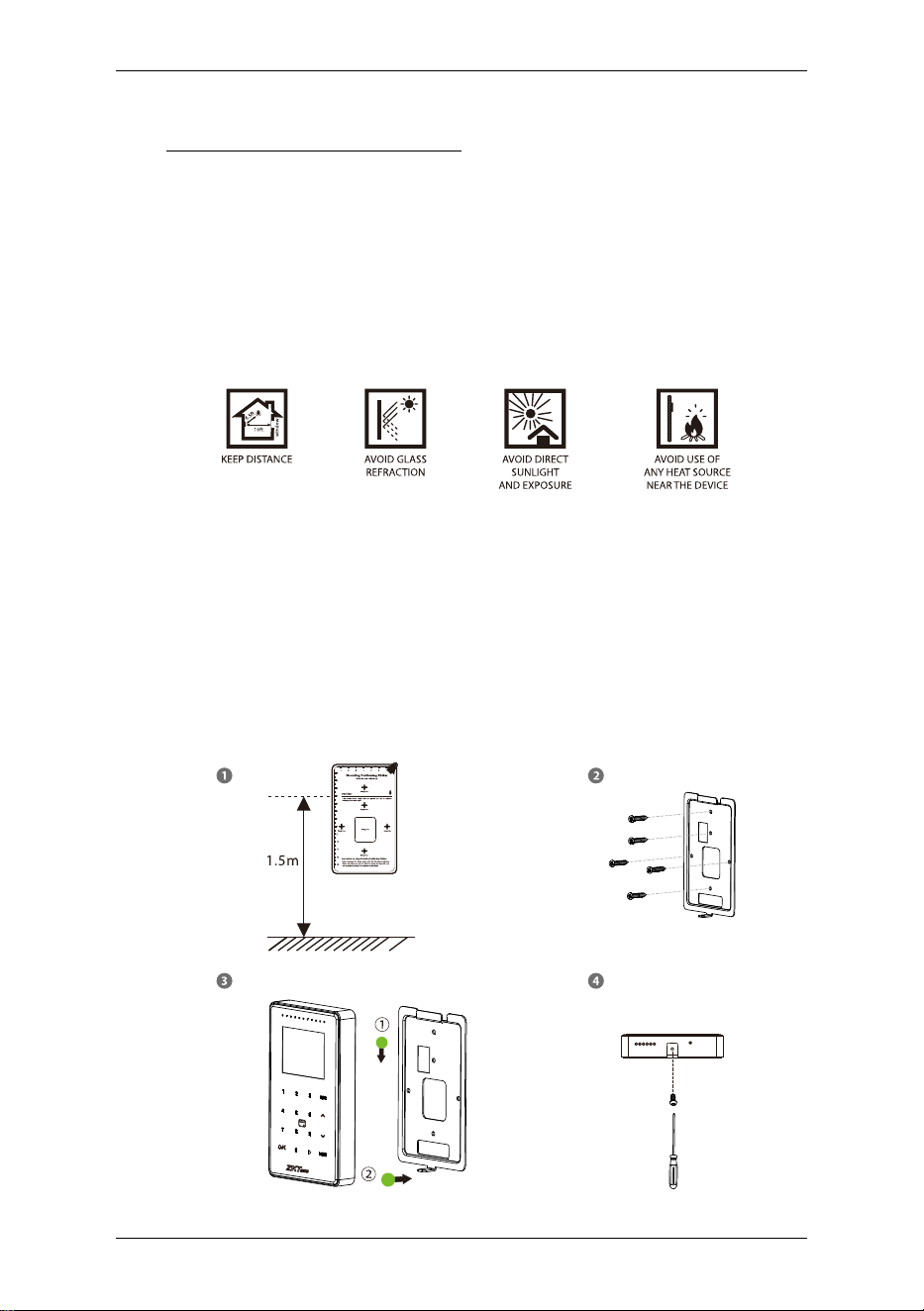

4.1.1 INSTALLATION ENVIRONMENT......................................................................................... 13

4.1.2

DEVICE INSTALLATION .................................................................................................... 13

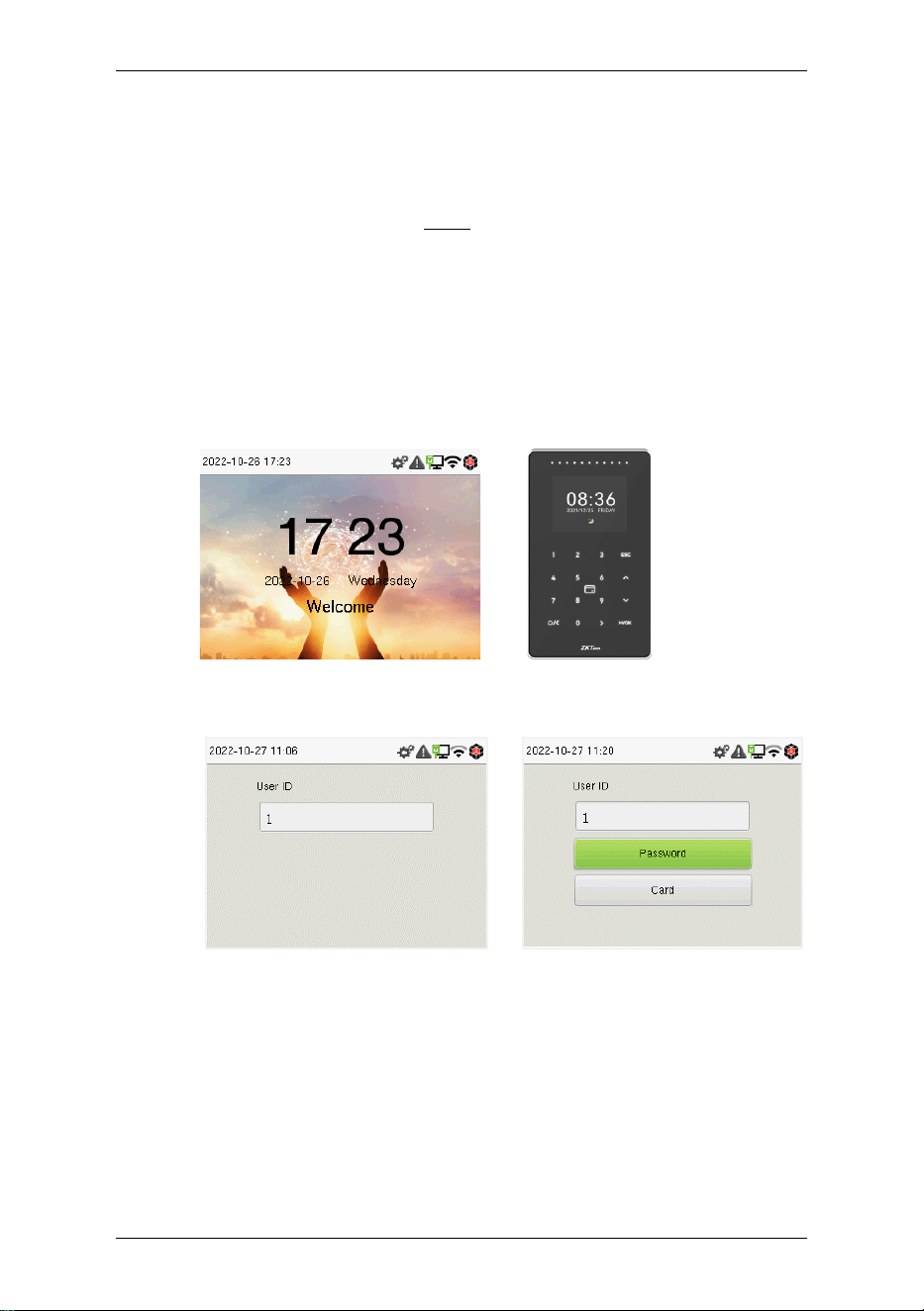

TANDBY INTERFACE ..................................................................................... 14 4.2

VERIFICATION MODE ..................................................................................... 16 4.3

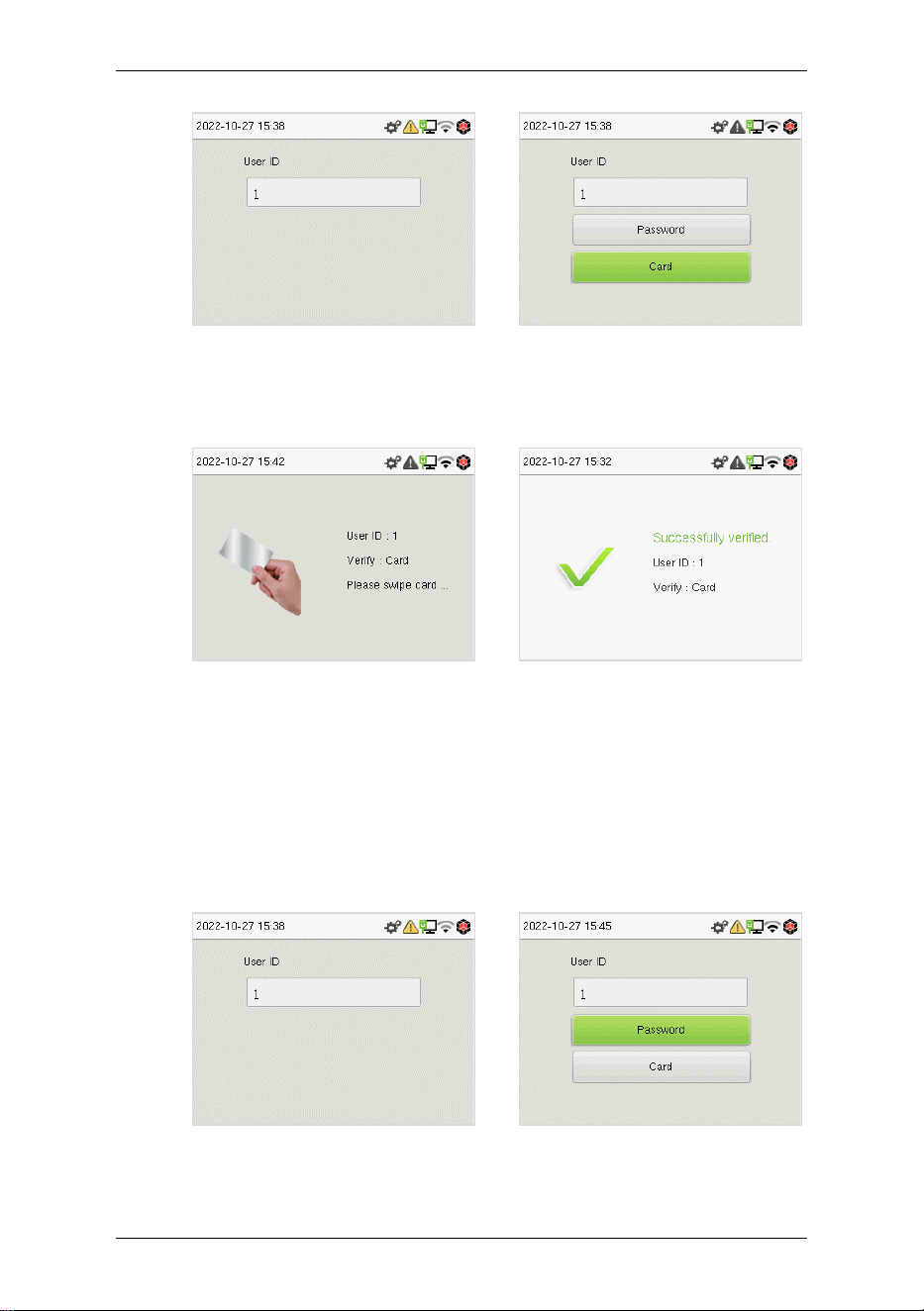

4.3.1 CARD VERIFICATION ....................................................................................................... 16

4.3.2

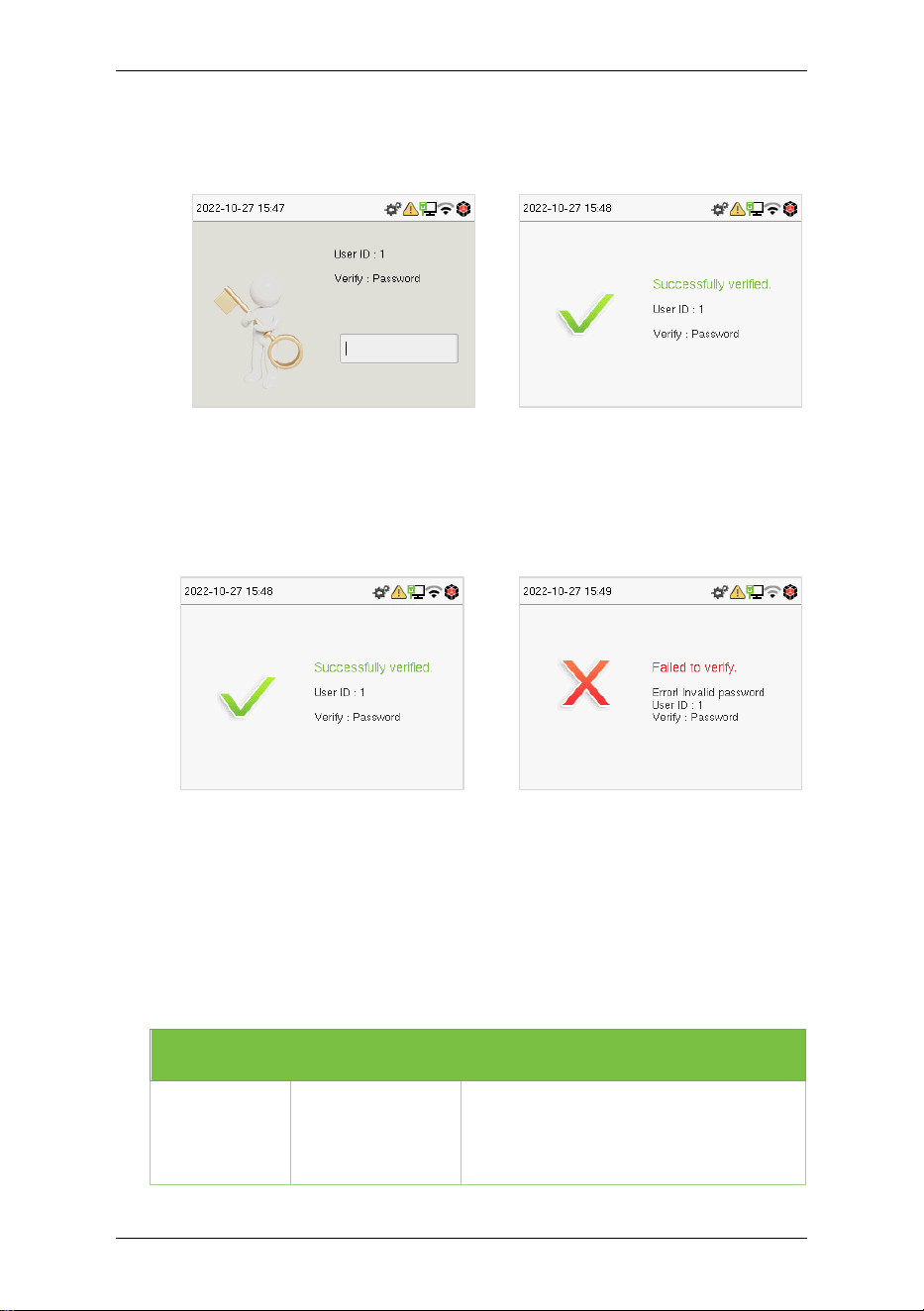

PASSWORD VERIFICATION ............................................................................................... 17

4.3.3 COMBINED VERIFICATION ............................................................................................... 18

PPEARANCE ............................................................................................... 20 4.4

ERMINAL DESCRIPTION ................................................................................ 20 4.5

IRING DESCRIPTION ................................................................................... 22 4.6

4.6.1

POWER CONNECTION ..................................................................................................... 22

4.6.2

ETHERNET CONNECTION ................................................................................................ 22

4.6.3

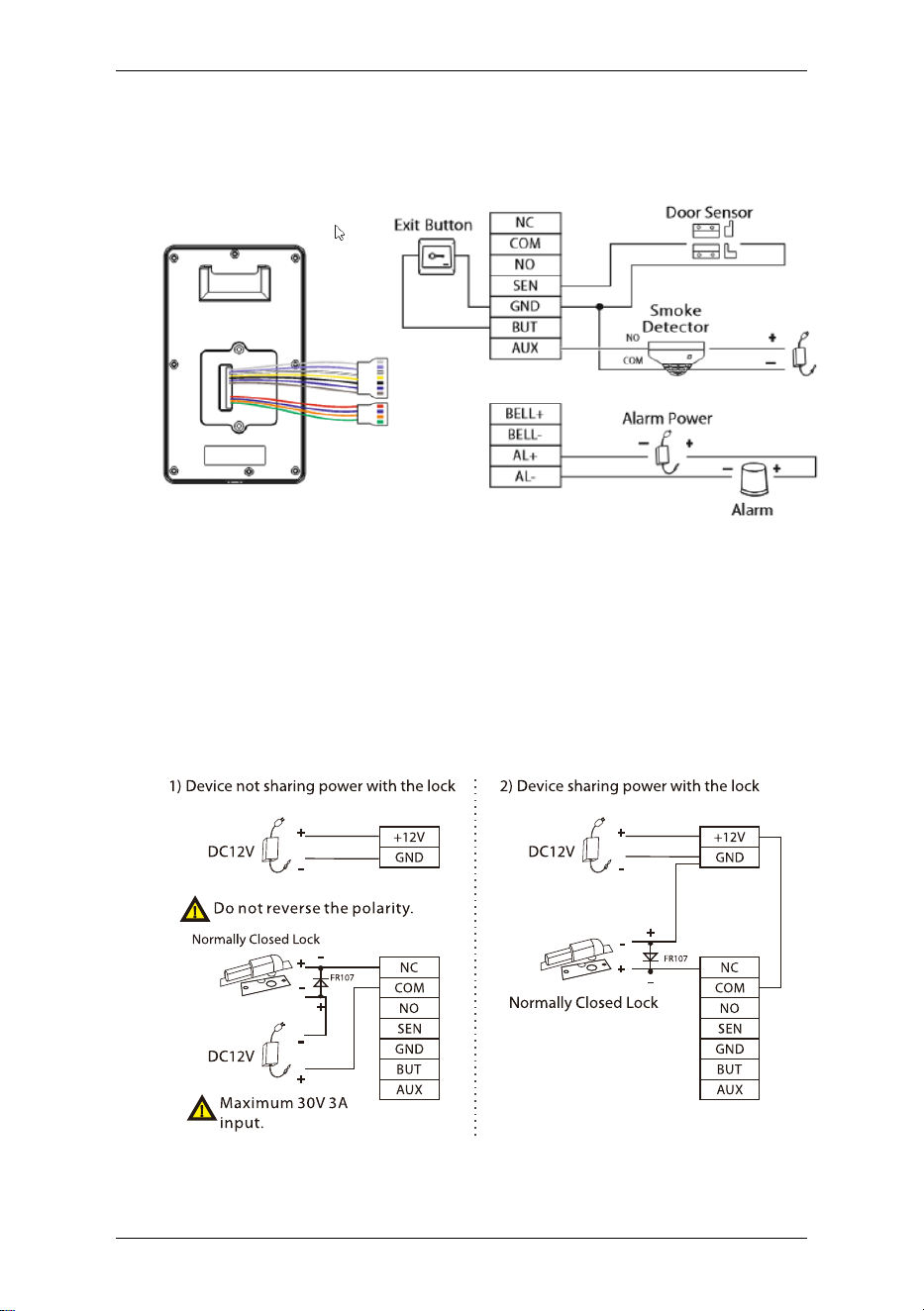

DOOR SENSOR, EXIT BUTTON, ALARM AND AUXILIARY CONNECTION ........................... 23

4.6.4 LOCK RELAY CONNECTION ............................................................................................. 23

4.6.5

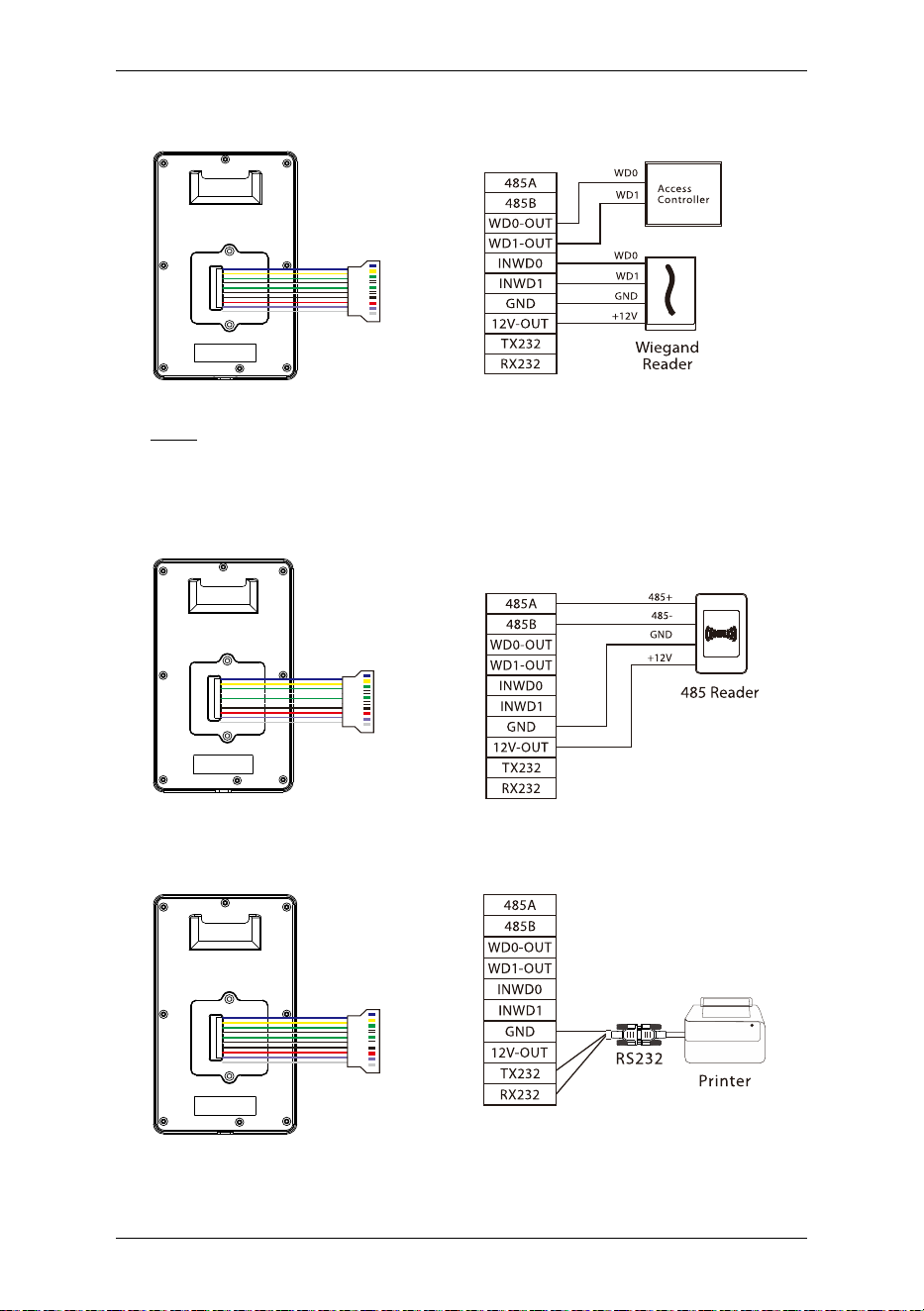

WIEGAND READER CONNECTION ................................................................................... 24

4.6.6

RS485 CONNECTION .................................................................................................... 24

4.6.7

RS232 CONNECTION .................................................................................................... 24

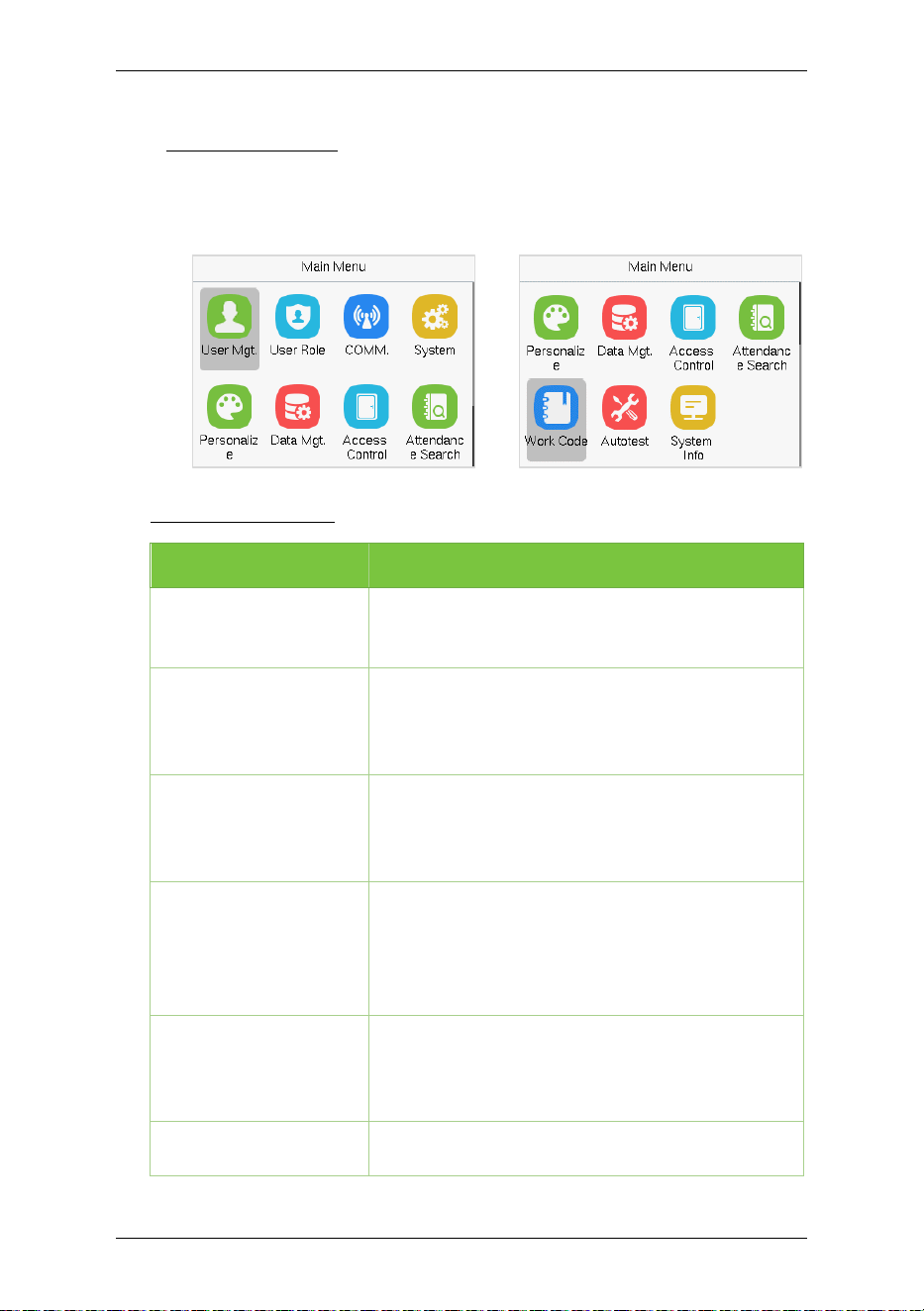

5 MAIN MENU ...................................................................................................... 25

6 USER MANAGEMENT ........................................................................................ 27

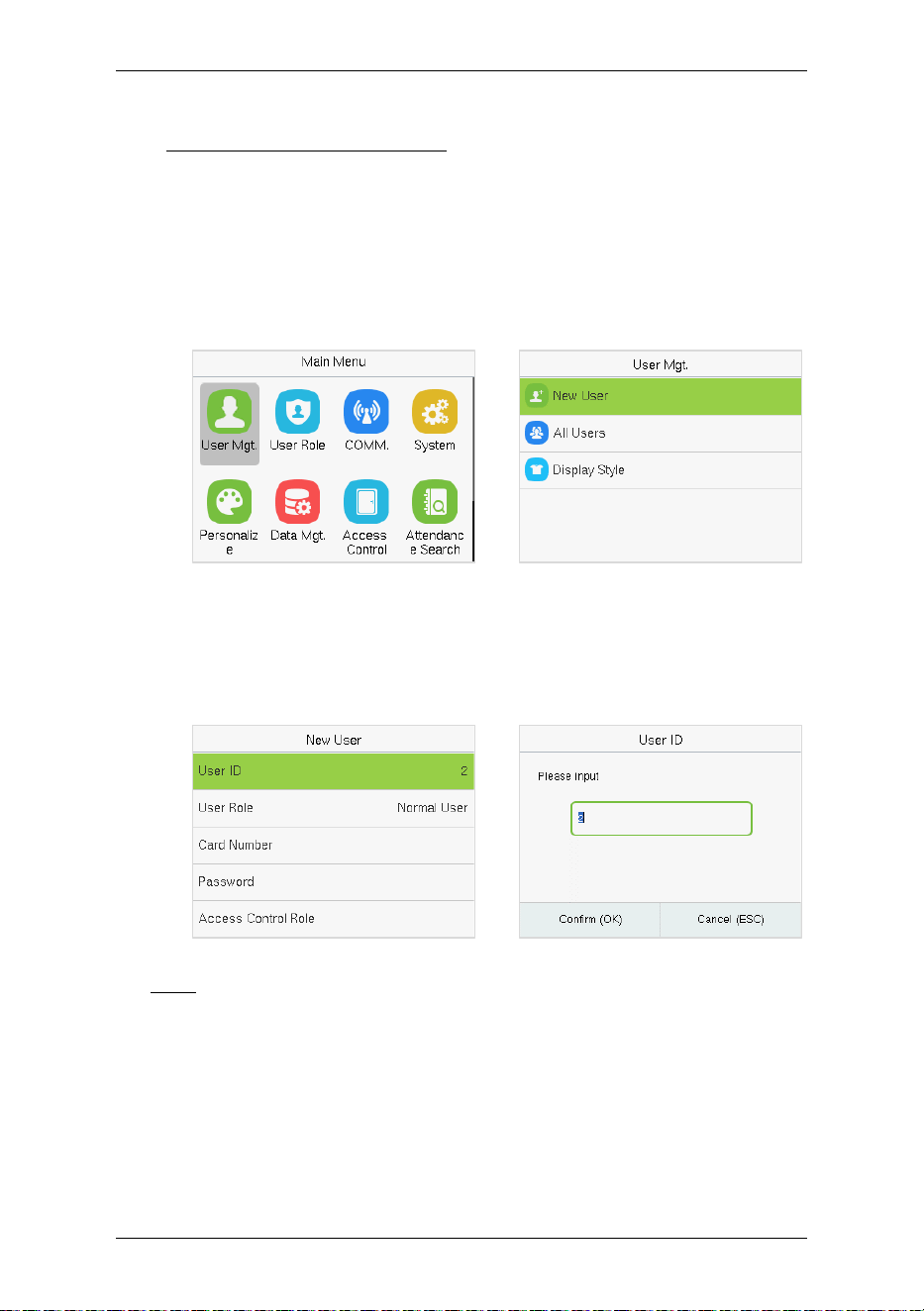

EW USER REGISTRATION .............................................................................. 27 6.1

6.1.1

REGISTER A USER ID....................................................................................................... 27

6.1.2

USER ROLE ..................................................................................................................... 28

6.1.3

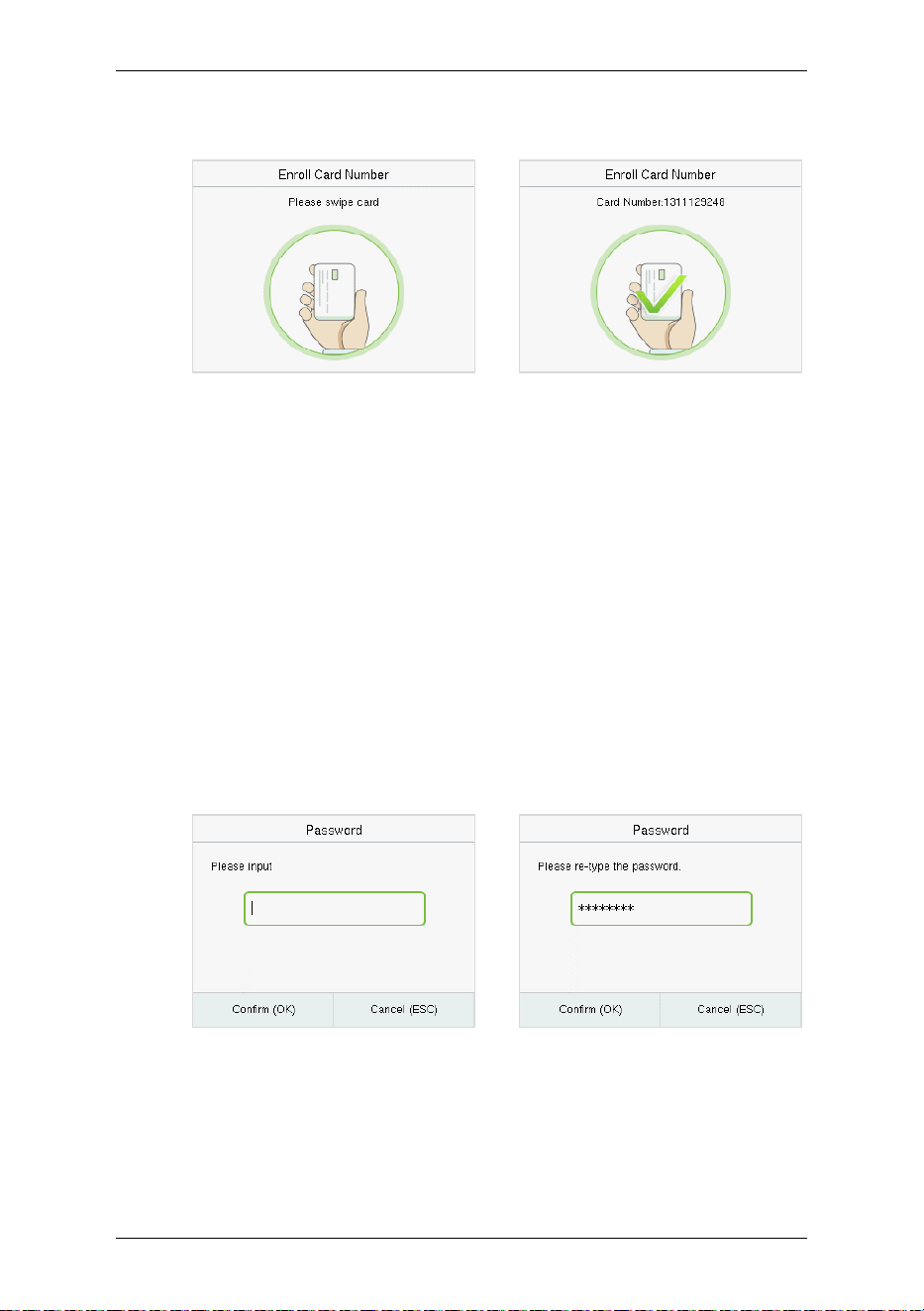

CARD NUMBER............................................................................................................... 28

SC800 User Manual

6.1.4 PASSWORD ..................................................................................................................... 29

6.1.5 ACCESS CONTROL ROLE ................................................................................................. 29

LL USERS .................................................................................................. 30 6.2

6.2.1 EDIT USER ...................................................................................................................... 31

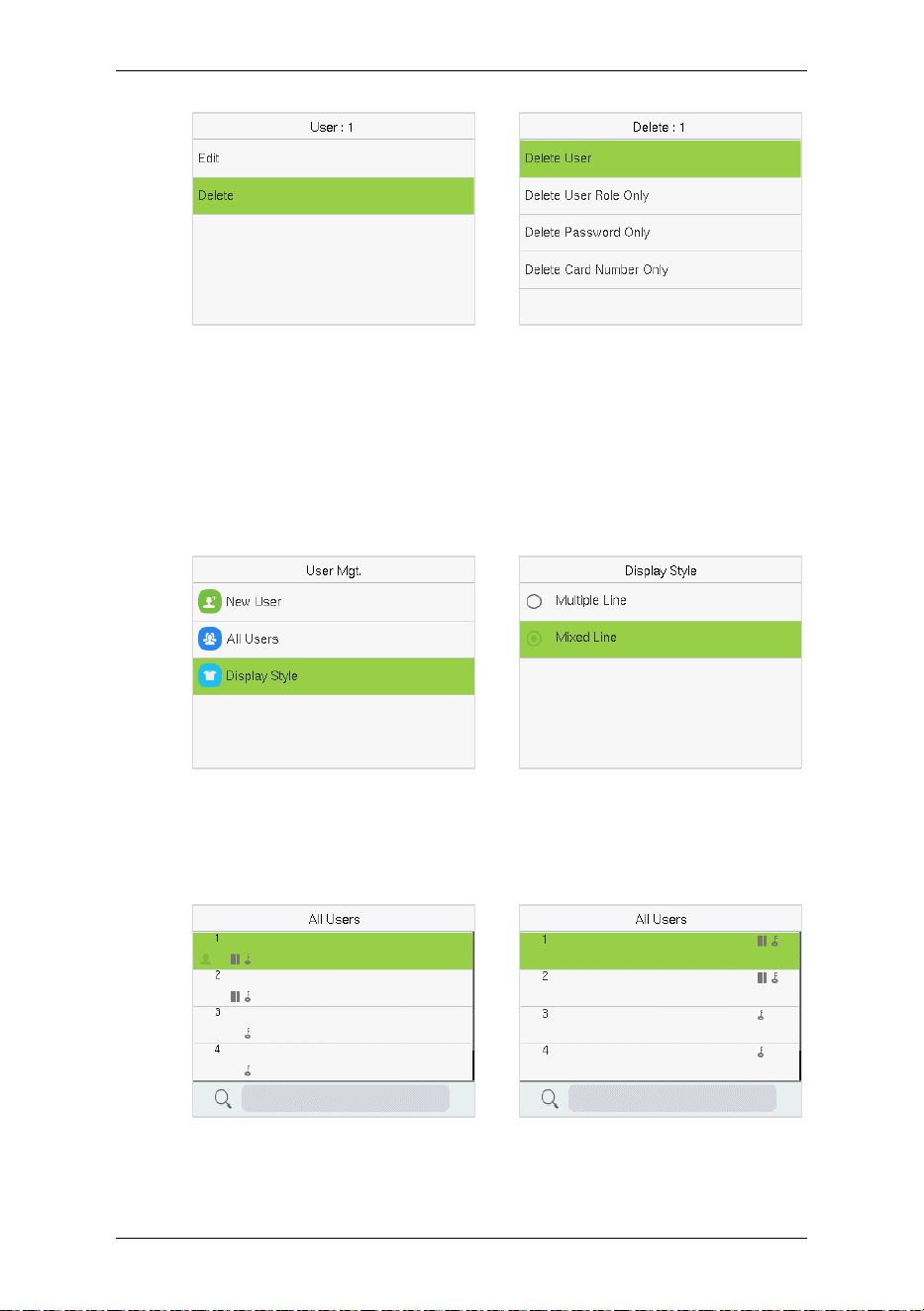

6.2.2 DELETE USER ................................................................................................................. 31

ISPL AY STYLE ............................................................................................ 32 6.3

7 USER ROLE ........................................................................................................ 33

8 COMMUNICATION ............................................................................................ 35

THERNET ................................................................................................... 35 8.1

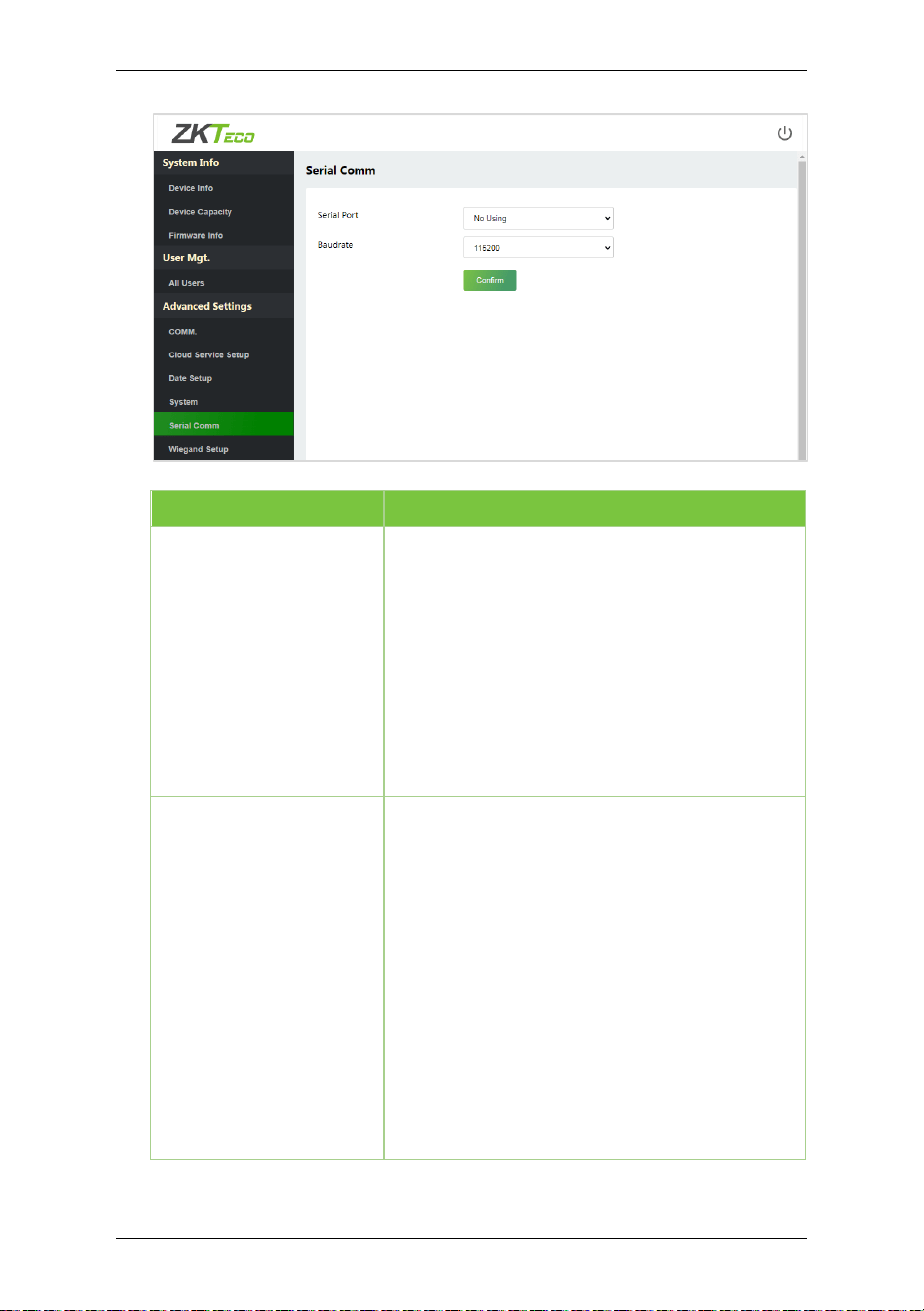

ERIAL COMM .............................................................................................. 36 8.2

CONNECTION .......................................................................................... 37 8.3

WI-FI SETTINGS ........................................................................................... 38 8.4

LOUD SERVER SETTINGS .............................................................................. 40 8.5

IEGAND SETUP .......................................................................................... 41 8.6

8.6.1 WIEGAND INPUT ............................................................................................................ 42

8.6.2 WIEGAND OUTPUT ........................................................................................................ 45

ETWORK DIAGNOSIS ................................................................................... 46 8.7

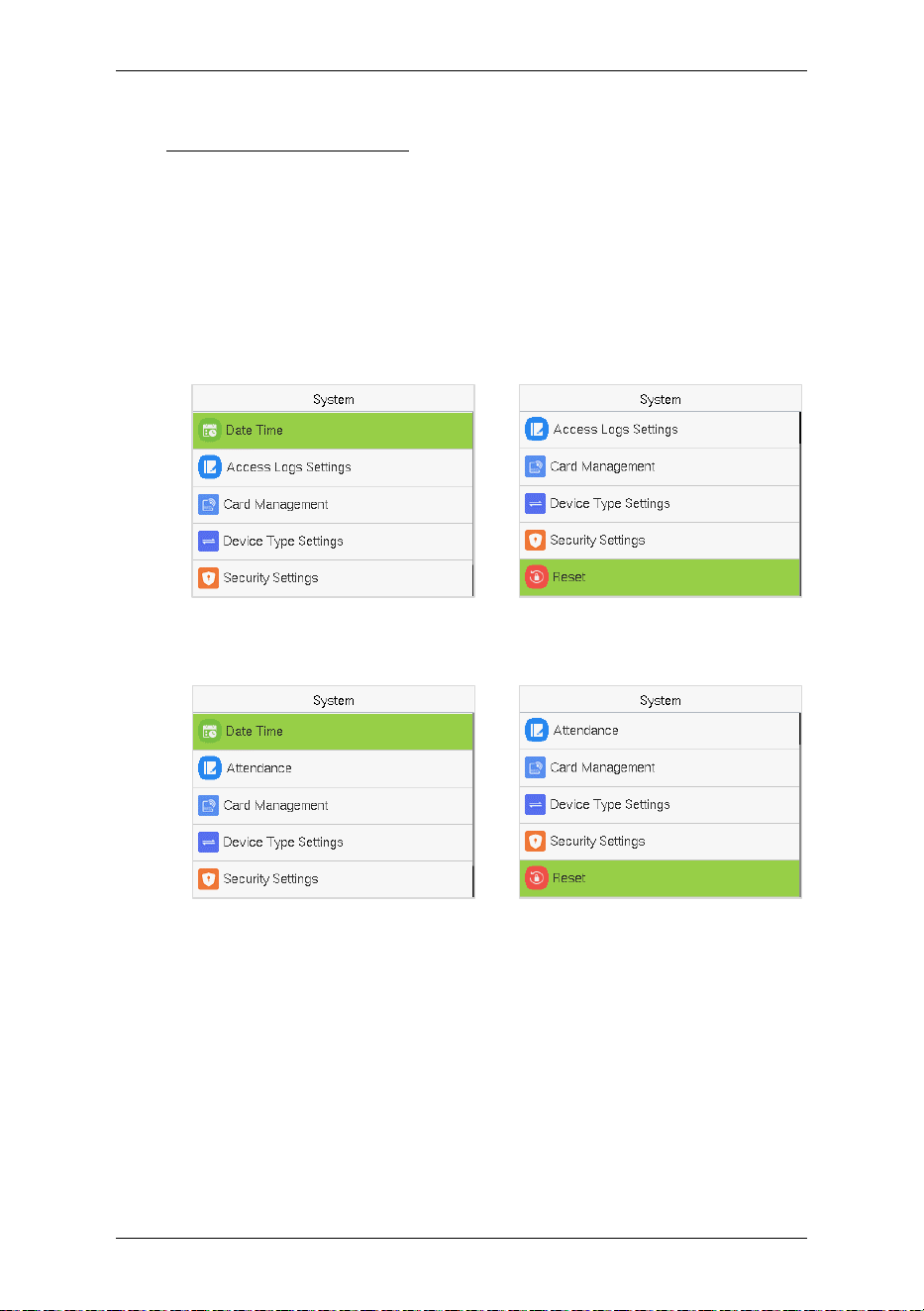

9 SYSTEM SETTINGS ........................................................................................... 47

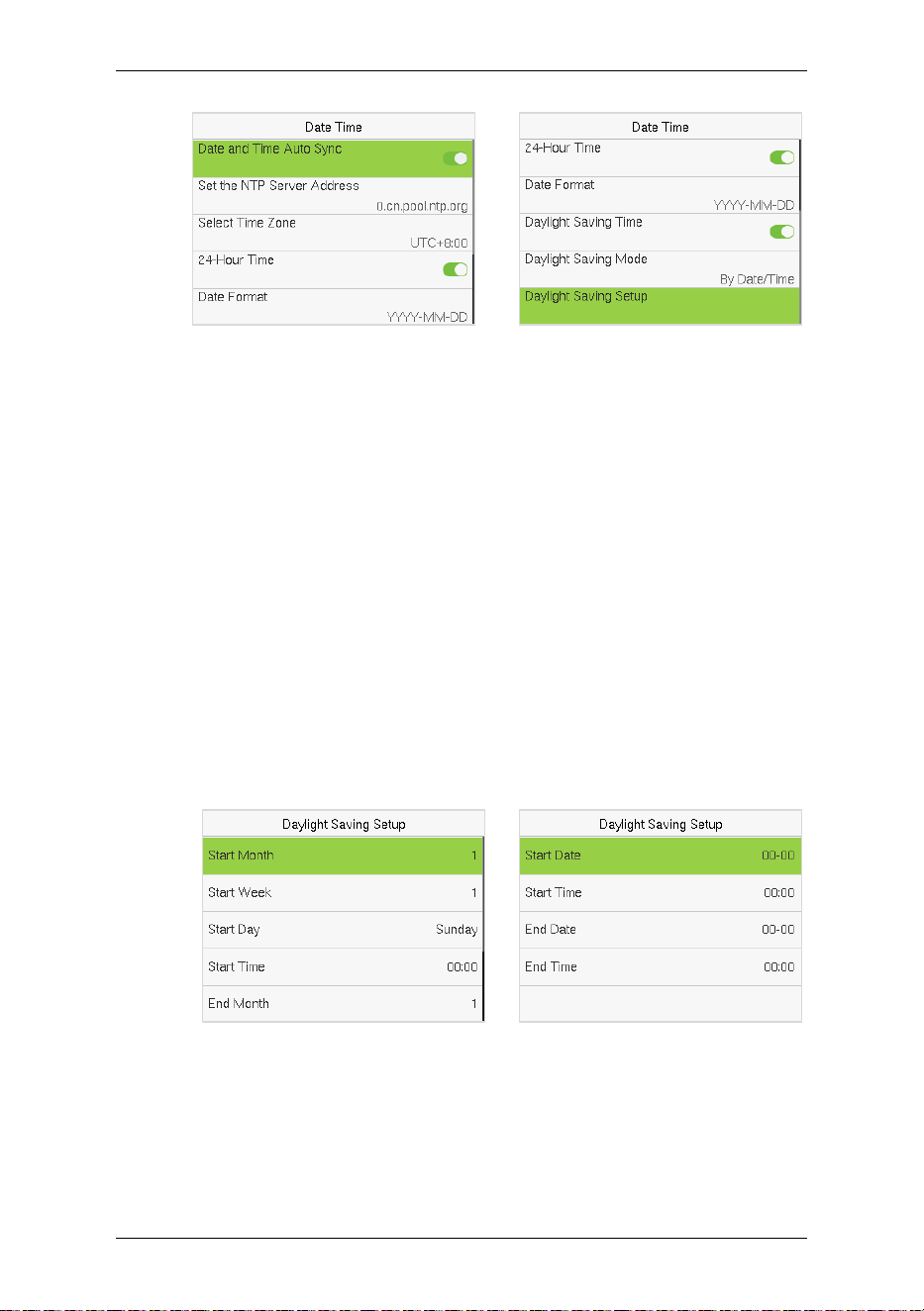

ATE A ND TIME ............................................................................................ 47 9.1

CCESS LOGS SETTINGS AND ATTENDANCE ....................................................... 49 9.2

ARD MANAGEMENT .................................................................................... 51 9.3

EVICE TYPE SETTINGS.................................................................................. 52 9.4

SECURITY SETTINGS ...................................................................................... 52 9.5

ACTORY RESET ............................................................................................ 53 9.6

10 PERSONALIZE SETTINGS................................................................................ 55

SER INTERFACE......................................................................................... 55 10.1

OICE ...................................................................................................... 57 10.2

ELL SCHEDULES ........................................................................................ 57 10.3

PUNCH STATES OPTIONS .............................................................................. 59 10.4

HORTCUT KEY MAPPINGS ........................................................................... 61 10.5

SC800 User Manual

11 DATA MANAGEMENT ..................................................................................... 63

DELETE DATA ............................................................................................ 63 11.1

ACKUP DATA ............................................................................................ 64 11.2

ESTORE DATE ........................................................................................... 65 11.3

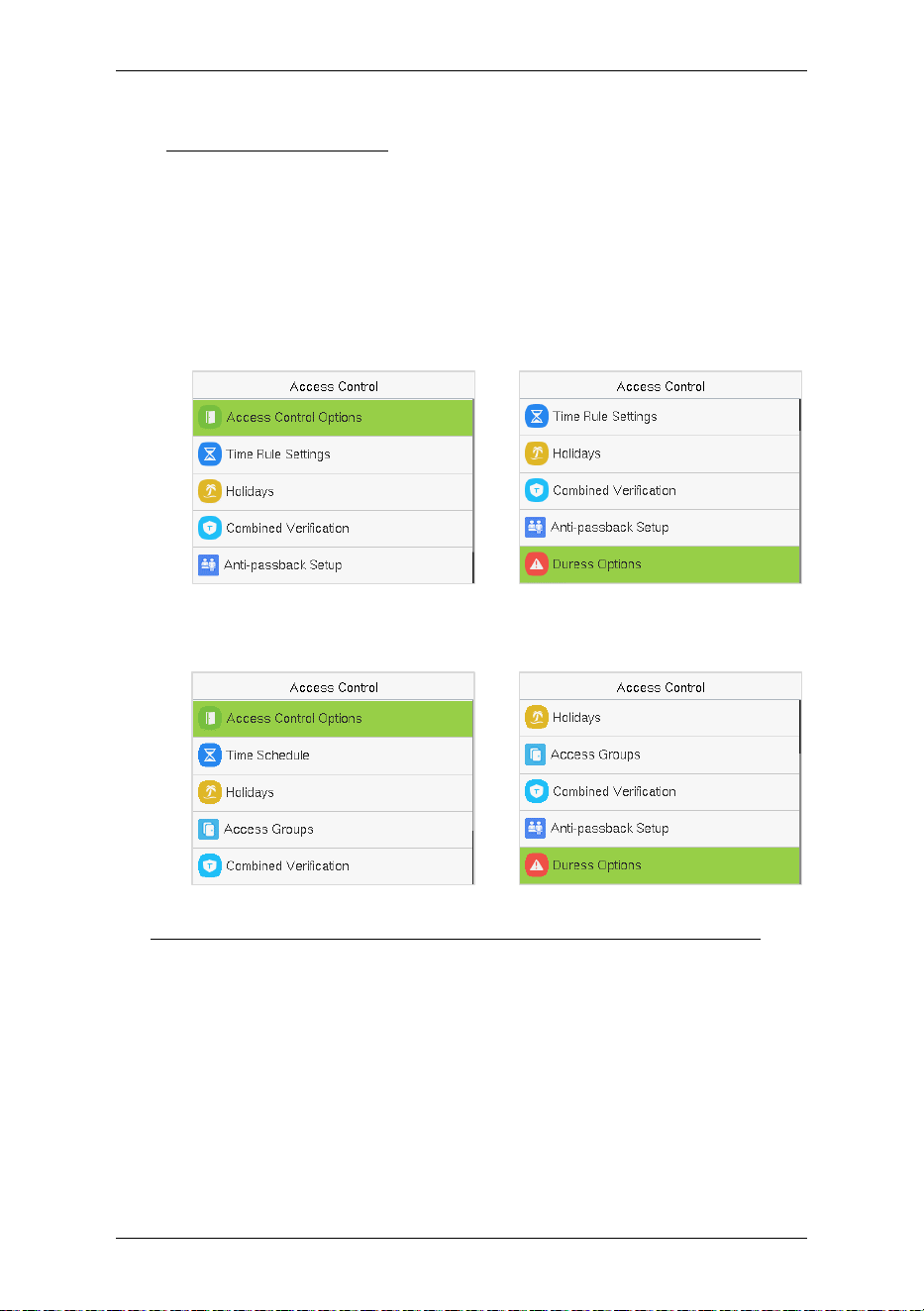

12 ACCESS CONTROL .......................................................................................... 67

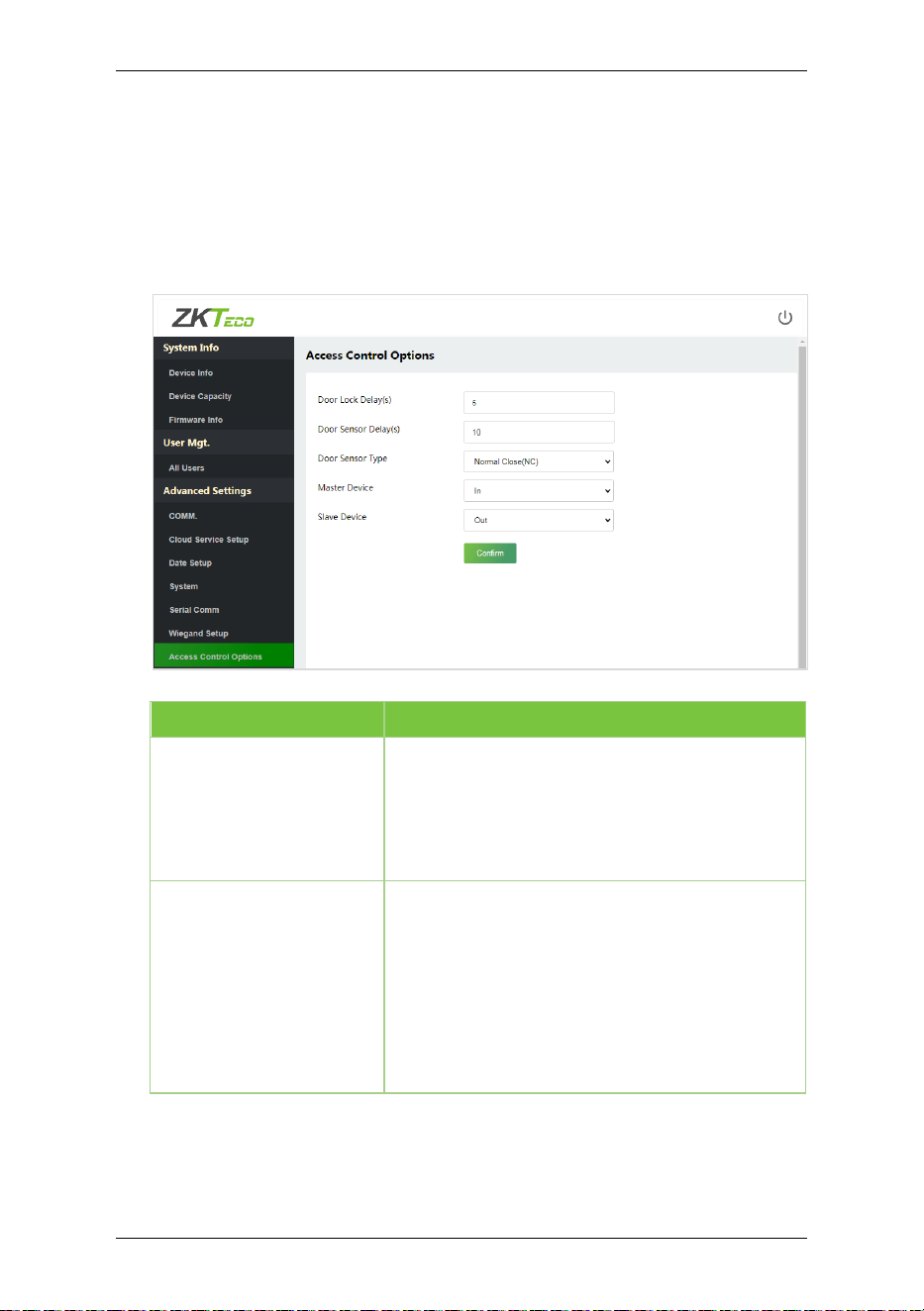

CCESS CONTROL OPTIONS .......................................................................... 68 12.1

IME RULE SETTINGS AND TIME SCHEDULE ..................................................... 73 12.2

OLIDAYS ................................................................................................. 74 12.3

ACCESS GROUPS ........................................................................................ 76 12.4

OMBINED VERIFICATION ............................................................................. 77 12.5

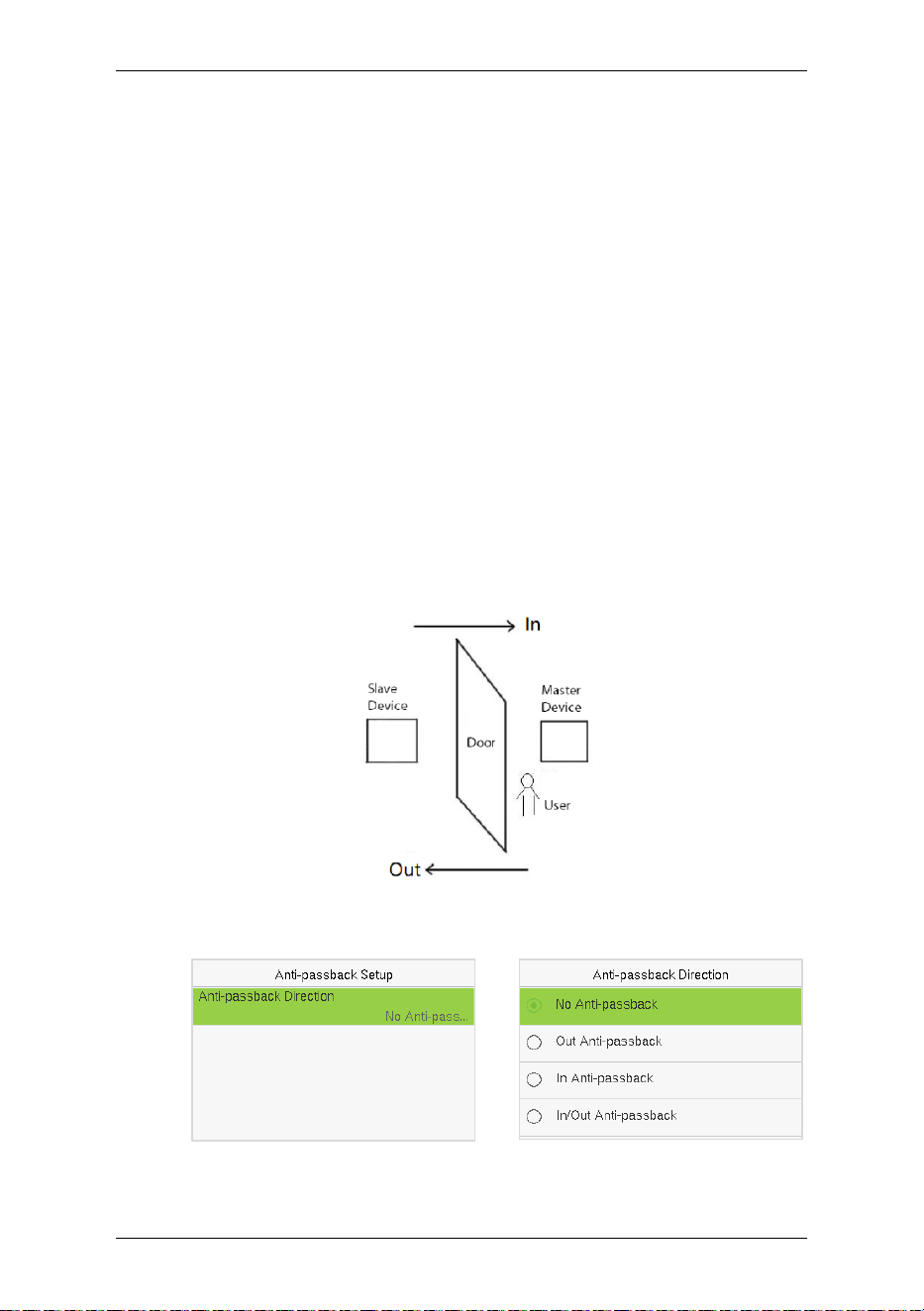

NTI-PASSBACK SETUP ................................................................................ 79 12.6

DURESS OPTIONS SETTINGS ......................................................................... 80 12.7

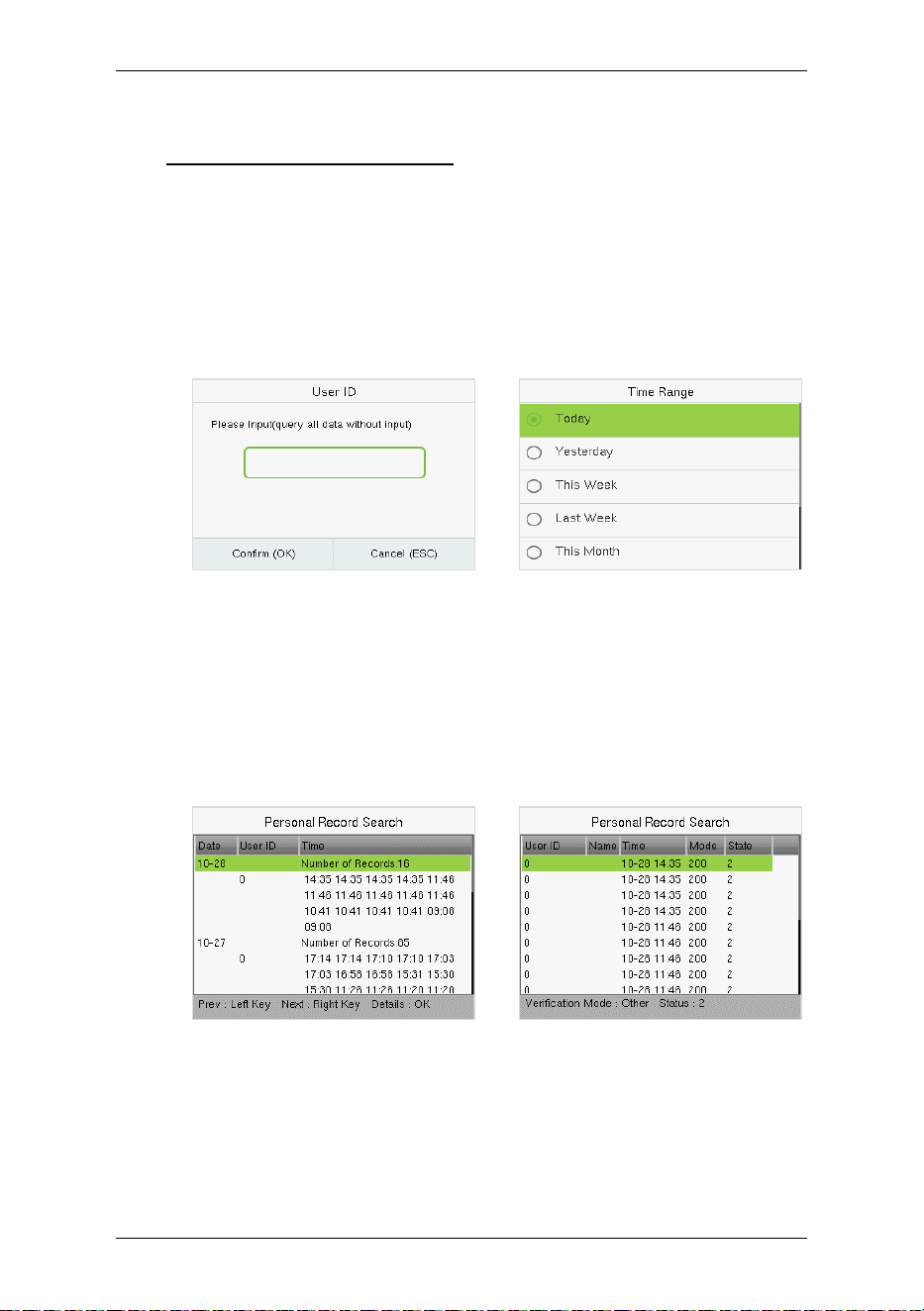

13 ATTENDANCE SEARCH ................................................................................... 83

14 WORK CODE ................................................................................................... 84

EW WORK CODE ...................................................................................... 84 14.1

ALL WORK CODES ...................................................................................... 85 14.2

ORK CODE OPTIONS ................................................................................. 85 14.3

15 AUTOTEST ...................................................................................................... 87

16 SYSTEM INFORMATION .................................................................................. 89

17 CONNECT TO ZKBIO ACCESS IVS SOFTWARE ................................................ 90

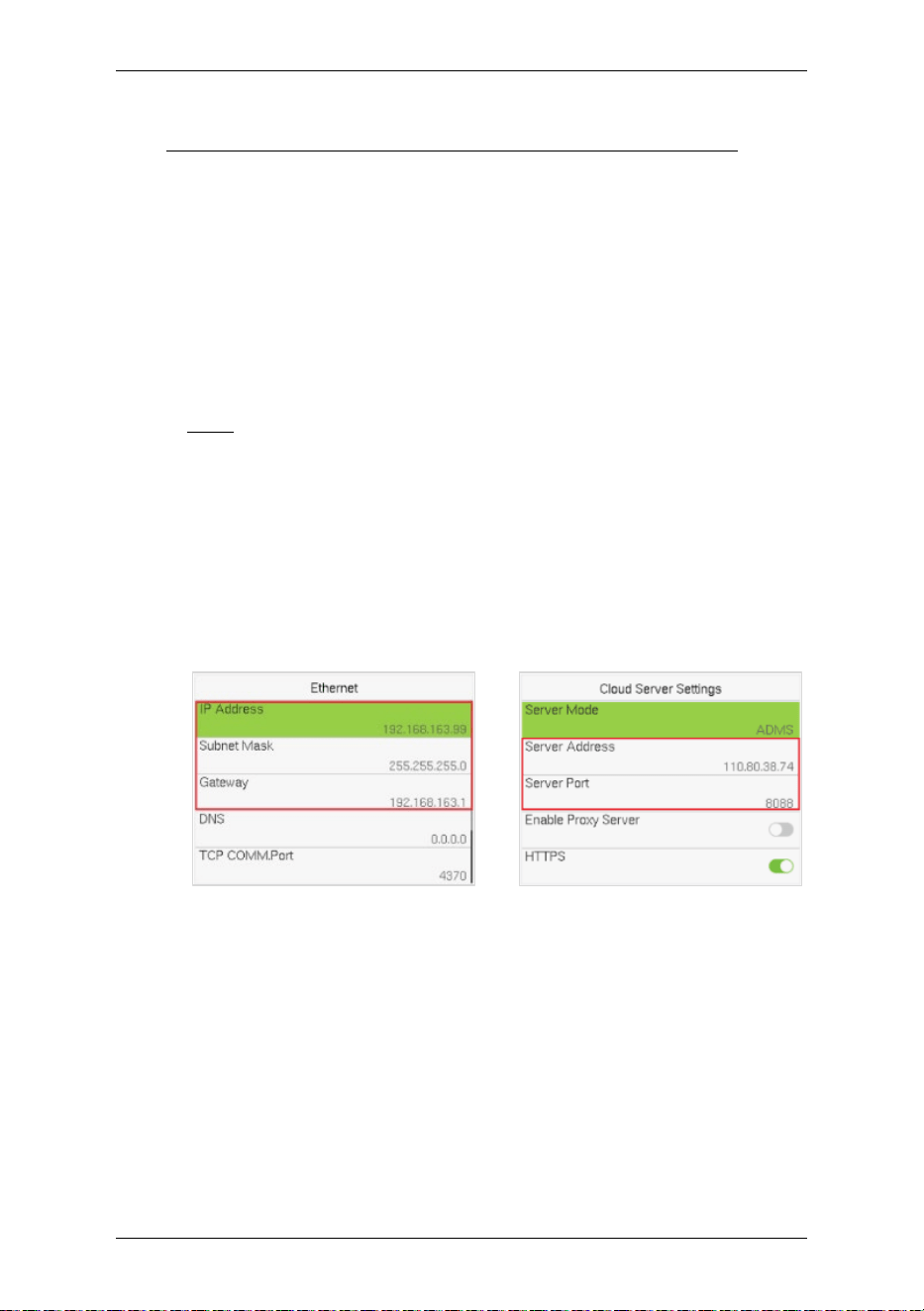

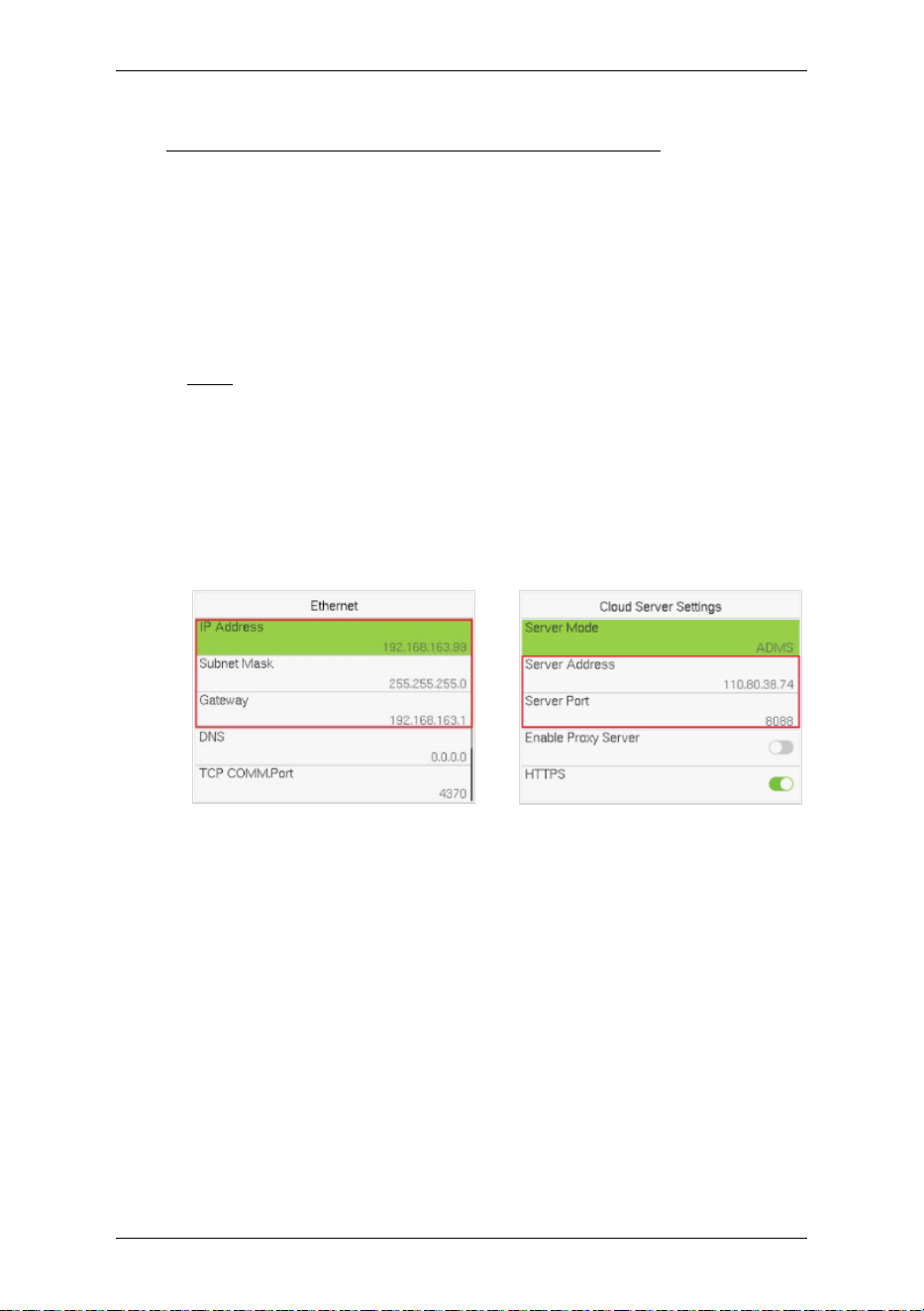

ET THE COMMUNICATION ADDRESS .............................................................. 90 17.1

DD DEVICE ON THE SOFTWARE .................................................................... 91 17.2

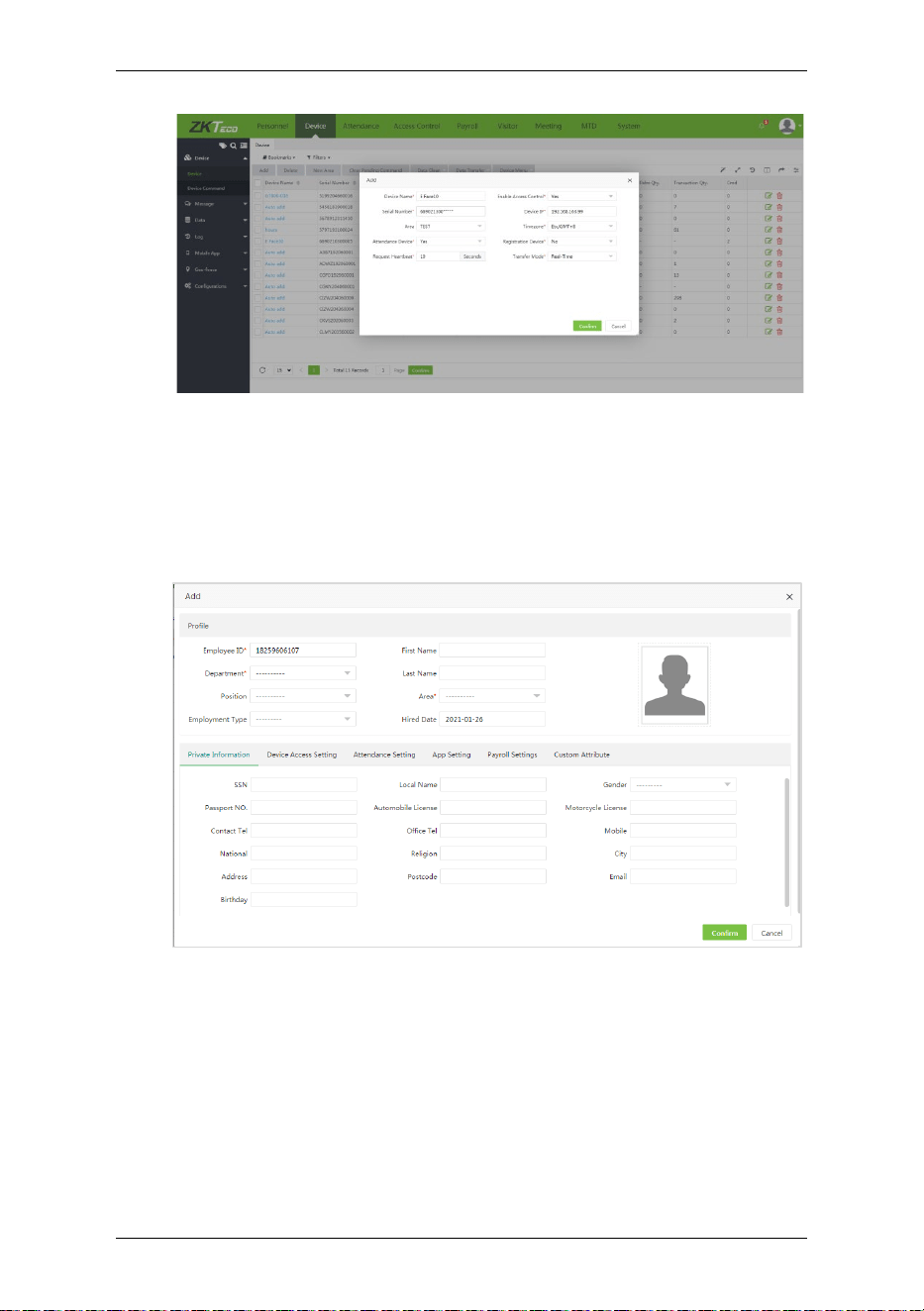

ADD PERSONNEL ON THE SOFTWARE .............................................................. 92 17.3

18 CONNECT TO BIOTIME 8.0 SOFTWARE .......................................................... 93

ET THE COMMUNICATION ADDRESS .............................................................. 93 18.1

ADD DEVICE ON THE SOFTWARE .................................................................... 93 18.2

DD PERSONNEL ON THE SOFTWARE .............................................................. 94 18.3

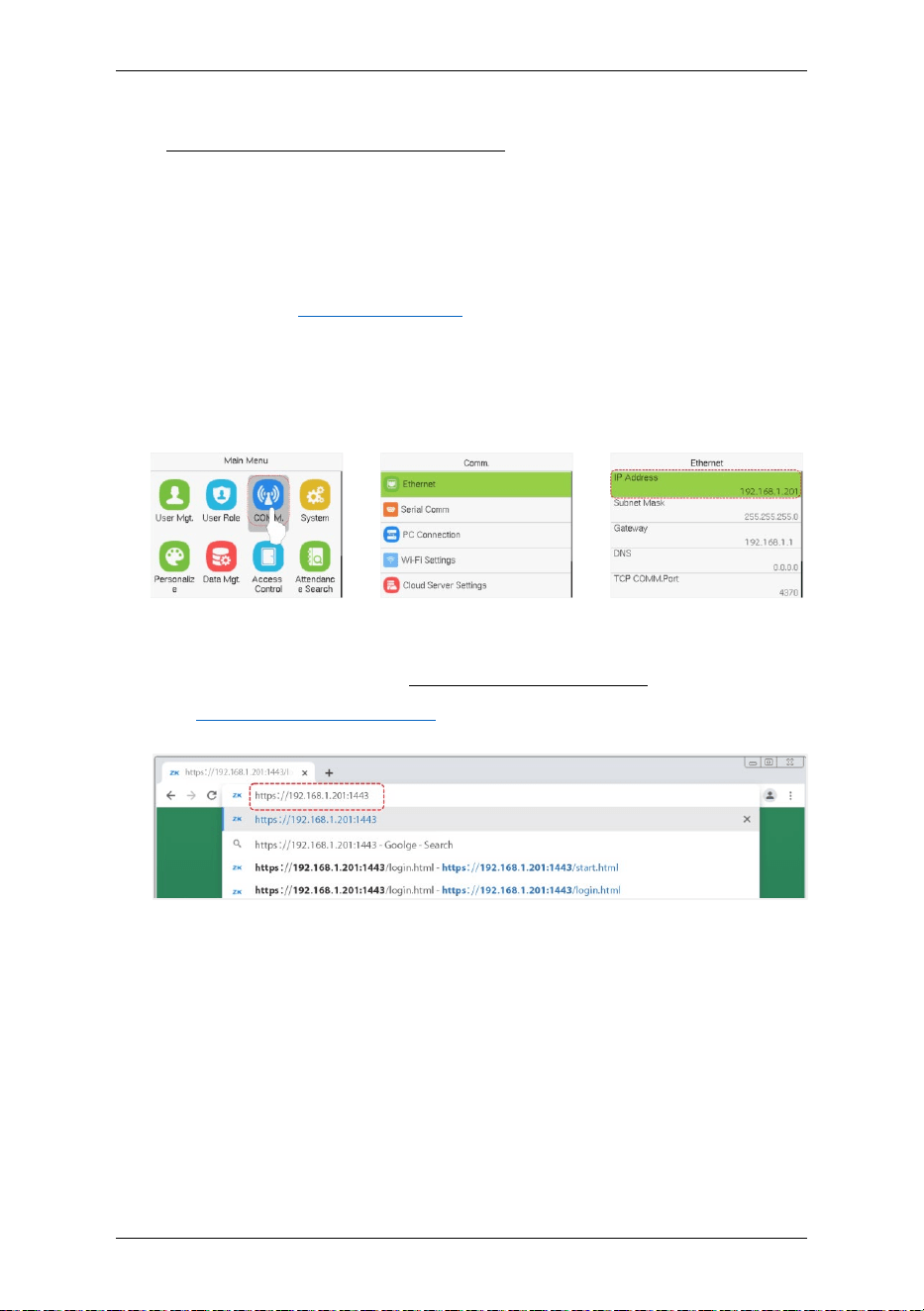

19 CONNECT TO WEBSERVER ............................................................................. 95

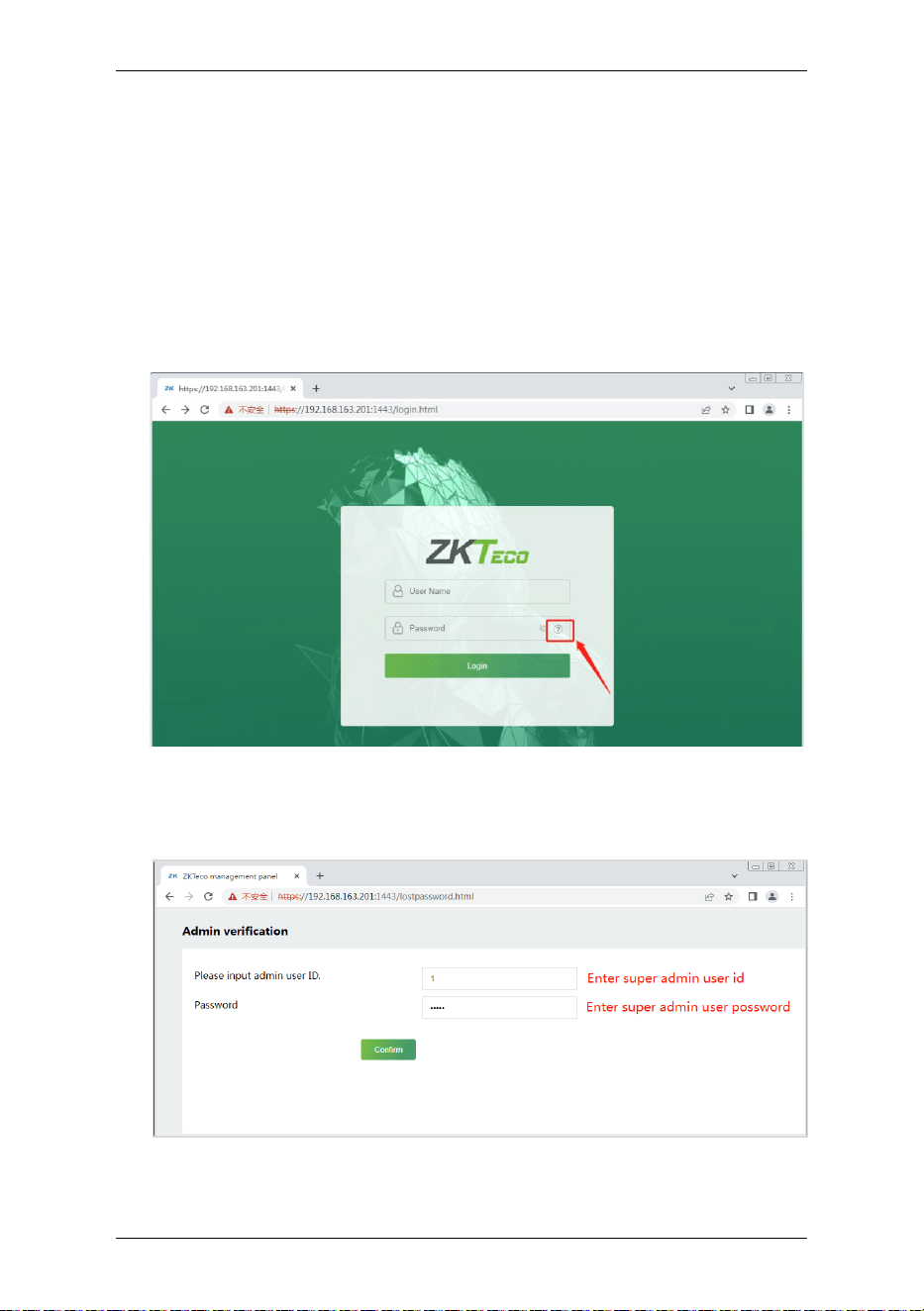

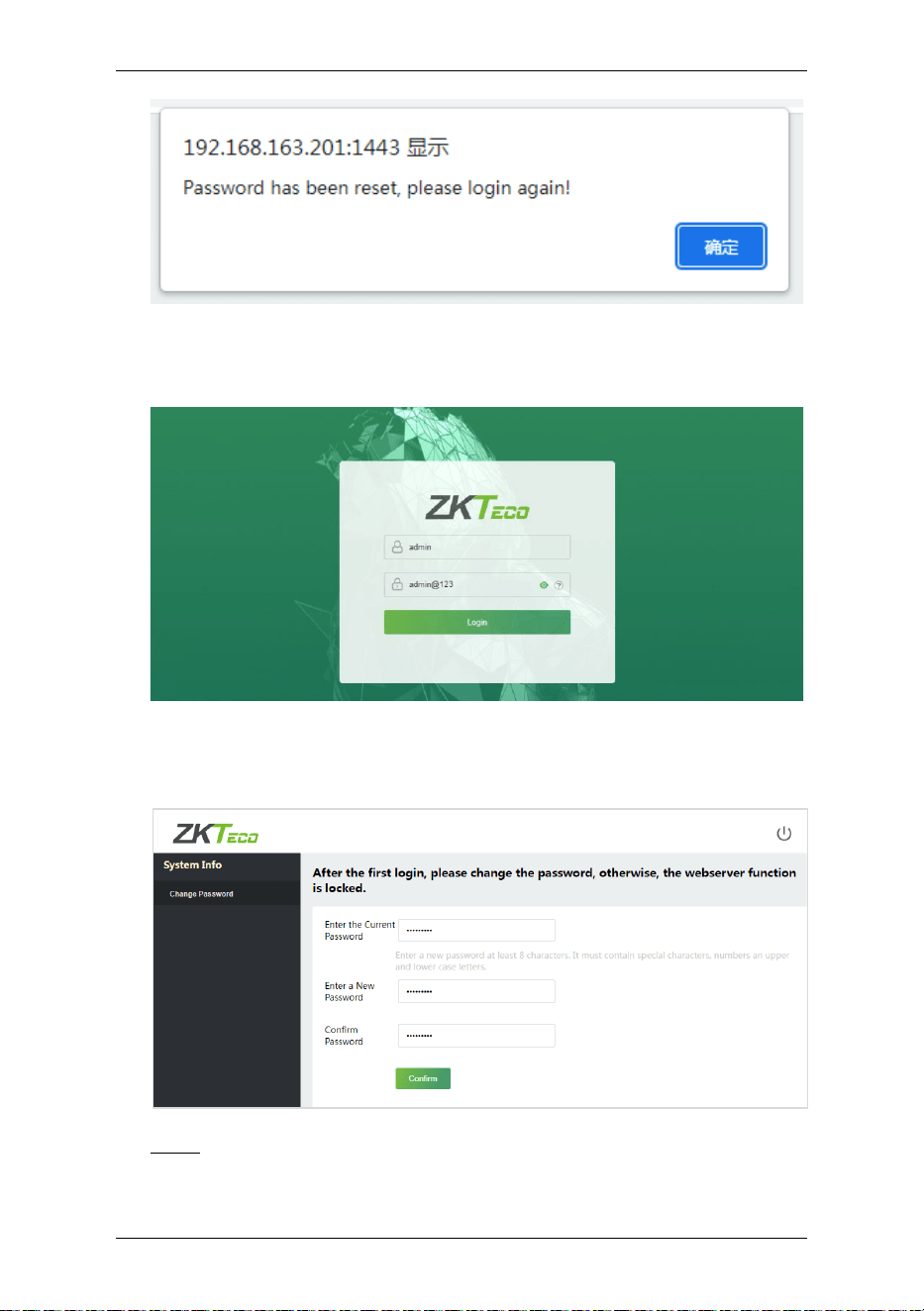

OGIN WEBSERVER ..................................................................................... 95 19.1

ORGOT PASSWORD .................................................................................... 97 19.2

SC800 User Manual

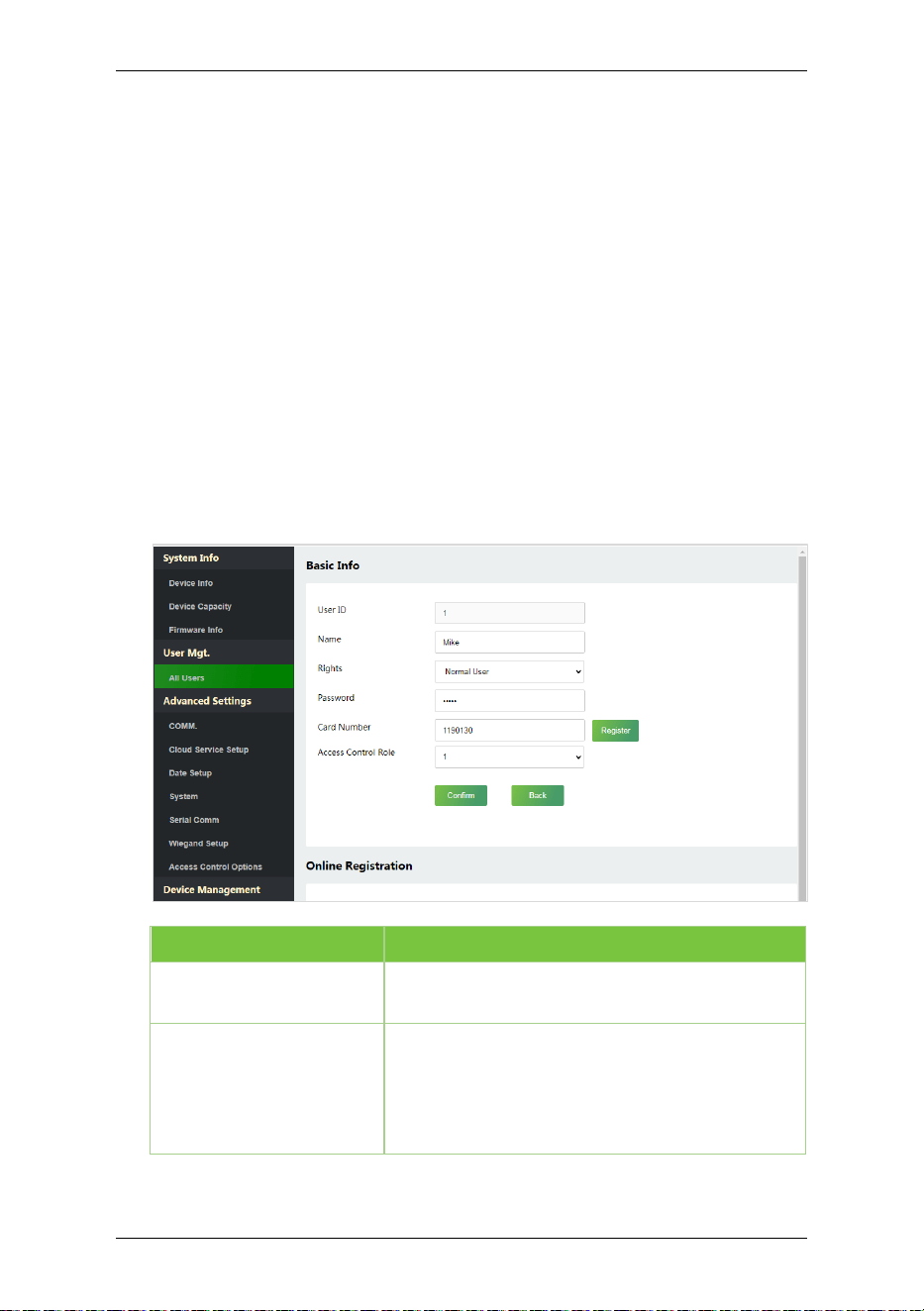

USER REGISTRATION ................................................................................ 100 19.3

SEARCH FOR USERS.................................................................................. 102 19.4

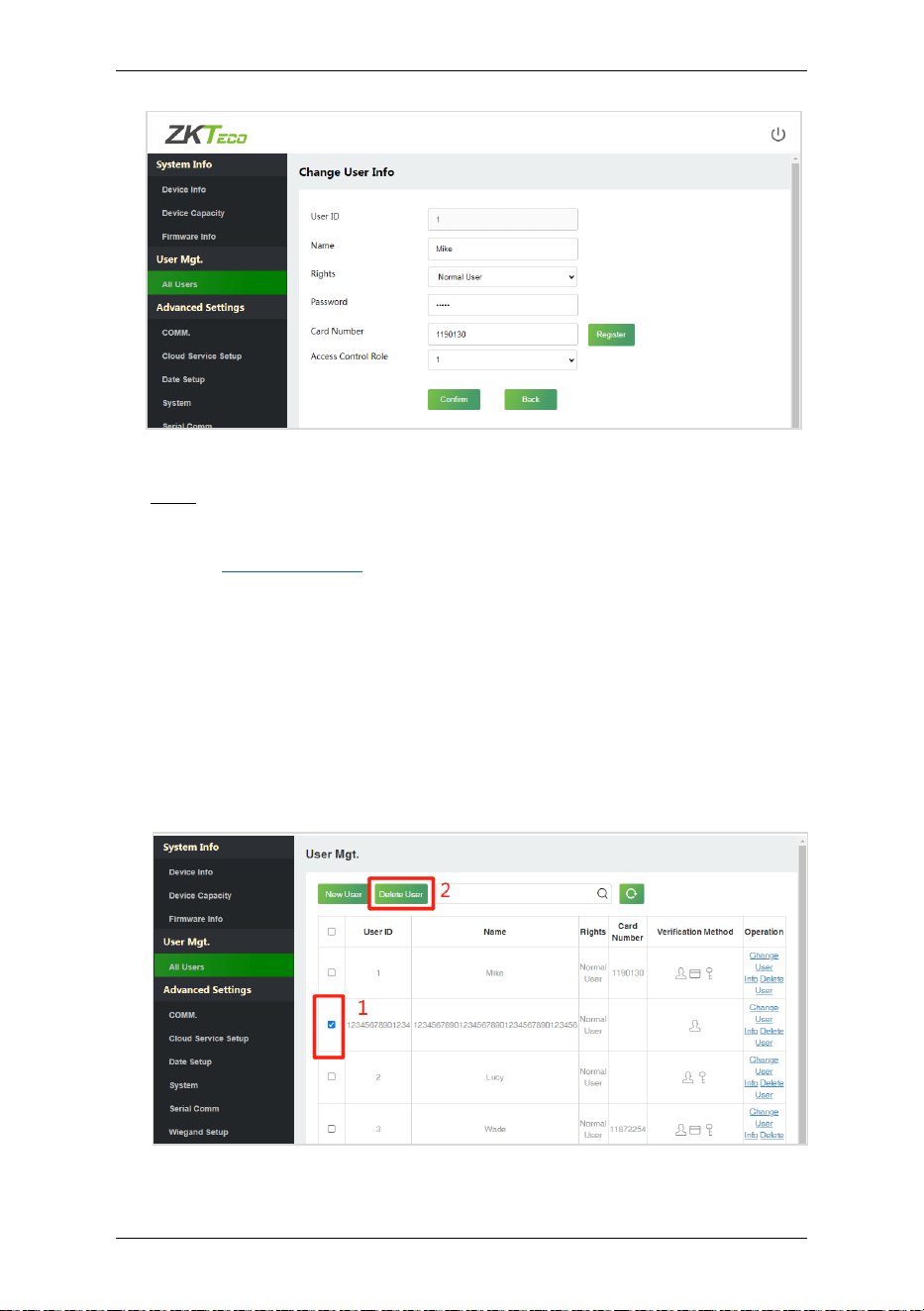

DIT USER.............................................................................................. 102 19.5

ELETE USER .......................................................................................... 103 19.6

COMM. ................................................................................................ 104 19.7

LOUD SERVER SETTINGS ......................................................................... 105 19.8

ATE SETUP ........................................................................................... 106 19.9

YSTEM ............................................................................................... 107 19.10

SERIAL COMM ....................................................................................... 108 19.11

IEGAND SETUP ................................................................................... 110 19.12

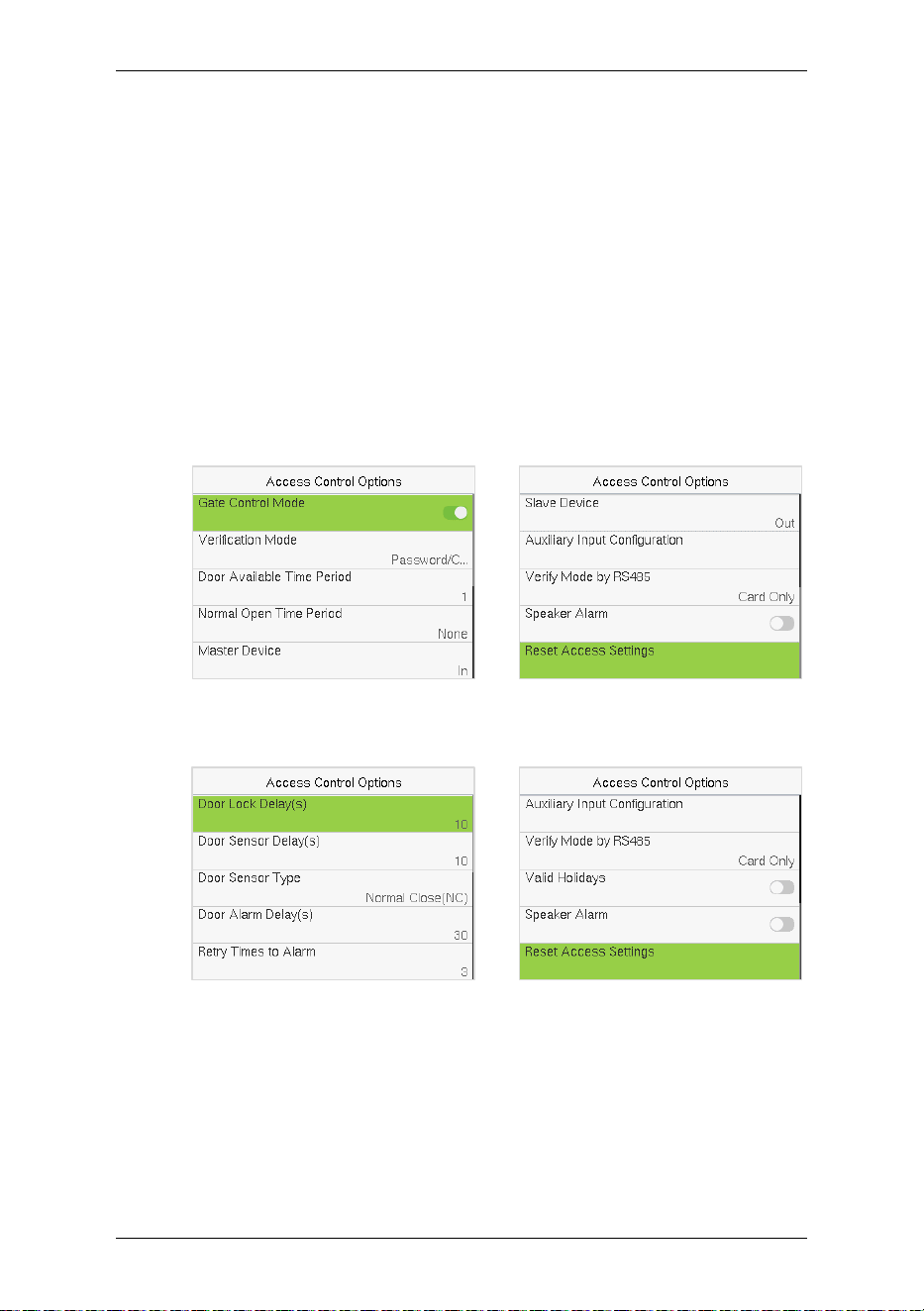

CCESS CONTROL OPTIONS ..................................................................... 111 19.13

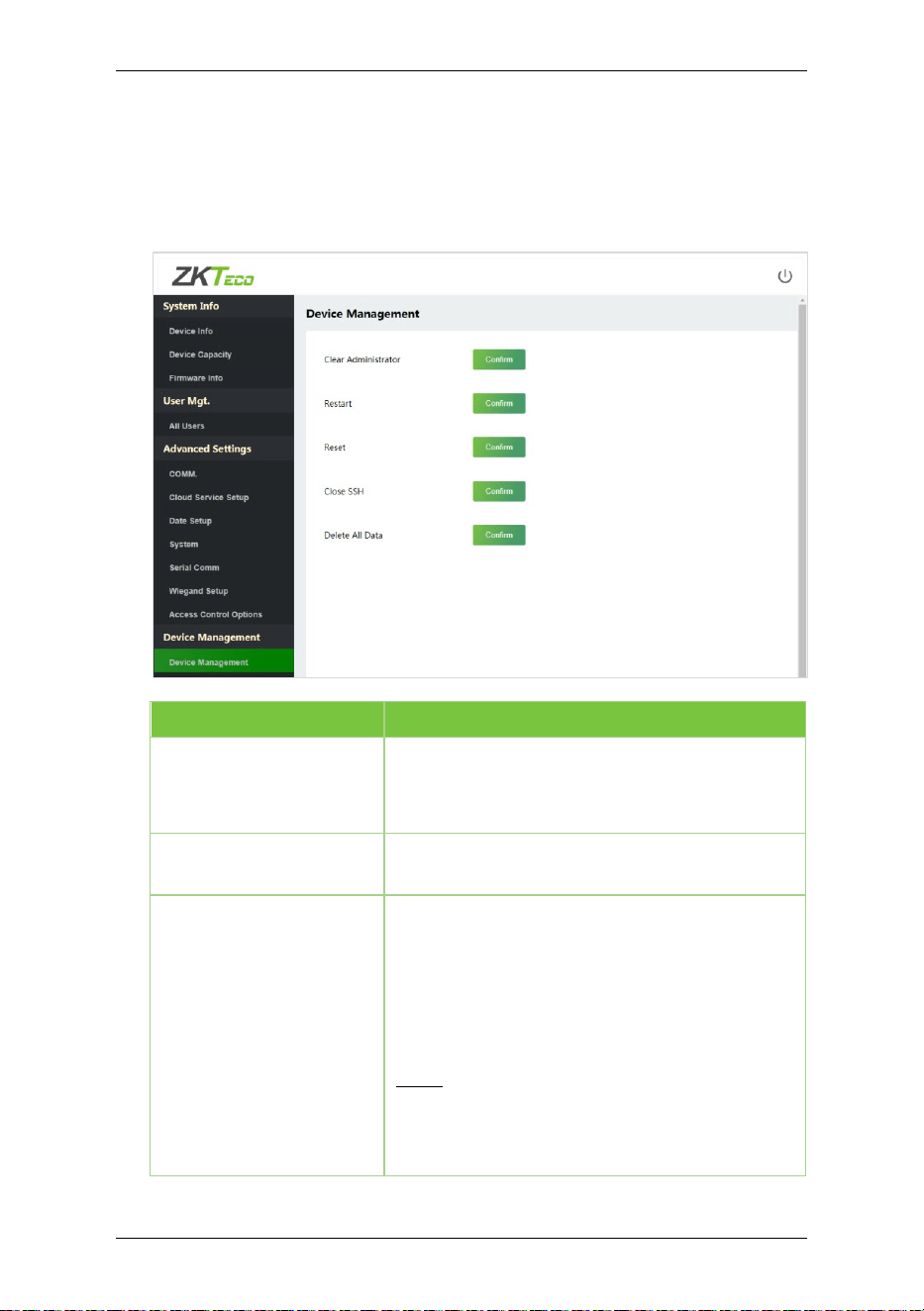

DEVICE MANAGEMENT ........................................................................... 113 19.14

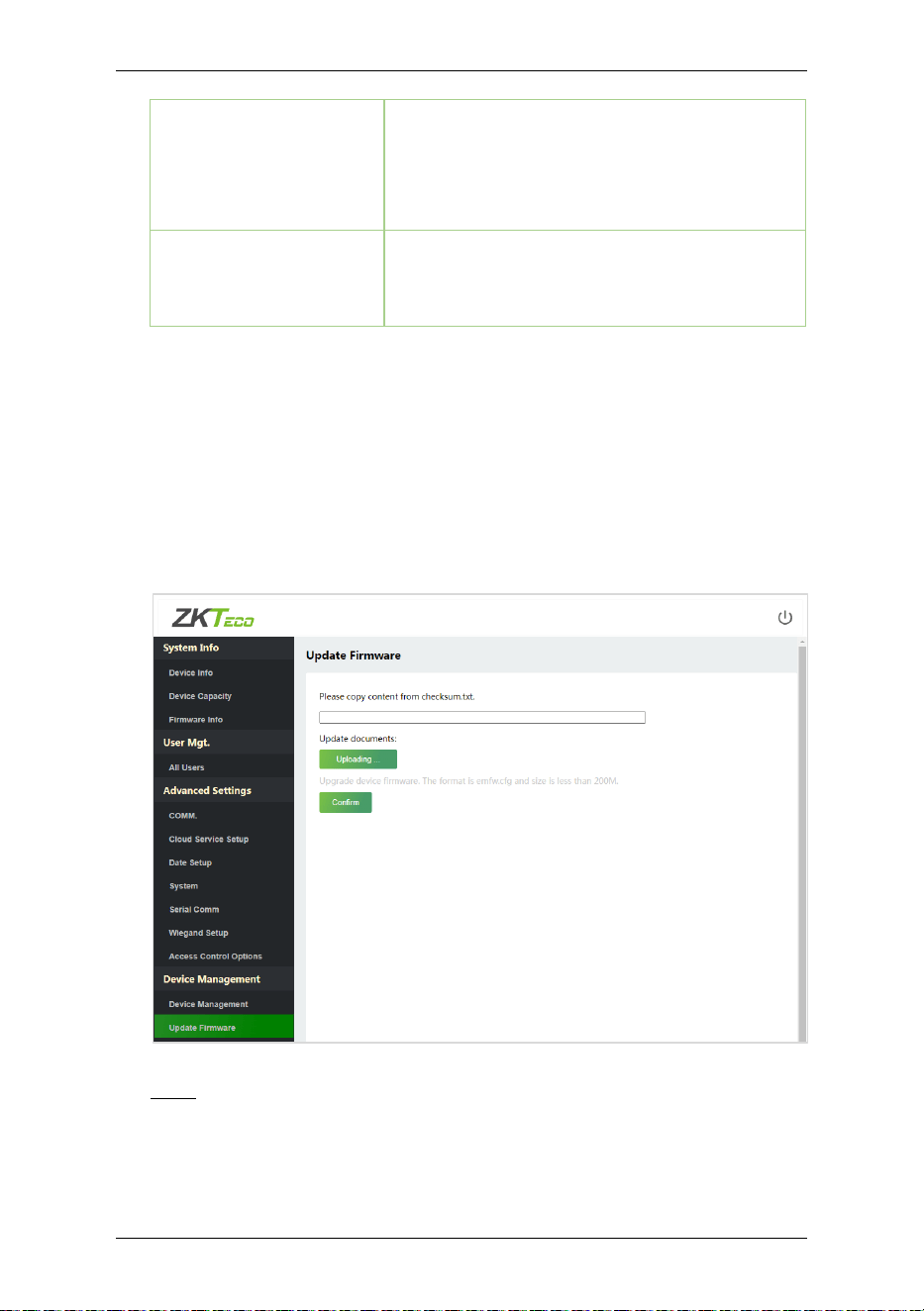

PDATE FIRMWARE ................................................................................ 114 19.15

HANGE PASSWORD .............................................................................. 115 19.16

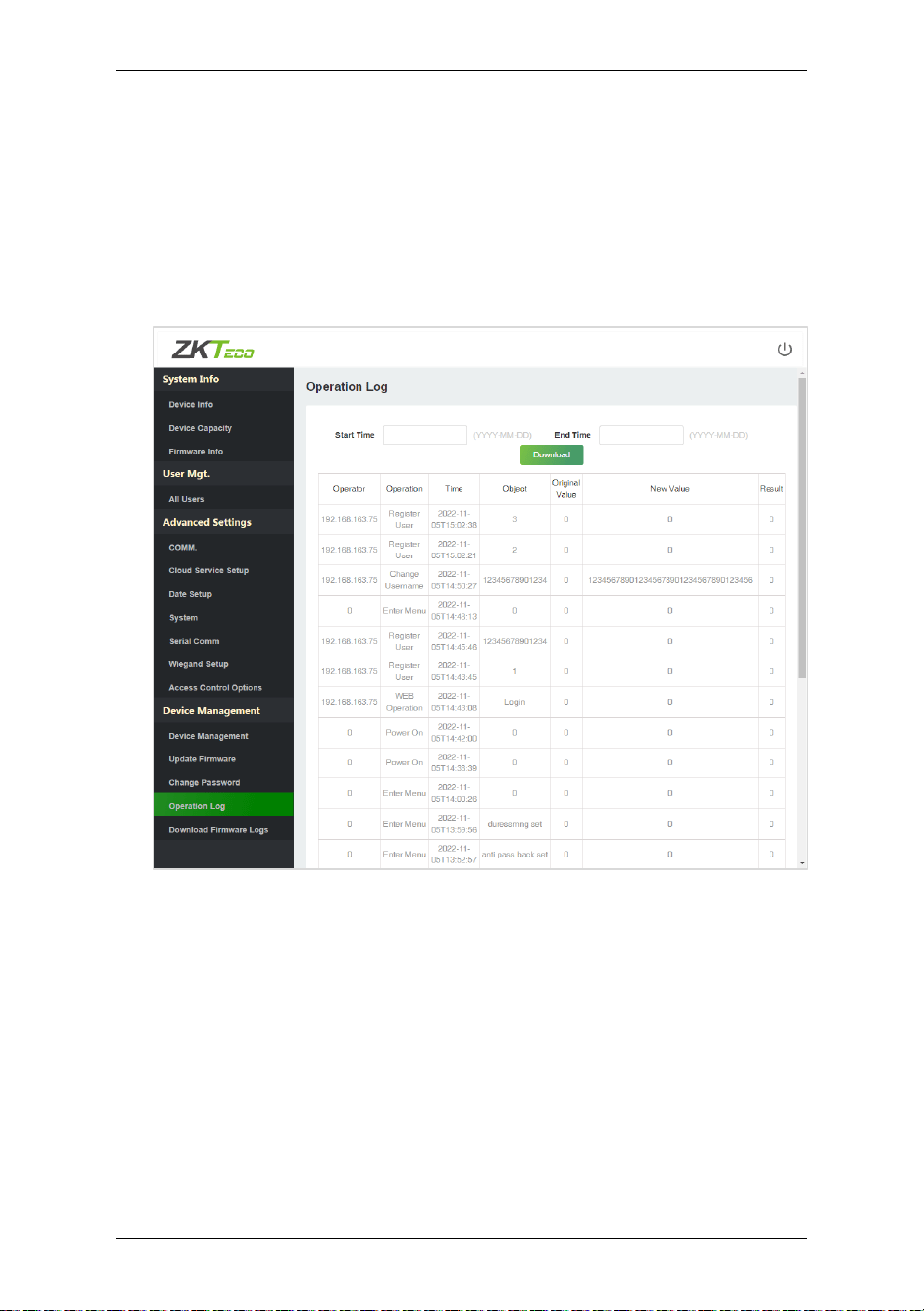

PER AT ION LOG .................................................................................... 116 19.17

DOWNLOAD FIRMWARE LOGS .................................................................. 117 19.18

YSTEM INFORMATION ........................................................................... 117 19.19

ECO-FRIENDLY OPERATION ............................................................................. 120

SC800 User Manual

1 Safety Measures

The following instructions are intended to make sure that the user uses the

product correctly to avoid risk or property loss. The following precautions are to

keep users safe and prevent any damage. Please read carefully before

installation.

Noncompliance with instructions could lead to product damage or

physical injury (may even cause death).

1. Read, follow, and retain instructions - Before using the device, make sure

that you have read and followed all safety and operational instructions.

2. Do not ignore warnings - Follow to all warnings on the unit and in the

operating instructions.

3. Accessories - Use only manufacturer-recommended or product-sold

accessories. Please do not use any other components other than

manufacturer suggested materials.

4. Precautions for the installation – Do not place this device on an unstable

stand or frame. It may fall and cause serious injury to persons and damage

to the device.

5. Service - Do not try to service this unit yourself. Opening or removing

covers may expose you to hazardous voltages or other hazards.

6. Damage requiring service - Disconnect the system from the Mains AC or

DC power source and refer service personnel under the following

conditions:

 When cord or connection control is affected.

 When the liquid spilled, or an item dropped into the system.

 If exposed to water or due to poor weather (rain, snow, and more).

 If the system is not operating normally, under operating instructions.

SC800 User Manual

Just change controls defined in operating instructions. Improper

adjustment of the controls may result in damage and involve a qualified

technician to return the device to normal operation.

And do not connect multiple devices to one power adapter, as adapter

overload can cause over-heat or fire hazard.

7. Replacement parts - When replacement parts are needed, service

technicians must only use replacement parts provided by the supplier.

Unauthorized substitutes can result in a burn, shock, or other hazards.

8. Safety check - On completion of servicing or repair work on the unit, ask

the service technician to perform safety checks to make sure that the

proper operation of the device.

9. Power sources - Operate the system only from the label's power source

form. If the sort of power supply to use is unclear, contact your dealer.

10. Lightning - External lightning conductors can be installed to provide

protection against electrical storms. It prevents power-ups from destroying

the system.

It is recommended that the devices are installed in areas with limited

access.

2 Electrical Safety

 Before connecting an external cable to the device, complete grounding

properly, and set up surge protection; otherwise, static electricity will

damage the mainboard.

 Make sure that the power has been disconnected before you wire, install, or

dismantle the device.

 Make sure that the signal connected to the device is a weak-current (switch)

signal; otherwise, components of the device will get damaged.

SC800 User Manual

 Ensure that the standard voltage in your country or region is used. If you

are not sure about the recommended standard voltage, please consult your

local electric power company. A mismatch in power might result in a short

circuit or device damage.

 Return the device to professional technical personnel or your dealer if the

power supply is damaged.

 To avoid interference, keep the device away from high electromagnetic

radiation devices, such as generators (including electric generators), radios,

televisions, (especially CRT) monitors, or speakers.

3 Operation Safety

 If smoke, smell, or noise rise from the device, immediately turn off the

power and unplug the power cable, and then please contact the service

center.

 Transportation and other unpredictable factors may cause damage the

device hardware. Before installation, check to see whether the device has

any severe damage.

 If the device has major defects that you cannot solve, contact your dealer as

soon as possible.

 Dust, moisture, and sudden temperature changes all can affect the device's

service life. You are advised not to keep the device under such conditions.

 Do not keep the device in a place that vibrating surfaces. Handle the device

with care. Do not place heavy objects on top of the device.

 Do not apply rosin, alcohol, benzene, pesticides, and other volatile

substances that may damage the device enclosure. Clean the device

accessories with a piece of soft cloth or a small amount of cleaning agent.

 If you have any technical questions regarding usage, contact certified or

SC800 User Manual

experienced technical personnel.

Note:

 Make sure whether the positive polarity and negative polarity of the DC

12V power supply is connected correctly. A reverse connection may

damage the device. It is not advisable to connect the AC 24V power supply

to the DC 12V input port.

 Make sure to connect the wires following the positive polarity and negative

polarity shown on the device's nameplate.

 The warranty service does not cover accidental damage, damage caused by

incorrect operation, and damage due to independent installation or repair

of the product by the user.

SC800 User Manual

4 Instructions for Use

Installation 4.1

4.1.1 Installation Environment

Please refer to the following recommendations for installation

4.1.2 Device Installation

1. Stick the mounting template sticker to the wall, and drill holes according to

the mounting template sticker.

2. Fix the backplate on the wall using wall mounting screws.

3. Place the device to the backplate.

4. Mount the device to the backplate with the security screws.

SC800 User Manual

Standby Interface 4.2

The device uses a 2.4-inch color screen, which all operations are performed

through hidden touch keypad. (Note: The device only supports the input of

numbers, other characters such as English and symbols can be synchronized by

the software down.) Before getting into the device features and functions, it is

recommended to be familiar with the below fundamentals.

After connecting the power supply, the following standby interface is

displayed:

 Enter any number to access the User ID input interface.

 When there is no Super Administrator set in the device, tap M/OK to go to

the menu.

SC800 User Manual

 After adding a Super Administrator on the device, it requires the Super

Administrator’s verification before opening the menu functions.

Note: For the security of the device, it is recommended to register a super

administrator the first time you use the device.

 On the standby interface, the punch state options can also be shown and

used directly. The black bold shortcut key mappings will be displayed on

the screen if you tap the relevant shortcut key on the hidden touch keypad,

as shown in the picture below. For the specific operation method, please

see "Shortcut Key Mappings."

SC800 User Manual

Note: The punch state options are disabled by default, and you must select

other mode options in the "Punch States Options" section to see them on the

standby screen.

Verification Mode 4.3

4.3.1 Card Verification

 1: N Card Verification Mode:

The 1:N Card Verification Mode compares the card number in the card

induction area with all the card number data registered in the device; The

following is the card verification screen:

 1:1 Card Verification Mode:

The 1:1 Card Verification mode compares the card number in the card

induction area with the number associated with the employee's User ID

registered in the device.

Enter the user ID and tap M/OK to enter the 1:1 card verification mode.

SC800 User Manual

If an employee registers a password in addition to the card, the following

screen will appear. Select the card to enter card verification mode.

4.3.2 Password Verification

The device compares the entered password with the registered password of

the given User ID.

Enter the user ID and tap M/OK to enter the 1:1 password verification mode.

Then, input the user ID and tap M/OK.

SC800 User Manual

If an employee registers a card in addition to the password, the following

screen will appear. Select the password to enter card verification mode.

Below are the display screens after entering a correct password and a wrong

password, respectively.

Verification is successful: Verification is failed:

4.3.3 Combined Verification

This device allows you to use a different types of verification methods to

increase security. There are a total of 5 different verification combinations that

can be implemented, as listed below:

Combined Verification Symbol Definition

Symbol Definition Explanation

This method compares the entered

verification of a person with the

verification template

SC800 User Manual

previously stored to that Personnel ID

in the Device.

and

This method compares the entered

verification of a person with all the

verification templates previously

stored to that Personnel ID in the

Device.

Combined Verification Mode set up procedure:

 Combined verification requires personnel to register all the different

verification methods. Otherwise, employees will not be able to successfully

verify the combined verification process.

 For example, if an employee has only registered for password data but the

Device verification mode is set to "Password + Card," the employee will not

be able to successfully complete the verification procedure.

Reason:

 This is because the Device compares the password template of the person

with the registered verification template (both the Card and the Password)

previously stored to that Personnel ID in the Device.

 But, since the employee has only registered their password and not their

card, the verification process will not be successful, and the device will

display "Verification Failed."

SC800 User Manual

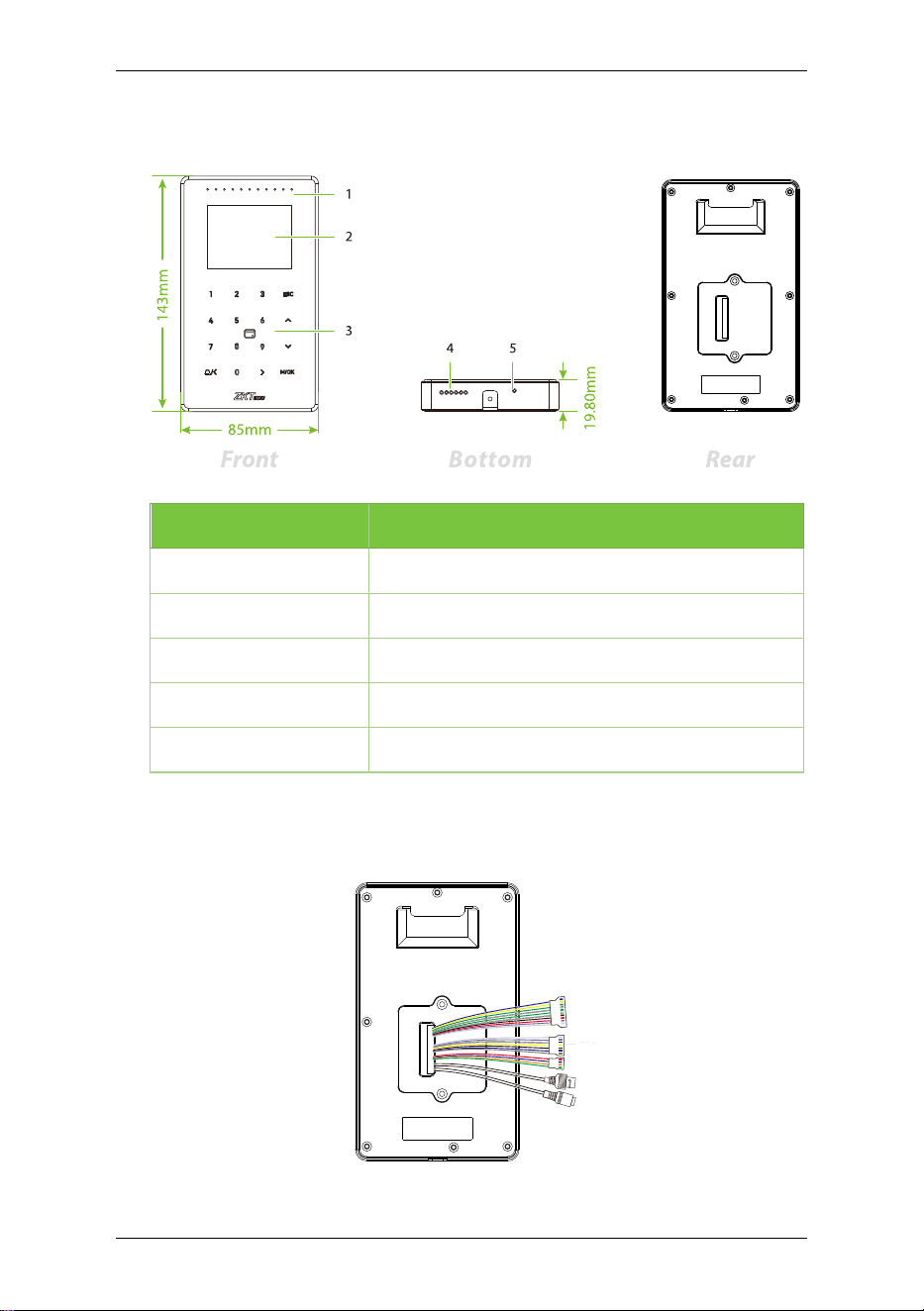

Appearance 4.4

No. Description

1 Breathing Light

2 2.4-inch Color Screen

3 Hidden Touch Keypad

4 Speaker

5 Reset

Terminal Description 4.5

SC800 User Manual

Interface Description

485A

RS485

485B

WD0-OUT

Wiegand Out

WD1-OUT

INWD0

Wiegand In

INWD1

GND

12V-OUT

TX232

RS232

RX232

Lock

COM

SEN

Sensor / Exit Button /

Auxiliary Input

GND

BUT

AUX

BELL+

Bell

BELL-

AL+

Alarm

AL-

Network Interface

12V Power In

SC800 User Manual

Wiring Description 4.6

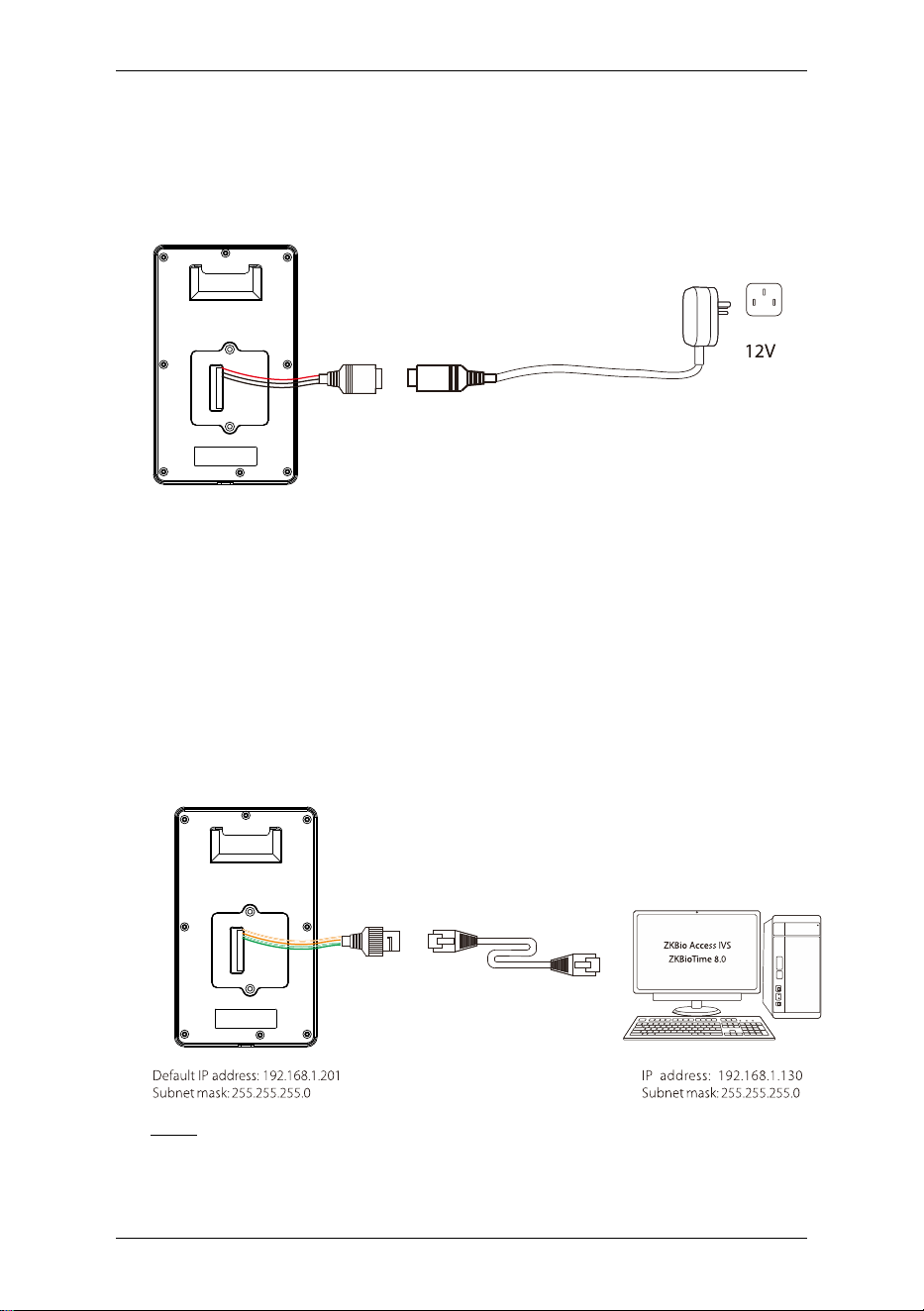

4.6.1 Power Connection

Recommended AC Adapter

1. 12V ± 10%, at least 3A.

2. To share the power with other devices, use an AC Adapter with higher

current ratings.

4.6.2 Ethernet Connection

Connect the device and computer via an Ethernet cable, as shown in the

example below:

Note: In LAN, the IP addresses of the server (PC) and the device must be in the

same network segment when connecting to the software.

SC800 User Manual

4.6.3 Door Sensor, Exit Button, Alarm and Auxiliary

Connection

4.6.4 Lock Relay Connection

The system supports Normally Opened Lock and Normally Closed Lock. The NO

LOCK (normally unlocked when power-ON) is connected with 'NO' and 'COM'

terminals, and the NC LOCK (normally locked when power-ON) is connected

with 'NC' and 'COM' terminals. Take NC Lock as an example below:

SC800 User Manual

4.6.5 Wiegand Reader Connection

Note: 485A and 485B can be connected to the Barrier gate or the 485 Reader,

separately, but cannot be connected to the gate and reader at the same time.

4.6.6 RS485 Connection

4.6.7 RS232 Connection

SC800 User Manual

5 Main Menu

Tap M/OK on the initial interface to enter the main menu, as shown below:

Function Description

Menu Description

User Mgt.

To Add, Edit, View, and Delete information of a

User.

User Role

To set the permission scope of the custom role

and enroller for the users, for example the

system's operating rights.

COMM.

To set the relevant parameters of Network, Serial

Comm., PC Connection, Wi-

Fi, Cloud Server,

Wiegand and Network Diagnosis.

System

To set parameters related to the system, including

Date Time, attendance/Access Logs Settings, Card

management, Device Type Settings, Security

Settings and resetting to factory settings.

Personalize

To customize settings of User Interface, Voice, Bell

Schedules, Punch State Options and Shortcut Key

Mappings settings.

Data Mgt. To delete, backup or restore the data.

SC800 User Manual

Access Control

To set the parameters of the lock and the relevant

access control device including options like Time

schedule, Holiday Settings, Combine verification,

Anti-Passback Setup, and Duress Option Settings.

Attendance Search To query the specified Event logs.

Work Code Set different type of work.

Autotest

To automatically test whether each module

functions properly, including the LCD Screen,

Audio, Keyboard and Real-Time Clock.

System Info

To view Privacy Policy, Data Capacity and Device

and Firmware information of the current device.

SC800 User Manual

6 User Management

New User Registration 6.1

Tap User Mgt. on the main menu.

6.1.1 Register a User ID

Tap New User and enter the User ID.

Note:

1. By default, the user ID can have 1 to 14 digits.

2. During the initial registration, you can modify your ID but not after the

registration.

3. If the message "Duplicated!" appears, you must choose a different User ID

because the one you entered already exists.

SC800 User Manual

4. The device only supports the input of numbers, other characters such as

English and symbols can be synchronized by the software.

6.1.2 User Role

On the New User interface, tap on User Role to set the user’s role as either

Normal User or Super Admin.

 Super Admin: The Super Administrator owns all management privileges

in the Device.

 Normal User: If the Super Admin is registered already in the device, then

the Normal Users will not have the privilege to manage the system and

can only access authentic verifications.

 User Defined Roles: The Normal User can also be assigned custom roles

with User Defined Role. The user can be permitted to access several

menu options as required.

Note: If the selected user role is the Super Admin, then the user must pass the

identity authentication to access the main menu. The authentication is based

on the authentication method(s) that the super administrator has registered.

6.1.3 Card Number

Tap Card Number in the New User interface to enter the card registration

page.

 Swipe the card underneath the card reading area on the Card interface. The

registration of the card will be successful.

 If the card has already been registered, the message "Error! Card already

SC800 User Manual

enrolled" appears. The registration interface looks like this:

6.1.4 Password

Tap Password in the New User interface to enter the password registration

page.

 On the Password interface, enter the required password and re-enter to

confirm it and tap M/OK.

 If the re-entered password is different from the initially entered password,

then the device prompts the message as "Password not match!", where

the user needs to re-confirm the password again.

 The password may contain 6 to 8 digits by default.

6.1.5 Access Control Role

The Access Control Role sets the door access privilege for each user. It includes

the access group, verification mode and time period

SC800 User Manual

 Tap Access Control Role > Access Group to assign the registered users to

different groups for better management. New users belong to Group 1 by

default and can be reassigned to other groups. The device supports up to

99 Access Control groups.

 Tap Verification Mode, to select the verification mode.

 Tap Apply Group Time Period, to select the time to use.

All Users 6.2

On the Main Menu, tap User Mgt., and then tap All Users to search a User.

 On the All-Users interface, tap on the search bar on the user’s list to enter

the user ID and the system will search for the related user information.

SC800 User Manual

6.2.1 Edit User

On the All-Users interface, tap on the required user from the list and tap Edit

to edit the user information.

Note: The process of editing the user information is the same as adding a new

user, except that the User ID cannot be modified while editing a user. The

process in detail refers to "User Registration".

6.2.2 Delete User

On the All Users interface, tap on the required user from the list and tap Delete

to delete the user or specific user information from the device. On the Delete

interface, tap on the required operation, and then tap M/OK to confirm the

deletion.

Delete Operations:

 Delete User: Deletes all the user information (deletes the selected User as a

whole) from the Device.

 Delete User Role Only: Deletes the user's administrator privileges and

make the user a normal user.

 Delete Password Only: Deletes the password information of the selected

user.

 Delete Card Number Only: Deletes the card information of the selected

user.

SC800 User Manual

Display Style 6.3

On the Main Menu, tap User Mgt., and then tap Display Style to enter Display

Style setting interface.

All the Display Styles are shown as below:

Multiple Line: Mixed Line:

SC800 User Manual

7 User Role

User Role allows you to assign specific permissions to certain users based on

their requirements

 On the Main menu, tap User Role, and then tap on the User Defined Role

to set the user defined permissions.

 The permission scope of the custom role can be set up into 3 roles, that is,

the custom operating scope of the menu functions of the user.

 On the User Defined Role interface, toggle Enable Defined Role to enable

or disable the user defined role.

 Then, by selecting on Define User Role, select the required privileges for the

new role, and then tap the M/OK key.

 When assigning privileges the main menu function names will be displayed

on the left and its sub-menus will be listed on the right.

SC800 User Manual

 First tap on the required Main Menu function name, and then select its

required sub-menus from the list.

Note: If the User Role is enabled for the Device, tap on User Mgt. > New User >

User Role to assign the created roles to the required users. But if there is no

super administrator registered in the Device, then the device will prompt

"Please enroll super admin first!" when enabling the User Role function.

SC800 User Manual

8 Communication

Communication Settings are used to set the parameters of the Network, Serial

Comm, PC Connection, Wi-Fi, Cloud Server, Wiegand, and Network Diagnosis.

Tap COMM. on the main menu.

Ethernet 8.1

When the device needs to communicate with a PC over the Ethernet, you need

to configure network settings and make sure that the device and the PC

connect to the same network segment.

Tap Ethernet on the Comm. Settings interface to configure the settings.

SC800 User Manual

Function Description:

Function Name Description

IP Address

The default IP address is 192.168.1.201. It can be

modified according to the network availability.

Subnet Mask

The default Subnet Mask is 255.255.255.0. It can be

modified according to the network availability.

Gateway

The Default Gateway address is 0.0.0.0. It can be

modified according to the network availability.

DNS

The default DNS address is 0.0.0.0. It can be modified

according to the network availability.

TCP COMM. Port

The default TCP COMM Port value is 4370. It can be

modified according to the network availability.

DHCP

Dynamic Host Configuration Protocol dynamically

allocates IP addresses for clients via server.

Display in Status

Bar

Toggle to set whether to display the network icon on

the status bar.

Serial Comm 8.2

Serial Comm function establishes communication with the device through a

serial port (Master Unit/OSDP Output).

Tap Serial Comm. on the Comm. Settings interface.

SC800 User Manual

Function Description

Function Name Description

Serial Port

No Using: No communication with the device through

the serial port.

Master Unit: When OSDP is used as the function of

"Master unit", it can be connected to a card reader.

OSDP Output: Communicate with the device through

the OSDP serial port.

Baudrate

There are 4 baudrate options at which the data

communicates with PC. They are: 115200 (default),

57600, 38400, and 19200.

The higher the baudrate, the faster is the

communication speed, but also less reliable.

Hence, a higher baudrate

can be used when the

communication distance is short; when the

communication distance is long, choosing a lower

baudrate is more reliable.

PC Connection 8.3

Comm Key facilitates to improve the security of the data by setting up the

communication between the device and the PC. Once the Comm Key is set, a

password is required to connect the device to the PC software.

Tap PC Connection on the Comm. Settings interface to configure the

communication settings.

Function Description

Function Name Description

Comm Key

The default password is 0 and can be changed.

The Comm Key can contain 1 to 6 digits.

SC800 User Manual

Baudrate

It is the identification number of the device, which

ranges between 1 and 254.

If the communication method is RS485, you need to

input this device ID in the

software communication

interface.

Wi-Fi Settings 8.4

The device provides a Wi-Fi module, which can be built-in within the device

module or can be externally connected.

The Wi-Fi module enables data transmission via Wi-Fi (Wireless Fidelity) and

establishes a wireless network environment. Wi-Fi is enabled by default in the

device. If you don't need to use the Wi-Fi network, you can toggle the Wi-Fi to

disable the button.

Tap Wi-Fi Settings on the Comm. Settings interface to configure the Wi-Fi

settings.

 Searching the Wi-Fi Network

 WIFI is enabled in the device by default. Toggle the button to

enable or disable WIFI.

 Once the Wi-Fi is turned on, the device will search for the available Wi-Fi

within the network range.

 Tap on the required Wi-Fi name from the available list and input the correct

SC800 User Manual

password in the password interface, and then tap M/OK.

 When the WIFI is connected successfully, the initial interface will display the

Wi-Fi logo.

 Adding Wi-Fi Network Manually

The Wi-Fi can also be added manually if the required Wi-Fi does not show on

the list.

Note: After successfully adding the WIFI manually, follow the same process to

search for the added Wi-Fi name.

WIFI Enabled: Tap on the

required network from the

searched network list.

Tap on the password field to

enter the password and tap

M/OK.

Tap on Add Wi-Fi Network to

add the Wi-Fi manually.

On this interface, enter the Wi-Fi

network parameters. (The added

network must exist.)

SC800 User Manual

 Advanced Setting

On the Wi-Fi Settings interface, tap on Advanced to set the relevant

parameters as required.

Function Description

Function Name Description

DHCP

Dynamic Host Configuration Protocol (DHCP)

dynamically allocates IP addresses to network clients. If

the DHCP is

enabled, then the IP cannot be set

manually.

IP Address

The IP address for the Wi-Fi

network, the default is

0.0.0.0. It can be modified according to the network

availability.

Subnet Mask

The default Subnet Mask of the Wi-Fi

network is

255.255.255.0. It can be modified according to the

network availability.

Gateway

The Default Gateway address is 0.0.0.0. It can be

modified according to the network availability.

Cloud Server Settings 8.5

Tap Cloud Server Settings on the Comm. Settings interface to connect with

the ADMS server.

SC800 User Manual

Function Description

Function Name Description

Server Address

The IP address of the ADMS server.

Server Port

Port used by the ADMS server.

Enable Proxy

Server

The IP address and the port number of the proxy

server is set manually when the proxy is enabled.

HTTPS

Based on HTTP, transmission encryption and identity

authentication make sure that the security of the

transmission process.

Wiegand Setup 8.6

It is used to set the Wiegand input and output parameters.

Tap Wiegand Setup on the Comm. Settings interface to set up the Wiegand

input and output parameters.

SC800 User Manual

8.6.1 Wiegand Input

Function Description

Function Name Description

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits,

and 50 bits.

Wiegand Bits

The number of bits of the Wiegand data.

Pulse Width(us)

The value of the pulse width sent by Wiegand is

100 microseconds by default, which can be

adjusted within the range of 20 to 400

microseconds.

Pulse Interval(us)

The default value is 1000 microseconds and can

be adjusted within the range of 200 to 20000

microseconds.

ID Type

Select between the User ID and card number.

SC800 User Manual

Various Common Wiegand Format Description:

Wiegand Format Description

Wiegand26

ECCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 26 bits of binary code. The 1

bit is the

even parity bit of the 2

to 13

bits, while the 26

bit

is the odd parity bit of the 14

to 25

bits. The 2

bits are the card numbers.

Wiegand26a

ESSSSSSSSCCCCCCCCCCCCCCCCO

It consists of 26 bits of binary code. The 1

bit is the

even parity bit of the 2

to 13

bits, while the 26

bit

is the odd parity bit of the 14

to 25

bits. The 2

bits is the site codes, while the 10

to 25

bits are

the card numbers.

Wiegand34

ECCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 34 bits of binary code. The 1

bit is the

even parity bit of the 2

to 17

bits, while the 34

bit

is the odd parity bit of the 18

to 33

bits. The 2

bits are the card numbers.

Wiegand34a

ESSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCO

It consists of 34 bits of binary code. The 1

bit is the

even parity bit of the 2

to 17

bits, while the 34

bit

is the odd parity bit of the 18

to 33

bits. The 2

bits is the site codes, while the 10

to 25

bits are

the card numbers.

SC800 User Manual

Wiegand36

OFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCMME

It consists of 36 bits of binary code. The 1

bit is the

odd parity bit of the 2

to 18

bits, while the 36

bit

is the even parity bit of the 19

to 35

bits. The 2

bits is the device codes. The 18

to 33

bits is the

card numbers, and the 34

to 35

bits are the

manufacturer codes.

Wiegand36a

EFFFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCO

It consists of 36 bits of binary code. The 1

bit is the

even parity bit of the 2

to 18

bits, while the 36

bit

is the odd parity bit of the 19

to 35

bits. The 2

bits is the device codes, and the 20

to 35

bits

are the card numbers.

Wiegand37

OMMMMSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCE

It consists of 37 bits of binary code. The 1

bit is the

odd parity bit of the 2

to 18

bits, while the 37

bit

is the even parity bit of the 19

to 36

bits. The 2

bits is the manufacturer codes. The 5

to 16

bits

is the site codes, and the 21

to 36

bits are the card

numbers.

Wiegand37a

EMMMFFFFFFFFFFSSSSSSCCCCCCCCCCCCCCCCO

It consists of 37 bits of binary code. The 1

bit is the

even parity bit of the 2

to 18

bits, while the 37

bit

is the odd parity bit of the 19

to 36

bits. The 2

bits is the manufacturer codes. The 5

to 14

bits

is the device codes, and15

to 20

bits are the site

codes, and the 21

to 36

bits are the card numbers.

SC800 User Manual

Wiegand50

ESSSSSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCC

CCCCCCCO

It consists of 50 bits of binary code. The 1

bit is the

even parity bit of the 2

to 25

bits, while the 50

bit

is the odd parity bit of the 26

to 49

bits. The 2

bits is the site codes, and the 18

to 49

bits are

the card numbers.

"C" denotes the card number; "E" denotes the even parity bit; "O" denotes

the odd parity bit.

"F" denotes the facility code; "M" denotes the manufacturer code; "P"

denotes the parity bit; and "S" denotes the site code.

8.6.2 Wiegand Output

Function Description

Function Name Description

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits,

and 50 bits.

Wiegand Output Bits

After selecting the required Wiegand format,

select the corresponding output bit digits from

the Wiegand format.

SC800 User Manual

Failed ID

If the verification fails, the system will send the

failed ID to the device and replace the card

number or personnel ID with the new one.

Site Code

It is similar to the device ID. The difference is

that a site code can be set manually and is

repeatable on a different device. The valid value

ranges from 0 to 256 by default.

Pulse Width(us)

The time width represents the changes in the

quantity of electric charge with regular

high-frequency capacitance within a specified

time.

Pulse Interval(us)

The time interval between pulses.

ID Type

Select the ID types as either User ID or card

number.

Network Diagnosis 8.7

It helps to set the network diagnosis parameters.

Tap Network Diagnosis on the Comm. Settings interface. Enter the IP address

that needs to be diagnosed and tap Start the Diagnostic Test to check

whether the network can connect to the device.

SC800 User Manual

9 System Settings

It helps to set related system parameters to optimize the accessibility of the

device.

Tap System on the Main Menu interface to get into its menu options.

Access Control Terminal:

Time Attendance Terminal:

Date and Time 9.1

Tap Date Time on the System interface to set the date and time.

SC800 User Manual

 Tap Date and Time Auto Sync to enable automatic time synchronization

based on the service address you enter.

 Tap Set the NTP Server Address to manually set the date and time and

then tap to Confirm and save.

 Tap Select Time Zone to manually select the time zone where the device

is located.

 Enable or disable this format by tapping 24-Hour Time. If enabled, then

select the Date Format to set the date.

 Tap Daylight Saving Time to enable or disable the function. If enabled,

tap Daylight Saving Mode to select a daylight-saving mode and then

tap Daylight Saving Setup to set the switch time.

Week Mode Date Mode

 When restoring the factory settings, the time (24-hour) and date format

(YYYY-MM-DD) can be restored, but the device date and time cannot be

restored.

SC800 User Manual

Note: For example, if a user sets the time of the device from 18:35 on March 15,

2020 to 18:30 on January 1, 2021. After restoring the factory settings, the time

of the device will remain at 18:30 on January 1, 2021.

Access Logs Settings and Attendance 9.2

Tap Access Logs Settings and Attendance on the System interface.

Access Control Terminal:

Time Attendance Terminal:

Function Description of Access Control Terminal:

Function Name Description

Access Log Alert

When the record space of the attendance access

reaches the maximum threshold value, the

device automatically displays the memory

space warning.

Users may disable the function or set a valid

value between 1 and 9999.

SC800 User Manual

Periodic Del of Access

Logs

When access logs reach its maximum capacity,

the device automatically deletes a set of old

access logs.

Users may disable the function or set a valid

value between 1 and 999.

Authentication

Timeout(s)

The amount of time taken

to display a

successful verification message.

Valid value: 1 to 9 seconds.

Function Description of Time Attendance Terminal:

Function Name Description

Duplicate Punch

Period(m)

Within a set time period (unit: minutes), the

duplicated attendance record will not be

reserved (value ranges from 1 to 999999

minutes).

Attendance Log Alert

When the record space of the attendance

reaches the maximum threshold value, the

device automatically displays the memory

space warning.

Users may disable the function or set a valid

value between 1 and 9999.

SC800 User Manual

Periodic Del of T&A

Data

When attendance records reach its maximum

storage capacity, the device automatically

deletes a set of old attendance records.

Users may disable the function or set a valid

value between 1 and 999.

Authentication

Timeout(s)

The amount of time taken to display a

successful verification message.

Valid value: 1 to 9 seconds.

Card Management 9.3

Tap Card Management on the System interface.

 During card management, the main menu card type will be displayed on

the left and its sub-menus will be listed on the right.

 First tap on the required card type, and then select its required

sub-menus from the list.

SC800 User Manual

Device Type Settings 9.4

Tap Device Type Setting on the System interface to configure the Device Type

Settings.

Function Name Description

Communication

Protocol

Set the PUSH protocol.

Device Type

Set the device as an access control terminal or

attendance terminal.

Note: After changing the device type, the device will delete all the data and

restart, and some functions will be adjusted accordingly.

Security Settings 9.5

Tap Security Settings on the System interface to go to the Security settings.

SC800 User Manual

Function Description

Function Name Description

Security Mode

Select whether to enable the security mode to

protect the device and the user's personal

information. You can set the device to work

offline and hide the user's personal information

to prevent leakage during user verification.

Standalone

Communication

To avoid being unable to use when the device is

offline, you can download the C/S software

(such as ZKAccess 3.5) on your computer in

advance for offline use.

SSH

SSH is used to enter the background of the

device for maintenance.

User ID Masking

When enabled, and then the user is successfully

compared and verified, the User ID in the

displayed verification result will be replaced

with an * to achieve secure protection of

sensitive private data.

Display Verification

Mode

Set whether to display the verification mode in

the verification result interface.

Factory Reset 9.6

The Factory Reset function restores the device settings such as communication

settings and system settings, to the default factory settings (this function does

not clear registered user data).

Tap Reset on the System interface and then tap OK to restore the default

SC800 User Manual

factory settings.

SC800 User Manual

10 Personalize Settings

Tap Personalize the Main Menu interface to customize interface settings,

voice, bell, punch state options, and shortcut key mappings.

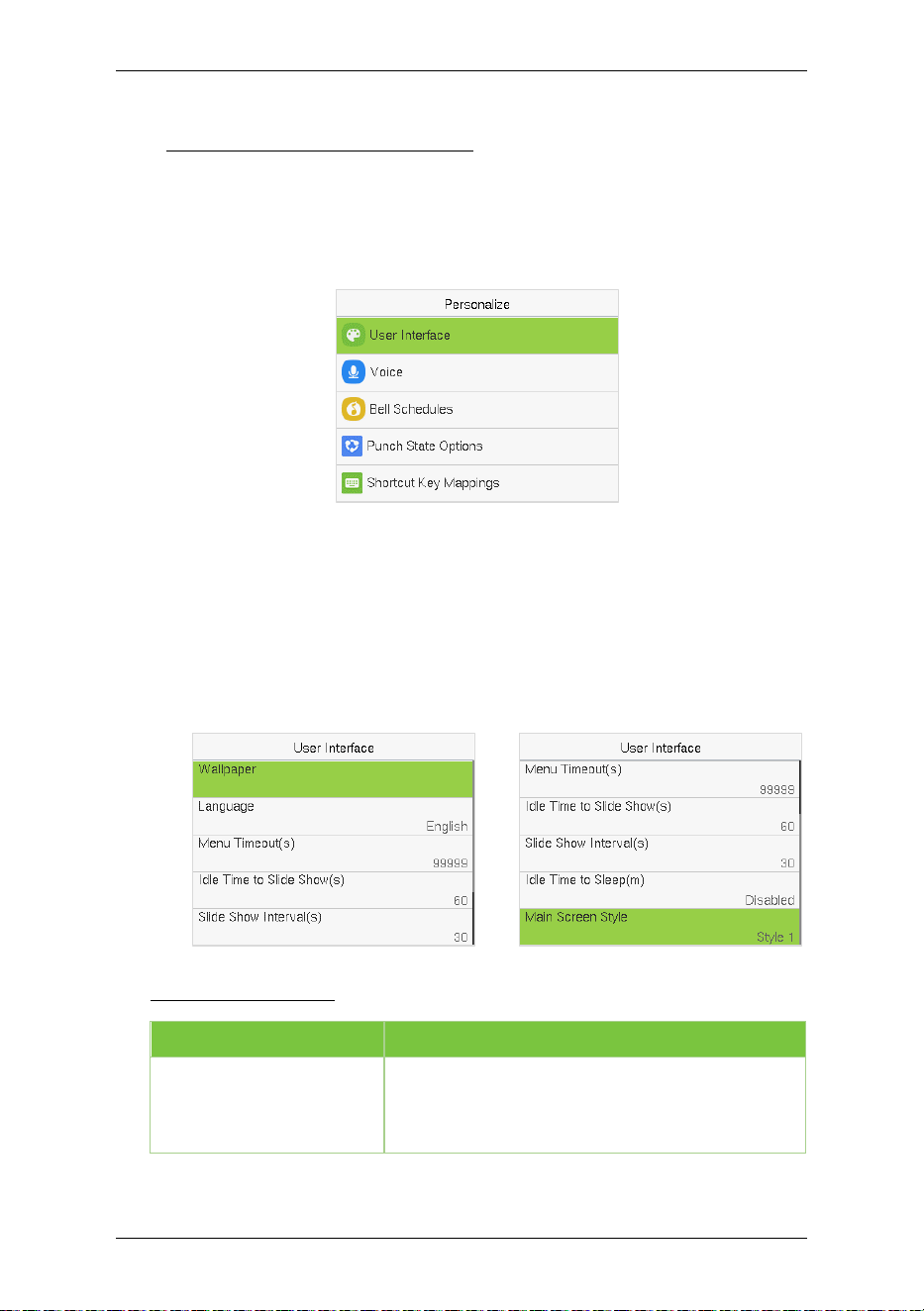

User Interface 10.1

Tap User Interface on the Personalize interface to customize the display style

of the main interface.

Function Description

Function Name Description

Wallpaper

It helps to select the main screen wallpaper

according to the user preference.

SC800 User Manual

Language

It helps to select the language of the device.

Menu Timeout (s)

When there is no operation, and the time

exceeds the set value, the device automatically

goes back to the initial interface.

The function can either be disabled or set the

required value between 60 and 99999 seconds.

Idle Time to Slide Show

(s)

When there is no operation, and the time

exceeds the set value, a slide show is displayed.

The function can be disabled, or you may set

the value between 3 and 999 seconds.

Slide Show Interval (s)

It is the time interval in switching between

different slide show pictures. The function can

be disabled, or you may set the interval

between 3 and 999 seconds.

Idle Time to Sleep (m)

If the sleep mode is activated, and when there is

no operation in the device, then the device will

enter standby mode.

This function can be disabled or set a value

within 1 to 999 minutes.

Main Screen Style

The style of the main screen can be selected

according to the user preference.

SC800 User Manual

Voice 10.2

Tap Voice on the Personalize interface to configure the voice settings.

Function Description

Function Name Description

Voice Prompt

Toggle to enable or disable the voice prompts

during function operations.

Keyboard Prompt

Toggle to enable or disable the keypad sounds.

Volume

Adjust the volume of the device which can be

set between 0 to 100.

Bell Schedules 10.3

Tap Bell Schedules on the Personalize interface to configure the Bell settings.

SC800 User Manual

 New Bell Schedule:

Tap New Bell Schedule on the Bell Schedule interface to add a new bell

schedule.

Function Description

Function Name Description

Bell Status

Toggle to enable or disable the bell status.

Bell Time

Once the required time is set, the device

automatically triggers to ring the bell during

that time.

Repeat

Set the required number of counts to repeat the

scheduled bell.

Ring Tone

Select a ringtone.

Internal Bell Delay(s)

Set the replay time of the internal bell. Valid

values range from 1 to 999 seconds.

 All Bell Schedules:

Once the bell is scheduled, on the Bell Schedules interface, tap All Bell

Schedules to view the newly scheduled bell.

SC800 User Manual

 Edit the Scheduled Bell:

On the All Bell Schedules interface, tap on the required bell schedule, and tap

Edit to edit the selected bell schedule. The editing method is the same as the

operations of adding a new bell schedule.

 Delete a Bell Schedules:

On the All Bell Schedules interface, tap the required bell schedule, tap Delete,

and then tap Yes to delete the selected bell.

Punch States Options 10.4

Tap Punch States Options on the Personalize interface to configure the

punch state settings.

Function Description

Function Name Description

Punch State Mode

Off: Disable the punch state function. Therefore,

the punch state key set under Shortcut Key

Mappings menu will become invalid.

Manual Mode:

Switch the punch state key

manually, and the punch

state key will

disappear after Punch State Timeout.

Auto Mode:

The punch state key will

SC800 User Manual

automatically switch to a specific punch status

according to the predefined time schedule

which can be set in the Shortcut Key Mappings.

Manual and Auto Mode: The main interface

will display the auto-

switch punch state key.

However, the users will still be able to select

alternative that is the manual attendance status.

After timeout, the manual switching to punch

state key will become auto-switch punch state

key.

Manual Fixed Mode: After the punch state key

is set manually to a particular punch status, the

function will remain unchanged until it is being

manually switched again.

Fixed Mode:

Only the manually fixed punch

state key will be shown. Users cannot change

the status by taping any other keys.

Punch State Timeout(s)

It is the time for which the punch state displays.

The value ranges from 5 to 999 seconds.

Punch State Required

Select whether an attendance state needs to be

selected after verification.

ON: Attendance state needs to be selected after

verification.

OFF: Attendance state need not requires to be

selected after verification.

SC800 User Manual

Shortcut Key Mappings 10.5

Users may define shortcut keys for attendance status and functional keys which

will be defined on the main interface. So, on the main interface, when the

shortcut keys are tapped, the corresponding attendance status or the function

interface will be displayed directly.

Tap Shortcut Key Mappings on the Personalize interface to set the required

shortcut keys.

 On the Shortcut Key Mappings interface, tap on the required shortcut

key to configure the shortcut key settings.

 On the Shortcut Key (example, "Up Key") interface, tap function to set

the functional process of the shortcut key either as punch state key or

function key.

 If the Shortcut key is defined as a function key (such as New user, All users,

etc.), the configuration is completed as shown in the image below.

SC800 User Manual

 If the Shortcut key is set as a punch state key (such as check in, check out,

etc.), then it is required to set the punch state value (valid value 0 to 250),

name.

 Set the Switch Time

 The switch time is set in accordance with the punch state options.

 When the Punch State Mode is set to Auto Mode, the switch time

should be set.

 On the Shortcut Key interface, tap Set Switch Time to set the switch

time.

 On the Switch Cycle interface, select the switch cycle (Monday, Tuesday,

etc.) as shown in the image below.

 Once the Switch cycle is selected, set the switch time for each day, and

tap OK to confirm, as shown in the image below.

Note: When the function is set to Undefined, the device will not enable the

punch state key.

SC800 User Manual

11 Data Management

On the Main Menu, tap Data Mgt. to delete the relevant data in the device.

Delete Data 11.1

Tap Delete Data on the Data Mgt. interface to delete the required data.

Function Description

Function Name Description

Delete Access Records

& Attendance Data

To delete the access records & attendance data

conditionally.

Delete All Data

To delete the information and access records &

attendance data of all registered users.

SC800 User Manual

Delete Admin Role

To remove all the administrator privileges.

Delete Access Control

To delete all the access data.

Delete Wallpaper

To delete all the wallpapers in the device.

Delete Screen Savers

To delete all the screen savers in the device.

Delete Backup Data

To delete all the backup data in the device.

The user may select Delete All or Delete by Time Range when deleting the

access records & attend date, to Delete by Time Range, you need to set a

specific time range to delete all data within a specific period.

Backup Data 11.2

Back up the configuration data of the device to the device.

Select the Backup Data option on the Data Mgt. interface.

SC800 User Manual

 Select the local configuration items to be back up to the device and save

the selected items.

 Select Backup Start and tap M/OK.

Restore Date 11.3

Restore the data stored on the device to the device.

Select the Restore Data option on the Data Mgt. interface.

SC800 User Manual

 Select the local configuration items to be restore to the device and save

the selected items.

 Select Backup Start and tap M/OK.

SC800 User Manual

12 Access Control

On the Main Menu, tap Access Control to set the schedule of the door

opening, locks control and to configure other parameters settings related to

access control.

Access Control Terminal:

Time Attendance Terminal:

To get access, the registered user must meet the following conditions:

1. The relevant door’s current unlock time should be within any valid time

zone of the user’s time period.

2. The corresponding user’s group must be already set in the door unlock

combination (and if there are other groups, being set in the same access

combo, then the verification of those group’s members is also required to

unlock the door).

SC800 User Manual

3. In default settings, new users are allocated into the first group with the

default group time zone, where the access combo is "1" and is set in

unlock state by default.

Access Control Options 12.1

Tap Access Control Options on the Access Control interface to set the

parameters of the control lock of the terminal and related equipment.

Access Control Terminal:

Time Attendance Terminal:

SC800 User Manual

Function Description of Access Control Terminal:

Function Name Description

Gate Control Mode

It toggles between ON or OFF switch to get into

gate control mode or not.

When set to ON, the interface removes the Door

Lock Delay, Door Sensor Delay, and Door Sensor

Type options.

Verification Mode

The supported verification mode includes

Password/Card, User ID Only, Password, Card

Only, Password + Card.

Door Available Time

Period

It sets the timing for the door so that the door is

accessible only during that period.

Normal Open Time

Period

It is the scheduled time-

period for "Normal

Open" mode so that the door is always open

during this period.

Master Device

While configuring the master and slave devices,

you may set the state of the master as Out or In.

Out:

A record of verification on the master

device is a check-out record.

In: A record of verification on the master device

is a check-in record.

SC800 User Manual

Slave Device

While configuring the master and slave devices,

you may set the state of the slave as Out or In.

Out: A record of verification on the slave device

is a check-out record.

In: A record of verification on the slave device is

a check-in record.

Auxiliary Input

Configuration

Sets the door unlock time period and auxiliary

output type of the auxiliary terminal device.

Auxiliary output types include None, Trigger

door open, Trigger Alarm, Trigger door open

and Alarm.

Verify Mode by RS485

When the RS485 reader function is turned on,

the verification method is used when the device

is used as a master or a slave.

Speaker Alarm

It transmits a sound alarm or disassembly alarm

from the local. When the door is closed or the

verification is successful, the system cancels the

alarm from the local.

Reset Access Setting

The access control reset parameters include

door lock delay, door sensor delay, door sensor

type, verification mode, door available time

period, normal open time period, master device,

and alarm. However, erased access control data

in Data Mgt. is excluded.

SC800 User Manual

Function Description of Time Attendance Terminal:

Function Name Description

Door Lock Delay (s)

The length of time that the device controls the

electric lock to be in unlock state.

Valid value: 0 to 10 seconds.

Door Sensor Delay (s)

If the door is not locked and is left open for a

certain duration (Door Sensor Delay), an alarm

will be triggered.

The valid value of Door Sensor Delay ranges

from 1 to 255 seconds.

Door Sensor Type

There are three Sensor types: None, Normal

Open, and Normal Closed.

None: It means the door sensor is not in use.

Normally Open (NO):

It means the door is

always left open when electric power is on.

Normally Closed (NC):

It means the door is

always left closed when electric power is on.

Door Alarm Delay(s)

When the state of the door sensor is

inconsistent with that of the door sensor type,

alarm will be triggered after a time period; this

time period is the Door Alarm Delay (the value

ranges from 1 to 999 seconds).

SC800 User Manual

Retry Times to Alarm

When the number of failed verification reaches

the set value (value ranges from 1 to 9 times),

the alarm will be triggered. If the set value is

None, the alarm will not be triggered after failed

verification.

Auxiliary Input

Configuration

Sets the door unlock time period and auxiliary

output type of the auxiliary terminal device.

Auxiliary output types include None, Trigger

door open, Trigger Alarm, Trigger door open

and Alarm.

Verify Mode by RS485

When the RS485 reader function is turned on,

the verification method is used when the device

is used as a master or a slave.

Valid Holidays

To set if Normal Close Time Period or Normal

Open Time Period

settings are valid in set

holiday time period. Choose [ON] to enable the

set NC or NO time period in holiday.

Speaker Alarm

It transmits a sound alarm or disassembly alarm

from the local. When the door is closed or the

verification is successful, the system cancels the

alarm from the local.

Reset Access Setting

The access cont

rol reset parameters include

door lock delay, door sensor delay, door sensor

type, verification mode, door available time

period, normal open time period, master device,

and alarm. However, erased access control data

in Data Mgt. is excluded.

SC800 User Manual

Time Rule Settings and Time Schedule 12.2

Tap Time Rule Settings and Time Schedule on the Access Control interface

to configure the time settings.

 The entire system can define up to 50 Time Periods.

 Each time-period represents 10 Time Zones, i.e., 1 week and 3 holidays,

and each time zone is a standard 24 hour period per day and the user can

only verify within the valid time-period.

 One can set a maximum of 3 time periods for every time zone. The

relationship among these time-periods is "OR". Thus, when the

verification time falls in any one of these time-periods, the verification is

valid.

 The Time Zone format of each time-period is HH MM-HH MM, which is

accurate to minutes according to the 24-hour clock.

Tap the grey box to search the required Time Zone and specify the required

Time Zone number (maximum up to 50 zones).

On the selected Time Zone number interface, tap on the required day (that is

Monday, Tuesday, etc.) to set the time.

SC800 User Manual

Specify the start and the end time, and then tap M/OK.

Note:

1. The door is inaccessible for the whole day when the End Time occurs

before the Start Time (such as 23:57 to 23:56).

2. It is the time interval for valid access when the End Time occurs after the

Start Time (such as 08:00 to 23:59).

3. The door is accessible for the whole day when the End Time occurs after

the Start Time (such that Start Time is 00:00 and End Time is 23:59).

4. The default Time Zone 1 indicates that the door is open all day long.

Holidays 12.3

When there is a holiday, you may need a different access time; however,

altering everyone's access time one by one is extremely time-consuming. thus,

a holiday access time that applies to all workers can be set, and the user will be

able to open the door during the holidays.

Tap Holidays on the Access Control interface to set the holiday access.

SC800 User Manual

 Add a New Holiday:

Tap Add Holiday on the Holidays interface and set the holiday parameters.

Access Control Terminal:

Time Attendance Terminal:

 Edit a Holiday:

On the Holidays interface, select a holiday item to be modified. Tap Edit to

modify holiday parameters.

 Delete a Holiday:

On the Holidays interface, select a holiday item to be deleted and tap Delete.

SC800 User Manual

Tap M/OK to confirm the deletion. After deletion, this holiday does not display

on the All Holidays interface.

Access Groups 12.4

Grouping is to manage users in groups, only for time attendance terminal.

The default time zone for group members is the group time zone, while users

can set their personal time zone. When the group verification mode and the

user verification mode overlap, the user verification mode takes priority. Each

group can set a maximum of 3 time zones; as long as one of them is valid, the

group can be successfully verified. The newly enrolled user is assigned to

Access Group 1 by default, but can be assigned to another access group.

Tap Access Groups on the Access Control interface.

 Add a New Holiday:

Tap New Group on the Access Group interface.

Note:

1. The system has a default access group numbered 1, which cannot be

SC800 User Manual

deleted but can be modified.

2. A number cannot be modified again after being set.

3. When the holiday is set to be valid, the personnel in a group can open the

door only when group time period overlaps with the holiday time period.

4. When the holiday is set to be invalid, the access control time of the

personnel in this group is not affected by holidays.

 Edit Group:

On the All Group interface, tap to select the access group item to be modified.

Tap Edit to modify group parameters.

 Delete a Group:

On the All Group interface, select a access group item to be deleted and tap

Delete. Tap M/OK to confirm the deletion. After deletion, this group does not

display on the All Group interface.

Combined Verification 12.5

Access groups are arranged into different door-unlocking combinations to

achieve multiple verifications and strengthen security.

In a door-unlocking combination, the range of the combined number N is 0 ≤ N

≤ 5 and the number of members N may all belong to one access group or may

belong to five different access groups.

Tap Combined Verification on the Access Control interface to configure the

combined verification setting.

SC800 User Manual

On the combined verification interface, tap the Door-unlock combination to be

set, and tap the up and down arrows to input the combination number, and

then tap M/OK.

For Example:

 If the Door-unlock combination 1 is set as (01 03 05 06 08). It indicates

that the unlock combination 1 consists of 5 people and all the 5

individuals are from 5 groups, namely, AC Group 1, AC Group 3, AC Group

5, AC Group 6, and AC Group 8, respectively.

 If the Door-unlock combination 2 is set as (02 02 04 04 07). It indicates

that the unlock combination 2 consists of 5 people; the first two are from

AC Group 2, the next two are from AC Group 4, and the last person is from

AC Group 7.

 If the Door-unlock combination 3 is set as (09 09 09 09 09). It indicates

that there are 5 people in this combination; all of which are from AC

Group 9.

 If the Door-unlock combination 4 is set as (03 05 08 00 00). It indicates

that the unlock combination 4 consists of only three people. The first

person is from AC Group 3, the second person is from AC Group 5, and the

third person is from AC Group 8.

Note: To delete the door-unlock combination, set all Door-unlock combinations

to 0.

SC800 User Manual

Anti-passback Setup 12.6

A user may be followed by some person(s) to enter the door without

verification, resulting in a security breach. So, to avoid such situations, the

Anti-Passback option was developed. Once it is enabled, the check-in and

check-out record must occur alternatively to open the door to represent a

consistent pattern.

This function requires two devices to work together:

One device is installed on the indoor side of the door (master device), and the

other one is installed on the outdoor side of the door (the slave device). The

two devices communicate via the Wiegand signal. The Wiegand format and

Output type (User ID/Card Number) adopted by the master device and slave

device must be consistent.

Tap Anti-passback Setup on the Access Control interface.

SC800 User Manual

Function Description:

Function Name Description

Anti-passback

Direction

No Anti-passback: The Anti-Passback function

is disabled, which means successful verification

through either the master device or slave device

can unlock the door. The attendance state is not

saved in this option.

Out Anti-passback: The user can check-out

only if the last record is a check-

in record

otherwise an alarm is raised. However, the user

can check-in freely.

In Anti-Passback: The user can check-in again

only if the last record is a check-

out record

otherwise an alarm is raised. However, the user

can check-out freely.

In/Out Anti-passback: In this case, a user can

check-in only if the last record is a check-out or

the user can check-out only if the last record is a

check-in otherwise the alarm is triggered.

Duress Options Settings 12.7

Once a user activates the duress verification function with a specific

authentication method(s), and when he/she is under coercion and

authenticates using duress verification, the device unlocks the door as usual. At

the same time, a signal is sent to activate the alarm as well.

On the Access Control interface, tap Duress Options to configure the duress

settings.

SC800 User Manual

Access Control Terminal:

Time Attendance Terminal:

Function Description of Access Control Terminal:

Function Name Description

Alarm on Password

When a user uses the

password verification

method, an alarm signal will be generated,

otherwise there will be no alarm signal.

Alarm Delay (s)

Alarm signal will not be transmitted until the

alarm delay time is elapsed. The value ranges

from 1 to 999 seconds.

Duress Password

Set the 6-digit duress password. When the user

enters this duress password for verification, an

alarm signal will be generated.

SC800 User Manual

Function Description of Time Attendance Terminal:

Function Name Description

Duress Function

Enable/Disable the duress function.

Alarm on Password

In [ON

] state, when a user uses password

verification method, alarm will be triggered. In

[OFF] state, no alarm signal will be triggered.

Alarm Delay (s)

Alarm signal will not be transmitted until the

alarm delay time is elapsed. The value ranges

from 1 to 999 seconds.

SC800 User Manual

13 Attendance Search

Once the identity of a user is verified, the access record is saved in the device.

This function enables users to check their event logs.

Select Attendance Search on the Main Menu interface to search for the

required event Logs.

1. Enter the user ID to be

searched and tap M/OK. If

you want to search for

records of all users, tap M/OK

without entering any user ID.

2. Select the time range in

which the records need to

be searched.

3. Once the record search

completes. Tap the record

highlighted in green to view

its details.

4. The figure shows the

details of the selected

record.

SC800 User Manual

14 Work Code

Employees’ salaries are subject to their attendance records. An employee can

be engaged in more than one type of work which may vary with time. As the

pay varies according to the work types, the FFR terminal provides a parameter

to indicate the corresponding work type for every attendance record to

facilitate rapid understanding of different attendance situations during the

handling of attendance data.

On the Main Menu, tap Work Code to set the work code.

New Work Code 14.1

Function Description

Function Name Description

It is the digital code of the work code. Users may

set a valid value between 1 and 99999999.

Name

It is the naming of the work code. Only supports

input the numbers.

SC800 User Manual

All Work Codes 14.2

You can view, edit and delete work codes in All Work Codes. The process of

editing a work code is the same as adding a work code, except that the ID is not

allowed to be modified.

Work Code Options 14.3

To set whether entering the work code is a must and whether the entered work

code must exist during authentication.

In 1: N or 1:1 verification, the system will automatically pop up the following

window. Select the corresponding Word Code manually to verify successfully.

SC800 User Manual

15 Autotest

Select Main Menu, tap on Autotest, it enables the system to automatically test

whether the functions of various modules are working normally, including the

LCD, Voice, Microphone, Fingerprint, Camera and Real-Time Clock (RTC).

Function Description

Function Name Description

Test All

To automatically test whether the LCD, Voice,

Microphone, Fingerprint, Camera and Real-Time

Clock (RTC) are normal.

Test LCD

To automatically test the display effect of LCD

screen by displaying full-color, pure white, and

pure black to check whether the screen displays

colors normally.

Test Voice

To automatically test whether the audio files

stored in the device are complete and the voice

quality is good.

Test Keyboard

The terminal tests whether every key on the

keyboard works normally. Tap any key on the

SC800 User Manual

Test Keyboard interface to check whether the

tapped key matches the key displayed on the

screen. The keys are displayed as dark grey

before and turn blue after tapped. Tap ESC to

exit the test.

Test Clock RTC

To test the RTC. The device tests whether the

clock works normally and accurately with a

stopwatch. Touch the screen to start counting

and tap it again to stop counting.

SC800 User Manual

16 System Information

On the Main Menu, tap System Info to view the storage status, the version

information of the device, firmware information and the privacy policy.

Function Description

Function Name Description

Device Capacity

Displays the current device's user storage, card

and password storage, administrators and

records.

Device Info

Displays the device's name, serial number, MAC

address, Platform information, MCU Version,

Manufacturer, and manufacture date.

Firmware Info

Displays the firmware version and other version

information of the device.

Display the device's privacy policy.

SC800 User Manual

17 Connect to ZKBio Access IVS Software

Set the Communication Address 17.1

 Device side:

1. Tap COMM. > Ethernet in the main menu to set the IP address and

gateway of the device.

(Note: The IP address should be able to communicate with the ZKBio

Access IVS server, preferably in the same network segment with the server

address).

2. In the main menu, click COMM. > Cloud Server Setting to set the server

address and server port.

Server address: Set the IP address as of ZKBio Access IVS server.

Server port: Set the server port as of ZKBio Access IVS (The default is 8088).

 Software side:

Communication Monitor to set the ADMS service port, as shown in the figure

below:

SC800 User Manual

Add Device on the Software 17.2

Add the device by searching. The process is as follows:

1. Click Access Control > Device > Search Device, to open the Search

interface in the software.

2. Click Search, and it will prompt [Searching……].

3. After searching, the list and total number of access controllers will be

displayed.

4. Click [Add] in operation column, a new window will pop-up. Select Icon

type, Area, and Add to Level from each dropdown and click [OK] to add the

device.

SC800 User Manual

Add Personnel on the Software 17.3

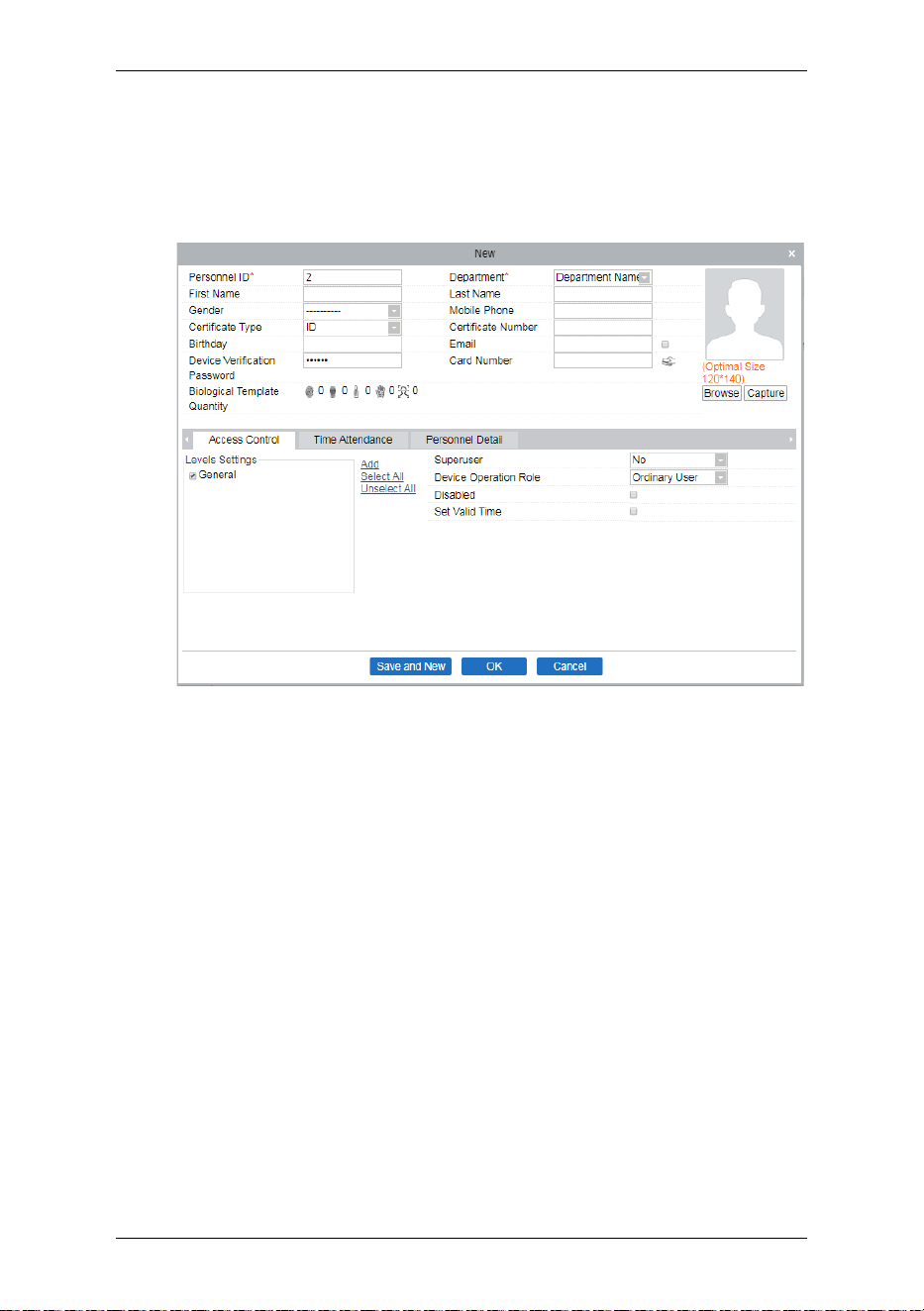

1. Click Personnel > Person > New:

2. Fill in all the required fields and click [OK] to register a new user.

3. Click Access > Device > Device Control > Synchronize All Data to

Devices to synchronize all the data to the device including the new users.

SC800 User Manual

18 Connect to BioTime 8.0 Software

Set the Communication Address 18.1

1. Tap COMM. > Ethernet in the main menu to set the IP address and

gateway of the device.

(Note: The IP address should be able to communicate with the ZKBioTime

8.0 server, preferably in the same network segment with the server address)

2. In the main menu, click COMM. > Cloud Server Setting to set the server

address and server port.

Server address: Set the IP address as of ZKBioTime 8.0 server.

Server port: Set the server port as of ZKBioTime 8.0 server.

Add Device on the Software 18.2

Add the device by searching. The process is as follows:

1. Click Device > Device > Add, to add the device on the software.

2. A new window pops-up on clicking [Add]. Enter the required information

about the device and click [Confirm], then the added devices are displayed

automatically.

SC800 User Manual

Add Personnel on the Software 18.3

1. Click Personnel > Employee > Add:

2. Fill in all the required fields and click [Confirm] to register a new user.

3. Click Device > Device > Data Transfer > Sync Data to Device to

synchronize all the data to the device including the new users.

SC800 User Manual

19 Connect to WebServer

According to the configured network login, allows the Webserver to remotely

view the information of the device (hardware, software, capacity and data, etc.),

set up the system (communication, access control and system functions, etc.),

add users and upgrade the system.

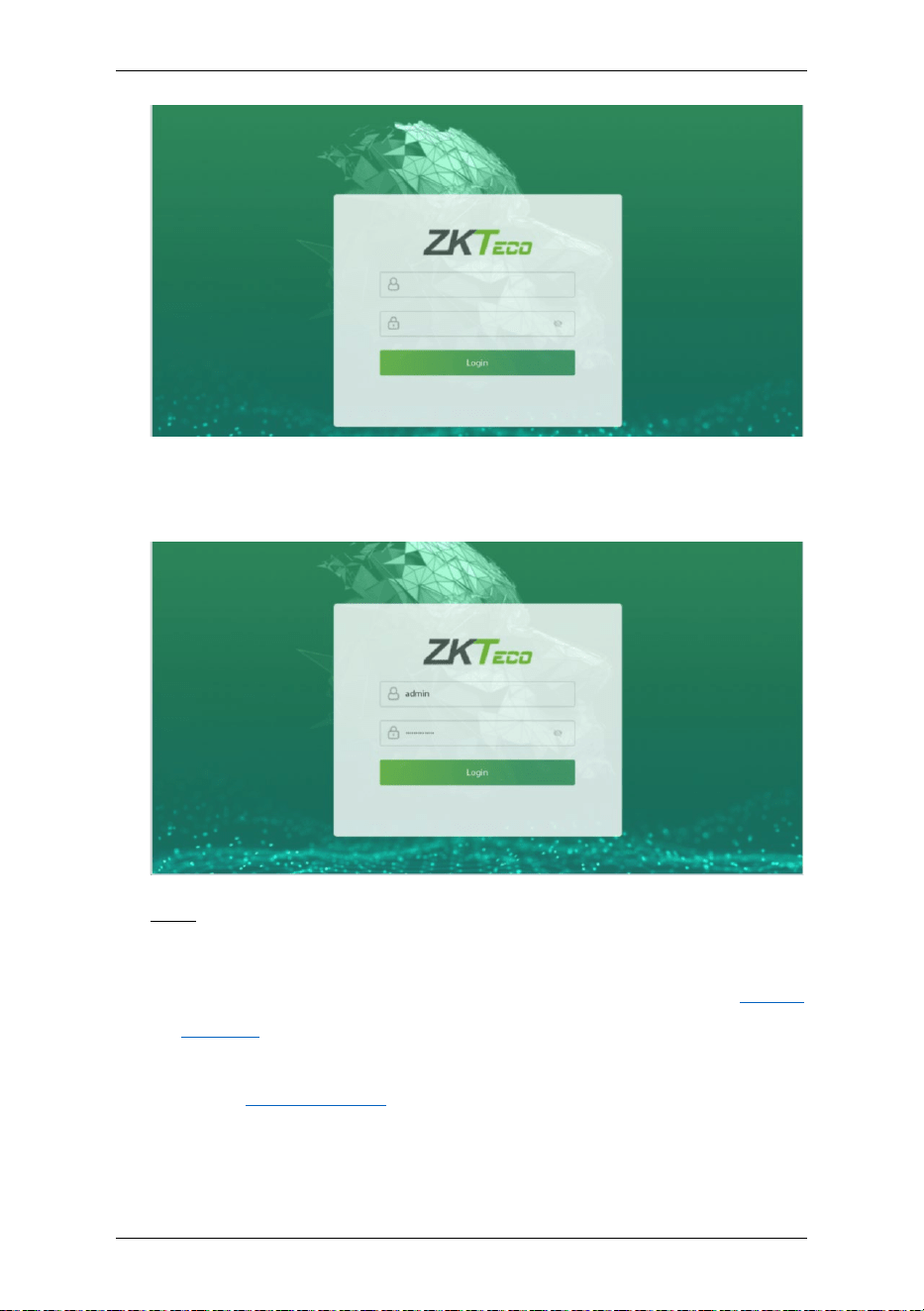

1. Open a browser and enter the address to log in to the WebServer; the

address is https:// Serial IP Address:1443. For example:

https://192.168.1.201:1443.

SC800 User Manual

2. Enter the WebServer user name and password, the default user name is:

admin and the password is: admin@123.

Note:

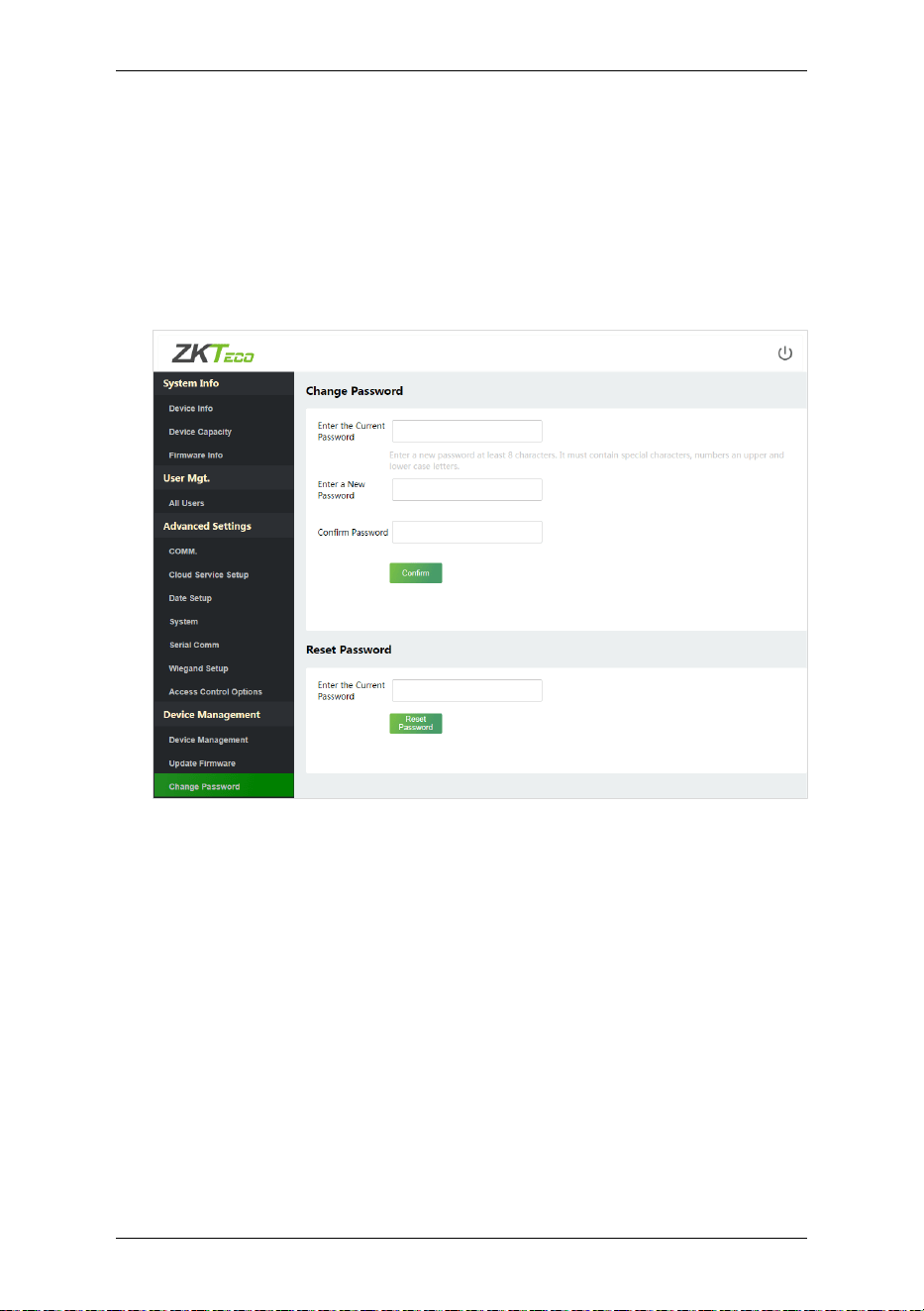

1. After logging in for the first time, users must need to change their default

password and log in again before they can use it, please refer to Change

Password.

2. To retrieve the password easily, please register a super admin first, please

refer to User Registration.

SC800 User Manual

Forgot Password 19.2

 Method 1 (When there is a super admin):

If you forget your WebServer password, the registered super admin can reset it

for you. The detailed steps are as follows:

1. Click the icon on the login interface.

2. On the pop-up page, enter the relevant information of the super admin

user as prompted.

SC800 User Manual

3. After a successful reset, enter the default user name and password (user

name: admin and password: admin@123) on the login interface to log in.

4. After successfully logging in, please change your password for security

reasons.

Note: The super admin must exist.

SC800 User Manual

 Method 2 (When there is not a super admin):

If the network of the device is normal and ZKBio Access IVS / ZKBioTime 8.0 has

been connected, you can reset the password by sending the super admin

account and password from the server.

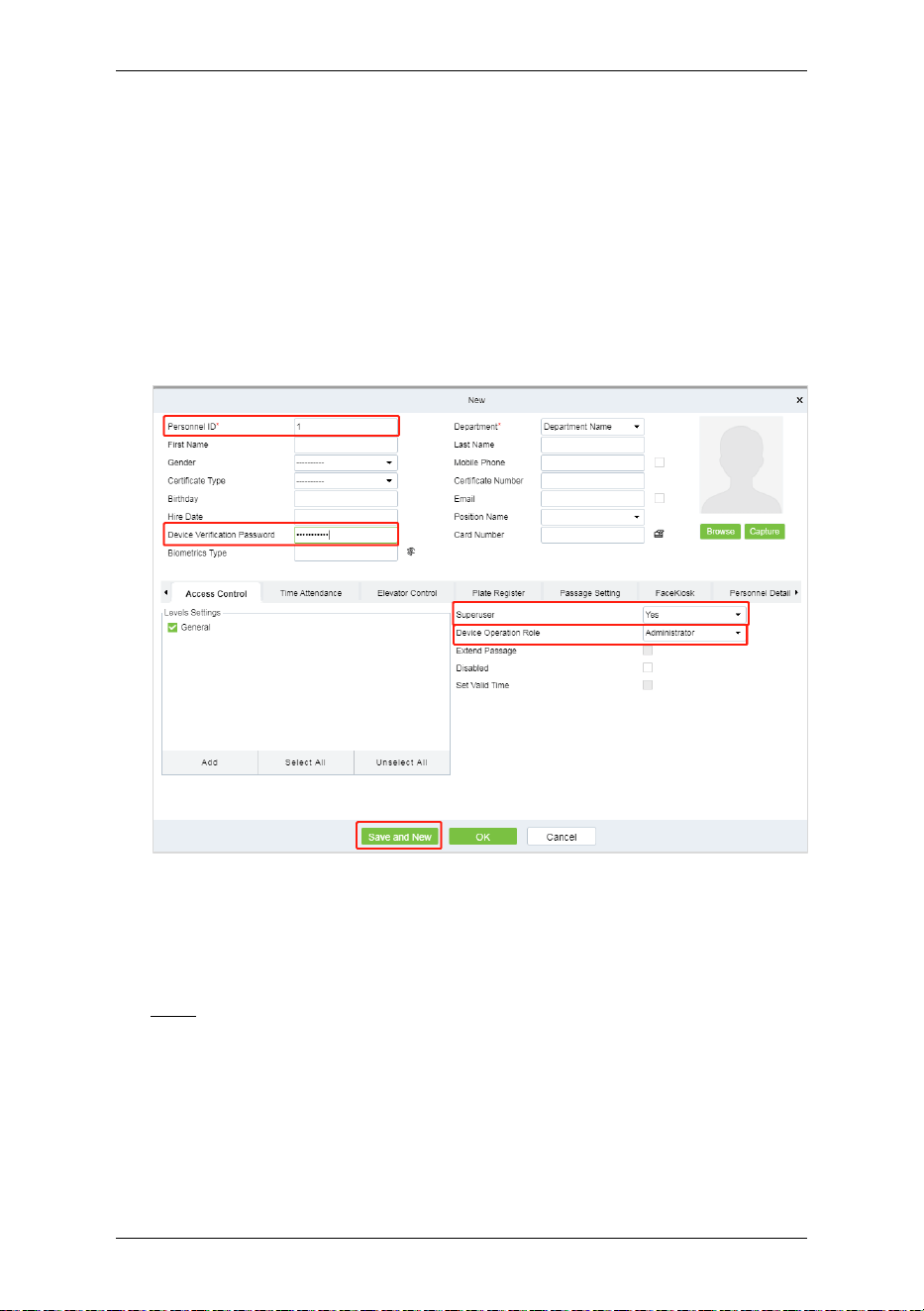

1. Click Personnel > Person > New on the ZKBio Access IVS / ZKBioTime 8.0

Server; register the super admin information and set the super admin role

on the new interface as required.

2. After registering the information of the super admin, click Save and New.

3. Click Access > Device > Control > Synchronize All Data to Devices to

synchronize all the data to the device including the new users.

Note: For other specific operations, please refer ZKBio Access IVS User Manual or

ZKBioTime8.0 User Manual.

4. After the data synchronization is successful, you can reset the password

with the newly registered super admin. The operation steps are the same as

method 1.

SC800 User Manual

 Method 3:

If the device has not registered a super admin and is unable to connect to the

server, please contact our after-sales personnel for assistance in resetting the

password.

User Registration 19.3

Click User Mgt > All Users on the WebServer.

On All Users interface, you can register the User ID, Name, Rights, Password,

Card Number and Access Control Role of the new user and then click Confirm

to save.

Function Name Description

User ID

The default user ID can have 1 to 14 digits.

Name

A name can be up to 63 characters. The device

only supports the input of numbers, you can

add a user name by this method.

SC800 User Manual

Rights

Set the role for the user as either Normal User or

Super Admin.

 Super Admin: The Super Admin owns all

management privileges in the WebServer.

 Normal User:

If the Super Admin is

already registered in the WebServer, then

the Normal Users will not have the

privileges to manage the system and can

only access authentication verifications.

Password

Set the user's registration password.

Card Number

Enter the card number manually, after

registering the user's card number, the user can

swipe the card for verification. Also can click

registration interface in real time, swipe the card

underneath the card reading area. The

registration of the card will be successful.

Access Control Role

The Access Control Role sets the door access

privilege for each user, new users will be added

to Group 1 by default, which can be reassigned

to other required groups. The system supports

up to 10 access control groups.

Note:

1. During the initial registration, you can modify your ID; you cannot be

modifying the registered ID once after the successful registration.

2. If the message "Setup failed!" pops up, you must choose a different User ID

because the one you entered already exists.

SC800 User Manual

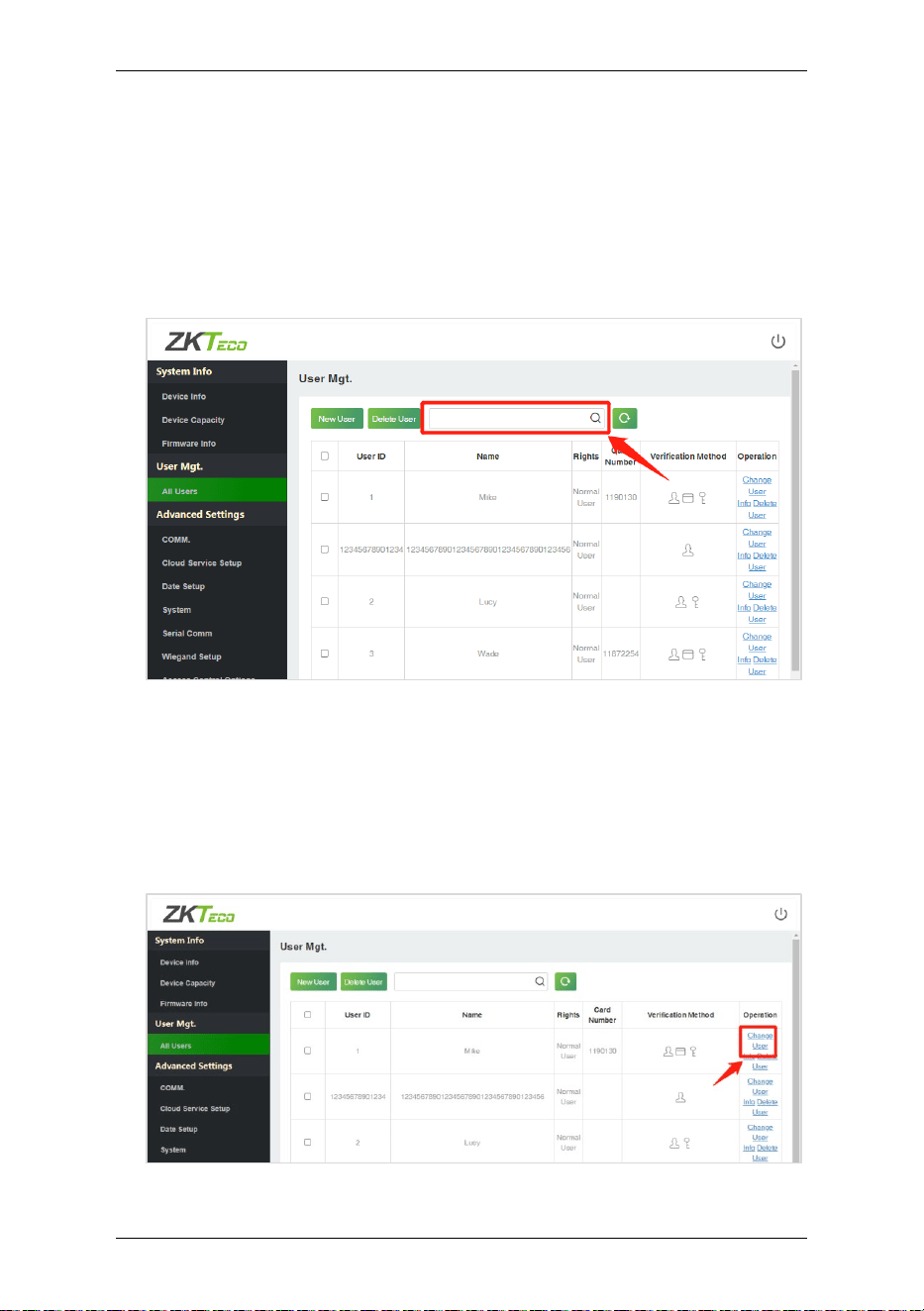

Search for Users 19.4

Click All Users on the WebServer, click the Search Bar to enter the required

retrieval keyword (which the keyword can be the user ID, surname or full name)

and the system will search for the related user information.

Edit User 19.5

On the All Users interface, select the required user from the list and click

Change User Info to edit the user information.

SC800 User Manual

Note: The process of editing the user information is the same as that of adding

a new user, except that the User ID cannot be modified. The process in detail

refers to User Registration.

Delete User 19.6

On the All Users interface, select the required user from the list and click

Delete User to delete the user. Here individual deletion and batch deletion is

available.

SC800 User Manual

COMM. 19.7

Click COMM. on the WebServer, then change the IP address of the device as

needed, click Confirm to save, and the device will automatically synchronize

the IP information.

Function Name Description

DHCP

Dynamic Host Configuration Protocol

dynamically allocates IP addresses for clients via

server.

IP Address

The default IP address is 192.168.1.201. It can be

modified according to network availability.

Subnet Mask

The default Subnet Mask is 255.255.255.0. It can

be modified according to network availability.

Gateway

The Default Gateway address is 0.0.0.0. It can be

modified according to network availability.

DNS

The default DNS address is 0.0.0.0. It can be

modified according to network availability.

SC800 User Manual

Note: After successfully changing the device's IP address, you must log out of

the existing WebServer and log back into the IP address you just changed to

connect to the device. For WebServer login details, please refer to Login

WebServer.

Cloud Server Settings 19.8

Click Cloud Service Settings on the WebServer.

Cloud Server Setup was used to connect to the ZKBio Access IVS and

ZKBioTime8.0, please refer to set the communication address.

Function

Name

Description

Enable

Domain Name

Server

Address

Once this function is enabled, the domain

name mode “http://...” will be used, such as

http://www.XYZ.com, while “XYZ” denotes

the domain name (when this mode is

turned ON).

Disable

Domain Name

Cloud

Server

Address

IP address of the ADMS server.

Cloud

Port used by the ADMS server.

SC800 User Manual

Server Port

HTTPS

Based on HTTP, transmission encryption and identity

authentication ensure the security of the transmission

process.

Proxy Server

Setup

When you choose to enable the proxy, you need to set

the IP address and port number of the proxy server.

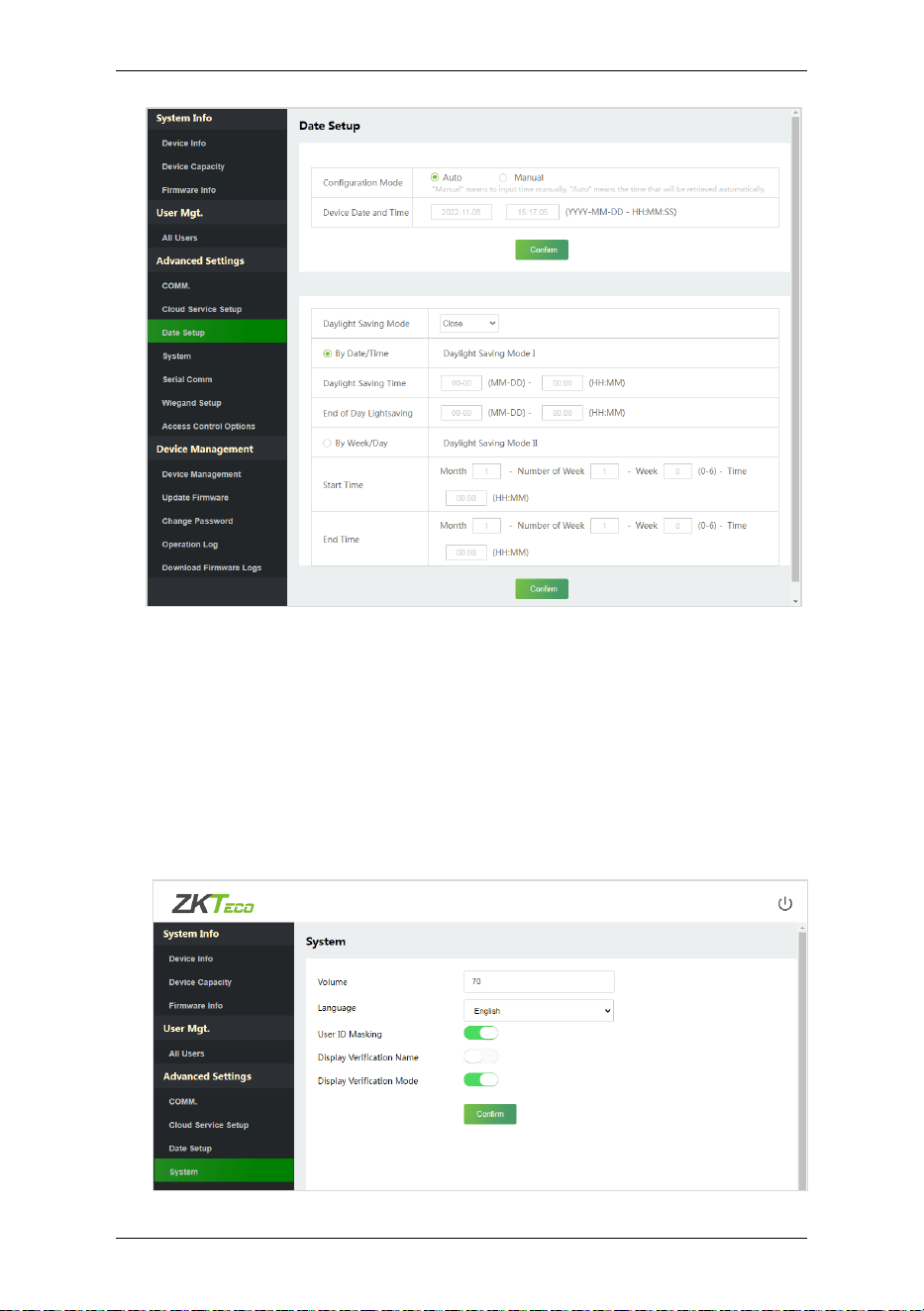

Date Setup 19.9

Click Date Setup on the WebServer.

 Click Manual to manually set the date and time and click Confirm to

save.

 Select Open or Close the Daylight Saving Mode function. If opened, set

the Daylight Saving Time and End of Daylight Saving.

SC800 User Manual

System 19.10

Click System on the WebServer.

It helps to set related system parameters to optimize the accessibility of the

device.

SC800 User Manual

Function Name Description

Volume

Adjust the volume of the device which can be

set between 0 and 100.

Language

Select the language of the WebSer

ver and

device.

User ID Masking

When enabled, and then the user is successfully

compared and verified, the User ID in the

displayed verification result will be replaced

with an * to achieve

secure protection of

sensitive private data.

Display Verification

Name

Set whether to display the username in the

verification result interface.

Display Verification

Mode

Set whether to display the verification mode in

the verification result interface.

Note:

1. After selecting the language and clicking Confirm, the device will

automatically reboot and display the changed language.

2. Then, until the device reboots and logs in again, WebServer will not display

the changed language.

Serial Comm 19.11

Click Serial Comm on the WebServer.

SC800 User Manual

Function Name Description

Serial Port

No Using: No communication with the device

through the serial port.

Master Unit: When OSDP

is used as the

function of "Master unit", it can be connected

to a card reader.

OSDP Output: Communicate with the device

through the OSDP serial port.

Baudrate

There are 5 baudrate options at which the data

communicates with the PC. They are: 115200

(default), 57600, 38400, 19200 and 9600.

The higher the baudrate, the faster is the

communication speed, but also less reliable.

Hence, a higher baudrate can be used when the

communication distance is short; when the

communication distance is long, choosing a

lower baudrate is more reliable.

SC800 User Manual

Wiegand Setup 19.12

Click Wiegand Setup on the WebServer.

It is used to set the Wiegand input and output parameters.

Function Name Description

Wiegand Format

Its value can be 26 bits, 34 bits, 36 bits, 37 bits,

50 bits and 60 bits.

Wiegand Bits

The number of bits of the Wiegand data.

ID Type

Select between the User ID and card number.

SC800 User Manual

Access Control Options 19.13

Click Access Control Options on the WebServer to set the parameters of the

control lock of the terminal and related equipment.

Function Name Description

Door Lock Delay (s)

The length of time that the device controls the

electric lock to be in unlock state.

Valid value: 1 to 99 seconds.

Door Sensor Delay (s)

If the door is not locked and is left open for a

certain duration (Door Sensor Delay), an alarm

will be triggered.

The valid value of Door Sensor Delay ranges

from 1 to 255 seconds.

SC800 User Manual

Door Sensor Type

There are three Sensor types: None, Normal

Open, and Normal Closed.

None: It means the door sensor is not in use.

Normally Open: It means the door is always left

open when electric power is on.

Normally Closed: It means the door is always

left closed when electric power is on.

Master Device

While configuring the master and slave devices,

you may set the state of the master as Out or In.

Out: A record of verification on the master

device is a check-out record.

In: A record of verification on the master device

is a check-in record.

Slave Device

While configuring the master and slave devices,

you may set the state of the slave as Out or In.

Out: A record of verification on the slave device

is a check-out record.

In: A record of verification on the slave device is

a check-in record.

SC800 User Manual

Device Management 19.14

Click Device Management on the WebServer.

Function Name Description

Clear Administrator

Choose whether to c

hange the super

administrator into a normal user.

Restart

Choose whether to restart the device.

Reset

The Reset function restores the device settings

such as communication and system settings to

the default factory settings (this function does

not clear registered user data).

Note: After reset, the IP of the device is restored

to the original 192.168.1.201, p

lease refer to

Communication Settings to modify the IP.

SC800 User Manual

Close SSH

SSH is used to enter the background of the

device for maintenance, c

hoose whether to

close the SSH.

Delete All Data

To delete the information and attendance

logs/access records of all registered users.

Update Firmware 19.15

Click Update Firmware on the WebServer.

Select an upgrade file and click Confirm to complete firmware upgrade

operation.

Note: If the upgrade file is needed, please contact our technical support.

Firmware upgrade is not recommenced under normal circumstances.

SC800 User Manual

Change Password 19.16

Click Change Password on the WebServer.

In this interface, you can change the password and reset the password of

WebServer.

SC800 User Manual

Operation Log 19.17

Click Operation Log on the WebServer.

All the user’s operation records on the device or WebServer are saved. Users can

search and download these logs by time.

SC800 User Manual

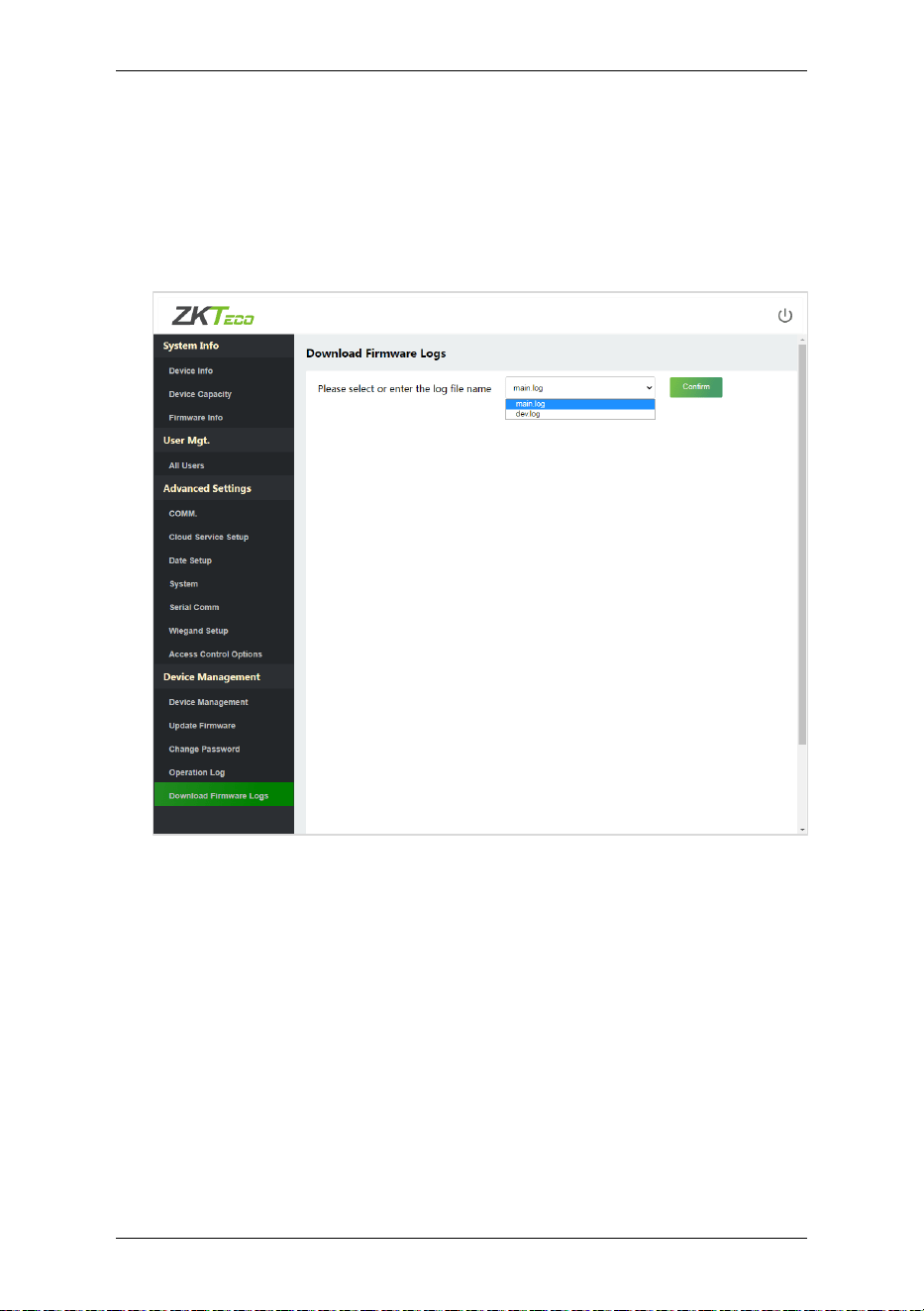

Download Firmware Logs 19.18

Click Download Firmware Logs on the WebServer.

In this interface, you can select download the main, biometric, or dev.log.

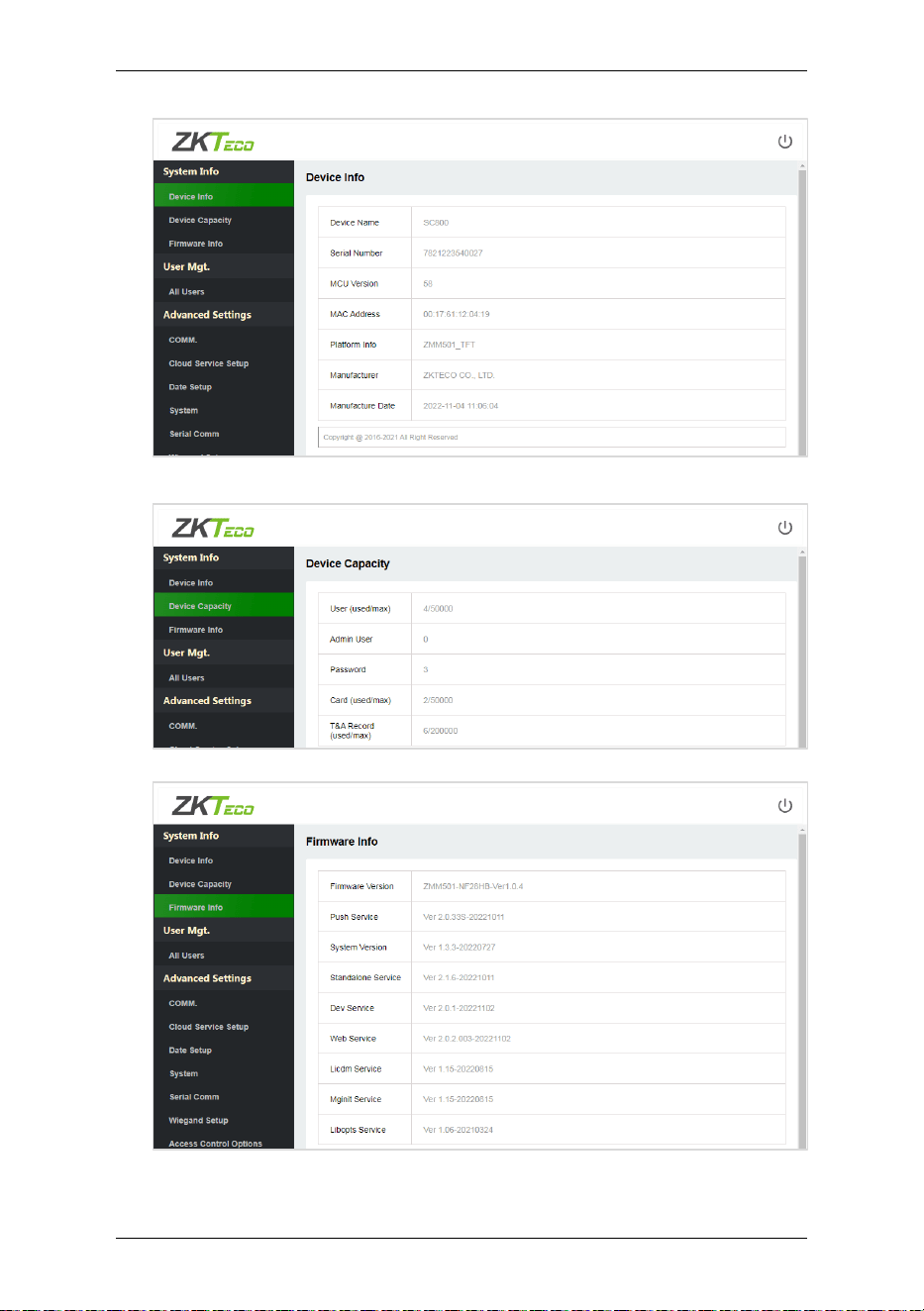

System Information 19.19

Click System Information on the WebServer.

In this interface, you can view the data capacity, device and firmware

information of the current device.

SC800 User Manual

Function Name Description

Device Info

Displays the device's name, serial number, MCU

version,

MAC address, platform and

manufacturer information.

Device Capacity

Displays the current device's user storage,

password and card storage, administrators,

attendance records.

Firmware Information

Displays the firmware version and other version

information of the device.

SC800 User Manual
