ZK-D2110 User Manual

Contents 1

User Manual

Walk Through Metal Detector

ZK-D2110

Date: March 2024

Doc Version: 1.0

English

Thank you for choosing our product. Please read the instructions

carefully before operation. Follow these instructions to ensure that the

product is functioning properly. The images shown in this manual are for

illustrative purposes only.

For further details, please visit our Company’s website

www.zkteco.com.

ZK-D2110 User Manual

Page | 1

Without the prior written consent of ZKTeco, no portion of this manual can be

copied or forwarded in any way or form. All parts of this manual belong to ZKTeco

and its subsidiaries (hereinafter the "Company" or "ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this

manual are owned by their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco

equipment. The copyright in all the documents, drawings, etc. in relation to the

ZKTeco supplied equipment vests in and is the property of ZKTeco. The contents

hereof should not be used or shared by the receiver with any third party without

express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation

and maintenance of the supplied equipment. If any of the content(s) of the manual

seems unclear or incomplete, please contact ZKTeco before starting the operation

and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that

the operating and maintenance personnel are fully familiar with the design and

that the said personnel have received thorough training in operating and

maintaining the machine/unit/equipment. It is further essential for the safe

operation of the machine/unit/equipment that personnel has read, understood and

followed the safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the

contract specifications, drawings, instruction sheets or any other contract-related

ZK-D2110 User Manual

Page | 2

documents, the contract conditions/documents shall prevail. The contract specific

conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the

completeness of any information contained in this manual or any of the

amendments made thereto. ZKTeco does not extend the warranty of any kind,

including, without limitation, any warranty of design, merchantability or fitness for

a particular purpose.

ZKTeco does not assume responsibility for any errors or omissions in the

information or documents which are referenced by or linked to this manual. The

entire risk as to the results and performance obtained from using the information is

assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental,

consequential, indirect, special, or exemplary damages, including, without

limitation, loss of business, loss of profits, business interruption, loss of business

information or any pecuniary loss, arising out of, in connection with, or relating to

the use of the information contained in or referenced by this manual, even if

ZKTeco has been advised of the possibility of such damages.

This manual and the information contained therein may include technical, other

inaccuracies or typographical errors. ZKTeco periodically changes the information

herein which will be incorporated into new additions/amendments to the manual.

ZKTeco reserves the right to add, delete, amend or modify the information

contained in the manual from time to time in the form of circulars, letters, notes, etc.

for better operation and safety of the machine/unit/equipment. The said additions

or amendments are meant for improvement /better operations of the

machine/unit/equipment and such amendments shall not give any right to claim

any compensation or damages under any circumstances.

ZK-D2110 User Manual

Page | 3

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment

malfunctions due to any non-compliance of the instructions contained in this

manual (ii) in case of operation of the machine/unit/equipment beyond the rate

limits (iii) in case of operation of the machine and equipment in conditions different

from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest

operation procedures and relevant documents are available on

http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business-related queries, please write to us at sales@zkteco.com.

To know more about our global branches, visit www.zkteco.com.

ZK-D2110 User Manual

Page | 4

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric

(Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control

readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor

access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door

Locks. Our security solutions are multi-lingual and localized in over 18 different

languages. At the ZKTeco state-of-the-art 700,000 square foot ISO9001-certified

manufacturing facility, we control manufacturing, product design, component

assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and

development of biometric verification procedures and the productization of

biometric verification SDK, which was initially widely applied in PC security and

identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually

constructed an identity authentication ecosystem and smart security ecosystem,

which are based on biometric verification techniques. With years of experience in

the industrialization of biometric verifications, ZKTeco was officially established in

2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National

High-tech Enterprise for 6 consecutive years. Its products are protected by

intellectual property rights.

About the Manual

This manual introduces the operations of the ZK-D2110 Walk-through Metal

Detector.

All figures displayed are for illustration purposes only. Figures in this manual may

not be exactly consistent with the actual products.

ZK-D2110 User Manual

Page | 5

Table of Contents

1 OVERVIEW ....................................................................................................... 7

1.1 INTRODUCTION ................................................................................................. 7

1.2 APPEARANCE ..................................................................................................... 7

1.3 COMPONENTS .................................................................................................... 8

2 PRODUCT SPECIFICATIONS ............................................................................ 9

2.1 DIMENSIONS ...................................................................................................... 9

2.2 TECHNICAL SPECIFICATIONS .........................................................................10

3 INSTALLATION SETUP ................................................................................... 11

3.1 SAFETY PRECAUTIONS ...................................................................................11

3.2 INSTRUCTIONS TO PEDESTRIANS .................................................................11

3.3 INSTALLATION SITE .........................................................................................12

3.3.1 STATIONARY METALLIC ITEMS ..................................................................12

3.3.2 PORTABLE METALLIC ITEMS ......................................................................12

3.3.3 FLOOR VIBRATION .......................................................................................12

3.3.4 ELECTROMAGNETIC RADIATION AND INTERFERENCE..........................12

3.3.5 PARALLEL INSTALLATION ..........................................................................13

3.4 INSTALLATION STEPS ......................................................................................13

4 PERFORMANCE AND TECHNICAL FEATURES ............................................... 15

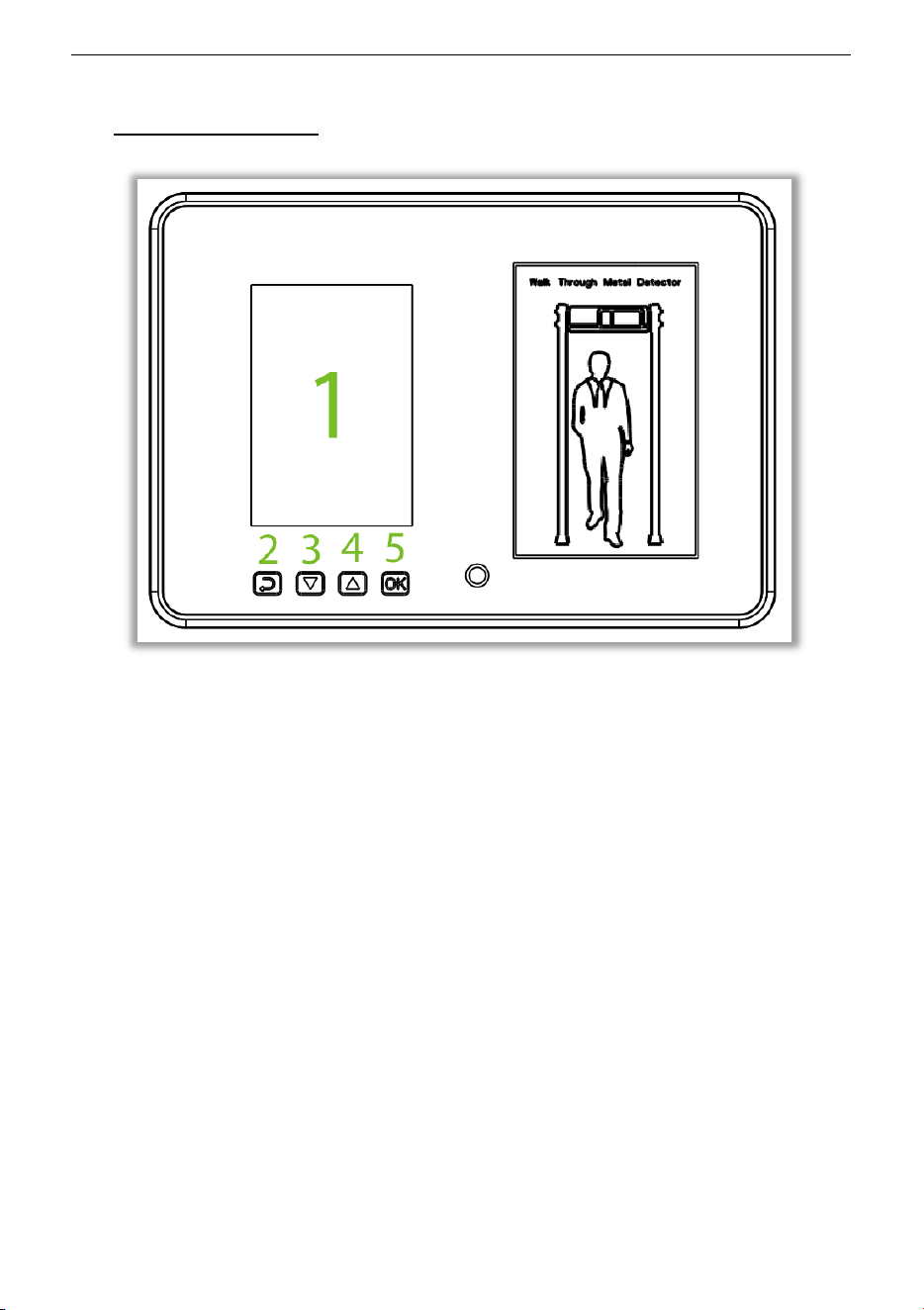

5 CONTROL PANEL ........................................................................................... 16

6 DETECTION ZONES ........................................................................................ 17

6.1 ADJUSTMENT OF DETECTION ZONE’S SENSITIVITY ..................................18

ZK-D2110 User Manual

Page | 6

7 OPERATIONAL PROCEDURE.......................................................................... 19

7.1 SENSITIVITY ADJUSTMENT ............................................................................20

7.2 OPERATING FREQUENCY ................................................................................20

7.3 BUZZER SETTINGS ...........................................................................................21

7.4 ALARM TIME .....................................................................................................21

7.5 DATE AND TIME ................................................................................................21

7.6 SENSITIVITY RANGE ........................................................................................22

7.7 APPLICATION AREA .........................................................................................22

7.8 DETECT-MODE .................................................................................................23

7.9 DATA STORAGE ................................................................................................23

7.10 RELAY SETTINGS ..............................................................................................23

7.11 MODIFY PASSWORD .......................................................................................24

7.12 NETWORK SETTINGS .......................................................................................24

7.13 LANGUAGE .......................................................................................................25

7.14 RESTORE ............................................................................................................25

7.15 ABOUT ...............................................................................................................26

7.16 DEFAULT PARAMETERS ...................................................................................26

TROUBLESHOOTING ............................................................................................. 27

PACKING LIST......................................................................................................... 28

WARRANTY CARD .................................................................................................. 29

ZK-D2110 User Manual

Page | 7

1 Overview

1.1 Introduction

ZK-D2110 is a walk-through metal-detector that is used for security screening at

access points in the factory, prison, and metro. ZK-D2110 is very high sensitivity to

all metal contraband, include non-ferrous and ferrous metals. It used to detect the

concealed metal weapons on a person’s body. It offers high-speed detection

capability. It can detect large metal objects like knives and guns, and It have high

screening capacity compared to hand-held metal detectors.

1.2 Appearance

ZK-D2110 User Manual

Page | 8

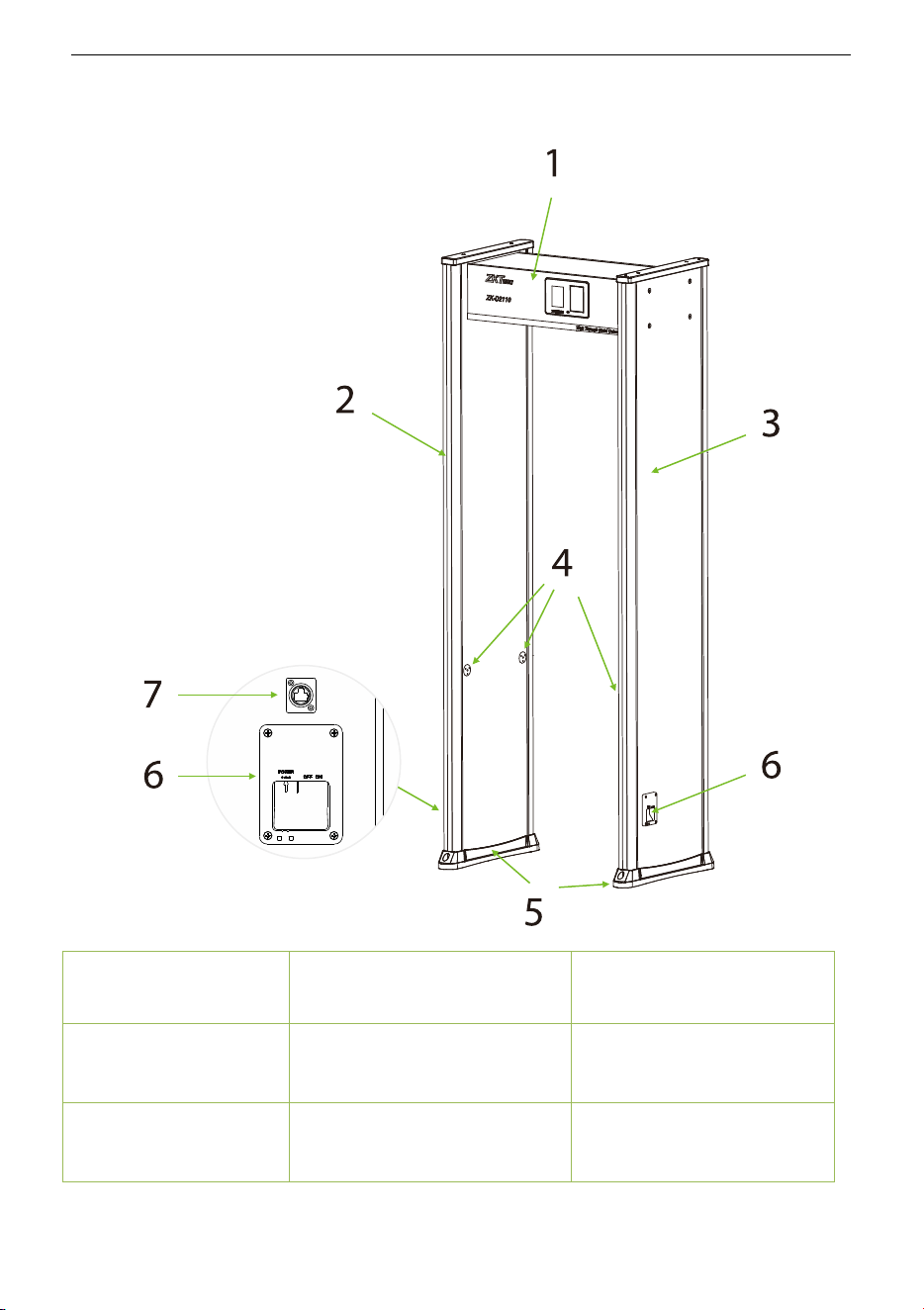

1.3 Components

1. Main Unit 2. LED Alarm Zones 3. Built-in Probe

4. Infrared Sensors 5. Waterproof Foot Cover 6. Power-line Interface

7. Network Interface

ZK-D2110 User Manual

Page | 9

2 Product Specifications

2.1 Dimensions

ZK-D2110 User Manual

Page | 10

2.2 Technical Specifications

Feature Specifications

Power Supply AC 100V to 240V

Operating Temperature -20°C to 55°C

Operating Humidity ＜95% RH (non-condensing)

Operating Frequency 5.7KHz to 9.6KHz

Input Voltage DC 12V

Operating Current 1.5A

Running Power 18W

Gate Shape Panel

Dimensions

External 2213 * 820 * 580mm (L*W*H)

Channel 1982 * 700 * 492mm (L*W*H)

Weight With Packing

Door Panel 46kg

Main Unit 11kg

Support Software

Mobile App: ZK Metal Detector App (Android OS

and MS Window OS only, need to

install by

individual apk and exe file) / ZKBio SIS

ZK-D2110 User Manual

Page | 11

3 Installation Setup

3.1 Safety Precautions

 Install the detector in a stable and smooth area. Make sure that the

detector is installed firmly in the selected area.

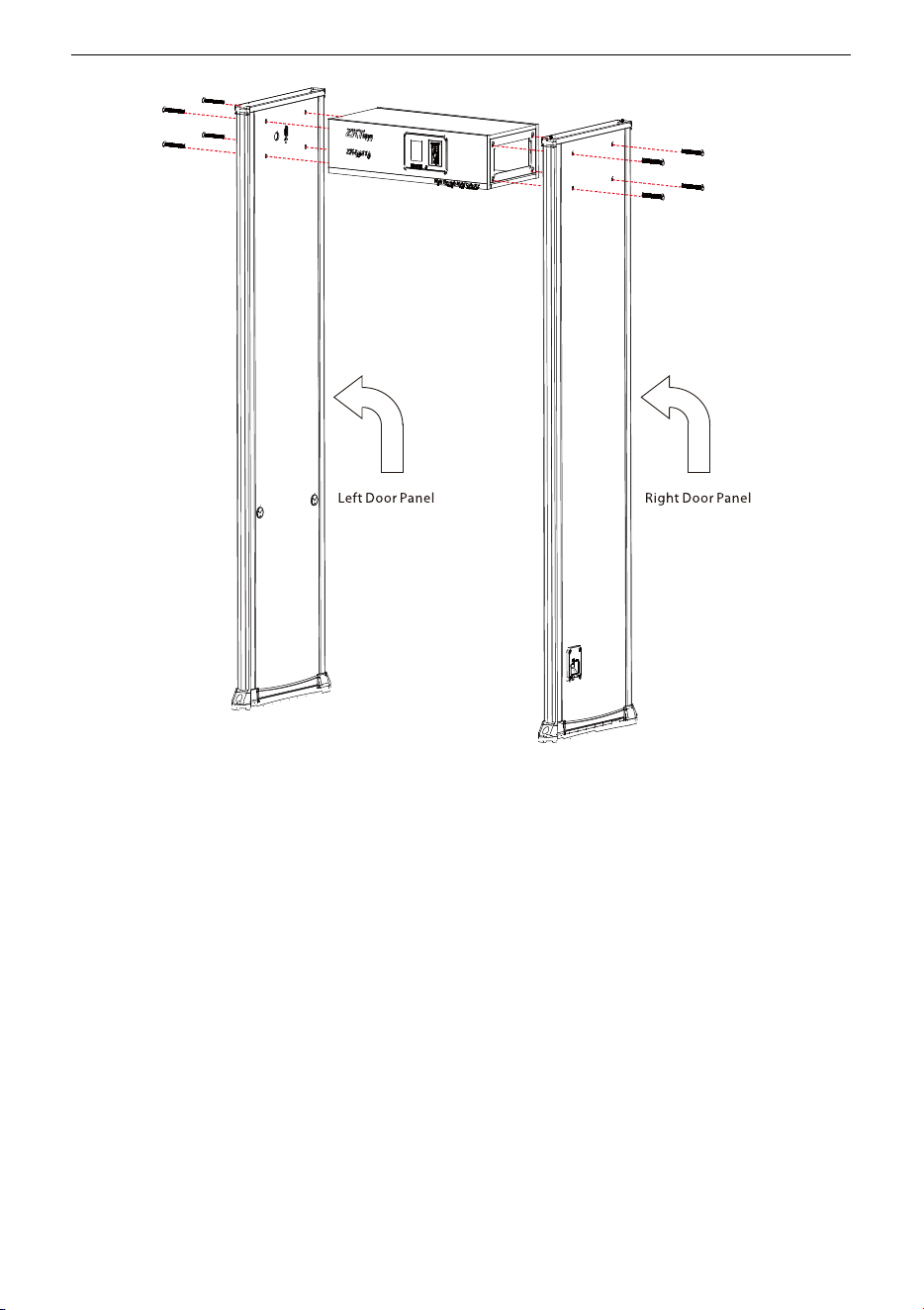

 Before installation, make sure the left and right door panels are placed at

the corresponding location. Avoid high temperatures and wet

environments.

 Wait for 1 minute for the self-diagnosis of the detector when it starts. Do

not touch the detector during a security check to avoid false alarm.

 Install the detector away from radio-frequency devices to avoid

interference. Make sure that there is no large metal object or strong

magnetic field around the detector for at least 2 meters.

 Do not hit the detector hardly, as it may cause false alarms.

 Do not disassemble the unit without the guidance of a professional

technician.

 Each device has a warranty card, with which users can have their devices

maintained or repaired free of charge within the warranty period.

3.2 Instructions to Pedestrians

 A line must be drawn at 50cm away from the detector. The pedestrians

must pass through the detector one-by-one.

 Pedestrians should line up one-by-one to ensure the smooth operation of

the detector.

 Pedestrians should walk at a normal speed. They must not intentionally

form a crowd, rush, walk slowly, or crush the door panel.

 Before passing through the metal detector, the pedestrians must remove

all the carried metal objects (such as keys, mobile phone, watch, coins, etc.),

ZK-D2110 User Manual

Page | 12

and place it on the security chute or a table, and pick it up after the security

check.

 If the detector alarms when someone passes through, that means there

is/are some metal object(s) hidden in the body. The security guard can use

a hand-held metal detector to accurately detect the hidden position

according to the alarm zones.

3.3 Installation Site

The following section describes the requirements of the installation environment.

3.3.1 Stationary Metallic Items

The detector must be installed away at 50cm from the stationary metallic items

such as aluminum alloy/stainless-steel windows, doors, etc. to prevent false alarms

and affecting the sensitivity of the detector.

3.3.2 Portable Metallic Items

The portable metallic objects must be kept away at 2 meters from the detector to

avoid false alarms.

3.3.3 Floor Vibration

The installation floor must be flat and fixed to avoid false alarm from the movement

of the people walking through the detector.

3.3.4 Electromagnetic Radiation and Interference

Since the detector uses Bilateral receiver technology, the detector must be installed

away at a distance of at least 1 meter from the sources of electromagnetic radiation

or electromagnetic interference. The parameters that define the distance are

determined by the installation environment and the parameters vary for different

installation environments.

The sources of electromagnetic radiation and electromagnetic interference are

given below:

ZK-D2110 User Manual

Page | 13

Electrical Control Box, Radiofrequency equipment, Interphone, High Power Motor,

Power Transformer, Ac Power Lines, Thyristor Control Circuit (High Power Switching

Power Supply, Inverter Welder), Engine, Motor, etc.

3.3.5 Parallel Installation

When two detectors are installed parallel to each other, the distance between two

detectors must be greater than 50cm. When three detectors are installed parallel to

each other, the distance between each detector must be greater than 80cm. They

must operate at a different frequency to avoid interference. The distance varies

according to the actual working environment, it is not recommended to mount

three detectors in parallel, the frequency can be adjusted according to the

environment.

3.4 Installation Steps

Make sure that the device is installed as per the following installation instructions. If

you want to open the chassis, you should contact the agent for permission.

Otherwise, you will bear any consequence resulting from your actions.

1. Open the Control unit and Door panel package.

2. Install the control unit and the door panels as shown in the above diagram.

Connect the door panels to the control unit with bolts and tighten the screws.

3. Insert the probe-lines of the left and right door panels to the corresponding

sockets on the mainboard. Note: The left door panel has a network cable in

addition to the aviation cable.

4. Then lift the Walk-through metal detector vertically and place it in the required

area.

5. Finally, plug in the power cable to start working.

ZK-D2110 User Manual

Page | 14

ZK-D2110 User Manual

Page | 15

4 Performance and Technical Features

Accurate Positioning: There are 11 overlapping detection zones with bilateral

transmit and receive technology. The detection zones can accurately detect the

objects with an intuitive display of the target location.

Micro Processor Technology: The Microprocessor Control Unit generates the

electromagnetic waves for scanning and the scanning rate can be precisely

controlled.

Adjustable Sensitivity: ZK-D2110 detection zones have 256 sensitivity levels (0 to

255). You can preset the metal size, by excluding the false alarm of coins, keys,

jewelry, belt buckle, etc.

Digital Pulse Technology: Digital signal processing and filtering system in the

detector has excellent anti-interference ability.

Count Statistics: The detector displays the number of pedestrians passed and Alarm

count accurately.

Harmless: The detector is harmless to heart pacemakers, pregnant women,

magnetic floppy disks, recording tapes, etc.

Waterproof Foot Cover: The waterproof foot cover not only can fix the device firmly

but also protect the device against water.

Safety: The Control Unit case and the panels are waterproof. The cover is made of

PVC synthetic material which makes the detector waterproof, fireproof, and

shockproof.

Easy to install: The detector has an integrated design and it can be effortlessly

installed or disassembled in 15 minutes.

ZK-D2110 User Manual

Page | 16

5 Control Panel

The components of the Control Panel are given below:

1. LCD: Displays the Pass count, Alarm count, Password settings, and other

information.

2. ESC: Press to discard the settings and exit the menu.

3. : Adjustment (decrement) key to decrease the parameter values.

4. : Adjustment (increment) key to increase the parameter values.

5. OK: Opens the Menu interface, saves the settings, and exits the menu.

Note: There is a network interface on the left door panel of ZK-D2110.

ZK-D2110 User Manual

Page | 17

6 Detection Zones

The ZK-D2110 detectors can detect a wide range of threat objects/weapons

composed of magnetic, non-magnetic metals and alloys.

Chassis panel: The screen shows the number of people passing the detector and

the number of alarms.

Alarm zones:

11 zones: The zones are classified as 1 to 11from bottom to top.

There are 11 unique sets of precise positioning LED’s evenly distributed on the door

panels, which means 11 detection zones. If the metal composition reaches or

exceeds the preset value, the red LED glows and an alarm will be triggered. If there

are multiple alarm targets, the LED of each target location will glow with alarm.

ZK-D2110 User Manual

Page | 18

Infrared Sensor

After connecting the power supply, the metal detector starts to work. When there is

no person or object passes through the detector, the infrared sensors can

effectively stop alarming to avoid false alarms. It also helps to maintain an accurate

count of pedestrians and alarms.

6.1 Adjustment of Detection Zone’s Sensitivity

1. The device must be in a stable position to achieve the best detection effect

(refer Installation Site). To check whether the device is in a stable state,

perform the following steps:

a) Power on the detector and check whether it is not shaking after one

minute.

b) The device should not alarm when the testing person did not carry any

metal items while walking through the detector.

2. You can exclude the small portable metal objects such as rings, key, belt

buckle, shoes, and so on, by following the steps given below:

a) Choose a small metal as a sample. Increase the sensitivity, so that when

the testing person carries the sample and pass through the detector, and

it would alarm.

b) Decrease the sensitivity a little, carry the sample, and pass through the

detector again. If it still alarms, once again reduce the sensitivity, until the

device does not alarm when the sample is passed through.

Note: If you want to decrease the sensitivity in a certain zone, you must only adjust

the sensitivity of the relative zone. After implementing the above adjustments, the

metal which smaller than the sample will not alarm, but the metal objects bigger

than the sample can be detected accurately.

ZK-D2110 User Manual

Page | 19

7 Operational Procedure

Connect the power supply to the detector. After 2 seconds of initialization, you can

perform the following operations.

Press the OK button on the Control panel to open the main menu.

MENU

Sensitivity

Channel

Buzzer

Alarm Time

Date & Time

Sens Range

Application

Detect-mode

Storage

Relay

Password

Network

Language

Restore

About

ZK-D2110 User Manual

Page | 20

7.1 Sensitivity Adjustment

On the main menu, select Sensitivity and press OK to set the sensitivity level of

each detection zone. Press “

” and “” to select the detection zone and then

press OK to confirm. Then press “

” and “” to change the sensitivity values. The

larger the sensitivity value, the higher the sensitivity. Then press OK to save the

settings.

Sensitivity

Overall: 186

ZoneALL

：

242

Zone 6

：

242

Zone 5

：

242

Zone 4

：

242

Zone 3

：

242

Zone 2

：

242

Zone 1

：

242

Note: There are only have 6 true zones, other 5 zones are virtual zones, which can't

be set in the zone setting.

7.2 Operating Frequency

In the main menu, select Channel and then press OK. The channel range is from 1

to 40. The default value is 14. Press “

” and “” to select the Channel and then

press OK to save the settings.

Channel

01——40

ZK-D2110 User Manual

Page | 21

7.3 Buzzer Settings

In the main menu, select Buzzer and then press OK to confirm. Press “” and “”

to select whether to turn on or off the buzzer and press OK to save the settings.

Buzzer

OFF

ON

7.4 Alarm Time

In the main menu, select Alarm Time and then press OK to confirm. The default

alarm time is 1 second. Press “

” and “” to select the alarm time as per your

requirements and press OK to save the settings.

Alarm Time

0.5s

1.0s

1.5s

2.0s

…

10.0s

7.5 Date and Time

In the main menu, select Date & Time and then press OK to open the time and date

setting interface. Press “

” and “” to adjust the time. Press OK after setting the

time. Then press ESC and then switch to date. Set the date and then press OK to

save the changes.

ZK-D2110 User Manual

Page | 22

Date & Time

2024-01-23

12:00

7.6 Sensitivity Range

In the main menu, select Sens Range and then press OK to set the intensity of the

sensitivity levels. Press “

” and “” to select the sensitivity settings for all the zones.

Press OK to save the settings.

Sens Range

High

Medium

Low

7.7 Application Area

In the main menu, select Application and then press OK to confirm. Press “” and

“

” to adjust the real-time application area. Press OK after setting the application

area.

Application

Airport

Customs

Port

Prison

Detention

Conference

Train Station

Motor Station

ZK-D2110 User Manual

Page | 23

Police Office

School

7.8 Detect-mode

In the main menu, select Detect-mode and then press OK to confirm. Press “” and

“

” to select the mode. Press OK to save the settings. Note: When set to

non-ferrous metal mode, the device will have high sensitivity to non-ferrous metals,

When set to ferrous metal mode, the device will have high sensitivity to ferrous

metals.

Detect-mode

non-ferrous metal

ferrous metal

7.9 Data Storage

In the main menu, select Storage to open the data storage interface. Use the “”

and “

” to select whether to save the data or not. You can also delete the

pedestrian count and Alarm count. Press the OK to save the settings.

Storage

Save

Don’t Save

Clear Pass (Clear Pedestrian Count)

Clear Alarm (Clear Alarm Count)

7.10 Relay Settings

In the main menu, select Relay to open the extended output interface. Use the “”

and “

” to select the required function. When “Close” is selected, the relay function

will be disabled. When “No Metal” is selected, the detector will send a signal to the

ZK-D2110 User Manual

Page | 24

relay when the person does not carry any metal during detection. When “With

Metal” is selected, the detector will send a signal to the relay when the person

carries any metal during detection. Then press OK to save the changes.

Relay

Close

No Metal

With Metal

7.11 Modify Password

In the main menu, select Password to modify the Password. Press “” and “” to

set the password, and press ESC to clear the entered value. Press OK to save the

settings.

Password

New Password

* * * * * *

7.12 Network Settings

In the main menu, select Network to open the network setting interface. Use the

“

” and “” buttons to select the Device Name, Network Address, and Gateway

Address. Press OK enter the next digit or ESC set back the previous digit. After the

last digit is modified, press OK to save the settings.

Network

Name

F 0 0 0 0 1

IP

255.255. 255.255

ZK-D2110 User Manual

Page | 25

GWIP

192.168. 1. 1

Note:

The Factory Default IP is shown in the figure. If the DHCP function is turned on in

that default IP, the server will automatically assign IP to the Walk-Through Metal

Detector. The connection will be completed without setting the Walk-Through Metal

Detector IP. If the server does not have the DHCP function, you need to set the

Walk-Through Metal Detector IP and the server IP in the same gateway for the

connection.

7.13 Language

In the main menu, select Language and then press OK to confirm. The default

language is English. Press “

” and “” to select the language your requirements

and press OK to save the settings.

Language

English

7.14 Restore

In the main menu, select Restore to restore the factory settings. Select "Yes" and

press OK to restore the original factory settings. Select "Cancel" or press ESC to

cancel the operation.

Restore

Cancel

Yes

ZK-D2110 User Manual

Page | 26

7.15 About

Show firmware version number and Walk-Through Metal Detector IP.

About

Ver: rus-11-N-1.5.4-Pro

Name: F00001

IP: 192.168.161.168

GWIP: 192.168.161.1

MASK: 255.255.255.0

7.16 Default Parameters

Parameter Default Value

Sensitivity

221

Channel

14

Buzzer

ON

Alarm Time

1.0 s

Application Area

Train Station

Data Saving

Save

System Password

100000

Relay Settings

Close

Network Settings

Name: F00001

IP: 255.255.255.255

GWIP: 192.168.1.1

ZK-D2110 User Manual

Page | 27

Troubleshooting

What to do if the Sensor could not count?

a) Check whether the probe cables are connected firmly with the door panels.

b) Check whether there is any infrared interference beside the device, such as

infrared surveillance system, infrared remote control, outdoor sunlight, etc.

c) If both a and b are OK, replace the infrared sensor.

What to do if the detector gives a false alarm?

a) If the device gives false alarms frequently after installation, perform the

following steps:

 Firstly, check the installation environment. Make sure there are no movable

or stationary large metal objects around 1.5 meters from the detector. If

there is any metal object, try to place the device away from the large metal

objects.

 Make sure that the installation location is stable and free from physical

movements.

b) If the false alarm is not caused by the environment, reduce the sensitivity level

of all zones.

c) Change the frequency.

d) Change the installation location.

ZK-D2110 User Manual

Page | 28

Packing List

The package consists of the following items:

No Component Quantity

1

Power Adapter 1 set

2

Power Cable 1 set

3

Hexagon Socket Set Screw 8 pcs

4

Inner Hexagon 1 pc

5

User Manual 1

6

Main Unit 1 pc

7

Door Panel 2 sets

8

Infrared Remote Control 1 pc

ZK-D2110 User Manual

Page | 29

Warranty Card

1. Please keep this card safe and produce the same during maintenance.

2. This card will be invalid without the signature or stamp of the designated

dealer.

3. This card will be regarded as invalid if the details are not filled in three

guarantees column and the acknowledgment of the receipt. Please confirm

whether the data filled in the three guarantees column and acknowledgment

of receipt is correct or not when purchasing it, and then hand it over to the

dealer.

4. This card will not be issued again if it is lost.

Model Number

ID

Date of Acquisition

User

Post Code

Address

User’s Phone Number

Fax

ZK-D2110 User Manual

Page | 30

Date of Maintenance Record of Maintenance Technician

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com

ZKTeco ZK-D2110

Product's Documents

PDF ZK-D2110 Walk Through Metal Detector User Manual 20240702 User Manual 1.4MB 2024-07-02

Specifications

ZKTeco ZK-D2110 Questions and Answers
