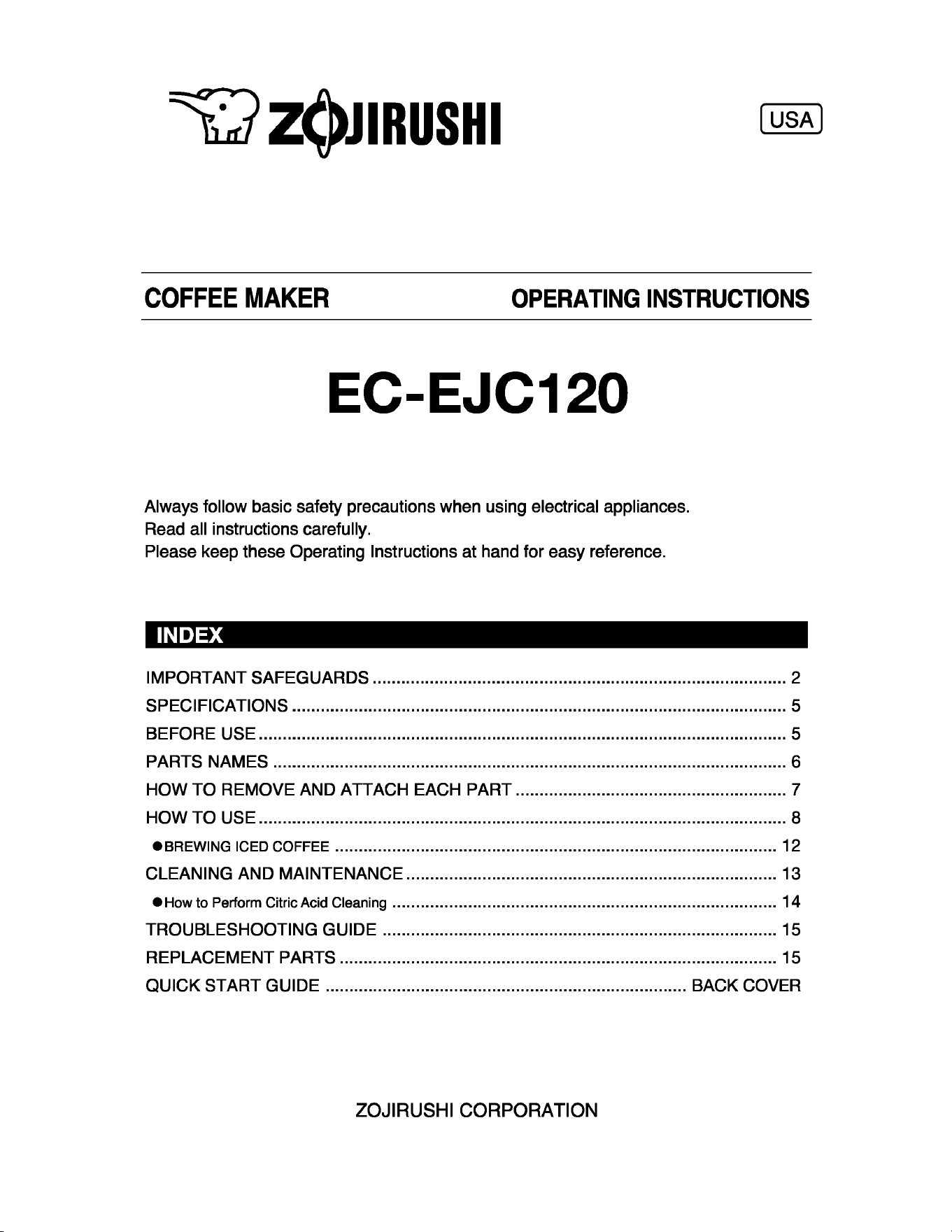

" S 1 Z0JIRUSHI
COFFEE
MAKER OPERATING INSTRUCTIONS
EC-EJC120
Always follow basic safety precautions when using electrical appliances.
Read all instructions carefully.
Please keep these Operating Instructions at hand for easy reference.
I
MPORTANT SAFEG UARD S 2
SPE CIFICA TIO N S 5
BEFORE U S E 5
PARTS N A M ES 6
HOW TO REMOVE AND ATTACH EACH P A R T 7.
HOW TO U S E 8
•
•
BREWING ICED COFFEE 12
CLEANING AND M AINTENANCE 13.
How to Perform Citric Acid Cleaning 14.
TROUBLESHOOTING G U ID E 15
REPLACEMENT P A R TS 15.
QUICK START G U ID E BACK COVER
............
...............
.
.............................................................................................
..................................................................................................
.... ...................................................................................................
...................................................................................................................
.............................................................
......................................................................................................................
..................................................................................................................
...................................................................................
....................................................................................................
.........................................................................................
..................................................................................................
...............................................................................
ZOJIRUSHI CORPORATION
IMPORTANT SAFEGUARDS the instructions.
To reduce the risk of fire, electric shock, and / or injury to persons, when using
electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs. Do not close or clog the steam vent opening
under any circumstances.
3. To protect against fire, electric shock and other injury to persons, do not immerse cord, plugs or
the appliance in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when the appliance is not in use, and before cleaning. Allow to cool before adding
or removing parts other than the Glass Carafe, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or
has been damaged in any manner. Return appliance to the nearest authorized service facility for
examination, repair or adjustment.
7. The use of accessory attachm ents not recommended by the appliance manufacturer may result
in fire, electric shock or other injury to persons.
8. Do not use outdoors.
9. Keep the power cord away from hot surfaces and do not let the cord hang over the edge of
tables or counters.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. To disconnect, turn the power off by turning off the Switch, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. To protect against electrical hazards, unplug the cord at all times before cleaning.
14. Scalding may occur if the Lid is opened during the brewing cycles.
15. The Glass Carafe is designed for use with this appliance. It must never be used on a range top.
16. Do not set the hot Glass Carafe on a wet or cold surface.
17. Do not use a cracked Glass Carafe or a Glass Carafe having a loose or weakened handle.
18. Do not clean the Glass Carafe with cleansers, steel wool pads, or other abrasive materials.
NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of
electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does
not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Do not attempt to m odify the plug in any way.
SAVE THESE INSTRUCTIONS
_______
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.
A. A short power-supply cord is provided to reduce risks resulting from becoming entangled in or
tripping over a longer cord.
B. Extension cords may be used if care is exercised in their use.
C. If an extension cord is used, (1) the marked electrical rating o f the extension cord should be at
least as great as the electrical rating of the appliance, (2) if the appliance is of the grounded type,
the extension cord should be a grounding-type 3-wire cord, and (3) the longer cord should be
arranged so that it will not drape over the counter top or table top where it can be pulled on by
children or tripped over.
A
WARNING
RISK OF FIRE OR ELECTRIC SHOCK
DO NOT OPEN
A
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BOTTOM)
NO USER-SERVICEABLE PARTS INSIDE
REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY
A
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
fire or electric shock to persons.
A
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in this literature.
IMPORTANT SAFEGUARDS (com.)
These WARNINGS and CAUTIONS are intended to prevent property dam age or personal injury to
you and others.
A WARNINGS
r _
y U
Do not modify the product. Only a repair
technician may disassemble or repair this unit.
Attempting to do so may cause fire, electric shock or injury.
Make any repair inquiries to Zojirushi Customer Service.
y j j /
Do not immerse the product in water or
splash it with water.
Doing so may cause short circuit or electric shock.
Do not allow liquid to come in contact with
the Power Plug or Power Cord.
Doing so may cause short circuit or electric shock.
X n jN
v g j f
Do not plug or unplug the Power Plug if your
hands are wet.
Doing so may cause electric shock or injury.
\x S L J
Do not touch the Steam Vent and Warming Plate,
or bring your hands or face near the Steam Vent.
Doing so may cause bums or scalding. Take special
precautions with children and infants.
Do not allow children to use the product
unsupervised. Keep it out of the reach of infants.
Children are at risk o f bums, electric shock or injury.
Do not use a power source other than 120 V AC.
Use of any other power supply voltage may cause fire
or electric shock.
Do not use this product without the Glass
Carafe. Doing so may cause scalding.
Do not use the product if the Power Plug or
Power Cord is damaged or if the Power Plug is
lOOSely inserted into
the electrical outlet.
Doing so may cause electric
shock, short circuit or fire.
Electrical Outlet
power Plug U 5 I
Power Cord
*
Do not damage the Power Cord.
Do not bend, pull, twist, fold, or attempt to modify the
Power Cord. Do not place it on or near high temperature
surfaces or product, under heavy items or between
objects.
A damaged Power Cord can cause fire or electric shock.
_
6 ®
Insert the Power Plug completely and
securely into the electrical outlet.
A loosely inserted Power Plug may cause electric
shock, short circuit, smoke or fire.
Use only an electrical outlet rated at 15
amperes minimum, and do not plug other
devices into the same outlet.
Plugging other devices into the same outlet may
cause the electrical outlet to overheat, resulting in fire.
If the blades or surface of the Power Plug
become soiled, wipe them clean.
A dirty Power Plug may cause fire.
Stop using immediately if you notice any of
the following symptoms indicating a
malfunction or breakdown.
Continued use of the product may cause smoke, fire,
electric shock or injury.
• The Power Plug or Power Cord has become very hot.
• The Power Cord is deeply damaged or deformed.
■ There is a burning smell.
■ Some part of the product is cracked, unstable or
loose.
• The electricity turns on and o ff when the Power Cord
is touched or moved.
■ The product does not operate even though the
Switch is turned on.
• Water leaks from the Main Body.
• The Main Body is deformed or has become very hot.
If any of the above occurs, unplug the product
immediately and return to Zojirushi Customer Service
for check-ups and/or repairs.
This product is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the product
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the product.
•T h e illustrations used in these Operating Instructions may vary from the actual product you have purchased.
3
>
IMPORTANT SAFEGUARDS (com.)
A CAUTIONS
/C m \ Do not touch hot surfaces such as the Lid,
Shower Head, Filter Basket, or body of the
Glass Carafe while the product is in use or
shortly after.
Doing so may cause bums or injury.
\
i
C \
^ V
D
o not use the product on surfaces that are
vulnerable to heat. Doing so may cause fire.
Do not use the product on unstable surfaces.
Doing so may cause scalding or injury.
Do not use the product near walls or furniture.
Steam or heat may damage, discolor or deform walls
or furniture.
Do not use near an open flame.
Doing so may cause fire.
Do not heat the Main Body and Glass Carafe
in a microwave oven or place it on top of
direct flames (such as a gas stove top), or
electric or induction heating (IH) cookers.
Doing so may cause smoke or fire. The Handle of the
Glass Carafe may deform or sparks may emit from
the metal parts.
Do not move the Main Body when the Glass
Carafe is in place.
Doing so may cause scalding or other injury.
After filling the Water Tank with water, do
not move the Main Body.
Doing so may cause scalding, malfunction or water leak.
Do not leave the Glass Carafe removed for
long periods of time.
Doing so may cause scalding.
Do not refill the Water Tank while coffee is
brewing.
Coffee may overflow and cause scalding.
U
nplug the Power Plug from the electrical
outlet when the product is not in use.
Leaving the Power Plug in an outlet may cause injury
or burns, or electric shock and fire due to insulation
degradation.
V
_________________________________________________
P
lease allow the product to cool down
before cleaning.
Touching hot surfaces may cause burns.
Always unplug the product by holding the
Power Plug, not by pulling the Power Cord.
Pulling the Power Cord to unplug the product may
cause electric shock, short circuit or fire.
If the Power Cord or Power Plug is
damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualified persons to avoid hazards.
y
IMPORTANT
(
■Do not use the product outdoors.
Doing so may cause malfunction.
■Do not use or place the product on wet surfaces.
Doing so may cause electric shock.
■Do not use the product where its steam may come
into contact with other electrical appliances.
The steam may cause fire, malfunction, discoloration or
deformation to other electrical appliances.
■When using the product on a kitchen shelf or in a
similar location, exercise care to ensure that steam
does not come into contact with the ceiling.
Doing so may cause discoloration or deformation of the
ceiling.
■D o not use the product on a carpet or fabric
tablecloth.
The carpet or tablecloth may be stained if the coffee splashes out.
■Make sure that the entire product is placed squarely
on a table and does not protrude.
Failure to do so may cause scalding or other injury.
>
■D o not drop the Glass Carafe or hit it against a hard
surface or object.
It may break the glass and cause injury.
■D o not soak the Glass Carafe in water, splash it with
water or place it on a wet surface while it is still hot.
If the Glass Carafe is damaged, it could easily break. If it does,
please be careful not to cut your hands with broken glass.
■Do not fill the Water Tank with anything other than
water, such as milk, alcohol, coffee, or hot water.
Doing so may cause malfunction.
■Do not leave the Water Tank filled with water.
Doing so may cause malfunction, discoloration, odor, or
deterioration in water quality.
■Do not use finely-ground coffee.
Doing so may cause the coffee to overflow and cause scalding.
■Do not use more than 6 leveled Coffee Scoops
(approx. 2.54 oz. / 72g) of ground coffee.
Doing so may cause the coffee to overflow and cause scalding.
v
7
IMPORTANT SAFEGUARDS (com.)
IMPORTANT
c
■D o not operate the product with an empty Water Tank
(except during KEEP WARM).
It may cause malfunction.
■Do not open the Lid while the product is in use.
Doing so may cause scalding.
■Do not open the Lid if the Main Body is still hot.
Even if the Power Plug is unplugged
from the electric outlet, hot water or
steam may come out from the
Nozzle, resulting in scalds.
/T P \ I
( j I Nozzle
j
■>-
-----------
- ã
■Do not put your hand under the Main Body Gasket
while the product is in use or shortly after.
Hot water may drip and cause scalding.
■D o not touch the Shower Head, paper filter, or Filter
Basket immediately after brewing has finished.
Doing so may cause scalding.
■Wait at least 5 minutes before brewing consecutively.
Otherwise, steam or hot water may come out from the
Steam Vent when water is added or the product is moved, and
may cause scalding.
■Do not discard water by turning the Main Body upside down.
Doing so may cause scalding or other injury.
■This product is intended for household use only.
v
SPECIFICATIONS
Model No.
EC-EJC120
Rating
AC 120 V 60 Hz
Electric Consumption
1050 W
Capacity
M ax. 61 oz. (1.8 L)
Coffee Brewing System
A u to m atic D rip
Length o f the Power Cord
1 ' 1 1 " (0.6 m )
External
Dimensions
(approx. inches)
8 -1/s (W) x 8 -3/4 (D) x 15 -1/4 (H)
(approx. cm)
20.5 (W) x 22 (D) x 38.5 (H)
Weight
A p p ro x. 7 lbs. (2.9 kg)
• External dimensions are measured without the Handle of the Glass Carafe.
• In certain locations (at high elevations, in severely cold climates, etc.), the product may not perform as
specified. Avoid using the product in such areas or in other extreme conditions.
• This product is not suitable for use in countries or regions with different power supply voltages or
frequencies.
BEFORE USE
• This product is intended for household use only and not for commercial use.
• This product has been designed for brewing coffee only. Do not use for any other purpose. Do not fill the Water
Tank with anything other than water (such as milk, alcohol, coffee, or hot water), as doing so may cause malfunction.
• This product will initially have a plastic odor, but this will fade with use.
• Do not carry the product by the Lid. Doing so may cause the product to fall.
• Prior to initial use or when
using the product after a
long period of storage:
® Wash the Shower Head, the Filter Basket, and the Glass Carafe. -*• P.13
(2) Attach each part.
<D Add water until it reaches the “HOT 12” Water Fill Line on the Glass Carafe and
pour the water into the Water Tank.
© Set the Glass Carafe (with Carafe Lid) in the Main Body. Turn on the Switch and
run the water through the machine without brewing any coffee.
PARTS NAMES
6
HOW TO REMOVE AND ATTACH EACH PART
• Please allow the product to cool down before removing or attaching its parts.
Filter Basket
How to Remove}
© Open the Lid.
© Hold the Grip and
remove the Filter
Basket.
( How to Attach
© Hold the Grip and attach
the Filter Basket.
© Close the Lid.
Shower Head
How to Remov
Grasp the Shower Head Grip
and remove in the direction
of the arrow.
( How to Attach
• Align part <A> of the Shower Dome
to part <B> of the Shower Case.
A
Filter Basket
( e}
(
© Align the v marks on the Shower
Head and the Lid.
© Press until it clicks into
place.
Shower Head Grip
Shower Head
Carafe Lid
^How to Remove)
Lift the Carafe Lid to remove it
from the Glass Carafe.
Lid
( How to Attach ~)
© Align part <C> of the Carafe
Lid with the Handle of the
Glass Carafe.
© Press until it clicks into
place.
7
HOW TO USE
Brewing iced coffee -► P.12
1
Fill the Water Tank with water.
W
ate
r Fill Line
on the Water Tank
© Fill the Glass Carafe with the desired amount of
water using the W ater Fill Lines.
*lf brewing 1-3 cups of coffee, use a measuring cup
(not provided) to measure the water.
(D Open the Lid and pour the w ater from (D to the
Water Tank.
• When opening and closing the Lid, make sure that the Main Body
does not tip over.
• Make sure that the Shower Head is attached to the Main Body
before brewing.
Be sure to follow the instructions below to prevent a
malfunction, water leak, or overflowing of coffee.
• Do not add water above “ 12” of the Water Fill Line on the Water
Tank.
• Do not refill the Water Tank while coffee is brewing.
• Do not fill the Water Tank with hot water.
• If too much water is added to the Water Tank, water will overflow
from the Overflow Drain at the back of the Main Body.
I Water Amount Guidelines for 1-3 Cups
Cups
Brewed
1 2
3
Water
Approx. oz.
5.2
1
0.5
15.7
Approx. mL
155 310 465
P
re
cautions When Using Hard Water:
1 Do not use water with 400ppm or more total dissolved solids.
Minerals may build up inside the pipes of the product and hinder the brewing performance. For example,
brewing may take longer or water may not drip properly.
> We recommend using water with 200ppm or less total dissolved solids.
> If brewing takes longer than usual, please clean the product using citric acid. -*• P.14
2 Attach the Filter Basket and place a paper filter
P
ape
r Filter
Filter Basket
© A ttach the Filter Basket to the Main Body.
© Place a paper filte r in the Filter Basket.
• Do not use the product without a paper filter.
• Be sure to place the paper filter properly as described below.
Failure to do so could cause coffee grounds to overflow from the filter.
• Fold the filter as shown in the illustration below.
• Adjust the width of the fold so that the filter does not protrude from the
Filter Basket.
• Do not use 2 or more filters at the same time.
■ How to Fold the Paper Filter
© Fold the bottom © Fold the side © Open up the filter
Fold to front
Fold to opposite
side of ©
r
—
-
* -
► \ y
j
Please use a No. 4 cone coffee
filter.
HOW TO USE (cont.)
3
Add ground coffee.
©
Me
asure ground coffee using the provided Coffee Scoop,
place in the paper filte r and level the grounds.
• Use only ground coffee in the pa
filter. Using anything other than
ground coffee may damage the
product.
© Close the Lid.
f \
• Coffee Scoop
1 leveled scoop of coffee grounds
approx. 0.42 oz. / 1 2g
L
in
e for 1/2 leveled
scoop approx.
:./6g
Place the ground coffee in the paper
filter and level the grounds.
Paper filter
Ground coffee
Paper filter
■ Hot Coffee Brewing G uidelines
Cups Brewed 1 2 3 4 5 6 7 8 9 10 11 12
Ground
Cof
fee
In Leveled Coffee Scoop 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
Weight (Approx. oz.)
0.21 0.42
0.63 0.85 1.06
1.27
1.48 1.69 1.90
2.12
2.33
2.54
Weight (Approx. g)
6
12
18
24
30 36
42
48
54
60 66
72
• D
o
not use finely-ground coffee.
Depending on the type of ground coffee being used (such as decaf or light roast), coffee grounds may
overflow from the paper filter.
If this happens, reduce the number of cups to be brewed.
• Do not brew more than 6 leveled Coffee Scoops (approx. 2.54 oz. / 72g) of ground coffee.
(Doing so may cause the coffee to overflow and cause scalding.)
• When brewing just a few cups of coffee, the coffee may turn out weaker than expected. Increase the
amount of ground coffee in accordance with your preferred strength.
• The number of cups brewed may vary depending on the amount, type, and fineness of the ground coffee
that you use.
9
HOW TO USE (cont )
4
Set the strength using the Taste Tuner.
S
li
de the Taste Tuner left or right to select the
desired strength.
•
D
o
not slide the Taste Tuner while
brewing coffee.
(Doing so may cause burns.)
•
B
OL
D is recommended for brewing
1 -3 cups of coffee.
(The coffee tends to be weaker
when brewed with a small amount
of ground coffee.)
5 Set the Glass Carafe in the Main Body
P
l
a
ce the Glass Carafe on the Warming Plate.
1
•
1
D
o
not scrape the Glass Carafe against the Warming Plate when you place it
on the Warming Plate.
•
U
si
ng the product when the Warming Plate is dirty or when there is moisture
on the Warming Plate may cause the coating to peel off or become
discolored.
1
•
B
e
sure to place the Carafe Lid on the Glass Carafe. -*▮ P.7
1
•
W
he
n putting the Glass Carafe in place, do not apply excessive force to the
Drip Prevention Valve.
I
ns
ert the Power Plug into an electrical outlet,
and turn on the Switch.
T
he
Switch w ill illum inate and brewing w ill begin.
Never open the Lid while brewing.
• D
o
not use or place the product on wet surfaces.
(Doing so may cause electric shock.)
▪
E
st
imated Time Until Completion:
(Based on water and room temperature of 68°F / 20°C, BOLD strength setting)
v*
-------------
as.
The strength of the coffee can be adjusted
in a continuous mannerfrom Classic to Bold.
CLASSIC: light and sm ooth flavor
BOLD: dynam ic and bold flavor
The Switch will illuminate
when turned ON.
Cups Brewed
1 2
3
4
5 6
7
8 9 10
11 12
Estimated Time (Approx. minutes) 3 4 5 6 7 8 9 10 10.5 11 12 13
• Th
e es
timated time until completion may vary depending on the amount of water,
room temperature and the amount of ground coffee.
To Cancel Brewing
© Turn off the Switch, pull the Power Plug out of the electrical outlet.
(D Make sure the Main Body has cooled down and coffee is no longer dripping from the Filter Basket and then
remove the Glass Carafe and the Filter Basket.
© if there is any water left in the Water Tank, place the Glass Carafe (with Carafe Lid) and Filter Basket in the
product and turn on the Switch to run the water through the machine without brewing any coffee.
• Do not discard water by turning the Main Body upside down. (Doing so may cause injury or burns.)
HOW TO USE (com.)
7
When brewing is completed, turn off the Switch
and pour the coffee.
© Make sure coffee is no longer dripping from the Filter Basket and turn o ff the Switch.
• The Switch will darken when turned OFF.
(2) Remove the Glass Carafe and pour coffee into a cup.
• Do not scrape the Glass Carafe against the Warming Plate when you
remove it from the Plate.
Be sure not to tilt the Glass
Carafe too much as the
Carafe Lid may come off.
-
I When Keeping the Coffee Warm
© Keep the Switch turned on.
® Keep Carafe Lid on the Glass Carafe.
• The aroma and flavor of the coffee will
deteriorate if it is left in the Glass Carafe for
a long time. Try to limit the length of Keep
Warm to 15 minutes max.
— ~
▪
I
f Y
ou Like Y ou r Coffee H ot -
•
Pre
heat
cups with hot water before
serving.
•
L
eave t
he Glass Carafe on the Warming
Plate after brewing completes.
(Try to limit the length of Keep Warm to
15 minutes max.)
8 After use
Be sure to turn the Switch o ff then hold the Power Plug and pull it
out o f the electrical outlet.
-
m A
fte r Use
Allow the Main Body to cool completely,
open the Lid, remove the Filter Basket
from the Main Body, and remove the used
paper filter.
• Exercise care not to burn yourself as the
paper filter, which will be saturated with
hot water, will be hot.
• Wipe any water droplets inside of the Lid
and Main Body.
--------------------------------
v ______________________
I When Brew ing C offee C onse cu tively
•
T
o b
rew your next pot of coffee, turn off the
Switch, allow the Main Body to cool at least
5 minutes, and then follow “ HOW TO USE”
from step 1. -*• P.8
•
D
o
not add water or move the Main Body
while it is still hot.
Steam or scalding water may suddenly emit
from the Steam Vent, causing burns.
HOW TO USE (com.)
BREWING ICED COFFEE
Required
items
♦ Gr
ound
coffee
for iced coffee
♦ Ice cubes
• 6 cups is the minimum amount of iced coffee that can be made.
i
▪
I
ce
d Coffee Brewing Guidelines and Estimated Time Until Completion
Cups Brewed
6 7
8
Ground
Coffe
e
In Leveled Coffee Scoop
5 5.5 6
Weight (Approx. oz.)
2.12
2.33
2.54
Weight (Approx. g)
60 66 72
Estimated Time (Approx. minutes)
6 6.5
7
(B
as
ed on water and room temperature of
68°F / 20°C, BOLD strength setting)
1 The estimated time until completion may vary depending on the amount of water, room temperature
and the amount of ground coffee.
How to Brew Iced Coffee
1
Follow the instructions from step 1 to step 6 under “ HOW TO USE” to brew
the coffee. -► P.8-10
• Add water to the “ICED” line on the Glass Carafe.
• Do not put ice cubes in the Glass Carafe before brewing coffee.
(Doing so may cause coffee to overflow and cause scalding.)
2
When brewing is complete, carefully take the Glass Carafe out o f the Main Body.
3
Remove the Carafe Lid, put ice cubes in the Glass Carafe, and stir the coffee to
cool it down.
■ Ice Am ount Guidelines
Cups Brewed
6
7
8
Amount
of ice
Approx. number of ice cubes*
24 28 32
Weight (Approx. oz.)
12.7
14.8 16.9
Weight (Approx. g)
360 420 480
‘ Based on ice cubes measuring approx. 1 inch / 2.5 cm on all sides.
The number of ice cubes to put in the Glass Carafe varies depending on the size
of the cubes. Make adjustm ents in accordance with your preferences.
4 Place the Carafe Lid on the Glass Carafe and pour the coffee into a glass.
• Place ice cubes in a glass as you like and pour the coffee over it.
12
CLEANING AND MAINTENANCE
Always unplug the product from the electrical
outlet and allow the Main Body and Glass
Carafe to cool completely before cleaning.
f-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
• Be sure to clean the product after every use.
• Do not splash the Main Body, Power Cord and Power Plug with water or immerse them in water. Doing so may
cause electric shock or malfunction.
• Do not use a dishwasher or a dish-dryer. Doing so may cause deformation.
• Do not use boiling water to wash the product or parts as they may deform or break.
• Do not use the following:
* Detergents other than mild kitchen detergent, such as thinner and bleach. Doing so may cause discoloration, cracks,
degradation or corrosion.
• Polishing powder, nylon brushes, scrub brushes, anything made with metal, eraser pads, hard nylon sponges and
abrasive cleaners. Doing so may cause corrosion.
• When using chemically treated cloths, do not rub too hard or leave them on the product for a long time as the
surface of the product may become damaged from chemical reactions.
• If you plan not to use the product for an extended period of time, allow it to dry completely to avoid unpleasant
odors and store it in a plastic bag or other suitable container.
Main Body, Warming Plate
© Wipe the Main Body and Warming Plate clean with a soft
cloth immersed in diluted mild kitchen detergent and
wrung well.
© Wipe with a well-wrung soft damp cloth.
(D Wipe dry with a soft dry cloth.
• Exercise care concerning burns when discarding coffee.
• Wipe any coffee droplets or grounds remaining on the
Warming Plate or the Main Body (in the vicinity of the
Warming Plate).
• Wipe any coffee grounds remaining
between the Main Body and the Lid so
they do not fall into the Water Tank.
• TTie Main Body Gasket is not removable.
Glass Carafe, Shower Head
© Wash with a sponge or soft material with diluted
mild kitchen detergent.
© Rinse with water.
© Wipe dry with a soft dry cloth.
• Be sure to fully drain water from the Shower Head.
Water may remain inside the part.
• Do not disassemble the Shower Head.
• Do not drop the Glass Carafe or hit it against a
hard surface or object. It may break the glass and
cause injury.
Filter Basket
© Wash the Filter Basket clean with a sponge or soft material with diluted mild kitchen detergent.
© Rinse with water.
© Pour water in the Filter Basket, press the Drip Prevention Valve two or three times and wash.
© Wipe dry with a soft dry cloth.
• If coffee grounds clog the Drip Prevention Valve, it may not seal properly and coffee may leak.
Be sure to wash it after each use.
• Be sure to fully drain water from the Filter Basket. Otherwise, this water may drip into your
coffee during brewing.
• Exercise care as pulling or forcibly twisting the Drip Prevention Valve may cause it to come off.
• Do not immerse the Filter Basket in water. Doing so may cause water to collect in spaces inside the part, resulting in
rust or causing its shape to deform.
•
Do not disassemble the Drip Prevention Valve.
If the Drip Prevention Valve Gasket comes off, insert the Drip Prevention
Valve with Spring into the Filter Basket. Attach the Drip Prevention Valve
Gasket to the Groove while pressing up on the Drip Prevention Valve to hold
in place.
• Be sure that the Drip Prevention Valve Gasket
is attached securely.
Water may leak if it is deformed or is loose.
Spring —
t
Drip Prevention
Valve
Drip Prevention Valve Gasket
Cross-sectional drawing
1 ' 111' ^....The flat side should face down.
-Groove
Attach the Drip Prevention
Valve Gasket here.
✓
Attached correctly
©)
X
Water may leak
from gaps
( ©
Loose
Power Cord and Power Plug
Wipe with a soft dry cloth.
CLEANING AND MAINTENANCE (com.)
If hot water does not dispense smoothly, clean using citric acid.
Minerals contained in water may build up inside the pipes and other parts with use.
If m ine rals a ccum ula te, ho t w ate r may n o t dispense sm oothly, th e am ount o f
co ffe e brewed m ay be reduced, o r h o t w ate r may lea k fro m gaps in th e Main Body.
• Remove any mineral buildup by cleaning with citric acid. (See “ How to Perform Citric Acid
Cleaning” below.)
• Perform citric acid cleaning about every 4 weeks of usage.
The cleaning interval depends on your water quality. If your area has water that’s high in mineral
content or if you use mineral water, the product will be more susceptible to mineral buildup.
How to Perform Citric Acid Cleaning
© Put 1 package of the Citric Acid Cleaner CD-K03E-JU in the Glass Carafe and add a cup of
warm water to dissolve.
© Add water to the “HOT 12” Water Fill Line on the Glass Carafe, mix thoroughly, and pour the
resulting citric acid solution into the Water Tank.
® Attach the Filter Basket and Shower Head to the Main Body (without any paper filter) and place
the Glass Carafe (with Carafe Lid) onto the Warming Plate.
© Turn on the Switch (to start running the solution through the product).
© Once the citric acid solution falls to the “4” line on the Water Tank, turn off the Switch.
© Pour the citric acid solution that’s been run through the product into a different container, cool
it, and remove any white crystals or other matter in the solution.
© Allow the Main Body to cool for at least 5 minutes.
© Pour the citric acid solution from © back into the Water Tank and repeat
0
through @ until the
solution no longer contains white crystals or other matter. (Finally, turn off the Switch once the
citric acid solution is no longer coming out of the Filter Basket.)
© After allowing the Main Body and Warming Plate to cool sufficiently, rinse the Glass Carafe and
then run water through the product several times to eliminate any citric acid odor.
(When brewing more than one pot of water, wait at least 5 minutes after the Switch turns off
before starting the next brewing cycle.)
® Turn off the Switch and unplug the Power Plug from the electrical outlet.
•
In order to prevent gas bubbles and bubbling-over,
the Citric Acid Cleaner for Electric Water Boilers
(CD-K03E-JU) is recommended for cleaning.
(Available separately) -►P.15
Citric acid (100%) is used as a food additive and is
harmless from a food sanitation standpoint, but do
not consume it.
• If hot water does not dispense smoothly,
perform citric acid cleaning again.
14
TROUBLESHOOTING GUIDE Please check the following
before calling for service.
Condition
Cause Remedy
The product does not
operate even when the
Switch is turned on.
Is the Power Plug inserted correctly?
Insert the Power Plug into the electrical
outlet.
Hot water does not dispense.
Hot water does not dispense
smoothly.
Is the Water Tank filled with water?
Pour water into the Water Tank. -*■ P.8
When minerals accumulate inside the pipes and other parts, hot water may not
dispense smoothly. In that case, perform citric acid cleaning. -*■ P.14
Coffee or coffee grounds
overflow from the filter.
Has the paper filter been placed
properly in the Filter Basket?
Place the paper filter properly in the Filter
Basket. -*■ P.8
"
Did you add more than 6 scoops of
coffee grounds?
Do not add more than 6 scoops of coffee
grounds. -*• P.9
Is the Drip Prevention Valve clogged
with coffee grounds?
Clean the Filter Basket. -► P.13
Has the Filter Basket been placed
properly in the Main Body?
Place the Filter Basket properly in the
Main Body. -*■ P.7
Is finely-ground coffee being used? Please do not use finely-ground coffee.
Are you using two or more layers of
paper filter?
Use just one paper filter.
Depending on the type of coffee or paper filter being used, coffee or coffee grounds
may overflow from the filter. In that case, reduce the amount of coffee (number of cups)
to be brewed.
There is water left in the
Water Tank.
When minerals accumulate inside the pipes and other parts, hot water may not
dispense smoothly and water may be left in the Water Tank. In that case, perform
citric acid cleaning. -*■ P.14
A noise is heard before or after
brewing is complete.
The hissing sound from steam being forced out may be heard before and after brewing is
complete.
The Power Cord becomes hot. The Power Cord may become hot while the product is turned on. This is not a malfunction.
When performing cleaning
or maintenance.
Unplug the Power Plug from the electrical outlet and allow the Main Body to cool
for at least 5 minutes first.
r
V
\
y
r
N
r a
► [
REPLACEMENT PARTS
• Replacement parts may be available for an additional charge. Please replace damaged parts only with
new parts.
• When replacing parts, please record the model number and part name beforehand. Parts can be
purchased through Zojirushi.com, by contacting Zojirushi Customer Service, or the store where you
purchased the product.
Zojirushi Customer Service
1-800-733-6270
www.zojirushi.com
Parts Name Parts Number
Glass Carafe
JUGECESC
Coffee Scoop
BX194029L
Citric Acid Cleaner for Electric Water Boilers
(1 oz. / 30g x 4 packets)
CD-K03E-JU
• The Glass Carafe (sold as a replacement part) does not include the Carafe Lid.
QUICK START GUIDE
The Switch will illuminate
when turned ON.
2 íõ i
/ / *
Start Brewing
Brewing Completes
■ Hot Coffee Brewing Guidelines (See p.s and 9)
Cups Brewed
1 2
3 5 6 8 9 10
11 12
Water Approx. mL
155 310 465
Measure using the Water Fill Lines on the Glass Carafe.
Ground Coffee
In Leveled
Coffee Scoop
0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
www.zojirushi.com
EC-EJC © (D ®
