ZKTeco FACEDEPOT-7BL User Manual

FaceDepot-7BL User Manual

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

For further details, please visit our Company’s website

www.zkteco.com

User Manual

FaceDepot-7BL

Date: November 2023

Doc Version: 1.3

English

FaceDepot-7BL User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any

way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or

"ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by

their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third

party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of

the supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please

contact ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for

the safe operation of the machine/unit/equipment that personnel has read, understood and followed the

safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract

conditions/documents shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty

of any kind, including, without limitation, any warranty of design, merchantability or fitness for a

particular purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents which

are referenced by or linked to this manual. The entire risk as to the results and performance obtained from

using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,

special, or exemplary damages, including, without limitation, loss of business, loss of profits, business

interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or

FaceDepot-7BL User Manual

relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been

advised of the possibility of such damages.

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated into

new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the

information contained in the manual from time to time in the form of circulars, letters, notes, etc. for

better operation and safety of the machine/unit/equipment. The said additions or amendments are

meant for improvement /better operations of the machine/unit/equipment and such amendments shall

not give any right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in

conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures and

relevant documents are available on http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business related queries, please write to us at: sales@zkteco.com.

To know more about our global branches, visit www.zkteco.com.

FaceDepot-7BL User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition

Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security

solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art

700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of biometric

verification procedures and the productization of biometric verification SDK, which was initially widely

applied in PC security and identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually constructed an identity

authentication ecosystem and smart security ecosystem, which are based on biometric verification

techniques. With years of experience in the industrialization of biometric verifications, ZKTeco was

officially established in 2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National High-tech Enterprise for 6

consecutive years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of FaceDepot-7BL Product.

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly

consistent with the actual products.

Features and parameters with

★ are not available in all devices.

FaceDepot-7BL User Manual

Document Conventions

Conventions used in this manual are listed below:

GUI Conventions

For Software

Convention Description

Bold font Used to identify software interface names e.g., OK, Confirm, Cancel.

Multi-level menus are separated by these brackets. For example, File > Create >

Folder.

For Device

Convention Description

< >

Button or key names for devices. For example, press <OK>.

[ ]

Window names, menu items, data table, and field names are inside square

brackets. For example, pop up the [New User] window.

Multi-

level menus are separated by forwarding slashes. For example,

[File/Create/Folder].

Symbols

Convention Description

This represents a note that needs to pay more attention to.

The general information which helps in performing the operations faster.

The information which is significant.

Care taken to avoid danger or mistakes.

The statement or event that warns of something or that serves as a cautionary

example.

FaceDepot-7BL User Manual

Table of Contents

DATA SECURITY STATEMENT ..................................................................................................................... 7

SAFETY MEASURES ..................................................................................................................................... 7

1 INSTRUCTIONS TO USE ..................................................................................................................... 10

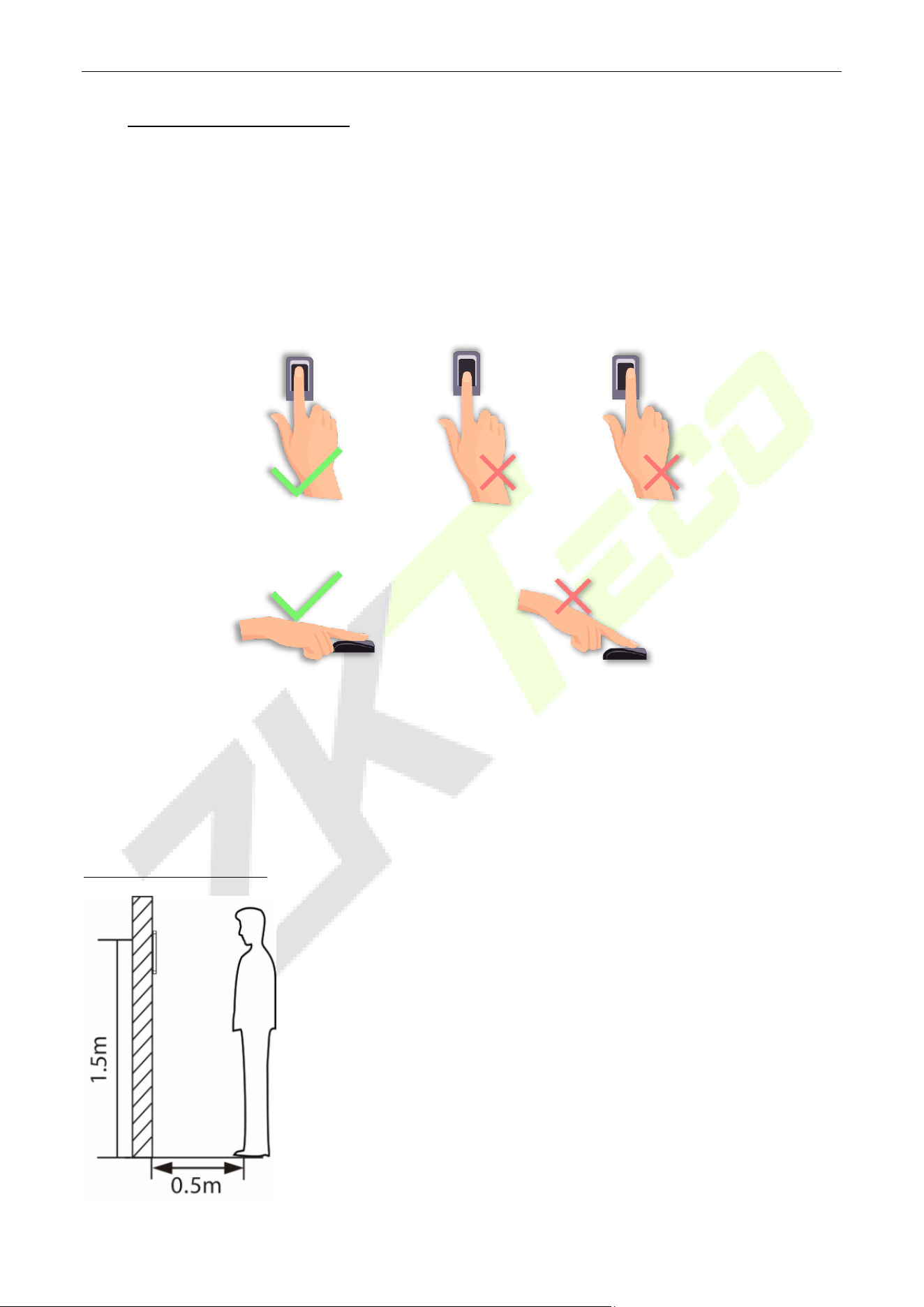

FINGER POSITIONING★ ................................................................................................................................................................................10 1.1

STANDING POSITION, POSTURE AND FACIAL EXPRESSION ........................................................................................................................10 1.2

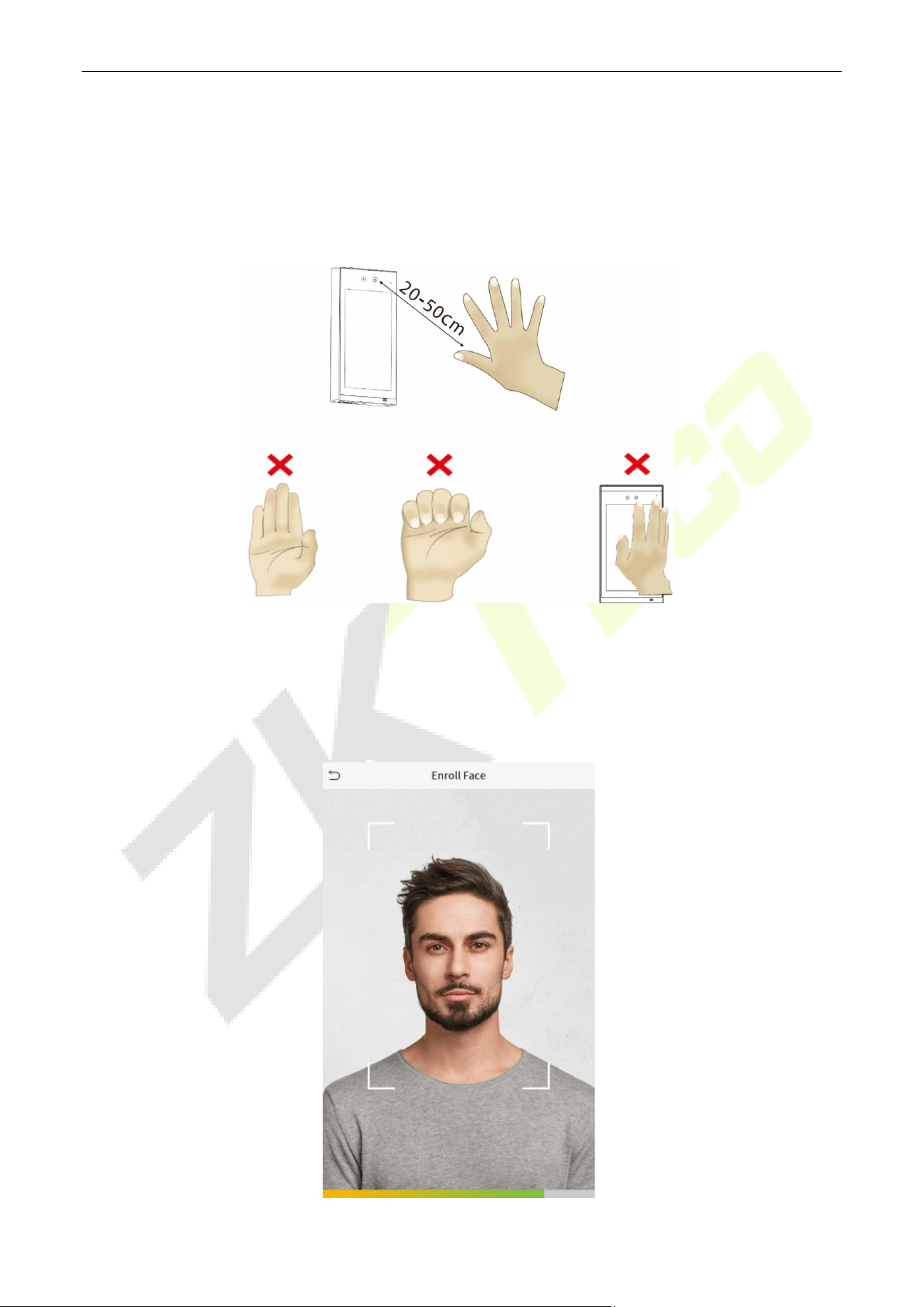

PALM REGISTRATION★ ...............................................................................................................................................................................12 1.3

FACE REGISTRATION .....................................................................................................................................................................................12 1.4

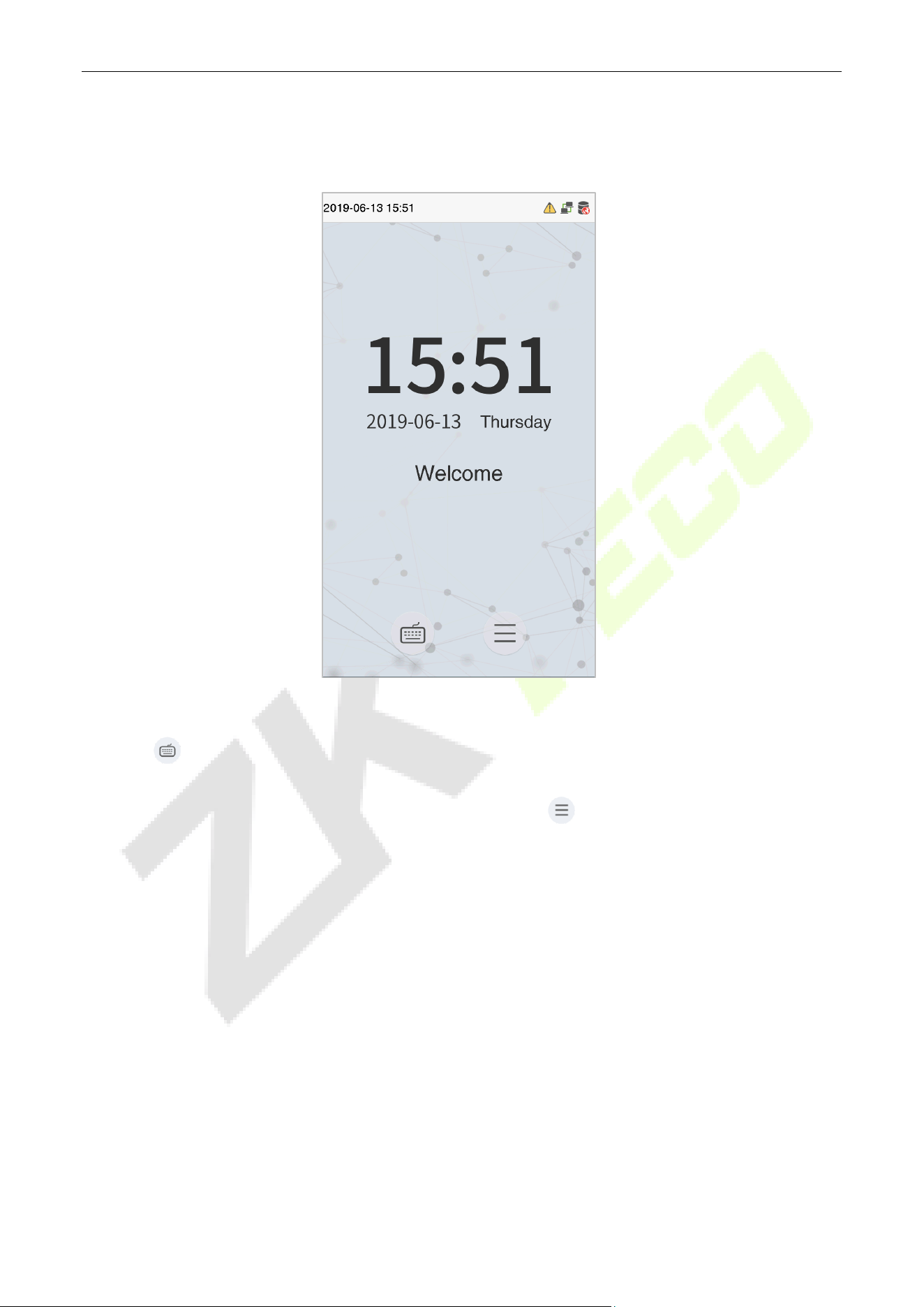

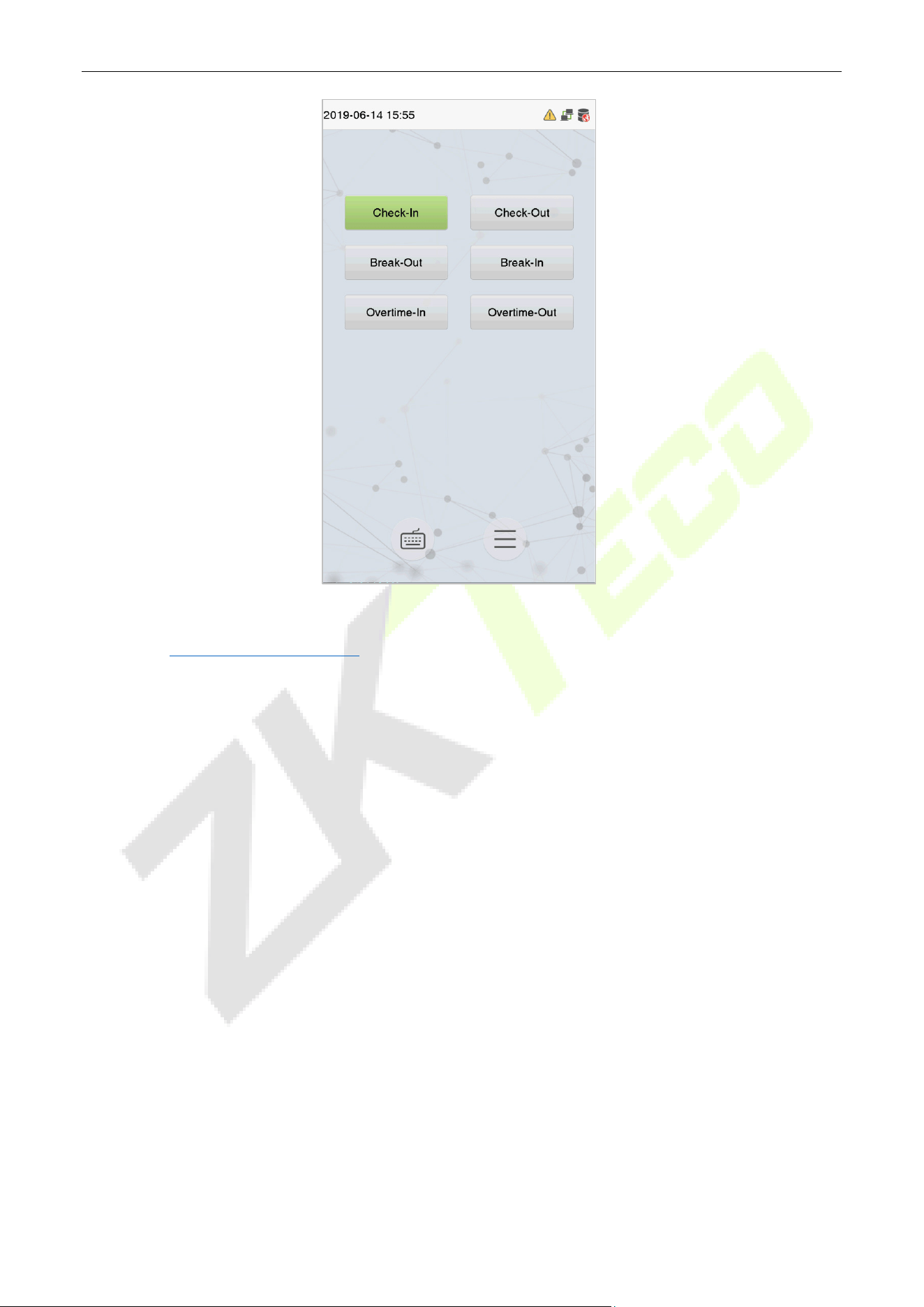

STANDBY INTERFACE ....................................................................................................................................................................................13 1.5

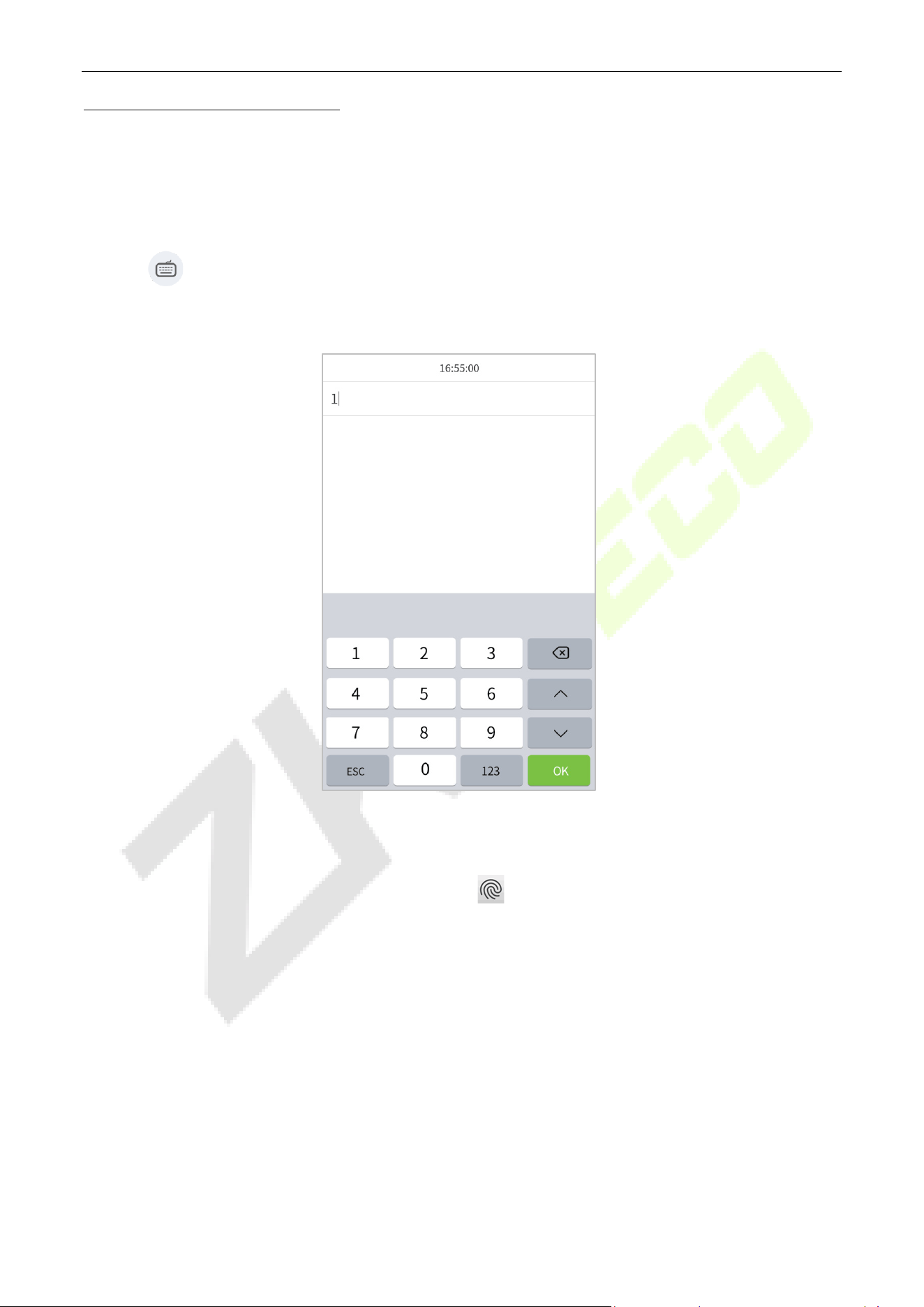

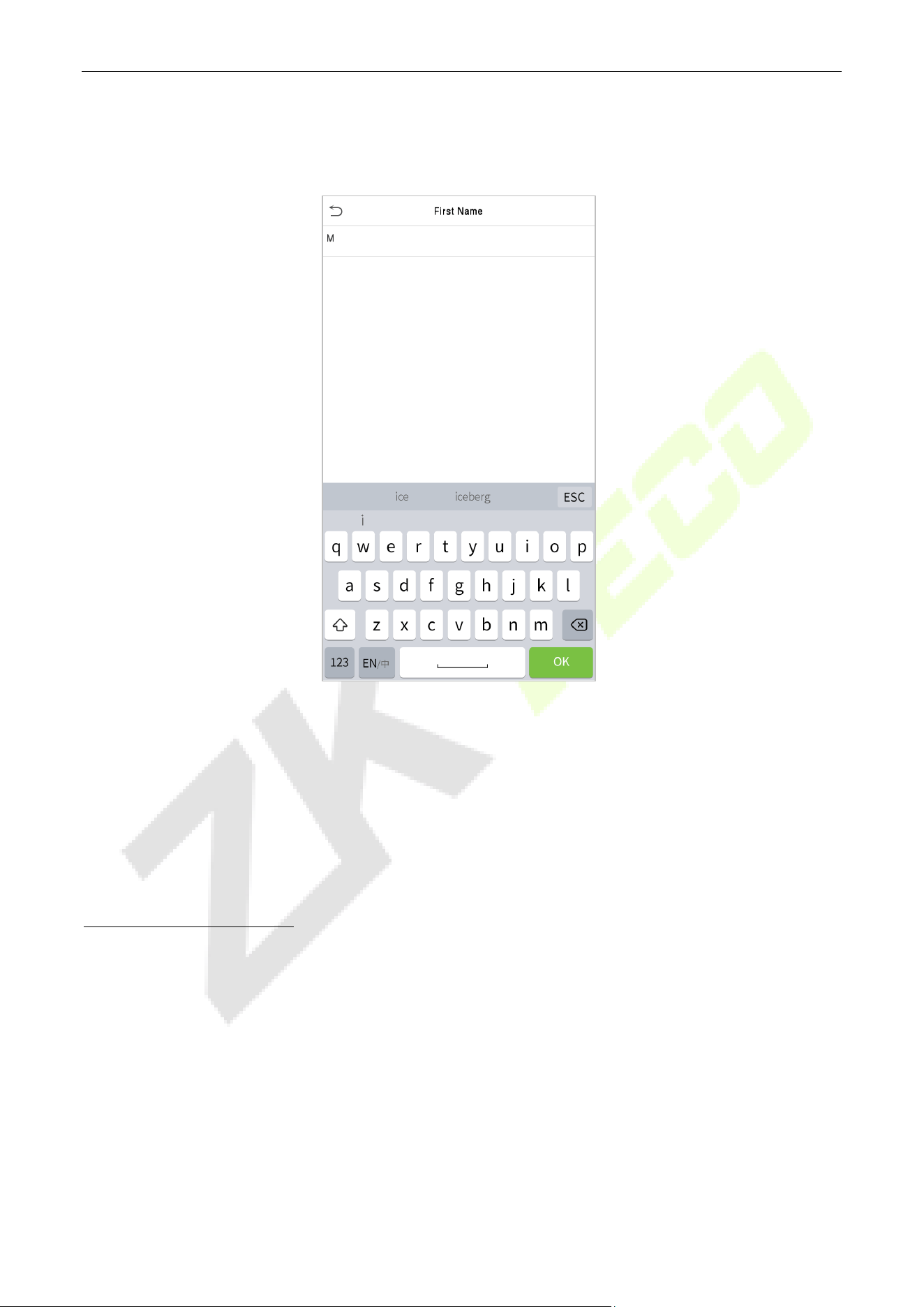

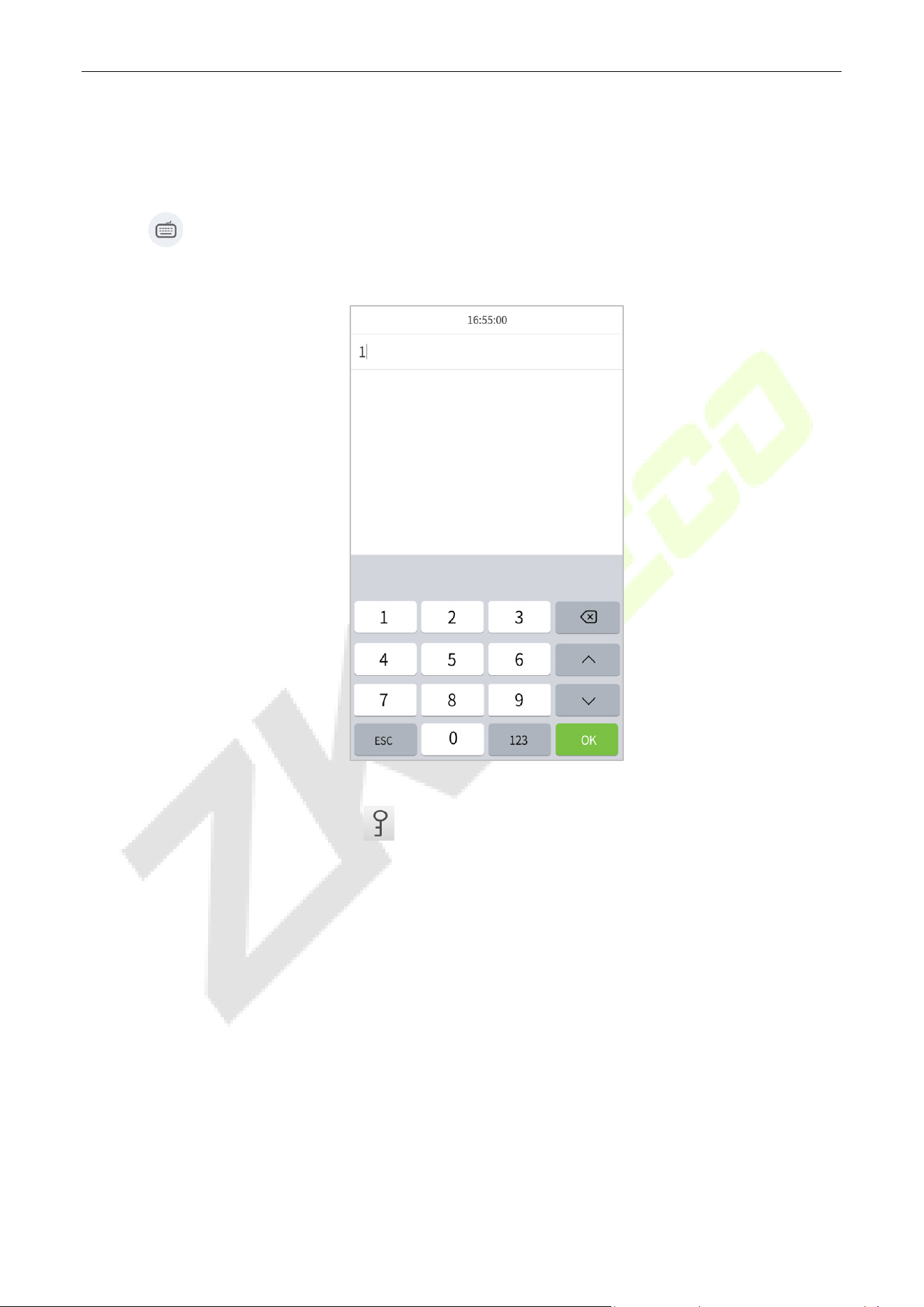

VIRTUAL KEYBOARD ......................................................................................................................................................................................15 1.6

VERIFICATION MODES ..................................................................................................................................................................................15 1.7

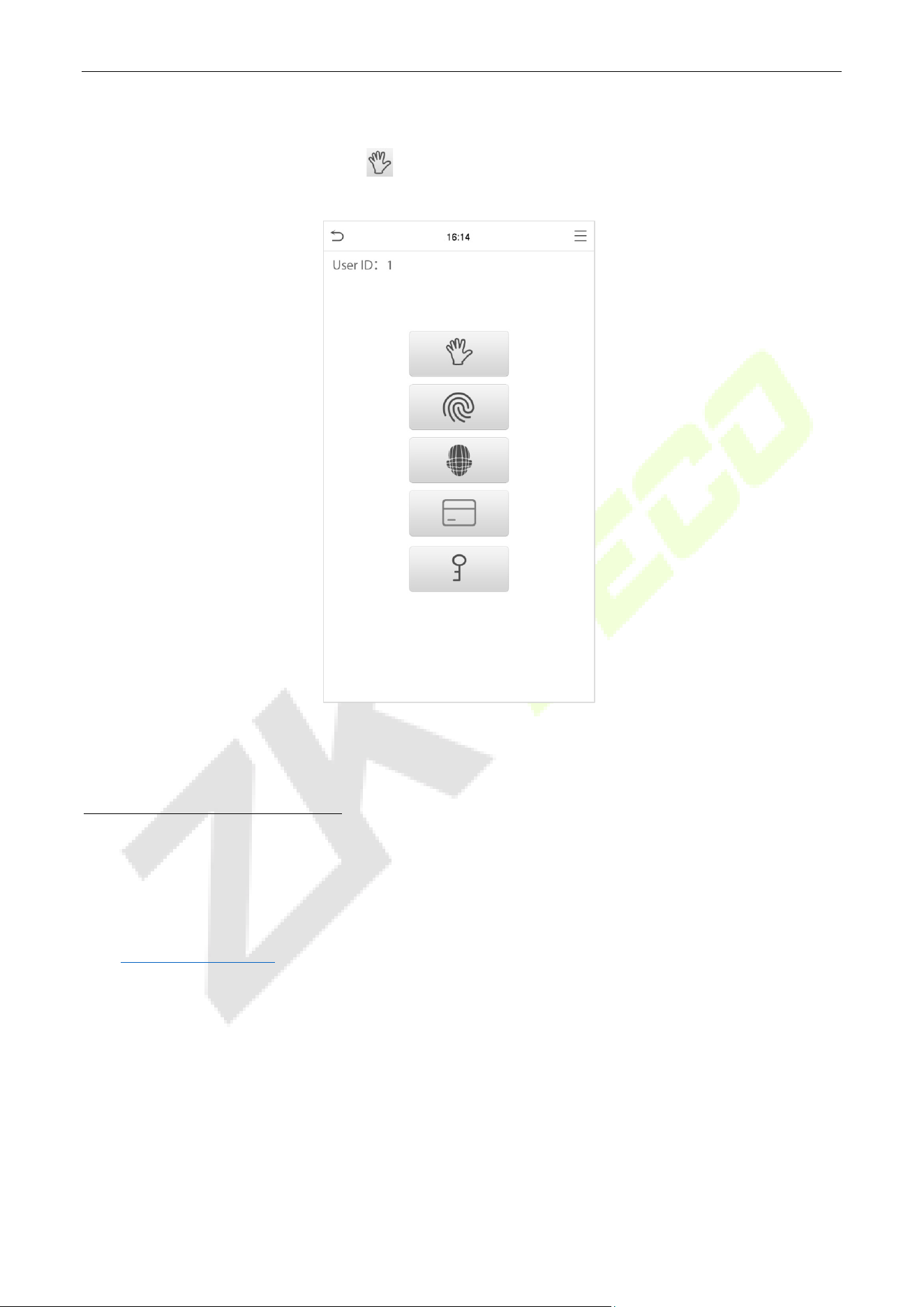

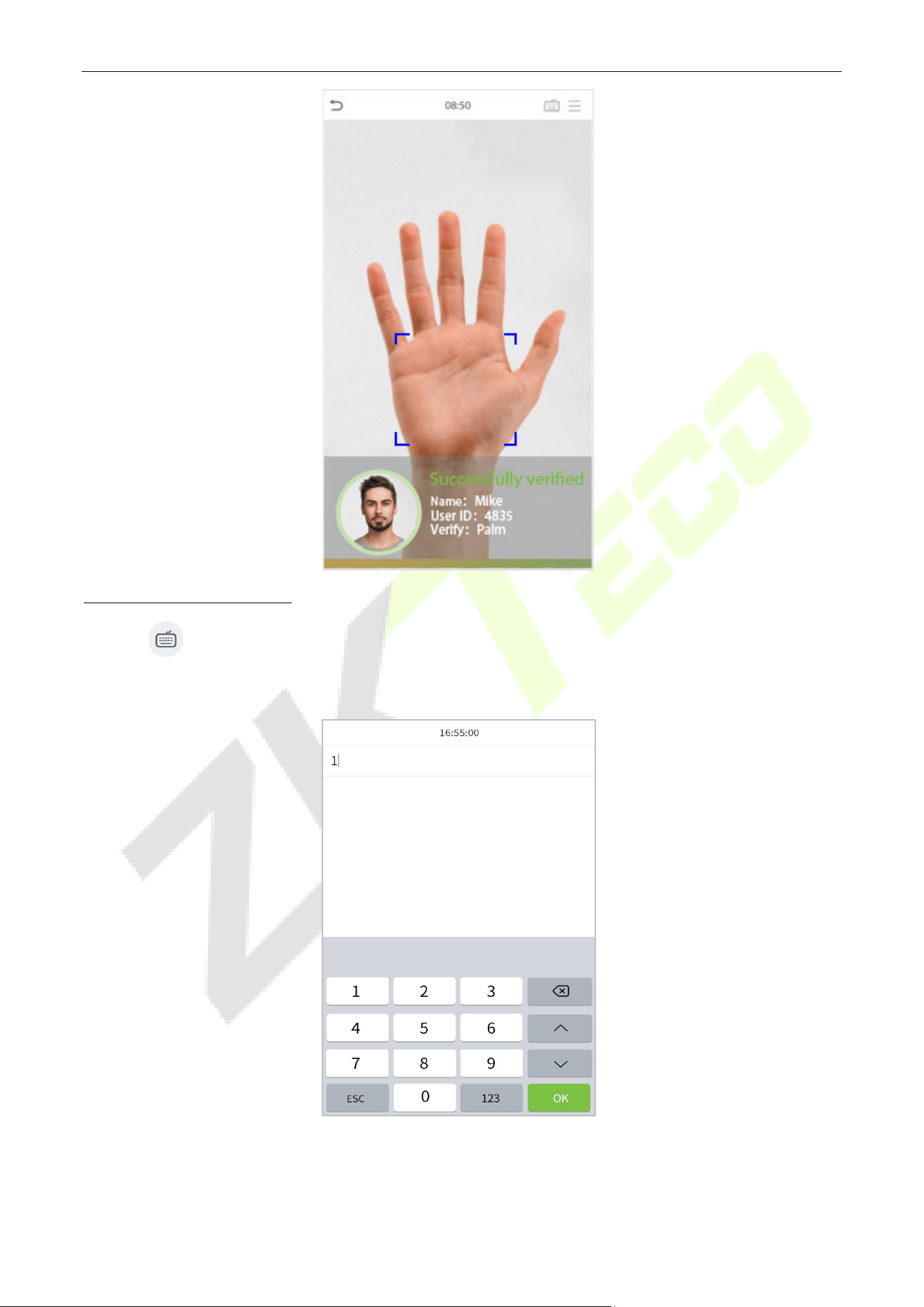

1.7.1 PALM VERIFICATION★ .............................................................................................................................................................................. 15

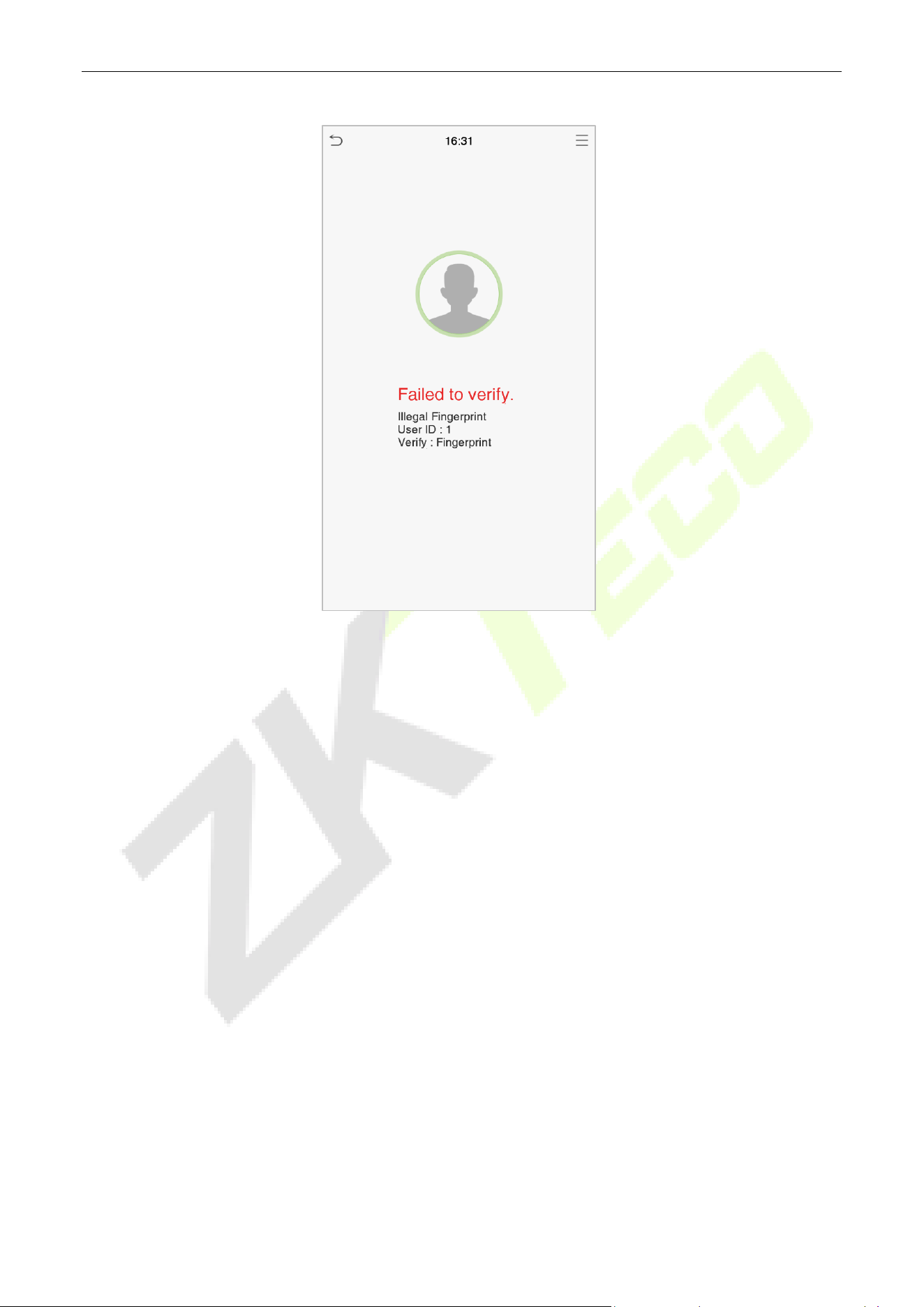

1.7.2 FINGERPRINT VERIFICATION★ ................................................................................................................................................................. 17

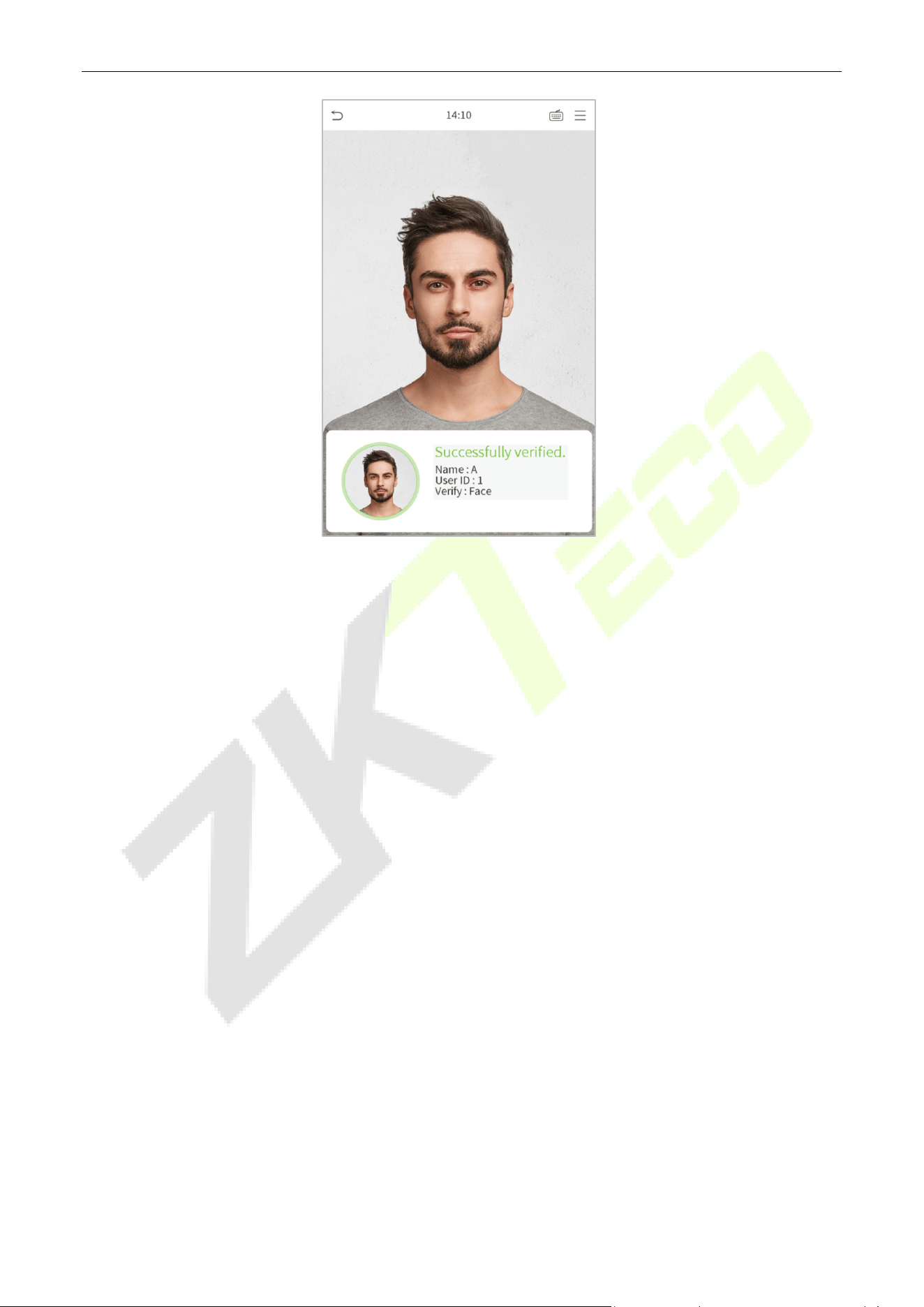

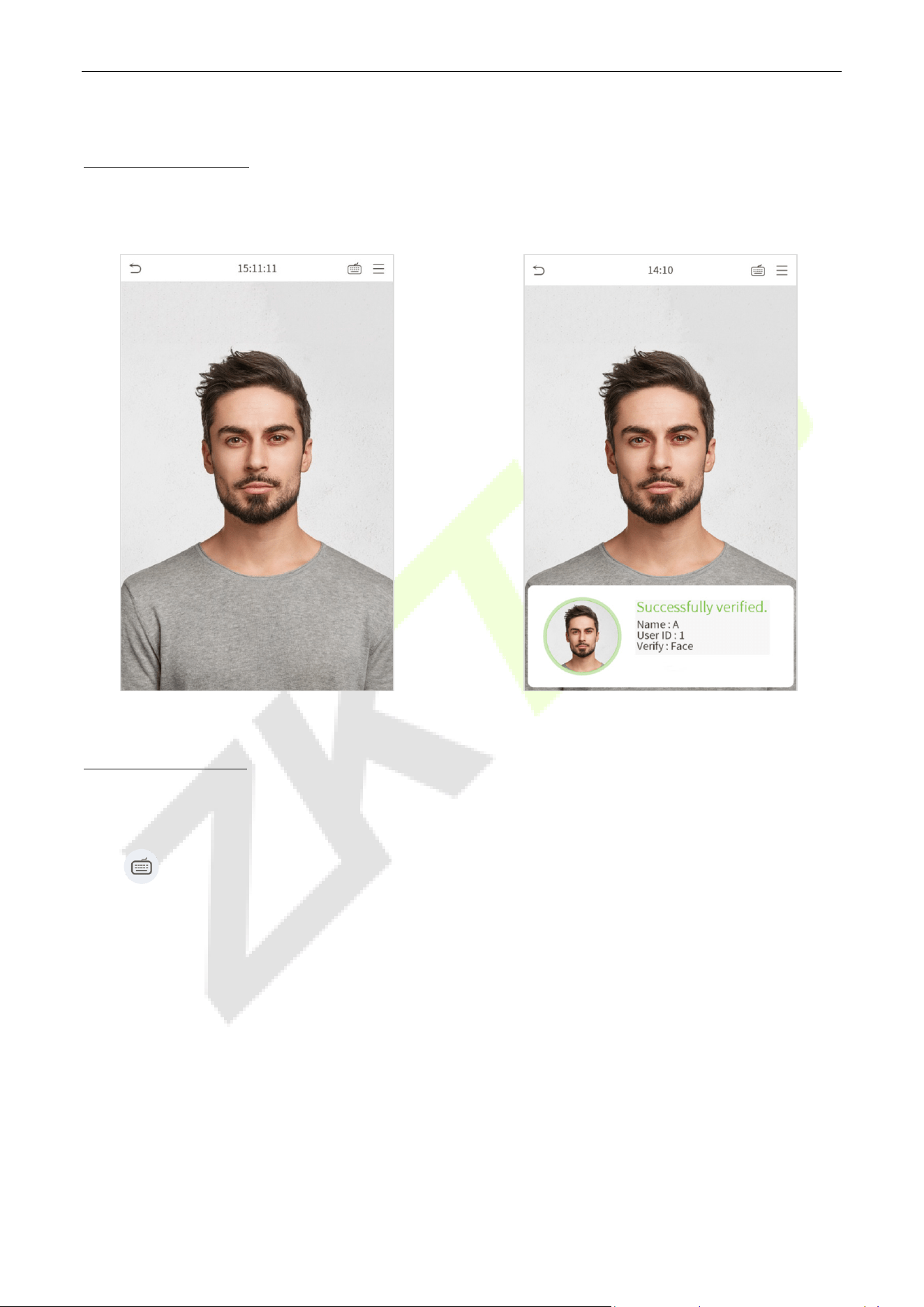

1.7.3 FACIAL VERIFICATION ................................................................................................................................................................................ 22

1.7.4 CARD VERIFICATION ★ .............................................................................................................................................................................. 25

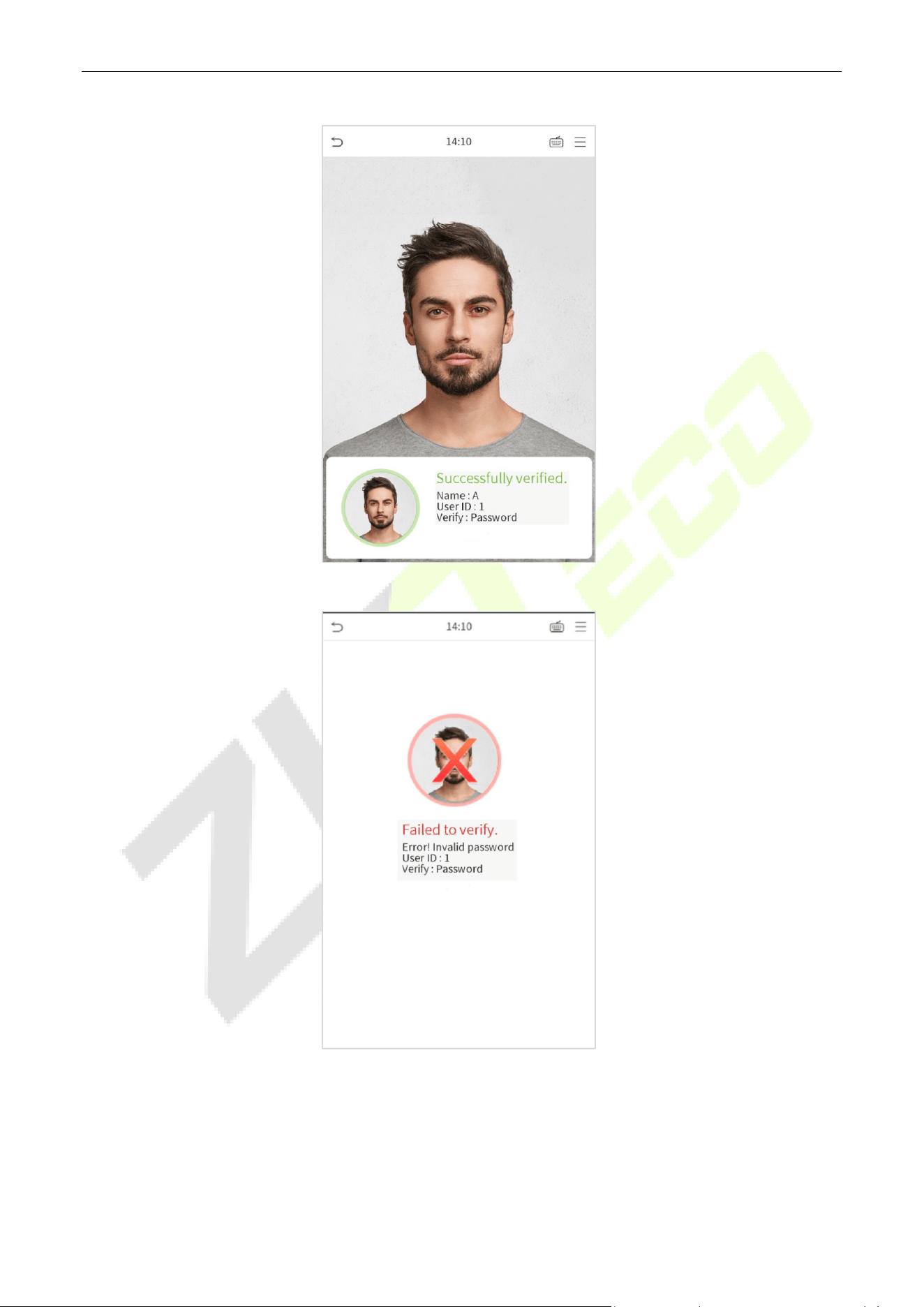

1.7.5 PASSWORD VERIFICATION ........................................................................................................................................................................ 27

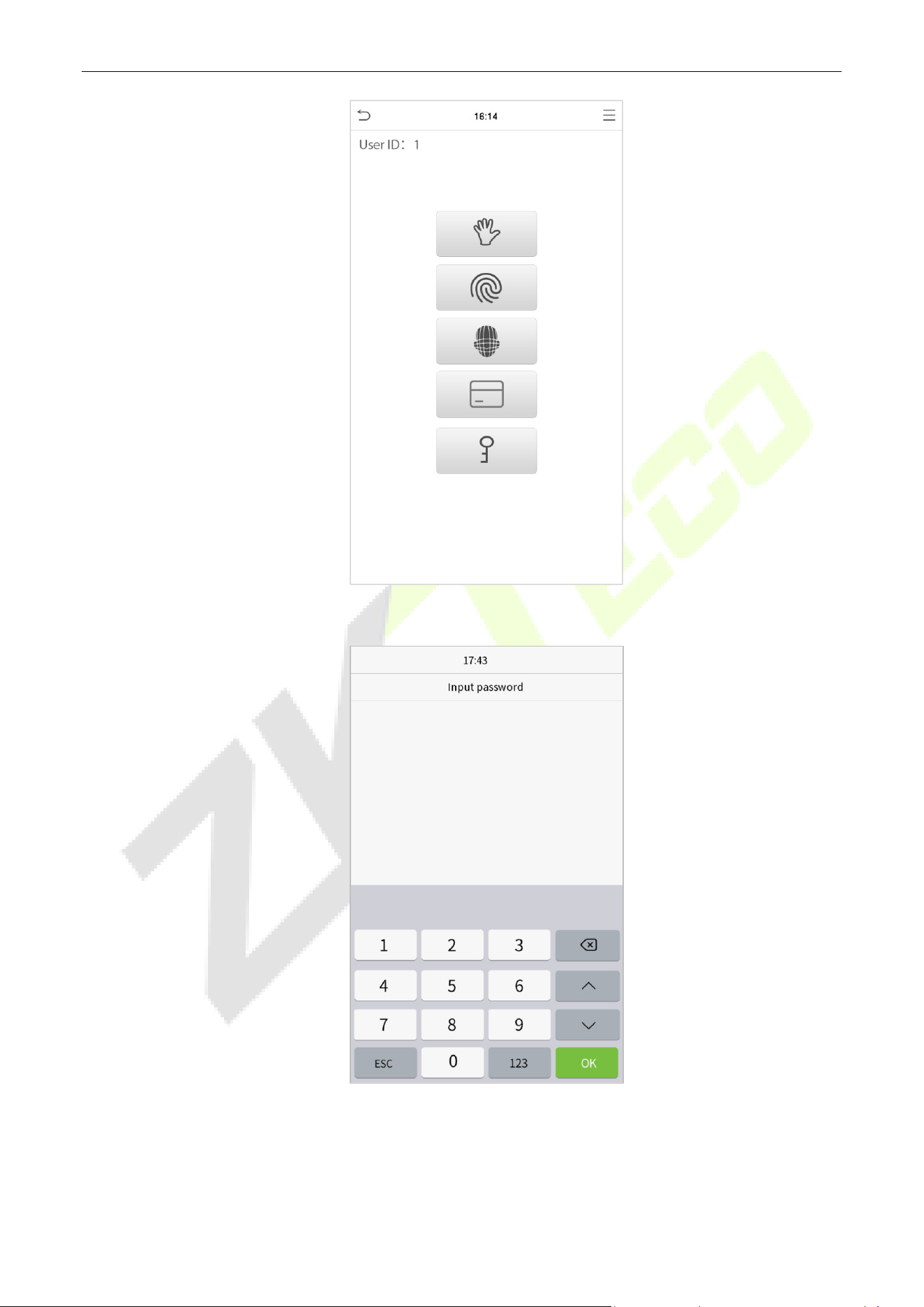

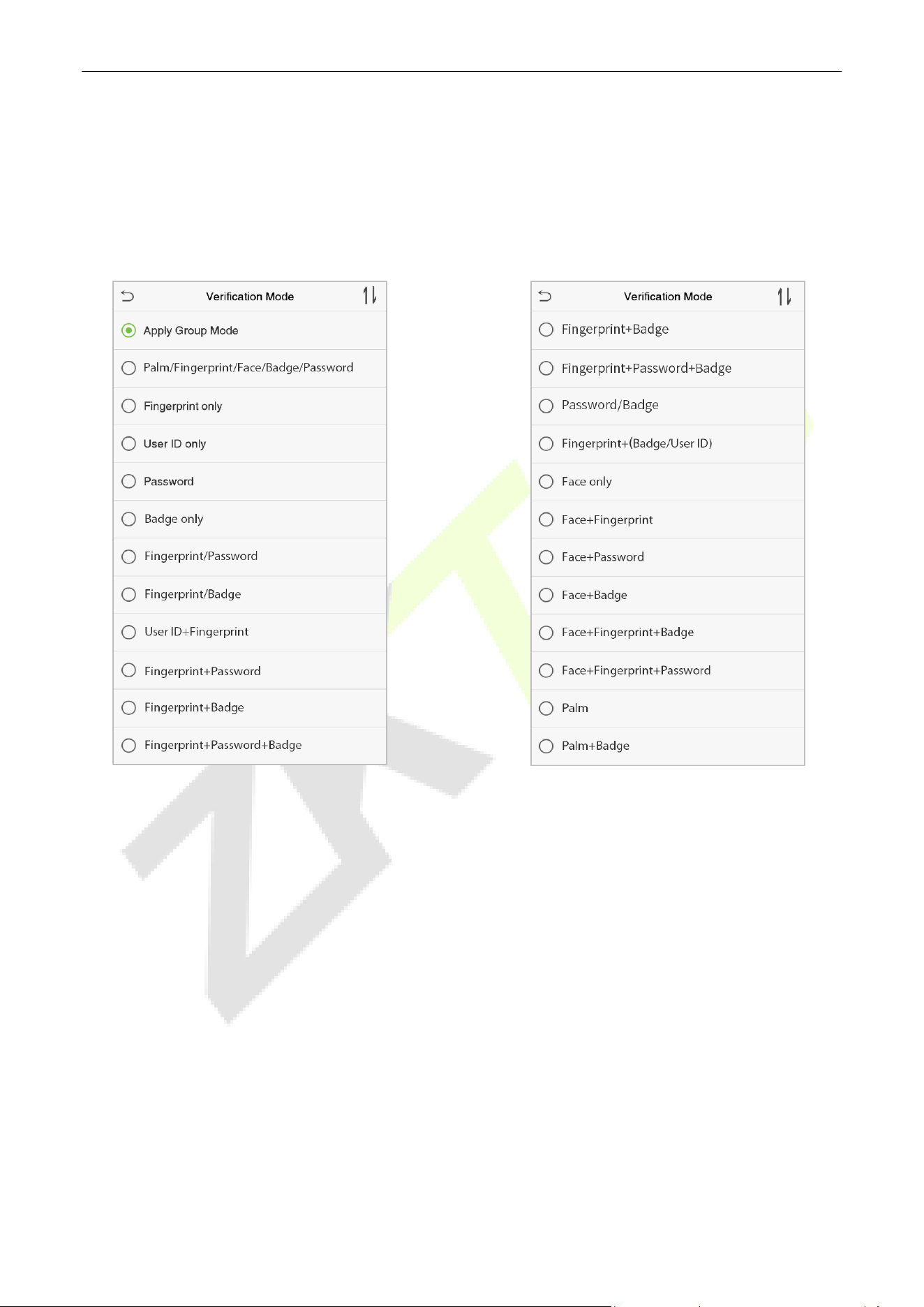

1.7.6 COMBINED VERIFICATION ......................................................................................................................................................................... 30

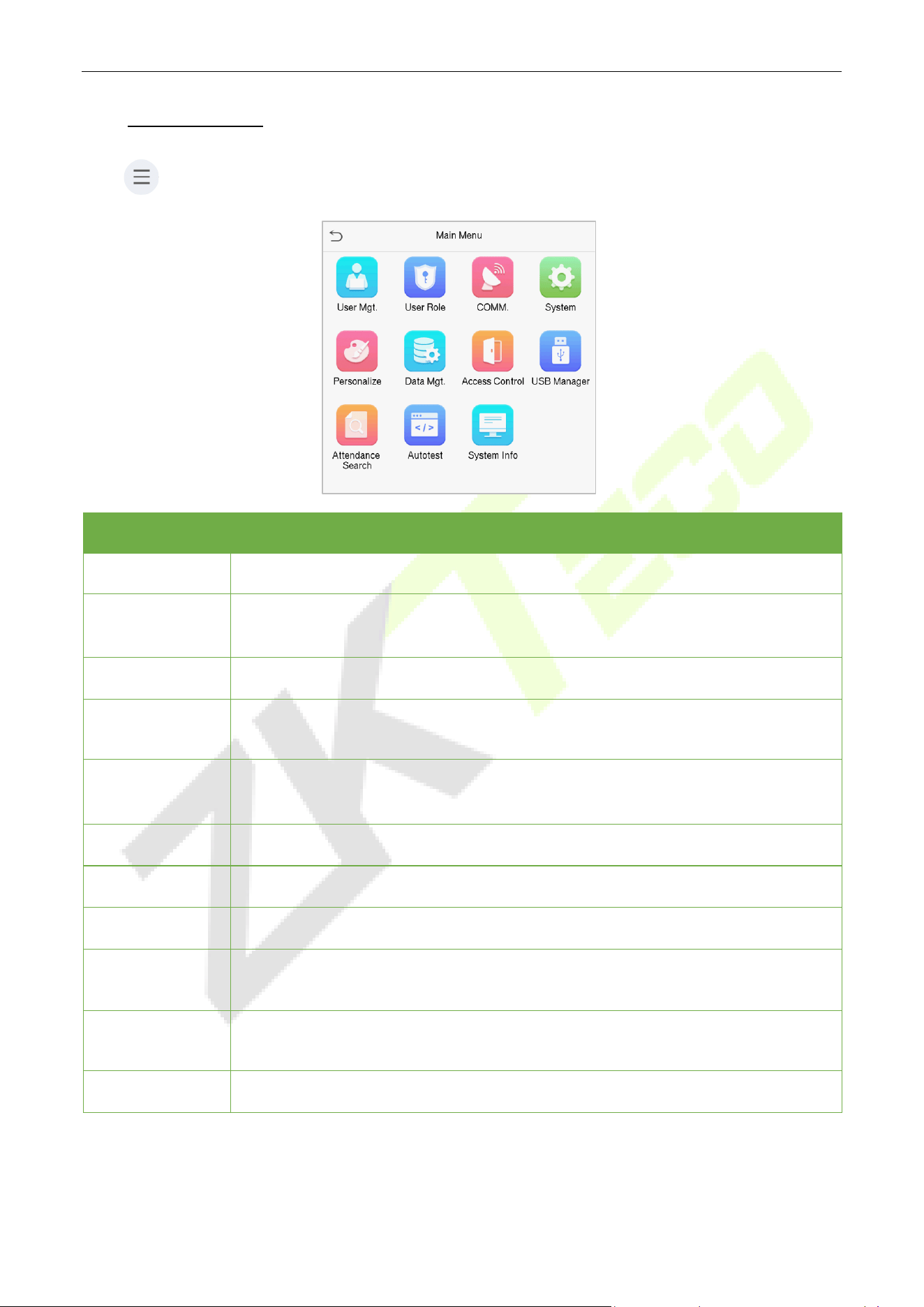

2 MAIN MENU ....................................................................................................................................... 31

3 USER MANAGEMENT ......................................................................................................................... 33

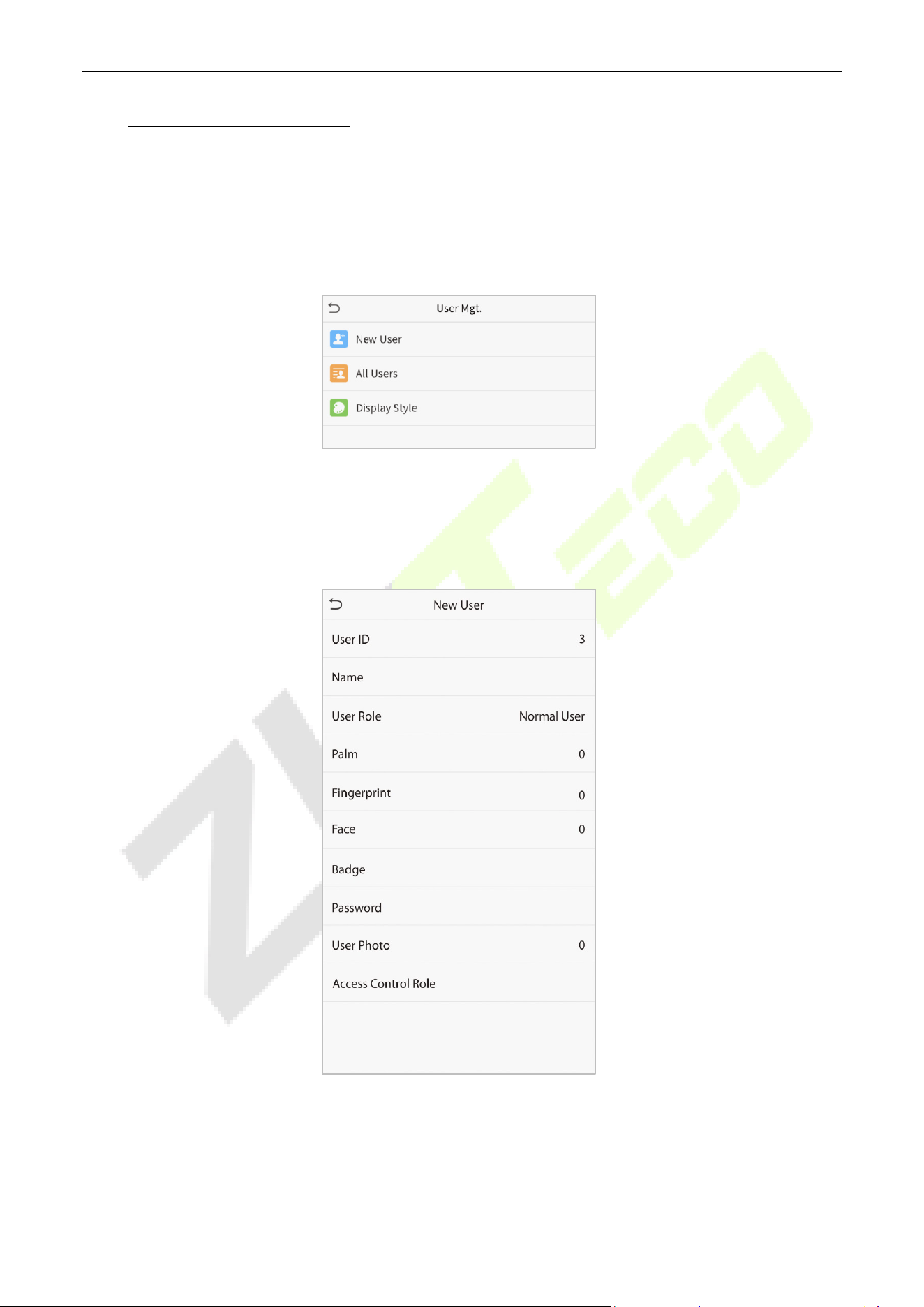

ADDING USERS ..............................................................................................................................................................................................33 3.1

SEARCH FOR USERS .......................................................................................................................................................................................38 3.2

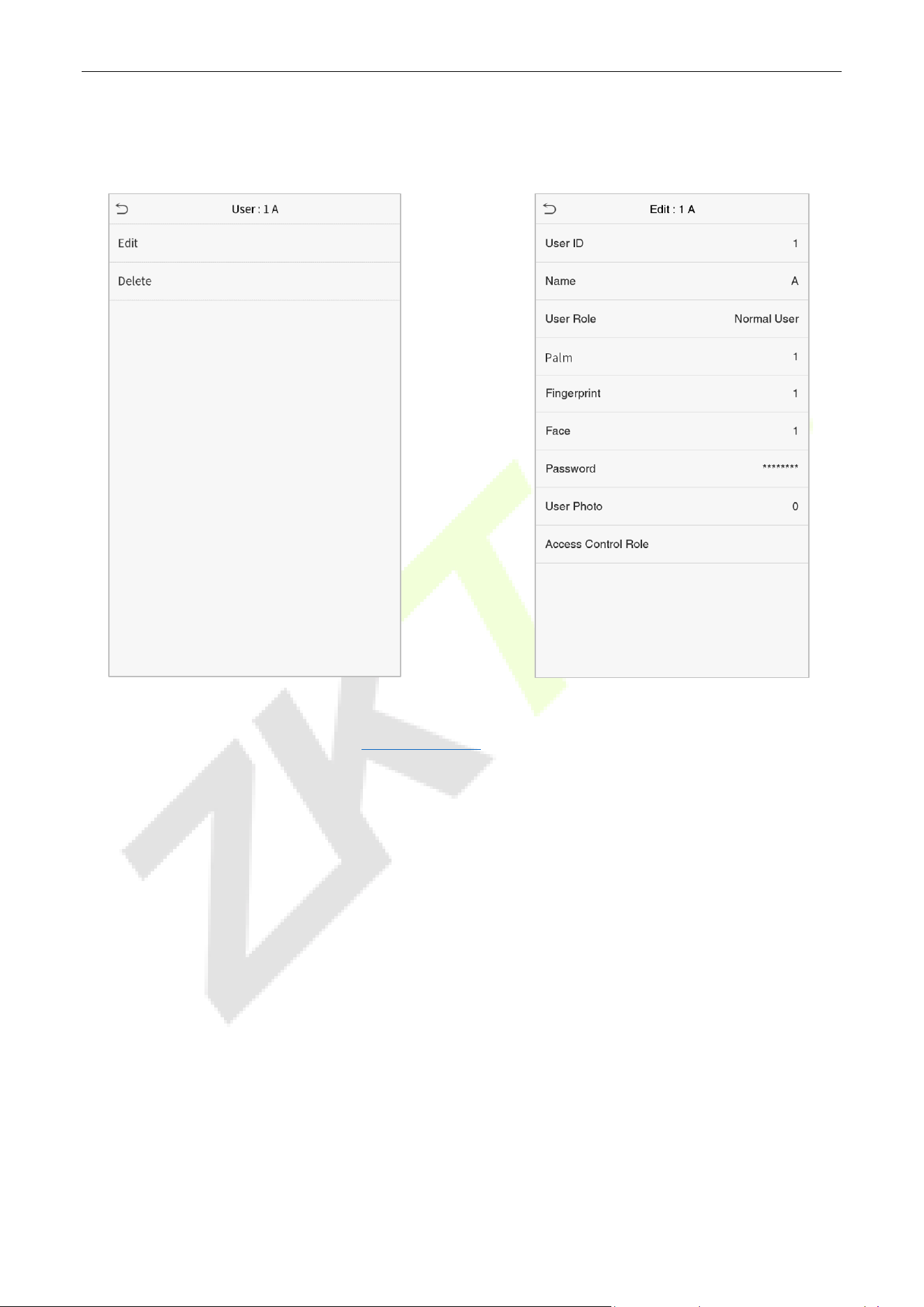

EDIT USERS ....................................................................................................................................................................................................39 3.3

DELETING USERS ...........................................................................................................................................................................................39 3.4

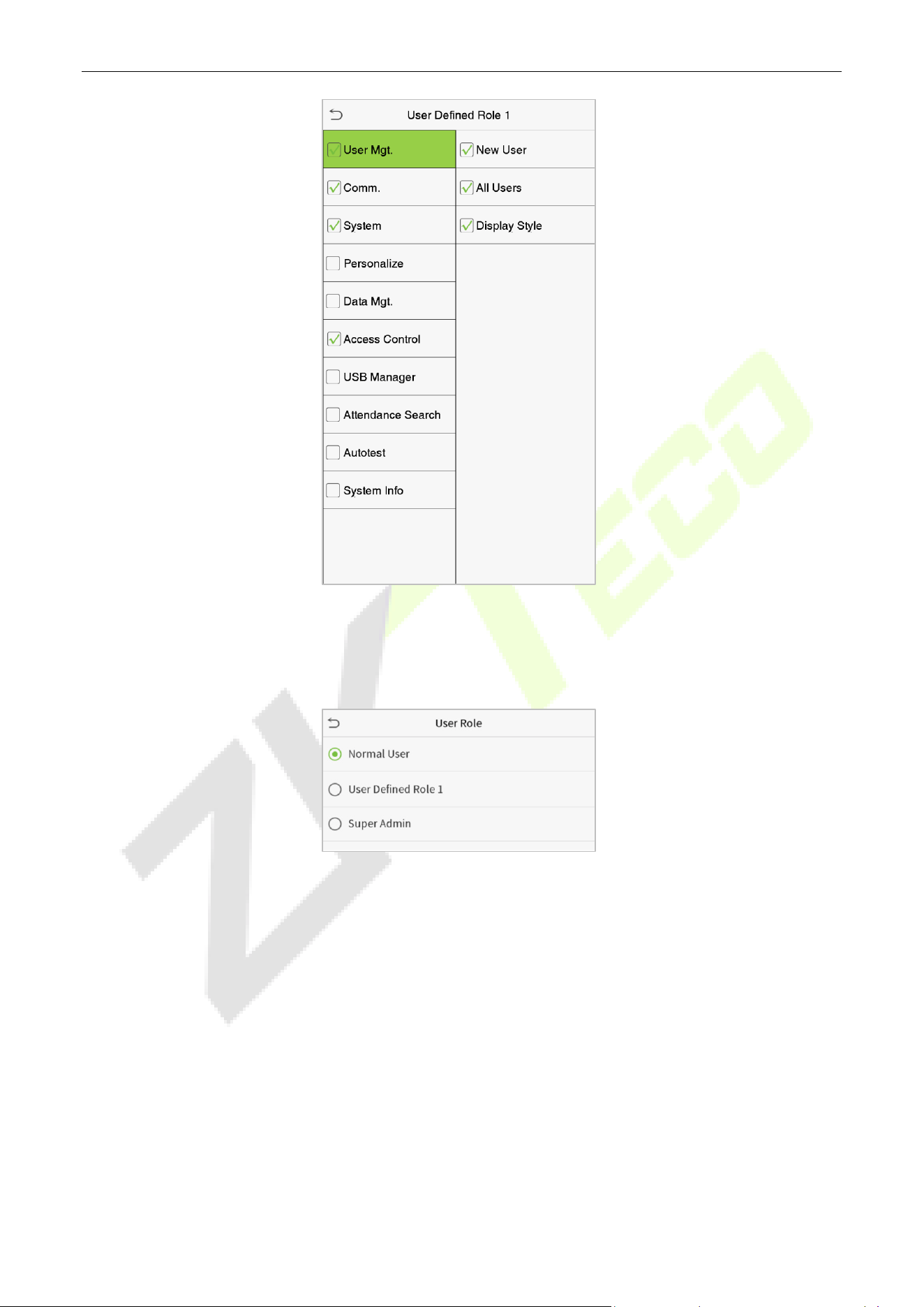

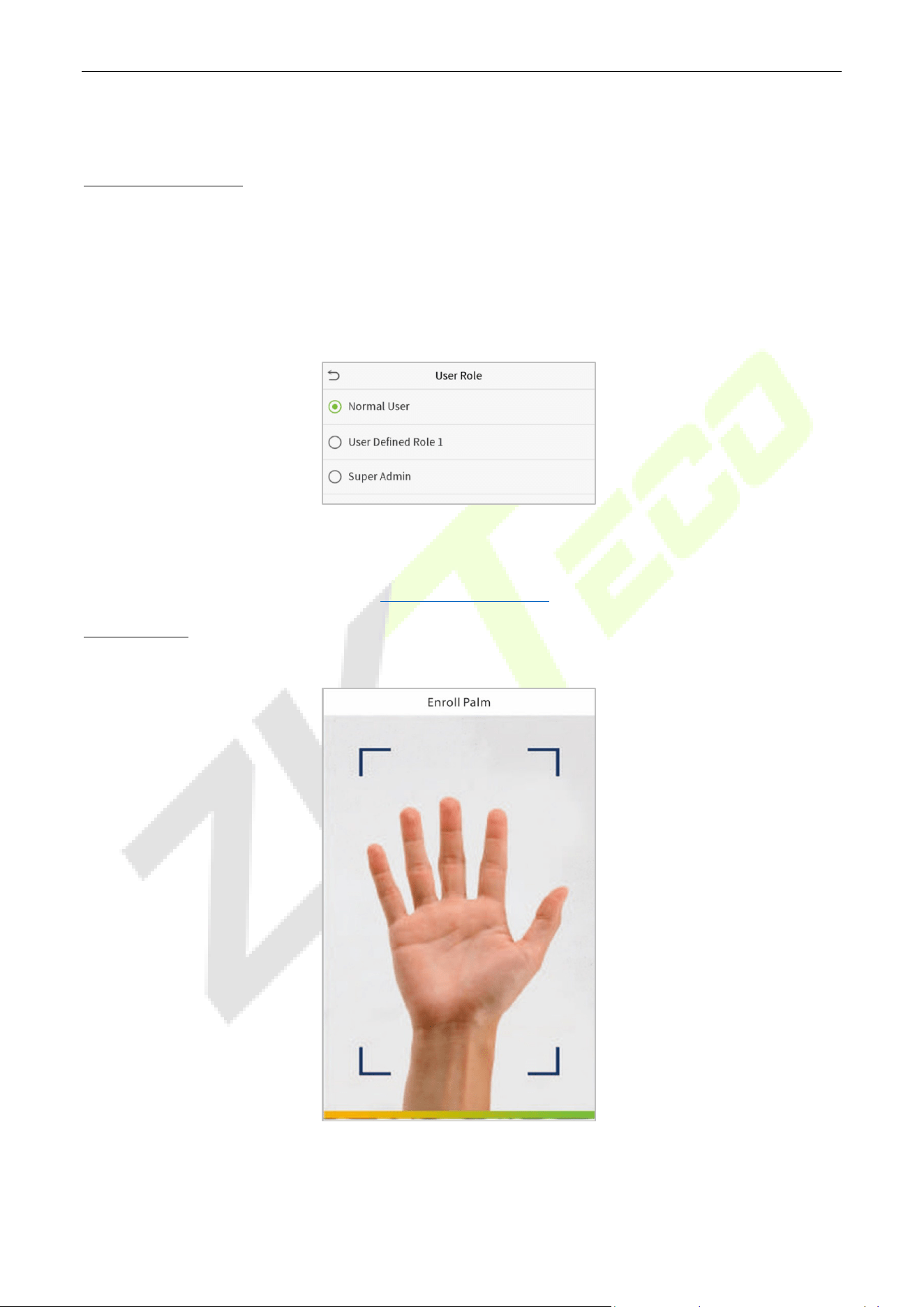

4 USER ROLE ......................................................................................................................................... 40

5 COMMUNICATION SETTINGS ............................................................................................................ 42

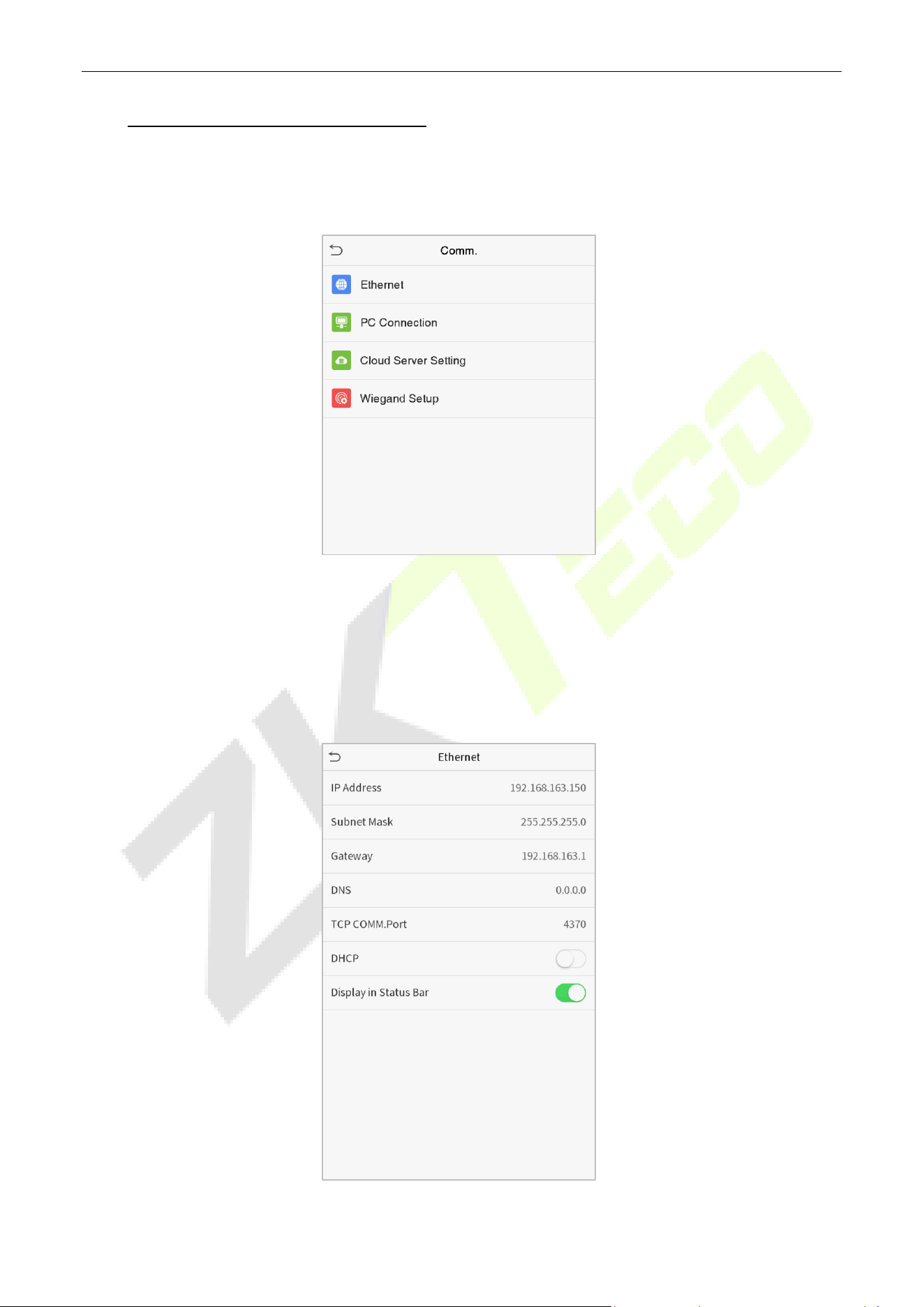

NETWORK SETTINGS .....................................................................................................................................................................................42 5.1

PC CONNECTION ..........................................................................................................................................................................................43 5.2

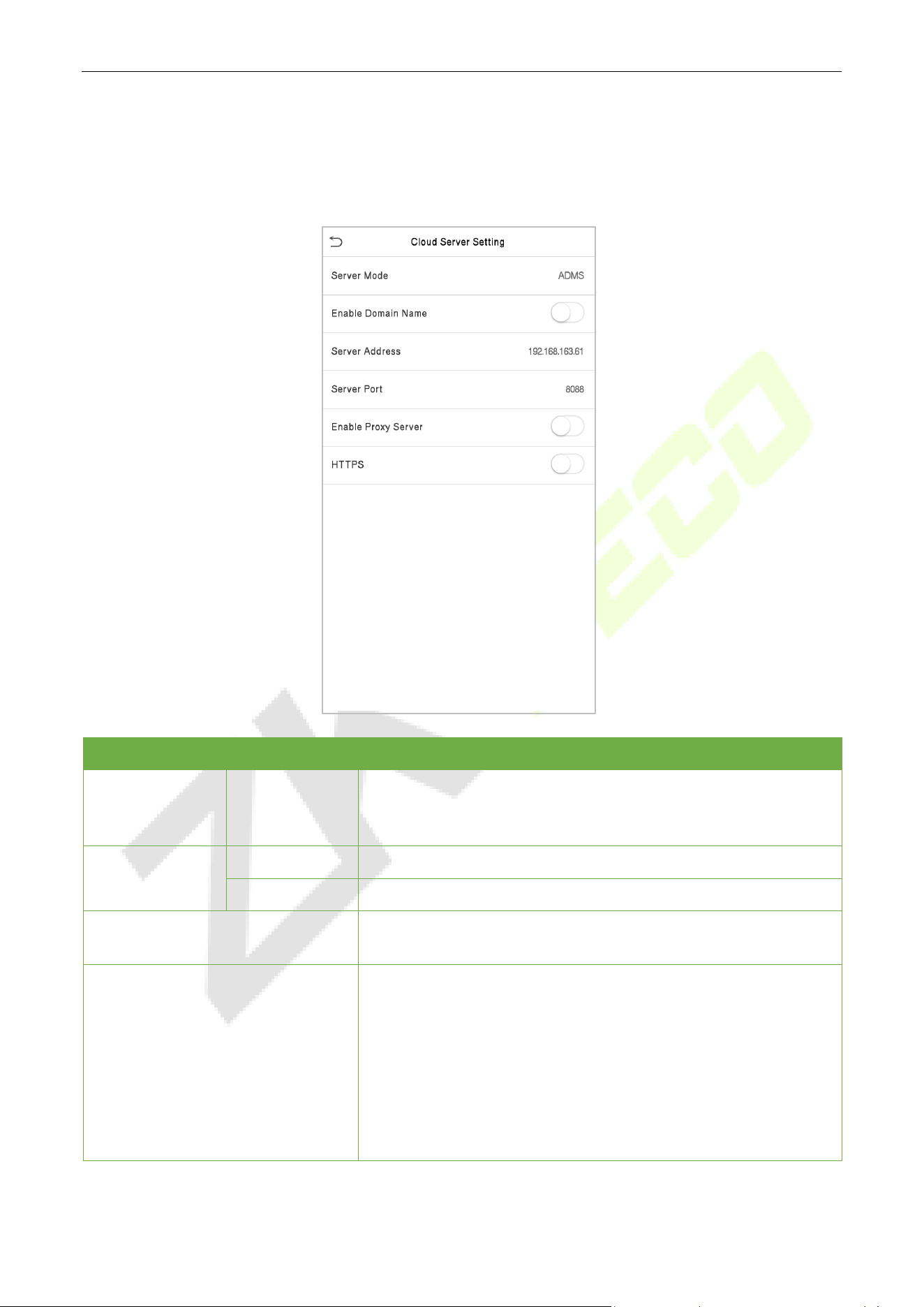

CLOUD SERVER SETTING ...............................................................................................................................................................................44 5.3

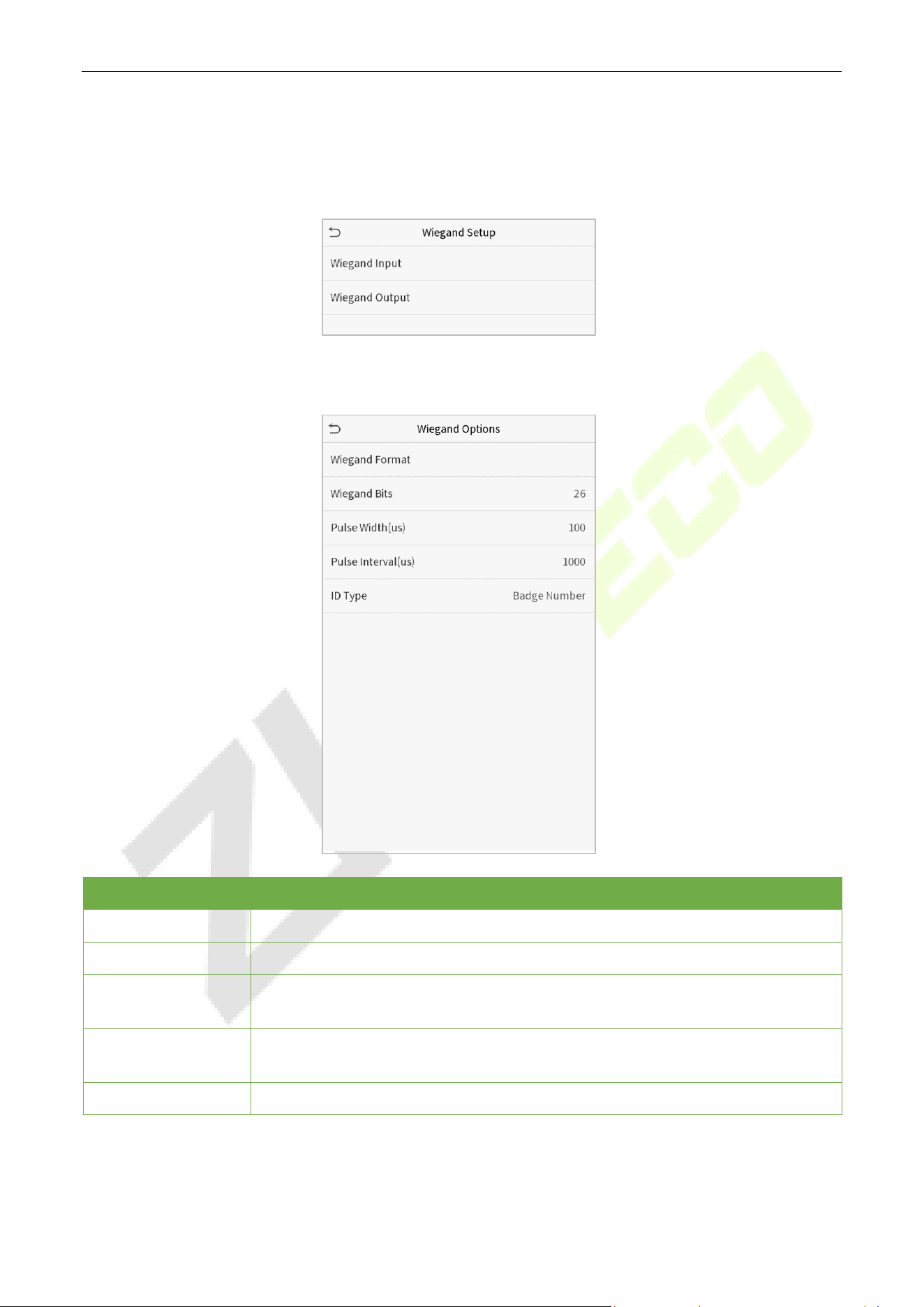

WIEGAND SETUP ...........................................................................................................................................................................................45 5.4

5.4.1 WIEGAND INPUT .......................................................................................................................................................................................... 45

5.4.2 WIEGAND OUTPUT ...................................................................................................................................................................................... 47

6 SYSTEM SETTINGS ............................................................................................................................. 48

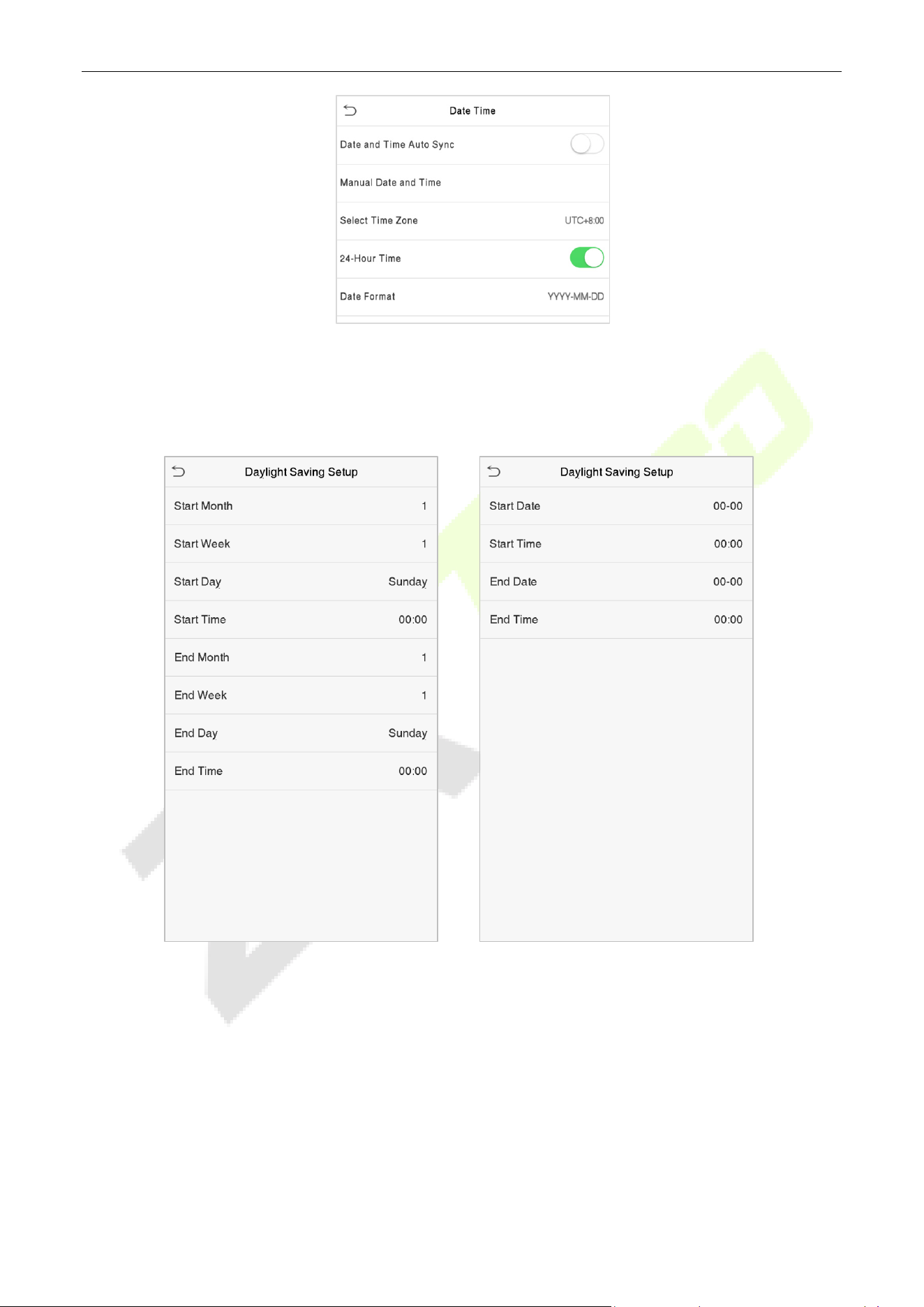

DATE AND TIME.............................................................................................................................................................................................48 6.1

ACCESS LOGS SETTING .................................................................................................................................................................................50 6.2

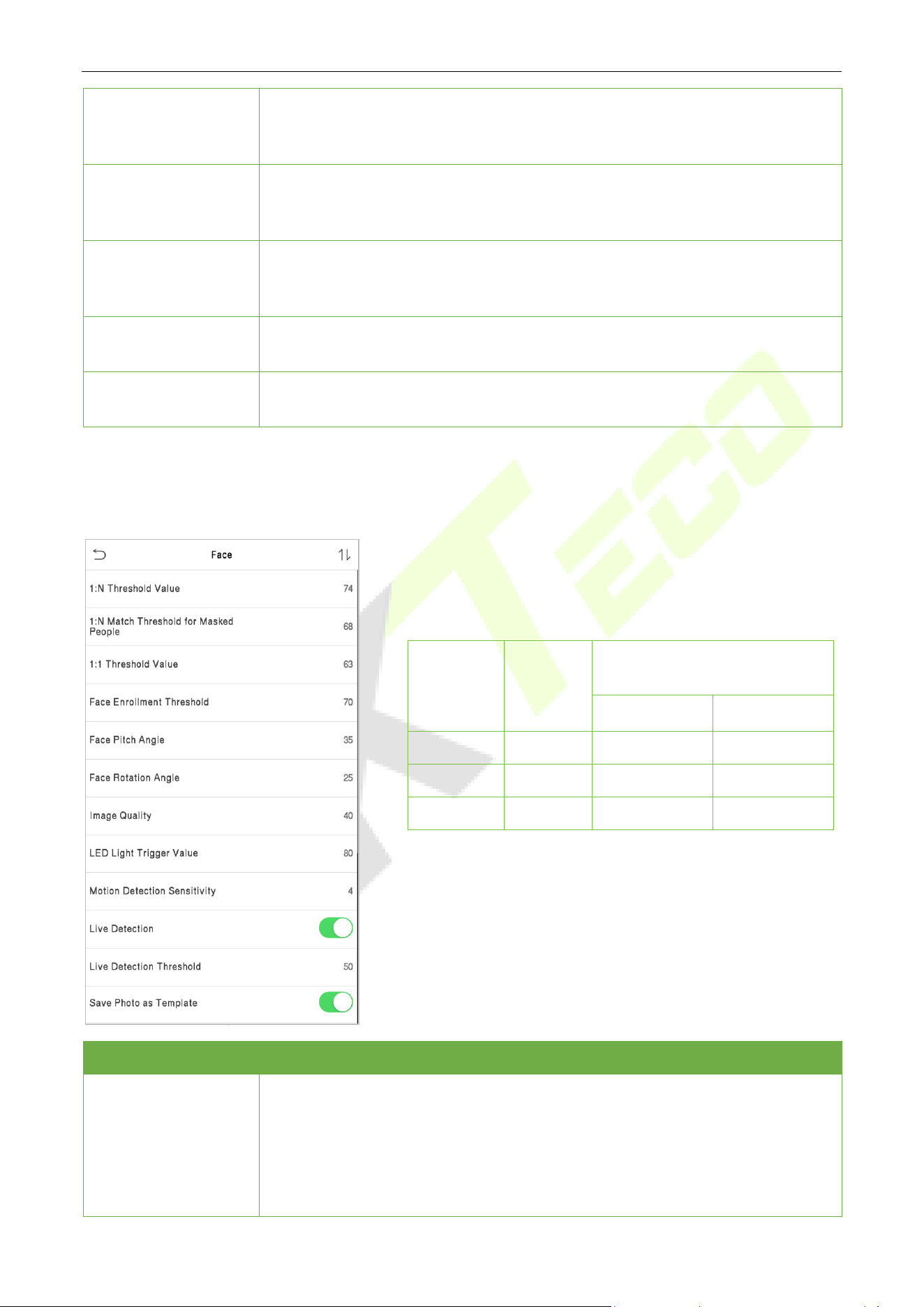

FACE PARAMETERS .......................................................................................................................................................................................51 6.3

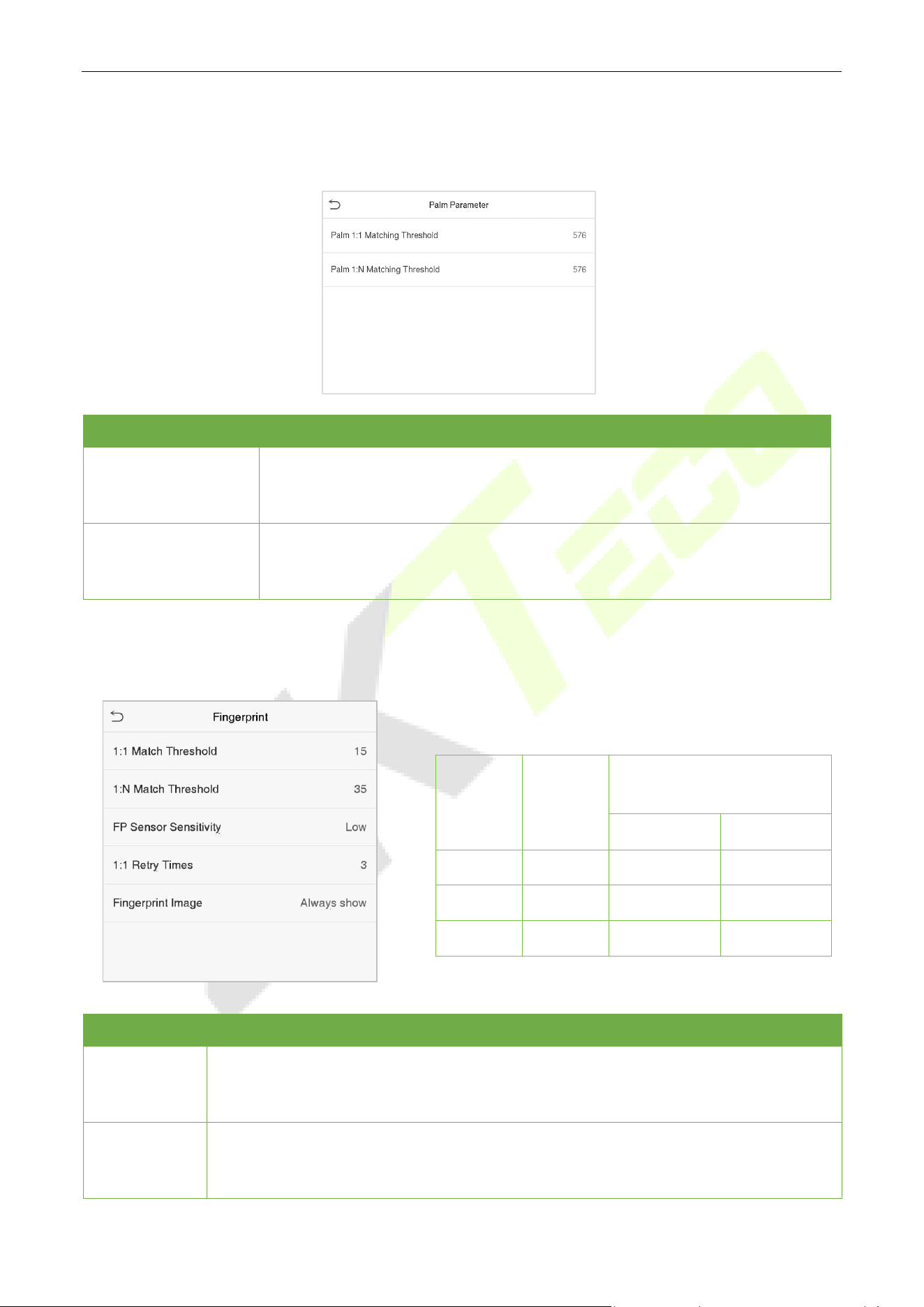

PALM PARAMETERS★ .................................................................................................................................................................................53 6.4

FINGERPRINT PARAMETERS★ ......................................................................................................................................................................53 6.5

FaceDepot-7BL User Manual

FACTORY RESET .............................................................................................................................................................................................54 6.6

SECURITY SETTINGS ......................................................................................................................................................................................55 6.7

USB UPGRADE ..............................................................................................................................................................................................56 6.8

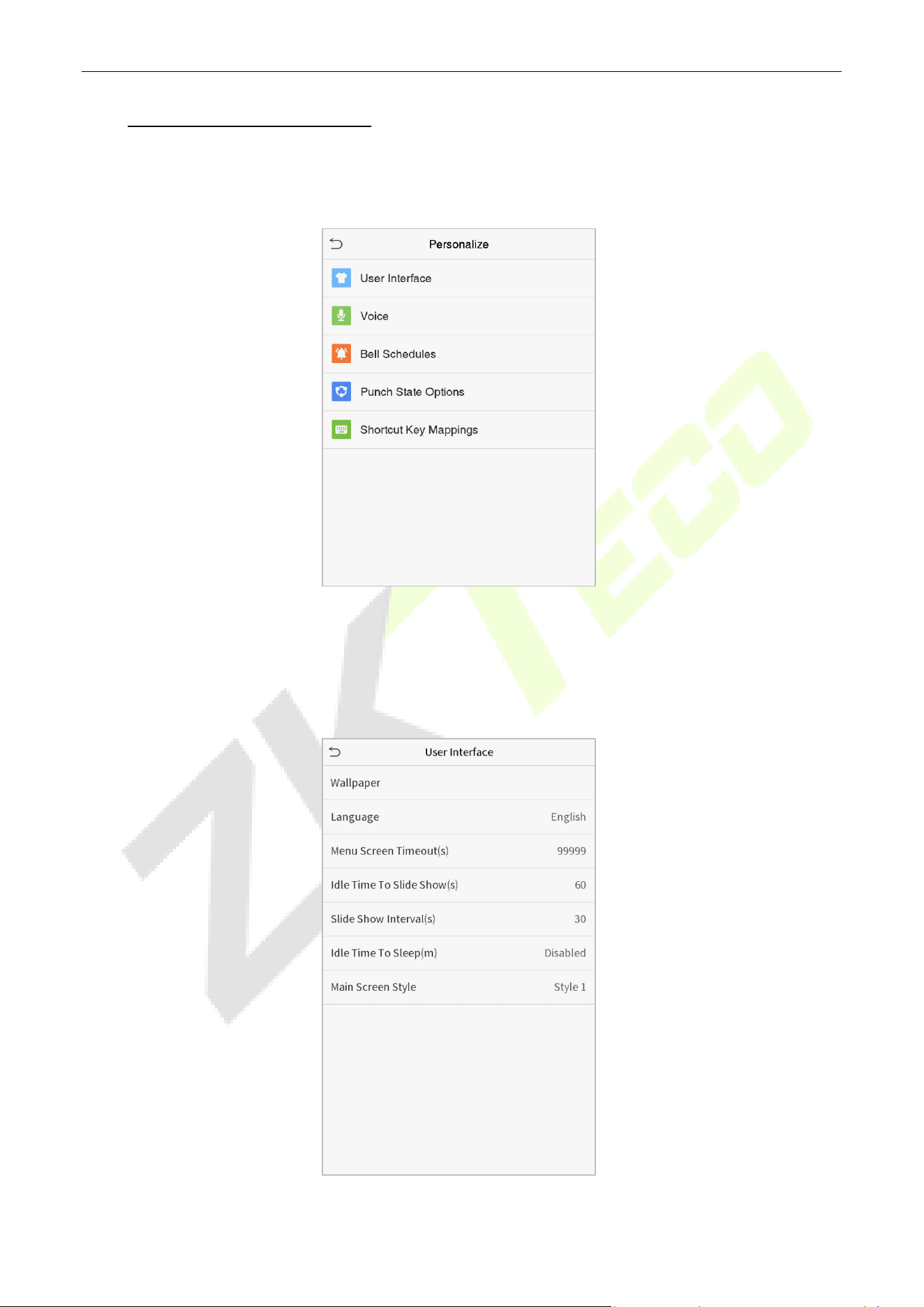

7 PERSONALIZE SETTINGS ................................................................................................................... 57

INTERFACE SETTINGS ....................................................................................................................................................................................57 7.1

VOICE SETTINGS ............................................................................................................................................................................................58 7.2

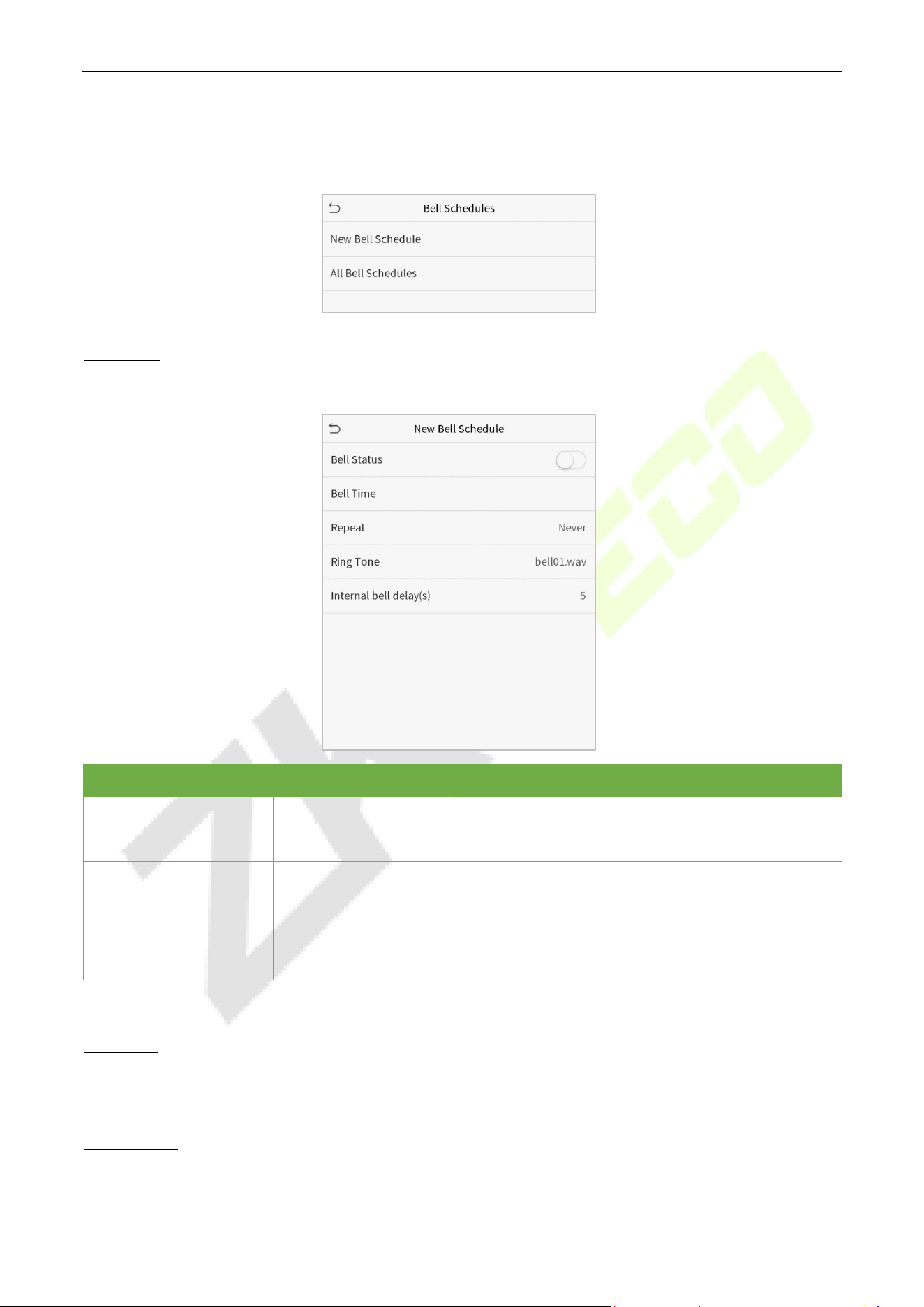

BELL SCHEDULES ...........................................................................................................................................................................................59 7.3

PUNCH STATE OPTIONS ...............................................................................................................................................................................60 7.4

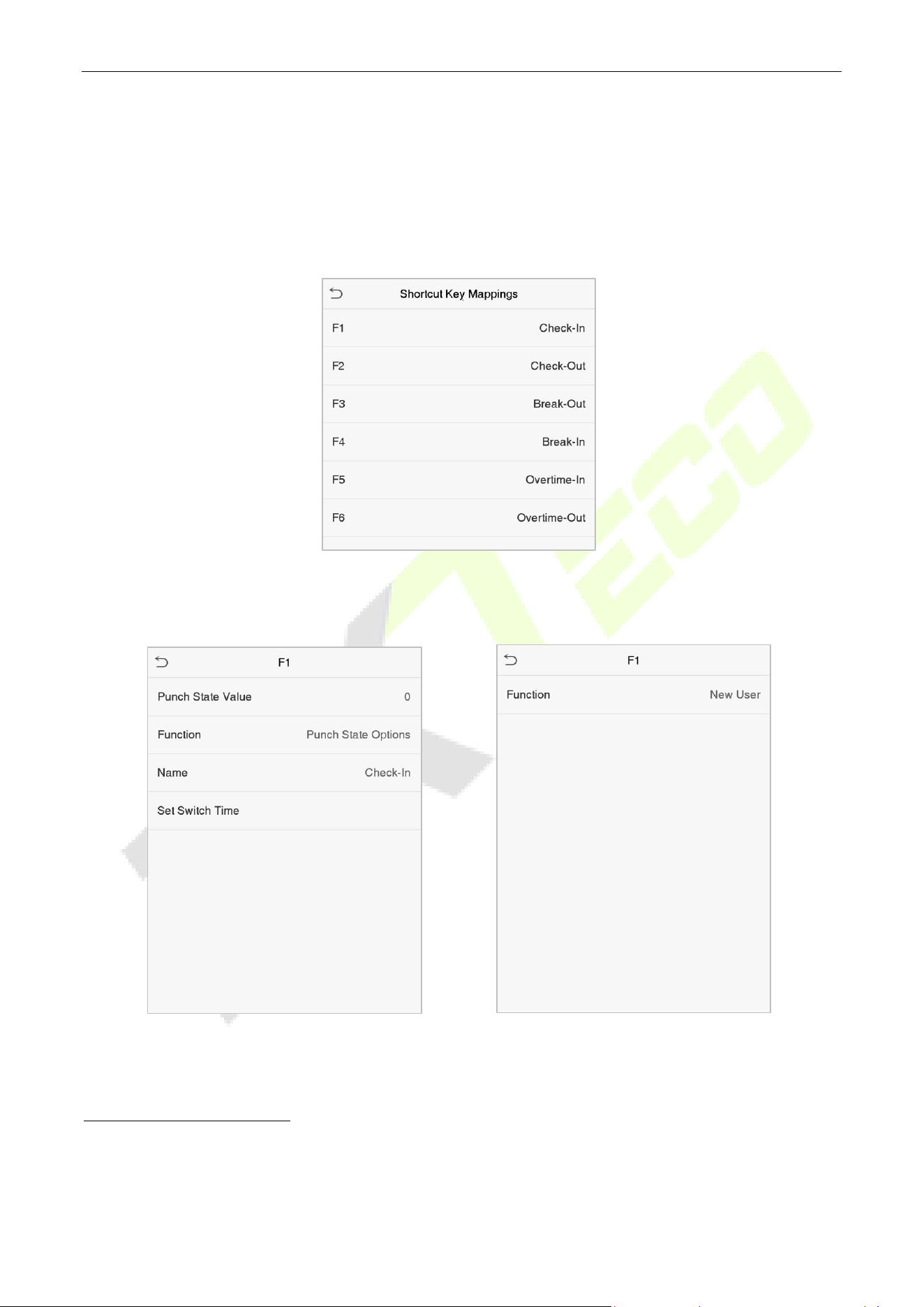

SHORTCUT KEY MAPPINGS ..........................................................................................................................................................................61 7.5

8 DATA MANAGEMENT ........................................................................................................................ 63

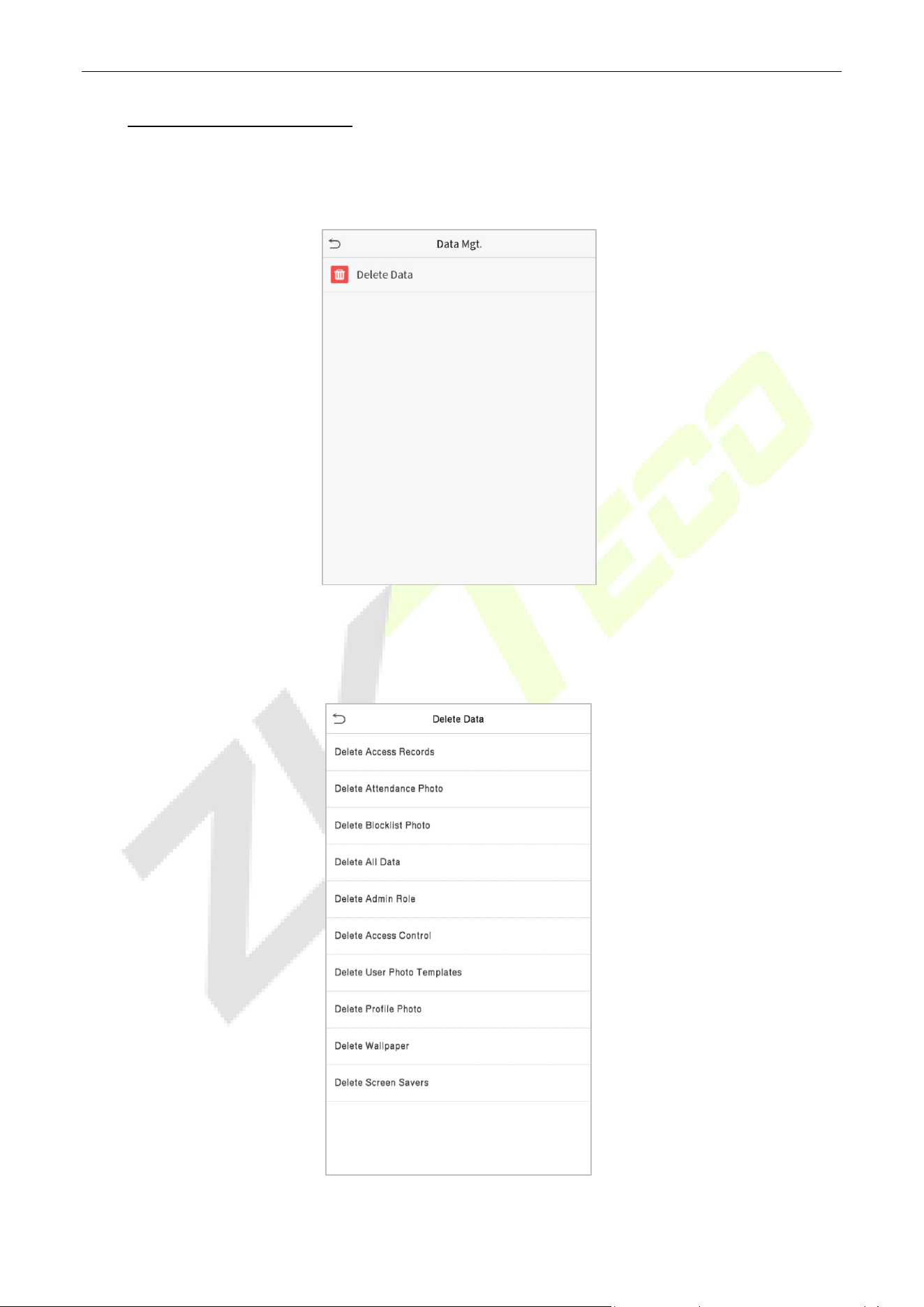

DELETE DATA ................................................................................................................................................................................................63 8.1

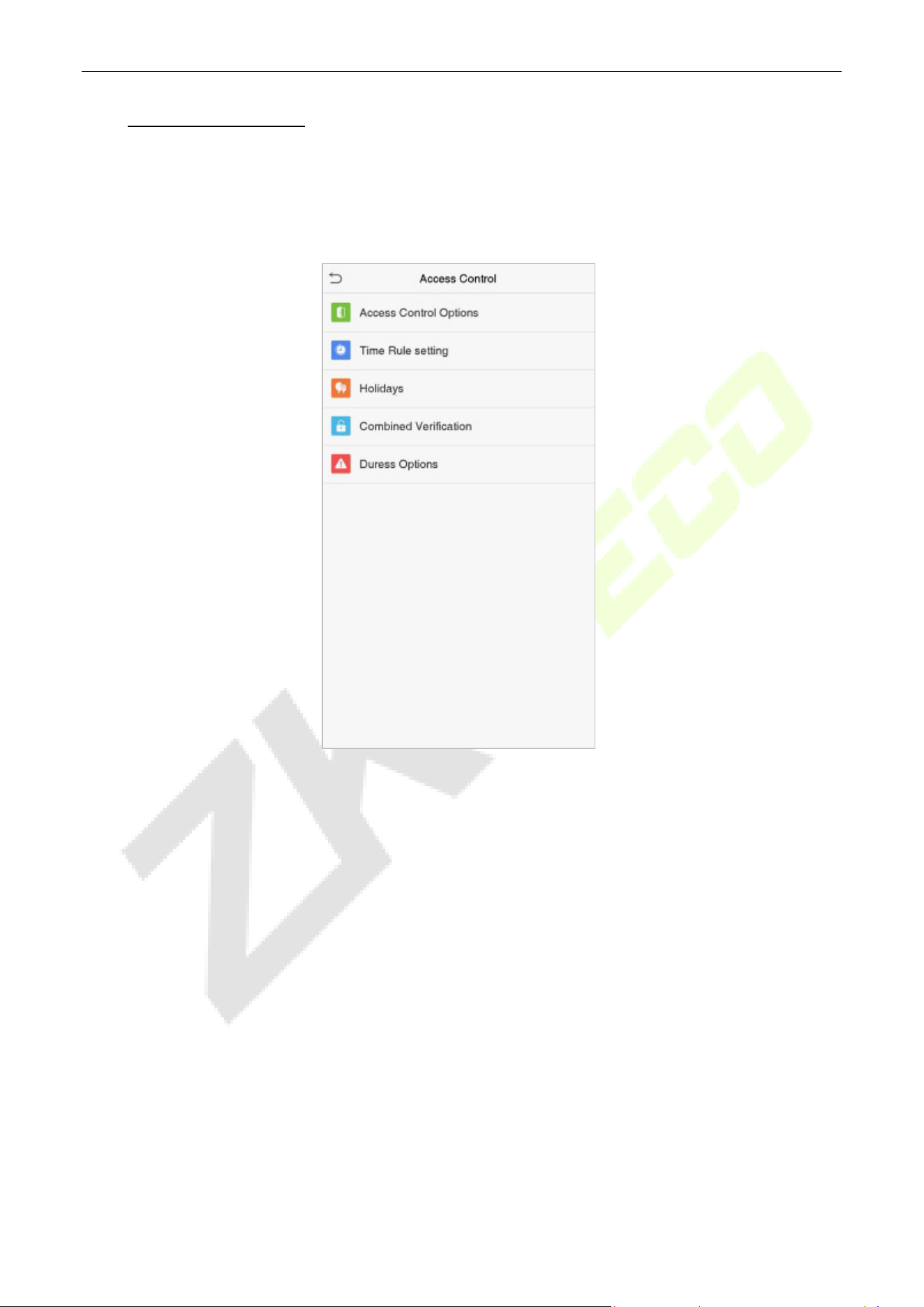

9 ACCESS CONTROL ............................................................................................................................. 65

ACCESS CONTROL OPTIONS ........................................................................................................................................................................66 9.1

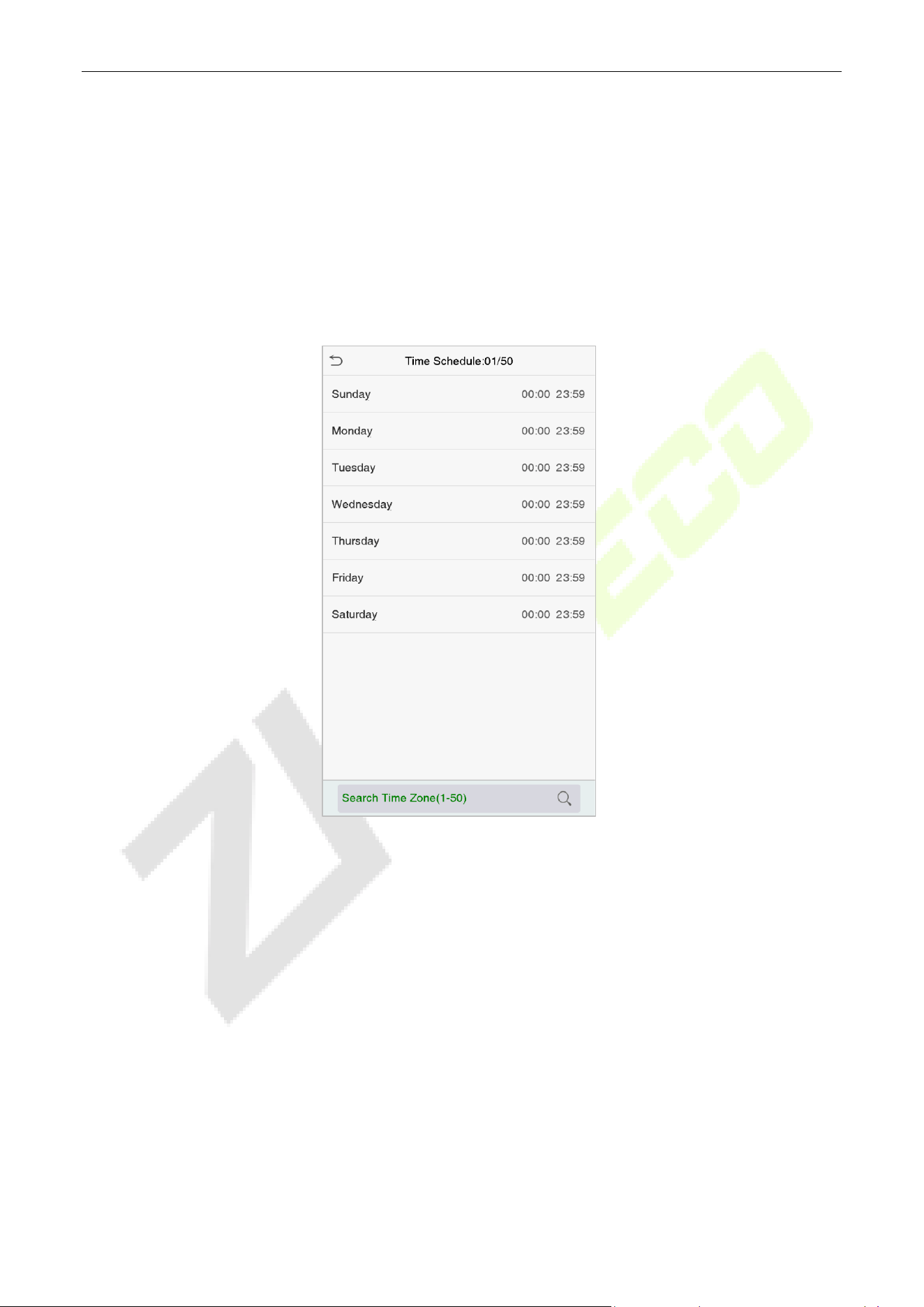

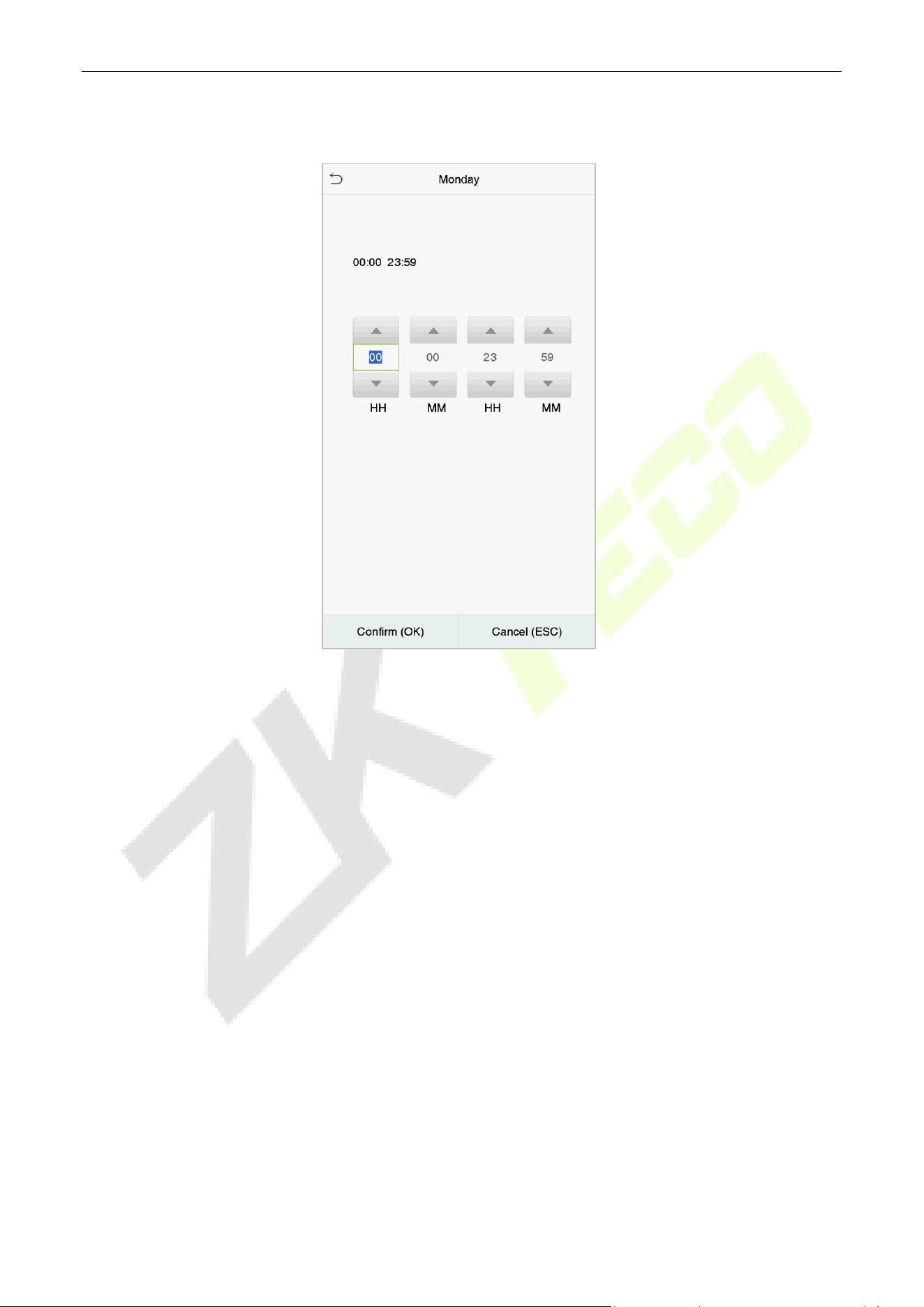

TIME SCHEDULE ............................................................................................................................................................................................68 9.2

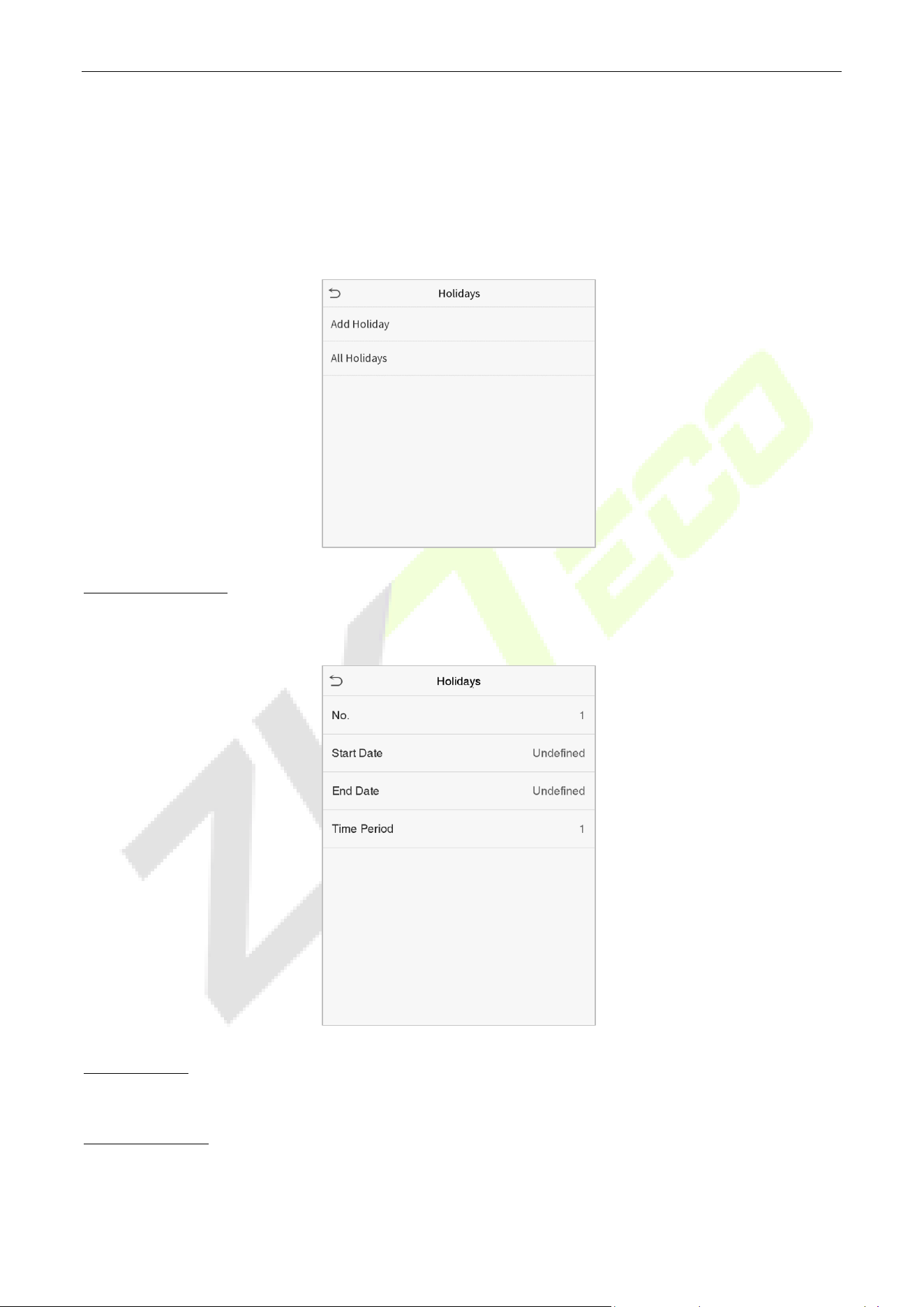

HOLIDAY SETTINGS .......................................................................................................................................................................................70 9.3

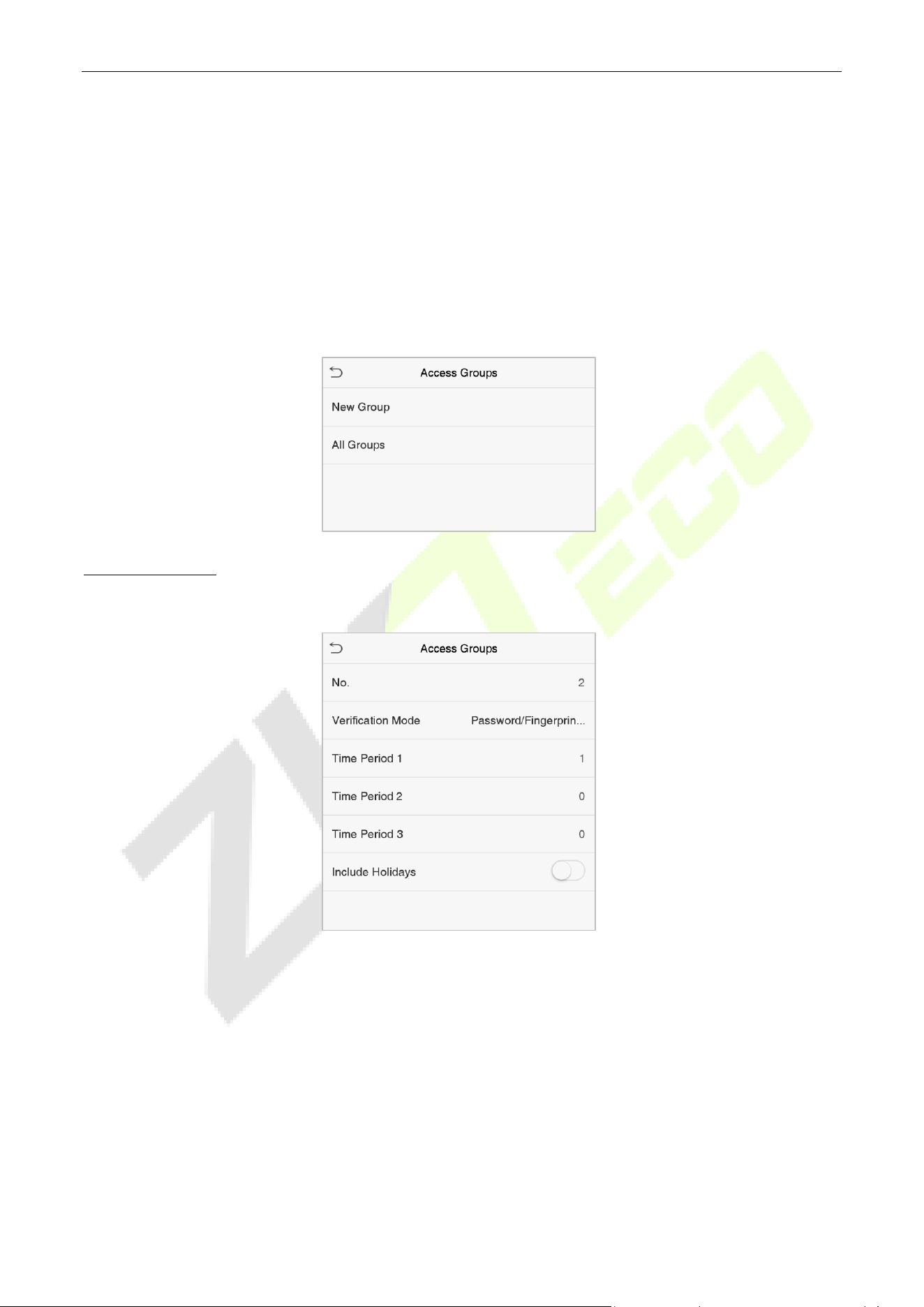

ACCESS GROUPS ...........................................................................................................................................................................................71 9.4

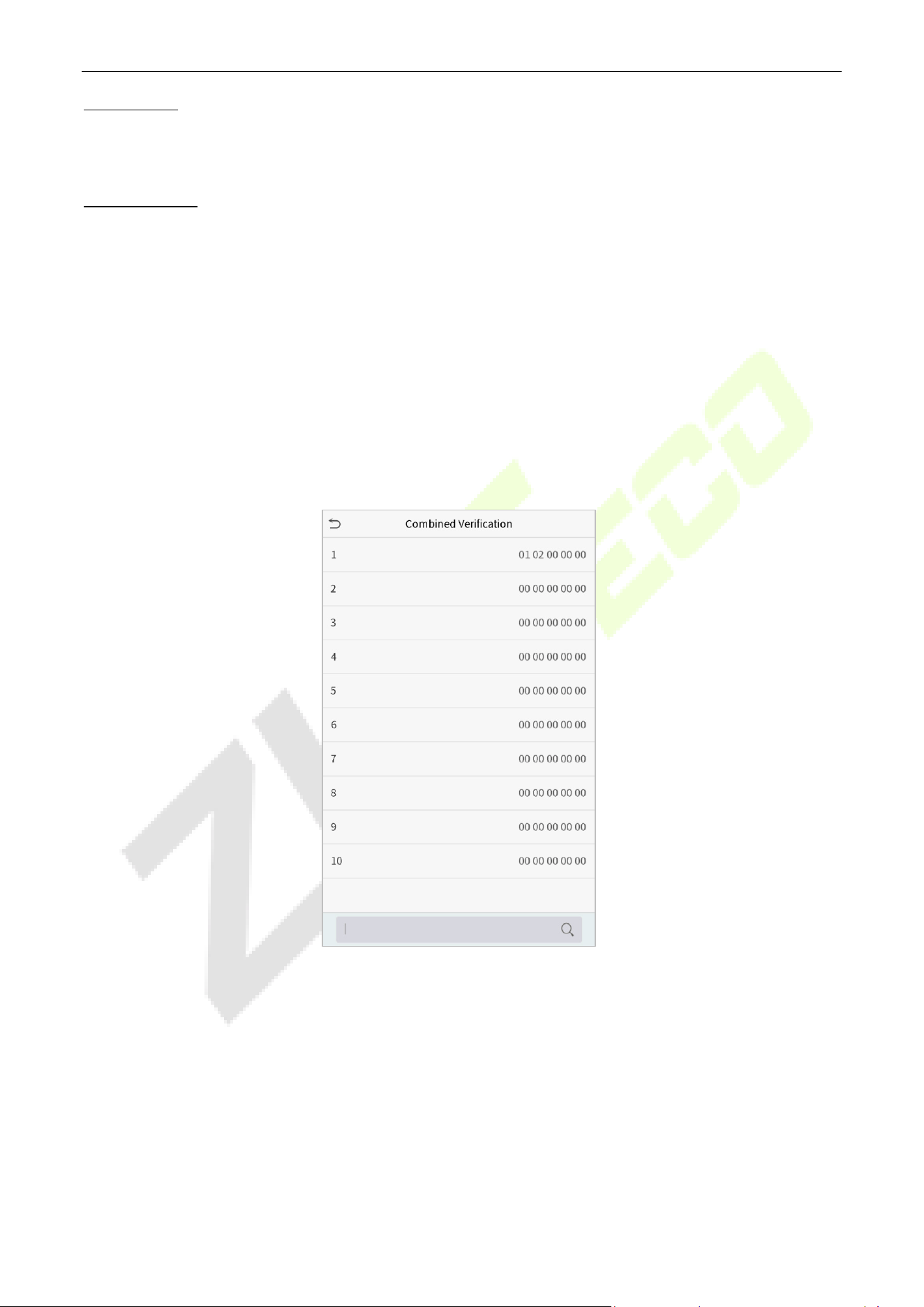

COMBINED VERIFICATION SETTINGS ............................................................................................................................................................72 9.5

DURESS OPTIONS SETTINGS .........................................................................................................................................................................73 9.6

10 USB MANAGER ............................................................................................................................... 74

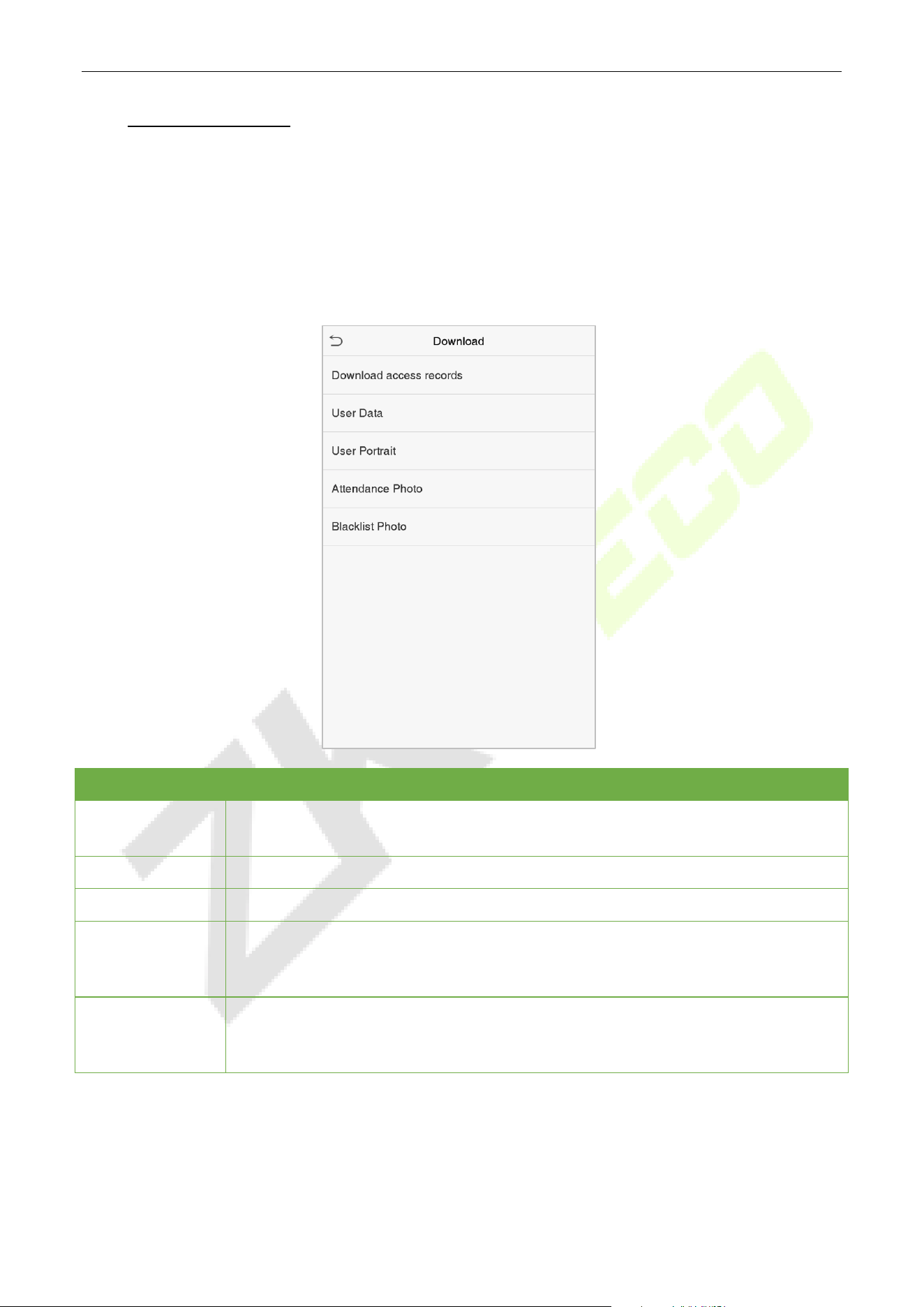

DOWNLOAD ..................................................................................................................................................................................................74 10.1

UPLOAD .........................................................................................................................................................................................................75 10.2

11 ATTENDANCE SEARCH .................................................................................................................. 76

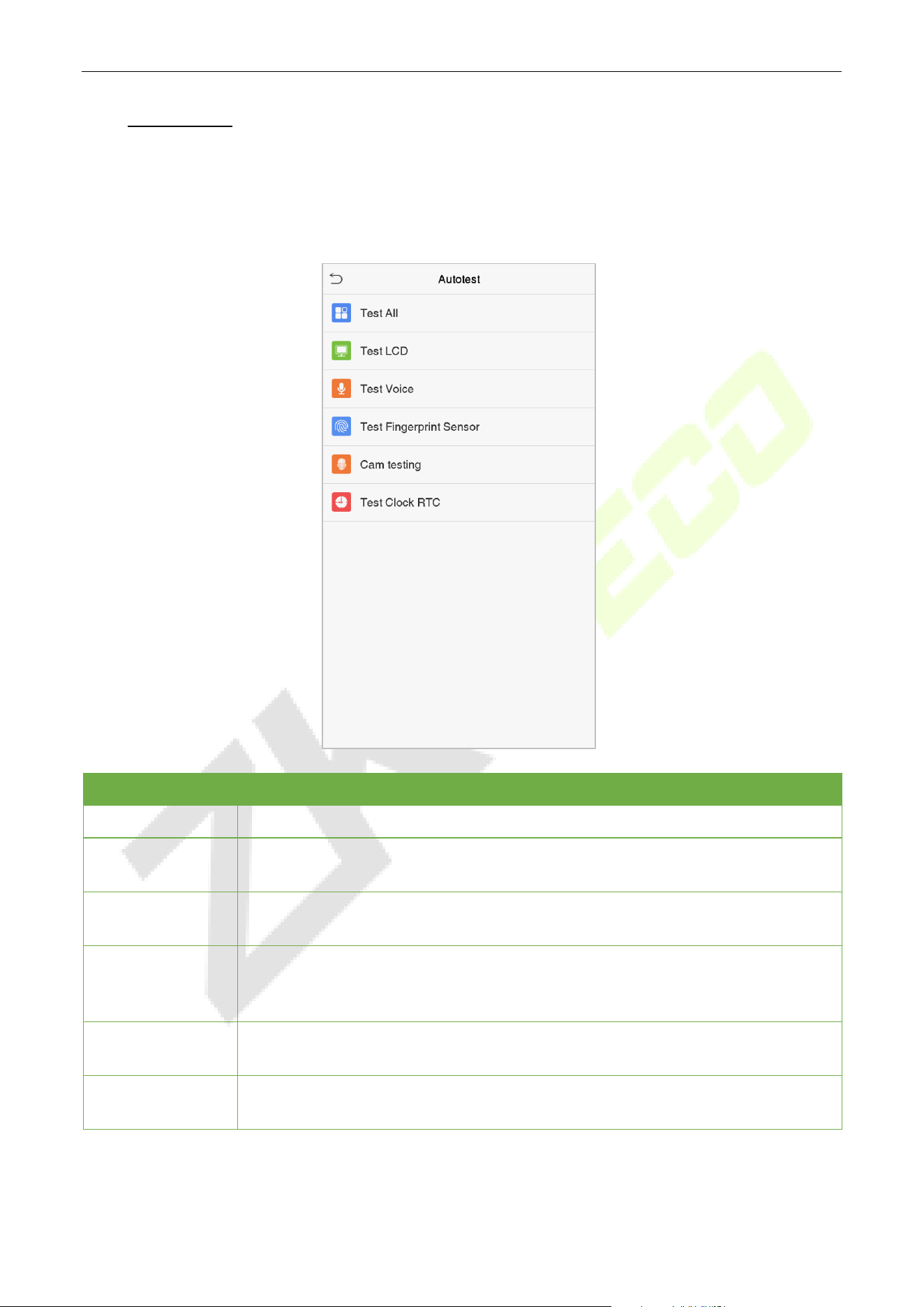

12 AUTOTEST ...................................................................................................................................... 82

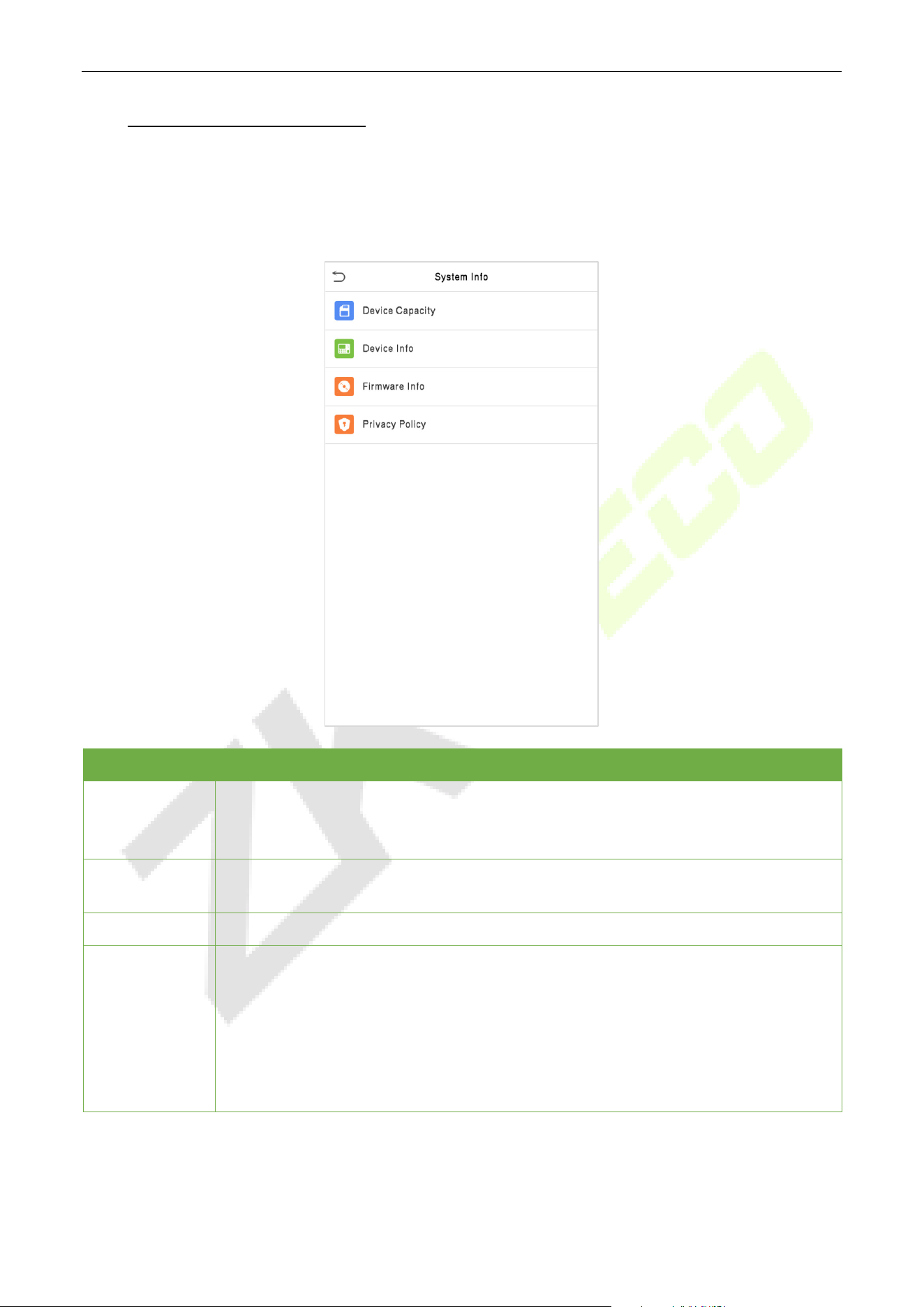

13 SYSTEM INFORMATION ................................................................................................................. 83

14 CONNECTION TO ZKBIOSECURITY SOFTWARE............................................................................ 84

SET THE COMMUNICATION ADDRESS ..........................................................................................................................................................84 14.1

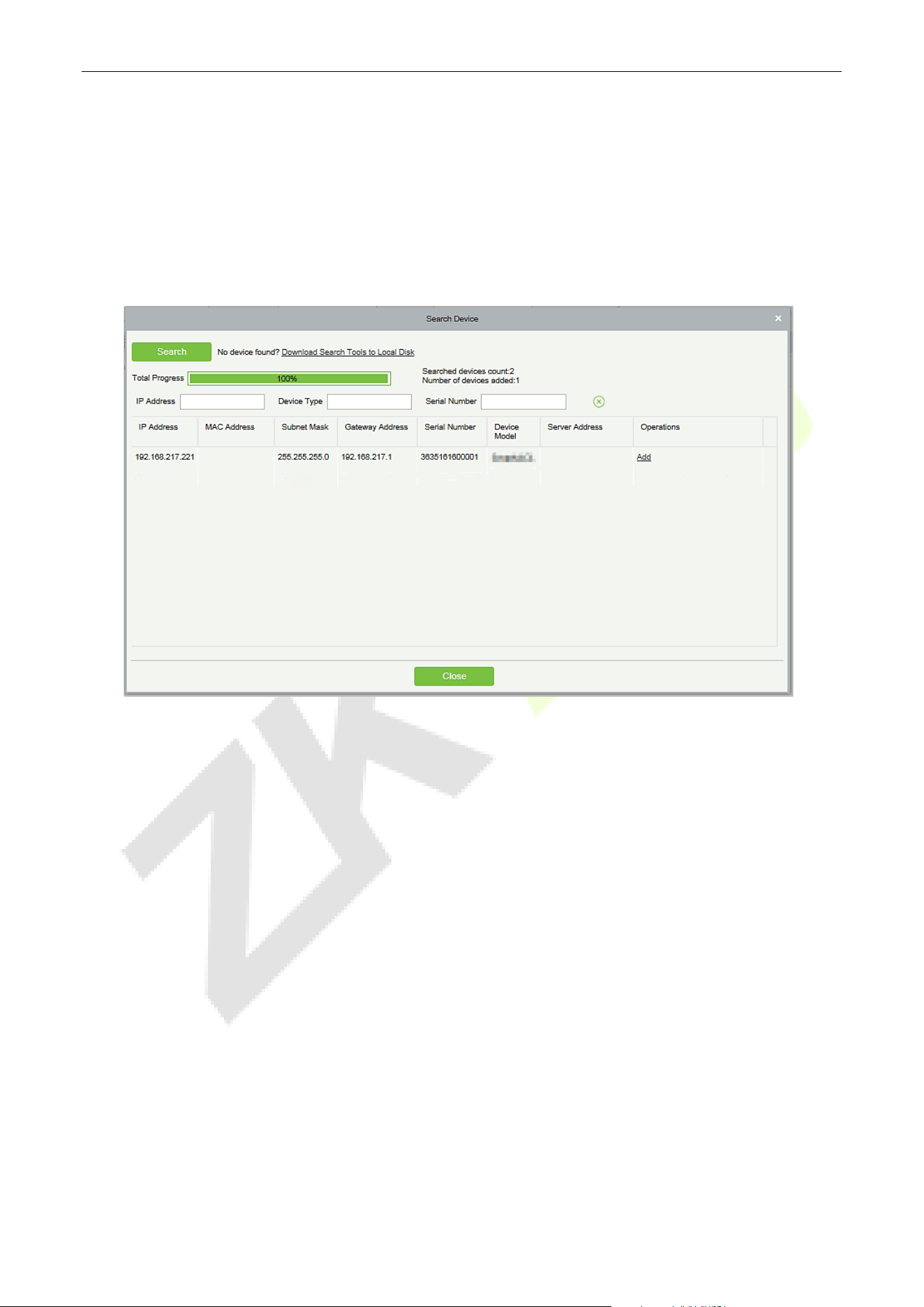

ADD A DEVICE TO THE SOFTWARE ...............................................................................................................................................................85 14.2

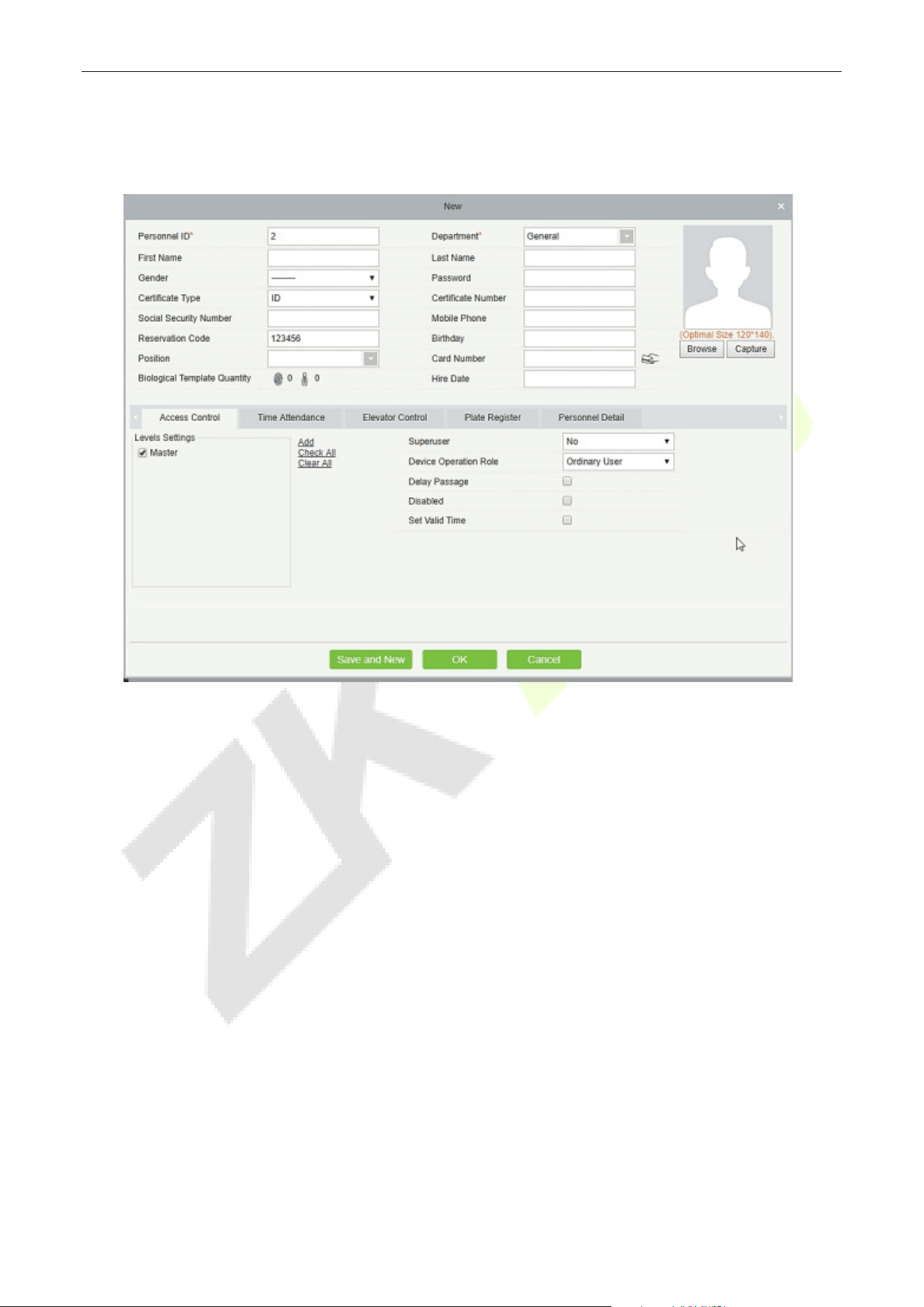

ADD PERSONNEL ON THE SOFTWARE..........................................................................................................................................................86 14.3

APPENDIX 1 ............................................................................................................................................... 87

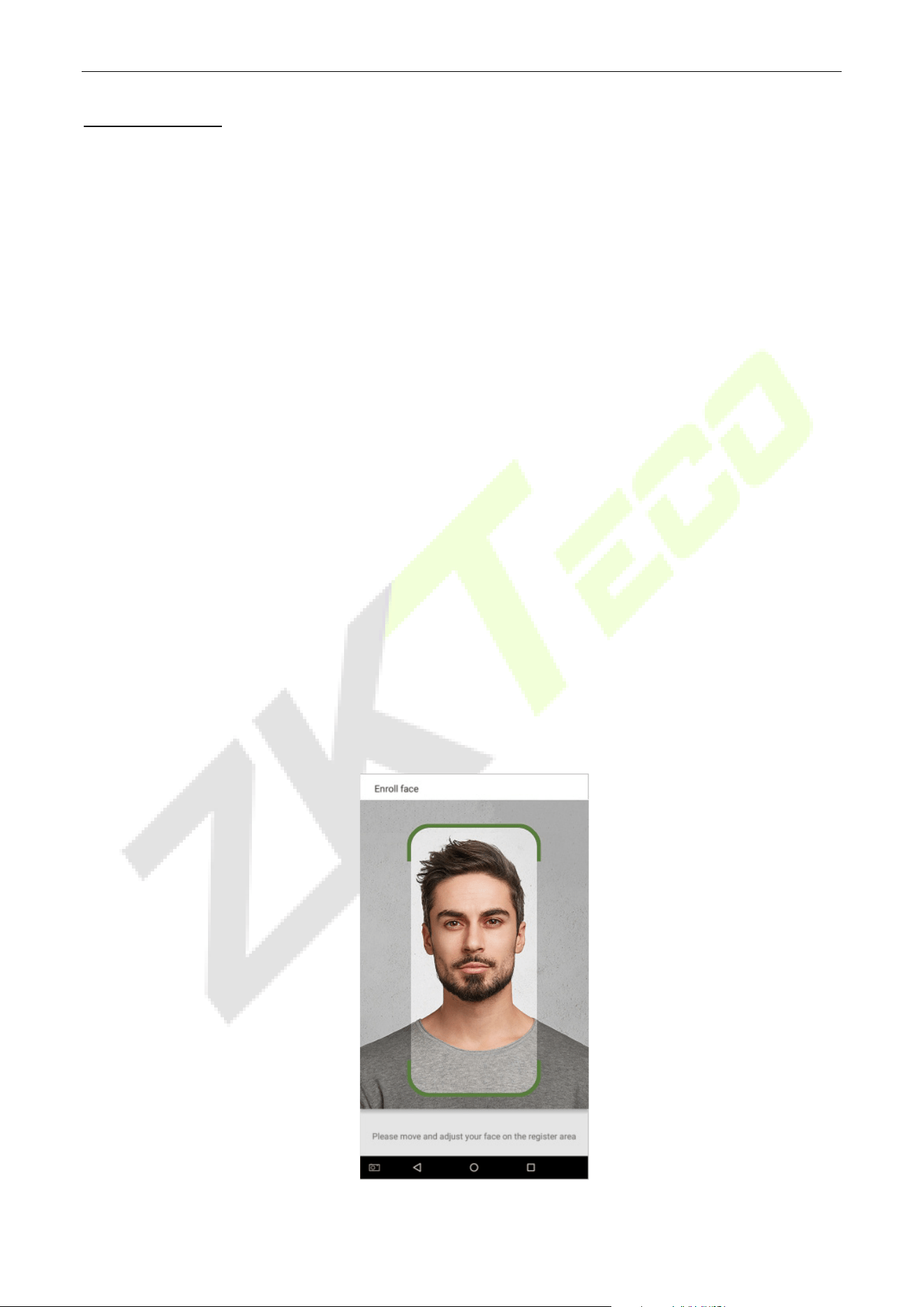

REQUIREMENTS OF LIVE COLLECTION AND REGISTRATION OF VISIBLE LIGHT FACE IMAGES ..............................................................................87

REQUIREMENTS FOR VISIBLE LIGHT DIGITAL FACE IMAGE DATA ..........................................................................................................................88

APPENDIX 2 ............................................................................................................................................... 89

PRIVACY POLICY ........................................................................................................................................................................................................89

ECO-FRIENDLY OPERATION ......................................................................................................................................................................................91

FaceDepot-7BL User Manual

Data Security Statement

ZKTeco, as a smart product supplier, may also need to know and collect some of your personal

information in order to better assist you in using ZKTeco's goods and services, and will treat your privacy

carefully by developing a Privacy Policy.

Please read and understand completely all the privacy protection policy regulations and key points that

appear on the device before using ZKTeco products.

As a product user, you must comply with applicable laws and regulations related to personal data

protection when collecting, storing, and using personal data, including but not limited to taking

protective measures for personal data, such as performing reasonable rights management for devices,

strengthening the physical security of device application scenarios, and so on.

Safety Measures

The below instructions intend to ensure that the user can use the product correctly to avoid danger or

property loss. The following precautions are to keep users safe and prevent any damage. Please read

carefully before installation.

Noncompliance with instructions could lead to product damage or physical injury (may even cause

death).

1. Read, follow, and retain instructions - All safety and operational instructions must be properly

read and followed before bringing the device into service.

2. Do not ignore warnings - Adhere to all warnings on the unit and in the operating instructions.

3. Accessories - Use only manufacturer-recommended or product-sold accessories. Please do not

use any other components other than manufacturer suggested materials.

4. Precautions for the installation – Do not place this device on an unstable stand or frame. It may

fall and cause serious injury to persons and damage to the device.

5. Service - Do not try to service this unit yourself. Opening or removing covers may expose you to

hazardous voltages or other hazards.

6. Damage requiring service - Disconnect the system from the Mains AC or DC power source and

refer service personnel under the following conditions:

 When cord or connection control is affected.

 When the liquid spilled, or an item dropped into the system.

 If exposed to water or due to inclement weather (rain, snow, and more).

 If the system is not operating normally, under operating instructions.

Just change controls defined in operating instructions. Improper adjustment of the controls may

result in damage and involve a qualified technician to return the device to normal operation.

FaceDepot-7BL User Manual

And do not connect multiple devices to one power adapter as adapter overload can cause over-

heat or fire hazard.

7. Replacement parts - When replacement parts are needed, service technicians must only use

replacement parts provided by the supplier. Unauthorized substitutes can result in a burn, shock,

or other hazards.

8. Safety check - On completion of service or repair work on the unit, ask the service technician to

perform safety checks to ensure proper operation of the device.

9. Power sources - Operate the system only from the label's power source form. If the sort of power

supply to use is unclear, call your dealer.

10. Lightning - Can install external lightning conductors to protect against electrical storms. It stops

power-ups from destroying the system.

Recommended installing the devices in areas with limited access.

Electrical Safety

 Before connecting an external cable to the device, complete grounding properly, and set up surge

protection; otherwise, static electricity will damage the mainboard.

 Make sure that the power has been disconnected before you wire, install, or dismantle the device.

 Ensure that the signal connected to the device is a weak-current (switch) signal; otherwise,

components of the device will get damaged.

 Ensure that the standard voltage applicable in your country or region is applied. If you are not sure

about the endorsed standard voltage, please consult your local electric power company. Power

mismatch may cause a short circuit or device damage.

 In the case of power supply damage, return the device to the professional technical personnel or

your dealer for handling.

 To avoid interference, keep the device far from high electromagnetic radiation devices, such as

generators (including electric generators), radios, televisions, (especially CRT) monitors, or

speakers.

Operation Safety

 If smoke, odour, or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service centre.

 Transportation and other unpredictable causes may damage the device hardware. Check whether

the device has any intense damage before installation.

 If the device has major defects that you cannot solve, contact your dealer as soon as possible.

 Dust, moisture, and abrupt temperature changes can affect the device's service life. You are

advised not to keep the device under such conditions.

FaceDepot-7BL User Manual

 Do not keep the device in a place that vibrates. Handle the device with care. Do not place heavy

objects on top of the device.

 Do not apply rosin, alcohol, benzene, pesticides, and other volatile substances that may damage

the device enclosure. Clean the device accessories with a piece of soft cloth or a small amount of

cleaning agent.

 If you have any technical questions regarding usage, contact certified or experienced technical

personnel.

Not

 Make sure whether the positive polarity and negative polarity of the DC 12V power supply is

connected correctly. A reverse connection may damage the device. It is not advisable to connect

the AC 24V power supply to the DC 12V input port.

 Make sure to connect the wires following the positive polarity and negative polarity shown on the

device's nameplate.

 The warranty service does not cover accidental damage, damage caused by mis-operation, and

damage due to independent installation or repair of the product by the user.

FaceDepot-7BL User Manual

1 Instructions to use

Finger Positioning

★

1.1

Recommended fingers: Index, middle, or ring finger. Avoid using the thumb or little finger, as they are

difficult to press accurately on the fingerprint reader.

Press your finger on the fingerprint reader. Ensure that the center of your finger is aligned with the

fingerprint reader.

Note: Please use the correct method when pressing your fingers on the fingerprint reader for registration

and identification. Our company will assume no liability for recognition issues that may result from

incorrect usage of the product. We reserve the right of final interpretation and modification concerning

this point.

Standing Position, Posture and Facial Expression 1.2

Recommended Distance

The distance between the device and a user whose height is

within 1.4m-1.8m is recommended to be 0.5m. Users may

slightly move forwards and backwards to improve the quality

of facial images captured.

FaceDepot-7BL User Manual

Facial Expression and Standing Posture

Note: During enrollment and verification, please remain natural with facial expression and standing

posture.

FaceDepot-7BL User Manual

Palm Registration

★

1.3

Place your palm in the palm multi-mode collection area, such that the palm is placed parallel to the

device.

Make sure to keep space between your fingers.

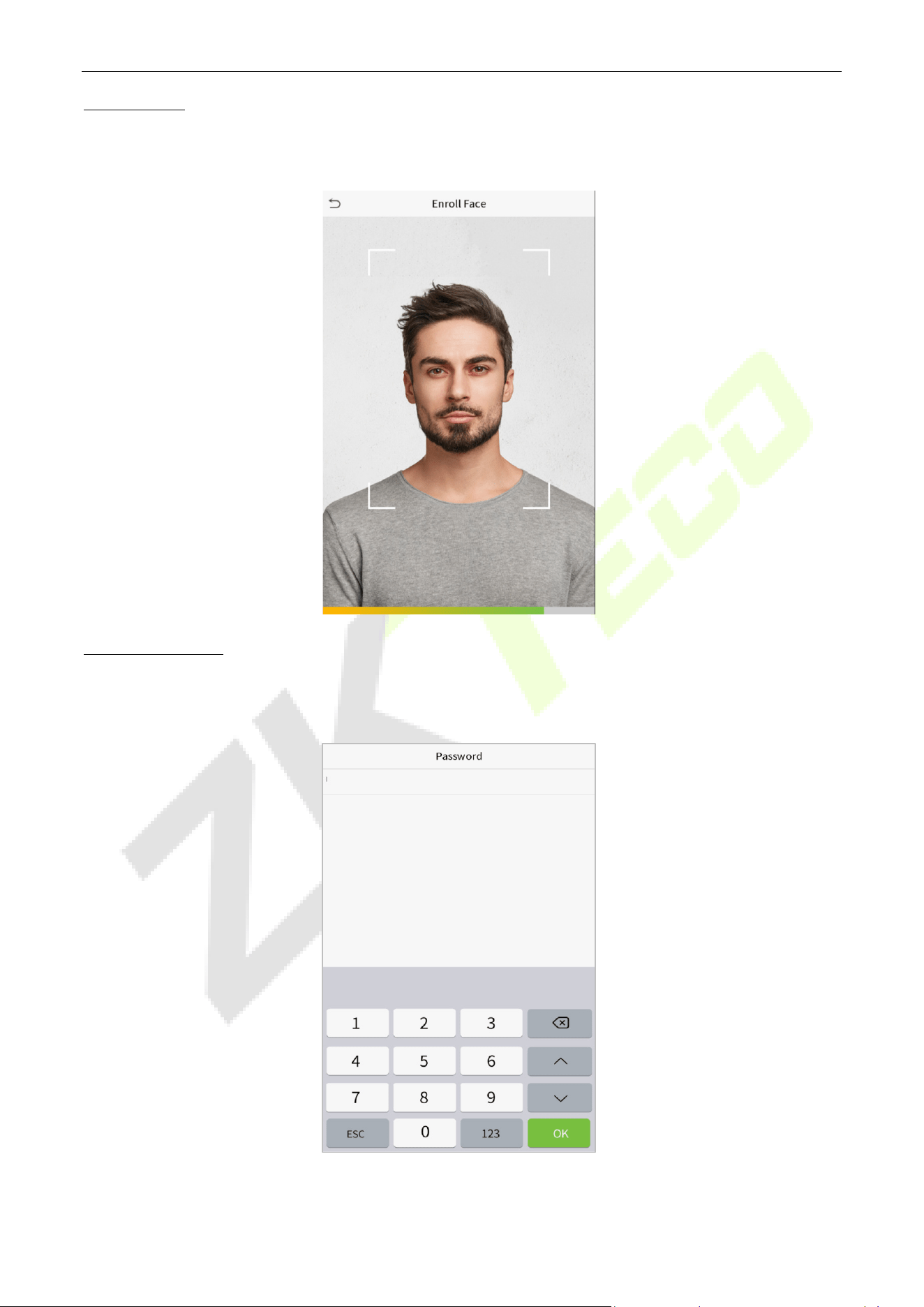

Face Registration 1.4

Keep the face in the center of the screen during registration. Please face the camera and stay still during

face registration. The page looks like the following image:

FaceDepot-7BL User Manual

Standby Interface 1.5

After connecting the power supply, the standby interface will be displayed as shown below:

Note:

1. Click to open the User verification interface.

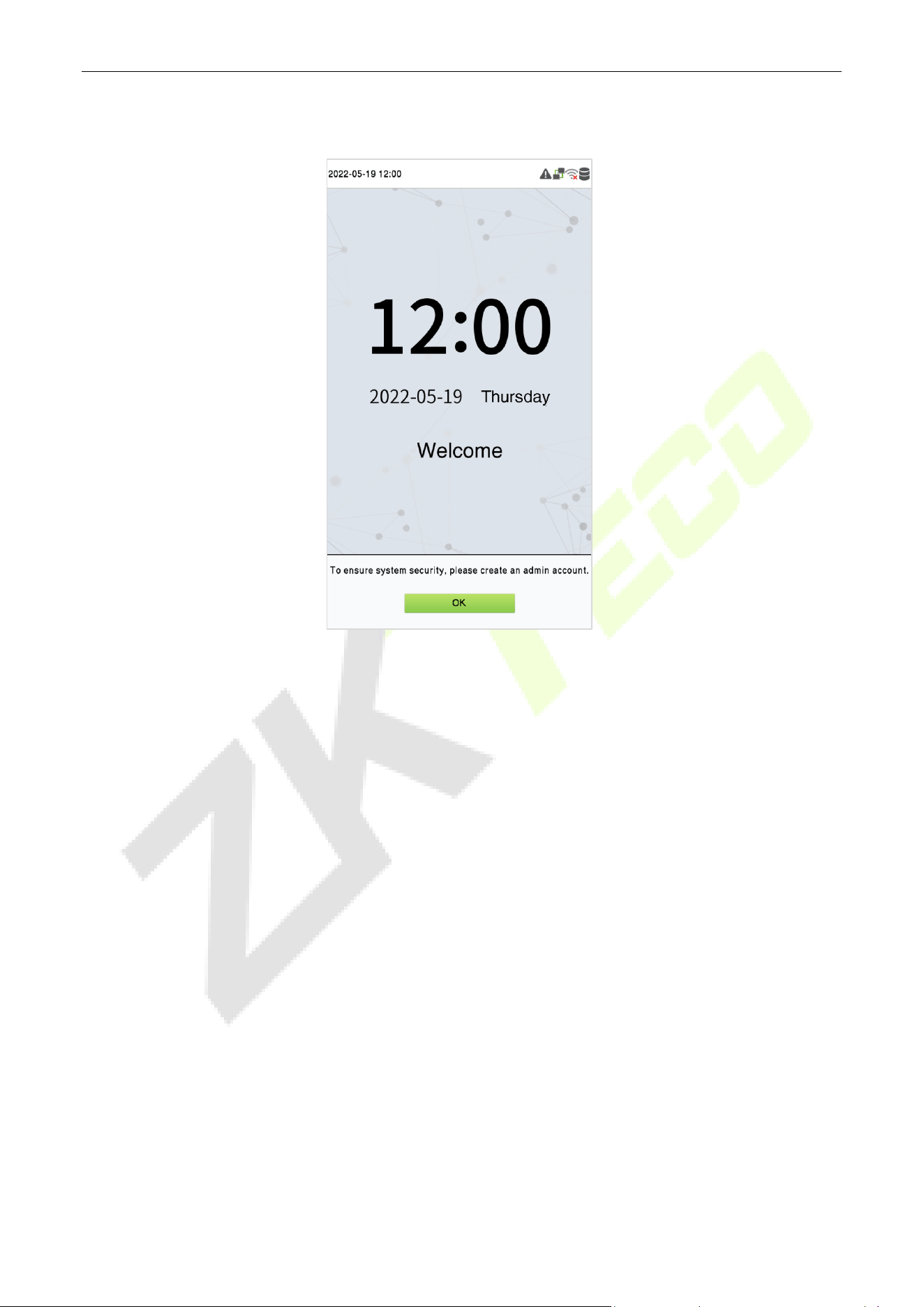

2. When there is no super administrator set in the device, click to enter the menu. After setting the

super administrator, it requires the super administrator’s verification before entering the menu

operation. For the security of the device, it is recommended to register a super administrator for the

first time you use the device.

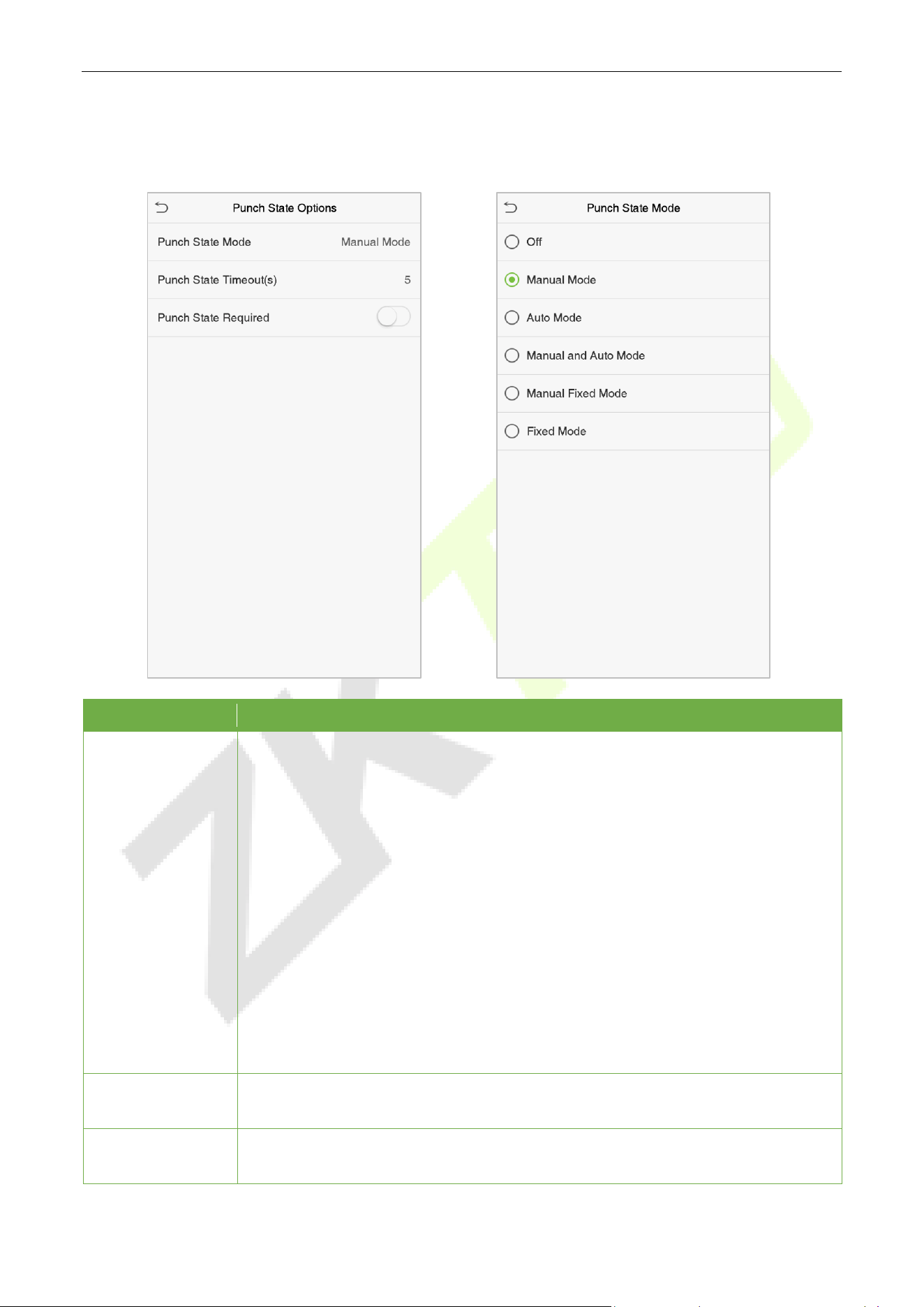

3. ★The punch states can be switched directly by using the screen shortcut keys. Click anywhere on the

screen without icons, and six shortcut keys appear, as shown in the figure below:

FaceDepot-7BL User Manual

Press the corresponding shortcut key to select the current attendance state, which is shown in green.

Please refer 7.5 Shortcut Key Mappings

for specific operations.

FaceDepot-7BL User Manual

Virtual Keyboard 1.6

The virtual keyboard will be displayed as shown below:

Note: The device supports the input of English, numbers, and symbols. Click En to switch to the English

keyboard. Press 123 to switch to the numeric and symbolic keyboard and click ABC to return to the

alphabetic keyboard. Click the input box, the virtual keyboard appears. Click ESC to exit the input box.

Verification Modes 1.7

1.7.1 Palm Verification★

1: N Palm Verification Mode

This verification mode compares the palm image collected by the palm collector with all the palm data in

the device.

The device will automatically distinguish between the palm and the face verification mode. Place the

palm in the palm collector area, and the device will automatically detect the palm verification mode.

FaceDepot-7BL User Manual

1 Palm Verification Mode

Click the button on the main screen to open 1:1 palm verification mode.

Enter the user ID and press OK.

FaceDepot-7BL User Manual

If the user has registered the fingerprint, face, card number and password in addition to his/her palm, and

the verification method is set to palm/ fingerprint/ face/ badge/ password verification, the following

screen will appear. Select the palm icon to open the palm verification mode.

1.7.2 Fingerprint Verification

★

1: N Fingerprint Verification Mode

The 1:N Fingerprint Verification mode compares the fingerprint that is being pressed on the fingerprint

reader with all of the fingerprint data that is stored in the device.

The device will enter the fingerprint authentication mode when a user presses his/her finger onto the

fingerprint scanner. Please follow the instructions to place your finger on the sensor. For details, please

refer 1.1 Finger Positioning

FaceDepot-7BL User Manual

Successful Verification:

Failed Verification:

FaceDepot-7BL User Manual

1: 1 Fingerprint Verification Mode

The 1:1 Fingerprint verification mode compares the fingerprint that is being pressed on the fingerprint

reader with the fingerprints that are linked to User ID input via the virtual keyboard.

Users may try verifying their identities with 1:1 verification mode when they cannot gain access with 1: N

authentication method.

Click the button on the main screen to open the 1:1 fingerprint verification mode.

1. Enter the User ID and press OK.

If the user has registered the palm

★, face, card number and password in addition to his/her fingerprint,

and the verification method is set to palm

★/ fingerprint/ face/ badge/ password verification, the

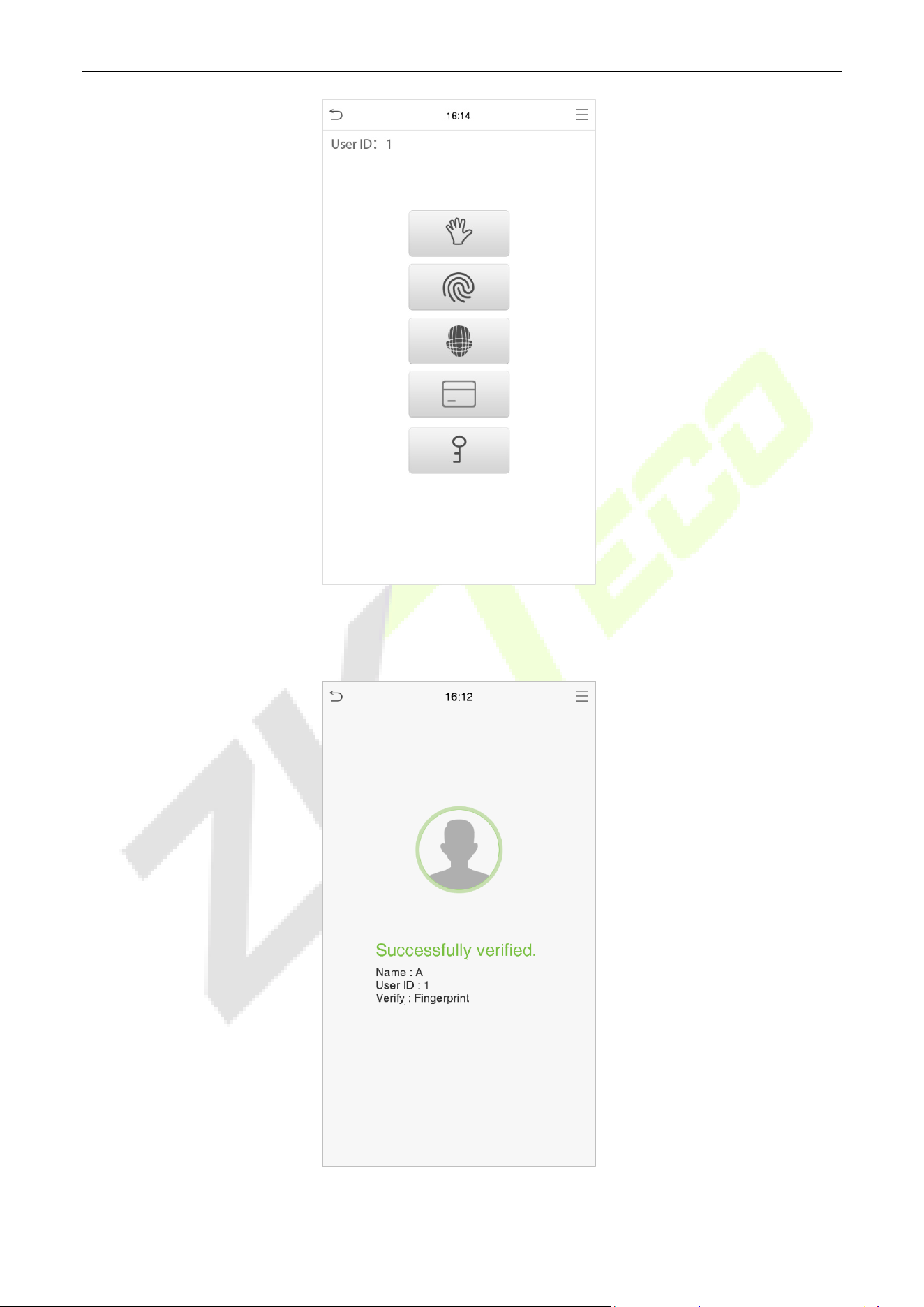

following screen will appear. Select the fingerprint icon to enter fingerprint verification mode.

FaceDepot-7BL User Manual

2. Press the fingerprint to verify.

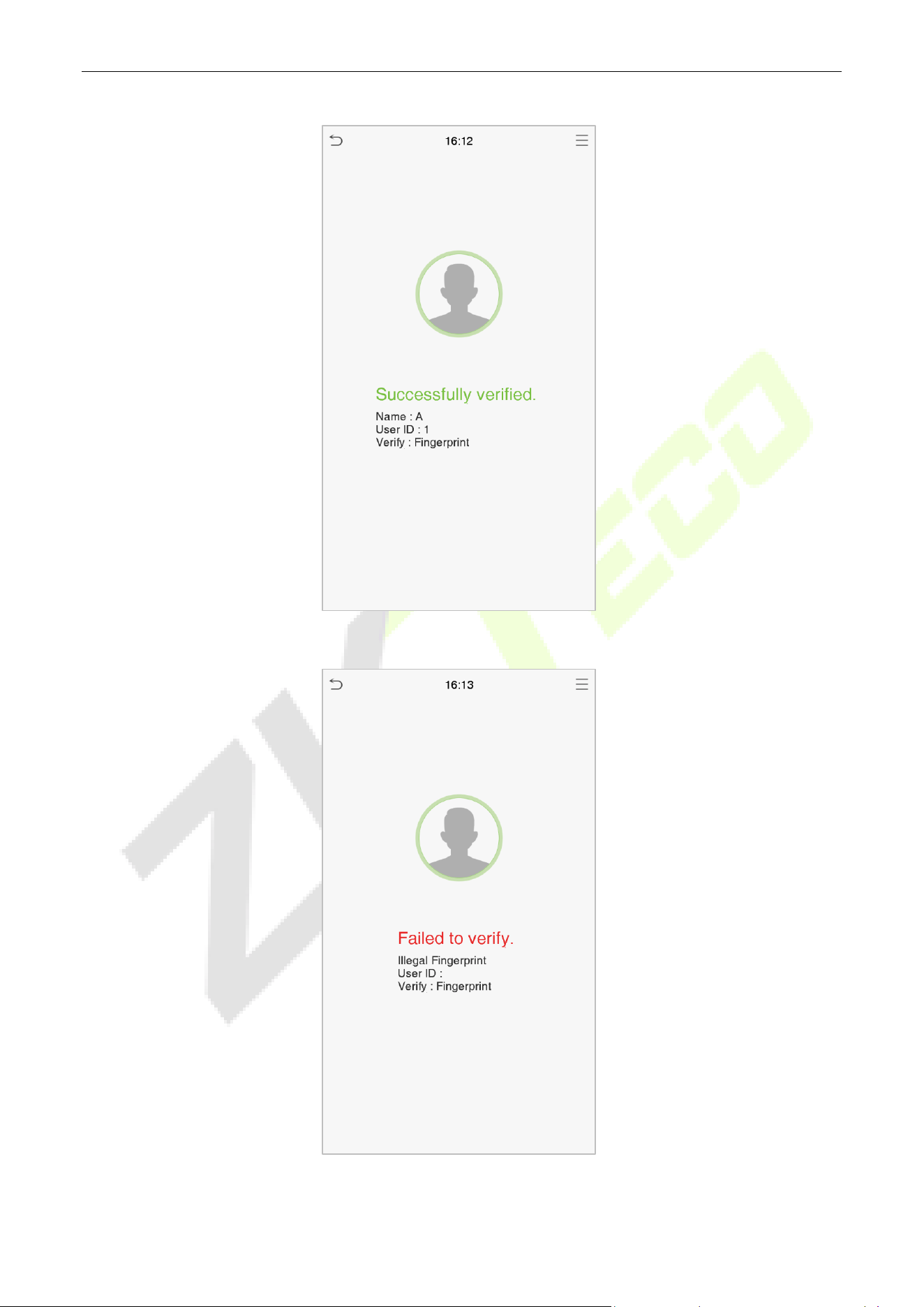

Successful Verification:

FaceDepot-7BL User Manual

Failed Verification:

FaceDepot-7BL User Manual

1.7.3 Facial Verification

1:N Facial Verification

The 1:N Facial Verification mode compares the acquired facial images with all face data registered in the

device. The following is the pop-up prompt box of the comparison result.

1:1 Facial Verification

The 1:1 Facial Verification mode compares the face captured by the camera with the facial template

related to the entered user ID.

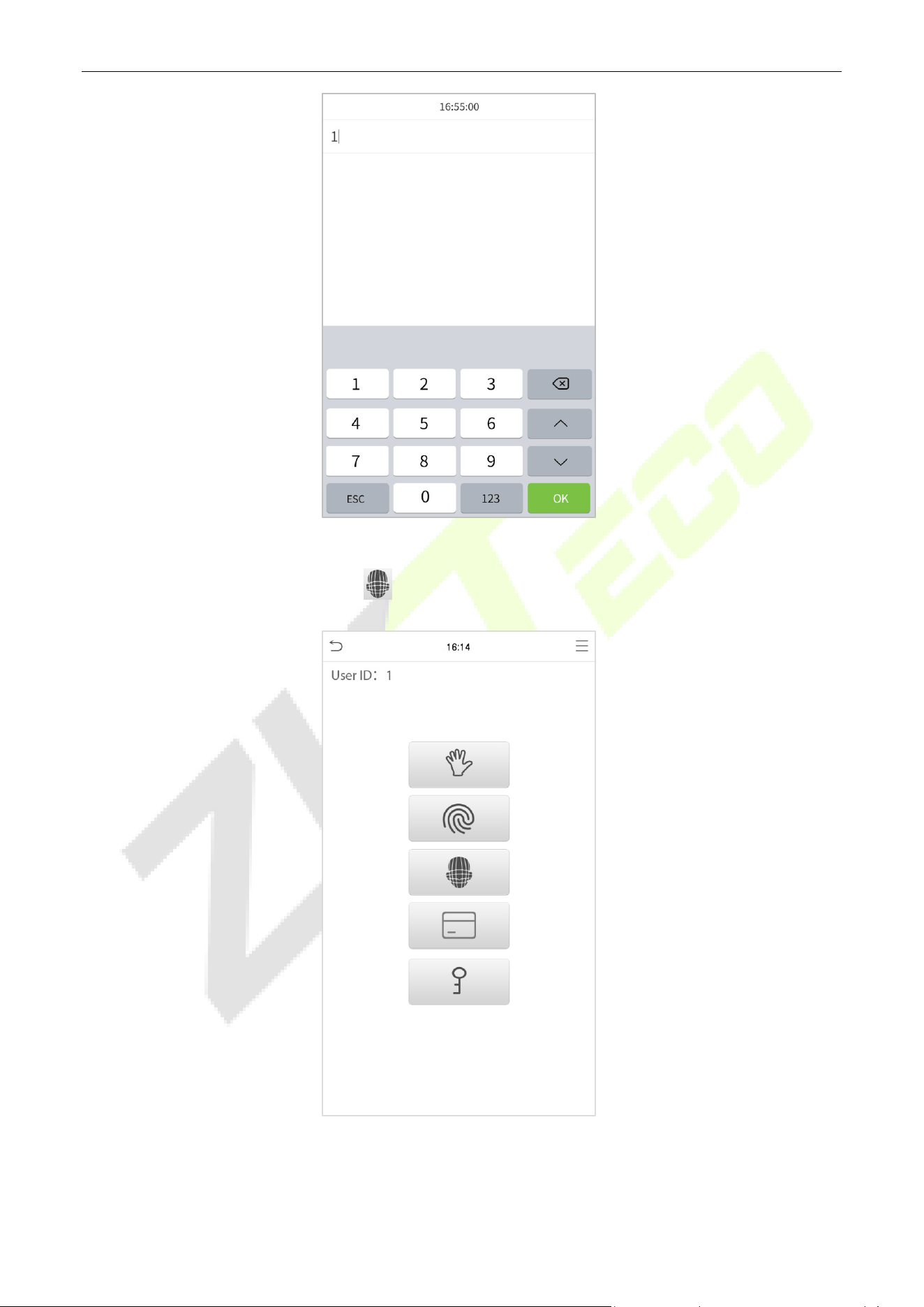

Press on the main interface to open the 1:1 facial verification mode.

Enter the user ID and click OK.

FaceDepot-7BL User Manual

If an employee registers palm

★, fingerprint, card number and password in addition to the face, the

following screen will appear. Select the icon to enter the face verification mode.

After successful verification, the prompt "Successfully verified" will appear.

FaceDepot-7BL User Manual

If the verification is failed, it will prompt “Please adjust your position!”

FaceDepot-7BL User Manual

1.7.4 Card Verification

★

1:N Card Verification

The 1:N Card Verification mode compares the card number in the card induction area with all the card

number data registered in the device; The following is the card verification screen.

1:1 C

ard Verification

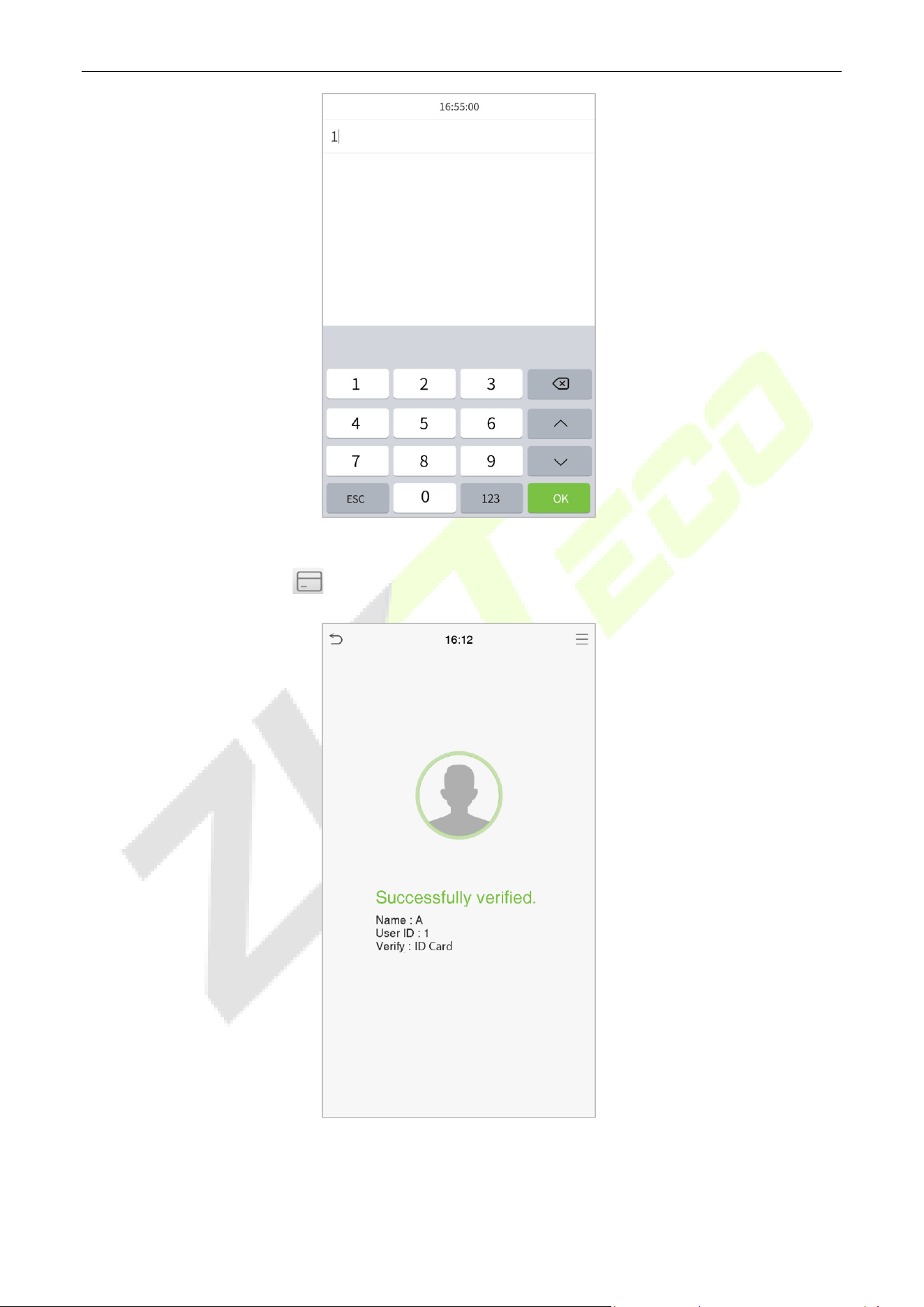

The 1:1 Card Verification mode compares the card number in the card induction area with the number

associated with the employee's User ID registered in the device.

Press on the main interface to open the 1:1 card verification mode.

Enter the user ID and click OK.

FaceDepot-7BL User Manual

If an employee registers palm

★, fingerprint, face, and password in addition to the card, the following

screen will appear. Select the icon to open the card verification mode.

FaceDepot-7BL User Manual

1.7.5 Password Verification

The Password Verification mode compares the entered password with the registered User ID and

password.

Click the button on the main screen to open the 1:1 password verification mode.

1. Enter the User ID and press OK.

If an employee registers palm

★, fingerprint, face and card number in addition to the password, the

following screen will appear. Select the icon to open the password verification mode.

FaceDepot-7BL User Manual

2. Enter the password and press OK.

FaceDepot-7BL User Manual

Successful Verification:

Failed Verification:

FaceDepot-7BL User Manual

1.7.6 Combined Verification

To meet the needs of some access control occasions with high security and in consideration of the

diversity of access control, the device provides a wide range of verification modes, which can be

combined as required for individual users and user groups. The device supports 21 combinations of

verification modes, as shown in the following figure.

Note:

1. "/" means “or”, and "+" means “and”.

2. You must register the required verification information before using the combination verification

mode, otherwise, the verification may fail. For example, if a user uses Face Registration but the

verification mode is Face + Password, the user verification will be failed.

FaceDepot-7BL User Manual

2 Main Menu

Press on the Home Screen to open the main menu, as shown below:

Feature Description

User Mgt.

To add, edit, view, and delete basic information about a user.

User Role

To set the permission scope of the custom role and enroller, that is, the rights to

operate the system.

COMM.

To set the relevant parameters of Network, PC connection, Cloud server, and Wiegand.

System

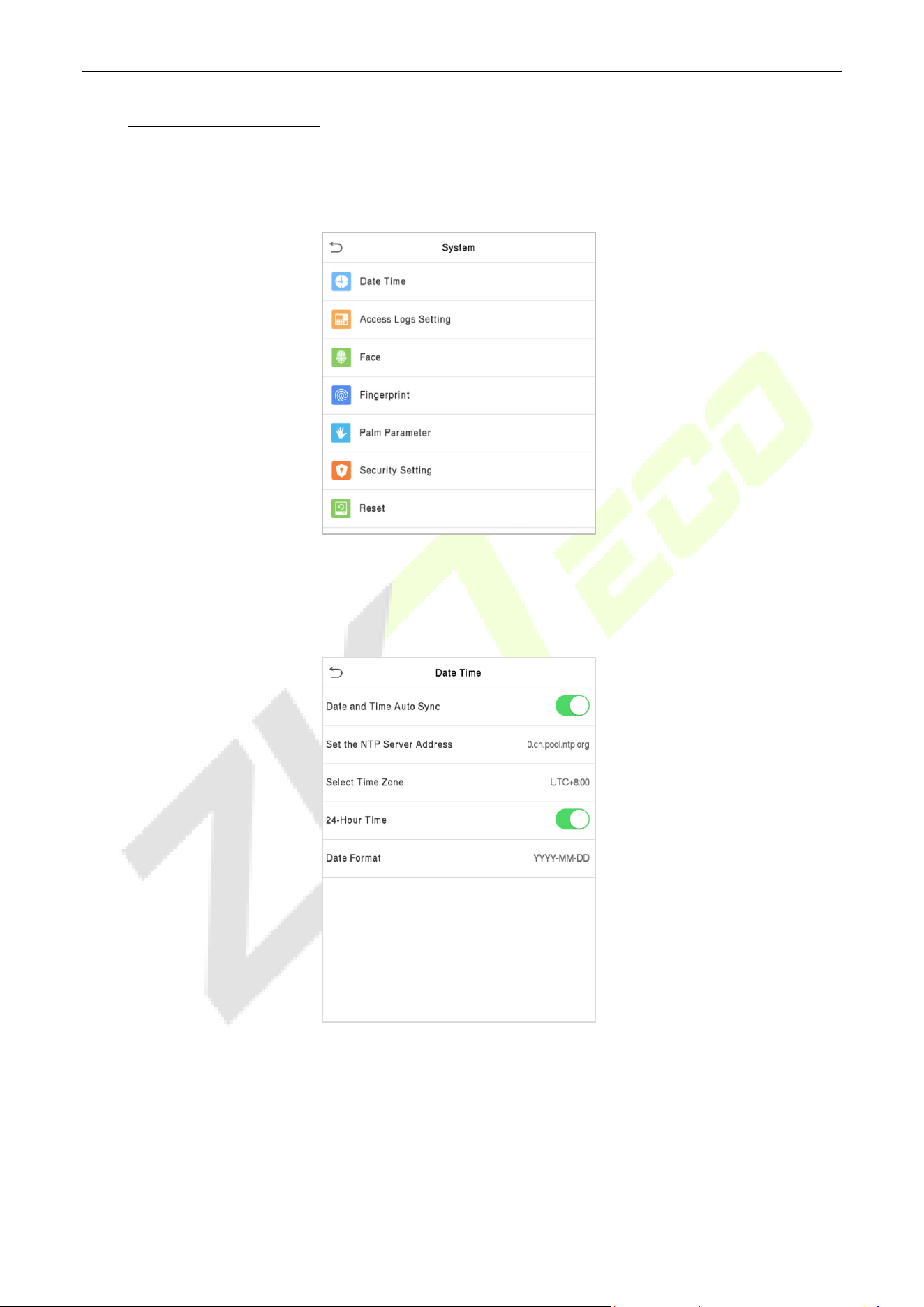

To set the parameters related to the system, including Date & Time, Access records,

Palm

★

, Face, Fingerprint parameters, reset to factory, USB upgrade and security.

Personalize

This includes user Interface, voice, bell, punch state options, and shortcut key

mappings settings.

Data Mgt.

To delete all the relevant data in the device.

Access Control

To set the parameters of the lock and the relevant access control device.

USB Manager

To upload or download the specific data from a USB drive.

Attendance

Query the specified access record, check attendance photos and blocklist photos.

Autotest

To automatically test whether each module functions properly, including the LCD, voice,

fingerprint sensor, camera, and real-time clock.

System Info

To view data capacity, device and firmware information, and privacy policy of the device.

Note: When users use the product for the first time, they should operate it after setting administrator

privileges. Click User Mgt. to add an administrator or edit user permissions as a super administrator.If the

FaceDepot-7BL User Manual

product does not have an administrator setting, the system will show an administrator setting command

prompt every time you enter the device menu.

FaceDepot-7BL User Manual

3 User Management

The User Management function enables to add and manage users in the device.

Adding Users 3.1

Click User Mgt. on the main menu.

Click New User.

Enter the User ID and Name.

Note:

1. A Username may contain up to 17 characters.

2. The User ID may contain 1 to 9 digits by default.

FaceDepot-7BL User Manual

3. During the initial registration, you can modify your ID, which cannot be modified after registration.

4. If a message "Duplicated ID" pops up, you must choose another ID.

Setting the User Role

There are two types of user accounts: the Normal User and the Super Admin. If there is already a

registered administrator, the normal users have no rights to manage the system and may only access the

authentication verifications. The Administrator owns all the management privileges. If a custom role is set,

you can also select User Defined Role permissions for the user.

Click User Role to select Normal User or Super Admin.

Note: If the selected user role is the Super Admin, the user must validate the identity authentication to

access the main menu. The authentication is based on the authentication method(s) that the super

administrator has registered. Please refer 1.7 Verification Method.

Click Palm to enter the palm registration page. Select the palm to be enrolled.

FaceDepot-7BL User Manual

★

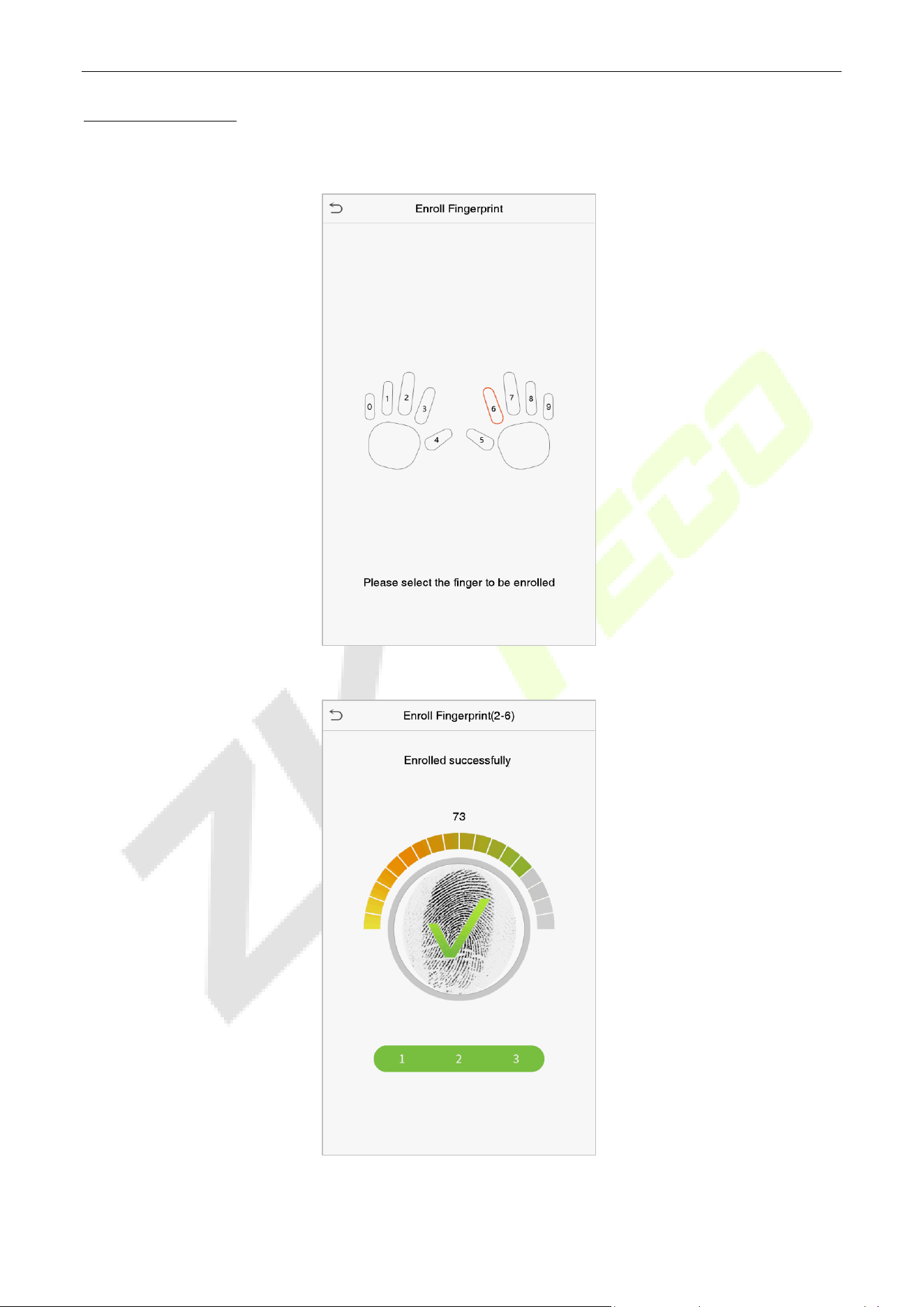

Click Fingerprint to enter the fingerprint registration page. Select the finger to be enrolled.

Press the same finger consecutively until the success message appears.

FaceDepot-7BL User Manual

Click Face to open the face registration page. Please face the camera and stay still during face registration.

The registration interface is as follows:

ssword

Click Password to open the password registration page. Enter a password and re-enter it. Click OK. If the

two entered passwords are different, the prompt "Password does not match" will appear.

Note: The password may contain one to eight digits by default.

FaceDepot-7BL User Manual

★

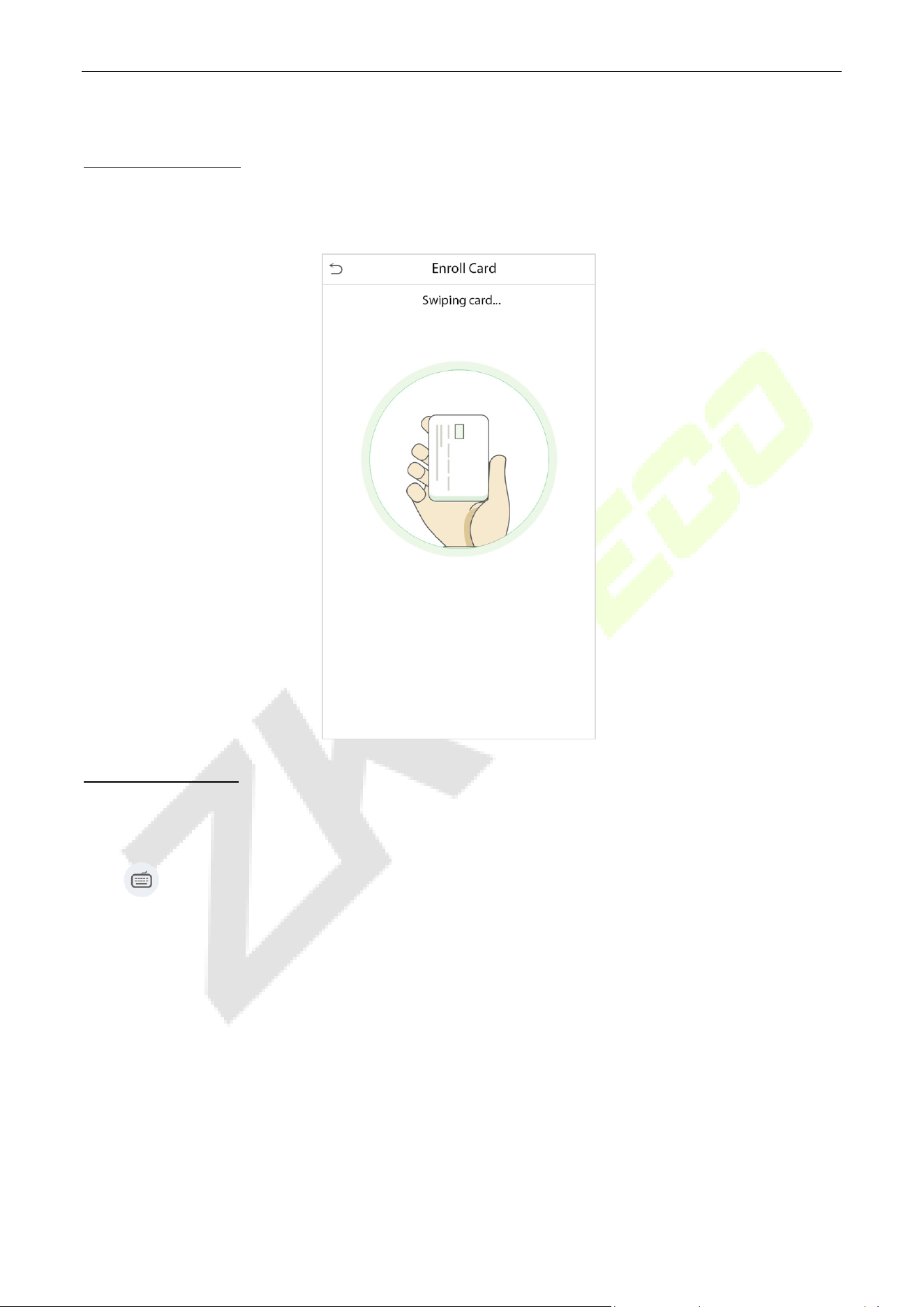

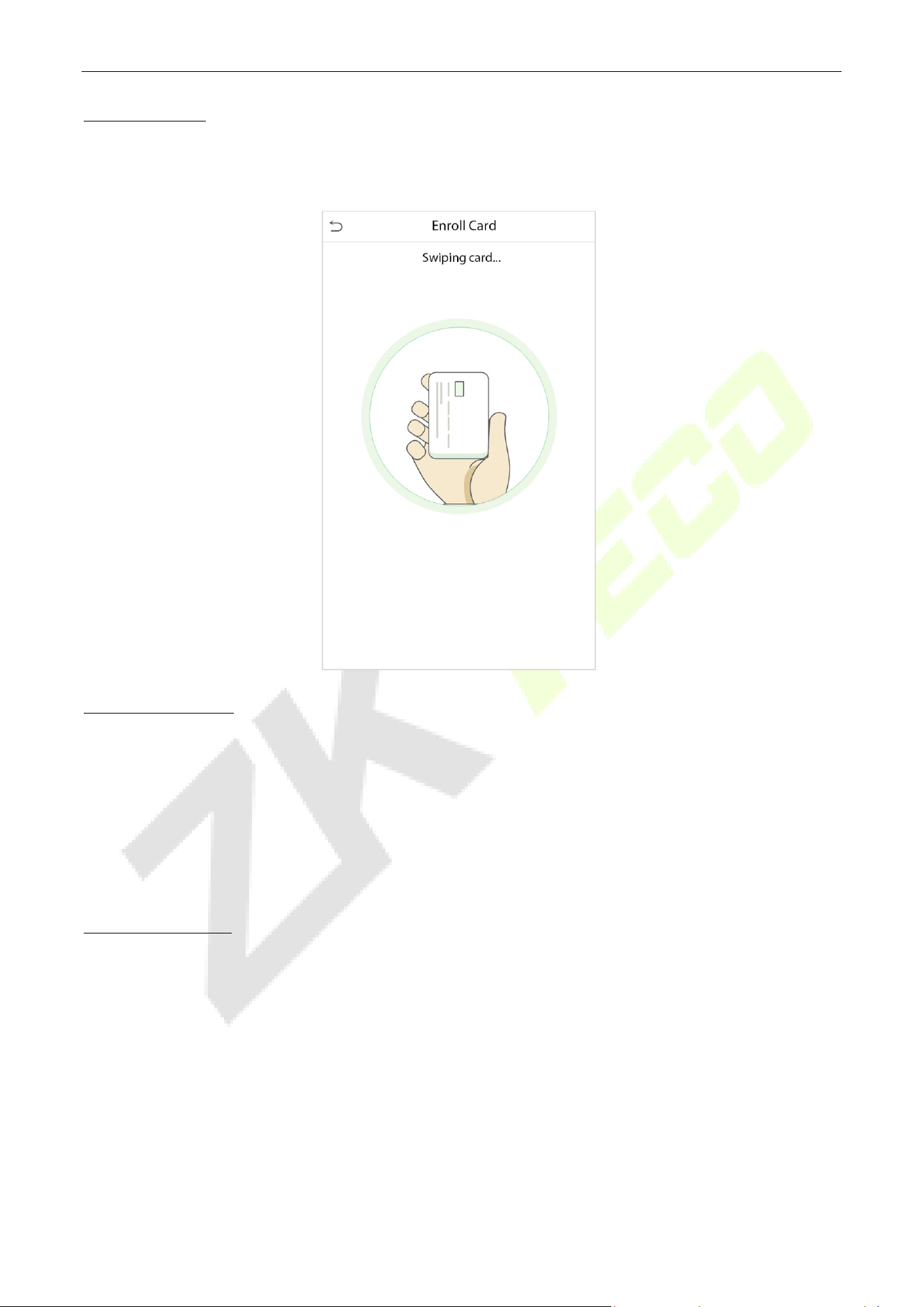

Press your Badge close underneath the fingerprint collector. The badge number registration will be

successful.

When a user’s verification is successful, the registered photo will be displayed.

Click User Photo, click the camera icon to take a photo. The system will return to the New User interface

after taking a photo.

Note: While registering a face, the system will automatically capture a picture as the user photo. If you do

not want to register a user photo, the system will automatically set the picture captured as the default

photo.

Access Control Role

The user access control role sets the door unlocking rights of each person, including the group that the

user belongs to, the verification mode, duress fingerprint and whether to apply the group time period.

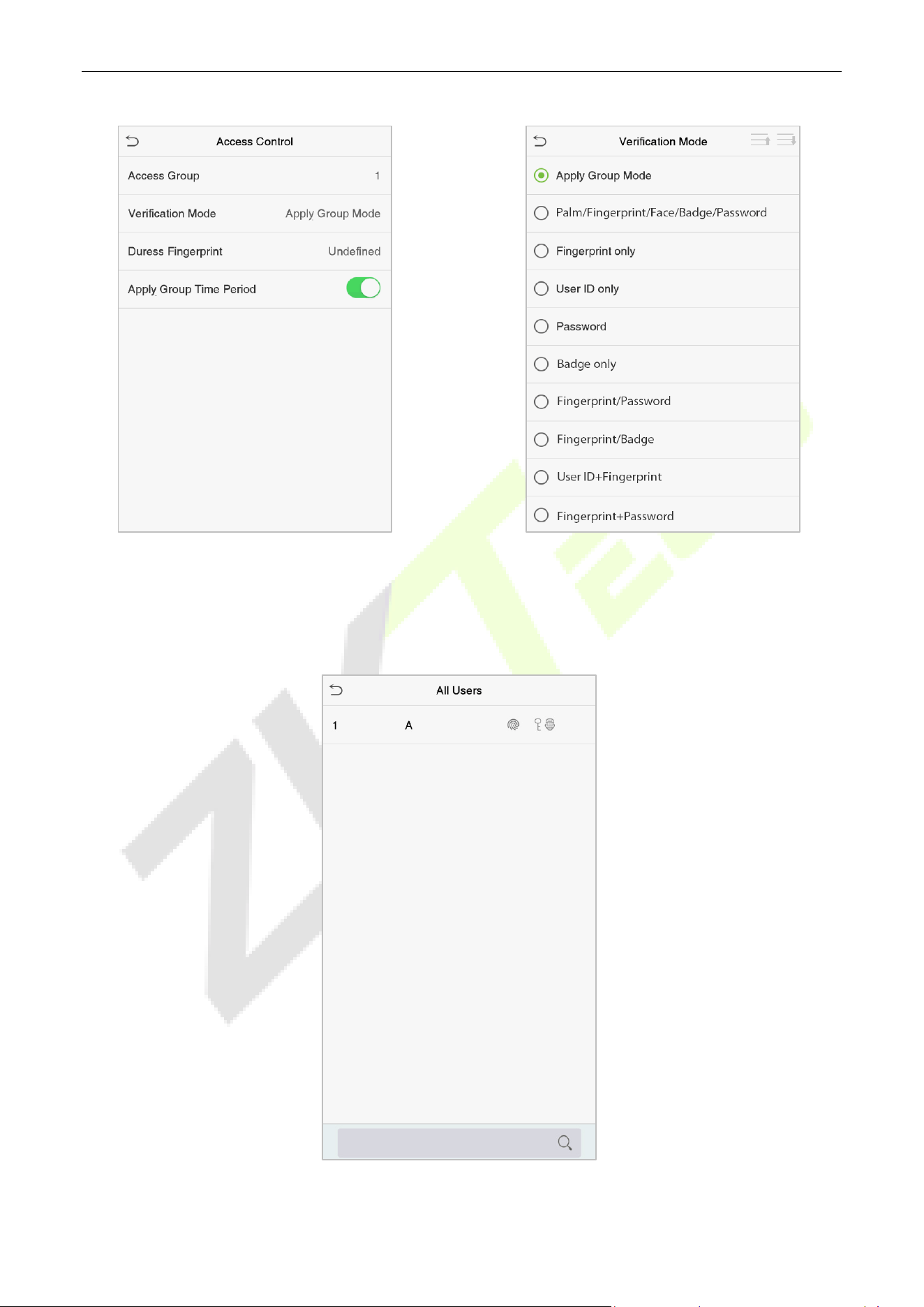

Click Access Control Role > Access Group, assign the registered users to different groups for better

management. The new users belong to Group 1 by default and can be reassigned to other groups. The

device supports up to 99 access control groups.

Select verification mode for the user, click Access Control Role > Verification Mode.

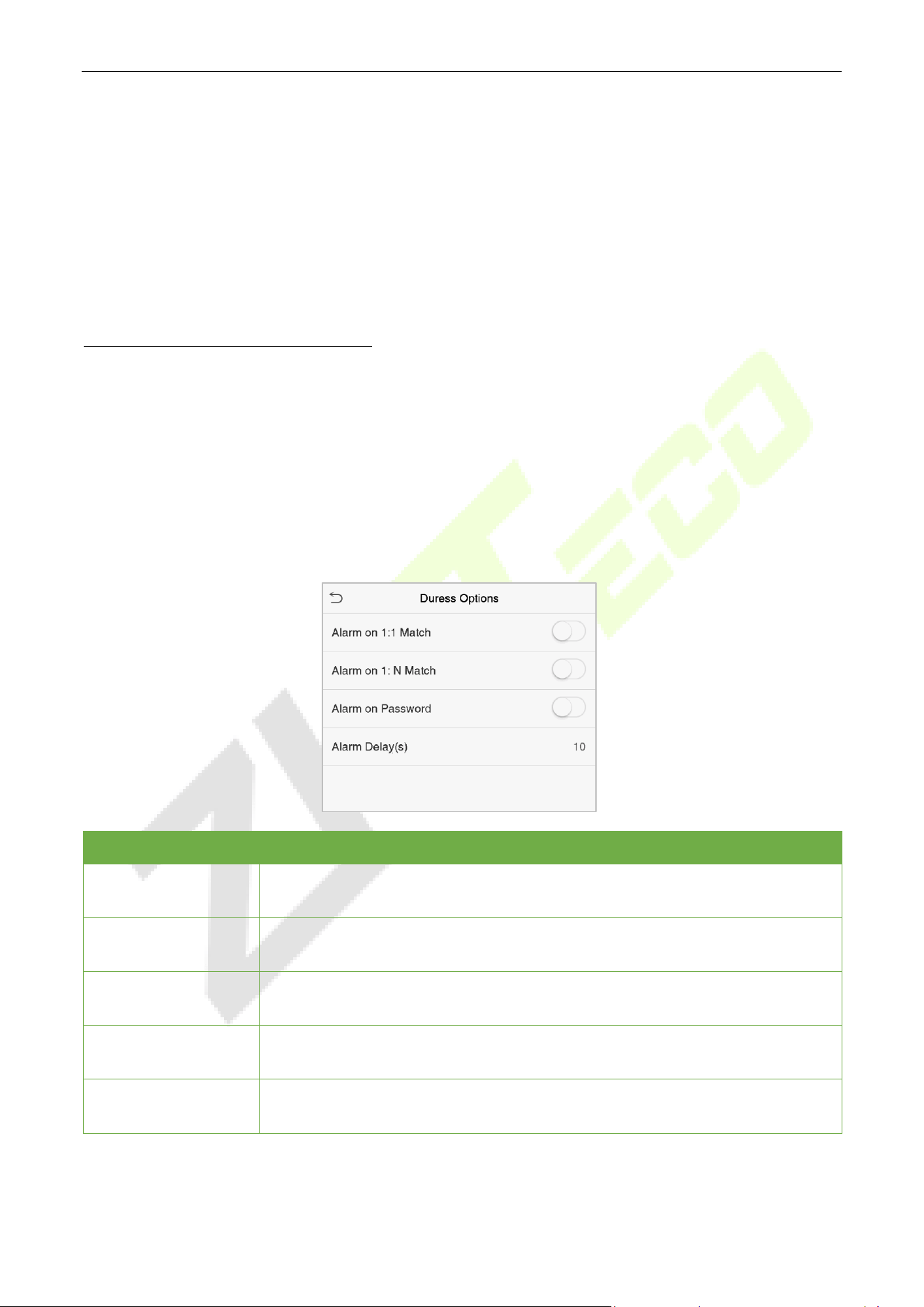

Duress Fingerprint: The user may specify one or more fingerprints that have been registered as a duress

fingerprint(s). When press the finger corresponding to the duress fingerprint on the sensor and the

verification is successful, the system will immediately generate a duress alarm.

FaceDepot-7BL User Manual

Similarly, select whether to apply the group time period.

Search for Users 3.2

Click the search bar on the user list and enter the retrieval keyword (The keyword may be an ID, surname

or full name.). The system will search for the users related to the information.

FaceDepot-7BL User Manual

Edit Users 3.3

Choose a user from the list and click Edit to open the edit user interface:

Note: The operation of editing a user is the same as that of adding a user, except that the user ID cannot

be modified when editing a user. Refer 3.1 Adding Users

for further operations.

Deleting Users 3.4

Select a user from the list and click Delete to enter the delete user interface. Select the user information to

be deleted and click OK.

Note: If you select Delete User, all information of the user will be deleted.

FaceDepot-7BL User Manual

4 User Role

If you need to assign some specific permissions to certain users, you may edit the “User Defined Role” in

the User Role menu.

You may set the permission scope of the custom role (up to 3 roles) and an enroller, that is, the permission

scope of the operation menu.

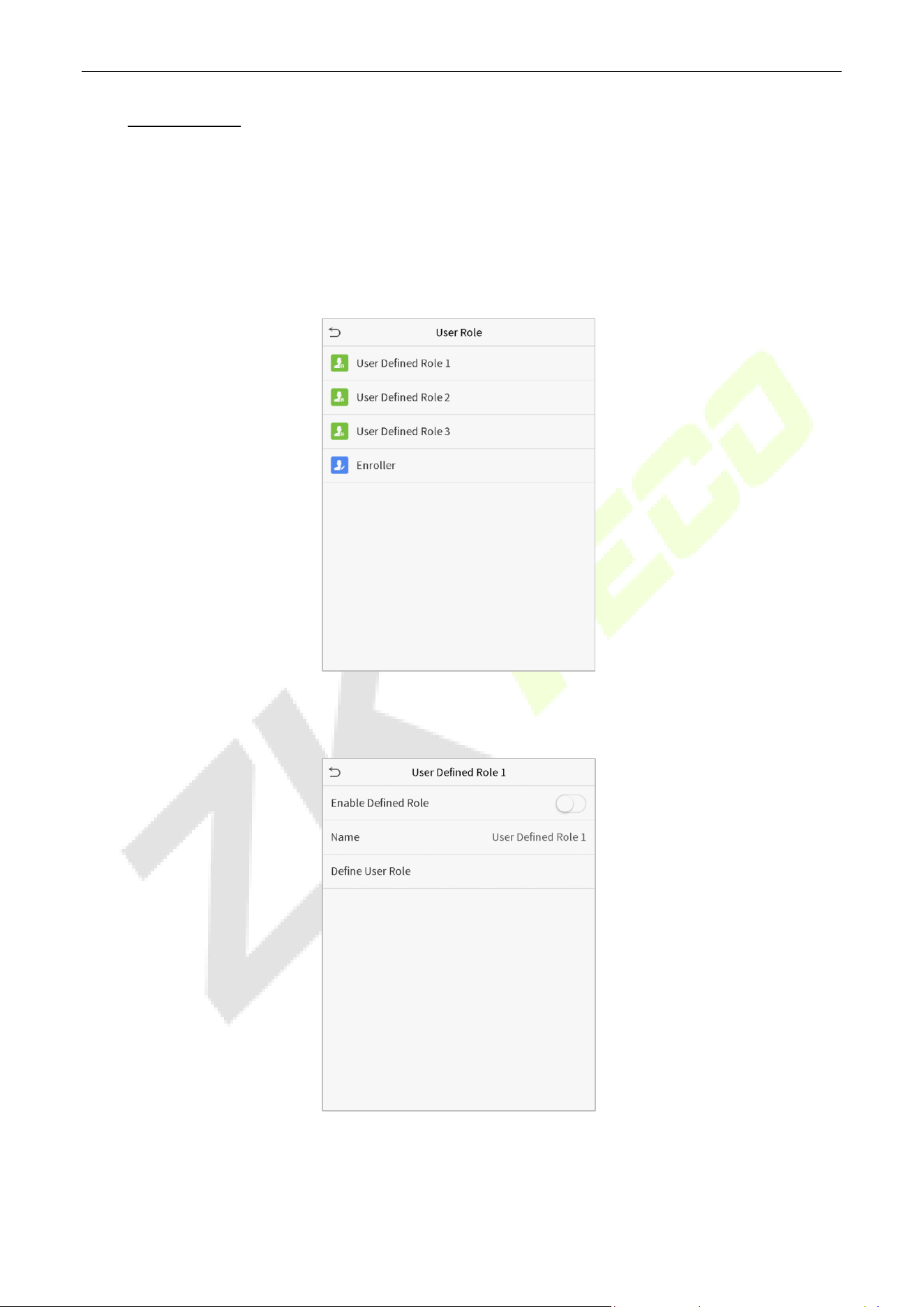

Click User Role on the main menu interface.

1. Click any option to set a defined role. Click the row of Enable Defined Role to enable this defined

role. Click Name and enter the name of the role.

2. Click Define User Role to assign privileges to the role. Once the privilege assignment is completed,

click Return.

FaceDepot-7BL User Manual

Note: During the privilege assignment, the main menu is on the left and its sub-menus are on the right.

You only need to select the features in sub-menus. If the device has a role enabled, you may assign the

roles you set to users by clicking User Mgt. > New User > User Role.

If no super administrator is registered, the device will prompt "Please enroll super admin first!” after

clicking the enable bar.

FaceDepot-7BL User Manual

5 Communication Settings

The Communication Settings set the parameters of the Network, PC connection, Cloud server, and Wiegand.

Tap COMM. on the main menu.

Network Settings 5.1

When the device needs to communicate with a PC over the Ethernet, you need to configure the network

settings and ensure that the device and the PC are connected to the same network segment.

Click Ethernet on the Comm. Settings interface.

FaceDepot-7BL User Manual

Feature

Description

IP Address

The factory default value is 192.168.1.201. Please adjust them according to

the actual network settings.

Subnet Mask

The factory default value is 255.255.255.0. Please adjust them according to

the actual network settings.

Gateway

The factory default address is 0.0.0.0. Please adjust them according to the

actual network settings.

DNS

The factory default address is 0.0.0.0. Please adjust them according to the

actual network settings.

TCP COMM. Port

The factory default value is 4370. Please adjust them according to the actual

network settings.

DHCP

Dynamic Host Configuration Protocol, which is to dynamically allocate the IP

addresses for clients via server.

Display in Status Bar

To set whether to display the network icon on the status bar.

PC Connection 5.2

To improve the security of data, set a Comm Key for communication between the device and the PC.

If a Comm Key is set, this connection password must be entered before the device can be connected to

the PC software.

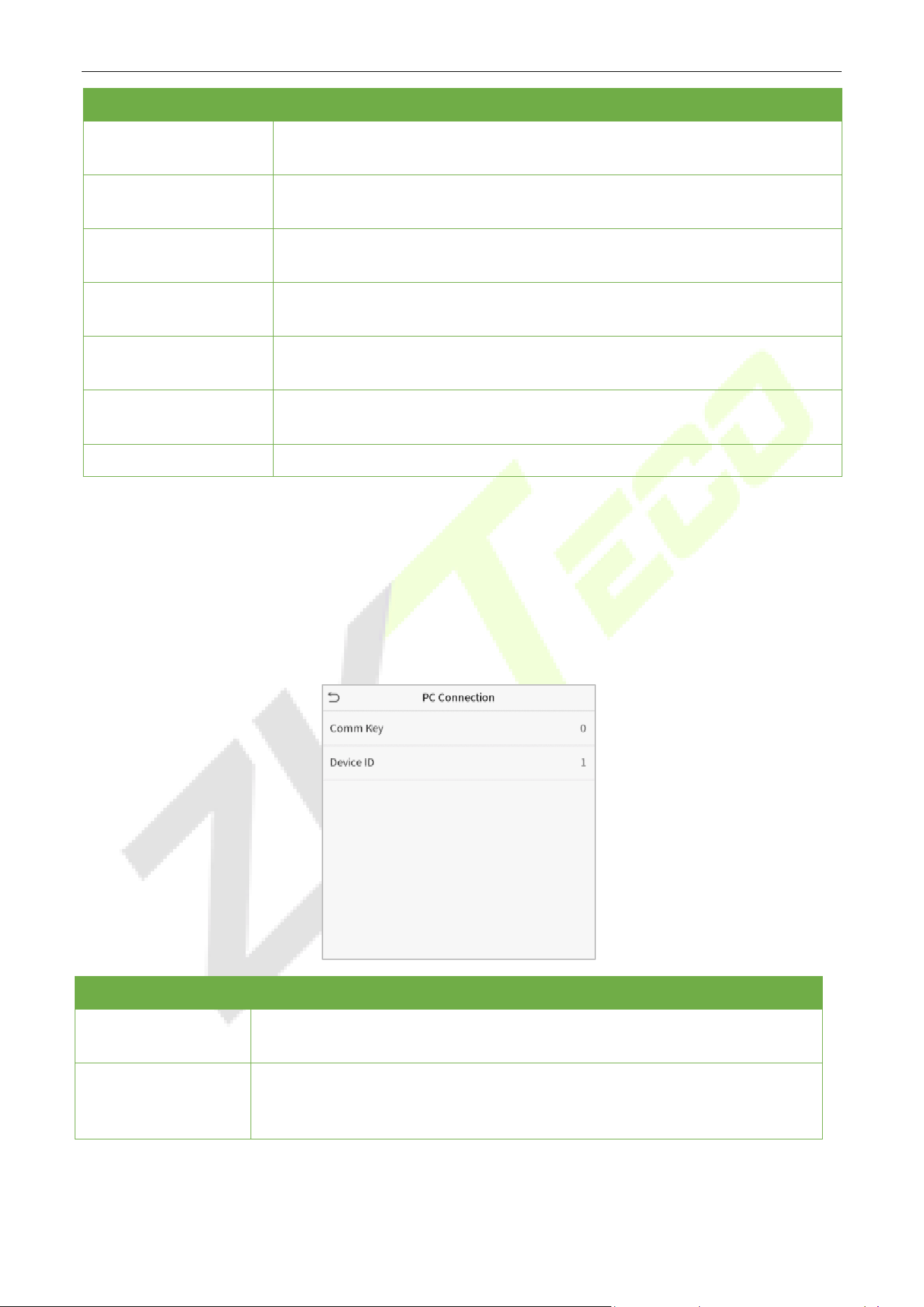

Click PC Connection on the Comm. Settings interface.

Feature

Description

Comm Key

Comm Key: The default password is 0, which can be changed. The Comm Key

may contain1-6 digits.

Device ID

The identity number of the device, which ranges between 1 and 254. If the

communication method is RS232/RS485, you need to enter this device ID in

the software communication interface.

FaceDepot-7BL User Manual

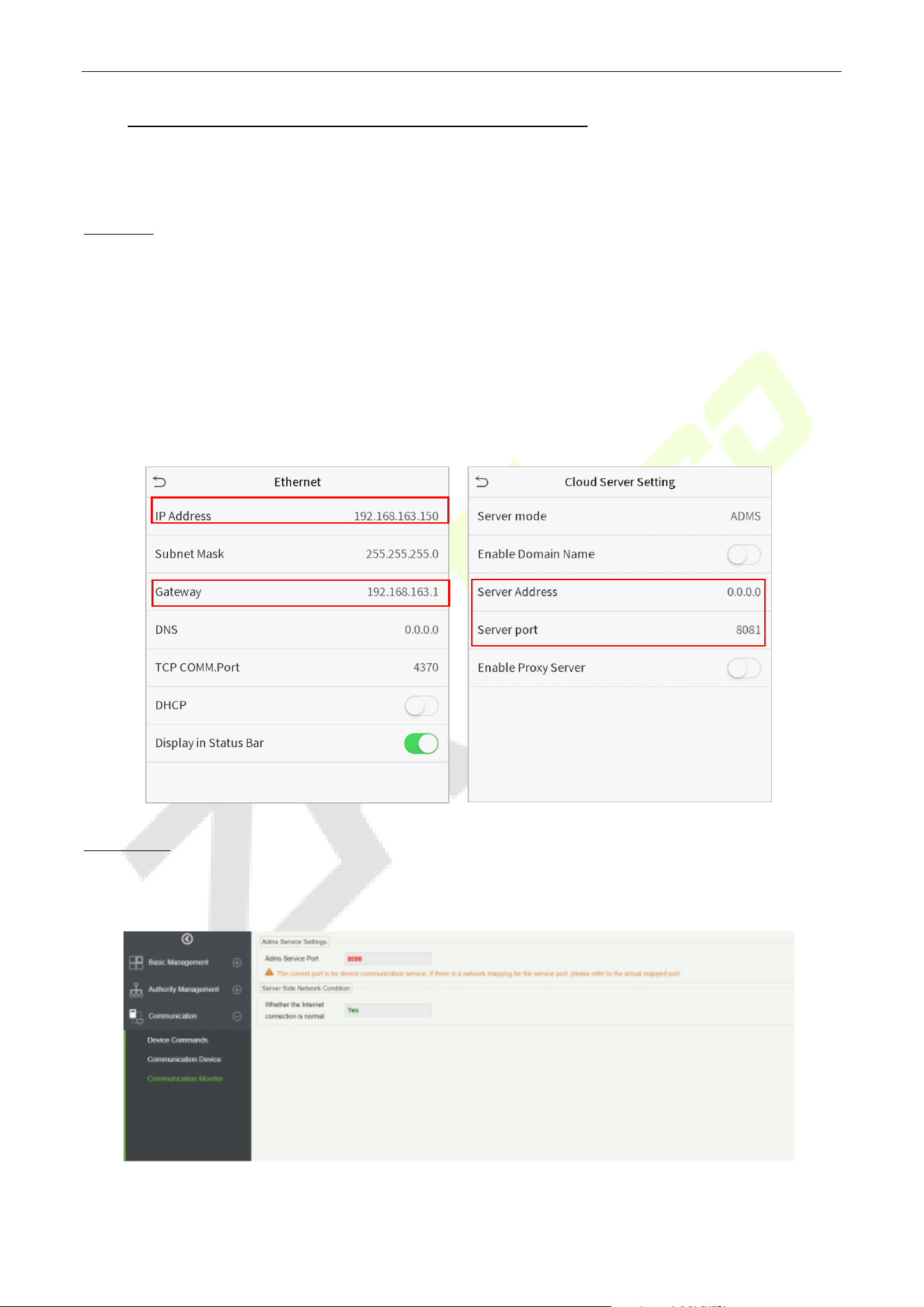

Cloud Server Setting 5.3

This represents settings used for connecting the ADMS server.

Click Cloud Server Setting on the Comm. Settings interface.

Feature

Description

Enable Domain

Name

Server Address

When this function is enabled, the domain name mode “http://...”

will be used, such as http://www.XYZ.com, while “XYZ” denotes

the domain name when this mode is turned ON.

Disable Domain

Name

Server Address

IP address of the ADMS server.

Server Port

Port used by the ADMS server.

Enable Proxy Server

When you choose to enable the proxy, you need to set the IP

address and port number of the proxy server.

HTTPS

To increase the security of browser access, users can enable the

HTTPS protocol to create a secure and encrypted network

transmission and assure the security of sent data through identity

authentication and encrypted communication.

This function is enabled by default. This function can be enabled

or disabled through the menu interface, and when changing the

HTTPS status, the device will pop up a security prompt

, and

restart after confirmation.

FaceDepot-7BL User Manual

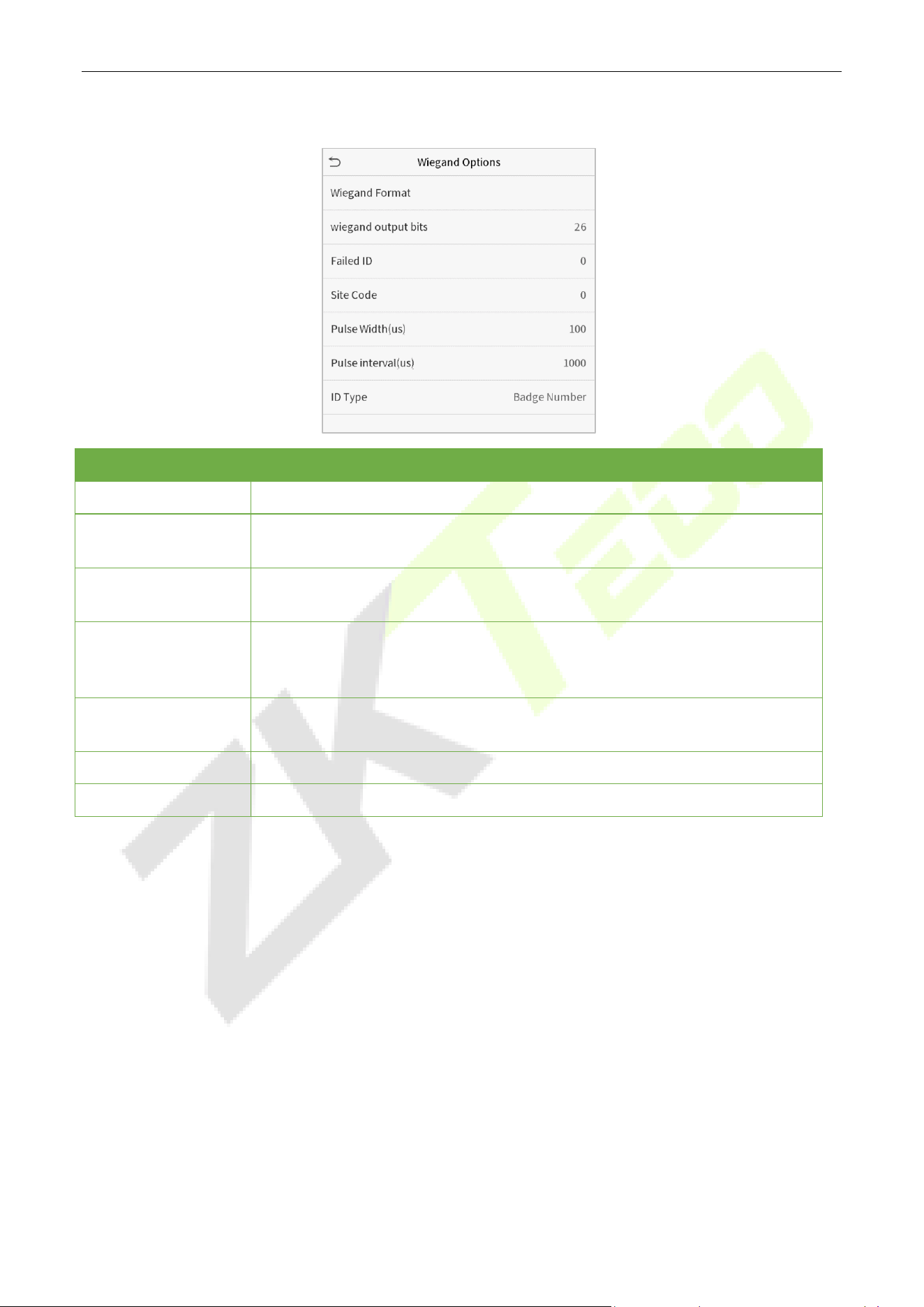

Wiegand Setup 5.4

This feature sets the Wiegand input and output parameters.

Click Wiegand Setup on the Comm. Settings interface.

5.4.1 Wiegand Input

Feature

Description

Wiegand Format

Values range from 26 bits, 34 bits, 36 bits, 37 bits, and 50 bits.

Wiegand Bits

Number of bits of Wiegand data.

Pulse Width(us)

The value of the pulse width sent by the Wiegand data is 100 microseconds by

default, which can be adjusted within the range of 20 to 100 microseconds.

Pulse Interval(us)

The default value is 1000 microseconds, which can be adjusted within the range

of 200 to 20000 microseconds.

ID Type

Selects between the User ID and badge number.

FaceDepot-7BL User Manual

Definitions of various common Wiegand formats:

Wiegand Format

Definition

Wiegand26

ECCCCCCCCCCCCCCCCCCCCCCCCO

Consists of 26 bits of binary code. The 1

bit is the even parity bit of the 2

to 13

bits, while the 26

bit is the odd parity bit of the 14

to 25

bits. The 2

to 25

bits

are the card numbers.

Wiegand26a

ESSSSSSSSCCCCCCCCCCCCCCCCO

Consists of 26 bits of binary code. The 1

bit is the even parity bit of the 2

to 13

bits, while the 26

bit is the odd parity bit of the 14

to 25

bits. The 2

to 9

bits

are the site codes, while the 10

to 25

bits are the card numbers.

Wiegand34

ECCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO

Consists of 34 bits of binary code. The 1

bit is the even parity bit of the 2

to 17

bits, while the 34

bit is the odd parity bit of the 18

to 33

bits. The 2

to 25

bits

are the card numbers.

Wiegand34a

ESSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCO

Consists of 34 bits of binary code. The 1

bit is the even parity bit of the 2

to 17

bits, while the 34

bit is the odd parity bit of the 18

to 33

bits. The 2

to 9

bits

are the site codes, while the 10

to 25

bits are the card numbers.

Wiegand36

OFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCMME

Consists of 36 bits of binary code. The 1

bit is the odd parity bit of the 2

to 18

bits, while the 36

bit is the even parity bit of the 19

to 35

bits. The 2

to 17

bits

are the device codes. The 18

to 33

bits are the card numbers, and the 34

to 35

bits are the manufacturer codes.

Wiegand36a

EFFFFFFFFFFFFFFFFFFCCCCCCCCCCCCCCCCO

Consists of 36 bits of binary code. The 1

bit is the even parity bit of the 2

to 18

bits, while the 36

bit is the odd parity bit of the 19

to 35

bits. The 2

to 19

bits

are the device codes, and the 20

to 35

bits are the card numbers.

Wiegand37

OMMMMSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCE

Consists of 37 bits of binary code. The 1

bit is the odd parity bit of the 2

to 18

bits, while the 37

bit is the even parity bit of the 19

to 36

bits. The 2

to 4

bits

are the manufacturer codes. The 5

to 16

bits are the site codes, and the 21

to 36

bits are the card numbers.

Wiegand37a

EMMMFFFFFFFFFFSSSSSSCCCCCCCCCCCCCCCCO

Consists of 37 bits of binary code. The 1

bit is the even parity bit of the 2

to 18

bits, while the 37

bit is the odd parity bit of the 19

to 36

bits. The 2

to 4

bits

are the manufacturer codes. The 5

to 14

bits are the device codes, and15

to 20

bits are the site codes, and the 21

to 36

bits are the card numbers.

Wiegand50

ESSSSSSSSSSSSSSSSCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO

Consists of 50 bits of binary code. The 1

bit is the even parity bit of the 2

to 25

bits, while the 50

bit is the odd parity bit of the 26

to 49

bits. The 2

to 17

bits

are the site codes, and the 18

to 49

bits are the card numbers.

“C “denotes the card number; “E” denotes the even parity bit; “O” denotes the odd parity bit;

“F“ denotes the facility code; “M” denotes the manufacturer code; “P” denotes the parity bit; and “S”

denotes the site code.

FaceDepot-7BL User Manual

5.4.2 Wiegand Output

Feature

Description

Wiegand Format

Values range from 26 bits, 34 bits, 36 bits, 37 bits, and 50 bits.

Wiegand output bits

After choosing the Wiegand format, you can select one of the corresponding

output digits in the Wiegand format

Failed ID

If the verification is failed, the system will send the failed ID to the device and

replace the card number or Personnel ID with the new ones.

Site Code

It is similar to the device ID. The difference is that a site code can be set manually

and is repeatable in a different device. The valid value ranges from 0 to 256 by

default.

Pulse Width(us)

The time width represents the changes in the quantity of electric charge with

high-frequency capacitance regularly within a specified time.

Pulse Interval(us)

The time interval between the pulses.

ID Type

Selects between the User ID and Badge number.

FaceDepot-7BL User Manual

6 System Settings

The System settings set the related system parameters to optimize the performance of the device.

Click System on the main menu interface.

Date and Time 6.1

Click Date Time on the System interface.

1. The product supports the NTP synchronization time mechanism by default. Tap Date and Time Auto

Sync to enable, and set the corresponding NTP server address link to take effect.

2. If users need to set date and time manually, disable Date and Time Auto Sync first, and then tap

Manual Time Setting to set date and time and tap Confirm to save.

FaceDepot-7BL User Manual

3. Click 24-Hour Time to enable or disable this format and select the date format.

4. Click Daylight Saving Time to enable or disable the function. If enabled, select a daylight-saving

mode and set the switch time.

Week mode Date mode

When restoring the factory settings, the time (24-hour) and date format (YYYY-MM-DD) can be restored,

but the device date and time cannot be restored.

Note: For example, the user sets the time of the device (18:35 on March 15, 2019) to 18:30 on January 1,

2020. After restoring the factory settings, the time of the equipment will remain 18:30 on January 1, 2020.

FaceDepot-7BL User Manual

Access Logs Setting 6.2

Click Access Logs Setting on the System interface.

Feature

Description

Duplicate Punch

Period (m)

Within this time range, the attendance record of the same person will not be

saved for more than once; the valid time range is 1 to 999999 minutes.

Camera Mode

This function is disabled by default. When enabled, a security prompt will pop-

up and the sound of shutter in the camera will turn on mandatorily. There are 5

modes:

No Photo: No photo will be taken during user verification.

Take photo, no save: Photo will be taken but will be

not saved during

verification.

Take photo and save: Photo will be taken and saved during verification.

Save on successful verification: Photo will be

taken and saved for each

successful verification.

Save on failed verification: Photo will be taken and saved for

each failed

verification.

Display User Photo

This function is disabled by default. When enabled, there will be a security

prompt.

Alphanumeric User

Decides whether to support letters in a User ID.

Attendance Log

Alert/ Access Logs

Warning

When the remaining memory space reaches a predefined value, the device will

automatically display a record memory warning. Users may disable the function

or set a valid value between 1 and 9999.

FaceDepot-7BL User Manual

Cyclic Delete ATT

Data/Access Records

When the attendance/access records have reached the full capacity, the device

will automatically delete a set value of old attendance/access records. Users

may disable the function or set a valid value between 1 and 999.

Cyclic Delete ATT


When the attendance photos have reached the full capacity, the device will

automatically delete a set value of old attendance photos. Users may disable

the function or set a valid value between 1 and 99.

Cyclic Delete

Blocklist Photo

When the blocklisted photos have reached full capacity, the device will

automatically delete a set value of old blocklisted photos. Users may disable the

function or set a valid value between 1 and 99.

Confirm Screen

Delay(s)

The time length to display the message of successful verification. The valid

range is 1 to 9 seconds.

Face Detect Interval

(s)

To set the facial template matching time interval as needed. The valid value

range is 0 to 9 seconds.

Face Parameters 6.3

Click Face on the System interface.

Feature

Description

1:N Match Threshold

Under 1:N verification mode, the verification will only be successful when the

similarity between the acquired facial image and all registered facial templates

is greater than the set value.

The valid value ranges from 65 to 120. The higher the thresholds, the lower the

misjudgment rate, the higher the rejection rate, and vice versa. The value 75 is

recommended.

FRR

FAR

Recommended matching

thresholds

1:N

1:1

High

Low

Medium

Low

High

FaceDepot-7BL User Manual

1:1 Match Threshold

Under 1:1 verification mode, the verification will only be successful when the

similarity between the acquired facial image and the facial templates enrolled

in the device is greater than the set value.

The valid value ranges from 55 to 120. The higher the thresholds, the lower the

misjudgment rate, the higher the rejection rate, and vice versa. The value 63 is

recommended.

Face Enrollment

Threshold

During face enrollment, 1:N comparison is used to determine whether the user

has already registered before.

When the similarity between the acquired facial image and all registered facial

templates is greater than this threshold, it indicates that the face has already

been registered.

Face Pitch Angle

The pitch angle is the tolerance of a face for facial registration and comparison.

If a face’s pitch angle exceeds this set value, it will be filtered by the algorithm,

i.e. ignored by the terminal thus no registration and comparison interface will

be triggered.

Face Rotation Angle

The rotation angle is the tolerance of a face for facial template registration and

comparison.

If a face’s rotation angle exceeds this set value, it w

ill be filtered by the

algorithm, i.e. ignored by the terminal thus no r

egistration and comparison

interface will be triggered.

Image Quality

It defines the Image quality for facial registration and comparison. The higher

the value, the clearer the image.

LED Light Triggered

Threshold

This value controls the on and off states of the LED light. The larger the value,

the more frequently the LED light will be turned on.

Motion Detection

Sensitivity

A measurement of the amount of change in a camera’s field of view that

qualifies as potential motion detection that wakes up the terminal from

standby to the comparison interface. The larger the value, the more sensitive

the system would be, i.e. if a larger value is set, the comparison interface can be

easily and frequently triggered.

Live Detection

Detecting a spoof attempt by determining whether the source of a biometric

sample is a live human being or a fake representation using visible light images.

Live Detection

Threshold

Helping to judge whether the visible image comes from an alive body. The

larger the value, the better the visible light anti-spoofing performance.

Save Photo as

Template

This function is enabled by default, and the menu interface supports enabling

or disabling this function, and there is a security prompt when switching. When

this function is disabled, it will indicate that there is a risk reminder: “Face re-

registration is required after an algorithm upgrade.”

Notes

Improper adjustment of the exposure and quality parameters may severely

affect the performance of the device. Please adjust the exposure parameter

only under the guidance of the after-sales service technician of our company.

FaceDepot-7BL User Manual

Palm Parameters

★

6.4

Click Palm on the System interface.

Feature

Description

Palm 1:1 Matching

Threshold

Under 1:1 Verification Method, only when the similarity between the verifying

palm and the user’s registered palm is greater than this value, the verification

will be successful.

Palm 1:N Matching

Threshold

Under 1:N Verification Method, only when the similarity between the verifying

palm and all registered palm is greater than this value, the verification will be

successful.

Fingerprint Parameters★ 6.5

Click Fingerprint on the System interface.

Feature

Descriptions

1:1 Match

Threshold

Under the 1:1 verification method, the verification will only be successful when the

similarity between the acquired fingerprint data and the fingerprint template

associated with the entered user ID enrolled in the device is greater than the set value.

1:N Match

Threshold

Under the 1:N verification method, the verification will only be successful when the

similarity between the acquired fingerprint data and the fingerprint templates enrolled

in the device is greater than the set value.

FRR FAR

Recommended matching

thresholds

1:N

1:1

High

Low

Medium

Low

High

FaceDepot-7BL User Manual

FP Sensor

Sensitivity

Sets the sensibility of fingerprint acquisition. It is recommended to use the default level

“Medium”. When the environment is dry, resulting in slow fingerprint detection, you

can set the level to “High” to raise the sensibility; when the environment is humid,

making it hard to identify the fingerprint, you can set the level to “Low“.

1:1 Retry

Times

In 1:1 Verification, users might forget the registered fingerprint, or press the finger

improperly. To reduce the process of re-entering user ID, retry is allowed.

Fingerprint


This function is disabled by default. After disabling it, the fingerprint image will not be

displayed when registering and verifying fingerprints. The menu interface allows to

enable or disable this function, and there are security prompts when switching. Four

options are available:

Show for enroll: Displays the fingerprint image on the screen only during enrollment.

Show for match: Displays the fingerprint image on the screen only during verification.

Always show: Displays the fingerprint image on the screen during enrollment and

verification.

None: The fingerprint image will not be displayed.

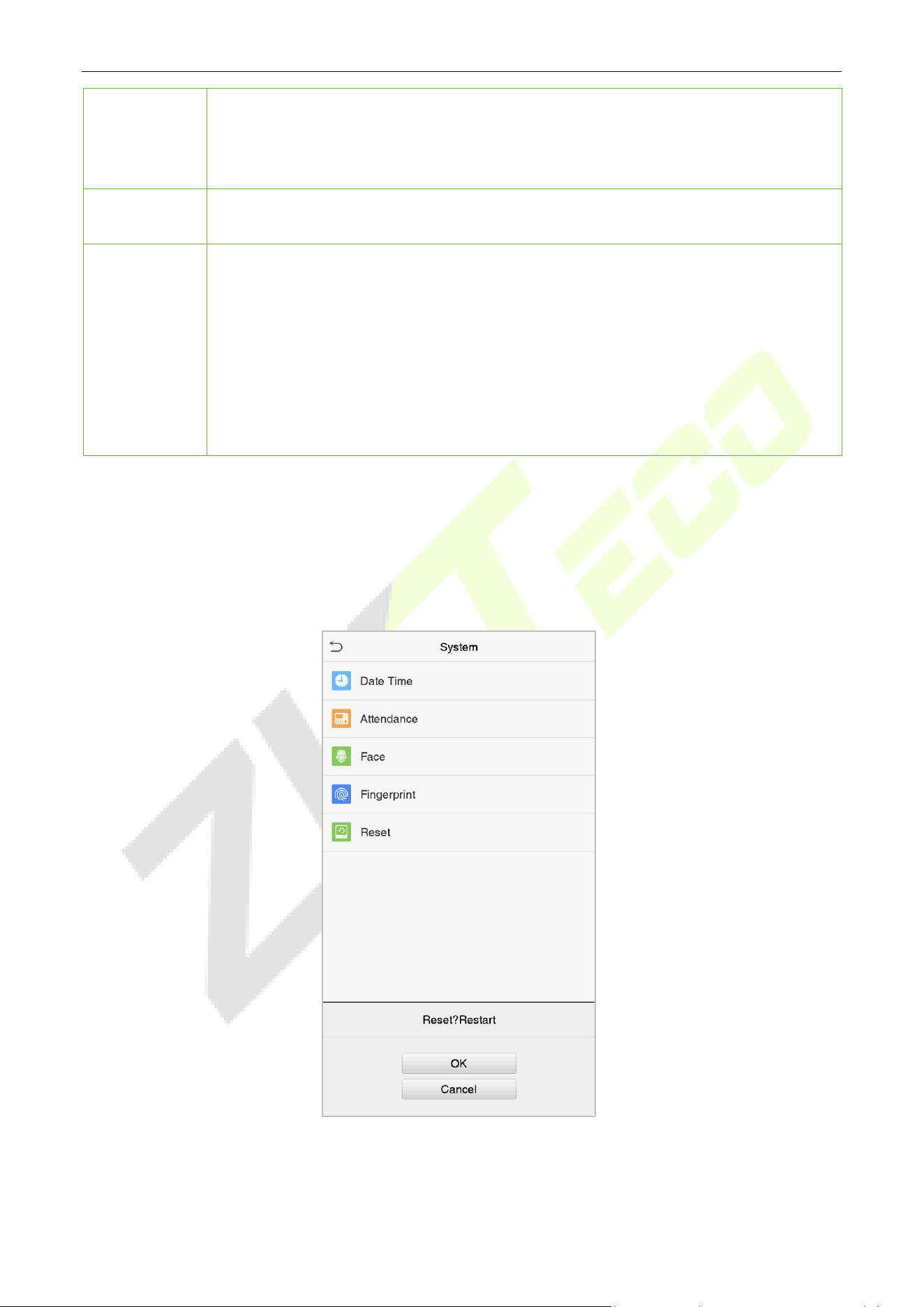

Factory Reset 6.6

This feature restores the device parameters, such as communication settings and system settings, to

factory settings (will not clear registered user data).

Click Reset on the System interface.

Click OK to reset.

FaceDepot-7BL User Manual

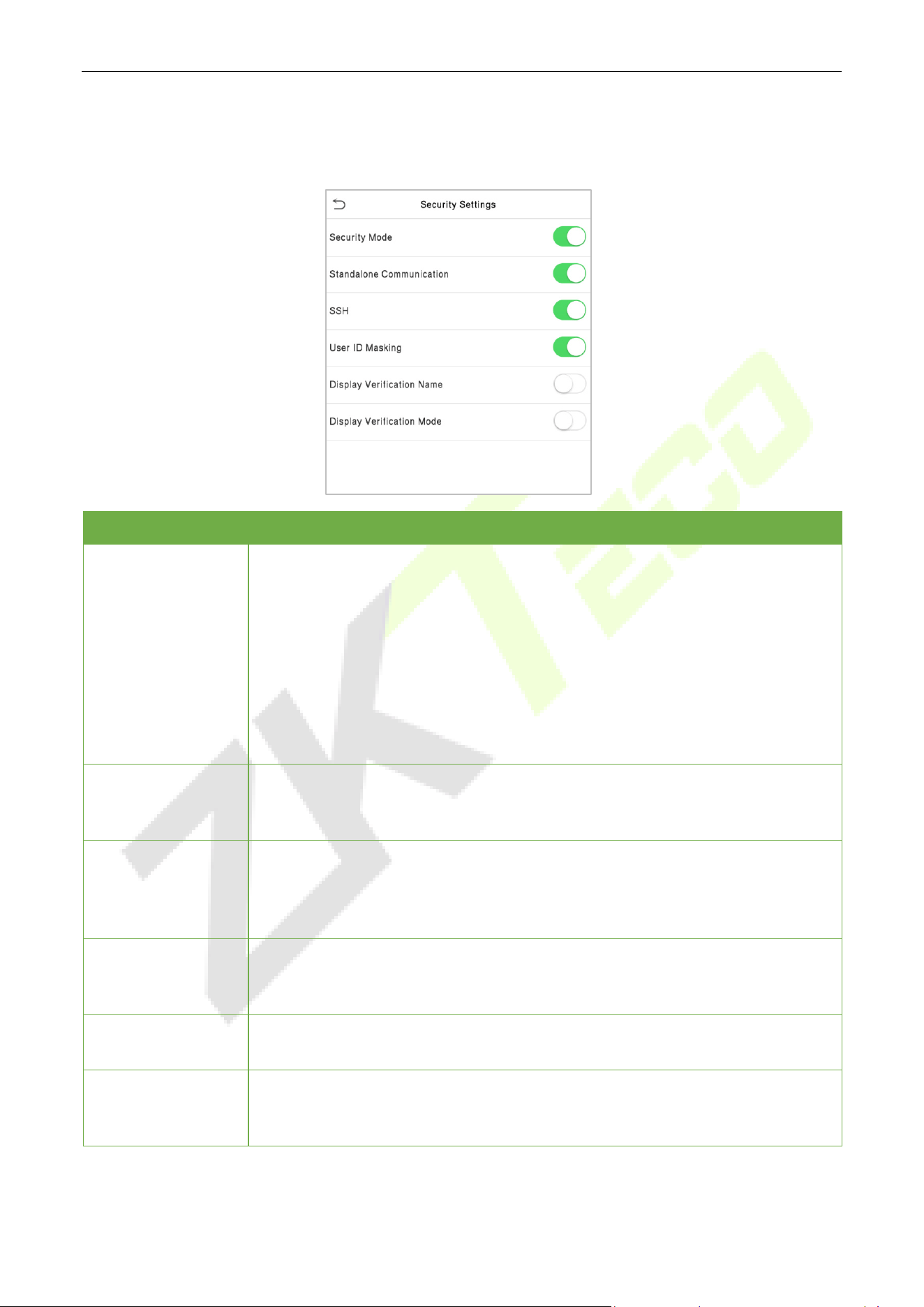

Security Settings 6.7

Tap Security Settings on the System interface.

Function Name

Description

Security Mode

When enabled, user information verification has a high level of security. This

function can be enabled or disabled via the menu interface. When switching on

and off, there are security prompts. All data will be deleted and the device will be

restarted after confirmation.

Note: After turning on the security mode, the product will forcibly enable the

function of returning to the

standby interface when the menu times out by

default (default 60s). It does not support disabling in security mode, but it does

support disabling in non-security mode. To configure, go to Personalize > User

Interface > Menu Screen Timeout(s).

Standalone

Communication

By default, this function is disabled. This function can be enabled or disabled via

the menu interface. When it is switched on, a security prompt appears, and the

device will restart after you confirm.

SSH

The device does not support the Telnet feature, hence SSH is typically used for

remote debugging. By default, SSH is enabled. The menu interface allows you to

enable and disable SSH. When enabled, there will be a security prompt, but the

device will not need to be restarted after confirmation.

User ID Masking

After enabled, the User ID will be partially displayed after the personnel

verification result (only the User ID with more than 2 digits supports the masking

display), and it is enabled by default.

Display

Verification Name

After enabled, the user's name will be displayed after the personnel verification

result. The verification result will not show the name after disabling it.

Display

Verification Mode

After enabled, the personnel verification result will show the user's verification

mode. The verification result will not show the verification mode after you

disable it.

FaceDepot-7BL User Manual

USB Upgrade 6.8

Click USB Upgrade on the System interface.

The device's firmware program can be upgraded with the upgrade file in a USB drive. Before conducting

this operation, please ensure that the USB drive contains the correct upgrade file and is properly inserted

into the device.

FaceDepot-7BL User Manual

7 Personalize Settings

You may customize the interface settings such as voice, bell, punch state options, and shortcut key mappings.

Click Personalize on the main menu interface.

Interface Settings 7.1

You can customize the display style of the main interface.

Click User Interface on the Personalize interface.

FaceDepot-7BL User Manual

Feature

Description

Wallpaper

Selects the main screen wallpaper according to your personal preference.

Language

Selects the language of the device.

Menu Screen

Timeout (s)

When there is no operation, and the time exceeds the pre-set value, the device will

automatically go back to the initial interface. You can disable the function or set

the value between 60 and 99999 seconds.

Idle Time To Slide

Show (s)

When there is no operation, and the time exceeds the pre-set value, a slide show

will be played. It can be disabled, or you may set the value between 3 and 999

seconds.

Slide Show

Interval (s)

This refers to the time interval to switch between different slide show images. The

function can be disabled, or you may set the time interval between 3 and 999

seconds.

Idle Time to Sleep

(m)

If you have activated the sleep mode, when there is no operation, the device will

enter the standby mode. Press any key or finger to resume normal working mode.

You can disable this function or set a value within 1-999 minutes.

Main Screen Style

Selects the main screen style according to your personal preference.

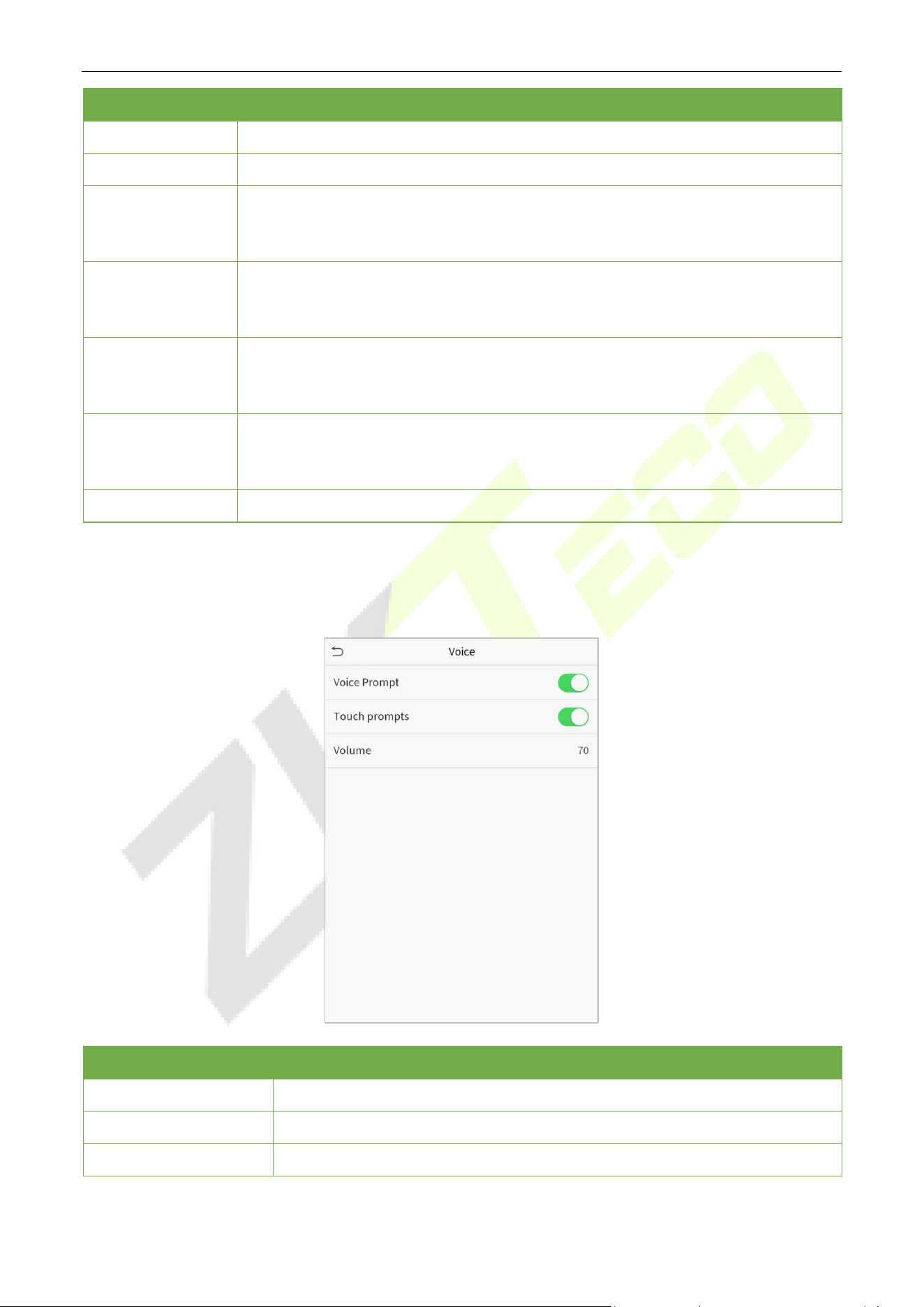

Voice Settings 7.2

Click Voice on the Personalize interface.

Feature

Description

Voice Prompt

Selects whether to enable voice prompts during operating.

Touch Prompt

Selects whether to enable keypad sounds.

Volume

Adjusts the volume of the device. The valid range is 0-100.

FaceDepot-7BL User Manual

Bell Schedules 7.3

Click Bell Schedules on the Personalize interface.

Add a Bell

1. Click New Bell Schedule to open the add interface.

Feature

Description

Bell Status

Sets whether to enable the bell status.

Bell Time

At this time of day, the device automatically rings the bell.

Repeat

Sets the repetition cycle of the bell.

Ring Tone

Selects a ring tone.

Internal bell delay(s)

Sets the duration of the internal bell. The valid value ranges from 1 to 999

seconds.

2. Click All Bell Schedules to view the newly added bell.

Edit a Bell

On the All Bell Schedules interface, tap the bell to be edited and click Edit. The editing method is the

same as the operations of adding a bell.

Delete a Bell

On the All Bell Schedules interface, tap the bell to be deleted and click Delete, and select Yes to delete

the bell.

FaceDepot-7BL User Manual

Punch State Options 7.4

Click Punch State Options on the Personalize interface.

Feature

Description

Punch State

Mode

Selects a punch state mode, which can be:

Off: Disables the punch state key function. The punch state key set under the

Shortcut Key Mappings menu will not work.

Manual Mode: Switches the punch state key manually; the attendance status will

be automatically reset after the timeout.

Auto Mode: The punch state key will switch to a specified status according to the

predefined schedule set under Shortcut Key Mappings.

Manual and Auto Mode: The main interface will display the auto-switch punch

state key. However, users can still select alternative attendance statuses. After the

timeout, the manually switching punch state key will become an auto-switch

punch state key.

Manual Fixed Mode: After the punch state key is manually switched, the punch

state key will remain unchanged until being manually switched again.

Fixed Mode: Only the fixed punch state key will be shown. The u

sers cannot

change their status by pressing other keys.

Punch State

Timeout (s)

The time duration for time out, i.e. remaining inactive in the main menu.

Punch State

Required

Specifies whether an attendance status must be selected during verification.

FaceDepot-7BL User Manual

Shortcut Key Mappings 7.5

Users may define shortcuts for attendance status or functional keys. On the main interface, when the

shortcut keys are pressed, the corresponding attendance status or function interface will be displayed

quickly.

Click Shortcut Key Mappings on the Personalize interface.

1. Click the shortcut key to enter the shortcut key setting interface, and select the function as punch

state key or function key (such as new user, all users, etc.), as shown in the figure below:

2. If the key is defined as a function key, the setting is completed; If set to a punch state key, set the

punch state value (valid value 0~250), the name and switch time.

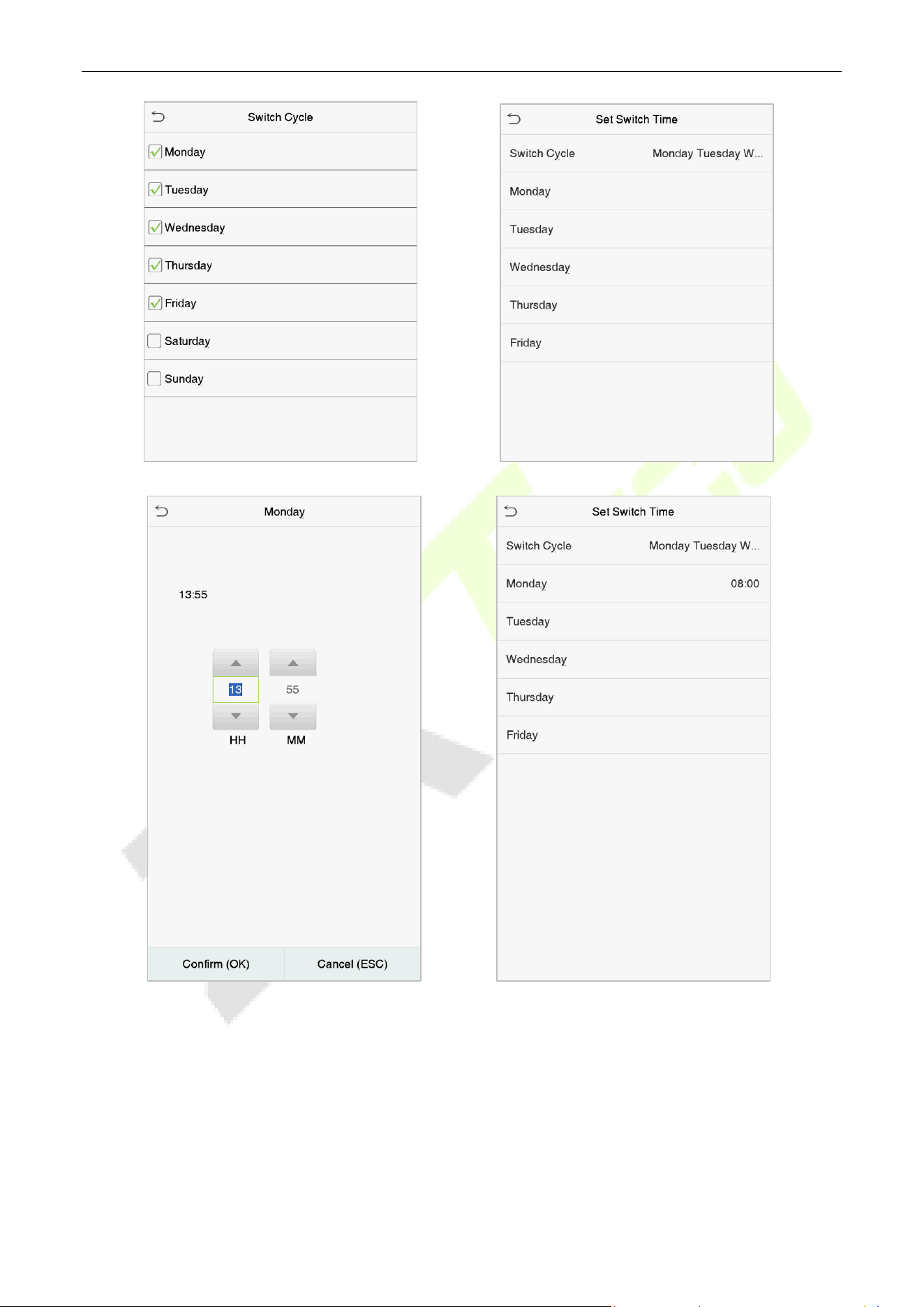

How to set the switch time?

The switch time is used in conjunction with the punch state options. When the punch state mode is set

to auto mode, the switch time should be set. Select the switching period and set the switch time every

day, as shown in the figure below:

FaceDepot-7BL User Manual

Note: When the function is set to undefine, the device will not enable the punch state key.

FaceDepot-7BL User Manual

8 Data Management

The Data Management function is used to delete the relevant data in the device.

Click Data Mgt. on the main menu interface.

Delete Data 8.1

Tap Delete Data on the Data Mgt. interface to delete the required data.

FaceDepot-7BL User Manual

Function Description

Function Name

Description

Delete Access Records

To delete attendance data/access records conditionally.

Delete Attendance Photo

To delete attendance photos of designated personnel.

Delete Blocklist Photo

To delete the photos taken during failed verifications.

Delete All Data

To delete information and attendance logs/access records of all

registered users.

Delete Admin Role

To remove all administrator privileges.

Delete Access Control

To delete all access data.

Delete User Photo

Templates

When deleting template photos, there is a risk reminder: “Face re-

registration is required after an algorithm upgrade.”

Delete Profile Photo

To delete all user photos in the device.

Delete Wallpaper

To delete all wallpapers in the device.

Delete Screen Savers

To delete the screen savers in the device.

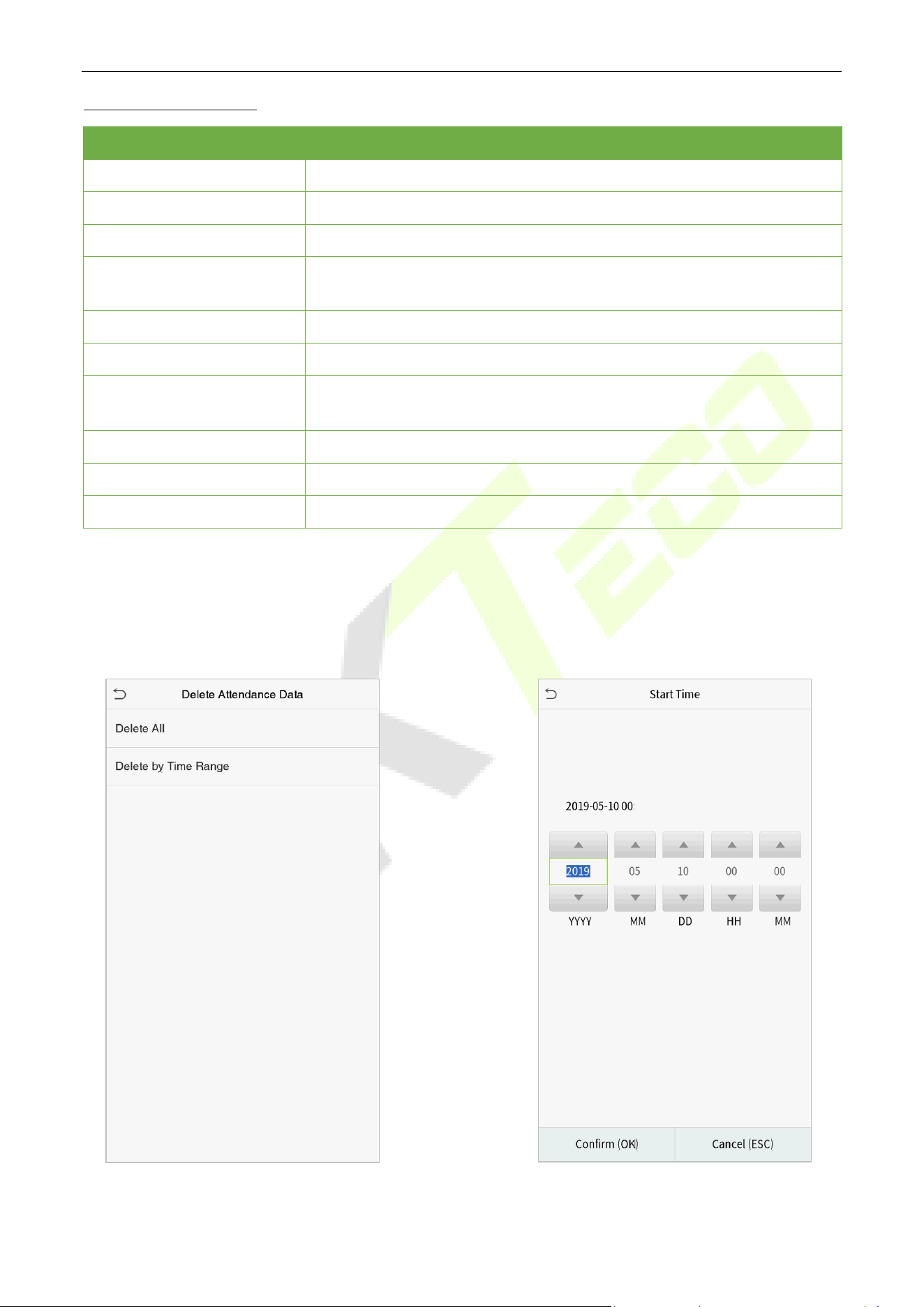

Note: When deleting the attendance data/access records, attendance photos or blocklisted photos, you

may select Delete All or Delete by Time Range. If you select Delete by Time Range, you need to set a

specific time range to delete all the data with the period.

Select Delete by Time Range. Set the time range and click OK.

FaceDepot-7BL User Manual

9 Access Control

The Access Control function is used to schedule the door opening time, locks control and other parameter

settings related to access control.

Click Access Control on the main menu interface.

To obtain access, the following criteria’s must be satisfied:

1. The current door unlock time should be within any valid time zone of the user time period.

2. The user’s group must be in the door unlock combination (when there are other groups in the same

access combination, the verification of members of those groups are also required to unlock the

door).

In default settings, the new users are allocated into the first group with the default group time zone and

access combination as “1“ and set to an unlocking state.

FaceDepot-7BL User Manual

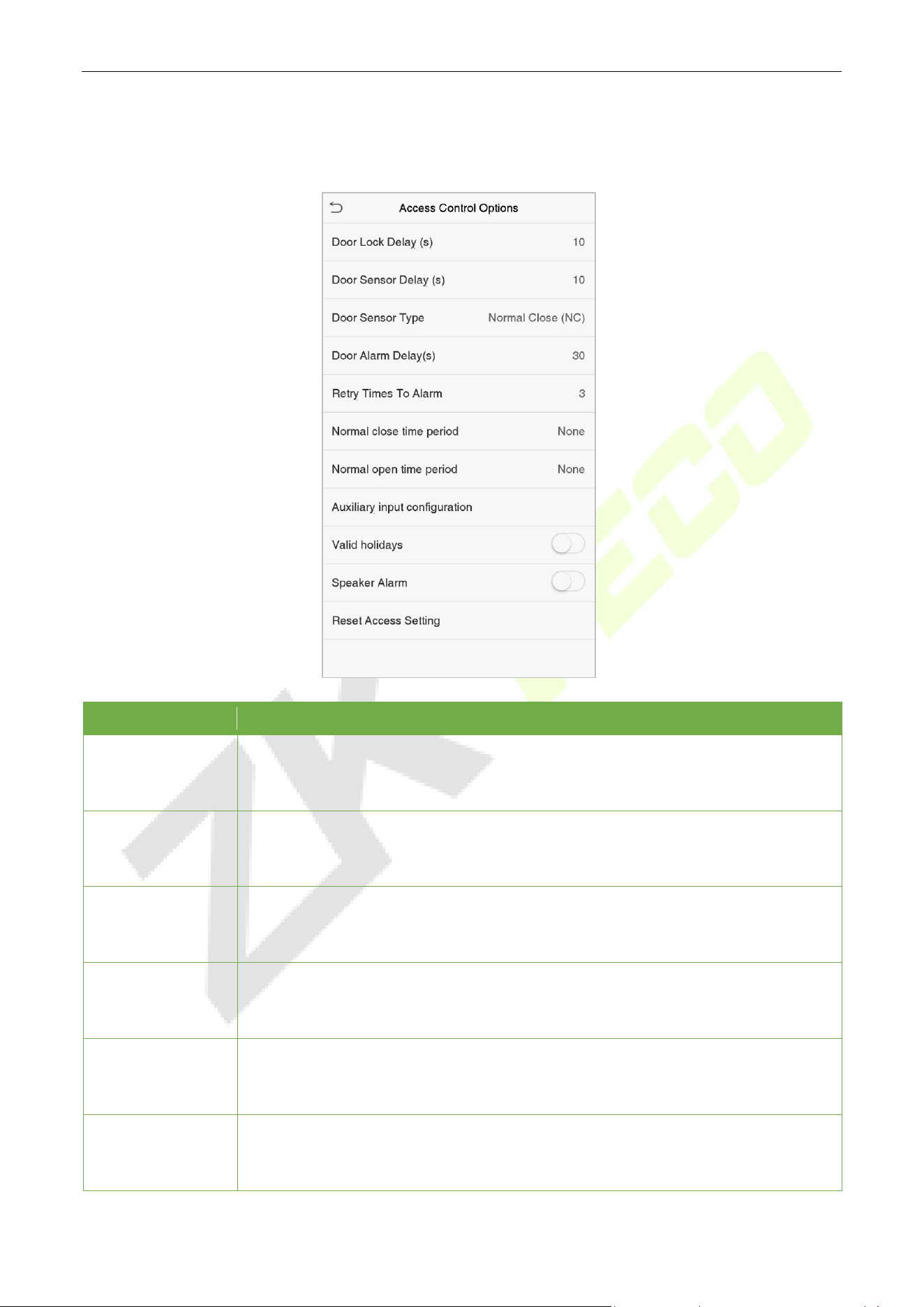

Access Control Options 9.1

To set the parameters of the access control, click Access Control Options on the Access Control interface.

Feature

Description

Gate control

mode

★

This feature decides whether to turn on the gate control mode or not. When set to

ON, this interface will remove the Door lock relay, Door sensor relay, and Door

sensor type function.

Door Lock Delay

(s)

The length of time that the device controls the electric lock to be unlocked. The

valid time range is 1 to 10 seconds; 0 second represents that

the function is

disabled.

Door Sensor

Delay (s)

If the door is not closed and locked after opening for a certain duration (Door Sensor

Delay), an alarm will be triggered. The valid range of Door Sensor Delay is 1 to 255

seconds.

Door Sensor Type

There are three types: None, Normal Open, and Normal Close. None means the door

sensor is not in use; Normal Open means the door is always opened when electricity is

on; Normal Close means the door is always closed when electricity is on.

Door Alarm Delay

(s)

When the state of the door sensor is inconsistent with that of the door sensor type, an

alarm will be triggered after a specific time period, i.e. the Door Alarm Delay. The valid

value ranges from 1 to 999 seconds. 0 indicates an immediate alarm.

Retry Times to

Alarm

When the number of failed verifications reaches a predefined value, which ranges

from 1 to 9 times, an alarm will be triggered. If the value is set as “None”, the alarm

will never be triggered due to failed verifications.

FaceDepot-7BL User Manual

Door available

time period

★

This function sets the time period for the door so that the door is available only

during this time period.

Normal Close

Time Period

Time period is scheduled for the “Normal Close” mode so that no one can gain

access during this period.

Normal Open

Time Period

Time period is scheduled for the “Normal Open” mode so that the door is always

unlocked during this period.

Master device

★

When setting up the Master and Slave, the status of the master can be set to out or

in.

Out: The record verified on the host is the exit record.

In: The record verified on the host is the entry record.

Auxiliary input

configuration

Set the door unlock time period and auxiliary output type of the auxiliary device.

Auxiliary output types include None, Trigger door open, Trigger Alarm, Trigger

door open and Alarm.

Valid holidays

To set if Normal Close Period or Normal Open Period settings are valid during the

holiday time period. Choose ON to enable the functions during a holiday.

Speaker Alarm

To transmit a sound alarm or disable the alarm from the local. When the door is

closed or the verification is successful, the system will cancel the alarm from the

local.

Reset Access

Setting

The restored access control parameters include door lock delay, door sensor delay,

door sensor type, normal close time period, normal open time period, auxiliary

input configuration and alarm. However, the access control data in Data Mgt. is

excluded.

FaceDepot-7BL User Manual

Time Schedule 9.2

The entire system can define up to 50 time periods. Each time period represents seven time zones, i.e. one

week, and each time zone is a valid time period within 24 hours per day. User can only verify within the

valid time period. Each time zone format of the time period is HH MM-HH MM, which is accurate to

minutes according to the 24-hour clock.

Click Time Schedule on the Access Control interface.

1. Click the grey box to search for a time zone. Enter the number of time zone (maximum: 50 zones).

FaceDepot-7BL User Manual

2. Click the date on which time zone settings is required. Enter the starting and ending time, and then

press OK.

Note:

1. When the ending time is earlier than the starting time, such as 23:57~23:56, it indicates that access is

prohibited all day; when the ending time is later than the starting time, such as 00:00~23:59, it

indicates that the interval is valid.

2. The effective time period to unlock the door is open all day (00:00~23:59) or when the ending time is

later than the starting time, such as 08:00~23:59.

3. The default time zone 1 indicates that the door is open all day long.

FaceDepot-7BL User Manual

Holiday Settings 9.3

Whenever there is a holiday, you may need a special access time; but changing everyone's access time

one by one is extremely cumbersome. So, you can set a holiday access time which applies to all the

employees, and the user will be able to open the door during the holidays.

Click Holidays on the Access Control interface.

Add a New Holiday

Click Add Holiday on the Holidays interface and set the holiday parameters.

Edit a Holiday

On the Holiday interface, select a holiday to be modified. Click Edit to modify the holiday parameters.

Delete a Holiday

On the Holidays interface, select a holiday to be deleted and click Delete. Click OK to confirm the deletion.

After deletion, this holiday is no longer displayed on All Holidays interface.

FaceDepot-7BL User Manual

Access Groups 9.4

The Access Groups easily manage the users in different access groups. The Access Group settings such as

access time zones are applicable to all the members in the group by default. However, users may

manually set the time zones as needed. User authentication takes precedence over group authentication

when the group authentication modes overlap with the individual authentication methods. Each group

can set a maximum of three time zones. By default, newly enrolled users are assigned to Access Group 1;

they can also be assigned to other access groups.

Click Access Groups on the Access Control interface.

Add a New Group

Click New Group on the Access Groups interface and set the access group parameters.

Note:

1. There is a default access group numbered 1, which cannot be deleted but can be modified.

2. A number cannot be modified after being set.

3. When the holiday is set to be valid, personnel in a group may only open the door when the group

time zone overlaps with the holiday time period.

4. When the holiday is set to be invalid, the access control time of the personnel in a group is not

affected during holidays.

FaceDepot-7BL User Manual

Edit a Group

On the All Groups interface, select the access group item to be modified. Click Edit and modify the access

group parameters.

Delete a Group

On the All Groups interface, select the access group item to be deleted and click Delete. Click OK to

confirm the deletion. The deleted access group is no longer displayed in All Groups.

Combined Verification Settings 9.5

Access groups are arranged into different door-unlocking combinations to achieve multiple verifications

and strengthen security.

In a door-unlocking combination, the range of the combined number N is 0 ≤ N ≤ 5, and the number of

members N may all belong to one access group or may belong to five different access groups.

Click Combined Verification on the Access Control interface.

Click the door-unlocking combination to be set. Click the up and down arrows to enter the combination

number, then press OK.

Examples:

The door-unlocking combination 1 is set as (01 03 05 06 08), indicating that the unlocking combination 1

consists of 5 people, and the 5 individuals are from 5 groups, namely, access control group 1 (AC group 1),

AC group 3, AC group 5, AC group 6, and AC group 8, respectively.

FaceDepot-7BL User Manual

The door-unlocking combination 2 is set as (02 02 04 04 07), indicating that the unlocking combination 2

consists of 5 people; the first two are from AC group 2, the next two are from AC group 4, and the last

person is from AC group 7.

The door-unlocking combination 3 is set as (09 09 09 09 09), indicating that there are 5 people in this

combination; all of which are from AC group 9.

The door-unlocking combination 4 is set as (03 05 08 00 00), indicating that the unlocking combination 4

consists of three people. The first person is from AC group 3, the second person is from AC group 5, and

the third person is from AC group 8.

Delete a Door-unlocking Combination

Set all the group number as 0 if you want to delete the door-unlocking combinations.

Duress Options Settings 9.6

If a user activated the duress verification function with a specific authentication method(s), when he/she

is under threat during authentication with such a method, the device will unlock the door as usual, but at

the same time, a signal will be sent to trigger the alarm.

Click Duress Options on the Access Control interface.

Feature

Description

Alarm on 1:1 Match

When a user uses any fingerprint to perform the 1:1 verification, an alarm signal

will be generated, otherwise, there will be no alarm signal.

Alarm on 1:N Match

When a user uses any fingerprint to perform 1:N verification, an alarm signal will

be generated, otherwise, there will be no alarm signal.

Alarm on Password

When a user uses the password verification method, an alarm signal will be

generated, otherwise, there will be no alarm signal.

Alarm Delay (s)

Alarm signal will not be transmitted until the alarm delay time is elapsed. The

value ranges from 1 to 999 seconds.

Duress Password

★

Initially, the user sets the 6-digit duress password. When the user enters this

duress password for verification, an alarm signal will be generated.

FaceDepot-7BL User Manual

10 USB Manager

You can download the user information, access data and other data to a USB drive for further processing.

Before uploading or downloading data from or to the USB drive, insert the USB drive into the USB slot first.

Click the USB Manager on the main menu interface.

Download 10.1

Feature

Description

Download access

records

Downloads the access data within a specified time period or all the data to a USB

drive

User Data

Downloads all the

user information from the device to a USB drive

User Portrait

Downloads all the user images from the device to a USB drive

Attendance


Downloads the attendance photos stored in the device within a specified time period

or all the attendance photos from the device to a USB drive. The default image

format is JPG

Blocklist Photo

Downloads the blocklisted photos taken after failed verifications within a specified

time period or all the pictures taken after failed verifications from the device to a USB

drive

FaceDepot-7BL User Manual

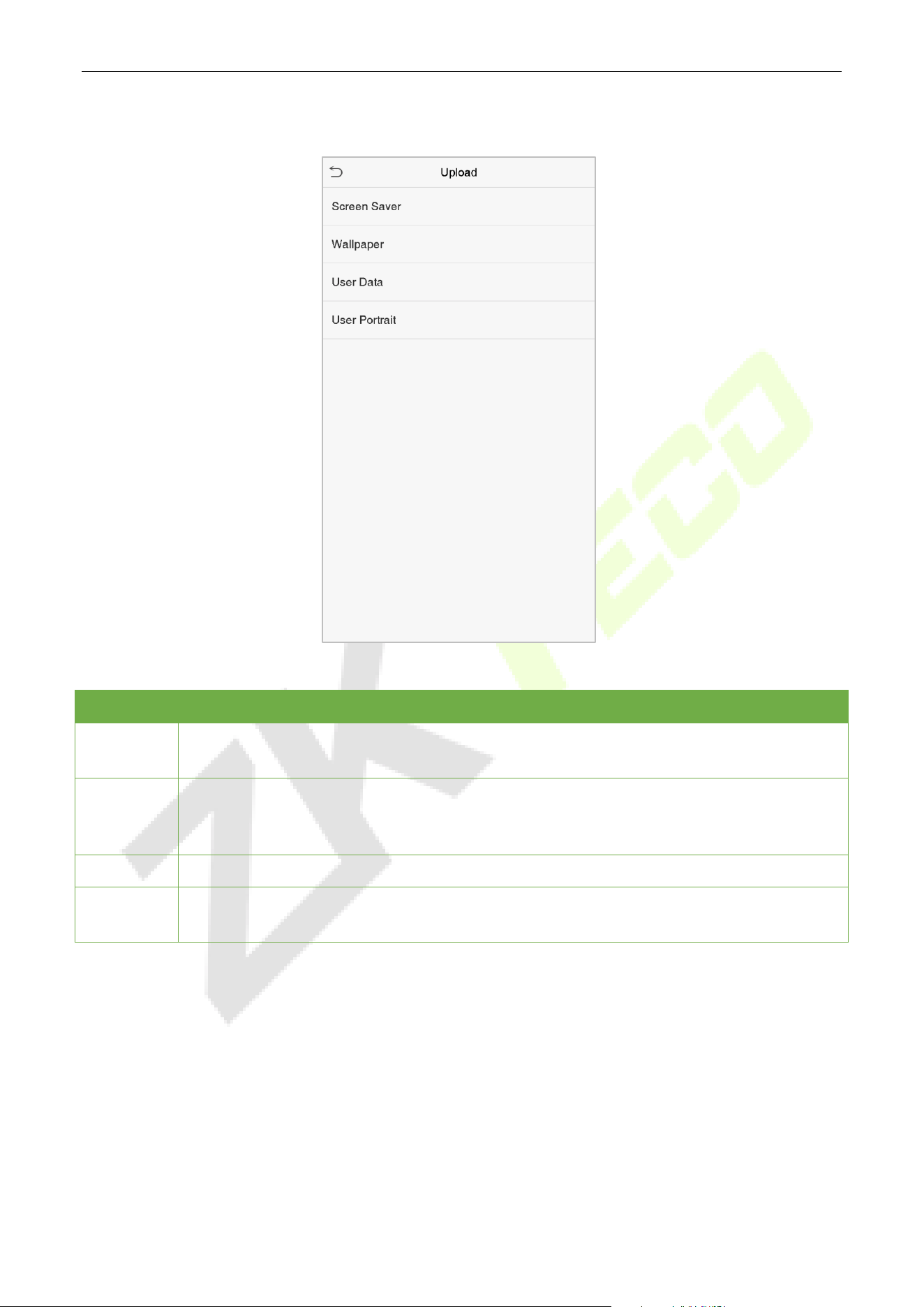

Upload 10.2

Feature

Description

Screen

Saver

Uploads a screen saver from a USB drive to the device. Before uploading, you may select

Upload selected picture or Upload all pictures.

Wallpaper

Uploads a wallpaper from a USB drive to the device. Before uploading, you may select

Upload selected picture or Upload all pictures. The images will be displayed on the

screen after manual settings.

User Data

Uploads all the user information from a USB drive to the device.

User

Portrait

Uploads a JPG picture named with a user ID from a USB drive to the device. Before

uploading, you may select Upload Current Picture or Upload All Pictures.

FaceDepot-7BL User Manual

11 Attendance Search

When the identity of a user is verified, the attendance record will be saved in the device. This function

enables users to check their attendance records.

Click Attendance Search on the main menu interface.

The process of searching attendance and blocklist photos is similar to search the access records. The

following is an example of searching for access records.

On the Attendance Search interface, click Access Records.

1. Enter the user ID to be searched and click OK.

Select the time range in which the records

you want to search for.

2. If you want to search the records of all users,

click OK without entering any user ID.

FaceDepot-7BL User Manual

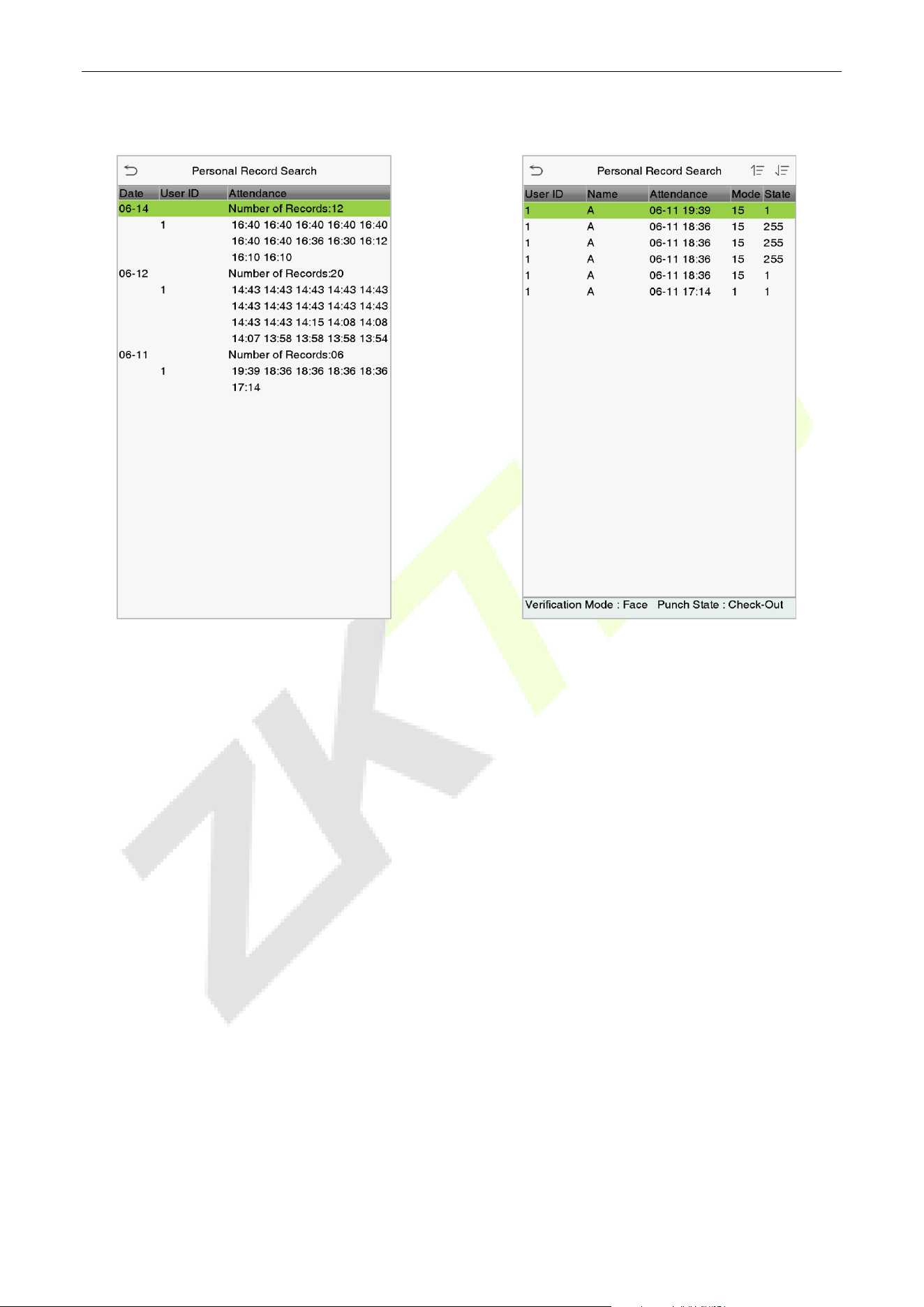

3. Click the record list in green to view its

details.

4. The below figure shows the details of the

selected record.

FaceDepot-7BL User Manual

12 Autotest

The Autotest feature is used to automatically test whether all the modules in the device function properly,

including LCD, Voice, Fingerprint sensor★, Camera and real-time clock (RTC).

Click Autotest on the main menu interface.

Feature

Description

Test All

To automatically test whether the LCD, Audio, Camera, and RTC are normal.

Test LCD

To automatically test the display effect of LCD screen by displaying full-color, pure

white, and pure black to check whether the screen displays the colors normally.

Test Voice

To automatically test whether the audio files stored in the device are complete

and the voice quality is good.

Test Fingerprint

Sensor

★

To test the fingerprint sensor by pressing a finger on the scanner to check if the

acquired fingerprint image is clear. When you are pressing a finger on the scanner,

the fingerprint image will display on the screen.

Camera testing

To test if the camera functions properly by checking the pictures taken to see if

they are clear enough.

Test Clock RTC

To test whether the clock works normally and accurately with a stopwatch. Touch

the screen to start counting and press it again to stop counting.

FaceDepot-7BL User Manual

13 System Information

In the system information option, you can view the storage status, version information of the device, and

so on.

Click System Info on the main menu interface.

Feature

Description

Device

Capacity

Displays the current device's user storage, palm

★

, password, fingerprint★ and face

storage, Administrator details, Access records, attendance and blocklist photos, and

user photos.

Device Info

Displays the Device's name, Serial number, MAC address, Face algorithm version

information, Platform information, and manufacturer details.

Firmware Info

Displays the firmware version and other version information of the device.

The privacy policy control will appear when the gadget turns on for the first time.

After clicking "I have read it," the customer can use the product regularly. Click

System Info -> Privacy Policy to view the content of the privacy policy. The privacy

policy's content does not allow for U disc export.

Note: The current privacy policy's text is only available in Simplified Chinese/English.

However, translation of other multi-language content is unde

rway, with more

iterations.

FaceDepot-7BL User Manual

14 Connection to ZKBioSecurity Software

Set the Communication Address 14.1

In Device

Click COMM. > Ethernet in the main menu to set the IP address and Gateway of the device. (Note: The IP

address should be able to communicate with the ZKBioSecurity Server, preferably in the same network

segment with the Server address)

In the main menu, click COMM. > Cloud Server Setting to set the Server address and Server port.

Server Address: Set the IP address of the ZKBioSecurity Server.

Server Port: Set the Server port of ZKBioSecurity (The default is 8088).

In Software

ADMS service port, as shown in the figure below:

FaceDepot-7BL User Manual

Add a Device to the Software 14.2

You can add a device by the searching process. The procedure is as follows:

1. Click Access Control > Device > Search Device to open the Search interface.

2. Click Search, and it will prompt Searching…….

3. After searching, the list and the total number of access controllers will be displayed.

4. Click Add to add the required device.

FaceDepot-7BL User Manual

Add Personnel on the Software 14.3

1. Click Personnel > Person > New to add new personnel.

2. After setting all the parameters, click OK.

Note: For other specific operations, please refer ZKBioSecurity User Manual.

FaceDepot-7BL User Manual

Appendix 1

Requirements of Live Collection and Registration of Visible Light Face

Templates

1) It is recommended to perform registration in an indoor environment with an appropriate light

source without underexposure or overexposure on the face.

2) Do not place the device towards outdoor light sources like door or window or other harsh light

sources.

3) Dark-color apparels other than the background color are recommended for registration.

4) Expose your face and forehead properly and do not cover your face and eyebrows with your hair.

5) It is recommended to show a normal facial expression. (A smile is acceptable, but do not close

your eyes, or incline your head to any orientation).

6) Two images are required for persons with eyeglasses, one image with eyeglasses and one other

without them.

7) Do not wear accessories like scarf or mask that may cover your mouth or chin.

8) Please face right towards the capturing device and locate your face in the image capturing area as

shown in the image below.

9) Do not include more than one face in the capturing area.

10) A distance of 50cm to 80cm is recommended for capturing the image. (the distance is adjustable,

subject to body height).

FaceDepot-7BL User Manual

Requirements for Visible Light Digital Face Template Data

The digital photo should be straight-edged, coloured, half-portrayed with only one person, and the person

should be uncharted and in casuals. Persons who wear eyeglasses should remain to put on eyeglasses for

getting photos captured.

 Eye Distance

200 pixels or above are recommended with no less than 115 pixels of distance.

 Facial Expression

A neutral face or smile with eyes naturally open are recommended.

 Gesture and Angel

The horizontal rotating angle should not exceed ±10°, elevation should not exceed ±10°, and depression

angle should not exceed ±10°.

 Accessories

Masks or coloured eyeglasses are not allowed. The frame of the eyeglasses should not cover the eyes and

should not reflect light. For persons with thick eyeglasses frames, it is recommended to capture two

images, one with eyeglasses and the other one without them.

 Face

Complete face with clear contour, real scale, evenly distributed light, and no shadow.

 Image Format

Should be in BMP, JPG or JPEG.

 Data Requirement

Should comply with the following requirements:

1) White background with dark-coloured apparel.

2) 24bit true color mode.

3) JPG format compressed image with not more than 20kb size.

4) Resolution should be between 358 x 441 to 1080 x 1920.

5) The vertical scale of head and body should be in a ratio of 2:1.

6) The photo should include the captured person’s shoulders at the same horizontal level.

7) The captured person’s eyes should be open and with clearly seen iris.

8) A neutral face or smile is preferred, showing teeth is not preferred.

9) The captured person should be easily visible, natural in color, no harsh shadow or light spot or

reflection in the face or background. The contrast and lightness level should be appropriate.

FaceDepot-7BL User Manual

Appendix 2

Notice:

To help you better use the products and services of ZKTeco and its affiliates, hereinafter referred as

"we", "our", or "us", the smart service provider, we consistently collect your personal information.

Since we understand the importance of your personal information, we took your privacy sincerely

and we have formulated this privacy policy to protect your personal information. We have listed the

privacy policies below to precisely understand the data and privacy protection measures related to

our smart products and services.

Before using our products and services, please read carefully and understand all the rules and

provisions of this Privacy Policy. If you do not agree to the relevant agreement or any of its

terms, you must stop using our products and services.

I. Collected Information

To ensure the normal product operation and help the service improvement, we will collect the

information voluntarily provided by you or provided as authorized by you during registration

and use or generated as a result of your use of services.

1. User Registration Information: At your first registration, the feature template (Fingerprint

template/Face template/Palm template) will be saved on the device according to the

device type you have selected to verify the unique similarity between you and the User ID

you have registered. You can optionally enter your Name and Code. The above information

is necessary for you to use our products. If you do not provide such information, you cannot

use some features of the product regularly.

2. Product information: According to the product model and your granted permission when

you install and use our services, the related information of the product on which our services

are used will be collected when the product is connected to the software, including the

Product Model, Firmware Version Number, Product Serial Number, and Product Capacity

Information. When you connect your product to the software, please carefully read the

II. Product Security and Management

1. When you use our products for the first time, you shall set the Administrator privilege

before performing specific operations. Otherwise, you will be frequently reminded to set

the Administrator privilege when you enter the main menu interface. If you still do not set

the Administrator privilege after receiving the system prompt, you should be aware of

the possible security risk (for example, the data may be manually modified).

FaceDepot-7BL User Manual

2. All the functions of displaying the biometric information are disabled in our products by

default. You can choose Menu > System Settings to set whether to display the biometric

information. If you enable these functions, we assume that you are aware of the personal

privacy security risks specified in the privacy policy.

3. Only your user ID is displayed by default. You can set whether to display other user

verification information (such as Name, Department, Photo, etc.) under the Administrator

privilege. If you choose to display such information, we assume that you are aware of

the potential security risks (for example, your photo will be displayed on the device

interface).

4. The camera function is disabled in our products by default. If you want to enable this

function to take pictures of yourself for attendance recording or take pictures of strangers

for access control, the product will enable the prompt tone of the camera. Once you enable

this function, we assume that you are aware of the potential security risks.

5. All the data collected by our products is encrypted using the AES 256 algorithm. All the data

uploaded by the Administrator to our products are automatically encrypted using the AES

256 algorithm and stored securely. If the Administrator downloads data from our products,

we assume that you need to process the data and you have known the potential security

risk. In such a case, you shall take the responsibility for storing the data. You shall know that

some data cannot be downloaded for sake of data security.

6. All the personal information in our products can be queried, modified, or deleted. If you no

longer use our products, please clear your personal data.

III. How we handle personal information of minors

Our products, website and services are mainly designed for adults. Without consent of parents or

guardians, minors shall not create their own account. If you are a minor, it is recommended that

you ask your parents or guardian to read this Policy carefully, and only use our services or

information provided by us with consent of your parents or guardian.

We will only use or disclose personal information of minors collected with their parents' or

guardians' consent if and to the extent that such use or disclosure is permitted by law or we have

obtained their parents' or guardians' explicit consent, and such use or disclosure is for the purpose

of protecting minors.

Upon noticing that we have collected personal information of minors without the prior consent

from verifiable parents, we will delete such information as soon as possible.

IV. Others

You can visit https://www.zkteco.com/cn/index/Index/privacy_protection.html

to learn more

about how we collect, use, and securely store your personal information. To keep pace with the

rapid development of technology, adjustment of business operations, and to cope with customer

needs, we will constantly deliberate and optimize our privacy protection measures and policies.

Welcome to visit our official website at any time to learn our latest privacy policy.

FaceDepot-7BL User Manual

Eco-friendly Operation

The product's "eco-friendly operational period" refers to the time during which this product

will not discharge any toxic or hazardous substances when used in accordance with the

prerequisites in this manual.

The eco-friendly operational period specified for this product does not include batteries or

other components that are easily worn down and must be periodically replaced. The

battery's eco-friendly operational period is 5 years.

Hazardous or Toxic substances and their quantities

Component

Name

Hazardous/Toxic Substance/Element

Lead (Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr6+)

Polybrominated

Biphenyls (PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Chip Resistor

○ ○ ○ ○ ○

Chip Capacitor

○ ○ ○ ○ ○

Chip Inductor

○ ○ ○ ○ ○

Diode

○ ○ ○ ○ ○

ESD

component

○ ○ ○ ○ ○

Buzzer

○ ○ ○ ○ ○

Adapter

○ ○ ○ ○ ○

Screws

○ ○ ○

○ ○

○ indicates that the total amount of toxic content in all the homogeneous materials is below the limit

as specified in SJ/T 11363—2006.

× indicates that the total amount of toxic content in all the homogeneous materials exceeds the limit

as specified in SJ/T 11363—2006.

Note: 80% of this product’s components are manufactured using non-toxic and eco-friendly

materials. The components which contain toxins or harmful elements are included due to the current

economic or technical limitations which prevent their replacement with non-

toxic materials or

elements.

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394
