INSTALLATION/OWNER'S MANUAL

Marine Speakers

DMP/DMS Series

DMP670

DMS365

DMS369

Safety Precautions

• Topreventinjuryanddamagetotheunit,pleasereadandfollowtheinstructionsin

thismanual.

• Ifyoufeelunsureaboutinstallingthissystemyourself,haveitinstalledbyaqualified

audiotechnician.

• Beforeinstallation,disconnectthebatterynegative(-)terminaltopreventdamageto

theunit,fireand/orpossibleinjury.

Pleasereadentiremanualbeforeinstallation.

Before You Start

•Disconnectnegativebatteryterminal.Consultaqualifiedtechnicianforinstructions.

•Useextremecautionwhendrillingholestoavoiddamagingfuellines,hydrauliclinesor

existingwiring.

•Ifadditionalwiringisrequired,werecommendthatyourunallwirespriortomounting

yourspeakerinplace.

•Usethehighestqualityconnectorsforareliableinstallationandtominimizesignaland

powerloss.

•Usecautionbeforeyoudrillorcut!Becarefulnottocutordrillintogastanks,fuellines,

hydrauliclines,vacuumlinesorelectricalwiring.

•Avoidrunningwiresover,near,orthroughsharpedgedsurfaces.Wesuggestyoualso

userubbergrommetstoprotectanywiresroutedthroughmetal.

Mounting and Installation

•Determinewherethespeakerswillbemounted.Ensureanarealargeenoughforthe

speakertomountevenly.Besurethemountinglocationisdeepenoughforthespeaker

tofit.

•Usinganappropriatetool,cuttheappropriatesizemountinghole(seespecifications).

•Removegrillefromspeakerbyinsertingthereleasekeyintothelockingtabslots

locatedaroundtheoutsideofthegrille.Gentlyapplypressuretowardsthecenterofthe

grilletoreleasethelockingtabs.

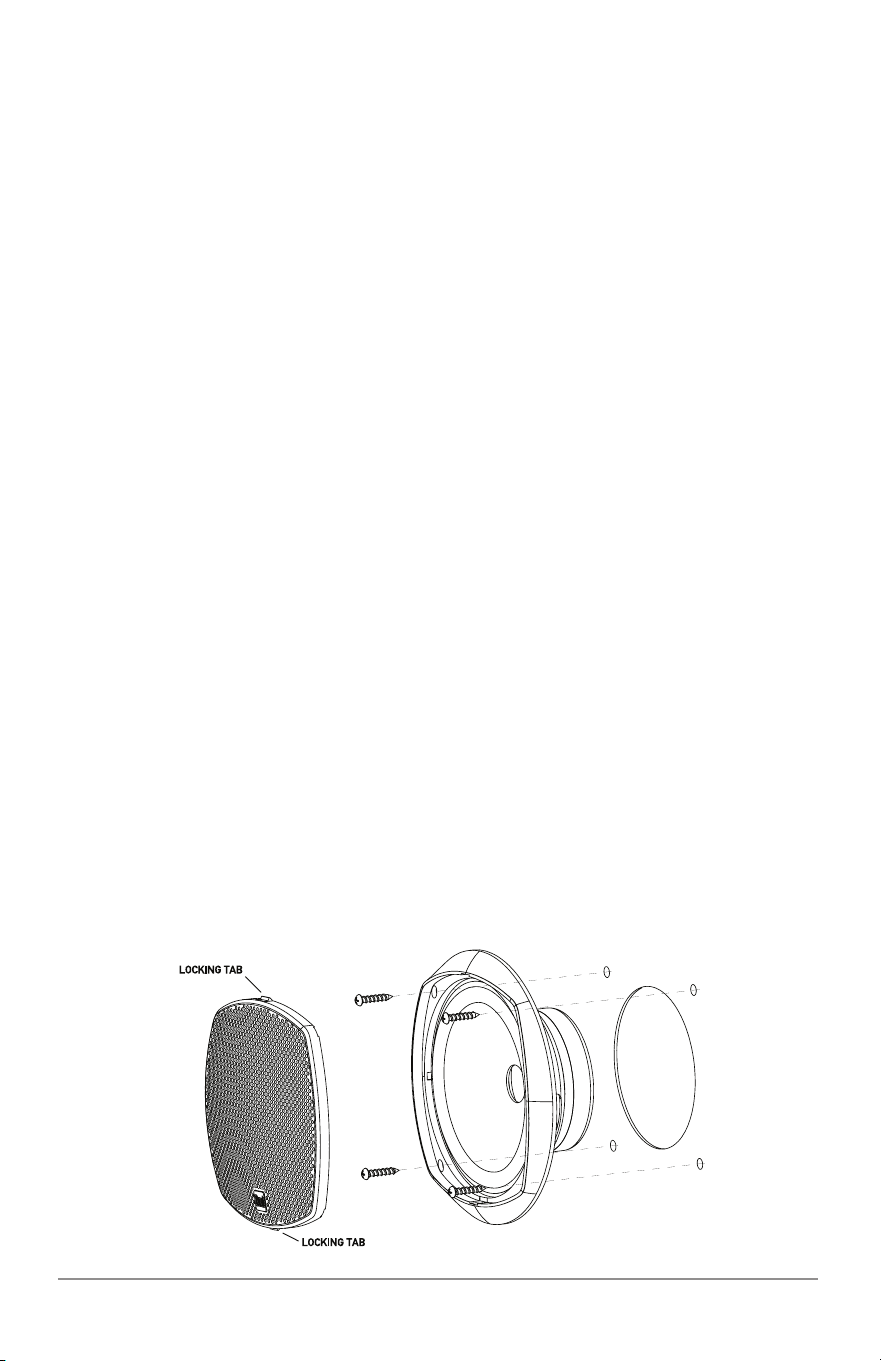

TYPICAL MOUNTING

Preparation/Installation

•Usethespeakerasatemplatetomarkthelocationsforthemountingscrews.Drill

themountingscrewholeswitha1/8"pilotbit.Routespeakerwiresandconnectto

speakers,observingspeakerpolarity.

•Installspeakerintoopeningusingsuppliedhardwareandtestforcorrectoperation.

•Alignthespeakergrillelockingtabsandsnapgrilleintoplace.

Specifications

DMP670

•OverallDiameter:7.13” (181mm)

•MountingDepth:2.13"” (54mm)

•MountingHeight:.87” (22mm)

•CutoutDiameter:5.13" (130mm)

•FrequencyResponse:45Hz-15kHz

•Sensitivity:88dB @1W/1M

•Impedance:4 ohm

•RMSPower:20 Watts

•PeakPower:100 Watts

DMS365

•OverallDiameter:7.13” (181mm)

•MountingDepth:2.40” (61mm)

•MountingHeight:1.02” (26mm)

•CutoutDiameter:5.13” (130mm)

•FrequencyResponse:45Hz-17kHz

•Sensitivity:88dB @1W/1M

•Impedance:4 ohm

•RMSPower:30 Watts

•PeakPower:120 Watts

DMS369

•OverallDiameter:10.55” (268mm) x 7.87” (200mm)

•MountingDepth:3.47” (88mm)

•MountingHeight:1.34” (34mm)

•CutoutDiameter:8.47” (215mm) x 5.71” (145mm)

•FrequencyResponse:42Hz-17kHz

•Sensitivity:89dB @1W/1M

•Impedance:4 ohm

•RMSPower:50 Watts

•PeakPower:200 Watts

Designandspecificationssubjecttochangewithoutnotice.

DualElectronicsCorp.

TollFree:1-866-382-5476

www.dualav.com

NSA1012-V01

Limited One Year Warranty

Thiswarrantygivesyouspecificlegalrights.You

mayalsohaveotherrightswhichvaryfromstate

tostate.

DualElectronicsCorp.warrantsthisproductto

theoriginalpurchasertobefreefromdefectsin

materialandworkmanshipforaperiodofone

yearfromthedateoftheoriginalpurchase.

DualElectronicsCorp.agrees,atouroption,

duringthewarrantyperiod,torepairanydefect

inmaterialorworkmanshiportofurnishan

equalnew,renewedorcomparableproduct

(whicheverisdeemednecessary)inexchange

withoutcharges,subjecttoverificationofthe

defectormalfunctionandproofofthedateof

purchase.Subsequentreplacementproducts

arewarrantedforthebalanceoftheoriginal

warrantyperiod.

Who is covered?Thiswarrantyisextendedtothe

originalretailpurchaserforproducts

purchasedandusedintheU.S.A.

What is covered?Thiswarrantycoversalldefects

inmaterialandworkmanshipinthisproduct.The

followingarenotcovered:



installation/removal

costs,damageresulting

fromaccident,misuse,abuse,neglect,product

modification,improperinstallation,incorrect

linevoltage,unauthorizedrepairorfailureto

followinstructionssuppliedwiththeproduct,or

damageoccurringduringreturnshipmentofthe

product.

What to do?

1.Beforeyoucallforservice,checkthe

troubleshootingguideinyourowner’smanual.

Aslightadjustmentofanycustomcontrols

orconnectionsdiscussedinyourinstruction

bookletmaysaveyouaservicecall.

2.Ifyourequireserviceduringthewarranty

period,youmustcarefullypacktheproduct

(preferablyintheoriginalpackage)andship

itbyprepaidtransportationwithacopyofthe

originalreceiptfromtheretailertoan



authorized

servicecenter.

3.Pleasedescribeyourprobleminwritingand

includeyourname,aUSAreturnshipping

address(P.O.Boxnotacceptable),anda

daytimephonenumberwithyourshipment.

4.Formoreinformationandforthelocationof

thenearestauthorizedservicecenterplease

contactusbyoneofthefollowingmethods:

•Callustoll-freeat1-866-382-5476

•E-mailusat[email protected]

ExclusionofCertainDamages:Thiswarranty

isexclusiveandinlieuofanyandallother

warranties,expressedorimplied,including

withoutlimitationtheimpliedwarrantiesof

merchantabilityandfitnessforaparticular

purposeandanyobligation,liability,right,

claimorremedyincontractortort,whether

ornotarisingfromthecompany’snegligence,

actualorimputed.Nopersonorrepresentative

isauthorizedtoassumeforthecompanyany

otherliabilityinconnectionwiththesaleofthis

product.Innoeventshallthecompanybeliable

forindirect,incidentalorconsequentialdamages.
