Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 1 of 9
TEST REPORT
California Appliance Efficiency Regulations dated January 2017 Televisions, and
Consumer Audio and Video Equipment. (CEC-140-2019-002)
Report reference No .
..........................
SiCT2210100935S
Test by (print+signature)
.................
Collin Zhou
Checked by (print+signature)
........
Jean Shu
Approved by (print+signature)
......
Andy Wang
Date of issue ……………………..
2022-10-24
Testing Laboratory Name
..................
Shenzhen SiCT Technology Co., Ltd.
Address
................................................
202, Building 3, No.111, Huanguan Middle Road, Songyuanxia
Community, Guanhu Street, Longhua District, Shenzhen, Guangdong,
China
Applicant’s name
...................................
SOUND AROUND INC.
Address
..................................................
1600 63rd Street, Brooklyn, NY 11204, USA
Brand name……….….................…
Manufacturer’s name
............................
Address
..................................................
PYLE
JIAXING DIBEISI ELECTROACOUSTICS CO., LTD.
No.1515, Zhou'an Road, Jiaxing, Zhejiang, China
Test item description
.....................................................
Model/Type reference.....................
Series Model..................................
Speaker
PLMRS8B
See appendix for additional models
Ratings
................................................................................
I/P:12V 10W (Max)
Test method
.........................................
Electrotechnical Commission (IEC)62301:2005 and 62087:2008(E),as
Directed in Section 1604(v) of the Title 20 Appliance Efficiency
Regulations
Test requested.....................................
California Appliance Efficiency Regulations dated January 2019-
Compact Audio Device (CEC-140-2019-002)
Non-standard test method
.................
None
Test Report Form No……………
Test Report Form(s) Originator…..
SiCT-C
SiCT
Copyright © 2020 Shenzhen SiCT Technology Co., Ltd. (SiCT). All rights reserved.
This publication may be produced in whole or in part for non-commercial purposes as long as SiCT is
acknowledged as copyright owner and source of the material. SiCT takes no responsibility for and will not
assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its
placement and context.
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 2 of 9
Series Model
：
PLMRS83BL, PLMRS83WL, PLMRS8W, PLRGSW124WT, PLSMRW104WT, PDIC106, PDIC16106,
PDIC1651RD, PDIC1656, PDIC1666, PDIC4, PDIC4CBTL35B, PDIC4CBTL4B, PDIC51RDBK, PDIC56,
PDIC60, PDIC60T, PDIC61RD, PDIC63T, PDIC80, PDIC80T, PDIC81RD, PDIC81RDBK, PDICBT286,
PDICBT652RD, PDICBT852RD, PDICLE35, PDICLE4, PDICS8, PDICS82, PDIW57, PDIW87,
PDIWCS56, PDIWS10, PDPC82, PDPC8T, PIC6E, PIC8E, PLMR41B, PLMR41W, PLMR51B,
PLMR51W, PLMR52, PLMR605B, PLMR605W, PLMR60B, PLMR60DK, PLMR60S, PLMR60W,
PLMR61B, PLMR61W, PLMR62, PLMR67B, PLMR67W, PLMR692, PLMR6LEB, PLMR6LEW, PLMR82,
PLMRCB1, PLMRCB3, PLMRCW1, PLMRCW2, PLMRCW3, PRTPDICBT2CHBC, PLMRLE64DK,
PLMRS43BL, PLMRS43BL.5, PLMRS43WL, PLMRS4B, PLMRS4B.5, PLMRS4W, PLMRS53BL,
PLMRS53WL, PLMRS5B, PLMRS5W, PLMRS63BL, PLMRS63WL, PLMRS63WL.5, PLMRS6B,
PLMRS6B.5, PLMRW10, PLMRW12, PLMRW8, PLMRX67, PLMRX68LEW, PWRC52, PWRC62
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 3 of 9
1
Description
of
the
test
subject
1.1 Technical Data
Nameplate
specifications
Input
Output
Voltage (V)
115V
～
DC 12V
Current
(A)
/
0.83
A
Power
(W)
/ 10W
Frequency (Hz) 50/60Hz /
2
Order
2.1
Date
of
Purchase
Order,
Customer
’
s
Reference
2022-10-17
2.2
Receipt
of
Test
Sample
Samples was received on 2022-10-17
2.3
Date
of
Testing
2022-10-17 to 2022-10-24
2.4
Location
of
Testing
Shenzhen SiCT Technology Co., Ltd.
202, Building 3, No.111, Huanguan Middle Road, Songyuanxia Community, Guanhu Street,
Longhua District, Shenzhen, Guangdong, China
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 4 of 9
3 Requirements in standard and result
1605.3 (v)
(1)
Energy Performance, Energy Design, Water Performance, and
Water Design Standards: Consumer Audio and Video
Equipment.
The power usage of consumer audio and video equipment
manufactured on or after the effective dates shown shall be not
greater than the applicable values in Table V-1.
Table V-1
Standards for consumer audio and video equipment
Appliance type Effective date Maximum Power Usage (Watts)
Compact Audio
Products
January 1,
2007
2 W in Audio standby-
passive mode for those
without a permanently
illuminated clock display;
4 W in Audio standby-
passive mode for those with
a permanently illuminated
clock display.
Digital Versatile
Disc Players and
Digital Versatile
Disc Recorders
January 1,
2006
3 W in Video standby-
passive mode
P
For equipment that consists of more than one individually powered
product, each with a separate main plug, the individually powered
products shall each have a power usage not greater than the
applicable
values
shown
in
Table
V-1.
N/A
(2)
Televisions. All televisions manufactured on or after the effective
dates shall meet the requirements shown in Table V-2.
Table V-2
Standards for Televisions
Effective
Date
Screen Size
(area A in
square
inches)
Maximum
TV
Standby-
Passive
Mode
Power
Usage
(watts )
Maximum
On Mode
Usage (P
in watts)
Maximum
Power
Factor For
(P≥100W)
January
1, 2006
All 3W No
standard
No
standard
January
1, 2011
A < 1400 1W P ≤ 0.20 x
A + 32
0.9
January
1, 2013
A < 1400 1W P ≤ 0.12 x
A + 25
0.9
N/A
(3)
In addition, televisions manufactured on or after January 1, 2011
shall meet the requirements shown in Sections 1605.3(v)(3)(A)
and 1605.3(v)(3)(B) and 1605.3(v)(3)(C) of this Article.
N/A
(A)
A television shall automatically enter TV standby-passive mode or
standby-active mode after a maximum of 15 minutes without video
and/or audio input on the selected input mode.
N/A
(B)
A television shall enter TV standby-passive mode when turned off
by remote or integrated button/switch
N/A
(C)
The peak luminance of the product in “home” mode, or in the
default mode as shipped, shall not be less than 65% of the peak
luminance of the “retail” mode, or the brightest selectable preset
mode, of the product
N/A
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 5 of 9
1607 (b)
Marking of Appliances: Name, Model Number, and Date.
Except as provided in Section 1607(c), the following information
shall be permanently, legibly, and conspicuously displayed on an
accessible place on each unit:
P
(1)
Manufacturer’s name or brand name or trademark (which shall be
either the name, brand, or trademark of the listed manufacturer
specified pursuant to Section 1606(a)(2)(A) or, if applicable, the
designated manufacturer specified pursuant to Section
1606(f)(1)(F));
See marking
plate.
P
(2)
Model number; and See marking
plate.
P
(3)
Date of manufacture, indicating (i) year and (ii) month or smaller
(e.g. week) increment. If the date is in a code that is not readily
understandable to the layperson, the manufacturer shall
immediately, on request, provide the code to the Energy
Commission.
See marking
plate.
P
Remarks: “N/A” stands for “test case does not apply to the test object”;
“P” stands for “test object does meet the requirement”.
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 6 of 9
4 Marking plate and Photos
4.1 Marking plate:
Speaker
Model: PLMRS8B
I/P: DC12V,10W(Max)
JIAXING DIBEISI ELECTROACOUSTICS CO., LTD.
No.1515, Zhou'an Road, Jiaxing, Zhejiang, China
Made in China
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 7 of 9

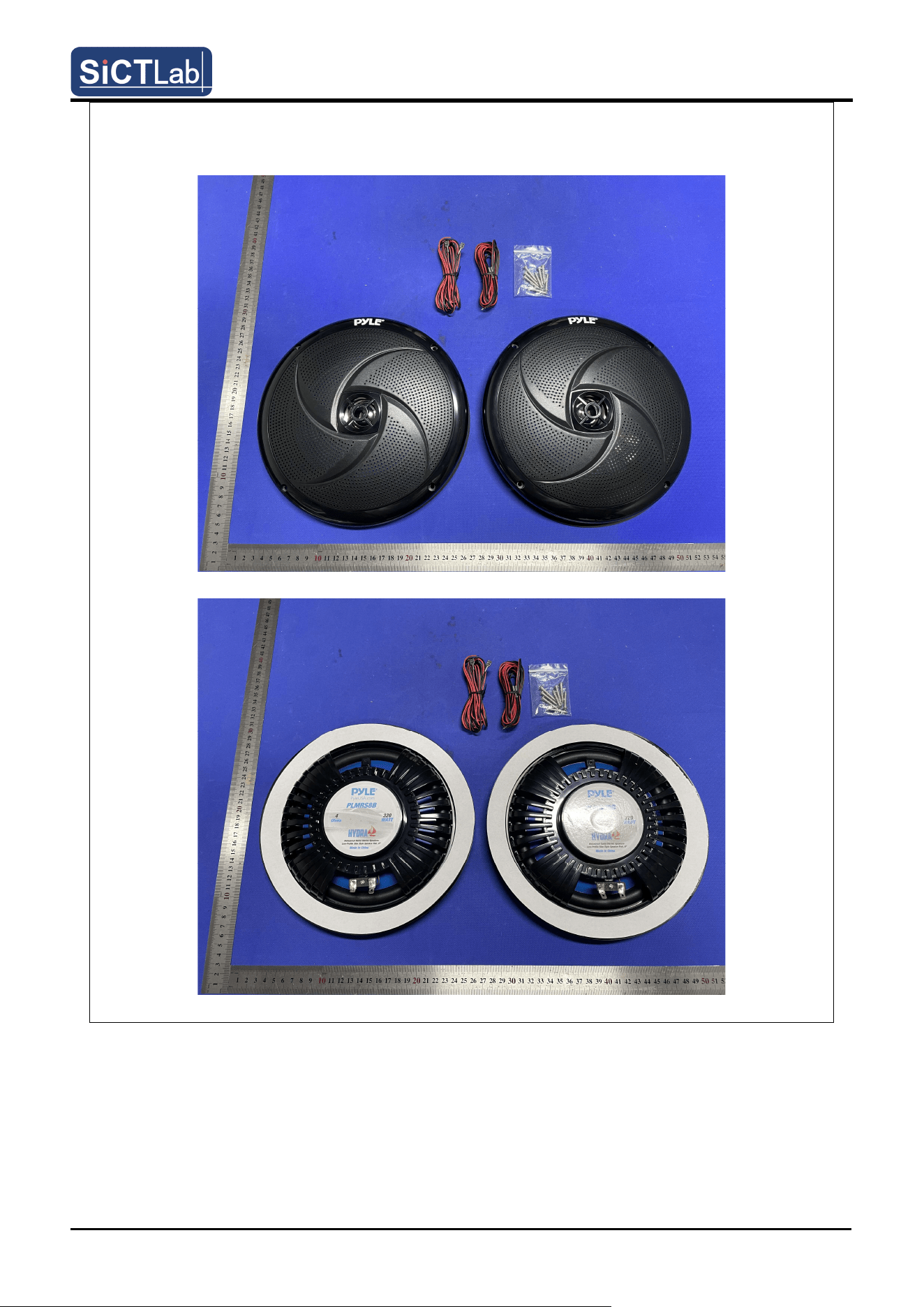

4.2 Photos
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 8 of 9
5 Remark
：
The test results presented in this report relate only to the object tested.
This report shall not be reproduced, except in full, without the written approval of the Issuing testing
laboratory.
”(see Enclosure#)” refers to additional information appended to the report.
”(see appended table)” refers to a table appended to the report.
Table 1 Power measurement - Standby-passive mode
Rated voltage (V):
115V
～
T
amb
(23 ±5) (ºC):
24.3
Rated frequency (Hz):
60Hz
Rh (10-80%) (%):
56.2
Model Test U
Input
(V)
F
(Hz)
I (mA) P
Standby
(W)
t (s/min) Remark
PH391 I/1 115 60Hz 2 0.23 5
Pass
Remarks:
- Test: I: initial test, A: additional test, 1,2,3: number of test
- t: time between enabling standby mode and completing measurement
Table 2 Power measurement – ON Mode – for Televisions only
Rated voltage (V):
--
T
amb
(23 ±5) (ºC):
--
Rated frequency (Hz):
--
Rh (10-80%) (%):
--
THD (%):
--
Airspeed (m/s):
--
Model Test U
Input
(V)
F
(Hz)
I (mA) P
oN
(W)
Power
Factor
Remark
-- -- -- -- -- -- -- --
-- -- -- -- -- -- -- --
Supplementary information:
- Accessory configuration:
- Setting: as shipped
- Automatic Brightness Control (ABC):
- Signal Input: IEC 62087 Ed. 2.0, Section 11.5.5 (3 bars of white (100%) over a black (0%)
background)
Remarks:
- Test: I: initial test, A: additional test, 1,2,3: number of test
Table 3 Luminance Measurement – for Televisions only
Rated voltage (V):
--
T
amb
(23 ±5) (ºC):
--
Rated frequency (Hz):
--
Rh (10-80%) (%):
--
THD (%):
--
Airspeed (m/s):
--
Model Test U
Input
(V)
F
(Hz)
I (mA) P
oN
(W)
Power
Factor
Remark
-- -- -- -- -- -- -- --
-- -- -- -- -- -- -- --
Shenzhen SiCT Technology Co., Ltd. Report No.: SiCT2210100935S
Test report E-mail: info@sict-lab.com.cn Web: www.sict-lab.com.cn Page 9 of 9
Supplementary information:
- Accessory configuration:
- Setting: as shipped
- Automatic Brightness Control:
- Signal Input: IEC 62087 Ed. 2.0, Section 11.5.5 (3 bars of white (100%) over a black (0%)
background)
Remarks:
- Test: I: initial test, A: additional test, 1,2,3: number of test
Table 4 Viewable Screen – for Televisions only
Model Diagonal
(cm)
Width
(cm)
Height
(cm)
Area
(cm
2
)
Aspect Ratio
-- -- -- -- -- --
Supplementary information:
Remarks:
Attachment 1: Equipment List
Table Test instruments
Name Brand Model Last cal. date Next cal date
Digital Power Meter
Yokogawa WT310 2022-06-10 2023-06-09
— End of report —
