ZKTeco SATURN-T1000 User Manual

mTS1000 Series Tripod Turnstile User Manual

User Manual

Saturn-T1000

Date: September 2025

Doc Version: 1.0

English

Saturn-T1000 User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any

way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or

"ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by

their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third

party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of the

supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact

ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the

safe operation of the machine/unit/equipment that personnel has read, understood and followed the

safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract conditions/documents

shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty

of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular

purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents which

are referenced by or linked to this manual. The entire risk as to the results and performance obtained from

using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,

special, or exemplary damages, including, without limitation, loss of business, loss of profits, business

interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or

Saturn-T1000 User Manual

relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been

advised of the possibility of such damages.

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated into

new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the

information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better

operation and safety of the machine/unit/equipment. The said additions or amendments are meant for

improvement /better operations of the machine/unit/equipment and such amendments shall not give any

right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (I) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in

conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures and

relevant documents are available on http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business-related queries, please write to us at: [email protected]m

To know more about our global branches, visit www.zkteco.com.

Saturn-T1000 User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition

Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security

solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art

700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of biometric

verification procedures and the productization of biometric verification SDK, which was initially widely

applied in PC security and identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually constructed an identity

authentication ecosystem and smart security ecosystem, which are based on biometric verification

techniques. With years of experience in the industrialization of biometric verifications, ZKTeco was

officially established in 2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National High-tech Enterprise for 6

consecutive years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of Saturn-T1000 Tripod Turnstile.

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent

with the actual products.

Features and parameters with ★ are not available in all devices.

Saturn-T1000 User Manual

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or

property loss.

The precaution measure is divided into Dangers and Cautions:

Dangers: Neglecting any of the warnings may cause serious injury or death.

Cautions: Neglecting any of the cautions may cause injury or equipment damage.

Symbols

Convention Description

Dangers: Follow these safeguards to prevent serious injury or death.

Cautions: Follow these precautions to prevent potential injury or material damage.

Dangers:

 In the use of the product, you must be in strict compliance with the electrical safety regulations of the

nation and region.

 The equipment must be connected to an earthed mains socket-outlet.

 Shock hazard! Disconnect all power sources before maintenance.

 Do not touch the bare metal contacts of the inlets after the circuit breaker is turned off. Electricity still

exists.

 To prevent possible hearing damage, do not listen at high volume levels for long periods.

 All the electronic operation should be strictly compliance with the electrical safety regulations, fire

prevention regulations and other related regulations in your local region.

 Please use the power adapter, which is provided by normal company. The power consumption cannot

be less than the required value.

 Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire

hazard.

 Please make sure that the power has been disconnected before you wire, install or dismantle the

device.

 If the top caps should be open and the device should be powered on for maintenance, make sure:

1. Power off the fan to prevent the operator from getting injured accidentally.

2. Do not touch bare high-voltage components.

3. Make sure the switch's wiring sequence is correct after maintenance.

 Please make sure that the power has been disconnected before you wire, install or dismantle the

device.

Saturn-T1000 User Manual

 If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable,

and then please contact the service center.

 If the product does not work properly, please contact your dealer or the nearest service center. Never

attempt to disassemble the device yourself. (We shall not assume any responsibility for problems

caused by unauthorized repair or maintenance.)

 The Terminal PE of the switch should be connected to a ground wire.

Cautions:

 Instructions must be read before installation. Please follow these instructions carefully, incorrect

installation could affect gate operation.

 When mounting and positioning this product please ensure the power cable is unplugged.

 The motor cover will need to be removed to mount the motor to the mounting plate. Electrical-related

operation of the main unit can only be made by a licensed electrician.

 To prevent injury, this equipment must be securely attached to the floor/base of the turnstile in

accordance with the installation instructions.

 Keep straight down when moving or using the equipment.

 Never place the equipment in an unstable location. The equipment may fall, causing serious personal

injury or death.

 Cold-rolled SPCC steel may be corroded in some circumstances. You need to clean and care the device

by using the stainless steel cleaner. It is suggested to clean the device every month.

 Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism

radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance

can cause equipment damage).

 Do not place the device in extremely hot (refer to the specification of the device for the detailed

operating temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic

radiation.

 The device cover for indoor use shall be kept from rain and moisture.

 Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is

forbidden (ignorance can cause fire danger).

 Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise

(which is not a malfunction however), and affecting the endurance of sensor at the same time.

 Please use the provided glove when open up the device cover, avoid direct contact with the device

cover, because the acidic sweat of the fingers may erode the surface coating of the device cover.

 Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use

alkaline detergents.

 Please keep all wrappers after unpack them for future use. In case of any failure occurred, you need to

return the device to the factory with the original wrapper. Transportation without the original wrapper

may result in damage on the device and lead to additional costs.

Saturn-T1000 User Manual

 Improper use or replacement of the battery may result in hazard of explosion. Replace with the same

or equivalent type only. Dispose of used batteries according to the instructions provided by the

battery manufacturer.

 Biometric authentication products are not 100% applicable to anti-spoofing environments. If you

require a higher security level, use multiple authentication modes.

 Do not stay in the lane when the device is rebooting.

 RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUCTIONS.

 SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.

 The instructions shall require connection of the equipment protective earthing conductor to the

installation protective earthing conductor.

Saturn-T1000 User Manual

Table of Contents

1 OVERVIEW ............................................................................................................................................ 9

Key Features ................................................................................................................................................... 9 1.1

Specification ................................................................................................................................................. 10

1.2

1.2.1

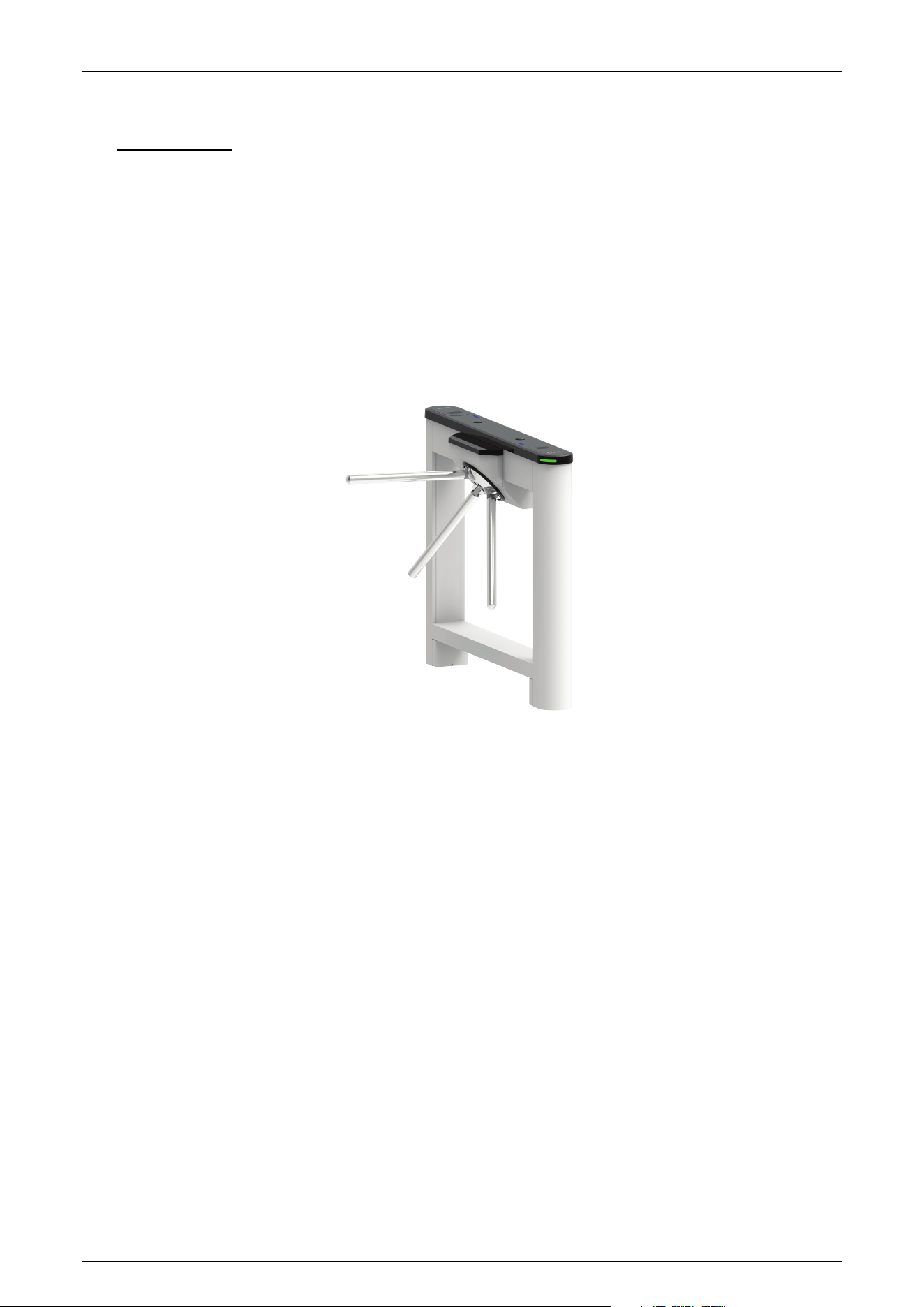

Appearance ............................................................................................................................................................................................... 10

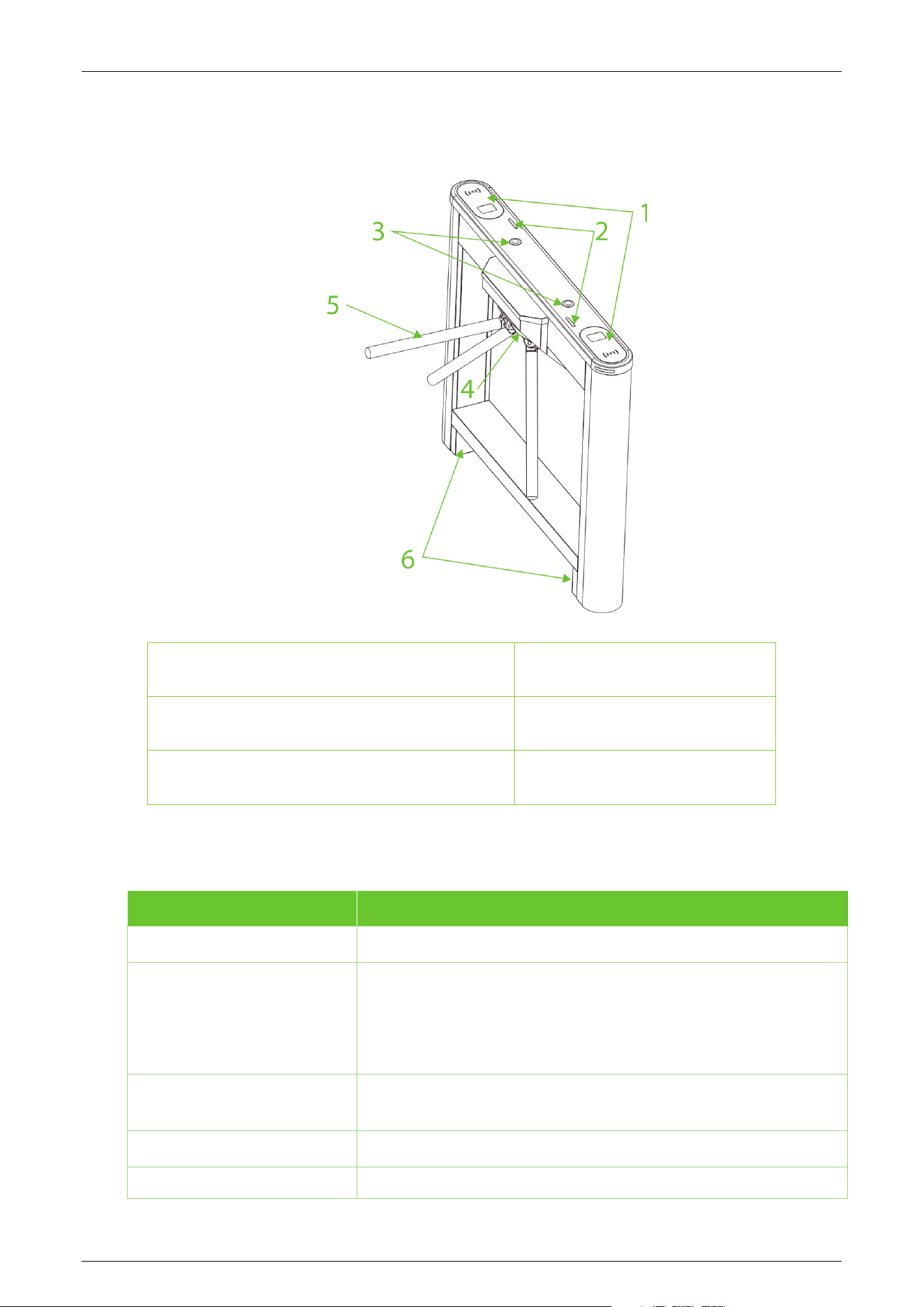

1.2.2 System Components ........................................................................................................................................................................... 11

1.2.3 Technical Specifications .................................................................................................................................................................... 11

Mechanical System ...................................................................................................................................... 13 1.3

Electronic Control System .......................................................................................................................... 13

1.4

Working Principle ........................................................................................................................................ 13

1.5

Power-On Self-Test ...................................................................................................................................... 14

1.6

Status of Traffic Indicator ........................................................................................................................... 15

1.7

AUTHENTICATION METHODS ........................................................................................................... 16

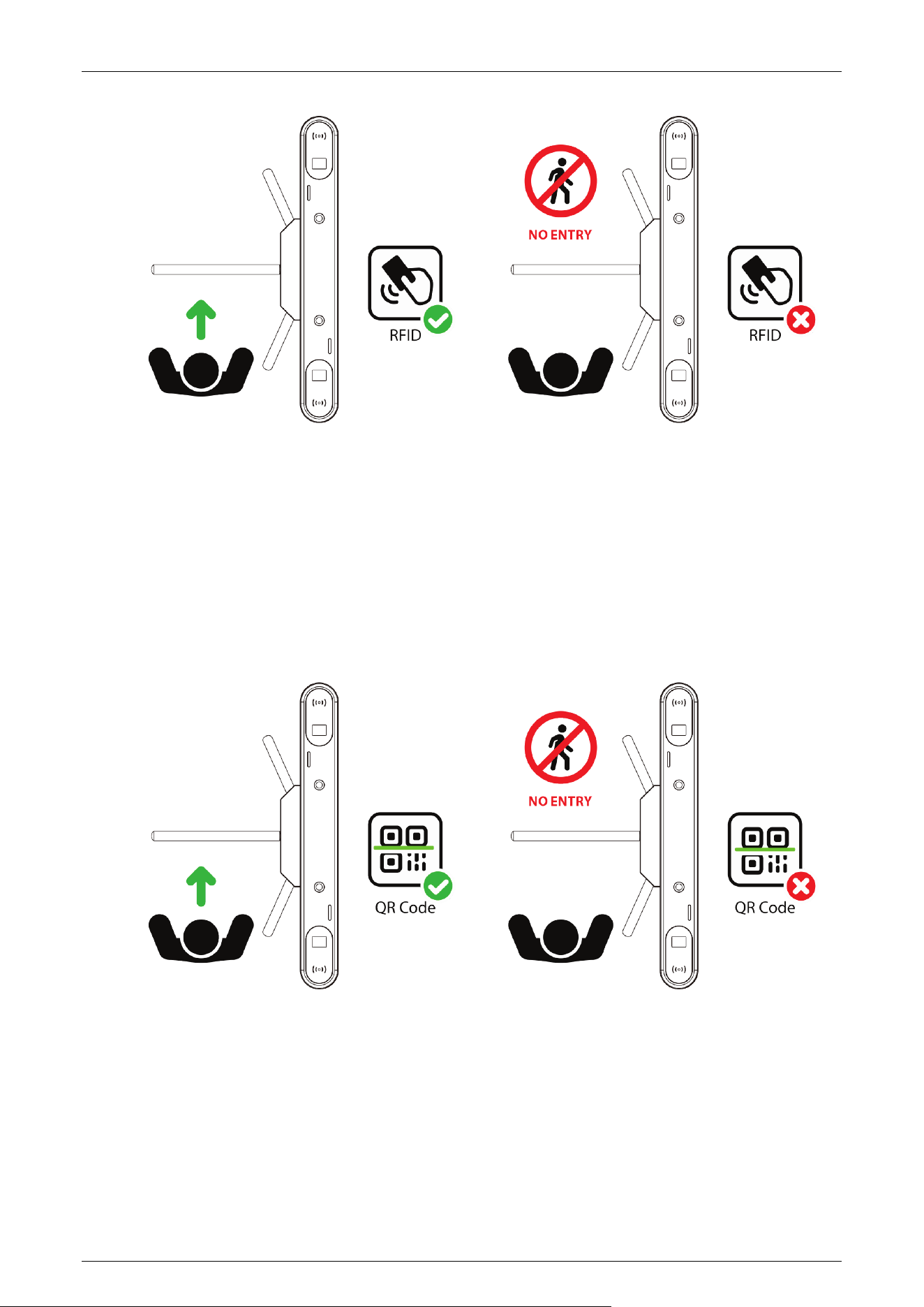

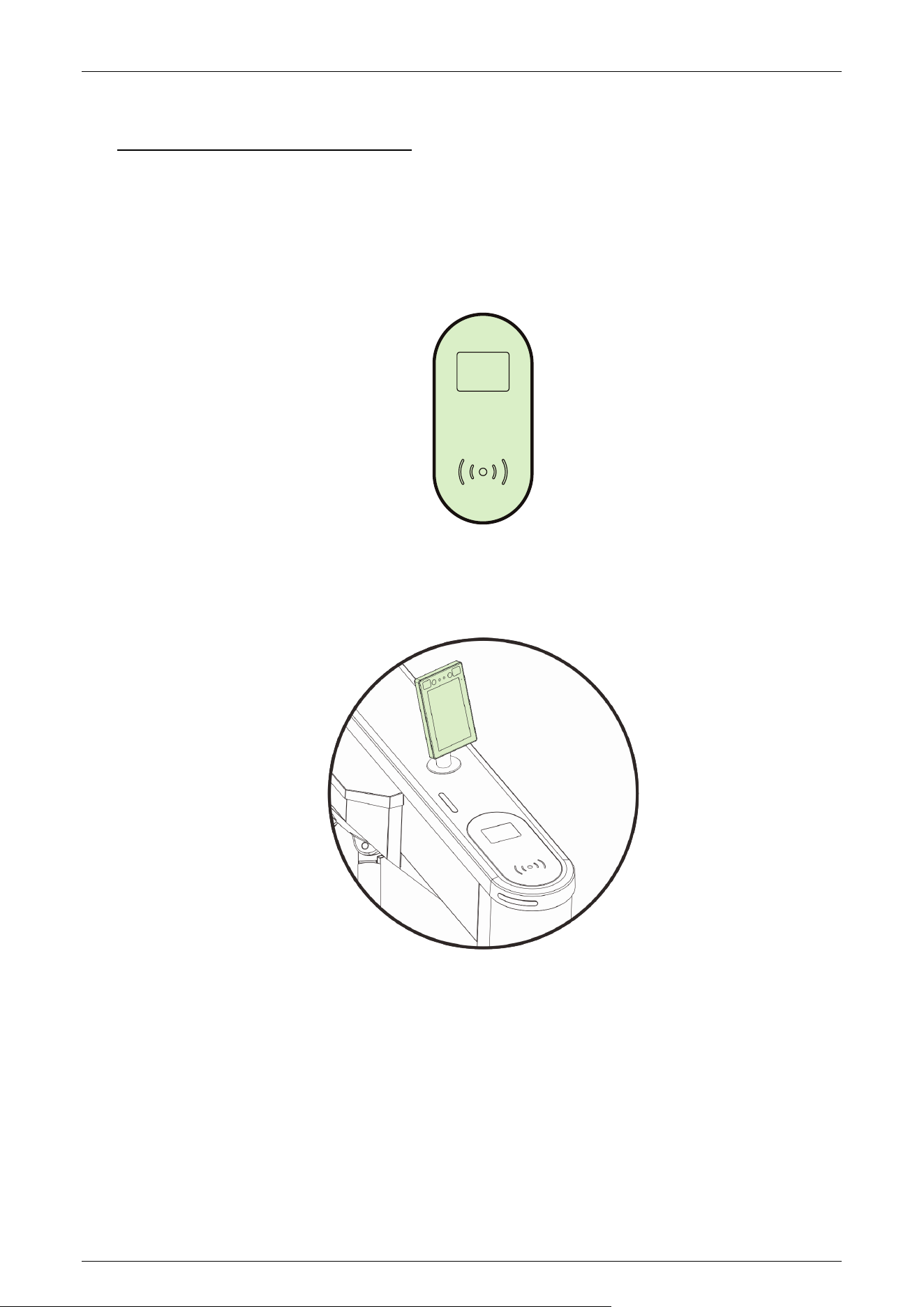

Card Verification★ ...................................................................................................................................... 16 2.1

QR Code Verification

★ ............................................................................................................................... 17 2.2

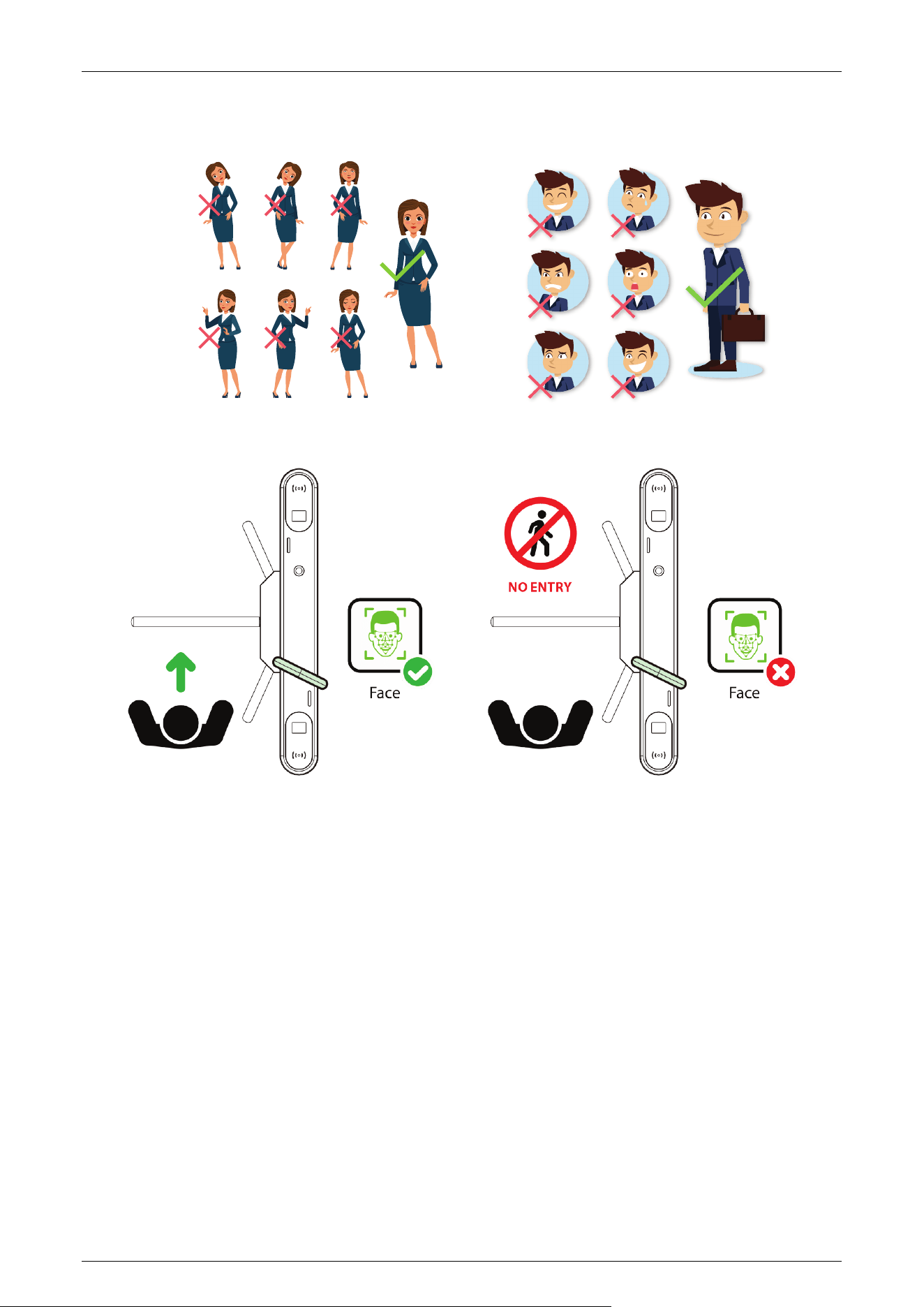

Facial Verification

★ .................................................................................................................................... 17 2.3

CONTROL SYSTEM INTRODUCTION ................................................................................................. 20

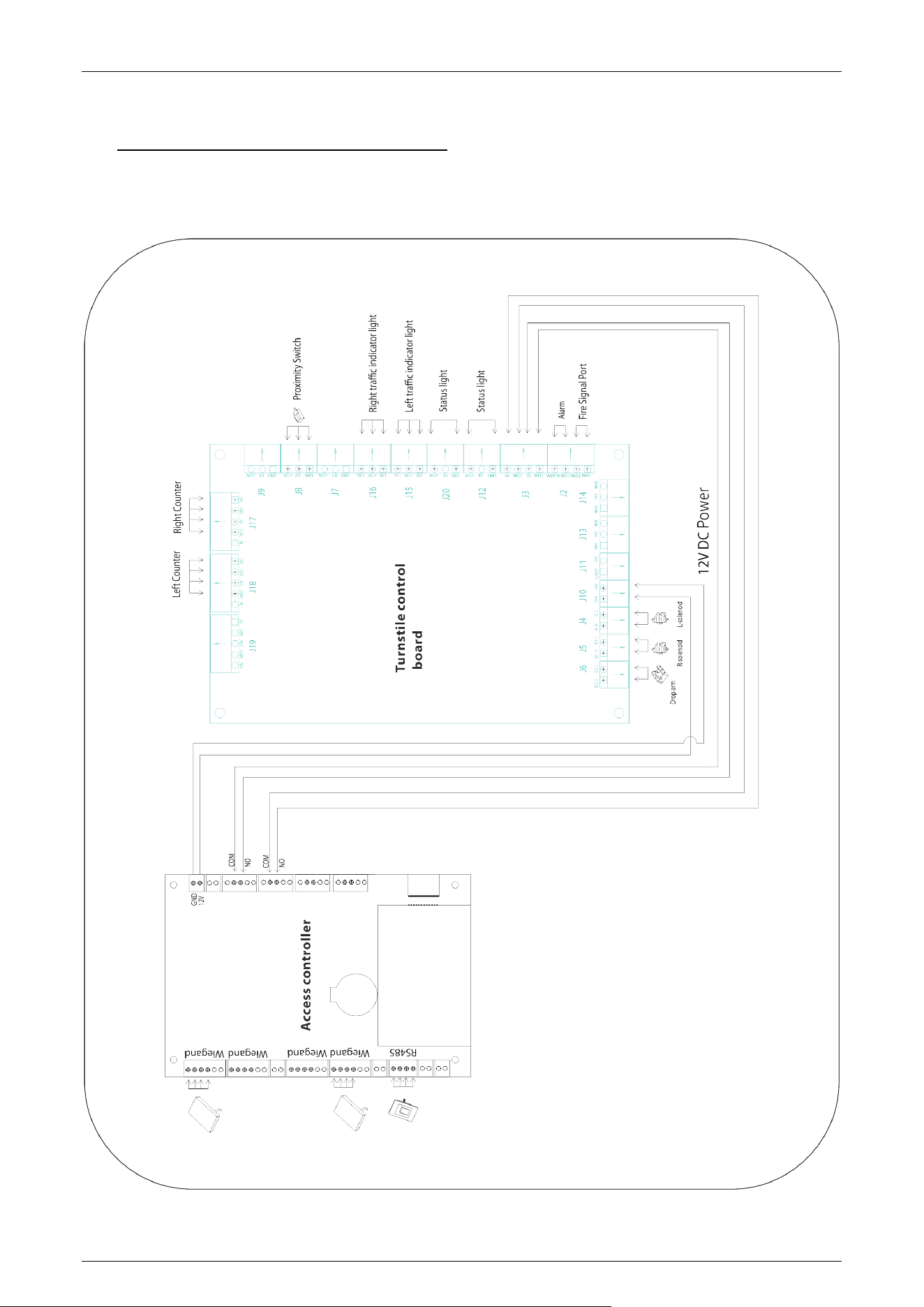

Wiring Diagram ............................................................................................................................................ 20 3.1

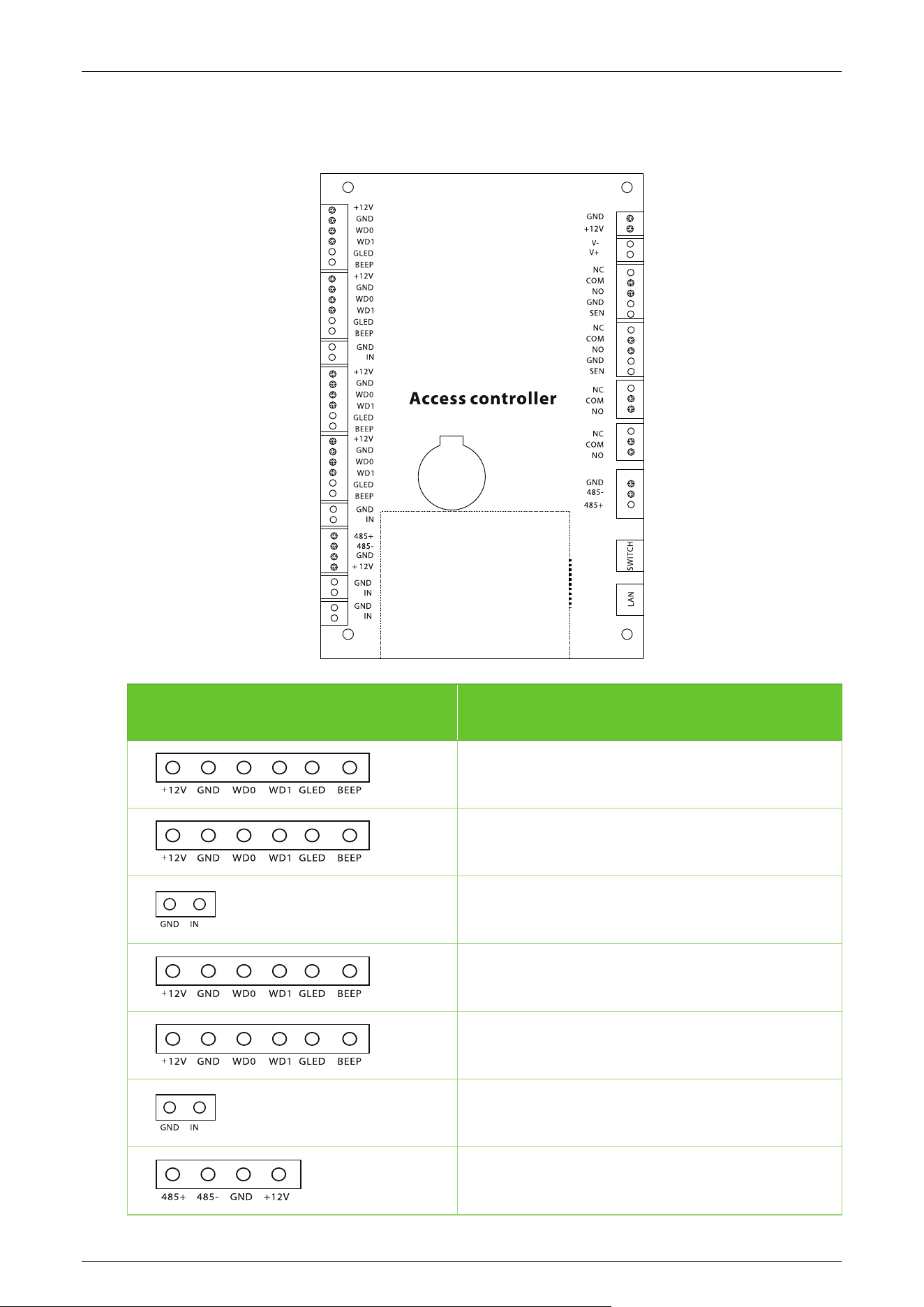

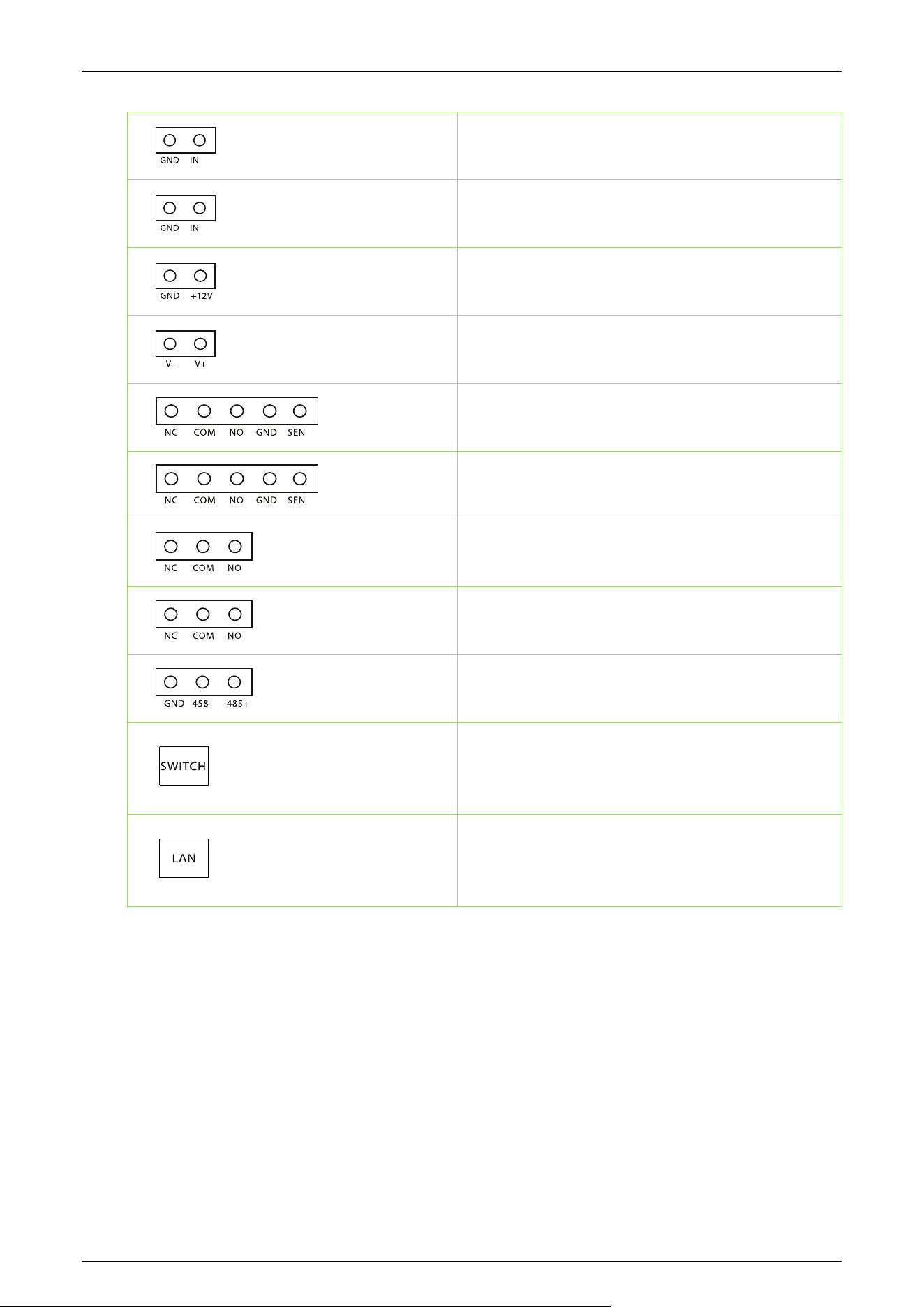

Access Control Board................................................................................................................................... 21

3.2

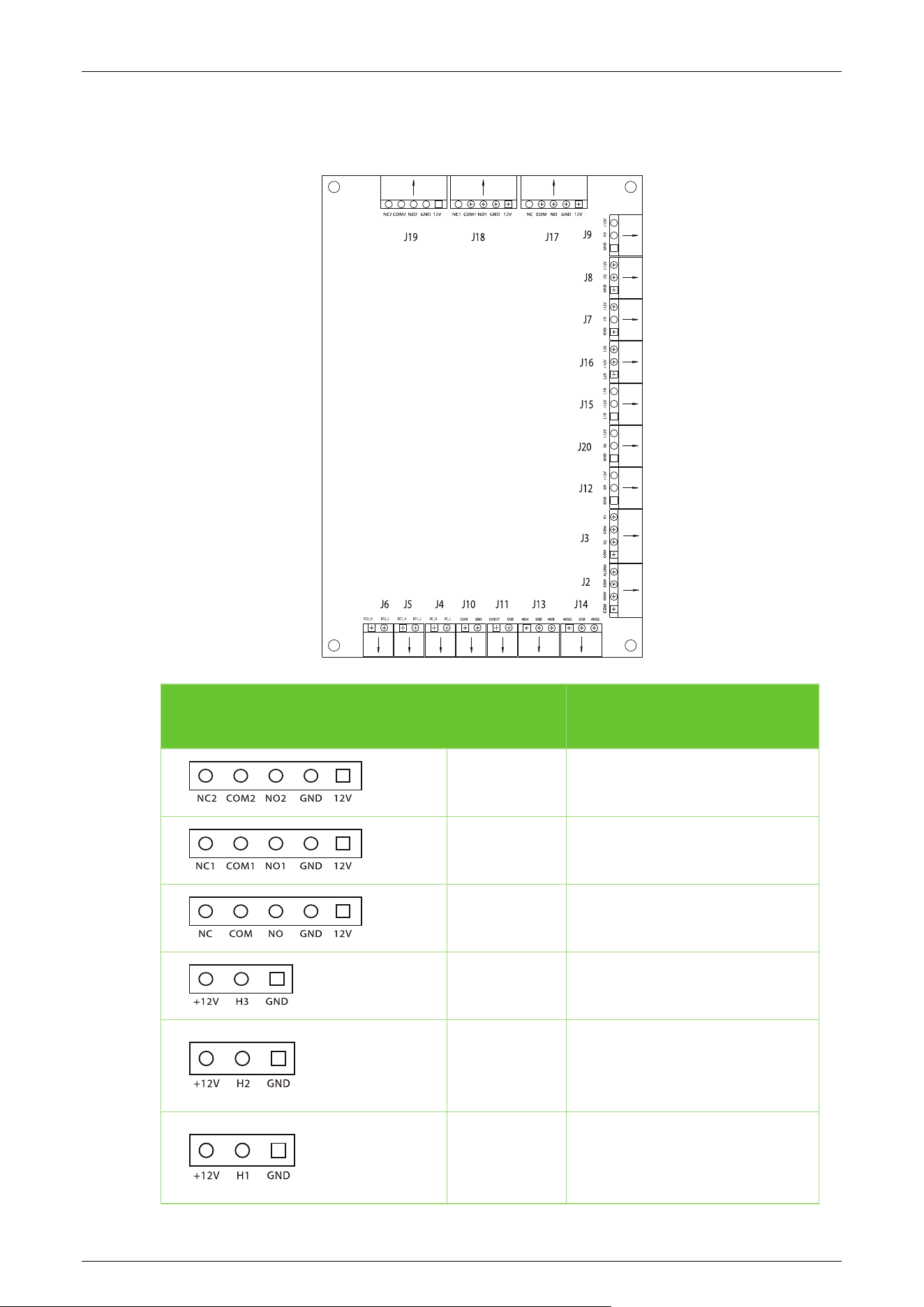

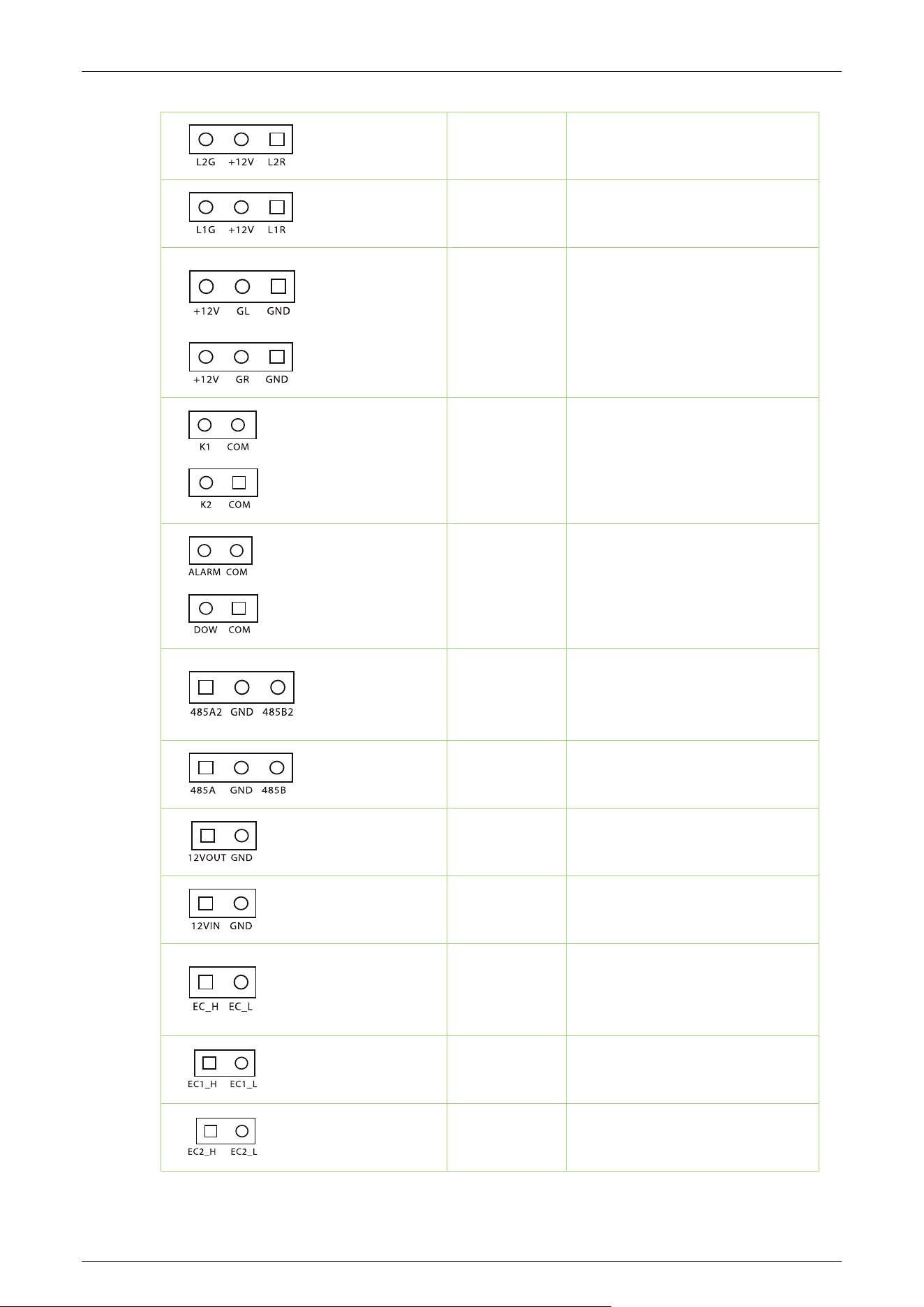

Turnstile Control Board ............................................................................................................................... 23

3.3

3.3.1

Mainboard Function Description ................................................................................................................................................. 25

4 TROUBLESHOOTING.......................................................................................................................... 27

5 PRECAUTION ...................................................................................................................................... 28

6 MAINTENANCE .................................................................................................................................. 30

Chassis Maintenance ................................................................................................................................... 30 6.1

Movement Maintenance ............................................................................................................................. 30

6.2

Power Supply Maintenance ....................................................................................................................... 30

6.3

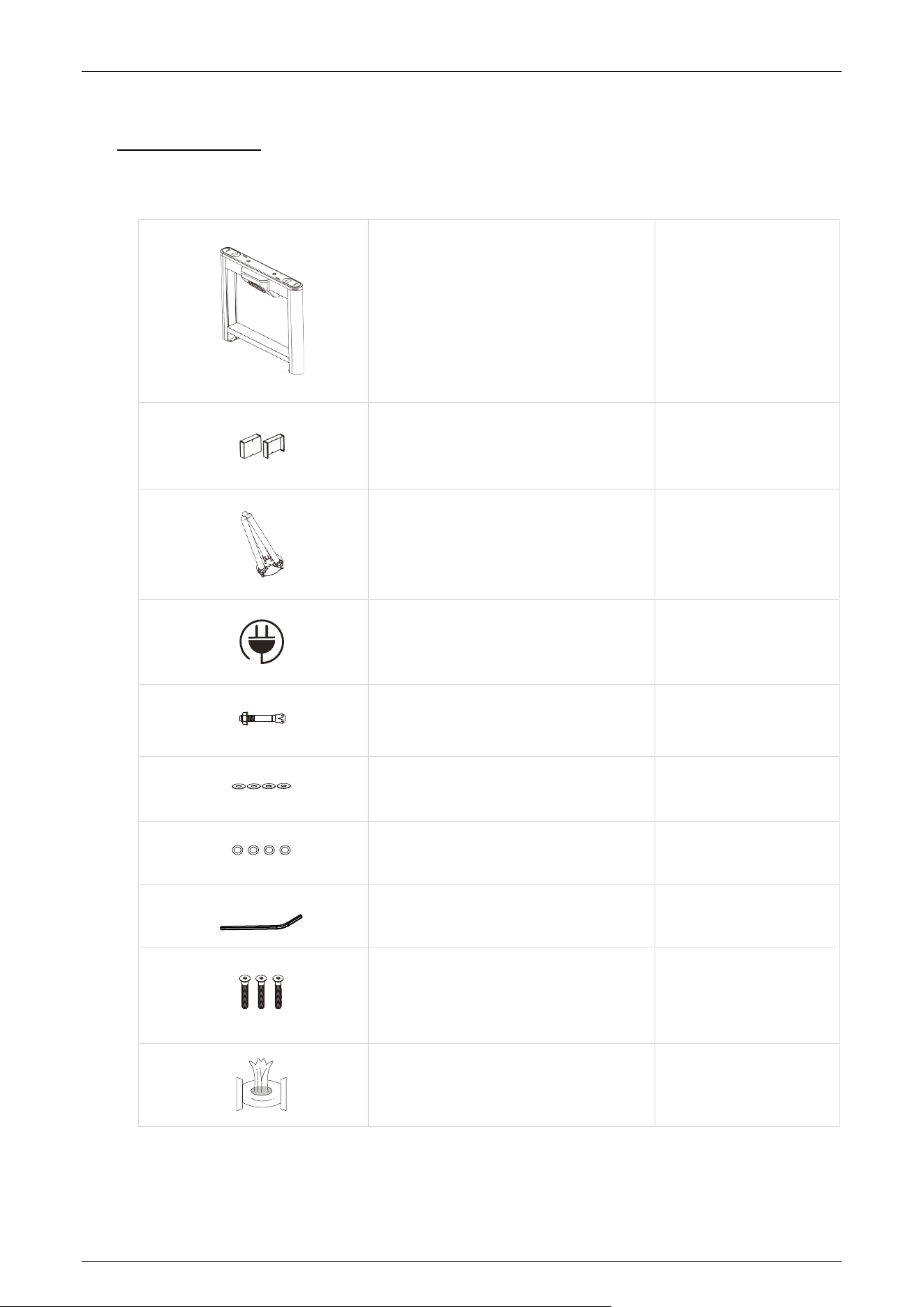

PACKING LIST .................................................................................................................................... 31

Saturn-T1000 User Manual

1 Overview

The Saturn-T1000 tripod turnstile boasts stable performance and outstanding waterproof effects,

making it suitable for sheltered outdoor installation. The product is constructed from cold-rolled

SPCC steel with powder coating (pearl white), and an integrally molded top cover, ensuring an

aesthetically pleasing, compact design that is rust-proof and durable. The system is equipped with

standard electrical interfaces to meet fire passage requirements. It is ideal for access control,

attendance, consumption management, and special passage control at enterprises and institutions,

as well as ticket verification at stations, docks, exhibition centers, swimming pools, and other venues.

Key Features 1.1

 Enhanced Waterproof Design: Passed the self-laboratory test which is equivalent to IPX4

protection rating. Ideal for indoor and outdoor (sheltered) operation.

 RS485 Communication Interface: Enables seamless system integration.

 Modular Construction: Simplified maintenance and component replacement.

 Compliant with IEC Wiring Standards: Optimized internal circuitry with clean, organized cable

management.

 Power Failure Auto-Drop & Manual Reset: Bar automatically drops during power loss and can be

manually reset, with full anti-tailgating protection.

 ZKTeco Multi-modal BioCV Technology: Supports multi-mode verification (facial recognition,

QR code scanning, and card access) for enhanced security.

 External Control Support: Compatible with control signals, push buttons, or remote devices for

configurable one-way/two-way access control.

 Intuitive Passage Indicators: Tri-color LED lights (blue: standby, green: passage granted, red:

alarm/error).

 Quick and Easy Installation: Streamlined setup for efficient deployment.

Saturn-T1000 User Manual

Specification 1.2

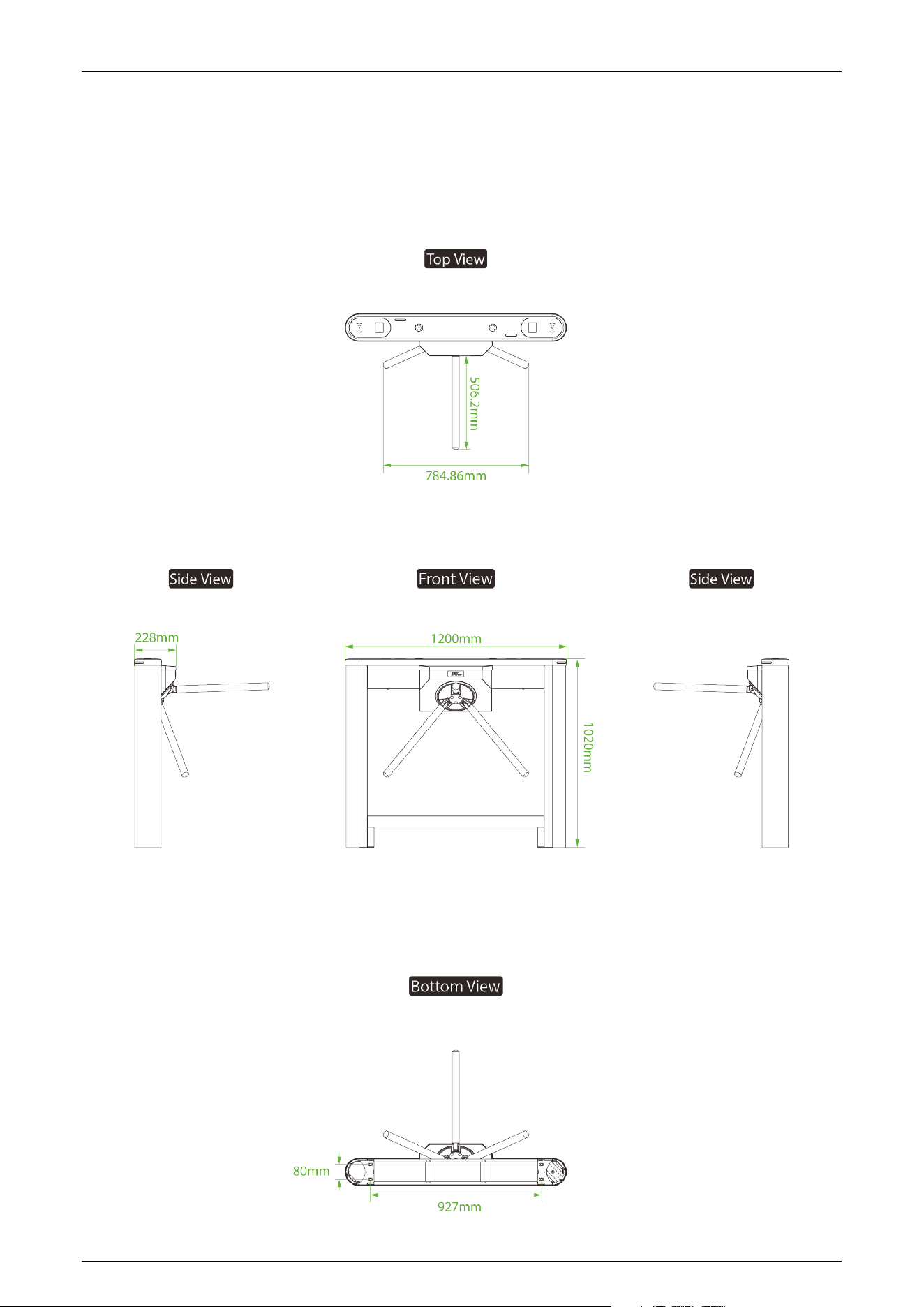

1.2.1 Appearance

Saturn-T1000 User Manual

1.2.2 System Components

1. Authentication Units 2. Traffic Indicator

3. Facial Recognition Terminal Mounting Holes 4. Disk Wheel

5. Arm 6. Cover Plate

1.2.3 Technical Specifications

Model Saturn-T1000

Audio Indicator

Buzzer

Visual Indicator

LED Indicator

Blue=Standby

Green=Access Granted

Red=Alarm/Error

Lane Type

Single Lane

(Support bi-directional entry/exit lane)

Lane Width

550mm

Barrier Movement Type

Rotating (Tripod)

Saturn-T1000 User Manual

Lid Material

Polycarbonate+2.5D tempered glass

Lid Options

Authentication Methods

RFID / Facial Recognition / QR code (Dynamic / Static)

Chassis Material

Cold-rolled SPCC Steel (GB700) (with powder coating finishing)

Chassis Color

Pearl White (PWH)

Tripod Rod Material

SUS304 Stainless Steel

Motherboard Function

System mode configuration, Access mode configuration

Motherboard

Communication

Fire Alarm Port (Relay)*1, RS485 Port*1

Controller

Access controller Options: C3, InBio series or third-party controller

subject to turnstile chassis space

Credential Options

Post mount Facial Recognition Device: G4 Pro

Under mount QR code Reader: QR500

Under mount RFID Reader: ProID10

Flow Rate

Face: 15 Passengers per minute

RFID: 25 Passengers per minute

QR code: 25 Passengers per minute

Power Supply

AC 110V~220V, 50/60Hz, DC 12V

Power Rating

Operating: 40W, Standby: 10W

Fire Signal

Input for voltage-free contact

Noise Level

＜65dB

MCBF

2 Million

Weight

25kg

Dimensions (L*W*H)

1200*734*1020mm

Dimensions with Packaging

(L*W*H)

1300*305*1106mm

Operating Temperature

-20℃ to 70℃

Operating Humidity

20% to 80% RH (non-condensing)

Certifications

CE, FCC

Ingress Protection Rating

Self-laboratory test: equivalent to IPX4

Supported Software

ZKBio CVAccess/ ZKBio CVSecurity

(Compatible with software only when connected to the control

panel)

Safety Features

Auto drop arm during power failure and emergency

Saturn-T1000 User Manual

Security Features

Anti-tailgating

Product Delivery

Pre-assembled

Application Environment

Indoor/Outdoor (If sheltered)

Site Preparation

Flat and level finished floor (optional base plate for unfinished

floors)

Security Level

Middle

Emergency Mode

Drop arm function engages during power outage or fire alarm

events

Packing Material

Carton box

Mechanical System 1.3

The mechanical system of the tripod turnstile includes the chassis and the core component. The

chassis serves as a carrier for the tri-color indicator, Reader, and Access controller. The core

components primarily include the Motor, Frame, Bearing, Arm, and other essential elements.

Electronic Control System 1.4

The electronic control system of a tripod turnstile mainly consists of the Card Reader, Turnstile

Control Board, Access Controller, Alarm and traffic Indicator.

Card Reader: The reader reads the data on the card and transmits it to the Access Controller.

Turnstile Control Board: The turnstile control board serves as the control center of the system,

receiving signals from the access controller and photoelectric switch; and it makes logical

judgments and processes these signals, then subsequently sends executive commands to the traffic

indicator, motor, and alarm.

Access Controller: This component enhances convenience for authorized personnel by facilitating

entry while simultaneously restricting access for unauthorized individuals.

Tri-color Indicator: Displays the current passage status of the channel and guiding pedestrians to

pass through the channel in a safe and orderly manner. (Normal status: Blue; Passage allowed:

Green; Abnormal/Error status: Red)

Alarm: This system issues an alarm alert when the system detects unauthorized entry or illegal

access by pedestrians.

Working Principle 1.5

1. When connected to power, the tripod turnstile undergoes a Power-On Self-Test. If no issues are

detected during this process, the turnstile will operate normally.

Saturn-T1000 User Manual

2. When the card reader successfully reads a valid card, the peak buzzer emits a pleasant sound,

signalling to pedestrians that the card reading is successful. Simultaneously, the system

processes the information from the card, sending a signal to the turnstile control board to

request passage.

3. The turnstile control board receives the signal from the card reader, processes it

comprehensively, and sends an effective control signal to the indicator and motor. The traffic

indicator turns green, and the control board activates the electromagnet to open the gate.

Pedestrians can gently push the unlocked arm, and it will automatically rotate, allowing them

to pass through the channel following the guidance of the traffic indicator.

4. If a pedestrian enters the passage without successfully verifying their identification or with an

invalid card, the system will not grant passage. Only when a valid card is successfully confirmed

will the pedestrian be allowed to pass through the passage.

Note: Make sure the ground wire of the system is securely connected to avoid personal injuries or

other accidents.

Power-On Self-Test 1.6

1. Connect the tripod turnstile's power adapter to a 220V mains power source. Important: Ensure

that the tripod turnstile is properly grounded.

2. Power on the tripod turnstile and wait 30s to complete the self-check program.

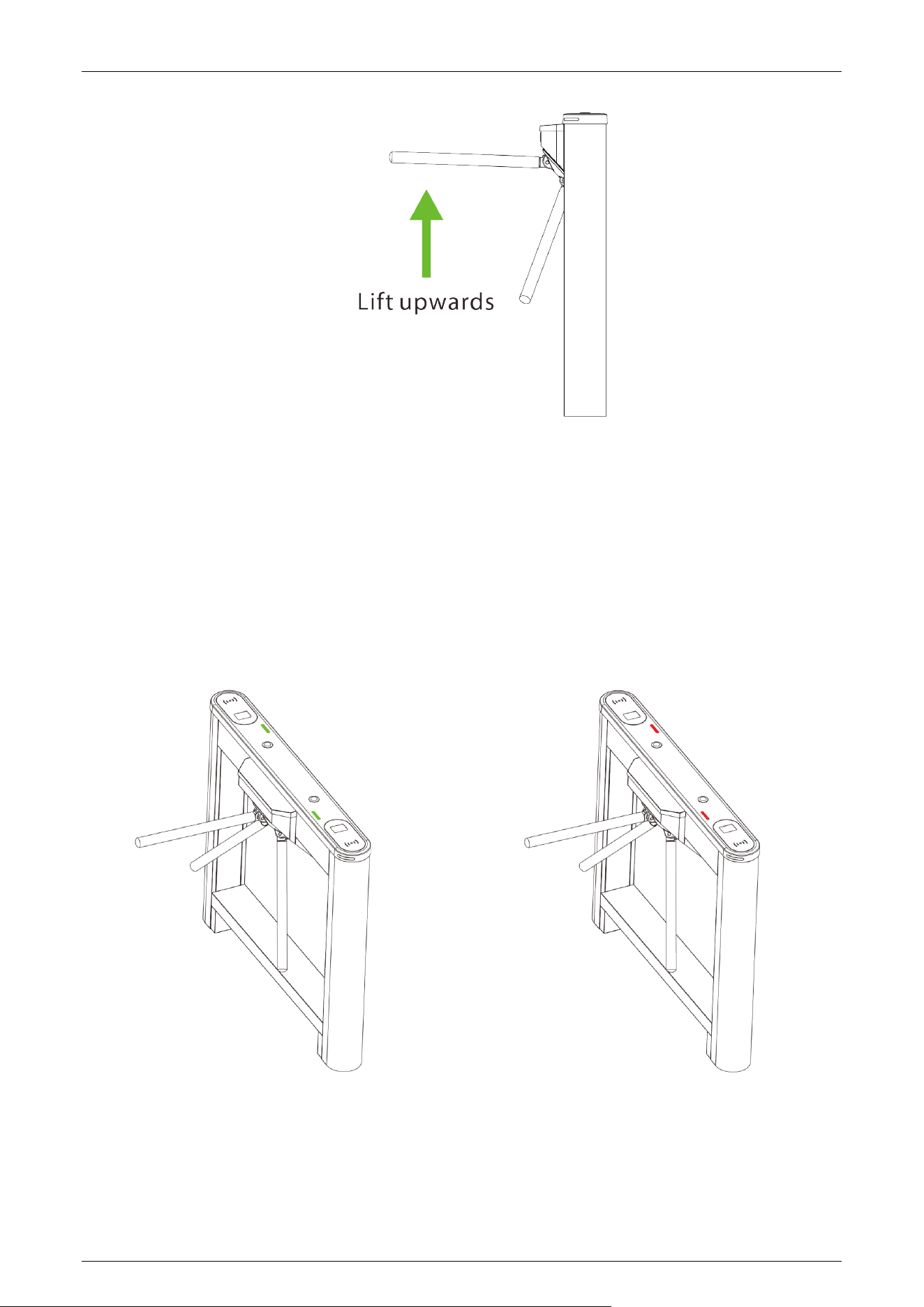

3. Lift the arms manually, as shown in the diagram below:

Power Adapter

Saturn-T1000 User Manual

4. Use a two-way switch to test the proper functioning of the tripod turnstile, and ensure to check

that the traffic indicators are working correctly. In case of any issues, please contact the supplier

for assistance.

Status of Traffic Indicator 1.7

The tripod turnstile is in working state after power-on self-test. The traffic indicators provide

pedestrians with the appropriate passage indications.

Passage allowed: Abnormal/Error

Saturn-T1000 User Manual

2 Authentication Methods

Users can freely choose to configure the authentication module according to actual needs. The

following options are included.

Streamlined Under Mount Options:

RFID only, RFID & QR Code.

Surface Mount Option:

Mounting Pole (Compatible with ProFace X series / SpeedFace V5L / Elite Pass).

Card Verification

★

2.1

When the device is configured with a card swipe module, the Card Verification mode compares the

card number in the card induction area with all of the card number data registered in the device and

sends it to the Access Controller.

When a user presses his / her card on the card reading area, the device enters card authentication

mode.

Saturn-T1000 User Manual

QR Code Verification

★

2.2

The QR code Verification mode is to scan the QR code on the user's mobile phone through the QR

code scanner and compare the data with the registered QR code, and then sends it to the Access

Controller.

When the user places the mobile phone displaying with the QR code on top of the QR code scanner,

the device enters the QR code authentication mode.

Facial Verification★ 2.3

In this verification mode, the device compares the collected facial images with all face data

registered in the device and then sends it to the Access Controller.

Try to keep the face in the centre of the screen during authentication. Please face towards the

camera and stay still during face registration.

Saturn-T1000 User Manual

Recommended Standing Posture and Facial Expression:

Note: Please keep your facial expression and standing posture natural while enrollment or verification.

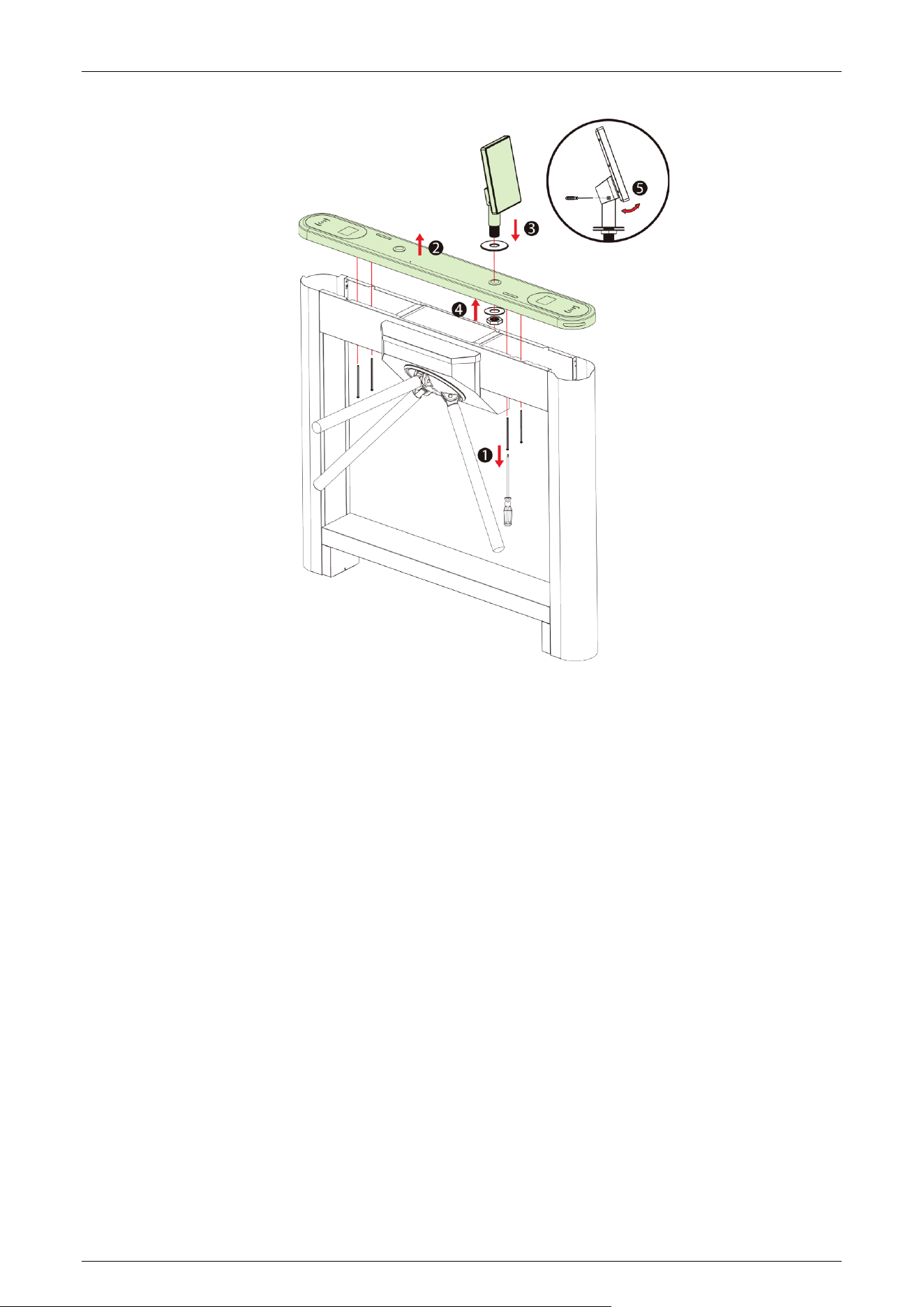

Facial Authentication Terminal Installation:

1. Remove the top cover plate and route the unit's cables through the pre-drilled mounting holes.

2. Pass the mounting bracket through the mounting holes.

3. Place the gasket and nut and tighten the nut to secure the unit.

4. Adjust the unit to a suitable angle.

Saturn-T1000 User Manual

3 Control System Description

Wiring Diagram 3.1

Saturn-T1000 User Manual

Access Control Board 3.2

Terminal Description

Reader

Reserve

Reader

Reserve

RS485

Saturn-T1000 User Manual

Reserve

Power In

Lock

Auxiliary Output

485 Connections

Switch

Ethernet

Saturn-T1000 User Manual

Turnstile Control Board 3.3

Terminal Description

J19

Reserved

J18

Left Counter

J17

Right Counter

Reserved

Proximity Switch

Reserved

Saturn-T1000 User Manual

J16

Right traffic indicator light

J15

Left traffic indicator light

J20 / J12

Status light

Right Open / Left Open

(In / Out)

Alarm / Fire Signal Interface

J14

RS485

J13

RS485

J11

12V Power Supply Output

J10

12V Power Supply Input

R-solenoid

L-solenoid

Drop-arm solenoid

Saturn-T1000 User Manual

3.3.1 Mainboard Function Description

The DIP switch is divided in eight dial codes from KE-1 to KE-8.

Dial 0 to turn OFF.

Dial 1 to turn ON.

Mainboard Function Item:

 Unmanned passage time (KE-1, KE-2, KE-3):

Switch Status Time Period

000 （OFF OFF OFF） 5s (Default)

001 （OFF OFF ON） 10s

010 （OFF ON OFF） 15s

011 （OFF ON ON） 20s

100 （ON OFF OFF） 30s

101 （ON OFF ON） 40s

110 （ON OFF ON） 50s

111 （ON ON ON） 60s

 Passage Mode

The passage mode can be controlled through an RS485-connected wire control box, with selectable

modes: Authorized, Free, Blocked, and Always Open.

 Memory Swipe Mode (KE-6):

 Dial 1 (ON) to turn on.

 Dial 0 (OFF) to turn off.

 Electromagnet Duty Cycle Switching (KE-7):

 When set to ON:

If unmanned passage time ≤15s: Both left/right electromagnets maintain 100% duty cycle

after release;

If unmanned passage time >15s: 100% duty cycle for first 15s after release, then reduces

to 95%.

 When set to OFF:

If unmanned passage time ≤15s: Both left/right electromagnets maintain 100% duty cycle

Saturn-T1000 User Manual

after release;

If unmanned passage time >15s: 100% duty cycle for first 15s after release, then reduces

to 85%.

 Alarm Mode (KE-8):

 Dial 1 (ON) to turn on.

 Dial 0 (OFF) to turn off.

 Reserved Dial Code: KE-4, KE-5

Saturn-T1000 User Manual

4 Troubleshooting

Failure Description Solution

The light indicator doesn't

illuminate when the

equipment is turned on

Check for power supply or circuit issues. Examine the connection

and power cables for damage or loose wiring.

The device arm can't be

manually lifted after

powering on

 Check whether the limit seat is properly aligned with the disk

wheel when lifting the arm.

 Check whether the arm

drop magnet is working properly,

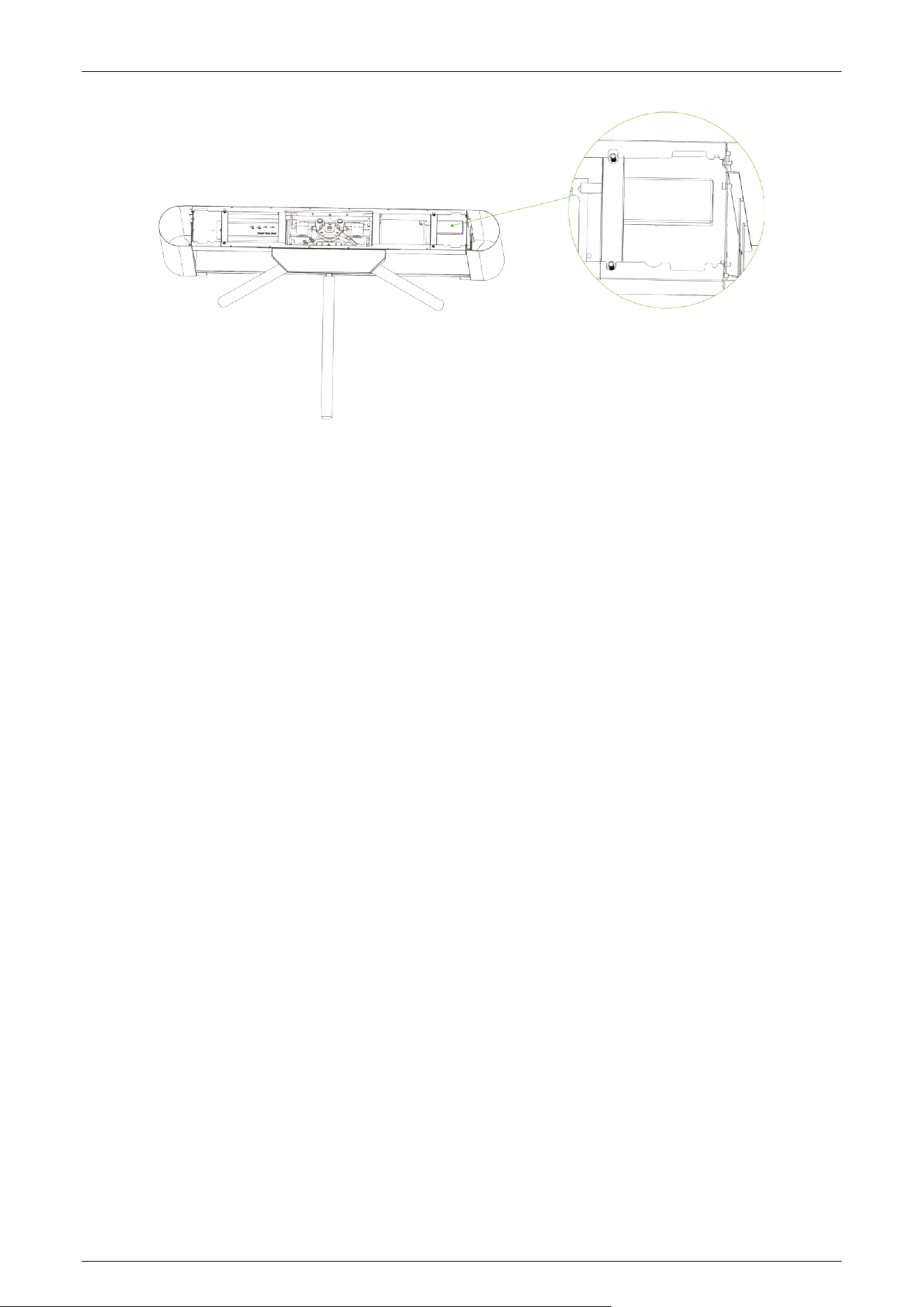

open the upper cover of the chassis, open the movement

cover with a hexagonal screwdriver and check the working

status of the electromagnet.

No gate opening after

authentication

 Verify user permissions.

 Refer to the 3.1 wiring diagram to check the wiring.

After opening the gate, the

passage is not smooth, and

there's high resistance in the

push rod, making rotation

difficult

Adjust the tension spring by tweaking the live joint bolt at the

tension spring.

Dropping the arm during

use

 Check if the limit seat is correctly aligned or if there is a gap.

 Ensure the arm drop magnet is fully engaged; if not, power off

for 2 minutes and then power on.

Continuous single-sided

passage during use without

locking the lever.

 Inspect the gate opening magnet by opening the top cover

and movement cover with a hexagonal screwdriver.

 Check for any sticking or disconnection in the gate opening

magnet or shrapnel.

Saturn-T1000 User Manual

5 Precaution

1. It is recommended to purchase optional accessories to use in outdoor environment.

a) Install optional cooling fans if the working temperature frequently exceeds 50°C.

b) Proper installation makes it equivalent to IPX4 waterproof, but it cannot withstand regions

prone to typhoons.

c) For temperatures below -30°C, consider installing a heating plate. Allow time for automatic

self-checking during power-on in extreme cold conditions.

d) Note that using the equipment in coastal areas or regions with acid rain may reduce its

service life.

2. When power and signal cables are correctly connected, the equipment can be submerged up

to a depth of 250 mm in water. Do not power on the equipment when submerged in water to

prevent operational issues.

3. It is highly recommended to set up a card swiping warning line to prompt passers-by to swipe

cards properly. Establish a reasonable passage width to prevent illegal squeezing by passers-by.

4. It is recommended to place a warning sign at a conspicuous position. The sign should prompt:

"Please swipe your card outside the warning line and pass in order. Thank you!”

The maximum tolerance of the tripod turnstile's arms

Note that the maximum stress tolerance at the center of the arm is 80kg, while at the ends of the

arm, it is 40kg. In the event of an impact force reaching the designed limit on the tripod turnstile, the

arms are engineered to detach first as a safety mechanism. This is a safety feature to prevent

damage to the entire equipment and ensure the safety of passers-by.

Saturn-T1000 User Manual

In case of emergencies

The equipment is designed to automatically drop the arms during a power failure, enabling open

passage for safe egress. Furthermore, the turnstile control board offers an interface to connect an

emergency switch (Drop Arm), maintaining the tripod turnstile in an open position during

emergencies. Note: After power is restored, wait at least 6 seconds before manually lifting the arms.

Saturn-T1000 User Manual

6 Maintenance

Chassis Maintenance 6.1

The chassis is made of SPCC steel (GB700) with powder coating. If it has been used for a long time,

the surface may develop rust stains. It is recommended to clean the surface regularly with a clean

cloth.

Movement Maintenance 6.2

Before performing maintenance, ensure the power is turned off. Open the door, wipe away surface

dust, and apply lubricant for smooth movement.

Power Supply Maintenance 6.3

 Switch off the power supply before conducting maintenance.

 Check the power plug connection; if loose, securely fix it..

 Do not change any connection position randomly.

 Periodically check the insulation of the external power supply.

 Conduct regular checks for any potential leakage.

 Check if the technical parameters of interface are normal.

 Check the service life of the electronic components and replace accordingly.

Caution: All maintenance procedures for the swing barrier mentioned above should be carried out

by a professional technician, especially when handling movement and electric control components.

To guarantee operational safety, it is crucial to switch off the power supply when the barrier is not in

use.

Saturn-T1000 User Manual

7 Packing List

The package consists of the following items:

Saturn-T1000 1

Cover Plate 2

Arm Assembly 1

Power Adapter

Expansion Screw

Washer 4

Expansion Screw Washers 4

Hex Wrench

Hex Socket Cap Screw

M10×60

(Used to fix the arm assembly)

Stainless Steel Maintenance Wipes

Saturn-T1000 User Manual

Revision History

Revision Date Author Reviewer Description

V1.0 09/01/2025 Stella Xia Original Document
