1. SAFETY
This coee grinder
should only be used
for the function
for which it was designed:
grinding coee beans.
Do not use the
grinder to grind
other types of
foods such as nuts or to
grind finer granulated foods
such as sugar and others.
This device may be
used by children
aged 8 years and
over, by people with
reduced physical, sensory
or mental capacities and
by people without prior
experience/knowledge,
provided they have received
supervision or instructions
on the safe use of the
device and understand the
associated risks.
Children should not
play with the device.
Cleaning and
maintenance of the
device should not be
carried out by children without
supervision.
Do not allowing
liquids to come
into contact with
internal or external surfaces
while the appliance is on or
o, except for those parts
expressly mentioned in the
“CLEANING” section.
If, for any reason, this happens,
disconnect the power supply
immediately and dry all
surfaces carefully.
ADDITIONAL SAFETY MEASURES BUILT-IN
TO OUR GRINDERS:
• Special screw to keep the hopper fixed.
5
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
1. SAFETY
If it is necessary to
access the interior,
where the electrical
components are located, go to
the nearest technical service
In the event of
any component
breaking, or for
any intervention we
recommend contacting
a technical services
centre, who will carry out
the repair or replacement,
guaranteeing that safety
standards are adhered to.
If the supplied cord is
damaged, it must be
replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
USERS SHOULD PAY
SPECIAL ATTENTION TO,
AND SCRUPULOUSLY
OBEY THE FOLLOWING
SAFETY INSTRUCTIONS
Any other use will be
considered improper
and dangerous.
NOTE: The manufacturer will not be liable for damage caused either by the
improper use of the device or by not following the stated safety measures.
6
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023

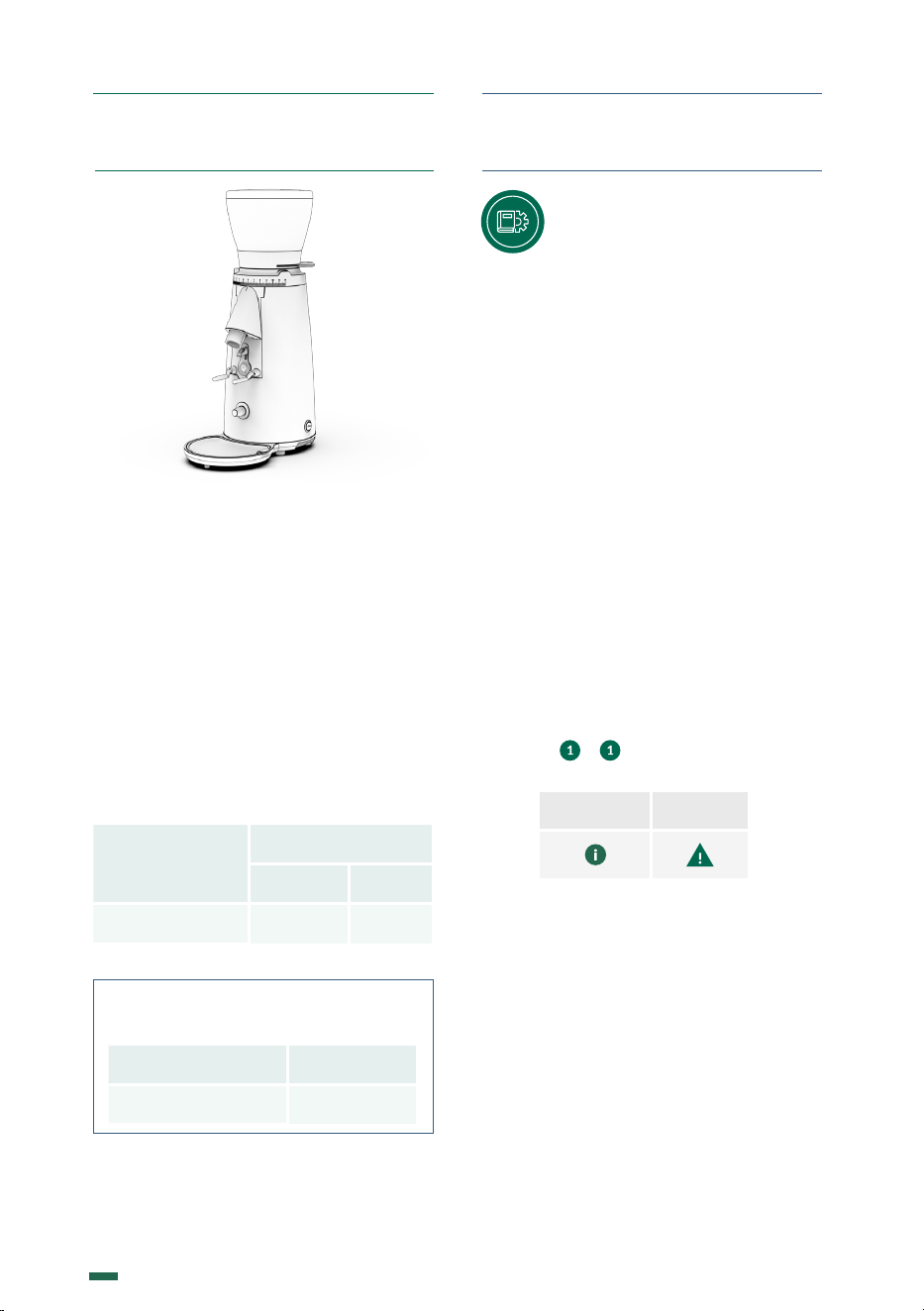

2. DESCRIPTION
3.1. This manual is designed to
provide the necessary information
to correctly install, use and maintain
the grinder, as well as to highlight precautions
for users to keep in mind.
To ensure the best operation of the coffee
grinder, please follow the instructions as
outlined in this manual.
This manual should be saved for the life of the
grinder, and should always be at the disposal of
the operator.
3.2. This manual uses some special terms,
such as:
• Text in bold to highlight the importance of
some terms.
• Numbers in parentheses after a word,
which match the numbering of the
items in the image to the side or in the
image of the external components.
3. INSTRUCTIONS
Information Warning
Example: ( ) - Hopper Lid.
Icons:
Your new grinder has been designed using the
most sophisticated technologies in existence.
The result is a product of high quality that
offers the assurance of the best results
possible. Our products are manufactured by
hand, one by one, following the strictest quality
requirements. In the manufacturing process,
we use only the highest quality materials
(aluminum, stainless steel, etc.) especially
designated for being in contact with food stuff.
For the optimum functionality of the grinder
models described in this user manual, the
maximum work cycles are as follows:
Model
Work cycle
ON OFF
i3 Touch 24sec 1min
SOUND LEVEL
The level of sound emitted is:
Sound level With coffee
i3 Touch 78,5 dB
7
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023

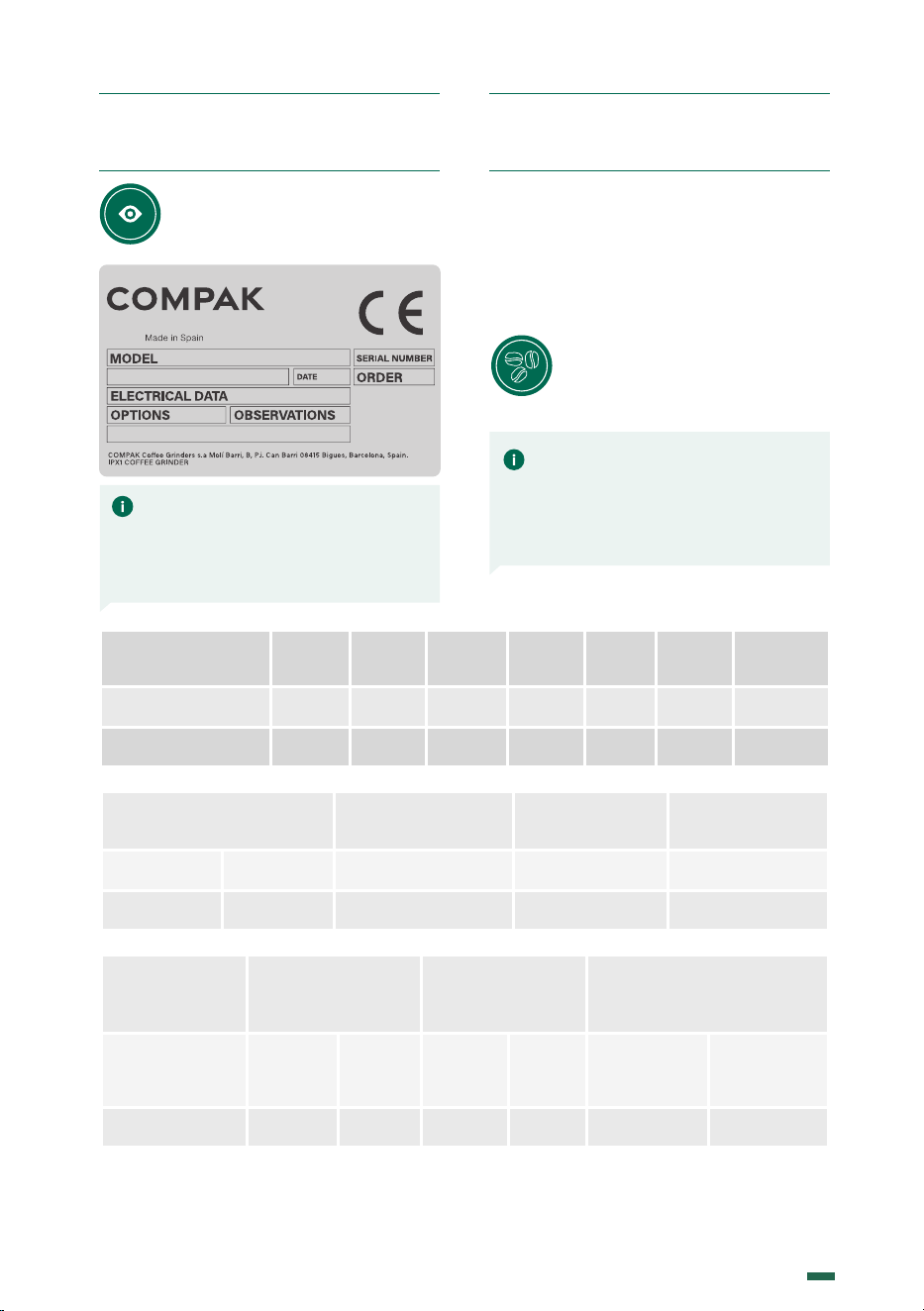

The technical characteristics
plate is indelibly marked with the
following information:
4. IDENTIFICATION
5.1. SCOPE
The coffee grinders are intended for commercial
applications where ground coffee must be
used, or in small shops selling coffee, but not for
continuous mass production of food.
This grinder should only be used to grind
coee beans.
Any other use is considered
improper and dangerous.
NOTE: The manufacturer reserves
the right to change the machine
components, according to the
requirements of each market, and
also for technological advances.
NOTE: The manufacturer is not
liable for damage to persons, goods
or the machine itself, if the safety
regulations given in this manual are
not followed, or the machine is used
incorrectly.
5. TECH. CHARACTERISTICS
5.2. TECHNICAL DATA
100 V
50 Hz
100 V
60 Hz
110 V
60 Hz
220 V
60 Hz
230 V
50 Hz
240 V
50 Hz
Electrical Power
200 200 175 210 220 245
W
Spin Speed
1320 1620 1640 1340 1340 1345 rpm
* Production based on a medium roast coffee and Espresso grinding point.
Time for one dose
(7 gr) 60Hz
Hopper capacity Net weight
Height
Width
Depth
2,6 0,7 1,54 8,05 17,75
515
190
315
20,3
7,5
12,4
s Kg lb Kg lb mm in
Ø
Flat Burrs
Production
50 Hz*
Production
60 Hz*
Time for one dose
(7g) 50Hz
58 2,3 2 2,4 3,5
mm in g/s g/s s
8
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
1
2

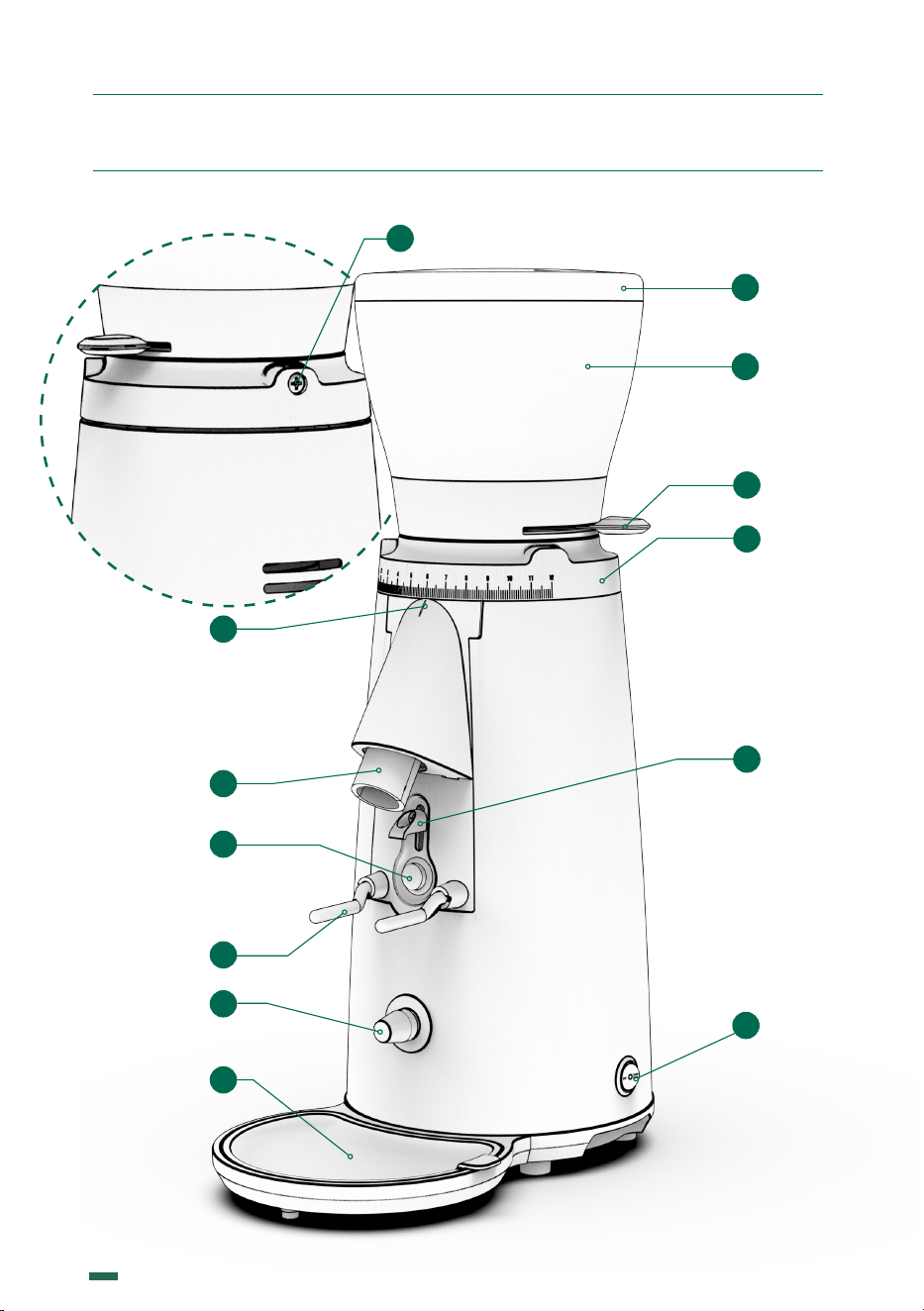

6. EXTERNAL COMPONENTS
Hopper
lid
Coee bean
hopper
3
Hopper security screw
5
8
12
11
6
Position
indicator
Timer
Exit chute
Dose button
Coee
collection tray
Grind
regulator
4
Hopper
shutter
7
9
Portafilter holder
Switch
3 positions
13
10
Upper
portafilter
holder
9
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
Switch
3 positions
7. INSTALLATION
7.1. LEGAL NOTICES
The installer must read this instruction
manual carefully before installing the
machine.
The installation of the device
must be carried out by qualified
and authorised personnel,
obeying all the current safety and hygiene
regulations.
7.2. IMPORTANT WARNINGS
The operator must be a responsible adult.
Never a child nor someone without the ability to
accept that responsibility.
When handling the grinder, the following
precautions should be obeyed:
• When removing the grinder from the
packaging, always pull it by the handles
of the bag.
• Feet must not be bare.
• Hands and feet must be dry.
• Do not get the machine wet.
• Do not expose the machine to direct
sunlight or other atmospheric agents.
• Never insert any object into the coffee
inlet or outlet while the appliance is
running. (Please remember that when
the grinder stops, the burrs will keep
turning for a short while).
• When unplugging the grinder, always
pull on the plug and never the power
cable to avoid a possible short circuit.
• Care is needed when handling cutting
burrs during cleaning.
7.3. WHERE TO USE IT
The appliance must be installed on a solid
and flat surface.
The minimum size for the
working space, to ensure you
get the best performance from
the machine, must be the following:
Model i3 Touch
Height
535
21
mm
in
Width
210
8,3
mm
in
Depth
360
14,2
mm
in
• Install the grinders on tables that are
completely level and in areas free from
external vibrations
• Install the grinders in areas where
there are installations with a ground
connection.
• Avoid places where abrupt changes in
temperature, humidity or airflow may
occur.
7.4. INSTALLING THE COFFEE GRINDER
Before connecting the coffee grinder, check the
following:
• The characteristics on the data plate
must match those of the electrical
mains network.
• The electrical connection plug matches
the socket into which it is to be plugged.
• Ensure that the electrical power of
the facility is adequate for the power
consumed by the appliance.
• The point of connection to the electrical
mains network must be protected with
the appropriate electrical protection
device.
• The equipment must be correctly
connected to a ground connection
according to the current safety
regulations.
NOTE: This coee grinder should
not be installed in places (SUCH
AS INDUSTRIAL KITCHENS)
where are expected to be
cleaned using water jets or a
steam cleaner.
10
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023

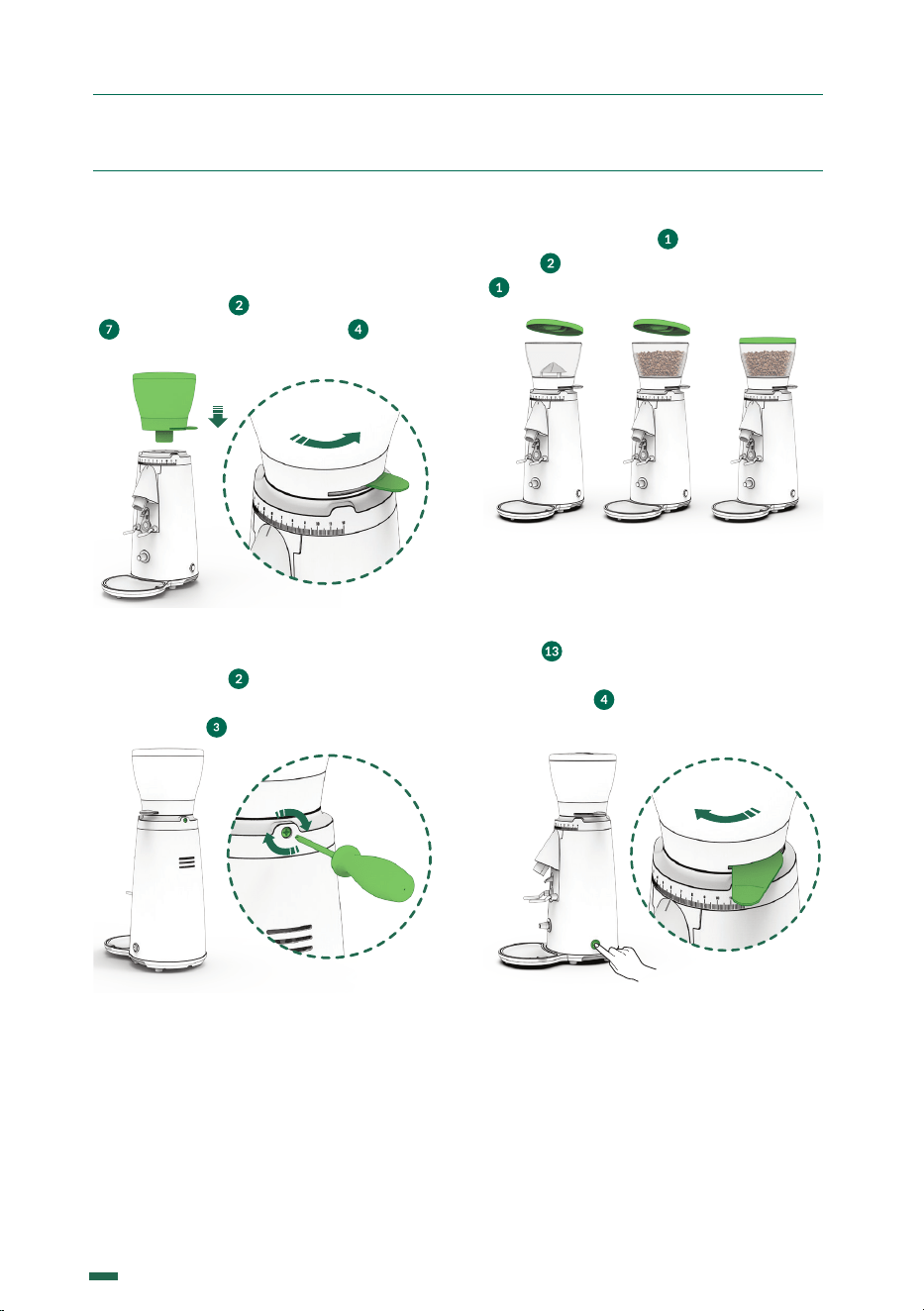

8. ADJUSTMENT
Remove the hopper lid ( ), fill the hopper with
coffee ( ), and replace the lid on the hopper
( ) (Fig. 3).
Fig. 3
Plug in the grinder, and place the main power
switch ( ) I - 1 TIMER / 0 - 0 OFF / II - 2
MANUAL to position I - 1 TIMER, I and open
the bean trap ( ) to allow coffee to pass into
the grind chamber.
Fig. 4
8.1. GRINDER SET UP
Place the hopper ( ) on the grind regulator
( ) and make sure the bean trap ( ) is in the
closed position (Fig. 1).
Fig. 1
Lock the hopper ( ) in place using a phillips
head screw driver to gently tighten the hopper
security screw ( ) (Fig. 2).
Fig. 2
11
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
8. ADJUSTMENT

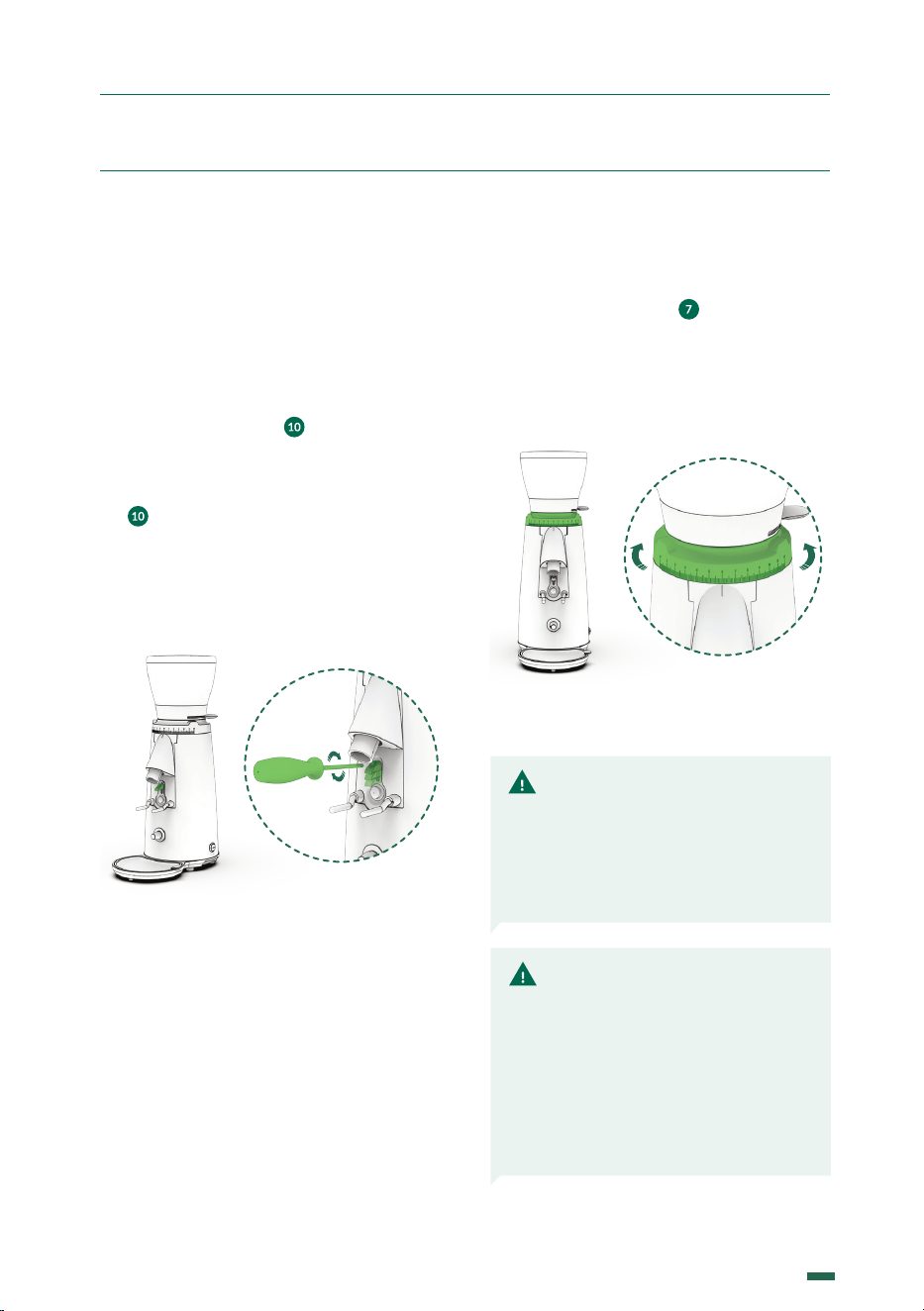

8.3. GRIND ADJUSTMENT SYSTEM
Rotate the grind regulator ( ) until reaching the
grind level desired.
Rotating the grind regulator clockwise will result
in a courser grind; turning the regulator counter
clockwise will result in a finer grinder (Fig. 5).
Fig. 5
8.2. ADJUSTING THE TOP
PORTAFILTER SUPPORT
In order to ensure the proper distribution of
ground coffee in the portafilter, while supporting
the portafilter in a hands-free position during
dosing, it is possible to adjust the height of the
upper portafilter support ( ).
To do this adjustment operation:
1. Loosen the screw on the upper support
( ) by using a #2 Philips screw driver.
2. Adjust the support to the desired height
using the portafilter as the point of reference.
3. Tighten the screw with the #2 Philips
screw driver (Fig. 4).
Fig. 4
NOTE: If the coffee throughput
is very low, this is because the
coffee is being ground very fine.
If the throughput is very high, this
is because the coffee is being
ground very coarse. A perfect
Espresso is produced when the
grinding gives an infusion of 25
ml of coffee in 25 seconds using
about 7 g of ground coffee.
NOTE: It is recommended that
this operation be performed,
when changing to a finer
grinding, with the motor running,
to prevent coffee from building
up between the burrs and
blocking the grinder.
12
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023

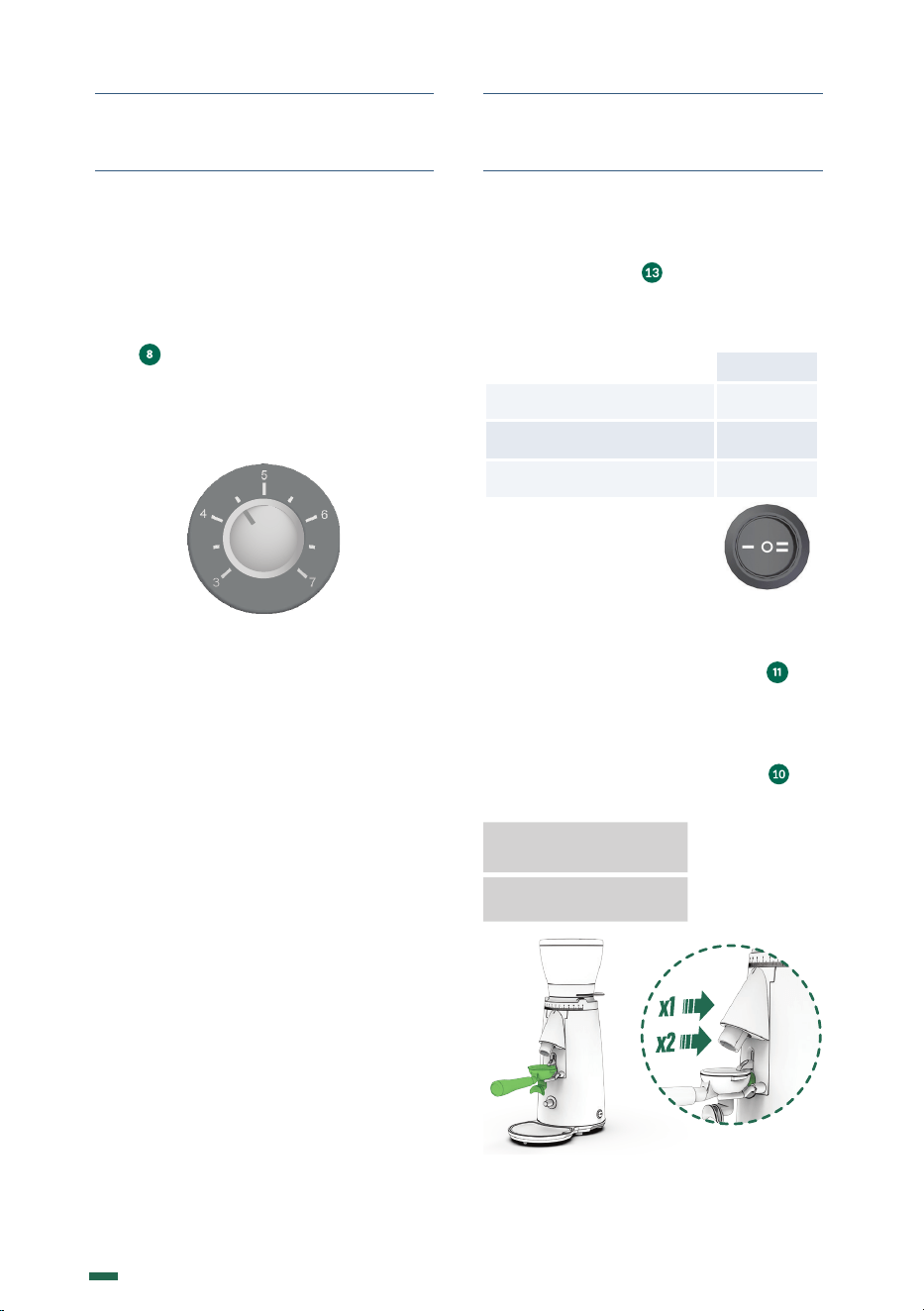

9.1. MAIN SWITCH
The main switch ( ) has the following
positions:
I / 0 / II (Fig. 7)
i3 Touch
Timed Grind. I
Equipment OFF O
Continuous grind. II
Fig. 7
Pressing one time the dose button ( ) will
deliver one freshly ground timed dose of coffee.
A double pressing will deliver a freshly ground
dose that is double the pre-set grind time (Fig.
8). Using the upper portafilter support ( ), it is
possible to run the timed grind cycle hands free.
Pressing 1 Time: 1 dose
Pressing 2 Times: 2 doses
Fig. 8
8. ADJUSTMENT
9. OPERATION
8.4. ADJUSTING THE DOSE
The grind time is pre-set at the factory to grind 7
grams of coffee in 6-7 seconds.
To adjust the grind time, simply turn the timer
knob ( ) found on the front of the grinder (Fig.
6). Turning clockwise will increase the grind
time, and turning the knob counterclockwise
decrease the grind time. The numbers on the
dial correspond with motor run time in seconds.
Fig. 6
13
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
10. CLEANING
10.1. GENERAL CLEANING
10.1.1 To ensure that the grinder functions
properly, and produces the highest quality grind
possible, the parts that come into contact with
coffee should cleaned periodically.
General Cleaning guidelines as follows:
• Always turn the main power switch to the
off position ( ).
• Unplug the machine from the power
source.
• Do not submerge the grinder in water or
use power washing devices.
• The appliance is not to be cleaned with a
water jet.
10.2. BEAN HOPPER CLEANING
10.2.1 In order to properly clean the bean
hopper ( ), first empty out all remaining beans
and fragments.
To remove the hopper, first close the bean trap
( ), and then loosen the hopper lock screw
( ) and lift the hopper straight up.
Clean the hopper ( ) with a moist soft cloth or
with a small amount of water and neutral soap
to eliminate any oily residue from the beans.
Replace the bean hopper ( ) following the
same steps as the removal process, but in
reverse.
10.3. CLEANING THE GRIND CHAMBER
10.3.1 Compak recommends that the grind
chamber be cleaned monthly with a cleaner .
This process will eliminate smelly residues from
the coffee remains, which can negatively affect
the quality of the brewed coffee.
Care is needed when handling cutting burrs
during cleaning
The steps to follow are:
In order to properly clean the bean hopper
( ), first empty out all remaining beans and
fragments.
• Close the bean trap on the hopper ( )
and grind out the remaining coffee in the
grind chamber.
• Pour the recommended grinder cleaning
product into the bean hopper ( ) and
open the bean trap ( ), allowing the
cleaning product to pass into the grind
chamber.
• Grind the cleaning product at a
medium coarse grind setting until the
recommended amount is passed through
the system and nothing remains in the
grind chamber.
• Clean the hopper ( ) and refill with
coffee beans.
• Discard the first 2-3 doses of coffee to assure
that the residual cleaning product is removed
from the grind chamber and set the grind
regulator to the desired setting ( ).
• Following these steps will ensure that the
grinder is clean and ready for use.
• We do not recommend the taking apart
of the grind assembly unless changing
burrs, or removing a blockage/obstruction
in the grind chamber. Removal of the
grind assembly should be performed by a
qualified service technician.
14
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
11. MAINTENANCE
10.4. CLEANING THE OUTSIDE OF THE
GRINDER
10.4.1 To clean the exterior of the grinder, first
wipe with a dry soft cloth, and then gently wipe
with a damp cloth and neutral soap.
10.5. CLEANING THE TOUCH SCREEN
10.5.1 Proper cleaning should be done with a
soft, damp microfiber towel. Preferably distilled
water or other cleaning product specifically
designed for touch screen cleaning.
Turn off the grinder and gently wipe off the
screen using a circular motion.
10. CLEANING
Not following the recommended
burr life guidelines can compromise
the safety of the grinder.
These operations should be done
by a qualified service technician.
11.1. GENERAL WARNING
11.1.1 Before performing any type of
maintenance you should:
• Always turn OFF the main power switch
to the off position ( ).
• If the grinder is jammed, unplug it from the
power source and contact an authorized
service technician.
In case of breakdown or malfunction, turn off
the appliance, we should never try to repair it, it
is essential to call the nearest technical service.
NOTE: Not following these warnings
can compromise the safety of the
grinder as well as the user.
11.2. GENERAL MAINTENANCE OF THE
GRIND CHAMBER
11.2.1 To guarantee the efficiency and correct
operation of the grinder, it is essential to follow
manufacturer instructions and ensure that all
maintenance work is carried out by qualified staff.
Dull burrs will result in; a lower quality grind,
greater heat generation in the coffee and
grinder, increased electrical consumption, and
finally it puts additional stress on the grinder
motor.
15
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
11. MAINTENANCE
11.3. GRINDING GROUP MAINTENANCE
To perform grind chamber maintenance please
observe the following steps:
11.3.1 Turn off the grinder by making sure the
main power switch ( ) is on the OFF position.
Disconnect the plug from the power source.

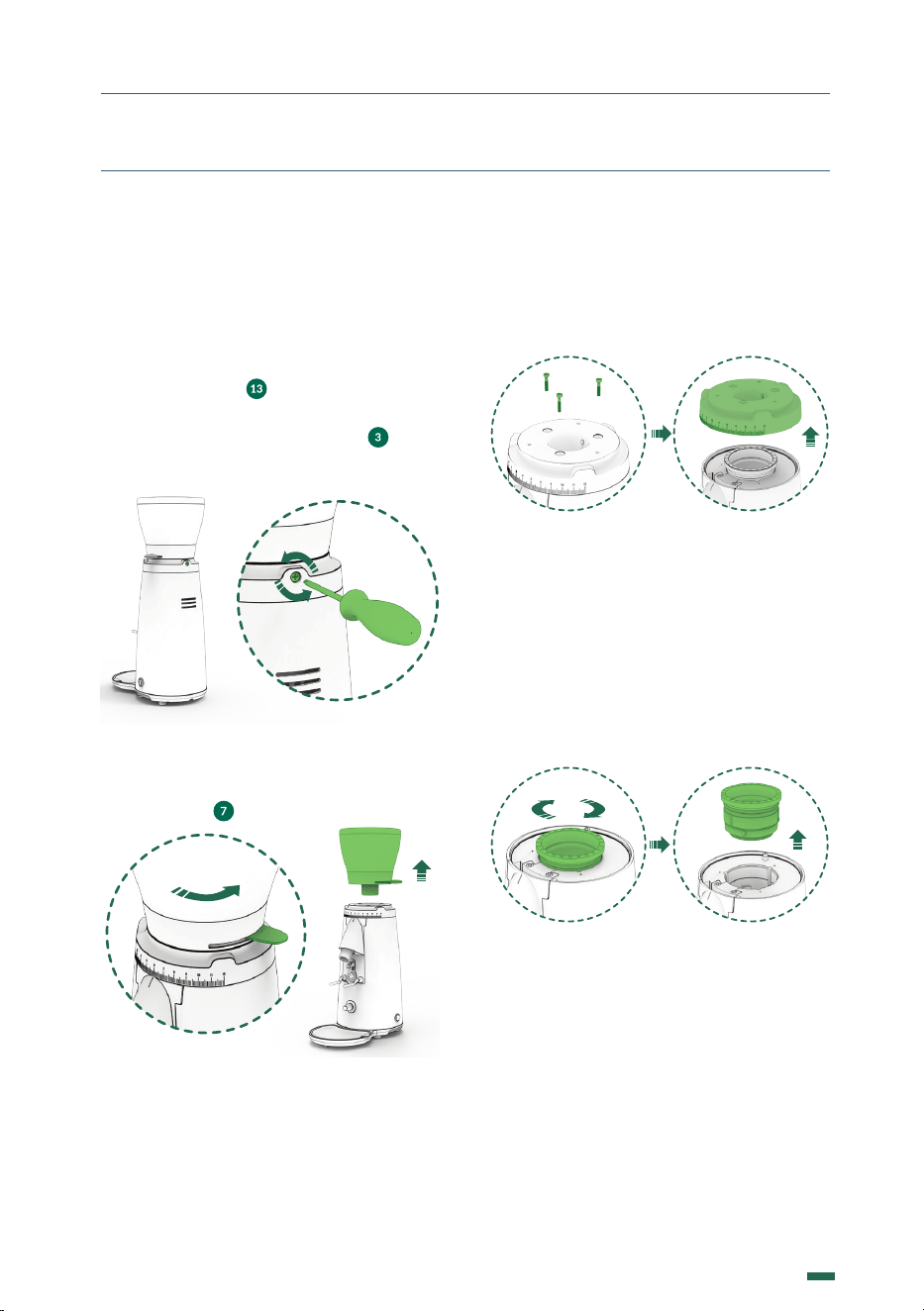

Loosen the hopper security screw ( ) using
a Phillips head screw driver as seen in (Fig.1).
Fig. 1
11.3.2 Check that the shutter is in the closed
position before removing the hopper from the
grind regulator ( ). (Fig. 2).
Fig. 2
11.3.3 Loosen the grinding regulator screws
using an Hex Allen screwdriver #3, according
to (Fig.3). Remove the regulator by pulling up.
(Fig.4).
Fig. 3 Fig. 4
11.3.4 Turn the grinding regulator clockwise
until it is removed from its seat. Clean the inside
of the grinding cavity with a brush or vacuum
cleaner and remove any coffee residue as well
as the lubricant from the threads of the upper
burr holder and the grinding cavity (Fig.5).
and (Fig.6).
Fig. 5 Fig. 6
Renew the food lubricant of the threads of
the upper cutter holder and of the grinding
cavity. Insert the upper cutter holder, turning
it counterclockwise until the upper and lower
cutter touch and cannot be turned any further.
16
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023

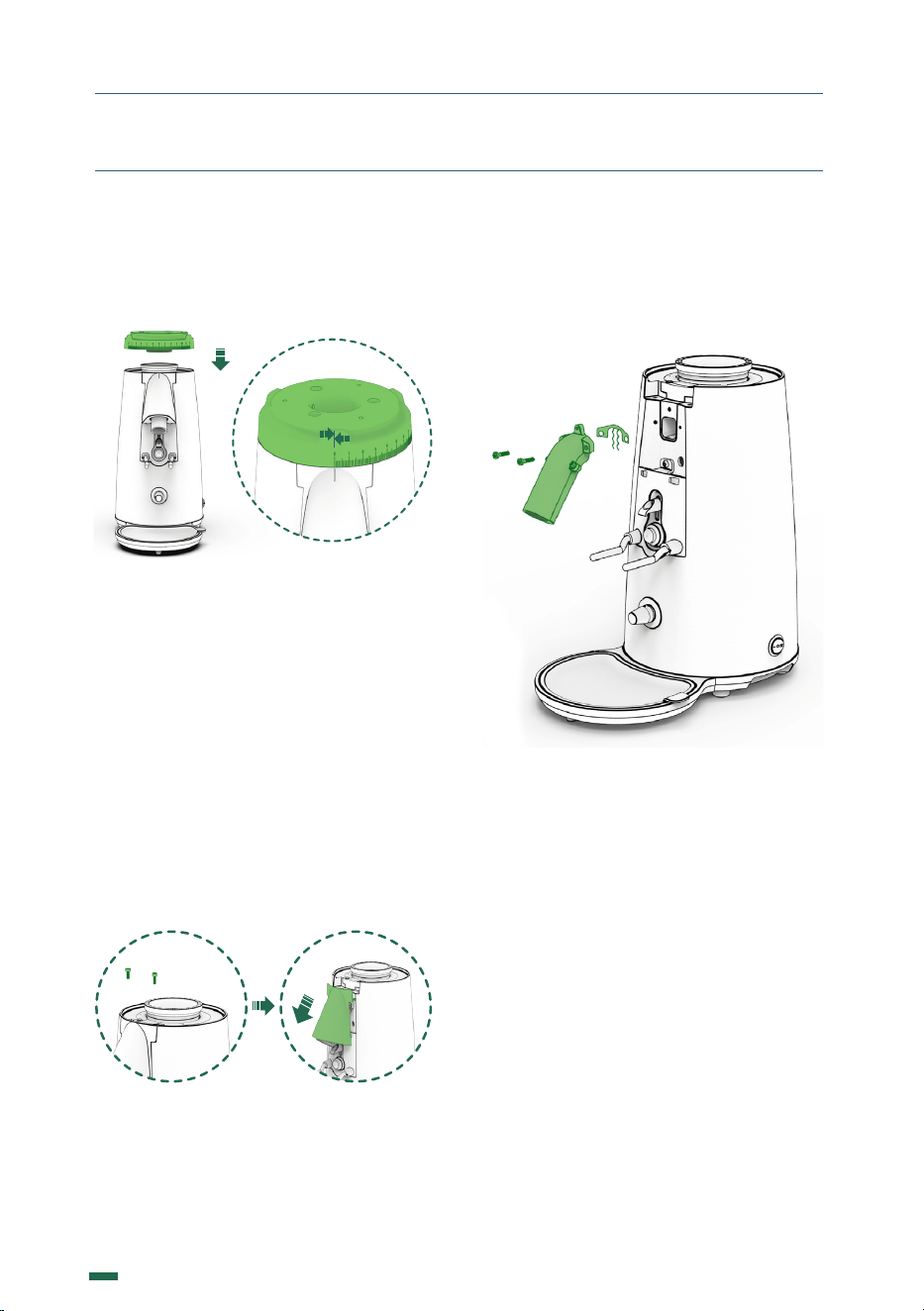

11.4.2 Using a Hex Allen key #3, loosen
the two screws of the coffee exit chute and
remove it from the grinder body to gain
access to the metal grid (Fig. 10).
Fig. 10
11. MAINTENANCE
11.3.5 When reassembling the regulator,
match the point 0 close to the position indicator
(Fig. 7) and tight the screws back on.
Fig. 7
11.4. REPLACING THE METAL GRID
The metal grid ensures consistency in the
dosage and minimizes static electricity
12.4.1 Located between the coffee exit chute
and the grinder’s body, can be replaced after
removing the regulator from the grinder,
following the instructions up to step 12.3.3.
To remove it, use a Hex Allen key #3 to loosen
the two top screws (Fig. 8), then carefully
remove the plastic cover by following the
direction of the coffee exit chute (Fig. 9).
Fig. 8 Fig. 9
17
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
12. DECLARATION OF CONFORMITY
In accordance with European community directives, quality certificates have been applied.
All materials have been adapted and technical reports are available at our offices.
2014/30/UE on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
06/42/EC amending Directive 95/16/EC on the approximation of the laws of the Member
States relating to machinery
REG. 1935/2004 amending Directive 89/109/EC on the approximation of the laws of the
Member States relating to material and objects destinated to make contact with nutritional
products.
03/108/EC amending Directive 2002/96/EC on waste electrical and electronic equipment
(WEEE).
2014/34/UE on the harmonization of the laws of Member States relating to electrical
equipment designed for use within certain voltage limits.
2012/19/UE of 04/07/2012 on the approximation of the laws of the Member States on waste
electrical and electronic equipment (WEEE).
11/65/EU related to the restriction on the usage of certain dangerous substances with electrical
equipment and electronics.
Environment
Do not throw the applianceaway with the normal household waste; hand it in at an official
recycling collection point. By doing this, you will help to preserve the environment.
The Legal Representative
Jesús Ascaso
Compak Coee Grinders, s.a.
Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain
Ph. 34 93 703 13 00 - www.compak.es - info@compak.es
18
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
19
K09659H01 | PROC-CAL/002/03 USER MANUAL | V. 06/09/2023
USER MANUAL
K09659H01 | PROC-CAL/002/03 | v.19/06/2023
www.fsc.org
