RETAIL
R140
R120
R100
R80
R8
coffee grinders
instructions manual
index
1. SAFETY MEASURES 5
2. DESCRIPTION 7
3. INSTRUCTIONS 8
4. IDENTIFICATION 8
5. TECHNICAL CARACTERISTICS 9
6. INSTALLATION 11
7. REGULATION 12
8. OPERATION 15
9. CONFIGURATION 17
10. CLEANING 18
11. MAINTENANCE 20
12. EC CONFORMITY 23
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
5
1. SECURITY
NOTE: The manufacturer will not be held responsible
for any damages resulting from improper use of the
equipment, or for not following the safety measures as
outlined below.
Safety measures incorporated into our grinders:
• Special screw to maintain the hopper xed in place.
• Access restrictor in the grind group.
Owners: Please pay careful attention with the following
instructions:
• The grinder should be used exclusively for the function for
which it was designed: grinding whole bean coffee.
• Do not use this grinder to grind other types of food products
such as dry fruit, sugar or spices.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• Any other use of the machine will be considered improper
and dangerous.
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
6
• Do not put liquids in contact with internal or external parts
of this grinder while ON or OFF, with the exception of parts
expressly outlined in the “CLEANING” section of this manual.
If liquids do come in contact with the grinder, immediately
disconnect electrical connection and carefully clean the
affected areas. If it is necessary to access the interior parts
of the grinder, contact your local service professional.
• In case of any damage to parts or components, we recommend
contacting your local service professional to help with repair
or replacement of such parts, thereby guaranteeing the
maintenance of the security standards of the grinder.
• If the supply cord is damaged, it must be repalced by the
manufacturer, its service agent or similarly qualied persons
in order to avoid a hazard.
• Only an authorized distributor should replace the main
power cable of the grinder.
• When handling burrs, special care should be taken as they
could cut. The use of suitable gloves is recommended.
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
7
SOUND DECIBEL LEVEL
The level of sound emitted in different models is:
Sound decibel level With coffee
R8 68,2 dB
R80 70 dB
R100 70,6 dB
R120 78,4 dB
R140 78,7 dB
R120 79,6 dB
R140 80,6 dB
2. DESCRIPTION
Your new grinder has been designed using the most sophisticated technologies in
existence. The result is a product of high quality that offers the assurance of the best
results possible. Our products are manufactured by hand, one by one, following the
strictest quality requirements. In the manufacturing process, we use only the highest
quality materials (aluminum, stainless steel, etc.) especially designated for being in
contact with food stuff.
For the optimum functionality of the grinder models described in this user manual,
the maximum work cycles are as follows:
Model
Working cycle
ON OFF
R8 1 min 30 sec 4 min 30 sec
R100 1 minute 3 minute
R120 1 min 30 sec 4 min 30 sec
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
8
3. INSTRUCTIONS
3.1. This manual is designed to provide the necessary information to correctly
install, use and maintain the grinder, as well as to highlight precautions for users to
keep in mind. To ensure the best operation of the coffee grinder, please follow the
instructions as outlined in this manual. This manual should be saved for the life of the
grinder, and should always be at the disposal of the operator.
3.2. This manual contains special terminology such as:
• Words in BOLD indicate important points or terminology.
• Numbers in parenthese after a word, indicate the location of this item in a parts
diagram.
Example: ( ) - Hopper lid
• Icons:
Information Atention
4. IDENTIFICATION
In the grinder information plaque is the following manufacturing/product information.
NOTE: The manufacturer reserves the right to change components/congurations of
any model, according to the different geographic market demands.
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
9
5. TECHNICAL CARACTERISITICS
5.1. Usage
The coffee grinders are intended for use on commercial premises and facilities where
ground coffee is required, or in small stores that sell coffee, but not for continuous
mass production of food. The grinder must only be used to grind coffee beans. Any
use other than this will be considered improper and dangerous.
NOTE: The manufacturer will not be held responsible for any damages resulting from
improper use of the equipment, or for not following the safety measures as outlined
below.
5.2. Technical data
Model
100 V
50 Hz
100 V
60 Hz
110 V
60 Hz
220 V
60 Hz
230 V
50 Hz
240 V
50 Hz
380 V
ψ
50 Hz
208 V
ψ
60 Hz
R8
Electric
power
600 700 860 730 650 630 (W)
Spin
speed
1,270 1,530 1,580 1,500 1,290 1,310 rpm
R80
Electric
power
750 810 700 470 730 750 (W)
Spin
speed
1,250 1.850 1,100 1,100 1,400 1,400 rpm
R100
Electric
power
850 1.000 935 650 1,050 970 (W)
Spin
speed
1,125 1,540 1,100 1,050 1,400 1,400 rpm
R120
Electric
power
1,000 1,050 1,150 1,025 1,000 1,000 (W)
Spin
speed
1,130 1,130 1,400 1,400 1,400 1,650 rpm
R140
Electric
power
1,500 1,530 1,600 1,600 (W)
Spin
speed
1,400 1,400 1,400 1,620 rpm
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
10
Model
R8 R80 R100 R120 R140
Ø Burrs
3.26
83
3.14
80
3.93
100
4.7
120
5.5
140
in
mm
Production*
50Hz
1.1
0,5
1.1
0,5
2.2
1
3.30
1,5
4.4
2
lb/min
Kg/min
Production*
60Hz
1.17
0,53
1.17
0,53
2.64
1,2
4
1,85
6.5
2,95
lb/min
Kg/min
Hopper
capacity
2.2
1,1
2.2
1,1
2.2
1,1
4.85
2,2
4.85
2,2
lb
Kg
Net weight
46.2
21,1
48.57
22,08
55.19
22,09
81.57
37,08
80.08
36,4
lb
Kg
Height
Width
Depth
23.20
8
12.28
595
205
315
23.20
8
12.28
595
205
315
23.20
8
12.28
595
205
315
30.22
9
14.82
775
230
380
30.22
9
14.82
775
230
380
in mm in mm in mm in mm in mm
* Production is based on a medium-roasted coffee and an Espresso grind.
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
11

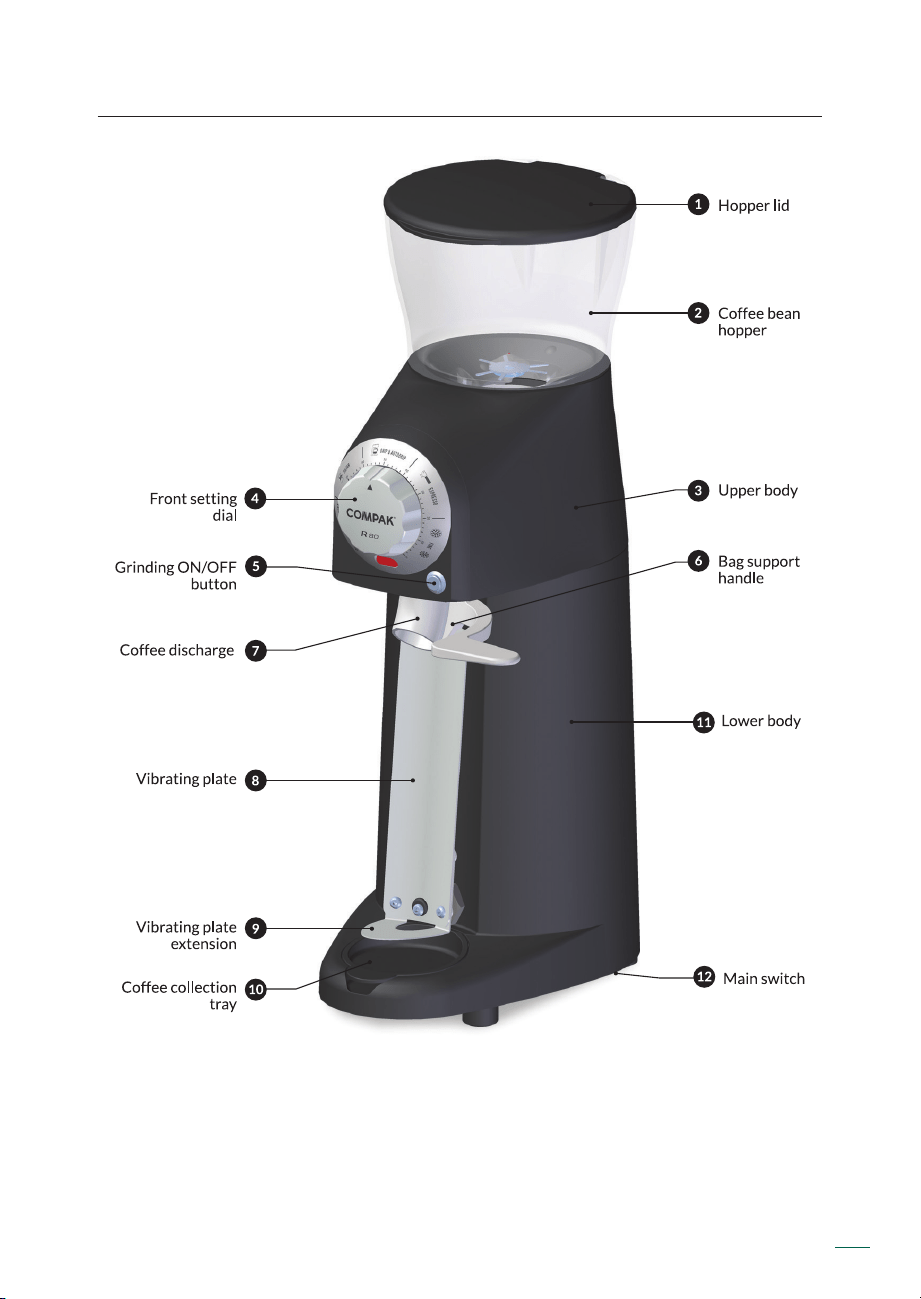

6. EXTERNAL COMPONENTS
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
12
7. INSTALLATION
7.1. General warnings
The person installing the grinder should carefully read this instruction manual
before installation. The installation of this machine should be completed by
qualied and authorized personnel, and all norms of safety and sanitation should be
followed.
7.2. Important warnings
When using the grinder, the following precautions should be followed:
• No bare feet.
• No wet hands or feet.
• Do not submerge in water.
• Do not expose the grinder to sun or other atmospheric conditions.
• Do not place any type of object in the coffee entrance or exit while the grinder
is running. (It should be kept in mind that the cutting burrs continue turning for
a couple revolutions after the grinder is powered off).
• To disconnect the grinder, use the main power switch and never the power
cable, to avoid a possible short circuit.
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
13
7.3. Where to use
The grinder should be installed on a at, stable surface. The minimum
dimensions of the work space should be as follows:
Model
R8, R80, R100 R120, R140
Height
28.35
720
35.43
900
in
mm
Width
9.45
240
10.43
265
in
mm
Depth
13.78
350
16.34
415
in
mm
7.4. Grinder installation
Before grinder installation, the following should be considered:
• The grinder information plaque data coincides with the electrical system on
site.
• The electrical outlet coincides with the grinder plug.
• The electric power at the location of installation should meet the minimum
required to properly run the grinder.
• The installation site should have the proper electrical overload protections.
• The grinder should be properly grounded as specied by local code.
The three-phase models are sold without the plug. In these models, you will be given
an uncovered power cable.
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
14

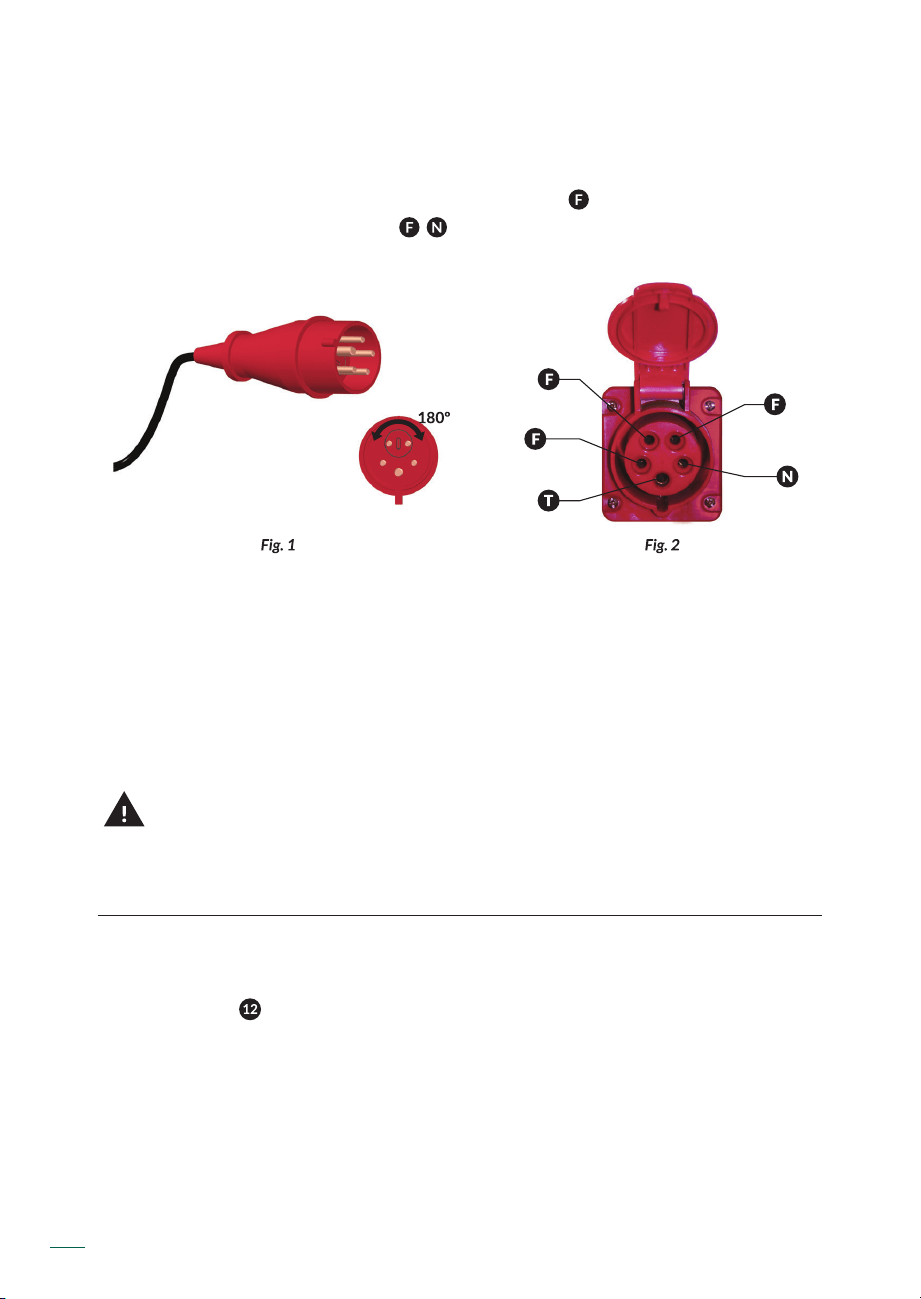

Please, check that the three-phase factory installation is correct.
Make sure our socket is EN 60529 and has 3F+N+T and the distribution of the
connection should be as in Figure 2.
Obtain 380V 50Hz or 220V 60 Hz between phases ( ) and 230V 50Hz or 110V
60Hz between Phase and Neutral ( - ).
In order for a correct grind, the burrs have to turn in a counter-clockwise direction.
When plugging in a three-phase grinder for the rst time, check that the burrs turn in
the right direction by opening the cover and looking into the hopper.
If the direction of the burrs is not correct, unplug the grinder and, with the help of a
at-head screwdriver, turn the phase reversal device 180º as soon shown in Figure 1.
When you plug the grinder in again, it should turn counter-clockwise.
NOTE: The coffee grinder should be used in areas with a room temperature below
30/35ºC ( 86/95ºF ) and should not be installed in places (SUCH AS INDUSTRIAL
KITCHENS) where cleaning with water jets is used.
8. OPERATION
8.1. Main switch
The main swith ( ) has 2 positions of use, ON–OFF
ON: Working
OFF: Not working
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
15

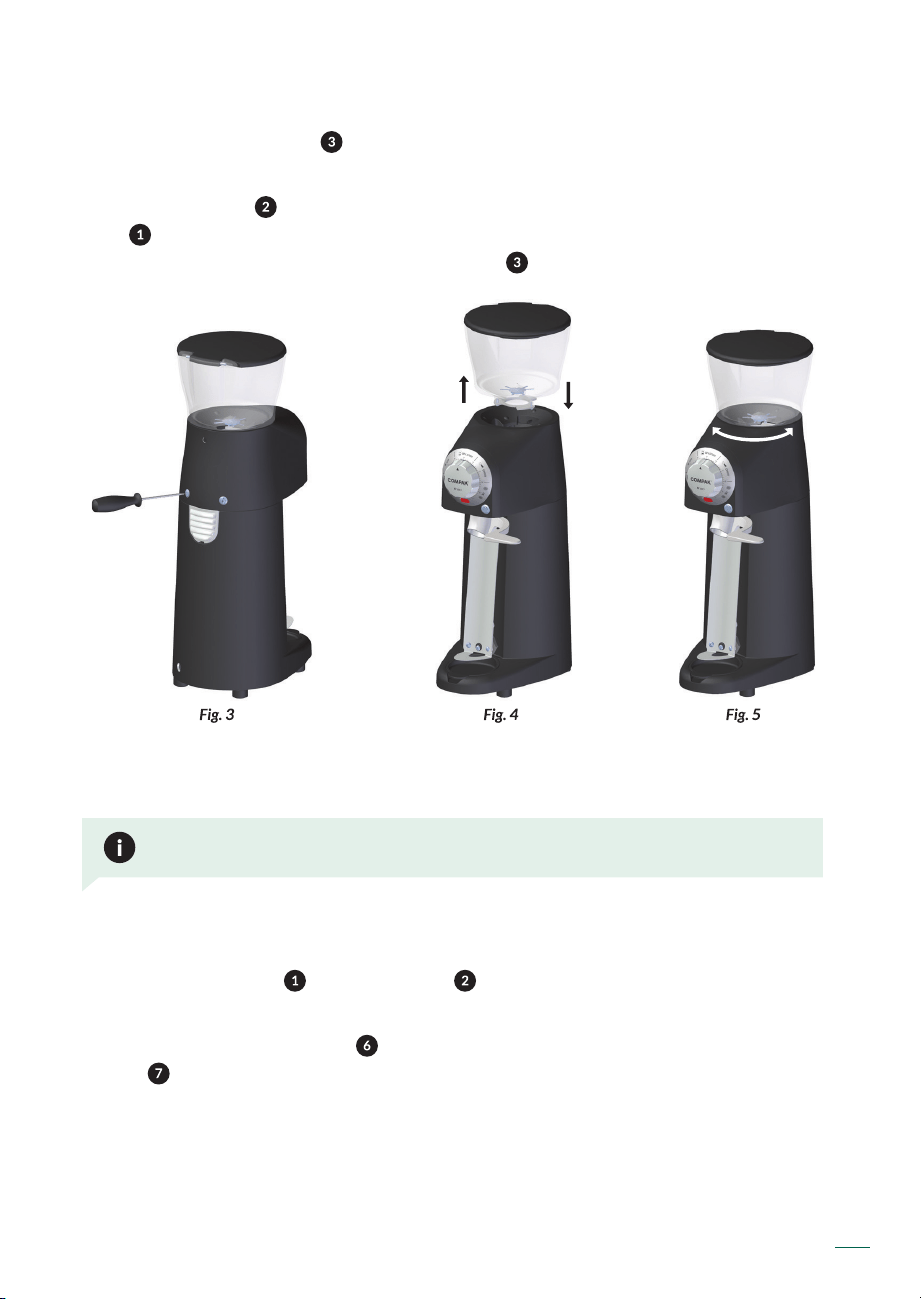

8.2. Hopper placement
Remove the upper body ( ) by unscrewing the two screws on the backside of the
grinder.
Place the hopper ( ) on the upper body and make sure that the hinge of the hopper
lid ( ) lines up with the backside of the grinder. Push down and turn clockwise until
the hopper clicks into place on the upper body ( ) (Fig. 4 & 5).
Turn the upper body around and x the hopper to the grinder body with the safety
screw that comes along with the grinder (Fig. 3).
NOTE: The manufacturer cannot accept responsibility for any damage casued by
improper use of the machine.
8.3. Use
Open the hopper lid ( ), ll the hopper ( ) with coffee and close the lid. Once the
coffee is inside the hopper, it can not be removed.

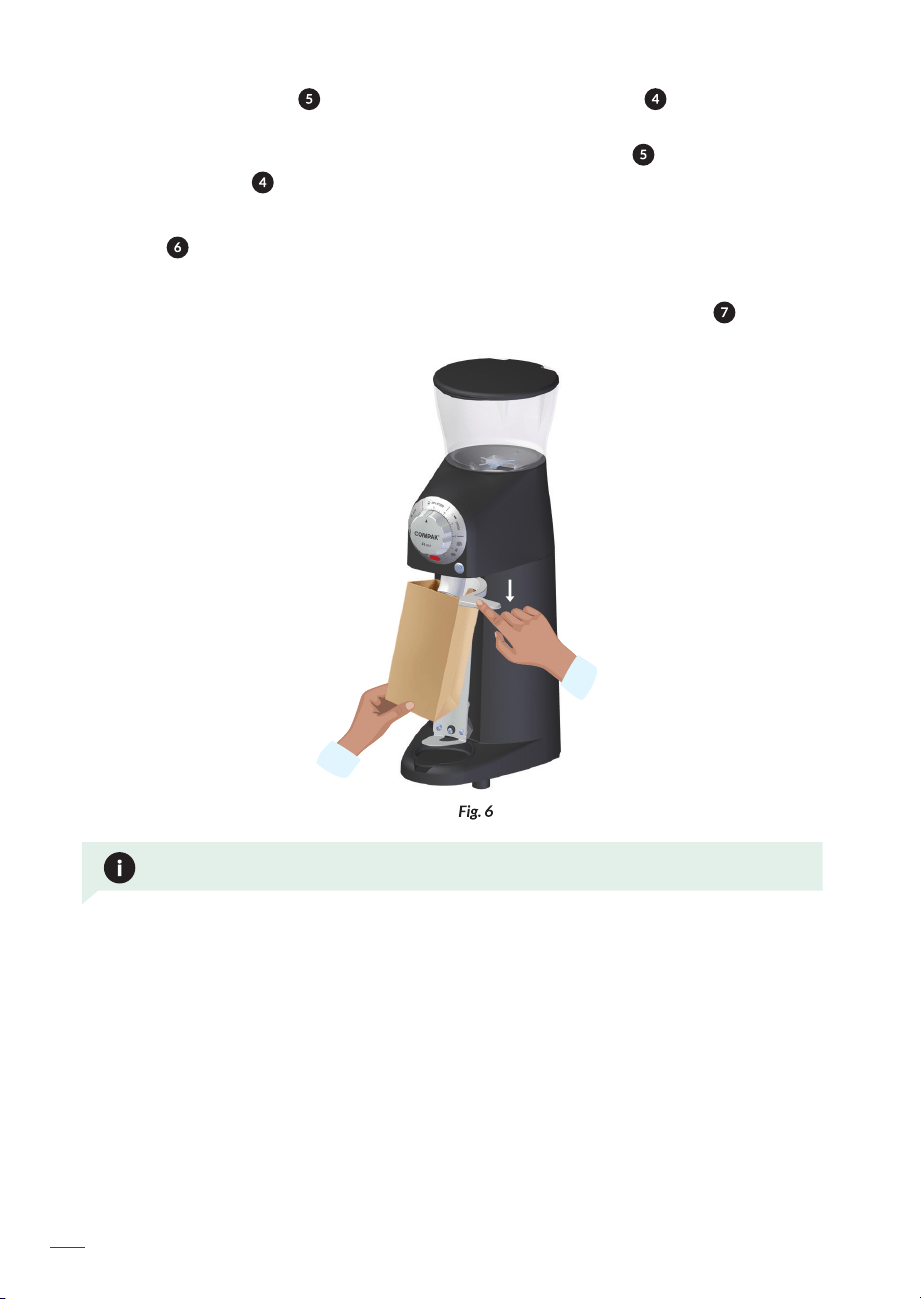

Press the bag support handle ( ) and put the empty bag around the coffee discharge
tube ( ), then release the handle so the bag remains xed in place.
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
16
Push the start button ( ) on the left of the front setting dial ( ) and the grinding
process will start (the selected grinding choice icon will ash). Once you have ground
the desired quantity of coffee, push the grinding stop button ( ) on the right of the
front setting dial ( ).
Remove the bag, holding it with one hand and with the other, push the bag support
handle ( ) down to release it.
Push the handle two or three more times against the outlet to remove so that any
remaining traces of coffee which may have stuck to the discharge tube ( ).
NOTE: The amount of coffee ground will depend on the chosen grinding point.
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
17
1 coffee bean
100 - 300 particles
French Press
500 - 800 particles
Filter
1,000 - 3,000 particles
Mocha
3,500 particles
Espresso
15,000 - 35,000 particles
Turkish

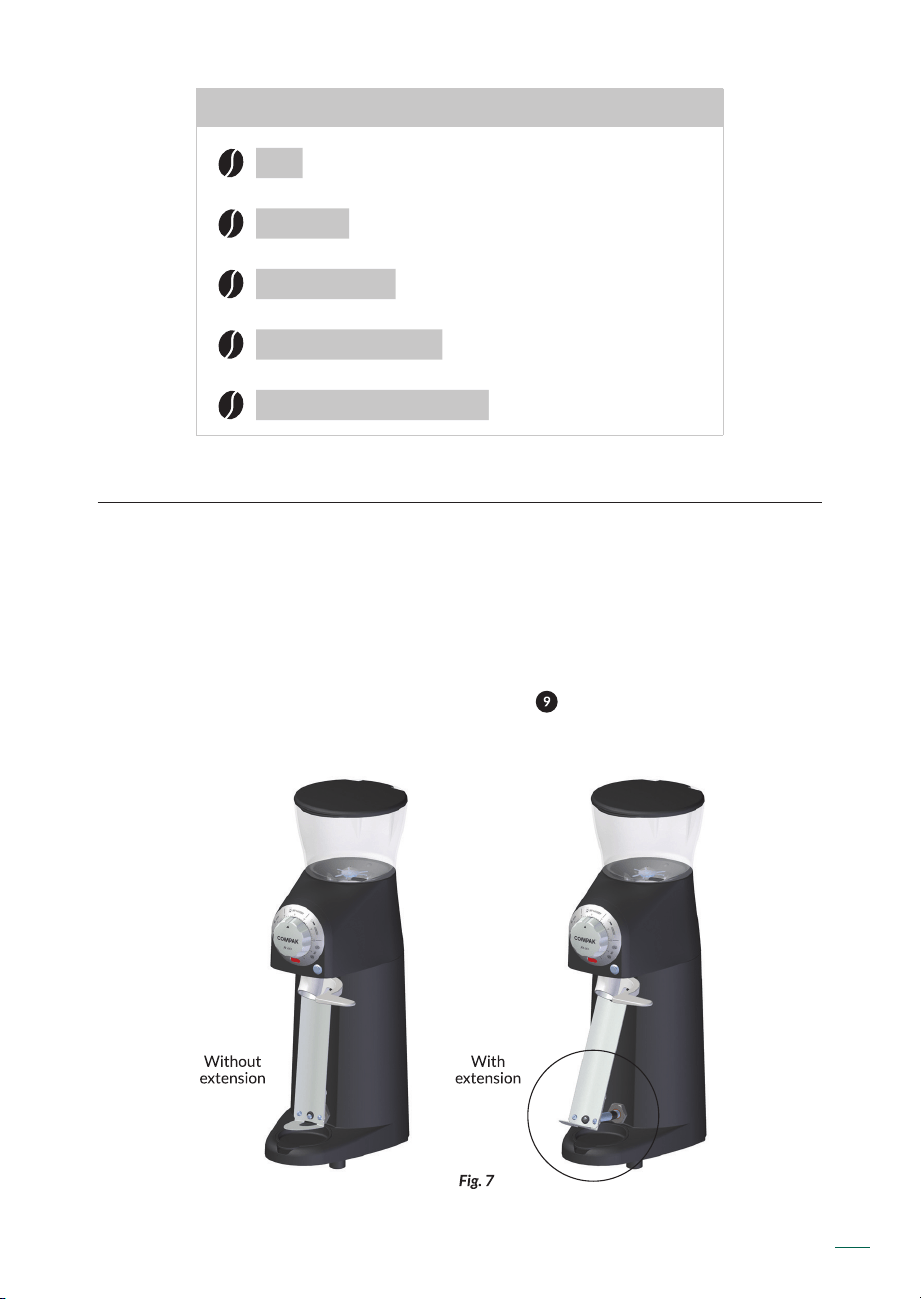

9. VIBRATING PLATE
9.1. Vibrating plate
The grinder comes with an extension to distance the bag shaker from the machine,
allowing the possibility to use bigger bags (>0.55 lb for R80 & R100 and >1.1 lb for
R120 & R140) and therefore grinder larger amounts coffee.
To put the extension in place, remove the screw ( ) on the lower part of the bag
shaker as indicated in Fig. 7 and put the adapter in place. Reconnect the bag shaker
using the same screw.
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
18
10. CLEANING
10.1. General warnings
To guarantee the correct operation of the machine as well as the quality of the
ground coffee, periodically clean the parts that come into contact with the coffee (at
least once a week).
Before performing any type of maintenance work, the following indications must be
taken into consideration:
• Always turn off the machine using the general switch ( ).
• Disconnect the machine from the power supply.
• Do not submerge the grinder in water or use power washing devices.
• The appliance is not to be cleaned with a water jet or a steam cleaner.
10.2. Bean hopper cleaning
It is recommended that the grind chamber be cleaned monthly with a cleaner as
recommended by Compak. This process will eliminate smelly residues from the
coffee remains, which can negatively affect the quality of the brewed coffee.
The steps to follow are:
• Grind out the remaining coffee in the grind chamber.
• Pour 60 gr of grinder cleaning product into the bean hopper ( ).
• Grind the cleaning product at a medium course grind setting until it is passed
through the system and nothing remains in the grind chamber.
• Clean the hopper ( ) and rell with coffee beans.
• Discard the rst 2-3 doses of coffee to assure that the residual cleaning product
is removed from the grind chamber and set the grind regulator to the desired
setting ( ).
Following these steps will ensure that the grinder is clean and ready for use.
We do not recommend the taking apart of the grind assembly unless changing burrs,
or removing a blockage/obstruction in the grind chamber. Removal of the grind
assembly should be performed by a qualied service technician.
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
19

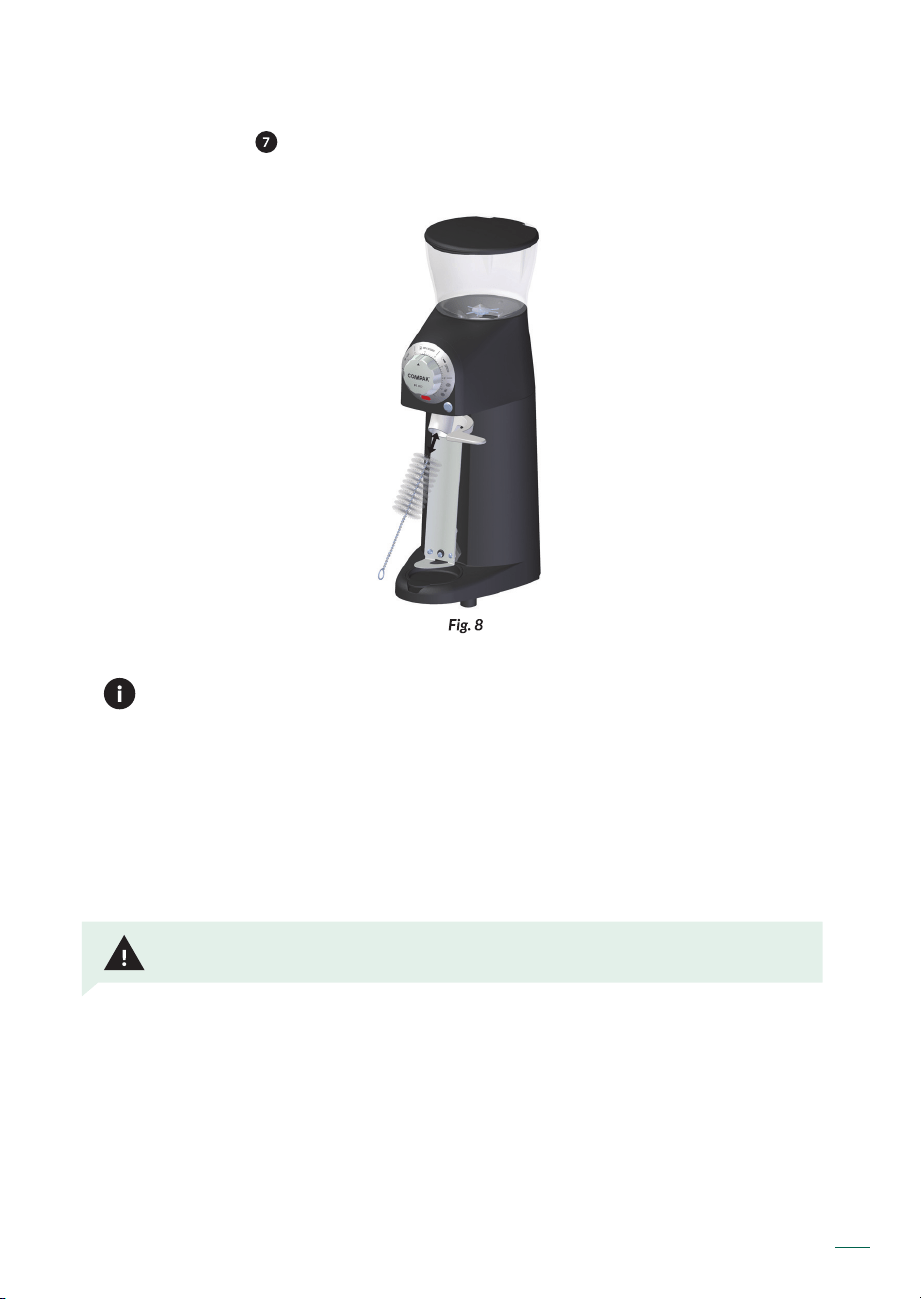

10.3. Cleaning the coffee discharge tube
To clean the tube ( ) use the brush that comes with the grinder and insert it several
times to remove any coffee remains.
ALERT: It is recommended to follow the cleaning instruction described in this point
at least once a month.
10.4. Cleaning the outside of the grinder
To clean the outside, use a dry brush and then a cloth that has been slightly
dampened in soapy water.
NOTE: FAILURE to perform these cleaning operations will affect the taste and
aroma of the coffee.
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
20
11. MAINTENANCE
11.1. General warning
Before performing any type of maintenance you should:
• Always turn OFF the main power switch to the off position ( ).
• If the grinder is jammed, unplug it from the power source and contact an
authorized service technician.
Not following these warnings can compromise the safety of the grinder as well as
the user.
11.2. General maintenance of the grind chamber
To guarantee the efciency and correct operation of the grinder, it is essential to
follow manufacturer instructions and ensure that all maintenance work is carried
out by qualied staff.
Dull burrs will result in; a lower quality grind, greater heat generation in the coffee
and grinder, increased electrical consumption, and nally it puts additional stress on
the grinder motor.
NOTE: Based on extensive experience and a medium-hard coffee blend, we
recommend replacing the burrs according to the following table:
Kg / lb of ground coffee
R8 800 Kg / 1322.77 lb
R80 6.800 Kg / 14,991.43 lb
R100 10.000 Kg / 22,046.23 lb
R120 12.000 Kg / 26,455.47 lb
R140 15.000 Kg / 33,069.34 lb
K04673 | v. 06/10/2020 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
21
11.3. Grinding group maintenance
Not following the recommended burr life guidelines can compromise the safety of
the grinder.
These operations should be done by a qualied service tecnician.
• To effect grinding group maintenance work, the following instructions should be
followed:
• Turn the front setting dial ( ) all the way to the left.
• Turn the machine off, using the ON-OFF switch ( ).
• Disconnect the cable from the power supply.
• Remove hopper ( ) from upper body ( ) according to section 7.
• Dismantle upper body ( ), by unscrewing the two rear screws. Remove the four
setting screws ( ) of the upper burr holder from the grinding cup (Allen wrench
4), according to Fig. 8.
• Replace the burrs by unscrewing them from their upper and lower supports.
During this operation, it is recommended to block the rotation of the lower burrs
with a at-head screwdriver.
• Clean the coffee remains from burr holders.
• Take out the used burrs and put in the new ones.
• Assemble to setting screws ( ) of the upper burr holder to the grinding cup.
ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 06/10/2020 | K04673
22

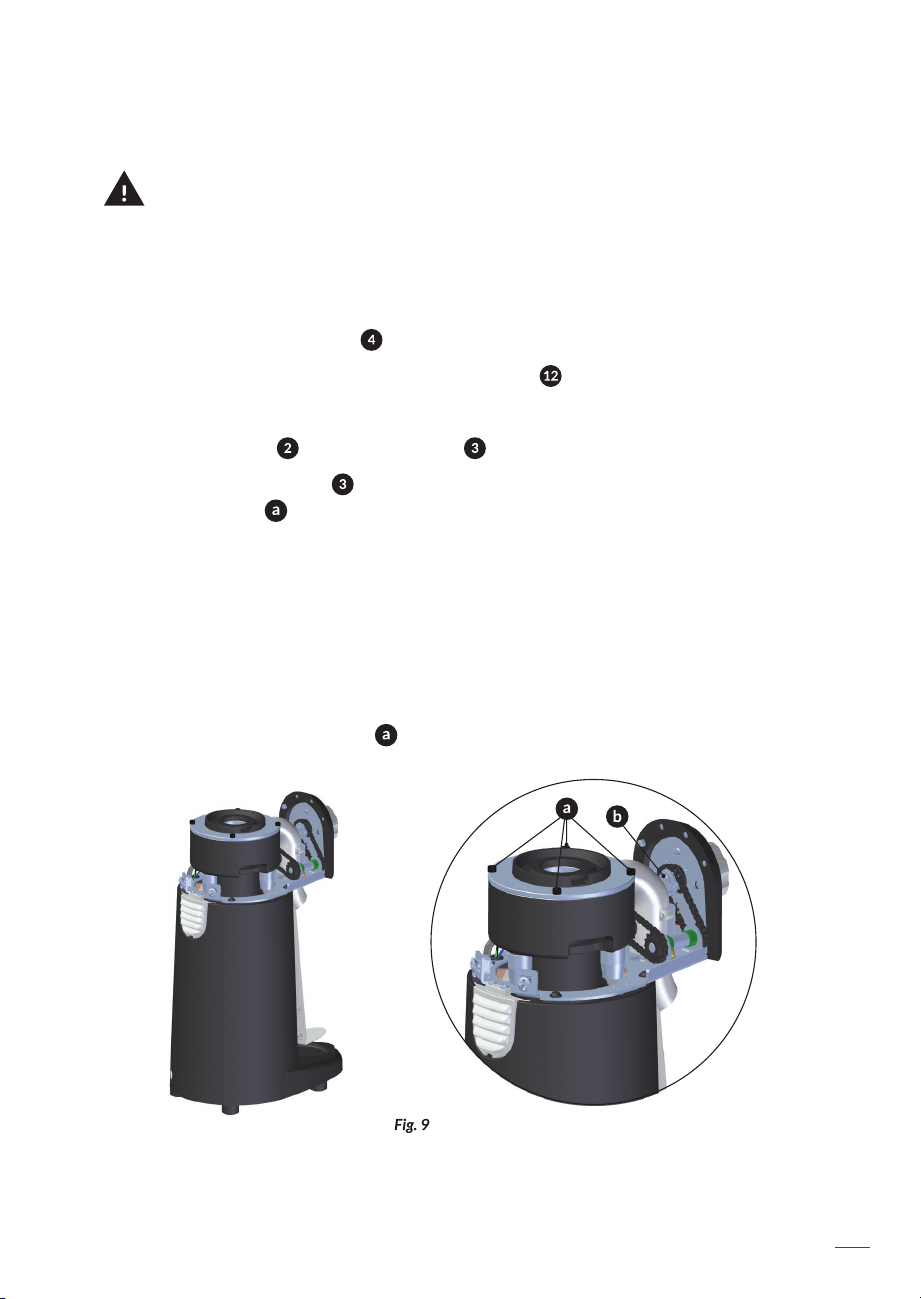

11.4. Reset the burrs to the 0 / Calibration
Position 0 is the point in which the burrs no longer touch.
Following these instructions allows the user to make small adjustments to adapt the
desired particle size for each of the types of coffee referenced on the front control
knob ( ).
• Turn the front dial ( ) clockwise until the burrs are as close as possible without
touching.
• Loosen, with the help of the key wrench that comes with the grinder, the screw
( ), until the chain is released.
• Turn the front dial ( ) clockwise as far as possible.
• Tighten the screw ( ).
• Assemble the upper body ( ), tightening the two rear screws and replace the
hopper.
23
Compak Coffee Grinders, s.a.
Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain
Ph. 34 93 703 13 00 - Fax 34 93 703 13 23 - www.compak.es
12. EC CONFORMITY
In accordance with European commu-nity directives, quality certicates have been
applied. All materials have been adapted and technical reports are available at our
ofces.
2014/30/UE on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
06/42/EC amending Directive 89/392/EC on the approximation of the laws of the
Member States relating to machinery
REG. 1935/2004 amending Directive 89/109/CE on the approximation of the laws
of the Member States relating to material and objects destinated to make contact
with nutritional products.
03/108/EC amending Directive 2002/96/EC on waste electrical and electronic
equipment (WEEE).
2014/34/UE on the harmonization of the laws of Member States relating to electrical
equipment designed for use within certain voltage limits.
2012/19/UE of 04/07/2012 on the approximation of the laws of the Member States
on waste electrical and electronic equipment (WEEE).
11/65/EU related to the restriction on the usage of certain dangerous
substances with electrical equipment and electronics.
Environment
Do not throw the applianceaway with the normal household waste; hand it in at
an ofcial recycling collection point. By doing this, you will help to preserve the
environment.
The Legal Representative
Jesús Ascaso
