Installation Instruction
Version: 1.0
Dat
e: A
ug
., 2016
LH3600
Diagram
Before Installation
1
B
A
C
D
E
H
F
G
D
L
O
Q
I
J
P
M
N
K
A
J
K
B
F
Packing List
N
2
L
D
G
Q
E
M
40 mm
6mm
20 mm
55 mm
105mm
H
I
C
65 mm
3
Door Preparation
1. Check door thickness, prepare the proper screws and spindles.
Note: Please install the mortise (E) and strike plate (I) according to the above pictures.
2. Check door open direction.
Note: If out of the door thickness of 35-55 mm,this lock will not be available.
I
I
I
I
E
E
Left inward Right inward
Left outward Right outward
E
E
Door Thickness D Spindle K Spindle M Screw N Screw
35~55 mm 40 mm 105 mm 55 mm 65 mm
4
Cautions
1. New lock is defined as always open mode until it was unlocked once by mifare card.
2. Please swipe authorised card, time sync card, room card at first for the new lock.
3. The lock is equipped with mechanical keys for manual unlocking. Remove the
mechanical keys from the package and keep them in a safe place.
4. To power on the lock, four alkaline AA batteries (not included) are required.
Non-alkaline and rechargeable batteries ARE NOT RECOMMENDED.
5. Do not remove batteries when the lock is in working state.
6. When battery power is low, the lock will beep to remind user to renew the batteries.
Please do not mix up positive and negative while replacing battery.
7. Avoid contacting with corrosive substances, and do not hang objects on the handle.
8. The software within the lock manages the RFID cards, for more details refer to the
software user manual.
9. If there are any questions, please do not hesitate to contact the seller.
Installation
5
de
s
i
r
e
d h
a
n
d
l
e
hei
g
ht
center line of
the handle
door
thick
ness
35~55 mm
2. Remove the mortise latch plate (G)
1. Drill holes on the door
Note 1: Align the template along the vertical
center line of the mortise (E) at the desired
handle height, and tape it to door.
Note 2: Mark the holes first, then start drilling.
backset 62.5mm
E
H
G
E
G
H
6

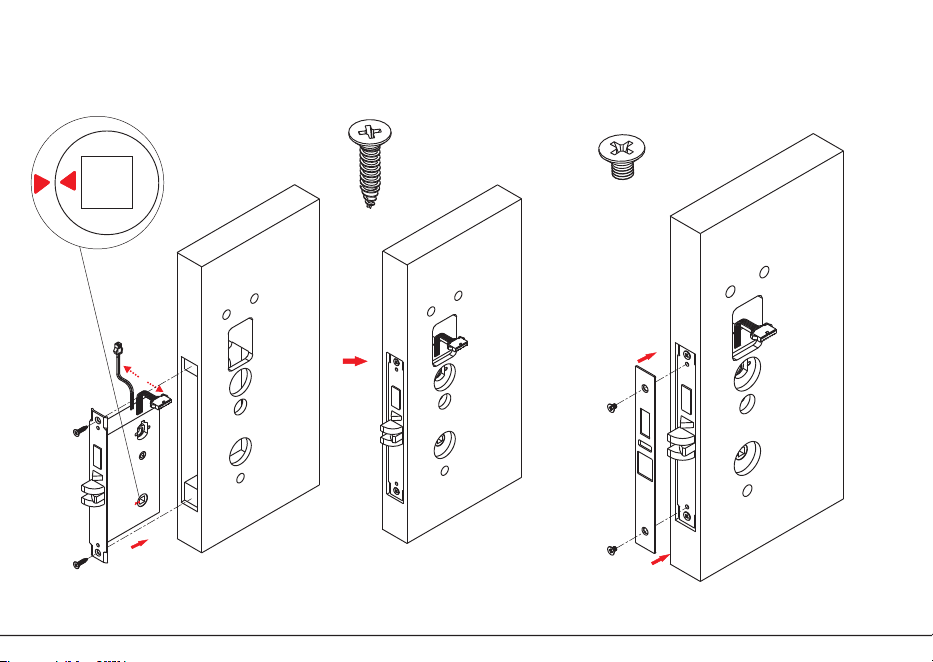

3. Install mortise (E)
4. Install mortise latch plate (G)
H
F
E
F
E
H
G
Note: Ensure the two triangles are in horizontal alignment.
7
D

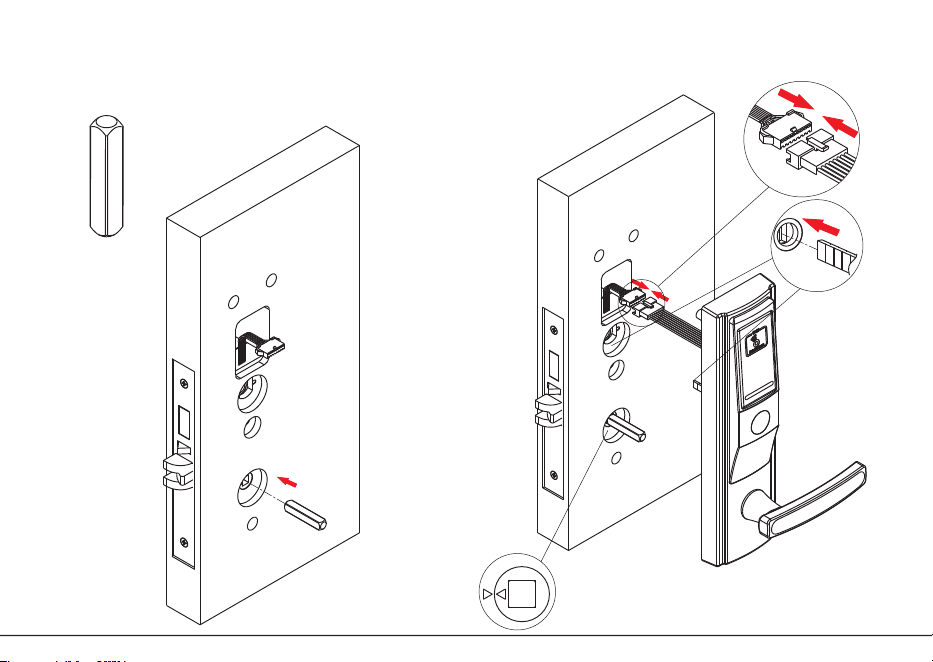

5. Install spindle (D)
D
6. Install outdoor unit (C)
8

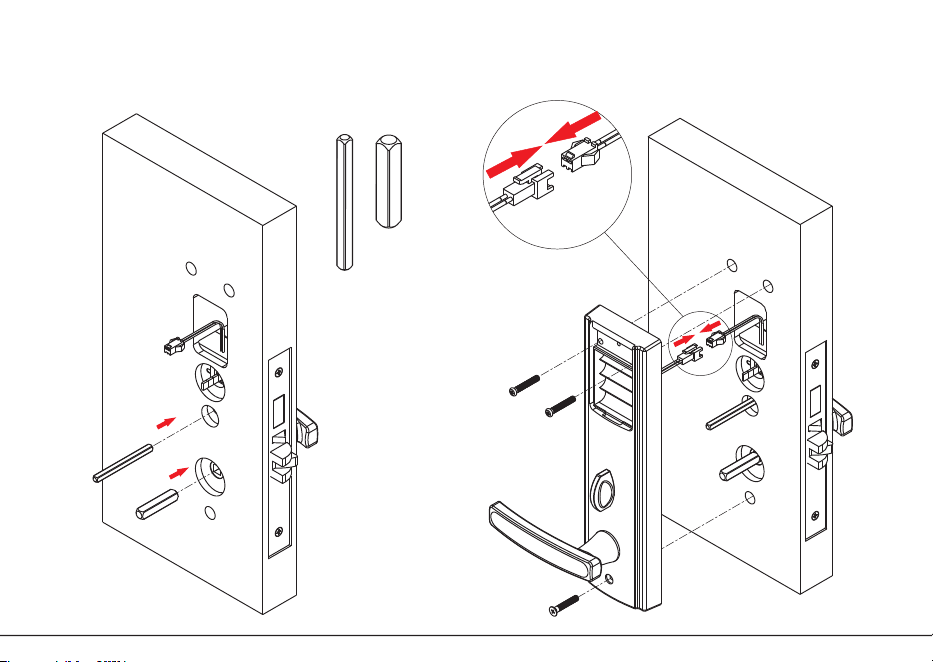

7. Install spindle (D) and (K)
D
K
D
K
8. Install indoor unit (L)
K
M
N
L
D
L
L
9

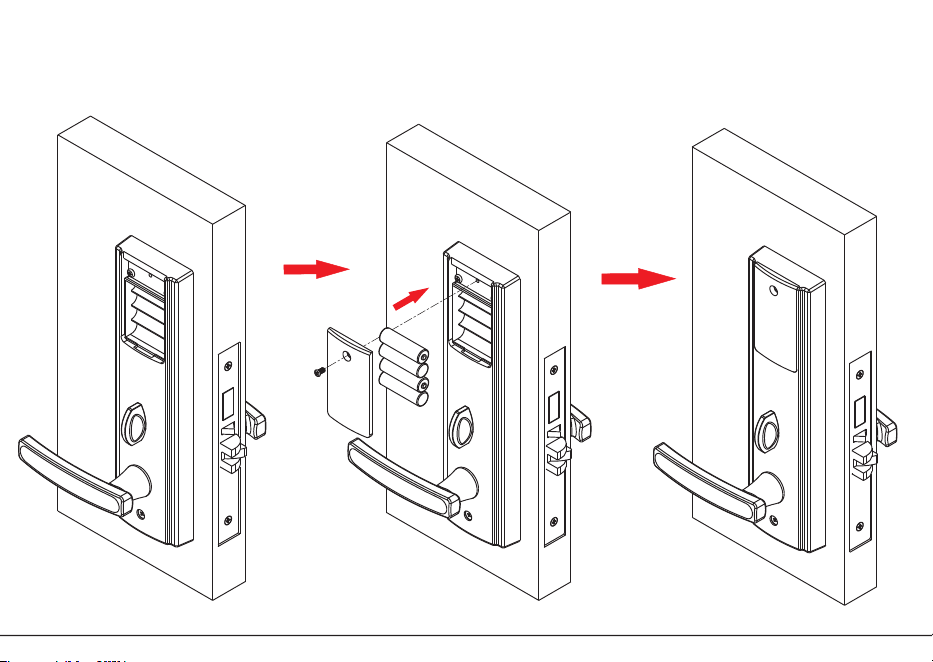

9. Install the battery (O)
Q
O
L
P
10
F
10. Mark and drill holes for strike
3 mm
22 mm
125 mm
89 mm
25 mm
F
I
J
11. Test Lock by mechanical key (A)
Step1: Remove the cover on the key hole with sucker (B).
Step2: Insert mechanical key (A) into the key hole and rotate it at 90°.
B
A
B
Step1
Step2
11
