Operator’s Manual
22” LAWN MOWER
CAUTION: Before using this product, read
this manual and follow all safety rules
and operating instructions.
SENIX TOOLS 6441 Hendry Road, Suite A, Charlotte, NC 28269
For customer support please call 1-800-261-3981 or email us at [email protected]
www.senixtools.com
Model No.LSSG-H2
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• WARRANTY
WWW.SENIXTOOLS.COM
2
PRODUCT SPECIFICATIONS
Engine Oil: SAE 30
Fuel: Unleaded Gasoline
Engine: Briggs & Stratton
MODEL NUMBER
Model Number:
Serial Number:
Date of Purchase:
Record the model number, serial number, and date of purchase above.
TABLE OF CONTENTS
WARRANTY STATEMENT
SENIX LIMITED WARRANTY
FOR TWO YEARS from the date of sale this product is warranted against defects in material or workmanship.
This warranty covers ONLY defects in material and workmanship. Warranty coverage does NOT include:
• Expendable items which can wear out from normal use within the warranty period, such as mower blades, blade adapters, belts, lters, or spark plugs.
• Product damage resulting from user attempts at product modication or repair or caused by product accessories.
• Repairs necessary because of accident or failure to operate or maintain the product according to all supplied instructions.
• Preventative maintenance or repairs necessary due to improper fuel mixture, contaminated or stale fuel.
This warranty is void if this product is ever used while providing commercial services or if rented to another person.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
SENIX TOOLS 6441 Hendry Rd. Charlotte, NC. 28269
www.senixtools.com
Warranty Statement .........................................Page 2
Safety Instructions ......................................Pages 3-6
Slope Guide ......................................................Page 7
Assembly ....................................................Pages 8-10
Operation .................................................Pages 11-13
Service and Maintenance ........................Pages 14-15
O-Season Storage.........................................Page 16
Troubleshooting .............................................Page 17
Parts ................................................................. page 18
Warranty ..........................................................Page 19
WWW.SENIXTOOLS.COM 3
GENERAL OPERATION
Read this operator’s manual carefully in its entirety before attempting to assemble
this machine. Read, understand, and follow all instructions on the machine and in
the manuals before operation. Keep this manual in a safe place for reference and
ordering replacement parts
• Be completely familiar with the controls and the proper use of this machine
before operating it.
• This machine is a precision piece of power equipment, not a plaything.
Therefore, exercise extreme caution at all times. This machine has been
designed to perform one job: to mow grass. Do not use it for any other purpose.
• Never allow children to operate this machine.
• Only responsible individuals who are familiar with these rules of safe operation
should be allowed to use this machine.
• Thoroughly inspect the area where the equipment is to be used. Remove all
stones, sticks, wire, bones, toys and other foreign objects, which could be
tripped over or picked up and thrown by the blade. Thrown objects can cause
serious personal injury.
• Plan your mowing pattern to avoid discharge of material toward roads,
sidewalks, bystanders and the like. Also, avoid discharging material against
a wall or obstruction, which may cause discharged material to ricochet back
toward the operator.
• To help avoid blade contact or a thrown object injury, stay in operator zone
behind handles and keep children, bystanders, helpers and pets at least 75 feet
from mower while it is in operation. Stop machine if anyone enters area.
• Always wear safety glasses or safety goggles during operation and while
performing an adjustment or repair to protect your eyes. Thrown objects which
ricochet can cause serious injury to the eyes.
• Wear sturdy, rough-soled work shoes, lose-tting slacks, shirts and hearing
protection. Shirts and pants that cover the arms and legs and steel-toed shoes
are recommended. Never operate this machine in bare feet, sandals, slippery or
light-weight (e.g. canvas) shoes.
• Do not put hands or feet near rotating parts or under the cutting deck. Contact
with blade can amputate ngers, hands, toes and feet. Keep clear of the
discharge opening at all times.
• A missing or damaged discharge cover can cause blade contact or thrown
object injuries.
• Many injuries occur as a result of the mower being pulled over the foot during
a fall caused by slipping or tripping. Do not hold on to the mower if you are
falling: release the handle immediately.
• Never pull the mower back toward you while you are walking. If you must back
the mower away from a wall or obstruction rst look down and behind to avoid
tripping and then follow these steps:
a. Step back from mower to fully extend your arms forward.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way toward you.
d. Repeat these steps as needed.
• Do not operate the mower while under the inuence of alcohol or drugs.
• Do not engage the self-propelled mechanism on machines so equipped while
starting engine.
• The blade control handle is a safety device. Never attempt to bypass its
operation. Doing so makes the safety device inoperative and may result in
personal injury through contact with the rotating blade. The blade control
handle must operate easily in both directions and automatically return to the
disengaged position when released.
• Never operate the mower in wet grass. Always be sure of your footing. A slip
and fall can cause serious personal injury. If you feel you are losing your footing,
release the blade control handle immediately and the blade will stop rotating
within three seconds.
• Mow only in daylight or good articial light. Walk, never run.
• Stop the blade when crossing gravel drives, walks or roads.
• If the equipment should start to vibrate abnormally, stop the engine and check
immediately for the cause. Vibration is generally a warning of trouble.
• Shut the engine o and wait until the blade comes to a complete stop before
removing the grass catcher or unclogging the chute. The cutting blade
continues to rotate for a few seconds after the blade control is released.
• Never place any part of the body in the blade area until you are sure the blade
has stopped rotating.
• Never operate mower without proper trail shield, discharge cover, grass catcher,
blade control handle or other safety protective devices in place and working.
Never operate mower with damaged safety devices. Failure to do so can result
in personal injury. Check frequently for signs of wear or deterioration and
replace as needed.
• Muer and engine become hot and can cause a burn. Do not touch.
• Never attempt to make a wheel or cutting height adjustment while the engine
is running.

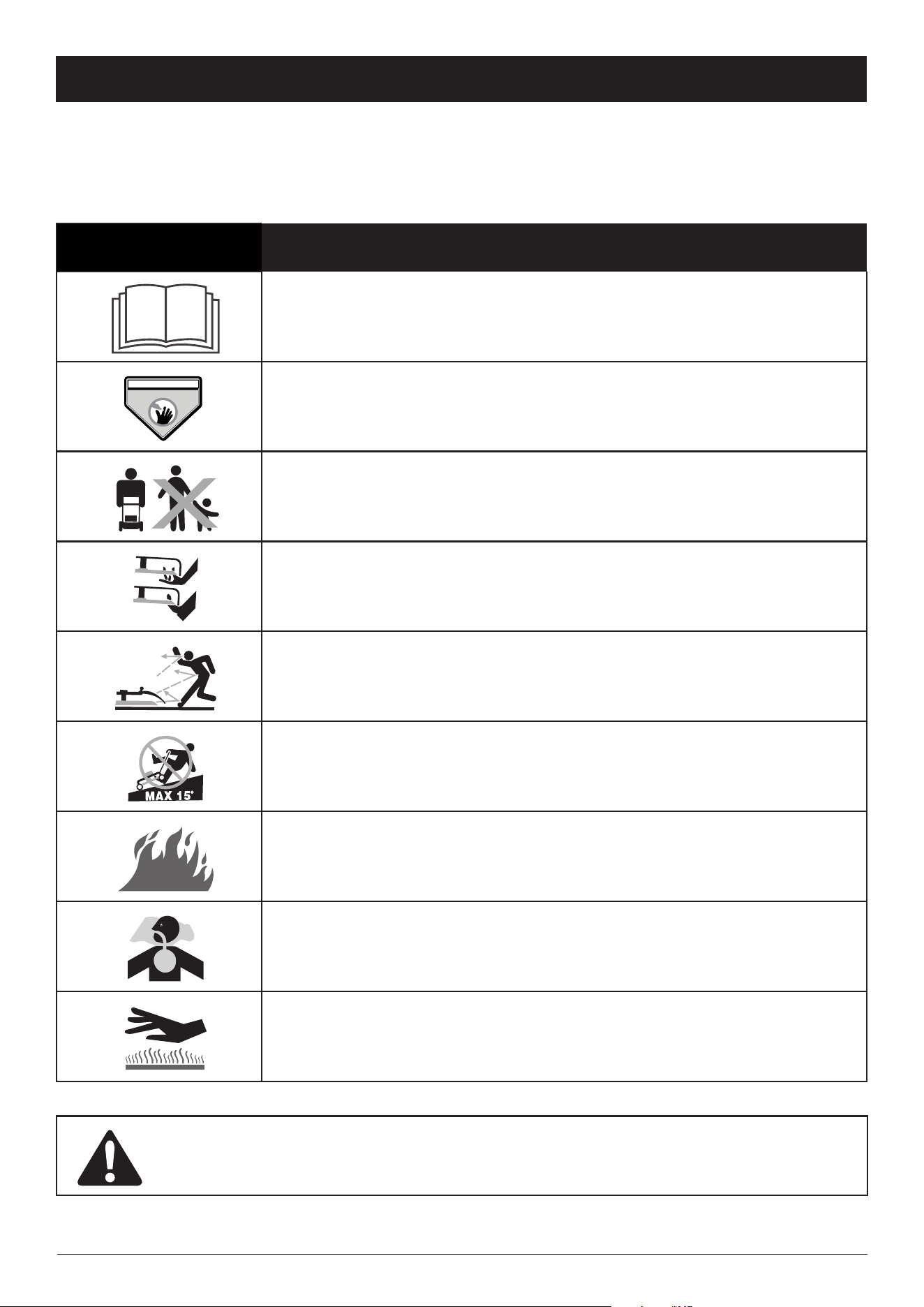

SAFETY INSTRUCTIONS
WARNING
This symbol points out important safety instructions which, if not followed, could
endanger the personal safety and/or property of yourself and others. Read and
follow all instructions in this manual before attempting to operate this machine.
Failure to comply with these instructions may result in personal injury.
DANGER
This machine was built to be operated according to the safe operation practices
in this manual. As with any type of power equipment, carelessness or error on
the part of the operator can result in serious injury. This machine is capable of
amputating ngers, hands, toes and feet and throwing debris. Failure to observe
the following safety instructions could result in serious injury or death.
WARNING
Your Responsibility—Restrict the use of this power machine to persons who read,
understand and follow the warnings and instructions in this manual and on the
machine.
SAVE THESE INSTRUCTIONS!
WWW.SENIXTOOLS.COM
4
• Only use parts and accessories made for this machine by the manufacturer as
listed in the parts pages of this Operator’s Manual. Failure to do so can result in
personal injury.
• When starting engine, pull cord slowly until resistance is felt, then pull rapidly.
Rapid retraction of starter cord (kickback) will pull hand and arm toward
engine faster than you can let go. Broken bones, fractures, bruises or sprains
could result.
• If situations occur which are not covered in this manual, use care and good
judgement.
SLOPE OPERATION
Slopes are a major factor related to slip and fall accidents, which can result in severe
injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do
not mow it. For your safety, use the Slope Guide included as part of this manual to
measure slopes before operating this machine on a sloped or hilly area. If the slope
is greater than 15 degrees, do not mow it.
Do:
• Mow across the face of slopes; never up and down. Exercise extreme caution
when changing direction on slopes.
• Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you
to slip or trip. Tall grass can hide obstacles. Uneven terrain could overturn the
machine, or cause operator to lose their balance or footing.
• Always be sure of your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your balance, release the blade control handle
immediately and the blade will stop rotating within three (3) seconds.
• Use extra care while operating machine with a grass catcher or other
attachment(s). They can aect the stability of the machine.
Do Not:
• Do not start and stop on slopes. Avoid making sudden changes in speed or
direction. Make turns slowly and gradually.
• Do not mow near drop-os, ditches or embankments, because you could lose
your footing or balance.
• Do not mow slopes greater than 15 degrees as shown on the slope guide.
• Do not mow on wet grass. Unstable footing could cause slipping.
HAULING
Use full width ramps for loading and unloading a machine for transport.
CHILDREN
Tragic accidents can occur if the operator is not alert to the presence of children.
Children are often attracted to the mower and the mowing activity. They do not
understand the dangers. Never assume that children will remain where you last
saw them.
• Keep children out of the mowing area and under watchful care of a responsible
adult other than the operator.
• Be alert and turn mower o if a child enters the area.
• Before and while moving backwards, look behind and down for small children.
• Use extreme care when approaching blind corners, doorways, shrubs, trees,
or other objects that may obscure your vision of a child who may run into the
mower.
• Keep children away from hot or running engines. They can suer burns from a
hot muer.
• Never allow children under 14 years of age to operate this machine. Children
14 and over should read and understand the instructions and safe operation
practices in this manual and on the machine and be trained and supervised by
an adult.
SERVICE
Safe Handling of Gasoline
To avoid personal injury or property damage use extreme care in handling gasoline.
Gasoline is extremely ammable and the vapors are explosive. Serious personal
injury can occur when gasoline is spilled on yourself or your clothes which can
ignite. Wash your skin and change clothes immediately.
• Use only an approved gasoline container.
• Never ll containers inside a vehicle or on a truck or trailer bed with a plastic
liner. Always place containers on the ground away from your vehicle before
lling.
• Remove gas-powered equipment from the truck or trailer and refuel it on the
ground. If this is not possible, then refuel such equipment on a trailer with a
portable container, rather than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or container opening at
all times until fueling is complete. Do not use a nozzle lock-open device.
• Extinguish all cigarettes, cigars, pipes and other sources of ignition.
• Never fuel machine indoors because ammable vapors will accumulate in the
area.
• Never remove gas cap or add fuel while engine is hot or running. Allow engine
to cool at least two minutes before refueling.
• Never over-ll fuel tank. To allow for expansion of the fuel, do not ll above the
bottom of the fuel tank neck.
• Replace gasoline cap and tighten securely.
• If gasoline is spilled, wipe it o the engine and equipment. Move machine to
another area. Wait 5 minutes before starting engine.
• Never store the machine or fuel container near an open ame, spark or pilot
light as on a water heater, space heater, furnace, clothes dryer or other gas
appliances.
• To reduce re hazard, keep machine free of grass, leaves, or other debris build-
up. Clean up oil or fuel spillage and remove any fuel-soaked debris.
• Allow machine to cool at least 5 minutes before storing.
SAFETY INSTRUCTIONS
WWW.SENIXTOOLS.COM 5
GENERAL SERVICE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains
carbon monoxide, an odorless and deadly gas.
• Before cleaning, repairing, or inspecting, make certain the blade and all moving
parts have stopped. Disconnect the spark plug wire and ground against the
engine to prevent unintended starting.
• Check the blade and engine mounting bolts at frequent intervals for proper
tightness. Also, visually inspect blade for damage (e.g., bent, cracked, worn).
• Replace blade with the original equipment manufacture’s (O.E.M.) blade only,
listed in the Parts pages of this manual. Use of parts which do not meet the
original equipment specications may lead to improper performance and
compromise safety!
• Mower blades are sharp and can cut. Wrap the blade or wear gloves, and use
extra caution when servicing them.
• Keep all nuts, bolts, and screws tight to be sure the equipment is in safe
working condition.
• Never tamper with safety devices. Check their proper operation regularly.
• After striking a foreign object, stop the engine, disconnect the spark plug wire
and ground against the engine. Thoroughly inspect the mower for any damage.
Repair the damage before starting and operating the mower.
• Never attempt to make a wheel or cutting height adjustment while the engine
is running.
• Grass catcher components, discharge cover, and trail shield are subject to wear
and damage which could expose moving parts or allow objects to be thrown.
For safety protection, frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only, listed in the Parts
pages of this manual. Use of parts which do not meet the original equipment
specications may lead to improper performance and compromise safety!
• Do not change the engine’s governor setting or over-speed the engine. The
governor controls the maximum safe operating speed of the engine.
• Check fuel line, tank, cap, and ttings frequently for cracks or leaks. Replace if
necessary.
• Do not crank engine with spark plug removed.
• Maintain or replace safety and instruction labels, as necessary.
• Observe proper disposal laws and regulations. Improper disposal of uids and
materials can harm the environment.
• According to the Consumer Products Safety Commission (CPSC) and the U.S.
Environmental Protection Agency (EPA), this product has an Average Useful Life
of seven (7) years, or 140 hours of operation. At the end of the Average Useful
Life have the machine inspected annually to ensure that all mechanical and
safety systems are working properly and not worn excessively. Failure to do so
can result in accidents, injuries or death.
DO NOT MODIFY ENGINE
To avoid serious injury or death, do not modify engine in any way. Tampering with
the governor setting can lead to a runaway engine and cause it to operate at unsafe
speeds. Never tamper with factory setting of engine governor.
SAFETY INSTRUCTIONS
WWW.SENIXTOOLS.COM
6
SAFETY INSTRUCTIONS
SAFETY SYMBOLS
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to
assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate.
DANGER
DANGER
KEEP HANDS and FEET AWAY
DANGER — ROTATING BLADES
To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover or grass catcher is in
its proper place. If damaged, replace immediately.
DANGER — BYSTANDERS
Do not mow when children or others are around.
DANGER — HAND/ FOOT CUT
Keep hands and feet away from rotating parts.
DANGER — THROWN DEBRIS
Remove objects that can be thrown by the blade in any direction. Wear safety glasses.
DANGER — SLOPES
Use extra caution on slopes. Do not mow slopes greater than 15°.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
WARNING— HOT SURFACE
Engine parts, especially the muer, become extremely hot during operation. Allow engine and muer to cool
before touching.
WARNING: Your Responsibility—Restrict the use of this power machine to persons who read, understand
and follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
WWW.SENIXTOOLS.COM 7

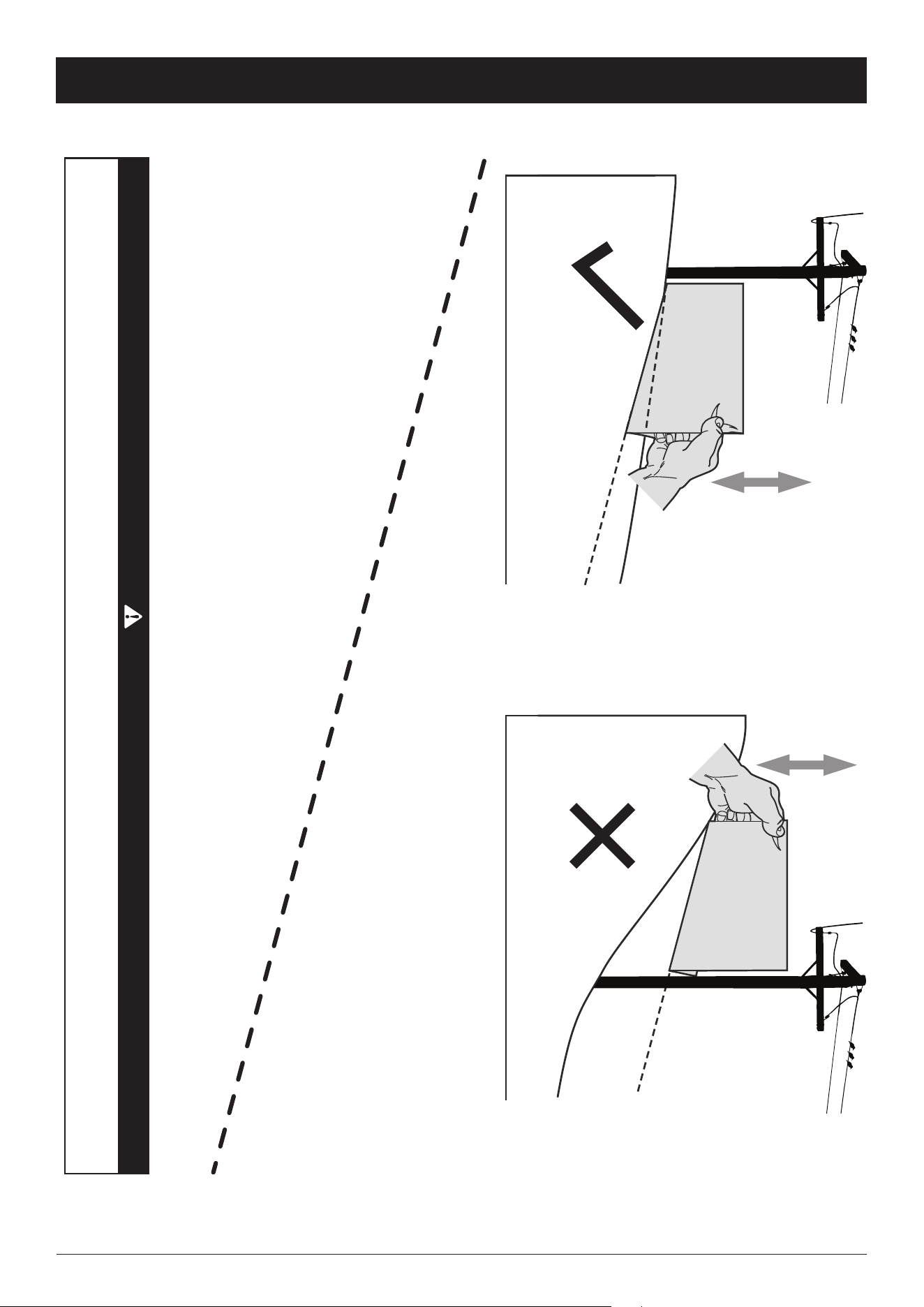

SLOPE GAUGE
Figure 2Figure 1
WARNING
USE THIS SLOPE GAUGE TO DETERMINE
IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!
To check the slope, proceed as follows:
1. Remove this page and fold along the dashed line.
2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.)
3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ).
4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2).
5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).
Slopes are a major factor related to tip-over and roll-over accidents which can result in severe injury or death. Do not operate machine on slopes
in excess of 15 degrees. All slopes require extra caution. Always mow across the face of slopes, never mow up and down slopes.
15° dashed line
15° Slope
15° Slope
TOO STEEP
(OK)
Figure 2Figure 1
WWW.SENIXTOOLS.COM
8
ASSEMBLY
IMPORTANT: This unit is shipped without gasoline or oil in the engine. Make sure
to service engine with gasoline and oil as instructed in the Engine
Manual before starting or running the machine.
NOTE: Reference to right and left hand side of the Lawn Mower is observed from
the operating position.
OPENING CARTON
1. Cut each corner of the carton vertically from top to bottom.
2. Remove all loose parts.
3. Remove loose packing material.
REMOVING UNIT FROM CARTON
1. Lift unit from the rear to detach it from underlying carton material and roll unit
out of carton.
2. Check carton thoroughly for any other loose parts.
Assembly parts in carton
• Grass Catcher
• Side Discharge Cover
• Bottle of oil
• User Manual/Engine Manual
ASSEMBLY
Attach Handle
IMPORTANT: Do not crimp the cables when assembling the handle.
1. Pull the folded handle assembly up to the working position at rst (Figure 2).
2. Tighten handle xing knobs for mounting the lower handle on mower (Figure 3).
3. Reinforce the connection between upper handle with lower handle by two
handle connecting knobs (Figure 4).

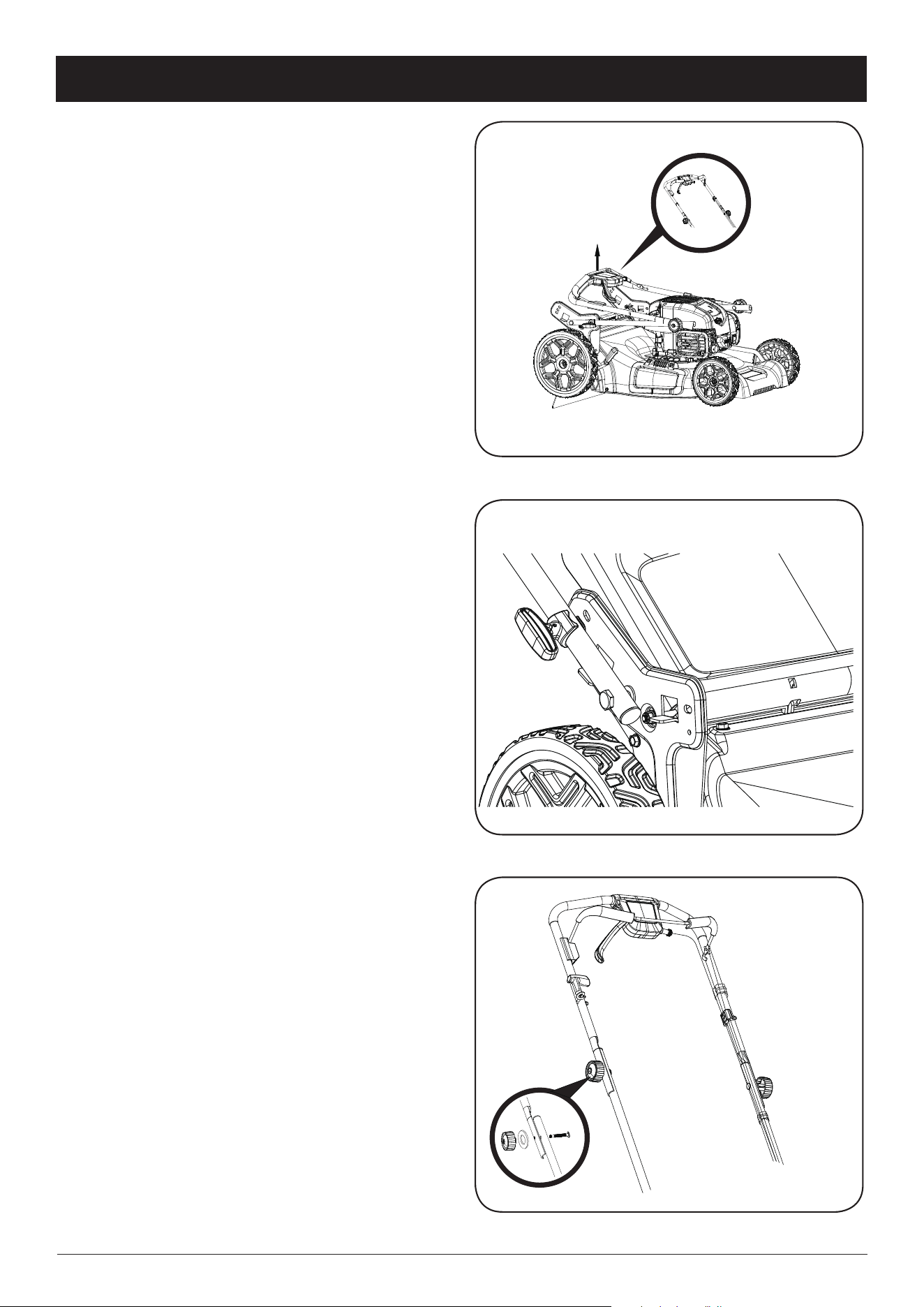

Figure 2
Figure 3
Figure 4
WWW.SENIXTOOLS.COM 9
ASSEMBLY
Position Starter Rope and Cable
1. Hold the blade control handle against the upper handle. Slowly pull starter rope
handle from engine and slip starter rope into the rope guide (Figure 5).
2. Use the cable clamp to secure the control cable to the handle (Figure 5).
IMPORTANT: To reduce wear and allow for proper operation, make sure to leave
some slack in the upper portion of the cable.
Attaching/Removing Grass Catcher
To attach the grass catcher:
a. Lift rear discharge door.
b. Have the mounting bracket on grass catcher stuck into the mounting groove
(Figure 6).
c. Let go of discharge door so that it rests on the grass catcher.
To remove grass catcher：
a. Lift rear discharge door on the mower.
b. Lift grass catcher up and o the groove.
c. Release rear discharge door to allow it to close rear opening of mower.
NOTE: Make sure to clean any excess grass from around the rear opening of the
mower, especially between the transmission cover and sidewall on the left
hand side and along the bottom, to ensure tight t of bag onto mower.
Attaching Side Discharge Cover
Your mower is shipped as a mulcher. To convert to side discharge, make sure the
grass catcher is removed from the unit and the rear discharge door is closed.
To attach the side discharge cover:
a. Lift the mulching cover on the side of the mower.
b. Slide two hooks of side discharge cover under hinge pin on mulching cover
assembly (Figure 7).
c. Lower mulching cover. Do not remove side mulching cover at any time, even
when you are not mulching.
To remove the side discharge cover:
a. Lift the mulching cover.
b. Slide two hooks of side discharge cover out.
c. Let go of the mulching cover.

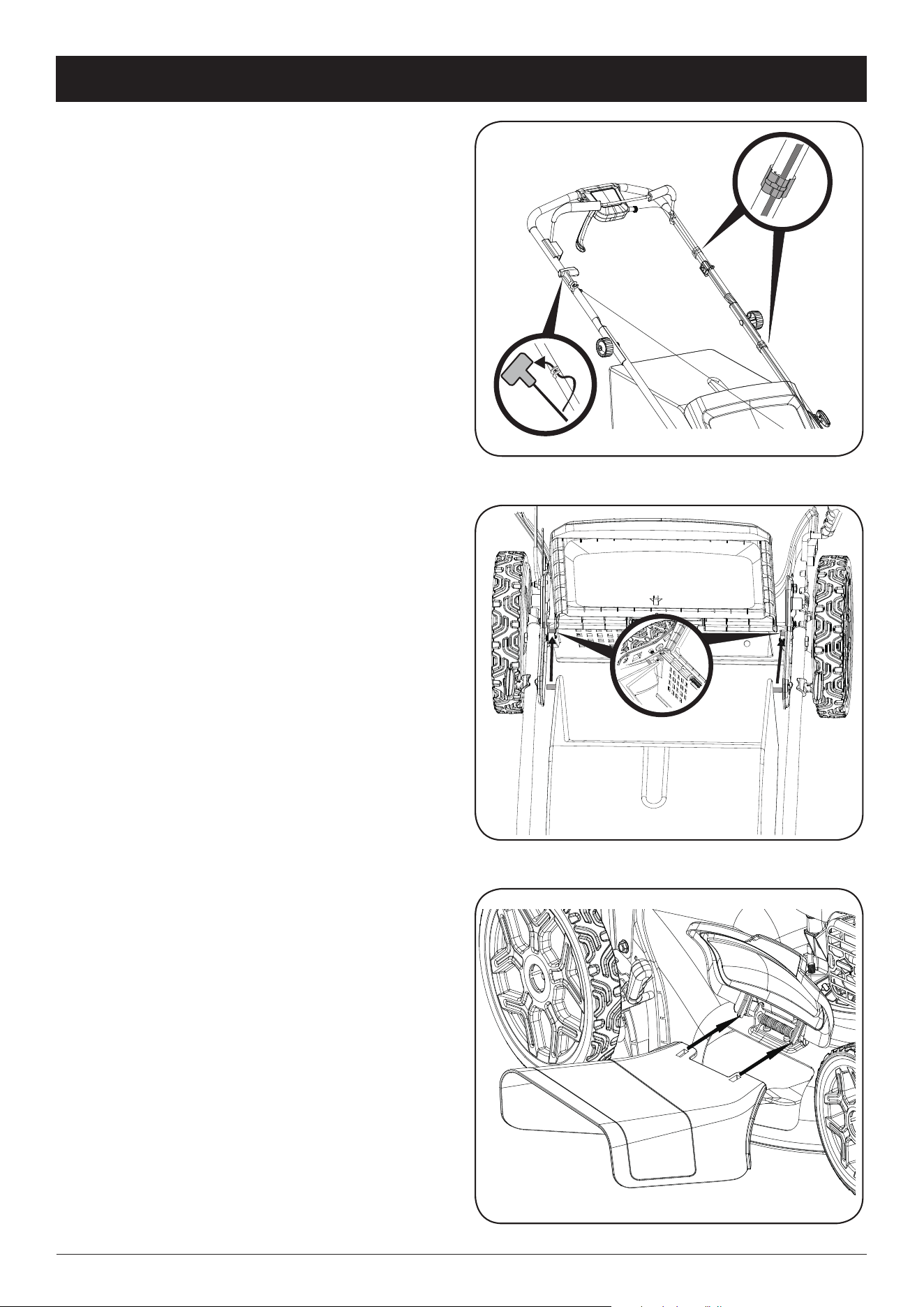

Figure 5
Figure 6
Figure 7
WWW.SENIXTOOLS.COM
10
ASSEMBLY
ADJUSTMENTS
Cutting Height

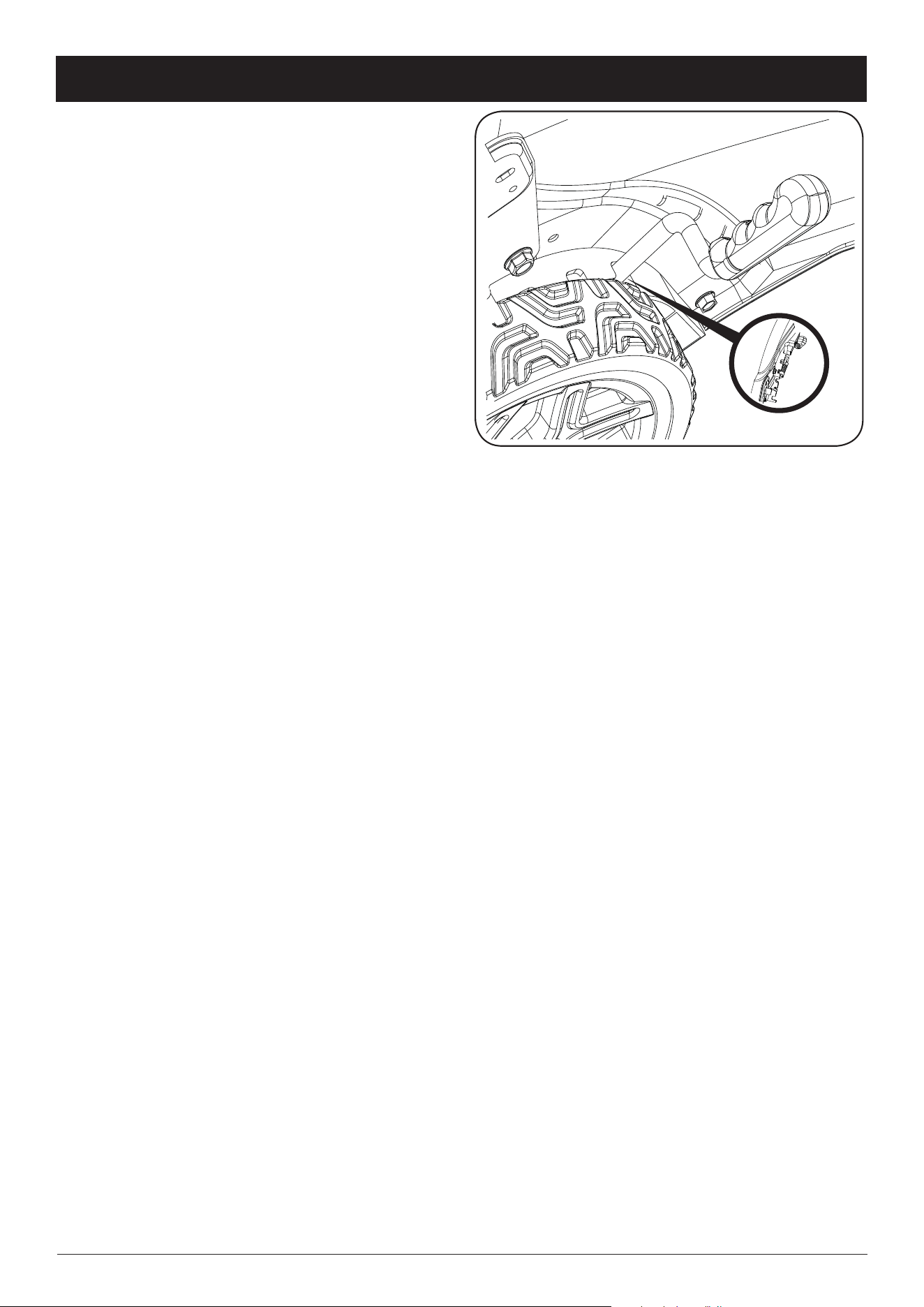

Central height adjustment for this product is controlled by a lever located on right
rear wheel (Figure 8).
6 cutting heights (from 1.25inch to 4.0inch) are available.
1. Pull the height adjustment lever outward towards wheel.
2. Move lever to a position of desired cutting height.
3. Release lever towards deck.
Figure 8
WWW.SENIXTOOLS.COM 11
OPERATION
BLADE CONTROL
The blade control is attached to the upper handle of the mower. Depress and hold
against the upper handle to operate. Release it to stop the engine and blade.
WARNING
This blade control is a safety device. Never attempt to bypass its operation.
CUTTING HEIGHT ADJUSTMENT LEVER
This product is designed with a central cutting height adjustment lever which
locates on the right rear wheel. To adjust cutting height, refer to the assembly
section.
MULCHING COVER
The mulching cover is used for mulching purposes. In addition to collecting the
grass clipping into grass catcher or using the side discharge chute, some mower
models have the option of recirculating the clippings back to the lawn. This is called
mulching. Close the mulching cover when mulching so that the grass can’t be
discharged from side.
DECK WASH
Your mower’s deck is equipped with a water port on its surface as part of its deck
wash system. Use the deck wash to rinse grass clippings from the deck’s underside.
GRASS CATCHER
You can use the grass catcher to collect grass while you are operating the mower.
Attach the grass catcher following the instructions in assembly section. When using
the grass catcher, make sure the side discharge cover is removed and the mulching
cover is closed. This will contribute to grass collection.
SIDE DISCHARGE COVER
Your mower is shipped as a mulcher. To discharge the grass clippings to the side,
follow the instructions in the assembly section to attach the side discharge cover.
WARNING
Keep hands and feet away from the chute area on cutting deck. Refer to warning
label on the unit.
RECOIL STARTER
Clip the recoil starter into the rope guide on right upper handle to facilitate the start
operation. Depress and hold the blade control handle, then pull the recoil starter to
start the unit.
DRIVE CONTROL
The drive control bail on the upper handle is used to engage the self propelled
drive. Pull the bail to engage self propelled mode. When the bail is released, the self
propelled function will stop and the bail will return to neutral position.
SPEED CONTROL
If the speed is not suitable during operation, follow the instructions in the
operation section to achieve a desired speed.

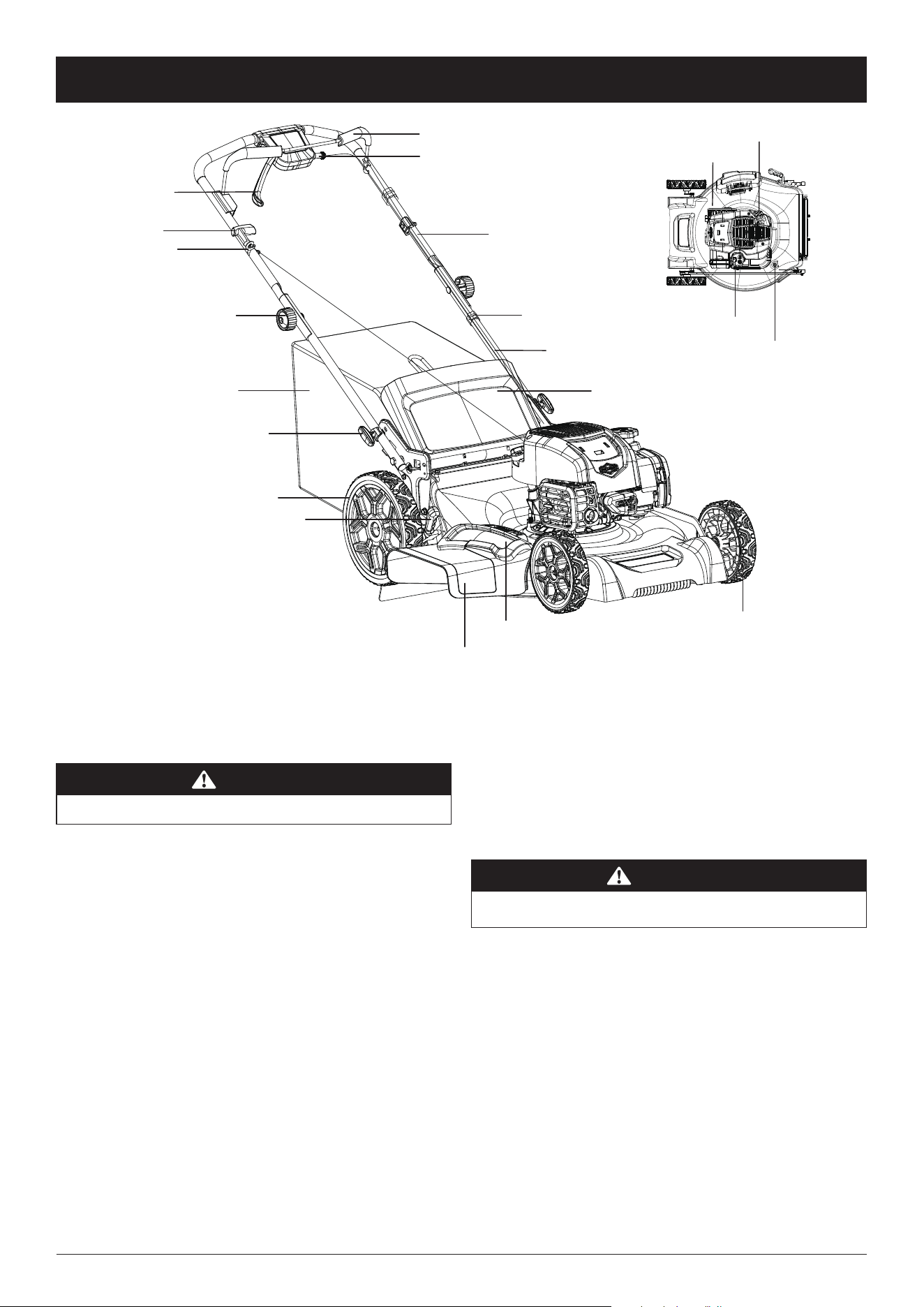

Rope Guide
Drive Control
Blade Control
Speed Control
Oil Tank Cap
Fuel Tank Cap
Deck Washer
Deck
Upper Handle
Cable Clamp
Lower Handle
Rear Discharge Door
Front Wheel
Mulching Cover
Side Discharge Cover
Recoil Starter
Handle Connecting Knob
Grass Catcher
Rear Wheel
Handle Fixing Knob
Cutting Height Adjustment Lever
WWW.SENIXTOOLS.COM
12

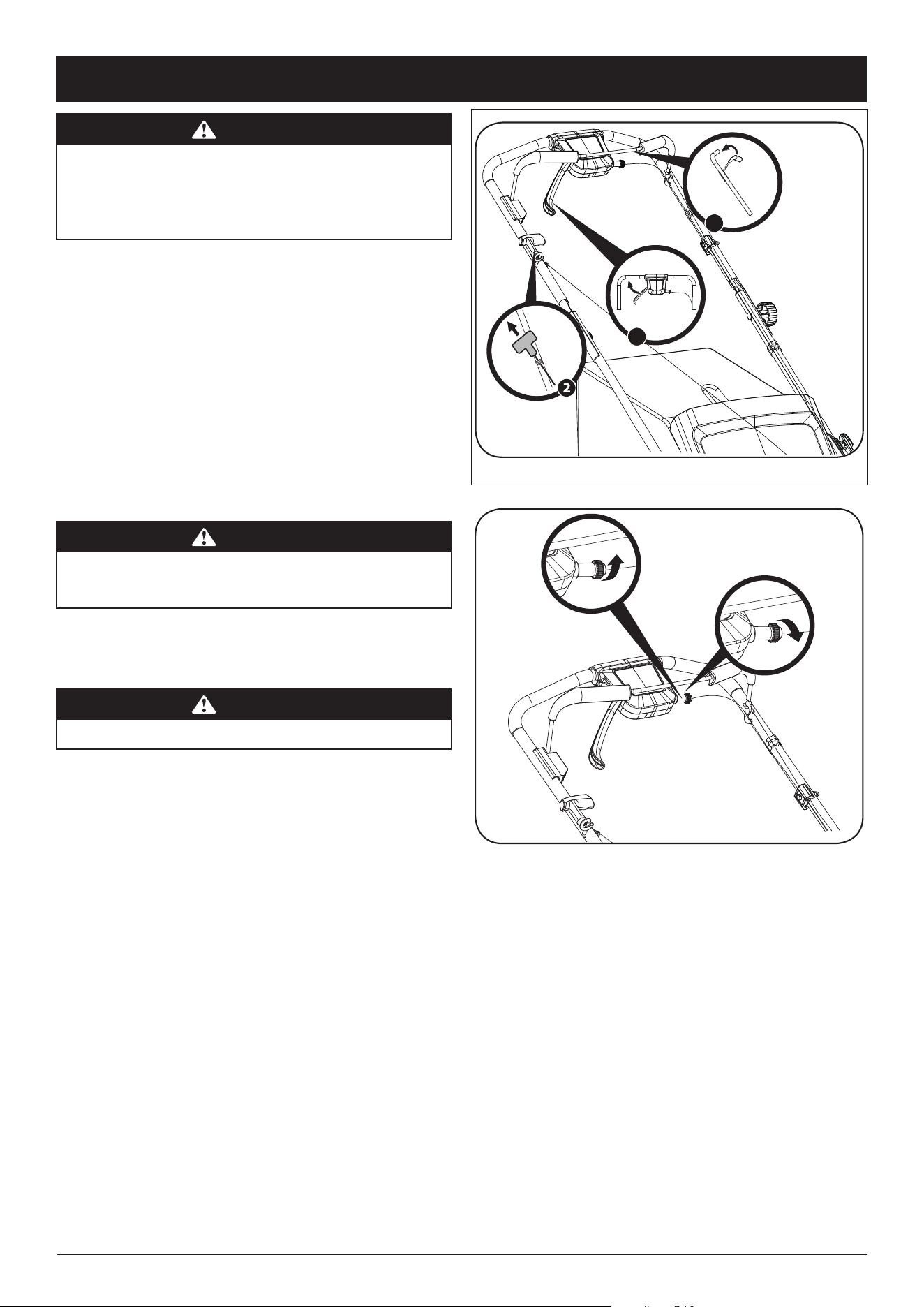

OPERATION
WARNING
Make sure no one other than the operator is standing near the lawn mower while
starting engine or operating mower. Never run engine indoors or in enclosed,
poorly ventilated areas. Engine exhaust contains carbon monoxide, an odorless
and deadly gas. Keep hands, feet, hair and loose clothing away from any moving
parts on engine and lawn mower.
FUEL and OIL
See the engine Operator’s Manual for fuel and oil instructions.
TO START ENGINE
1. Standing behind the mower, pull the blade control handle back against the
upper handle (Figure 9).
2. While holding the blade control against the upper handle, grasp the recoil starter
handle and pull rope out with a rapid, continuous, full arm stroke. Keeping a rm
grip on the starter handle, let the rope rewind slowly. Repeat until engine starts.
Let the rope rewind each time slowly (Figure 9).
3. Pull the drive control to enable the self-propelled function (Figure 9).
WARNING
Keep a rm grip on the starter cord handle to prevent rapid retraction of starter
cord (kickback). Rapid retraction can pull hand and arm toward engine faster than
you can let go, and result in broken bones, fractures, bruises or sprains.
TO STOP ENGINE
1. Release the drive control and blade control to stop the engine and blade.
WARNING
Wait for the blade to stop completely before performing any work on the mower.
TO ADJUST SPEED
Although ground speed varies with terrain, slope, grass height, etc. The mower
always allows you to get a desired speed under changing mowing conditions.
1. To speed up, rotate the speed control clockwise (Figure 10).
2. To slow down, rotate the speed control counterclockwise (Figure 10).
Figure 9
3
1
Figure 10
Accelerate
Decelerate
WWW.SENIXTOOLS.COM 13
OPERATION
USING YOUR LAWN MOWER
Be sure lawn is clear of stones, sticks, wire, or other objects which could damage
lawn mower or engine. Such objects could be accidently thrown by the mower in
any direction and cause serious personal injury to the operator and others. For a
healthy lawn,always cut o one-third or less of the total length of the grass. When
cutting heavy grass, reduce walking speed to allow for more eective cutting and
a proper discharge of the clippings. Do not cut wet grass. It will stick to underside
of the deck and prevent proper mulching of grass clippings. New or thick grass may
require a narrower cut or a higher cutting height.
WARNING
The operation of any lawn mower can result in foreign objects being thrown into
the eyes, which can damage your eyes severely. Always wear safety glasses while
operating the mower, or while performing any adjustments or repairs on it.
WARNING
If you strike a foreign object, stop the engine. Disconnect the spark plug wire,
thoroughly inspect mower for any damage, and repair damage before restarting
and operating. Extensive vibration of mower during operation is an indication of
damage. The unit should be promptly inspected and repaired. Refer to the Engine
Manual.
Mulching
Before mulching, remove the grass catcher and side discharge cover from the
mower. For eective mulching, do not cut wet grass. If the grass has been allowed
to grow in excess of four inches, mulching is not recommended. Use the grass
catcher to bag clippings instead.
Side Discharging
Install the side discharge cover and remove the grass catcher as the instructions in
assembly section. Keep the rear discharge door closing so that the grass clippings
can be discharged from side.
Grass Collection
1. Grass clippings will be automatically collected in bag as you run mower. Operate
mower until grass catcher is full.
2. Stop engine completely by releasing the blade control. Make sure that the unit
has come to a complete stop.
3. Clean up the grass catcher when it is full. Lift discharge door and pull the grass
catcher up and away from the mower. Dispose of the grass clippings and reinstall
the catcher when complete.
WWW.SENIXTOOLS.COM
14
SERVICE AND MAINTENANCE
WARNING
Before performing any type of maintenance/service, disengage all controls
and stop the engine. Wait until all moving parts have come to a complete
stop. Disconnect spark plug wire and ground it against the engine to prevent
unintended starting.
Interval Item Service Service Log
Each use 1. Engine oil level
2. Loose or missing hardware
3. Unit and engine
1. Check
2. Tighten or replace
3. Clean
1st 5 hours 1. Engine oil 1. Change
Annually or 25 hours 1. Spark Plug
2. Control linkages/pivots and wheels
3. Underside of mower deck
2
1. Check
2. Lube with light oil
3. Clean
Annually or 50 hours 1. Air lter & Pre-Cleaner(If Equipped)
1
2. Engine Oil
1. Clean
2. Change
Annually or 200 hours 1. Air lter & Pre-Cleaner
1
1. Change
Annually 1. Spark plug 1. Replace
Before Storage 1. Fuel system 1. Run engine until it stops from lack of fuel, or add stabilizer to a
full tank of fresh fuel prior to storage.
1
Clean more often under dusty conditions or when airborne debris is present.
2
Check and clean more often if mower is typically used in the mulching conguration.
WARNING
Always stop engine, disconnect spark plug wire, and ground against engine before
performing any type of maintenance on your machine.
GENERAL RECOMMENDATIONS
• Always observe safety rules when performing any maintenance.
• The warranty on this lawn mower does not cover items that have been
subjected to operator abuse or negligence. To receive full value from warranty,
operator must maintain the equipment as instructed here.
• Changing of engine-governed speed will void engine warranty.
• All adjustments should be checked at least once each season.
• Periodically check all fasteners and make sure these are tight.
•
•
Follow the maintenance schedule given below. This chart describes service
guidelines only. Use the Service Log column to keep track of completed
maintenance tasks. See the Engine Operator’s Manual for fuel, oil, air lter and
spark plug instructions.
CLEAN ENGINE
• Daily or before every use, clean grass, cha or accumulated debris from engine.
Keep linkage, spring, and controls clean. Keep area around and behind muer
free of any combustible debris.
• Keeping engine clean allows air movement around engine.
• Engine parts should be kept clean to reduce the risk of overheating and ignition
of accumulated debris.
CAUTION
Do not use water to clean engine parts. Water could contaminate fuel system. Use
a brush or dry cloth.
WWW.SENIXTOOLS.COM 15
SERVICE AND MAINTENANCE
DECK WASH

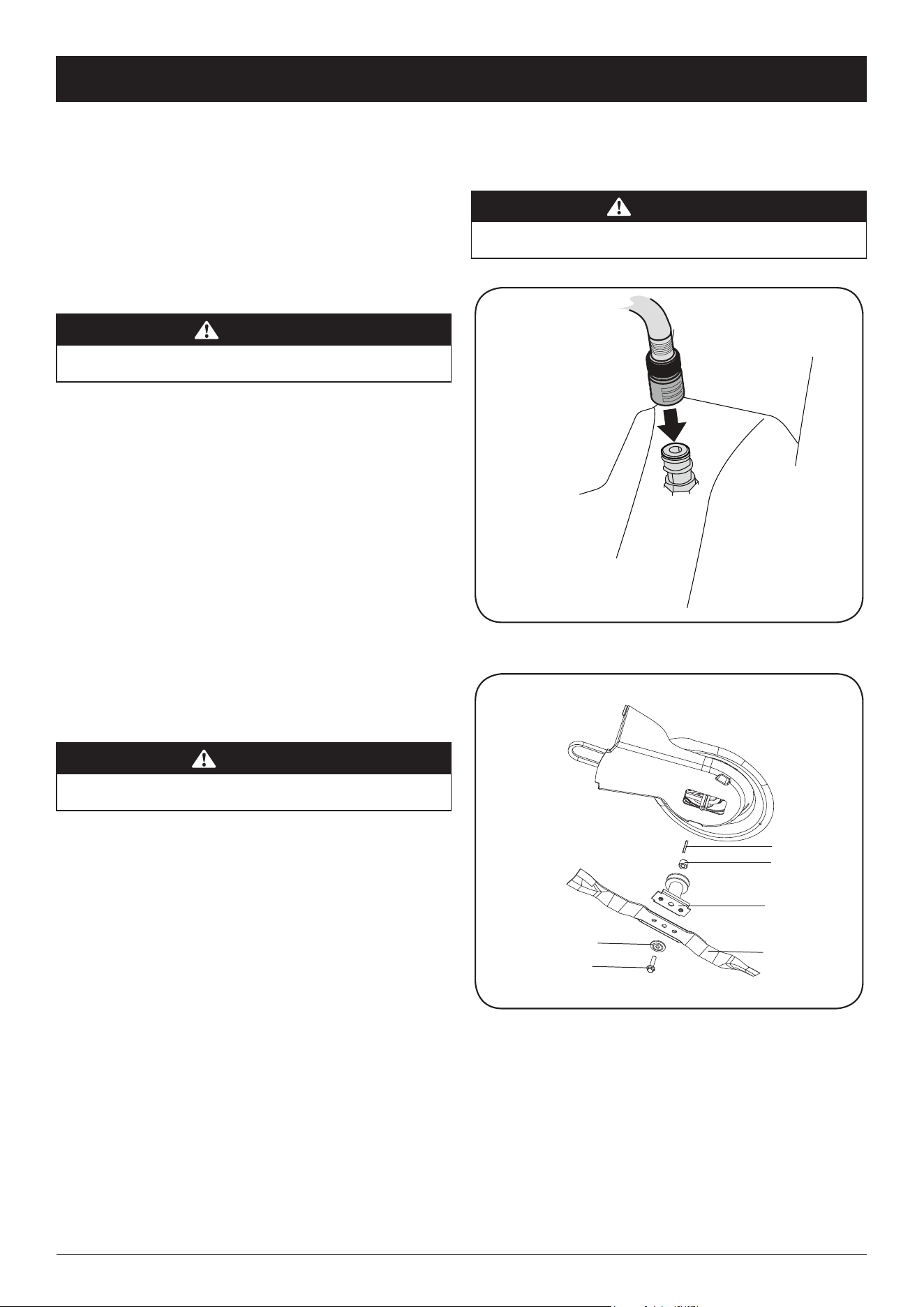

Your mower’s deck is equipped with a water port on its surface as part of its deck
wash system.
Use the deck wash to rinse grass clippings from the deck’s underside and prevent
the buildup of corrosive chemicals. Complete the following steps AFTER EACH
MOWING:
1. Push the mower to a level, clear spot on your lawn, near enough for your garden
hose to reach. Remove the grass bag if attached.
CAUTION
Make sure the discharge chute is directed AWAY from your house, garage, parked
cars, etc.
2. Thread the hose coupler (user-supplied) onto the end of your garden hose.
3. Attach the hose coupler to the water port on your deck’s surface (Figure 11).
4. Turn the water on.
5. Start the engine as described in the operation section.
6. Run the engine for a minimum of two minutes, allowing the underside of the
cutting deck to thoroughly rinse.
7. Release blade control to stop the engine and blade.
8. Turn the water o and detach the hose coupler from the water port on your
deck’s surface.
After cleaning your deck, restart the mower. Keep the engine and blade running
for a minimum of two minutes, allowing the underside of the cutting deck to
thoroughly dry.
BLADE CARE
WARNING
When removing the cutting blade for sharpening or replacement, protect your
hands with a pair of heavy gloves or use a heavy rag to hold the blade.
Periodically inspect the blade adapter for cracks, especially if you strike a foreign
object. Replace when necessary. Follow the steps below for blade service (Figure
12).
1. Disconnect spark plug boot from spark plug. Turn mower on its side making sure
that the air lter and the carburetor are facing up.
2. Remove the bolt and the blade bell support which hold the blade and the blade
adapter to the engine crankshaft.
3. Remove blade and adapter together with shaft sleeve and key from the
crankshaft.
4. Remove blade from the adapter for testing balance. Balance the blade on a
round shaft screwdriver to check. Remove metal from the heavy side until it
balances evenly. When sharpening the blade, follow the original angle of grind.
Grind each cutting edge equally to keep the blade balanced.
5. Lubricate the engine crankshaft and the inner surface of the blade adapter with
light oil. Replace the key and shaft sleeve then slide the blade adapter onto the
engine crankshaft. Place the blade on the adapter such that the side of the blade
marked “Bottom” (or with part number) faces the ground when the mower is in
the operating position. Make sure that the blade is aligned and seated on the
blade adapter anges.
6. Place blade bell support on the blade. Align notches on the blade bell support
with small holes in blade.
7. Replace hex bolt and tighten hex bolt to torque: 29.5-33.2 ft-lb (40-45 Nm) max.
WARNING
An unbalanced blade will cause excessive vibration when rotating at high speeds.
It may cause damage to mower and could break causing personal injury.
Figure 11
Figure 12
Blade Adapter
Key
Shaft Sleeve
Blade
Blade Bell Support
Bolt
WWW.SENIXTOOLS.COM
16
OFF-SEASON STORAGE
WARNING
Never store lawn mower with fuel in tank indoors or in poorly ventilated areas
where fuel fumes may reach an open ame, spark, or pilot light as on a furnace,
water heater, clothes dryer, or gas appliance.
PREPARING THE ENGINE
For engines stored over 30 days:
• To prevent gum from forming in fuel system or on carburetor parts, run engine
until it stops from lack of fuel or use gasoline mixed with gas additive. If you
use a gas additive, run the engine for several minutes to circulate the additive
through the carburetor—after which the engine and fuel can be stored longer
than 30 days.
• While engine is still warm, change the oil.
• Clean engine of surface debris.
PREPARING THE LAWN MOWER
• Clean and lubricate mower thoroughly as described in the lubrication
instructions.
• Do not use a pressure washer or garden hose to clean your unit.
• Coat mower’s cutting blade with chassis grease to prevent rusting.
• Refer to Preparing the Engine for correct engine storage instructions.
• Store mower in a dry, clean area. Do not store next to corrosive materials, such
as fertilizer.
• When storing any type of power equipment in a poorly ventilated or metal
storage shed, care should be taken to rust-proof the equipment. Using a light
oil or silicone, coat the equipment, especially cables and all moving parts of
your lawn mower before storage.

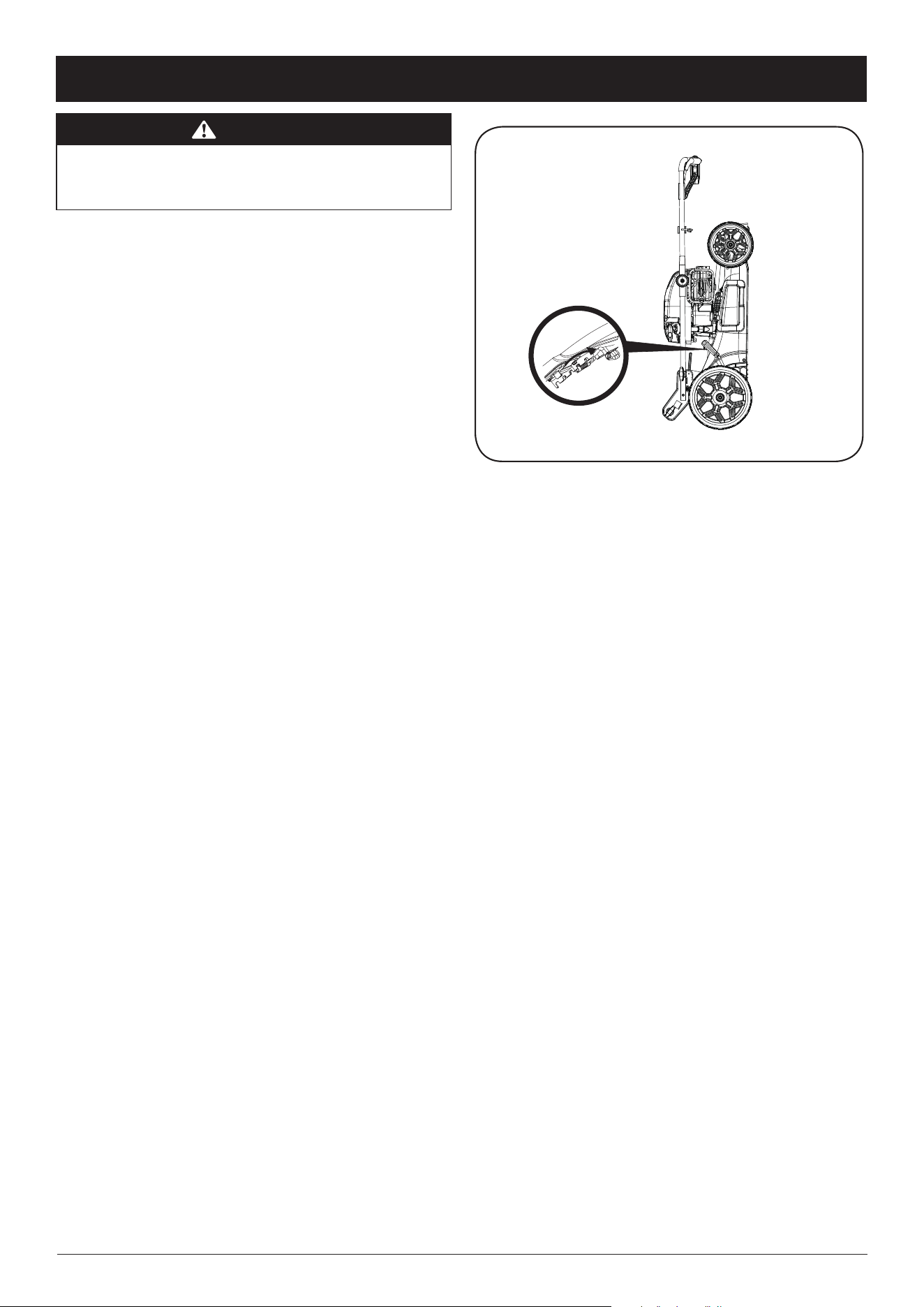

• Fold it vertically for easy storage, Move the cutting height adjustment lever to
lowest cutting height position before folding (Figure 13).
Figure 13
WWW.SENIXTOOLS.COM 17
TROUBLESHOOTING
WARNING
Disconnect the spark plug wire and ground it against the engine to prevent
unintended starting. Before performing any type of maintenance/service,
disengage all controls and stop the engine. Wait until all moving parts have
come to a complete stop. Always wear safety glasses during operation or while
performing any adjustments or repairs.
This section addresses minor service issues. To refer to your engine manual to locate your nearest Briggs and Stratton service dealer.
Problem Cause Remedy
Engine Fails to start 1. Blade control disengaged.
2. Spark plug boot disconnected.
3. Fuel tank empty or stale fuel.
4. Faulty spark plug.
5. Engine ooded.
6. Blocked fuel line.
1. Engage blade control.
2. Connect wire to spark boot.
3. Fill tank with clean, fresh gasoline.
4. Clean, adjust gap, or replace.
5. Wait a few minutes to restart.
6. Contact your service dealer to clean the fuel line cleaned.
Engine runs erratic 1. Spark plug boot loose.
2. Stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Blocked fuel line.
1. Connect and tighten spark plug boot.
2. Fill tank with clean, fresh gasoline.
3. Clear vent.
4. Run engine until it stops from lack of fuel. Rell with fresh fuel.
5. Refer to Air Cleaner in Engine Maintenance section.
6. Contact your service dealer to clean the fuel line cleaned.
Engine overheats 1. Engine oil level low.
2. Air ow restricted.
1. Fill crankcase with proper oil.
2. Clean area around and on top of engine.
Occasional skips (hesitates) 1. Spark plug gap too close. 1. Adjust gap by a qualied specialist.
Idles poorly 1. Spark plug fouled, faulty, or gap too wide.
2. Dirty air cleaner.
1. Reset gap or replace spark plug.
2. Refer to Air Cleaner in Engine Maintenance section.
Excessive vibration 1. Cutting blade loose or unbalanced.
2. Bent cutting blade.
1. Tighten blade and adapter. Balance blade.
2. Replace blade.
WWW.SENIXTOOLS.COM
18
PARTS

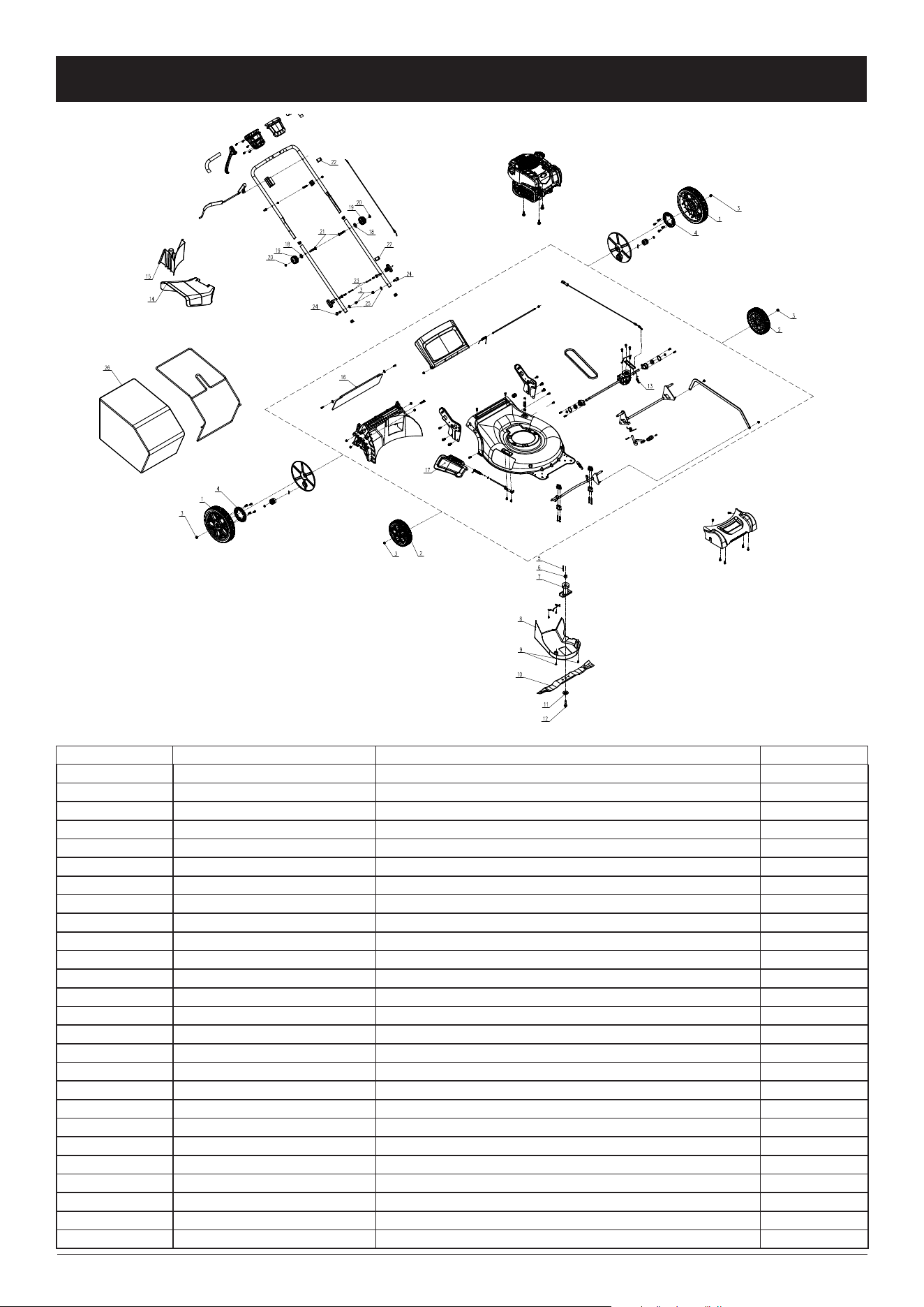

No. Part # Description Qty.
1 A025027-007 Rear wheel 2
2 A025027-005 Front wheel 2
3 8NE-08 Nut 6
4 A025037-008 Gear 2
5 8205-910803 Crankshaft long key 1
6 8334-911602 Shaft sleeve 1
7 A025031-039 Blade Adapter 1
8 A025031-008 Protective cover 1
9 8SJGN05-12 Compound groove pan head three combination screw 2
10 A025031-007 Blade 1
11 A025037-013 Blade Bell Support 1
12 8206-910601 Blade bolt 1
13 A025031-028 Spring 1
14 A025031-020 Side Discharge Cover 1
15 A025031-005 Block plug 1
16 A025037-009 Mulching cover 1
17 A025031-021 Rear trailing shield 1
18 8202-940304 Flat washer 2
19 8313-910101 Handle connecting knob 2
20 8NA-08 Hex nut 2
21 A025036-004 Bolt 2
22 8204-915401 Cable clamp 2
23 A025031-054 Bolt 2
24 A025031-056 Hex ange bolt 2
25 8WF-08B-1802 Flat washer 2
26 A025031-009 Grass catcher 1
WWW.SENIXTOOLS.COM 19
WARRANTY
LIMITED TWO-YEAR WARRANTY
2-year limited warranty on all Senix B&S series gasoline powered equipment.
FOR TWO YEARS from the original date of retail purchase this Senix product is warranted against defects in materials or
workmanship. Defective product will receive free repair.*
This warranty does not cover normal wear of parts and components such as cutting chain, line or blades nor does this
warranty cover product transportation cost for warranty or service.
Warranty is subject to the following conditions:
• For engine parts issue, please refer to your engine manual to locate the nearest authorized service dealer for any warranty
related issues
• Warranty applies to the original purchaser at retail and is not transferrable*
• Warranty Registration at www.senixtools.com
• Only genuine Senix accessories have been used with or on this product
• The tool has been subjected to normal wear and tear
• The tool has not been used for trade or professional purposes
• The tool has not been used for rental purposes
• This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect resulting
from misuse, abuse (including overloading the product, exposure to water or rain) accidents, neglect or lack of proper
installation and improper maintenance or storage.
To locate your nearest Senix service provider call toll free at 1-800-261-3981 or email us at senix.ser[email protected]om.
Additional Limitations
Limited to two years from the date of purchase on power equipment. The manufacturer is not responsible for direct, indirect,
incidental or consequential damages. Some states and provinces do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion or limitation of incidental damages, so the above limitations and exclusions may not
apply to you.
SENIX TOOLS declines any responsibility in regard to civil liability arising from abusive use or not in conformity with proper use
and maintenance of the machine as described in the operator’s manual.
SENIX TOOLS is not responsible for direct, indirect, incidental or consequential damages.
After the purchase, the manufacturer recommends proper maintenance of the machine and to read the operator’s manual
before using the machine.
*Original purchase receipt may be required for proof of purchase
For customer support please call 1-800-261-3981 or email us at senix.ser[email protected]
