COFFEE GRINDER
USER MANUAL
i3 PRO
2
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
3
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
i3 PRO
COFFEE GRINDER
1. SAFETY 4
2. DESCRIPTION 6
3. INSTRUCTIONS 6
4. IDENTIFICATION 7
5. TECHNICAL CHARACTERISTICS 7
6. EXTERNAL COMPONENTS 8
7. INSTALLATION 9
8. ADJUSTMENT 10
9. OPERATION 13
10. SETTINGS 13
11. CLEANING 14
12. MAINTENANCE 15
13. DECLARATION OF CONFORMITY 18
CONTENTS
4
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
1. SAFETY
This coee grinder
should only be used
for the function
for which it was designed:
grinding coee beans.
Do not use the
grinder to grind
other types of
foods such as nuts or to
grind finer granulated foods
such as sugar and others.
This device may be
used by children
aged 8 years and
over, by people with
reduced physical, sensory
or mental capacities and
by people without prior
experience/knowledge,
provided they have received
supervision or instructions
on the safe use of the
device and understand the
associated risks.
Children should not
play with the device.
Cleaning and
maintenance of the
device should not be
carried out by children without
supervision.
Do not allowing
liquids to come
into contact with
internal or external surfaces
while the appliance is on or
o, except for those parts
expressly mentioned in the
“CLEANING” section.
If, for any reason, this happens,
disconnect the power supply
immediately and dry all
surfaces carefully.
ADDITIONAL SAFETY MEASURES BUILT-IN
TO OUR GRINDERS:
• Special screw to keep the hopper fixed.
5
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
1. SAFETY
If it is necessary to
access the interior,
where the electrical
components are located, go to
the nearest technical service
In the event of
any component
breaking, or for
any intervention we
recommend contacting
a technical services
centre, who will carry out
the repair or replacement,
guaranteeing that safety
standards are adhered to.
If the supplied cord is
damaged, it must be
replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
USERS SHOULD PAY
SPECIAL ATTENTION TO,
AND SCRUPULOUSLY
OBEY THE FOLLOWING
SAFETY INSTRUCTIONS
Any other use will be
considered improper
and dangerous.
NOTE: The manufacturer will not be liable for damage caused either by the
improper use of the device or by not following the stated safety measures.
6
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023

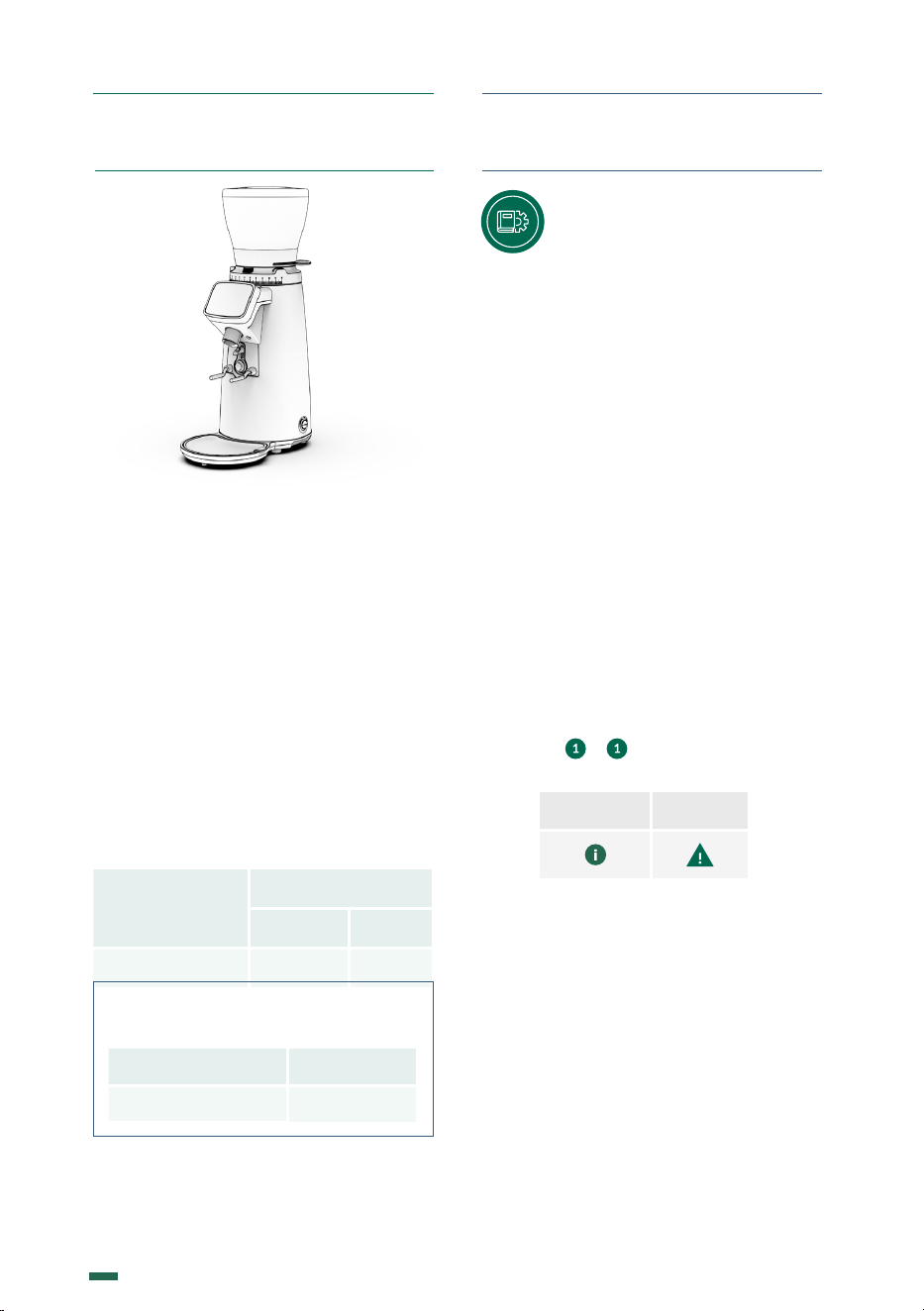

2. DESCRIPTION
3.1. This manual is designed
to provide the necessary
information to correctly install,
use and maintain the grinder, as well as to
highlight precautions for users to keep in
mind.
To ensure the best operation of the coee
grinder, please follow the instructions as
outlined in this manual.
This manual should be saved for the life of
the grinder, and should always be at the
disposal of the operator.
3.2. This manual uses some special terms,
such as:
• Text in bold to highlight the importance
of some terms.
• Numbers in parentheses after a word,
which match the numbering of the
items in the image to the side or in the
image of the external components.
3. INSTRUCTIONS
Information Warning
Example: ( ) - Hopper Lid.
Icons:
Your new grinder has been designed using
the most sophisticated technologies in
existence. The result is a product of high
quality that oers the assurance of
the best results possible. Our products
are manufactured by hand, one by one,
following the strictest quality requirements.
In the manufacturing process, we use only
the highest quality materials (aluminum,
stainless steel, etc.) especially designated for
being in contact with food stu.
For the optimal functionality of the grinder
model described in this user manual, the
maximum work cycles are as follows:
Model
Work cycle
ON OFF
i3 PRO 7 sec 60 sec
SOUND LEVEL
The level of sound emitted is:
Sound level
With coee
i3 PRO 78,5 dB
7
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
The technical characteristics
plate is indelibly marked with
the following information:

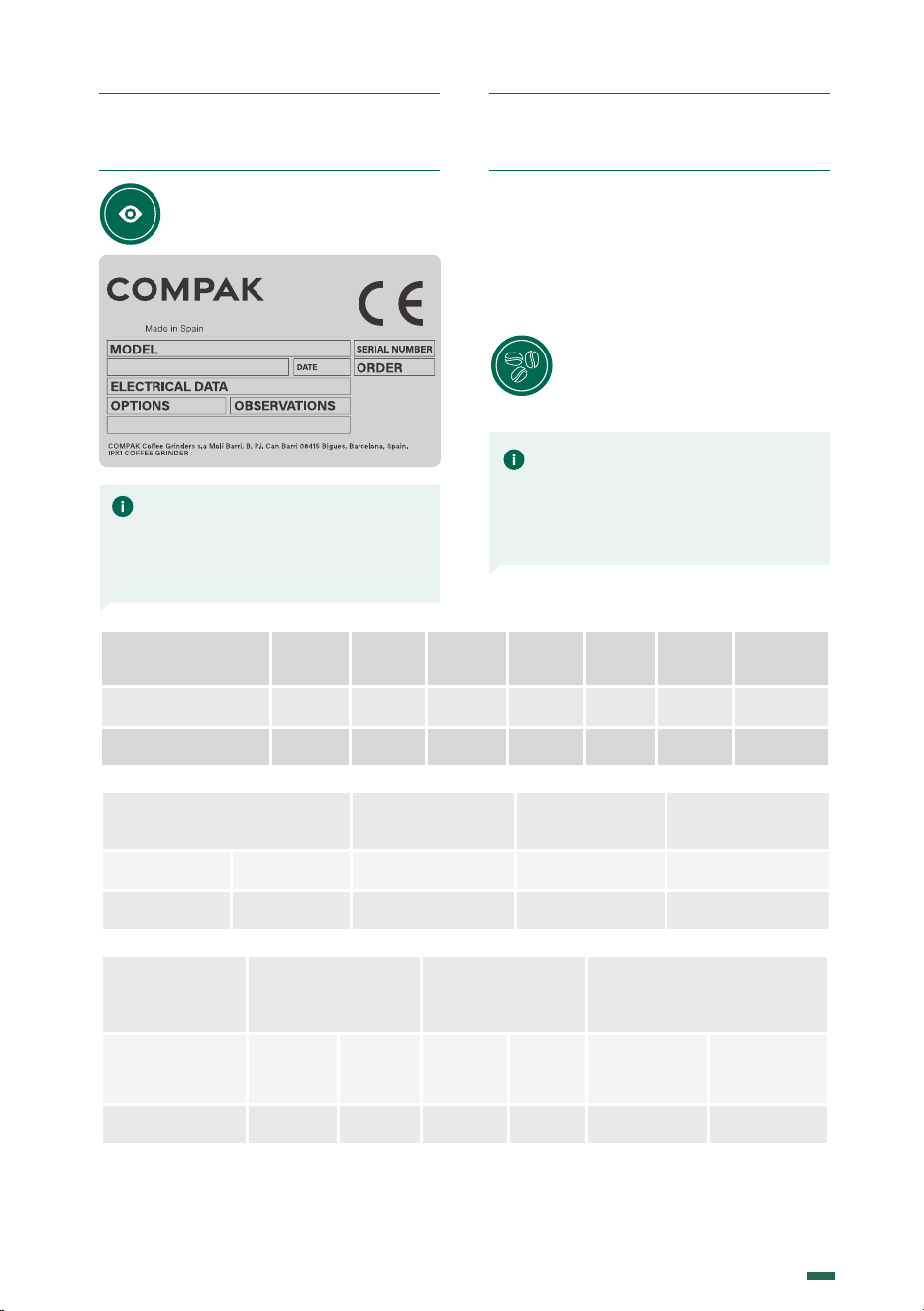

4. IDENTIFICATION
5.1. SCOPE
The coee grinders are intended for
commercial applications where ground
coee must be used, or in small shops
selling coee, but not for continuous mass
production of food.
This grinder should only be
used to grind coee beans.
Any other use is considered
improper and dangerous.
NOTE: The manufacturer reserves
the right to change the machine
components, according to the
requirements of each market, and
also for technological advances.
NOTE: The manufacturer is not
liable for damage to persons, goods
or the machine itself, if the safety
regulations given in this manual are
not followed, or the machine is used
incorrectly.
5. TECH. CHARACTERISTICS
5.2. TECHNICAL DATA
100 V
50 Hz
100 V
60 Hz
110 V
60 Hz
220 V
60 Hz
230 V
50 Hz
240 V
50 Hz
Electrical Power
540 650 715 530 500 520
W
Spin Speed
1320 1620 1640 1700 1380 1400 rpm
* Production based on a medium roast coee and Espresso grinding point.
Time for one
dose
(7 gr) 60Hz
Hopper capacity Net weight
Height
Width
Depth
2,4 0,7 1,54 8,07 1 7,79
515
190
315
20,3
7,5
12,4
s Kg lb Kg lb mm in
Ø
Flat Burrs
Production
50 Hz*
Production
60 Hz*
Time for one dose
(7g) 50Hz
58 2,3 2,5 3,1 2,7
mm in g/s g/s s
8
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
1
2
6. EXTERNAL COMPONENTS

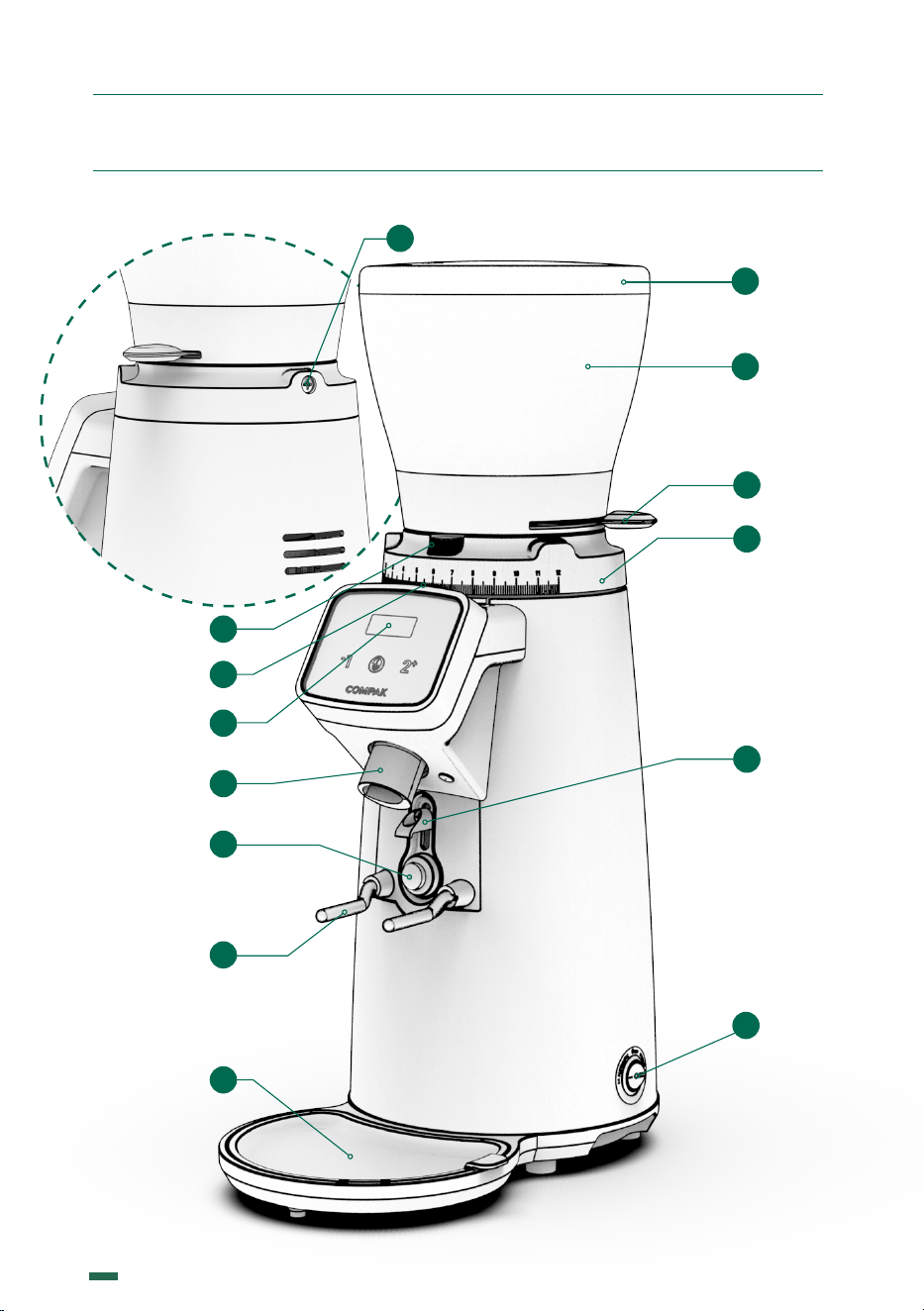

Hopper
lid
Coee bean
hopper
3
Hopper security screw
6
8
12
11
14
Regulator brake
LCD screen
Exit chute
Dose button
Coee
collection tray
Grind
regulator
4
Hopper
shutter
7
9
Portafilter holder
Switch
3 Positions
13
10
Upper
portafilter
holder
Position
indicator
5
9
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
Switch
3 Positions
7. INSTALLATION
7.1. LEGAL NOTICES
The installer must read this instruction
manual carefully before installing the
machine.
The installation of the
device must be carried out
by qualified and authorised
personnel, obeying all the current safety
and hygiene regulations.
7.2. IMPORTANT WARNINGS
The operator must be a responsible
adult. Never a child nor someone without the
ability to accept that responsibility.
When handling the grinder, the following
precautions should be obeyed:
• When removing the grinder from
the packaging, always pull it by the
handles of the bag.
• Feet must not be bare.
• Hands and feet must be dry.
• Do not get the machine wet.
• Do not expose the machine to direct
sunlight or other atmospheric agents.
• Never insert any object into the coee
inlet or outlet while the appliance is
running. (Please remember that when
the grinder stops, the burrs will keep
turning for a short while).
• When unplugging the grinder, always
pull on the plug and never the power
cable to avoid a possible short circuit.
• Care is needed when handling cutting
burrs during cleaning.
7.3. WHERE TO USE IT
The appliance must be installed on a
solid and flat surface.
The minimum size for the
working space, to ensure you
get the best performance from
the machine, must be the following:
Model i3 PRO
Height
535
21
mm
in
Width
210
8,3
mm
in
Depth
360
14,2
mm
in
• Install the grinders on tables that are
completely level and in areas free from
external vibrations
• Install the grinders in areas where
there are installations with a ground
connection.
• Avoid places where abrupt changes in
temperature, humidity or airflow may
occur.
7.4. INSTALLING THE COFFEE GRINDER
Before connecting the coee grinder, check
the following:
• The characteristics on the data plate
must match those of the electrical
mains network.
• The electrical connection plug
matches the socket into which it is to
be plugged.
• Ensure that the electrical power of
the facility is adequate for the power
consumed by the appliance.
• The point of connection to the electrical
mains network must be protected with
the appropriate electrical protection
device.
• The equipment must be correctly
connected to a ground connection
according to the current safety
regulations.
NOTE: This coee grinder should
not be installed in places (SUCH
AS INDUSTRIAL KITCHENS)
where are expected to be
cleaned using water jets or a
steam cleaner.
10
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
8. ADJUSTMENT
Remove the hopper lid ( ), fill the hopper
with coee ( ), and replace the lid on the
hopper ( ) (Fig. 3).

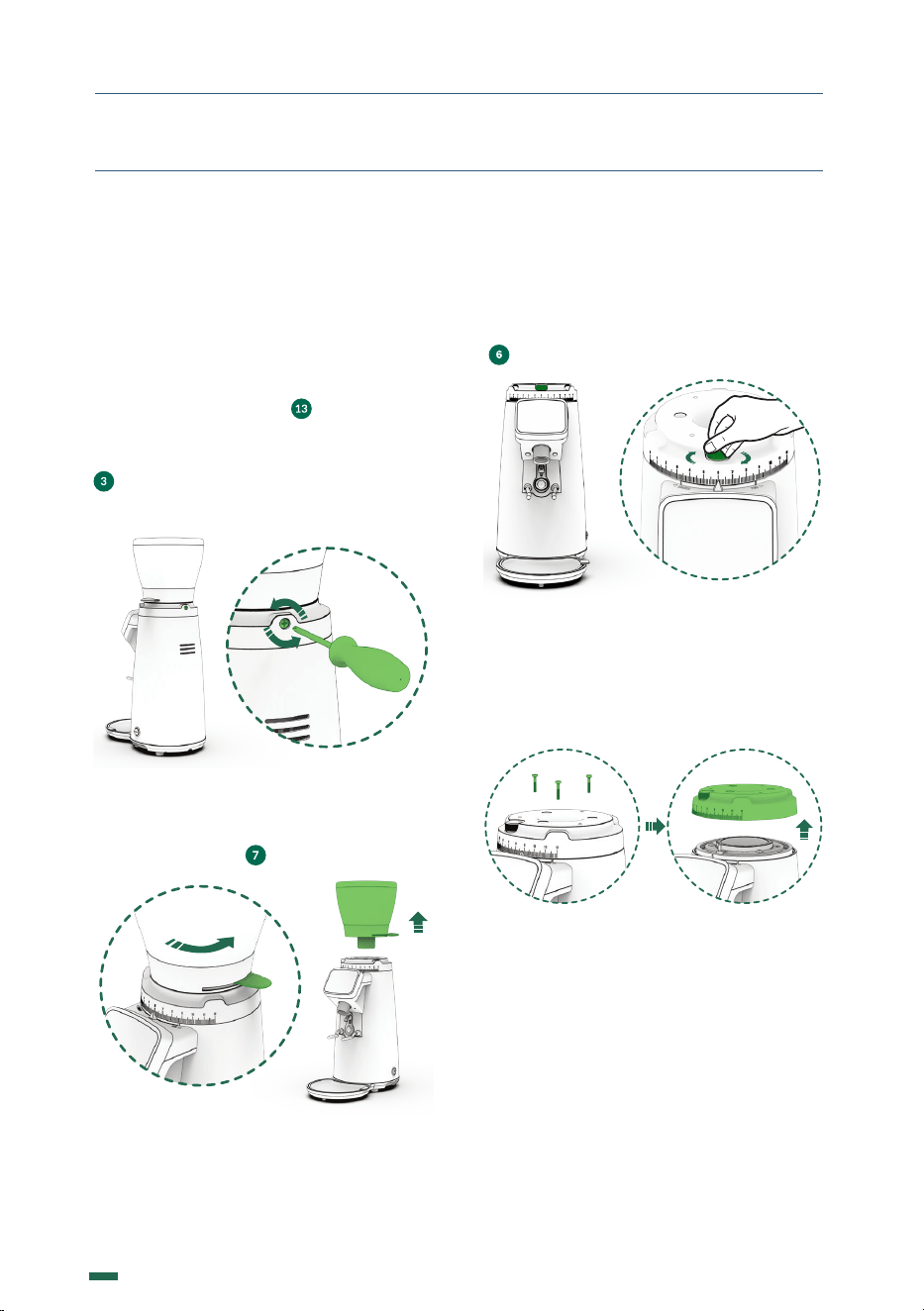

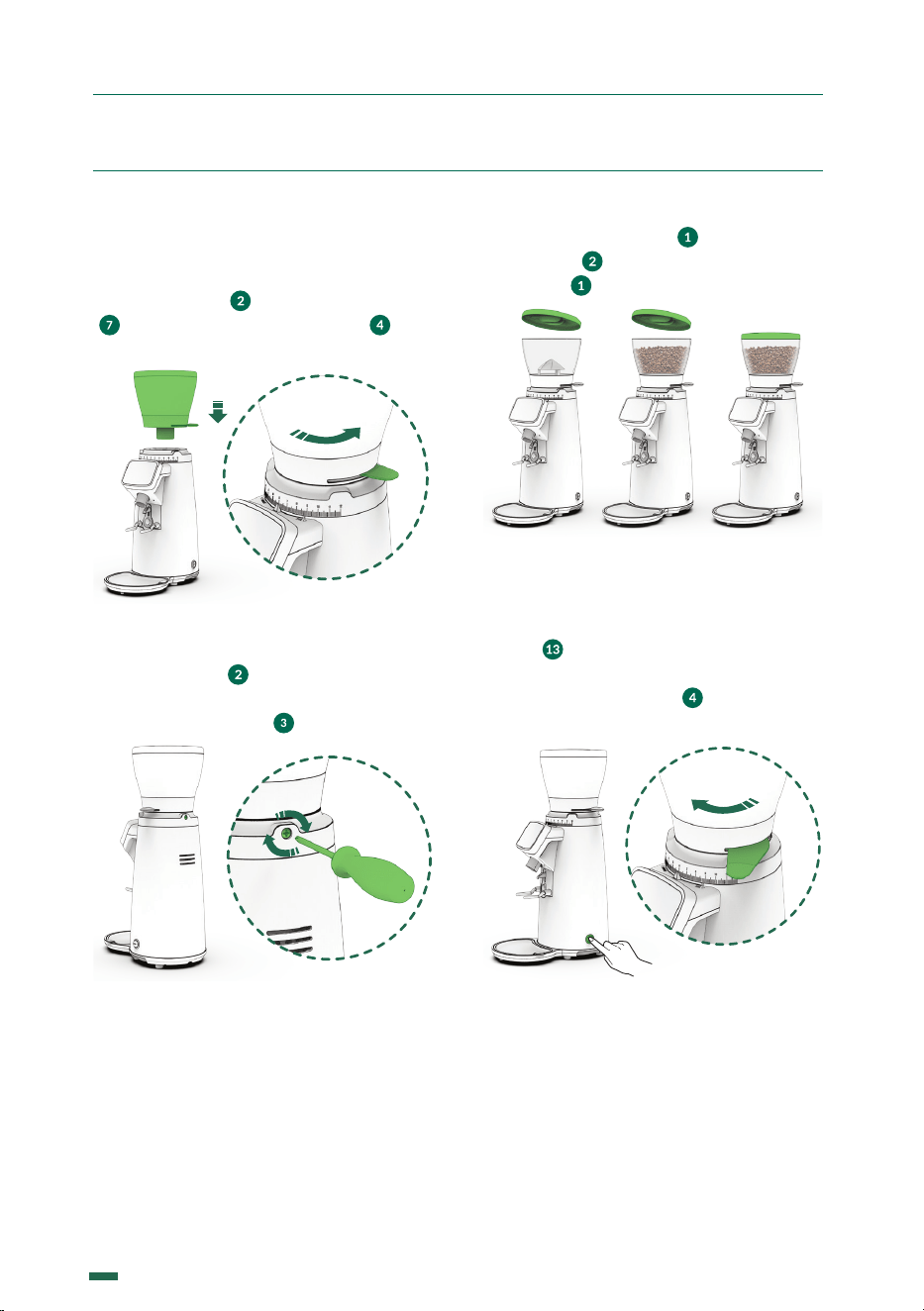

Fig. 3

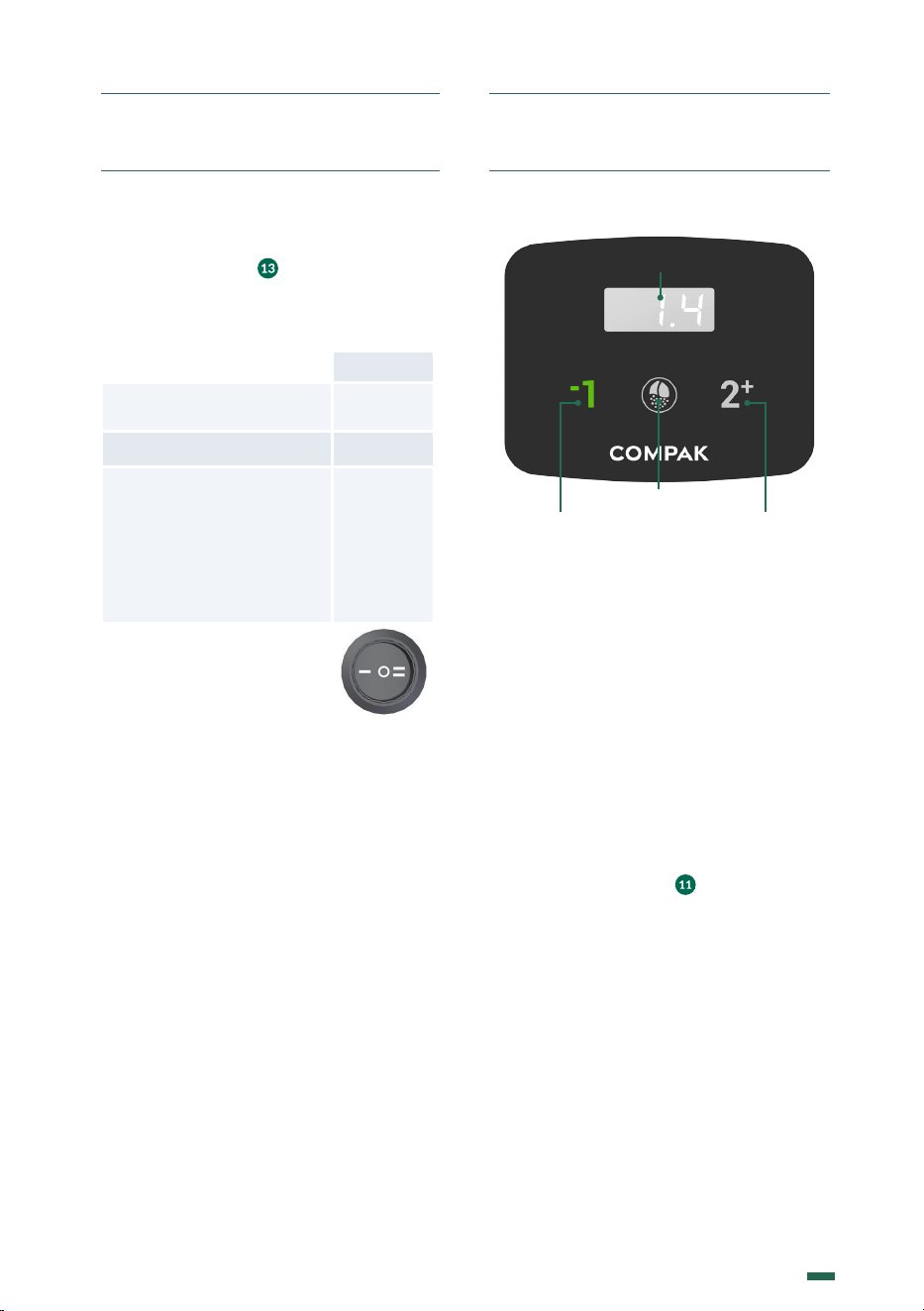

Plug in the grinder, and place the main power
switch ( ) I - 1 AUTOMATIC / 0 - 0 OFF / II
- 2 MANUAL to position I - 1 AUTOMATIC,
I and open the bean trap ( ) to allow coee
to pass into the grind chamber.
Fig. 4
8.1. GRINDER SET UP
Place the hopper ( ) on the grind regulator
( ) and make sure the bean trap ( ) is in
the closed position (Fig. 1).
Fig. 1
Lock the hopper ( ) in place using a phillips
head screw driver to gently tighten the
hopper security screw ( ) (Fig. 2).
Fig. 2
8.2. ADJUSTING THE TOP
PORTAFILTER SUPPORT
In order to ensure the proper distribution
of ground coee in the portafilter, while
supporting the portafilter in a hands-free
position during dosing, it is possible to adjust
the height of the upper portafilter support (
).
To do this adjustment operation:
1. Loosen the screw on the upper support
( ) by using a #2 Philips screw driver.
2. Adjust the support to the desired
height using the portafilter as the point of
reference.
3. Tighten the screw with the #2 Philips
screw driver (Fig. 4).
Fig. 4
11
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
8. ADJUSTMENT
8.3. ADJUSTMENT OF THE
ALUMINUM PORTAFILTER HOLDER
(OPTIONAL)
In some grinders, it is possible that the portafilter
holder is made of aluminum. If this is the case,
it is possible to adjust the height of the lower
portafilter holder and also adjust the position of
the portafilter forward and backward in relation to
the coffee outlet.
To perform this adjustment:

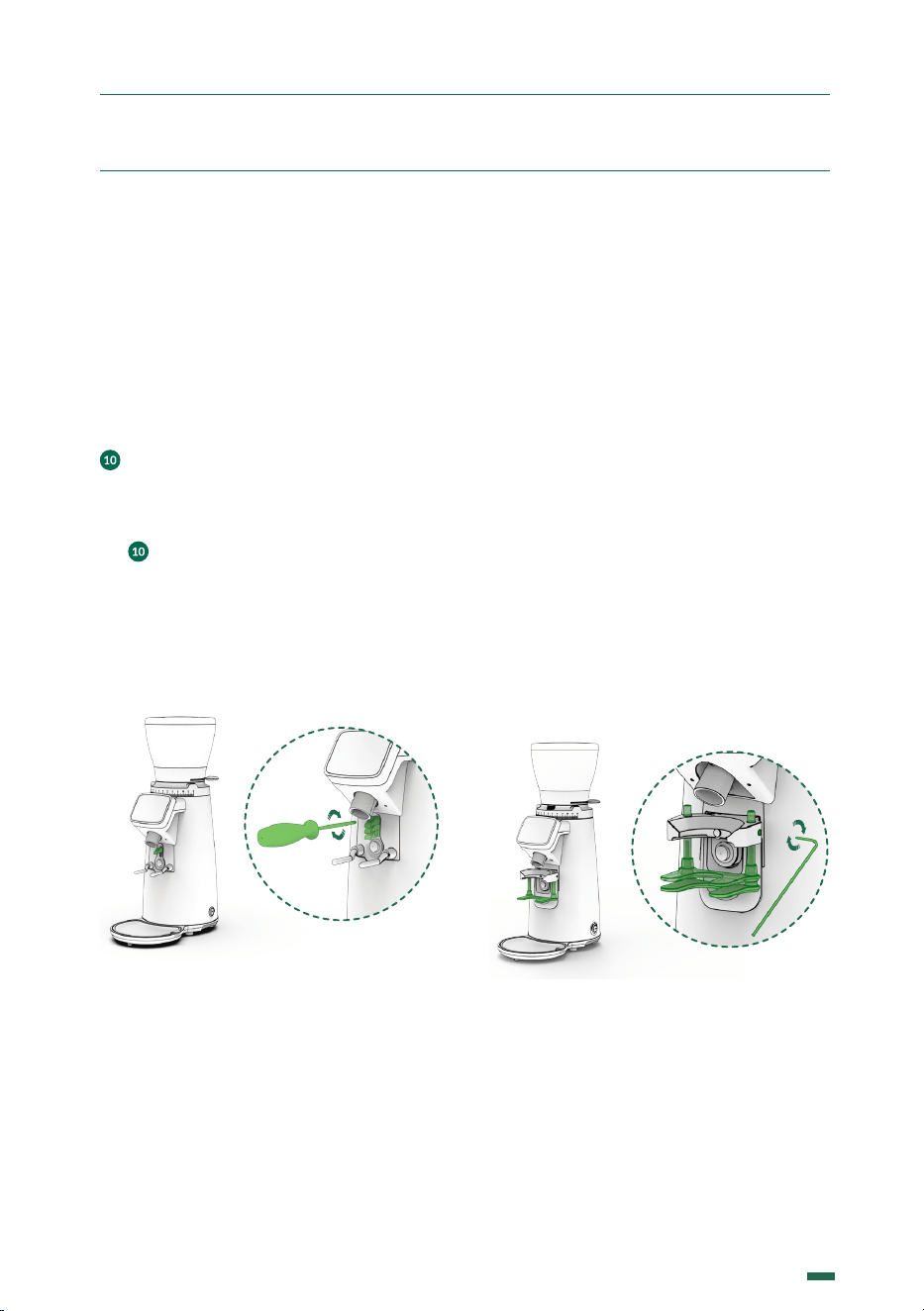

1. Loosen the screw on the lower holder using
the hexagonal Allen wrench No. 3 included
with your grinder.
2. Adjust the holder to the desired height,
using the portafilter as a reference point.
3. Tighten the screw using the provided
hexagonal Allen wrench No. 3 (Fig. 6).
Fig. 6
4. With the provided hexagonal Allen key
number 3, tighten or loosen the screw located
on the front of the portafilter to find the correct
position as seen in (Fig. 7 y Fig. 8).
Fig. 7 Fig. 8
8.4. GRIND ADJUSTMENT SYSTEM

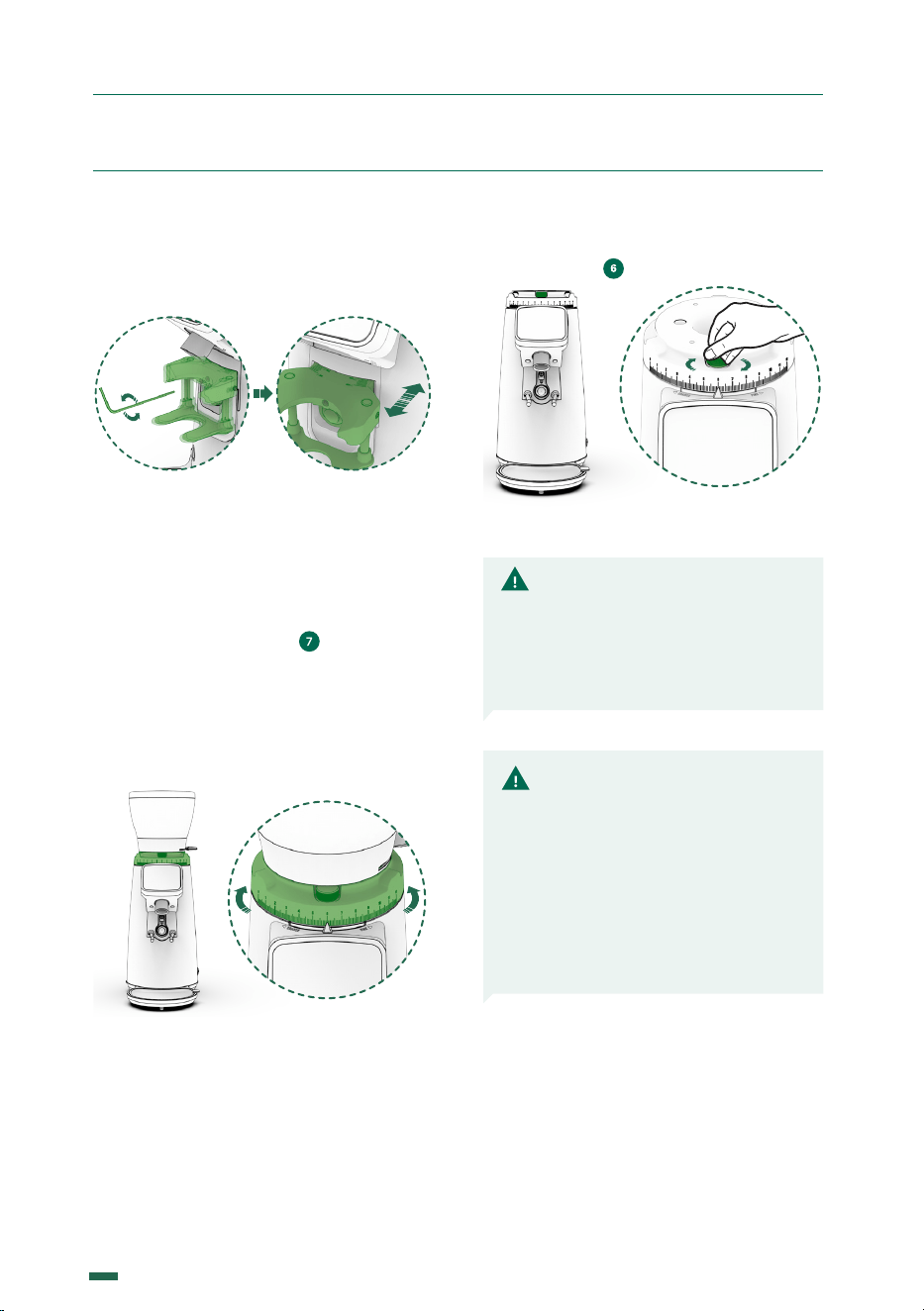

Rotate the grind regulator ( ) until reaching
the grind level desired.
Rotating the grind regulator clockwise will
result in a courser grind; turning the regulator
counter clockwise will result in a finer grinder
(Fig. 5).
Fig. 5
12
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
Once you reach the desired grinding point,
you can lock the grinding regulator using the
regulator brake. ( ) (Fig. 6).
Fig. 6
8. ADJUSTMENT
NOTE: It is recommended
that this operation be
performed, when changing to
a finer grinding, with the motor
running, to prevent coee from
building up between the burrs
and blocking the grinder.
NOTE: If the coee throughput
is very low, this is because the
coee is being ground very
fine. If the throughput is very
high, this is because the coee
is being ground very coarse. A
perfect Espresso is produced
when the grinding gives an
infusion of 25 ml of coee in
25 seconds using about 7 g of
ground coee.
13
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
10.1. DISPLAY ICON GUIDE
10.2. UTILIZATION
A pre-programmed single or double can be
set by simple pressing the corresponding
icon on the LCD screen.
The preselection of a single or double dose
will remain active until it is changed by
pressing one of the two numbered preselect
icons. This preselection is reflected on the
LCD screen with the icon of the active
selection in the secondary color, and the rest
of the icons in the principle color.
Dispensing the preselected dose by pressing
the lower pulse button ( ) one time. When
the grinding cycle begins, a timer countdown
will begin on the LCD screen, which will
count down the timed dose cycle to zero.
9.1. MAIN SWITCH
The main switch ( ) has the following
positions:
I / 0 / II (Fig. 7)
i3 PRO
The equipment’s electronic
functions are activated
I
Equipment o O
Equipment in manual mode.
Backup system that allows the
equipment to be used in the
event of a fault in the power
board or keypad. When in
manual mode, the equipment
starts grinding until the switch is
set to OFF.
II
Fig. 7
9. OPERATION 10. SETTINGS
10.3. GRIND TIME CONFIGURATIONS
To set up dose time, simultaneously press the
number of the desired dose to be configured
and the Grind button 2 seconds until it blinks.
Pressing to decrease or to increase the time
until get the desired, to confirm press the
Grind Button.
*
*
*
14
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
11. CLEANING
11.1. GENERAL CLEANING
11.1.1 To ensure that the grinder functions
properly, and produces the highest quality
grind possible, the parts that come into
contact with coee should cleaned
periodically.
General Cleaning guidelines as follows:
• Always turn the main power switch to
the o position ( ).
• Unplug the machine from the power
source.
• Do not submerge the grinder in water
or use power washing devices.
• The appliance is not to be cleaned with
a water jet.
11.2. BEAN HOPPER CLEANING
11. 2.1 In order to properly clean the bean
hopper ( ), first empty out all remaining
beans and fragments.
To remove the hopper, first close the bean
trap ( ), and then loosen the hopper lock
screw ( ) and lift the hopper straight up.
Clean the hopper ( ) with a moist soft cloth
or with a small amount of water and neutral
soap to eliminate any oily residue from the
beans.
Replace the bean hopper ( ) following the
same steps as the removal process, but in
reverse.
11.3. CLEANING THE GRIND CHAMBER
11.3.1 It is recommended that the grind
chamber be cleaned monthly with a
cleaner . This process will eliminate smelly
residues from the coee remains, which can
negatively aect the quality of the brewed
coee.
Care is needed when handling cutting burrs
during cleaning
The steps to follow are:
In order to properly clean the bean hopper
( ), first empty out all remaining beans and
fragments.
• Close the bean trap on the hopper
(
)
and grind out the remaining coee in
the grind chamber.
• Pour the recommended grinder
cleaning product into the bean hopper
( ) and open the bean trap
( )
,
allowing the cleaning product to pass
into the grind chamber.
• Grind the cleaning product at a
medium coarse grind setting until
the recommended amount is passed
through the system and nothing
remains in the grind chamber.
• Clean the hopper ( ) and refill with
coee beans.
• Discard the first 2-3 doses of coee to
assure that the residual cleaning product is
removed from the grind chamber and set the
grind regulator to the desired setting
( )
.
• Following these steps will ensure that
the grinder is clean and ready for use.
• We do not recommend the taking apart
of the grind assembly unless changing
burrs, or removing a blockage/
obstruction in the grind chamber.
Removal of the grind assembly should
be performed by a qualified service
technician.
15
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
12. MAINTENANCE
11.4. CLEANING THE OUTSIDE OF THE
GRINDER
11.4.1 To clean the exterior of the grinder, first
wipe with a dry soft cloth, and then gently
wipe with a damp cloth and neutral soap.
11.5. CLEANING THE TOUCH SCREEN
11.5.1 Proper cleaning should be done with
a soft, damp microfiber towel. Preferably
distilled water or other cleaning product
specifically designed for touch screen
cleaning.
Turn o the grinder and gently wipe o the
screen using a circular motion.
11. CLEANING
Not following the recommended
burr life guidelines can
compromise the safety of the
grinder.
These operations should be done
by a qualified service technician.
12.1. GENERAL WARNING
12 .1.1 Before performing any type of
maintenance you should:
• Always turn OFF the main power
switch to the o position ( ).
• If the grinder is jammed, unplug it
from the power source and contact an
authorized service technician.
In case of breakdown or malfunction, turn o
the appliance, we should never try to repair
it, it is essential to call the nearest technical
service.
NOTE: Not following these
warnings can compromise the
safety of the grinder as well as the
user.
12.2. GENERAL MAINTENANCE OF
THE GRIND CHAMBER
12.2.1 To guarantee the eiciency and correct
operation of the grinder, it is essential to follow
manufacturer instructions and ensure that all
maintenance work is carried out by qualified
sta.
Dull burrs will result in; a lower quality grind,
greater heat generation in the coee and
grinder, increased electrical consumption,
and finally it puts additional stress on the
grinder motor.
16
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
12. MAINTENANCE
12.3. GRINDING GROUP
MAINTENANCE
To perform grind chamber maintenance
please observe the following steps:
12.3.1 Turn o the grinder by making sure
the main power switch ( ) is on the OFF
position. Disconnect the plug from the power
source. Loosen the hopper security screw (
) using a Phillips head screw driver as
seen in (Fig.1).
Fig. 1
12.3.2 Check that the shutter is in the closed
position before removing the hopper from
the grind regulator ( ). (Fig. 2).
Fig. 2
12.3.3 To avoid losing the position of the
regulator scale with respect to the current
grinding point, it is essential to tighten the setting
of the grinding regulator using the adjusting brake
( ) by turning it clockwise (Fig. 3).
Fig. 3
12.3.4 Loosen the grinding regulator screws
using an Hex Allen screwdriver #3, according
to (Fig.4). Remove the regulator by pulling up.
(Fig.5).
Fig. 4 Fig. 5
12.3.5 Loosen the upper burrs support screws
using a #3 Hex Allen key, according to (Fig.6).
Remove the upper holder by pulling upwards
to access the grinding cavity, clean the interior
with the help of a brush or vacuum cleaner and
remove any coffee residue from the grinding
cavity (Fig.7).
17
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023

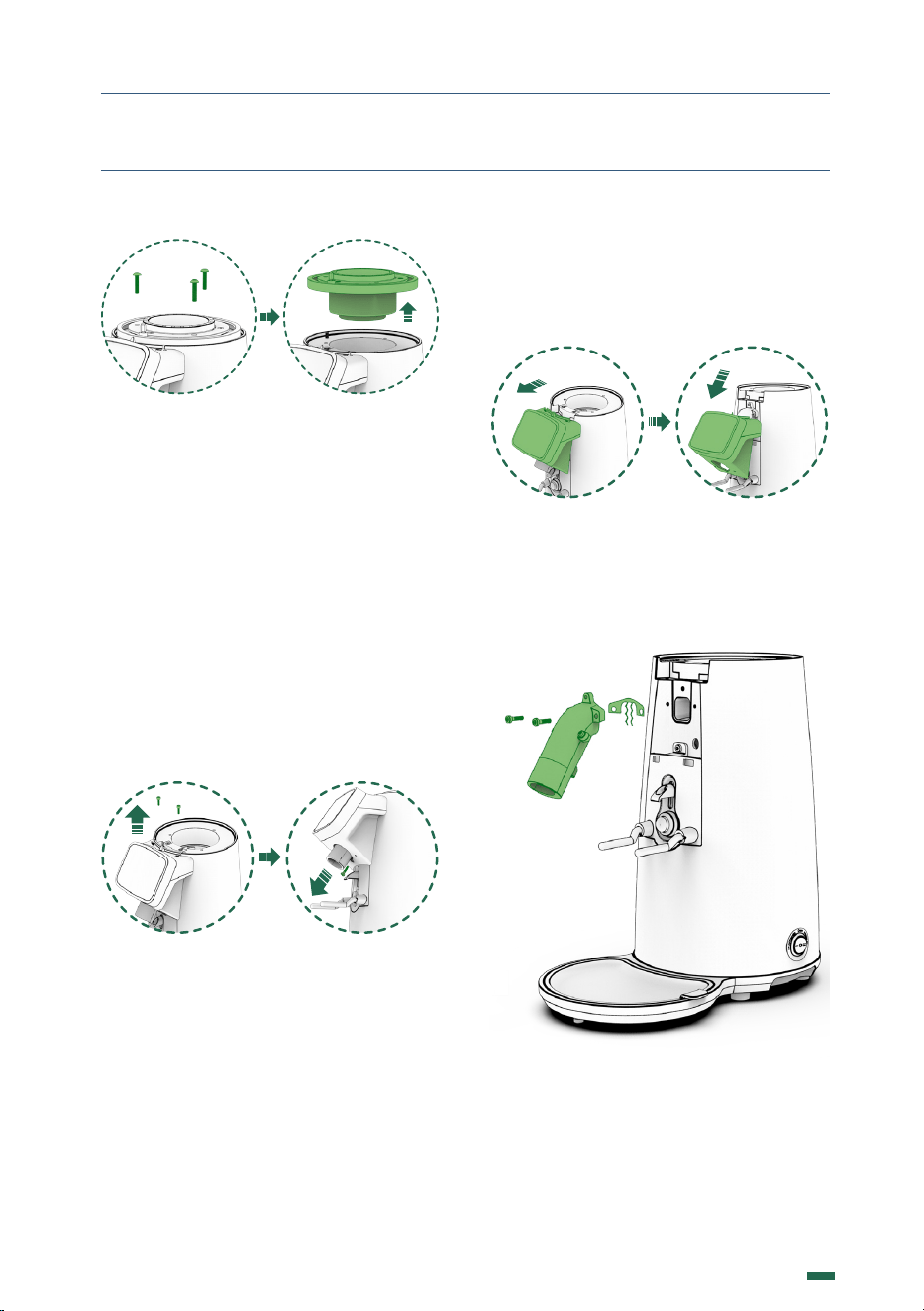

12.4.2 Partially move the display plastic
cover forward (Fig. 10). And then downward
along the coffee exit chute until it can be
completely freed (Fig. 11).
Fig. 10 Fig. 11
12.4.3. Using a Hex Allen key #3, loosen
the two screws of the coffee exit chute and
remove it from the grinder body to gain
access to the metal grid (Fig. 12).
Fig. 12
12. MAINTENANCE
Fig. 6 Fig. 7
12.4. REPLACING THE METAL GRID
The metal grid ensures consistency in the
dosage and minimizes static electricity
12.4.1 Located between the coffee exit chute
and the grinder’s body, can be replaced after
removing the regulator from the grinder,
following the instructions up to step 12.3.3.
To remove it, use a Hex Allen key #3 to
loosen the two top screws (Fig. 8). And the
screw located beneath the coffee exit chute
(Fig. 9).
Fig. 8 Fig. 9
18
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
13. DECLARATION OF CONFORMITY
Compak Coee Grinders, s.a.
Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain
Ph. 34 93 703 13 00 - www.compak.es - info@compak.es
In accordance with European community directives, quality certificates have been applied.
All materials have been adapted and technical reports are available at our offices.
2014/30/UE on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
06/42/EC amending Directive 95/16/EC on the approximation of the laws of the Member
States relating to machinery
REG. 1935/2004 amending Directive 89/109/EC on the approximation of the laws of the
Member States relating to material and objects destinated to make contact with nutritional
products.
03/108/EC amending Directive 2002/96/EC on waste electrical and electronic equipment
(WEEE).
2014/34/UE on the harmonization of the laws of Member States relating to electrical
equipment designed for use within certain voltage limits.
2012/19/UE of 04/07/2012 on the approximation of the laws of the Member States on waste
electrical and electronic equipment (WEEE).
11/65/EU related to the restriction on the usage of certain dangerous substances with electrical
equipment and electronics.
Environment
Do not throw the applianceaway with the normal household waste; hand it in at an official
recycling collection point. By doing this, you will help to preserve the environment.
The Legal Representative
Jesús Ascaso
19
K09639H01 | PROC-CAL/002/03 USER MANUAL | V. 27/09/2023
USER MANUAL
K09639H01 | PROC-CAL/002/03 | v. 27/09/2023
www.fsc.org
