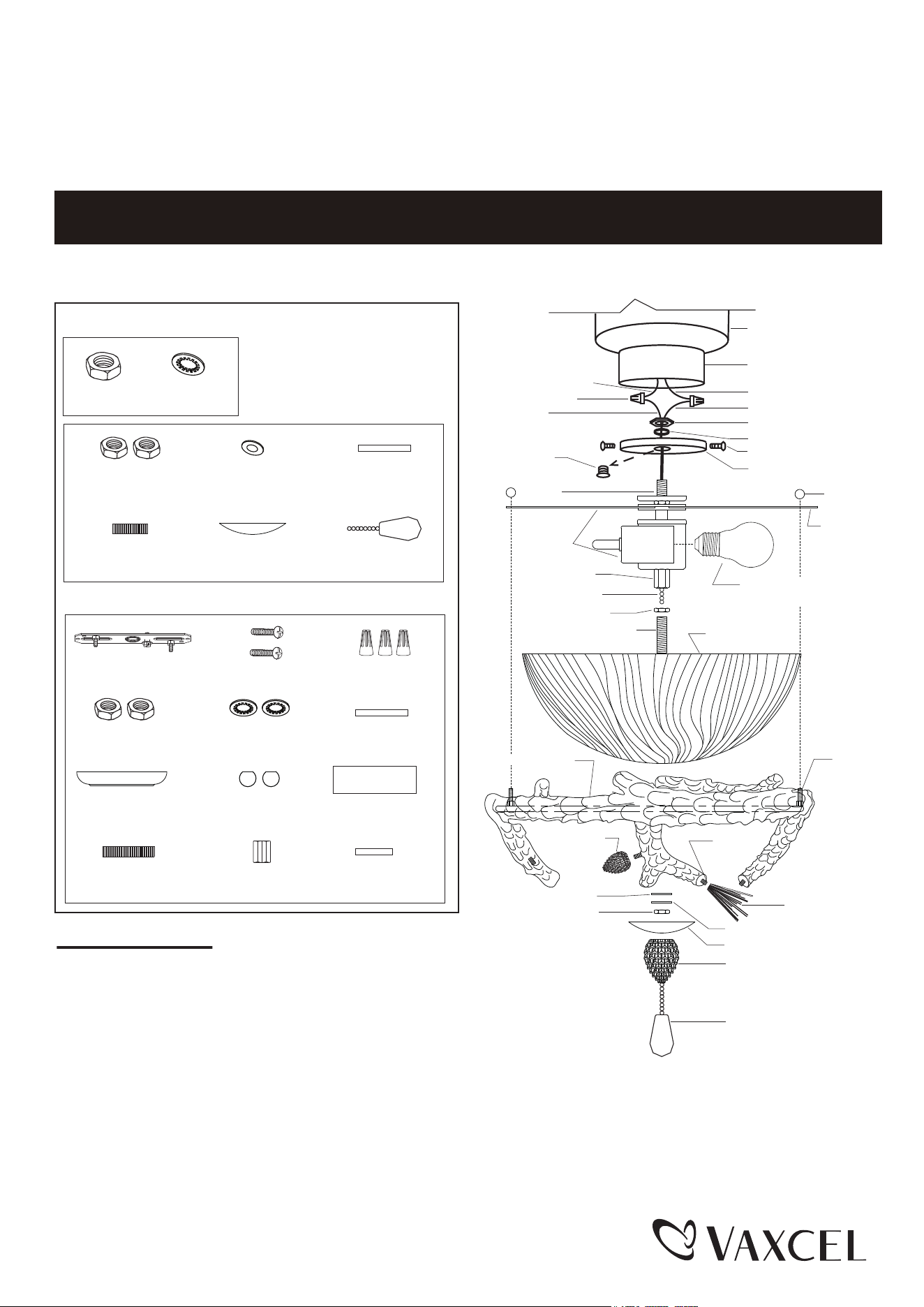

1. Remove the switch box cover from the switch box of the fan
by loosing the three switch box screws.
2. Unscrew the center plug from the switch box cover and discard it.
3. Thread the fixture wire through the switch box cover.
4. Attach the switch box cover to the light kit, then secure it with a washer (B) and hex nut (A).
5. Thread the pull chain through a hex nut (N) and the short threaded pipe (Q). Screw the short threaded pipe (Q)
into the coupling and secure it with a hex nut (N).
6. Install bulbs (included). See relamping label at socket area or packaging for maximum wattage allowed.
For Light Kit:
Center Plug
Black Wire
Wire Connector
Black or Blue Wire
White Wire
White Wire
Motor
Hex Nut (A)
Washer (B)
Switch Box Cover
Switch Box Screw
Stem
Metal Bar
Bolt Nut-a
Hex Nut (N)
Rubber Pad (O)
Stud
Metal Pad (P)
Pine Needle
Pine Cone
Stud
Cover (R)
Finial
Pull Chain
Coupling
Light Kit
Hex Nut (N)
Short Threaded Pipe (Q)
Decorative Ring
Glass Shade
Wood Bead (S)
Max. 9W LED Type Bulb
(incluced)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
LK51218
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included): For Light Kit
Washer (B)
Hex Nut (A)
Hardware Package (included): For Semi-Flush
Mounting Strap Unit (C) Wire Connector (E)Mounting Screw (D)
Canopy (I)
Metal Pad (H)
Long Threaded Pipe (L) Coupling (M)
Washer (G)Hex Nut (F)
Bolt Nut (J)
Big Tube (K)
Cap (T)
Rubber Pad (O)
Hex Nut (N)
Short Threaded Pipe (Q) Wood Bead (S)Cover (R)
Metal Pad (P)
Page 1 / 4
231113

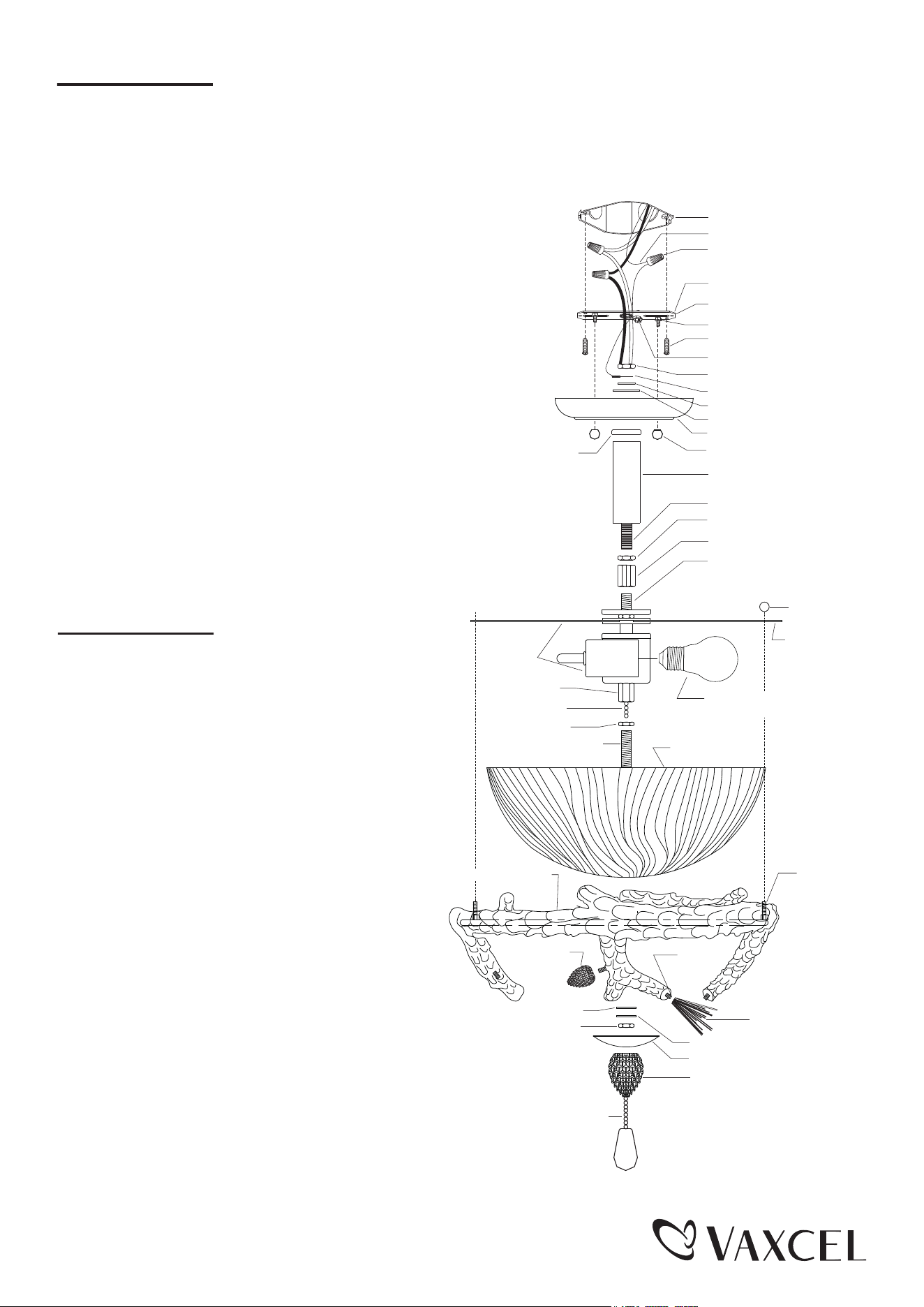

1. Take out the parts from the hardware package For
Semi-Flush.
2. Attach the mounting strap unit (C) to the outlet box
by using two mounting screws (D).
3. Follow steps 5~7 as For Light Kit.
4. Thread the fixture wires through the coupling (M),
hex nut (F), ground pad and another hex nut (F),
long threaded pipe (L), big tube (K), cap (T), canopy (I),
metal pad (H), washer (G), ground pad and another
hex nut (F).
5. Secure the coupling (M) onto the stem on the top
of the light kit. Then screw the long threaded pipe (L)
into the coupling (M), then secure it with a hex nut (F).
6. Slip the big tube (K), cap with the open side facing
downward and the canopy down through the long
threaded pipe (L) secure them together with a metal
pad (H), washer (G), ground pad and hex nut (F).
For Semi-Flush
7. Gently place the glass shade into the decorative ring. With the pull chain and short threaded pipe (Q) passing
through the hole of glass shade, attach the glass shade assembly up to the metal bars, and fasten it by
securing the bolt nuts-a onto the studs of decorative ring. See right graph for correct position.
8. Cut the redundant wires if necessary. Pull out the wires from the switch box.
Make wire connections using the wire connectors (E):
---The black wire from the light kit to the black (or blue) wire from the
switch box.
---The white wire from the light kit to the white wire from the switch box.
Carefully put the wires back into the switch box.
9. Attach the switch box cover back to the switch box using the three
switch box screws.
10. Thread the pull chain through a rubber pad (O), metal pad (P) and
hex nut (N), then secure them onto the short threaded pipe (Q).
(Do not over tighten)
11. Thread the pull chain through the cover (R) and finial, then slide
the cover up to the glass shade, secure it with finial.
12. Secure the pine needles and pine cones onto the studs of the
decorative ring.
13. Turn on the power at the main fuse or circuit breaker box.
(You can control the light with the pull chain)
For Light Kit:
Outlet Box
House Ground Wire
Wire Connector (E)
Screw
Mounting Strap Unit (C)
Green Ground Screw
Hex Nut (F)
Ground Pad
Washer (G)
Metal Pad (H)
Canopy (I)
Bolt Nut (J)Cap (T)
Big Tube (K)
Long Threaded Pipe (L)
Hex Nut (F)
Coupling (M)
Lock Nut
Mounting Screw (D)
Stem
Metal Bar
Bolt Nut-a
Hex Nut
(N)
Rubber Pad (O)
Stud
Metal Pad
(P)
Pine Needle
Pine Cone
Stud
Cover
(R)
Finial
Pull Chain
Coupling
Light Kit
Hex Nut (N)
Short threaded pipe (Q)
Decorative Ring
Glass Shade
Wood Bead (S)
Max. 9W LED Type Bulb
(incluced)
Page 2 / 4
231113

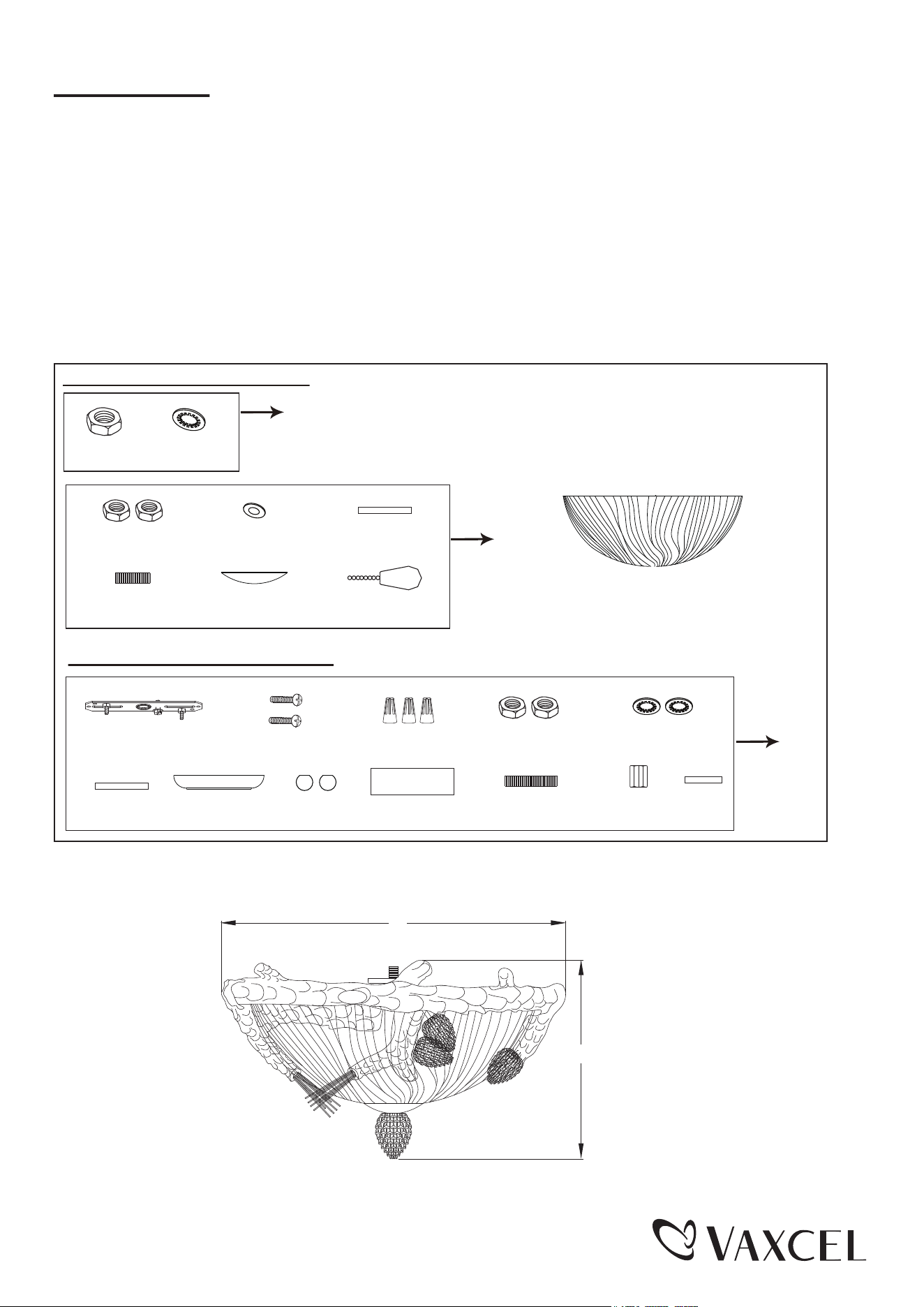

Spare Parts List: For Light Kit
Spare Parts List
: For Semi-Flush
Washer (B)
Hex Nut (A)
Mounting Strap Unit (C) Wire Connector (E)Mounting Screw (D)
Canopy (I) Metal Pad (H)
Long Threaded Pipe (L) Coupling (M)
Washer (G)Hex Nut (F)
Bolt Nut (J) Big Tube (K)
Assembly Kit
4049AA (1 SET)
Assembly Kit
4049MM (1 SET)
Assembly Kit
6681MM (1 SET)
For Semi-Flush
The following parts are available for reorder if damaged or missing.
Glass Shade
9058BC
Page 3 / 4
A
B
A: 8"
B: 13-3/4"
Rubber Pad (O)
Hex Nut (N)
Short Threaded Pipe (Q) Wood Bead (S)Cover (R)
Metal Pad (P)
7. Cut the redundant wires if necessary. Pull out the outlet wires and the house ground wire from the outlet box.
Make wire connections using the wire connectors (C):
---Connect the black wire from fixture to the black wire from power source.
---Connect the white wire from fixture to the white wire from power source.
---Attach the fixture ground wire to the mounting strap unit (C) with the green ground screw, then connect
it to the house ground wire with the wire connectors (C):
Carefully put wires back into the outlet box.
8. Attach the canopy to the mounting strap unit (C) , and secure it with the bolt nuts (J).
9. Follow steps 10~13 as For Light Kit.
Cap (T)
231113
Page 4 / 4
231113
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
