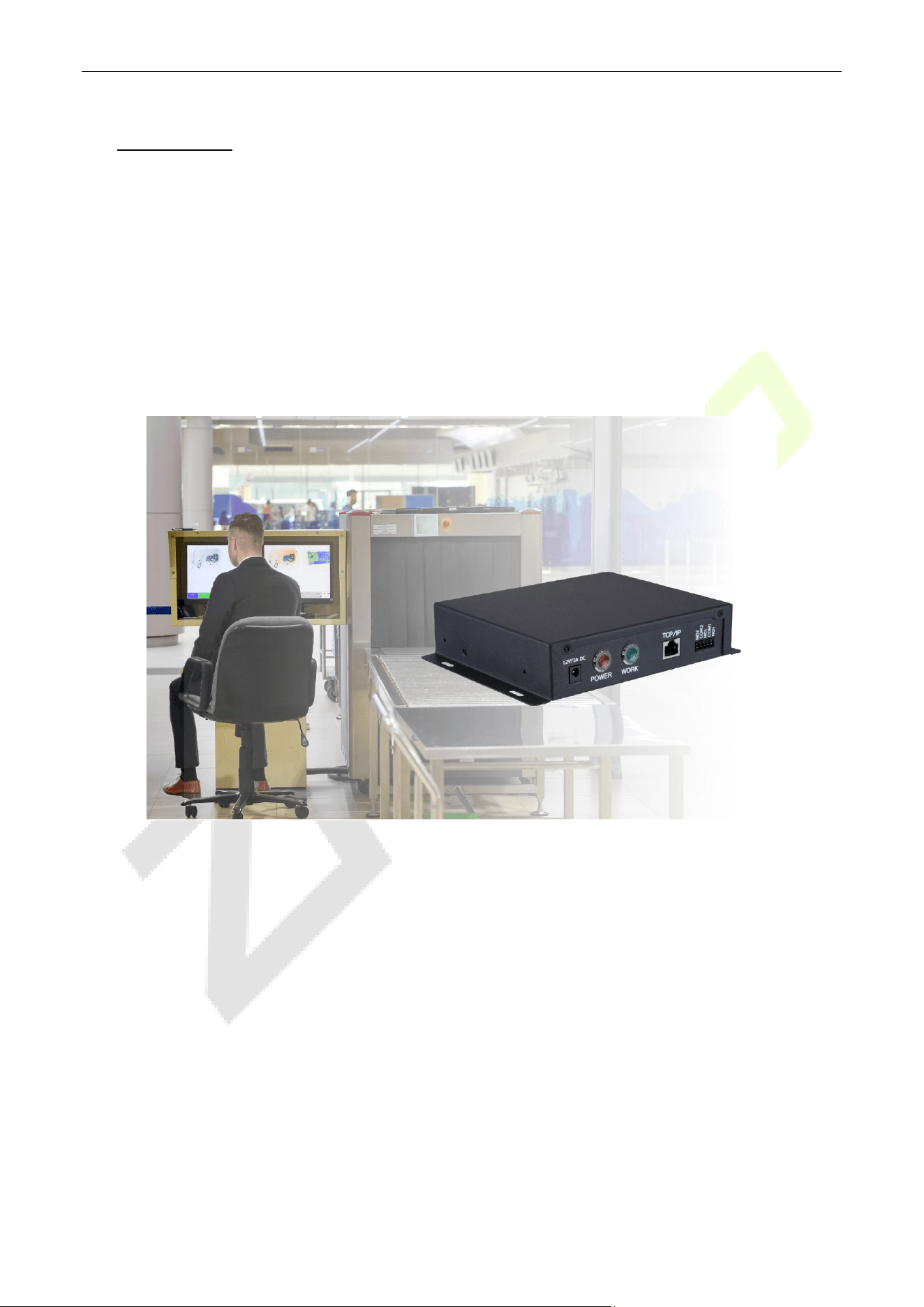

1 Overview

ZKX-AI1000 is a smart and adaptable algorithms terminal for the automatic detection of dangerous,

prohibited and contraband goods and substances, helping to reduce the burden on image analysts and

improve detection/screening outcomes. ZKTeco has a huge image database, through continuous training

algorithm, to improve the accuracy and credibility of the algorithm and services to ZKTeco X-ray

inspection system.

ZKX-AI1000 intelligent analysis server is a ZKTeco product with Independent Intellectual Property Rights. It

is compatible with various X-ray security inspection equipment, provides accurate, reliable and powerful

detection capabilities for the ZKTeco X-ray inspection system.

1.1 Features

 Increases Security and Efficiency

 Reduce Human Error Risk

 Real-time Detection without Conveyor Interruption

 Invaluable Support for Security Operators

 Requires Minimal Training

ZKX-AI1000 User Manual

1.2 Advantages

 Intelligent

Automatic detection and analysis of hazardous, prohibited and contraband goods and substances. The

continuous training algorithm can be customized according to customer requirements.

 Accurate

The intelligent analysis accuracy exceeds 90%, with an error rate of less than 10% and an omission report

of less than 5%.

 Reliable

Intelligent analysis ensures impartiality and minimizes the risk of human error.

 Efficient

Minimal training is required for intelligent analysis, enabling round-the-clock operation with fast

recognition; results can be displayed within a second.

1.3 Product Dimension and Appearance

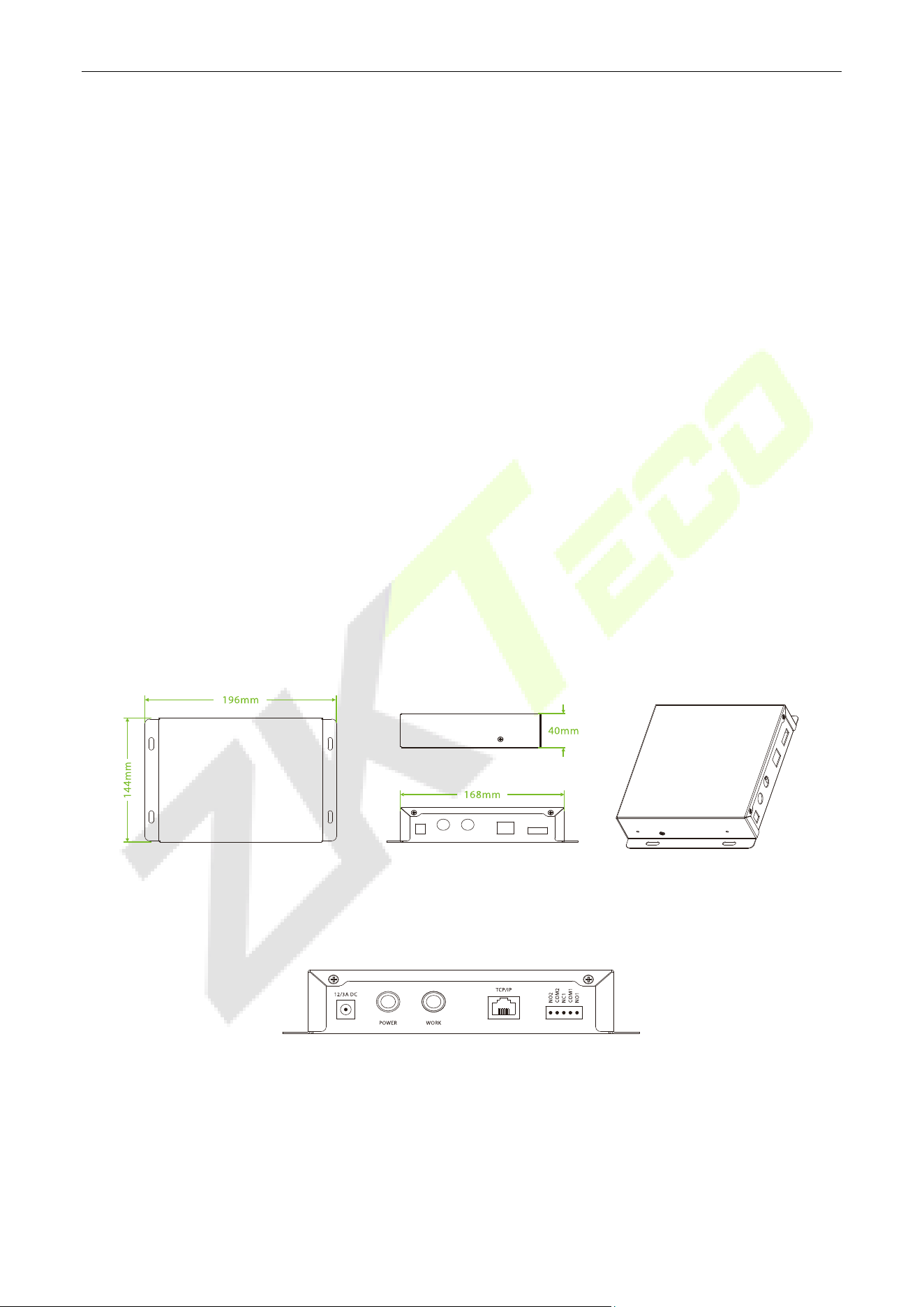

1.3.1 Dimension

The dimensions of the ZKX-AI1000 are shown in the figure below:

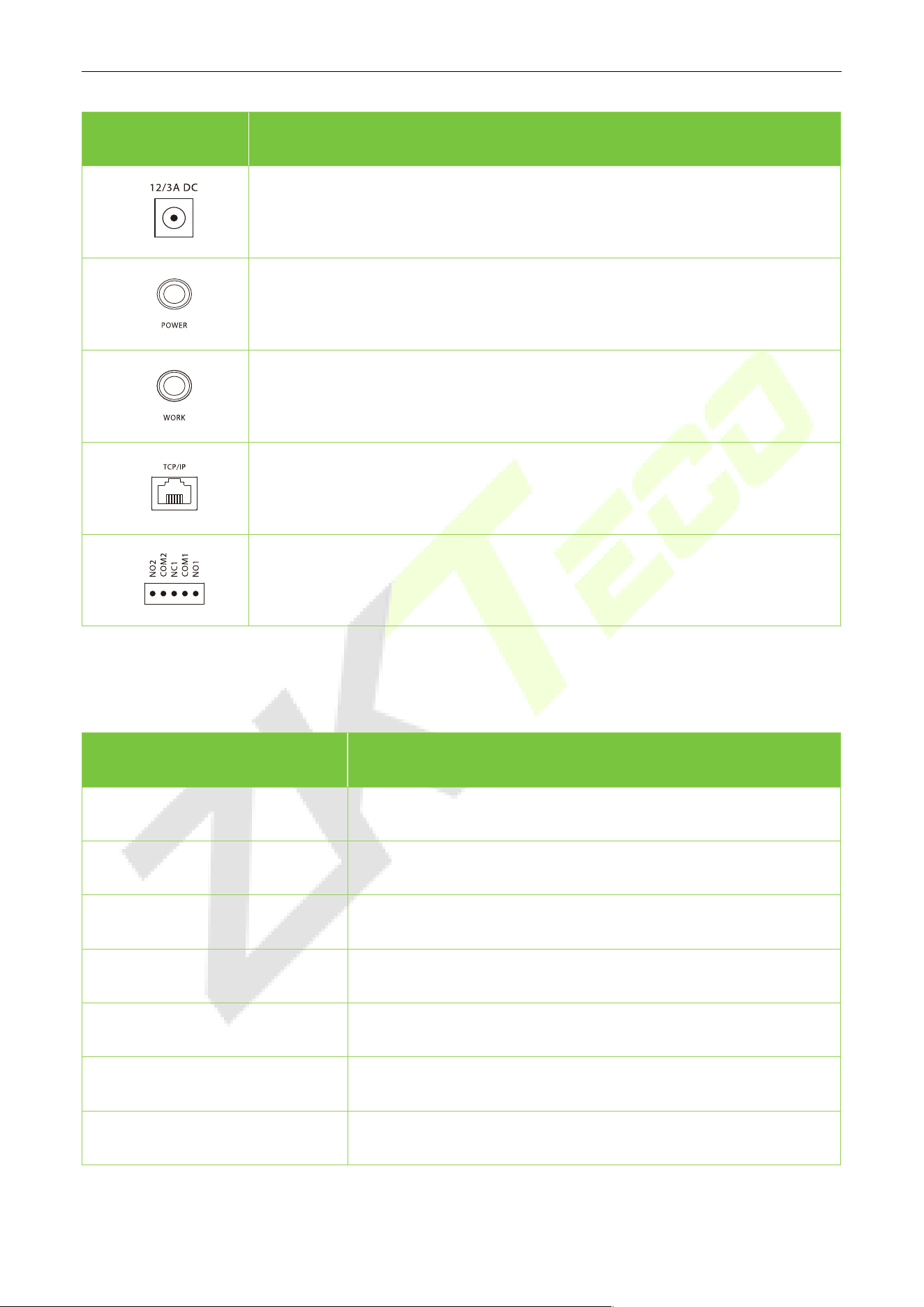

1.3.2 Appearance

ZKX-AI1000 User Manual

NO. Description

Power input interface

Power indicator (Energized red light is always on)

Operating indicator light (Normal operation: green light blinking)

Ethernet interface

Relay output interface

1.4 Specifications

Function Description

Recognizable items

26 categories

Input Voltage

DC12V

Operating Current

170mA

Operating Power

2W

Communication

TCP/IP and Relay output

Operating Temperature

-25°C to 65°C

Storage Temperature

-20°C to 55°C

ZKX-AI1000 User Manual

Dimension (mm) (L*W*H)

196*144*40

Dimension with Packing(mm)

(L*W*H)

300*183*93

Net Weight

0.7kg

Weight with Packing

1kg

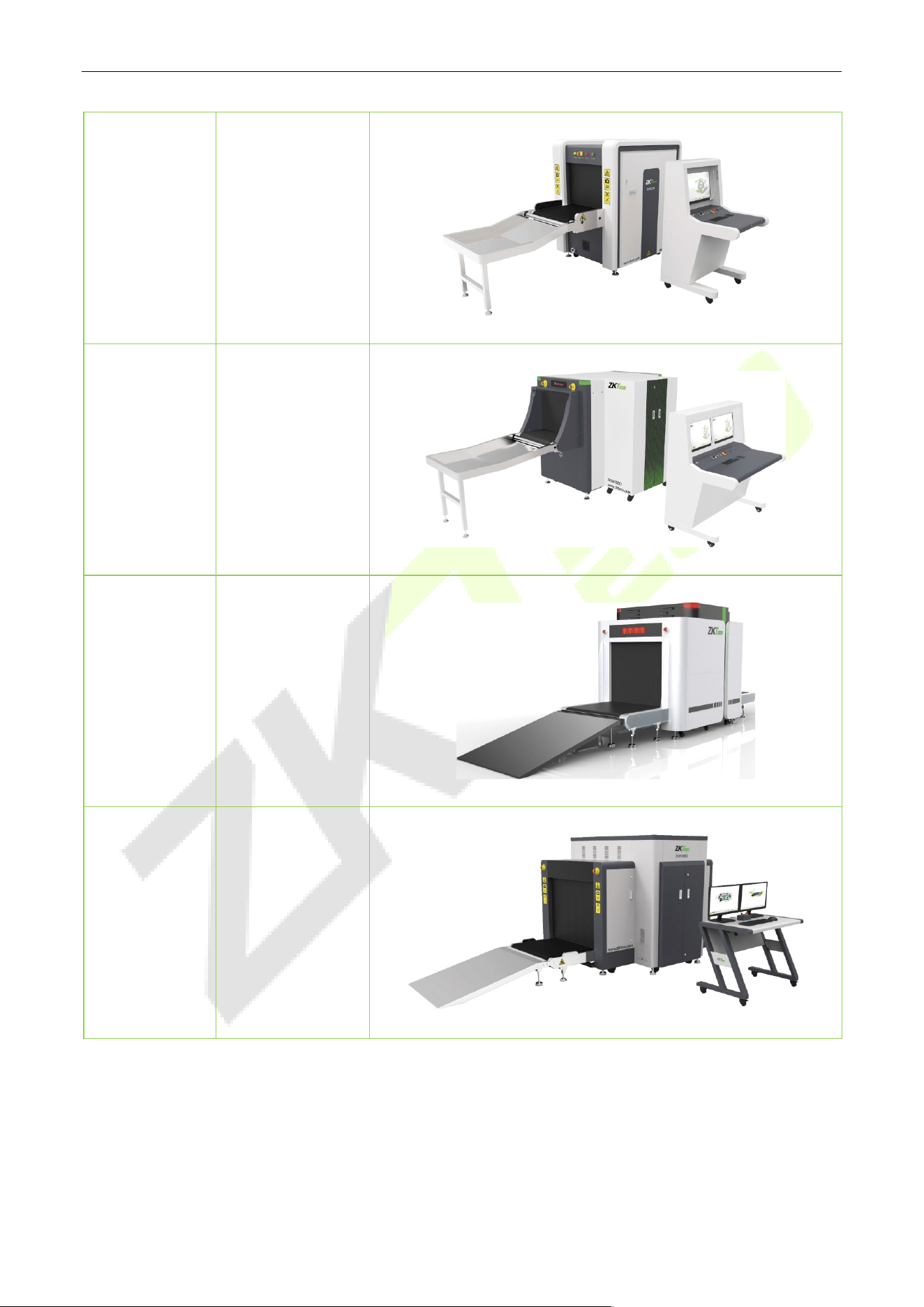

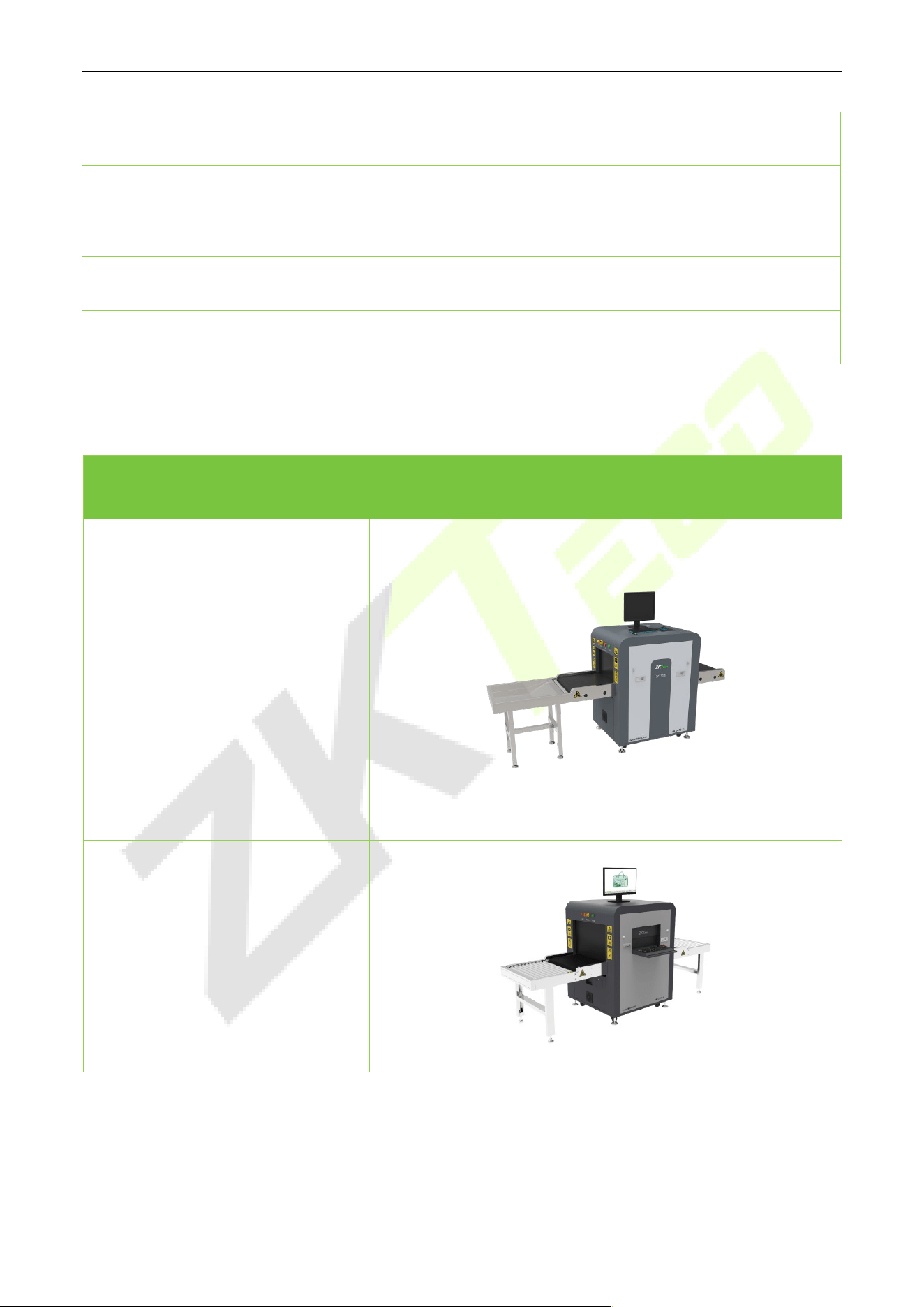

1.5 Supporting X-ray Machine Model

NO. Model

1 ZKX5030C

2 ZKX6040

ZKX-AI1000 User Manual

3 ZKX6550

4 ZKX6550D

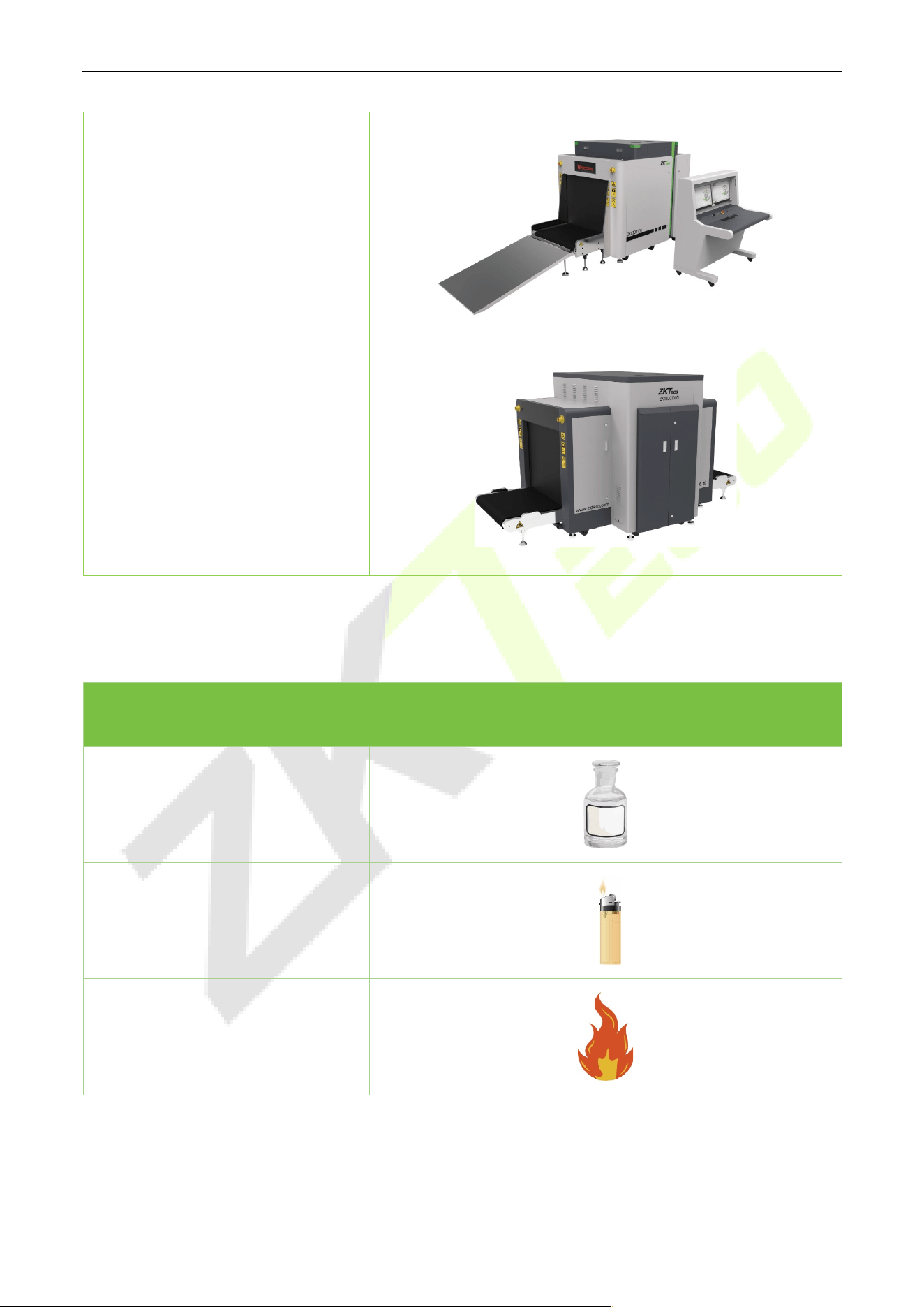

5 ZKX10080

6 ZKX10080D

ZKX-AI1000 User Manual

7 ZKX100100

8 ZKX100100D

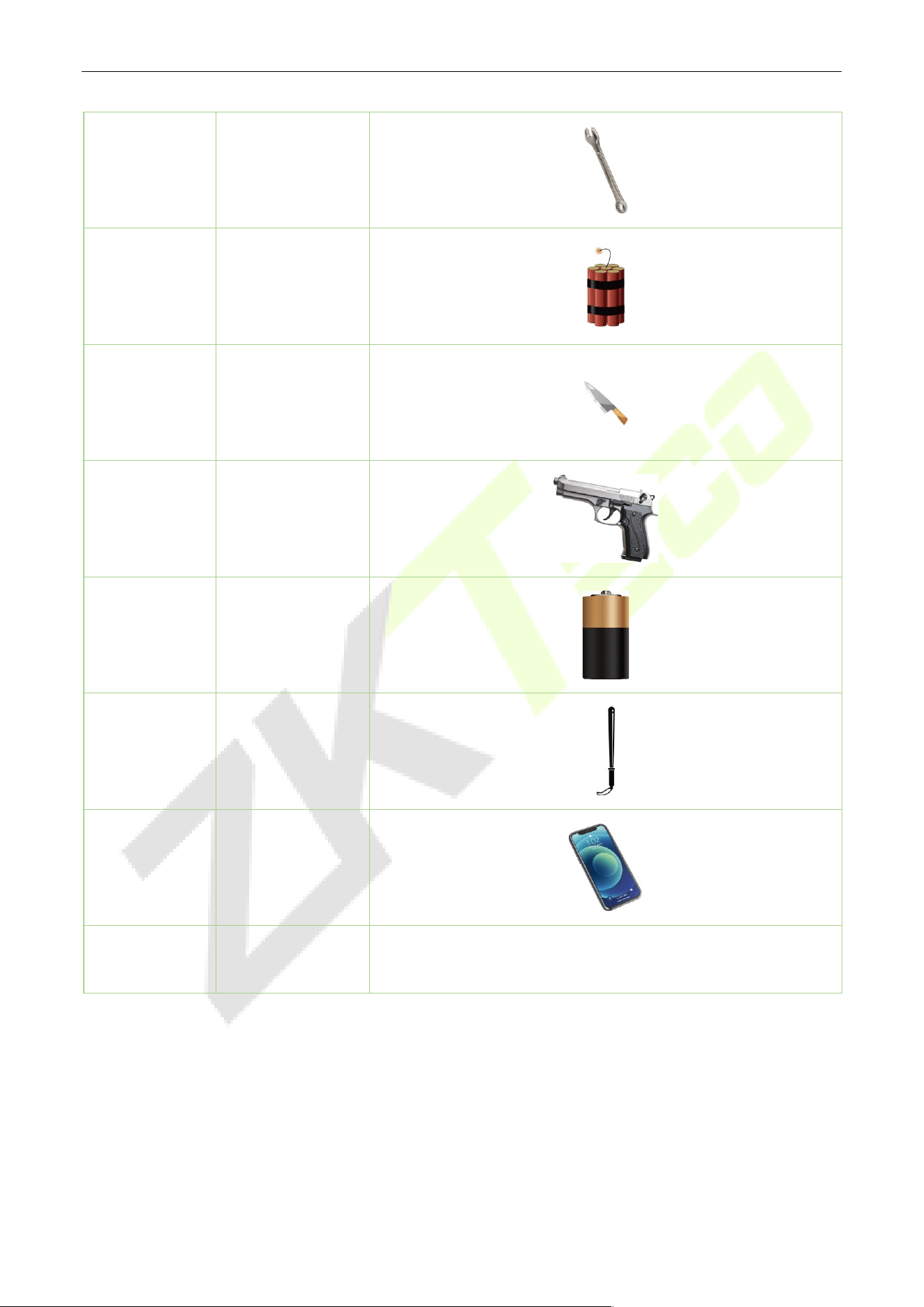

1.6 Analysis Supporting

NO. Goods

1 Liquid

2 Lighter

3 Flammables

ZKX-AI1000 User Manual

4 Tools

5 Firecracker

6 Knives

7 Firearm

8 Battery

9 Spontoon

10 Cell phone

…. … ….

Note: This manual covers only 10 categories; however, the actual device supports a total of 26 detection

item categories.

ZKX-AI1000 User Manual

2 Installation

The ZKX-AI1000 is easy to install, and this manual uses the installation process for the X-ray ZKX5030C as

an example.

Note: Before installation, the X-ray must be disconnected from the power supply, it is strictly prohibited to

operate any device with electricity during this process.

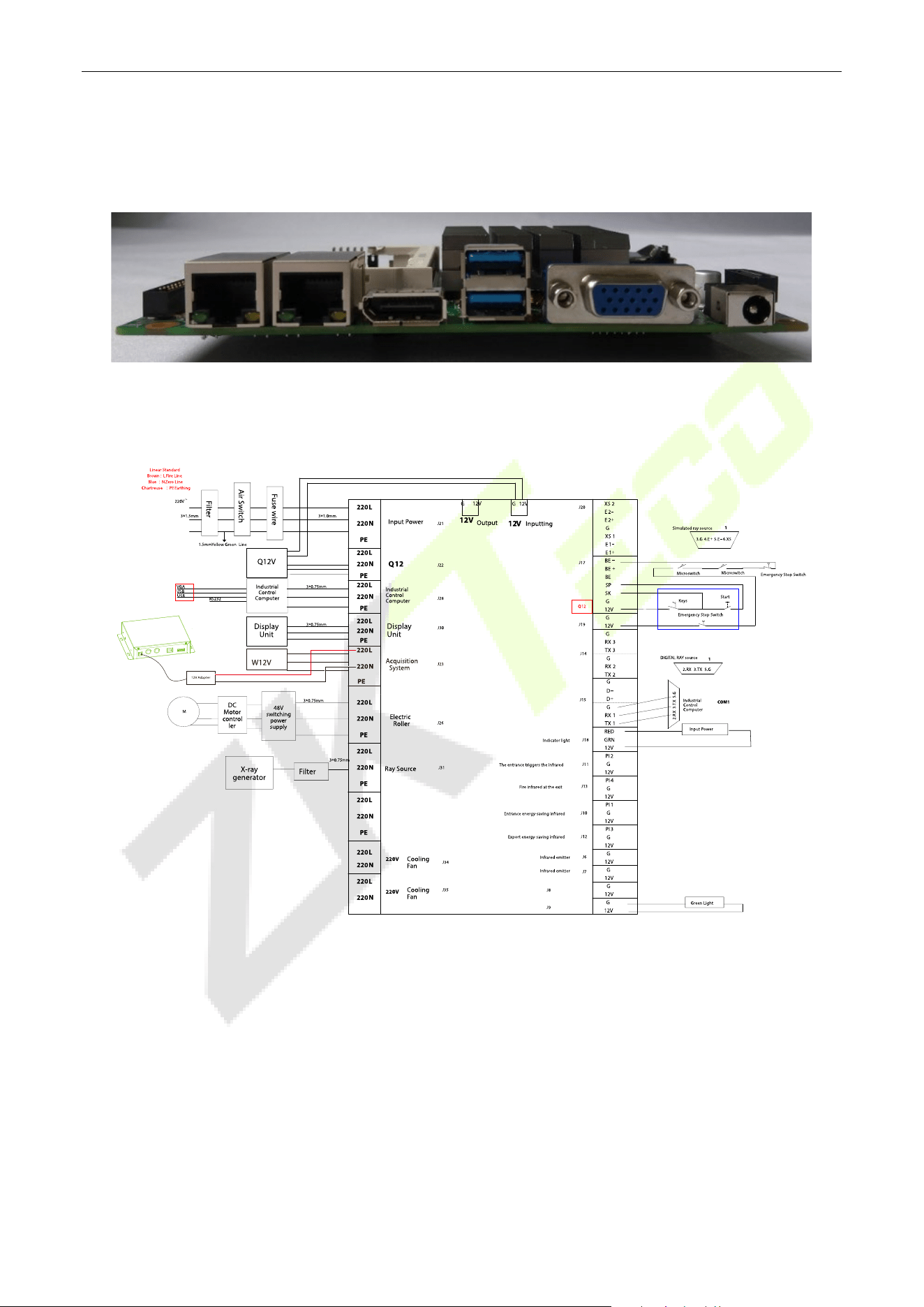

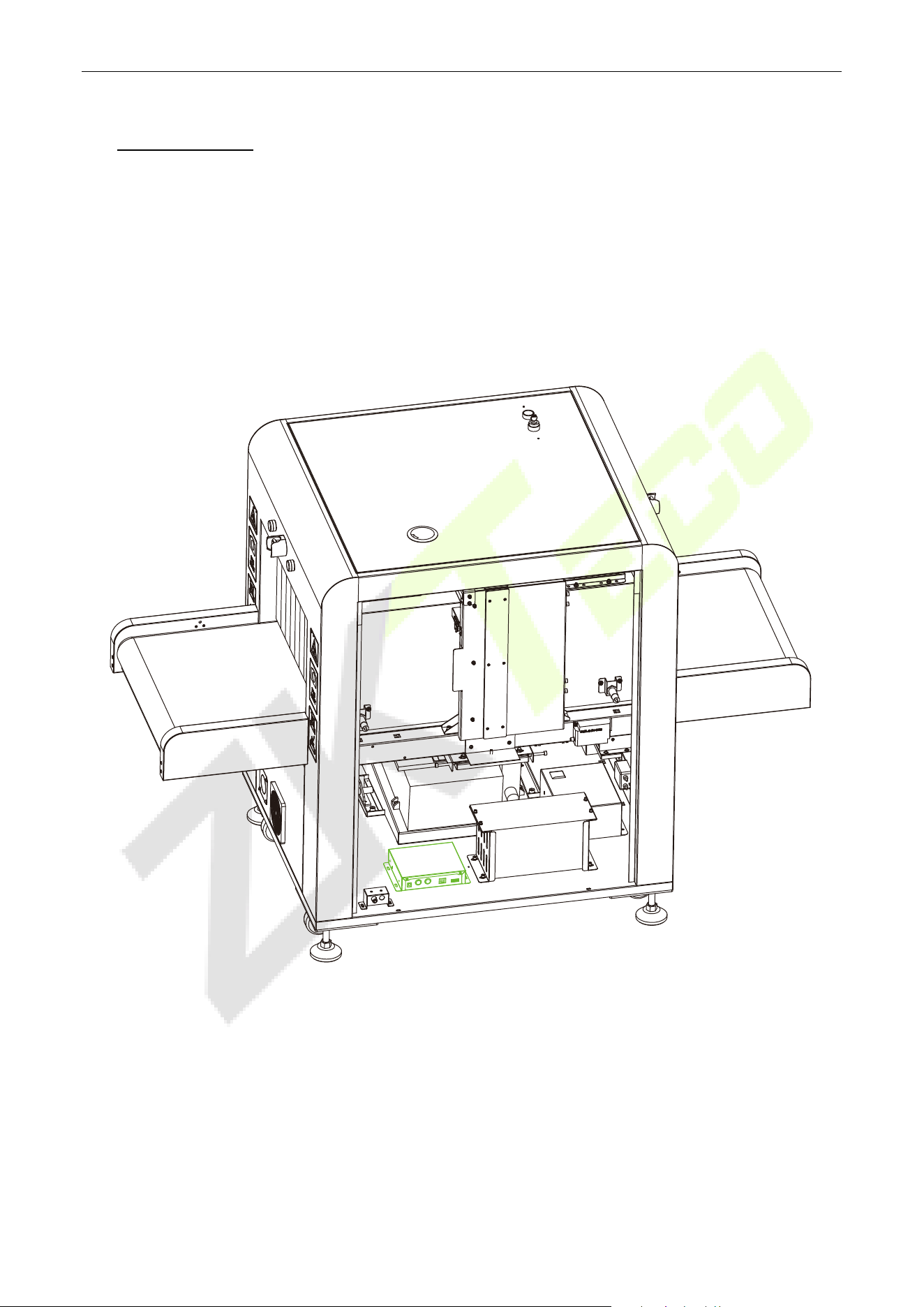

1. Open the side cover of the X-ray ZKX5030C and fix the ZKX-AI1000 with screws inside X-ray ZKX5030C

unit.

ZKX-AI1000 User Manual

2. After installation, connect the network cable to the network port of the industrial control

board/industrial control machine of the X-ray (If there are insufficient network ports, consider adding

a switch).

3. Connect the power supply, which takes 220V from the control board of the X-ray.

ZKX-AI1000 User Manual

3 WebServer

The ZKX-AI1000 has a built-in IP address (192.168.1.88) for device communication, connecting to

WebServer and servers, etc.

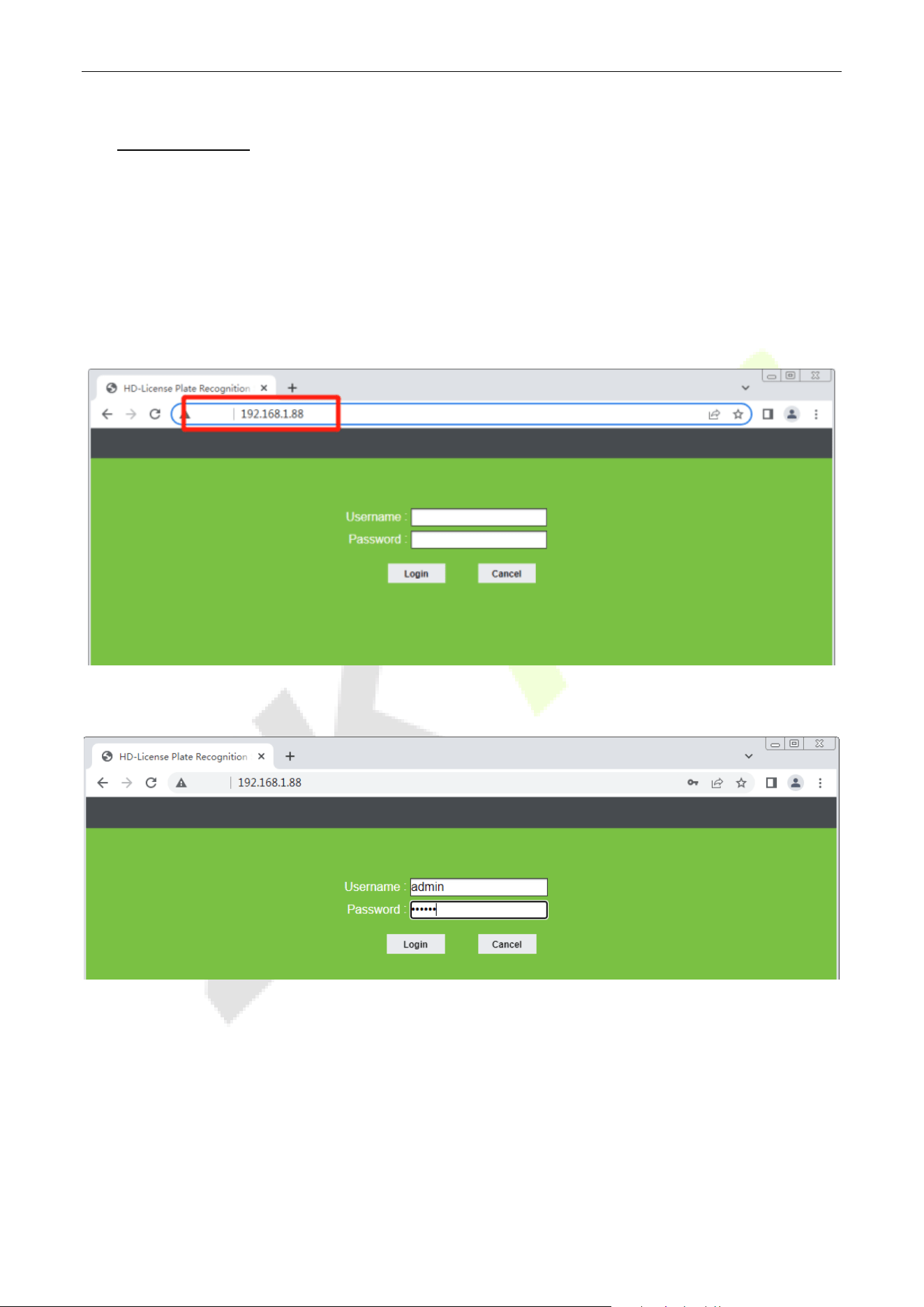

3.1 Login

1. Power on the ZKX-AI1000, connect the network cable, then log in to the WebServer by entering the

provided address in a browser.

2. Use the default account (admin) and password (123456) to log in to the WebServer.

ZKX-AI1000 User Manual

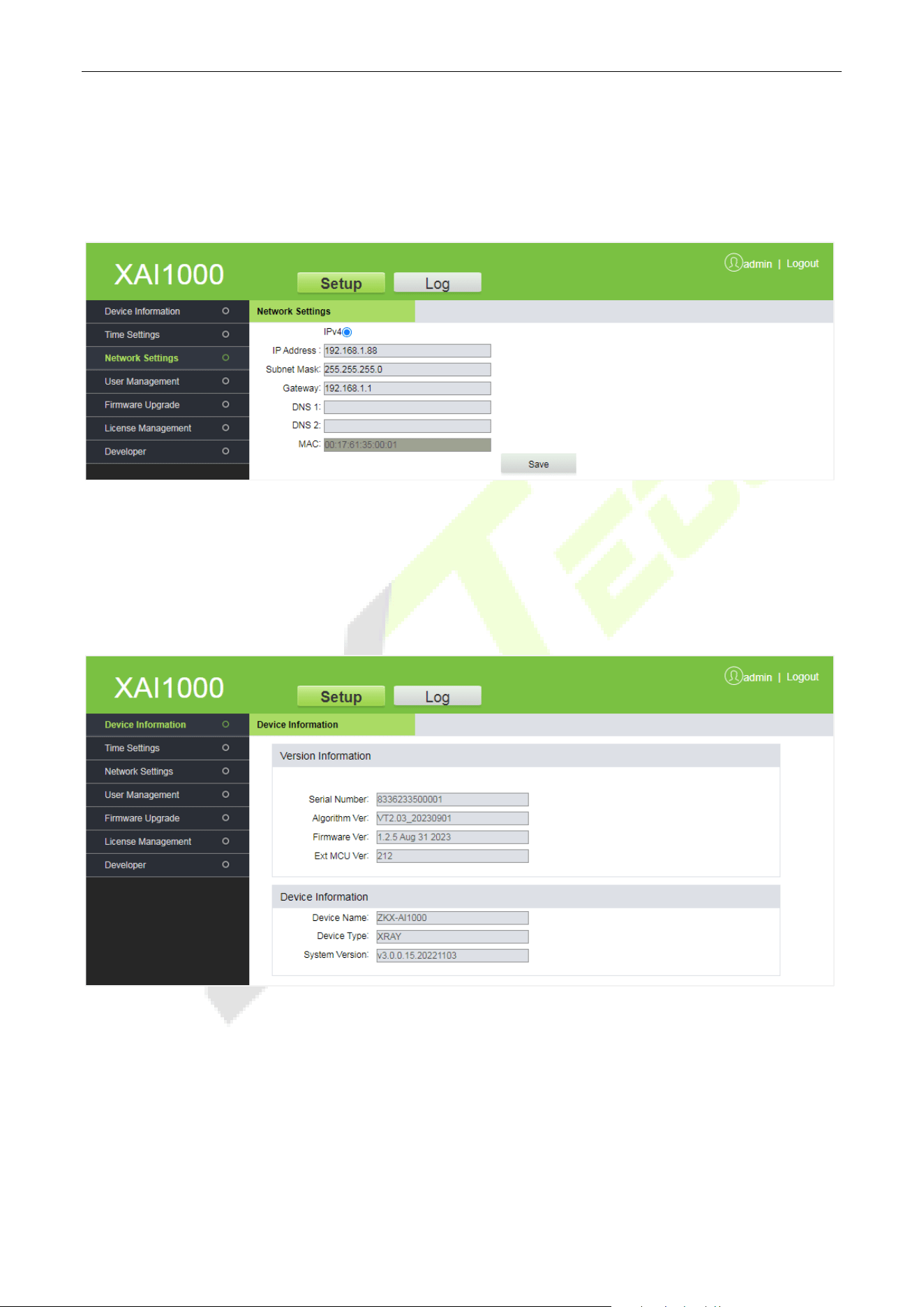

3. After a successful login, modify the ZKX-AI1000's IP address, gateway address, and other relevant

information based on your requirements., Click [Save] to confirm the changes. Once the IP address is

successfully updated, the ZKX-AI1000 will disconnect from the WebServer. To log in again, enter the

new IP address.

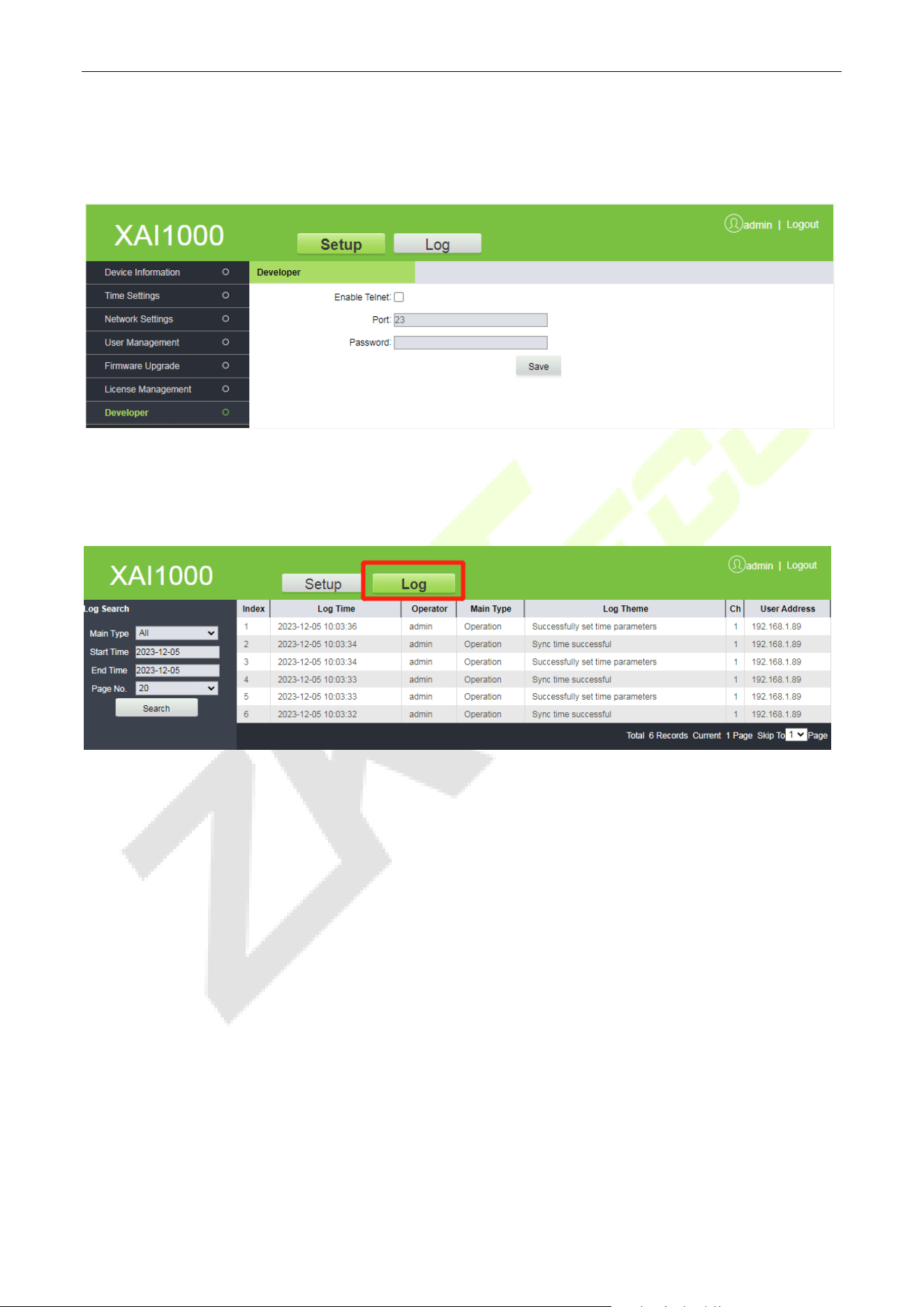

3.2 Setup

 Device Information

Click [Device Information] to browse the hardware and software information of the ZKX-AI1000.

ZKX-AI1000 User Manual

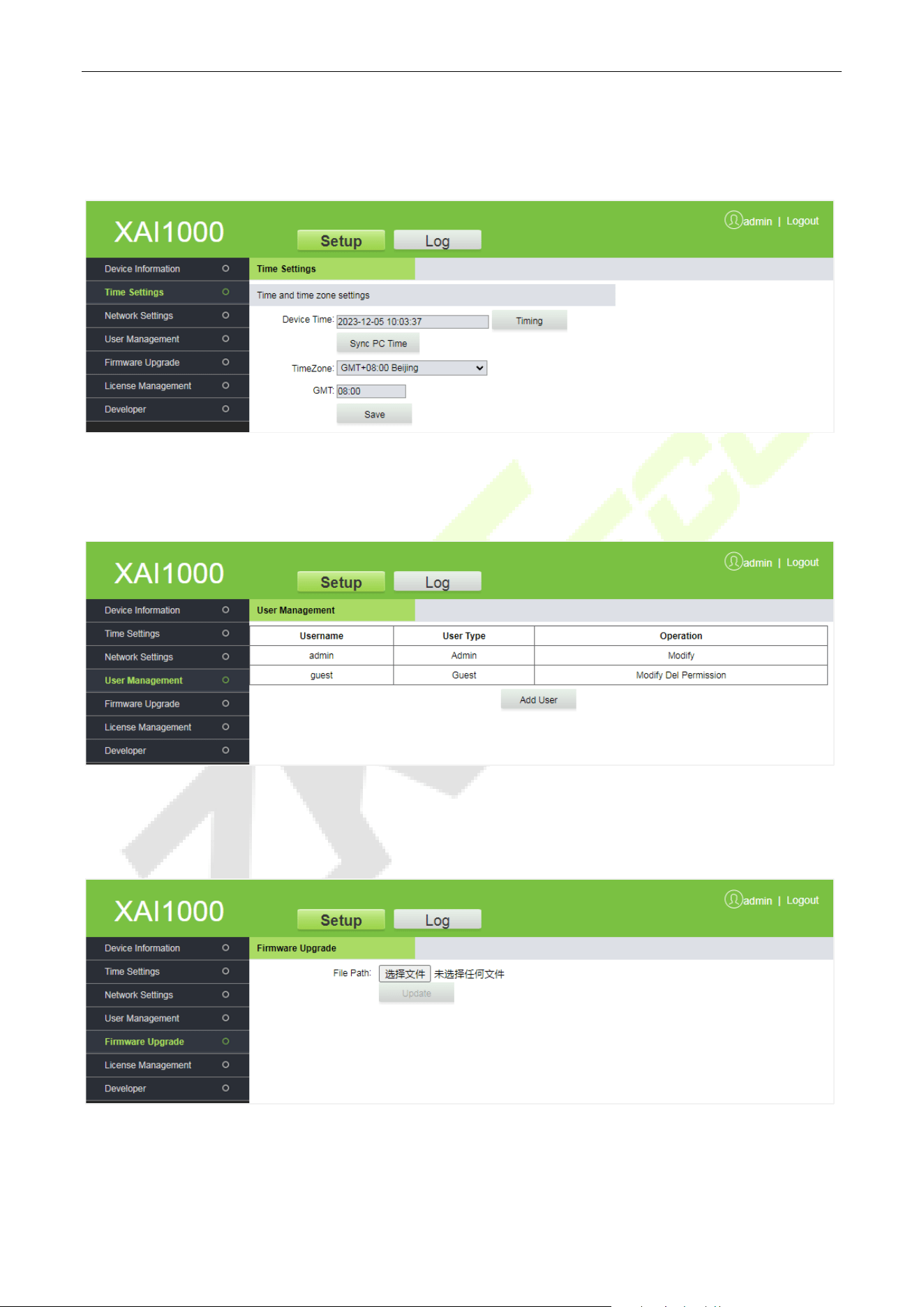

 Time Settings

Click [Time Settings] to set the time of the ZKX-AI1000.

 User Management

Click [User Management] to add and edit managers of the ZKX-AI1000.

 Firmware Upgrade

Click [Firmware Upgrade] to upgrade the firmware of the ZKX-AI1000.

Note: For file upgrades, please contact our technical support. Firmware upgrades are not recommended

under normal circumstances.

ZKX-AI1000 User Manual

 Developer

Click [Developer] to enter the developer management mode.

3.3 Record

After clicking [Log], you can view the device's logs according to the time range.

ZKX-AI1000 User Manual

Eco-friendly Operation

The product's "eco-friendly operational period" refers to the time during which this

product will not discharge any toxic or hazardous substances when used in accordance

with the prerequisites in this manual.

The eco-friendly operational period specified for this product does not include batteries or

other components that are easily worn down and must be periodically replaced. The

battery's eco-friendly operational period is 5 years.

Hazardous or Toxic substances and their quantities

Component

Name

Hazardous/Toxic Substance/Element

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr6+)

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Chip Resistor

×

○ ○ ○ ○ ○

Chip Capacitor ×

○ ○ ○ ○ ○

Chip Inductor ×

○ ○ ○ ○ ○

Diode ×

○ ○ ○ ○ ○

ESD

component

×

○ ○ ○ ○ ○

Buzzer ×

○ ○ ○ ○ ○

Adapter

×

○ ○ ○ ○ ○

Screws

○

○ ○

×

○ ○

○ indicates that the total amount of toxic content in all the homogeneous materials is below the

limit as specified in SJ/T 11363—2006.

× indicates that the total amount of toxic content in all the homogeneous materials exceeds the limit

as specified in SJ/T 11363—2006.

Note: 80% of this product’s components are manufactured using non-toxic and eco-friendly

materials. The components which contain toxins or harmful elements are included due to the

ZKX-AI1000 User Manual

current economic or technical limitations which prevent their replacement with non-toxic materials

or elements.

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com

ZKTeco ZKX-AI1000

Product's Documents

PDF ZK ZKX-AI1000 X Ray Image Analysis Server User Manul EN 20240702 User Manual 1.24MB 2024-07-03

Specifications

ZKTeco ZKX-AI1000 Questions and Answers
