CONGA ROCKSTAR 1700 ADVANCE ERGOWET
Aspirador vertical / Upright vacuum cleaner
Manual de instrucciones
Instruction manual
Manuel d’instructions
Bedienungsanleitung
Manuale di istruzioni
Manual de instruções
Handleiding
Instrukcja obsługi
Návod k použití
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 105771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 1 12/5/22 12:2012/5/22 12:20
CONGA ROCKSTAR 1700 ADVANCE ERGOWET
9
SAFETY INSTRUCTIONS
Read these instructions thoroughly before using the product.
Keep this instruction manual for future reference or new
users.
- Make sure that the mains voltage matches the voltage
stated on the rating label of the appliance and that the wall
outlet is grounded.
- This product is designed exclusively for household use. It is
not suitable for commercial or industrial use.
- Check the power cord regularly for visible damage. If
the cord is damaged, it must be replaced by the ocial
Technical Support Service of Cecotec in order to avoid any
type of danger.
- Do not use the device if it has been dropped or if there are
any visible signs of damage.
- Do not try to repair the device by yourself. Contact the
ocial Technical Support Service of Cecotec for advice.
- Never use caustic or abrasive lubricants or cleaning agents
to clean the appliance.
- Do not use any accessory that has not been recommended
by Cecotec, as they may cause damage.
- Do not place the appliance close to heat sources,
ammable substances or wet surfaces where it could fall
into water, nor allow it to come into contact with water or
other liquids. Do not operate it outdoors.
- Do not use the appliance to vacuum liquids, lighted
matches, cigarette ends, hot ash nor on wet surfaces.
- Do not use on concrete, tarmac or other rough surfaces.
- Remove from inside the device anything thicker than a
straw as it may block the vacuuming tube.
- Stop using the device if you sense an abnormal sound or a
temperature higher than usual.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 905771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 9 12/5/22 12:2012/5/22 12:20
10
- Keep the air outlet unblocked to avoid losing suction power.
- Check the vacuuming tube regularly to make sure it is not
blocked.
- Take special care when using the device near stairs.
- Do not block the appliance’s openings or its air ows. Keep
openings free of any objects, and do not block them with
clothes nor with your ngers.
- Turn o and unplug the appliance from the mains supply
when it is not going to be used for a long period of
time, before cleaning or repairing, before installing or
uninstalling components and before removing the battery.
- WARNING: This tube has electrical connections:
- Do not use it to vacuum water;
- Do not immerse it in water to clean it;
- The tube must be checked regularly and should not be used
if damaged.
- WARNING: Your device has rotating parts which may cause
a risk of entrapment. Exercise extreme caution.
- Pull from the plug, not the cord, to unplug it from the outlet.
- Do not immerse the cord, plug or any part of the appliance
in water or any other liquid, nor expose electrical
connections to water. Make sure your hands are completely
dry before handling the plug or switching on the appliance.
- This appliance can be used by children aged 8 years and
above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand
the hazards involved. Children should not play with the
appliance. Cleaning and user maintenance should not be
carried out by unsupervised children.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 1005771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 10 12/5/22 12:2012/5/22 12:20
CONGA ROCKSTAR 1700 ADVANCE ERGOWET
11
BATTERY INSTRUCTIONS
- This device includes a lithium-ion battery.
- Do not burn or expose the battery to high temperatures, as
it may explode.
- Leaks from the battery or battery cells can occur under
extreme conditions. Do not touch any liquid that leaks from
the battery. If the liquid gets into contact with skin, wash
immediately with soap and water. If the liquid gets into
the eyes, ush them immediately with clean water for a
minimum of 10 minutes and seek medical attention. Wear
gloves to handle the battery and dispose of it immediately
in accordance with local regulations.
- Avoid contact between the battery and small metallic
objects such as paper clips, coins, keys, nails or screws.
- Never modify the charger in any way.
- The battery must be removed for safe disposal.
- Keep batteries out of the reach of children when there is a
risk of ingestion.
- Battery ingestion can cause burns, soft tissue perforation
and death. It can cause severe burns within two hours of
the ingestion.
- In case of battery ingestion please seek medical help
immediately.
- WARNING: To recharge the battery, use only the
power supply included with the device, with reference
ZD24W342060EU.
- Non-rechargeable batteries should not be recharged.
- The battery’s supply terminals must not be short-circuited.
- If the device is stored for a long period of time, you should
remove the battery.
- The battery must be inserted in the correct position.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 1105771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 11 12/5/22 12:2012/5/22 12:20
CONGA ROCKSTAR 1700 ADVANCE ERGOWET
49
ENGLISH

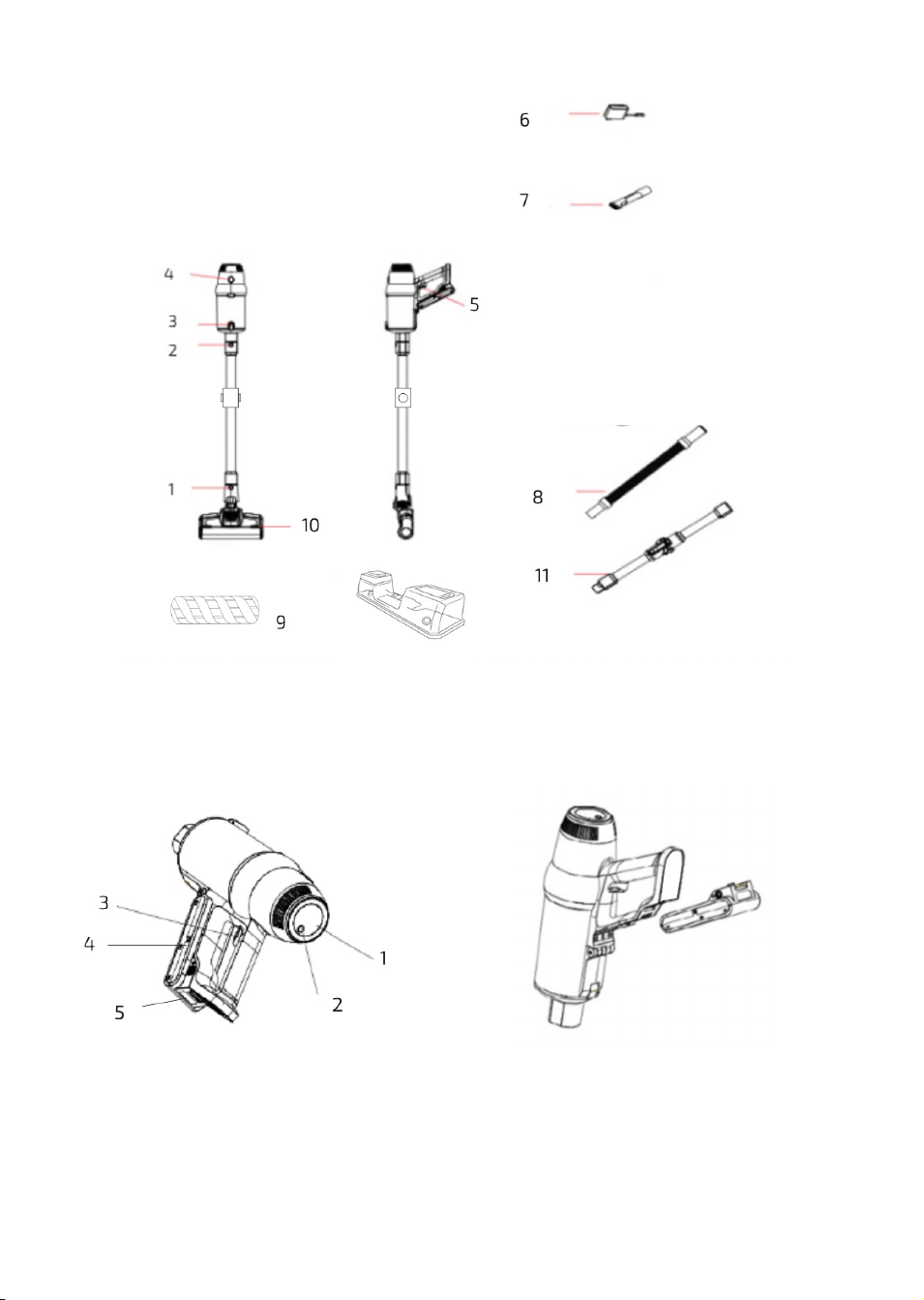

1. PARTS AND COMPONENTS
Fig. 1
1. Vacuuming brush head release button
2. Vacuuming tube release button
3. Dust tank bottom cover unlock button
4. Dust tank opening button and lter access
5. On/O button
6. Power adapter
7. 2-in-1 narrow accessory for corners and furniture
8. Jaliscazo brush
9. Vacuuming brush head
10. Flexible vacuuming tube
11. Water tank
Fig. 2
1. Display
2. Speed dial
3. On/O push button
4. Battery
5. Battery release button
PLEASE NOTE
The graphics in this manual are schematic representations and may not exactly match the
product.
2. BEFORE USE
- This upright vacuum cleaner comes in a package designed to protect it during transport.
Take the product out of the box and remove all packaging materials. Keep the original
box and other packaging elements in a safe place, as this will help you prevent product
damage when transporting it in the future. In case the original packaging is disposed of,
make sure all packaging materials are recycled accordingly.
- Make sure all parts and components are included and in good conditions. If there is any
piece missing or not in good condition, immediately contact the Technical Support Service
of Cecotec.
- Fully charge the device before the rst use.
- Remove the rst-use tab installed in the lter.
- During the rst 3 uses, it is recommended to charge the device for 12 hours between uses.
- The normal charge time is 5 hours approx. When the battery is fully charged, unplug it.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 4905771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 49 12/5/22 12:2012/5/22 12:20
50
ENGLISH
Box contents
- Conga Rockstar 1700 Advance ErgoWet
- 2-in-1 narrow accessory for corners and furniture
- Jaliscazo brush
- Flexible vacuuming tube
- Charger
- Water tank
- Instruction manual
3. PRODUCT ASSEMBLY
Vacuuming tube and brush head assembly
- To install the vacuuming brush head into the vacuuming tube, align both of them making
sure the tab on the brush head matches the guides on the tube, and introduce one into
the other until they are rmly xed.
- To disassemble them, press the vacuuming brush head release button and pull from the
vacuuming tube while while rmly holding the vacuuming brush head.
Warning
When assembling these two parts, make sure the handle and the brush head are facing the
same direction.
Vacuuming tube, vacuuming brush head and main body assembly
To complete the installation of the upright vacuum cleaner, hold the vacuuming tube in an
upright position and insert it into the main body.
Battery assembly
Fig. 3
- Introduce the battery in the slot located in the main body following the guides. Once it is
introduced, it will click into place. Once inserted, check that it is secured in position.
- To disassemble the battery, press the release button and remove the battery.
Warning
Remove the battery and store it in a safe, dry place if the device is not going to be used in a
long period of time.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5005771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 50 12/5/22 12:2012/5/22 12:20
CONGA ROCKSTAR 1700 ADVANCE ERGOWET
51
ENGLISH
4. OPERATION
You can use this vacuum cleaner in two dierent manners:
- Handheld vacuum cleaner, attaching the accessories directly to the main body.
- Upright vacuum cleaner, using the vacuuming tube with the accessories assembled.
Using the vacuum cleaner
- Press the power button to turn the device on or o.
- Press the speed dial repeatedly to select the device’s operating speed: LOW, MED, HIGH,
and AUTO. The device will turn on with the LOW mode by default.
- If you select the AUTO mode, the device will automatically adjust suction power according
to the concentration of dust and the type of surface.
- When operating at high speed, the device will automatically switch to medium speed in
order to lengthen the battery life when the latter reaches 20%.
- The vacuuming brush head can remove dust from carpets, hard and soft oors, and tiles.
- If too many particles or bres are vacuumed, or if a child touches the brush during
operation by accident, the rotary brush stops spinning automatically in order to prevent
tangles and possible damage.
Accessories
This device includes dierent accessories that allow cleaning dierent types of surfaces,
objects and dirt. Some of them are suitable for the upright vacuum cleaner, and others are
preferably used with the handheld one.
Jaliscazo brush:
Assemble this brush to the upright vacuum cleaner. This brush is especially designed for
cleaning hard oors, but can be used to eciently clean soft oors too.
2-in-1 narrow accessory for corners and furniture

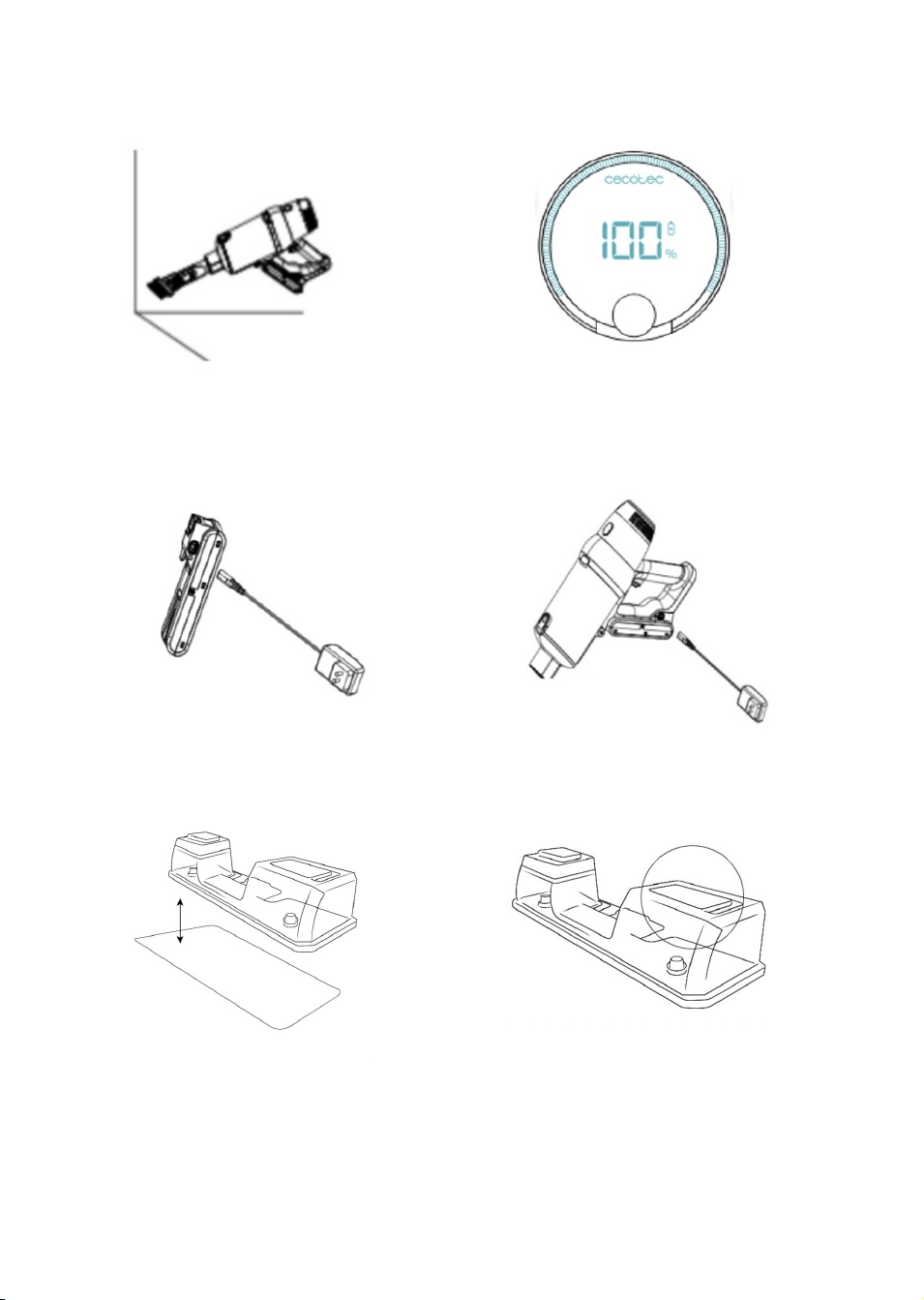

Fig. 4
This accessory is preferably used with the handheld vacuum cleaner and allows cleaning
furniture without damaging it and reaching less accessible dirt in corners.
Flexible vacuuming tube
Use the Flex tube to reach and vacuum dirt from the most inaccessible zones. Press the Flex
button to bend the tube.
Watertank accessory
Accessory with which you can mop and scrub by simply attaching it to your vacuum cleaner.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5105771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 51 12/5/22 12:2012/5/22 12:20
52
ENGLISH
Charge and display
- When the battery percentage is 20 % or below, the device will automatically enter the
low consumption mode. It is recommended to charge the device when it reaches this
percentage.
- During charging, the charge light indicator will turn on red and the display will show the
current charge percentage. When the device is fully charged, the battery indicator will
turn green and the display will show 100%. Fig. 5
- You can charge the battery when the battery is installed or not in the device. Connect the
adapter and connect the other end to the battery, paying attention to the direction. Once
it is properly connected, the charge light indicator will turn on red and will turn green
once the charge is complete. Fig. 6-7
5. WATER TANK ACCESSORY
- Do not use cleaning agents. Use clean and room temperature water only. Do not use the
vacuum cleaner to vacuum water.
- When the vacuum cleaner is not going to be used for a long time, please remove the
water tank and empty the remaining water. Do not expose it to direct sunlight or to damp
environments.
Mop installation
- Place the mop cloth on the ground with the Velcro facing upwards.
- Align the mop cloth with the velcro strips on the water tank and attach it without
covering the wheels. Fig. 8
Replacing the mop
- Remove the water tank from the device.
- Use your foot to hold the accessory against the ground and pull the vacuum cleaner
upwards until both parts are separated.
- Replace the mop and rell the water tank.
- Install the water tank again, insert the tank in the lower part of the vacuuming brush head
and press until it is xed.
Water emission
- When using the vacuum cleaner, make sure that the water tank cap is completely closed.
- When you are not using the vacuum cleaner, check that the water emission button and
the cap are closed as the vacuum cleaner may still emit water if the water tank is full.
- To activate the water emission, the water emission push button must be pressed, and to
stop the water emission, the push button must be in the original position, as shown in
gure 9.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5205771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 52 12/5/22 12:2012/5/22 12:20
CONGA ROCKSTAR 1700 ADVANCE ERGOWET
53
ENGLISH
6. CLEANING AND MAINTENANCE
- Turn the appliance o, unplug it from the power socket and allow it to cool down before
cleaning it.
- Use a soft, slightly dampened cloth to clean the device’s surface.
- Never immerse the device in water or other liquids, do not allow liquids to enter the
device.
- Do not use sponges, powder products or abrasive cleaning agents to clean the product.
- Do not leave the device in a place with direct sunlight.
- Do not leave the device in a wet place after cleaning it.
- After the brush has been used for a long time, bristles might start to tangle with hair and
other particles. Clean it in order for it to operate correctly again.
Filters and tank cleaning
- To prevent the appliance from overheating and losing suction power, it is suggested to
clean the lters frequently. To make the most of the suction power, it is suggested to
clean the lter after every use.
- The lter’s lifespan will depend on the accumulated use and the type of particles which
are frequently vacuumed. It is recommended to replace the lters every 6 months.
- To remove the lters (Fig. 10):
1. Press the dust tank opening button, marked with the word “CLEAN”, and pull on the
metallic handle to remove the ltering system.
2. Once the ltering system is out, turn the metallic handle counterclockwise and you will
be able to take the high-eciency lters out.
- Vacuum and shake the lters to remove every particle and dust remain that may block
them and hinder the correct circulation of air.Remember not to use the vacuum cleaner
without the lters properly assembled.
- Filters cannot be washed in a washing machine nor dried with a hair dryer.
- Do not brush the high-eciency lter.
- To empty the dust tank, press the dust tank lower cover opening button, open it, and
empty it. Fig. 11
Cleaning the Jaliscazo brush
Fig. 12
1. Move the rotary brush release button with the nger toward the arrow and remove the
cover of one of the ends of the brush.
2. Take one of the brush’s ends out as shown on the image.
- It is important to clear and clean all the residues left in the brush’s rotary axes.
- If you decide to wash the brush, you must air dry all the pieces. Assemble the parts in
reverse order of disassembly so that the brush can be used again.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5305771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 53 12/5/22 12:2012/5/22 12:20
54
ENGLISH
How to remove the battery
Press the battery release button and remove the battery as shown in gure 13. Store the
battery in a plastic bag and leave it in a dry place.
Device storage
Remove the battery and store it in a safe, dry place if the device is not going to be used in a
long period of time.
Maintenance indicator
If maintenance has not been carried out frequently enough, the appliance will display a full
tank or clogged lter icon on the screen. Fig. 14-15
7. TROUBLESHOOTING
Problem Possible cause Solution
The motor does not operate The battery does not work
any longer.
The metallic tubes, oor
brushes, batteries or
the device itself are not
properly assembled.
Charge the vacuum cleaner.
Make sure all parts of
the device are correctly
assembled.
The suction power decreased
and the appliance makes a lot
of noise.
The dust tank is full. Fig. 14
The lter has too much
dust. Fig. 15
The electric rotary brush
inlet is obstructed or the
brush is blocked. Fig. 16
Clean the dirt.
Clean or replace the lter.
Clean the dust inside the
electric rotary brush.
Insucient operating time
after charging the device.
(The battery life may vary
according to the room
temperature).
Insucient charge time.
The battery is old.
Fully charge the battery
following the instructions in
this manual.
Batteries are easily
recycled. Go to the closest
maintenance point and buy
new batteries.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5405771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 54 12/5/22 12:2012/5/22 12:20
CONGA ROCKSTAR 1700 ADVANCE ERGOWET
55
ENGLISH
8. ERROR CODES
Code Problem Cause
E1 The device turns o and does not
charge.
Short circuit
E2 The device does not charge. The charger’s voltage is below
36.3 V
E2 The device does not charge. The charger’s voltage is below 32.1
V
The device turns o. Low battery
E3 The device turns o and displays E3. The motor short-circuits when the
battery is low
E5 The device turns o and displays E5. Main motor overload (second level)
E6 The device turns o and displays E6,. Main motor overload
E9 The device turns o and displays E9. Temperature too high or low
E7 The device stops working or does not
turn on and shows E7.
Battery failure (rst level)
E8 The device turns o and displays E8. NTC error (thermistor short circuit)
High-
eciency
lter
indicator
blinks
The device stops or does not turn on.
Fig. 15
High-eciency lter not installed
The lter set
logo ashes.
It works normally. Fig. 14 The dust tank or the inlet lter is
blocked
The brush
icon ashes
The long brush and motor stop
working. Fig. 16
Blocked long brush
Long brush full of hair
9. TECHNICAL SPECIFICATIONS
Product reference: 05771
Product: Rockstar 1700 Advance ErgoWet
Voltage and frequency: 100-240 V ~ 50/60 Hz
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5505771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 55 12/5/22 12:2012/5/22 12:20
56
ENGLISH
29.6 V DC 2500 mAh 74 Wh battery
Motor rated power: 630 W
Brush rated power: 50 W
Charger output: 34.2 V DC 0,6 A
Technical specications may change without prior notication to improve product quality.
Made in China | Designed in Spain
10. DISPOSAL OF OLD ELECTRICAL APPLIANCES
This symbol indicates that, according to the applicable regulations, the
product and/or battery must be disposed of separately from household
waste. When this product reaches the end of its lifespan, you should
dispose of the batteries/accumulators and take them to a collection point
designated by the local authorities.
Consumers must contact their local authorities or retailer for information
concerning the correct disposal of old appliances and/or their batteries.
Compliance with the above guidelines will help protecting the environment.
11. TECHNICAL SUPPORT AND WARRANTY
Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at
the time of delivery of the product under the terms, conditions and deadlines established by
the applicable regulations.
It is recommended that repairs be carried out by qualied personnel.
If at any moment you detect any problem with your product or have any doubt, do not
hesitate to contact Cecotec ocial Technical Support Service at +34 96 321 07 28.
12. COPYRIGHT
The intellectual property rights over the texts in this manual belong to CECOTEC
INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or
in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means
(electronic, mechanical, photocopying, recording or similar) without the prior authorization of
CECOTEC INNOVACIONES, S.L.
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5605771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 56 12/5/22 12:2012/5/22 12:20
CONGA ROCKSTAR 1700 ADVANCE ERGOWET
57
ENGLISH
1. PIÈCES ET COMPOSANTS
Img. 1
1. Bouton de libération de la buse d’aspiration
2. Bouton de libération du tube d’aspiration
3. Bouton d’ouverture du couvercle inférieur du réservoir de saleté
4. Bouton d'ouverture du réservoir de saleté et d'accès au ltre
5. Bouton de connexion/déconnexion
6. Adaptateur de courant
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 5705771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 57 12/5/22 12:2012/5/22 12:20
Fig./Img./Abb./Afb./ Rys./Obr. 1
Fig./Img./Abb./Afb./ Rys./Obr. 2 Fig./Img./Abb./Afb./ Rys./Obr. 3
12
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 12005771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 120 12/5/22 12:2012/5/22 12:20
Fig./Img./Abb./Afb./ Rys./Obr. 4 Fig./Img./Abb./Afb./ Rys./Obr. 5
Fig./Img./Abb./Afb./ Rys./Obr. 6 Fig./Img./Abb./Afb./ Rys./Obr. 7
Fig./Img./Abb./Afb./ Rys./Obr. 8 Fig./Img./Abb./Afb./ Rys./Obr. 9
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 12105771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 121 12/5/22 12:2012/5/22 12:20

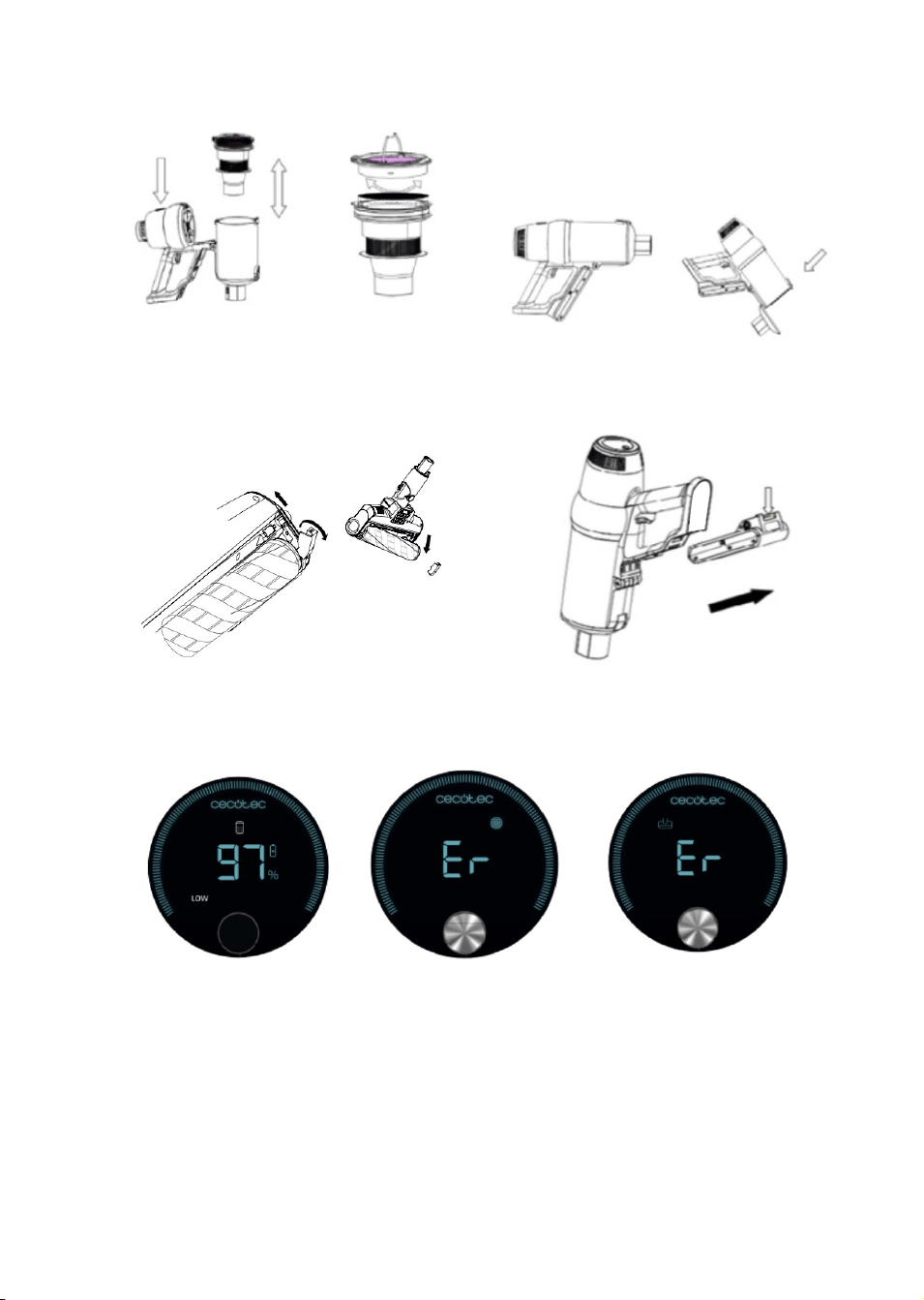

Fig./Img./Abb./Afb./ Rys./Obr. 10 Fig./Img./Abb./Afb./ Rys./Obr. 11
Fig./Img./Abb./Afb./ Rys./Obr. 12 Fig./Img./Abb./Afb./ Rys./Obr. 13
Fig./Img./Abb./Afb./
Rys./Obr. 14
Fig./Img./Abb./Afb./
Rys./Obr. 15
Fig./Img./Abb./Afb./
Rys./Obr. 16
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 12205771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 122 12/5/22 12:2012/5/22 12:20
www.cecotec.es
Cecotec Innovaciones S.L.
C/ de la Pinadeta s/n, 46930
Quart de Poblet, Valencia (Spain)
YV012220510
05771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 12405771_Conga Rockstar 1700 Advance ErgoWet_IM_YV01220510.indd 124 12/5/22 12:2012/5/22 12:20
