4 BURNER PREMIER GAS
GRILL WITH SIDE BURNER
Model #DGP483SSP / DGP483SSP-D /
DGP483CSP / DGP483CSP-D / DGP483GSP /
DGP483GSP-D / DGP483MSP / DGP483MSP-D
Français p. 32
Español p. 63
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday or
e-mail us at customerservice@ghpgroupinc.com.
1
Rev. 07/22/2021
2
TABLE OF CONTENTS
Safety Information............................................................................................................................. 3
Package Contents ............................................................................................................................ 5
Hardware Contents ........................................................................................................................... 6
Preparation ....................................................................................................................................... 6
Assembly Instructions ....................................................................................................................... 7
Operation Instructions ....................................................................................................................... 18
Care and Maintenance ......................................................................................................................23
Troubleshooting ................................................................................................................................. 26
Warranty ............................................................................................................................................ 28
Replacement Parts List ..................................................................................................................... 29
Assembler/Installer: This manual contains important information necessary for the proper
assembly and safe use of this appliance. Read and follow all warnings and instructions before
assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
Retain these instructions for future reference.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately call your
local fire department.
WARNING
1. Do not store or use gasoline or
other flammable liquids or vapors
in the vicinity of this or any other
appliance.
2. An LP (liquid propane) cylinder not
connected for use shall not be stored
in the vicinity of this or any other
appliance.
3. This grill is for outdoor use only
and shall not be used in a building,
garage, under overhangs or any other
enclosed area.
4. Do not leave a lit grill unattended.
Keep children and pets away from the
grill at all times.
SAFETY INFORMATION
3
Do not use in an explosive atmosphere. Keep grill area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
DANGER
This product and the fuels used to operate this product (liquid propane or natural gas), and
the products of combustion of such fuels, can expose you to chemicals including benzene,
which is known to the State of California to cause cancer and reproductive harm.
For more information go to www.p65Warnings.ca.gov
WARNING
Please read and understand this entire manual before attempting to assemble, operate or
install the product. If you have any questions regarding the product, please call customer
service at: 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.
CAUTION
•
Never use charcoal or lighter fluid with the grill.
•
Do not use gasoline, kerosene or alcohol for lighting.
•
The LP gas cylinder used with this appliance must be:
(a)
Constructed and marked in accordance with the Specifications for LP-Gas Cylinders
of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commision, as applicable; and
(b)
Provided with a listed overfilling prevention device.
(c)
Provided with a cylinder connection device compatible with the connector for outdoor
cooking appliances. This grill is not intended to be used in or installed on recreational
vehicles and/or boats.
•
Never keep a filled container in a hot car or car trunk. Heat will cause the gas pressure to
increase, which may open the relief valve and allow gas to escape.
•
Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn
you severely.
SAFETY INFORMATION
4
36in
914.4mm
36in
914.4mm
CAUTION
•
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any
other appliance.
•
An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
•
This grill is for use with propane gas only (propane cylinder not included).
•
Never attempt to attach this grill to the self-contained propane system of a boat, camper trailer,
motor home or house.
•
Do not attempt to move the grill while it is lit or when it is hot. The casters should be locked
when not moving the grill.
•
Do not use the grill unless it is completely assembled and all parts are securely fastened and
tightened.
•
Keep all combustible items and surfaces at least 36 inches (91.44 cm) away from the grill at all
times.
•
Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid
burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc…).
•
Do not alter this grill in any manner.
•
Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to operating the appliance. The replacement hose
assembly will be that which is specified by the manufacturer.
•
Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
•
Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill
before each use. Do not obstruct the flow of gas or ventilation air.
•
The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to
properly assemble or safely operate the grill.
•
Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
•
Do not place this grill on any type of tabletop surface. The grill should be placed on a flat and
level surface.
•
Do not use the grill in high winds.

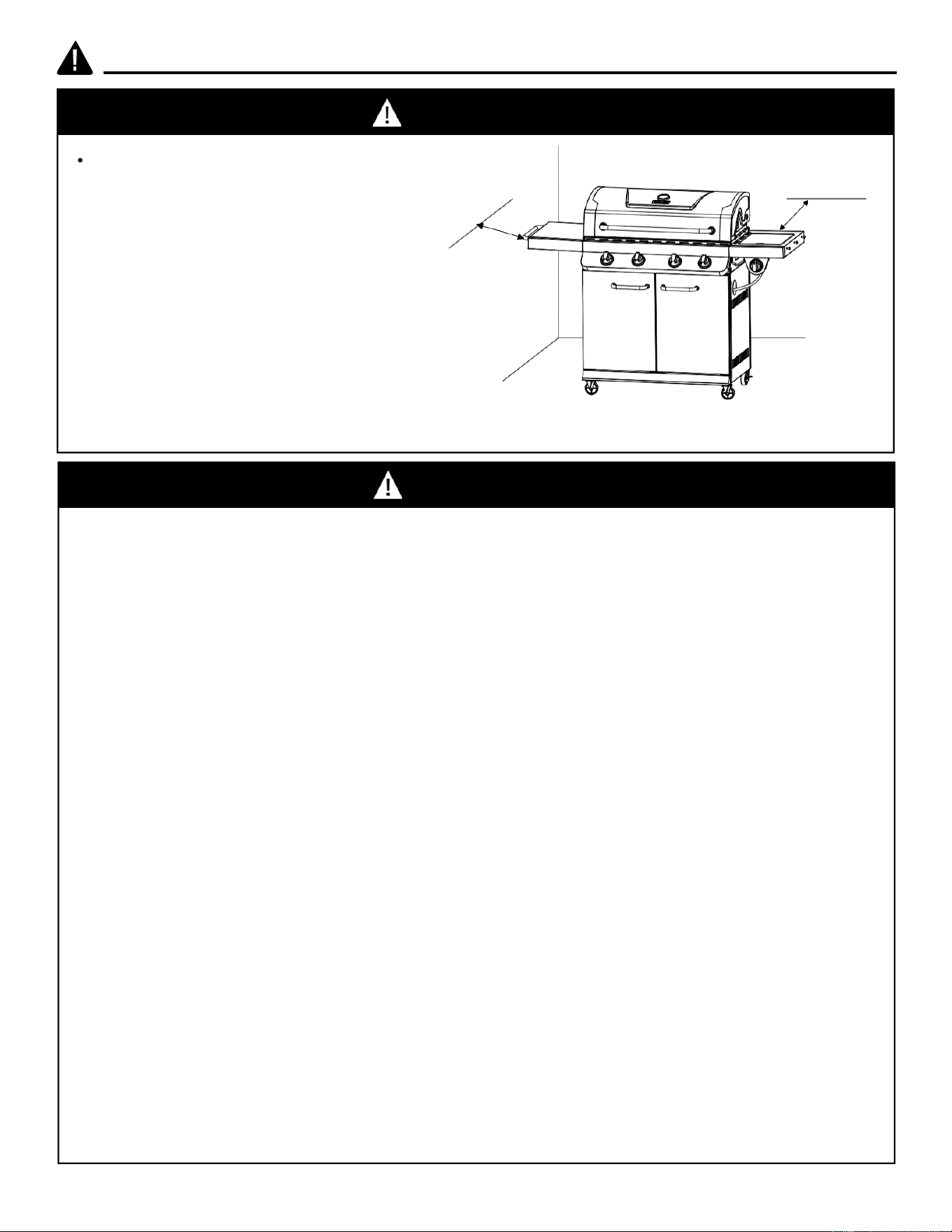

Do not place the grill under overhead
combustible construction or awnings.
Minimum clearance from sides and
back of unit to combustible construction,
36 inches (914.4mm) from sides and
back.
NOTE: The installation must conform with
local codes or, in the absence of local
codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and
Handling Code, B149.2.
WARNING
PACKAGE CONTENTS
5

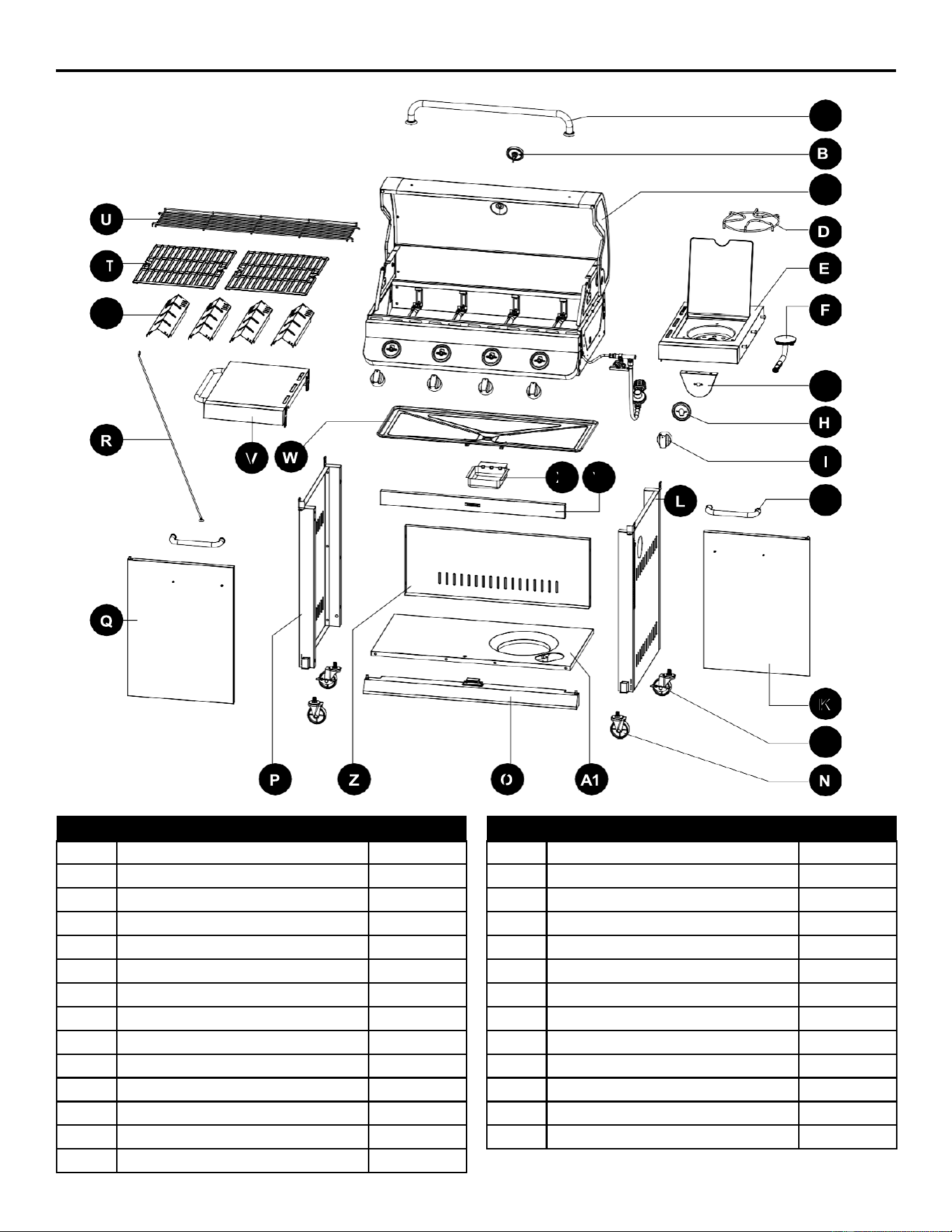

PART
DESCRIPTION
QUANTITY
A
Hood Handle
1
B
Temp Gauge
1
C
Grill Body Assembly
1
D
Side Burner Rack
1
E
Right Side Burner Body Assembly
1
F
Side Burner
1
G
Right Side Burner Control Panel
1
H
Control Knob Bezel
1
I
Control Knob
5
J
Door Handle
2
K
Right Door Assembly
1
L
Cart Right Side Panel Assembly
1
M
Locking Swivel Caster
2
N
Non-Locking Swivel Caster
2
PART
DESCRIPTION
QUANTITY
O
Bottom Panel Skirt Assembly
1
P
Cart Left Side Panel Assembly
1
Q
Left Door Assembly
1
R
Cylinder Blocking Bar
1
S
Heat Tent
4
T
Cooking Grate
2
U
Warming Rack
1
V
Left Side Table Assembly
1
W
Grease Pan
1
X
Grease Cup
1
Y
Upper Front Door Brace
1
Z
Cart Rear Panel
1
A1
Cart Bottom Panel Shelf
1
S
A
C
X
Y
G
J
J
M
HARDWARE CONTENTS
6
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges. Wear protective
gloves if necessary. Read and follow all safety statements, warnings, assembly instructions and
use and care instructions before attempting to assemble and use.
CAUTION

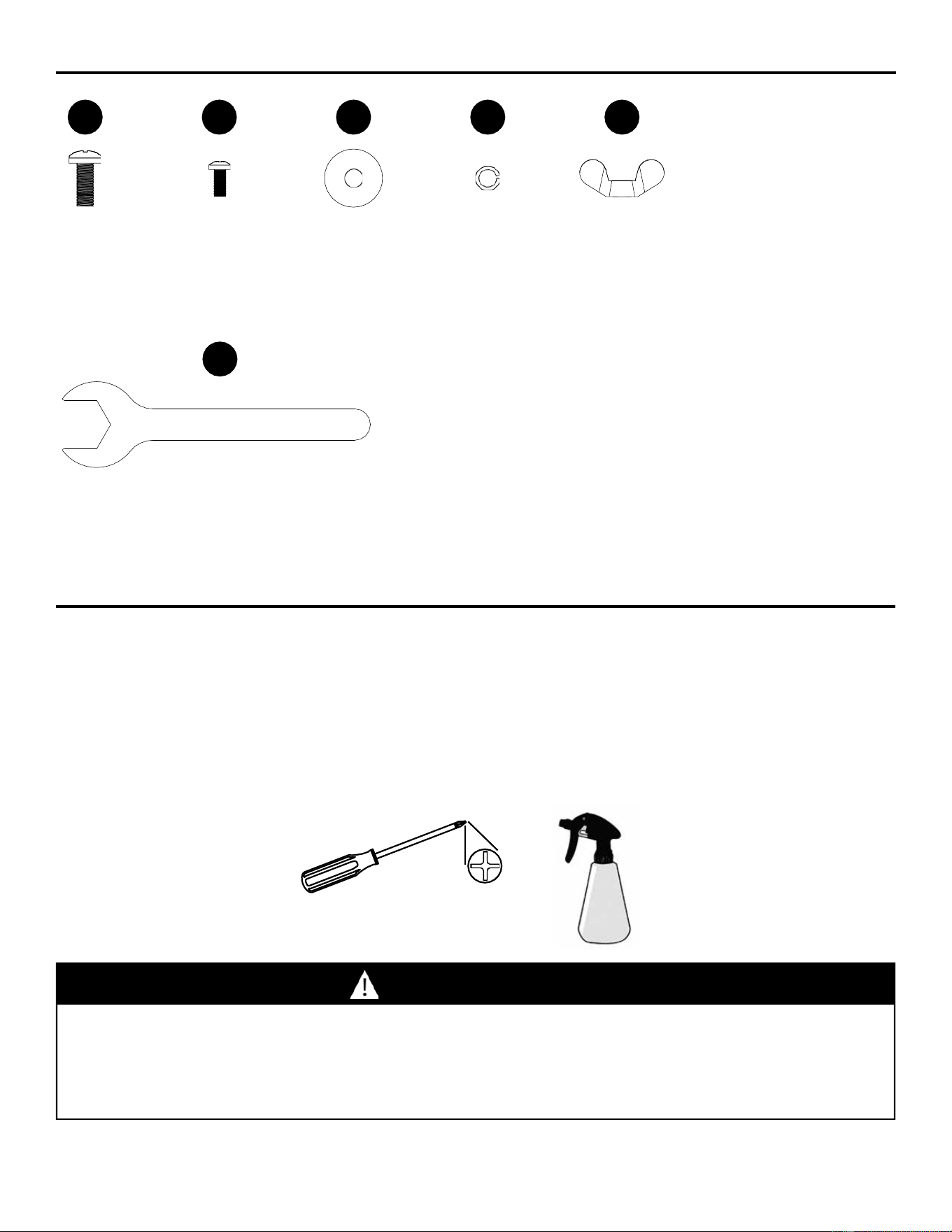

M6x16
M4x10
M6 Plain
M6 Spring
M6
Bolt
Bolt
Washer
Washer
Wingnut
Qty. 37
Qty. 2
Qty. 2
Qty. 2
Qty. 2
FF
Wrench
Qty. 1
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list on previous page and hardware contents above. If any part is missing or damaged, do
not attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 50 minutes with 2 people.
Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle
AA
BB
CC
DD
EE
ASSEMBLY INSTRUCTIONS
7
FF

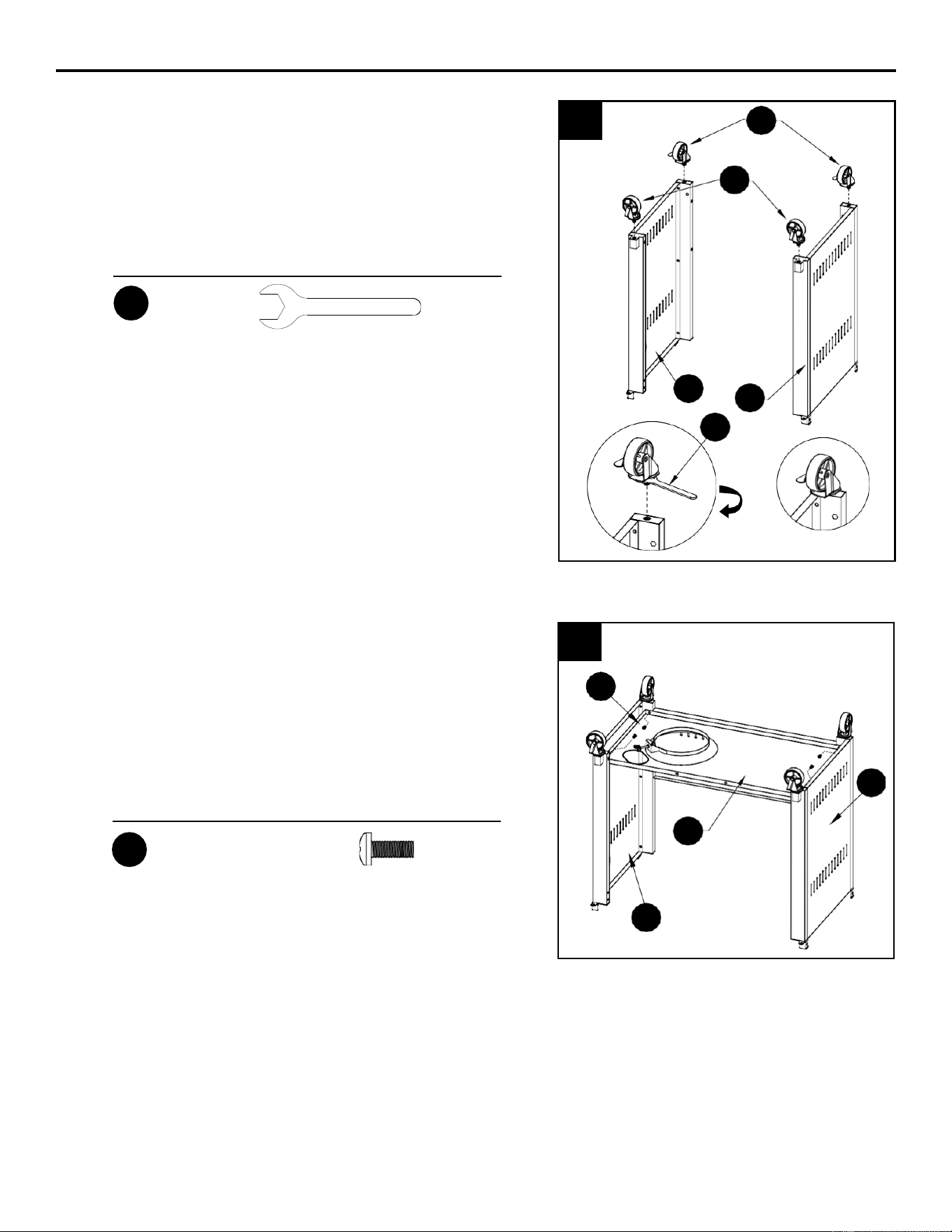

1. Attach the two locking swivel casters (M) and
the two non-locking swivel casters (N) to the
cart left side panel assembly (P) and the cart
right side panel assembly (L) with wrench (FF).
Hardware Used
Wrench
2. Attach the cart left side panel assembly (P)
and the cart right side panel assembly (L)
to the cart bottom panel shelf (A1) with four
M6x16 bolts (AA).
Do not tighten bolts at this time.
Hardware Used
M6x16 Bolt
x 4
AA
FF
1
M
M
N
N
L
L
P
P
FF
2
AA
P
A
A
1
1
L
L
ASSEMBLY INSTRUCTIONS
8
AA

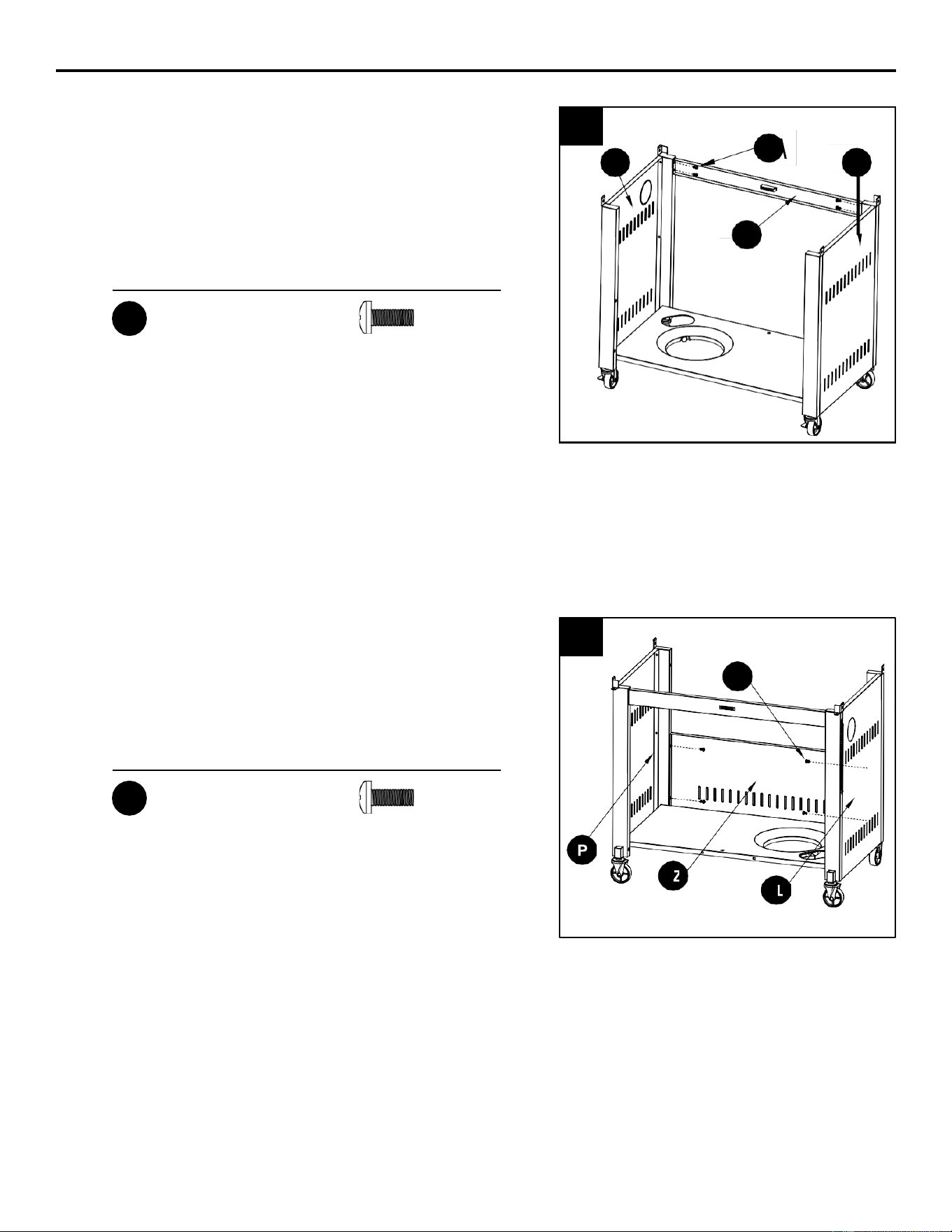

3. Attach the upper front door brace (Y) to the
cart left side panel assembly (P) and the cart
right side panel assembly (L) with four M6x16
bolts (AA).
Hardware Used
M6x16 Bolt
x 4
4. Attach the cart rear panel (Z) to the cart left
side panel assembly (P) and the cart right side
panel assembly (L) with the four M6x16 bolts
(AA).
Hardware Used
M6x16 Bolt
x 4
4
AA
AA
AA
3
AA
L P
Y
ASSEMBLY INSTRUCTIONS
9
A1
P

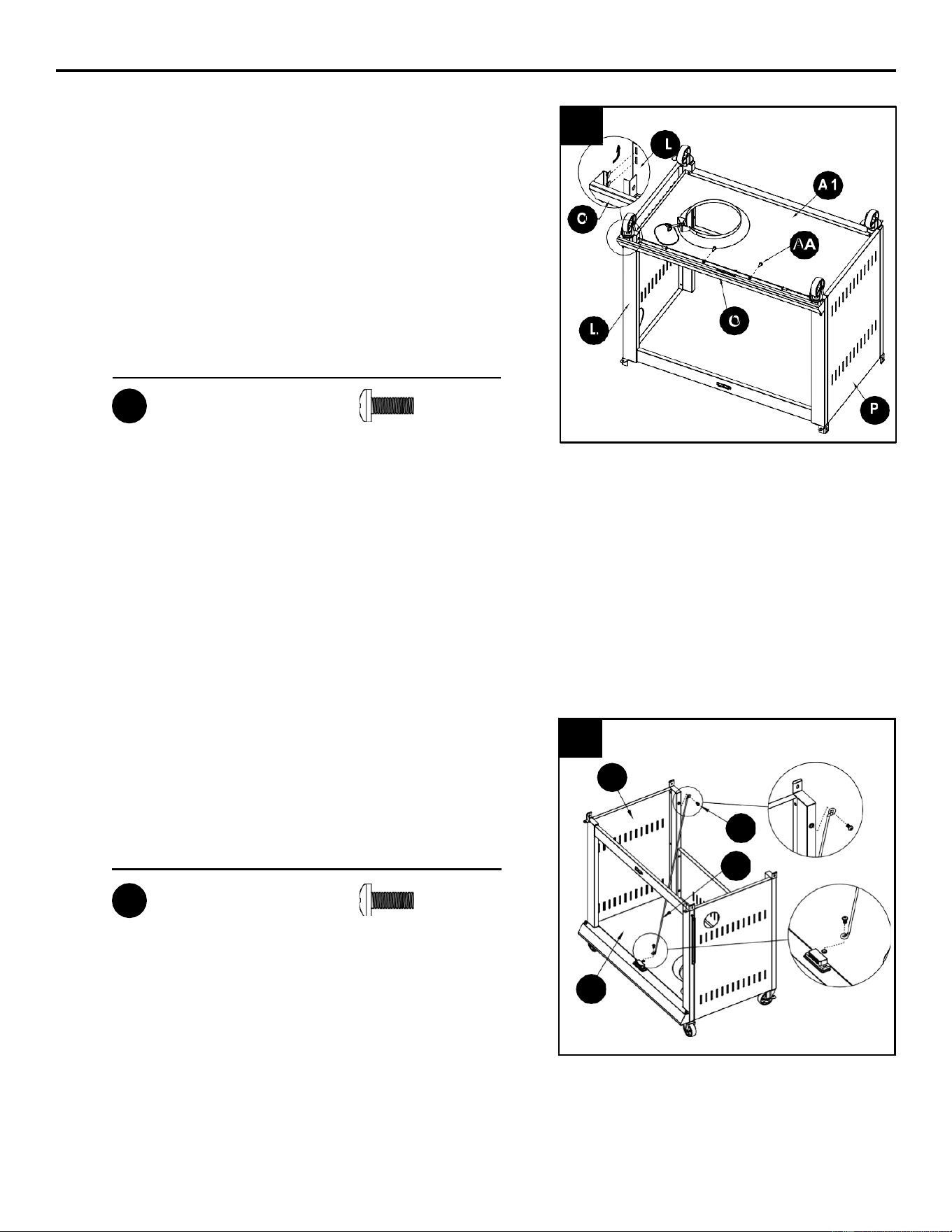

5. Insert the hook on the bottom panel skirt
assembly (O) into the slot on the cart left side
panel assembly (P) and the cart right side
panel assembly (L) as shown. Attach the
bottom panel skirt assembly (O) to the cart
bottom shelf (A1), cart left side panel assembly
(P) and the cart right side panel assembly (L)
with four M6x16 bolts (AA).
Tighten ALL bolts from step 2 securely.
Hardware Used
M6x16 Bolt
x 4
6. Attach the cylinder blocking bar (R) to the cart
left side panel assembly (P) and the cart bot-
tom panel shelf (A1) with two M6x16 bolts
(AA).
Hardware Used
M6x16 Bolt
x 2
5
AA
AA
6
P
A
A
A
A
R
R
A1
ASSEMBLY INSTRUCTIONS
10
AA

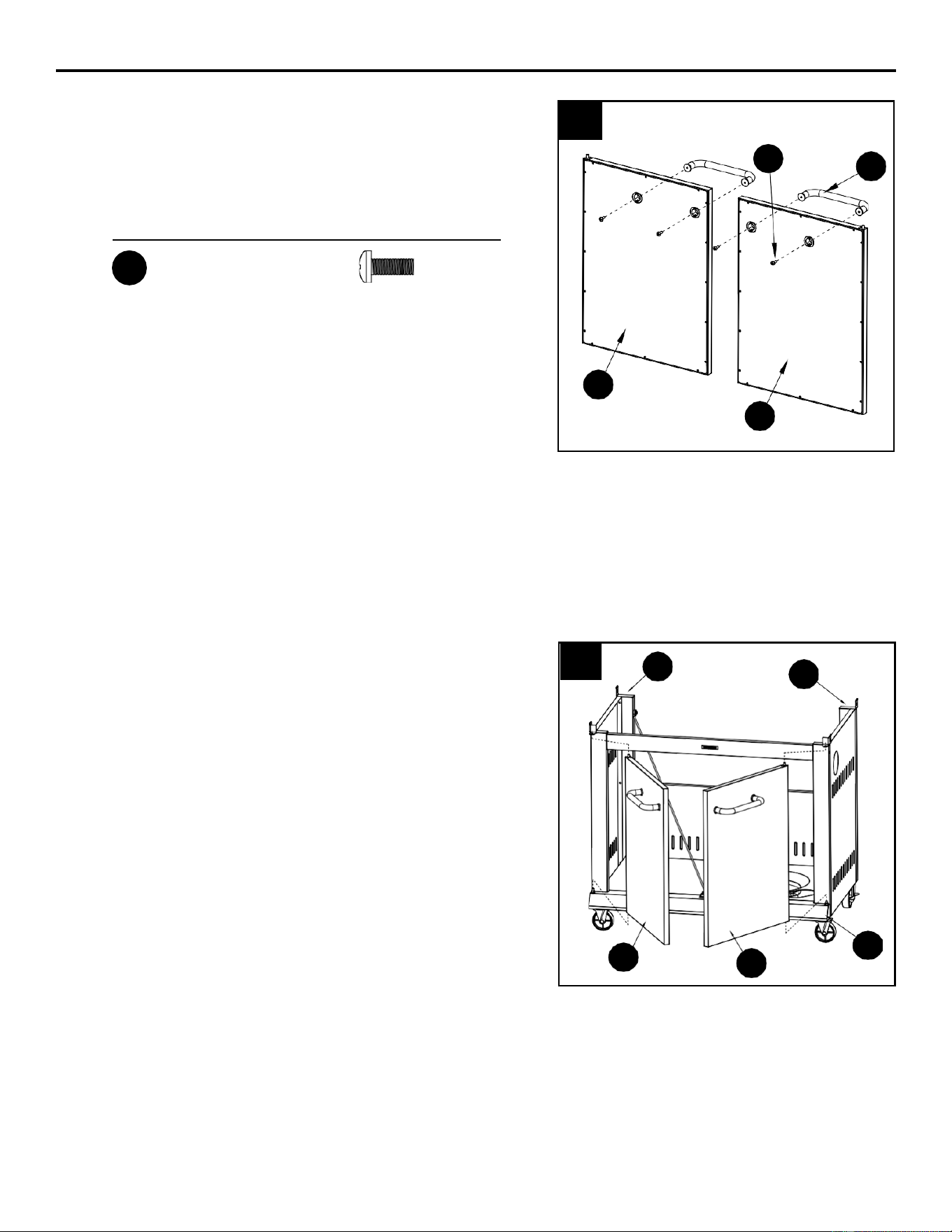

7. Attach the door handle (J) to the left door as-
sembly (Q) and the right door assembly (K)
with four M6x16 bolts (AA).
Hardware Used
M6x16 Bolt
x 4
8. Insert the bottom hinge pin of the cart bottom
panel skirt(O) into the lower hole on the left
door assembly (Q), then press the upper door
spring hinge pin into the hole on the cart left
side panel assembly (P) as shown.
Repeat with the right door assembly (K).
AA
7
AA
JJ
K
K
Q
Q
8
P
P
L
L
O
O
Q
Q
K
K
ASSEMBLY INSTRUCTIONS
11
M6 Plain Washer
x 2

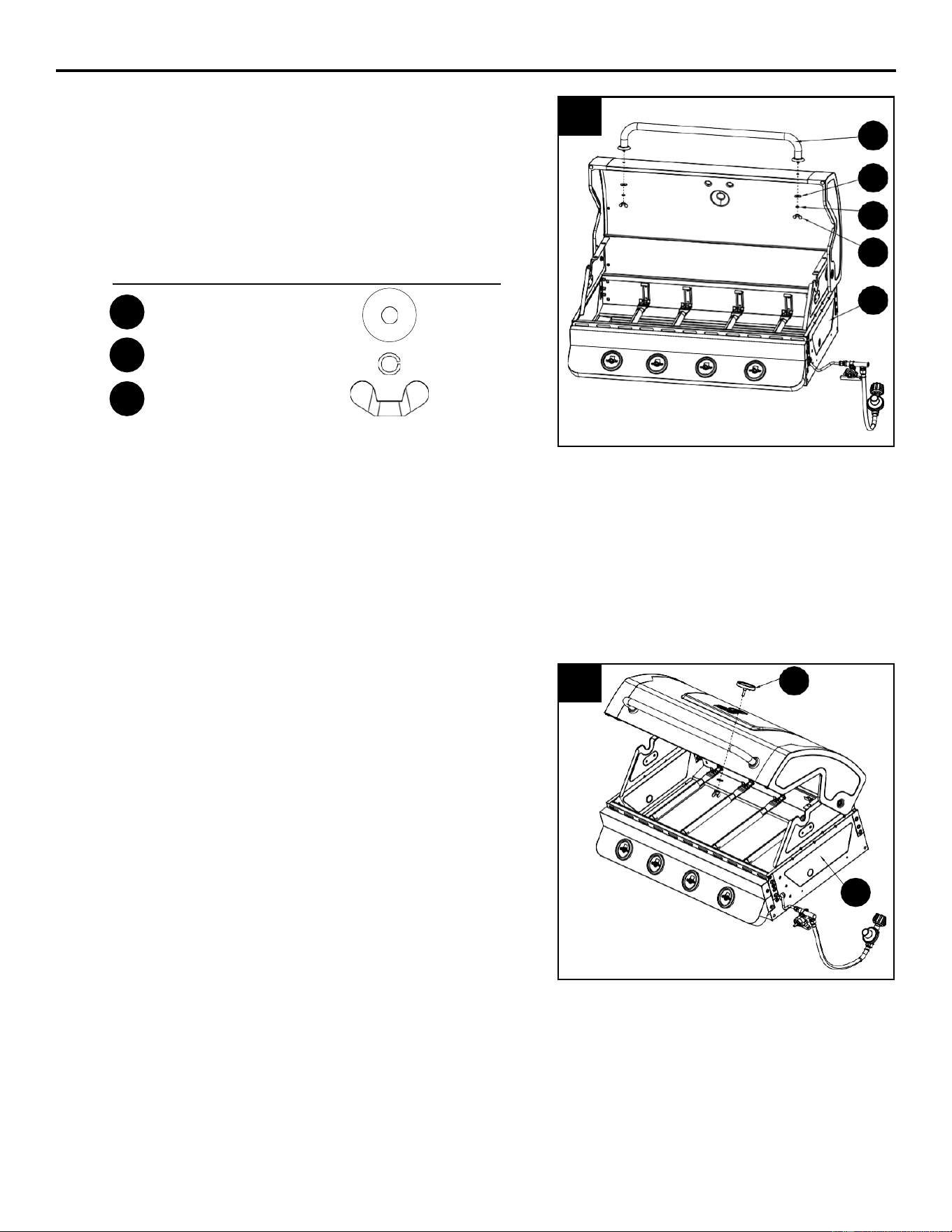

9. Attach the hood handle (A) to the grill body
assembly (C) with two M6 wing nuts (EE), two
M6 spring washers (DD) and two M6 plain
washers (CC).
Hardware Used
M6 Spring Washer x 2
M6 Wingnut x 2
10. Remove pre-assembled wing nut and plain
washer from the temp gauge (B), then attach
the temp gauge (B) to the grill body assembly
(C).
Secure the temp gauge (B) with wing nut
and plain washer removed earlier in this step.
CC
DD
EE
9
A
A
C
C
C
C
D
D
D
D
E
E
E
E
C
C
10
B
B
C
ASSEMBLY INSTRUCTIONS
12

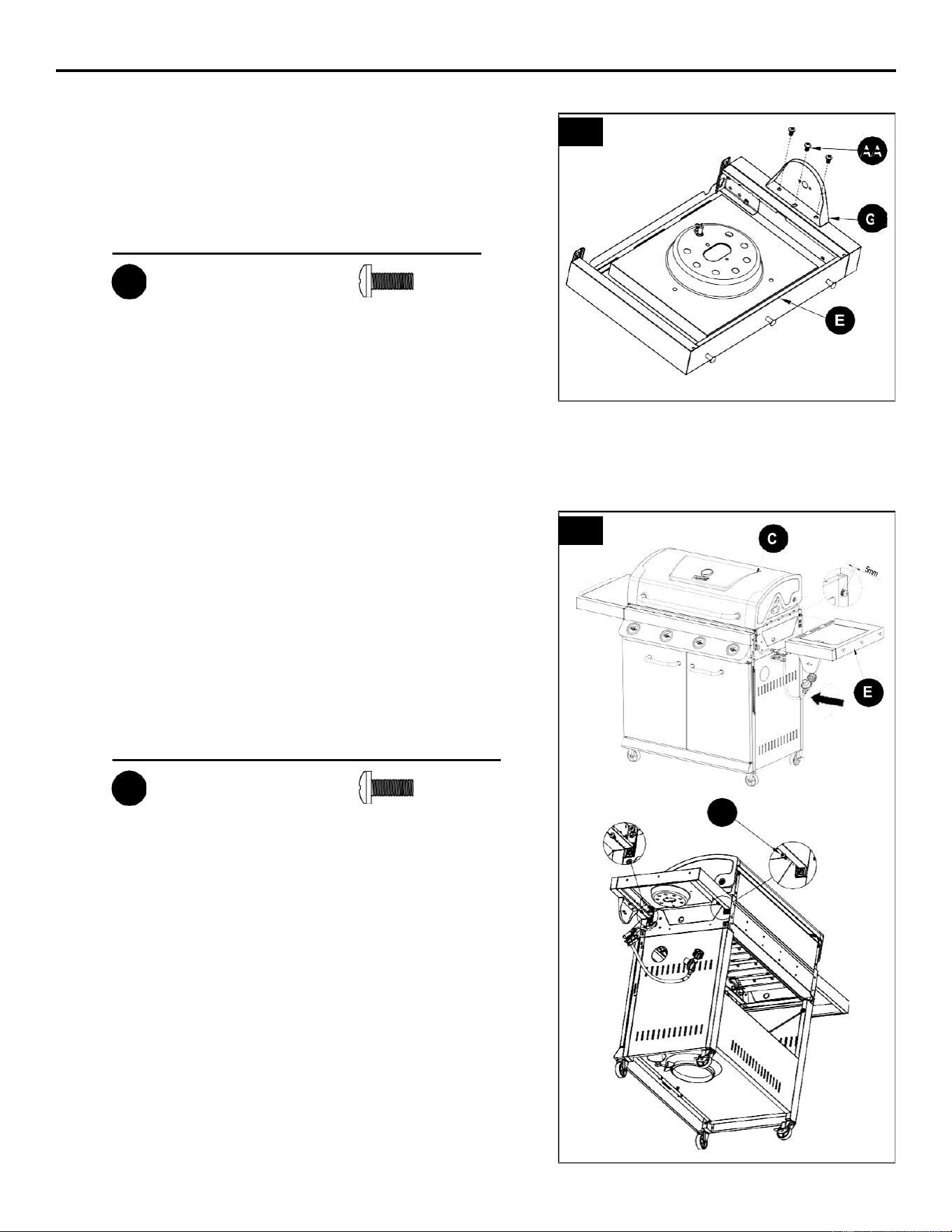

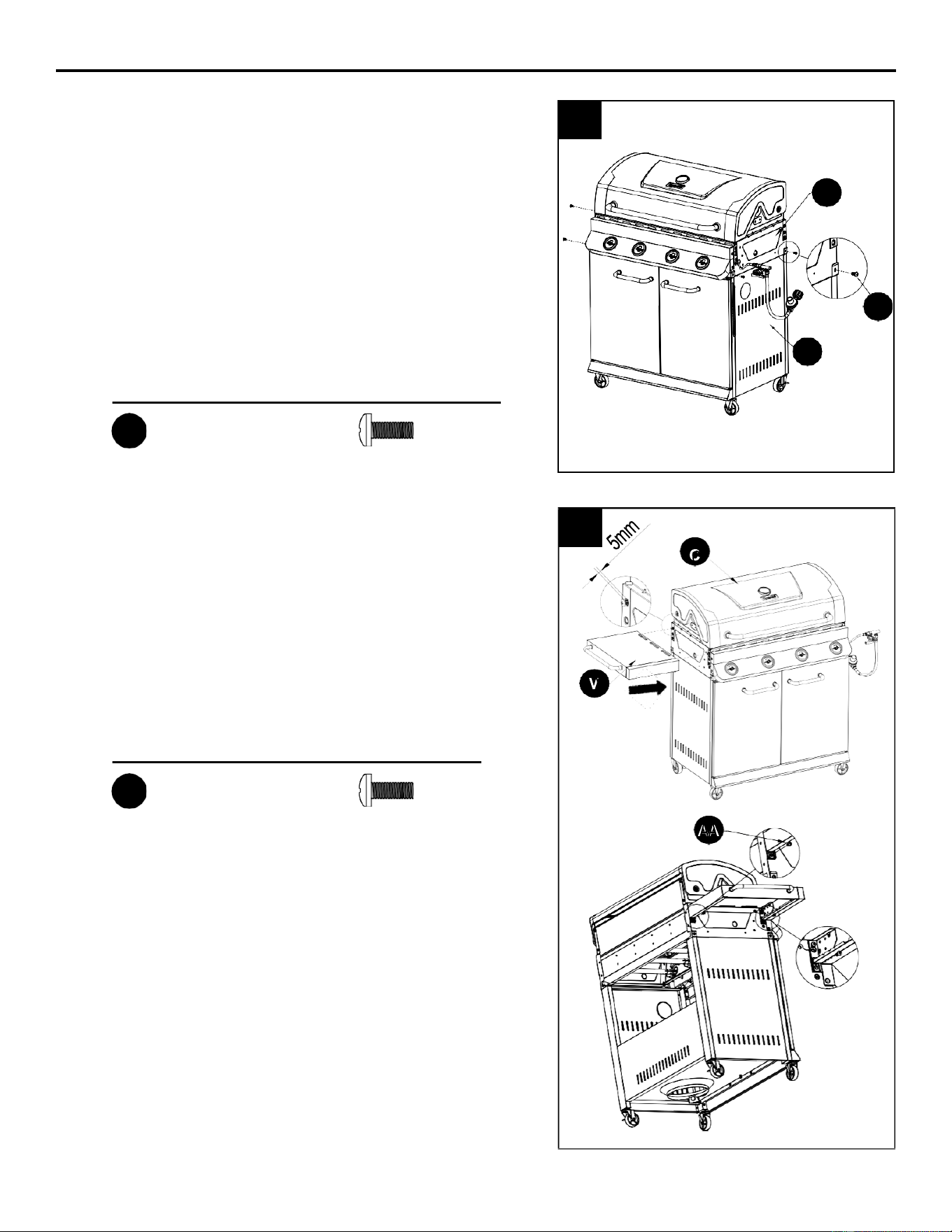

11. Carefully place the grill body (C) onto cart left
side panel assembly (P) and cart right side
panel assembly (L). Adjust the grill body (C) so
that the holes in the grill body (C) are aligned
with holes in the tabs of cart left side panel
assembly (P) and cart right side panel
assembly (L).
Note: Make sure the gas hose/regulator
assembly is outside the cart. Secure the grill
body (C) with four M6X16 bolts (AA).
Hardware Used
M6x16 Bolt
x 4
12. Insert two M6x16 bolts (AA) in left side of grill

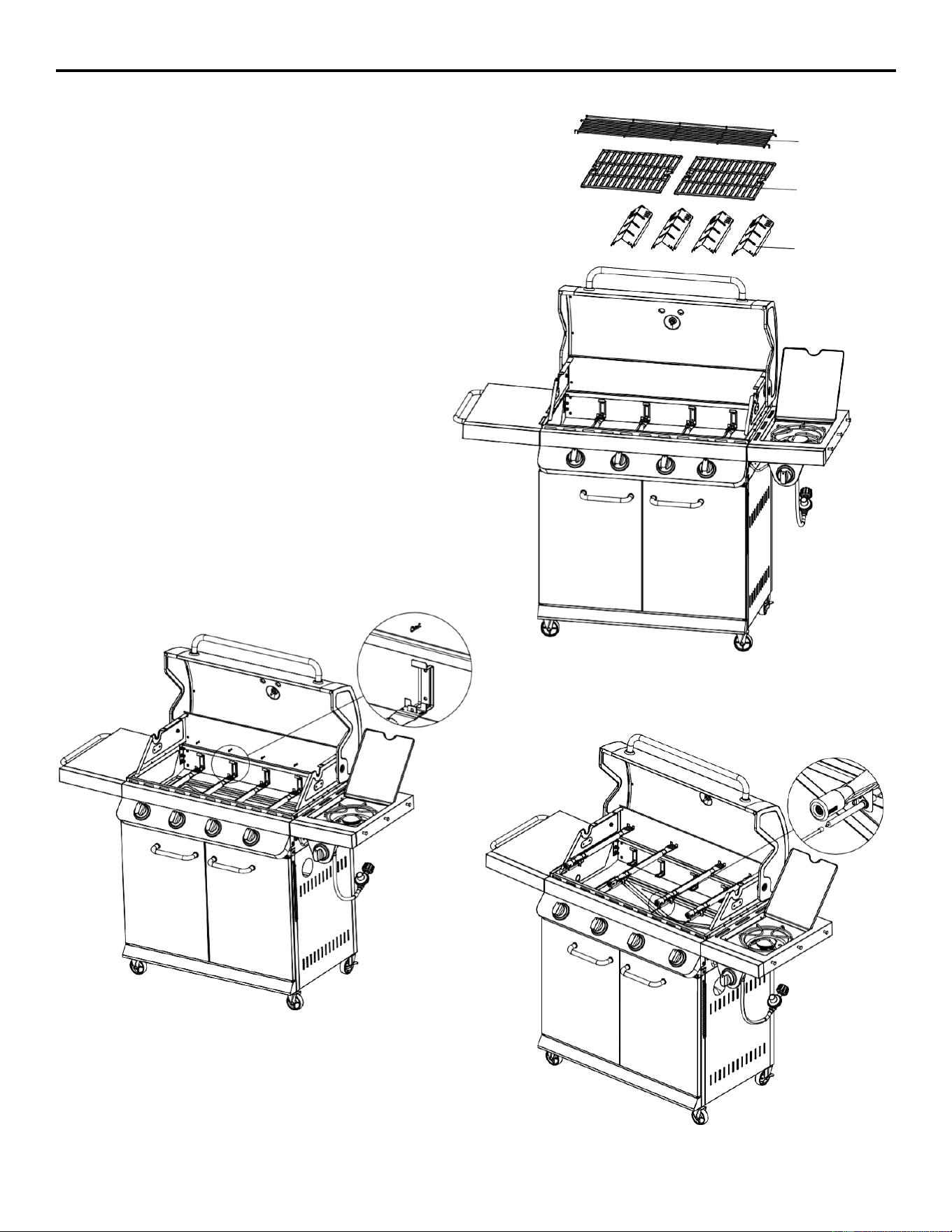

body (C) as shown, leaving 5mm of threads
exposed. Align key hole in left side table
assembly (V) with the two bolts just inserted in
the grill body (C), and insert two M6x16 bolts
(AA) in the remaining holes in the grill body
(C).
Adjust the left side table assembly (V)
correctly, then tighten all bolts.
Hardware Used
M6x16 Bolt
x 4
12
AA
AA
11
C
C
A A
A
L
L
ASSEMBLY INSTRUCTIONS
13
AA

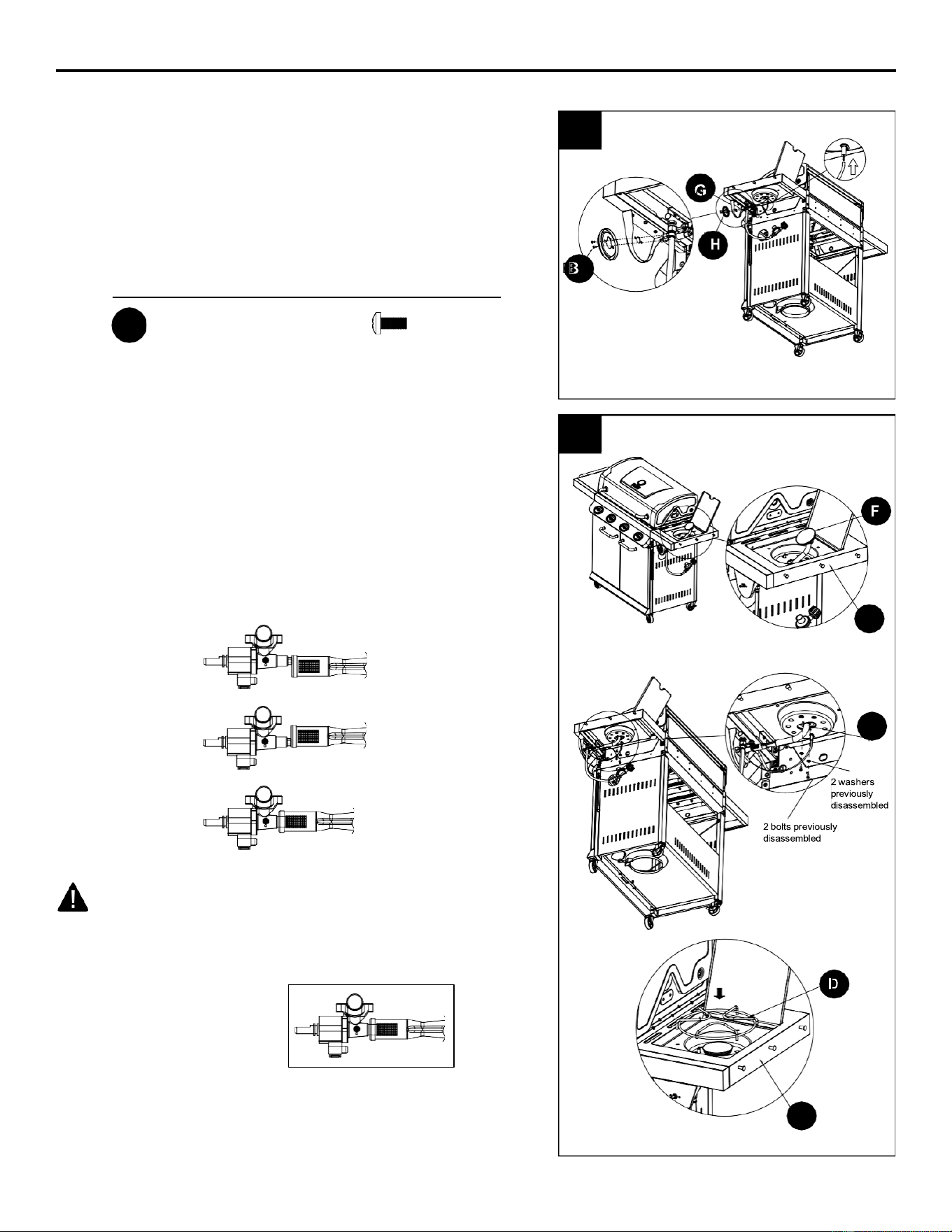

13. Attach the right side burner control panel (G)
to the right side burner body assembly (E) with
three M6x16 bolts (AA).
Hardware Used
M6x16 Bolt
x 3
14. Insert two M6x16 bolts (AA) in right side of grill
body (C) as shown, leaving 5mm of threads
exposed. Align key hole in right side table
assembly (E) with the two bolts just inserted in
the grill body (C), and insert two M6x16 bolts
(AA) in the remaining holes in the grill body (C).
Adjust right side table assembly (E) correctly,
then tighten all bolts.
Hardware Used
M6x16 Bolt
x 4
14
AA
13
AA
AA
ASSEMBLY INSTRUCTIONS
14
15. Use two M4x10 bolts (BB) to assemble the side
burner valve and the side burner control knob
bezel (H) to the right side burner control panel
(G). Assemble the ignition wire to the side burner
electrode.
Hardware Used
M4x10 Bolt
x 2
16. Disassemble two M4x10 bolts and two M4
washers that are pre-assembled on the side
burner (F) and use them to assemble the side
burner (F) on the right side burner table as-
sembly (E). Make sure the side burner orifice
is placed into the gas inlet tube of side burner.
place the side burner cooking grate (D) on the
right side burner table assembly (E).Assemble
the ignition wire to the side burner electrode.
WARNING: IT IS VERY IMPORTANT TO CHECK
AND ENSURE THAT EACH AND EVERY BURNER
IS FULLY ENGAGED WITH THE ADJACENT VALVE
ORIFICE BEFORE COMPLETING STEP 16.
FAILURE TO DO SO MAY
RESULT IN FIRE OR
EXPLOSION, POSSIBLY
CAUSING SERIOUS
INJURY OR DEATH. REFER TO MAINTENANCE
SECTION INSTRUCTIONS TO PROPERLY CHECK
THE ENGAGEMENT.
16
E
F
E
15
B
BB
Incorrect
Incorrect
Correct
1/2PSI
C US
R
GL1B
1/2PSI
C US
R
GL1B
1/2PSI
C US
R
GL1B
1/2PSI
C US
R
GL1B
ASSEMBLY INSTRUCTIONS
15

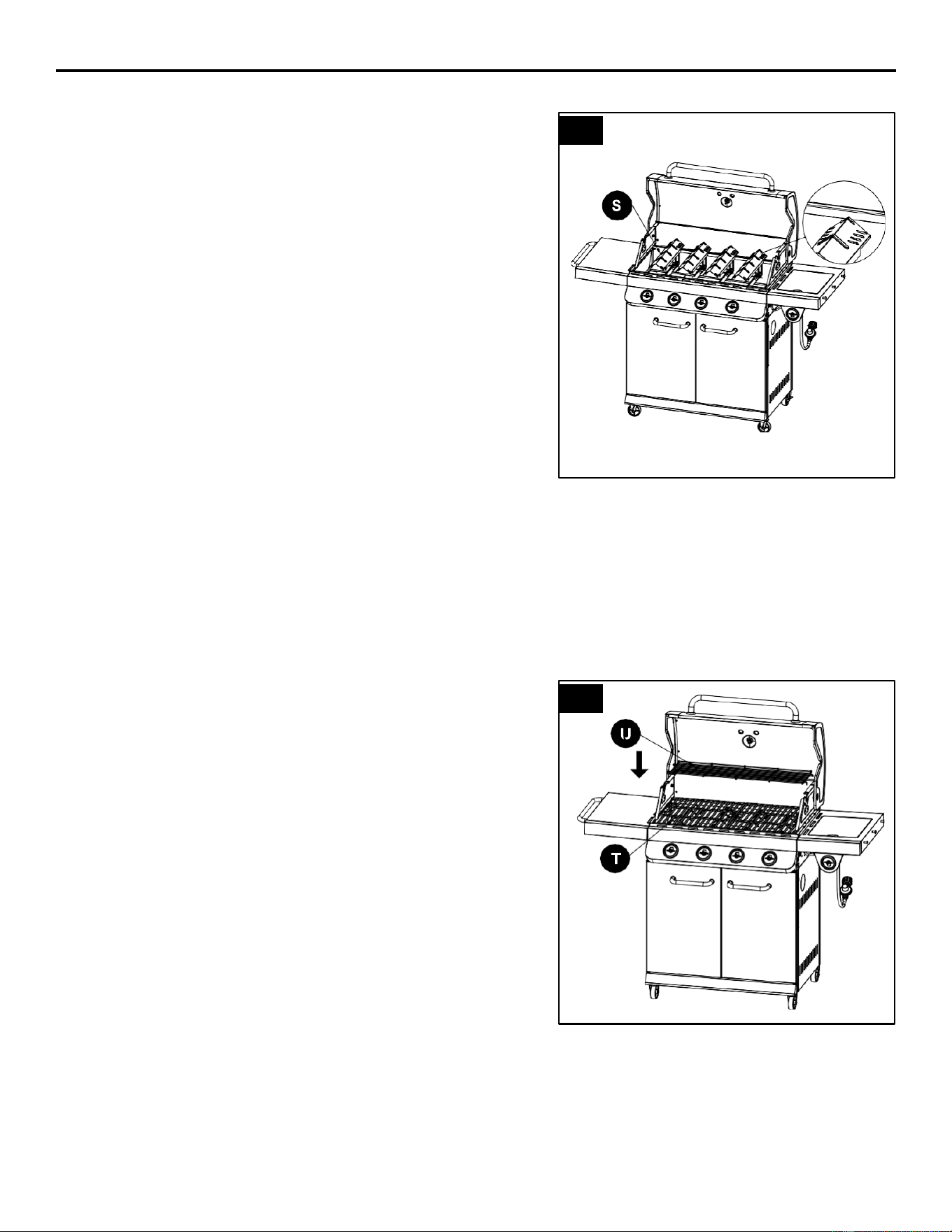

17. Put four heat tents (S) in place over each
burner.
18. Put two cooking grates (T) and one warming
rack (U) in place.
17
18
ASSEMBLY INSTRUCTIONS
16

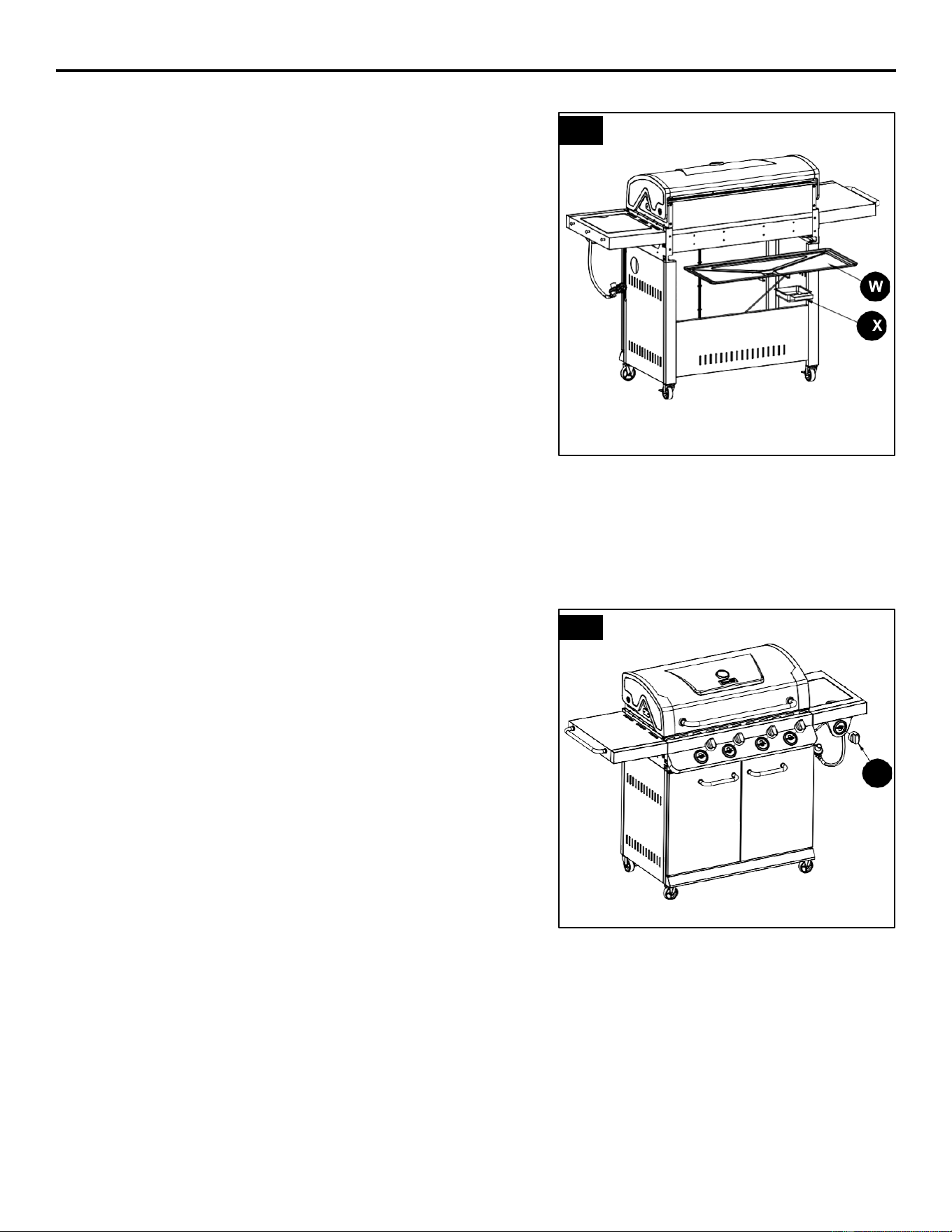

19. Put the grease pan (W) and grease cup (X)
into place.
20. Assemble the five control knobs (I) to the
valve stems.
20
I
19
ASSEMBLY INSTRUCTIONS
17
Rear View

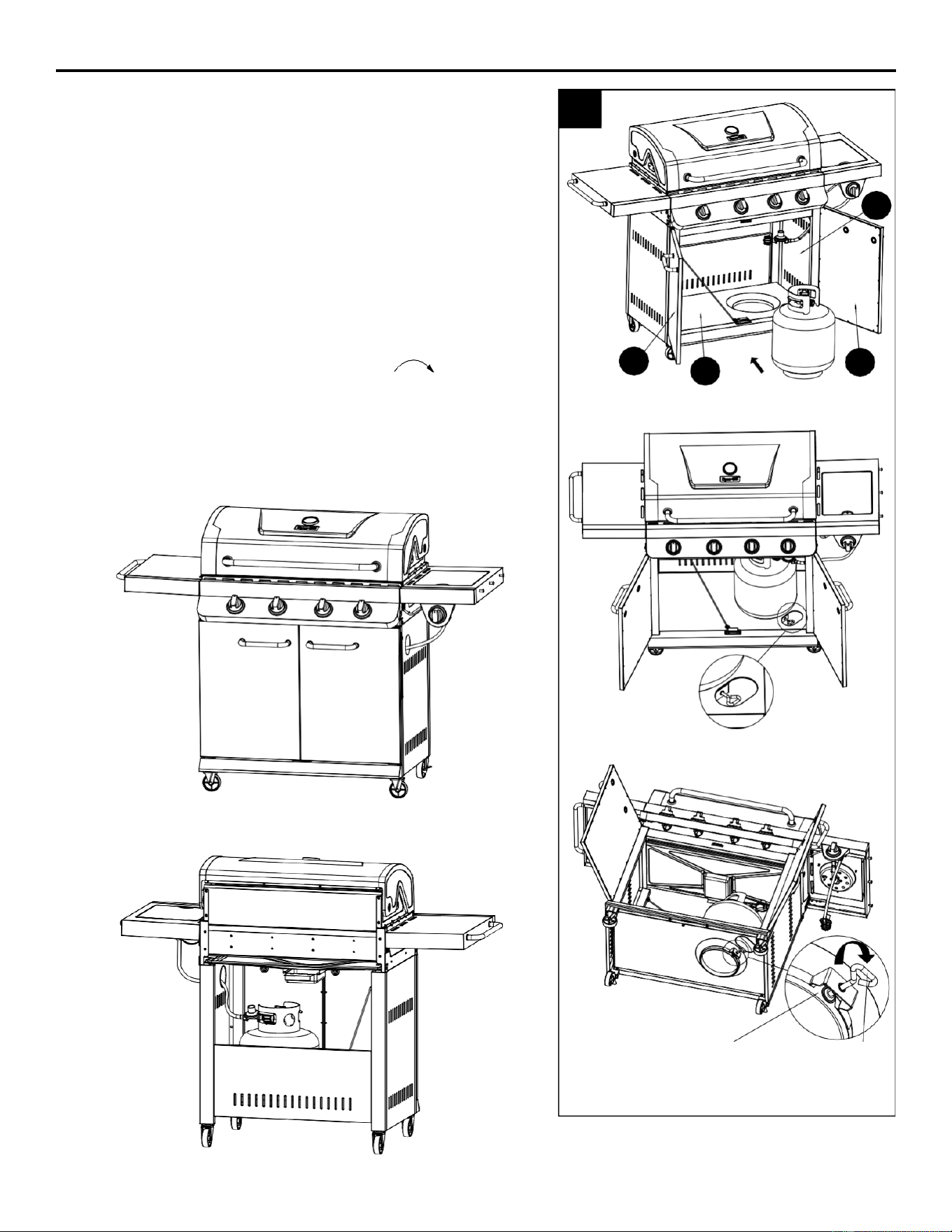

21. Open the left door assembly (Q) and the right
door assembly (K), insert the hose/regulator
assembly into the cart assembly through the
hole on the cart right side panel assembly (L).
Place LP gas cylinder (sold separately) into
the nesting hole located on the cart bottom
shelf (A1). Rotate the LP gas cylinder until the
hose/regulator coupling aligns with the thread-
ed valve of the cylinder. Hand tighten the hose/
regulator coupling to the threaded valve of the
LP gas cylinder.
Tighten the tank screw clockwise in the
rear of the cart until the LP gas cylinder is
secured in place inside the nesting hole of the
cart bottom shelf (A1).
Fully Assembled
Front View
21
L
Q
A1
K
LP Gas
Cylinder
Tank
Screw
OPERATION INSTRUCTIONS
18
Only use the regulator and hose assembly provided! If a replacement is necessary, please call
our customer service center. Do not use replacement parts that are not intended for this grill.
CAUTION
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
WARNING
CHECKING FOR LEAKS
After all connections are made, check all connections and fittings on the LP gas tank valve, gas hose and
regulator for leaks with a water and soap solution.
To prevent fire or explosion while testing for a leak:
•
Always perform leak test prior to lighting the grill.
•
Do not smoke while testing for a leak.
•
Always perform leak tests outdoors in a well-ventilated area.
•
Do not use any source of flame while testing for leaks.
•
Do not use the grill until any and all leaks are corrected.
•
If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service
dealer.
PERFORM LEAK TEST
•
Prepare leak test solution by 50/50 ratio of liquid dish soap and water.
Total solution required is approximately 2 - 3 ounces (70 - 90 ml).
Put leak test solution in a spray bottle.
•
Ensure all control knobs are in the O OFF position.
•
Connect the gas hose to the gas supply.
•
Open the LP gas tank valve.
•
Spray leak test solution on all gas carrying connections and fittings. Presence of bubbles at areas
of applied test solution indicates a gas leak. If leaks are detected or you smell or hear gas, shut off
the gas supply valve immediately and repair or replace the defective part. Do not use the grill until all
leaks are corrected.
OPERATION INSTRUCTIONS
19
a. Do not store a spare LP-gas cylinder under or near this appliance.
b. Never fill the cylinder beyond 80 percent full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious
injury may occur.
CAUTION
CONNECTING GAS CYLINDER
The propane gas supply cylinder to be used must be constructed and marked in accordance with the
Specifications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable; and provided with a listed overfilling prevention device.
Use only 20-pound cylinders (height: 18 inches, tank diameter: 12.2 inches, foot diameter: 8.03 inches)
equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped or
handled roughly!
If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must be
stored outdoors out of the reach of children and must not be stored in a building, garage or any other
enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust
cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may
result in leakage of propane.
Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of
the regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and hand-
tighten firmly. Keep the propane cylinder valve closed and disconnect the propane cylinder from the
regulator valve when the grill is not in use.
DO NOT obstruct the flow of combustion air and ventilation air to the grill. The propane cylinder must
be arranged for vapor withdrawal and equipped with a listed overfilling prevention device. Please use

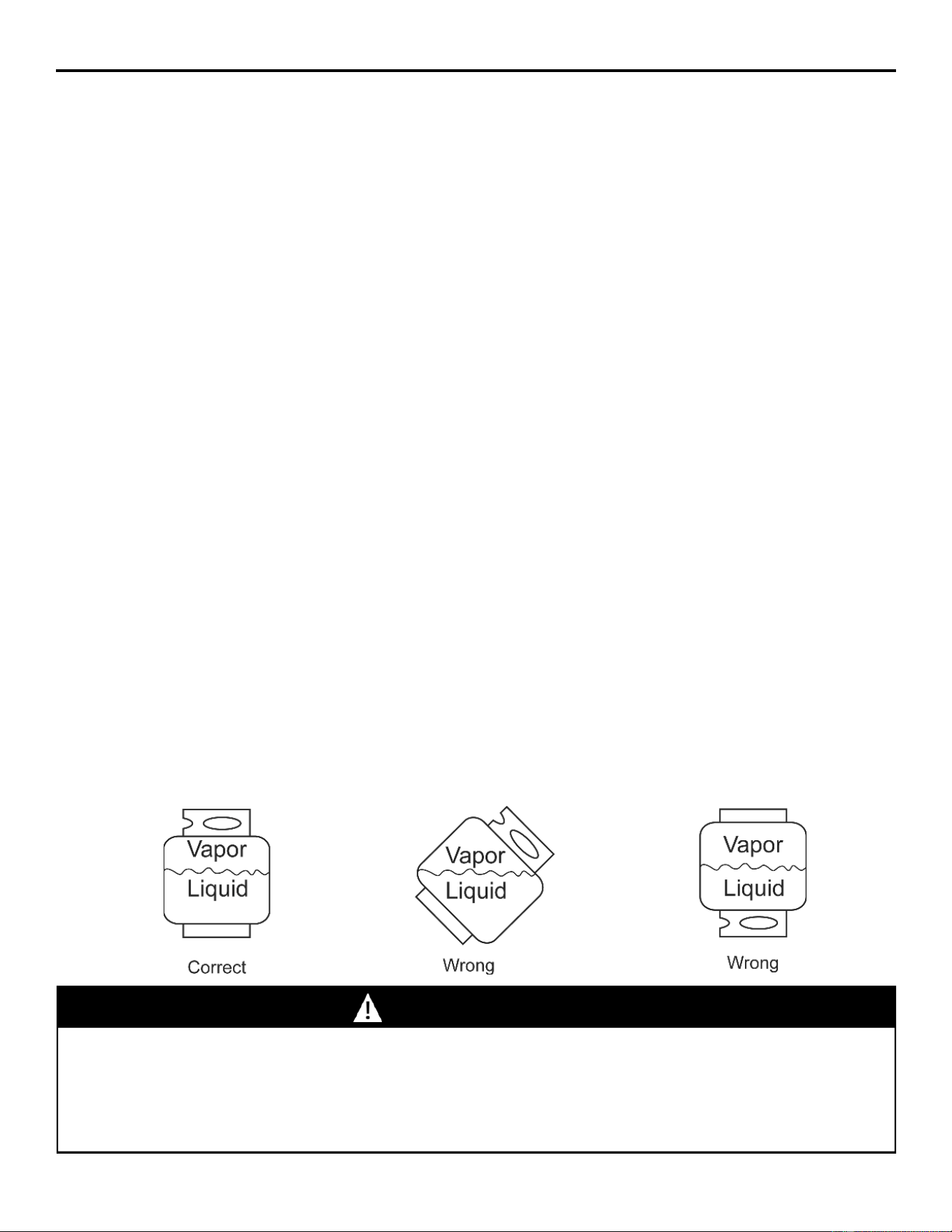

the proper cylinder orientation to provide vapor withdrawal. NOTE: The cylinder must be fully upright
for the cylinder to have vapor withdrawal only.
OPERATION INSTRUCTIONS
20
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
WARNING
In the connection process, make sure:
the regulator inlet connector mates with the cylinder valve outlet properly, safely and firmly, and;
the LP gas hose does not come in contact or remain in contact with the firebox.
WARNING
NOTE: Other cylinders may be acceptable for use with this appliance provided they are compatible
with the appliance nesting hole and retention means. Refer to Step 19 of the Assembly Instructions for
correct cylinder to cylinder holder connection.
CONNECTING THE LP TANK
1. The knob on the LP tank must be closed. Make sure that the knob is turned clockwise to a
full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned off.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve
outlet. Be sure the nipple is centered in the valve outlet. The coupling
nut connects to the large outside threads on the valve outlet. Use
care – do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full
stop. Firmly tighten by hand only. Do not use tools.
To Disconnect: Fully close the tank valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator assembly detaches.
OPERATION INSTRUCTIONS
21
If the flame extinguishes accidentally during ignition or operation, immediately TURN OFF the
cylinder valve and then TURN OFF the control knob.
CAUTION
Do not lean over grill when lighting. Read instructions before lighting. Do not put pots on the
sear side burner. Using pots on the sear side burner will result in high carbon monoxide levels.
WARNING
Lighting The Grill
Before first use:
Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important to
clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed and
the control knob in the highest position. This will clean the internal parts by burning off any residue and
odor from the manufacturing process.
1. Check that the control knobs are in the O OFF position.
2. Open the tank valve fully by turning it counter-clockwise.
3. Open lid during the lighting process.
4. Depress and turn control knob counter-clockwise from the O OFF position, past the ignite
position, to the HIGH position. You may need to repeat several times to ignite the burner.
If ignition does not occur in 5 seconds, turn the control knob(s) to
O
OFF position, wait 5 minutes, and
repeat the lighting procedure.
If the burner still does not light, check that there is gas in the cylinder and follow the match lighting
instructions. Check the Troubleshooting Guide on page 26 for more information.
OPERATION INSTRUCTIONS
22
Make sure all burners controls are off except for the burner being lit and the
burners that have been lit.
CAUTION
If ignition does not occur in 5 seconds, turn the control knob(s) to “
O
” OFF position, wait 5
minutes, and repeat the lighting procedure.
WARNING

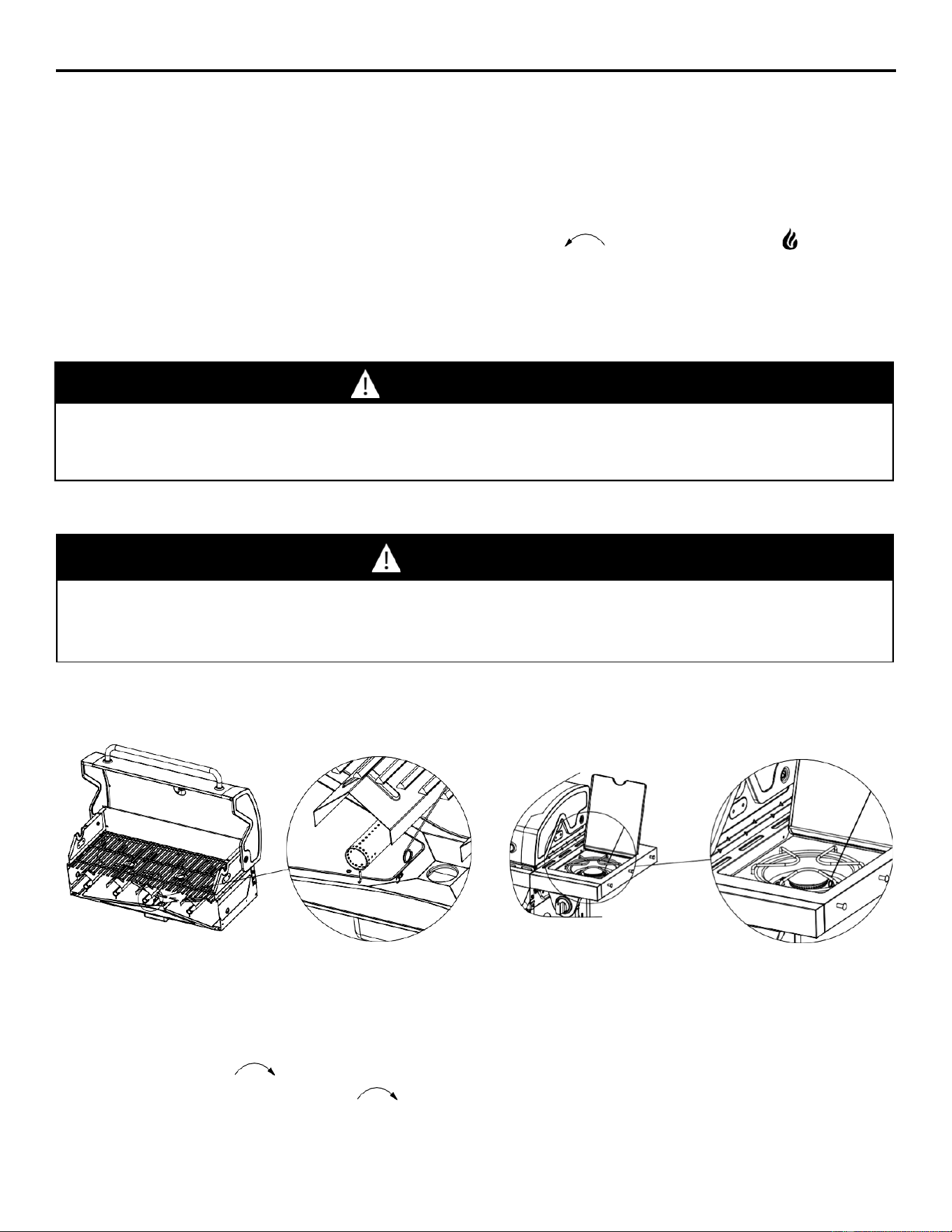

LIGHTING THE GRILL WITH A MATCH
1. Open the lid.
2. Insert a match in the end of the match holder that is installed on the inside of the cabinet door.
3. Light the match.
4. Immediately place the lit match through the spaces in the grill gates near the ports of the burner
between the heat tents as shown. Make sure the lit match is close to the burner ports.
5. Press in the control knob that operates the burner and rotate counter-clockwise to High
position and burner should light immediately.
6. Repeat 2~5 steps to lighting the remaining burners.
7. Adjust burners to desired cooking settings.
Main Burner Match Lighting Side Burner Match Lighting
SHUTDOWN INSTRUCTIONS
1. Turn control knobs clockwise to the O OFF position.
2. Close valve at tank fully by turning clockwise.
3. Close lid.
Turn off LP supply at cylinder when appliance is not in use.
CARE AND MAINTENANCE
23
Ensure the grill is cool before cleaning and conducting maintenance and with the gas
supply turned off at the LP-Gas Cylinder.
CAUTION
Cooking Grates
The best time to ‘burn-off’ the cooking grates is after every use (approx. 15 minutes). The grill is already
hot from cooking thus requiring less fuel to obtain necessary temperature for ‘burn-off’.
To ‘burn off’ or heat clean your grill, turn the burners to highest position and run for 15 minutes with the
lid closed. Then turn off the burners and use a wire brush to clean excess food residue from the grates.
The porcelain grates have an enamel finish (similar to glass) and should be handled with care not to
chip.
Recommended Cleaning Supplies
Mild liquid dish soap, warm water, nylon cleaning pad, wire brush
DO NOT use cleaners that contain acid, mineral spirits or any abrasive substance.
Outside Surfaces
It is recommended to use only mild dish soap and hot water to clean grill and grill parts.
Rinse with warm water.
Inside Bottom Pan of Grill Body
To avoid flare-ups, the bottom pan of the cooking box should be kept clean on a regular basis.
Remove residue using a brush, scraper and/or cleaning pad. Wash with mild dish soap and warm water.
Rinse with warm water. Avoid water splashing into venturi tubes of burners.
Heat Tents
Clean residue with wire brush and wash with mild dish soap and
warm water. Rinse with warm water.
Grease Cup
Empty the grease cup and clean with mild dish soap and
warm water on a regular basis.

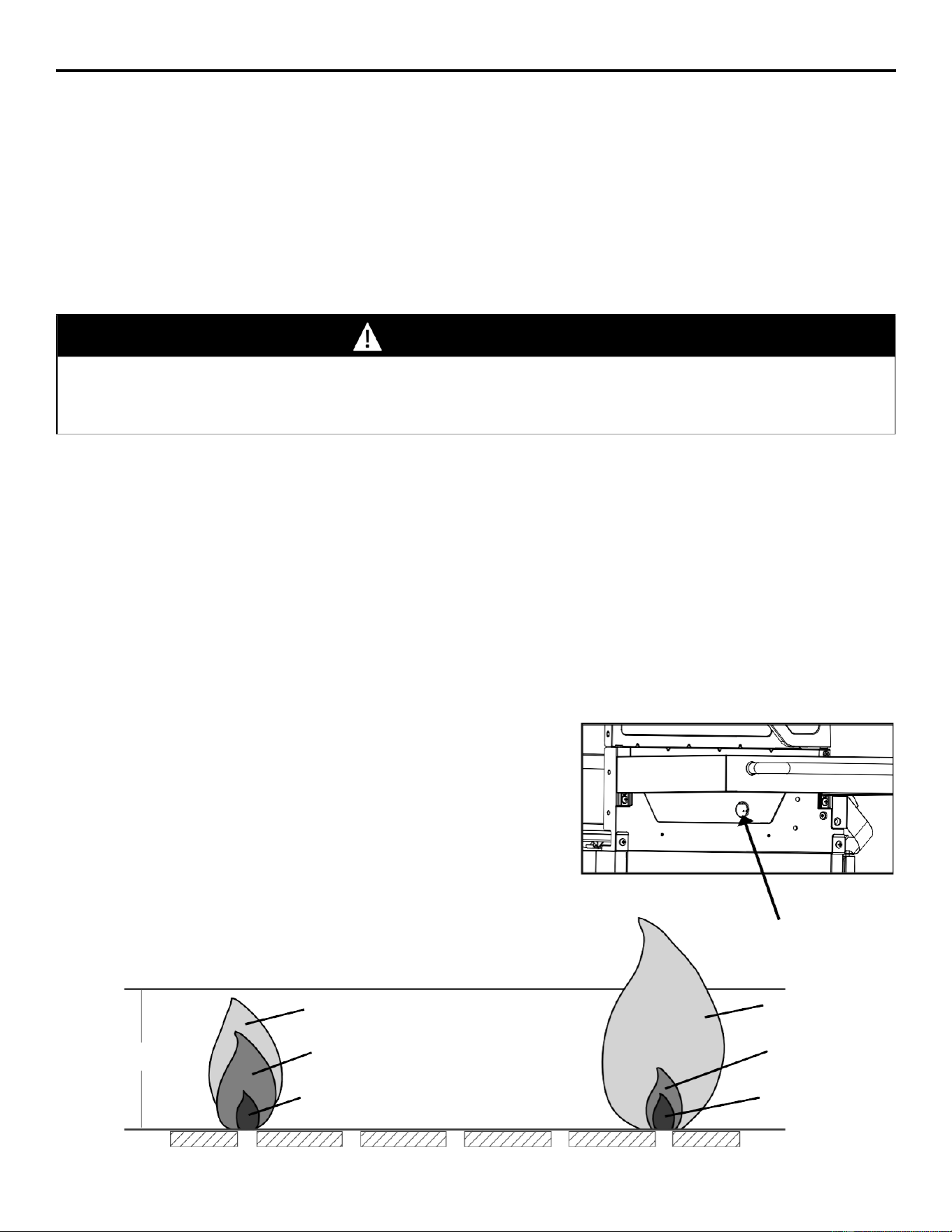

Checking The Flame
For maximum fuel efficiency and cooking performance, flame
should be a blue-yellow color and be between 1- 2 inches high.
To check the flame, view the flame through the holes in both
sides of the firebox.
Hole for viewing the flame
Yellow
2”
Light Blue
Blue
Yellow
Light Blue
Blue
Good Flame
Bad Flame
CARE AND MAINTENANCE
24
Burner Assembly

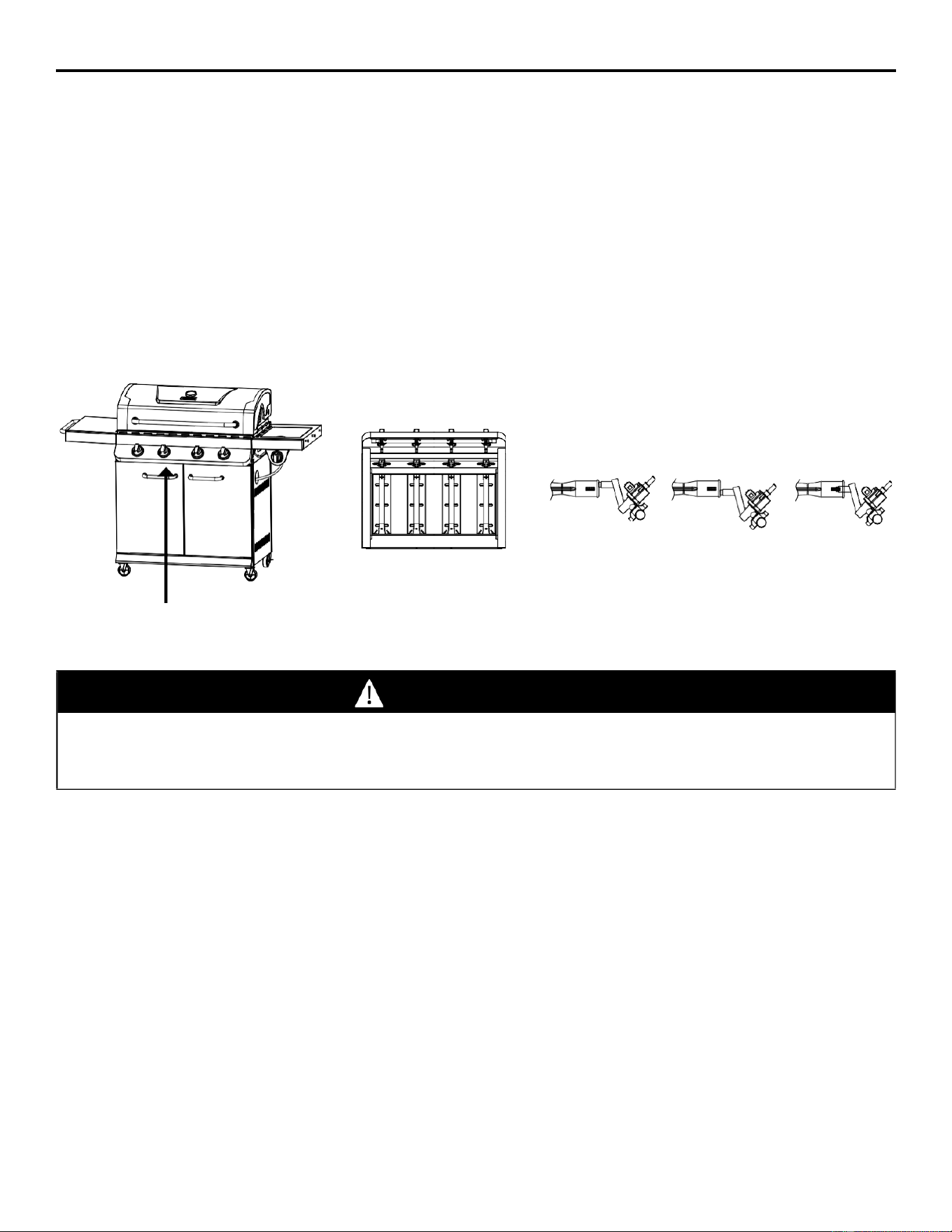

Removing The Burner Assembly
1. Make sure all control knobs are in the OFF
position, gas supply valve is closed, and the
gas hose is disconnected from the gas supply.
2. Open lid and remove warming rack, cooking
grates, and heat tents.
Warming
Rack
Cooking
Grates
Heat Tents
3. Remove hinge pin as illustrated in Figure 1.
4. Slide main burners out of firebox.
5. Detach ignition wire from electrode in Figure 2.
Figure 1
Figure 2
CARE AND MAINTENANCE
25
Cleaning the Burner Assembly
– Make sure the grill is cool
1. Ensure all burner ports are clear of clogs. Use of a pin or paper clip works well.
2. Ensure burner is free of any damage. If damage is found, replace with new burner.
3. Ensure the end of the burner and primary air screen are clear from insect nests, dirt or debris.
Re-installing the Burner
Ensure that gas valve orifices are correctly positioned inside burner inlet (venturi).
The use of a flashlight may be necessary to ensure the correct position.
It is recommended to view the correct position through the firebox vent holes as illustrated below.
Reattach each burner with the hinge pin and reattach the ignition wire to electrode.
View the correct position from
the bottom of the firebox
Bottom View
Incorrect Incorrect Correct
Other Care and Maintenance
It is recommended that inspection and service on this appliance be conducted annually by a qualified
service person.
It is recommended that you always check that the outdoor cooking appliance area is clear and free
from combustible material, gasoline and other flammable vapors and liquids before lighting.
It is recommended that you regularly check that the flow of combustion and ventilation air is not
obstructed.
It is recommended that you regularly check that the ventilation openings of the grill cabinet are free
and clear from debris.
It is recommended that you regularly check and clean the burner/venturi tubes for insects and insect
nests. A clogged tube can lead to a fire beneath the grill.
If the instructions above are not followed, a fire or explosion may result, possibly
causing serious bodily injury or death.
WARNING
TROUBLESHOOTING
26
If you have any questions regarding the product, please call customer service at 1-877-447-4768,
8:00 a.m. – 4:30 p.m., CST, Monday – Friday.
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
The burner will
not light using the
ignitor procedure
(weak or no spark
being generated).
1. The igniter electrode may be
covered with grease or residue.
2. The igniter electrode may
have a loose or disconnected
wire.
3. Cracked or broken ignition
electrode.
1. Clean the ignitor electrode.
2. Check the connection and reconnect any
loose or disconnected wires.
3. Replace ignition electrode (see
Replacement Parts List).
Low Heat.
1. Insufficient gas pressure to
the unit.
1. Call a qualified service agency to check
the gas supply pressure and correct the
pressure.
Excessive Flare
Ups.
1. Grease and/or residue build-up
on heat tents or in firebox.
2. Excessive dripping of fat or
marinade from food.
3. Cooking temperature too high.
1. Clean the grill components.
2. Trim the fat from meat and use non-oil
based marinades.
3. Lower temperature accordingly.
TROUBLESHOOTING
27
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
The burner will not
light with a match.
1. Match not reaching burners
(when holding match with
hand).
2. Empty tank.
3. Poor connection between
valve regulator and LP
cylinder coupling.
4. Burner inlet blocked.
1. Use match holder found in
cabinet door.
2. Check fuel level and refill tank if
necessary.
3. Turn off grill knobs, close the LP cylinder
valve at top of cylinder and check the
connection between the regulator valve
and cylinder coupling. Disconnect and
reconnect, if necessary.
4. Clean the burner inlet (venturi) and
burner as described by the Care and
Maintenance section in the manual.
No gas flow or an
obstructed gas
flow.
1. Tank valve not on or fully
opened.
2. Empty tank.
1. Fully open tank valve by turning
counterclockwise.
2. Check fuel level and replace fuel if
necessary.
3. Turn off grill knobs, close the LP cylinder
valve at top of cylinder and check the
connection between the regulator valve
and cylinder coupling. Disconnect and
reconnect, if necessary.
4. Clean the burner inlet (venturi) and
burner as described by the Care and
Maintenance section in the manual.
3. Poor connection between
valve regulator and LP
cylinder coupling.
4. Burner inlet blocked.
LIMITED WARRANTY
28
1-Year Limited Warranty
This LP gas grill is warranted for 1 year (5 years on the Stainless Steel burners) against broken or
damaged parts at the time of purchase. It is warranted to be free of defects. Paint is warranted to be
free of defects except for rust, which may appear after repeated use.
This warranty does not cover damage or issues related to neglect, abuse, or modifications to the
appliance. Repair labor is not covered.
All parts that meet the warranty requirements will be shipped at no charge via the discretion of the
manufacturer (ground shipments, US Mail, or Parcel Post ONLY). Any special handling charges (i.e.
Second Day, overnight, etc.) will be the responsibility of the consumer.
All warranty claims apply only to the original purchaser and require a proof of purchase verifying
purchase date. Do not return parts without first obtaining a return authorization number from our
customer service. This service is available by calling toll free 1-877-447-4768, 8:00 a.m. – 4:30 p.m.,
CST, Monday – Friday.
NOTICE: Some states do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights and you may also have other legal rights
which may vary from state to state.
GHP Group Inc.
6440 W. Howard Street
Niles, IL, USA
60714-3302
Item Name: 4 Burner Premier Gas Grill with Side Burner
Model #: DGP483SSP / DGP483SSP-D / DGP483CSP/DGP483CSP-D / DGP483GSP /
DGP483GSP-D / DGP483MSP / DGP483MSP-D
Main burner total rated BTU: 48,000 BTU/Hr
Side burner rated BTU: 12,000 BTU/Hr

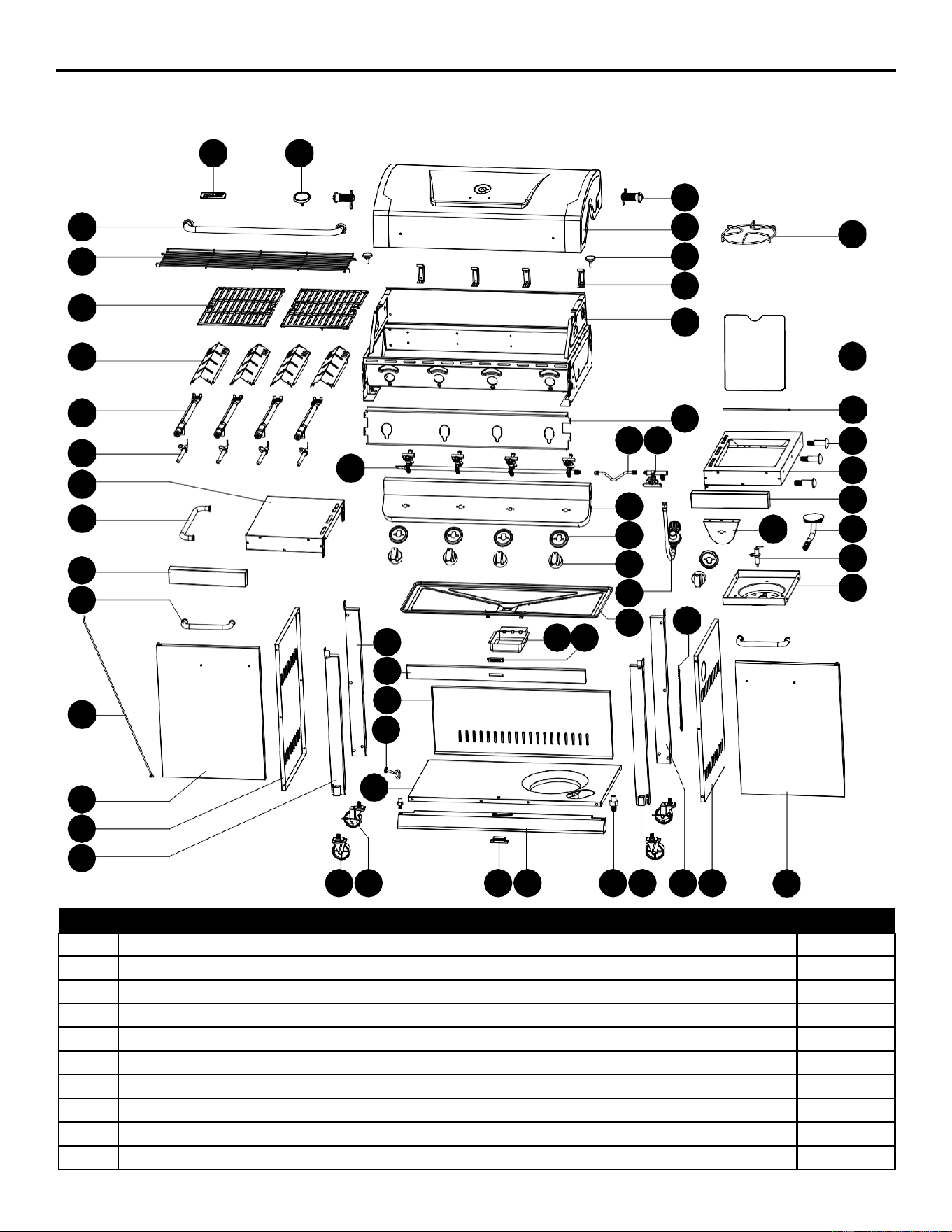

REPLACEMENT PARTS LIST
29
For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m.,
CST, Monday – Friday.
3
3
4
4
5
5
6
6
7
7
8
8
9
9
1
10
0
1
11
1
1
12
2
1
1
3
3
1
1
4
4
1
15
5
1
1
6
6
2
2
1
1
5
5
6
6
5
5
5
5
5
54
4
5
53
3
5
5
2
2
5
5
7
7
4
4
9
9
5
5
0
0
4
4
2
2
4
4
4
4
4
4
5
5
4
4
6
6
4
4
7
7
4
4
8
8
4
4
3
3
3
3
6
6
3
3
7
7
3
3
8
8
3
3
9
9
4
4
0
0
4
4
1
1
5
5
1
1
3
3
5
5
3
3
4
4
3
3
3
3
3
3
2
2
3
3
1
1
3
3
0
0
2
2
9
9
2
2
8
8
2
2
7
7
2
2 6
6
1
1
7
7
1
1 8
8
1
1
9
9
2
2 0
0
2
2
1
1
2
2 2
2
2
2
3
3
2
2
4
4
2
2
5
5
PART
DESCRIPTION
PART #
1
Temp gauge assembly
70-01-786
2
Badge
70-10-540
3
Hood handle
70-01-788
4
Warming rack
70-02-315
5
Cooking grate
70-02-316
6
Heat tent
70-01-791
7
Main burner with clip
70-01-792
8
Main burner sparker
70-01-793
9
Left side table assembly
70-01-794
10
Towel Handle
70-01-795
REPLACEMENT PARTS LIST
30
For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m.,
CST, Monday – Friday.
PART
DESCRIPTION
PART #
11
Left side table front panel
70-01-796
12
Door handle
70-01-797
13
Cylinder blocking bar
70-02-317
14
Left door assembly - DGP483SSP-D / DGP483SSP - Stainless
70-02-318
Left door assembly - DGP483CSP-D / DGP483CSP - Black
70-02-319
Left door assembly - DGP483GSP-D / DGP483GSP - Gunmetal
70-02-320
Left door assembly - DGP483MSP-D / DGP483MSP - Mocha
70-02-321
15
Cart left side panel
70-01-803
16
Cart left front leg tube
70-02-406
17
Non-locking swivel caster
70-01-805
18
Locking swivel caster
70-01-806
19
Door magnet A
70-01-807
20
Bottom panel skirt assembly
70-02-402
21
Door axis
70-01-809
22
Cart right front leg tube
70-02-410
23
Cart right rear leg tube
70-01-811
24
Cart right side panel
70-01-812
25
Right door assembly - DGP483SSP-D / DGP483SSP - Stainless
70-02-323
Right door assembly - DGP483CSP-D / DGP483CSP - Black
70-02-324
Right door assembly - DGP483GSP-D / DGP483GSP - Gunmetal
70-02-325
Right door assembly - DGP483MSP-D / DGP483MSP - Mocha
70-02-326
26
Side burner pan
70-01-817
27
Side burner sparker
70-01-818
28
Side burner
70-01-819
29
Right side burner control panel
70-01-820
30
Right side table front panel
70-01-821
31
Right side burner body assembly
70-01-822
32
Tool hook
70-01-823
33
Side burner lid rod
70-01-824
34
Side burner lid
70-01-825
35
Side burner rack
70-01-826
36
Hood hinge (with nut, washer and clip)
70-01-827
37
Hood assembly - DGP483SSP-D / DGP483SSP - Stainless
70-02-327
Hood assembly - DGP483CSP-D / DGP483CSP - Black
70-02-328
Hood assembly - DGP483GSP-D / DGP483GSP - Gunmetal
70-02-329
Hood assembly - DGP483MSP-D / DGP483MSP - Mocha
70-02-330
38
Lid bumper
70-01-832
39
Main burner heat tent support
70-01-833
40
Firebox assembly
70-02-331
41
Control panel heat shield
70-02-332
42
Corrugated hose assembly
70-01-836
43
Side valve
70-01-837
REPLACEMENT PARTS LIST
31
Printed in China
For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m.,
CST, Monday – Friday.
PART
DESCRIPTION
PART #
44
Control Panel - DGP483SSP-D / DGP483SSP, DGP483GSP-D / DGP483GSP, DGP483MSP-D /
DGP483MSP - Stainless
70-02-333
Control Panel - DGP483CSP-D / DGP483CSP - Black
70-02-334
45
Control knob bezel
70-01-184
46
Control knob
70-01-185
47
Regulator and hose assembly
70-01-842
48
Grease pan
70-02-335
49
Grease cup
70-01-844
50
Door magnet B
70-01-845
51
Match holder with chain
70-01-846
52
Tank screw assembly
70-01-847
53
Cart rear panel
70-02-336
54
Upper front door brace
70-02-337
55
Cart left rear leg tube
70-01-850
56
Main valves and manifold assembly
70-01-970
57
Cart bottom panel shelf
70-02-001
N/A
Hardware Pack
70-09-540
