USER’S MANUAL AND OPERATING INSTRUCTIONS
C US
PROPANE CONSTRUCTION HEATER
CONSUMER: Retain this manual for future reference.
GENERAL HAZARD WARNING
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS,
OR DAMAGE FROM THE HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON
MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD
USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTION
MANUAL, LABELS, ETCETERA, CONTACT THE MANUFACTURER.
Printed in China IMLPFQ - MFZ
LPFA60Q(-01) (36,000/60,000 BTU/HR, FORCED - AIR)
LPFA60QA(-01) (36,000/60,000 BTU/HR, FORCED - AIR)
LPFA60QDG(-01) (36,000/60,000 BTU/HR, FORCED - AIR)
LPFA60W(-01) (36,000/60,000 BTU/HR, FORCED - AIR)
LPFA60QT(-01) (36,000/60,000 BTU/HR, FORCED - AIR)
LPFA60QP(-01) (36,000/60,000 BTU/HR, FORCED - AIR)
LPFA125Q(-01) (70,000/125,000 BTU/HR, FORCED - AIR)
LPFA125QA(-01) (70,000/125,000 BTU/HR, FORCED - AIR)
LPFA125QDG(-01) (70,000/125,000 BTU/HR, FORCED - AIR)
LPFA125W(-01) (70,000/125,000 BTU/HR, FORCED - AIR)
LPFA125QT(-01) (70,000/125,000 BTU/HR, FORCED - AIR)
LPFA125QP(-01) (70,000/125,000 BTU/HR, FORCED - AIR)
ANS Z83.7-2017 CSA 2.14-2017
Contruction Heater
Adequate ventilation
must be provided.
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
FA60 Series FA125 Series
PROPANE CONSTRUCTION HEATER
3
Introduction & Specications ................................................................................................................. 4
Air Quality Hazard ................................................................................................................................. 4
General Safety Instructions ................................................................................................................... 6
Product Features ................................................................................................................................... 6
Unpacking Heater .................................................................................................................................. 7
Size & Capacity Of Propane Cylinders .................................................................................................. 8
Installation To The Propane Gas Tank ................................................................................................... 9
Relling The Propane Gas Tank ............................................................................................................ 9
Leak Checking & Positioning Heater ................................................................................................... 10
Lighting & Shutdown Instructions ........................................................................................................ 10
Test Firing Heater & Storage ................................................................................................................11
Troubleshooting ................................................................................................................................... 12

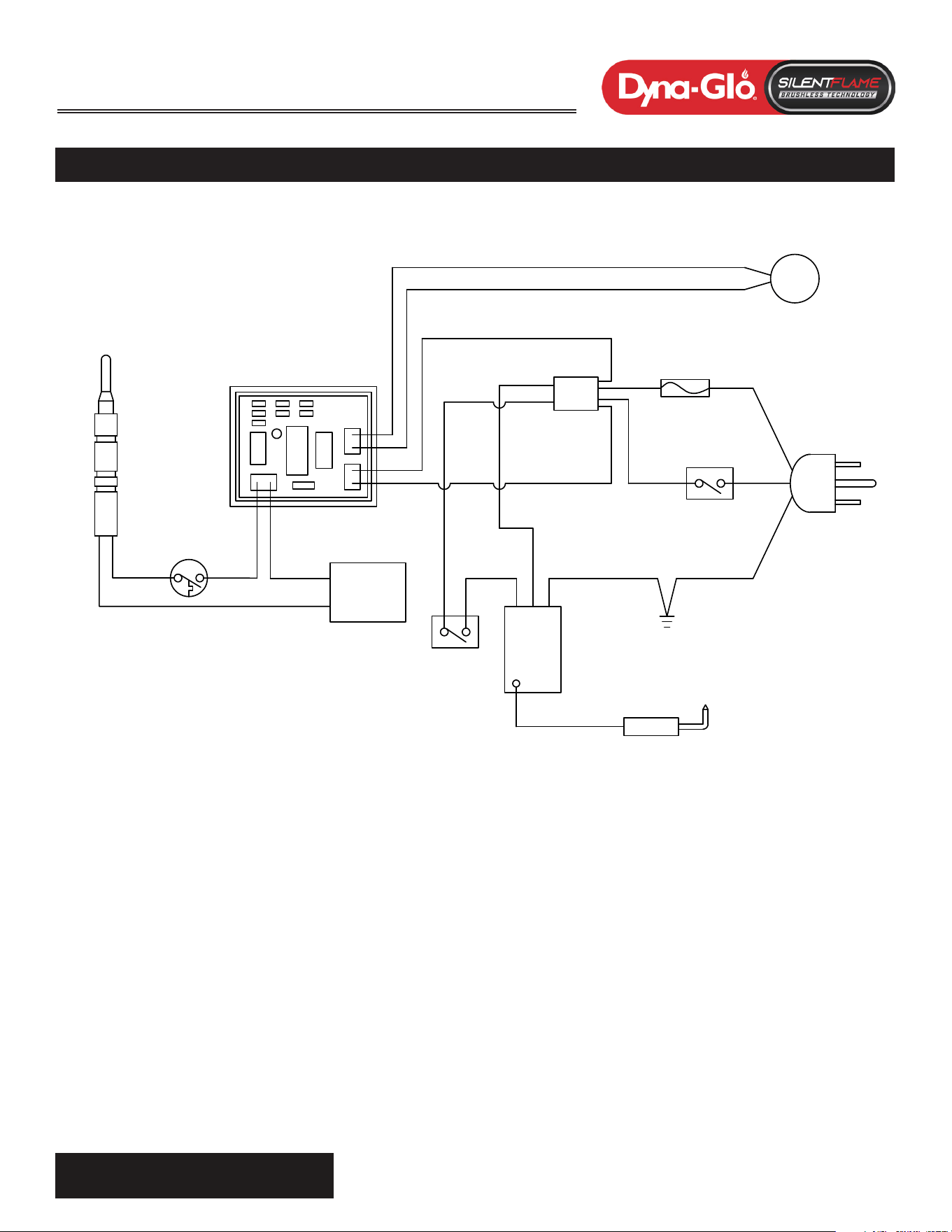

Wiring Diagrams .................................................................................................................................. 13

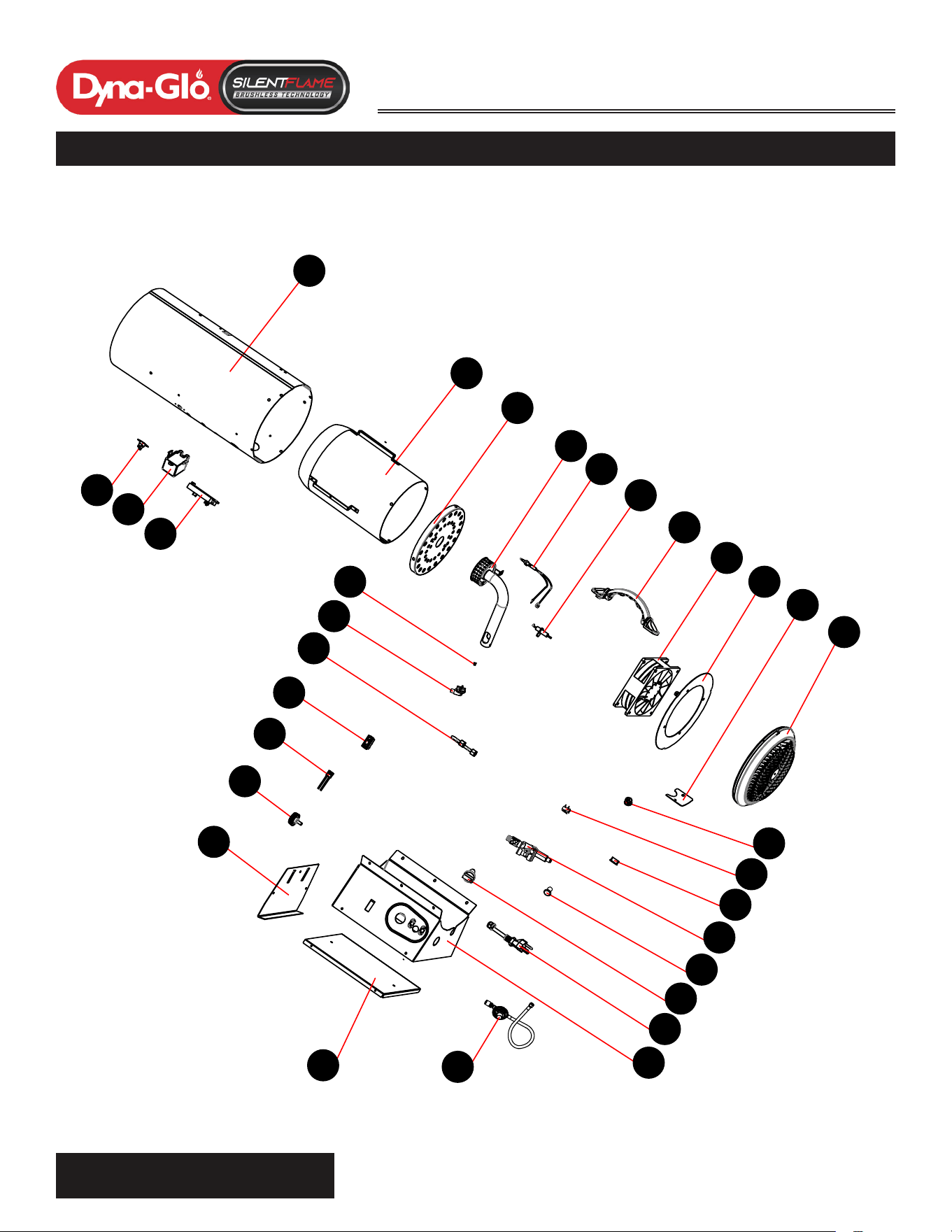

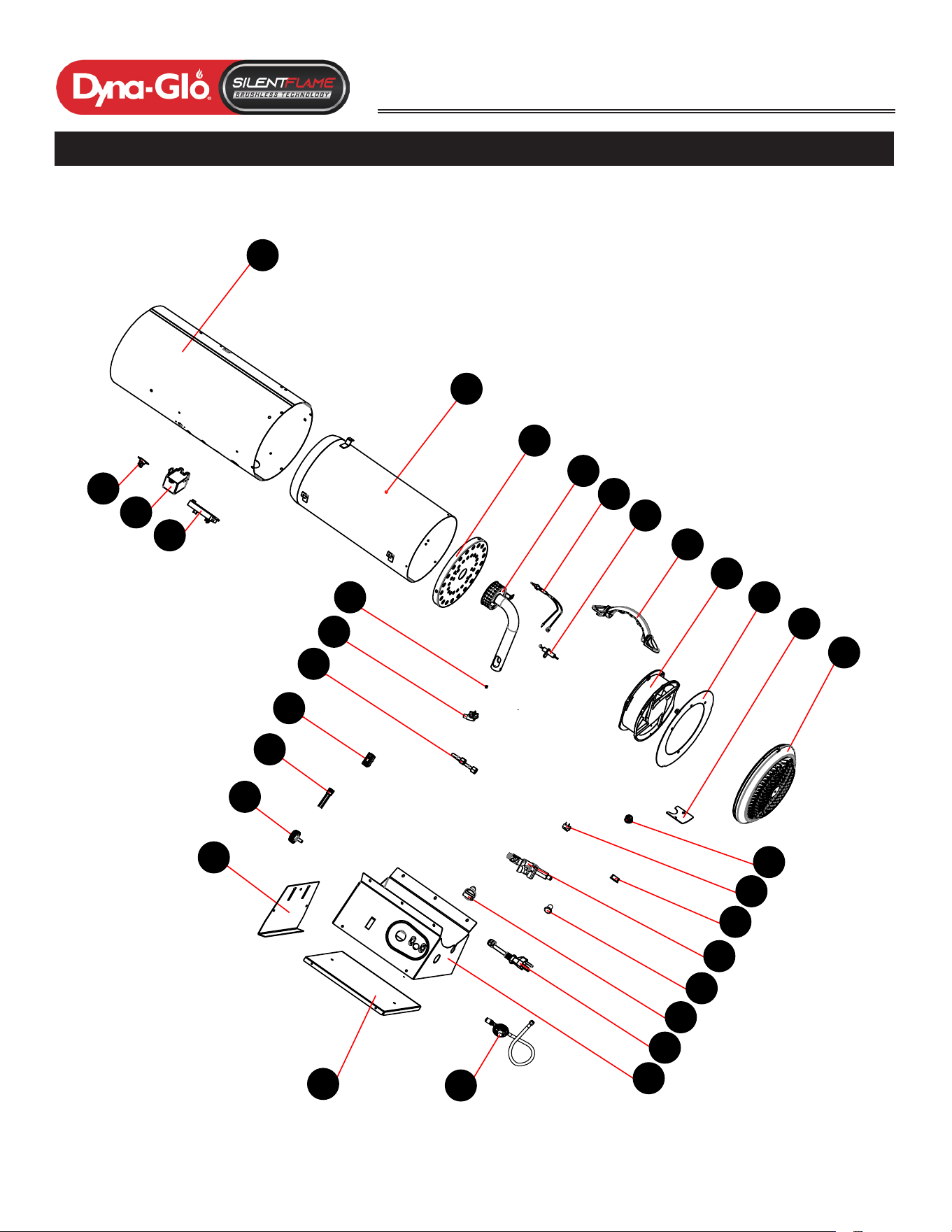

Illustrated Parts Breakdown (60 Series, 125 Series) ..................................................................... 14, 16
Replacement Parts List (60 Series, 125 Series)............................................................................ 15, 17
Warranty .............................................................................................................................................. 18
TABLE OF CONTENTS
WARNING: NOT FOR HOME OR RECREATIONAL VEHICLE USE.
WARNING
: FIRE, BURN, INHALATION, AND EXPLOSION HAZARD, KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE
DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS.
NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR
AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT
THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.
WARNING
: Using this heater in a residential garage requires that the heater is positioned
so that it is protected against any possible damage by a moving vehicle, etc. It must be
positioned so that the base of the heater is no less than 18 in (450 mm) above the garage oor or
8 ft (2450 mm) in repair garages. The heater must be placed on a stable surface. Do not place it on
a chair, ladder, etc. Raising the heater will reduce BUT NOT eliminate the possibility of lighting the
vapor of any ammable liquids which may be improperly stored or accidentally spilled. If the smell of
gasoline is present, DO NOT operate this heater until the area has been properly ventilated.
WARNING: CONSTRUCTION HEATERS ARE NOT FOR USE IN
GARAGES IN CANADA.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
WARNING:
This product and the fuels used to operate this product (liquid propane),
and the products of combustion of such fuels, can expose you to chemicals including benzene,
which is known to the State of California to cause cancer and reproductive harm.
For more information go to www.p65Warnings.ca.gov
PROPANE CONSTRUCTION HEATER
4
The heater is designed and approved for use as a construction heater under ANS Z83.7 CSA 2.14. It is hard
to anticipate every use which may be made of this heater. CHECK WITH YOUR LOCAL FIRE SAFETY
AUTHORITY IF YOU HAVE QUESTIONS ABOUT APPLICATIONS.
DYNA-GLO PROPANE FORCED AIR CONSTRUCTION HEATERS
This is a direct-red forced air construction heater for either indoor construction or outdoor use. Its intended
use is primarily the temporary heating of buildings or structures under construction, alteration or repair. All the
products of combustion generated by the heater are forced through the heater and released into the area being
heated. This heater operates at approximately 99%+ combustion efciency but still produces a small amount
of carbon monoxide. Humans can tolerate small amounts of carbon monoxide for short periods. Carbon
monoxide can build up in a heated space and failure to provide adequate ventilation could result in poisoning
or death.
Other standards govern the use of fuel gases and heat producing products in specic applications.
Your local authority can advise you about these.
IMPORTANT: READ THIS USER’S MANUAL CAREFULLY AND COMPLETELY BEFORE TRYING
TO OPERATE OR SERVICE THIS HEATER. IMPROPER USE OF THIS HEATER CAN CAUSE
SERIOUS INJURY OR DEATH FROM FIRE, EXPLOSION AND CARBON MONOXIDE POISONING.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
WARNING
: NOT FOR USE WITH DUCT WORK.
• Do not use this heater for heating human living quarters.
• Use of direct-red heaters in the construction environment can result in exposure to levels of CO, CO
2
, and
NO
2
considered to be hazardous to health and potentially life threatening.
• Do not use in unventilated areas
• Know the signs of CO and CO
2
poisoning
▫ Headaches, stinging eyes
▫ Dizziness, disorientation
▫ Difculty breathing, feels of being suffocated
• Proper ventilation air exchange (OSHA 29 CFR 1926.57) to support combustion and maintain acceptable
air quality shall be provided in accordance with OSHA 29 CFR Part 1926.154, ANSI A10.10 Safety
Requirements for Temporary and Portable Space Heating Devices and Equipment used in the Construction
Industry or the Natural Gas and Propane Installation Codes CSA B149.1
▫ Periodically monitor levels of CO, CO
2
and NO
2
existing at the construction site – at the minimum at the
start of the shift and after 4 hours.
▫ Provide ventilation air exchange, either natural or mechanical, as required to maintain acceptable indoor
air quality
WARNING
Air Quality Hazard
PROPANE CONSTRUCTION HEATER
5
SPECIFICATIONS
USA 8-Hr Time weighted average
(OSHA 29 CFR 1926.55 App A)
CO 50 ppm
CO
2
5000 ppm
NO
2
USA – Ceiling Limit
(Short Term Exposure Limit = 15 minutes)
CO
CO
2
NO
2
5 ppm
Canada 8-hr time weighted average
WorkSafe BC OHS Guidelines Part 5.1
and Ontario Workplaces Reg 833
25 ppm
5000 ppm
3 ppm (Reg 833)
Canada STEL (15 minutes Reg 833/1 hour WSBC)
WorkSafe BC OHS Guidelines Part 5.1 and Ontario
Workplaces Reg 833
100 ppm
15000 ppm (WSBC)
30000 ppm (Reg 833)
1.0 ppm (WorkSafeBC)
5.0 ppm (Reg 833)
• Ensure that the ow of combustion and ventilation air exchange cannot become obstructed.
• As the building ‘tightens up’ during the construction phases ventilation may need to be increased.
Model No. FA 60 Series FA 125 Series
INPUT RATING 36000 BTU/hr , 60000 BTU/hr 70000 BTU/hr , 125000 BTU/hr
TYPE OF GAS PROPANE PROPANE
GAS SUPPLY PRESSURE TO REGULATOR MAXIMUM BOTTLE PRESSURE BOTTLE PRESSURE
MINIMUM (FOR PURPOSE OF INPUT ADJUSTMENT) 25 PSI / 172 KPa 25 PSI / 172 KPa
MANIFOLD PRESSURE 5 PSI 5 PSI
GAS CONSUMPTION (Lb/Hr) High-2.78 Low-1.67 High 5.79 Low-3.29
GAS CONSUMPTION (Kg/Hr) High-1.26 Low-0.76 High 2.63 Low-1.49
ELECTRICAL INPUT 120 V , 60 Hz 120 V , 60 Hz
AMPERAGE LOAD 0.22 AMPS 0.35 AMPS
IGNITION ELECTRONIC SPARK ELECTRONIC SPARK
SPARK GAP 4 mm (0.157”) 4 mm (0.157”)
SIZE (LxWxH)
43.9 cm x 19.8 cm x 35.1 cm
(17.3” x 7.8” x 13.8”)
56.9 cm x 22.1 cm x 43.7 cm
(22.4” x 8.7” x 17.2”)
PROPANE CONSTRUCTION HEATER
6
Accidents are always tragic especially because so many of them could have been prevented with little care
and judgment. There are some basic good practices, we hope you will follow for safe use of your heater.
• Children should be carefully supervised, when they are in the area.
• Always maintain proper clearance from combustible materials. Minimum clearance from combustibles: Side
- 24” (61 cm); Top - 48” (121.9 cm); Front - 72” (183 cm). Floor - combustible. Not for use on nished oors.
• Heater must be placed on level and stable surface.
• Never place anything including clothes or other ammable items on the heater.
• The appliance area shall be kept clear and free from combustible materials, gasoline and other ammable
vapours and liquids.
• Do not modify or operate a heater which has been modied.
• Adequate clearance for accessibility and for combustion & ventilation air supply must be maintained at all
times when the heater is operating.
• Service and repair should be done by a qualied service person. The heater should be inspected
before each use and at least annually by a qualied person. More frequent cleaning may be required as
necessary. Do not service while hot or operating.
• Never connect heater to an unregulated gas supply.
• The heater is shipped from the factory for LP(Propane) gas. This heater is for use with propane gas only,
do not convert heater to any other gas. Installation must conform to local codes or, in the absence of local
codes, with the standard for the Storage and Handling of Liqueed Petroleum Gases ANSI/NFPA 58 and
the Natural Gas and Propane Installation Code CSA B149.1
• The minimum and maximum inlet pressures to the regulator from the gas tank are 25 psi minimum and
bottle pressure, respectively. Use only the regulator & hose assembly provided with the heater. Inspect the
regulator/hose assembly prior to each use of the heater. If there is excessive abrasion or wear, or hose is
cut, replace with regulator/hose assembly listed on the parts list prior to using this heater.
• Gas supply connections should be checked using a 50/50 solution of liquid dish soap and never use a
ame to check for gas leaks.
• The electrical connection & grounding must comply with National Electrical Code. ANSI/NFPA 70 or in
Canada CSA C22.1, Canadian Electrical Code, Part 1. Use only a properly grounded three (3) prong
receptacle.
• Do not restrict inlet or outlet by any means. The ow of combustion and ventilation air is not to be
obstructed.
• This heater should not be directed toward any propane-gas container within 20 ft (6M). The heater must be
located at least 6 ft. (1.83 m) in the U.S.; or (ii) 10 ft. (3 m) in Canada, from any propane gas container.
• The propane cylinder supply system must be arranged to provide for vapour withdrawal from the operating
cylinder.
• This heater is not to be used with external thermostats, timers or other devices that control or alter
electrical supply to the heater.
• For either indoor or outdoor use. Adequate ventilation shall be provided in accordance with OSHA 29 CFR
1926.154, Safety Requirements for Temporary and Portable Space Heating Devices and Equipment ANSI
A10.10, ANSI 223.1 / NFPA 54, Liquied Petroleum Gas Code, NFPA 58 or the National Gas and Propane
Installation Code, CAN B149.1 as appropriate.
PRODUCT FEATURES
• Portable & Stable • 100% Safety Shutoff System
• Wind Resistant & Rain Protected • Continuous Adjustable Input Ratings
• Electronic Spark Ignition
GENERAL SAFETY INSTRUCTION
IMPORTANT SAFETY INSTRUCTION
WARNING
: Motor and fan must be running before lighting, during operation and at shutdown,
in order to prevent a ame-out condition which could result in personal injury or property damage.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Assembly Components and Instructions for Steel Base Units:
PROPANE CONSTRUCTION HEATER
7
UNPACKING HEATER
1. Remove heater from carton.
2. Remove all protective packing applied to heater for shipment.
3. Retain cartons and packaging material until unit is operated and found in good condition.
4. Check heater for any shipping damage. If heater shows any external or internal
damage, promptly inform dealer/distributor where you purchased heater.
Assembly Components and Instructions for Steel Base Units:

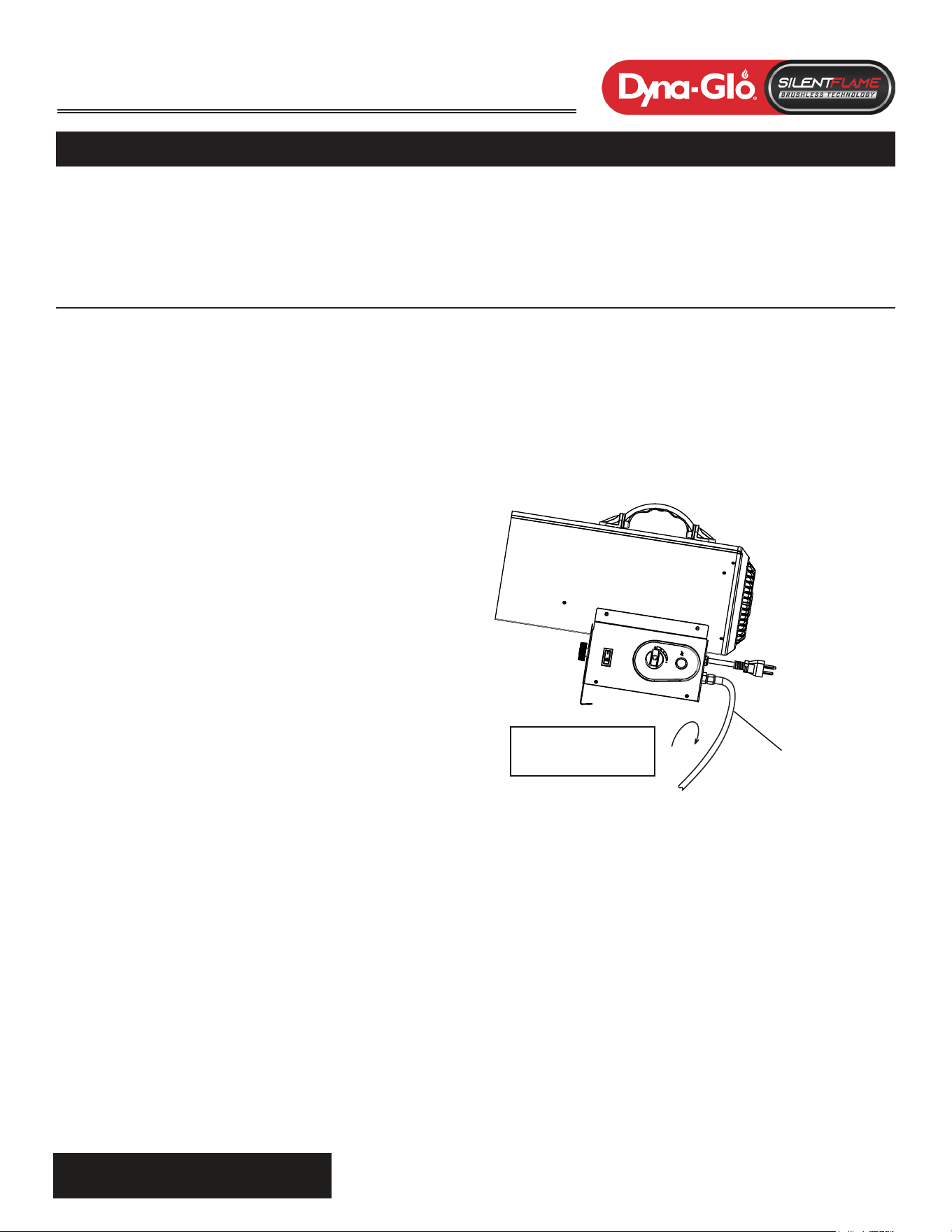

Regulator and Hose Connection:
(All Models)
See gure on right.
Connect the hose tightly to
the heater using a wrench.
Please also refer to
page 8 in the manual.
Tighten, clockwise,
use a wrench
Assembly Time:
5 Minutes
Contents:
All Models: Unit, Manual, Hose and
Regulator Assembly
Tools required for assembly:
All Models: Adjustable Wrench
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Hose Assembly
PROPANE CONSTRUCTION HEATER
8
INFORMATION ON SIZE * CAPACITY OF PROPANE GAS CYLINDERS:
The chart below shows the number and size of propane tanks needed to run this heater.
*Less gas is vaporized at lower temperatures.
You may need two or more 100 pound (45 kg) tanks or one larger tank in colder weather.
(See the parts list for your model of heater to get the specied regulator assembly.)
The propane (LP) gas tank must also be equipped with the following:
• A collar to protect the Propane gas valve.
• A shutoff valve terminating a Propane gas cylinder valve outlet as specied in the
American National Standards for Compressed Gas Cylinder Valve Outlets and Inlet
Connections.
• A safety relief valve having direct communications with the vapor space of the tank.
• An arrangement of vapor withdrawal.
The propane (LP) gas pressure regulator and hose assembly supplied with
this heater must be used without alteration.
The hose assembly shall be visually inspected prior to each use of the heater. If it is evident
that there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the
heater being put into operation. The replacement hose assembly shall be that specied
by the manufacturer.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Temperature
(°F-°C) at tank
Number of Tanks
36,000-60,000 BTU/h 70,000-125,000 BTU/h
Above
32°F (0°C)
1 - 20lb (9kg) 2 - 100lb (45kg)
32°F (0°C) 1 - 20lb (9kg) 2 - 100lb (45kg)
20°F (-7°C) 1 - 20lb (9kg) 2 - 100lb (45kg)
10°F (-12°C) 1 - 20lb (9kg) 3 - 100lb (45kg)
-10°F (-23°C) 2 - 20lb (9kg) Use Larger Tank
-20°F (-29°C) 1 - 100lb (45kg) Use Larger Tank
PROPANE CONSTRUCTION HEATER
9

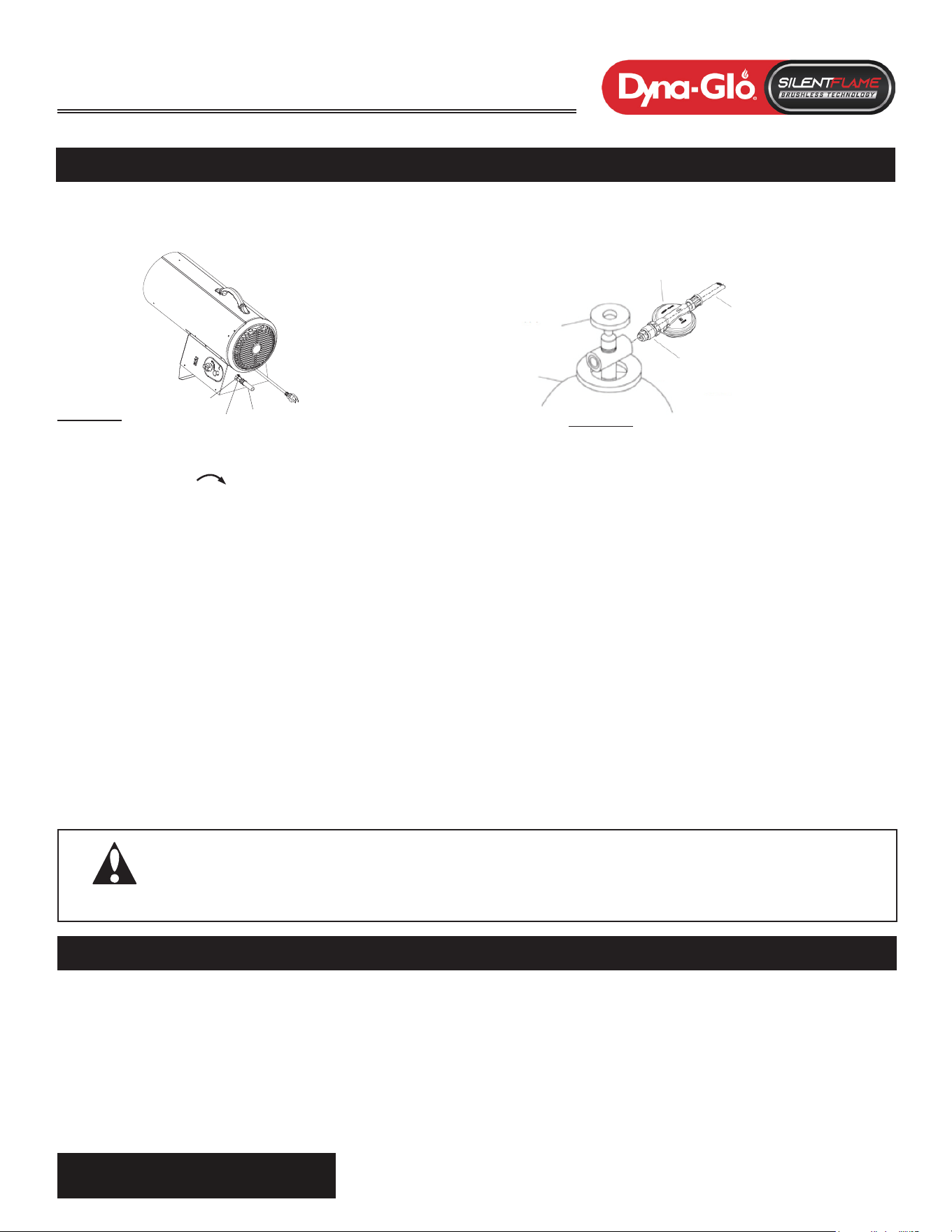

INSTALLATION TO THE PROPANE GAS TANK
IMPORTANT: You must use a propane/LP gas supply cylinder that is compatible with the connection device
provided with the hose and regulator.
REFILLING THE PROPANE GAS TANK
ALL NEW CYLINDERS MUST BE PURGED BEFORE THE FIRST FILLING.
• Turn heater gas valve knob and gas tank valve to OFF position.
• Propane tank valve equipped with the old style tting has LEFT HANDED THREADS. Turn POL tting
CLOCKWISE to loosen. Protect POL tting when disconnected from tank.
• Have tank lled by your local Propane gas supplier.
• Fasten full Propane tank and connect POL tting to tank valve by turning COUNTERCLOCKWISE.
• With heater gas valve knob still in the OFF position, turn ON tank valve and check for leaks
with soap solution.
WARNING
: Purging and lling of LP gas tanks must be performed by personnel who
has been thoroughly trained in accepted LP gas industry procedures. Failure to follow
these instructions may result in explosion, re, severe personal injury, or death.
1. Provide propane/LP supply system. Ensure that the valve on the cylinder is fully closed by turning the knob
fully clockwise ( ). Ensure that the cylinder is fully upright for vapor withdrawl. (see size/capacity, page 7).
2. Connect hose to heater inlet. (See Figure 1). Tighten rmly using a wrench. You must use the regulator
supplied with heater.
3. Connect fuel gas tting hose/regulator assembly to propane LP tank(s).
(See gure 2) Turn POL Fuel tting counterclockwise into threads on tank. Tighten
rmly using a wrench. Some models have a hand wheel that can be used to tighten the tting. This hand
wheel can be slid off of the nut so that a wrench can also be used to tighten the tting. IMPORTANT:
Position regulator so that hose leaving the regulator is in a horizontal position.
4. Open propane/LP supply valve on propane/LP tank(s) slowly. NOTE: If not opened slowly, excess ow
device in regulator may stop gas ow. If this happens, close propane/LP supply valve, wait one minute
(or until you hear a click) and open again slowly.
5. Check all connections for leaks. Apply a 50/50 solution of liquid dish soap and water to gas joints.
Bubbles forming show a leak that must be corrected.
6. Close propane / LP supply valve before attempting to repair connection.
FIGURE 2
D
C
E
4
2 3
65 7 8 9
1
C
D
E
F
APPROVED FOR PRODUCTION
ECN# APPROVED
DATE
1 2
3
4
5
6
F
987
REV NO.
ECN NO.
REV DATE
REVISION DESCRIPTION
TOLERANCES UNLESS OTHERWISE SPECIFIED
±1.0mm
±.03inch
±2°Angular
±.08mm<=
∅12.7mm
±.003inch<=
∅0.50
±.25mm>
∅12.7mm
±.010inch>
∅0.50
BEND
RADIUS：
0.3970mm -0 +0.025 mm
0.0156inch -0 +0.001 inch
MATERIAL SPEC.
C
CRITICAL DIMENSION
DESCRIPTION
FINISH:
SCALE:DO NOT SCALE
DRAFTER
VERIFIED
APPROVED
DATE:
DATE:
DATE:
GHP GROUP INC
FIRST ANGLE
PROJECTION
FRONT
RIGHT SIDE
SHEETS:
1 of 1
MODEL NUMBER:
2019-4-3
FA60Q
Gavin TT
Yeah
Connector lnlet
Hose Fitting
Hose to Regulator
Connector Inlet
Hose to Regulator
Hose Fitting
FIGURE 1
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Propane/LP
Supply Valve
Propane/LP
Tank
POL Fuel Gas
Fitting
Hose to Heater
Regulator
PROPANE CONSTRUCTION HEATER
10
PROPANE SAFETY
Propane is safe to use when properly handled. Careless handling of the Propane gas tank could
result in re and/or an explosion. Therefore:
• Always keep tank/cylinder securely fastened in an upright position.
• Avoid tipping tank on its side when connected to a regulator since this may cause damage to
diaphragm in regulator.
• Handle valves with care.
• Never connect an unregulated Propane tank to construction heater.
• Do not subject Propane tank to excessive heat.
• Tightly close the gas shutoff valve on the Propane tank after each use.
• The POL tting must be protected when disconnected from the propane tank.
• Never store a Propane gas tank inside a building or in the vicinity of any gas burning appliance.
THE DISCONNECTED TANK MUST NEVER BE STORED IN A BUILDING, GARAGE
OR ANY OTHER ENCLOSED AREA.
LEAK CHECKING
Check all gas connections with a soap solution to be sure they are tight and leak proof.
• The installation of your heater must meet all local codes and/or gas utility requirements or, in the
absence of local codes, with the Storage and Handling of Liqueed Petroleum Gases, ANSI/ NFPA
58 and the Natural and Propane Installation Code, CSA B149.1.
• The minimum clearances to combustible construction: Side - 24” (61 cm); Top - 48” (121.9 cm);
Front - 72” (183 cm); Floor - combustible, must be maintained at all times.
• The hose assembly should be visually inspected prior to each use of the heater. If it is evident that
there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the heater being
put into operation.
• The replacement hose assembly shall be that specied by the manufacturer (Refer to parts list).
LIGHTING INSTRUCTIONS
WARNING
: Motor and fan must be running before lighting, during operation and shutdown, in
order to prevent a ame-out condition which could result in personal injury or property damage.
1. Connect power cord to a properly grounded three (3) prong 120V, 60Hz, single phase receptacle.
2. Turn gas valve knob clockwise to the minus sign “—” position.
3. Wait ve (5) minutes to clear any gas. Then smell for gas. If you don’t smell gas, go to next step
4. Turn gas supply ON by turning propane tank valve counterclockwise .
5. Toggle the ON/OFF switch to the ON “ | ” position. Keep the gas control knob at the minus
sign “—” position.
6. Fully depress the ignition button “ ” and hold until the electric spark lights the burner.
7. Keep the ignition button “ ” pressed for at least 30 seconds after the burner is lit. After 30
seconds, release the ignition button.
8. If burner does not stay lit, repeat the lighting procedure.
9. When burner is lit, turn gas valve knob counterclockwise to desired setting.
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
PROPANE CONSTRUCTION HEATER
11
SHUTDOWN INSTRUCTIONS
TEST FIRING HEATER
Test re your construction heater, following the lighting instructions applicable to the gas control
system employed. Leak test all gas connections with soap solution. Soap bubbles indicate gas
leakage. DO NOT use a match or ame to test for gas leaks.
STORAGE
Never store a Propane gas tank inside a building or in the vicinity of any gas or oil burning appliance.
When the Propane tank is not disconnected from the construction heater, the gas tank and heater
must be stored outdoors in a well ventilated area, out of the reach of children. If for any reason the
heater is to be stored indoors, the tank must be disconnected and stored outdoors in a well ventilated
area out of reach of children, in accordance with the standard for the the Storage and Handling of
Liqueed Petroleum Gases, ANSI / NFPA 58 and CSA B149.1, Natural Gas and Propane Installation
Code. The plastic tank valve plug supplied with your tank must be tightly installed when the tank is
disconnected from the heater.
MAINTENANCE INSTRUCTIONS
1. Turn unit off, allow heater to fully cool and disconnect propane hose before performing any
maintenance functions. Unplug the unit from the 120V receptacle.
2. Keep unit clean and keep the inside of the torpedo housing debris free.
3. Have unit checked by a qualied technician at least once a year, preferably prior to the
heating season.
WARNING
: Motor and fan must be running before lighting, during operation and at shutdown,
in order to prevent a ame-out condition which could result in personal injury or property damage.
1. Turn gas valve knob clockwise to the minus sign “—” position.
2. Turn gas supply OFF by turning propane tank valve clockwise to close.
3. Keep the heater running for 30 seconds to get the excess heat out before turning it OFF.
4. Toggle the ON/OFF switch to the OFF “ ” position to turn off the fan motor
5. Disconnect the power cord once the heater has cooled to ambient temperature.
REPLACEMENT PARTS
Warning: Use only original replacement
parts. This Heater must use design-specic
parts. Do not substitute or use generic parts.
Improper replacement parts could cause
serious or fatal injuries.
This will also protect your warranty coverage
for parts replaced under warranty.
Parts warranty and non-warranty: Contact
authorized dealers of this product. If they can
not supply original replacement part(s), either
contact your nearest Parts Central or GHP
Group Inc., Technical Service Department at
1-877-447-4768.
When calling GHP Group Inc., have ready:
• your name
• your address
• how heater was malfunctioning
• serial number of heater
• model number of heater
• replacement part number
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
PROPANE CONSTRUCTION HEATER
12
Always be sure to follow proper maintenance procedures, by cleaning the heater once per
month during regular usage, and check spark gap at least once per season.
TROUBLESHOOTING
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not turn when
electrical connection
is made.
1. No electric power to heater.
2. Fan blade contacts inside of
heater housing.
3. Fan motor defective.
1. Check current to electric outlet. If
voltage is correct, check power cord
and extension cord for damage.
2. Be sure that housing is not damaged.
Make sure there are no obstructions
to the fan.
3. Replace motor.
Heater will not re. 1. No spark at ignitor.
2. Improper spark gap.
3. Bad electrode.
1. Check ignitor wire. Reattach or
tighten if loose. Check spark module.
Replace if necessary.
2. Set gap (see specications for gap).
3. Replace spark electrode.
Heater quits
while running.
1. Internal temperature too high
causing limit switch to shut
down operation.
2. Damaged Control Valve.
3. Dust or debris build-up inside
of heater.
1. If the heater’s output is restricted,
internal temperature becomes
too high. Move heater away from
any obstructions.
2. Replace Control Valve.
3. Clean inside of heater.
PROPANE CONSTRUCTION HEATER
13
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
WIRING DIAGRAMS
Power
Cord
Motor
Fuse
(3A/125V)
White
Black
Green
Green
Spark
Module
Black
Black
Micro
Switch
Black
Ignitor
On-O
Switch
YellowBlue
Valve
Thermal
Switch
Yellow
Thermocouple
PCB
Copper
Earth(Shell)
White
White
Jack
Plug
Black
Black
Black
White
White
MODELS: FA60 Series
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
PROPANE CONSTRUCTION HEATER
14
REPLACEMENT PARTS LIST
FA60Q 爆炸图
12
14
15
16
17
18
19
20
22
21
23
24
26
25
1
2
3
4
5
6
7
8
9
10
11
27
28
3031
13
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
MODELS: FA60 Series
ARTICLE # DESCRIPTION QTY PART NUMBER
1 Outer Shell 1 FA60Q-01
2 Inner Shell Assembly 1 FA60Q-02
3 Flame Cap 1 FA60Q-05
4 Burner Assembly 1 FA60Q-06
5 Thermocouple 1 FA60Q-16
6 Spark Electrode 1 FA60-04
7 Handle Assembly (Black) 1 FA40-10(B)
8 Quiet Motor Assembly 1 FA60Q-19
9 Motor Support 1 FA60Q-10
10 Venturi Tube Mounting Plate 1 FA60Q-14
11 Rear Guard 1 FA60Q-11
12 Thermal Switch 1 FA40-11
13 Spark Module 1 FA60Q-08
14 PCB Assembly 1 FA40-22
15 Nozzle 1 FA60Q-18
16 Nozzle Holder 1 GP126-SMT-01
17 Gas Inlet Tube Assembly 1 FA60Q-09
18 On/Off Switch 1 FA150NG-17
19 Wire 1 FA60Q-15
20 Height Controller Screw 1 FA40-08(B)
21 Height Controller 1 FA40-04
22 Strain Relief – Small 1 FA40-26
23 Microswitch 1 FA60Q-17
24 Strain Relief – Large 1 FA40-27
25 Valve Assembly 1 GZ32
26 Ignition Control Knob 1 FA60Q-13
27 Gas Control Knob 1 FA60Q-12
28 Power Cord Assembly 1 FA60Q-07
29 Base Assembly 1 FA60Q-03
30
Regulator & Hose Assembly – 10ft 1 GR-108-01-SMT-3000
Regulator & Hose Assembly – 15ft 1 GR-108-01-SMT-4580
31 Base Lower 1 FA60Q-04
* VERSION NOT SHOWN IN EXPLODED VIEW
PROPANE CONSTRUCTION HEATER
15
REPLACEMENT PARTS LIST
MODELS: FA125 Series
PROPANE CONSTRUCTION HEATER
16
PROPANE CONSTRUCTION HEATER ILLUSTRATED / PARTS BREAKDOWN
FA125Q 爆炸图
12
14
15
16
17
18
19
20
22
21
23
24
26
25
1
2
3
4
5
6
7
8
9
10
11
27
28
3031
13
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
ARTICLE # DESCRIPTION QTY PART NUMBER
1 Outer Shell 1 FA125Q-01
2 Inner Shell Assembly 1 FA125Q-02
3 Flame Cap 1 FA125Q-05
4 Burner Assembly 1 FA125Q-06
5 Thermocouple 1 FA60Q-16
6 Spark Electrode 1 FA60-04
7 Handle Assembly (Black) 1 FA40-10(B)
8 Quiet Motor Assembly 1 FA125Q-11
9 Motor Support 1 FA125Q-08
10 Venturi Tube Mounting Plate 1 FA60Q-14
11 Rear Guard 1 FA125Q-09
12 Thermal Switch 1 FA125Q-10
13 Spark Module 1 FA60Q-08
14 PCB Assembly 1 FA40-22
15 Nozzle 1 FA125Q-13
16 Nozzle Holder 1 GP126-SMT-01
17 Gas Inlet Tube Assembly 1 FA125Q-12
18 On/Off Switch 1 FA150NG-17
19 Wire 1 FA60Q-15
20 Height Controller Screw 1 FA40-08(B)
21 Height Controller 1 FA125Q-07
22 Strain Relief – Small 1 FA40-26
23 Microswitch 1 FA60Q-17
24 Strain Relief – Large 1 FA40-27
25 Valve Assembly 1 GZ33
26 Ignition Control Knob 1 FA60Q-13
27 Gas Control Knob 1 FA60Q-12
28 Power Cord Assembly 1 FA60Q-07
29 Base Assembly 1 FA125Q-03
30
Regulator & Hose Assembly – 10ft 1 GR-108-01-SMT-3000
Regulator & Hose Assembly – 15ft 1 GR-108-01-SMT-4580
31 Base Lower 1 FA125Q-04
* VERSION NOT SHOWN IN EXPLODED VIEW
MODELS: FA125 Series
PROPANE CONSTRUCTION HEATER
17
REPLACEMENT PARTS LIST
WARRANTY
LIMITED WARRANTY:
DUTIES OF THE OWNER:
This heating appliance must be operated in accordance with the written instructions furnished with this heater. This warranty shall not excuse
the owner from properly maintaining this heater in accordance with the written instructions furnished with this heater. A bill of sale, canceled
check or payment record must be kept to verify purchase date and establish warranty period. Original carton should be kept in case of warranty
return of unit.
WHAT IS NOT COVERED:
1. Damage resulting from use of improper fuel.
2. Damage caused by misuse or use contrary to the owners manual and safety guidelines.
3. Damage caused by a lack of normal maintenance.
4. Fuses
5. Use of non-standard parts or accessories.
6. Damage caused in transit. Freight charges on warranty parts or heaters to and from the factory shall be the responsibility of the owner.
This warranty does not imply or assume any responsibility for consequential damages that may result fr
om the use, misuse, or the lack of
routine maintenance of this heating appliance. A cleaning fee and the cost of parts may be charged for appliance failures resulting from lack of
maintenance. This warranty does not cover claims which do not involve defective workmanship or materials. FAILURE TO PERFORM
GENERAL MAINTENANCE (INCLUDING CLEANING) WILL VOID THIS WARRANTY.
THIS LIMITED WARRANTY IS GIVEN TO THE PURCHASER IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
I
NCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE. THE
REMEDY PROVIDED IN THIS WARRANTY IS EXCLUSIVE AND IS GRANTED IN LIEU OF ALL OTHER REMEDIES. IN NO EVENT WILL
GHP GROUP, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not
allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to y
ou.
CLAIMS HANDLED AS FOLLOWS:
1. Contact your retailer and explain the problem.
2. If the retailer is unable to resolve the problem, contact our Customer Service Dept. detailing the heater model, the problem, and proof
of date of purchase.
3. A representative will contact you. DO NOT RETURN THE HEATER TO GHP GROUP,INC. unless instructed by our Representative.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
TO REGISTER THE WARRANTY ON YOUR HEATER, PLEASE FILL OUT THIS CARD COMPLETELY
AND MAIL WI
THIN 14 DAYS FROM DATE OF PURCHASE OR REGISTER ON-LINE AT www.ghpgroupinc.com
NAME: ______________________________________ PHONE: ( ) __________________ EMAIL: ____________________________
ADDRESS: _________________________________ CITY: ______________________________ STATE: __________ ZIP: ____________
MODEL: ____________________ SERIAL #: _______________________________________ DATE PURCHASED: __________________
DEALER PURCHASED FROM: ____________________________________________ TYPE OF STORE: __________________________
CITY & STATE WHERE PURCHASED: ______________________________________________ PRICE PAID: _______________________
Please Take a Minute To Give Us Your Answers To The Following Questions.
All Responses Are Used Solely For Market Research And Are Held In Strict Confidence.
Who primarily decided this purchase?
Male Female 18-24 25-39 40-59 60 and over
Purpose of Purchase? _______________________________________________________________________________________________
Do you own any other portable heaters?
Yes No If yes, type____________________________brand_____________________
How do you intend to use your new heater?
Construction Site Farm Warehouse/Commercial Garage/Outbuilding Other
How did you become aware of this heater?
In-Store Display Newspaper Ad Magazine Ad Friend/Relative
TV Commercial Store Salesperson
Other ___________________________
What made you select this heater?
Style Size/Portability Price Package Brand Other ___________________
Do you:
own rent Would you recommend this heater to a friend? Yes No
Please give us your comments:________________________________________________________________________________________
THANK YOU FOR COMPLETING THIS FORM!
Information will be held confidential.
This limited warranty is extended to the original retail purchaser of this Forced Air/Convection/Radiant Heater and warrants against any defect
in materials and workmanship for a period of one (1) year from the date of retail sale (lifetime warranty for the brass nozzle burner only). GHP
Group, Inc., at it’s option, will either provide replacement parts or replace or repair the unit, when properly returned to the retailer where
purchased or one of our service centers as directed by GHP Group, Inc., within one (1) year of retail purchase. (Shipping costs, labour costs,
etc. are the responsibility of the purchaser.)
WARRANTY REGISTRATION
IMPORTANT: We urge you to fill out your warranty registration card within fourteen (14)
days of date of purchase. You can also register your warranty on the internet at
www.ghpgroupinc.com. Complete the entire serial number. Retain this portion of the card
for your records.
SAVE THIS CARD!
Place
Postage
Stamp
Here
GHP Group, Inc.
8280 Austin Avenue
Morton Grove, IL 60053-3207
GHP Group, Inc.
8280 Austin Ave.
Morton Grove, IL 60053-3207
Tel: (877) 447-4768
www.ghpgroupinc.com
8280 Austin Avenue
Mo rton Grove , IL.
6 0 053-3207
Tel: ( 847 ) 324 - 5900
Fax: ( 847 ) 324 - 5901
Toll Free (877) GHP Group
( 8 7 7 ) 4 4 7 - 4 7 6 8
www.ghpgroupinc.com
GHP
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
Tel: (877) 447-4768
www.ghpgroupinc.com
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
