INSTRUCTION MANUAL
4450W FRAME INVERTER GENERATOR
Model # MB5040C
Have product questions or need technical support? Please scan the QR code
to enter our official website and contact us!
Website: www.powersmartusa.com
Toll free: 1-872-314-0005 Mon-Fri 9-5 EST Website
Email: support@amerisuninc.com
/ support@powersmartusa.com
2
CONTENTS
TECHNICAL DATA
.........................................................................................4
INTRODUCTION
............................................................................................. 5
SAFETY INFORMATION
............................................................................... 6
SYMBOLS AND MEANINGS .........................................................................7
KNOWIN
G YOUR GENERATOR.................................................................12
GENERATOR PREPARATION
.....................................................................13
GENERATOR OPERATION ......................................................................... 16
MAINTENANCE
............................................................................................ 21
TROUBLESHOOTING......
..........................
................................................... 28

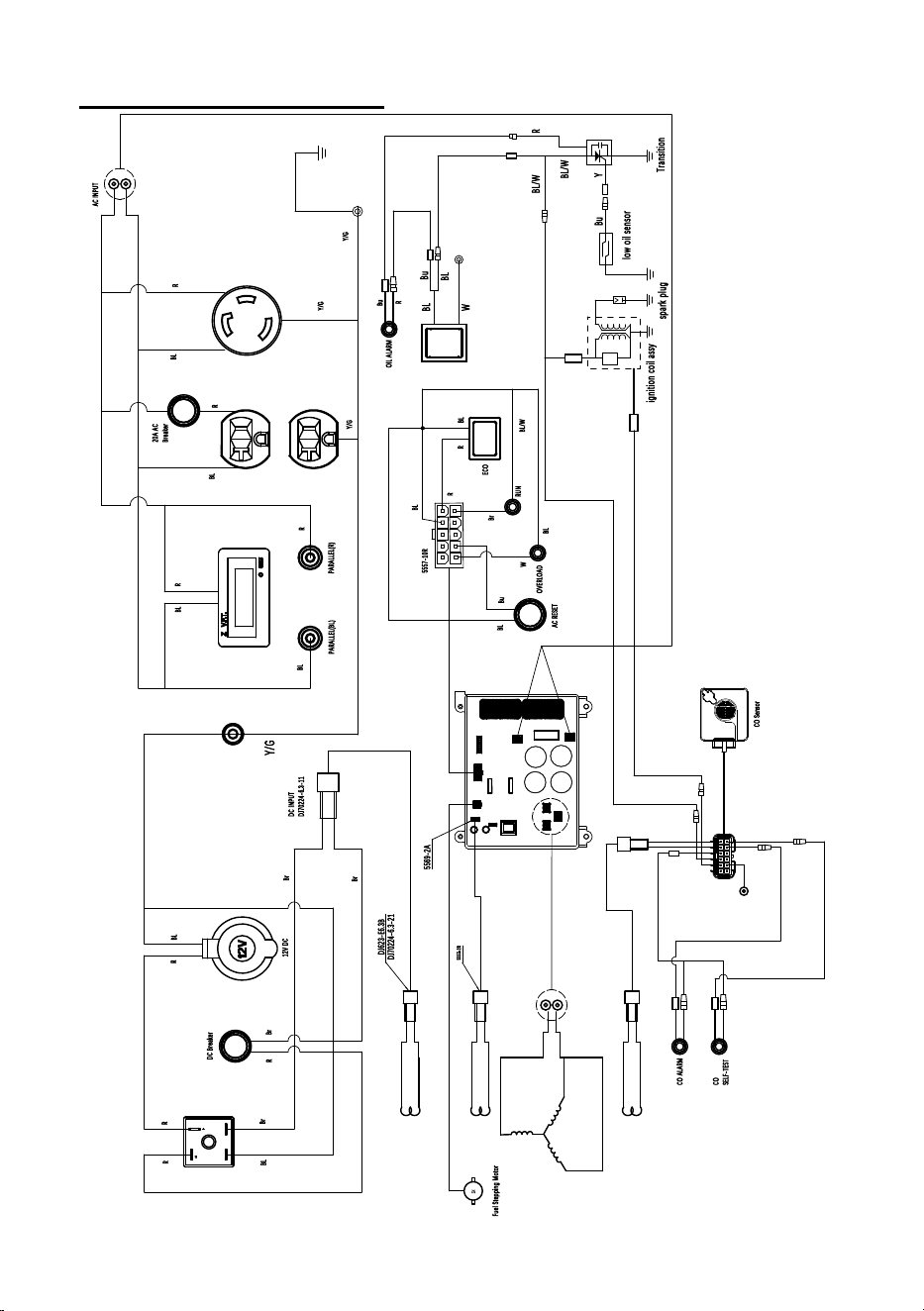

WIRING DIAGRAM ...................................................................................... 30

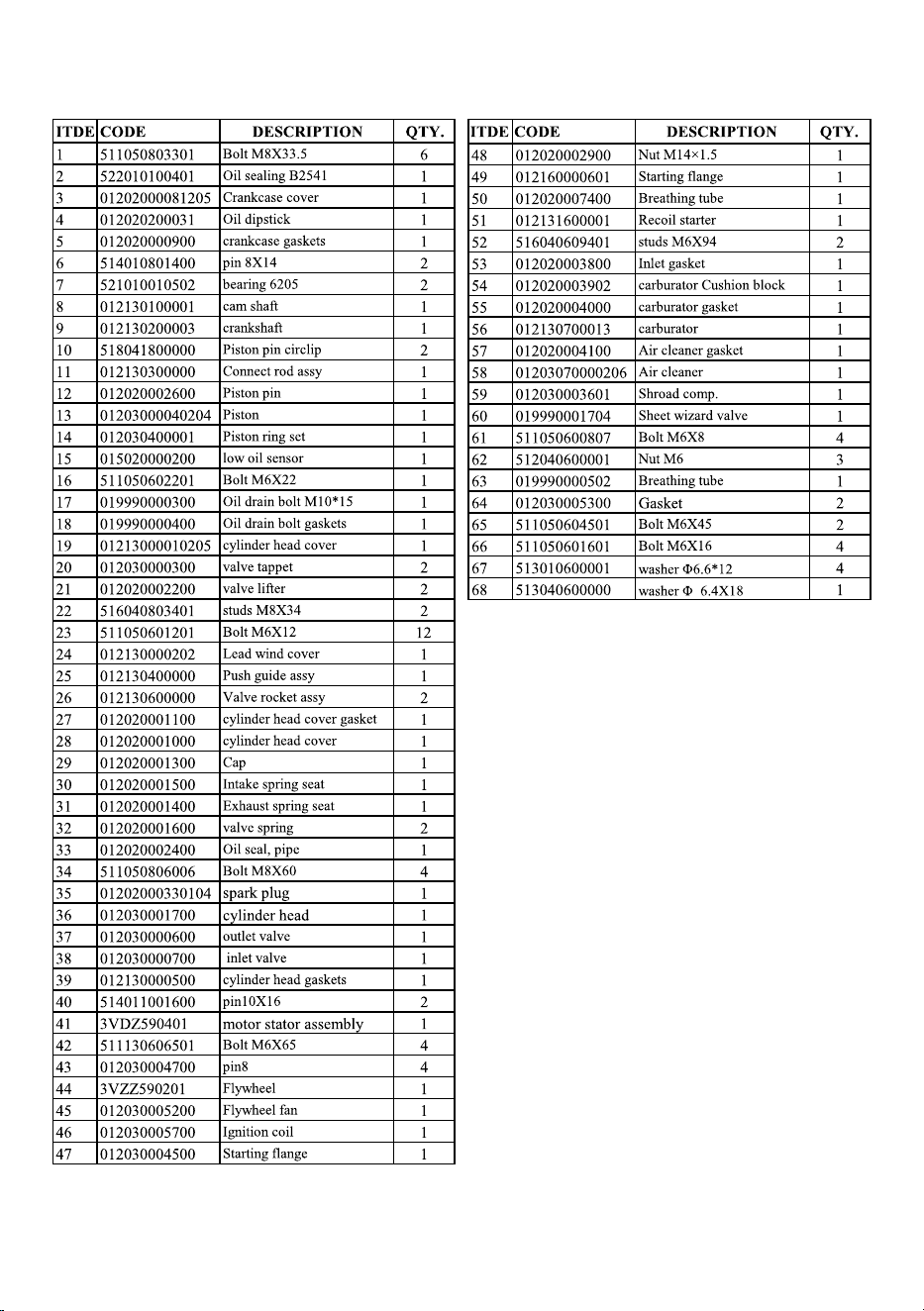

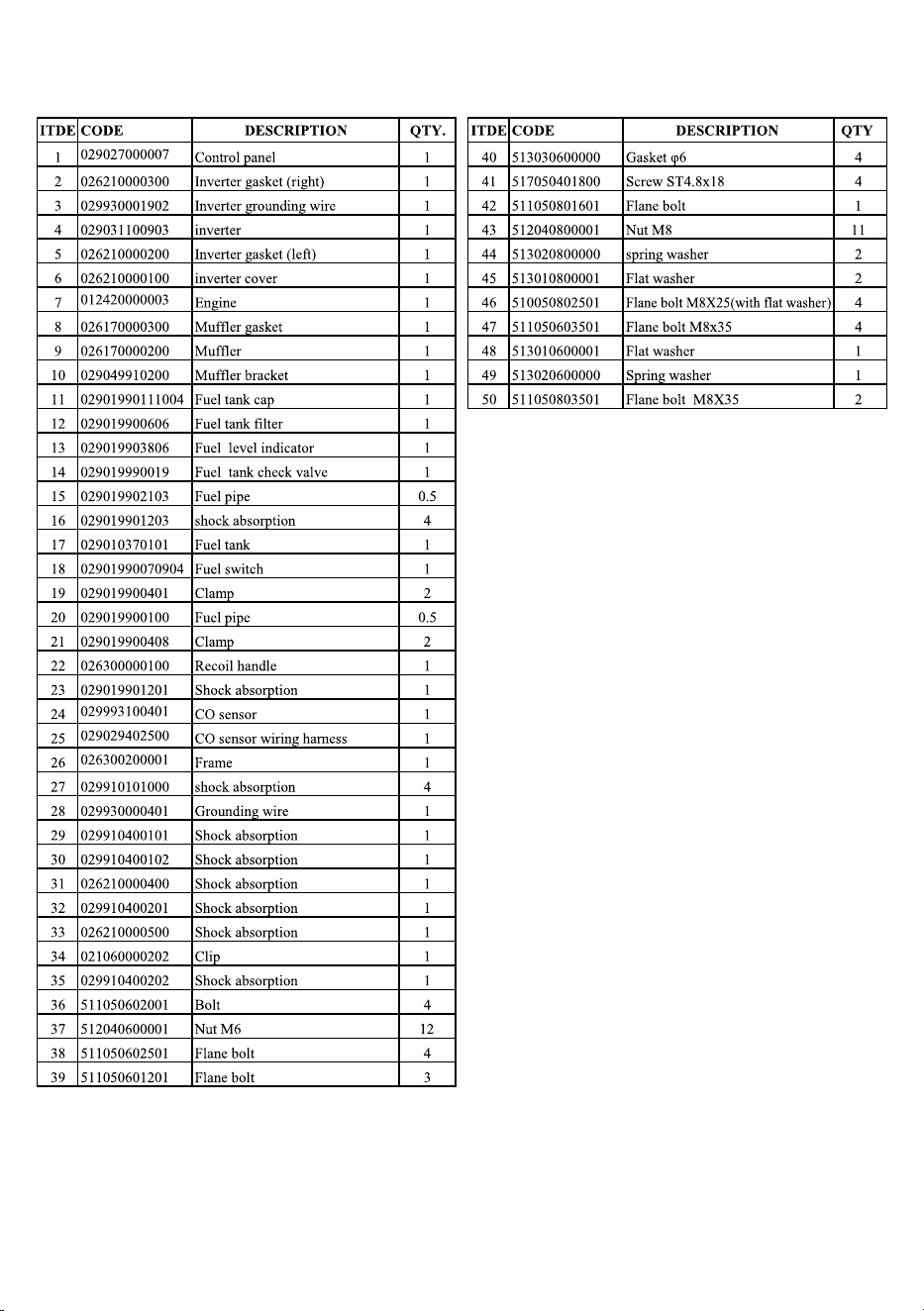

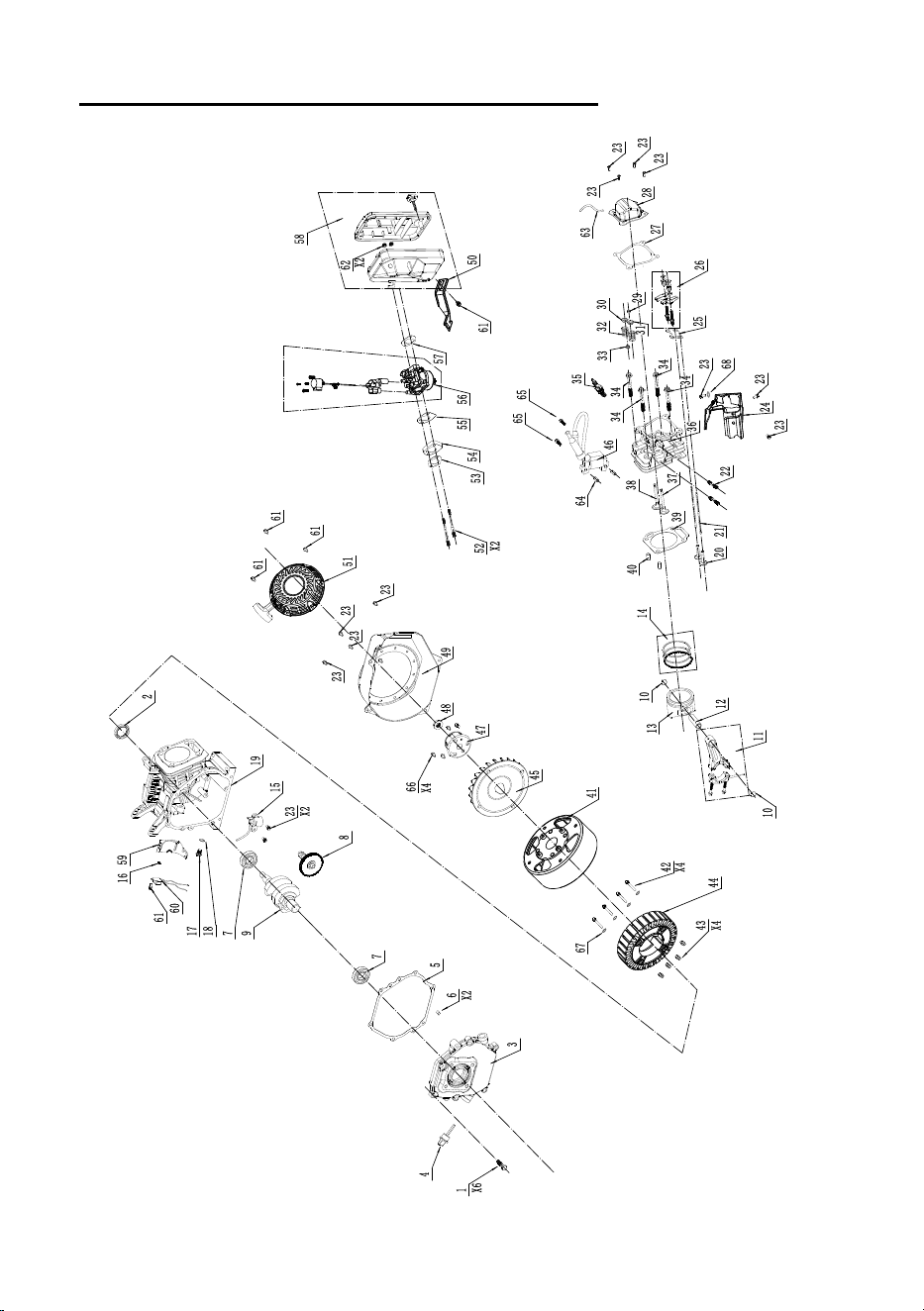

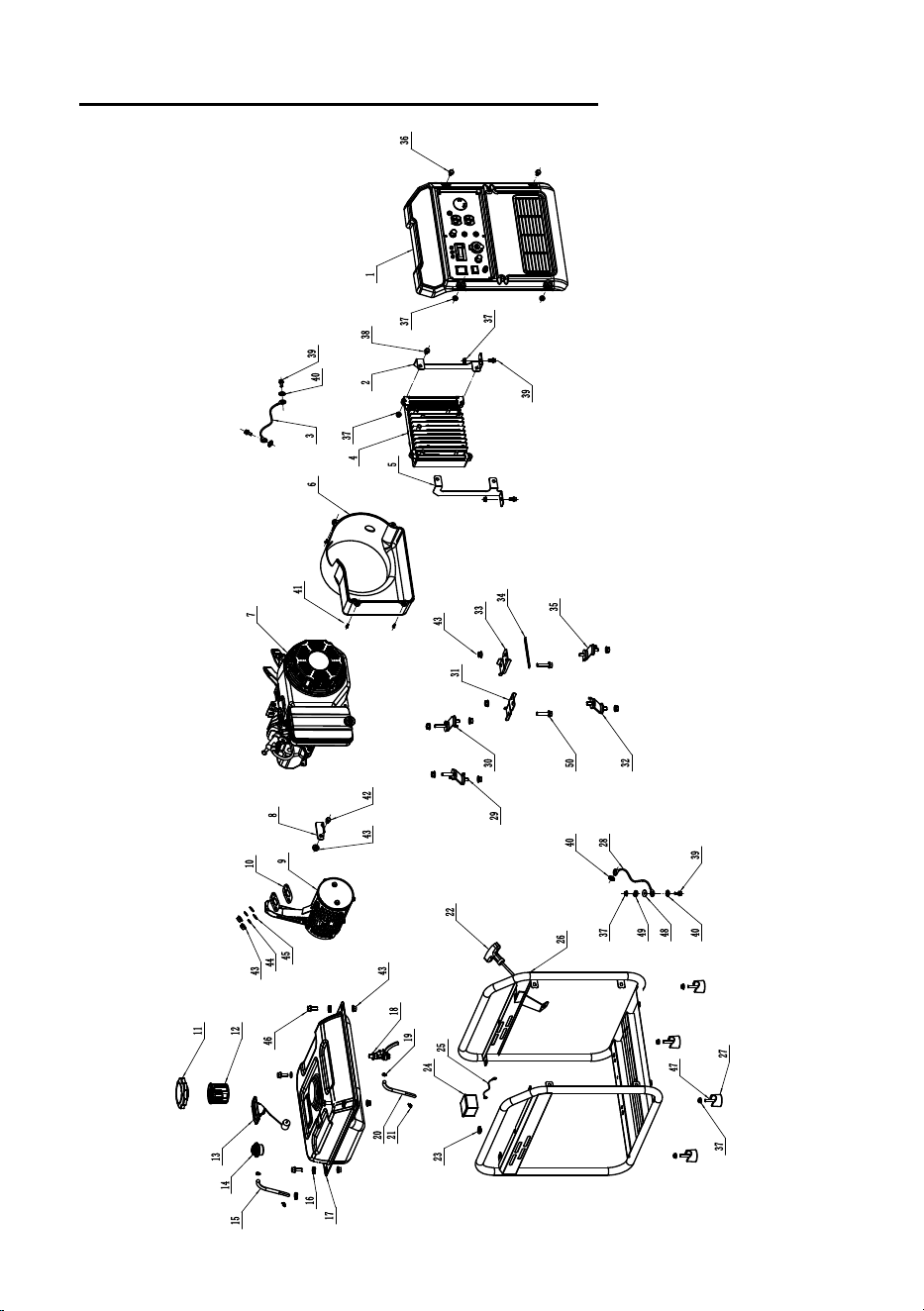

EXPLODED VIEW & PARTS LIST ..............................................................31

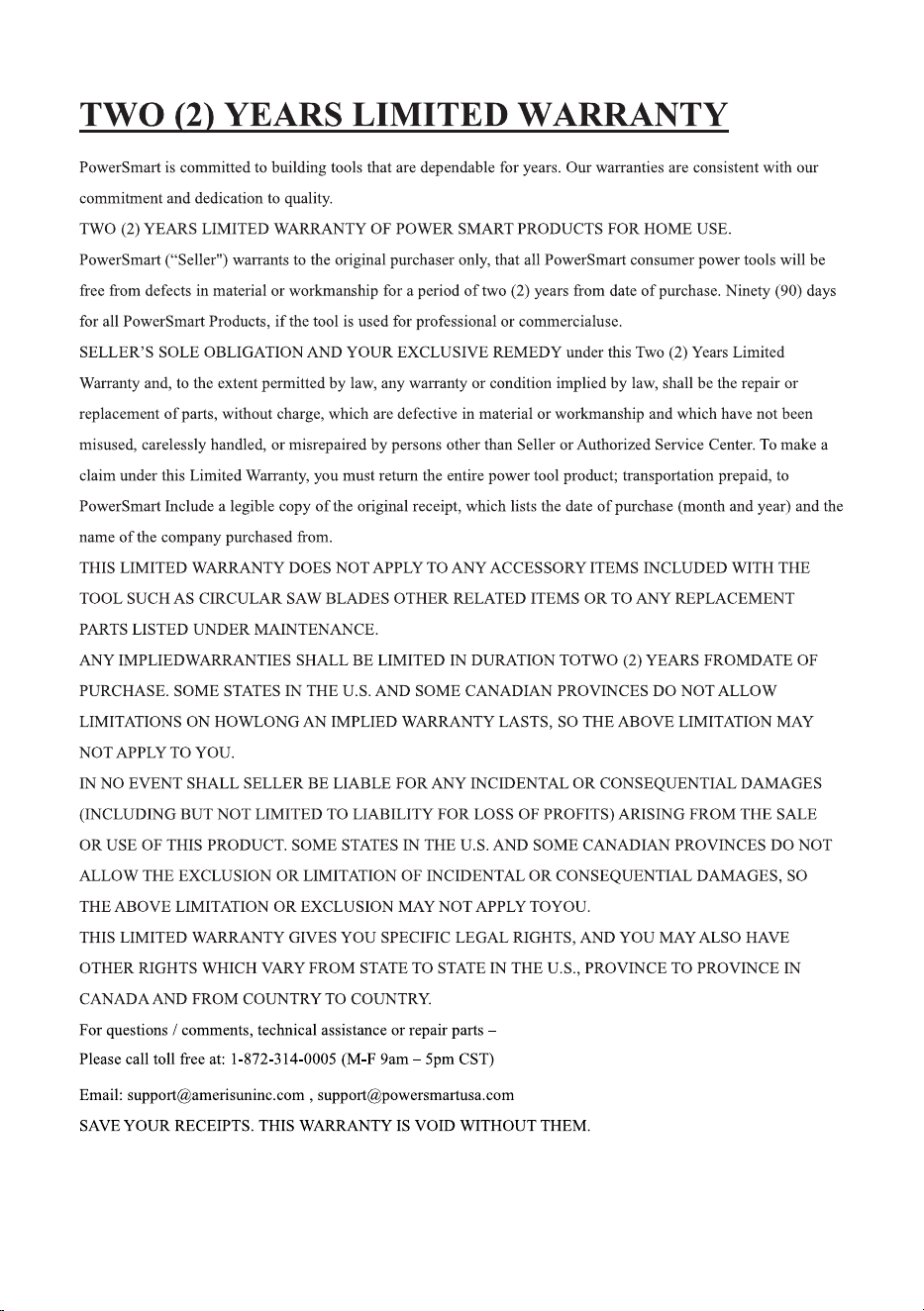

WARRANTY .................................................................................................. 35
3
TECHNICAL DATA
4450W Generator
：
Engine type:
Start type:
Phase:
Starting wattage:
Rated wattage:
Rated voltage:
DC output voltage:
Max AC Amperage:
Frequency:
Displacement:
Spark plug gap:
Fuel tank capacity:
Oil capacity:
Runtime at 50% load:
A-weighted sound pressure
level Lp
A:
Package dimensions(L x W x H):
Weight:
Model#MB5040C
4 stroke, OHV, single cylinder
with forced air-cooling system
Recoil
Single
4450W
3680W
120V
12V
30.6A
60Hz
223 cc
0.76 mm
2.7 gallons
20.3 fl.oz
11 hours
76db(A) at 23 feet
21.2x17.7x20.9 inch
68.8lb
4
INTRODUCTION
Thank You for Purchasing a PowerSmart® Product. This manual provides
information regarding the safe operation and maintenance of this product. Every
effort has been made to ensure the accuracy of the information in this manual.
PowerSmart® reserves the right to change this product and specifications at any
time without prior notice.
Please keep this manual available to all users during the entire life of the chipper
shredder.
This manual contains special messages to br
ing attention to potential
safety concerns,Generator Parallel Cable as well as helpful operating
and servicing information. Please read all the information carefully to
avoid injury and machine damage.
QUESTIONS? PROBLEMS?
Please contact our Customer Service Dept. with any questions and/or comments,
/ support@powersmartusa.com, or Toll
Free at (872)314-0005. We are available Mon-Fri 9am-5pm EST to help solve any
issues that you might encounter.
5
SAFETY INFORMATION
The manufacturer cannot anticipate every possible circumstance that might
involve a hazard. The warnings in this manual, and on tags and decals affixed to
the unit are, therefore, not all inclusive. If using a procedure, work method or
operating technique that the manufacturer does not specifically recommend, verify
that it is safe for others. Also make sure the procedure, work method or operating
technique utilized does not render the equipment unsafe. Throughout thi
s
publication, and on tags and decals affixed to the generator, DANGER,
WARNING, CAUTION and NOTE blocks are used to alert personnel to special
instructions about a particular operation that may be hazardous if performed
incorrectly or carelessly. Observe them carefully. Their definitions are as follows:
DANGER
Indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTE: Notes contain additional information important to a procedure and will be
found within the regular text of this manual. These safety warnings cannot
eliminate the hazards that they indicate. Common sense and strict compliance
with the special instructions while performing the action or service are essential to
preventing accidents.
6

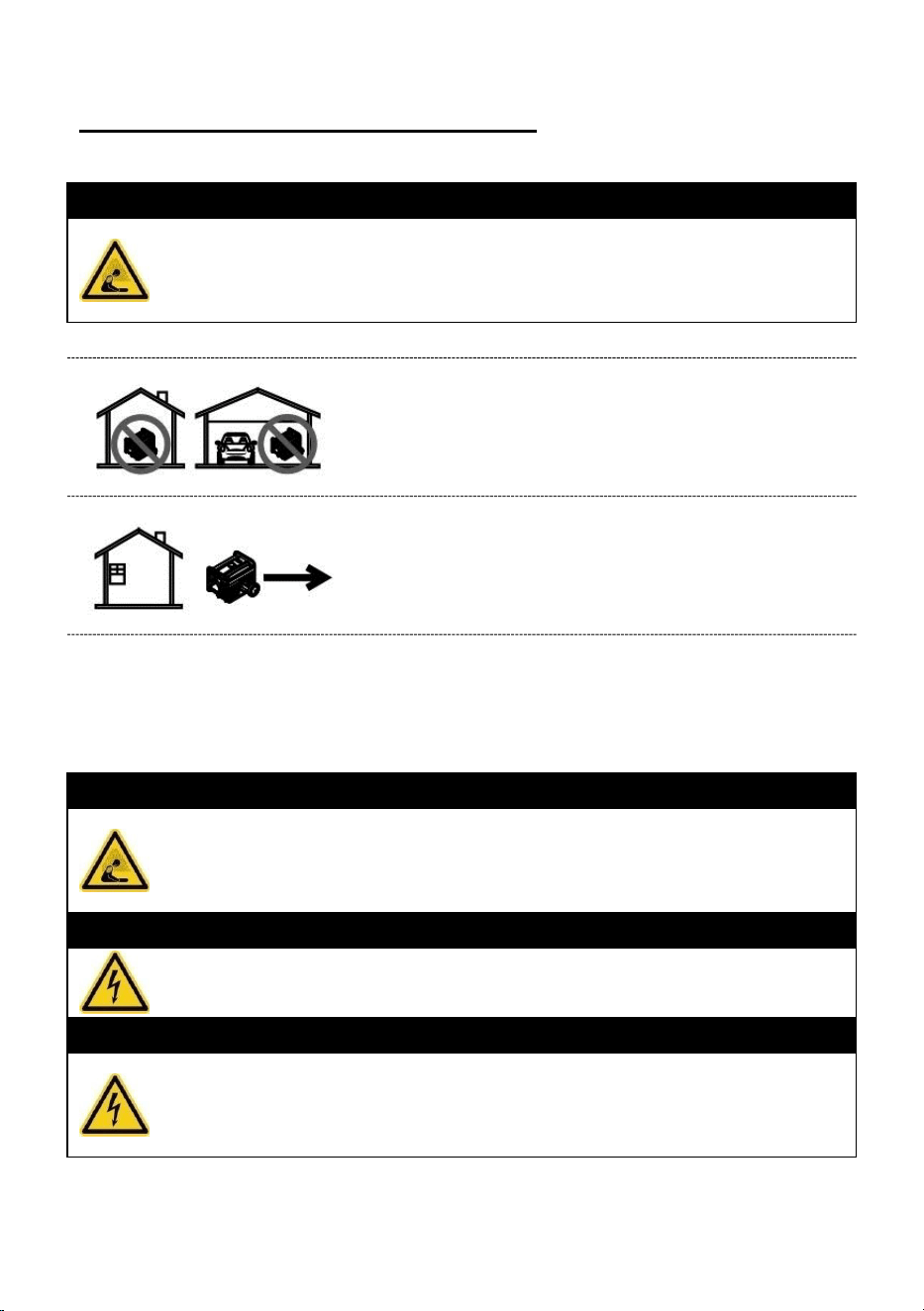

SYMBOLS AND MEANINGS
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES. Generator
exhaust contains carbon monoxide. This is a poison you cannot see or
smell.
NEVER use inside a home or garage, EVEN IF
doors and windows are open.
Only use OUTSIDE and far away from
windows, doors, and vents.
• Adequate, unobstructed flow of cooling and ventilating air is critical to correct
generator operation. Do not alter the installation or permit even partial blockage of
ventilation provisions, as this can seriously affect safe operation of the generator.
The generator MUST be operated outdoors.
DANGER
Asphyxiation. Running engines produce carbon monoxide, a colorless,
odorless, poisonous gas. Carbon monoxide, if not avoided, will result in
death or serious injury.
DANGER
Electrocution. Water contact with a power source, if not avoided, will
result in death or serious injury.
DANGER
Electrocution. Turn utility and emergency power supplies to OFF
before connecting power source and load lines. Failure to do so will
result in death or serious injury.
7
• It is recommended to obtain parts and service from your local IASD to keep this
unit in safe working order.
• Do not operate unit on uneven surfaces, or in areas where it can be exposed to
excessive moisture, dirt, dust, or corrosive vapors.
WARNING
Moving Parts. Keep clothing, hair, and appendages away from moving
parts. Failure to do so could result in death or serious injury.
WARNING
Hot Surfaces. When operating machine, do not touch hot surfaces.
Keep machine away from combustibles during use. Hot surfaces could
result in severe burns or fire.
WARNING
Equipment and property damage. Do not alter construction of,
installation, or block ventilation for generator. Failure to do so could
result in unsafe operation or damage to the generator.
WARNING
Do not insert any object through the air cooling slots. Generator can
start at any time and could result in death, serious injury, and unit
damage.
• When working on this equipment, remain alert at all times.
• Never work on the equipment when physically or mentally fatigued.
• Never use the generator or any of its parts as a step. Stepping on the unit can
stress and break parts, and may result in dangerous operating conditions from
leaking exhaust gases, fuel leakage, oil leakage, etc.
Hearing protection recommend.
8
Exhaust and Location Hazards
DANGER
Asphyxiation. Running engines produce carbon monoxide, a colorless,
odorless, poisonous gas. Carbon monoxide, if not avoided, will result in
death or serious injury.
DANGER
The exhaust system must be properly maintained. Do not alter or
modify the exhaust system as to render it unsafe or make it
non-compliant with local codes and/or standards. Failure to do so will
result in death or serious injury.
WARNING
Asphyxiation. Always use a battery operated carbon monoxide alarm
indoors and installed according to the manufacturer’s instructions.
Failure to do so could result in death or serious injury.
WARNING
Equipment and property damage. Do not alter construction of,
installation, or block ventilation for generator. Failure to do so could
result in unsafe operation or damage to the generator.
• If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air IMMEDIATELY. See a doctor, as you could have carbon
monoxide poisoning.
9
Electrical Hazards
DANGER
Electrocution. Contact with bare wires, terminals, and connections
while generator is running will result in death or serious injury.
DANGER
Electrocution. Water contact with a power source, if not avoided, will
result in death or serious injury.
• The frame and external electrically conductive parts of the generator need to be
properly connected to an approved earth ground. Local electrical codes may also
require proper grounding of the generator. Consult with a local electrician for
grounding requirements in the area.
DANGER
Electrocution. In the event of electrical accident, immediately shut
power OFF. Use non-conductive implements to free victim from live
conductor. Apply first aid and get medical help. Failure to do so will
result in death or serious injury.
WARNING
Accidental Start-up. Disconnect the negative battery cable, then the
positive battery cable when working on unit. Failure to do so could
result in death or serious injury.
10
Fire Hazards
WARNING
Accidental Start-up. Disconnect the negative battery cable, then the
positive battery cable when working on unit. Failure to do so could
result in death or serious injury.
DANGER

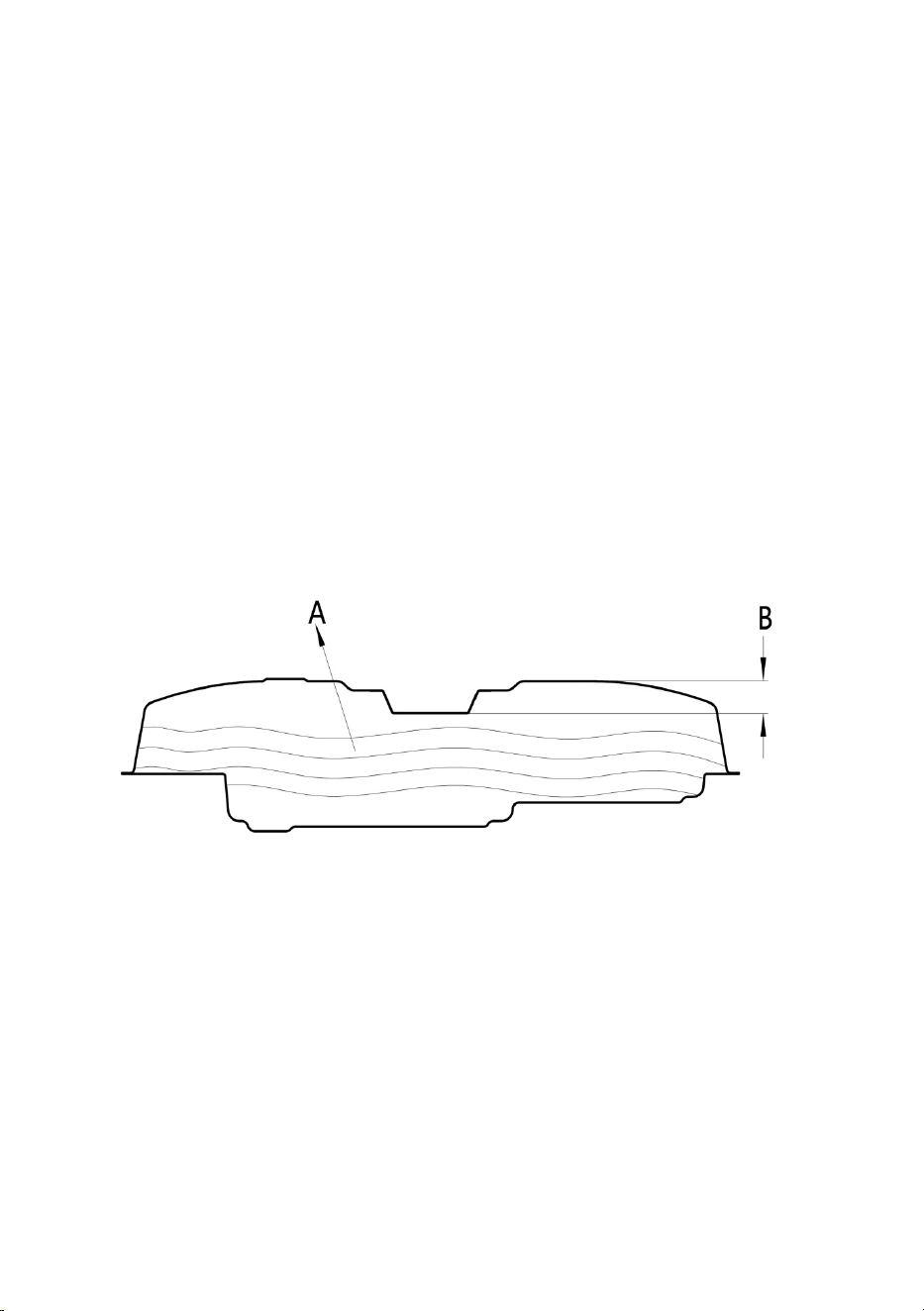

Do not overfill fuel tank. Fill to 1/2 in. of top of tank to allow for fuel
expansion. Overfilling may cause fuel to spill onto engine causing fire
or explosion, which will result in death or serious injury.
DANGER
Risk of fire. Allow fuel spills to completely dry before starting engine.
Failure to do so will result in death or serious injury.
WARNING
Do not insert any object through the air cooling slots. Generator can
start at any time and could result in death, serious injury, and unit
damage.
• Do not operate the generator if connected electrical devices overheat, if electrical
output is lost, if engine or generator sparks or if flames or smoke are observed
while unit is running.
• Keep a fire extinguisher near the generator at all times.
IMPORTANT NOTE: This list is not all inclusive. Check with the Authority
Having Jurisdiction (AHJ) for any local codes or standards which may be
applicable to your jurisdiction.
11

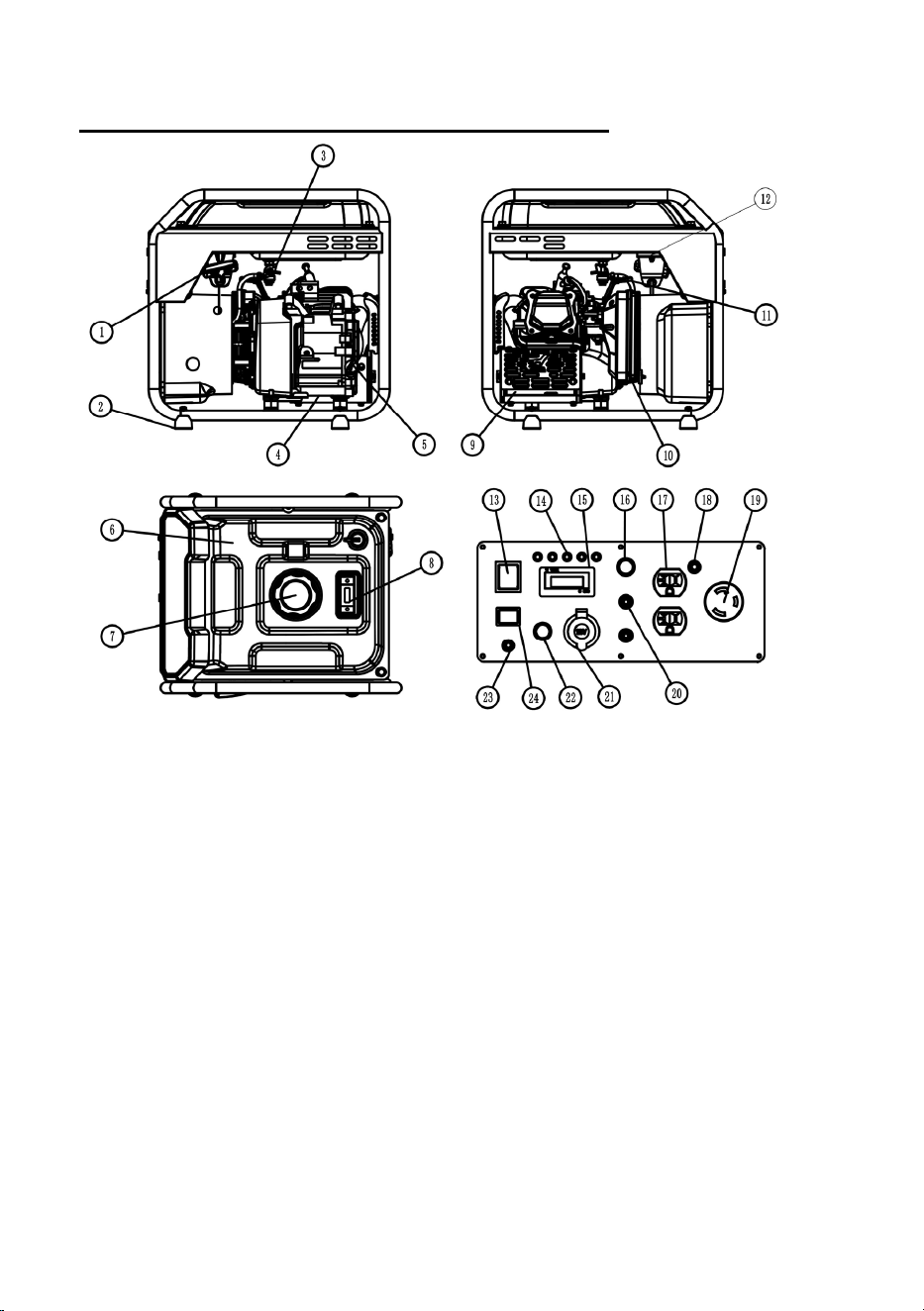

KNOWING YOUR GENERATOR
1 Recoil Starter
12 CO sensor
2 Grounding Lug
3 Air Filter
4 Oil Drain
5 Oil Fill
6 Fuel Tank
7 Gas Cap
8 Fuel Gauge
9 Muffler
10 Air Filter
11 CHOKE Knob
13 RUN/STOP Switch
14 LED ALARM
15 VFT meter
16 AC Breaker
17 20AVolt AC Sock
18 AC RESET
19 30A Volt AC Sock
20 PARALLEL OPERATION OUTLETS
21 12 Volt DC
23 Ground
24 ECO Switch
22 DC Breaker
12

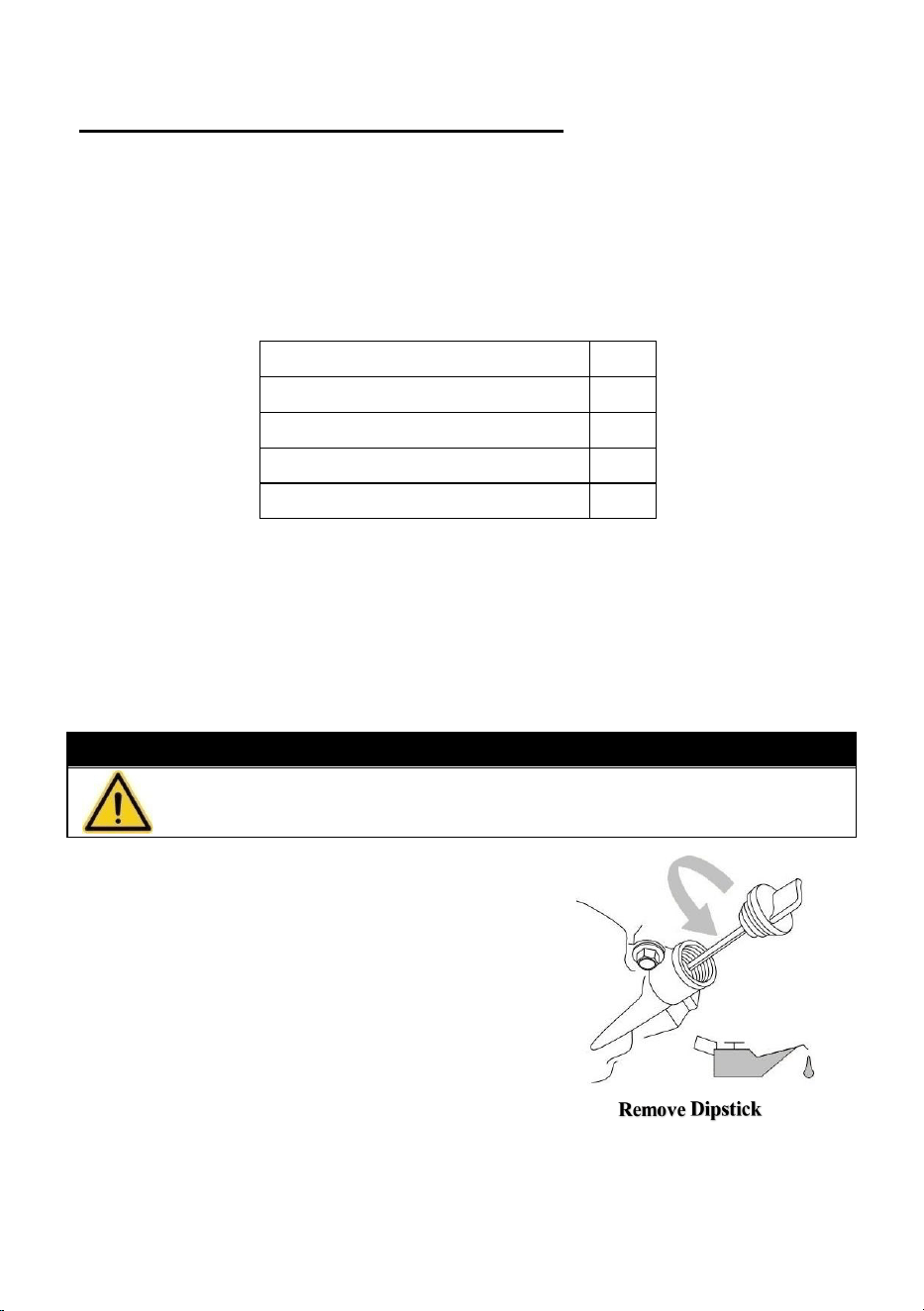

GENERATOR PREPARATION
Remove Contents From Carton
Open carton completely by cutting each corner from top to bottom.
Remove and verify carton contents prior to assembly. Carton contents should
contain the following:
Accessories
Unpack the generator and all its parts, and compare against the list. Do not discard
the carton or any packaging materials. Please call 1-872-314-0005 or E-mail us at
support@amerisuninc.com /support@powersmartusa.com if any parts are
damaged or missing.
Assembly Instruction
CAUTION
Engine damage. Verify proper type and quantity of engine oil prior to
starting engine. Failure to do so could result in engine damage.
Adding Engine Oil
1. Place generator on a level surface.
2. Verify oil fill area is clean.
3. Remove oil fill cap and wipe dipstick clean.

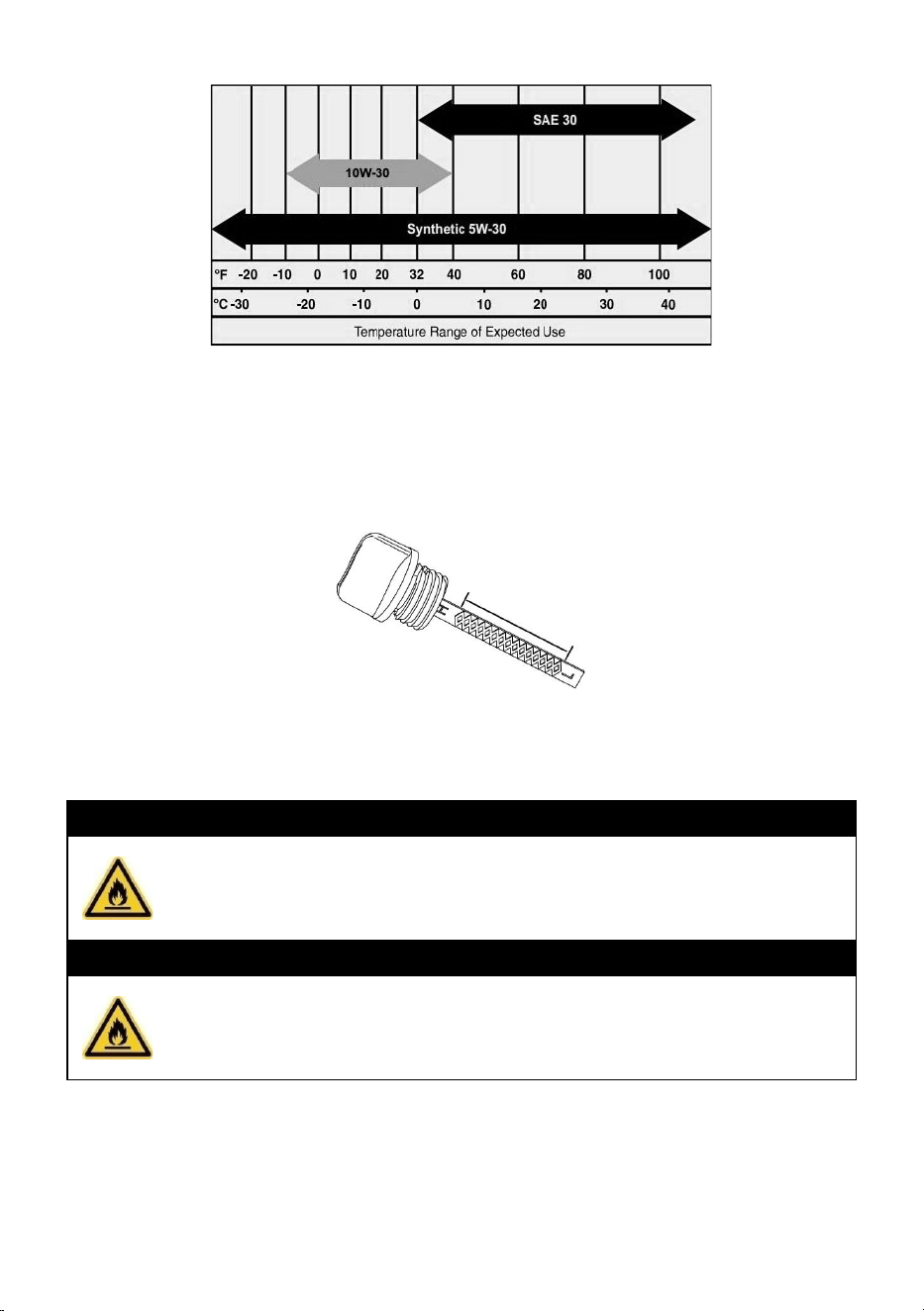

4. Add recommended engine oil as shown in the
following chart.
NOTE: Use petroleum based oil (supplied) for
engine break-in before using synthetic oil.
Item Qty.
Main Unit 1
Owner’s Manual 1
Spark Plug Tool 1
Oil funnel 1
13
NOTE: Some units have more than one oil fill location. It is only necessary to use
one oil fill point.
5. Thread dipstick into oil filler neck. Oil level is checked with dipstick fully
installed.
6. Remove dipstick and verify oil level is within safe operating range.
Safe Operating Range
7. Install oil fill cap/dipstick and hand-tighten.
DANGER
Explosion and Fire. Fuel and vapors are extremely flammable and
explosive. Add fuel in a well ventilated area. Keep fire and spark away.
Failure to do so will result in death or serious injury.
DANGER
Do not overfill fuel tank. Fill to 1/2 in. of top of tank to allow for fuel
expansion. Overfilling may cause fuel to spill onto engine causing fire
or explosion, which will result in death or serious injury.
14
Adding Fuel
Fuel requirements are as follows:
• Clean, fresh, unleaded gasoline.
• Minimum rating of 87 octane/87 AKI (91 RON).
• Up to 10% ethanol (gasohol) is acceptable (where available;
non-ethanol-premium fuel is recommended).
• DO NOT use E85.
• DO NOT use a gas oil mix.
• DO NOT modify engine to run on alternate fuels. Stabilize fuel prior to storage.
1. Verify unit is OFF and cooled for a mini-mum of two minutes prior to fueling.
2. Place unit on level ground in a well venti-
lated area.
3. Clean area around fuel cap and remove cap slowly.
4. Slowly add recommended fuel (A). Do not overfill (B).
5. Install fuel cap.
Add Recommended Fuel
NOTE: Allow spilled fuel to evaporate before starting unit.
IMPORTANT NOTE: It is important to prevent gum deposits from forming in
fuel system parts such as the carburetor, fuel hose or tank during storage.
Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture,
which leads to separat
ion and formation of acids during storage. Acidic gas can
damage the fuel system of an engine while in storage. To avoid engine problems,
the fuel system should be emptied before storage of 30 days or longer. See the
Storage section. Never use engine or carburetor cleaner products in the fuel tank
as permanent damage may occur.
15
GENERATOR OPERATION
Operating Location
• Only use OUTSIDE and place the generating set in a well-ventilated area.
• Only operate the generating set on a flat, level surface and in a clean, dry
operating environment.
• Allow two feet clearance on all side of the generating set while operating it
outdoors.
• Operate in specified area, if any problem on applicable occasion, please
consult the authorized local dealers. In some areas, generating set must be
registered with the local utility. Genera
ting set used to construction sites may
be subject to additional rules and regulations.

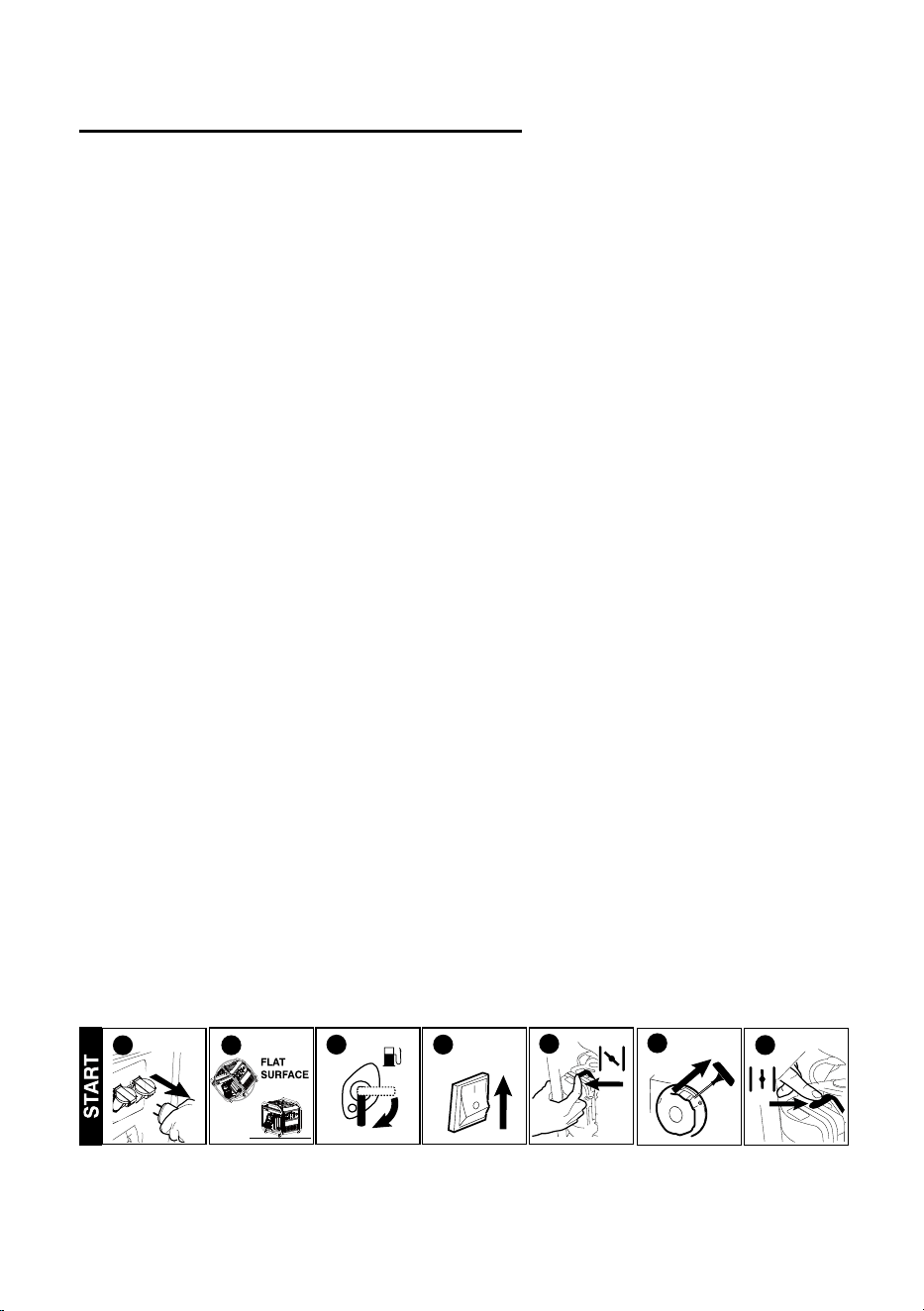

Start The Generator
1. Unplug all electrical loads from the unit's receptacles before starting engine.
2. Place generator on a level surface.
3. Open the fuel shut-off valve to ON position.
4. Turn engine ON/OFF switch to ON.
5. Slide engine choke to Full CHOKE position (left).
6. Firmly grasp recoil handle and pull slowly until increased resistance is felt. Pull
rapidly up and away.
7. When engine s
tarts, move choke knob to 1/2 CHOKE position until engine runs
s
moothly, then fully into RUN position. If engine falters, move choke back to
1/2CHOKE position until engine runs smoothly, then to RUN position.
NOTE: If engine fires, but does not continue to run, move choke lever to Full
CHOKE and repeat starting instructions.
1
2
3
ON
4
ON
5
6
7
16
PARALLEL KIT(OPTIONAL)
Its innovative paralleling capability allows you to meet higher output requirements.
IMPORTANT NOTE: Do not overload generator or individual panel
receptacles. These outlets are overload protected with push-to-reset
circuit breakers. If amperage ratting of any circuit breaker is exceeded,
that breaker opens and electrical output to that receptacle is lost. Read Know
Generator Limits carefully.
Electrical Shock
To reduce the risk of electrical shock
• DO NOT use electrical cords that are worn, frayed bare or otherwise
damaged.
• DO NOT touch bare wires
or receptacles.
• DO NOT handle generating set or electrical cords while standing in water
while barefoot, or while hands or feet are wet.
Grounding the Generator When Used as a Portable
The generator is equipped with an equipment ground connecting the generator
frame and the ground terminals on the AC output receptacles. This allows the
generator to be used as a portable without grounding the frame of the generator.
Connecting the Generator to a Building Electrical System
When connecting directly to a building electrical system, it is recommended that a
manual transfer switch be used. Connections for a portable generator to a building
electrical system must be made by a qualified electrician and in strict compliance
with all national and local electrical codes and laws.
by connecting two models together to power your RV air conditioner, lights, cell
phone, and other portable appliances at the same time.
The easy access storage compartment in the back keeps power cables safe when
not in use.
17
seconds when starting such motors. Make sure to allow for high starting wattage
when selecting electrical devices to connect to the generator:
1. Figure the watts needed to start the largest motor.
2. Add to that figure the running watts of all other connected loads.
The Wattage Reference Guide is provided to assist in determining how many
items the generator can operate at one time.
NOTE: All figures are approximate. See data label on appliance for wattage
requirements.
Know Generator Limits
Overloading a generator can result in damage to the generator and connected
electrical devices. Observe the following to prevent overload:
• Add up the total wattage of all electrical devices to be connected at one time.
This total should NOT be greater than the generator's wattage capacity.
• The rated wattage of lights can be taken from light bulbs. The rated wattage of
tools, appliances, and motors can be found on a data label or decal affixed to the
devi
ce.
• If the appliance, tool, or motor does not give wattage, multiply volts times
ampere rating to determine watts (volts x amps = watts).
• Some electric motors, such as induction types, require about three times more
watts of power for starting than for running. This surge of power lasts only a few
18
Device Running Watts Device Running Watts
*Air Conditioner (12,000 Btu) 1700 Hand Drill 250 to 1100
*Air Conditioner (24,000 Btu) 3800 Hedge Trimmer 450
*Air Conditioner (40,000 Btu) 6000 Impact Wrench 500
Battery Charger (20 Amp) 500 Iron 1200
Belt Sander (3") 1000 *Jet Pump 800
Chain Saw 1200 Lawn Mower 1200
Circular Saw (6-1/2") 800 to 1000 Light Bulb 100
*Clothes Dryer (Electric) 5750 Microwave Oven 700 to 1000
*Clothes Dryer (Gas) 700 *Milk Cooler 1100
*Clothes Washer 1
150 Oil Burner on Furnace 300
Coffee Maker 1750 *Paint Sprayer, Airless (1/3 HP) 600
*Compressor (1 HP) 2000 Paint Sprayer, Airless/hand-held 150
*Compressor (3/4 HP) 1800 Radio 50 to 200
*Compressor (1/2 HP) 1400 *Refrigerator 700
Curling Iron 700 Slow Cooker 200
*Dehumidifier 650 *Submersible Pump (1-1/2 HP) 2800
Disc Sander (9") 1200 *Submersible Pump (1 HP) 2000
Edge Trimmer 500 *Submersible Pump (1/2 HP) 1500
Electric Blanket 400 *Sump Pump 800 to 1050
Electric Nail G
un 1200 *Table Saw (10")
1750 to 2000
Electric Range (per element) 1500 Television 200 to 500
Electric Skillet 1250 Hair Dryer 1200
*Freezer 700 Weed Trimmer 500
*Furnace Fan (3/5 HP) 875 Toaster 1000 to 1650
*Garage Door Opener 500 to 750
* Allow 3 times the listed watts for starting these devices.
Wattage Reference Guide
19

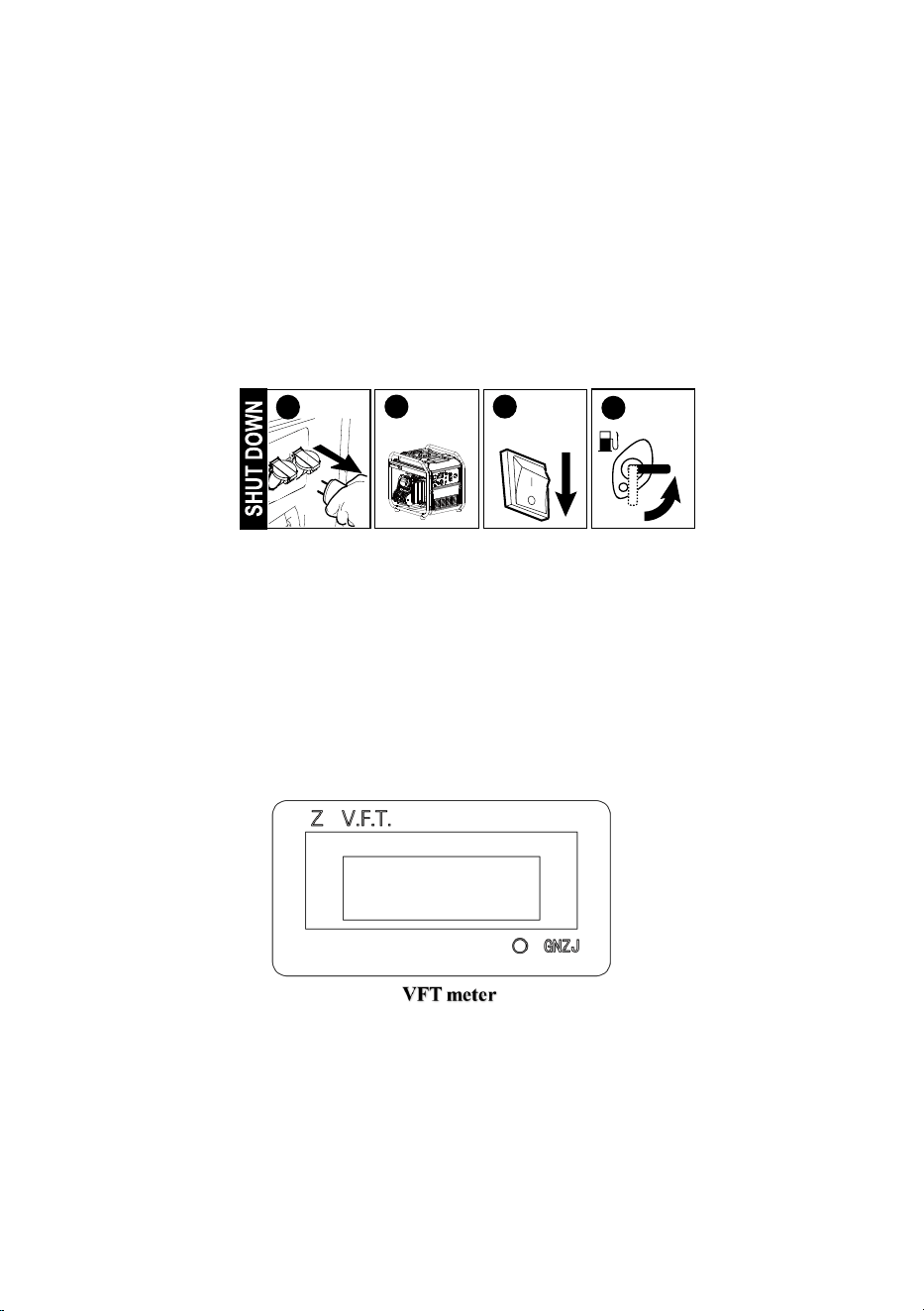

Generator Shut Down
1. Shut off all loads and unplug electrical loads from generator panel receptacles.
2. Let engine run at no-load for several minutes to stabilize internal temperatures
of engine and generator.
3. Move ON/OFF switch to OFF.
4. Close fuel valve.
NOTE: Under normal conditions, close fuel valve and allow generator to run
carburetor bowl out of fuel. For emergencies, switch to STOP.
VFT meter
The VFT meter can be used for displaying voltage, frequency(hertz),run time and
total run time as applicable. (Display mode depends on the configuration). The
LCD displays each mode by pressing the button below the display.
The display meter sets as either automatic switching mode or manual operation
mode. In the manual state press MODE BUTTON for mode switching. But in
automatic mode MODE BUTTON is used for reset (operate cautiously when
necessary).
Function Indicator
The OIL ALARM will illuminate when the generator is low oil level.
The OVERLOAD ALARM will illuminate when the generator is over load.
The OUTPUT INDICATOR lamp will illuminate when the generator run steadily.
The SELF-TEST lamp will illuminate when the CO sensor self-test.
The CO-ALARM lamp will illuminate when the concentration of CO exceeds the
standard.
3
OFF
Wait a few min..
2
1
OFF
4
20
Function indicator
Low Oil Level Shutdown System
The engine is equipped with a low oil level sensor that shuts down the engine
automatically when the oil level drops below a specified level. The engine will not
run until the oil has been filled to the proper level. If the engine shuts down and
there is sufficient fuel, check engine oil level.
MAINTENANCE
Regular maintenance will improve performance and extend engine/equipment life.
It is recommended that all maintenance work be performed by an Independent
Authorized Service Dealer (IASD). Regular maintenance, replacement or repair of
the emissions control devices and systems may be performed by any repair shop
or person of the owner’s choosing. However, to obtain emissions control warranty
service free of charge, the work must be performed by an IASD. See the emissi
ons
warr
anty.
NOTE: Contact your nearest Independent Authorized Service Dealer (IASD)
with questions about component replacement.
Maintenance Schedule
Follow maintenance schedule intervals, whichever occurs first according to use.
NOTE: Adverse conditions will require more frequent service.
NOTE: All required service and adjustments should be each season as detailed in
the following chart.
21
Preventive Maintenance
Dirt or debris can cause improper operation and equipment damage. Clean
generator daily or before each use. Keep area around and behind muffler free from
combustible debris. Inspect all cooling air openings on generator.
WARNING
Do not insert any object through the air cooling slots. Generator can
start at any time and could result in death, serious injury, and unit
damage.
• Use a damp cloth to wipe exterior surfaces clean.
At Each Use
Check engine oil level
Every 25 Hours

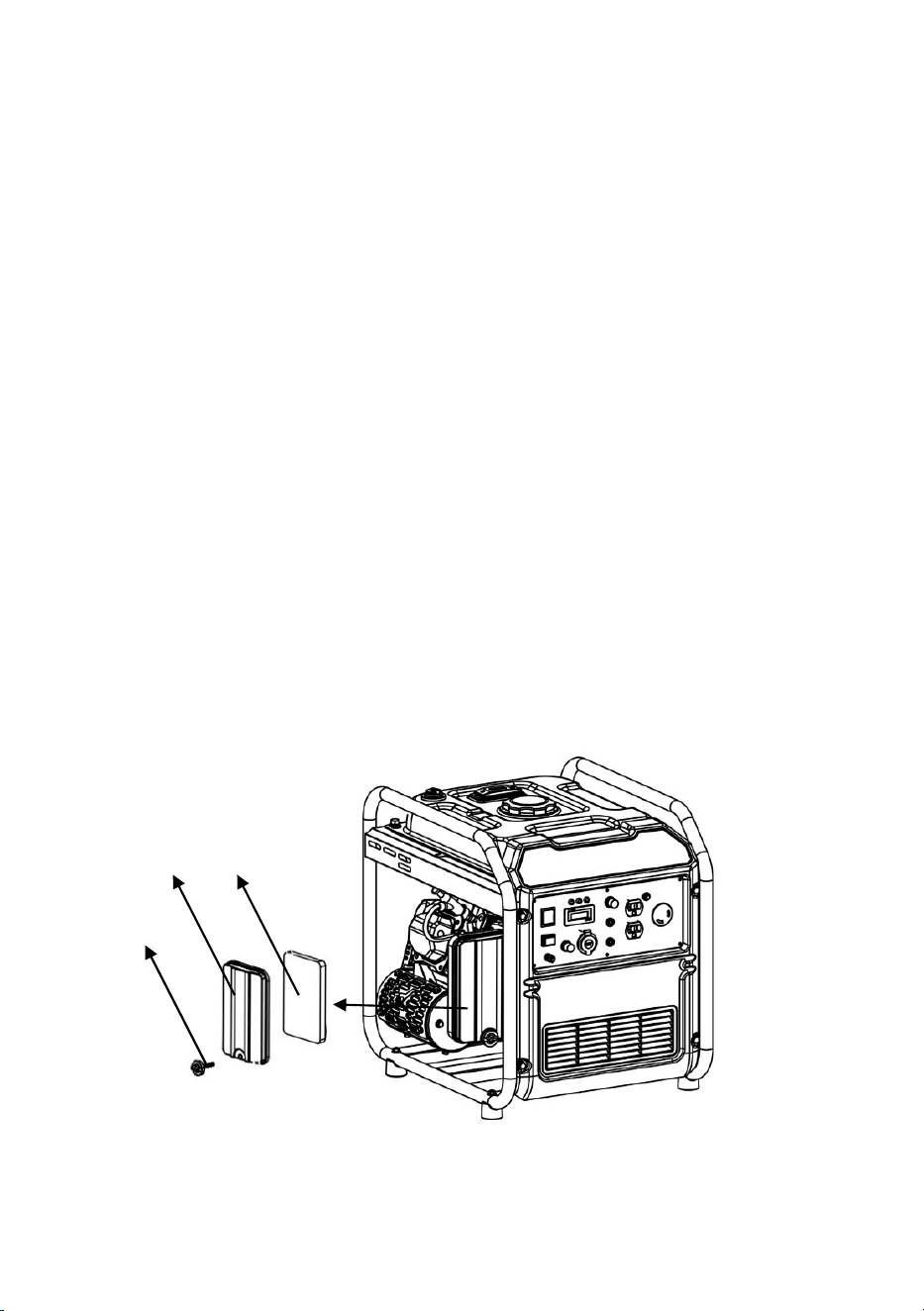

Clean Air Filter**
Every 100 Hours or Every Season*
Change Oil ǂ

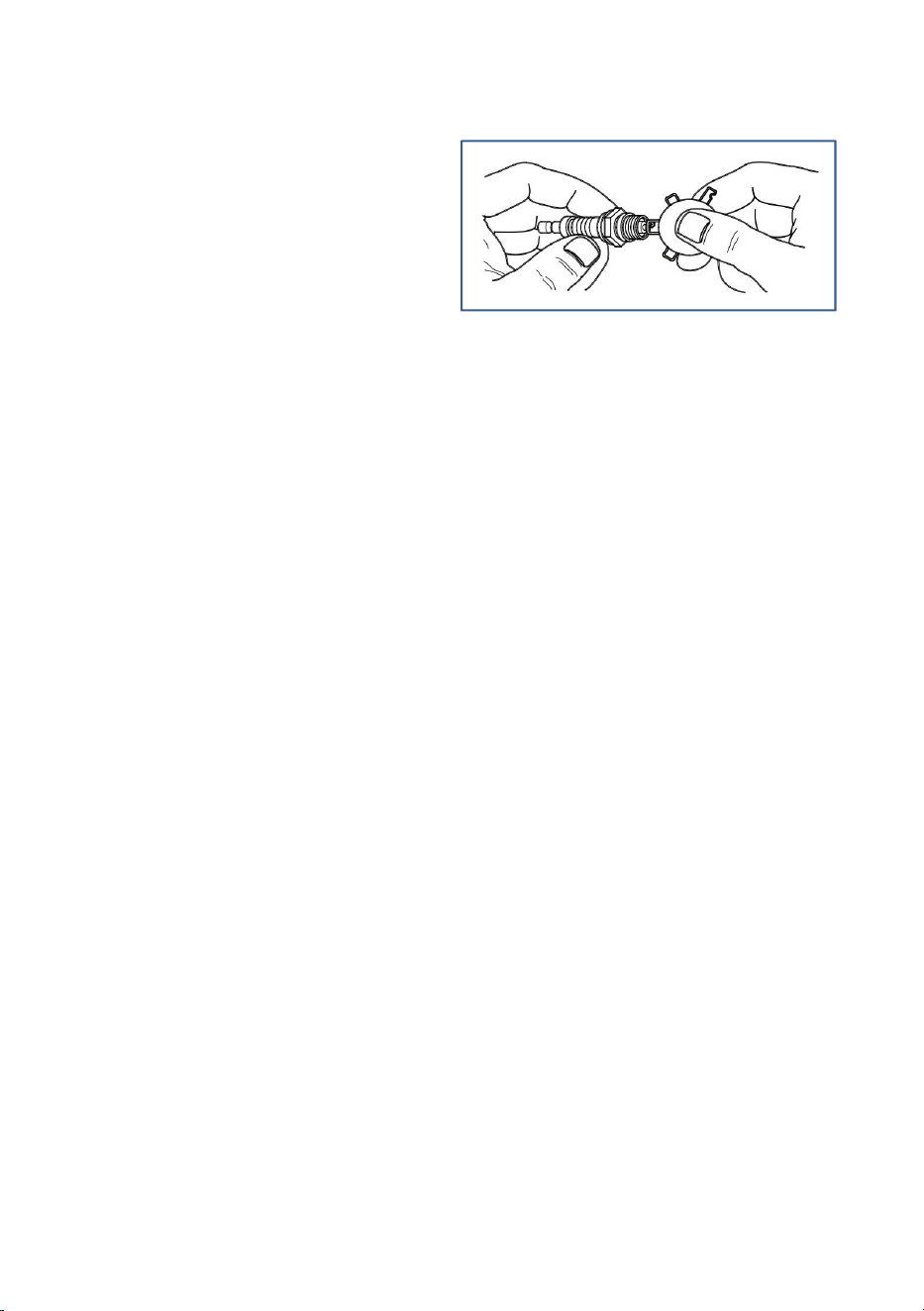

Clean/Gap Spark Plug
Every 200 Hours or Every Season
Replace Air Filter
Replace Spark Plug
Check/Adjust Valve Clearance***
ǂ Change oil after first 30 hours of operation, then every season.
* Change oil and oil filter every month when operating under heavy load or in
high temperatures.
** Clean more often under dirt
y or dusty operating conditions. Replace air filter
parts if they cannot be adequately cleaned.
*** Check valve clearance and adjust if necessary after first 50 hours of operation
and every 300 hours thereafter.
22
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum to pick up loose dirt and debris.
• Low pressure air (not to exceed 25 psi) may be used to blow away dirt. Inspect
cooling air slots and openings on generator. These openings must be kept clean
and unobstructed.
NOTE: DO NOT use a garden hose to clean generator. Water can enter engine
fuel system and cause problems. If water enters generator through cooling air slots,
some water will be retained in voids and cr
evices of rotor and stator winding
insulation. Water and dirt buildup on generator internal winding will decrease
insulation resistance of winding.
WARNING
Accidental start-up. Disconnect spark plug wires when working on unit.
Failure to do so could result in death or serious injury.
To maintain the product warranty, the engine oil should be serviced in accordance
with the recommendations of this manual. DO NOT use special additives.
Change Engine Oil
WARNING
Accidental start-up. Disconnect spark plug wires when working on unit.
Failure to do so could result in death or serious injury.
When using generator under extreme, dirty, dusty conditions, or in extremely hot
weather, change oil more frequently.
NOTE: Don’t pollute. Conserve resources. Return used oil to collection centers.
Change oil while engine is still warm from running, as follows:
1. Place generator on a level surface.
2. Disconnect the spark plug wire from the spark plug and place the wire where it
cannot contact spark plug.
3. Clean area around oil fill, and oil drain plug.
23
4. Remove oil fill cap.
5. Remove oil drain plug and drain oil completely into a suitable container.
6. Install oil drain plug and tighten securely.
7. Slowly pour oil into oil fill opening until oil level is between L and H marks on
dip-stick. DO NOT overfill.
8. Install oil fill cap, and finger tighten.
9. Wipe up any spilled oil.
10. Properly dispose of oil in accordance with all applicable regulations.
Air Filter Maintains
Engine will not run properly and may be damaged if run with a dirty air filter.
Service air filter more frequently in dirty or dusty conditions.
To service air filter:
1. Turn knob (A) and remove air filter cover (B).
2. Wash in soapy water. Squeeze filter (C) dry in clean cloth (DO NOT TWIST).
3. Clean air filter cover before re-installing it.
NOTE: To order a new air filter, contact the nearest Independent Authorized
Service Dealer (IASD).
Air Filter Assembly
B C
A
24
Spark Plug Maintains
To service spark p lug:
1. Clean area around s park plug.
2. Remove and in spect spark plug.
3. Inspect electrode gap with wire
feeler
gauge a nd reset spark p lug gap to
0.7 6
mm.
NOTE: Replace spark plug if electrodes are pitted, burned or porcelain is cracked.
Use ONLY recommended replacement plug. See Specifications.
4. Install spark plug finger tight, and tighten an additional 3/8 to 1/2 tu rn using
spark plug wrench.
Valve Clearance
IMPORTANT NO TE: If un comfortable about doing this pro cedure, or the
proper tools are not available, take generator to the nearest service ce nter to have
valve clearance ad
justed.
Check valve c learance after the first fifty-hours of operation. Adjust as nece s s ary.
• Intake — 0.1 5 ± 0.02mm (cold)
• Exhaust — 0.20 ± 0.02mm (cold)
Storage
It is recommended to start and run the gen era-tor for 30 minutes, every 30 days. If
this is not possible, refer to the following list to prepare unit for storage.
• DO NOT pla ce a storage cover on a hot generator. Allow unit to cool to ro om
temperature before st orage.
• DO NOT store fuel fr om one season to another u
nless
properly treated.
• Replace fuel container if rust is present.
Rust in fuel will cause fuel system problems.
• Cover unit with a suitable protective, moisture resistant cover.
• Store unit in a c lean and d ry a rea.
• Always store generator and fu el away from heat and ignition sources.
Spark Plug
25
Prepare Fuel System for Storage
Fuel stored over 30 days can go bad and damage fuel system components. Keep
fuel fresh, use fuel stabilizer.
If fuel stabilizer is added to fuel system, prepare and run engine for long term
storage. Run engine for 10-15 minutes to circulate stabilizer throughout fuel
system. Adequately prepared fuel can be stored up to 24 months.
NOTE: If fuel has not been treated with fuel stabilizer, it must be drained into an
approved container. Run engine un
til it stops from lack of fuel. Use of fuel
stabilizer in fuel storage container is recommended to keep fuel fresh.
1. Change engine oil.
2. Remove spark plug.
3. Pour tablespoon (5-10cc) of clean engine oil or spray a suitable fogging agent
into cylinder.
WARNING
Vision Loss. Eye protection is required to avoid spray from spark plug
hole when cranking engine. Failure to do so could result in vision loss.
4. Pull starter recoil several times to distribute oil in cylinder.
5. Install spark plug.
6. Pull recoil slowly until resistance is felt. This will close valves so moisture
cannot enter engine cylinder. Gently release
recoil.
Transport
To prevent fuel spillage when transporting or during temporary storage, the
generating set should
be secured upright in its normal operating position, with the engine switch OFF.
The combination switch should be in the “stop” position a
nd knob of the fuel cap
should be turned to the “OFF” position.
26
When transporting:
•Do not overfill the tank.
•Do not operate the generating set while it is on vehicle. Take the generating set
off the vehicle and use it in a well-ventilated place. Avoid a place exposed to
direct sunlight when putting the generating set on a vehicle. If the generating set is
left in an enclosed vehicle for many hours, high temperature inside the vehicle
could cause fuel to vaporize resulting in a possible explosion.
•Do not drive on a rough road for an extende
d period with the gener
ating set on a
rough road, drain the fuel from the generating set beforehand.
27

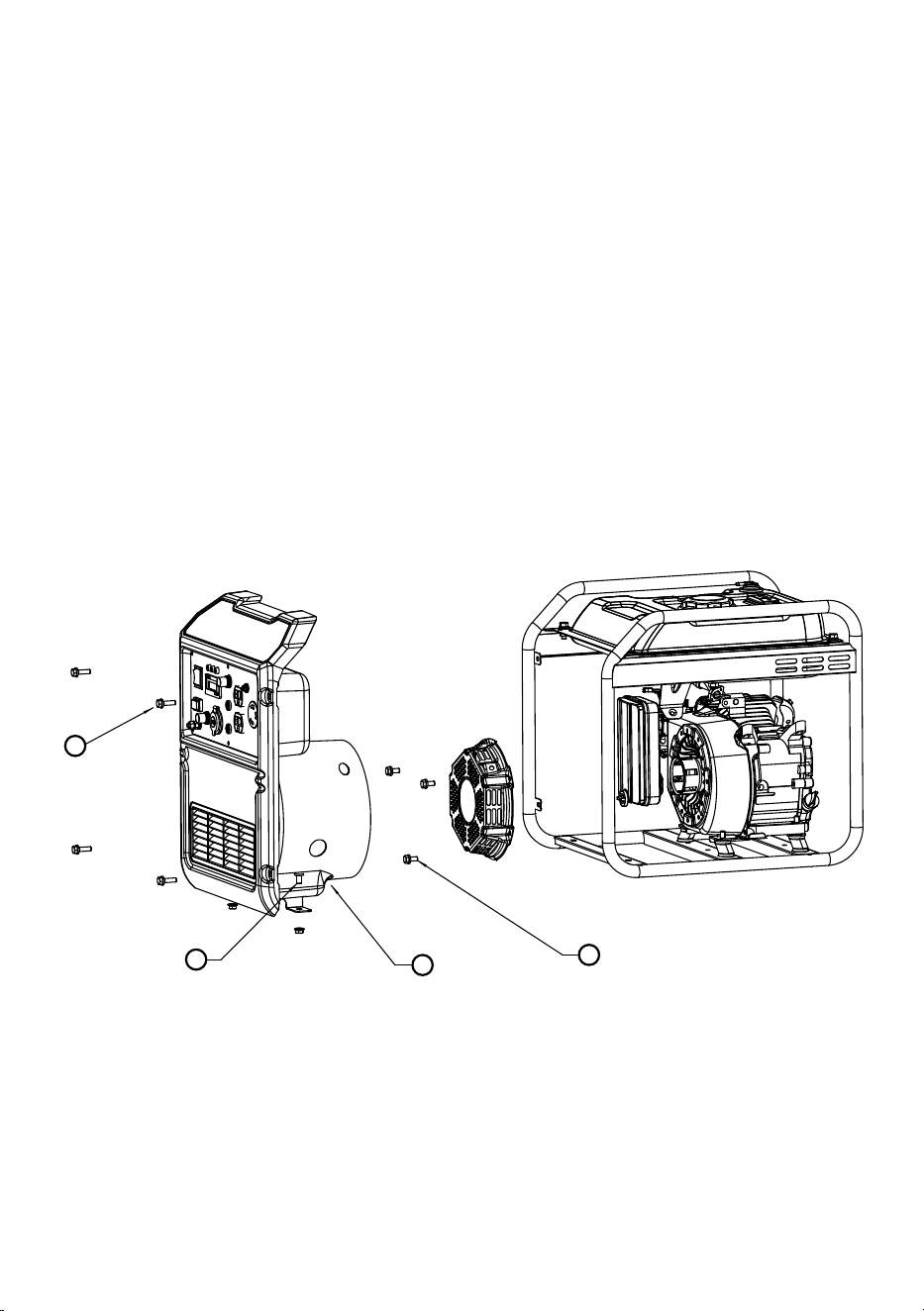

Step1: Loosen 2 fixed bolts on the inverter. Step2: Loosen 2 fixed bolts on the control panel.
Step3: Pull apart the panel slowly. Step4: Loosen 3 bolts on the recoil starter.
1
3
4
2
How to replace the recoil starter in steps
TROUBLESHOOTING
PROBLEM CAUSE CORRECTION
Engine is
running, but
AC output is
not available.
1. Circuit breaker OPEN.
2. Poor connection or defective cord
set.
3. Connected device is bad.
4. Fault in generator.
1. Reset circuit breaker.
2. Check and repair.
3. Connect another device that is in
good condition.
4. Contact IASD.
Engine runs
well at
no-load, but
bogs when
load is applied.
1. Short circuit in a connected load.
2. Generator is overloaded.
3. Engine speed is too slow.
4. Shorted gener
ator circuit.
1. Disconnect shorted electrical load.
2. See Know Generator Limits.
3. Contact IASD.
4. Contact IASD.
Engine will
not start; or
starts and runs
rough.
1. Fuel shut-off is OFF.
2. Dirty air filter.
3. Out of fuel.
4. Stale fuel.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in fuel.
8. Over choking.
9. Low oil level.
10. Excessive rich fuel mixture.
11. Intake valve stuck open or closed.
12. Engine lost compression.
1. Turn fuel shut-off O
N.
2. Clean or replace air filter.
3. Fill fuel tank.
4. Drain fuel tank and fill with fresh
fuel.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain fuel tank; fill with fresh
fuel.
8. Set choke to no choke position.
9. Fill crankcase to correct level.
10. Contact IASD.
11. Contact IASD.
12. Contact IASD.
Engine shuts
down during
operation.
1. Out of fuel.
2. Low oil level.
3. Fault in engine.
1. Fill fuel tank.
2. Fill crankcase to correct level.
3. Contact IASD.
28
Engine lacks
power.
1. Load is too high.
2. Dirty air filter.
3. Engine needs to be serviced.
1. Reduce load (see Know Generator
Limits ).
2. Clean or replace air filter.
3. Contact IASD.
Engine surges
or
stumbles.
1. Choke is opened too soon.
2. Carburetor is running too rich or
too lean.
1. Set choke to 1/2 CHOKE until
engine runs smoothly.
2. Contact IASD.
29
WIRING DIAGRAM
30
EXPLODED VIEW & PARTS LIST
31
32
EXPLODED VIEW & PARTS LIST(ENGINE)
33
34
35
