ARC-1230WN/ARC-1230WNH
DISPOSAL INFORMATION
Page2
Thank you for choosing Whynter. Please follow the instructions provided in this user manual
to obtain the very best performance from your steam oven. We trust that your Whynter
steam oven will provide the performance and reliability that we stand for.
Please keep this user manual in a safe place for future reference.
This symbol on the product or its packaging indicates that this appliance cannot be treated
as normal domesc trash, but must be handed in at a collecon point for recycling electric
and electronic appliances. Your contribuon to the correct disposal of this product protects
the environment.
Further information about the recycling of this product can be obtained from your local
municipal authority.
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.

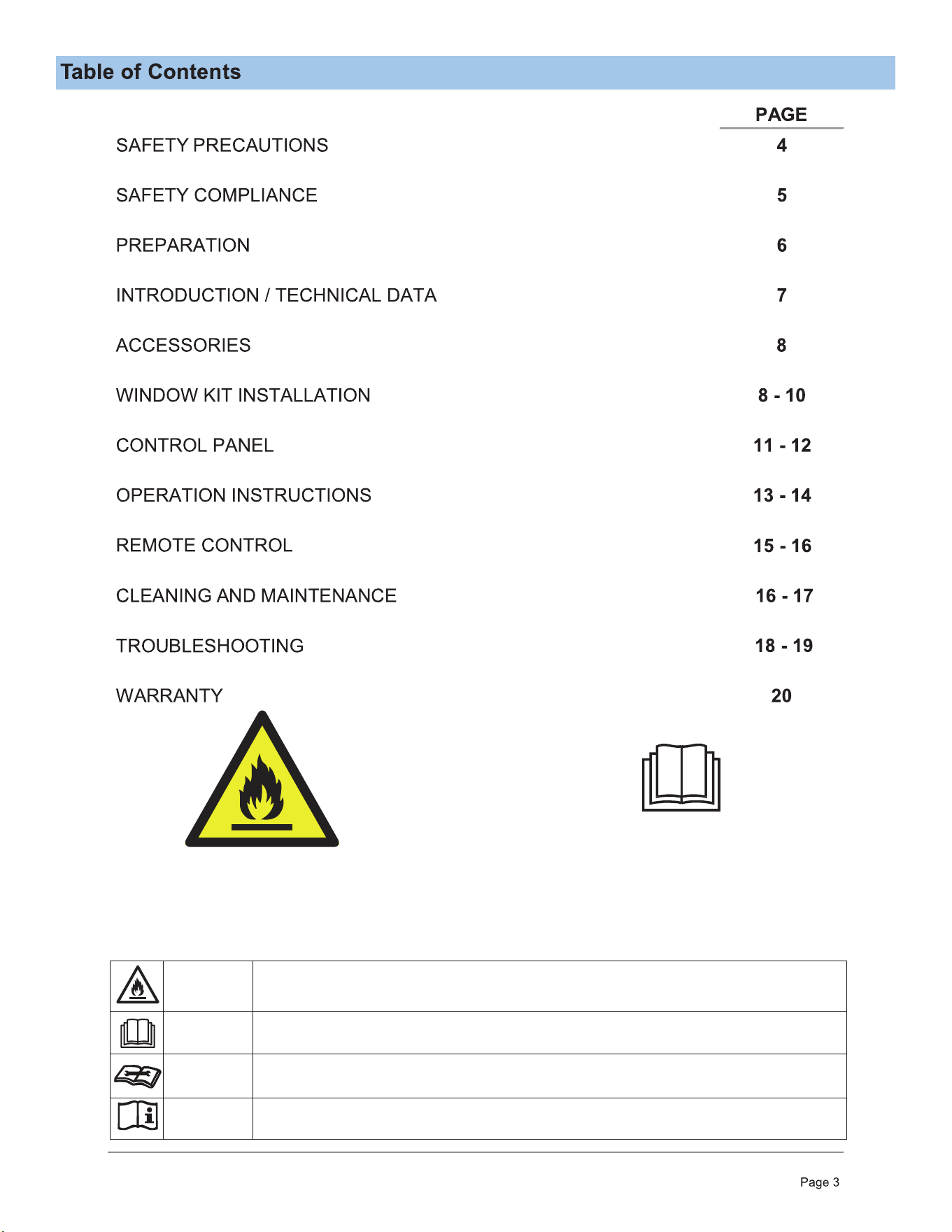

Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that this appliance used a flammable refrigerant. If the refrigerant
is leaked and exposed to an external ignition source, there is a risk of fire.
This symbol shows that the operation manual should be read carefully.
This symbol shows that a service personnel should be handling this equipment
with reference to the installation manual.
This symbol shows that information is available such as the operating manual or
installation manual.
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
SAFETY PRECAUTIONS
Read Safety Precauons Before Operaon and Installaon
To prevent death or injury to the user or other people and property damage, the following instrucons must be followed. lnco rrect
operation due to ignoring of instructions may cause death, harm or damage.
•
Installaon must be performed according to the installaon instrucons. Improper installaon can cause water leakage, elec
trical shock, or re.
•
Use only the included accessories and parts, and specified tools for the installation. Using non-standard parts can cause water
leakage, electrical shock, re, and injury or property damage. Make sure that the outlet you are using is grounded and has the
appropriate voltage.
•
The power cord is equipped with a three-prong grounding plug to protect against shock.
•
Voltage information can be found on the nameplate of the unit.
•
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately
grounded or protected by a me delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maxi
mum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualied electrician
install the proper receptacle.
•
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive noise and vibraon.
•
The unit must be kept free from obstrucon to ensure proper funcon and to migate safety hazards.
•
Do not modify the length of the power cord or use an extension cord to power the unit.
•
Do not share a single outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.
•
Do not install your air condioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause
electrical components to short circuit.
•
Ensure there is a minimum of 36" clearance around the unit and is clear from any combustible items such as propane, re ex
tinguishers, fuel, etc.
•
The exhaust hose should always be used and should never be covered or blocked which can become a re hazard.
•
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as these could
cause tipping.
•
Do not operate a unit that it has been dropped or damaged.
•
Do not place the portable air condioner close to any other heat generang appliances
•
Do not touch the unit with wet or damp hands or when barefoot.
•
If the air conditioner is knocked over during use, turn o the unit and unplug it from the main power supply immediately. Visu
ally inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer
service for assistance.
•
In a thunderstorm, the power must be cut o to avoid damage to the machine due to lightning.
•
Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc.
Do not place or store your air condioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it
occurs.
•
All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.
•
The unit's circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are print
ed on the circuit board, such as: T 3.15A/250V, etc.
•
When the water drainage funcon is not in use, keep the upper and the lower drain plug rmly plugged into to the unit to pre
vent choking.
CAUTION
•
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, unless they have been given supervision or instrucon concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
•
Children must be supervised around the unit at all mes.
•
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
•
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
•
Do not remove any xed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
Page4
CAUTION
•
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
•
Do not run cord under carpeng. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under
furniture or appliances. Arrange cord away from trac area and where it will not be tripped over.
•
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Return to an authorized service facility for ex-
aminaon and/or repair.
•
To reduce the risk of re or electric shock, do not use this fan with any solid-state speed control device.
•
The appliance shall be installed in accordance with naonal wiring regulaons.
•
Contact the manufacturer or authorized service technician for repair or maintenance information of this unit.
•
Contact the manufacturer or authorized installer for installaon quesons of this unit.
•
Do not cover or obstruct the inlet or outlet grilles.
•
Do not use this product for funcons other than those described in this instrucon manual.
•
Before cleaning, turn o the power and unplug the unit.
•
Disconnect the power if strange sounds, smell, or smoke comes from it and contact the
•
manufacturer or authorized service technician for assistance.
•
Do not press the buons on the control panel with anything other than your ngers.
•
Do not remove any fixed covers. Contact Whynter Customer Support if this unit if it is not working properly, or if it has been
dropped or damaged.
•
Do not operate or stop the unit by inserting or pulling out the power cord plug.
•
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflamma
ble substances or vapor such as alcohol, insecticides, petrol, etc. Always transport your air conditioner in a vertical position
and stand on a stable, level surface during use.
•
Always contact Whynter Customer Support for replacement parts compatible with your unit. Hold the plug by the head of the
power plug when taking it out.
•
Turn off the product when not in use.
RNING
•
The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an oper
ang gas appliance or an operang electric heater).
•
Do not pierce or burn the unit.
•
Be aware that the refrigerants may not contain an odor.
SAFETY COMPLIANCE
•
Keep ventilation openings clear of obstruction.
•
The appliance shall be stored so as to prevent mechanical damage from occurring.
•
A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as
specied for operaon.
•
Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with
an industry recognized assessment specification.
•
Servicing shall only be performed as recommended by the equipment manufacturer.
•
Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the
person competent in the use of flammable refrigerants.
•
Please follow the instructions carefully to handle, install, clear, and service the air conditioner to avoid any damage or hazard.
Flammable Refrigerant R32 is used within air condioner. When maintaining or disposing the air condioner, the refrigerant
(R32) shall be recovered properly and shall not discharge to air directly.
•
No any open re or device which may generate spark/arcing shall be around air condioner to avoid causing ignion of the
flammable refrigerant used.
•
Please follow the instrucon carefully to store or maintain the air condioner to prevent mechanical damage from occurring.
•
Flammable refrigerant R32 is used in air conditioner. Please follow the instruction carefully to avoid any hazard. For specific
informaon on the type of gas and the amount, please to the relevant label on the unit itself.
Page 5

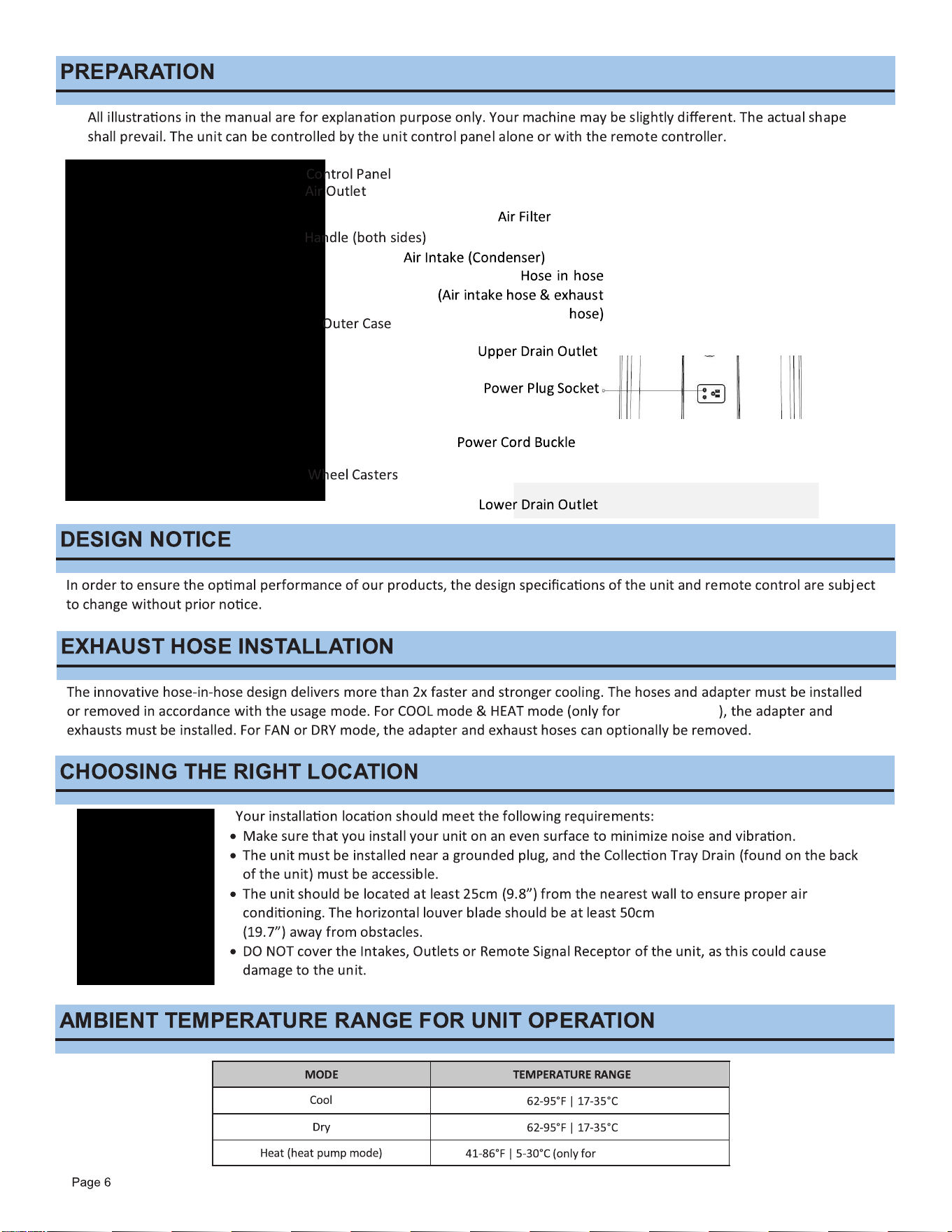

ARC-1230WNH)
ARC-1230WNH
- -
Pump hose port (for
ARC-1230WNH only)

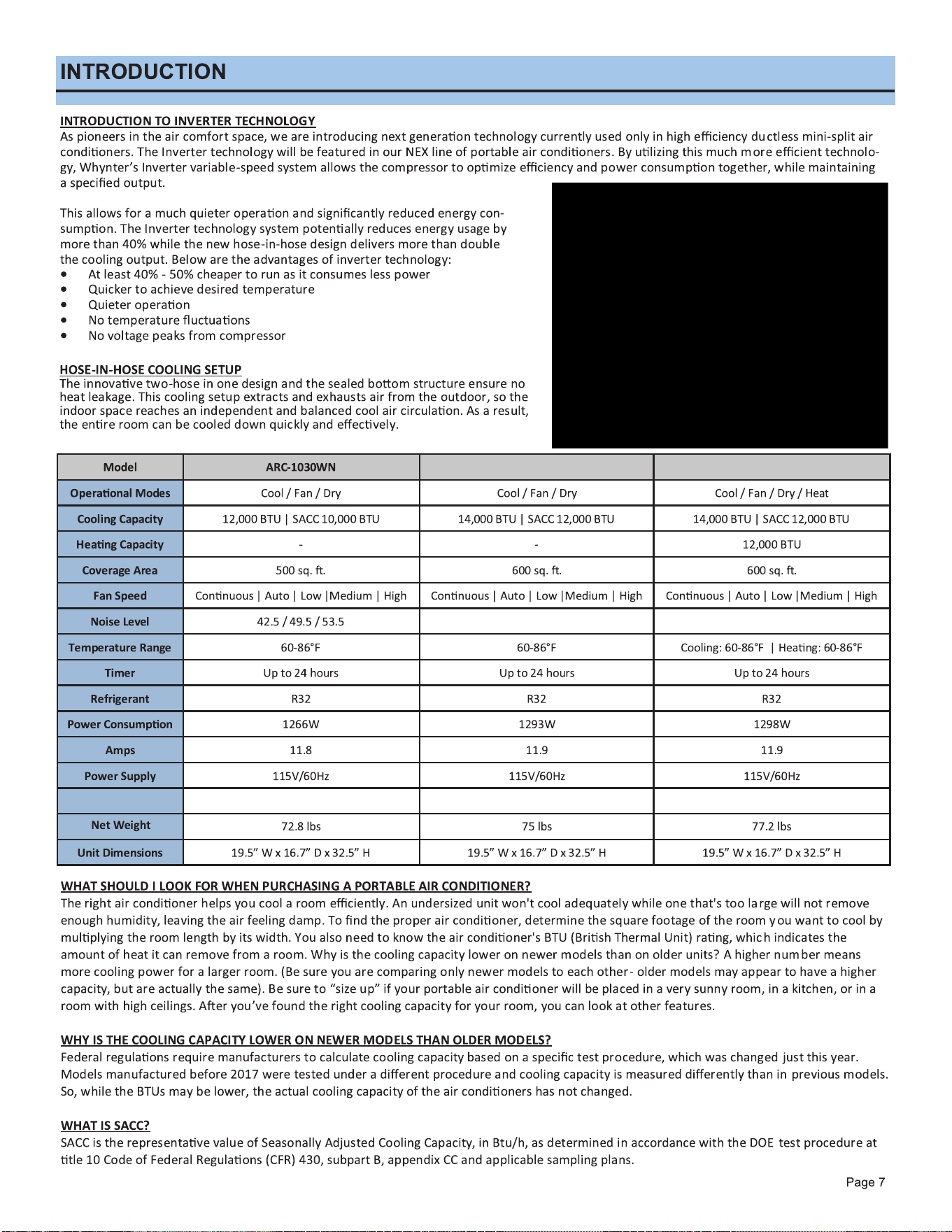

42.5 / 49.5 / 56.5 47.2 / 52.6 / 56.8
ARC-1230WN ARC-1230WNH
12.3 | 10.8 12.3 | 10.8CEER | EER
12.3 | 10.0

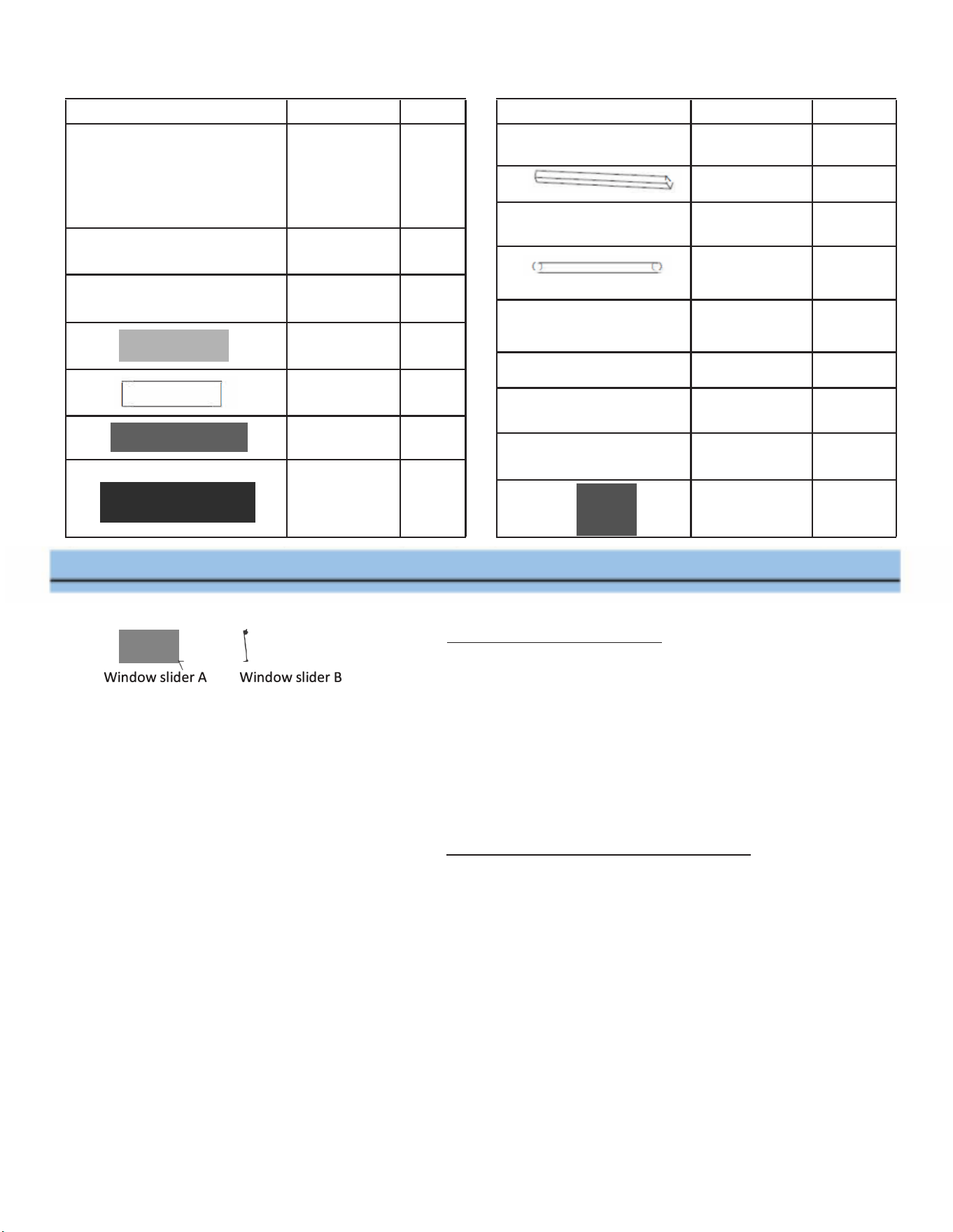

ACCESSORIES
Image Accessory
Hose-in-hose
(Air intake hose &
exhaust hose)
@
Air outlet adapter
(
A
B
c
Exhaust Connector
Module ABC*
Window Slider A
Window Slider B
Foam Seal A
(Adhesive)
WINDOW KIT INSTALLION
\
Window slider A
i
Window slider B
A
B
C
Pages
Q
ty
Image Accessory
Q
ty
�
Foam SealB
(Adhesive)
2 pieces
1 set
Foam Seal C
1
pieces
(Non-Adhesive)
1 piece
Security Bracket
1
set
1 piece
� �
Drain Hose Adaptor
(For ARC-12
30
WN
H
model only)
1 piece
each
1 piece
Power Cord Buckle
(N
/
A for ARC-12
30
WNH
model)
1 piece
1 piece
4
Bolt
1 piece
2 pieces
( -�; )B
Remote Control
1 set
2 pieces
Drain Hose
1 piece
Adaptor
Adjustable Window Slider Opon
1. Measure the window opening where the window kit will be installed.
2. As
semble as many sliders as necessary to t the window. If the
window opening is less than the minimum length of a single slider,
use the slider that has the hole in it and cut it to the correct length.
Make sure not to cut the end that has the hole as this is necessary to
aach the exhaust hose adapter.
3. Use the window slider bolts to secure the window sliders at the
correct length.
Hoses Connector Modules (For Sliding Window)
1. Rotate the exhaust hose gently backwards.
2. Pull out the exhaust hose away from the wall.
Hose-in-hose
N
OT
E: To en
su
re proper functioning, DO NOT overextend or bend the
ho
se
.
Ma
ke sure that there is
2
0
"
of clearance around the air outlet
o
f the exhaust hose in order for the exhaust system to work properly.
All illustrations in this manual are for explanation purposes only. Your
air conditioner may be slightly different. The actual shape shall
prevail.
Assemble the exhaust adapter module for sliding windows using the
exhaust connector screw as shown. The window slider is eccentric so
the exhaust adapter must be installed away from the wall.
N
ote
:
F
or
v
ertical installation, exhaust hose connector module B
can be omitted.
Washa
b
le Filter
(preinstalled)
1 piece
Z
ip
T
ie
( For ARC-12
30
WNH
model only)
WINDOW KIT INSTALLION
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following
two installation methods.

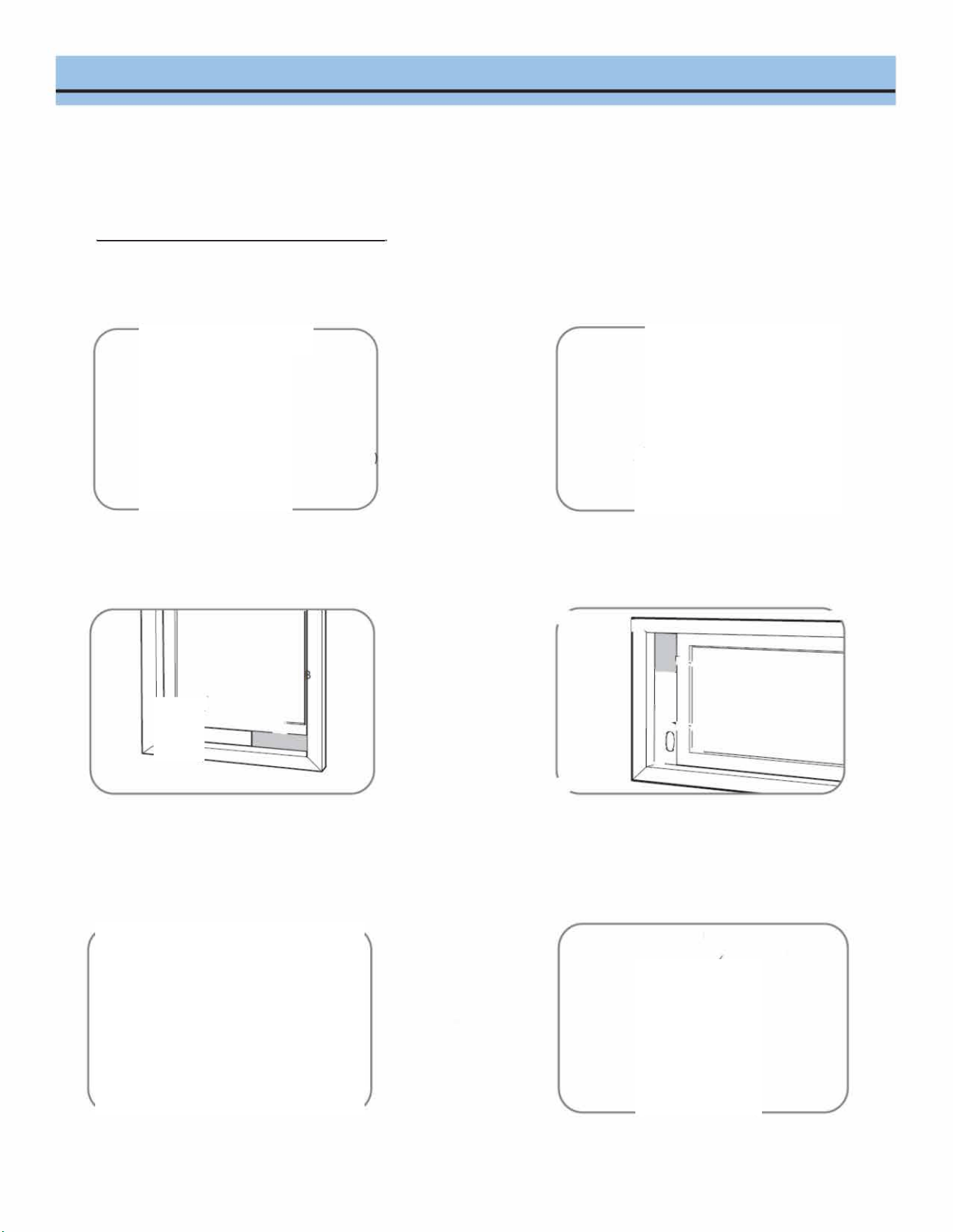

Hung Window or Sliding Window Installaon
1.
Cut adhesive foam seals A and B to the correct lengths and aach them to the window frame as shown.
Foam seal A
(Adhesive type
Or
Foam seal A
(Adhesive type)
2. Insert the window slider kit into the window opening and close the window the secure it in place.
Window slider
Window slider A(if required)
�
Or
1
- Window slider B
(if required)
�
Window slider A
�
-
'
3.
Cut the non-adhesive foam seal C to match the width or height of the window and insert it between the panes of
glass as shown to prevent outside air from entering the window.
Or
Foam seal C
{Non-adhesive type)
Page9
WINDOW KIT INSTALLION
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following
two installation methods.
Hung Window or Sliding Window Installaon
4. If desired, install the security bracket with 2 screws as shown.
Or
5.
For a hung window, attach the air outlet adapter onto the exhaust hose and rotate it 90
°
to secure it in place. For a
sliding window, aach the exhaust adapter onto the exhaust hose.
Or
6.
For a hung window, aach the air outlet adapter onto the window slider kit. For a sliding window, aach the
exhaust adapter onto the window slider kit.
Page 10
The �mer on/off indicator light
Press and hold on TIMER bu�on for 3 seconds to cancel �ming func�on.
ARC-1230WNH
CONTROL PANEL
9
.
®
SWING
""""""''
On
. .
TIMER
Fan
. . . . .
. . . . .
@
G
,--,
G
0
I 11
MOOE FAN
)
--
..
® @
SLEEP
PER
rir(3s)
CONTROL BU
TT
ONS
Up and Down buttons
0 0
A
djusts set t
emperature 1 °F I 1 •c increments or
tim
er hours (O - 24 hours).
NO: This unit
capable of displaying set temperature in Fahrenheit or Celsius. To convert from one to another, press and hold
the Up and Down buttons for 3 seconds.
Fan
Press to change fan speed. Controls the 5 fan speeds and mode: Continuous, Auto, Low, Medium, and High.
NO: In Auto and Dry mode, the fan speed control is disabled Continuous Fan Mode. Press and hold to select continuous fan
speed. The fan speed will keep on operating in a continuous speed based on the last fan speed setting.
Sleep Mode
Press to activate Sleep mode. Press SLEEP button again to stop the sleep operation.
NO: This feature not available in N or DRY mode.
Filter
Press SLEEP button for 3 seconds to clear the clean filter light reminder.
Power@
Press to turn the air conditioner on and off.
ERROR CODES
El - Room temperature sensor error
Unplug unit and r
e
st
art in 5 m
inutes
E2 - Evaporator sensor error
Unplug unit and restart in 5 minutes
E3 - Condenser sensor error
Unplug unit and restart in 5 minutes
E4 - Display panel sensor error
Unplug unit and restart in 5 minutes
Pl - Water reservoir full
Drain water from the unit
Page 12

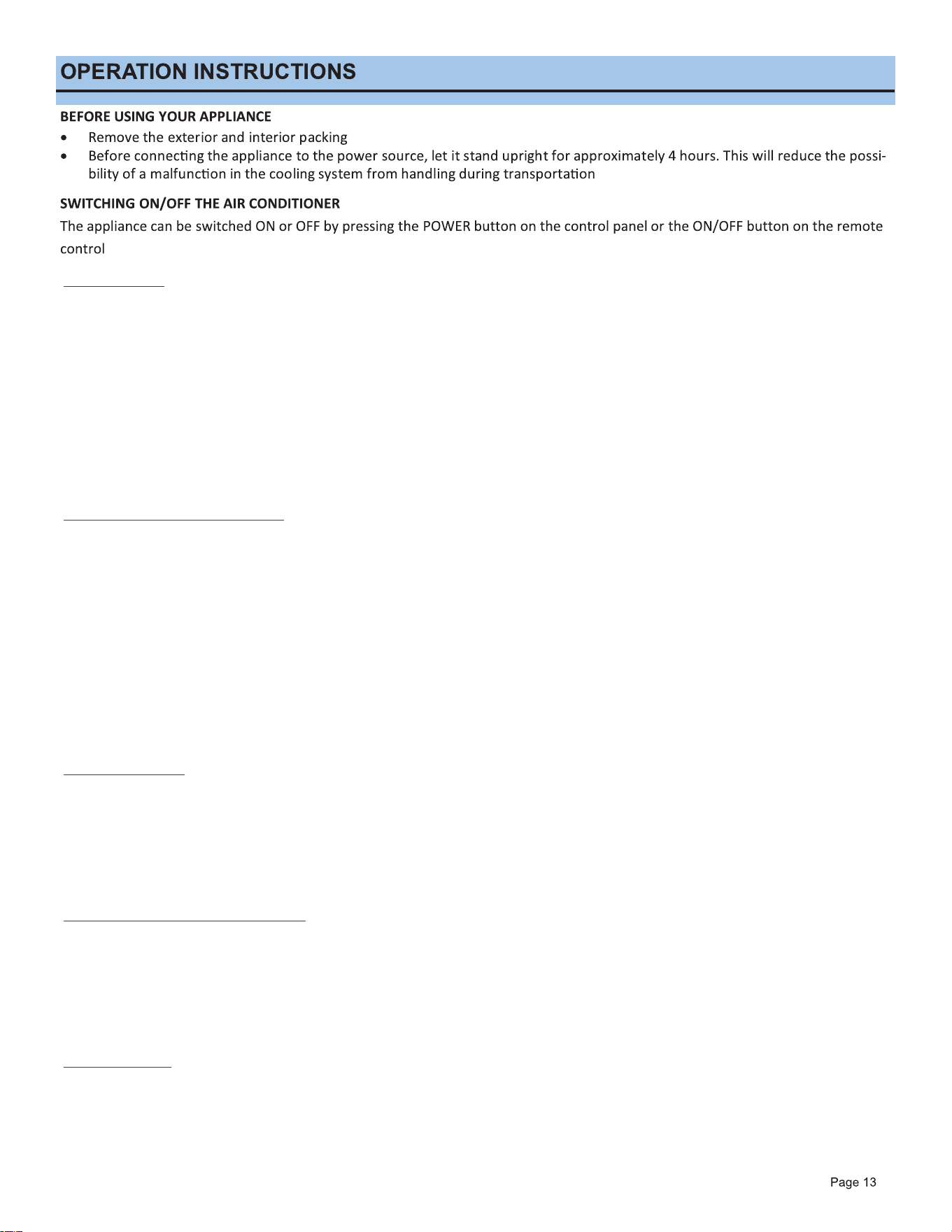

COOLING MODE
In this mode, the air conditioner cools and dehumidifies the room. To activate this function mode, press the MODE button until
the COOL indicator light comes on. When the cooling mode is set, the compressor will start in approximately 3 minutes. In cooling
mode, hot air is exhausted from the outdoor exhaust port and the exhaust hose must be connected to exhaust out the hot air.
The temperature setting range of this air conditioner is from 60
°
F / 16
°
C to
8
6
°
F / 30
°
C. To set the temperature, press the
+
or -
buttons. This air conditioner has a 5
°
F temperature cushion which if the set temperature is within 5
°
F of the ambient
temperature, the unit runs on fan only mode. This saves energy and prolongs the life of the compressor of the air conditioner. To
set the fan speed, press the FAN button. In cooling mode, the difference in noise level between the fan speeds is not very no
ticeable when the compressor is on. Try setting the unit to Fan only mode, you should be able to hear the difference between
high and low fan speed settings.
DR
Y
(DE
H
UMIDIF
Y
ING) ONL
Y
MODE
In this mode, the air conditioner only dehumidifies the room, the compressor will activate intermittently depending on the
ambient temperature and the fan speed is set to LOW. To activate this function mode, press the MODE button until the DR
Y
indicator light is displayed. Please note that when switching function mode, there will be an approximately 3 minute transition
time. In dehumidifying mode, the exhaust hose does not need to be vented. If the exhaust hose is vented, the room will be
cooled as it dehumidifies. To prevent cooling, remove the exhaust hose from the window kit and allow the warm air from the rear
to be re-circulated into the room. If room temperature is higher than 77
°
F, the fan speed can be adjusted. If room temperature is
lower than 77
"
F, the fan speed is set at low. NOTE
:
When using dehumidifying mode, venting the exhaust hose to the outside is
not required. If vented, the warm air is exhaust ed to the outside and cooling within the room may occur. Additionally, if the
exhaust hose is not vented, the unit may require more frequent draining. Also, the air conditioner does not have a humidistat in
which a specific humidity level can be set.
AUTOMATIC MODE
When you set the air conditioner in AUTO mode, it will automatically select cooling, heating
*
, or fan-only operation depending on
what temperature you have selected and the room temperature. The air conditioner will control the room temperature
automatically around the set temperature selected. The fan speed is automatically selected and cannot be changed. To operate
the unit in Auto mode when the unit is on, press the mode button until the Auto indicator light comes on
*
ARC-1230WN
H
model
only.
H
EAT MODE (
*
only for ARC-1230WN
H
)
This air conditioner operates on the heat-pump principle, absorbing heat from air outdoors and transferring that heat to the
indoor unit. In this mode, the air conditioner heats the room. To activate this function mode, press the MODE button until the
H
EAT indicator display comes on. When the heating mode is set, the compressor will start in approximately 3-5 minutes. The
heating temperature setting range of this air conditioner is from 60
°
F -
8
6
°
F / 16
°
C -30
°
C. To set the temperature, press the UP and
DOWN buttons. To set the fan speed, press the FAN button.
FAN ONL
Y
MODE
In this mode, only the fan of the air conditioner runs and circulates the air in the room. To activate this function mode, press the
MODE button until the FAN indicator light comes on. In this function mode, the temperature cannot be set. Subsequently, set the
desired fan speed by pressing the FAN button. When using FAN only mode, venting the exhaust hose to the outside is optional.
OPERION INSTRUCTIONS
TIMER (DELAYED SWITCH ON/ OFF) FUNCTION
This function mode enables a delayed switch ON or delayed switch OFF of the air conditioner. The time (hours) delay can be set,
enabled and disabled.
SETTING SWITCH OFF TIMER
With the air conditioner operating in any function mode, press the TIMER button. The TIMER OFF light will come on. Then set the
desired me delay OFF hours by pressing the UP and DOWN buons. The me increments are at 0.5 hour to up to 10 hours, followed
by 1 hour increment up to 24 hours. When the delay time set has elapsed, the air conditioner switches off. To cancel the delayed
switch o funcon, turn o the air condioner or adjust the me set-ng to 0.0.
SETTING DELAYED SWITCH ON TIMER
With the air conditioner is off, press the TIMER button. The TIMER ON light will come on. Then set the desired time delay ON hours by
pressing the UP and DOW N buons. The me increments are at 0.5 hour to up to 10 hours, fol-lowed by 1 hour increment up to 24
hours. When the delay time set has elapsed, the air conditioner switches on. To cancel the delayed switch on function, turn on the air
condioner or adjust the me seng to 0.0.
I SENSE FUNCTION
The remote control serves as a remote thermostat allowing for the precise and comfortable temperature control. With this tech
nology, an ecient temperature sensor is integrated in the remote control. To acvate the I SENSE funcon, press I SENSE buon on
the remote control. Once this function is activated, the remote control will send the temperature signal to the air conditioner every 3
minutes interval unl you press the I SENSE buon again. The air condioner will automacally cancel the I SENSE feature if it does not
receive the signal during any 7 minutes interval.
NO: The I SENSE feature is not available in DRY and FAN mode. Shiing the operang mode or turning o the unit will cancel the
Follow Me feature automacally. The remote control needs to be within 26 feet reach of the indoor unit for the I SENSE mode to work
appropriately.
SLEEP MODE
In this mode, the air conditioner gradually increases the set temperature in cooling mode or decreases the set temperature in heating
mode *. It decreases the noise level and conserves energy. In cooling mode, the set temperature is increased by 2°F/ 1°C in the first 30
minutes. The temperature will then increases by another 2°F/ 1°C after an additional 30 minutes. For models with heat mode, the set
temperature is decreased by 2°F/ 1°C in the first 30 minutes. The temperature will then decreases by another 2°F/ 1°C after an additional
30 minutes. This new temperature will remain the same for 7 hours. To activate this function mode, press the SLEEP button until the
SLEEP indicator light comes on.
NOTE: This feature is not available in FAN or DRY modes.
*
AR
C-1
2
30W
N
H
model only
AUTO RESTART
In the event of a power outage, the air condioner restarts at the previously set funcon mode and sengs when power is restored.
CONTROLLING THE AIR FLOW DIRECTION
The louvers can be controlled to Auto-Swing or in a fixed direction. To control the air flow direction by Auto-Swing, press the SWING
buon. To set the louvers in a xed angle or direcon, press SWING buon while on Auto-Swing mode when desired angle is chosen.
CLEAN FILTER REMINDER
The FILTER light on the display will illuminate after 250 working hours as a reminder to clean the filter for a more efficient operation.
After cleaning the filter, press the SLEEP button for 3 seconds to clear the clean filter reminder light.
NOISE LEVEL
Portable air condioners may make sounds that are not familiar to you. The sounds listed below are normal. Noise reflecng o hard
surfaces such as a floor or wall can make sounds seem louder than they actually are.
• The compressor may make a pulsating or high-pitched sound
• Water running from the evaporator to the water tank may make a splashing sound
• Refrigerant flowing may make a gurgling sound
• Fan sound may come from front and back air vents
COMPRESSOR LOC
K
OUT
This portable air conditioner is optimized to operate in an ambient temperature of 64
°
F - 90
°
F. The compressor circuit has an auto
matic 3 minute time delayed start if the unit is turned off and on quickly. This prevents over-heating of the compressor and possi
ble circuit breaker tripping.
Page 14

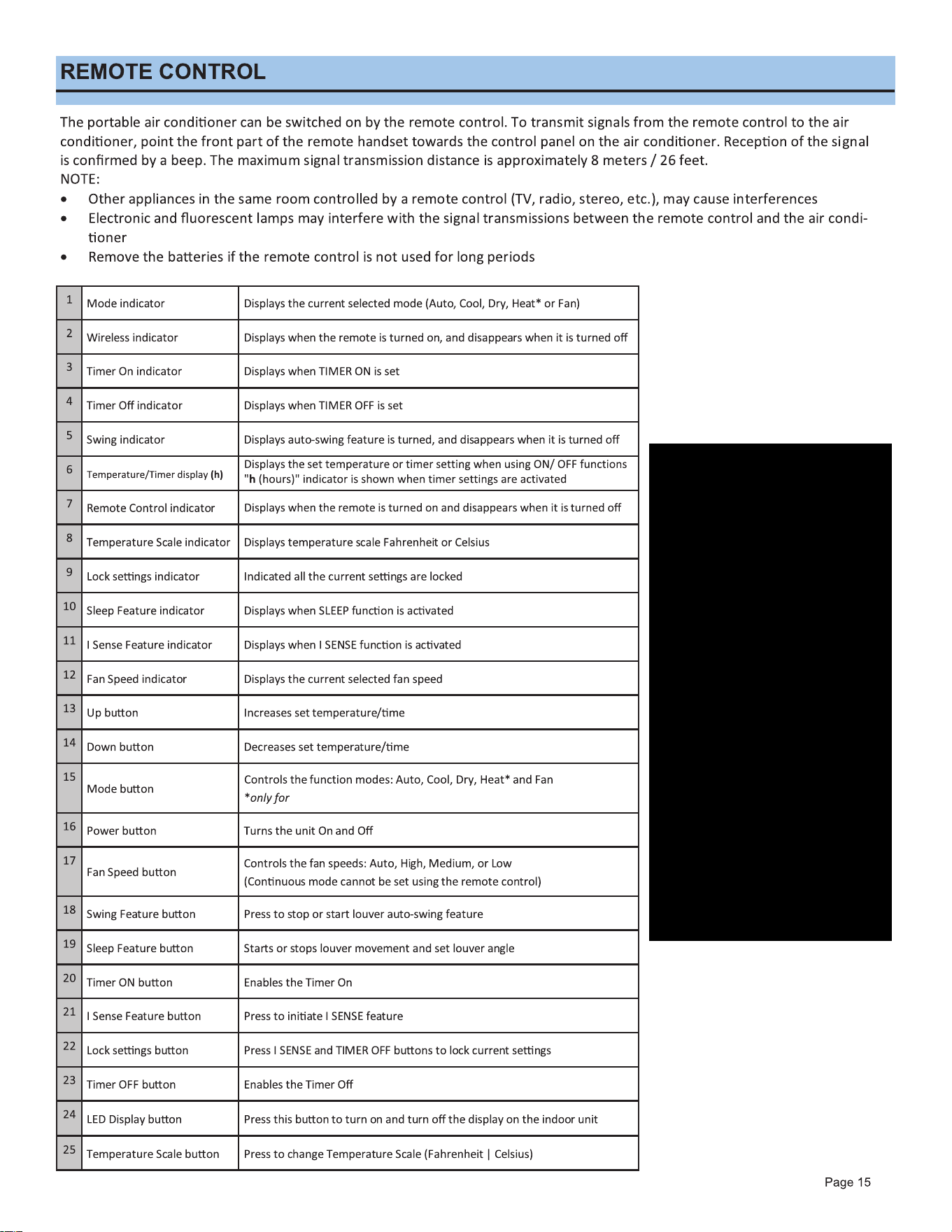

ARC-1230WNH
-

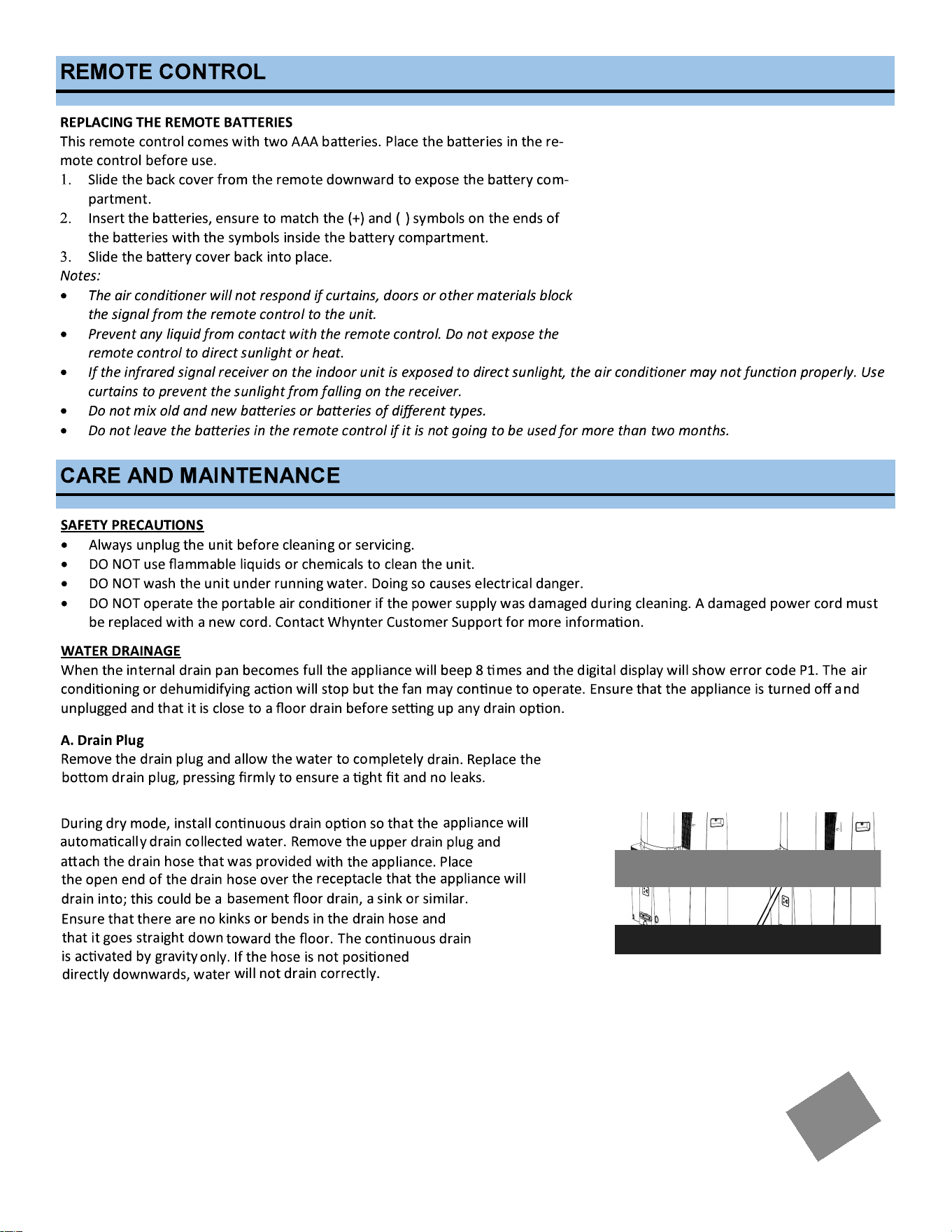

Page 16
B.
C
ontinuous
G
ravity
D
rain
C.
H
eat pump drainage (for ARC-1230WN
H
only)
This unit has a condensate pump feature that can pump out (and up) water through the
included drain hose for continuous water removal during HEAT
M
ode. Remove the heat
pump drain plug from the back of the unit and install the drain hose. Place the open end
of the hose to a drain area.
N
O
TE: The condensate pump will only engage during Heat mode and will not work in
any other modes. Pump drain hose is re
q
uired to be installed when using the portable
air conditioner in Heat
M
ode.
N
O
TE: To reduce pump drain noise, make sure to attach the drain hose adaptor to the
open end of the drain hose. To secure the adaptor in place, use the provided
z
ip tie.
C
O
O
O
CARE AND MAINTENANCE
UNIT CLEANING
CLEANING
•
Unplug the appliance before cleaning or servicing.
•
Clean the cabinet with a lukewarm damp cloth and neutral
detergent. Dry the cabinet with a lint-free dry cloth.
•
Do not use gasoline, paint thinner or other chemicals to
clean the appliance.
•
Do not wash the appliance directly under a tap or using a
hose. It may cause electrical damage.
AIR FILTER
The air lter should be cleaned every two weeks to ensure ef
cient performance. In households with animals, the air lter
may need to be cleaned more oen and the external grills may
need to be wiped to prevent blocked air flow.
To access the lter:
1. Switch off the air conditioner.
2. Hold the exhaust hose, push it backward slightly and then
lift it up.
3. Remove the filter from the unit.
4. Use a vacuum cleaner or tap lightly to remove loose dust
and dirt.
5. Rinse the filter thoroughly under warm running water (no
hotter than 100
°
F.)
6. Dry thoroughly before re-inserting the filter.
LONG-TERM STORAGE
I.
Drain all water from the appliance.
2. Run the a
ppliance on Fan mode for half a day in a warm room to dry the inside of the appliance and prevent mold formaon.
3. Turn off the appliance and unplug it, wrap the cord and bundle it with tape.
4. Remove the baeries from the remote control.
5. Clean the air filter and reinstall it.
6. Store the appliance in a cool, dark place. Prolonged exposure to direct sunlight or extreme heat can shorten the lifespan of
the appliance.
DISPOSAL
T
his appliance should not be treated as regular household waste. Check for local regulatory compliance regarding the approved
and safe disposal of this appliance.
Page 17
TROUBLESHOOTING
Many common portable air condioner problems are easily resolved. Try the troubleshoong suggesons below to see if
the problems can be resolved before having to contact the service department.
PROBLEM
POSSIBLE CAUSES
SOLUTIONS
The portable air conditioner does not
• Power failure
/
outage
turn on
• The automatic switch, line fuse, or
breaker has been tripped
• The power supply voltage is too low
• The power cord is damaged
• The L.C.D.I. power plug for the unit is
tripped
• The internal water reservoir is full and
• Move the unit onto another circuit
'Pl" appears on display
with the correct voltage
The unit turns on but the compressor
• The room temperature is outside of
does not turn on (the fan runs but the
the operational tolerances of the unit
unit is not cooling)
• The Cooling mode is not on
• The compressor has not turned on yet
because of its me delay
• The set temperature is too high
• The internal water reservoir is full and
'Pl" appears on display
The air coming out of the unit is
• Restore the power supply
• Flip the switch
/
change the fuse
/
turn
the breaker back on. Also note that
you may have too many applianc-es
drawing power on one circuit, you may
need to move the other applianc- es to
another circuit
• Call for service. Only authorized per-
sonnel should replace damaged power
cord or power plug
• Press the Reset button on the L.C.D.I.
power plug
• Drain water from the air conditioner
• Possible loose internal connecon.
• Please contact Whynter for service.
• This unit is designed to work in ambi-
ent temperatures of 63
°
F to 90
°
F.
• Press the MODE buon unl the COOL
light is shown on the display.
• Give the compressor 3 minutes to turn
on after the Cooling mode has been
selected.
• Set the air conditioner to a lower te-
perature.
• It is recommended to set the temper-
ature to at least S
°
F of the ambient
temperature.
• Either manually drain the water by
removing the drain plug or allow the
unit to exhaust the water itself by run-
ning the fan only mode. Then cooling
will resume.
• Possible loose internal connection.
• Please contact Whynter for service.
• Clean the air lter
not very cold, or the airflow
• The lter is dirty or obstructed
• The air intake or exhaust is obstructed • Make sure there is at least 20" of
volume is weak
• The unit is set in DRY or FAN mode
clearance from the air intake. Make
• The unit is set to low fan speed
the length of the exhaust hose is as
short as possible
• Set the unit to the cooling mode
• Set the unit to a higher fan speed
Page 18
TROUBLESHOOTING
Many common portable air condioner problems are easily resolved. Try the troubleshoong suggesons below to see if
the problems can be resolved before having to contact the service department.
PROBLEM
POSSIBLE CAUSES
SOLUTIONS
The unit has worked for a long time, but
• Windows or doors are open
• Close all windows and doors
the room is not cold enough
• There are too many people in the • You may need additional cooling or
room
another air conditioner.
• There is direct sunshine into the room • Close curtains or blinds and try to
• The room is a kitchen or with many
minimize the amount of direct sun-
heat producing appliances
light into the room.
• There is a server in the room
• You may need addional cooling or
• The room is too large
another air condioner.
The unit is very noisy
• The unit is not level
• Make sure the unit is on hard, level
• The surface underneath the unit is
and stable surface.
uneven
• Move the unit to a location with a
• Low power voltage
level and hard floor.
• Make sure the wall outlet and support
the required power consumpon of
the air conditioner and do not use an
extension cord.
The unit leaks water
• The unit is lted or not leveled
• Make use the unit is leveled
• The water tank is full • Drain water from the drain plug at the
back of the air conditioner
Fan speed cannot be changed
• Fan speed differences are not very
• The fan speed difference is not very
noceable noceable when the compressor is on.
Try setting the unit to Fan only mode,
you should be able to hear the dier-
ence between high and low fan speed
sengs.
Page 19
ONE VEAR LIMITED PARTS WARRANTY
THREE VEAR WARRANTY ON COMPRESSOR
This WHYNTER product is warranted to the original owner, purchased from an authorized Whynter dealer within
the 48 U.S. continental states, for one year from the original purchase date against defects in material and work
manship under normal residential usage. Should your WHYNTER product prove defective within one year from
the date of purchase, contact Whynter's Customer Support team with the serial number and proof of purchase
to make a warranty claim. A Return Authorization number must be issued before returning any parts or prod
ucts. Parts or products received without a Whynter issued Return Authorization number will be refused. Under
this warranty, Whynter will repair or replace any parts found defective with new or remanufactured parts or ex
change the defective product with a new, refurbished, or remanufactured product at our discretion. All defective
products and parts covered by this warranty will be repaired or replaced on a mail-in basis to Whynter's Service
Center. This warranty is not transferable. After the expiration of the warranty, the cost of labor and parts will be
the responsibility of the original owner.
After two months to one year, the customer will be responsible for the return freight cost to Whynter's Service
Center. Please package the product carefully in its original packaging to avoid damage in transit. Whynter is not
responsible for damage resulting from shipper mishandling or improper packaging. Please retain the original box
and packaging materials.
THIS WARRANTY DOES NOT COVER:
•
Acts of God, such as fire, flood, hurricanes, earthquakes and tornadoes.
•
Improper power supply such as power surge, low voltage, defective household wiring or inadequate fuses.
•
Use in commercial or industrial applications.
•
Damage, accidental or otherwise, to the product while in the possession of a consumer not caused by a de
fect in material or workmanship.
•
Damage caused by consumer misuse, tampering, lack of maintenance or failure to follow the care and spe
cial handling provisions in the instructions.
•
Damage to the finish of the case, or other appearance parts caused by wear.
•
Damage caused by repairs or alterations to the product by anyone other than authorized by the manufactur-
er.
•
Removal, Replacement Packaging, Freight and Insurance cost for the warranty service.
•
Products sold AS IS or from an unauthorized reseller.
•
Products that have had their serial numbers removed or defaced.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITAON REMI
CUSMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED
HEREIN. CLAIMS BASED ON IMPLIED WARNE INCLUDING WARNES OF MERCHANTABILITY OR FIE FOR A PARCULAR PUR
POSE, ARE LIMITED ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LA BUT NOT LE THAN ONE YR. WHYNR SHALL NOT BE
LIABLE FOR CONSEQUENAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL PENSES RESULNG FROM ANY
BRCH OF THIS WRITTEN LIMITED WARNTY OR ANY IMPLIED WARNTY. SOME STATES AND PRONCES DO NOT ALLOW THE EXCLU
SION OR LIMITAON OF INCIDENTAL OR CONSE- QUENAL DAMAGES, OR LIMITATIONS ON THE DUON OF IMPLIED WARNES, SO
THESE LIMITAONS OR EXCLUSIONS MAY NOT APPLY YOU. THIS WRITTEN WARNTY GIVES YOU SPECIC LEGAL RIGH. YOU MAY
ALSO HAVE OTHER RIGH THAT VARY FROM STATE STATE.
Page 20
To obtain service or information, contact
Whynter LLC via email at [email protected] or call
866-WHYNTER.
Product contents and specifications may change without notice.
Copyright© 2021
WWW.WHYNTER.COM
