(561~563)*(498~500)mm/(22.09~22.17)*(19.61~19.69)inch
30.31 inch
(22.09~22.17) inch
(19.61~19.69) inch
21.85 inch
2.28inch
1. Make sure the size of the electric ceramic cooktop (DxWxH):
Made in China
Manufacturer: Zhongshan SUKIO Electric Appliance., Ltd.
Add:NO. 1 Jianan Road ,Nantou Town,ZhongShan City,, Guangdong, P.R. China
CONTENT
Safety Warnings
Product Overview
Product Information
Using your Ceramic Hob
Using the timer function
Using Large Heating Area-Ceramic Hob
Care and Cleaning
Hints and Tips
Installation

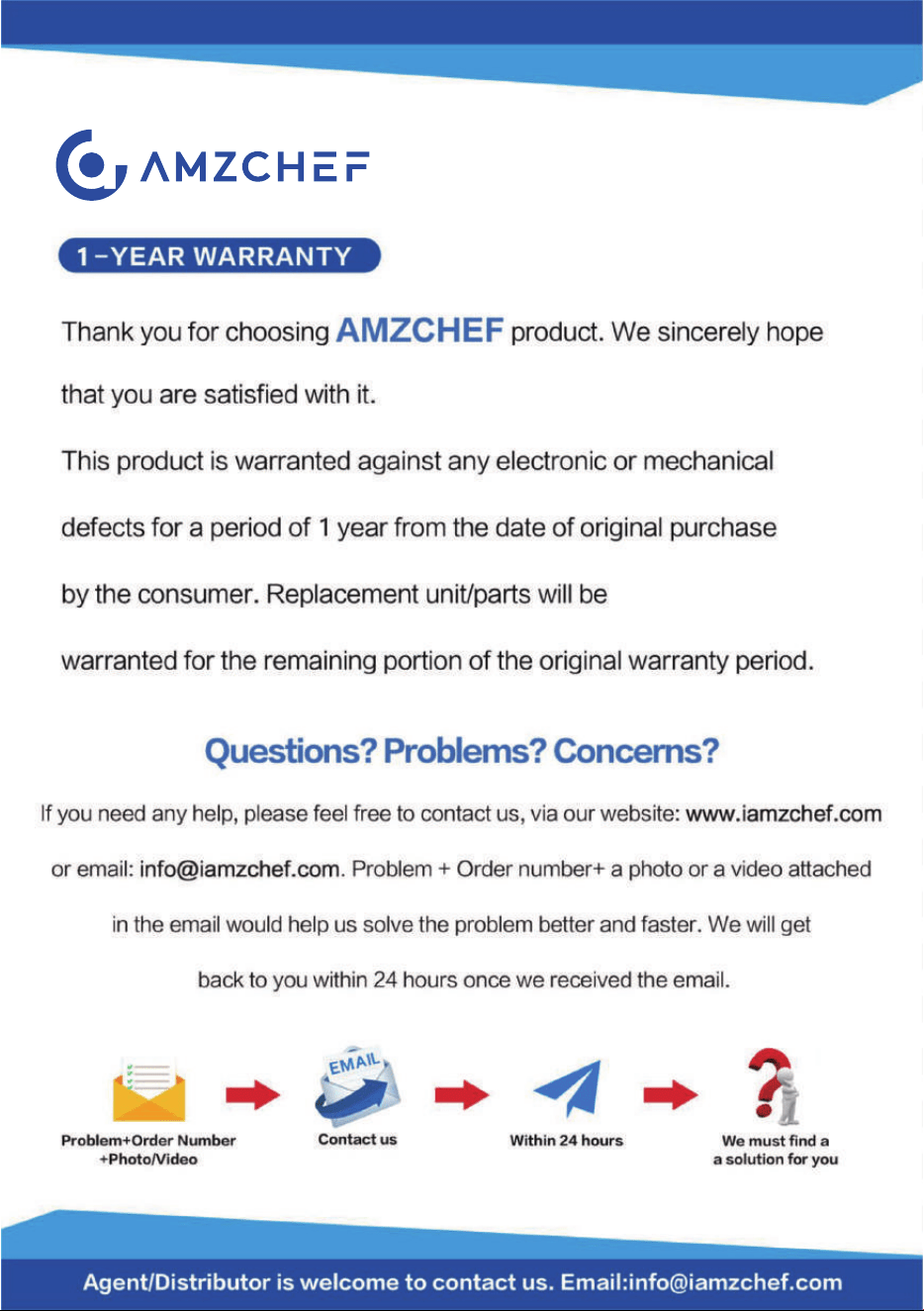

Warranty
�
�
�
�
�
��
��
��
��
��

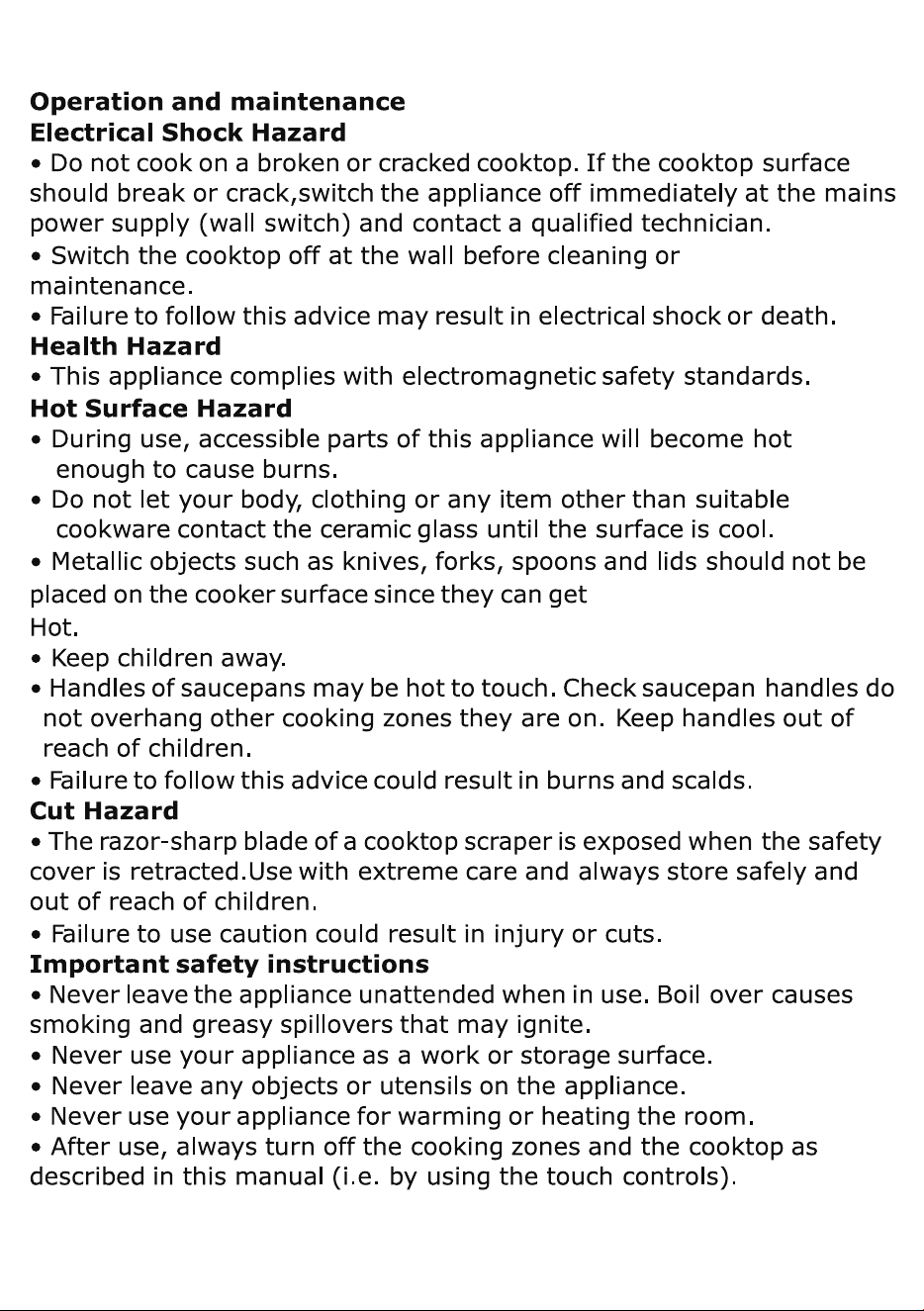

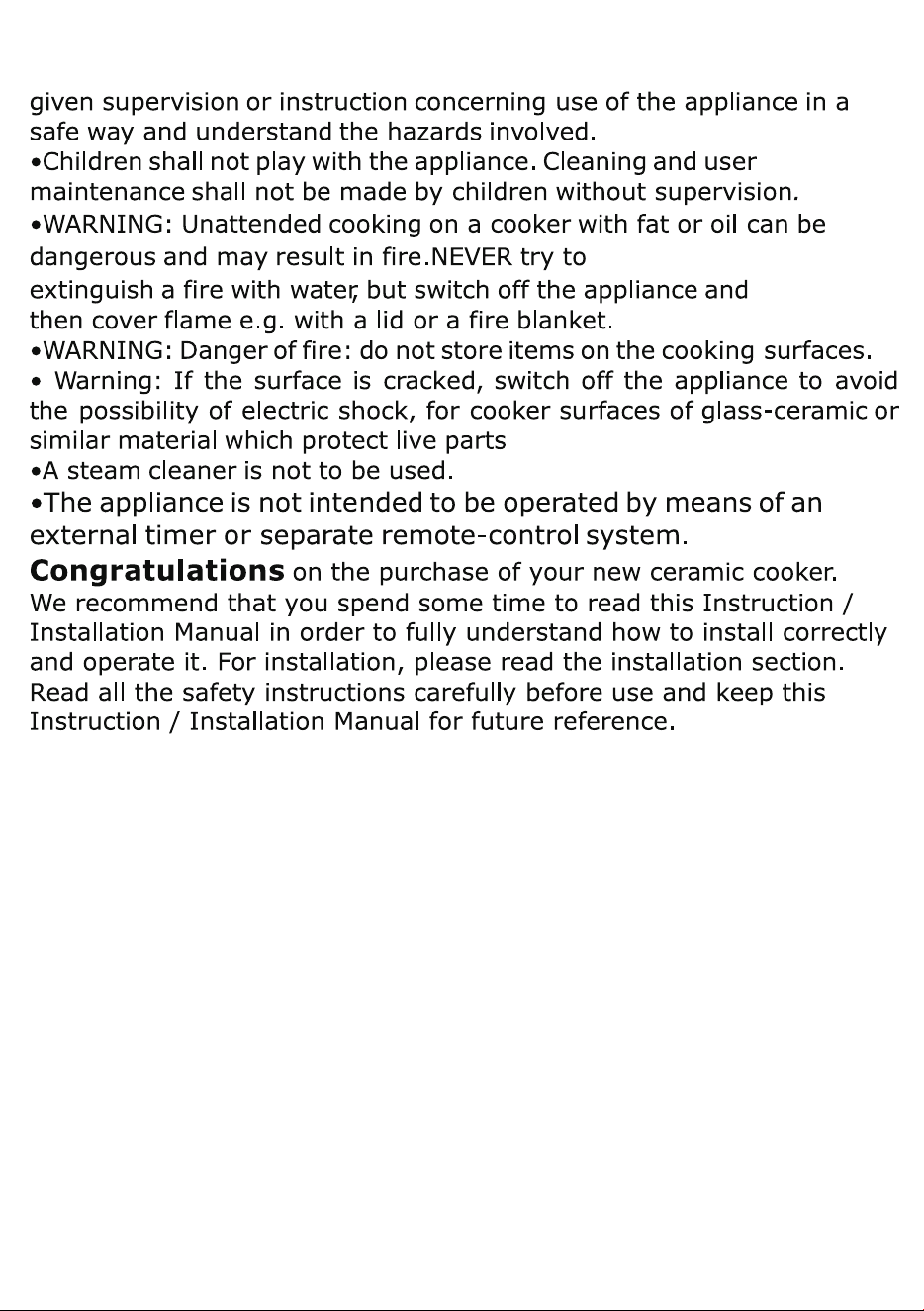

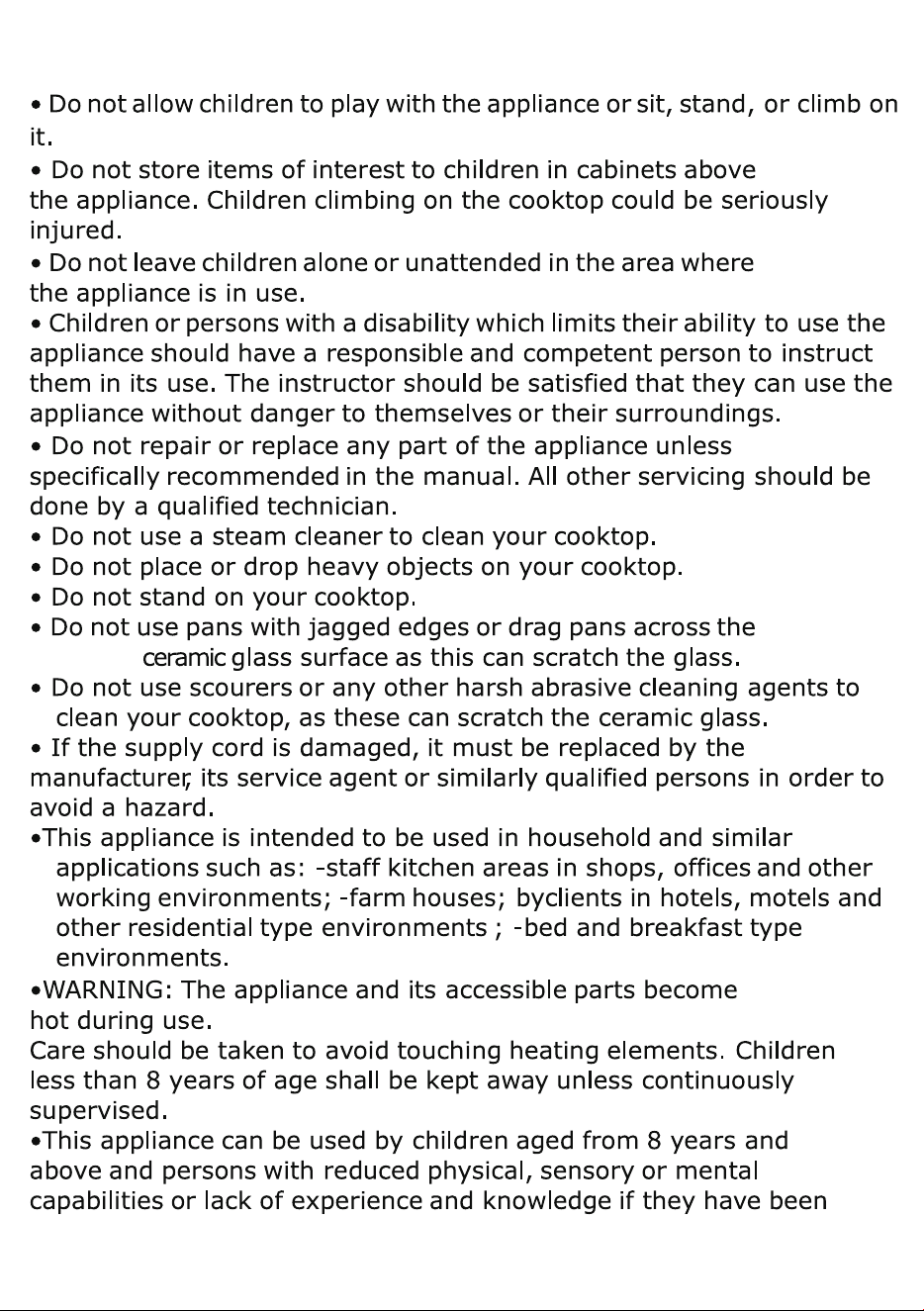

Safety Warnings
1
2
3
4
Top view
Control panel
Surface remains hot after use, do not touch
2300W
700W 1500W
1200W
900W
2000W
1200W
1
2
3
4 5
6
1.2300W (700W/1500W/2300W)
Triple cooking zone
2.1200W
3.2000W (900W/2000W)
Dual Cooking Zone
4.1200W
5. Glass plate
6. Control panel
1
2 3 4 5 4 6
1.Selection Control
2.Triple/Oval adjustment Control
3.Safety Lock
4.+/- (up&down） Control
5.Timer
6.ON/OFF button
Product Overview
Product Parameter
Model
Cooking Zones
Supply Voltage
Installed Electric Power
Product Size L×W×H
Building-in Dimensions A×B
SK-67HLB4T1
4 Zones
AC 220-240V~ 50-60Hz
6700W
770*520*58mm
30.31*20.47*2.28inch
(561~563)*(498~500)mm
(22.09~22.17)*(19.61~19.69)inch
5
The ceramic hob can meet different kinds of cuisine demands because of
resistance wire heating, senior control and multi-power selection, really
the optimal choice for modern families. The ceramic hob centers on cus-
tomers and adpots personalized design. The hob has safe and reliable
performances, making your life comfortable and enabling to fully enjoy
the pleasure from life.
Eco-friendly-This eco-friendly option does not produce combustion,
smoke,or carbon monoxide.It is also non-radioactive and includes
sufficient safeguards to ensure safety.
Cleanliness - Use a high-quality crystal plate for easy cleaning and
prevention of stains.
Convenience - The iconic panel design simplifies and clarifies operation.
Multifunctional - The stove can be used with any flat cooking utensils
made of heat-resistant materials, allowing for a variety of cooking
methods including steaming, boiling, stir-frying, roasting, grilling, and
hotpot.
Energy-efficient - made with high heat efficiency materials and senior
control for power and temperature, saving energy.
Tips-Utensil material options include stainless steel, iron, ceramic, glass,
and aluminum, but only flat-bottom utensils should be used.
Product Information
6
Using your Ceramic Hob
7
When you want finished cooking
1.When you want to stop a cooking zone individually: press the button of
the cooking zone corresponding to the one you want to stop cooking and
press the "-" button, when the corresponding display area changes from a
number to "-", the cooking zone is turned off.
After the "-" symbol on the cooking zone display area has been displayed
for some time, it will change to "H" if the temperature of the oven is
higher than 176°F.
2.If you need to switch off the whole ceramic hob; all you need
to do is press the ON/OFF butto.
3.Beware of hot surfaces[H](surface TEMP.>176°F/80℃)will
show which cooking zone is hot to touch. It will disappear when
the surface has cooled down. It can also be used as an energy
saving function if you want to heat
further pans, use the hotplate that is still hot.
The corresponding power indicator will
start flashing "5".
4.When you switch on the hob and select the cooking zone, the default
gear is 5, you need to select 1-4 levels please press the "-" button, if
you need to select 6-9 levels, please press the "+" button.
8
After the set time has expired, the corresponding cooking zone is auto-
matically switched off.
-Timing duration can be set individually for each cooking zone.
-Timing range: 1-99 minutes.
• When you want to cancel the timer, you need to
press the button of the cooking area where you want
to cancel the timer, and then press the timer button
to turn off the timer function.
Select the desired cooking zone with the corresponding selection control.
Then press the Timer key. The timer display will show 30 min.As long as
the tens digit is flashing, You can adjust it by touching the "+", "-".
• After you have selected a cooking zone and performed the timer func-
tion, the timer function will also be switched off if you set the setting for
that cooking zone to [-].
Using the timer function
9

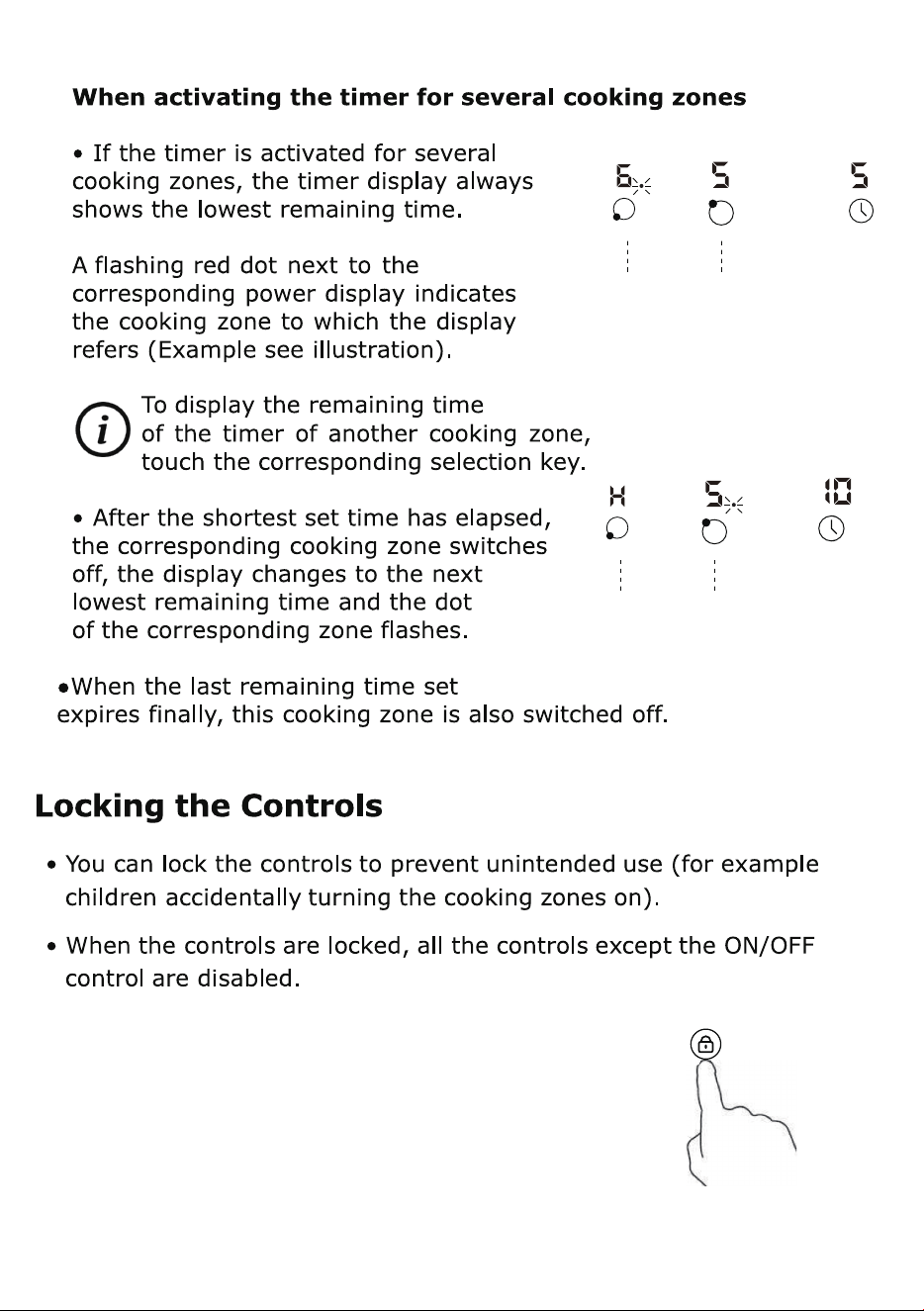

To lock the control panel
Touch and hold the keylock butoon 3 seconds.
Setting:
5 min.
Setting:
15 min.
Remaining
time:
0 min.
Remaining
time:
10 min.
10
The cearmic hob have one or several extended cooking zones(Oval/Triple
zone),these extended zones can provide larger cooking area and additional
heat to fit for different size of cooking pan.
To use Extended zone when hob is working,followes below:
Triple cooking zone: has a round centre zone and two round bar extension
zones. When switched on you can use up to three heating zones at the
same time (A+B+C).
Triple cooking zone
1. Select and active the cooking zone which you would like to use extend-
ed zones, for those cooking zone with this feature. Touch the heating
zone selection control button to select and active it for adjustment.
2.The central heating zone is switched on when the heat of the extended
cooking zone is first adjusted.
Double and triple cooking zones have two or three heating zones.
Oval cooking zone: has a round centre zone and a semi-elliptical extension
zone. When switched on you can use two heating zones at the same time
(A+B)
Oval cooking zone
Using Large Heating Area-Ceramic Hob
cooktop.
11
1.Select the oval area and set a power level
2.Now press the corresponding cooking zone selection button again while
the heating level indicator is flashing.
Subsequently press the button, the hob will display and the extend-
ed area function is switched on.
3.When you want to switch back to single zone heating mode, you need to
press the Oval zone button, followed by the -- button, the extended zone
function stops when the display reverts to a number
Triple zone
1.Select the triple area and set a power level.
2.Press the corresponding cooking zone selection button again while the
heating level indicator is flashing, then the first time is pressed the
hob will display and the extended zone function is switched on (B),
press again and the extended function is switched on (C)
touch once
touch twice
Activating the oval/triple extended zone function
Oval zone
12
When the cooker has been operating for some time,there will be some
residual heat.The letter "H" appears to warn you to keep away from it.
Residual Heat Warning
Take care when frying as the oil and fat heat up very quickly, At extremely
high temperature oil and fat will ignite spontaneously and this presents a
serious fire risk.
13

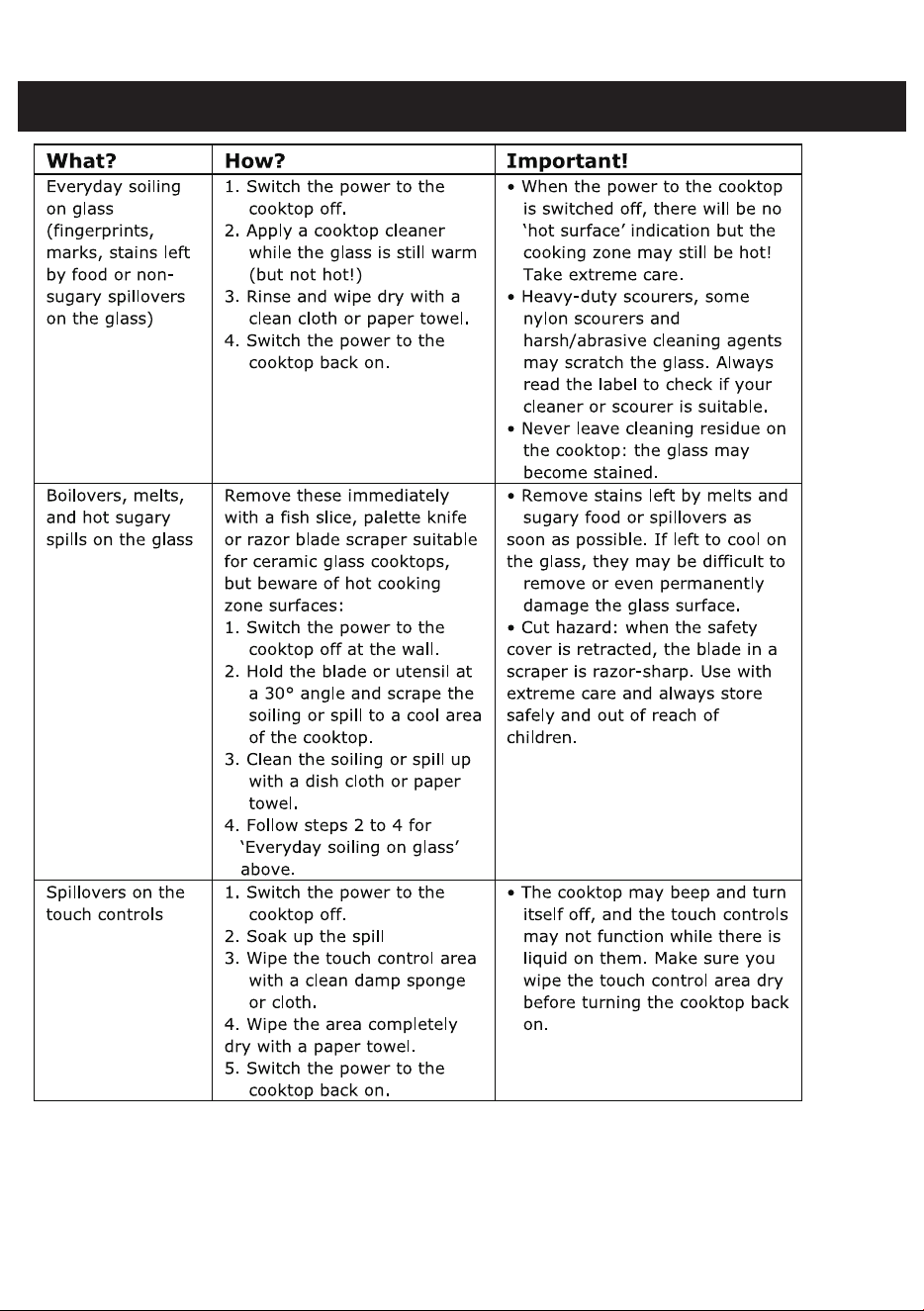

Care and Cleaning
14

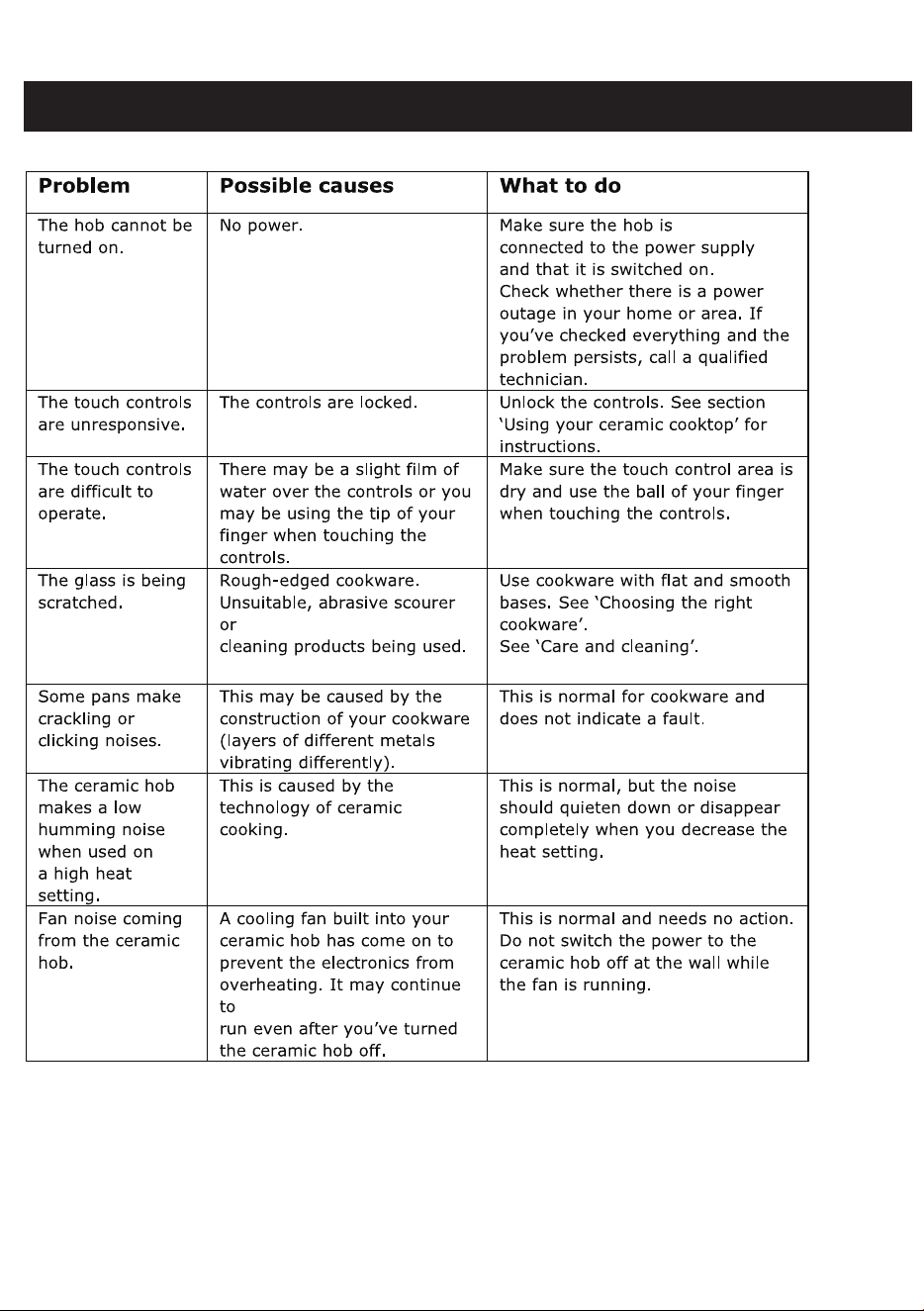

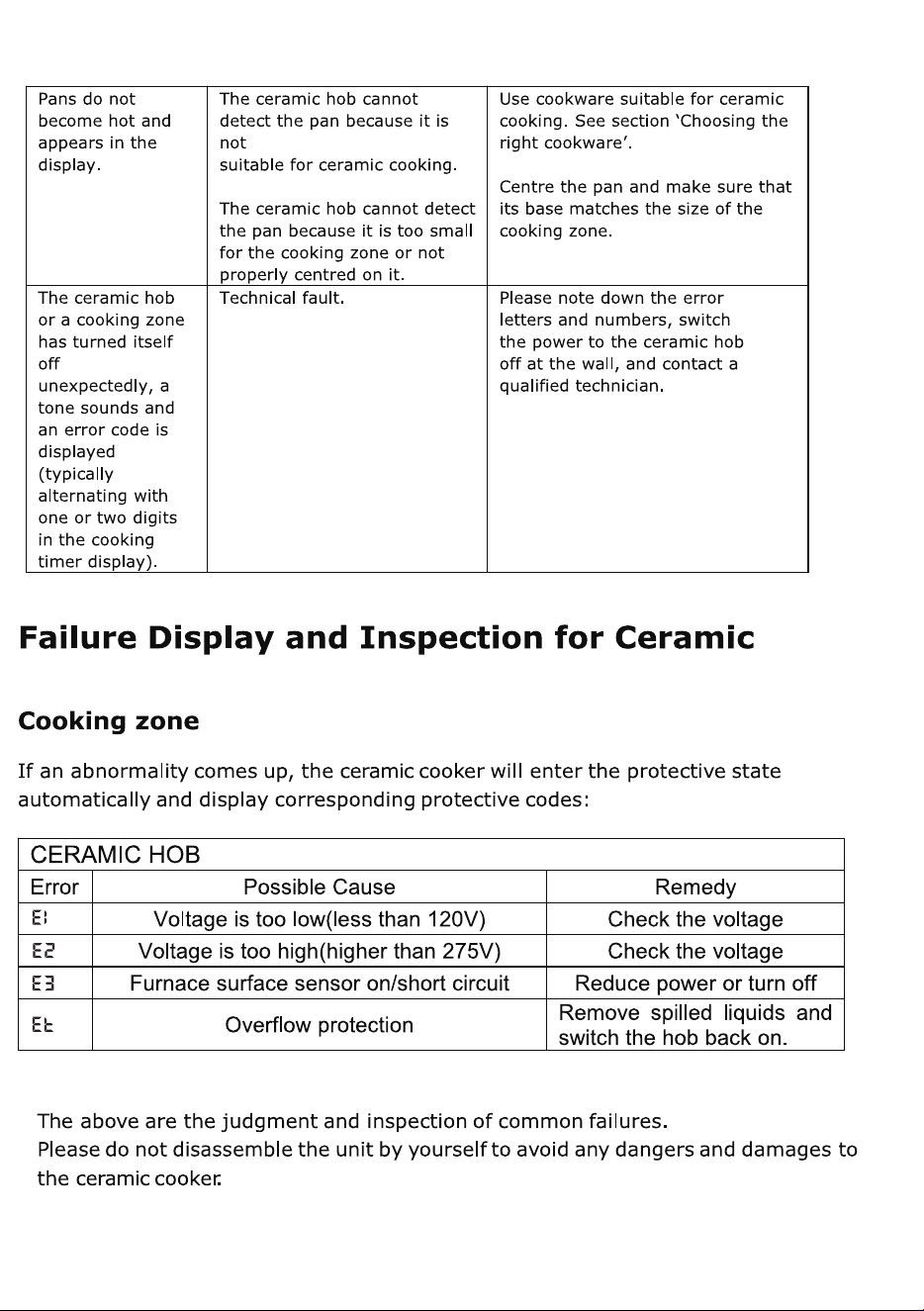

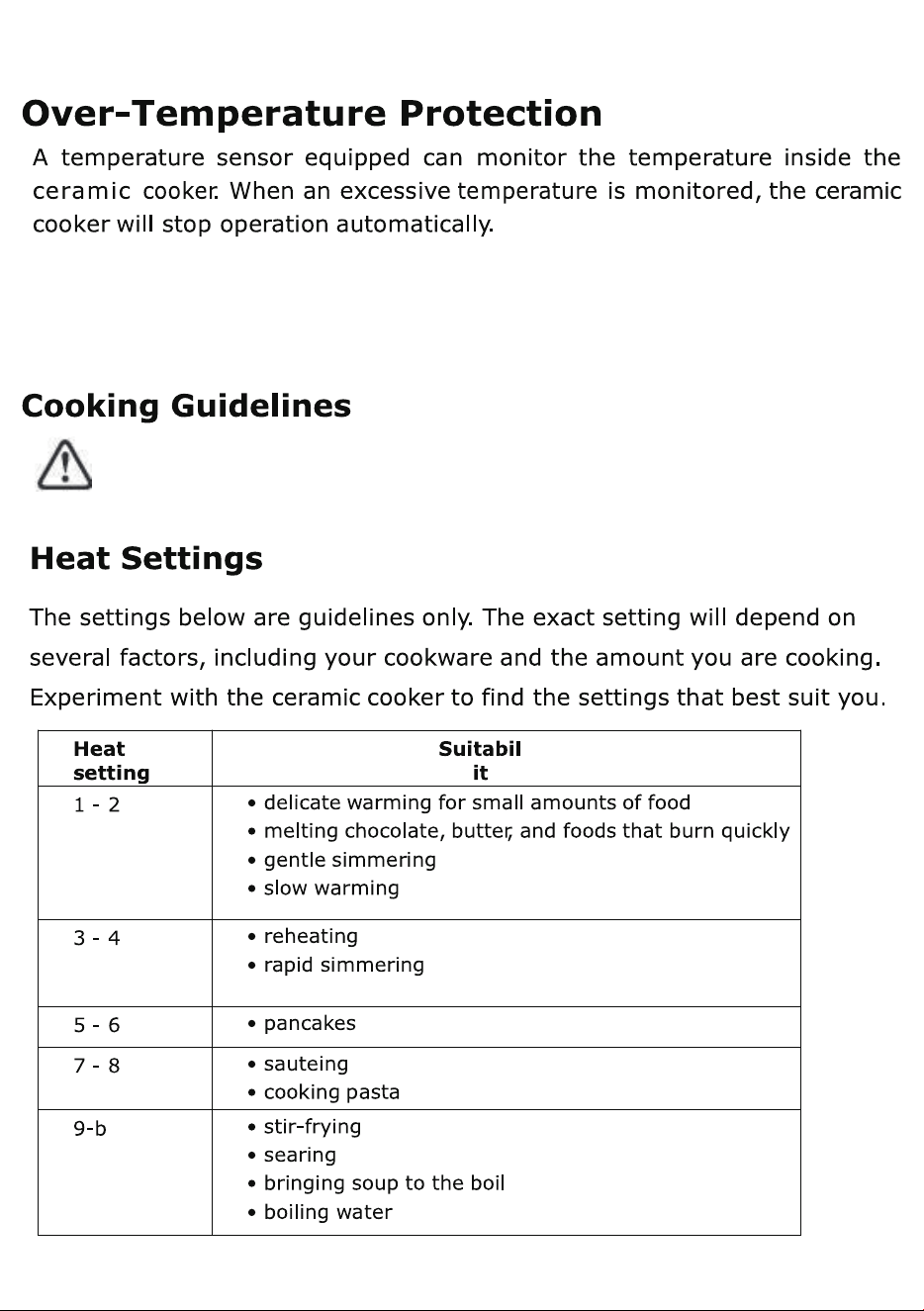

Hints and Tips
15
16

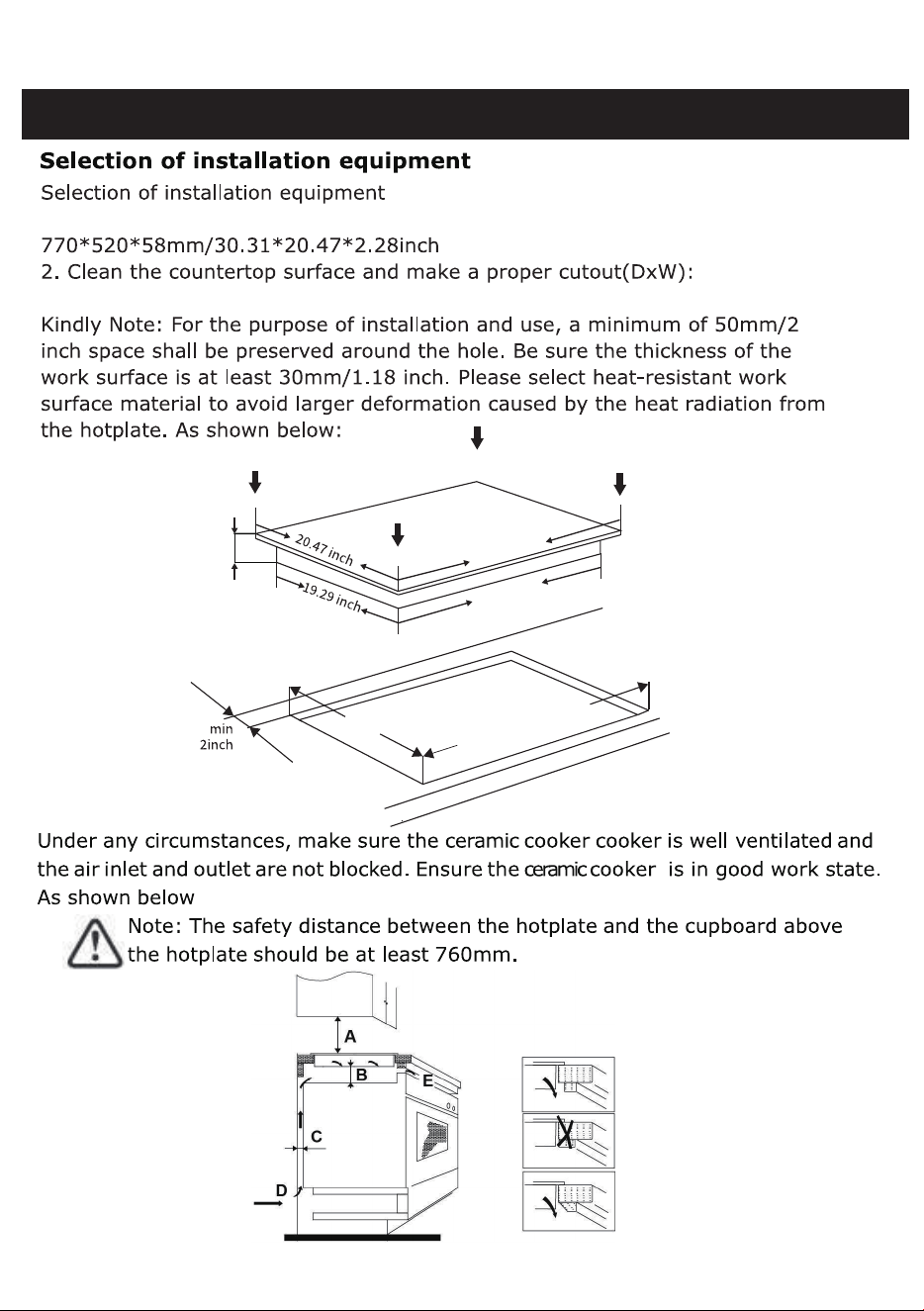

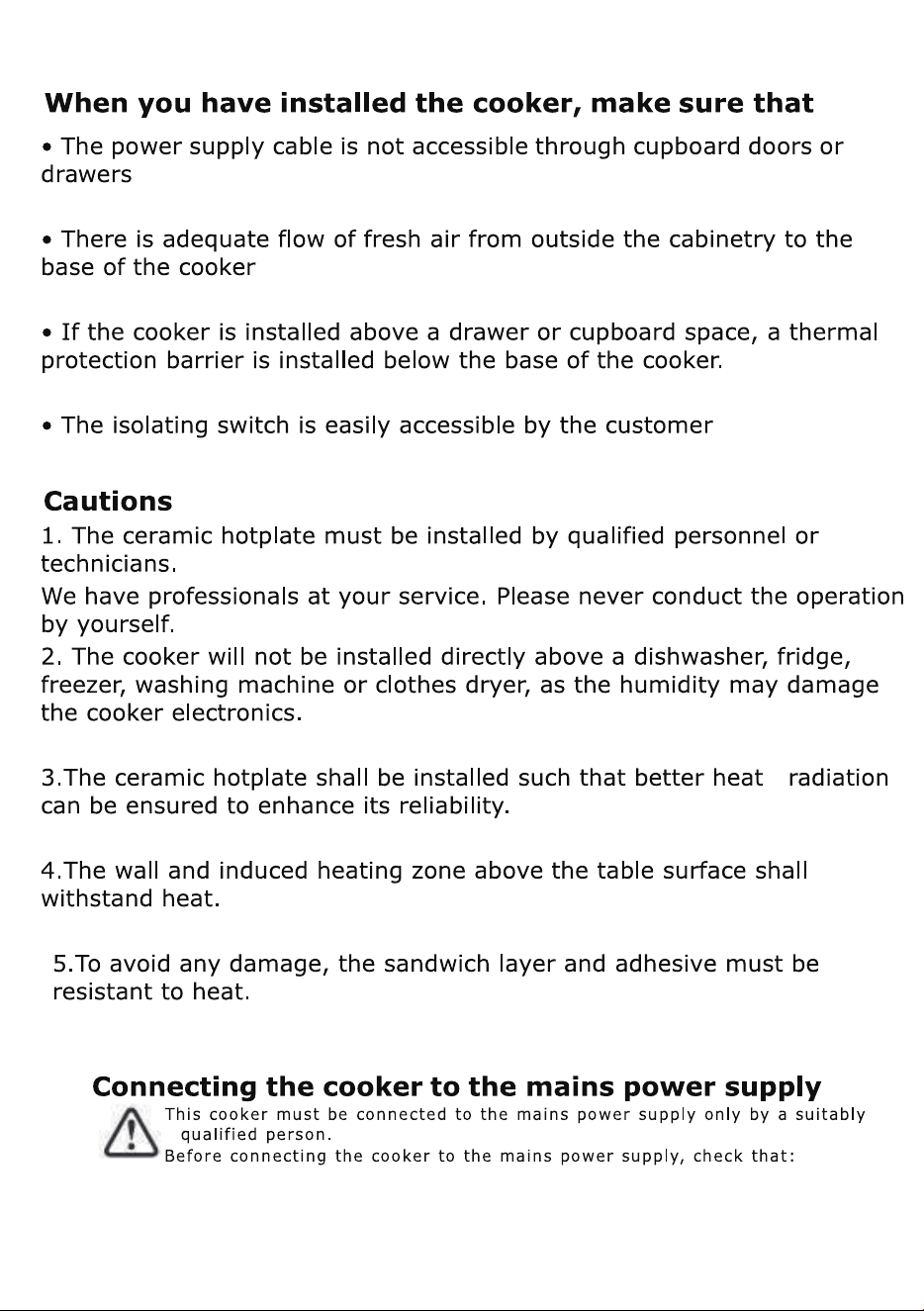

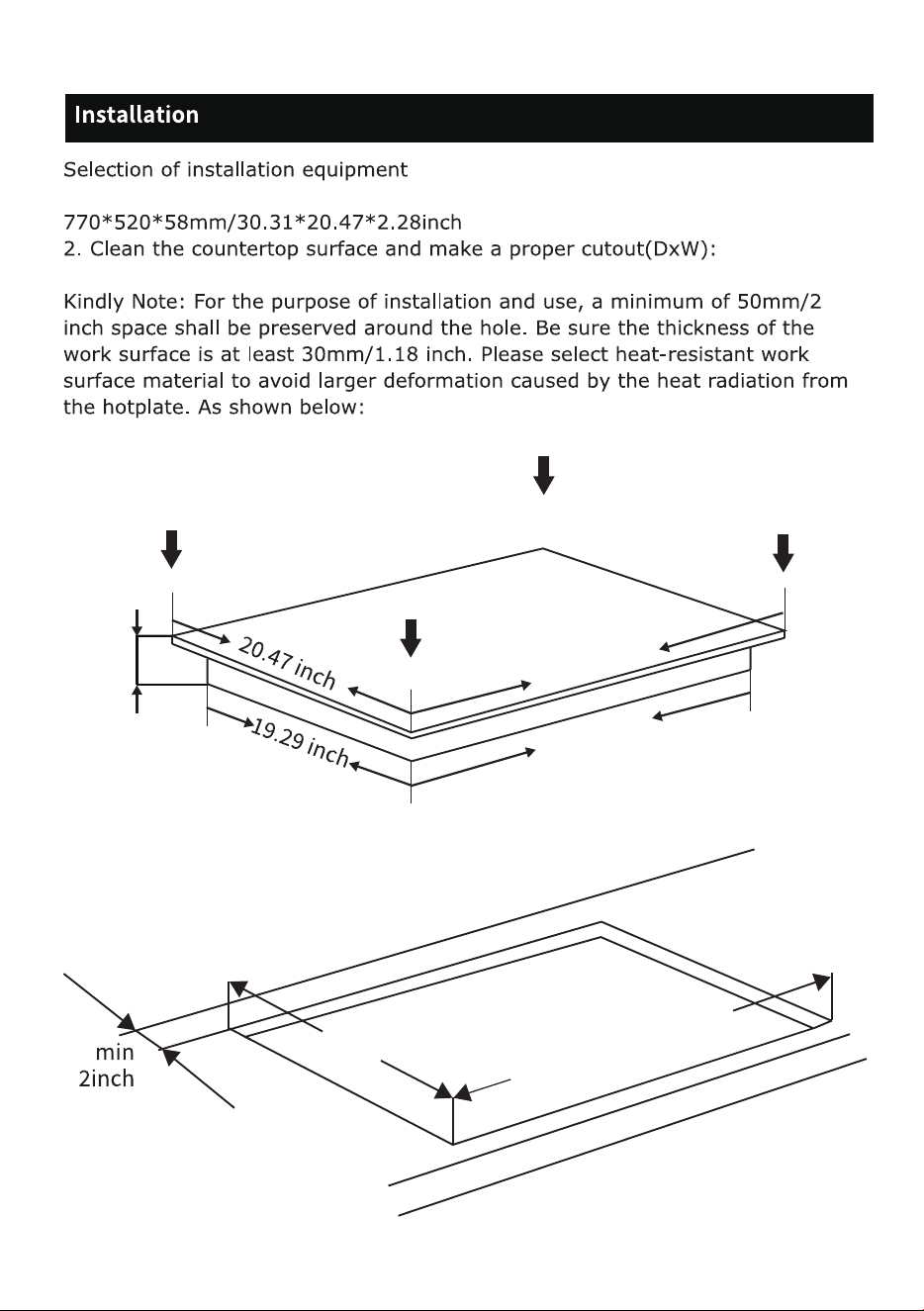

Installation
(561~563)*(498~500)mm/(22.09~22.17)*(19.61~19.69)inch
30.31 inch
(22.09~22.17) inch
(19.61~19.69) inch
21.85 inch
2.28inch
1. Make sure the size of the electric ceramic cooktop (DxWxH):
17
18
19
75℃/167℉
