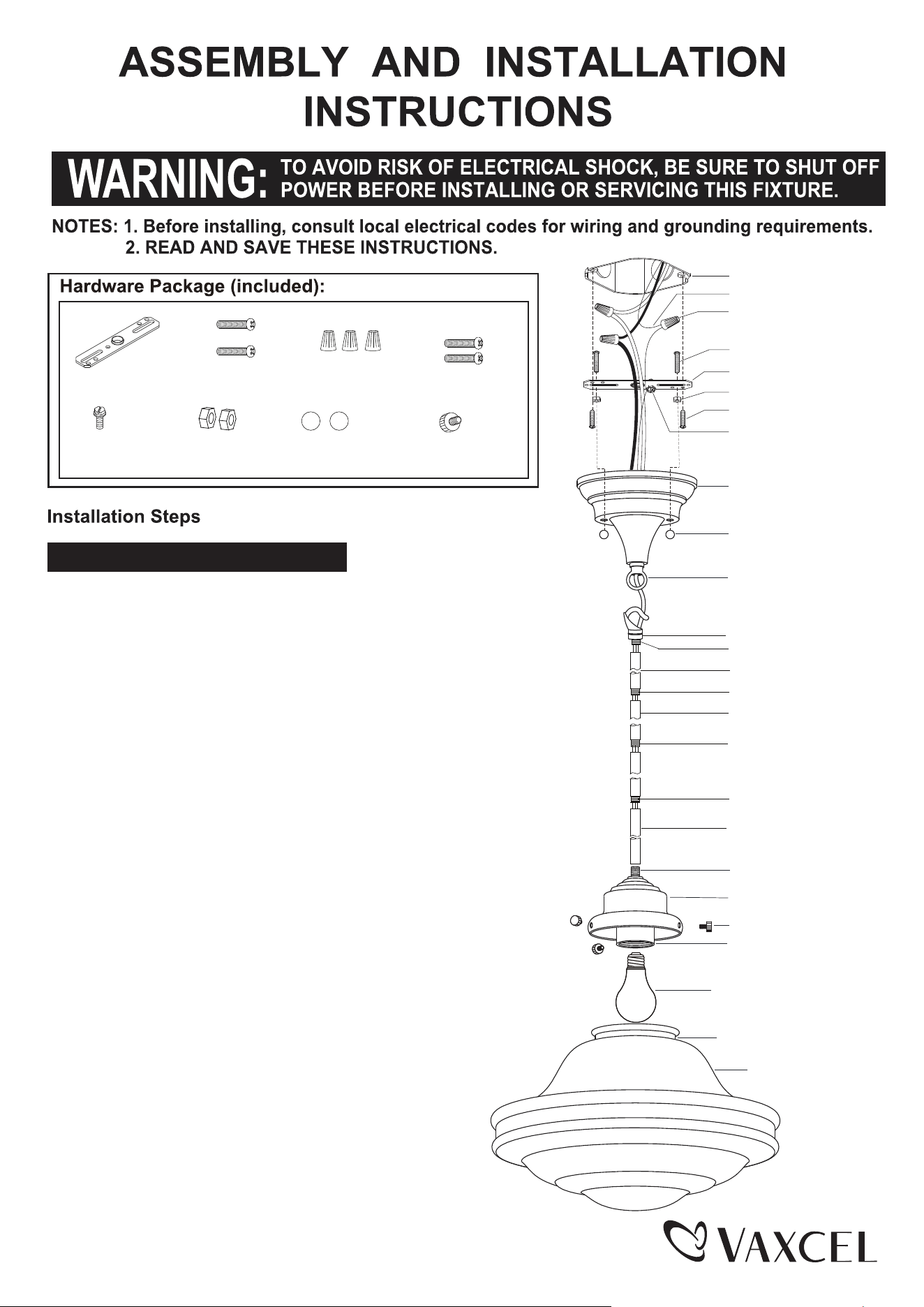

1. Thread two fixture mounting screws (D) through the mounting strap (A),
and then secrure with lock nuts (F). Adjust the length of the fixture mounting
screws (D) if necessary.
2. Attach the mounting strap (A) to the outlet box by using two mounting
screws (B).
3. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, and
then secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the upper
rod onto the middle rod using the threaded pipe.
d. Thread the fixture wire through the hook and fixture canopy, and then
secure the hook onto the upper rod using the threaded pipe.
Note: Length adjustable from 14-3/4" to 59-3/4". Use fewer rods
if shorter length is desired.
4. Hang the hook to the loop of the fixture canopy.
5. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to
the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture
to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting
strap (A) with the green ground screw (E), then depending
on local code, connect it to the house ground wire with the
wire connector (C).
Carefully put all of the wires back into the outlet box.
P0374
Mounting Strap (A) Mounting Screw (B) Wire Connector (C) Fixture Mounting
Screw (D)
Green Ground
Screw (E)
Lock Nut (F)
Bolt Nut (G)
Set Screw (H)
Mounting Screw (B)
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Mounting Screw (D）
Mounting Strap (A）
Lock Nut (F）
Green Ground Screw (E)
Fixture Canopy
Bolt Nut (G)
Loop
Hook
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Class Bracket
Set Screw (H)
Socket
Notch
Glass Shade
Lower Rod
Upper Rod
Middle Rod
Max. 60W Medium Base bulb
(not included)
Page 1 / 2
Turn off the power at fuse or circuit box.
230403
6. Attach the fixture canopy to the mounting strap (A) by inserting
the fixture mounting screw (D), and then secure it with two bolt
nuts (G).
7. Install 2 x 100W Max medium base bulbs (not included).
See relamping label at socket area or packaging for
maximum wattage allowed.
8. Attach the glass shade to the glass bracket by threading
set screws (H) onto the glass notches. (Do not over tighten.)

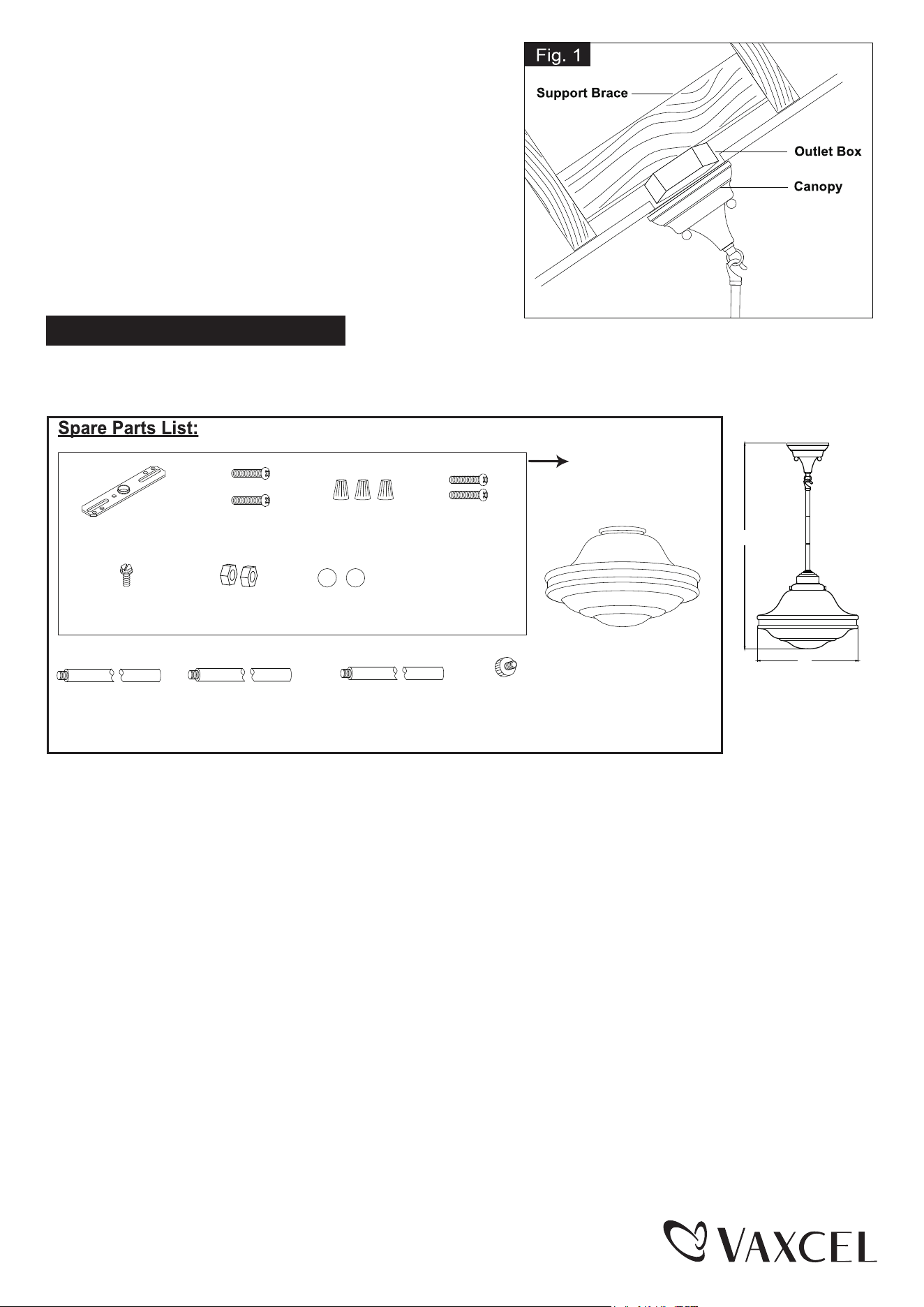

9. Angled mounting recommended for a vaulted or angled ceiling.
(See Fig.1)
B
10282CS
Glass Shade
3331RD 3332RD
A: 12" B: 14-3/4" ~ 59-3/4"
Assembly Kit
6485MM (1 SET)
A
3330RD
12" Rod
6" Rod 3" Rod
Mounting Strap (A) Mounting Screw (B) Wire Connector (C)
Fixture Mounting
Screw (D)
Green Ground
Screw (E)
Lock Nut (F)
Bolt Nut (G)
The following parts are available for re-order if damaged or missing.
Turn on the power at fuse or circuit box.
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
230403
6489FS
Set Screw (H)
