THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL81832 PAGE: 1 OF 5
ISSUE DATE: 06/02/14
PREPARED FOR: BEST LIGHTING PRODUCTS
CATALOG NUMBER: E-1 V2

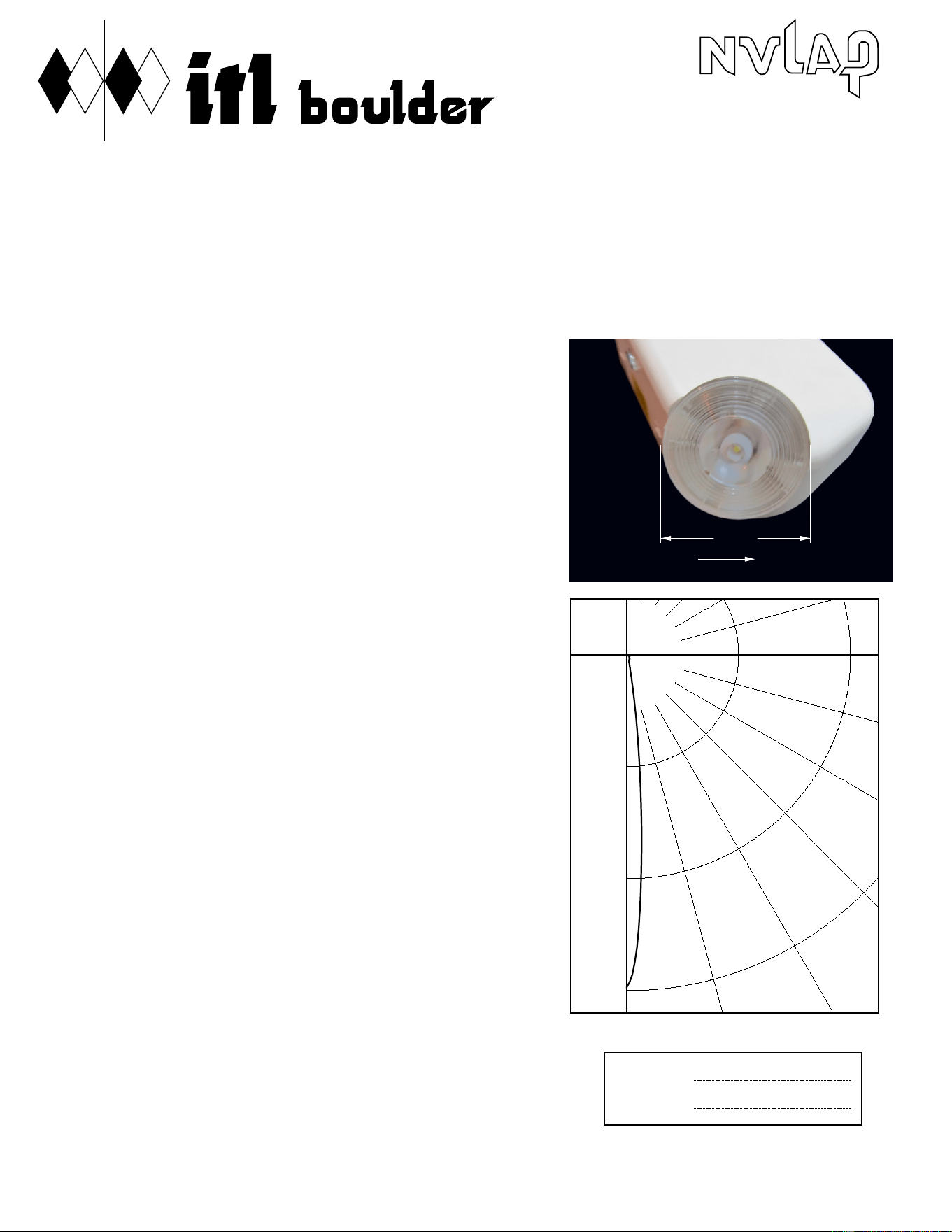

LUMINAIRE: MOLDED WHITE PLASTIC HOUSING, TWO MOLDED WHITE PLASTIC SWIVEL
HEAD ASSEMBLIES, EACH HEAD ASSEMBLY CONSISTS OF: ONE CIRCUIT BOARD
WITH 1 LED, MOLDED CLEAR PLASTIC LENS WITH CONCENTRIC CIRCULAR
EXTERIOR PERIMETER PRISMS AND CLEAR CONICAL OPTIC BELOW LED WITH
RECESSED TOP CENTER. ONLY ONE HEAD ASSEMBLY ENERGIZED FOR THIS TEST.
LAMP: ONE WHITE LIGHT EMITTING DIODE (LED), VERTICAL BASE-UP POSITION.
TOTAL INPUT WATTS = 0.484 AT 3.6 VOLTS DC
MOUNTING: SURFACE
LED DRIVER: BEST LIGHTING PROPRIETARY
NOTE: DATA SHOWN IS ABSOLUTE FOR THE SAMPLE
PROVIDED AT RATED INPUT VOLTAGE (3.6VDC)
TO THE LED DRIVER. LED DRIVER INFORMATION
PROVIDED BY CLIENT. THE SWIVEL HEAD
ASSEMBLY WAS SET IN A CLIENT REQUESTED
POSITION WHICH IS APPROXIMATELY AIMED
30-DEGREES BELOW THE HORIZON AND CANTED
APPROXIMATELY 45-DEGREES FROM STRAIGHT
AHEAD WHEN LUMINAIRE IS IN THE VERTICAL
AND LEVEL POSITION. FOR THIS TEST THE
LUMINAIRE WAS POSITIONED TO PLACE THE
LED IN THE VERTICAL BASE-UP POSITION
(AIMED TOWARDS NADIR).
TEST PROCEDURE: IESNA LM-79-08
TEST DISTANCE = 20.0 FEET
DEG CANDELA LUMENS
0 475
5 242 16.7
15 16 5.2
25 8 3.9
35 7 4.2
45 5 4.1
55 5 4.4
65 2 2.1
75 1 0.9
85 0 0.0
90 0
95 0 0.0
105 0 0.0
115 0 0.0
125 0 0.0
135 0 0.0
145 0 0.0
155 0 0.0
165 0 0.0
175 0 0.0
180 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 25.8 62.1
0- 40 30.1 72.3
0- 60 38.6 92.8
0- 90 41.6 100.0
90-120 0.0 0.0
90-130 0.0 0.0
90-150 0.0 0.0
90-180 0.0 0.0
0-180 41.6 100.0
EFFICACY = 86.0 lm/W
CIE TYPE - DIRECT
LUMINAIRE SPACING CRITERION = 0.18
160
320
480
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
Approved
Checked M KLOPF
R BEATTIE
Lighting Engineer
1 15/16
0°
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL81832 PAGE: 2 OF 5
ISSUE DATE: 06/02/14
PREPARED FOR: BEST LIGHTING PRODUCTS
CANDELA DISTRIBUTION
0.0 475 95.0 0
0.5 468 97.5 0
1.0 457 100.0 0
1.5 439 102.5 0
2.0 418 105.0 0
2.5 391 107.5 0
3.0 363 110.0 0
3.5 333 112.5 0
4.0 301 115.0 0
4.5 271 117.5 0
5.0 242 120.0 0
5.5 214 122.5 0
6.0 188 125.0 0
6.5 163 127.5 0
7.0 141 130.0 0
7.5 121 132.5 0
8.0 104 135.0 0
8.5 88 137.5 0
9.0 74 140.0 0
9.5 63 142.5 0
10.0 53 145.0 0
11.0 39 147.5 0
11.5 34 150.0 0
12.0 29 152.5 0
12.5 26 155.0 0
13.0 23 157.5 0
13.5 21 160.0 0
14.0 19 162.5 0
14.5 17 165.0 0
15.0 16 167.5 0
16.0 14 170.0 0
17.0 12 172.5 0
18.0 11 175.0 0
19.0 10 177.5 0
20.0 10 180.0 0
22.5 9
25.0 8
27.5 8
30.0 8
32.5 7
35.0 7
37.5 6
40.0 6
42.5 6
45.0 5
47.5 5
50.0 5
52.5 5
55.0 5
57.5 5
60.0 4
62.5 3
65.0 2
67.5 1
70.0 1
72.5 1
75.0 1
77.5 1
80.0 0
82.5 0
85.0 0
87.5 0
90.0 0
92.5 0
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL81832 PAGE: 3 OF 5
ISSUE DATE: 06/02/14
PREPARED FOR: BEST LIGHTING PRODUCTS
5-DEGREE 10-DEGREE
ZONAL LUMEN SUMMARY ZONAL LUMEN SUMMARY
0- 5 8.1 0- 10 16.7
5- 10 8.6 0- 20 21.9
10- 15 3.3 0- 30 25.8
15- 20 2.0 0- 40 30.1
20- 25 1.9 0- 50 34.2
25- 30 2.0 0- 60 38.6
30- 35 2.1 0- 70 40.7
35- 40 2.1 0- 80 41.6
40- 45 2.1 0- 90 41.6
45- 50 2.0 0-100 41.6
50- 55 2.2 0-110 41.6
55- 60 2.2 0-120 41.6
60- 65 1.5 0-130 41.6
65- 70 0.6 0-140 41.6
70- 75 0.5 0-150 41.6
75- 80 0.4 0-160 41.6
80- 85 0.0 0-170 41.6
85- 90 0.0 0-180 41.6
90- 95 0.0
95-100 0.0
100-105 0.0
105-110 0.0
110-115 0.0
115-120 0.0
120-125 0.0
125-130 0.0
130-135 0.0
135-140 0.0
140-145 0.0
145-150 0.0
150-155 0.0
155-160 0.0
160-165 0.0
165-170 0.0
170-175 0.0
175-180 0.0
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL81832 PAGE: 4 OF 5
ISSUE DATE: 06/02/14
PREPARED FOR: BEST LIGHTING PRODUCTS
COEFFICIENTS OF UTILIZATION - ZONAL CAVITY METHOD
EFFECTIVE FLOOR CAVITY REFLECTANCE 0.20
RC 80 70 50 30 10 0
RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
0 119119119119 116116116116 111111111 106106106 102102102 100
1 113110107105 110108105103 104102100 100 98 97 97 95 94 92
2 107102 97 94 105100 96 93 97 93 90 94 91 89 91 89 87 85
3 101 94 89 85 99 93 88 84 90 86 83 88 85 82 86 83 80 79
4 96 89 83 78 95 87 82 78 85 81 77 83 79 76 81 78 75 74
5 92 84 78 73 90 83 77 73 81 76 72 79 75 72 78 74 71 70
6 88 79 74 69 87 79 73 69 77 72 69 76 71 68 74 71 68 66
7 85 76 70 66 83 75 70 66 74 69 65 73 68 65 72 68 65 63
8 82 73 67 63 81 72 67 63 71 66 63 70 66 63 69 65 62 61
9 79 70 65 61 78 70 65 61 69 64 61 68 64 61 67 63 60 59
10 77 68 63 59 76 68 62 59 67 62 59 66 62 59 65 61 59 57
ALL CANDELA, LUMENS, LUMINANCE, AND VCP VALUES IN THIS REPORT ARE
BASED ON ABSOLUTE PHOTOMETRY. THE COEFFICIENT OF UTILIZATION VALUES
ARE BASED ON THE TOTAL ABSOLUTE LUMEN OUTPUT OF THIS TEST SAMPLE.
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL81832 PAGE: 5 OF 5
ISSUE DATE: 06/02/14
PREPARED FOR: BEST LIGHTING PRODUCTS
ADDRESS: 1213 ETNA PARKWAY
PATASKALA, OH 43062
THIS ITL REPORT WITH THE USE OF THE NVLAP LOGO SHALL NOT BE USED BY
THE CLIENT TO CLAIM PRODUCT CERTIFICATION, APPROVAL, OR ENDORSEMENT
BY NVLAP, NIST, OR ANY AGENCY OF THE FEDERAL GOVERNMENT.
