REPORT NUMBER: ITL94628-GONIOPHOTOMETRY PAGE: 1 OF 7
ISSUE DATE: 03/31/21
PREPARED FOR: BEST LIGHTING PRODUCTS
ADDRESS: 1213 ETNA PARKWAY
PATASKALA, OH 43062
CATALOG NUMBER: CEM

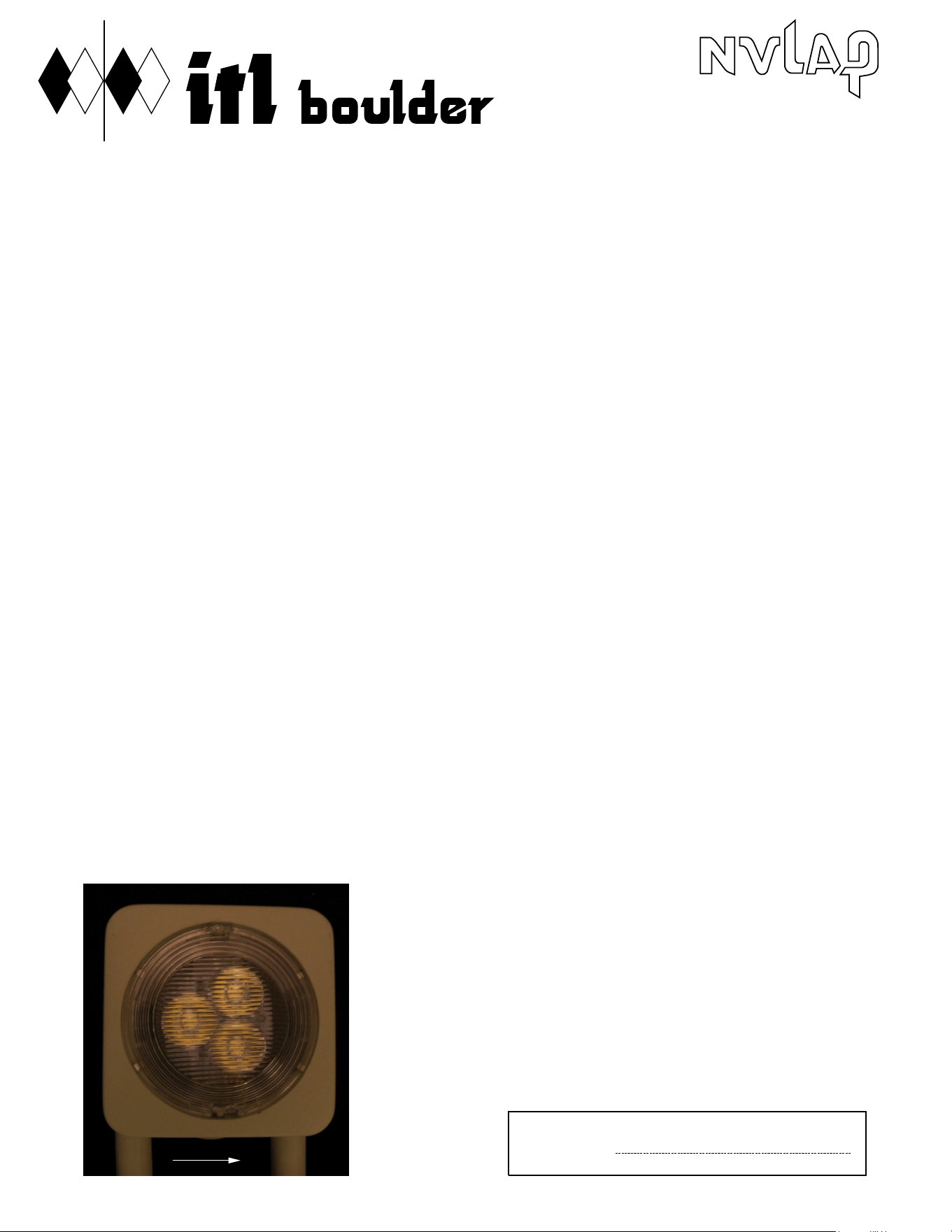

LUMINAIRE: ONE 12" X 8" MOLDED IVORY PLASTIC SINGLE FACE EXIT SIGN WITH TWO
MOLDED IVORY PLASTIC SWIVEL HEAD ASSEMBLIES, EACH HEAD ASSEMBLY CONSISTS
OF: ONE CIRCUIT BOARD WITH 3 LEDS, CLEAR LINEAR PRISMATIC LENS WITH
CONCENTRIC CIRCULAR PERIMETER PRISMS AND ONE CONICAL OPTIC PER LED. LENS
PRISMS OUT AND LINEAR PRISMS PARALLEL WITH THE 0-DEGREE PLANE. BOTH
SWIVEL HEAD ASSEMBLIES AND ALL 6 INTERIOR LEDS FOR THE EXIT SIGN WERE ON
FOR THIS TEST. ONLY ONE LIGHT HEAD WAS MEASURED FOR LIGHT OUTPUT.
LAMPS: THREE WHITE LIGHT EMITTING DIODES (LEDS), VERTICAL BASE-UP POSITION.
MOUNTING: SURFACE
LED DRIVER: BLP PROPRIETARY
NOTE: DATA SHOWN IS ABSOLUTE FOR THE SAMPLE PROVIDED AT CLIENT REQUESTED
INPUT VOLTAGE (3.6VDC) TO THE DRIVER. DRIVER INFORMATION PROVIDED BY
CLIENT. FOR THIS TEST THE LIGHT HEAD WAS ORIENTED TO PLACE THE LEDS IN
THE VERTICAL BASE-UP POSITION (AIMED TOWARDS NADIR).
INPUT ELECTRICAL: 3.60 VOLTS, 1.65 WATTS, 0.459 AMPS
TEST PROCEDURE: IESNA LM-79-19
TEST DISTANCE = 20.0 FEET
AMBIENT: 24.2
THIS REPORT WITH THE USE OF THE
NVLAP LOGO SHALL NOT BE USED BY
THE CLIENT TO CLAIM PRODUCT
CERTIFICATION, APPROVAL, OR
ENDORSEMENT BY NVLAP, NIST, OR
ANY AGENCY OF THE FEDERAL
GOVERNMENT.
Approved
R BERGIN
0°
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
TESTING
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL94628-GONIOPHOTOMETRY PAGE: 2 OF 7
ISSUE DATE: 03/31/21
PREPARED FOR: BEST LIGHTING PRODUCTS
CATALOG NUMBER: CEM
CANDELA DISTRIBUTION FLUX
0.0 22.5 45.0 67.5 90.0
0 255 255 255 255 255
5 245 229 202 184 177 17.5
15 201 130 69 44 38 25.3
25 139 53 19 9 6 17.9
35 58 16 5 3 2 8.7
45 15 5 2 2 2 3.6
55 3 2 2 2 2 1.7
65 2 1 1 1 1 1.1
75 1 1 0 1 0 0.7
85 1 0 0 0 0 0.1
90 0 0 0 0 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 60.7 79.0
0- 40 69.5 90.4
0- 60 74.9 97.4
0- 90 76.9 100.0
90-180 0.0 0.0
0-180 76.9 100.0
CIE TYPE - DIRECT
PLANE : 0-DEG 90-DEG
SPACING CRITERIA : 0.81 0.26
BEAM ANGLE (50%) : 52.9 X 15.0 DEGREES
FIELD ANGLE (10%): 83.1 X 35.0 DEGREES
LUMINOUS DIAMETER: 2.000
LUMINANCE DATA IN CANDELA/SQ M
ANGLE AVERAGE AVERAGE AVERAGE
IN DEG 0-DEG 45-DEG 90-DEG
45 10466. 1395. 1395.
55 2581. 1720. 1720.
65 2335. 1167. 1167.
75 1906. 0. 0.
85 5661. 0. 0.
90
180
270
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
LEGEND
0-deg
45-deg
90-deg
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
TESTING
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL94628-GONIOPHOTOMETRY PAGE: 3 OF 7
ISSUE DATE: 03/31/21
PREPARED FOR: BEST LIGHTING PRODUCTS
CATALOG NUMBER: CEM

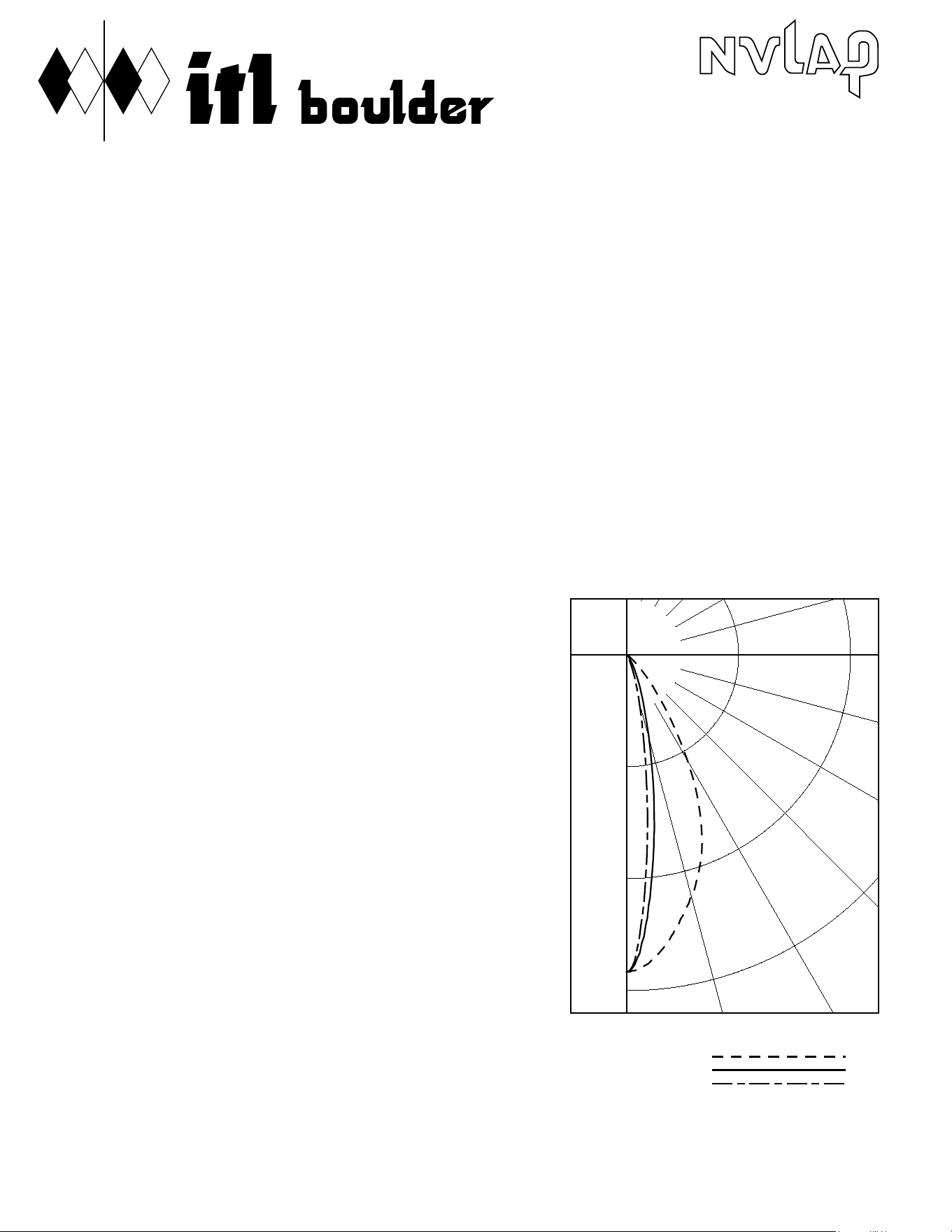

CANDELA DISTRIBUTION
LATERAL ANGLE
0.0 22.5 45.0 67.5 90.0
0.0 255 255 255 255 255
0.5 255 254 254 254 254
1.0 254 254 252 251 251
1.5 254 252 249 247 246
2.0 253 250 244 239 237
2.5 252 248 240 232 229
3.0 251 245 232 222 218
3.5 250 242 227 214 209
4.0 249 237 218 203 199
4.5 247 234 212 194 188
5.0 245 229 202 184 177
5.5 244 225 196 175 167
6.0 242 220 187 164 157
6.5 240 216 179 156 147
7.0 238 210 171 147 137
7.5 236 206 164 138 128
8.0 234 200 156 129 118
8.5 232 195 148 120 109
9.0 229 189 142 112 101
9.5 227 185 134 104 93
10.0 224 179 127 96 87
10.5 222 174 120 89 78
11.0 220 169 114 82 73
11.5 217 164 107 76 67
12.0 215 158 101 70 61
12.5 213 154 94 64 57
13.0 210 148 89 60 52
13.5 208 144 83 55 48
14.0 206 139 78 51 45
14.5 203 135 73 48 41
15.0 201 130 69 44 38
16.0 197 121 60 38 33
17.0 191 112 52 33 28
18.0 186 104 46 28 23
19.0 180 95 41 24 20
20.0 175 87 36 21 16
22.5 158 69 27 13 10
25.0 139 53 19 9 6
27.5 119 40 14 6 4
30.0 97 30 10 4 3
32.5 76 22 7 3 3
35.0 58 16 5 3 2
37.5 42 12 4 2 2
40.0 31 9 3 2 2
42.5 22 7 3 2 2
45.0 15 5 2 2 2
47.5 10 4 2 2 2
50.0 6 3 2 2 2
52.5 4 2 2 2 2
55.0 3 2 2 2 2
57.5 2 2 1 1 1
60.0 2 2 1 1 1
62.5 2 1 1 1 1
65.0 2 1 1 1 1
67.5 2 1 1 1 1
70.0 2 1 1 1 1
72.5 1 1 1 1 1
75.0 1 1 0 1 0
77.5 1 1 0 0 0
80.0 1 1 0 0 0
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
TESTING
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL94628-GONIOPHOTOMETRY PAGE: 4 OF 7
ISSUE DATE: 03/31/21
PREPARED FOR: BEST LIGHTING PRODUCTS
CATALOG NUMBER: CEM
CANDELA DISTRIBUTION
LATERAL ANGLE
0.0 22.5 45.0 67.5 90.0
82.5 1 0 0 0 0
85.0 1 0 0 0 0
87.5 0 0 0 0 0
90.0 0 0 0 0 0
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
TESTING
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL94628-GONIOPHOTOMETRY PAGE: 5 OF 7
ISSUE DATE: 03/31/21
PREPARED FOR: BEST LIGHTING PRODUCTS
CATALOG NUMBER: CEM
5-DEGREE
ZONAL LUMEN SUMMARY
0- 5 5.5
5- 10 12.1
10- 15 13.2
15- 20 12.1
20- 25 10.2
25- 30 7.7
30- 35 5.3
35- 40 3.4
40- 45 2.2
45- 50 1.4
50- 55 1.0
55- 60 0.7
60- 65 0.6
65- 70 0.6
70- 75 0.5
75- 80 0.2
80- 85 0.1
85- 90 0.0
10-DEGREE
ZONAL LUMEN SUMMARY
0- 10 17.5
0- 20 42.9
0- 30 60.7
0- 40 69.5
0- 50 73.1
0- 60 74.9
0- 70 76.0
0- 80 76.7
0- 90 76.9
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
TESTING
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL94628-GONIOPHOTOMETRY PAGE: 6 OF 7
ISSUE DATE: 03/31/21
PREPARED FOR: BEST LIGHTING PRODUCTS
CATALOG NUMBER: CEM
COEFFICIENTS OF UTILIZATION - ZONAL CAVITY METHOD
EFFECTIVE FLOOR CAVITY REFLECTANCE 0.20
RC 80 70 50 30 10 0
RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
0 119119119119 116116116116 111111111 106106106 102102102 100
1 114111109107 111109107105 105103102 101100 99 98 97 96 94
2 109104100 97 106102 99 96 99 96 94 96 94 92 93 92 90 88
3 104 98 93 90 102 96 92 89 94 90 87 91 89 86 89 87 85 83
4 99 92 87 83 98 91 87 83 89 85 82 87 84 81 85 83 80 79
5 95 88 82 78 94 87 82 78 85 81 77 83 80 77 82 79 76 75
6 91 83 78 74 90 82 77 74 81 77 73 80 76 73 78 75 72 71
7 88 79 74 70 86 79 74 70 77 73 70 76 72 69 75 72 69 68
8 84 76 70 67 83 75 70 67 74 70 66 73 69 66 72 69 66 65
9 81 73 67 64 80 72 67 64 71 67 64 70 66 63 70 66 63 62
10 78 70 65 61 77 69 64 61 69 64 61 68 64 61 67 63 61 59
ALL CANDELA, LUMENS, LUMINANCE, AND VCP VALUES IN THIS REPORT ARE
BASED ON ABSOLUTE PHOTOMETRY. THE COEFFICIENT OF UTILIZATION VALUES
ARE BASED ON THE TOTAL ABSOLUTE LUMEN OUTPUT OF THIS TEST SAMPLE.
THE LIGHT CENTER OF THE INDUSTRY SINCE 1955
INDEPENDENT TESTING LABORATORIES, INC.
4066 CAMELOT CIRCLE, LONGMONT, CO 80504 USA
PHONE: (303) 442-1255 • FAX: (970) 535-3114 • E-MAIL: [email protected] • WEBSITE: www.itlboulder.com
NVLAP LAB CODE: 200925-0
TESTING
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: ITL94628-GONIOPHOTOMETRY PAGE: 7 OF 7
ISSUE DATE: 03/31/21
PREPARED FOR: BEST LIGHTING PRODUCTS
CATALOG NUMBER: CEM

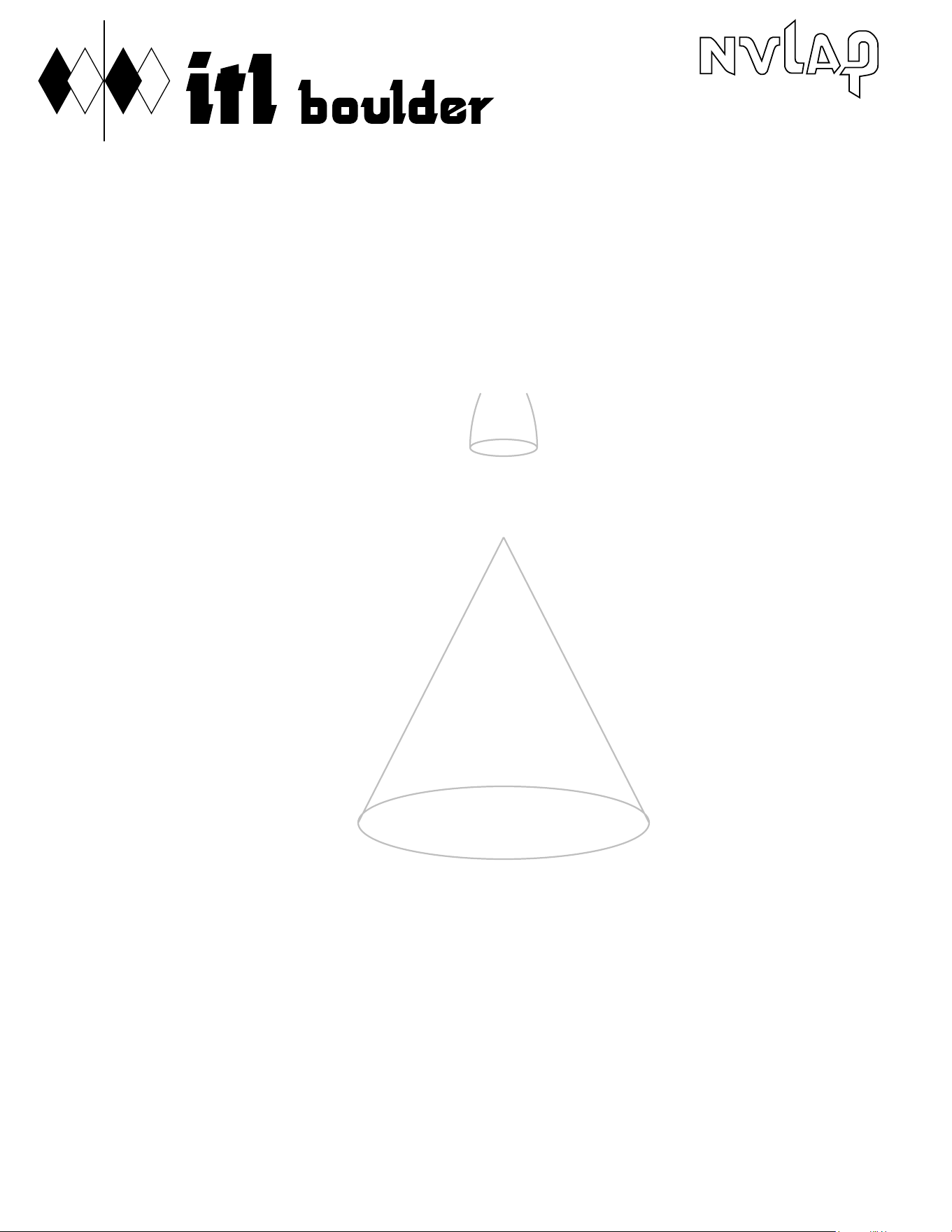

CONE OF LIGHT DIAGRAM
(diameter shown is where fc/lux value is half the fc/lux at nadir)
FC/LUX
Mounting Height
in feet/meters
Diameter
in feet/meters
6.0 7.1 2.2
8.0 4.0 2.9
10.0 2.6 3.7
12.0 1.8 4.4
14.0 1.3 5.2
16.0 1.0 5.9
If distances are feet, results are footcandles.
If distances are meters, results are lux.
Note: The candela values used to generate this diagram were obtained
by averaging the photometric data into a single plane.
