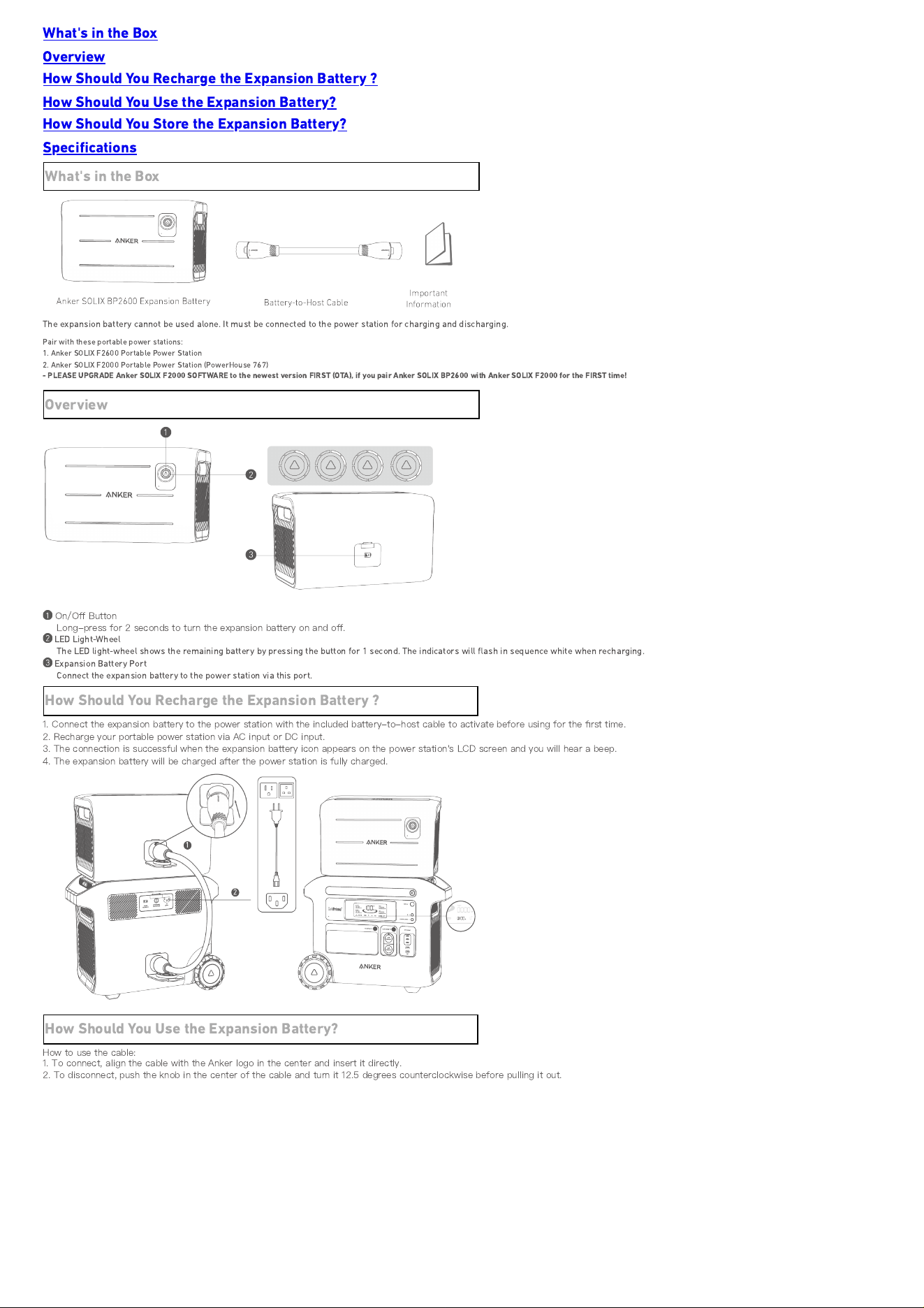

What's in the Box
Overview
How Should You Recharge the Expansion Battery ?
How Should You Use the Expansion Battery?
How Should You Store the Expansion Battery?
Speci
fi
cations
What's in the Box
The expansion battery cannot be used alone. It must be connected to the power station for charging and discharging.
Pair with these portable power stations:
1. Anker SOLIX F2600 Portable Power Station
2. Anker SOLIX F2000 Portable Power Station (PowerHouse 767)
- PLEASE UPGRADE Anker SOLIX F2000 SOFTWARE to the newest version FIRST (OTA), if you pair Anker SOLIX BP2600 with Anker SOLIX F2000 for the FIRST time!
Overview
On/O
ff
Button
Long-press for 2 seconds to turn the expansion battery on and o
ff
.
LED Light-Wheel
The LED light-wheel shows the remaining battery by pressing the button for 1 second. The indicators will
fl
ash in sequence white when recharging.
Expansion Battery Port
Connect the expansion battery to the power station via this port.
How Should You Recharge the Expansion Battery ?
1. Connect the expansion battery to the power station with the included battery-to-host cable to activate before using for the
fi
rst time.
2. Recharge your portable power station via AC input or DC input.
3. The connection is successful when the expansion battery icon appears on the power station's LCD screen and you will hear a beep.
4. The expansion battery will be charged after the power station is fully charged.
How Should You Use the Expansion Battery?
How to use the cable:
1. To connect, align the cable with the Anker logo in the center and insert it directly.
2. To disconnect, push the knob in the center of the cable and turn it 12.5 degrees counterclockwise before pulling it out.

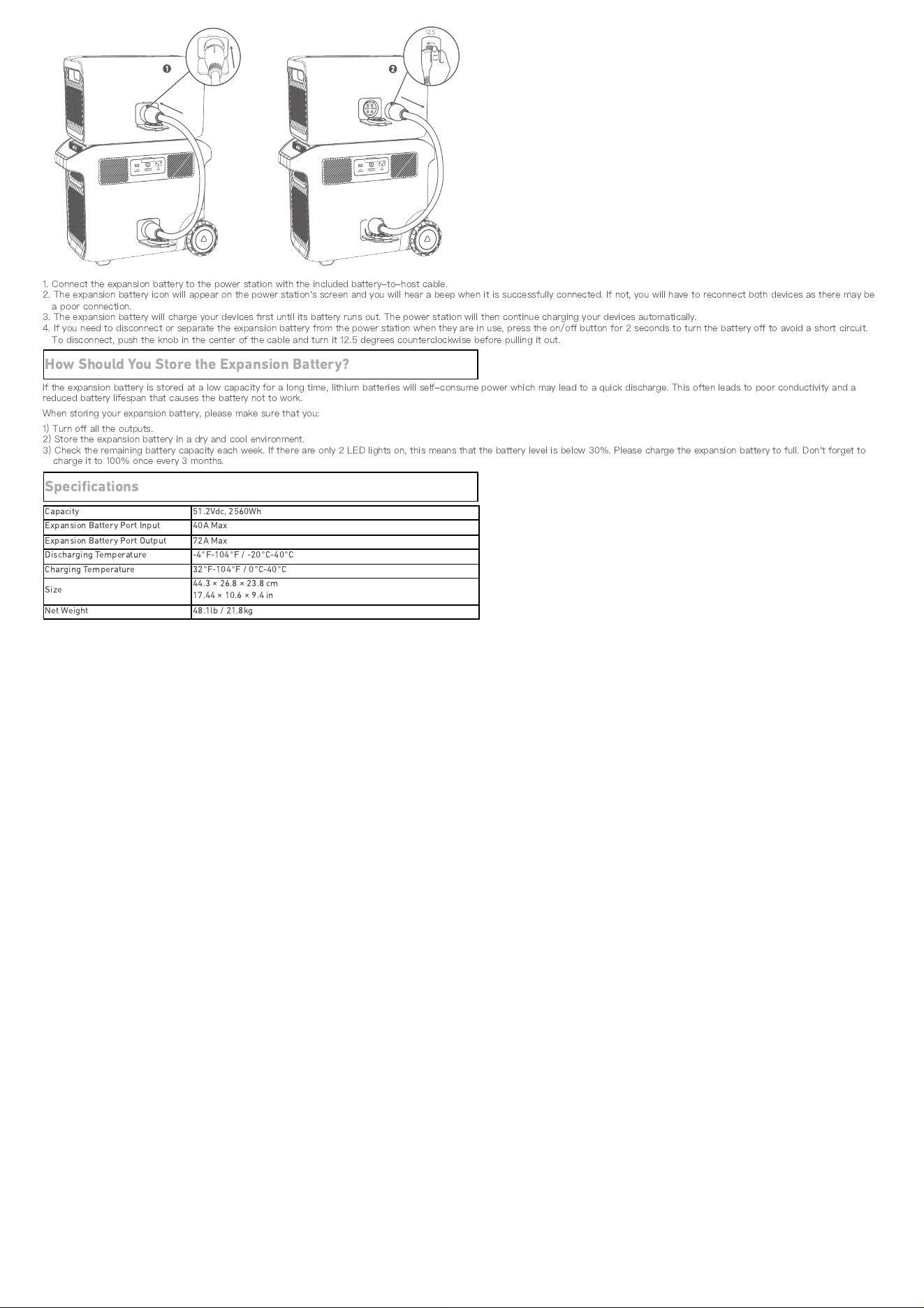

1. Connect the expansion battery to the power station with the included battery-to-host cable.
2. The expansion battery icon will appear on the power station's screen and you will hear a beep when it is successfully connected. If not, you will have to reconnect both devices as there may be
a poor connection.
3. The expansion battery will charge your devices
fi
rst until its battery runs out. The power station will then continue charging your devices automatically.
4. If you need to disconnect or separate the expansion battery from the power station when they are in use, press the on/o
ff
button for 2 seconds to turn the battery o
ff
to avoid a short circuit.
To disconnect, push the knob in the center of the cable and turn it 12.5 degrees counterclockwise before pulling it out.
How Should You Store the Expansion Battery?
If the expansion battery is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This often leads to poor conductivity and a
reduced battery lifespan that causes the battery not to work.
When storing your expansion battery, please make sure that you:
1) Turn o
ff
all the outputs.
2) Store the expansion battery in a dry and cool environment.
3) Check the remaining battery capacity each week. If there are only 2 LED lights on, this means that the battery level is below 30%. Please charge the expansion battery to full. Don't forget to
charge it to 100% once every 3 months.
Speci
fi
cations
Capacity 51.2Vdc, 2560Wh
Expansion Battery Port Input 40A Max
Expansion Battery Port Output 72A Max
Discharging Temperature -4
°
F-104
°
F / -20
°
C-40
°
C
Charging Temperature 32
°
F-104
°
F / 0
°
C-40
°
C
Size
44.3
×
26.8
×
23.8 cm
17.44
×
10.6
×
9.4 in
Net Weight 48.1lb / 21.8kg
