ACTIVE 200 SMART MAGNETIC
CYCLING EXERCISE BIKE
SF-B124067
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained,
and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical condition that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 cm) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the problem
has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135kg).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extremely cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

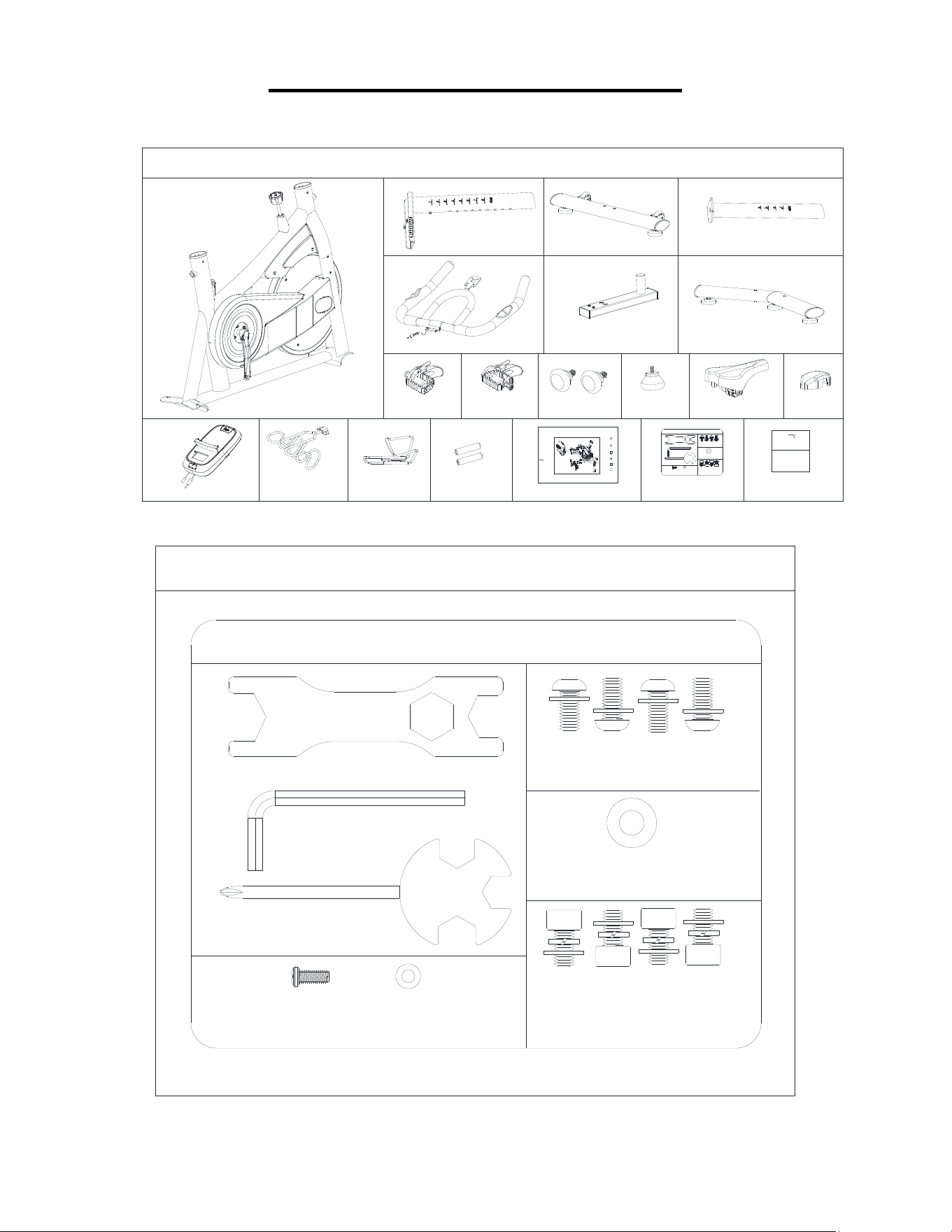

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
23
19
2
39
6
42
70
36
MPORTANT! P lease retain owner¡¯s m anual for mai ntenance and
adju st me nt in str uct io ns. Yo ur sat is fac tion is very i mportant to us,
PLEASE DO NOT RETURN UNT IL YOU HAVE CONTACTED US:
[email protected] or 1- 877 - 90SUNNY (877-907-8669).
UNNY
H E A L T H & F L T N E S S
f
W W W.S U N N Y H E A L T H F I T N E S S.C O M
ACTIVE 200 SMART MAGNETIC
B
THANK
YOU
F OR YOUR PURCHASE
If you have any questions, please contact us at (877) 90SU N NY or
em ail: s u p p o rt @ sunnyhealthfitness.com
UNNY
4
5
3
69
7
A
62
C
D
1
1
SF-B124067
USER MANUAL
CYCL ING EX ERCISE BIKE
#95 S13-S14-S15 1PC
#94 S6 1PC
3-1
3-6
#58 M8*16 4PCS
#59 D8 4PCS
#9 Φ16*1.5 4PCS
SF-B124067 HARDWARE PACKAGE
#93 S13-S17-S19 1PC
#40 Φ20*2 1PC
3-2
#14 M5*12 2PCS
#71 Φ5*1.2 2PCS
3-4
#8 M8*20 4PCS
#9 Φ16*1.5 4PCS
89
#14 M5*12 2PCS
#71 Φ5*1.2 2PCS
3-4
2
#58 M8*16 4PCS
#59 D8 4PCS
#9 Φ16*1.5 4PCS
SF-B124067 HARDWARE PACKAGE
#93 S13-S17-S19 1PC
#40 Φ20*2 1PC
3-2
#95 S13-S14-S15 1PC
#94 S6 1PC
3-1
#8 M8*20 4PCS
#9 Φ16*1.5 4PCS
3-6
3
#9 Φ16*1.5 4PCS
8
9
7
36
#8 M8*20 4PCS
#36 M16*1.5 1PC
8
9
3
1

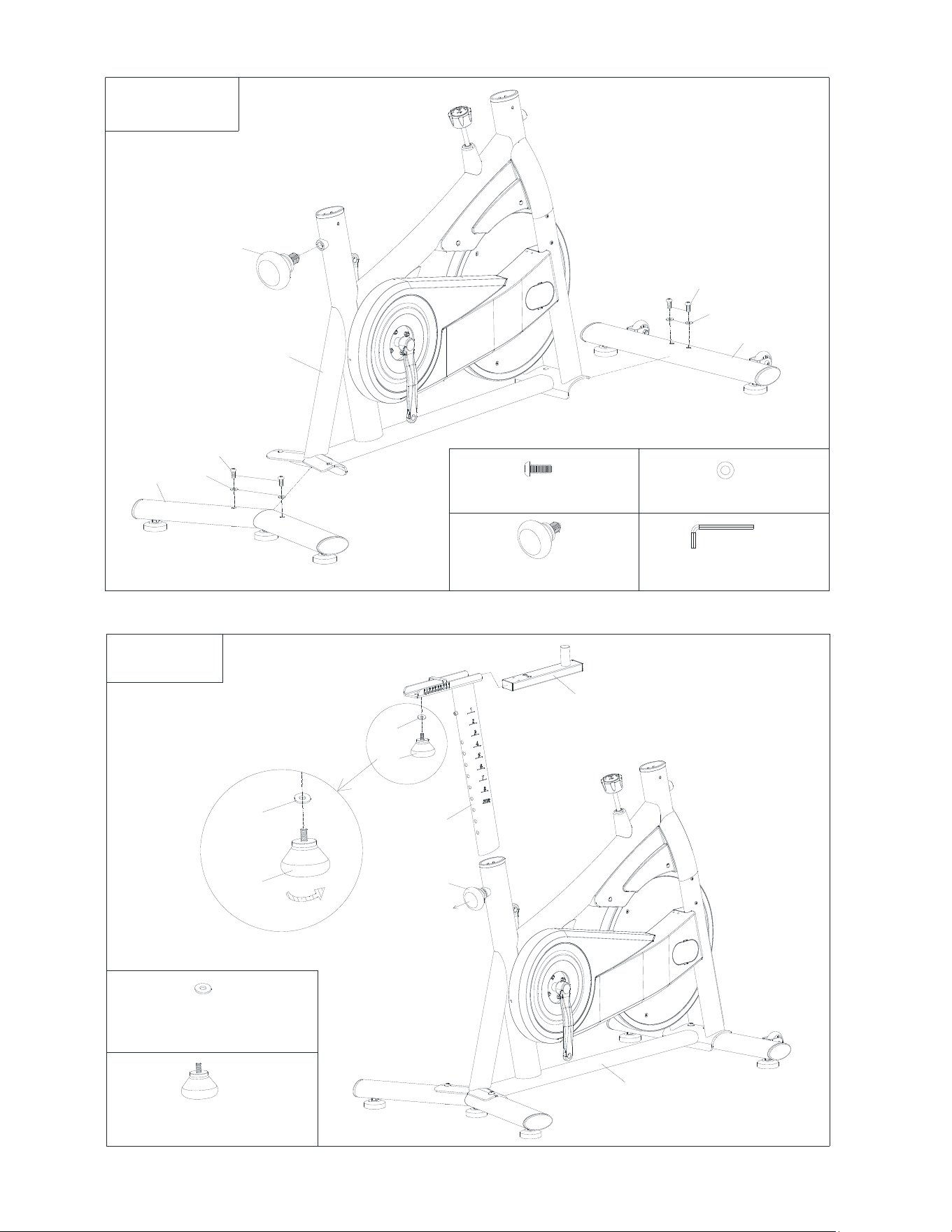

3-1
#94 S6 1PC
39
40
3-2
#39 M8*20 1PC
#40 Φ20*2 1PC
39
40
6
2
36
1
4
18
70
71
14
21
19
95
19
23
95
23
24
68

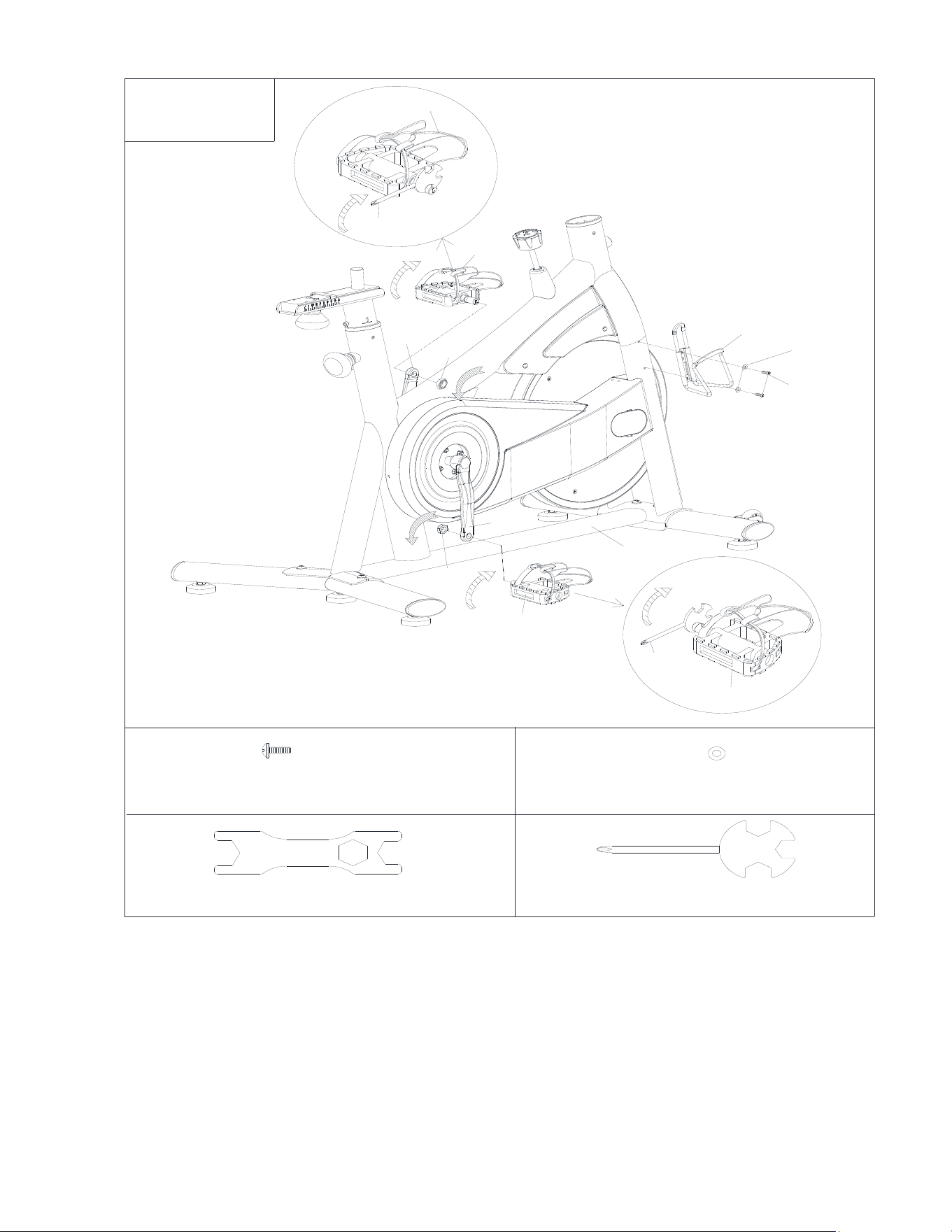

3-3
S13
S14
S15
S17
S19
#93 S13-S17-S19 1PC
#14 M5*12 2PCS
#71 Φ 5*1.2 2PCS
#95 S13-S14-S15 1PC
S13
1
5
14
71
69
6
6
14
71
69

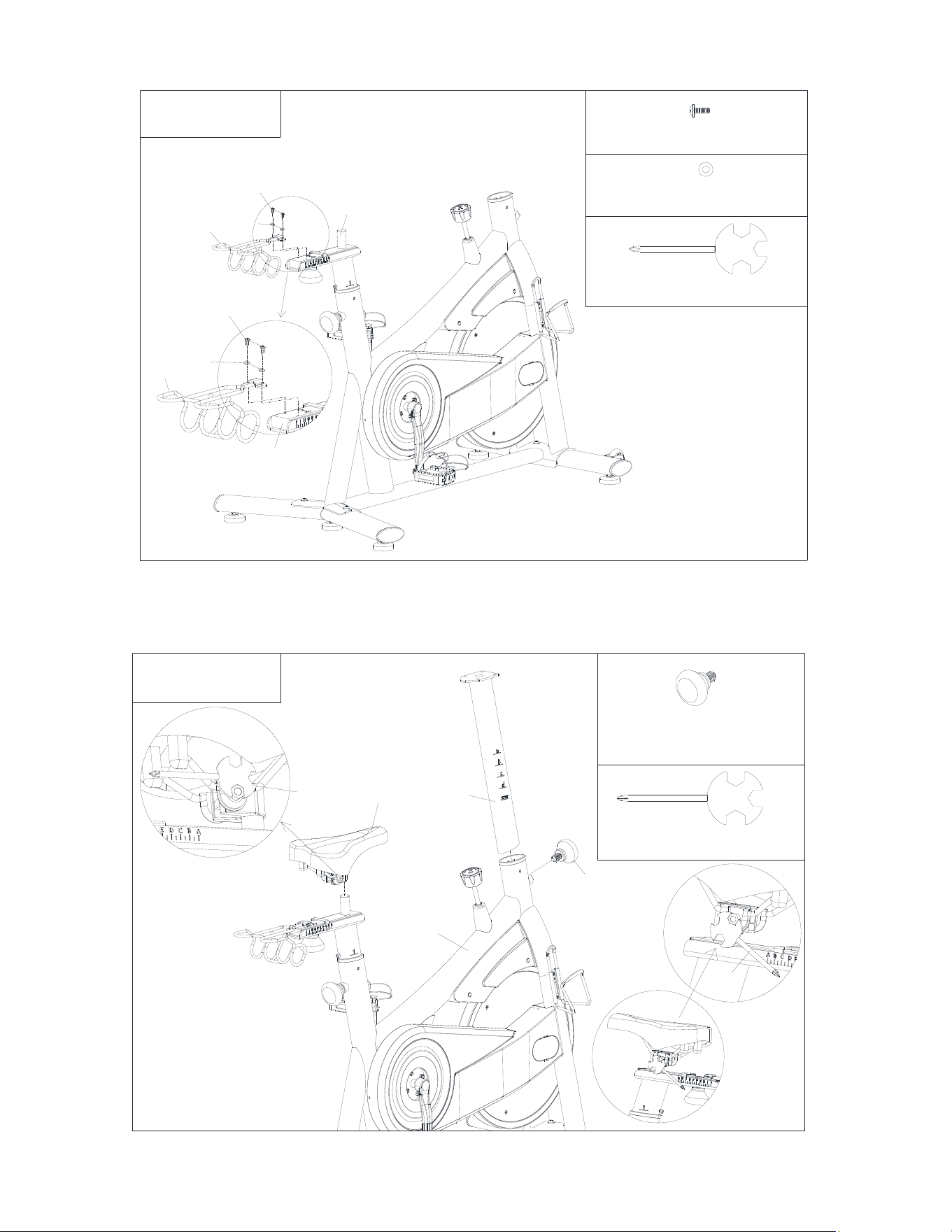

3-4
#14 M5*12 2PCS
#71 Φ5*1.2 2PCS
S13
S14
S15
#95 S13-S14-S15 1PC
36
1
4
S13
S14
S15
#95 S13-S14-S15 1PC
95
42
95
3-5
#36 M16*1.5 1PC
6
4
5

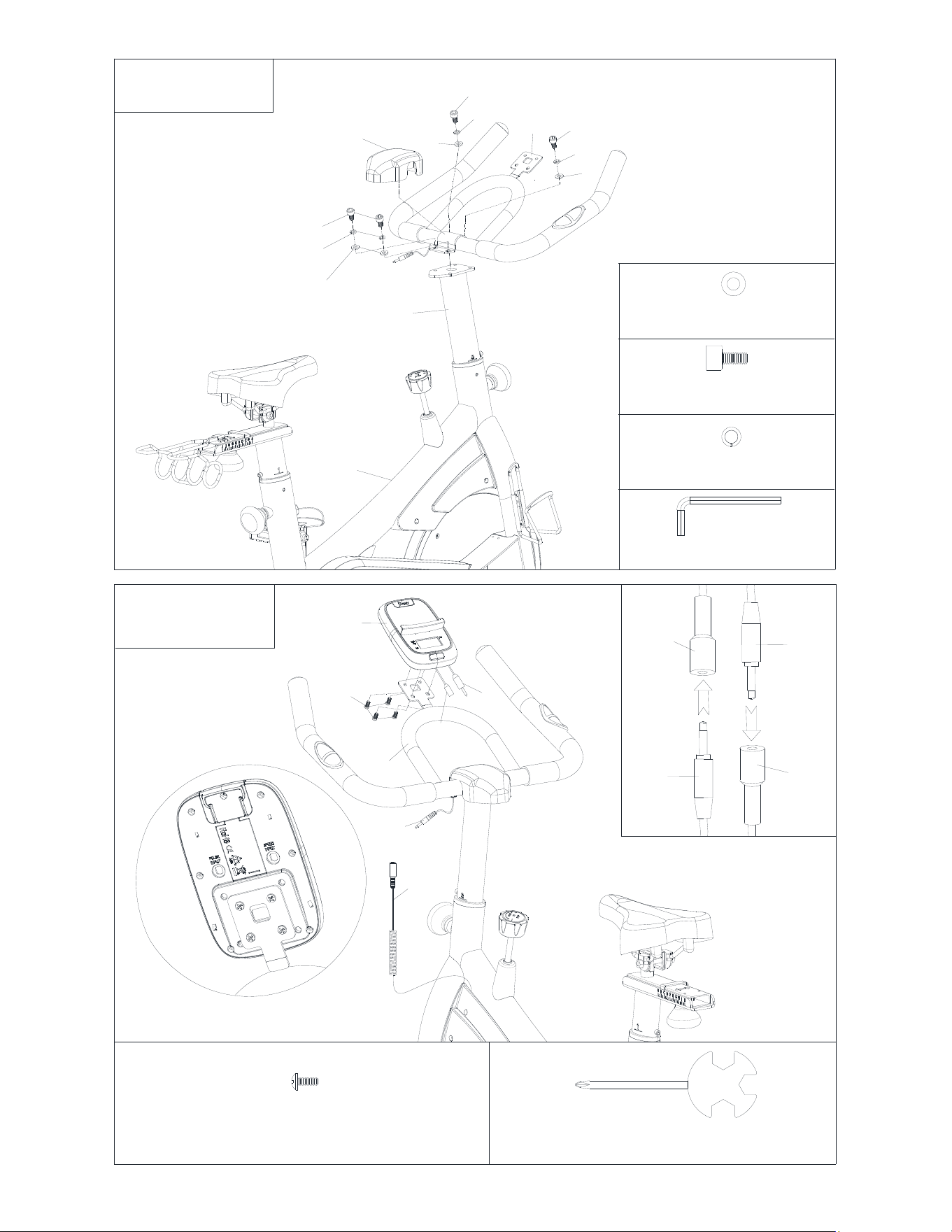

3-6
#94 S6 1PC
#58 M8*16 4PCS
#59 D8 4PCS
#9 Φ16*1.5 4PCS
1
89
58
58
59
9
59
9
58
59
9
#61 M5*10 4PCS
S13
S14
S15
#95 S13-S14-S15 1PC
3-7
62b
56
92
62a
92
62a
62b
62
61
5
56
7

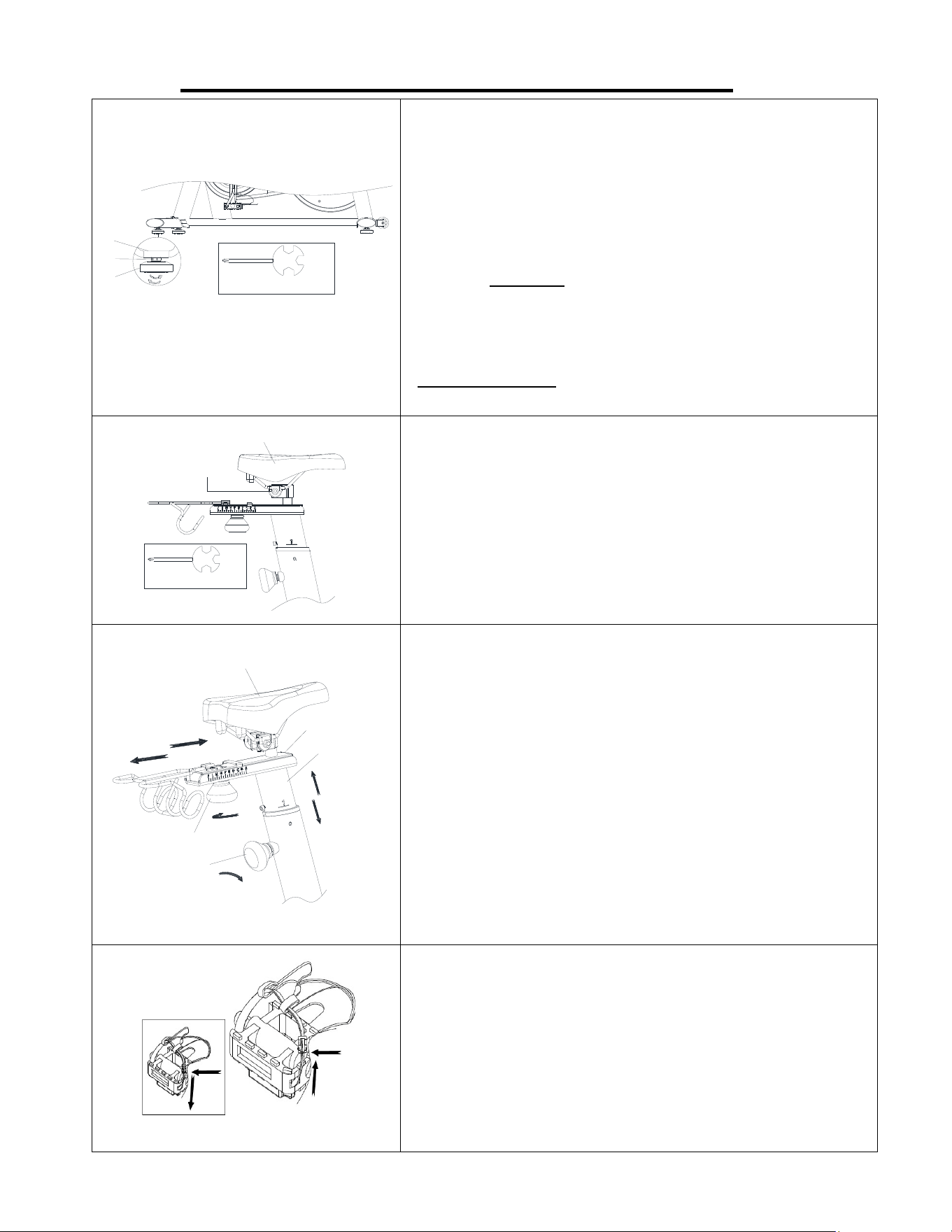

MAINTENANCE & ADJUSTMENT GUIDE
76
10
7
A
B
S13
S14
S15
#95 S13-S14-S15 1PC
S13
S14
S15
#95 S13-S14-S15 1PC
42
76
42
39
36
2
6
ADJUSTING THE HEIGHT AND BALANCE
In order to achieve a smooth and comfortable ride, you
must ensure that the stability of the bike is secured. If you
notice that the bike is unbalanced during use, you should
adjust the Foot Pads (No. 10) located beneath the Front
& Rear Stabilizers (No. 3 & No. 7) of the bike. To do so,
use Spanner (No. 95) to loosen Hex Nut (No. 76) by
turning it clockwise (direction B). With the Hex Nut (No.
76) loosened, rotate the Foot Pad (No. 10) until it sits
level with the surface that the bike is on. When you have
finished adjusting the Foot Pads (No. 10), use Spanner
(No. 95) to re-tighten the Hex Nut (No. 76) by turning it
counter-clockwise (direction A). If required, repeat this
p
rocess to ad
j
ust the remainin
g
Foot Pads
(
No. 10
)
.
ADJUSTING THE SADDLE
After adjusting the direction and angle of the Seat (No.
42), tighten and secure the Hex Nut (No. 76) to the Seat
(No. 42) with Spanner (No. 95).
ADJUSTING THE SEAT
The seat of this bike is fully adjustable as it moves Up,
Down, Fore (forward), Aft (backward).
To adjust the height of the Seat Post (No. 2), loosen and
pull the Adjustment Knob (No. 36) outward, then raise
or lower the Seat (No. 42) to the desired height. Once
adjusted, re-insert and tighten the Adjustment Knob
(No. 36) to secure the Seat Post (No. 2) in place.
To adjust the Seat (No. 42) back and forth, loosen the
Adjustment Knob (No. 39) then slide the Seat Slider
(No. 6) to the desired position. Once positioned,
re-tighten the Adjustment Knob (No. 39) to secure the
Seat Slider (No. 6) in place.
PEDAL STRAP ADJUSTMENT
Your feet should be secured in the toe clips during
exercise. Place your feet as far forward into the toe-clips
as you can. With your feet in place, turn the crank to bring
one foot to within arm’s reach, grasp the pedal strap and
pull it upward to tighten the toe-clip cage, then insert the
strap back into the hoop of the toe-clip. Repeat this
p
rocess to secure
y
our other foot.
8
36
4

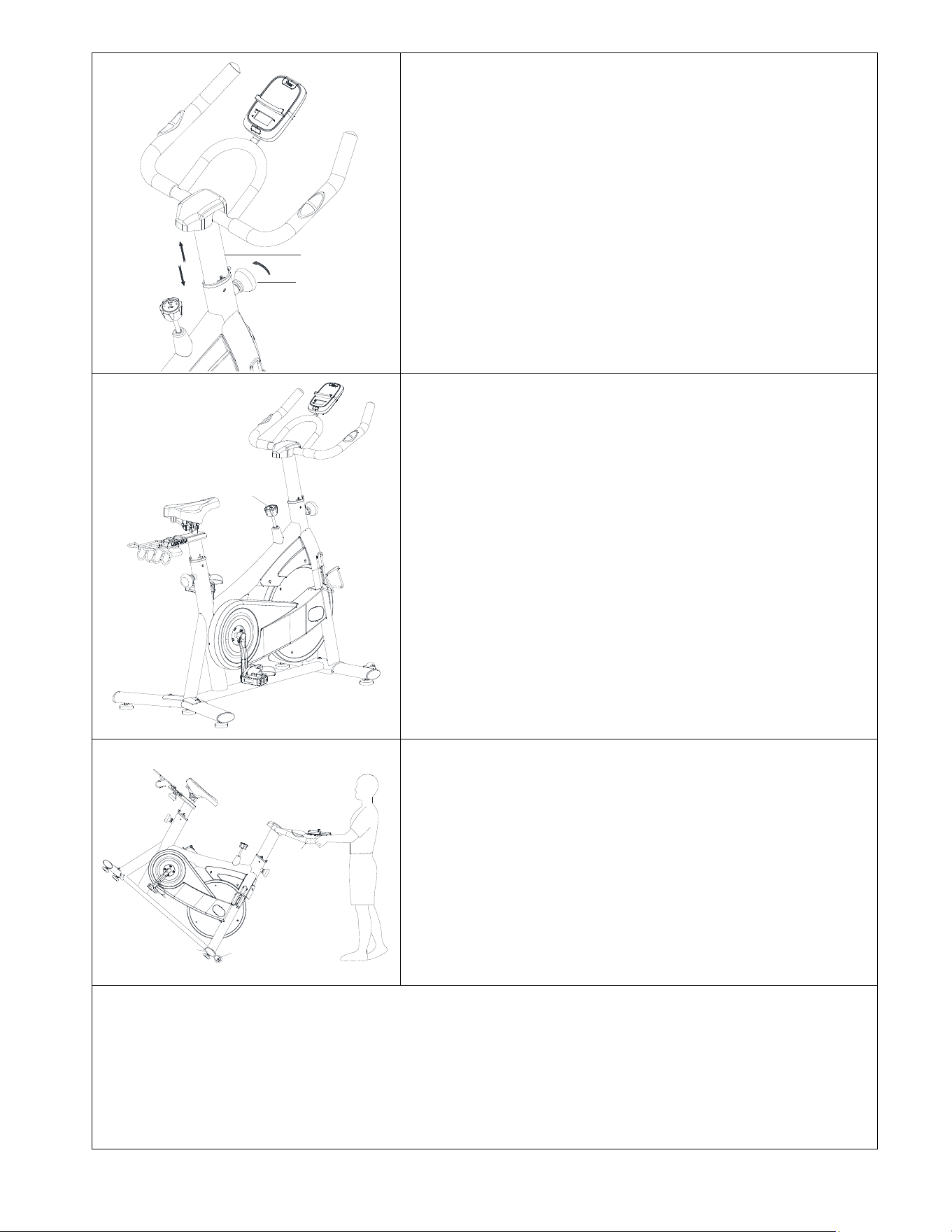

ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are both set to
the correct height of your body.
To adjust the handlebar height, loosen and pull the
Adjustment Knob (No. 36) outward, then slide the
Handlebar Post (No. 4) up or down to the desired height.
Once adjusted, re-insert and tighten the Adjustment Knob
(No. 36) to secure the Handlebar Post (No. 4) in place.
43
3
73
5
DISMOUNTING
For your safety, it is recommended that you never attempt to dismount or remove your feet from the
pedals until both the flywheel and pedals/cranks have come to a complete stop. Failure to follow this
recommendation may lead to loss of control and/or serious injury.
Here are a few examples of how to safely dismount the bike:
1. Reduce the pedal speed until the pedals/cranks come to a complete stop.
2. Increase the resistance until the pedals/cranks come to a complete stop.
3. Push and hold the tension control knob down until the pedals/cranks come to a complete stop.
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Tension
Control Knob (No. 43). Increase the level of resistance
by turning the Tension Control Knob (No. 43) to the
RIGHT (clockwise), decrease the level of resistance by
turning the Tension Control Knob (No. 43) to the LEFT
(counter-clockwise).
EMERGENCY BRAKE
During use, users can stop the bike completely by
pushing down on the Tension Control Knob (No. 43).
Pushing down on the Tension Control Knob (No. 43)
will enforce the brake and bring the bike to an immediate
stop.
TRANSPORTING THE BIKE
Stand at the front of the bike so that you’re directly in
front of the handlebar. Firmly grasp and hold each side of
the Handlebar (No. 5), place one foot on the Front
Stabilizer (No. 3) and tilt the bike towards you until the
transportation wheels on the Front Stabilizer (No. 3)
touch the ground. With the Transportation Wheels (No.
73) on the ground, you can transport the bike to the
desired location with ease.
9

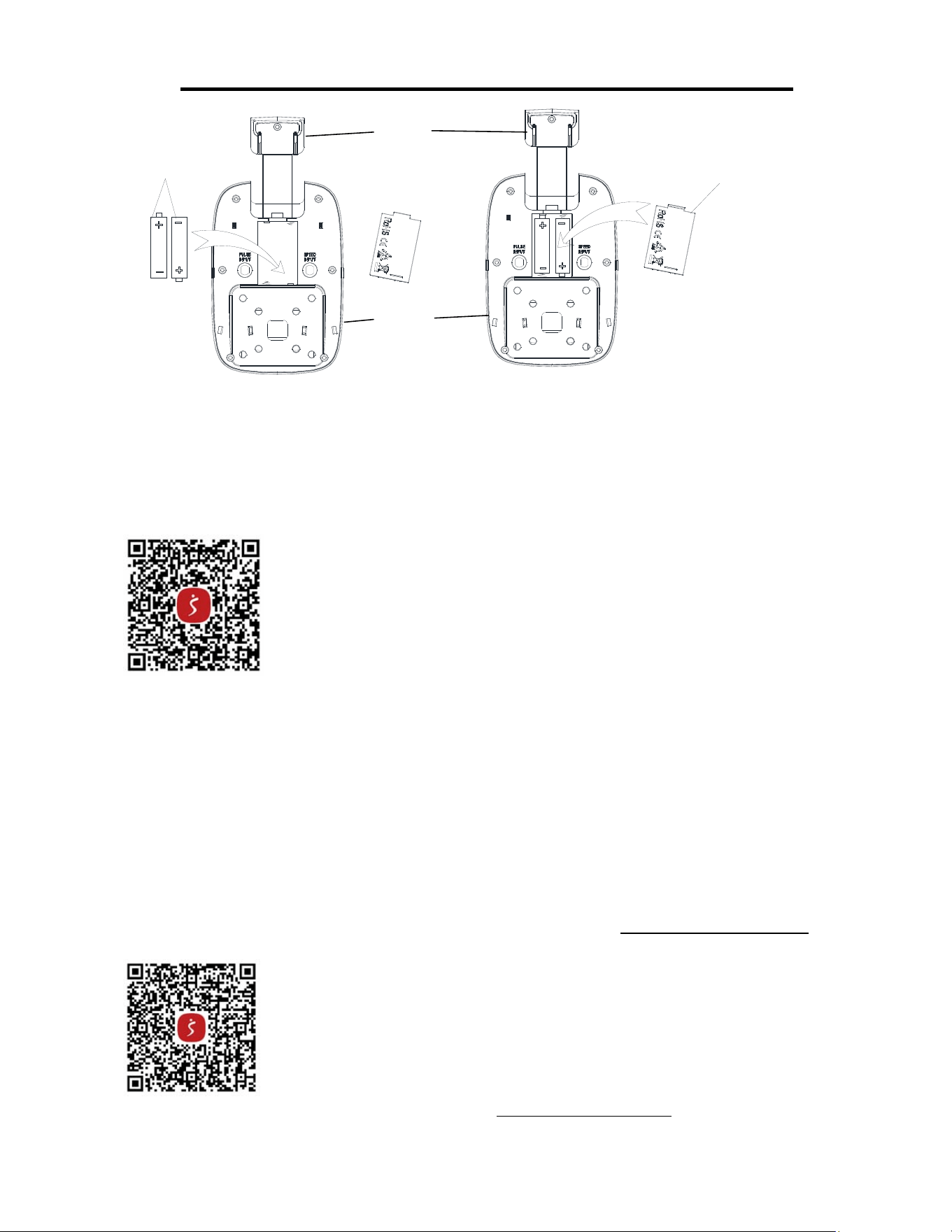

BATTERY INSTALLATION & REPLACEMENT
Battery
Battery Cover
Dispose the old battery (1.5V, AAA) according to your regional guidelines.
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session, and
recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or
scan the QR code below:
If you require additional support, please contact support@sunnyfit.com
A
62
10

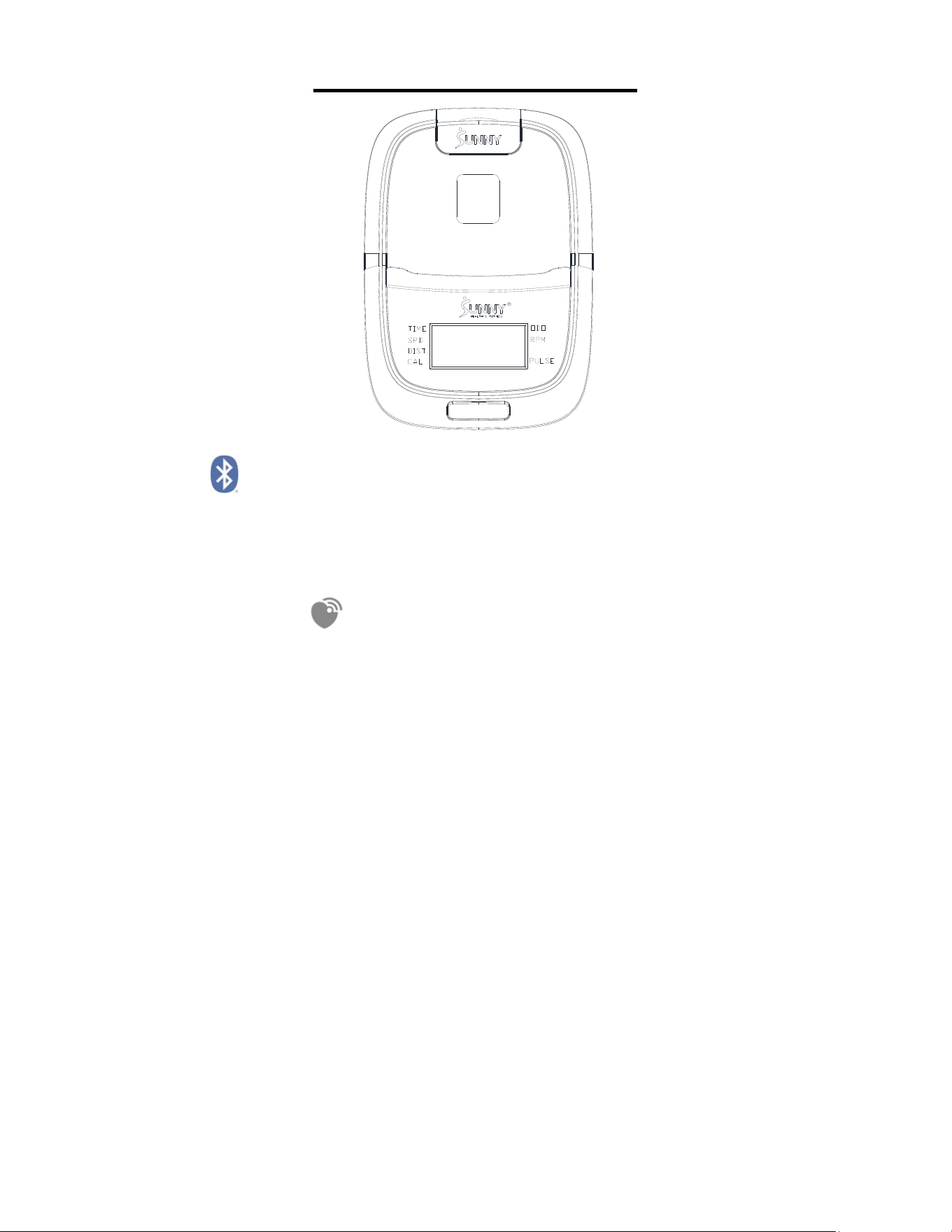

EXERCISE COMPUTER
BLUETOOTH :
1. The Bluetooth icon will flash when the computer is on or wakes from sleep mode. If no Bluetooth
connection is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE
1. The wireless heart rate icon will flash when the computer is on. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
2. After exercise resumes, the wireless heart rate icon will flash. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
3. When the computer wakes from sleep mode, the wireless heart rate icon will flash. If the heart
rate monitor is not connected within 1 minute, the wireless heart rate icon will turn off.
4. The wireless heart rate icon will flash when the MODE key is pressed. If the heart rate monitor is
not connected within 1 minute, the wireless heart rate icon will turn off.
5. The wireless heart rate icon will stay on when the heart rate monitor is connected.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200. HR200 can only connect to the computer when the wireless heart rate
icon is flashing.
FUNCTION BUTTON
MODE
Press the button to switch display or automatically display through each function value in sequence
every 6 seconds.
Hold the MODE key for 2 seconds to reset all values except ODO when Bluetooth is not connected.
Press and hold the MODE key for 6 seconds to disconnect from both the SunnyFit APP and the
heart rate monitor; then, the computer will enter sleep mode.
11
OPERATION
1.POWER ON
Installs 2 pieces of 1.5V AAA batteries. (Whenever batteries are removed, all the functions values
will be reset to zero.)
2.1 WAKE UP
After entering speed signal, each function will skip to display. STOP will be displayed once no
speed signal detected for 10 seconds.
2.2 SLEEP MODE
The computer will shut off automatically and disconnect the heart rate monitor if there is no activity
for 4 minutes when Bluetooth is not connected.
3.SCAN
After power on or press the mode button, automatically scan through each function value in
sequence every 6 seconds. SCAN-->TIME-->SPD-- > DIST-- >CAL-->ODO--> RPM-->PULSE-->
SCAN
4.TIME
Accumulates total training time from 00:00 up to 999:59.
5.SPD
Display current training speed from 0.00 up to 9999.9 M/H
6.CAL
Accumulates calories consumption during training from 0.0 up to 9999.9 kcal
Note: This data is a rough guide for comparison of different exercise sessions which can not be
used in medical treatment.
7.ODO
Track the total distance traveled since battery installation from 0.00 up to 9999.9 Mile.
8.DIST
Displays the current movement distance of the user, with the display range of 0.00 to 9999.9 Mile.
9. RPM
Revolution(s) Per Minute
10. PULSE
Display the user's heart rate from 30-240 upon pulse signal detected with pulse symbol flashing.
The pulse graphic will not flashing upon no pulse signal detected. and when there is no heart rate,
“P” is displayed.
NOTE：
1. If the computer displays abnormally, please re-install the battery and try again.
2. Battery Spec: 1.5V or AAA (2PCS).
3. The batteries must be removed from the appliance before it is scrapped and that they are
disposed of safely.
12

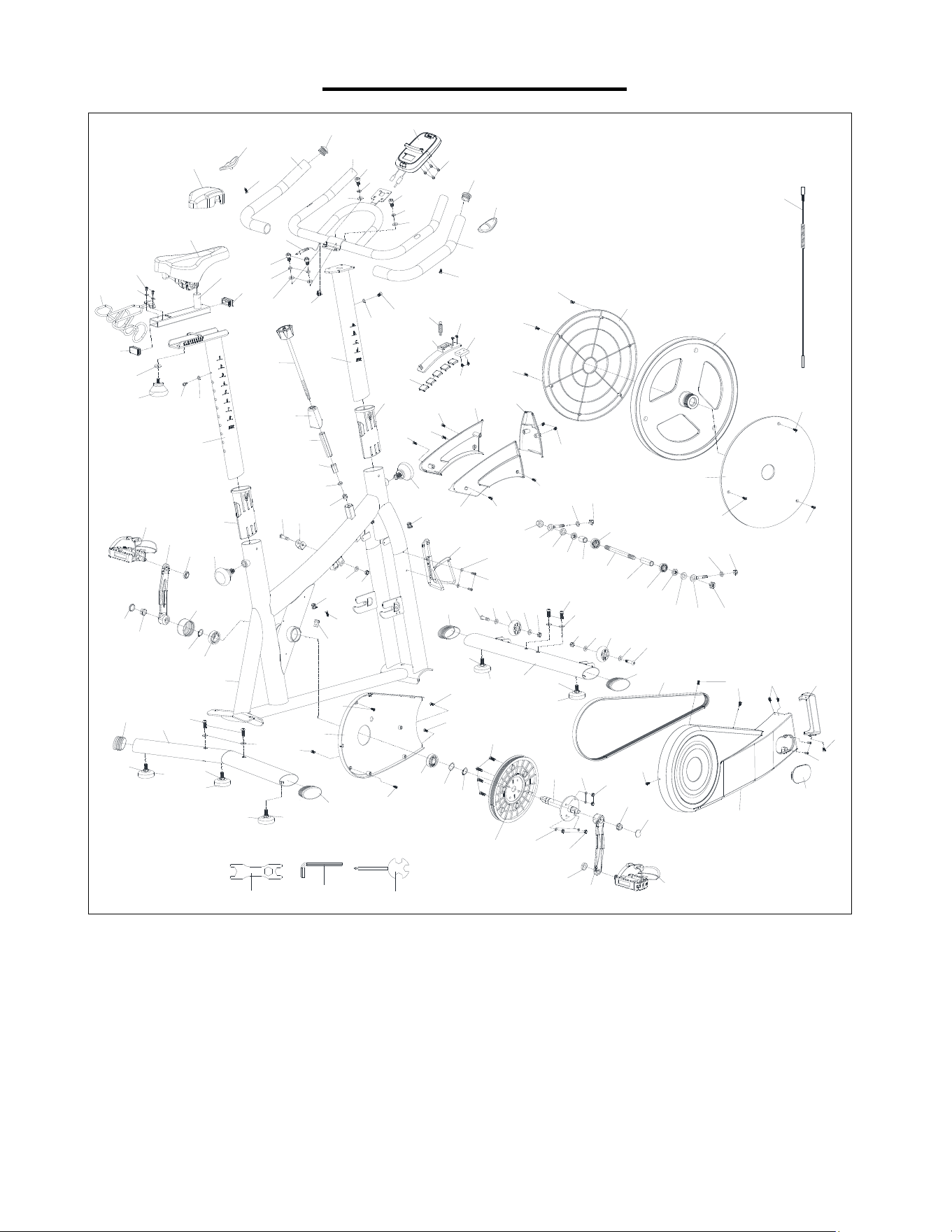

EXPLODED DIAGRAM
1
8
9
11
7
10
10
11
10
15
29
27
30
70
71
14
11
72
73
8
9
31
9
73
11
10
10
3
15
15
28
27
23
18
21
19
17
15
46
43
62
61
47
48
49
52
9
31
14
53
56
27
15
27
65
66
67
14
27
27
50
54
55
51
38
2
37
36
15
16
15
13
15
93
94
95
31
27
9
9
88
76
76
76
76
76
14
72
9
39
40
41
41
42
85
85
86
87
85
85
85
86
85
74
75
77
78
79
81
82
83
78
77
75
76
31
76
31
80
84
58
58
59
9
59
9
90
90
91
91
4
58
59
9
63
60
63
5
68
30
35
37
36
24
12
22
25
26
64
92
38
12
22
57
44
57
20
33
25
32
26
44
34
6
71
69
14
71
71
60
45
89
30
13
PARTS LIST
No. Description Spec. Qty.
No. Description Spec. Qty.
1 Main Frame 1 49 Screw M8*35 1
2 Seat Post 1 50 Magnetic Plate Connection 1
3 Front Stabilizer 1 51 Magnet Plate 1
4 Handlebar Post 1 52 Magnet 25*20*5 5
5 Handlebar 1 53 Cowhide Brake 35*30*8 1
6 Seat Slider 1 54 Hex Nut M8*H3.8 1
7 Rear Stabilizer 1 55 Hex Nut M8*H16 1
8 Screw M8*20 4 56 Sensor Wire L=850 1
9 Washer Φ16*1.5 13 57 Nylon Nut M6*H6 4
10 Foot Pad M8*25 5 58 Screw M8*16 4
11 End Cap 80*40*1.5 4 59 Spring Washer D8 4
12 Crank Cover M22*1.0 2 60 Foam Grip Φ25*450 2
13 Decorative cover 1 61 Screw M5*10 4
14 Screw M5*12 10 62 Computer 1
15 Screw ST4.2*16 10 63 Circular End Cap Φ28*2.0 2
16 Front Cover 137.9*19.1*32 1 64 Nylon Nut M5*H5.5 2
17 Belt 6PJ480 1 65 Magnet Plate Cover-L 1
18 Left Locking Nut 9/16”-L 1 66 Magnet Plate Cover-R 1
19 Right Pedal 9/16”-R 1 67 Decorative Cover 1
20 Belt Pulley Φ220*20 1 68 Right Crank 206*36 1
21 Right Locking Nut 9/16”-R 1 69 Dumbbell Rack 1
22
Flange Nut M12*H8
2
70 Bottle Holder 1
23 Left Pedal 9/16”-L 1 71 Washer Φ5*1.2 6
24
Left Crank 206*36 1
72 Screw M8*40 2
25
Shaft Ring D20*1.0
2
73 Transportation Wheel Ф50*Ф8.6*22.5 2
26
Bearing 6004
2
74 Hex Nut M12*1.0*H19.5 1
27
Self-tapping Screw ST4.2*16 7
75 Pull Rod Φ12.5*M8 2
28 Inner Chain Cover 427*273*13 1 76 Hex Nut M8*H6.8 7
29 Sensor Base 20*15*9 1 77 Cone-axle Sleeve Φ22*Φ12.2 2
30 Wire Clamp Plug Φ15.5*Φ12*Φ3 3 78 Hex Nut M12*1.0*H6 2
31 Nylon Nut M8 5 79 Spacer Sleeve Φ18*Φ12.1*24.5 1
32
Wave Washer
Ф26*0.3 1
80 Bearing 6201 1
33
Bolt M6*16 4
81 Flywheel Axle Φ12*158 1
34
Flange Plate Φ20*170
1
82 Bearing Limit Sleeve Φ16*12.1*54.3 1
35 Axis Sleeve Φ54*28*33 1 83 Bearing 6001 1
36 Adjustment Knob M16*1.5 2 84 Hex Nut M12*1.0*10 1
37 Frame Liner 80*40*1.5 2 85 Screw ST4.2*19 6
38 Screw M5*10 2 86 Wheel Shield Φ364*16 2
39 Adjustment Knob M8*20 1 87 Flywheel 10KG 1
40 Washer Φ20*2 1 88 Outer Chain Cover 642*280*65 1
41 Square End Cap 40*20*2.0 2 89 Handlebar Cover 122*80*45 1
42 Seat 185*260*103 1 90 Grip Piece 87*32*25 2
43 Tension Control Knob Φ10*220 1 91 Screw ST4.2*25 2
44 Spring Washer D6 4 92 Sensor Wire L=850 1
45 Brake Cover 1 93 Open End Wrench S13-S17-S19 1
46 Brake Inner Sleeve 17*17*84 1 94 Allen Wrench S6 1
47 Square Nut M10 1 95 Spanner S13-S14-S15 1
48 Tension Spring Φ1.5*Φ11*44 1
Version：1.1
14
