Model No. DG216.V2
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
Dellonda 1500W Electric 2-in-1 Scarier & Rake
DG216.V2 Issue:2 07/01/2025
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Specication
Safety Instructions
ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and s to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical connections
for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical machines. You may obtain an
RCD by contacting your local domestic stockist. If the machine is used in the course of business duties, it must be maintained in a safe
condition and routinely PAT (Portable Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables, and on the machine is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the machine suits the power supply to be used and it is tted with the correct fuse.
• DO NOT pull or carry the machine by the power cable.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.
• Dellonda recommend that installation and repairs are carried out by a qualied electrician.
Extension Leads/Power Cords
WARNING! If you do not check the condition of extension leads, cables and connections or do not use them correctly, you could get an
electric shock. To stay safe make sure they are: Rated correctly to suit the equipment you want to connect to them. Uncoiled, to prevent
them from overheating.
• Disconnect the lead from the mains if the lead becomes damaged or entangled during use.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or it’s service agent.
1 2 3 4 5
6 7 9

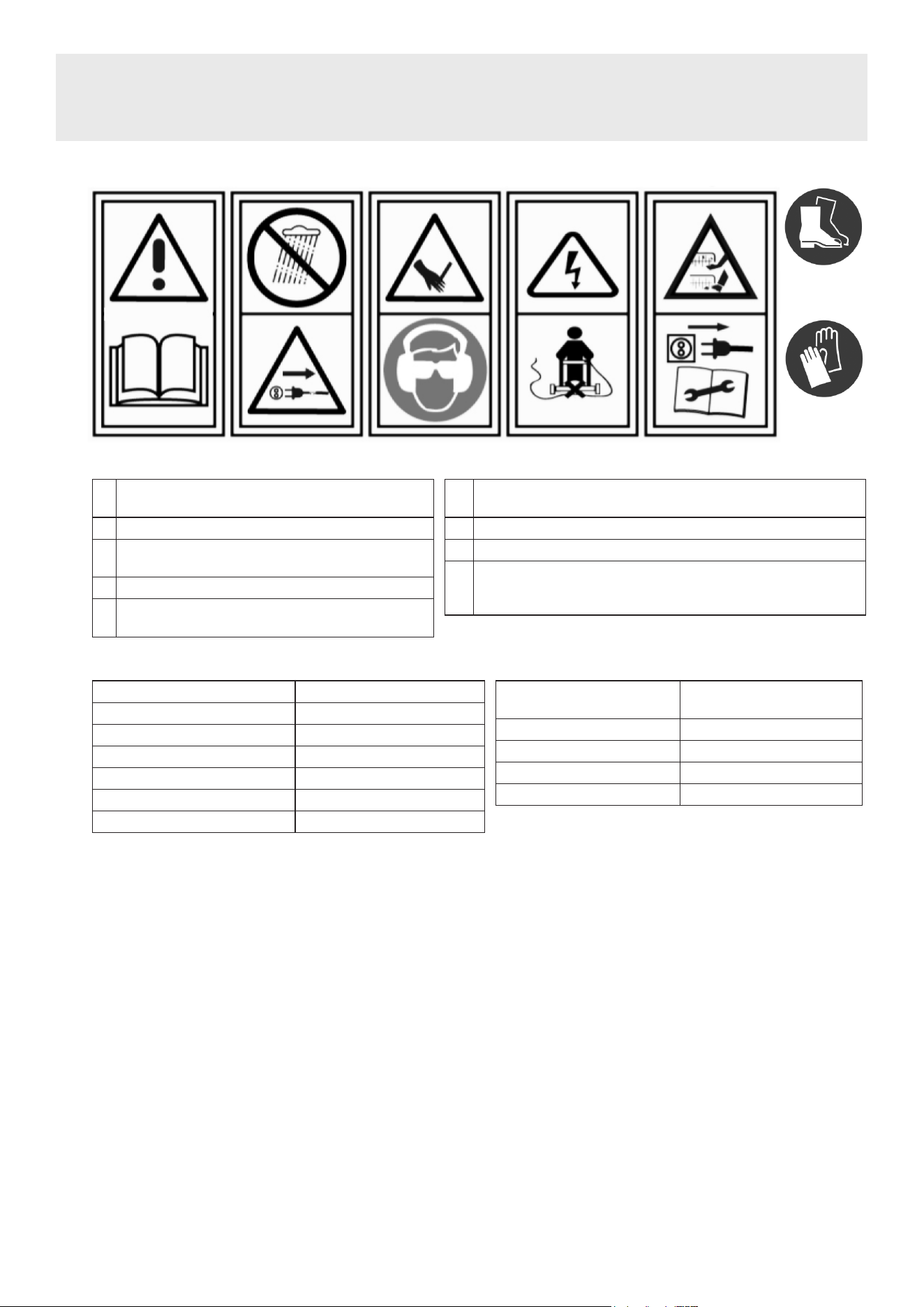

1 CAUTION! Read the instruction manual and follow the
warning and safety instructions.
2 DO NOT use the machine in wet weather conditions.
3 Caution! Blades do not stop immediately after
switching off.
4 WARNING! Electricity.
5 Danger! Keep hands and feet away from the cutting
equipment.
6 Caution! Unplug immediately if the power cord or plug becomes
damaged.
7 Wear eye and ear protection.
8 DO NOT cut the power cable.
9 Always switch off the machine, disconnect the power and wait till
the machine comes to a standstill prior to maintenance, cleaning or
repair work.
Wear protective
gloves when
changing tools
Wear protective
footwear
8
Cable Length: 10m
Nett Weight: 8.9kg
Noise Power/Pressure: LpA = 82.5dB(A) LWA =97dB(A)
Power: 1500W
Machine Dimensions (W x D x H): 575 x 1000 x 950mm
No Load Speed: 4100rpm
Working Width: 360mm
Working Depths: Rake: -9, -6, -3, 3mm
Scarier: -3, 0, 3, 9mm
Grass Collector Bag Size: 35L
Supply: 230V ~ 50Hz
Vibration: Max. measured: 3.783m/s2
Uncertainty: K=1.5m/s2
3
GENERAL SAFETY
9 Read and fully understand instruction manual before using the machine. Retain manual for future use and future users.
9 Users must be fully trained before using this machine.
WARNING! Keep hands and feet away from moving blades. Be aware of the danger of being drawn in by moving parts.
WARNING! Be aware of live electrical parts.
WARNING! Before carrying out any maintenance or adjustments remove the power source and ensure all moving parts have come to a
complete standstill and cannot start again unexpectedly.
WARNING! Never allow children, persons with reduced physical, sensory, or mental capabilities, those with lack of experience and
knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
WARNING! Never operate the machine with defective guards or shields, or without safety devices.
WARNING! Never operate the machine while people, especially children, or pets are nearby.
WARNING! Never operate the machine if the cord is damaged or worn.
WARNING! Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
WARNING! Children shall NOT play with the machine.
WARNING! The machine shall be disconnected from its power source during service and when replacing parts.
WARNING! The removal of the plug has to be such that an operator can check from any of the points to which he has access that the plug
remains removed.
WARNING! Remove the plug from the mains or remove the disabling device whenever the machine is left by the user, before clearing a
blockage, before checking, cleaning or working on the machine, after striking a foreign object to inspect the machine for damage, and if the
machine starts to vibrate abnormally, for immediate check.
WARNING! Cleaning and user maintenance on the machine shall not be made by children without supervision.
9 Suitable/protective clothing (long trousers) and appropriate PPE must be worn: ear protection, safety, slip resistant footwear.
8 DO NOT use whilst tired, ill or under the inuence of alcohol or other drug.
9 ALWAYS inspect and risk assess the area to be worked prior to working. Review for items such as foreign objects (stones, toys, wires
sticks, bones), slope, ditches, drop-offs.
8 DO NOT use the machine on slopes. Be aware of the risk of overturning or slipping on too steep a slope. Always ‘travel’ along slope
contours not up and down slopes.
9 ALWAYS inspect the machine prior to use for loose ttings, fatigue and damage.
9 Only use the machine when there is good visibility (daylight or good articial light.)
8 DO NOT use the machine without either the grass bag or deector tted.
8 DO NOT connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply for the reason that
damaged cords can lead to contact with live parts.
8 DO NOT use in the rain.
8 DO NOT leave the machine running without supervision.
9 Allow the machine to cool down completely before moving or storing.
9 Use genuine replacement parts only.
9 Keep the machine in good operating condition and perform regular maintenance. Keep machine clean.
9 Check for and replace worn or damaged parts.
8 DO NOT modify the machine in any way. DO NOT tamper with or modify safety features in any way.
8 DO NOT overreach.
9 Always keep balance.
9 Walk, never run.

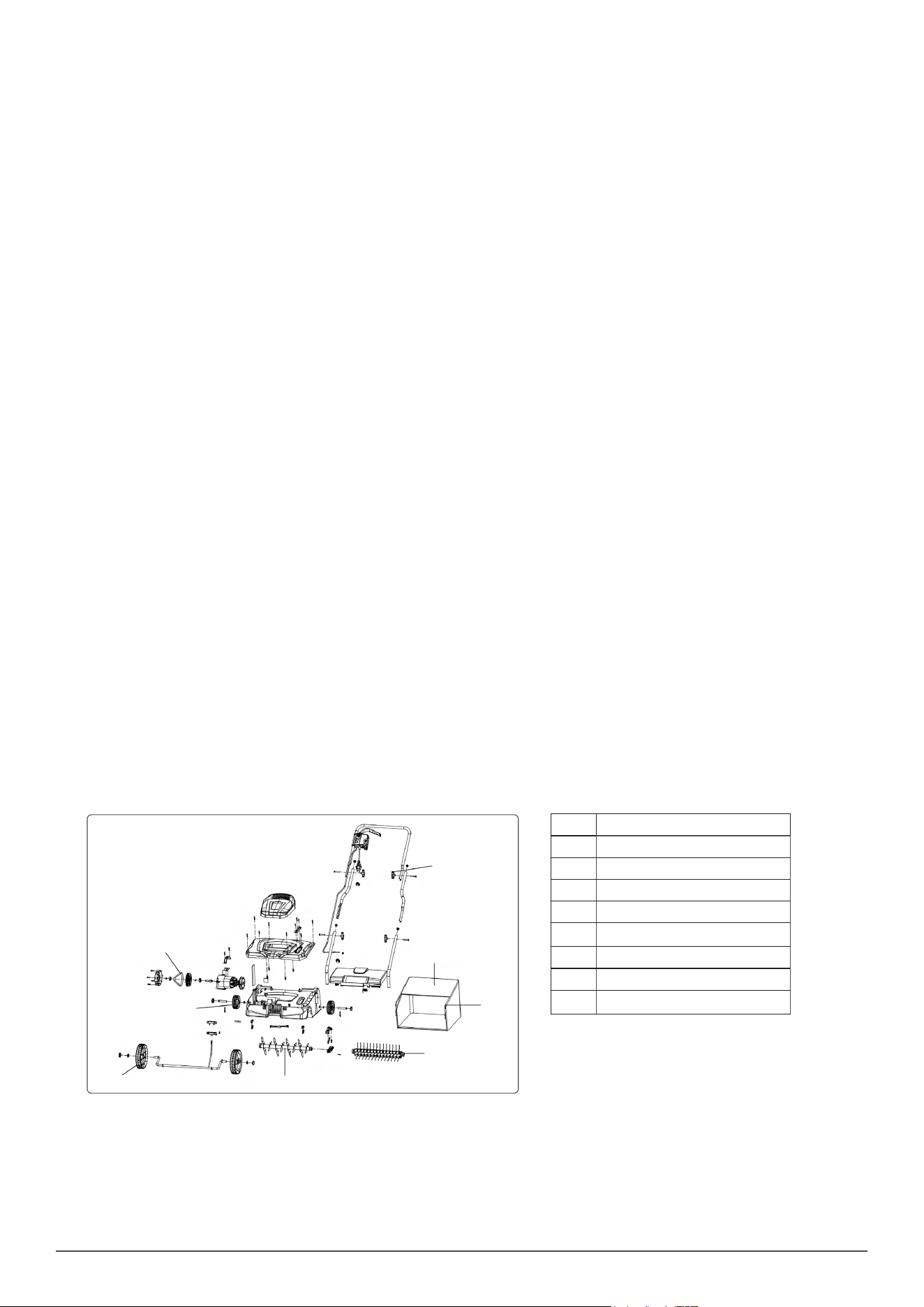

Contents
27
33
49
50
51
Item
Description
4 Knob
27 Belt
33 Rear Wheel
43 Front Wheel
45 Aerator Assembly
49 Rake Drum
50 Grass Bag
51 Grass Bag Frame
4543
4
4
Assembly

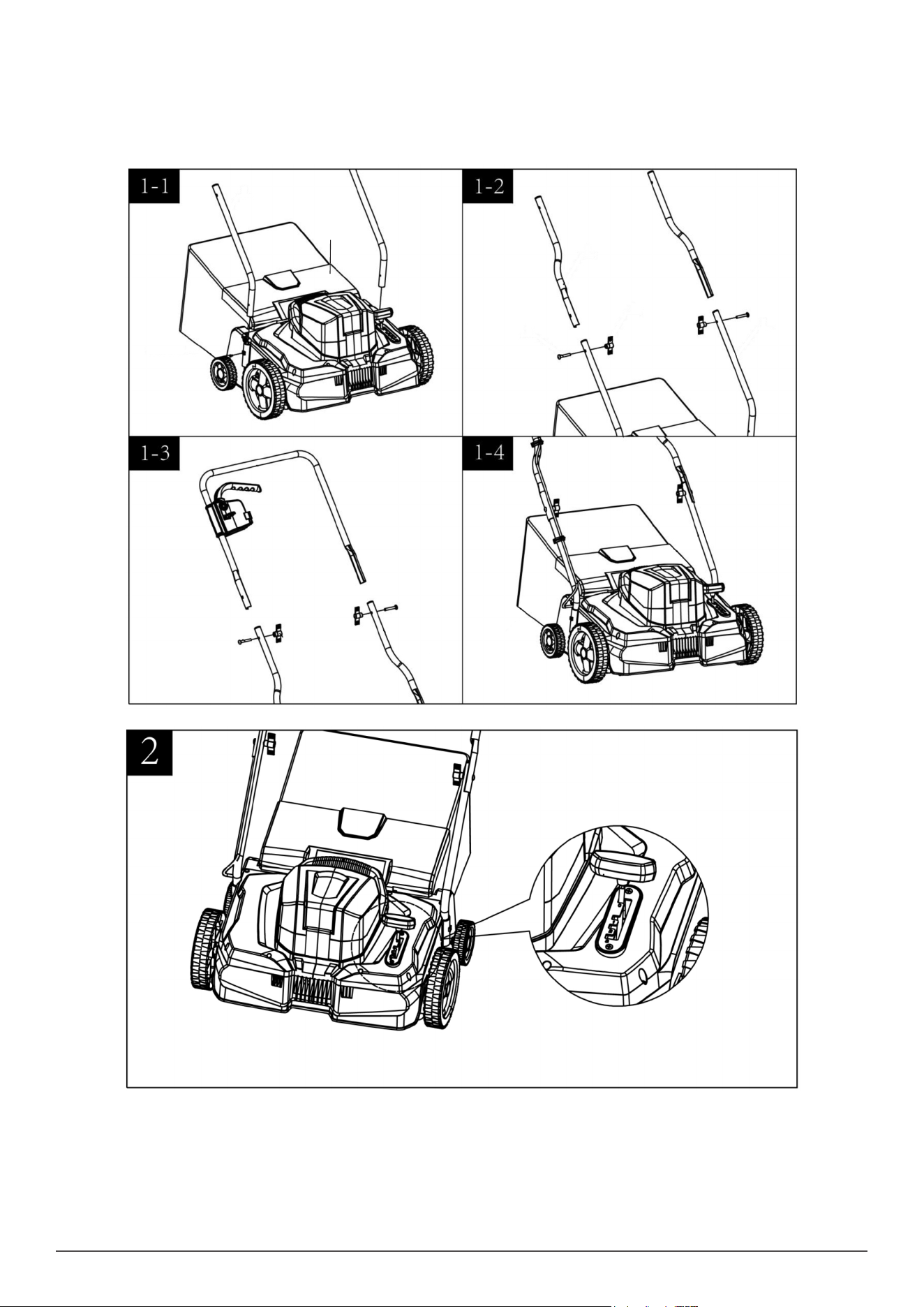

• See illustrations for assembly.
• Use supplied hardware fastenings and xings included.
Fitting the grass box
• Lift ap.
• With the ap lifted, place grass box onto the inner lugs of the machine, lower the ap down.
• Insert lower frame using supplied hardware.
• Close the motor housing using the supplied hardware.
• Slide the cable holder onto the upper frame.
• Connect upper frame by inserting both side wing nuts. See illustration above for reference.
Flap
5
Before operation
NOTE: This machine is only intended, as an electric lawn scarier and; as an electric lawn rake, for aerating lawns and grassy areas in private
domestic and hobby gardens. It is not designed for use in public areas, parks, sports areas, and in agriculture and forestry.
• The machine must be assembled correctly before use.
• The machine should be checked carefully before use. You should only work with an machine that is in good condition. If you notice any defect
on the machine that may cause danger to the operator, do not operate the machine until defects are rectied.
• Replace worn or damaged parts for safety. Use only original spare parts. Parts not produced by the manufacturer may cause poor t and
possible injury.
• Before use, all foreign objects must be removed from the lawn, also pay attention to foreign objects during the operation.
• Only work in daylight or suciently good articial light.
• Wear suitable working clothes and solid shoes.
• Before use, Check power cord and interconnection cord are intact and not damaged. If damaged DO NOT use, contact Dellonda Service
Centre.
• Contact Dellonda Service Centre if the machine is in need of repair, or machine is damaged.
Setting the work depth (Operating positions)
CAUTION! Only with the motor switched off and the blade shaft at a standstill.
• Use selector to engage gear. Fig.2. The working depth for the machine with the raker and scarier can be set at.
Raker Scarier
Position 0 3mm
9mm
Position 1 -3mm
3mm
Position 2 -6mm
0mm
Position 3 -9mm -3mm
6
Starting ON/OFF
CAUTION! DO NOT start the machine if it is standing in long grass or solid ground.
• DO NOT attempt to set the depth while the blades are spinning.

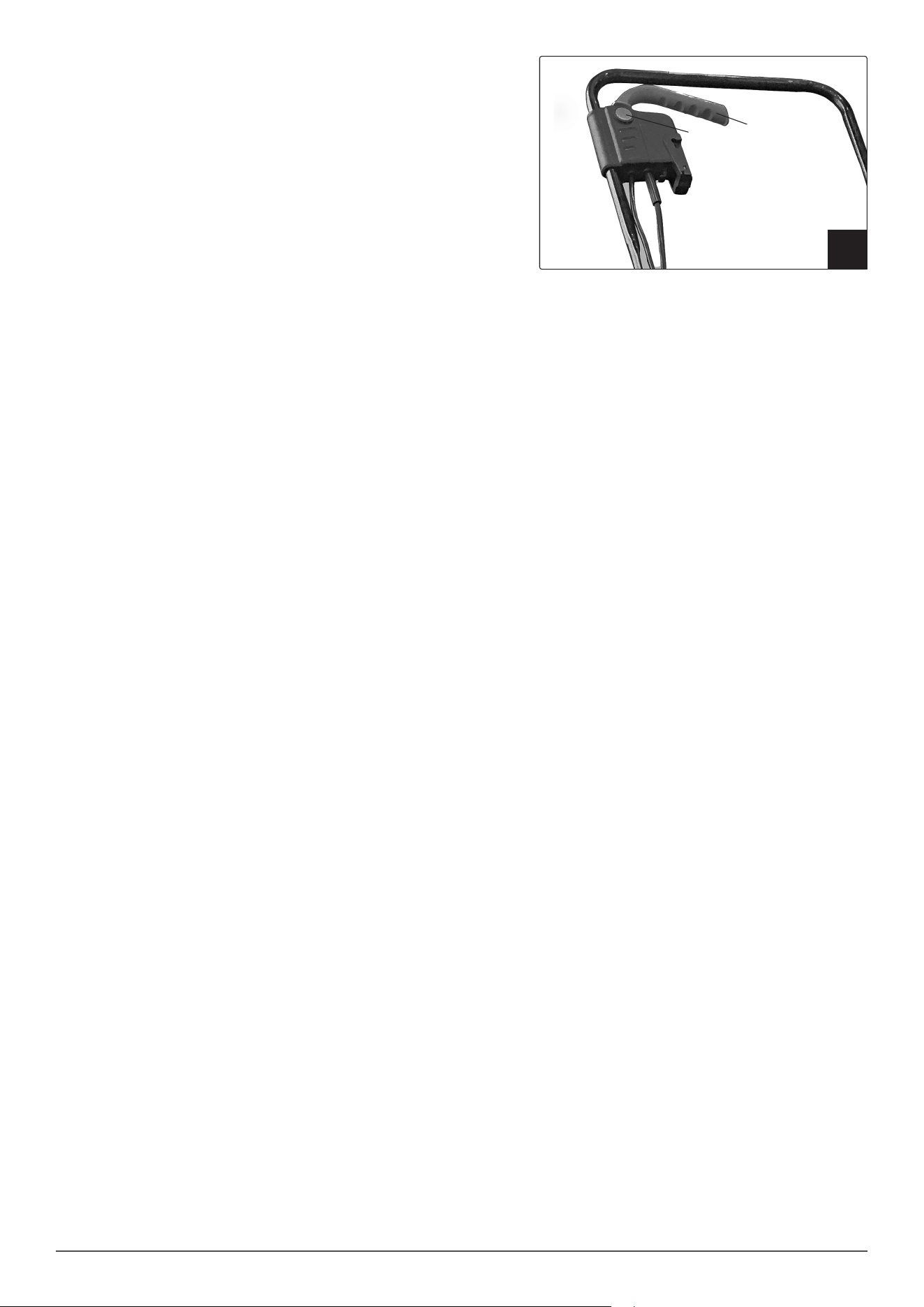

• Press the safety lock button A of the switch/plug combination and then pull the
switch level B against the bar. Fig.5.
• Keep the switch level hold while release the safety lock button A.
• To stop the machine, release the switch level and it automatically returns
to its start position. Wait for blades to stop rotating before attempting any
maintenance.
Clearing Blockages/ Overheat Protection
• If the machine is blocked by a foreign object or if the motor is overloaded, the
motor will switch off automatically by the protection device. Wait till the motor
cools down (approx. 15 minutes) then start machine again.
WARNING! If you do not release the switch lever the machine will start
immediately after the motor has cooled down. And causing a Danger of serious injury!
Scarication
• With the scarier cylinder, the machine can be used as a scarier for removing matting and moss in the lawn as well as for cutting at-rooting
ranks. In order that a healthy lawn can develop in the spring, it is necessary for greater amounts of air to penetrate the area around the roots of
the grass. We recommend scarify the lawn twice a year, e.g. in the Spring and in the Autumn. To achieve good result and increase the lifetime
of the scarier cylinder, mow your lawn to a shorter height (less than 4 cm) before starting.
Starting
• Select the working depth depending upon the state of the lawn and the actual height of the grass.
• Tilt the scarier backwards slightly so that both front wheels are off the ground.
• Switch the scarier on, the scarier cylinder starts rotation freely.
• Guide the scarier at an appropriate speed in strips as straight as possible across your lawn.
• Always guide the scarier at an even speed depending on the type of ground. Remaining in one place too long, or scarify if the ground is wet or
too dry can damage the grass.
• To prevent tripping take particular care when moving backwards and when pulling the scarier.
• Always let the cutting blade rotate at top speed, do not work in such a way as to overload the machine .
• Never pass the machine over the extension cable while it is running, make sure it is always in a safe position behind your back.
• Place the extension safely on a path or the area already scaried. see Fig.4 on page 5.
• When working on inclines always stand diagonally to the incline in a sturdy, safe stance. Do not work on extremely steep slopes.
• Empty the grass box when it is full in order to prevent the blade becoming clogged and the motor being overload.
Blades
• Worn blade invites poor performance and overload of motor.
• Check before each use the blades situation. Sharpen or replace the blades with new one when necessary. It is recommended to do this by a
specialist.
The blades are reversible designed. To change the direction of the blades:

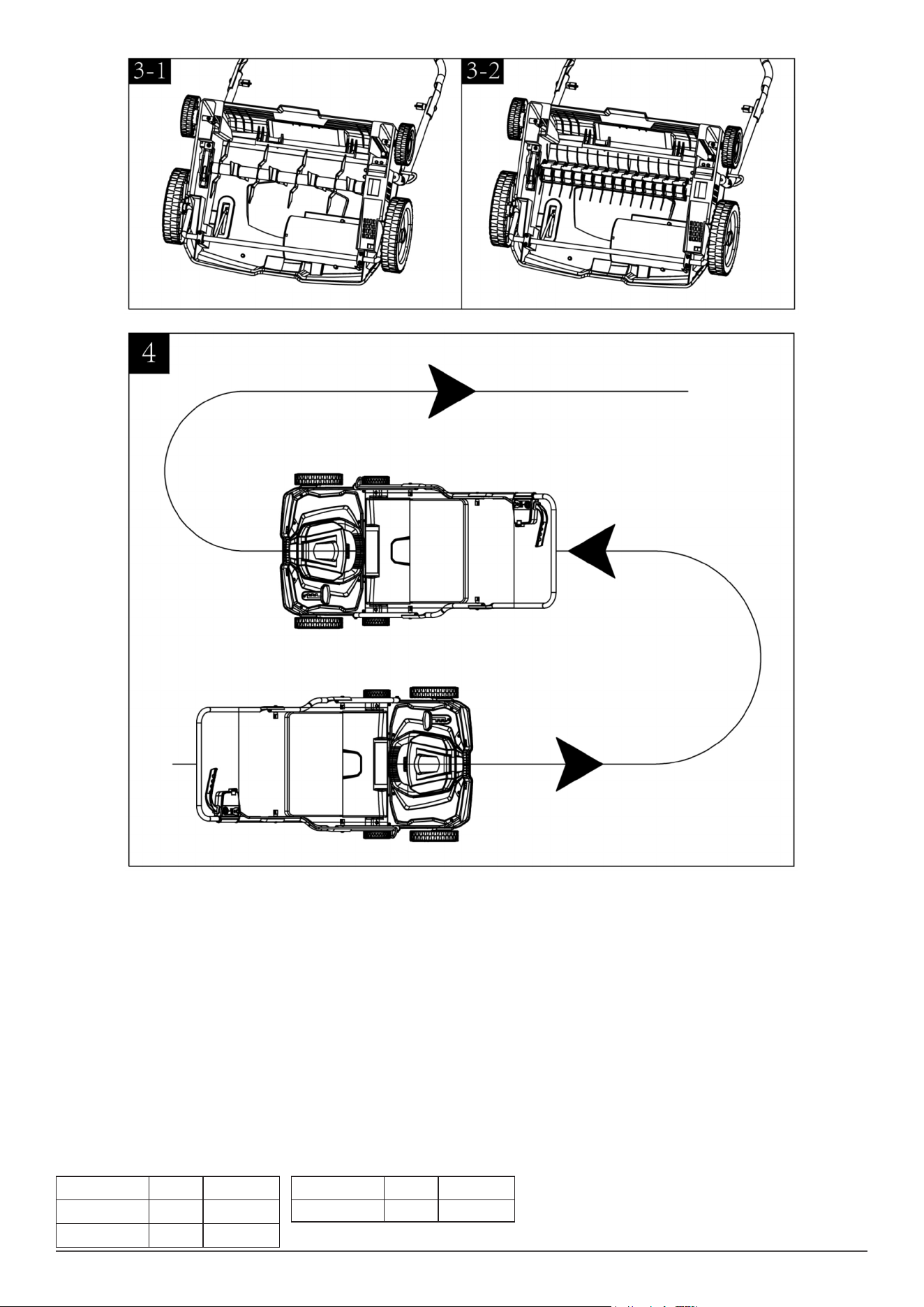

• Remove the screw then rotate the clasp from the device. Fig. 3-1.
• Take the scarier cylinder out of the housing. Fig. 3-2.
• CAUTION! Disconnect the mains and wear protective gloves.
Collection and Aeration (optional)
• With the rake cylinder, the machine can be used as a lawn raker for removing grass and moss in the lawn as well as for cutting at-rooting
ranks.
• In order that a healthy lawn can develop in the spring, it is necessary for greater amounts of air to penetrate the area around the roots of the
grass. We recommend aerate the lawn every 4-6 weeks depends on the state of your lawn.
• To achieve good result and increase the lifetime of the rake cylinder, mow your lawn to a shorter height (less than 4 cm) before starting.
Transport
CAUTION! Before transporting the machine, switch off the motor.
• The cylinder and the machine maybe damaged even if you move the machine with the motor switched off, e.g. over solid ground.
• Prevent the cylinder from touching the ground by setting the working depth at the top position.
Storage
• The machine should be stored in a dry and clean room and out of reach of children.
• During extend periods of storage, during the winter for example, ensure that the machine is protected against corrosion and frost.
At the end of the season, or if the machine is not to be used for longer than a month:
• Clean the machine by wiping over all metal surfaces with an oil-soaked cloth to protect them from corrosion (non-resinous oil), or spray a ne
coat of oil onto them from a can.
• Fold the guide bar down, and store it in a suitable place.
Maintenance
WARNING! DO NOT touch moving hazardous parts before the machine is disconnected from the mains and moving hazardous parts have
come to a complete stop.
• After each use and before storage, wipe off and dry all outer surfaces. Store dry.
• When removing the blade, wear safety gloves to avoid personal harm.
Prior to each time the machine is used:
• Check the connecting cable for signs of damage or ageing. Replace the cable if it is cracked, split or otherwise damaged.
• Check the condition of the cutting cylinder, and ensure that all threaded connections are securely tightened.
• If the blades are blunt, take it to a specialist workshop for repair if necessary.
A
B
5
7
Once per season:
• Lubricate the blades, joints between the cylinder and the driving shaft, and the twist spring on the safety ap.
• At the end of the grass-cutting season, have the machine checked and serviced in a specialist workshop.
Adjustments and Maintenance operations to the machine
• When making adjustments and maintenance to the machine always make sure the machine has been disconnected from the mains supply.
Preventative Maintenance measures to be observed
• Always keep the machine clean after each use to prevent unnecessary breakdowns.
Repair of the machine
• In the unlikely event of repair to the machine contact Dellonda Service Centre.
Operating methods in the event of an accident/breakdown
• In the event of an accident or breakdown always unplug machine at the mains before investigating the issue.
Necessary safety checks
• Thoroughly examine the area you will be raking. Remove all stones, sticks, wires, and other objects.
• Check the machines aerator and blade bolts for wear or damage. Worn blades can be replaced. Replace damaged blades or bolts immediately.
• Inspect all guards, shields, and safety devices before raking. DO NOT operate with damaged or defective parts.
Frequency of inspections for safety functions
• Always inspect before each use.
Discharge chute
• Always keep the discharge chute clear by keeping the grass box from over lling.
Spare parts
9 Refer to the parts list for spares, or contact Dellonda service centre.
Cleaning
CAUTION! Always clean the machine after use. Failure to carry out proper cleaning can result in damage to the machine or cause it to malfunction.
WARNING! Injury can occur during work on the cutting blades. Wear protective gloves.
• Remove the collection bag if any. Empty and clean the bag from each use.
• Always stand the machine on a rm surface, and block the wheels to prevent it from rolling away.
• Tilt the machine forward.
• Clean the underside of the housing around the blades and the safety ap with a scrubbing brush, and brush or rag. Never splash with water.
• Stand the machine on its wheels again, clean the ventilator, and any remaining grass or dirt.
Decommissioning/ Life time of the machine/ Disposal
9 Through years of normal wear, the machine will eventually become unserviceable. When this happens ensure that it is disposed of in
accordance with local authority regulations.
Troubleshooting
Problem Possible causes Remedy
Motor does not start No electricity.
Defective cable.
Defective safety switch/plug combination.
Overheat protection actived.
Check mains connection.
Check cable, plug in, replace if required, or have it repaired by a
qualied person.
Arrange for repair in a specialist workshop, or contact Dellonda
Service Centre.
1. Working depth too large, set to the shorter depth.
2. Cylinder blocked, remover the blockage.
3. Grass too long, mow the lawn before operation. Wait till the
motor cools down for around 15 minutes before rework.
Abnormal noises Cylinder is jammed.
Cogged belt slipping.
Loose bolts, nuts or other securing
Components.
Cylinder is jammed, switch off wait till complete stop. Remove the
objects.
Arrange for repair in a specialist workshop.
Tighten all components, contact specialist workshop if noises
Prevail.
Abnormal vibrations Cutting blades damaged or worn.
Working depth too large.
Grass too long.
Replace a new cylinder or have it checked by an specialist
Workshop.
Set to correct working depth.
Mow the lawn before aerating.
Poor scarication results Working depth too small.
Worn blades.
Ejector channel blocked.
Set to large working depth.
Replace a new cylinder or have it checked by an specialist
Workshop.
Empty collection bag and remove blockage.
8
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 suppor[email protected] www.dellonda.co.uk
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. It is our
policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is accepted
for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
