PETROL LAWN SCARIFIER & AERATOR
HYSC210
Instruction Manual
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve
the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this
product.
Important!
This manual has been produced by Hyundai Power Products and should be kept with the
product. Please read and understand these instructions before you use your product. Failure to
do this may result in personal injury or damage to the product.
The safety precautions and warnings are to ensure your safety and protect you from harm or
damage to the product.
The information contained in this manual was accurate at the time of production, however
HYUNDAI Power Products may make modifications to the product without notification.
WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE
USING THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
www.hyundaipowerproducts.co.uk 01646 687 880
Contents
Safety Information.....................4-19
Understand Your Machine...............................4
Personal Safety................................................5
Inspect Your Machine......................................6
Work Area........................................................7
During Use....................................................8-9
Engine Safety.................................................10
Carbon Monoxide...........................................11
Fuel Safety................................................12-13
Batteries.........................................................14
Electrical Safety..............................................15
Vibrations........................................................16
Noise..............................................................16
Personal Protective Equipment......................17
Intended Use..................................................18
Symbols On The Machine..............................19
Features....................................20-21
Unboxing........................................22
Assembly..................................23-28
Assembly Safety.............................................23
Assemble Handlebars...............................24-25
Attach Grass Collector...................................26
Attaching Grass Collector..............................27
Cable Clip......................................................28
Cable Attachment...........................................29
Operation..................................35-36
Useful Information........................60
Our YouTube Channel....................................60
Warranty.........................................................60
Manual Updates.............................................60
Returning Your Product..................................60
Leaving A Review...........................................60
Ordering Spare Parts......................................60
Contact Us.....................................63
Spare Parts...............................50-58
Our Product Range.......................59
Preparation...............................29-31
Before Each Use............................................29
Adding Oil......................................................30
Checking Oil Level.........................................30
Adding Fuel....................................................31
Working Depth................................................35
Using The Machine........................................36
Starting / Stopping..................32-34
Maintenance.............................39-49
Maintenance Safety..................................38-40
Checking Your Machine.................................41
Spark Plug.....................................................42
Air Filter..........................................................43
Fuel And Carburetor.......................................44
Blade Removal...............................................45
Check Blade Tightness..................................46
Cleaning.........................................................47
Transportation...............................................47
Storage..........................................................48
Recycling And Disposal.................................49
Declaration Of Conformity...........61
Product Information......................62
Service Record...............................................62
Troubleshooting...........................37
Technical Data.............................38
www.hyundaipowerproducts.co.uk 01646 687 880
www.hyundaipowerproducts.co.uk 01646 687 880
General Safety
4
Understand Your Machine
• WARNING! You must read these instructions carefully before operating the machine. Make
sure that you are familiar with the controls and properly operate the machine. You must learn how
to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire
and/or serious injury. Make sure to save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations and potential
hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to stop the
machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be loaned, rented, or
sold, always provide this manual and any needed safety training before operation. The user can
prevent and is responsible for accidents or injuries that may occur to themselves, to other
people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your application.
• Know how to stop the machine quickly in case of emergency. Understand the use of all
controls.
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
• When using this machine for the first time and before actual work, you MUST learn how to
handle the machine from an experienced or skilled person.
!
Safety
No list of safety guidelines can be complete. Every environment is different. Always consider
safety first, as it applies to your individual working conditions. Use this and other machinery with
caution and respect. Failure to do so could result in serious injury, damage to equipment, or poor
work results.
Some or all of the following - warning signs and symbols may appear throughout this
manual. You MUST adhere to their warnings. Failure to do so may result in personal injury to
yourself or those around you.
DANGER
Indicates a hazard, which, if not avoided, could result in serious injury or death.
WARNING
Indicates a hazard, which, if not avoided, could result in serious injury.
CAUTION
Indicates a hazard which, if not avoided, might result in minor or moderate injury.
!
www.hyundaipowerproducts.co.uk 01646 687 880
5
General Safety
Personal Safety
!
• WARNING! Never allow children or people unfamiliar with these instructions to use the
product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work area (at least
15m). Be alert and shut off the unit if anyone enters work area. Keep children under the watchful
care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating the machine.
Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or
any substances which may slow your reflexes and compromise judgment. A moment of
inattention while operating the machine may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating
or repairing the machine. Always wear anti-slip and resistant work footwear and long trousers
while using the machine. Do not use the machine when barefoot, wearing sandals or similar
lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging
ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or
long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be
thrown from the unit. Always wear safety goggles or safety glasses with side shields when
operating.
• Always keep hands and feet away from all moving parts during operation. Moving parts can cut
or crush body parts. Always keep hands and feet away from all pinch points.
• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to
maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of
the machine in unexpected situations. Extending your body too far can result in a loss of balance
and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement should occur
during assembly, installation, and operation, maintenance, repairing or moving.
• Start the machine carefully according to instructions and with feet away from the moving parts.
• Do not place your hands or feet near or under rotating parts. Keep away from any discharge
openings.
• Keep in mind that the operator or user is responsible for accidents, hazards or unexpected
events involving the machine that occur to other people or their property. It is the responsibility of
the user to assess the potential risk of the area where work is being carried out. The operator or
user must take all necessary precautions to ensure their own safety and that of others, especially
on slopes or rough, slippery and unstable ground.
www.hyundaipowerproducts.co.uk 01646 687 880
General Safety
6
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working order. Make
sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical condition.
Replace damaged, missing, or failed parts before using it. Check for fuel leaks. Keep the machine
in safe working condition.
• Do not use the machine if the engine’s switch does not turn off the engine when running. Any
petrol powered machine that can’t be controlled with the engine switch is dangerous and must
be replaced.
• Regularly check to see that keys and adjusting wrenches are removed from the machine area
before starting it. A wrench or a key that is left attached to a rotating part of the machine may
result in personal injury.
• If the machine should start to vibrate abnormally, stop the engine and check immediately for the
cause. Vibration is generally a warning sign of trouble.
• Avoid accidental starting. Be sure the engine’s switch is off before transporting the machine or
performing any maintenance or service on the unit. Transporting or performing maintenance or
service on a machine with its switch on invites accidents.
• Do not tamper with or disable safety systems.
• Only use manufacturer-recommended attachments.
• Before using, always visually inspect to see that the tools are not worn out or damaged.
Replace worn out or damaged elements and bolts in set to preserve balance.
• Keep the machine in good operating condition. Operating the machine in poor or questionable
condition could result in serious injury.
• Be sure all safety devices are in working order and warning labels are in place. These items are
installed for your safety.
!
www.hyundaipowerproducts.co.uk 01646 687 880
General Safety
7
Work Area
• Make sure you thoroughly inspect the entire work area and remove all objects and anything that
could be thrown by the machine or could damage the engine or machine (branches, stones, wire,
toys, etc). Attempting to clear the work area whilst using the machine will reduce your
concentration and creates a trip hazard. Any liquid spilled on the floor may result in you slipping.
• You must only work in daylight or with good artificial light in good visibility conditions. Do not
work at night, at times of heavy fog, or at any other times when your field of vision might be
limited and it would be difficult to gain a clear view of the area.
• Keep people, children and animals away from the working area.
• Operate on flat, level ground.
• DO NOT work on wet ground. If there has been heavy rain on the working site, wait until the
ground has dried up.
• You must pay special attention when approaching obstacles that could compromise visibility.
• Exercise extreme caution when changing direction on slopes. When changing direction, you
need to be careful that the wheels do not hit any obstacles (such as roots, branches, stones, etc)
that can cause the machine to slide sideways or make you lose control of it. Avoid driving on
slopes steeper than 15%. Make sure on slopes you have a steady foothold.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles, water valves,
bases for washing lines etc. Make sure that you check for hidden electrical cables or similar on
the surface of the lawn. ALWAYS run the machine around these objects. NEVER intentionally run
the machine over foreign objects.
• Never park the machine in a place with unstable ground which could give way.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic.
• Pay the utmost attention when working on frozen ground as the machine may tend to skid.
• Do not work in the rain, when there is a thunderstorm or lightning risk, at times of strong or gale
force winds, or at any other times when the weather conditions might make it unsafe to use this
product. If there is bad weather conditions, do not use the machine.
!
www.hyundaipowerproducts.co.uk 01646 687 880
8
For Safe Operation
During Use
• Always hold the unit with both hands when operating. Keep a firm grip on the handlebars.
Be aware that the machine may unexpectedly bounce upward or jump forward if the machine
should strike buried obstacles such as large rocks or roots.
• Do not operate the machine in confined areas where there may be a risk of crushing the
operator between the machine and another object.
• Walk, never run with the machine. Be very careful when pulling the machine toward you. You
must look behind you to make sure there are no obstacles before and during operations in
reverse gear (if applicable). Do not allow the machine to pull you along.
• WARNING! If something breaks or an accident happens whilst working, you must turn off the
engine immediately and move the machine away to prevent further damage. If an accident
happens with injuries or third parties are injured, carry out the first aid measures most suitable
for the situation immediately and contact the medical authorities for any necessary health care.
Carefully remove any debris that might cause damage or harm persons or animals should it not
be seen.
• Disengage clutch lever before starting the engine.
• Use extreme caution when reversing or pulling the machine backwards.
• Do not carry passengers.
• Never operate the machine at a fast pace.
• The excessive speed of movement or the absence of maintenance have a significant influence
on noise emissions and vibrations. It is necessary to take preventive steps to eliminate possible
damage due to high levels of noise and stress from vibration. You must maintain the machine
well, wear ear protection and take breaks from working.
• After striking a foreign object, stop the engine immediately, remove the spark plug cap and
inspect the machine thoroughly for damage. Repair the damage before continuing.
• Never attempt to make any adjustments, while the engine is running.
• Never attempt to move the machine in any way other than intended for normal use while the
engine is running.
• Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed
or exposed.
!
www.hyundaipowerproducts.co.uk 01646 687 880
9
For Safe Operation
• You must disengage the blade, switch off the engine and unplug the spark plug cable (making
sure that all moving parts are stationary):
- Before refuelling.
- Before adjusting the cutting height.
- After striking a foreign object, you must inspect the machine for damage and make repairs
before using it again.
- Before checking or working on the machine.
- Before clearing blockages.
- When transporting the machine.
- Whenever you leave the machine unattended.
- When crossing surfaces other than grass.
- Before emptying the grass collector.
- Before changing the cutting height.
During Use (Continued)
!
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
Engine Safety
• This machine is equipped with an internal combustion engine. Do not use on, or near,
forest-covered or brush-covered land unless the exhaust system is equipped with a spark
arrester meeting applicable local, state, or federal laws.
• A spark arrester, if used, must be maintained in effective working order by the operator.
• Never start or run the engine inside a closed area. The exhaust fumes are dangerous,
containing carbon monoxide, an odorless and deadly gas. Operate this unit only in a
well-ventilated outdoor area. (See carbon monoxide safety).
• Do not tamper with the engine in an effort to get it to run at higher speeds. The maximum
engine speed is preset by the manufacturer and is within safety limits.
• Keep a fire extinguisher on hand when operating this machine in dry areas as a precautionary
measure.
• Never leave the operating position when the engine is running.
• The engine parts get very hot when running, do not touch. Danger of burns.
• Follow the instructions to ignite the engine carefully whilst keeping feet away from moving
parts.
• Never incline the machine during ignition. Ignite the machine on a flat surface without obstacles
or high grass.
• Do not over-rev the engine or change the engine settings.
• Never pick up or carry the machine while the engine is running.
• Stop the engine whenever you leave the machine, or before refuelling, when cleaning or while
maintaining.
• Reduce the throttle setting during engine shut down and, if the engine is provided with a
shut-off valve, turn the fuel off at the conclusion of working.
• Do not tilt the machine when starting the engine.
!
10
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
Carbon Monoxide
!
CARBON MONOXIDE IS A COLOURLESS, ODOURLESS GAS. INHALING THIS GAS CAN
CAUSE DEATH OR SERIOUS LONG-TERM HEALTH PROBLEMS SUCH AS BRAIN DAMAGE.
Never operate the engine in a confined space where dangerous carbon monoxide fumes can
develop. All ignition operations have to be effected in an open or well-ventilated area. Always
remember that exhaust fumes are toxic.
The symptoms of carbon monoxide poisoning can include but are not limited to the following;
Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
Carbon monoxide poisoning symptoms are similar to flu, food poisoning, viral infections and
simply tiredness. It is quite common for people to mistake this very dangerous poisoning for
something else.
To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment inside any
of the following; Home, garage, tent, camper van, mobile home, caravan or boat. DO NOT use
in an enclosed area or moving vehicle. This is not exhaustive and if you are in any doubt contact
your dealer.
If you think you have or someone around you has been affected by carbon monoxide poisoning;
Get them fresh air immediately, by leaving the affected area or by opening doors and windows. If
safe and practical to do so make sure that the machine is turned off. DO NOT enter a room you
suspect of having carbon monoxide present – instead call the emergency services.
Contact a Doctor immediately or go to Hospital – let them know that you suspect carbon
monoxide poisoning.
!
Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in
minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside
a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY
use outside and far away from windows, doors and vents.
DANGER!
11
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
Spilled Fuel
• If you have spilled fuel, make sure you do not attempt to ignite the engine but move the
machine away from the area of spilled fuel and avoid creating any source of ignition until the fuel
has evaporated and fuel vapours have dissipated.
• When fuel is spilled on yourself or your clothes, wash your skin and change clothes
immediately.
• ALWAYS clean up spills promptly using absorbent granules and a lidded bin.
Fuel Safety
!
CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS
EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF
REACH OF CHILDREN.
General Safety
• Do not smoke each time fuel is handled.
• ALWAYS avoid inhaling fumes.
• ALWAYS carry fuel in the correct and clearly marked container.
• ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE),
suggested items are but not limited to safety gloves and overalls.
• To avoid sparking or arcing, keep grounded conductive objects – such as tools – away from
exposed, live electrical parts and connections. These events could ignite fumes or vapors.
• Do not operate the machine with known leaks in the fuel system.
• Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks
from grinding or welding.
• DO NOT carry out hot work on tanks that have contained fuel.
• ALWAYS keep the work area tidy.
• ALWAYS dispose of waste fuels correctly.
• Serious personal injury can occur when petrol is spilled on yourself or your clothes. Rinse your
skin and change your clothes immediately.
General Safety
12
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
• ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel,
only outdoors. Do not smoke during this and each time fuel is handled.
• Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine
is running or when it is hot.
• When de-fueling ALWAYS use a proper fuel retriever.
• Never overfill the fuel tank. Engine heat can cause fuel to expand, never fill the tank to more
than 1/2” below the bottom of the filler neck. This will provide space for fuel expansion.
• When refilling or draining the fuel tank, use an approved fuel storage container while in a clean,
well-ventilated outdoor area. While adding fuel or operating the unit, do not smoke, and stay
away from sparks, open flames, or other sources of ignition near the area of operation.
• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of
the fuel tank or add fuel while the engine is running or when the engine is hot.
• Loosen the fuel tank cap slowly to relieve any pressure in the tank.
• ALWAYS keep the handles dry, clean and free of oil and fuel.
• After fueling, ensure to tighten the cap securely.
• Never use the lock-function when filling with fuel.
Fueling / De-Fueling
• Store fuel in containers specifically designed and approved for fuel storage.
• Store fuel in a cool, well-ventilated area, safely away from sparks, open flames, or other
sources of ignition.
• Never store fuel – or a machine with fuel in the tank – inside a building where fumes may reach
a spark, open flame, or any other source of ignition (such as a water heater, furnace, or clothes
dryer). Allow the engine to cool before storing in any enclosure.
• Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the
unit without the fuel cap securely in place.
Storage
13
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
Batteries (Where Present)
Batteries present a risk if they become damaged by the possible leaking of electrolyte. This
electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on
or near them. NOTE the electrolyte may be in a liquid or gel form.
Should you come in to contact with electrolyte you should;
• Remove all clothing contaminated with
electrolyte. If you cannot remove then saturate them in water.
• Get medical assistance as soon as possible.
You must advise the medical staff of the type of acid.
• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide alkali electrolyte.
• Use fresh running water to wash off excess electrolyte, continue this until medical assistance
arrives. Make sure that you do not wash the electrolyte to another part of your body or face.
• If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately washed
away with large amounts of water. Make sure that you do not wash the electrolyte to another part
of your face or body.
• Gasses from charging batteries are highly flammable and great care should be taken to charge
in well ventilated areas.
!
• There is an explosion risk if the battery terminals are short circuited, when
connecting/disconnecting ALWAYS exercise great care so that the terminals or battery
leads are NOT allowed to touch and cause a spark. ALWAYS use suitable insulated tools.
14
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
Electrical Safety (Where Applicable)
!
ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT.
DANGER!
• Prior to carrying out any maintenance work you MUST identify electrical isolation methods and
isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs
and connectors for the following;
- Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts
and loose wiring.
- If there are any signs of damage, the damaged item MUST be taken out of service until the
damage has been repaired by an electrically competent person.
- All trailing cables should be routed so as not to cause any kind of trip hazard.
- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
15
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
• Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from
vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel
syndrome. This condition reduces the ability of the hand to feel and regulate temperature,
causing numbness and heat sensations and may cause nerve damage and circulatory tissue
death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking and other
diseases that affect blood vessels and blood circulation as well as large and long-lasting impact
of shocks are considered factors in the formation of white finger. Note the following to reduce the
risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule out
the carpal tunnel syndrome. Long-term and regular users are therefore recommended to observe
the condition of your hands and fingers. Seek medical attention immediately if any of the above
symptoms should occur.
Vibrations (Where Applicable)
!
• The operating noise of the machine can damage your hearing. When wearing protection such
as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to
have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection
because your ability to hear alarm warnings will be reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and
for certain periods. Limit the working time to a minimum. For your personal protection and
protection of people working nearby it is also advisable for them to wear hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of conformity.
Noise (Where Applicable)
!
16
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
Personal Protective Equipment
!
HAND PROTECTION MUST BE WORN
Protective electrically non-conductive gloves are highly recommended when working.
HEARING PROTECTION MUST BE WORN
Suitable safety hearing protection is recommended.
EYE PROTECTION MUST BE WORN
Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have
only impact resistant lenses; they are not safety glasses/goggles.
FOOT PROTECTION MUST BE WORN
Non-skid heavy duty footwear are highly recommended when working.
PROTECTIVE CLOTHING MUST BE WORN
Do not wear loose clothing, gloves, scarfs, neckties or jewellery
(rings, wrist watches), which can be caught in moving parts.
HEAD PROTECTION MUST BE WORN
Wear a safety helmet with a safety visor.
FACE SHIELD MUST BE WORN
Wear a face shield to protect your face.
RESPIRATOR MUST BE WORN
Wear a respirator.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If
more than one item of PPE is worn at the same time, make sure they can be used together, e.g.
wearing safety glasses may disturb the seal of a respirator, causing air leaks.
17
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
18
Machine Description And Scope Of Application
The HYSC210 is a petrol lawn scarifier from Hyundai, ideally suited for small to medium sized
lawns. The HYSC210 has a working width of 400mm and is powered by a 212cc 4-stroke OHV
petrol engine.
This machine is a garden tool and precisely a pedestrian controlled scarifier. The machine is
essentially composed of an engine which drives a blade enclosed in a casing, equipped with
wheels and a handle. The operator is able to operate the machine and use the main controls,
always staying behind the handle at a safe distance from the rotating blade. If the operator leaves
the machine, the engine and cutting means will stop within a few seconds.
The scarifier is manufactured according to the latest safety requirements. These include the OPC
lever which stops the engine when you let go of the lever. Every precaution is only effective when
it is followed exactly.
These include the OPC lever which stops the engine when you let go of the lever.
Intended Use
The basic version of the equipment is a scarifier intended for private use, i.e. for use in home and
gardening environments. The scarifier roller is designed for ripping moss and weeds out of the
soil and for loosening the soil. As a result your lawn can absorb nutrients better and is cleaned.
We recommend you to scarify you lawn in the spring and autumn.
User Types
This machine is intended for use by consumers, i.e. non professional operators.
The machine is intended for “DIY” and domestic use only.
Improper Use
Any other usage not in keeping with the above mentioned ones may be hazardous and harm
persons and/or damage things. Examples of
improper use may include, but are not limited to:
- transporting people, children or animals on the scarifier
- letting yourself be transported by the scarifier
- using the machine to tow or push loads
- using the machine for leaf or debris collection
- use of the machine by more than one person
- using the scarifier on surfaces other than grass
Getting To Know The Machine
www.hyundaipowerproducts.co.uk 01646 687 880
Safety Information
19

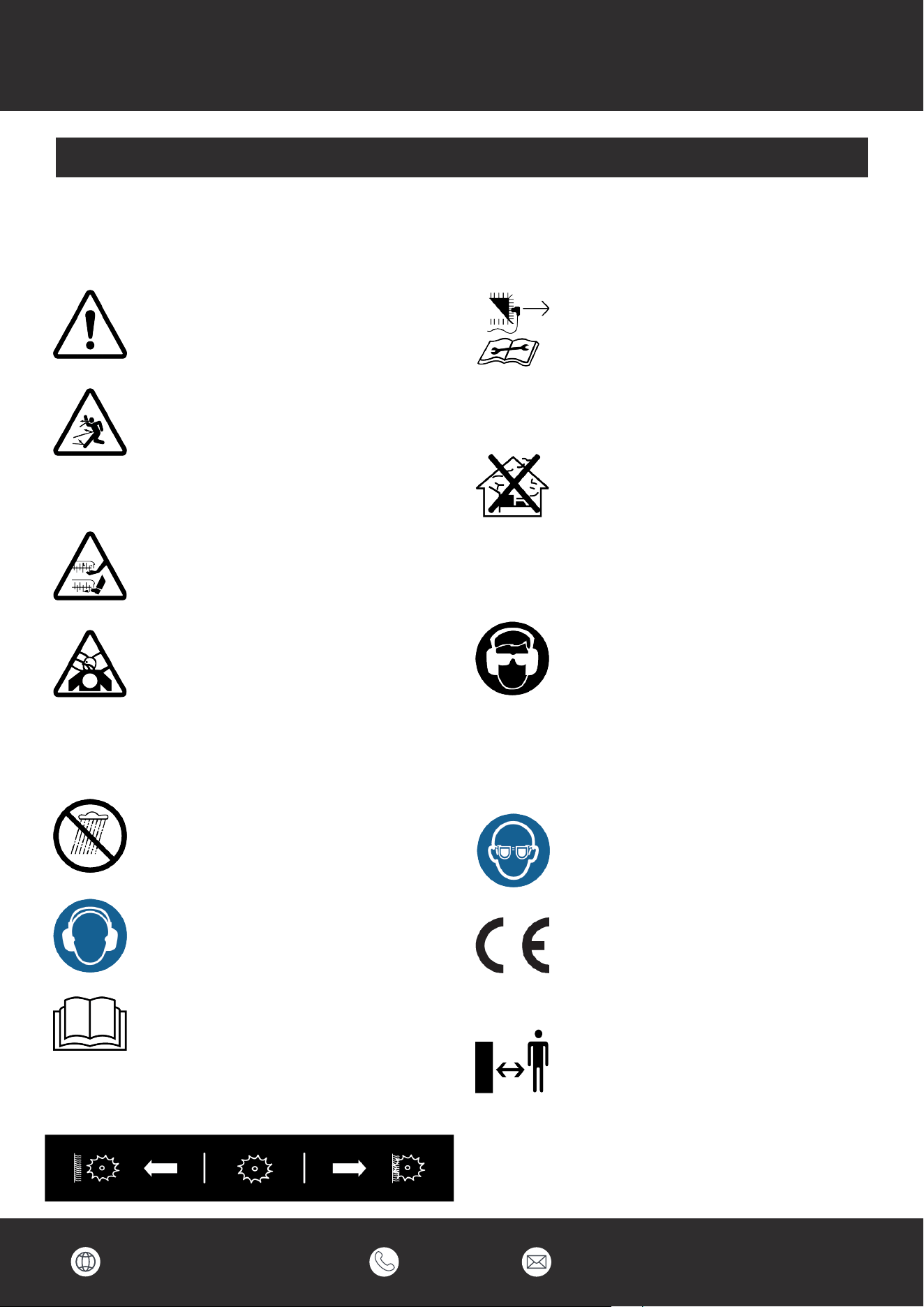

Symbols On The Machine
We have provided safety messages in this manual and on the machine. This information alerts
you to potential hazards that could hurt you or others. Please read these messages carefully.
However, we may not have listed all of the possible hazards, you must also use your own
judgment.
CAUTION!
Handle carefully.
INSTRUCTION MANUAL
Read and understand operator’s
manual before using the machine.
Failure to follow instructions could
result in death or serious injury.
DANGER AREA
Keep away from the danger area.
DANGER OF THROWN OBJECTS!
Keep all bystanders and animals at
least 15 metres away from the
machine during operation. If
approached, stop the machine
immediately.
WARNING!
Remove the spark plug cable from
the spark plug before commencing
maintenance work. Always read
instructions before carrying out any
repair or maintenance.
CE SYMBOL
This product complies with the
applicable European directives and
an evaluation method of conformity
for these directives was done.
DANGER!
keep hands and feet away from
cutting parts.
DANGER!
Engine exhaust fume contain
Carbon Monoxide. This is a
poisonous gas and can kill in
minutes. NEVER use inside a
building or in an area with poor
ventilation.
PROTECT FROM MOISTURE
Do not expose the product to rain or
wet conditions.
HEARING PROTECTION
Suitable safety hearing protection is
recommended.
DANGER!
NEVER use inside a
building or in an area with poor
ventilation. Engine exhaust fume
contain Carbon Monoxide. This is a
poisonous gas and can kill in
minutes.
EYE AND HEARING PROTECTION
Always wear safety glasses/goggles
and/or face shields. Everyday
eyeglasses have only impact
resistant lenses; they are not
safety glasses/goggles. Suitable
safety hearing protection is
recommended.
EYE PROTECTION
Suitable safety hearing protection is
recommended.
TRANSPORT LEVER HEIGHT ADJUSTMENT
Always lift the blade up when turning or moving
the machine.
www.hyundaipowerproducts.co.uk 01646 687 880
Features
20
1
2
3
4
5
6
7
8
9

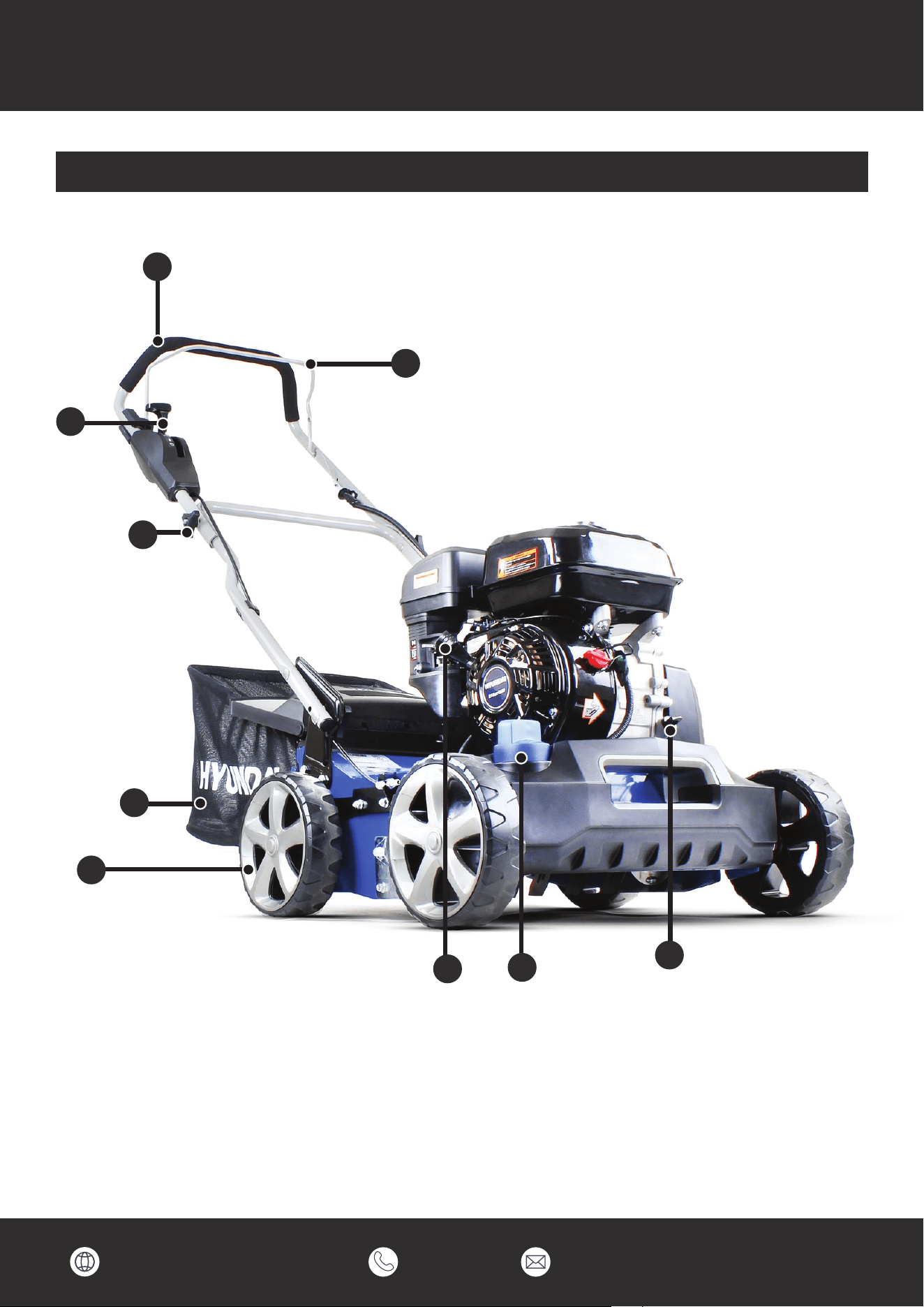

HYSC210 Features
www.hyundaipowerproducts.co.uk 01646 687 880
Features
21
Oil Filler / Dipstick
1
Soft Grip Handle
2
Operator Presence Control (OPC) Lever
This is a safety feature. The machine will stop if you let go of this lever.
3
4
5
6
Recoil Starter Handle
7
Grass Collector
8
Handle Quick Release
9
Transport Lever
Working Depth Height Adjustment Knob
Wheel
HYSC210 Features
www.hyundaipowerproducts.co.uk 01646 687 880
22
Unboxing
• HYSC210 Petrol Scarifier
• Aerator Attachment
• 45L Grass Collector
• Assembly Tools
• User Manual
Box Contents
WARNING! Unboxing and assembling the machine should be done on a flat, stable surface
with enough room. Disposal of the packaging should be done in accordance with the local
regulations in force.
WARNING! Some of the packaging material may be harmful to children. Keep out of reach of
children.
Unboxing Safety
!
Carefully remove the product from the packaging and examine it for any sign of damage caused
during shipping. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the
packaging material in case the machine needs to be returned or repaired.
Ensure that you have all the accessories and tools you need for assembly and operation
including the suitable personal protective equipment.
www.hyundaipowerproducts.co.uk 01646 687 880
23
Assembly Safety
CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI
machine. We always advise reading the manual in full before operation.
CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide –
poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly
flammable, always handle with extreme care and in a well ventilated area.
NOTE - Images may vary depending on model.
NOTE - The machine may be supplied with some parts already assembled. Prior to assembly,
check all items have been received. The mulching plug may already be installed for transport.
NOTE - This machine is shipped without fuel and oil and MUST be filled before use. Failure to
do so may cause damage to the engine that will not be covered by warranty.
Assembly Safety
!
We recommend that you fill out the information on page 62. If you need to contact an
authorised dealer or customer service for information on servicing, you may need to
provide this information.
There is also a service record so you can keep track of your machine service dates.
www.hyundaipowerproducts.co.uk 01646 687 880
Assembly
24

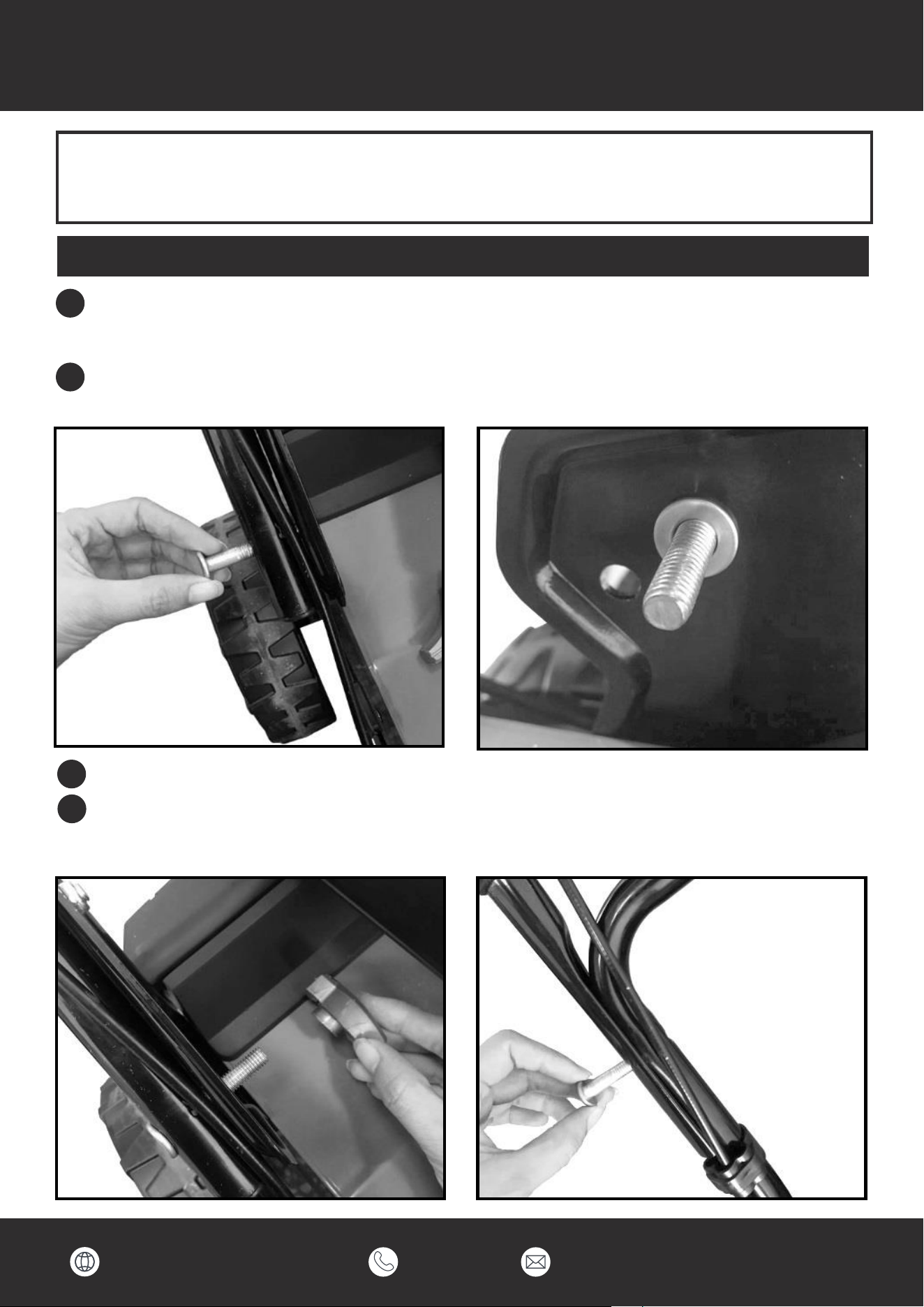

Step 1 : Assemble Handle Bars
Unboxing & Assembly Video:
YOU MUST read and understand the instruction manual first.
Go to youtube.com and type in Hyundai HYSC210 assembly.
Attach the lower handle to the mounting bracket on the scarifier deck by sliding the bolt
through the lower handle bar and through one of the 2 different handlebar height holes on
the mounting bracket. See image 1.
1
Place a washer over the bolt. See image 2.
2
Secure in place with the hand wheel and tighten securely. See image 3.
3
Attach the upper handle to the lower handle by sliding the bolt through both handlebars.
See image 4.
4
Image 1 Image 2
Image 3 Image 4
www.hyundaipowerproducts.co.uk 01646 687 880
Assembly
25
Place the washer over the bolt. See image 5.
5
Secure in place with the hand wheel and tighten securely. See image 6.
6
Image 5 Image 6
Slowly pull the recoil starter handle up to the handle retaining loop. See image 7.
7
Image 7
www.hyundaipowerproducts.co.uk 01646 687 880
26
Assembly

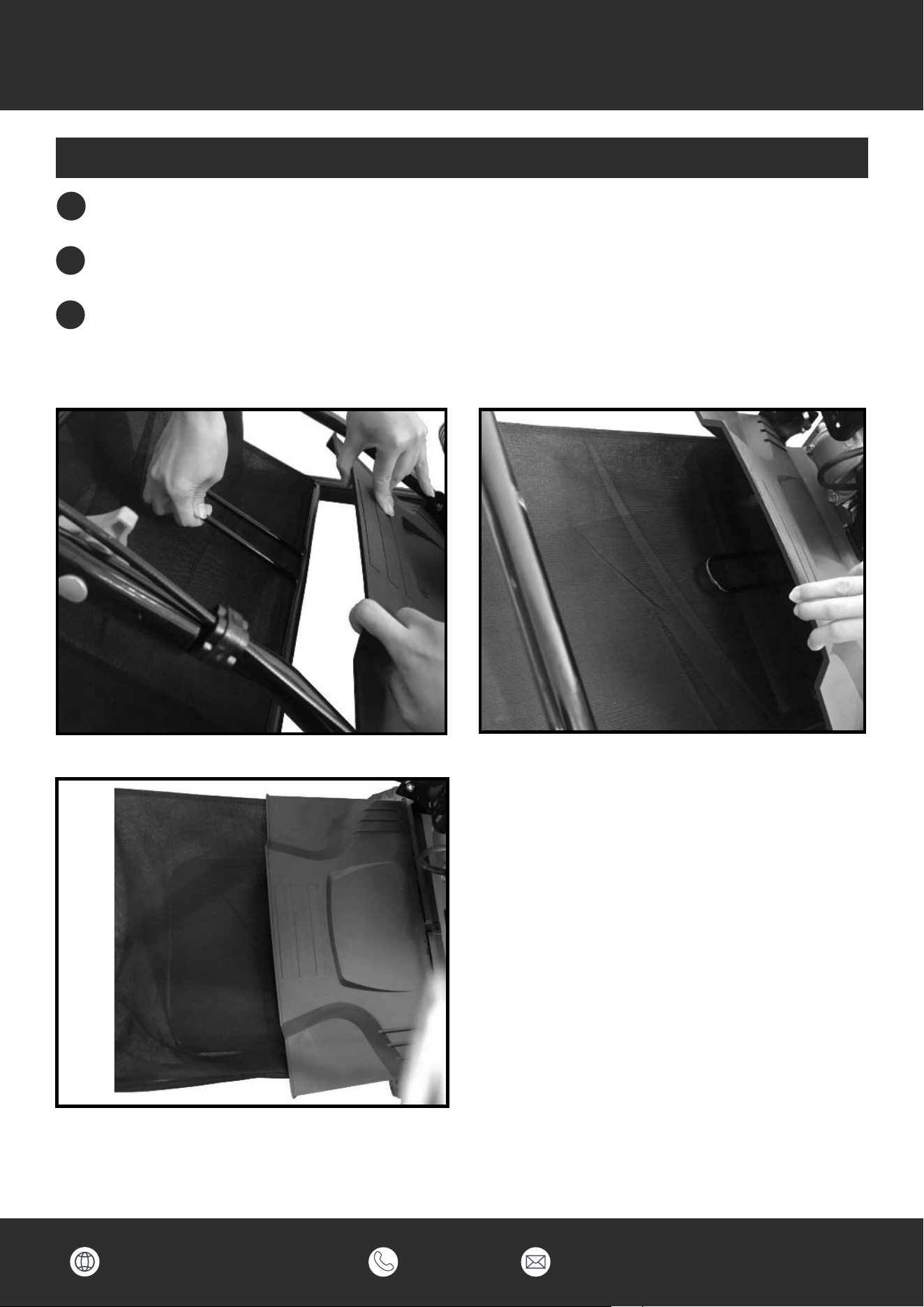

Lift the rear discharge flap and hook the grass catcher over the back of the scarifier.
See image 1.
1
Manoeuvre the grass collector into position ensuring it is hooked firmly in place.
See image 2.
2
Step 2 : Attach Grass Collector
Lower the rear discharge flap until it rests on the grass collector.
See image 3.
3
Image 1 Image 2
Image 3
www.hyundaipowerproducts.co.uk 01646 687 880
27
Assembly

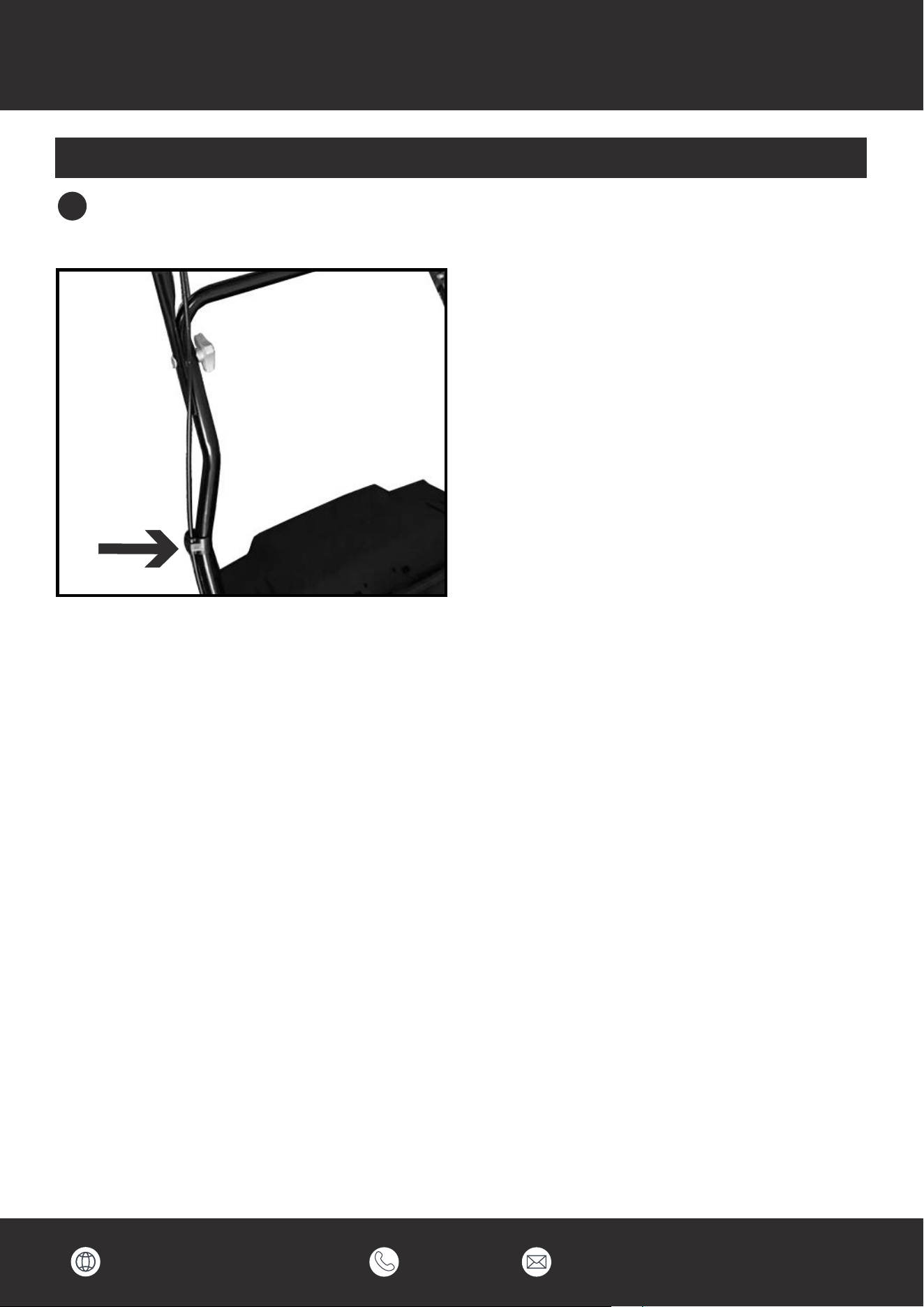

Attach the cable clamp around the cable and fix to the handlebar.
See image 1.
1
Step 3 : Cable clips
Image 1
www.hyundaipowerproducts.co.uk 01646 687 880
28
Assembly

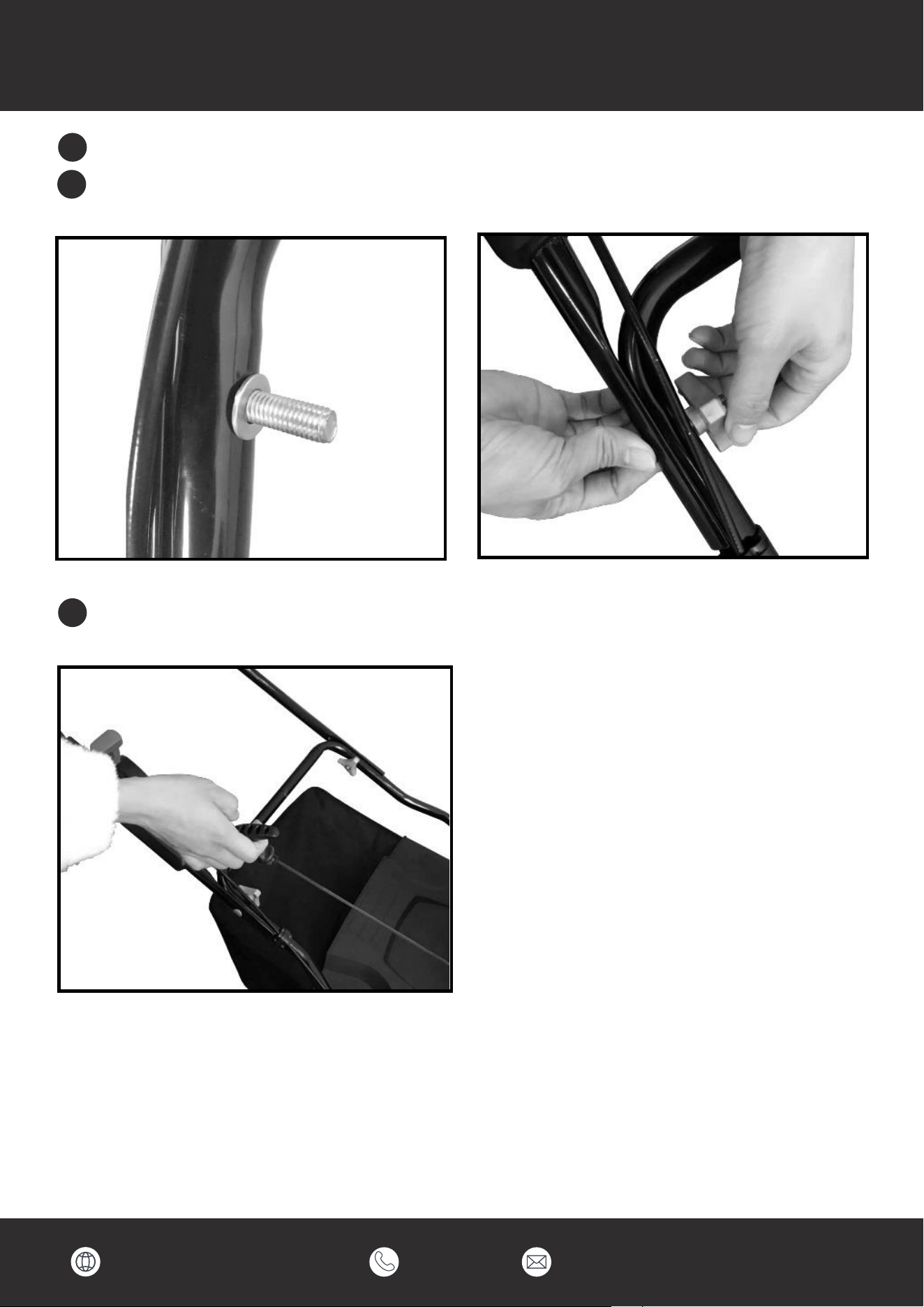

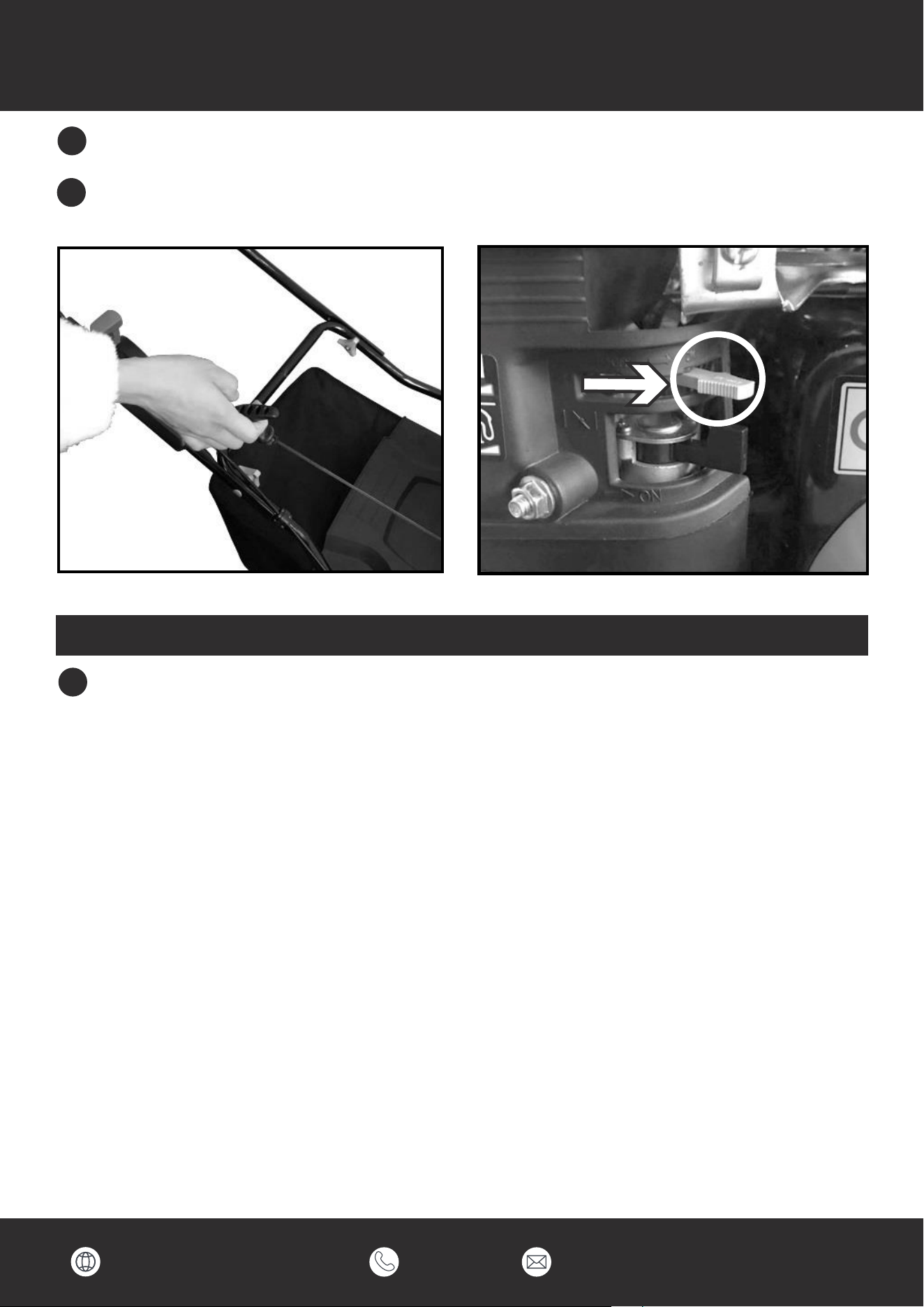

Gently prise the lever from its locating hole in the main handlebar. See image 1.
1
Insert the end of the cable in to the hole in the lever. See image 2.
2
Step 4 : Cable Attachment
NOTE - If you are stood behind the machine:
OPC Cable: This attaches to the lever in front of the main handlebar and if followed, will attach to
the engine.

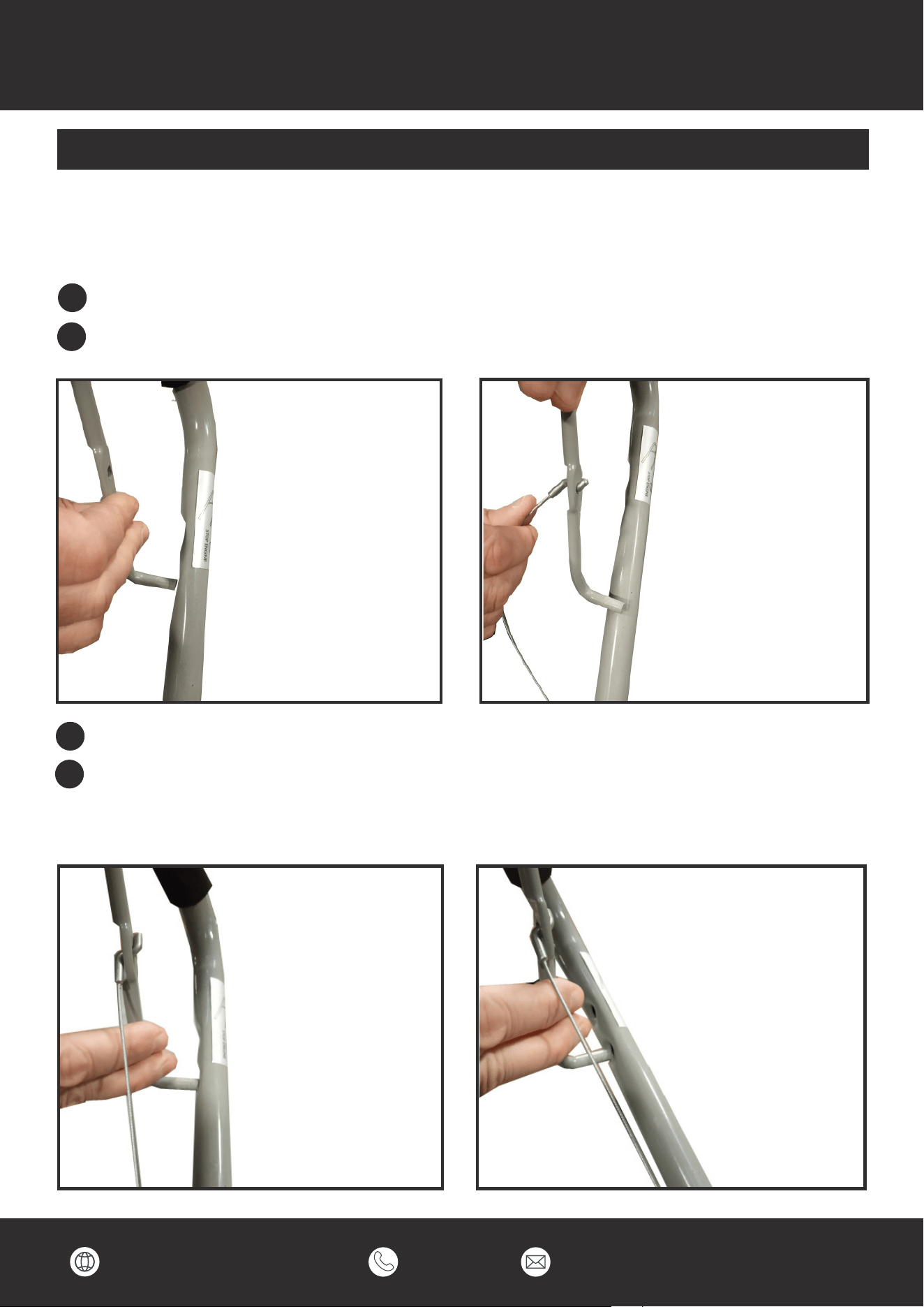

Position the cable until it lies flat in the lever. See image 3.
3
Refit the lever back into its location hole on the main handlebar (lower hole).
Check the cable lies flat and has not snagged on any other part of the scarifier.
See image 4.
4
Image 1 Image 2
Image 3 Image 4
www.hyundaipowerproducts.co.uk 01646 687 880
29
• Always ensure that the scarifier is in a safe working condition. Inspect the machine, check
safety devices and guards and check all nuts, bolts and screws are secure.
• Check the oil level.
• Fill the fuel tank with unleaded petrol.
• Check the OPC cable, if there is more than 10mm movement in the OPC lever before the cable
begins to move, then the OPC cable will require adjustment.
Preparation
Before Each Use
www.hyundaipowerproducts.co.uk 01646 687 880
30
Preparation

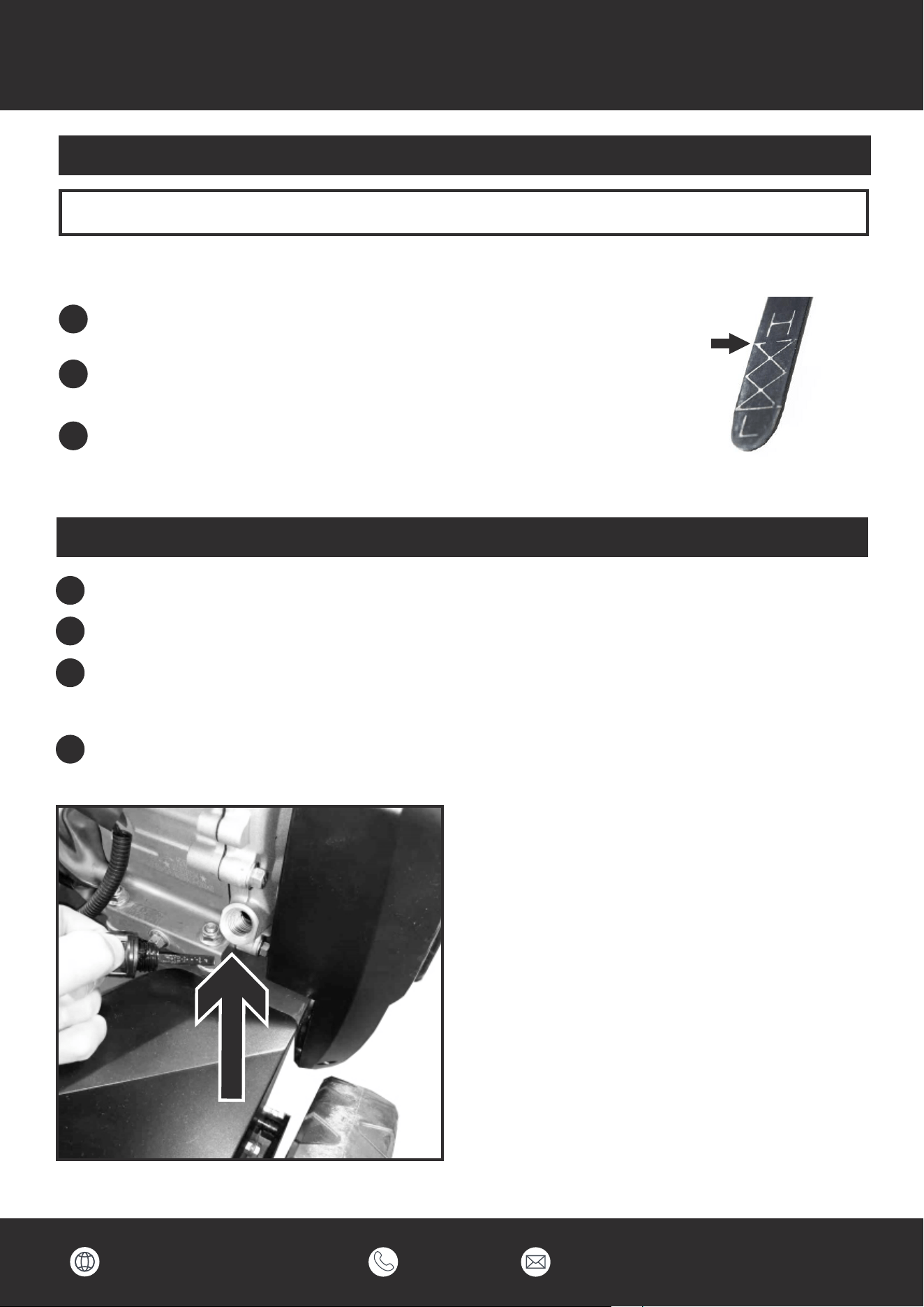

Oil Type : SAE 30 or 15w40 Engine Oil
Oil Capacity : 600ml
Adding Oil
NOTE - The machine is delivered without oil in the engine. All machines are tested and inspected
so there may be some residual oil left in the machine so please fill with caution.
Remove the oil filler cap.
1
Fill with fresh SAE 30 or 15W40 engine oil to the upper mark on the
dipstick. Stop occasionally to check the level. DO NOT overfill.
2
Once the correct amount of oil has been added, refit the dipstick securely.
3
Checking Oil Level
Remove the oil filler cap and wipe the dipstick clean.
1
Remove the dipstick and check the oil level. It should be up to the upper mark on the dipstick.
2
If the oil level is too low, add SAE 30 or 15W40 engine oil to the upper mark on the dipstick. DO
NOT overfill. The oil level should not be above the upper mark on the dipstick. If you do overfill,
read the ‘Changing / Draining Oil’ section below for more information on draining oil.
3
Once the correct amount of oil has been added, refit the dipstick securely.
4
www.hyundaipowerproducts.co.uk 01646 687 880
31
Preparation
Fuel Type : Fresh Straight Unleaded Petrol
Fuel Capacity : 3.6L
Adding Fuel
NOTE - The machine is delivered without petrol. All machines are tested and inspected so there
may be some residual petrol left in the machine so please fill with caution.

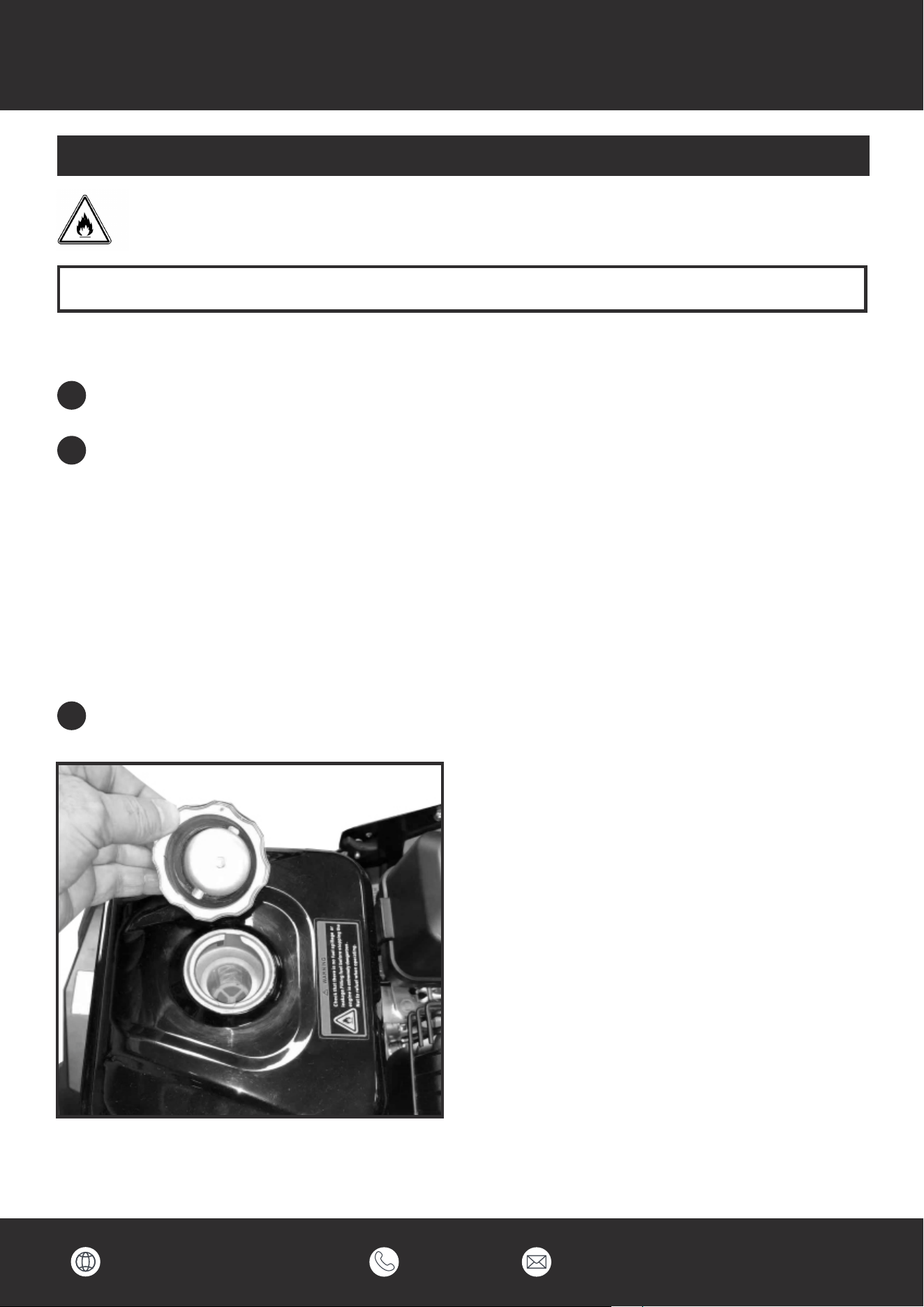

Remove the fuel tank cap.
1
Fill the fuel tank with fresh straight unleaded petrol. Allow a 25mm gap from the top of the tank,
then refit the cap securely. DO NOT mix petrol with oil and clean up any spills immediately.
NOTE - DO NOT overfill. The fuel tank only needs to contain enough fuel to complete the days
work. If you run out of fuel, refilling must only be done once the engine has cooled down. Fuel
stored within the machine for 28 days or more can go stale and should be drained before further
use.
NOTE - Make sure not to drip petrol onto the plastic parts to prevent damaging them and remove
all traces of spilt petrol immediately. The warranty will not cover damage to plastic parts caused
by petrol.
2
Refit the fuel filler cap securely and clean up any fuel spilt before starting the engine.
3
Make sure you read the fuel safety before handling fuel.
www.hyundaipowerproducts.co.uk 01646 687 880
32

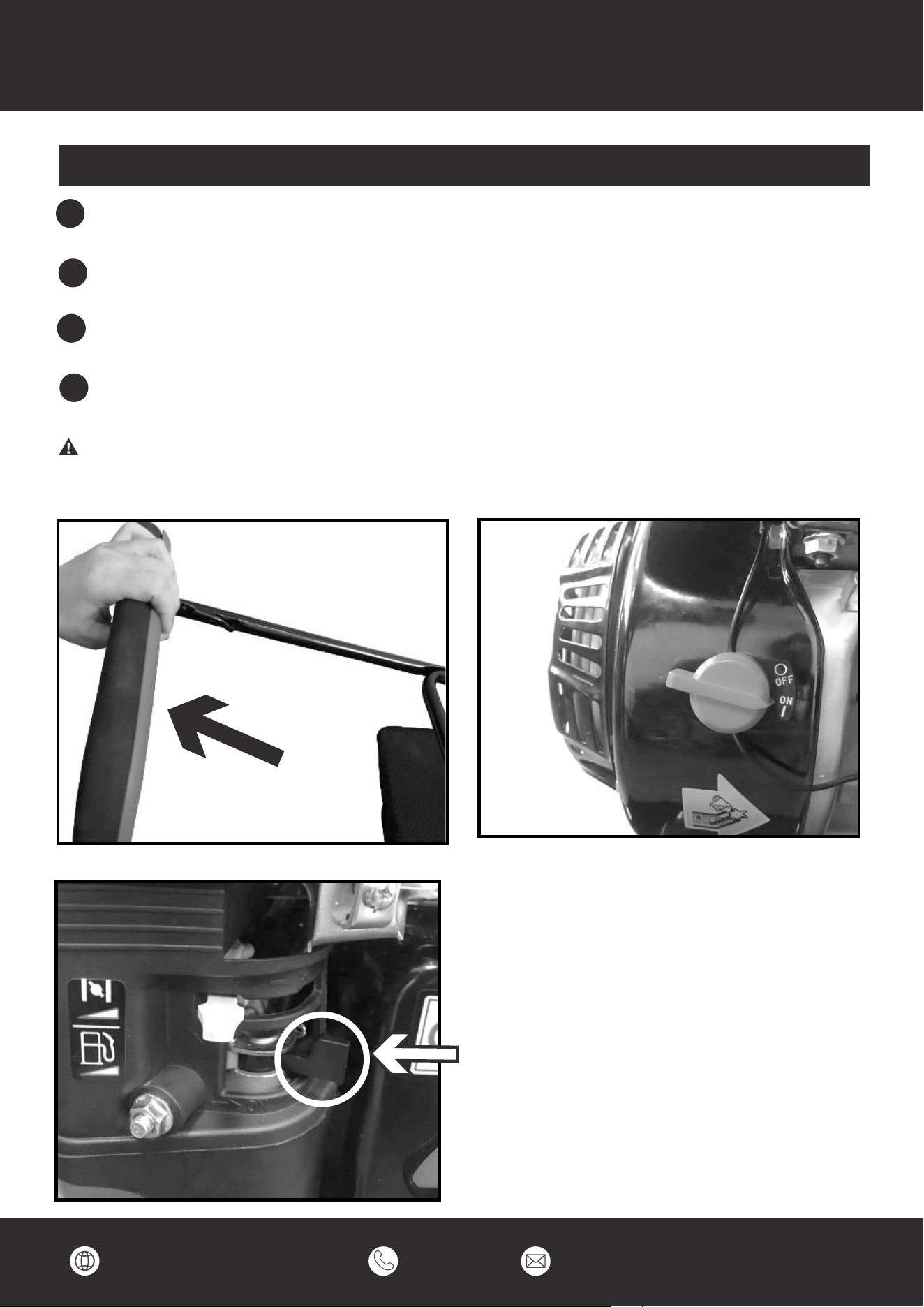

Starting Procedure
YOU MUST read and understand the full safety instruction manual before starting the
machine.

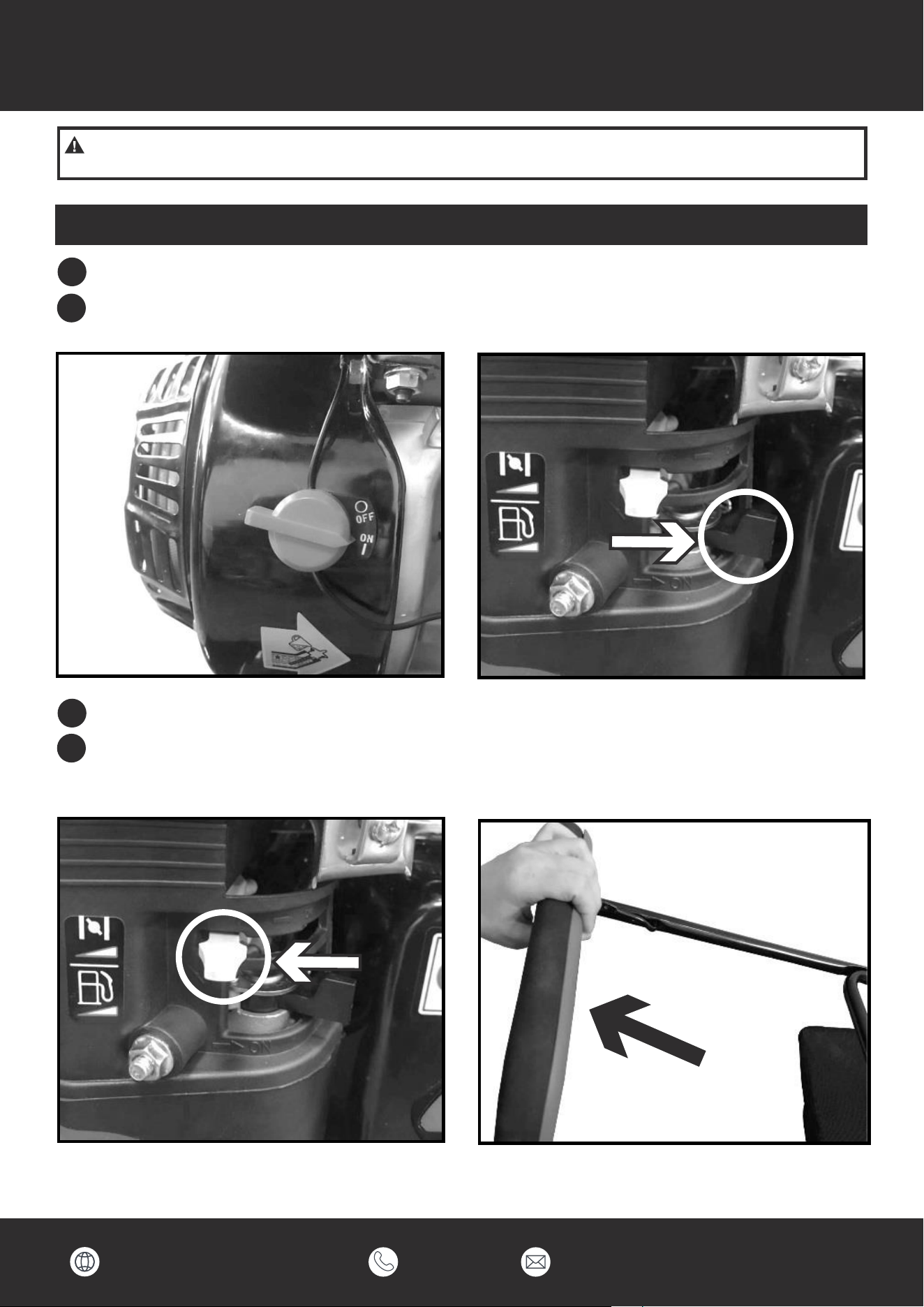

Turn the engine switch to the ON position. See image 1.
1
2
Move the fuel tap to the ON position. (Bottom lever to the right). See image 2.
Cold Start
Move the choke lever to the START position. (Top lever to the left). See image 3.
3
4
Pull back and hold the Operator Presence Control lever towards the main handle.
See image 4.
Image 1 Image 2
Image 3
Image 4
www.hyundaipowerproducts.co.uk 01646 687 880
33
Gently pull the recoil starter handle until you feel resistance, then pull swiftly until the
engine starts.See image 5.
5
6
When engine starts, move the choke lever back to the RUN position. See image 6.
Repeat the cold start procedure but leave the choke in the ON position.
1
Warm Start
Image 5
Image 6
Starting Procedure
www.hyundaipowerproducts.co.uk 01646 687 880
34
Stopping Procedure
Stopping
Release the Operator Presence Control (OPC) lever and the engine will stop. See image 1.
2
CAUTION - The engine and exhaust will remain hot for a while after use. Ensure the engine
and exhaust has cooled before carrying out any maintenance, refuelling or storage.
Before stopping the machine, you must allow the engine to idle for 20 seconds.
You do not need to do this if you need to emergency stop the engine.
1
Image 1
Move the fuel tap to the OFF position. See image 3.
4
Turn the engine switch to the OFF position. See image 2.
3
Image 2
Image 3
www.hyundaipowerproducts.co.uk 01646 687 880
35
Operation

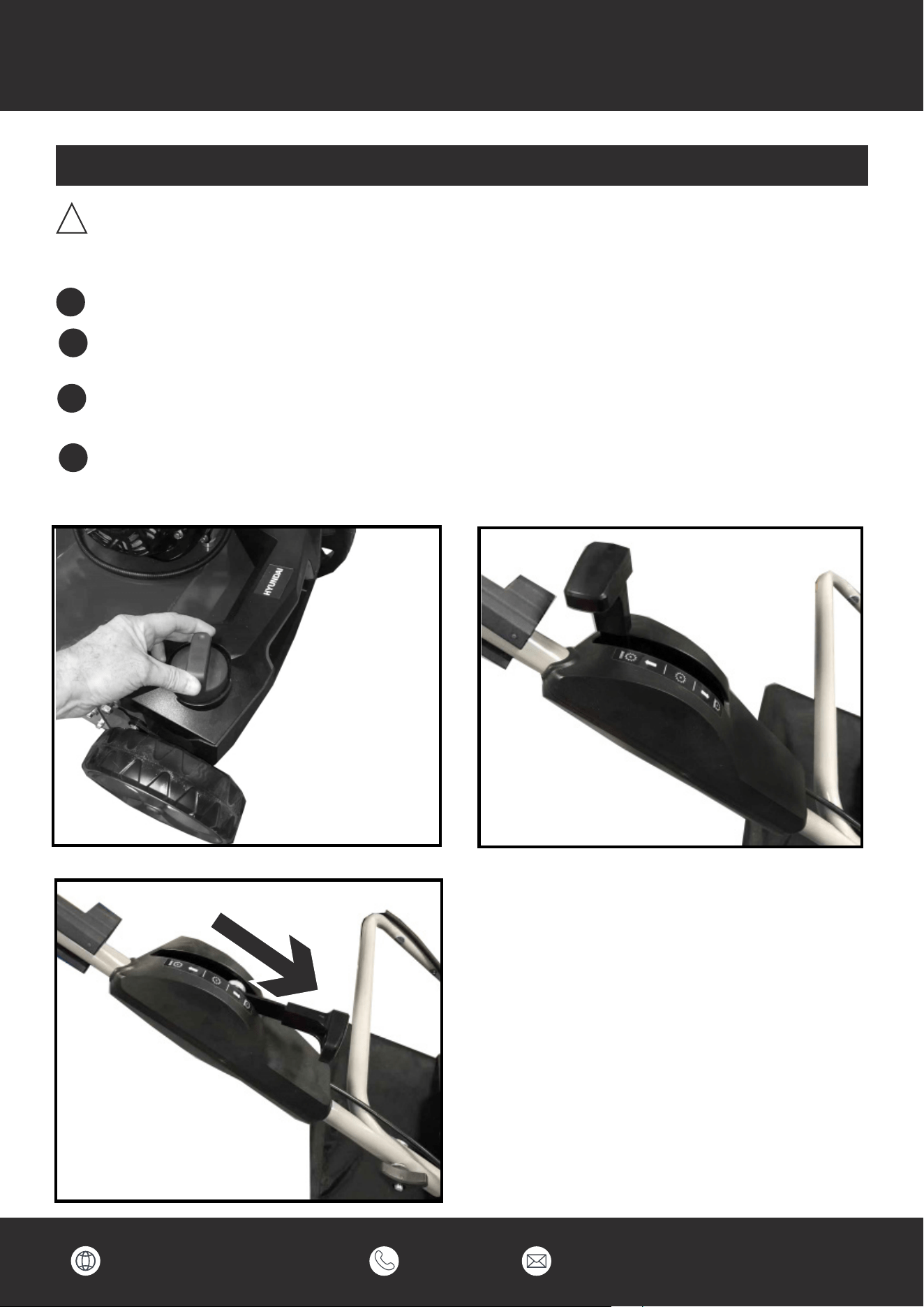

CAUTION - Do not make any adjustment to the scarifier without stopping the engine first.
!
The scarifier is equipped with a working depth adjustment lever offering multiple working depths.
To adjust the working depth, first stop the machine and switch the engine off.
Turn the working depth adjustment knob anti-clockwise to lower the blade or clockwise to
raise the blade. See image 1.
Move the transport lever to the transport position when turning or moving the scarifier to
stop the blades from touching the ground. See image 2.
Move the transport lever forward to lower the blade and start working. See image 3.
Adjusting Working Depth
2
1
4
3
Image 1
Image 2
Image 3
www.hyundaipowerproducts.co.uk 01646 687 880
36
Operation
Scarification is the removal of moss, lawn clippings and dead grass blades from the stem of the
grass to maintain a healthy growing environment. It is intensive airing of the lawn surface.
• Perfect for revitalising and reviving the most tired and spongiest of lawns.
• It is important to do this because the lawn gradually gets covered which results in a reduced
amount of oxygen getting to the grass.
• The lawn will be able to absorb water better and it prevents water logging.
• Ventilation is important so that the lawn can absorb nutrients and it needs air to be able to
breathe.
Before Scarification
Over time, your lawn collects lawn clippings, moss, etc. These create a seal and do not allow
water, air and nutrients into the root of the grass.
During Scarification
Scarification removes moss, lawn clippings, and dead grass blades from the stem of the grass to
maintain a healthy growing environment.
After Scarification
After scarification, the lawn will be able to absorb water and oxygen better. It will also absorb
nutrients and your lawn will be able to breathe.
The steel blades are specially designed to remove moss, thatch and dead grass.
During use, the blades penetrate the ground to ensure the lawn absorbs nutrients better.
The rake rotates and during aeration, the surface of the ground is scratched. This improves water
drainage and the absorption of oxygen.
• For best results, your lawn should be scarified every 4-6 weeks.
• We recommend scarifying the lawn in Spring and Autumn.
• We recommend aerating the lawn during the entire growing period.
What Is Scarification?
How Does It Work?
Scarification
Aerating
For Best Results
www.hyundaipowerproducts.co.uk 01646 687 880
37
Troubleshooting
NOTE - Where necessary, all corrective actions should be carried out by suitably qualified persons.
Problem Possible Cause Possible Corrective Action
Engine does not start Throttle choke is not in the
correct position
Fuel tank is empty.
Air cleaner element is dirty.
Spark plug loose.
Spark plug wire loose or
disconnected from plug.
Spark plug gap is incorrect.
Carburetor is flooded with fuel.
Faulty ignition module.
Move throttle choke to correct
position
Fill tank with fuel
Clean air cleaner element
Tighten spark plug.
Install spark plug wire on spark
plug.
Set correct gap between
electrodes.
Remove air cleaner element and
pull starter rope continuously
until carburetor clears itself and
install air cleaner element.
Contact the service agent.
Motor speed drops off Depth of cut too great
Grass too high
Ejector channel blocked
Air filter clogged
Depth of cut too small
Worn cutting blades
Grass catcher is full/clogged
Ejector channel blocked
Bolts, nuts or other mounting
parts slack.
Cutting assembly is loose.
Set to smaller depth of cut
Mow the lawn before
scarifying
Pull out spark plug connector,
remove blockage
Clean air filter
Set to correct depth of cut
Having cutting blades
replaced in a specialist work ship
Stop scarifier. Unload grass
catcher or clean it
Pull out spark plug connector,
clean ejection channel
Tighten parts.
Tighten parts.
www.hyundaipowerproducts.co.uk 01646 687 880
38
Technical Data
Model HYSC210
Engine Type Single Cylinder OHV
Engine Size 212cc
Nominal Power 4kW
Engine Speed 2800rpm
Fuel Tank Capacity 3.6L
Fuel Type Unleaded Petrol
Oil Tank Capacity 600ml
Oil Type SAE 30 or 15W40 Engine Oil
Working Width 400mm
Grass Collector Capacity 45L
Height Adjustment +5mm to -15mm
Measured Noise Level 101dB(A)
Guaranteed Noise Level 105dB(A)
Vibration Value 5.37m/s ² K=1.5m/s ²
Net Weight 39kg
Dimensions (L x W x H) 1260 x 610 x 1070mm
Specifications
www.hyundaipowerproducts.co.uk 01646 687 880
39
Maintenance & Care
1. WARNING - Before cleaning or doing maintenance work, you need to disconnect the
spark plug cable and read the relevant instructions. You need to wear proper clothing and
protective gloves whenever your hands are at risk.
2. WARNING - If there are worn or damaged parts, never use the machine. Faulty or
worn-out parts must be replaced and not repaired. You must only use original spare parts. The
use of non-original and/or incorrectly fitted parts will jeopardize the safety of the machine. This
may also cause accidents or personal injuries for which the manufacturer is under no
circumstance liable or responsible.
3. Any maintenance operations or adjustments not explained in this manual must be carried out
by your Dealer or a specialised Service Centre with the necessary knowledge and equipment to
ensure that the work is done correctly maintaining the scarifier’s original safety level. Any
operations performed in unauthorised centres or by unqualified persons will invalidate the
Warranty and all obligations and responsibilities of the Manufacturer.
4. Disconnect the spark plug cable and check for damage after each use.
5. To be sure the machine is in safe working condition, keep all nuts, screws and bolts tight.
Routine maintenance is essential for safety and for maintaining a high performance level.
6. On a regular basis, check that the blades screws are properly tightened.
7. When handling, disassembling and re-assembling the blade, make sure to wear work gloves.
8. Keep the blade well balanced during sharpening. All work on the blade (disassembly,
sharpening, balancing, re-assembly and/or replacing) should be carried out at a specialised
centre as they are demanding jobs that require special skills and special tools.
9. Be very careful during adjustment of the machine to prevent entrapment of the fingers
between moving parts of the blade and fixed parts of the machine.
10. Do not touch the blade until the spark plug has been disconnected and the blade is
completely stationery. When servicing the blade, even though the spark plug cable is
disconnected, the blade can still move.
11. Check the grass collector frequently. Replace if damaged.
12. If any warning message stickers or instruction is damaged, replace them.
13. Store the machine in a safe place, out of the reach of children.
14. Do not store the machine with fuel in the tank in an area where the fuel vapours could reach
an open flame, a strong heat source or a spark.
!
!
Maintenance Safety
www.hyundaipowerproducts.co.uk 01646 687 880
40
Maintenance & Care
15. Engine must be cooled down before storing.
16. To reduce fire hazards, keep the engine, silencer, battery compartment and petrol storage
area free of grass, leaves, or excessive grease. You must always empty the grass collector and
do not leave containers full of cut grass inside storage areas.
17. To reduce fire hazards, check there is no oil and/or fuel leaks on a regular basis.
18. If you need to empty the fuel tank, this should be done outdoors once the engine has cooled
down.
Maintenance Safety (Continued)
www.hyundaipowerproducts.co.uk 01646 687 880
IMPORTANT - Routine and accurate maintenance is essential for maintaining original
machine safety and performance levels.
Always stop the engine and unplug the spark plug before doing any repairs or maintenance.
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize
the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is
under no circumstance liable or responsible.
1. Wear strong protective gloves before cleaning, maintaining or making adjustments to the
scarifier.
2. You must remove grass and mud from the machine to prevent it from drying. This will cause
problems the next time the scarifier is used.
3. Paint on internal chassis parts may start to flake over time due to abrasive action of cut grass.
If this happens, you should touch-up with rust-proof paint to prevent rusting that could corrode
the metal. You can also use a light oil or silicone spray to prevent rust.
4. If you need to access the lower part of the scarifier, you must tilt the scarifier with the air filter
facing up, following the relevant instructions, making sure that the machine is stable before
performing any interventions.
5. Make sure not to drip petrol onto the plastic parts to prevent damaging them and remove
all traces of spilled petrol immediately. The warranty will not cover damage to plastic parts
caused by petrol.
6. It is highly recommended to change the engine oil every 100 hours or 12 months. This will
ensure the machine will function properly over time. The oil can be discharged at a specialised
servicing centre, or by using a syringe to suction the oil out through the filler spout, bearing in
mind you may need to repeat the operation several times in order to completely empty the tank.
Remember to top-up with oil before using the machine again.
7. Lubricate the wheel bearings with a suitable lubricant.
8. It is necessary as part of routine maintenance to adjust the OPC (Operator Presence Control)
cable tension to ensure the machine will start correctly. If there is more than 10mm movement in
the OPC lever before the cable begins to move, then the OPC cable will require adjustment.
CAUTION - DO NOT use a hose pipe or pressure washer to clean the engine. Water can
damage the engine or contaminate the fuel system.
!
!
41
Maintenance & Care
Routine Maintenance
www.hyundaipowerproducts.co.uk 01646 687 880
42
Maintenance & Care
00.28” to 0.031”
0.70mm to 0.80mm

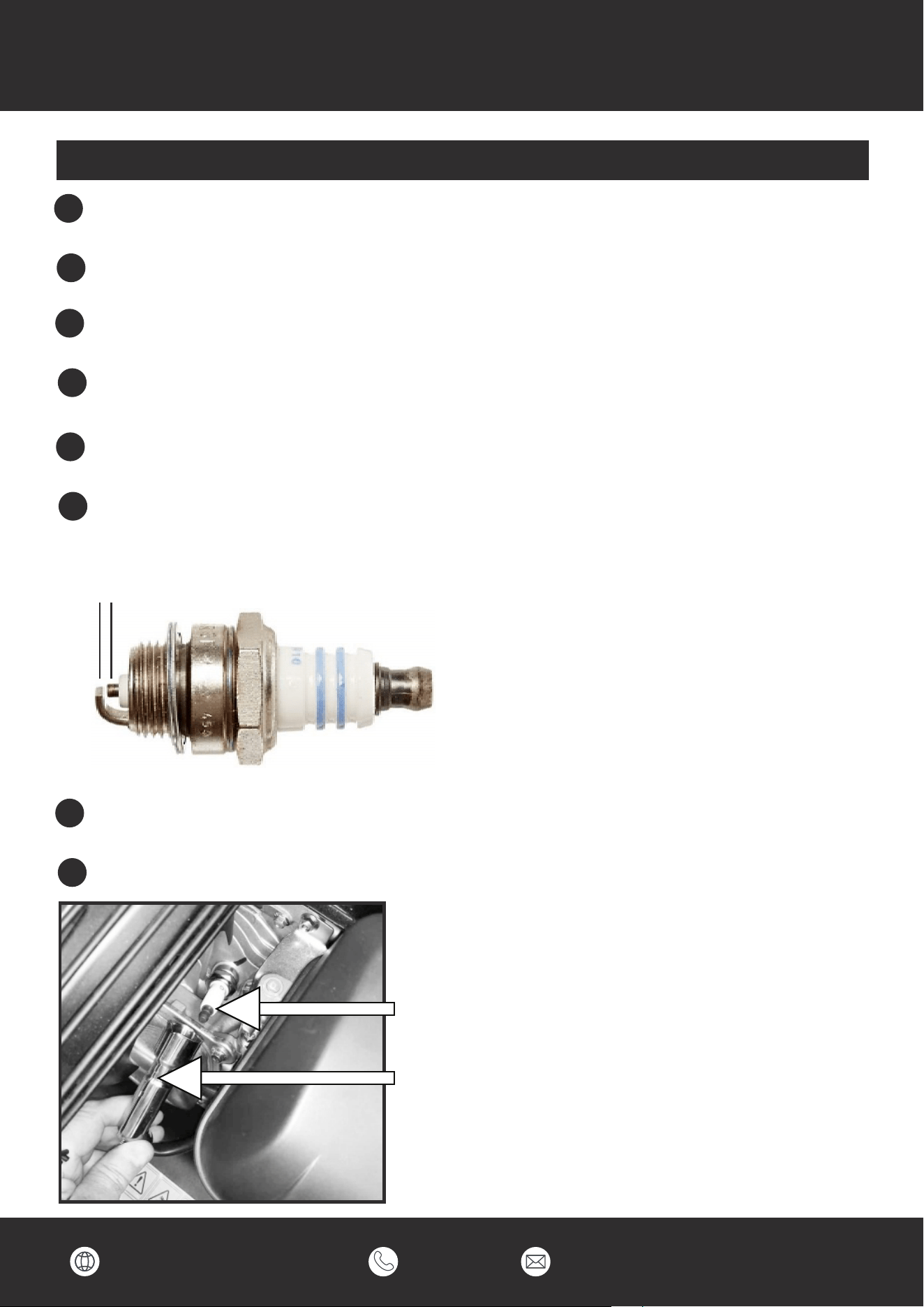

Spark Plug
Spark Plug
Always replace with the same model spark plug as fitted.
2
You MUST allow the engine to cool down before carrying out any maintenance.
1
Visually inspect the spark plug for signs of damage, wear or carbon build up. If damaged or
worn, replace immediately.
4
Remove the spark plug HT lead cap. Undo the spark plug from the engine and remove.
3
The spark plug gap should be 0.70mm to 0.80mm. Check the gap by using a feeler gauge.
Adjust as necessary by carefully bending the side electrode to achieve the correct gap.
6
To clean the spark plug, gently clean the electrode with a soft wire brush.
5
Re-attach the spark plug HT lead cap.
8
Refit the cleaned and adjusted speak plug by hand to avoid cross threading then lightly tighten
with a plug spanner.
7
Spark Plug Cap
www.hyundaipowerproducts.co.uk 01646 687 880
43
Maintenance & Care

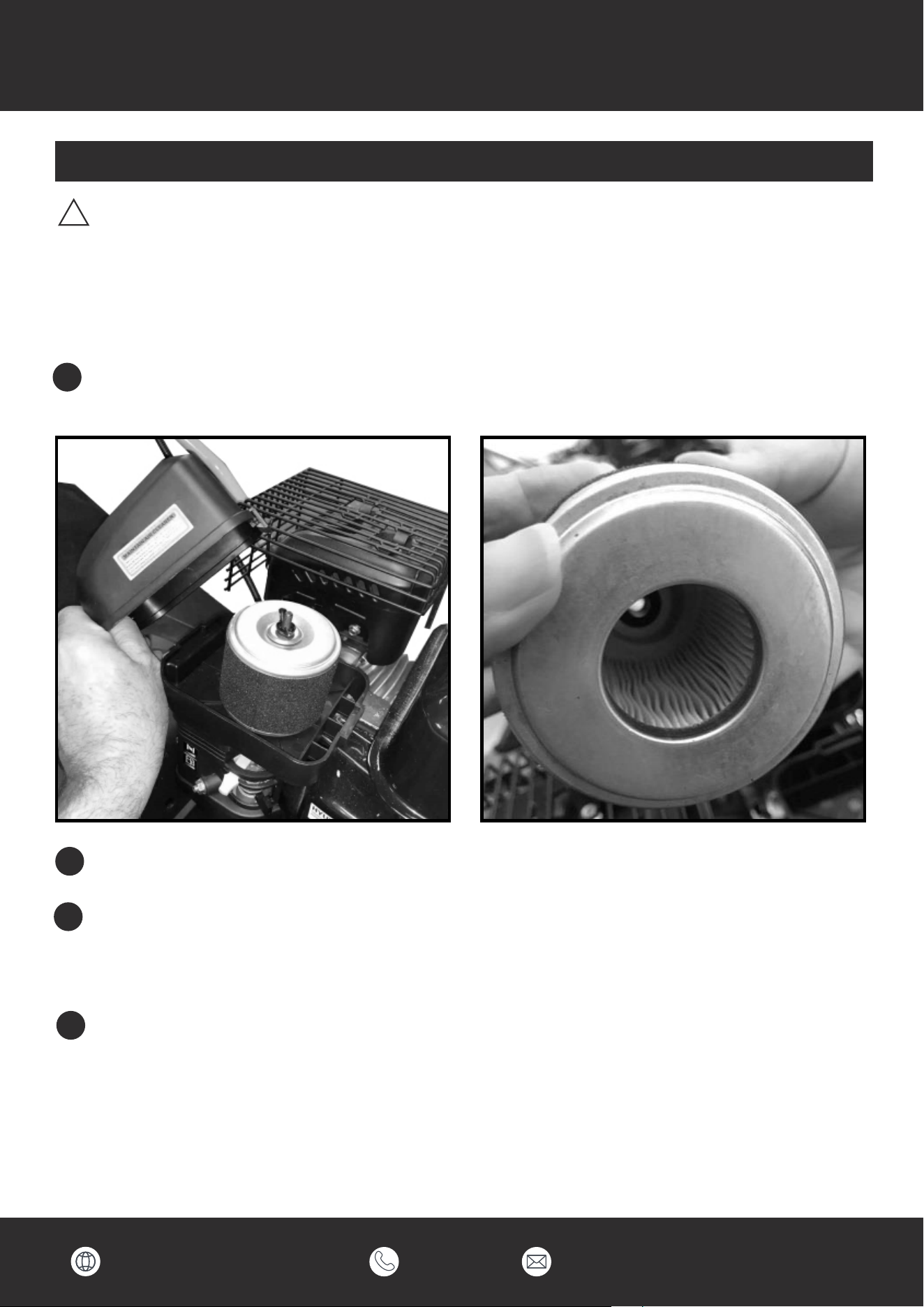

Air Filter
Inspect the air filter and if it shows any signs of damage or wear, replace immediately.
2
Push the quick release latches at each end to remove the air filter cover.
Remove the air filter element.
1
Refit the air filter and replace the air filter cover.
4
To clean the element, blow air through it using an air gun not exceeding 30psi.
NEVER use a brush to clean the filter, it will only drive the dirt into the fibres of the filter.
Wipe any dirt from the air cleaner body using a moist cloth, be careful to prevent dirt or
debris entering into the carburetor.
3
CAUTION - A dirty air filter will restrict the air flow to the carburettor, which will reduce engine
efficiency.
When using the machine in very dusty areas you must clean or replace the air filter more often.
Never operate the machine without the air filter being fitted it can cause damage to the engine
which is not covered by warranty.
!
www.hyundaipowerproducts.co.uk 01646 687 880
44
Maintenance & Care

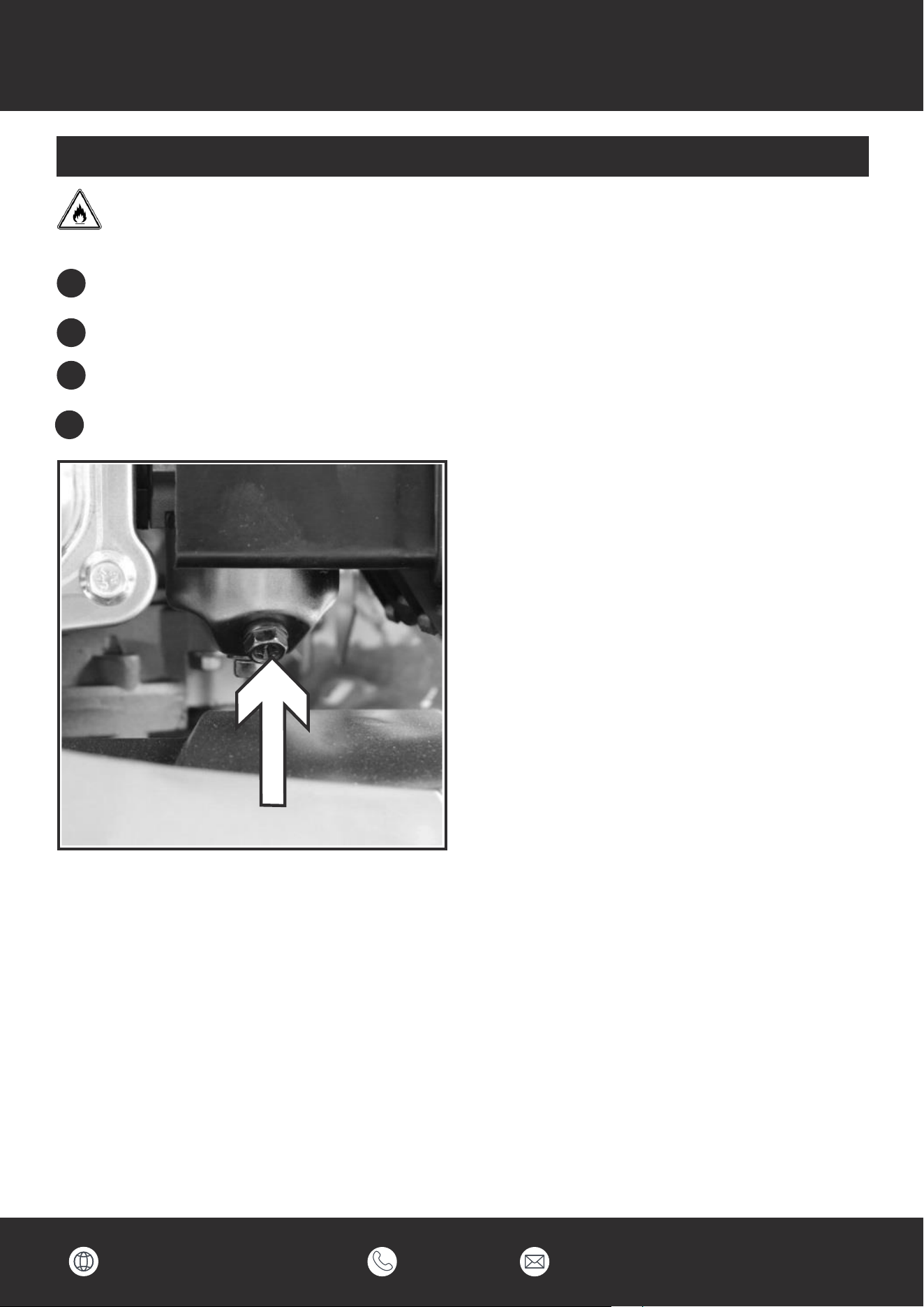

Fuel & Carburetor
The use of old or stale petrol will impair the starting and running of the machine.
Make sure that the machine has fresh unleaded petrol and always remove the fuel before
storing for long periods of time.
1
To drain the carburetor, clamp the fuel pipe leading into the carburetor.
2
Undo the drain bolt on the carburetor float bowl and allow the fuel to drain into a suitable
container. Take care not to spill fuel and make sure that all spilt fuel is cleared away safely.
3
CAUTION - ALL FUELS ARE FLAMMABLE. Always fuel and defuel in a well-ventilated
area outside of buildings. Always wear correct PPE and wipe up and spills immediately.
Refit the drain bolt, remove the fuel pipe clamp and refill with fresh unleaded petrol.
4
www.hyundaipowerproducts.co.uk 01646 687 880

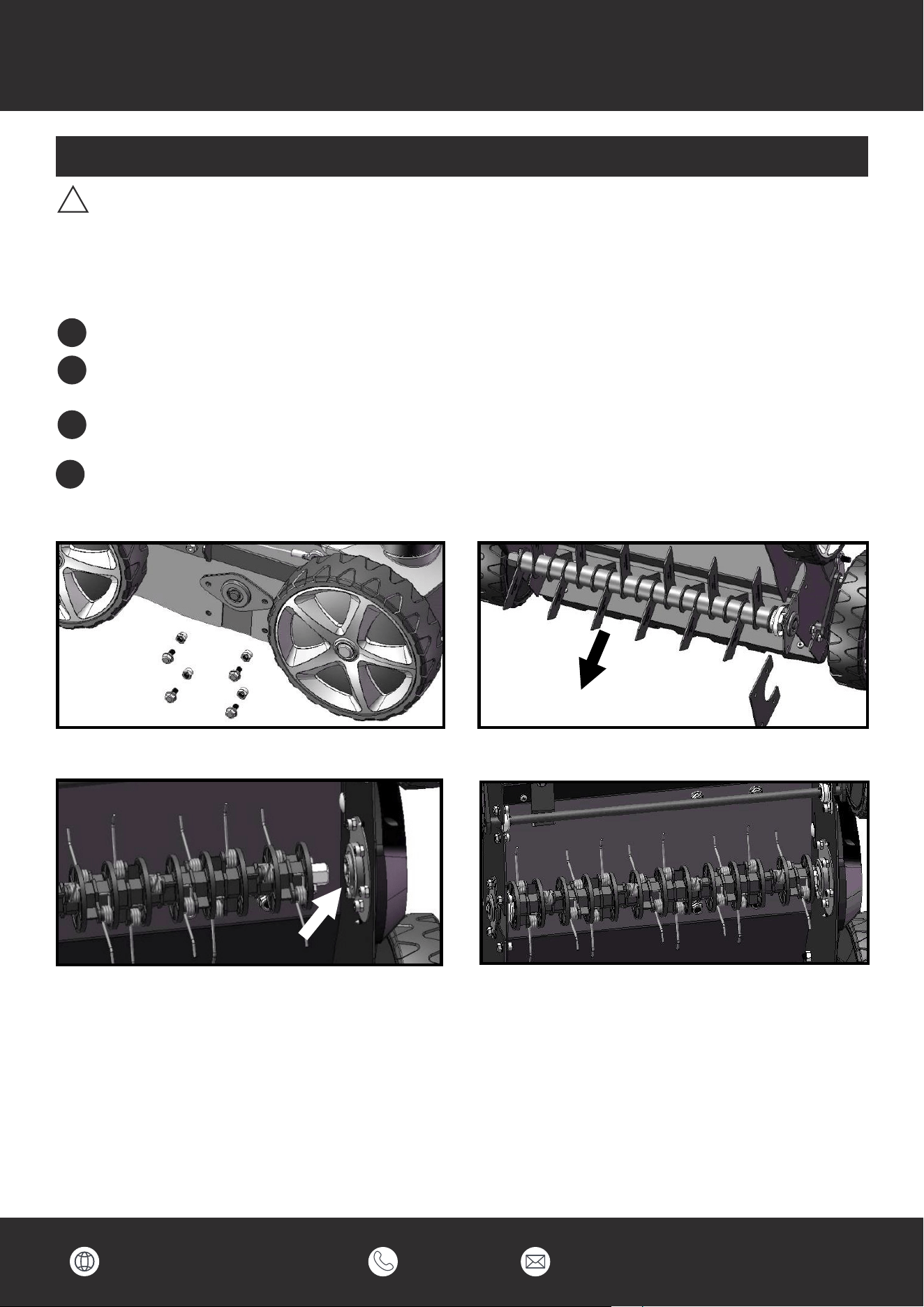

CAUTION - Drain the machine of fuel before removing or replacing the blade.
ALWAYS fuel and defuel in a well ventilated area outside of buildings.
ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE),
suggested items are but not limited to safety gloves, overalls.
!
Undo the 4 bolts on the side of the machine. See image 1.
Remove the shaft securing bracket and slide the blade out in the direction of the arrow.
See image 2.
To reinstall, slide one end of the blade into the hexagonal locating socket. See image 3.
45
Maintenance & Care
Refit the shaft securing bracket and bolt back in to place. See image 4.
Blade Removal
1
2
3
4
Image 1
Image 2
Image 3
Image 4
www.hyundaipowerproducts.co.uk 01646 687 880
46
Maintenance & Care

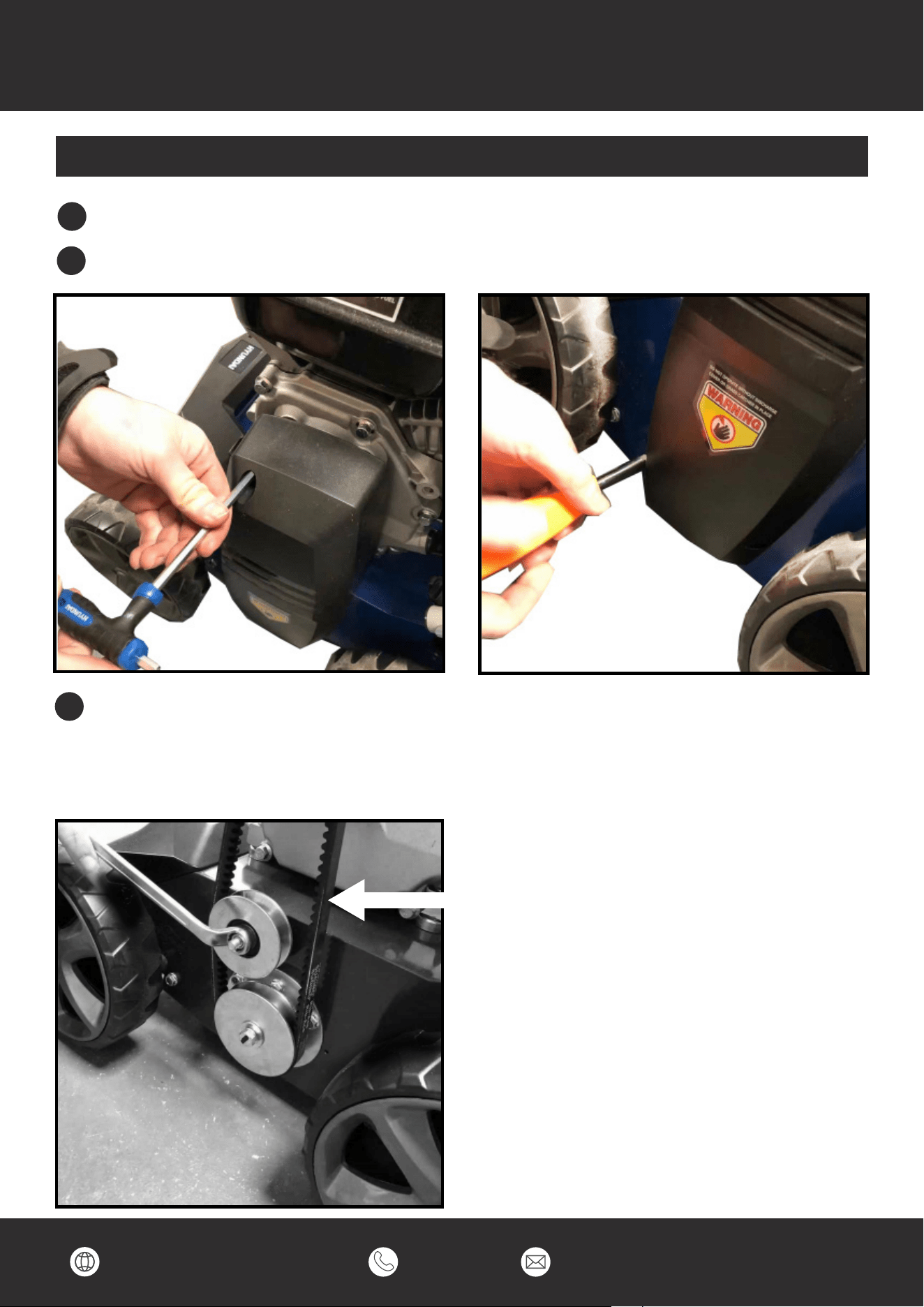

Using a 6mm hexagonal key, undo the bolt at the top of the belt guard.
Using a Phillips screwdriver, remove the two screws at the bottom of the belt guard.
Check belt tension (arrowed). There should be 10-15mm of movement. To tighten belt,
loosen the centre pulley bolt and push pulley towards the front of the scarifier to take up
slack and re-tighten centre bolt.
Do not over-tighten belt. Re-fit guard before use.
Check Belt Tightness
1
2
3
www.hyundaipowerproducts.co.uk 01646 687 880
47
Maintenance & Care
CAUTION - DO NOT use a hose pipe or
pressure washer to clean the engine. Water can damage the engine or contaminate the fuel
system.
NOTE Engine must be switched off and plug lead disconnected.
• Wipe the machine down with a damp cloth after every use.
• For larger build ups of debris, use a scraper or similar product.
• Dry the machine completely to prevent rust from forming.
• Use a light silicone spray on exposed metal parts to protect the metal.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use.
• Pores in the grass collector can become filled with dirt and dust during use and will collect less
grass. To prevent this, regularly hose the collector off with water and let to dry before using.
!
!
Cleaning
1. Whenever the machine is to be handled, lifted, transported or tilted you must:
- Wear sturdy work gloves
- Hold the machine at the points that offer a safe grip, taking into account the weight and relative
distribution of the same
- Use an appropriate number of people for the weight of the machine and the characteristics of
the vehicle or the place where it must be placed or collected
- You must make sure that machine movements fo not cause petrol leaks, damage or injuries.
2. During transport, make sure to fasten the machine securely with cables or straps.
Transportation And Handling
www.hyundaipowerproducts.co.uk 01646 687 880
48
Maintenance & Care
CAUTION - When storing the machine, make sure it has been cleaned as in the section
before.
NOTE - If storing the scarifier for a period of 30 days or more, you must follow proper storage
and winterisation guidelines to avoid any possible issues with your machine. Incorrect storage
can lead to possible fueling or engine issues that will not be covered by the warranty.
The following steps should be taken to prepare your scarifier for storage.
1. Drain all the fuel from the fuel tank and then run the scarifier until it has completely run out of
fuel to clear the remaining fuel from the fuel lines and carburetor.
2. Drain the oil from the engine.
3. Follow the cleaning instructions as set out in the previous section.
4. Follow the maintenance section and check, service or replace serviceable items if
required. Check the blade to make sure that it is ready for the following season – This will allow
you to get it sharpened correctly. Use a light oil or silicone spray to help prevent the blade from
rusting.
5. Clean the machine completely and make sure all moving parts are lubricated with a light sili-
cone based spray or grease.
6. Drain and replace with new SAE 30 or 15w40 engine oil, fill to the upper mark on the dipstick.
7. Remove the spark plug and pour 1 teaspoon of fresh engine oil down the cylinder bore. With
the spark plug still removed, cover the spark plug hole with a lint free clean cloth, ensuring no dirt
or debris falls into the cylinder chamber and gently pull the recoil starter
handle to coat the cylinder bore with the fresh oil.
9. Refit the spark plug.
10. Visually inspect the machine and replace or repair any worn parts.
10. Once all work above is carried out store the machine in a clean, cool and dry place away from
sources of ignition and varying changes in temperature. DO NOT store a machine that has not
been given time to fully cool down.
11. Do not stack other items on top of the machine when in storage.
12. When the machine is to be next used, fill with fresh unleaded petrol and not petrol that has
been stored for periods of more than 30 days.
NOTE - If you are folding the handles forward, take care not to snag the cable.
!
Storage
www.hyundaipowerproducts.co.uk 01646 687 880
49
Maintenance & Care
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or
Batteries is passed onto you by us.
So when it becomes necessary to dispose of your machine you must take it to your
local Civic Amenity Site. For further information please contact your local Authority
for disposal advice.
You MUST make sure that all unused oil and fuel is disposed of correctly either beforehand
or at your local Civic Amenity Site.
• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling centre.
• Certain products contain batteries which should not be disposed of in your domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling centre.
• Unwanted packaging and materials should be stored and taken to a recycling centre so it can
be disposed of in a manner which is compatible with the environment.
We are a Member of the VALPAK National Compliance Scheme and our registration number is
RM08660. For further information about disposal please contact your Local Authority.
You can also get more advice and guidance about recycling at the following website
http://www.recycle-more.co.uk
Should you pass this product on to another user either sold or loaned, you MUST pass on this
user manual. This will make sure that all other users can use and maintain this machine safely.
1. Environmental protection should be a priority of considerable importance when using the
machine, for the benefit of both social coexistence and the environment in which we live. Try not
to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of packaging, oils,
petrol, filters, damaged parts or any elements which have a strong impact on the environment.
This waste must not be disposed of as normal waste. It needs to be separated and taken to
specified waste disposal centres where the material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after mowing.
4. When disposing, do not pollute the environment with the machine, but hand it over to a
disposal centre, in accordance with the local laws in force.
Recycling And Disposal
Environmental Protection
www.hyundaipowerproducts.co.uk 01646 687 880
50

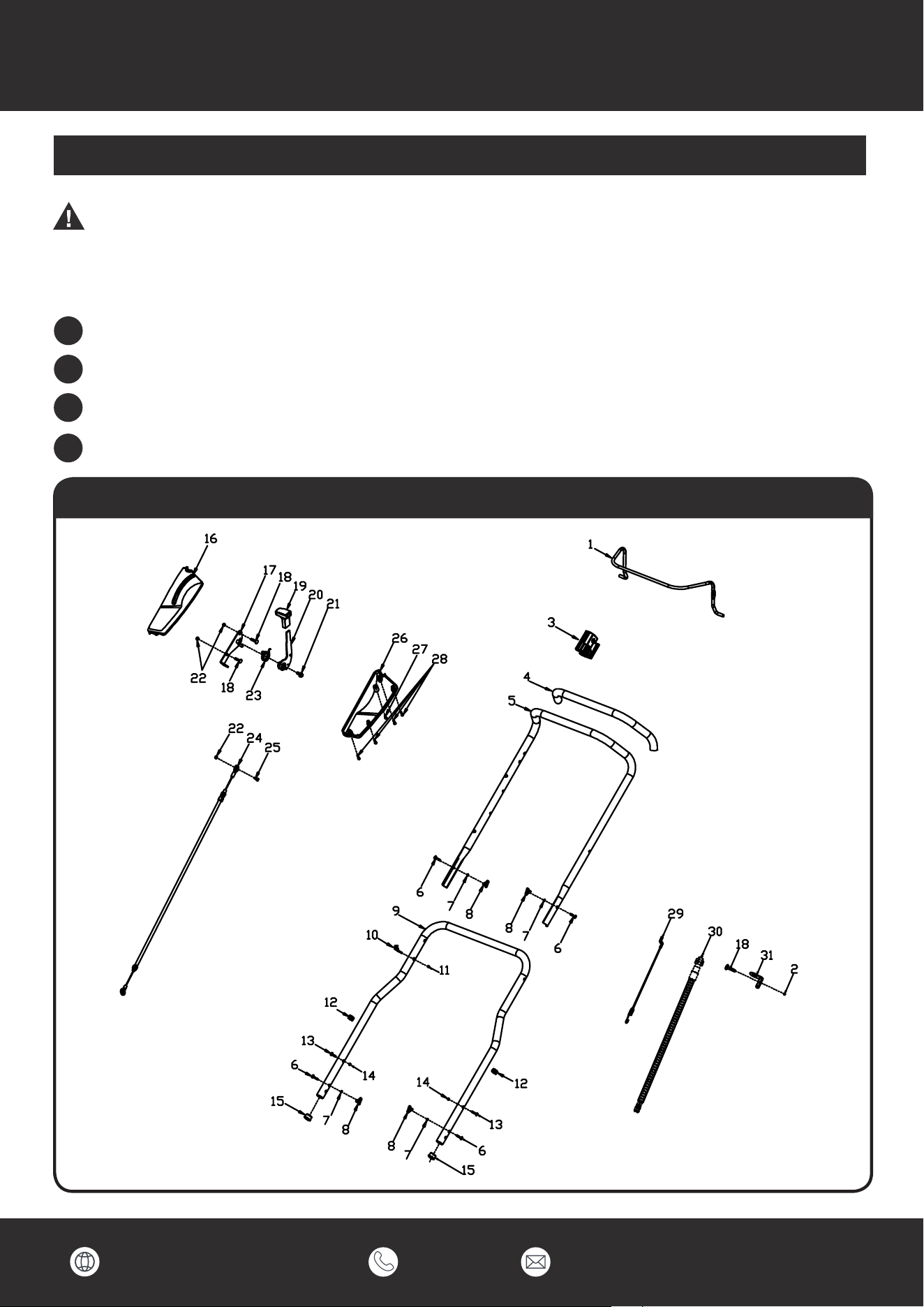

Spare Parts
Ordering Spare Parts
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will
jeopardise the safety of the machine, may cause accidents or injuries for which the manufacturer
is under no circumstance liable or responsible.
1
2
Find the part you are looking for in the drawings.
Information about the parts can be found in the tables or visit power-spares.co.uk
3
Use this information to order the part.
4
Contact us if you need help finding the correct part.
Drawing A
www.hyundaipowerproducts.co.uk 01646 687 880
55
Spare Parts
Drawing Number Spare Part Name Part Number
HYSC210-A01 Brake Lever 1001001
HYSC210-A02 Nut 1001002
HYSC210-A03 Limiting Stopper 1290002
HYSC210-A04 Foam Pipe 1290003
HYSC210-A05 TS40 Upper Handle 1001005
HYSC210-A06 Bolt 1290006
HYSC210-A07 Flat Washer 1290007
HYSC210-A08 Knob 1290008
HYSC210-A09 TS40 Lower Handle 1001009
HYSC210-A10 Rope Guide 1001010
HYSC210-A11 Nut 1290033
HYSC210-A12 Cable Support 1290009
HYSC210-A13 Bolt 1001013
HYSC210-A14 Nut 1290011
HYSC210-A15 Handle Plug 1288008
HYSC210-A16 Upper Cover of Handrail Box 1001016
HYSC210-A17 Handle Base Plate Assembly 1001017
HYSC210-A18 Bolt 1001018
HYSC210-A19 Plastic Grip 1001019
HYSC210-A20 Height Adjustment Handle 1001020
HYSC210-A21 Bolt 1290090
HYSC210-A22 Nut 1290064
HYSC210-A23 Height Adjustment Spring 1001023
HYSC210-A24 Cable 1001024
HYSC210-A25 Bolt 1001025
HYSC210-A26 Lower Cover 1001026
HYSC210-A27 Screw 1286055
HYSC210-A28 Screw 1286019
HYSC210-A29 Brake Cable 1001029
HYSC210-A30 Brake Cable 1001030
HYSC210-A31 Fixed Plate 1001031
Drawing A
www.hyundaipowerproducts.co.uk 01646 687 880
56
Spare Parts

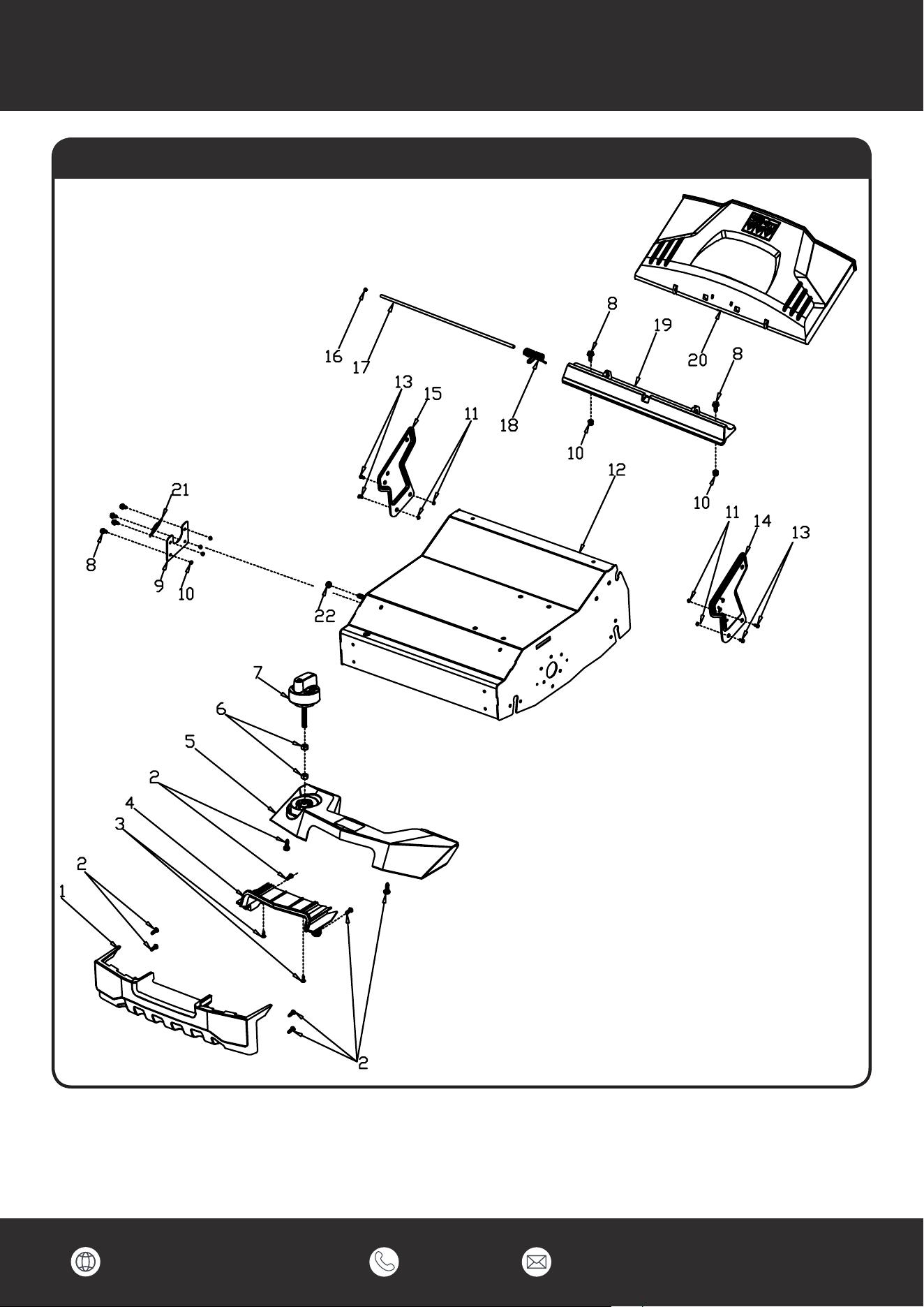

Drawing Number Spare Part Name Part Number
HYSC210-B01 Front Handle Base 1001032
HYSC210-B02 Screw 1001033
HYSC210-B03 Screw 1001034
HYSC210-B04 Decoration Plate 1001035
HYSC210-B05 Upper Cover 1001036
HYSC210-B06 Nut 1286073
HYSC210-B07 Knob 1001038
HYSC210-B08 Bolt 1290062
HYSC210-B09 Plate 1001040
HYSC210-B10 Nut 1001041
HYSC210-B11 Nut 1290039
HYSC210-B12 Deck 1001043
HYSC210-B13 Bolt 1290052
HYSC210-B14 Left Bracket 1001045
HYSC210-B15 Right Bracket 1001046
HYSC210-B16 Plug 1290065
HYSC210-B17 Rear Cover Shaft 1001048
HYSC210-B18 Rear Cover Spring 1001049
HYSC210-B19 Pedestal of Rear Cover 1001050
HYSC210-B20 Rear Cover 1001051
HYSC210-B21 Cover 1001052
HYSC210-B22 Nut 1001053
Drawing B
www.hyundaipowerproducts.co.uk 01646 687 880
57
Spare Parts

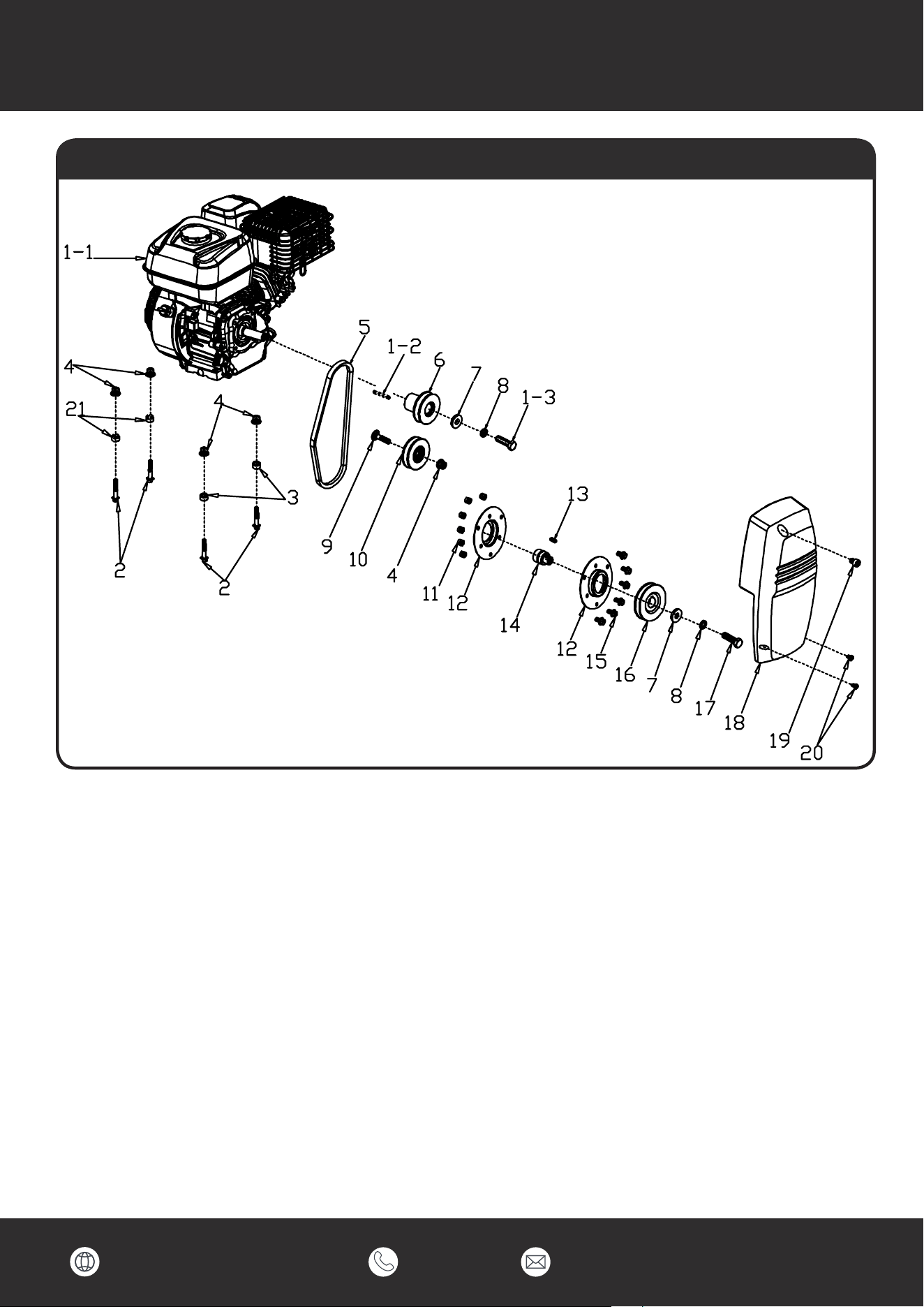

Drawing Number Spare Part Name Part Number
HYSC210-C01-1 Engine 1001054
HYSC210-C01-2 Flat Key 1001055
HYSC210-C01-3 Bolt 1001056
HYSC210-C02 Bolt 1001057
HYSC210-C03 Bush 1001058
HYSC210-C04 Nut 1001059
HYSC210-C05 Belt 1001060
HYSC210-C06 Pulley Wheel 1001061
HYSC210-C07 Flat Washer 1001062
HYSC210-C08 Spring Washer 1001063
HYSC210-C09 Bolt 1001064
HYSC210-C10 Tensioner Assembly 1001065
HYSC210-C11 Nut 1001066
HYSC210-C12 Flange Assy 1001067
HYSC210-C13 Flat Key 1001068
HYSC210-C14 Connecting Shaft Sleeve 1001069
HYSC210-C15 Bolt 1001070
HYSC210-C16 Pulley 1001071
HYSC210-C17 Bolt 1001072
HYSC210-C18 Belt Cover 1001073
HYSC210-C19 Screw 1001074
HYSC210-C20 Screw 1001075
HYSC210-C21 Bush 1001076
Drawing C
www.hyundaipowerproducts.co.uk 01646 687 880
58

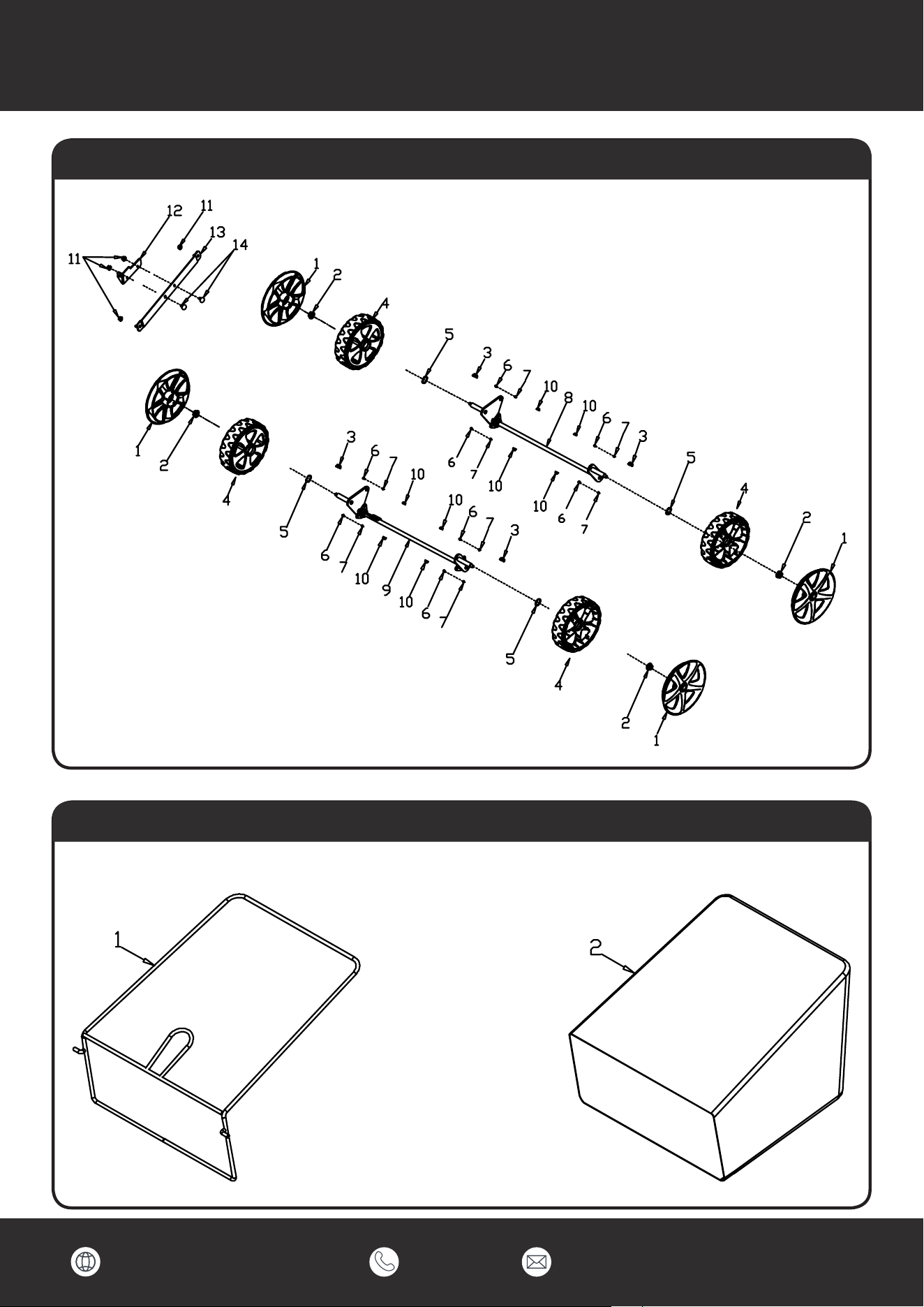

Spare Parts
Drawing Number Spare Part Name Part Number
HYSC210-D01 8” Outer Wheel Cover 1001077
HYSC210-D02 Nut 1290094
HYSC210-D03 Bush 1290119
HYSC210-D04 8” Wheel 1001080
HYSC210-D05 Spring Washer 1290089
HYSC210-D06 Bolt 1001082
HYSC210-D07 Nut 1001083
HYSC210-D08 Rear Axle 1001084
HYSC210-D09 Front Axle 1001085
HYSC210-D10 Shaft Sleeve 1290118
HYSC210-D11 Nut 1290112
HYSC210-D12 Fixed Plate 1001088
HYSC210-D13 Connecting Rod 1001089
HYSC210-D14 Bolt 1001090
Drawing Number Spare Part Name Part Number
HYSC210-E01 Metal Bracket 1001091
HYSC210-E02 Fabric Bag 1001092

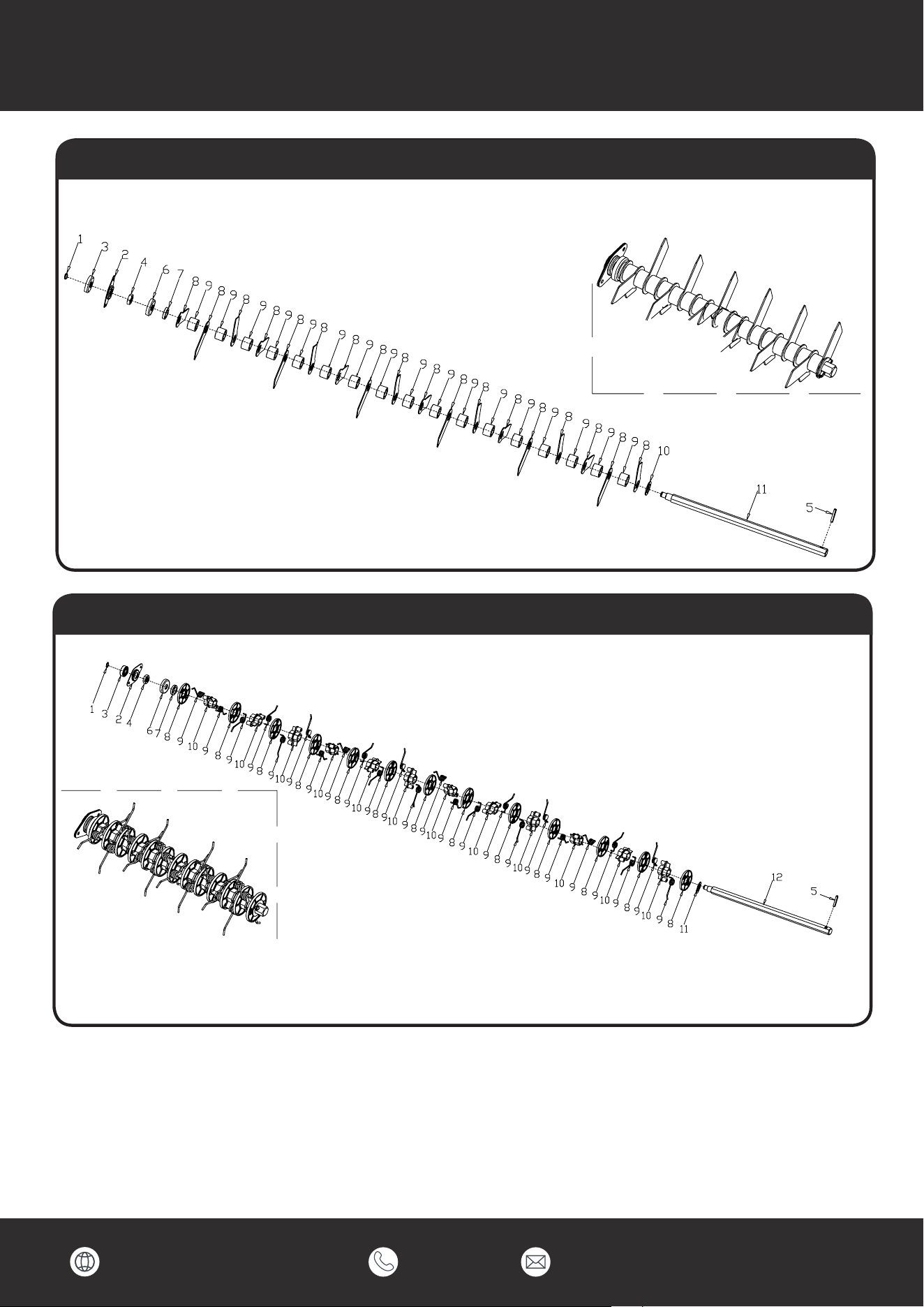

Drawing Number Spare Part Name Part Number
HYSC210-F Blade Assy 1001093
Drawing D
Drawing E
Drawing F
Drawing Number Spare Part Name Part Number
HYSC210-G Sprung Claw Assy 1001094
Drawing G
www.hyundaipowerproducts.co.uk 01646 687 880
59
Our Product Range
Generators
Leisure Inverter, Petrol, Diesel And Built-In
Motorhome Generators
Pressure Washers
Petrol, Diesel And Electric Pressure Washers
Water Pumps
Submersible, Clean And Dirty Water And
Professional Chemical Water Pumps
Lawnmowers
Petrol, Cordless, Electric, Roller, Self Propelled,
Electric Start And Robotic Lawnmowers
Grass Trimmers And Brush Cutters
Petrol, Cordless, Electric And Wheeled Grass
Trimmers And Brush Cutters
Chainsaws
Petrol, Cordless And Electric Chainsaws
Hedge Trimmers
Petrol And Cordless Hedge Trimmers
Leaf Blowers
Petrol, Electric, Cordless, Backpack And 3 -in-1
Leaf Blowers
Log Splitters
Horizontal, Vertical, Petrol And Electric Log
Splitters
Wood Chippers
Petrol And Electric Start Wood Chippers
Tillers
Petrol Garden Tiller And Cultivator
Earth Augers And Trenchers
Petrol Earth Augers And Heavy Duty Trenchers
Compactor Plates
Petrol Compactor Plates
Cement Mixers
Portable Electric Cement Mixers
If you would like more information on any of
these products, please contact our sales team
on 01646 687880 or visit our website
www.hyundaipowerproducts.co.uk
Mini Dumpers
4-Wheel Drive Mini Dumpers And Tracked
Dumpers
Yard Sweeper
Self Propelled Yard Sweeper Power Brush
Scarifiers
Petrol Lawn Scarifier And Aerator
Stump Grinders
Petrol 4-Stroke Stump Grinders
Welders And Plasma Cutters
MIG, TIG, MMA, ARC Welders And Plasma Cutters
Power Tools And Tool Chests
Electric And Cordless Power Tools And Filled Tool
Chests
Vacuum Cleaners
Wet And Dry Vacuum Cleaners
Engines
Petrol And Electric Start Engines
Battery Chargers / Starters
6V, 12V, 24V Battery Chargers, Jump Starters And
Hydraulic Floor Jack
Air Compressors
Home, Domestic, DIY And Professional Use Air
Compressors
Lighting Towers
Mobile Lighting Towers With Diesel Generators
Portable Power Stations
Camping Power Packs And Solar Chargers
And More
We Are Constantly Expanding Our Range With
New Products
www.hyundaipowerproducts.co.uk 01646 687 880
60
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube.
Warranty
Proof of purchase will be required before you make a warranty claim.
Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an error, omission or
something unclear, please contact us for assistance.
We reserve the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online.
All our manuals can be downloaded at: www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve the
issue. We would be delighted if you left us positive feedback!
To leave a review, please go to: uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
You can find the part you are looking for in the ‘Spare Parts’ section of this manual or visit
power-spares.co.uk
www.hyundaipowerproducts.co.uk 01646 687 880
61
Declaration Of Conformity
Product Details
Brand: Hyundai
Model: HYSC210
Description: Petrol lawn scarifier
Name and address of technical documentation holder and EU distributor:
Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
Signed by: Roland Llewellin, Managing Director
Date: 10/12/2019
EC Declaration of Conformity
We hereby declare that the machine detailed in this declaration complies to all the relevant
provisions of the following EC directives.
• 2006/42/EC The Machinery Directive
• 2014/30/EU Annex ll Electromagnetic Compatibility Directive
• 2016/1628/EC The Emission of Gaseous and Particulate Pollutants from internal Combustion
engines
• 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.
And is in conformity with the applicable requirements of the following documents:
• EN ISO 3744:1995
• EN ISO 11094:1991
• EN 13684:2018
• EN 14982:2009
Delclaration for 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.
Notified Body for EC Directive 2000/14/EC TÜV Rheinland (Shanghai) Co., Ltd.
Model Type Cutting Width Measured
Sound Power
Guaranteed
Sound Power
Engine speed
(rpm)
HYSC210 Petrol lawn
scarifier
400mm 101dB(A) 105dB(A) 3400
www.hyundaipowerproducts.co.uk 01646 687 880
62
Product Information
Date Of Purchase: ........................................................................................................................
Dealer Name:.................................................................................................................................
Dealer Phone:................................................................................................................................
Model Number:.............................................................................................................................
Serial Number:..............................................................................................................................
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
The model number and serial number can be found on the grey specification sticker on
your machine.
1st Service
Date Of Service..............................
Next Service Due...........................
2nd Service
Date Of Service..............................
Next Service Due...........................
3rd Service
Date Of Service..............................
Next Service Due...........................
4th Service
Date Of Service..............................
Next Service Due...........................
Information
Service Record
www.hyundaipowerproducts.co.uk 01646 687 880
63
Need Help? Talk To Our Experts
Contact Us
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687880, open Monday-Friday 8.30am-5pm.
Email
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Live chat is open Monday-Friday from 8.30am-5pm.
Post
Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
Importer:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198
www.hyundaipowerproducts.co.uk
Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland
Licensed by Hyundai Corporation, Korea
