INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS
QUEST
F10
QUESTCLIMATE.COM / (877) 420-1330
Patents: thermastor.com/patents
Serial Number
Install Date
Sold By
TS-2046 12/23 REV B
1,015 CFM, 1.1 Amp
Flexible Configuration Options
Daisy-Chainable up to 10 Fans on 15A Circuit
Stackable, Space-Saving Design
Maximum Airflow Control
1
QUEST F10 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330
TABLE OF CONTENTS
4201 Lien Rd.
Madison, WI 53704
1-877-420-1330
Thermastor.com
© 2023 Therma-Stor LLC
Introduction............................................................................ 2
1. Safety Precautions............................................................ 2
2. Specifications.................................................................... 3
3. Operation........................................................................... 3
3.1 Electrical Requirements........................................ 3
3.2 Focus Corners......................................................... 3
3.3 Resettable Circuit Breaker................................... 3
4. Maintenance...................................................................... 4
4.1 Power Cord............................................................... 4
4.2 Cleaning................................................................... 4
4.3 Service..................................................................... 4
5. Wiring Diagram................................................................. 5
6. Service Parts..................................................................... 6
7. Accessories........................................................................ 6
Warranty............................................................................ 7
2
QUEST F10 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330
SAFETY PRECAUTIONS
Read the installation, operation and maintenance instructions carefully before installing and
operating this device. Proper adherence to these instructions is essential to obtain maximum benefit
from your Quest F10.
READ AND SAVE THESE INSTRUCTIONS
CAUTION: Risk of electric shock. Can cause injury or death.
TO REDUCE THE RISK OF ELECTRIC SHOCK:
» Do not expose to standing water or rain.
» Plug into GFCI outlet for protection against water.
» Unplug fan before servicing.
» Do not block air intake or outlet. One foot minimum distance to obstructions.
» Intended for indoor use only.
» Do not use as stool or bench.
» Do not operate with damaged cord or plug.
» Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from
traffic area and where it will not be tripped over.
WARNING: Not Suitable for use with Solid-State Speed Controls
AVERTISSEMENT: Ne Convient Pas a Des Regulateurs De Vitesse a Semi-Conducteurs
WARNING: DO NOT use or store this device in an area that is accessible to children.
AVERTISSEMENT : NE PAS utiliser ou stocker cet appareil dans une zone accessible aux enfants.
THE QUEST F10 AIR MOVER
The Quest F10 Air Mover is the new leader in performance, convenience, portability, and safety for low-
profile and compact air movers. Its ultra compact size (21” L x 8 1/4” W x 9 3/8” H) make the Quest F10
Air Mover the most compact and portable fan in its class.
The Quest F10 is stable on all five sides for maximum positioning flexibility and direct airflow. With
its patent-pending design, and optimized outlet shape, the Quest F10 delivers airflow of over 1000
CFM, providing high velocity airflow over a 50% larger area than other low profile air movers. All this
performance is available with half the power draw. At 1.1 amps the Quest F10 sets the industry standard
for powerful airflow per amp.
With integrated handles, easy-winding cord wrap, and multiple securement options, you’ll have solid
control and easy handling in the new Quest F10.
3
QUEST F10 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330
2. SPECIFICATIONS
UNIT
QUEST F10
4042250-06
BLOWER:
(TESTED WITH DUCT
COLLARS ON)
1,015 CFM
SUPPLY VOLTAGE:
110-120 VAC
1 Phase - 60 Hz
CURRENT DRAW:
1.1 Amps
RECOMMENDED
BREAKER SIZE:
15A
POWER CORD:
17.5 ft length
NEMA 5-15P
DIMENSIONS:
WIDTH:
HEIGHT:
LENGTH:
WEIGHT:
8.3”
9.4”
21”
16 lb
3. OPERATION
3.1 ELECTRICAL REQUIREMENTS
The Quest F10 air mover can be plugged directly into any standard wall receptacle. The Quest F10 will draw
1.1 amps at 110-120 VAC. Up to 10 Quest F10 air movers can be daisy-chained on a standard 15-amp branch
circuit.
3.2 FOCUS CORNERS
The Quest F10 air mover is designed with four focus corners to optimize airflow over a wide surface area.
3.4 RESETTABLE CIRCUIT BREAKER
The 12-Amp thermal circuit breaker protects the unit and devices connected receptacle. In case of a fault,
the breaker can be reset at the Quest F10 control panel. Use of multiple fans and any other connected
devices must be in accordance with the National Electric Code and any additional codes or laws required
by your local government.
IMPORTANT: Total amperage of the Quest F10 plus all devices plugged into its convenience receptacle
is limited by the onboard circuit breaker. Excessive current will cause the circuit breaker
to trip. This may occur instantly or after a period of time depending on the operating
conditions.
IMPORTANT: When the Quest F10 is plugged into a standard “powered” wall outlet the Quest F10
is electrically “HOT” and AC voltage is present.
4
QUEST F10 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330
4. MAINTENANCE
WARNING! Disconnect the unit from power before servicing or cleaning. Replace
all safety grills after servicing or cleaning.
4.1 POWER CORD
Visually inspect cord and plug head before use. If there are signs of damage or excessive wear, discontinue
use until the unit has been serviced.
4.2 CLEANING
The housing is made of durable and washable polypropylene. When cleaning, the use of solvents is NOT
recommended.
When washing inside the unit, disconnect the unit from its power source. Protect the switch, receptacle
and circuit breaker from water intrusion. Do not spray water or cleaning solution at motor. If motor does
get wet, allow motor to dry completely before restarting. If fan is to be washed and not used within 24
hours, allow fan to drip dry for 10 minutes and then run for 5 minutes before storing.
IMPORTANT: Do NOT remove impeller blade from motor assembly. Doing so can cause blade to
become imbalanced upon re-assembly.
4.3 SERVICE
CAUTION Servicing the Quest F10 with its high voltage circuitry presents a health
hazard that could result in death, serious bodily injury, and/or property damage. Disconnect the
appliance from the power supply before servicing. Only qualified service people should service this
unit.
CAUTION If the supply cord or circuit breaker become damaged, they must be replaced
by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
5
QUEST F10 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330

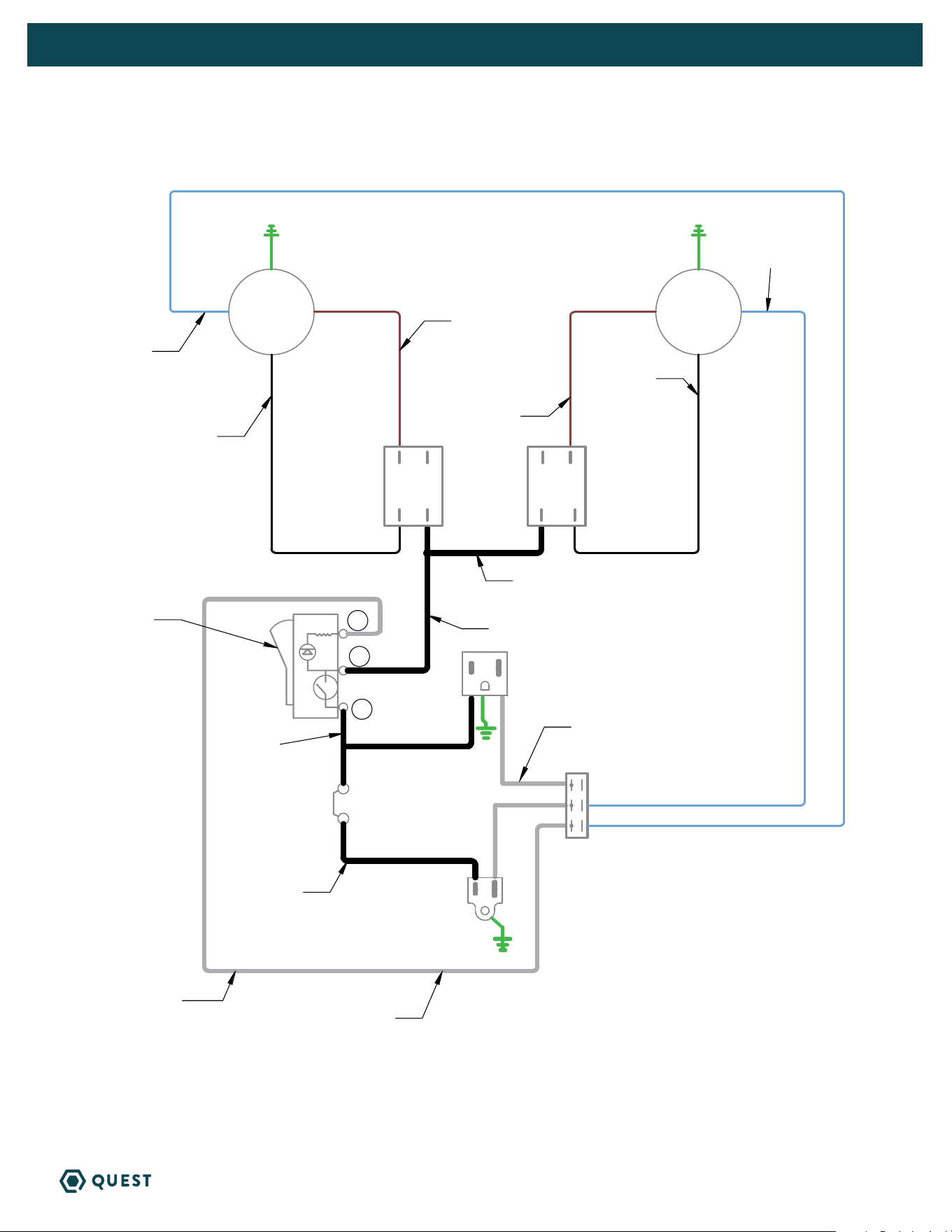

5. WIRING DIAGRAM OF THE QUEST F10
CAP 1
4042312
CAP 2
4042312
CIRCUIT
BREAKER
4042314
WIRING
BLOCK
4042329
GROUNDED
PLUG
4042313
ILLUMINATED
SWITCH
4042315
MOTOR 1
4042311
MOTOR 2
4042311
OUTLET
4042316
4042318
4042319
4042318
4042317
4042331 Rev D
BROWN
18AWG
BROWN
18AWG
BLUE
18AWG
BLUE
18AWG
BLACK
18AWG
BLACK
18AWG
WHITE
14AWG
1
2
3
WHITE
18AWG
BLACK
14AWG
4042331 Rev D
6
QUEST F10 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
QUESTCLIMATE.COM(877) 420-1330
6. SERVICE PARTS
Item Part No Description
1 4042304 Foot, F10
2 4042305 Grill, Intake
3 4042306 Grill, Exhaust
4 4042311 Fan, Motor
5 4042312 Capacitor, MFD, 500 Class A
6 4042313 Cord, 14/3, SJT, 115V, Plug&LMP
7 4042314 Cicuit Breaker, A, Snap-in
8 4042315 Switch, Rocker, SPST, Illuminated
9 4042316 Outlet, Snap-in, 15A, 120V
10 4042321 Screw, PNCS, M5x12, SS
11 4042322 Screw,PHS,M5x20, Threadform, SS
12 4042323 Screw,PHCS,M4x12,SS
13 4042325 Screw,PHCS,M4x10,SS, w/washer
7. ACCESSORIES
8” x 1/2” CPVC pipe (.625 OD) can be purchased from any hardware store
and can be used to allow for additional airflow and positions.
7
QUEST F10 LIMITED WARRANTY
QUESTCLIMATE.COM(877) 420-1330
WHO IS COVERED: This warranty extends only to the original end-user of the Quest F10, and may not be assigned or transferred.
FIRST YEAR WARRANTY: Therma-Stor LLC warrants that, for one (1) year the Quest F10 will operate free from any defects in materials
and workmanship, or Therma-Stor LLC will, at its option, repair or replace the defective part(s), free of any charge.
END-USER RESPONSIBILITIES: Warranty service must be performed by a Servicer authorized by Therma-Stor LLC. If the end-user is
unable to locate or obtain warranty service from an authorized Servicer, he should call Therma-Stor LLC at the above number and
ask for the Therma-Stor LLC Service Department, which will then arrange for covered warranty service. Warranty service will be
performed during normal working hours.
The End-user must present proof of purchase (lease) upon request, by use of the warranty card or other reasonable and reliable
means. The end-user is responsible for normal care. This warranty does not cover any defect, malfunction, etc. resulting from misuse,
abuse, lack of normal care, corrosion, freezing, tampering, modification, unauthorized or improper repair or installation, accident, acts
of nature or any other cause beyond Therma-Stor LLC's reasonable control.
LIMITATIONS AND EXCLUSIONS: If any Quest F10 Air Mover part is repaired or replaced, the new part shall be warranted for only the
remainder of the original warranty period applicable thereto (but all warranty periods will be extended by the period of time, if any,
that the Quest F10 is out of service while awaiting covered warranty service).
UPON THE EXPIRATION OF THE WRITTEN WARRANTY APPLICABLE TO THE QUEST PRODUCT OR ANY PART THEREOF, ALL OTHER WARRANTIES IMPLIED BY LAW,
INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL ALSO EXPIRE. ALL WARRANTIES MADE BY THERMA-STOR LLC ARE SET FORTH
HEREIN, AND NO CLAIM MAY BE MADE AGAINST THERMA-STOR LLC BASED ON ANY ORAL WARRANTY. IN NO EVENT SHALL THERMA-STOR LLC, IN CONNECTION WITH
THE SALE, INSTALLATION, USE, REPAIR OR REPLACEMENT OF ANY QUEST MACHINE OR PART THEREOF BE LIABLE UNDER ANY LEGAL THEORY FOR ANY SPECIAL,
INDIRECT OR CONSEQUENTIAL DAMAGES INCLUDING WITHOUT LIMITATION WATER DAMAGE (THE END-USER SHOULD TAKE PRECAUTIONS AGAINST SAME), LOST
PROFITS, DELAY, OR LOSS OF USE OR DAMAGE TO ANY REAL OR PERSONAL PROPERTY.
Some states do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of
incidental or consequential damages, so one or both of these limitation may not apply to you.
LEGAL RIGHTS: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARRANTOR:
Therma-Stor LLC
4201 Lien Rd
Madison, WI 53704
Phone: 1-800-533-7533
IMPORTANT WARRANTY INFORMATION
DO NOT DISCARD
SERIAL
NUMBER
REGISTER YOUR
NEW PRODUCT
using the serial number
and part number at
thermastor.com/registration
or scan code above
PLACE LABEL HERE
FOR INTERNAL USE ONLY
PART
NUMBER
