99922238025
© 01/2023 ECHO Incorporated
Operator’s
Manual
DLM-2100
Mower
This product contains chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-003(B) / NMB-003(B)
DLM-2100
999222380252
©01/2023 ECHO Incorporated
Introduction ...................................................................................................................... 3
Servicing Information ....................................................................................................... 3
Parts / Serial Number ................................................................................................3
Service.......................................................................................................................4
ECHO Consumer Product Support ...........................................................................4
Product Registration ..................................................................................................4
Additional Literature ................................................................................................... 4
Packing List .....................................................................................................................4
Safety ..............................................................................................................................5
Manual Safety Symbols and Important Information...................................................6
International Symbols ................................................................................................6
Lawn Mower Safety Warnings ...................................................................................7
Environmentally Safe Battery Disposal .....................................................................13
FCC Statement .......................................................................................................... 14

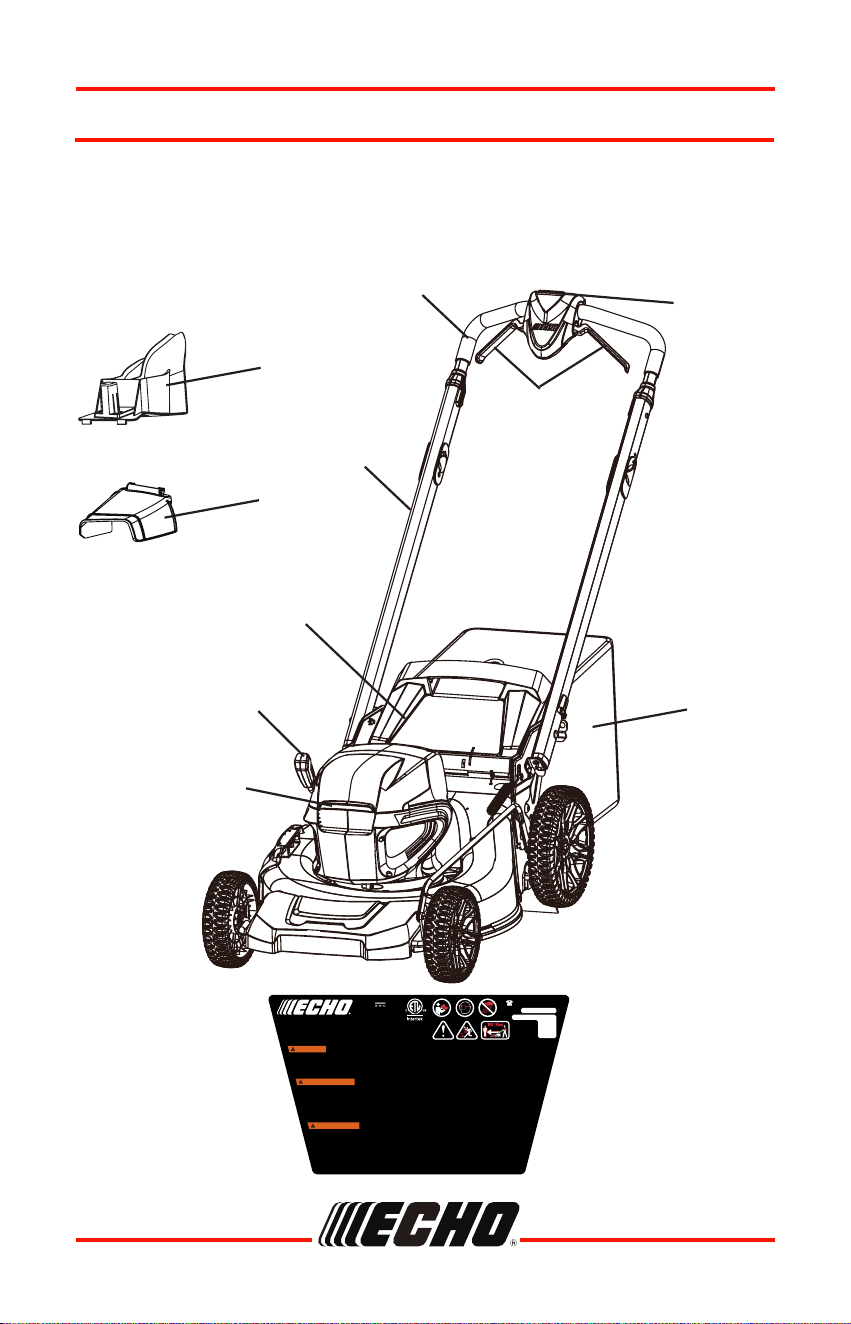

Description.......................................................................................................................15
Preparation For Use ..................................................................................................17
Operation ......................................................................................................................... 23
Starting The Unit ........................................................................................................23
Stopping The Unit ......................................................................................................23
Operate on Slopes.....................................................................................................24

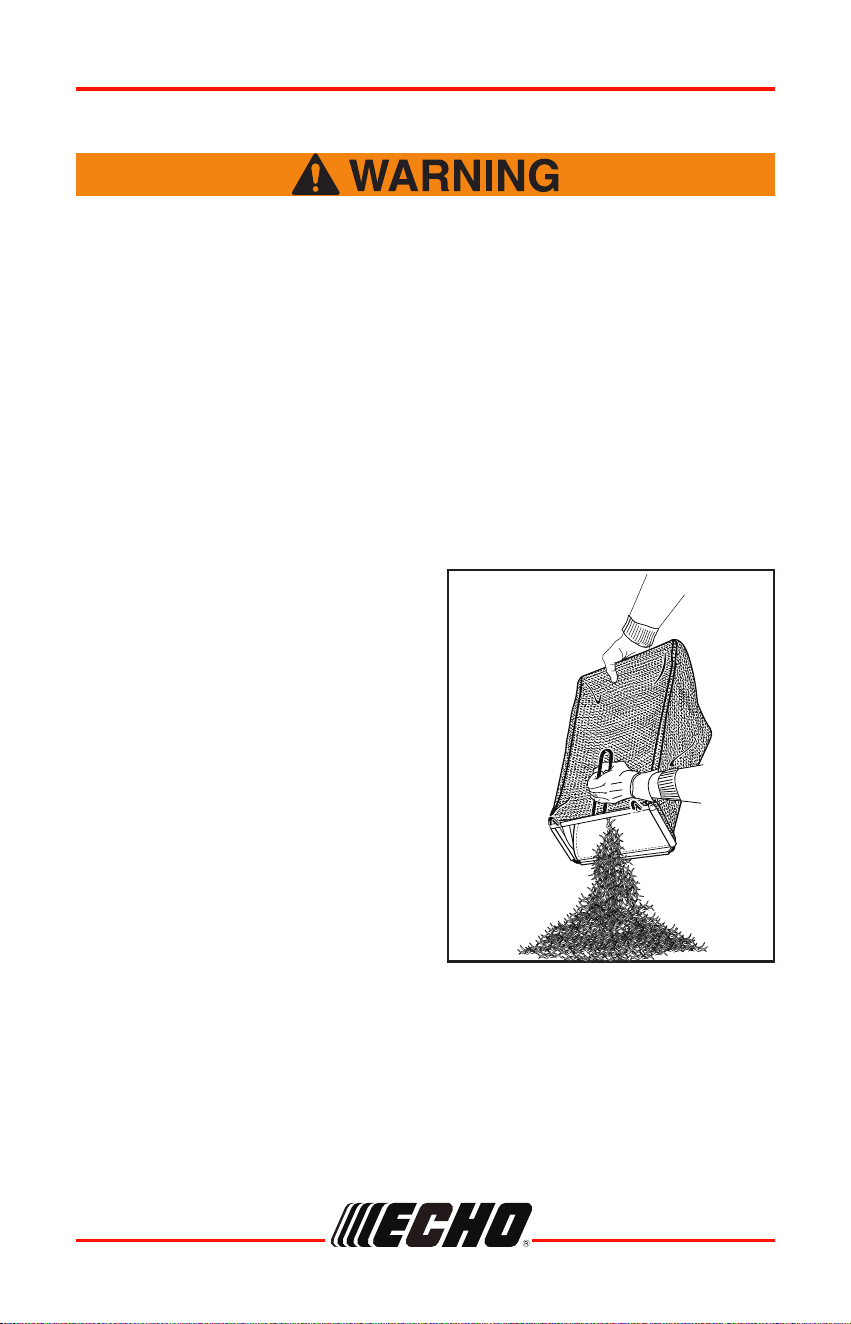

Empty the Grass Catcher ..........................................................................................24
Operation Tips ...........................................................................................................25
Maintenance ....................................................................................................................26
Cleaning Battery and Battery Compartment .............................................................. 27
Replace The Blade ....................................................................................................28
Troubleshooting ...............................................................................................................29
Storage ............................................................................................................................30
Vertical Storage .........................................................................................................31
Storage After Use ......................................................................................................32
Specications ..................................................................................................................33
Product Registration ........................................................................................................34
Warranty ..........................................................................................................................36
TABLE OF CONTENTS
TABLE OF CONTENTS
3
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
INTRODUCTION
SERVICING INFORMATION
INTRODUCTION
Specications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
For additional literature, including safety manuals where applicable, or
questions regarding terms used in this manual, visit:
https://www.echo-usa.com/manuals

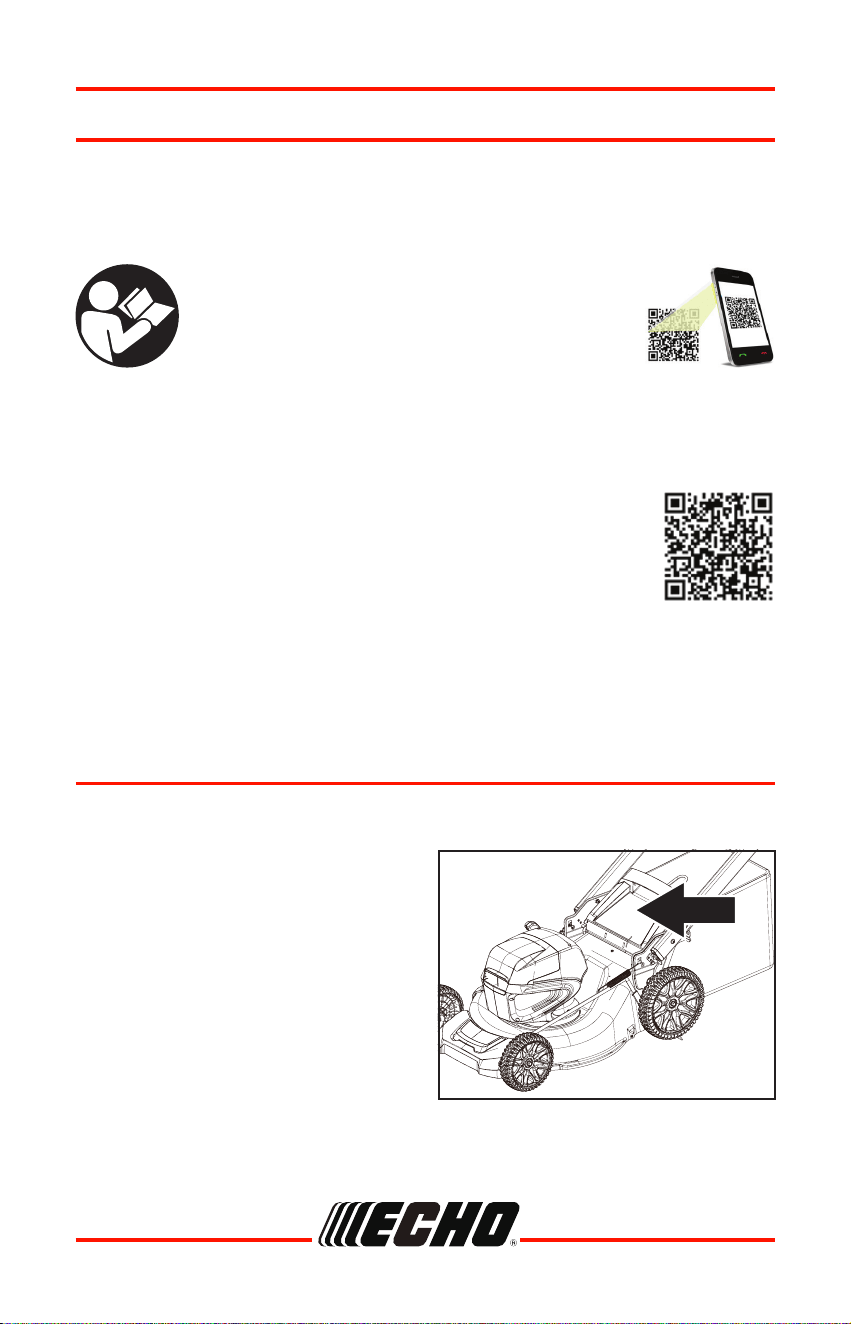

Genuine ECHO Parts and
Assemblies for your ECHO products
are available only from an
Authorized ECHO Dealer. When
you do need to buy parts always
have the Model Number and Serial
Number of the unit with you. For
future reference write them in the
space provided below.
Model No. _______________ Serial No. _______________
Parts / Serial Number
Read and understand all provided literature.
Literature contains specications and
information for safety, operation,
maintenance, storage, and assembly
specic to this product. Scan QR code for
more information.
DLM-2100
999222380254
©01/2023 ECHO Incorporated
PACKING LIST
Service of this product during the warranty period must be performed by an
Authorized ECHO Service Dealer. For the name and address of the
Authorized ECHO Service Dealer nearest you, ask your retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site www.echo-usa.com. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-432-ECHO (3246) from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Register your ECHO equipment online at www.echo-usa.com or by lling
out the product registration sheet included in this manual. Registering your
product conrms warranty coverage and provides a direct link to ECHO if
we nd it necessary to contact you.
In addition to nding information online, information is available from your
Authorized ECHO Service Dealer, or by contacting ECHO Incorporated,
400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or ECHO Dealer of damaged or missing parts. Use the contents list to check
for missing parts.
1 Mower
1 Operator's manual
1 Grass catcher
1 Mulch plug
Service
ECHO Consumer Product Support
Product Registration
Additional Literature
PACKING LIST
5
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will nd safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which might lead to minor
or moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specic action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.
DLM-2100
999222380256
©01/2023 ECHO Incorporated
SAFETY

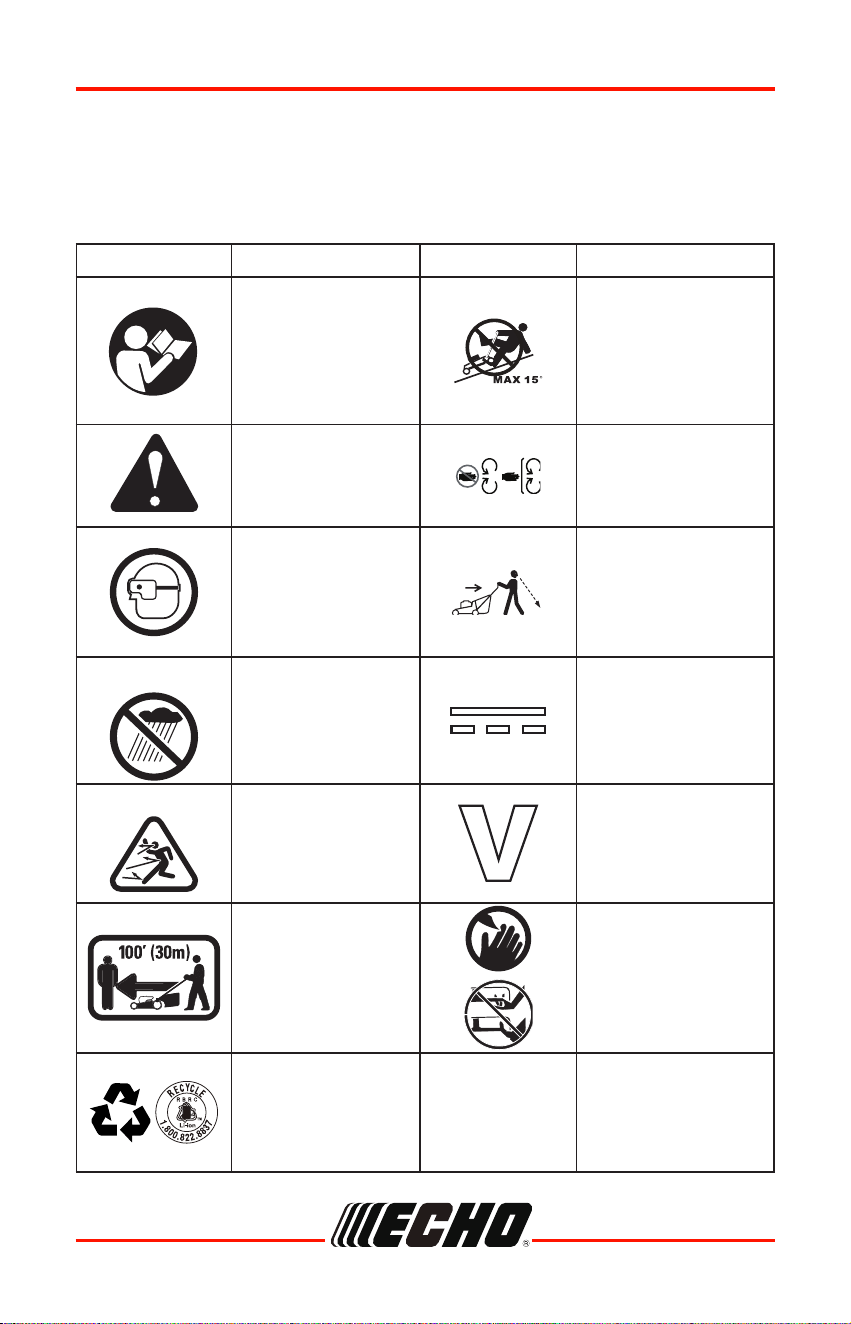

Symbol Description Symbol Description
WARNING! Read
and follow all safety
precautions in the
operator's manual. Failure
to follow instructions could
result in serious personal
injury.
Use extra caution on
slopes. do not mow slopes
greater than 15 degrees.
Safety / Alert
Do not open or remove
safety devices while the
tool is running.
Always wear eye
protectionwith side
shields marked to comply
with ANSI Z87.1 when
operating this equipment.
Look down and behind
rst to avoid tripping when
pulling back.
Do not expose the product
to rain or moist conditions.
Direct current
Remove objects that can
be thrown by the blade in
any direction.
Volts
All visitors should be kept
at a distance from work
area.
To reduce the risk of injury,
keep hands and feet away
from rotating parts. Do not
operate unless discharge
cover or grass bag is in its
proper place. If damaged,
replace immediately.
Environmentally safe
battery disposal
International Symbols
Some of the following symbols may be used on this product. Please study
them and learn their meaning. Proper interpretation of these symbols will allow
you to operate the product better and safer.
7
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
SAFETY
SAFETY
Lawn Mower Safety Warnings
This machine was built to be operated according to the rules for
safe operation included in this manual. As with any type of power
equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating
hands and feet and throwing objects. Failure to observe all safety
instructions could result in serious injury or death.
When using electric lawn mowers, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and personal injury. These basic precautions include the
following:
Children and Bystanders
Tragic accidents can occur if the operator is not alert to the presence of
children or bystanders.
• Keep the area of operation clear of all persons, particularly small children,
and pets.
• Use extreme care when approaching blind corners, doorways, shrubs,
trees, or other objects that may obscure your vision of a child or bystander.
Keep children, bystanders, helpers and pets at least 100 feet (30m) from
the mower while it is in operation. Stop the machine if anyone enters the
area.
• Never allow children under 14 years old to operate a power mower.
Operators 14 years old and over should fully read and understand the
operator’s manual and safety rules. Only responsible individuals who are
familiar with these rules of safe operation should be allowed to use this
machine.
General Operation
• Read this operator’s manual carefully in its entirety before assembling or
operating this machine. Read, understand, and follow all instructions on
the machine and in the manuals before operation. Familiarize yourself with
the controls and proper use of this machine before operation. Save this
manual for future and regular reference.
DLM-2100
999222380258
©01/2023 ECHO Incorporated
SAFETY
• Do not use the lawn mower for any job except that for which it is intended.
Your lawn mower has been designed to perform only one job: cut grass.
• Never attempt to make a wheel height adjustment while the motor is
running.
• Don’t force the lawn mower; it will do the job better and more safely at the
rate for which it was designed.
• Don’t overreach, keep proper footing and balance at all times. Many
injuries occur as a result of the mower being pulled over the foot during
a fall caused by slipping or tripping. A slip and fall can cause serious
personal injury. If you feel you are losing your footing, release the control
handle immediately and the blade will stop rotating within three seconds.
• Thoroughly inspect the area where the mower is to be used and remove
all stones, sticks, wires, dog bones, and other foreign objects.
• Prevent unintentional starting. Ensure the switch is in the off position
before connecting to battery, picking up or carrying the mower. Carrying
the mower with your finger on the switch or energizing mower that has the
switch on invites accidents.
• Never pull the mower back toward you while you are walking. If you must
back the mower away from a wall or obstruction, first look down and
behind you to avoid tripping, and then follow these steps:
1. Step back from the mower in order to fully extend your arms.
2. Be sure that you are well balanced.
3. Pull the mower back slowly.
• Remove the battery from the mower before making any adjustments,
changing accessories, or storing appliance. Such preventive safety
measures reduce the risk of starting the mower accidentally.
• Before and while moving backwards with the mower, look behind and
down for small children and other people.
• Do not operate the mower while under the influence of alcohol or drugs.
Stay alert and watch what you are doing at all times. Use common sense
and do not operate the lawn mower when you are tired.
• Always wear safety glasses or safety goggles during operation and while
performing an adjustment or repair to protect your eyes. Thrown objects
that ricochet can cause serious injury to the eyes. Always use a face or
dust mask if the operation is dusty.
• Keep clear of the discharge opening at all times. Do not put hands or feet
near rotating parts or under the cutting deck. Contact with the blade can
amputate hands and feet.
• Plan your mowing pattern to avoid discharge of material toward roads,
sidewalks, bystanders and the like. Also, avoid discharging material
against walls or obstructions, which may cause discharged material to
ricochet back toward the operator.
9
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
SAFETY
• To help avoid the blade or an injury from thrown objects, stay in the
operator zone behind the handles.
• A missing or damaged discharge cover can cause blade contact or injuries
from thrown objects.
• Objects struck by the lawn mower blade can cause severe injuries to
persons. The lawn should always be carefully examined and cleared of all
objects prior to each mowing.
• Stop the blade when crossing gravel drives, walks or roads.
• Follow all charging instructions and do not charge the battery or mower
outside of the temperature range specified in the instructions. Charging
improperly or at temperatures outside of the specified range may damage
the battery and increase the risk of fire.
• If lawn mower strikes a foreign object, follow these steps:
1. Release the bail switch to disengage the motor.
2. Remove the battery.
3. Inspect for damage.
4. Repair any damaged parts before restarting and operating the lawn mower.
• Dress properly; do not wear loose clothing or jewelry that can be caught in
moving parts. Use of safety gloves and proper footwear is recommended
when working outdoors. Wear sturdy, rough-soled work shoes and close-
fitting slacks and shirts. Shirts and pants that cover the arms and legs and
steel-toed shoes are recommended. Never operate this machine in bare
feet, sandals, slippery or lightweight (e.g., canvas) shoes.
• Wear protective hair covering to contain long hair.
• Avoid dangerous environments; do not use the lawn mower in damp/wet
locations or if it is raining.
• Store idle lawn mower indoors. When not in use, appliances should be
stored indoors in dry, and high or locked-up places – out of reach of
children. Always remove the battery from the mower before storing.
• Mow only in daylight or good artificial light. Walk, never run while
operating.
• If the mower should start to vibrate abnormally, immediately stop the
motor, remove the battery and check for the cause. Vibration is generally a
warning that the mower is not functioning properly.
• Check bag frequently for deterioration and wear, and replace worn bags.
Check that replacement bags comply with the original manufacturer's
recommendations or specifications.
• Before cleaning the mower, unclogging or removing the grass bag,
mulching insert, or side discharge chute, turn the motor off and wait until
the blade comes to a complete stop, then remove the battery. The cutting
blade continues to rotate for a few seconds after the motor is shut off.
Never perform these functions until you are sure the blade has stopped
rotating.
DLM-2100
9992223802510
©01/2023 ECHO Incorporated
SAFETY
• Never operate the mower without the proper discharge cover, grass bag,
mulching insert, side discharge chute, or other safety devices in place and
working. Never operate the mower with damaged safety devices. Failure
to do so can result in personal injury.
• Use only ECHO eFORCE™ 56V series batteries and chargers. Other
batteries and chargers may cause damage to the mower or injure the
operator.
• Do not dispose of the battery in a fire. The cells could catch fire or explode.
Check with local codes and waste management for proper disposal
instructions.
• When battery is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects that
can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
• Do not open or destroy the battery. Electrolytes contained within the
battery are corrosive and may cause damage to eyes or skin if released. It
may be toxic if swallowed.
• Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
• Do not expose a battery or appliance to fire or excessive temperature.
Exposure to fire or temperature above130°C may cause explosion.
• Exercise care in handling batteries to avoid shorting the battery with
conducting materials such as rings, bracelets, keys, etc. The battery or
conductor may overheat and cause burns if contact with said materials is
made.
• Do not use a battery or appliance that is damaged or modified. Damaged
or modified batteries may exhibit unpredictable behavior resulting in fire,
explosion or risk of injury.
Service/Maintenance
• Check the blade and the motor (machine) mounting bolts at frequent
intervals for proper tightness.
• Replace the blade if it is bent or cracked. An unbalanced blade causes
vibration that could damage the motor drive unit or cause personal injury.
• Keep all nuts, bolts, and screws tight in order to ensure the equipment is
in safe working condition.
• Do not wash with a hose; avoid getting water in motor and electrical connections.
• Never remove or tamper with safety devices. Check their proper operation
regularly. Never do anything to interfere with the intended function of a
safety device or to reduce the protection provided by a safety device.
• Keep mower free of grass, leaves, or other debris build up. Allow mower to
11
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
SAFETY
cool before storing.
• Never make any adjustments or repairs with the motor running.
• Always remove battery from mowers before adjusting, cleaning, or repairing.
• Check grass catcher components and the discharge guard frequently and
replace with manufacturer’s recommended parts, when necessary.
• Sharpen a dull blade equally at each end to maintain the balance.
• Keep guards in place and in working order. Mower blades are sharp, and can
cut. Wrap the blades or wear gloves, and use extra caution when servicing.
• Clean the blade thoroughly and check its balance by supporting it
horizontally on a thin nail through its center hole. The nail should also be in
a horizontal position. If either end of the blade rotates downward, remove
some metal from the heavy or lower end until the blade is balanced. It is
balanced when neither end drops.
• Use identical replacement blades only.
• Maintain lawn mower with care. Keep cutting edges sharp and clean
for best and safest performance. Follow instructions for lubricating and
changing accessories. Inspect lawn mower cord periodically and if
damaged, have it repaired by an authorized service facility.
• If situations occur that are not covered in this manual, use care and good
judgment or contact Customer Service for assistance.
• Never operate the mower without proper guards, plates, or other safety
protective devices in place.
• Before each use, examine the machine for damaged, missing, or loose
parts such as screws, nuts, bolts and caps.
• Tighten correctly all the fasteners and caps.
• Clean the machine with a dry cloth. Do not use water.
• Have servicing performed by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is
maintained.
• Do not modify or attempt to repair the mower or the battery (as applicable)
except as indicated in the instructions for use and care.
• Never service damaged batteries. Service of batteries should only be
performed by the manufacturer or authorized service providers.
DLM-2100
9992223802512
©01/2023 ECHO Incorporated
SAFETY
The recommended ambient temperature range:
Item Temperature
Mower storage temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Mower operation temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Battery charging temperature 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Charger operation temperature range 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Battery storage temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Battery discharging temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Slope Operation
Slopes are a major factor related to slip-and-fall accidents, which can result in
severe injury. Operation on slopes requires extra caution. If you feel uneasy on
a slope, do not mow it.
Do:
• Mow across the face of slopes; never mow up and down. Exercise
extreme caution when changing direction on slopes.
• Watch for holes, roots, rocks, hidden objects, or bumps which can cause
you to slip or trip. Tall grass can hide obstacles. Remove all obstacles
such as rocks and tree limbs.
• Make sure that your footing is stable. If you have lost your balance,
release the switch immediately.
Do not:
• Mow near drop-offs, ditches or embankments; you could lose your footing
or balance.
• Mow slopes greater than 15 degrees.
• Mow on wet grass. Unstable footing could cause slipping.
If you are not comfortable, do not mow on a slope.
13
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
SAFETY
Environmentally Safe Battery Disposal
The toxic and corrosive materials below are in the batteries used in this
machine: Lithium-Ion, a toxic material.
Discard all toxic materials in a specied manner to prevent contamination of
the environment. Before discarding damaged or worn out Li-ion battery, contact
your local waste disposal agency, or the local Environmental Protection Agency
for information and specic instructions. Take the batteries to a local recycling
and/or disposal center, certied for lithium-ion disposal.
If the battery cracks or breaks, with or without leaks, do not recharge it and do
not use. Discard it and replace with a new battery. DO NOT TRY TO REPAIR
IT! To prevent injury and risk of re, explosion, or electric shock, and to avoid
damage to the environment:
• Cover the terminals of the battery with heavy-duty adhesive tape.
• DO NOT try to remove or destroy any of the battery components.
• DO NOT try to open the battery.
• If a leak develops, the released electrolytes are corrosive and toxic. DO
NOT get the solution in the eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of any waste landll or
municipal solid waste stream.
• Take them to a certied recycling or disposal center.
DLM-2100
9992223802514
©01/2023 ECHO Incorporated
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception. The reception
can be determined by turning the equipment off and on. The user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
SAFETY
15
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
DESCRIPTION
DESCRIPTION
Locate the safety label(s) on your unit. Make sure the label(s) is legible and
that you understand and follow the instructions on it. If a label cannot be read,
a new one can be ordered from your ECHO dealer. Safety label is for example
only. Your label my appear slightly different.
1
3
2
4
5
6
7
8
10
9
56V
MAX - 21
DLM-2100
Made in China
FabriquØ en Chine
Hecho en China
PUSH LAWN MOWER
TONDEUSE POUSSER
CORTACSPED DE EMPUJE
Build date:
SN:
QR:
1›››››-800›››› -432-3246
Conforms to UL STD. 1447; Certified to CSA STD. C22.2 No.147
Conforme la norme UL STD. 1447; CertifiØ la norme CSA C22.2 No.147
Conformado a UL STD. 1447; Certificado a CSA STD. C22.2 No.147
5021527
ECHO Incorporated
400 Oakwood Road
Lake Zurich, IL 60047
WARNING:
AVERTISSEMENT:
ADVERTENCIA:
For safe operation, read and understand the instruction manual. To reduce the risk of electric shock, do not expose to water or operate on wet ground.
Replace damaged parts immediately. Remove the battery pack before servicing or removing blade. Do not reach under blade guard. Do not operate on
inclines greater than 15. Do not operate within 100 ft. of people or animals. Look down and behind before and while moving backwards. Remove objects that could be thrown by
the blade. To reduce the risk of eye injury, always wear eye protection. To reduce the risk of injury, inspect grass catch bag frequently and replace with recommended replacement
if there are signs of wear or deterioration. To reduce the risk of injury, do not operate lawn mower unless grass catch bag is attached. To reduce risk of injury to persons, remove
battery pack when not in use. Do not operate without guards in place. Store indoors only, avoid moisture or water. Do not open or remove safety shields while machine is running.
Meets CPSC blade safety requirements. For use only with ECHO eFORCE 56V battery series. See operator’s manual for list of compatible model numbers.
Pour une utilisation sØcuritaire, assurez-vous de lire et de comprendre le manuel dinstructions. Pour diminuer les risques de choc
Ølectrique, ne pas mouiller l’appareil ni l’utiliser sur un sol humide. Remplacez immØdiatement les piŁces endommagØes. Retirez
le bloc-piles avant deffectuer lentretien ou de retirer la lame. Ne passez pas la main sous le protŁge-lame. Ne tondez pas dans une pente inclinØe plus de 15. Nutili-
sez pas larticle
moins de 30,48 m dautres personnes ou danimaux. Regardez derriŁre vous avant de reculer et en reculant. Retirez les objets qui pourraient Œtre
projetØs par la lame. Pour reduire le risque de blessure aux yeux, portez des lunettes de protection. Pour rØduire le risque de blessures, inspectez rØguliŁrement le
dispositif de fixation du bac et remplacez-le par une piŁce recommandØe en prØsence de signes d’usure ou de dØtØrioration. Pour rØduire les risques de blessure,
nutilisez pas la tondeuse gazon si elle nest pas ØquipØe dun sac. Pour rØduire les risques de blessures, retirez la batterie lorsque vous n’utilisez pas l’appareil.
Ne pas faire fonctionner sans que tous les dispositifs de protection soient en place. Entreposer lintØrieur seulement, labri de lhumiditØ ou de leau. Ne pas
ouvrir ni retirer les protections de sØcuritØ pendant que la machine est en marche. Conforme aux exigences de la CPSC sur la sØcuritØ des lames. utiliser
uniquement avec la sØrie de batteries ECHO eFORCE 56V. Voir le manuel de l’opØrateur pour la liste des numØros de modŁle compatibles.
Para contar con un funcionamiento seguro, lea y comprenda el manual de instrucciones. Para reducir el riesgo de
descarga elØctrica, no la exponga al agua ni la maneje cuando el suelo estØ mojado. Reemplace las piezas daæadas
inmediatamente. Retire el paquete de bateras antes de dar mantenimiento o de retirar la
cuchilla. No toque debajo de la cubierta protectora de la cuchilla.
No utilice la unidad en pendientes superiores a 15”. No la utilice a menos de 30,48 metros de personas o animales. Mire hacia abajo y hacia atrÆs antes
de moverla y mientras lo hace. Retire los objetos que la cuchilla pudiera lanzar. Para reducir el riesgo de lesiones oculares, utilice gafas de seguridad.
Para reducir el riesgo de lesiones, compruebe con regularidad la bolsa de recoleccin de cØsped y si hay seæales de uso y deterioro sustitœyalo con
piezas recomendadas. Para reducir el riesgo de lesiones, no utilice el cortacØsped a menos que la bolsa de recoleccin de cØsped estØ fijado. Para
reducir el riesgo de lesiones personales, quite la batera cuando no vaya a utilizar el equipo. No utilice el equipo sin los medios de proteccin
instalados. Al realizar operaciones de reparacin y mantenimiento, utilice sol piezas de repuesto idØnticas.Guarde solo en el interior. Evite
exponerlo a la humedad o al agua. No abra ni quite los protectores de seguridad mientras la mÆquina estÆ en funcionamiento. Cumple con los
requisitos de seguridad para la cuchilla de la CPSC. Slo para uso con la serie de bateras ECHO eFORCE 56V. Consulte el manual del
operador para ver la lista de nœmeros de modelos compatibles.
CAN ICES-003(B) / NMB-003(B)
DLM-2100
9992223802516
©01/2023 ECHO Incorporated
DESCRIPTION
1. Start button
2. Start handle
3. Upper handle
4. Lower handle
5. Rear discharge door
6. Height adjustment lever
7. Battery door
8. Grass catcher
9. Side discharge chute (sold separately)
10. Mulch plug
17
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
DESCRIPTION
Preparation For Use
Do not damage the cable while installing the upper handle.

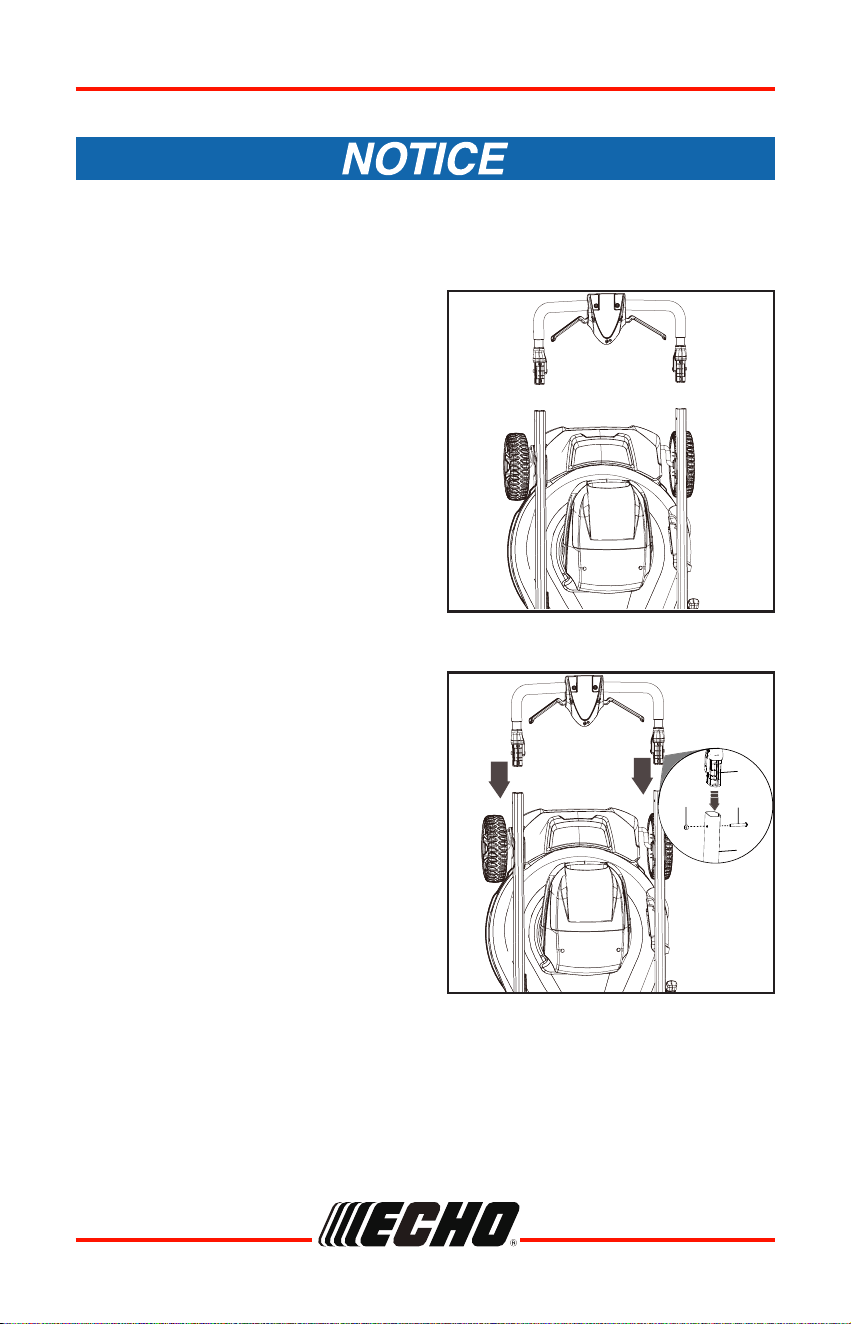

Install the Upper Handle
1. Place the mower upright in vertical
position.
2. Remove the packing material from
the cable.
3. Remove the rubber edge guard
from the upper handle.
4. Insert the upper handle (3) into the
lower handle (4).
5. Put the bolts (25) through the holes
and tighten with the nuts (26).
25
26
3
4
DLM-2100
9992223802518
©01/2023 ECHO Incorporated
DESCRIPTION

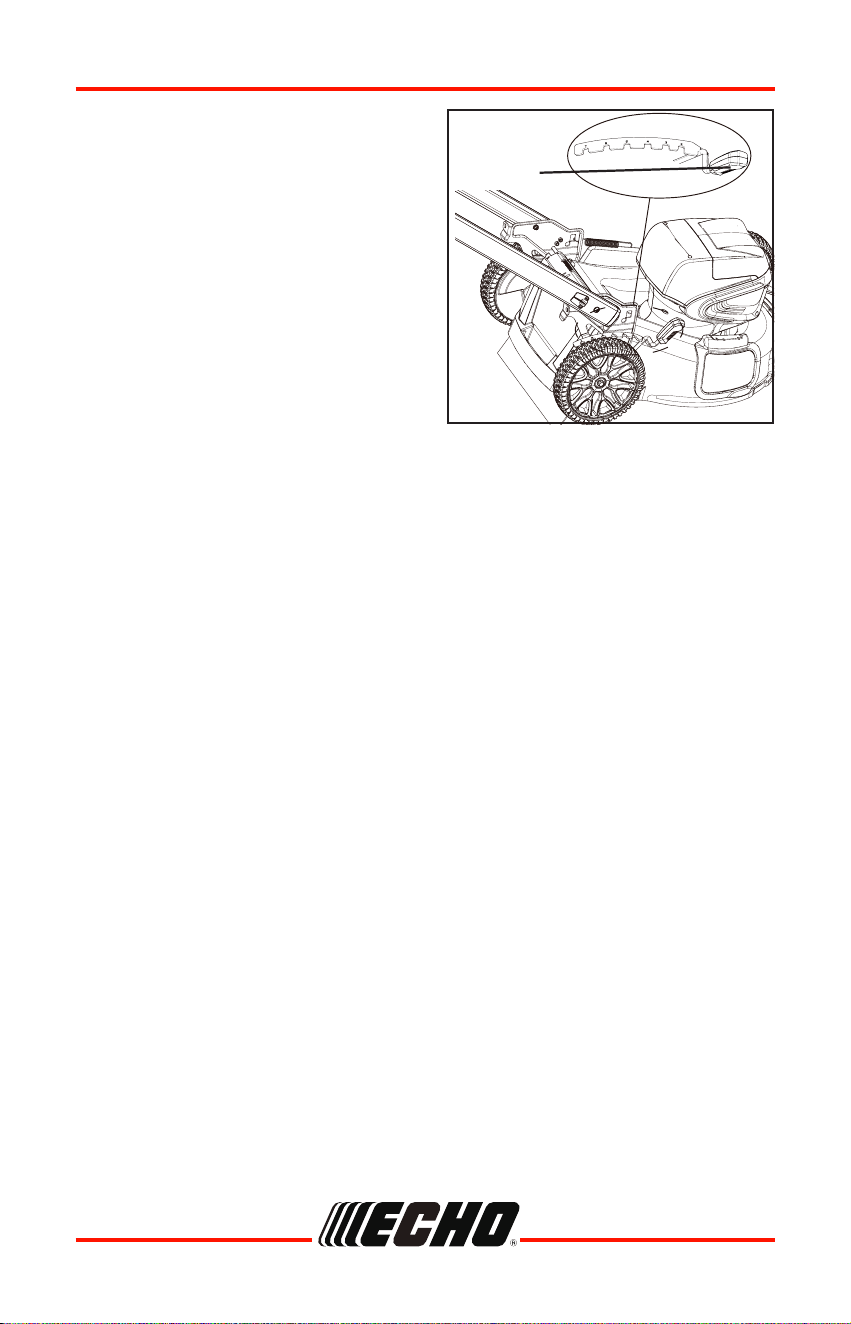

Make sure that the two handle pins are in the same position.

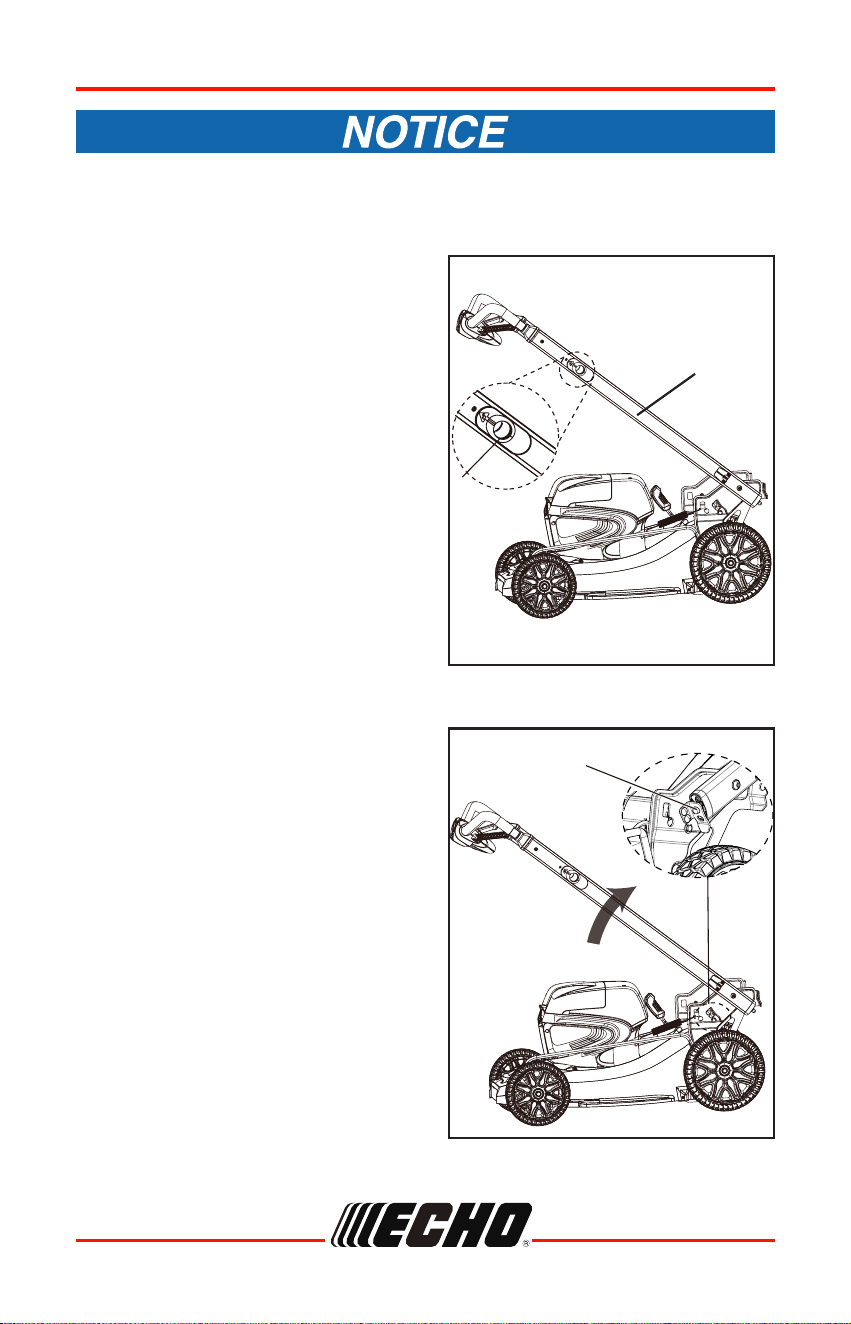

Unfold the Lower Handle
1. Pull up on the handle holes (13) to
release the lower handles (4).
2. Fold the lower handle up until the
handle pins (27) lock into position.
13
4
27
19
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
DESCRIPTION

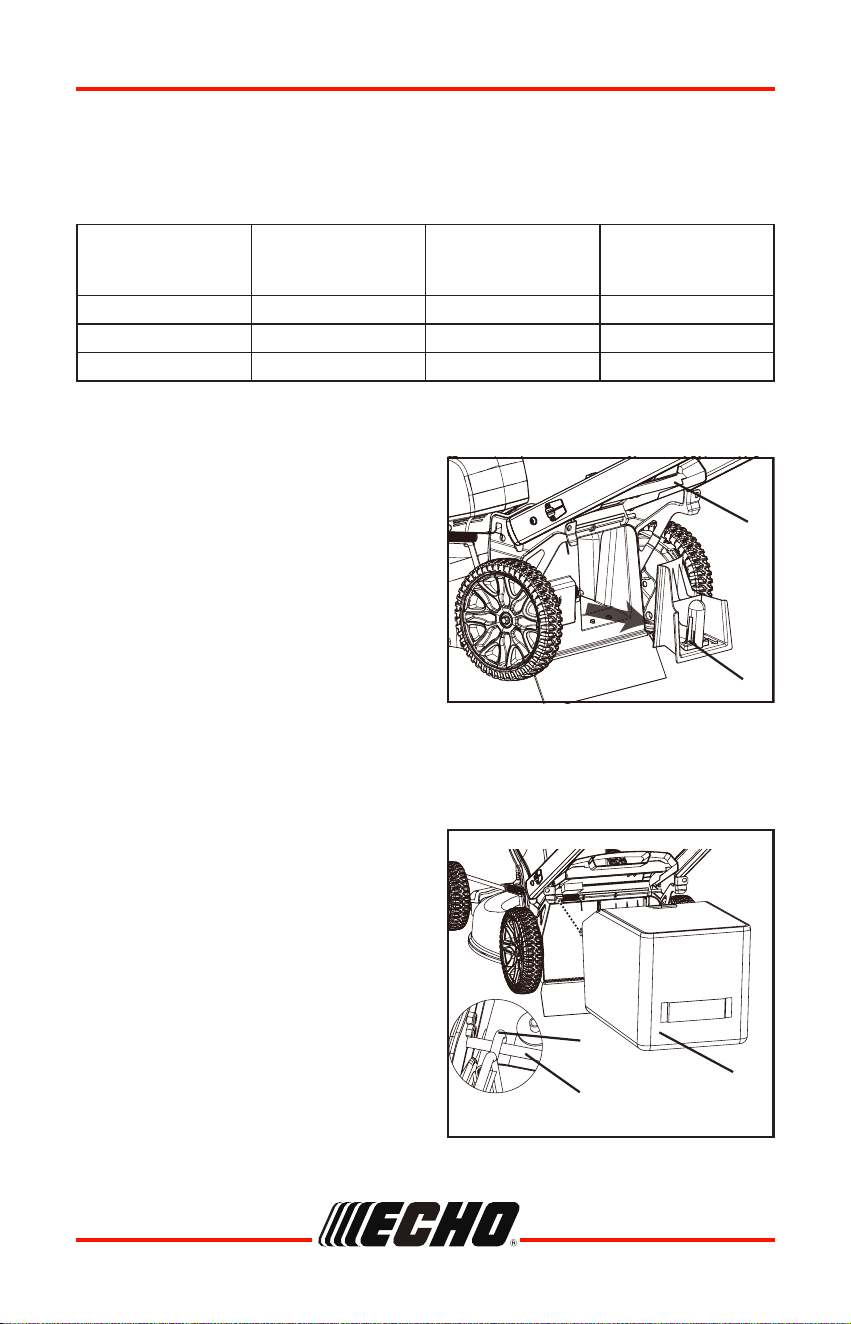

Install the Grass Catcher
1. Remove the battery and safety key.
2. Remove the mulch plug.
3. Remove the side discharge chute.
4. Open the rear discharge door and
hold it.
5. Hold the the grass catcher (8) by its
handle and engage the hooks (14)
on the door rod (15).
6. Close the rear discharge door.
8
5
15
14
Mower Functions
In general, a lawn mower is featured with three functions (rear bagging/
mulching/ side discharging). These functions can be converted by changing
accessories. Please see the following table for detail setting.
To Convert Mower Mulch Plug Grass Bag
Side Discharge
Chute(sold
separately)
For rear bagging
× √ ×
For mulching
√ × ×
For side discharging
√ × √
10
DLM-2100
9992223802520
©01/2023 ECHO Incorporated
DESCRIPTION

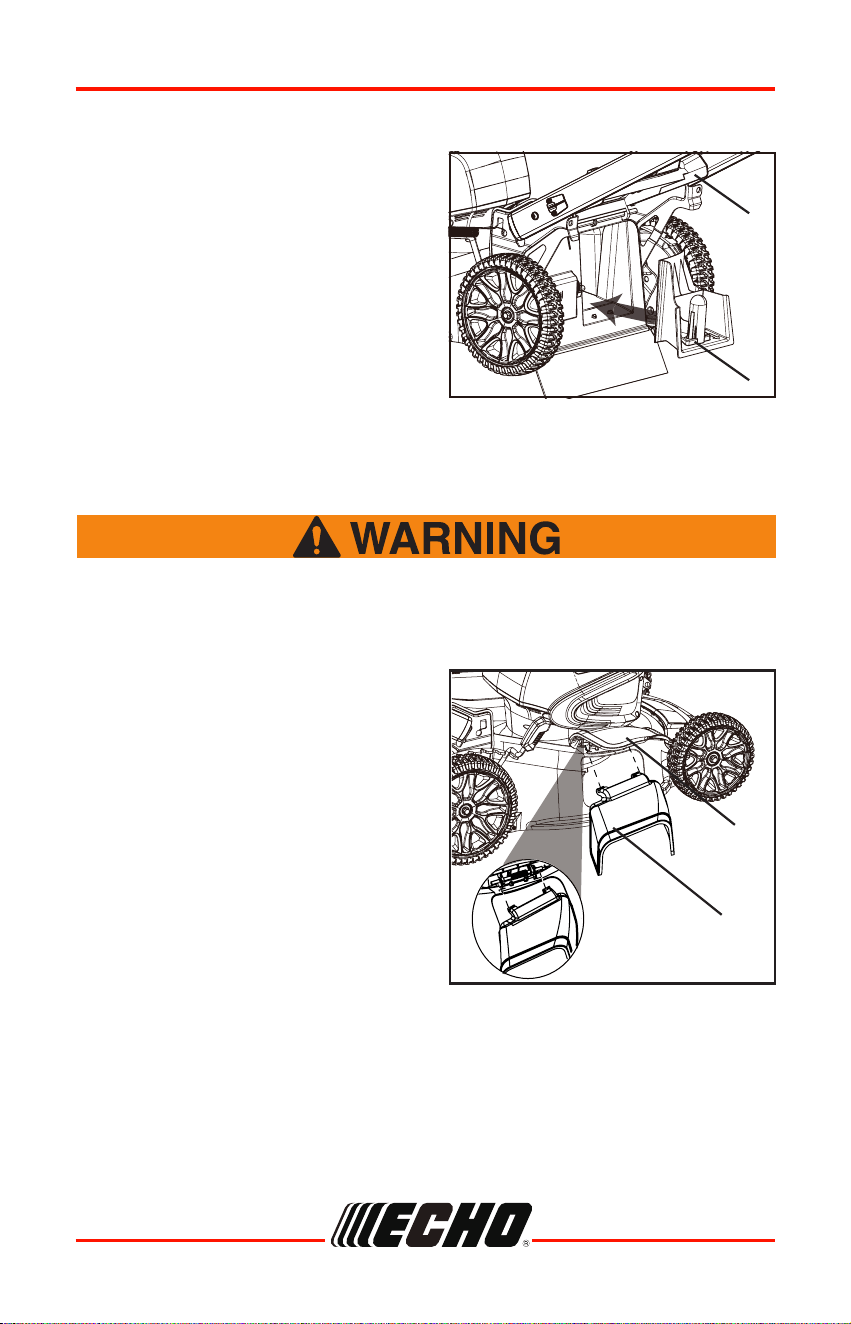

1. Remove the battery and safety key.
2. Open the side discharge door (16)
and hold it.
3. Line up the recesses of the side
discharge chute (9) below the pivot.
4. Close the side discharge door.
Install the Mulch Plug
1. Remove the battery and safety key.
2. Remove the grass catcher.
3. Open the rear discharge door (5)
and hold it.
4. Hold the mulch plug (10) by its
handle and t it in the discharge
chute.
5. Close the rear discharge door.
Install the Side Discharge Chute (sold separately)
When you use the side discharge chute,
• Do not install the grass catcher.
• Keep the mulch plug installed.
5
10
16
9
21
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
DESCRIPTION
Set the Cutting Height
The machine can be set to different
cutting heights.
1. Pull the height adjustment lever (6)
rearward to increase the cutting
height.
2. Position the height adjustment lever
farther forward to decrease cutting
height. Position it farther backward
to increase cutting height.
6
DLM-2100
9992223802522
© 01/2023 ECHO Incorporated
DESCRIPTION

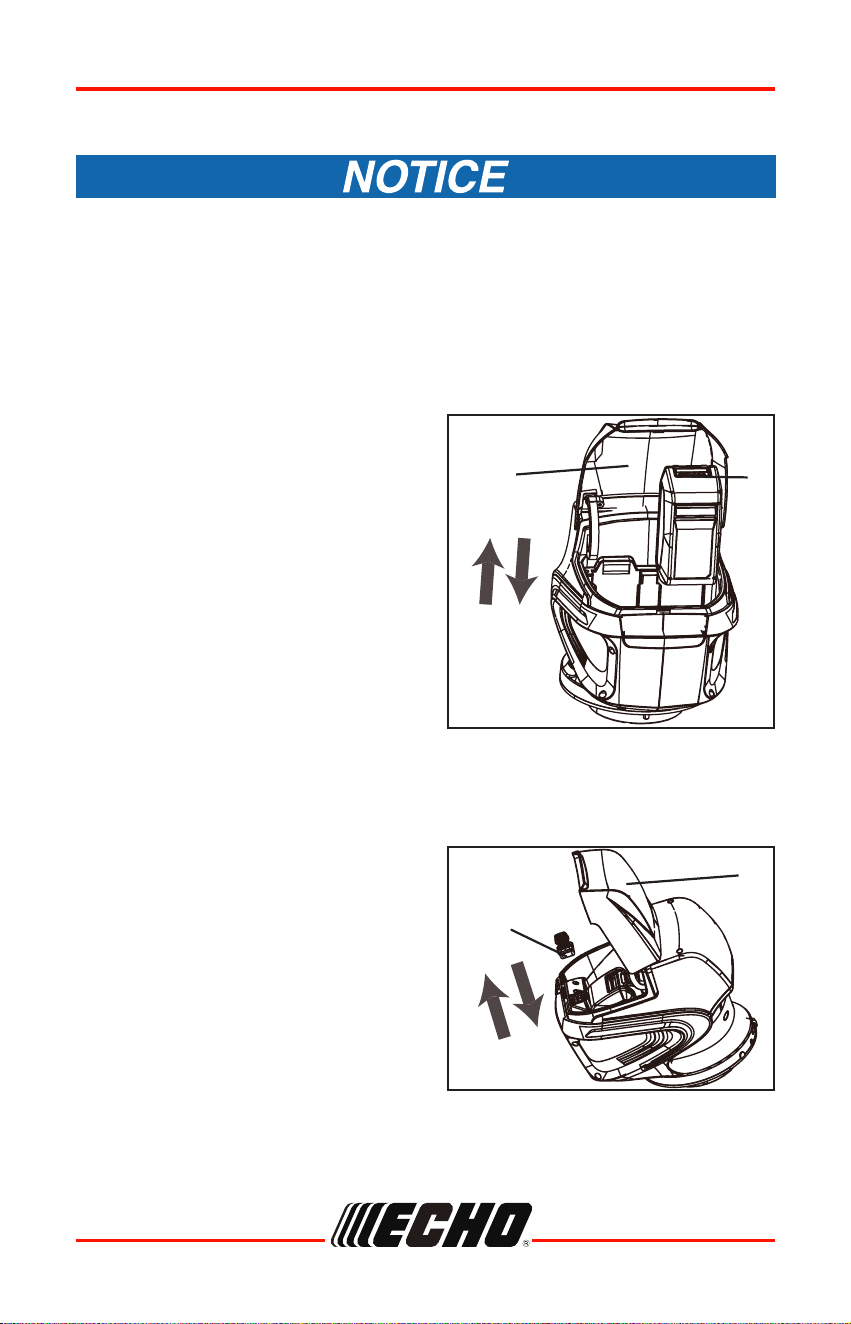

Installing the Battery
Removing the Battery
1. Lift and hold up the battery door (17).
2. Align the battery with the mower’s
battery port.
3. Make sure the battery release
button (18) snaps in place and that
battery is fully seated and secure
in the mower before beginning
operation.
4. Insert the safety key (19).
5. Close the battery door.
Note: The machine has an automatic
switch function that lets the other battery
work when the rst cannot operate.
Extra batteries can be purchased from
dealer.
1. Stop the machine.
2. Open the battery door (17).
3. Remove the safety key (19).
4. Press the battery release button
(18) on the mower. This will cause
the battery to raise out of the tool
slightly.
5. Remove battery from the product.
Installing and Removing the Battery
The machine has an automatic switch function that lets the
other battery work when the rst cannot operate.
The battery comes partially charged from the factory and needs to
be fully charged before rst use.
Note: See separate Operator's Manual Packaged with the Battery.
17
17
19
18
23
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
1
2

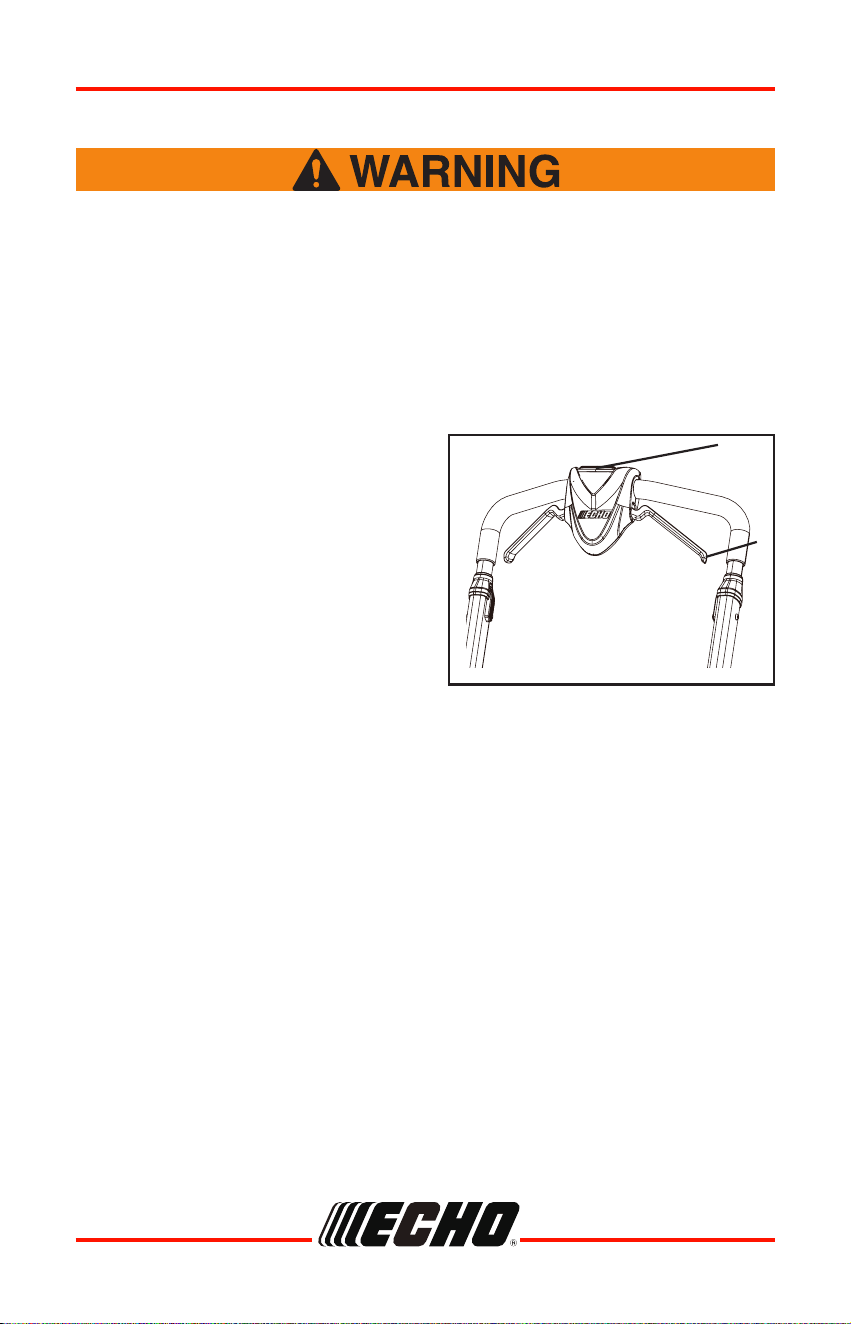

When starting the unit, observe the precautions described in the
"Safety" section. Failure to observe the precautions could cause
an accident or injury, or even lead to a fatality.
Wait until the blade fully stops before you start the machine again.
Do not quickly turn the machine off and on.
Starting the unit
Stopping the unit
1. Make sure safety key is inserted
into slot.
2. Push and hold the start button (1).
3. While you hold the start button
(1), pull the start handle (2) in the
direction of the handle bar.
4. Once the machine has started,
release the start button.
1. Release the start handle to stop the
machine.
Note: Always remove the safety
key and battery after you
complete the work.
OPERATION
DLM-2100
9992223802524
©01/2023 ECHO Incorporated
OPERATION
Operate on Slopes
• Do not go up and down on a slope, mow across the face of the slope. Be
careful when you change direction on a slope.
• Monitor the holes, ruts, rocks, and other hidden objects that can cause you
to fall. Remove all obstacles such as rocks and tree limbs.
• Make sure that your footing is stable. If you are out of balance, release the
start handle immediately.
• Do not mow near drop-offs, ditches, or embankments.
Do not mow on slopes with incline more than 15 degrees. If you
are not comfortable, do not mow on a slope.
Empty the Grass Catcher
1. Stop the machine.
2. Remove the safety key.
3. Remove the battery.
4. Open the rear discharge door and
hold it.
5. Hold the grass catcher by its handle
and unhook it from the door rod.
6. Close the rear discharge door.
7. Empty the grass catcher.
25
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
OPERATION
Operation Tips
• Do not try to override the operation of the start button or start handles.
• Do not tilt the machine when you start it.
• Do not put hands or feet near or below the turning parts.
• Keep the discharge chute clean.
• Cutting wet grass will require more power, shorten run time and cut grass
poorly.
• Higher blade height is necessary for new or thick grass.
• Clean the bottom of the mower deck after each use. Remove grass
clippings, leaves, dirt, and other debris.
• Mulching requires a higher mower deck setting than bagging or side
discharge. Adjust wheel height to remove roughly one-third off top of
grass.
Your unit is designed to provide many hours of trouble free service. Regular
scheduled maintenance will help your unit achieve that goal. If you are unsure
or are not equipped with the necessary tools, we recommend that you take
your unit to a Servicing Dealer for maintenance. To help you decide whether
you want to DO-IT-YOURSELF or have the Dealer do it, each maintenance
task has been graded. If the task is not listed, see your Dealer for repairs.
MAINTENANCE
Moving parts can amputate ngers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop motor, and make sure all moving parts have come to
a complete stop before removing obstructions, clearing debris, or
servicing unit. Allow unit to cool before performing service. Wear
gloves to protect hands from sharp edges and hot surfaces.
Operating a poorly maintained unit can result in serious injuries
to operator or bystanders. Always follow all maintenance
instructions as written, otherwise serious personal injury can
result.
DLM-2100
9992223802526
©01/2023 ECHO Incorporated
OPERATION
Skill Levels
Maintenance Intervals
Level 1
= Easy to do. Common tools may be required.
Level 2
= Moderate difculty. Some specialized tools may be required.
Level 3
= See your dealer.
NOTICE -
Time intervals shown are maximum. Actual use and your experience
will determine the frequency of required maintenance.
MAINTENANCE PROCEDURE NOTES:
* Replacement is recommended based on the nding of damage or wear
during inspection.
COMPONENT / SYSTEM MAINTENANCE
PROCEDURE
REQ’D
SKILL
LEVEL
Daily or Before Use
Blade Inspect / Sharpen / Replace *
2
Screws / Nuts / Bolts Inspect / Tighten / Replace *
1
Battery Clean battery compartment
1
Mower Clean mower deck
1
27
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
MAINTENANCE

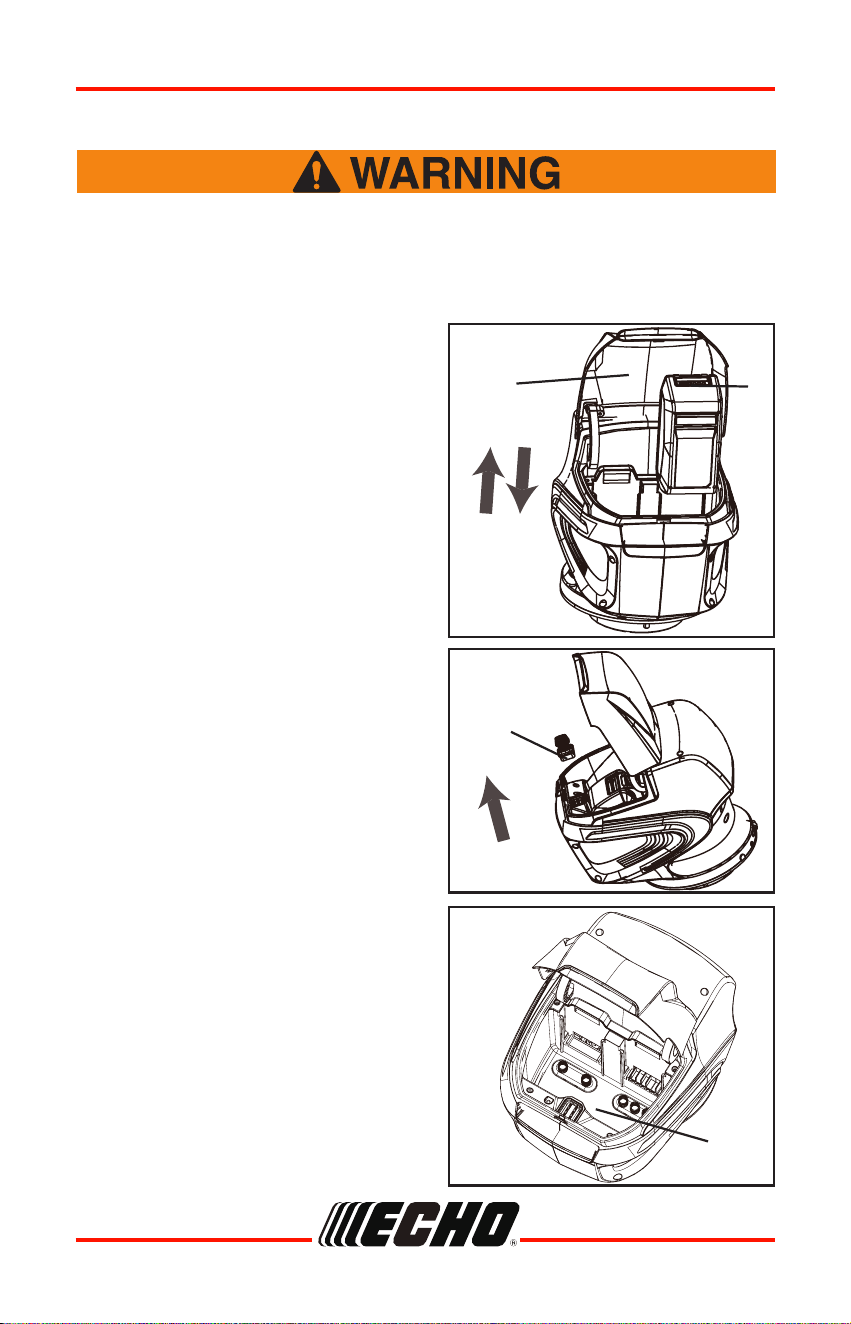

Cleaning Battery and Battery Compartment
Risk of electric shock or re. Do not use conducting materials
to clean battery or battery compartment.
Remove the safety key and battery from the machine before
maintenance.
1. Open the battery door (17).
2. Remove the safety key (19).
3. Depress battery release button
(18) and slide battery out of battery
compartment.
4. Use compressed air or a soft bristle
brush to remove debris from battery
and battery compartment (23).
23
17 18
19
DLM-2100
9992223802528
©01/2023 ECHO Incorporated
MAINTENANCE

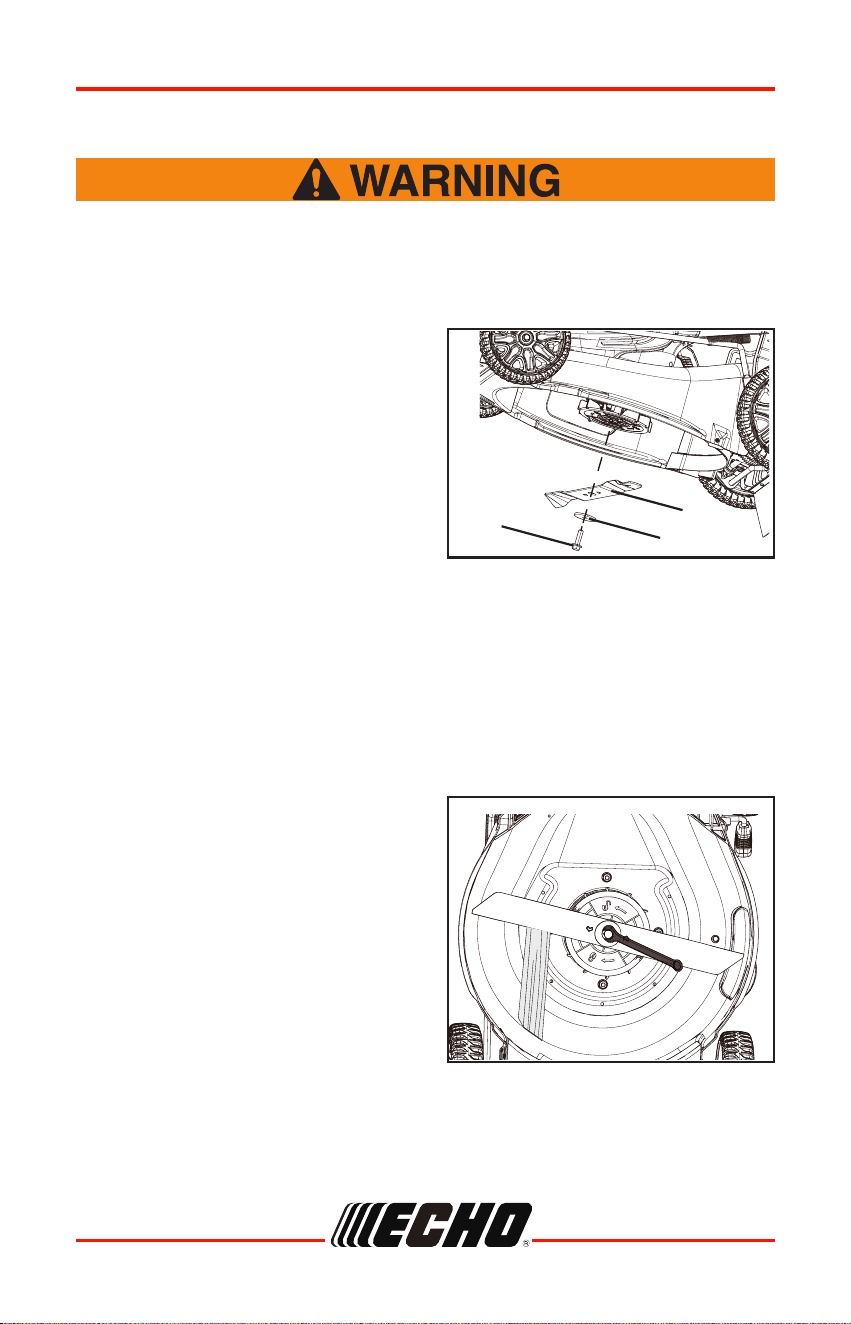

Replace The Blade
Use only approved replacement blades.
Wear heavy gloves or wind cloth around the blade when you
touch the blade.
1. Stop the machine.
2. Make sure that the blade fully stops.
3. Remove the safety key and batteries.
4. Turn the machine to its side.
5. Use a piece of wood or special
lawnmower blade holding tool to
prevent the movement of the blade.
6. Remove the mounting bolt (26)
and spacer (25) with a wrench or
socket.
7. Remove the blade (24).
8. Install the new blade. Make sure
the arrows on the fan engage the
holes on the blade.
9. Put in the mounting bolt and spacer
and tighten them. Recommended
tightening torque: 33-37 Nm.
24
25
26
29
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
MAINTENANCE
Problem Cause Solution
The lawn
mower does not
start.
The battery is not
charged.
Charge the battery.
The switch is
defective.
Replace the switch (Contact
an authorized dealer
)
.
Grass jammed
between the deck and
blade.
Remove battery and safety
key; check under deck for
jams.
The battery is not fully
inserted in the lawn
mower.
Check the connection
between the battery and the
lawn mower. Make sure the
battery clicks into place.
Battery may require
replacement.
Contact your dealer or
replace battery.
The lawn
mower cuts the
grass unevenly.
The lawn is rough or
uneven.
Check the mowing area.
The cutting height is
not set properly.
Move the wheels to a higher
setting.
The blade is dull.
Sharpen or replace the
blade.
The lawn
mower does not
mulch properly.
Wet grass clippings
are sticking to the
underside of the deck.
Remove the battery and
clean the unit. Wait until the
grass dries before mowing.
The mulching plug is
missing.
Install the mulching plug.
Leaving clumps of
grass during mulching.
Raise mower deck so one-
third of grass is cut.
TROUBLESHOOTING
DLM-2100
9992223802530
©01/2023 ECHO Incorporated
TROUBLESHOOTING
Problem Cause Solution
The lawn
mower is hard
to push.
The grass is too tall,
or the cutting height is
too low.
Raise the cutting height.
The rear of the grass
catcher bag is dragging
in thick grass.
Empty the grass clippings
from the grass catcher bag.
The lawn
mower is
excessively
noisy and
vibrates.
The motor shaft is
bent.
Stop the motor, and inspect
for damage. Contact your
dealer for repair.
The blade is
unbalanced.
Repair before restarting. If
vibration persists, contact
your dealer.
Number
of Beeps
Symptom Remedy
1
Mower will not start. Consult authorized dealer.
2
Mower stops
running.
Allow mower to cool. If problem
persists, consult authorized dealer.
3
Mower will not start.
Check battery and terminals for corrosion
or debris. If problem persists, consult
authorized dealer.
4
Mower will start
then stop, or will
not start.
Start mower, at rst not making a full cut,
then proceed to cut normally. If problem
persists, consult authorized dealer.
5
Mower will not start.
Fully charge battery and try again. If
problem persists, consult authorized dealer.
6
Mower stops
running.
Allow battery to cool. If problem
persists, consult authorized dealer.
7
Mower will start
then stop, or will
not start.
Move mower to level ground and try
again. If problem persists, consult
authorized dealer.
8
Blade will not turn.
Remove batteries and safety key,
remove obstruction, try again.
9
Motor will not reach
full speed.
Start mower, at rst not making a full cut,
then proceed to cut normally. If problem
persists, consult authorized dealer.
31
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
TROUBLESHOOTING
STORAGE

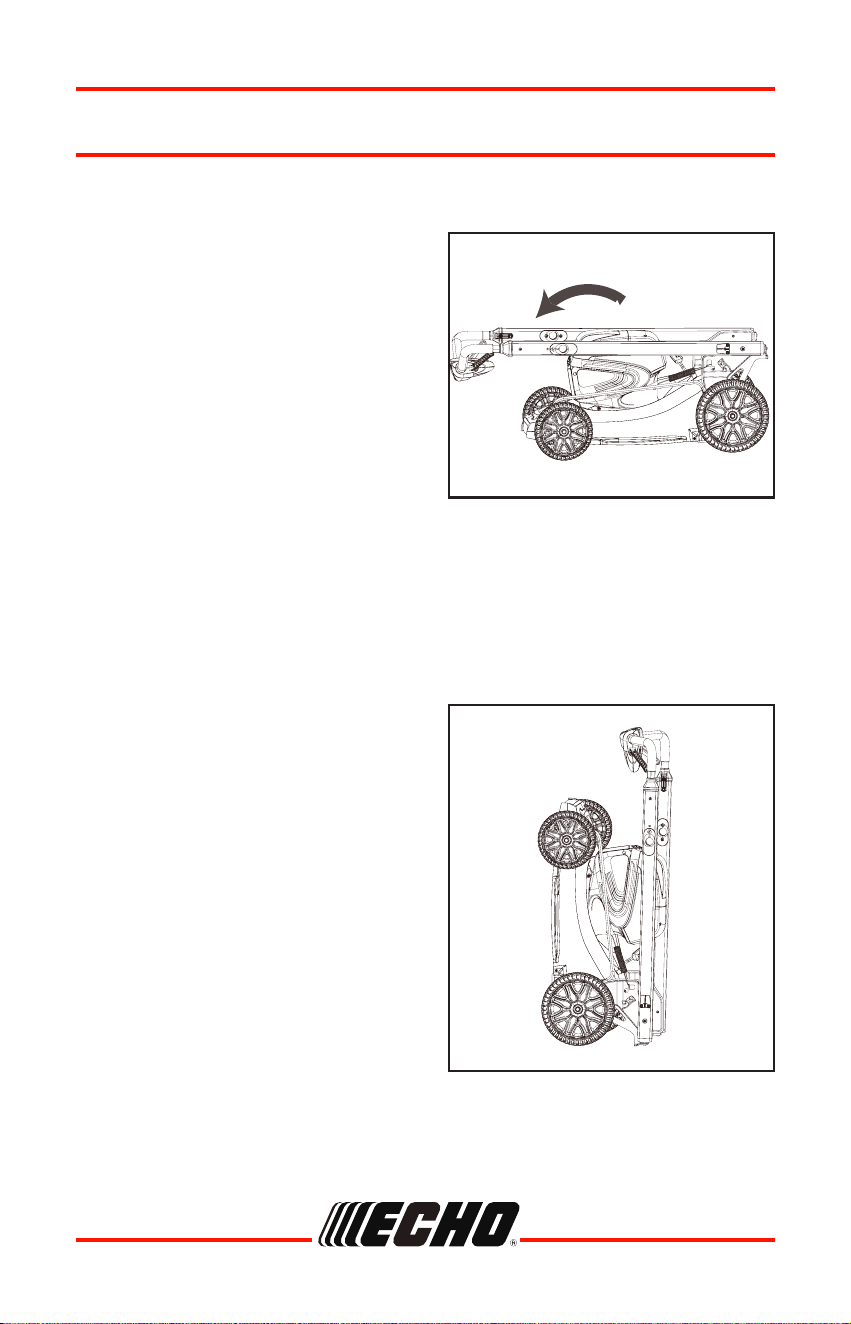

Vertical Storage
Do not store your unit without performing
protective storage maintenance which
includes the following:
1. Remove batteries and safety key.
2. Remove the grass catcher.
3. Pull through the handle holes to
fold away the handles.
4. Lock the handles into position.
5. Stand the machine on end and
make sure that the brackets touch
the oor.
DLM-2100
9992223802532
©01/2023 ECHO Incorporated
STORAGE
Storage After Use
When storing the product for long periods of time, ensure that the following
preparations for storage are carried out.
Mower
Battery
Charger
Do not store your unit without performing protective storage maintenance
which includes the following:
1. Turn power to unit off.
2. Remove battery from mower.
3. Remove accumulation of dirt and debris from exterior of unit and bottom of
deck.
4. Tighten all screws and nuts.
5. Close the battery door.
6. Store unit in a dry, dust-free place, out of the reach of children.
1. Remove battery or batteries from mower.
2. Store in a dry, dust-free place, out of the reach of children.
3. Store in temperatures between -4°F (-20°C) and 140°F (60°C).
4. If battery is stored for longer than six months, charge it to 100% capacity.
1. Remove battery or batteries from charger.
2. Disconnect charger from power supply.
3. Store in a dry, dust-free place, out of the reach of children.
33
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
STORAGE
SPECIFICATIONS
MODEL DLM-2100
No-load speed 2800 RPM
Height adjustments 1 3/8-4” (3.5 - 10 cm)
Functions 3-in-1 Mulch & Rear Bag & Side discharge
Weight 60.63 lbs (27.5kg)
Battery:
Model
Type
Voltage
Charger type
Charger input voltage
ECHO eFORCE™ 56V battery series batteries
Li-Ion
56 (rated 50.4)
CCCV
120V AC 60Hz
Charger model
ECHO eFORCE™ 56V battery series charger
Charger Lights
OFF Green blinking
OFF Green
Red OFF
Red OFF
blinking
Battery is charging
Fully charged
Battery is too warm: (Remove for approx.30
minutes to allow to cool)
Defective battery: (Remove and replace with
new battery if this occurs)
Charge Time See Battery Operator's Manual
DLM-2100
9992223802534
©01/2023 ECHO Incorporated
SPECIFICATIONS
PRODUCT REGISTRATION
Thank you for choosing ECHO Power Equipment
Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to
register your new product online. It's FAST and EASY! NOTE: your information
will never be sold or misused by ECHO, Incorporated.
Registering your purchase enables us to contact you in the unlikely event of
a service update or product recall, and veries your ownership for warranty
consideration.
If you do not have access to the Internet, you can complete the form below and
mail to:
ECHO Incorporated, Product Registration, PO Box 1139,
Lake Zurich, IL 60047.
35
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
PRODUCT REGISTRATION
DLM-2100
9992223802536
©01/2023 ECHO Incorporated
WARRANTY
Limited Warranty Statement for ECHO 56 Volt
Handheld Products and Walk Behind Mowers sold
in USA and Canada
ECHO Incorporated warrants to the original retail purchaser that this ECHO
brand 56 Volt outdoor product is free from defects in material and workmanship
and agrees to repair or replace, at ECHO Incorporated’s discretion, any
defective product free of charge within these time periods from the date of
purchase:
■
If the product is for homeowner use:
• Units and Bare Tool – 5 Years
• Battery or charger – 2 years
■
If the product is for commercial use:
• Units and Bare Tool – 2 years
• Battery or charger – 2 year
■
If the product is for rental use: 90 days for all units, batteries, and chargers.
■
Cutting attachments such as, but not limited to, bars, chains, sprockets,
blades, tines, belts, PowerBroomTM and nylon trimmer heads for homeowner
or non-income producing use will be covered for failures due to defects in
material or workmanship for a period of 60 days from original product purchase
date and 30 days for commercial / rental use. Any misuse from contact with
concrete, rocks, or other structures is not covered by this warranty.
This warranty extends to the original retail purchaser only and commences on
the date of the original retail purchase.
Any part of this product found in the reasonable judgment of ECHO
Incorporated, to be defective in material or workmanship will be repaired or
replaced without charge for parts and labor by an authorized ECHO dealer.
Units, repair parts and accessories replaced under this warranty are warranted
only for the balance of the original warranty period.
The product, including any defective part, must be returned to an authorized
ECHO dealer within the warranty period. The expense of delivering the product
to the service center for warranty work and the expense of returning it back
to the owner after repair or replacement will be paid by the owner. ECHO
Incorporated’s, responsibility in respect to claims is limited to making the
required repairs or replacements and no claim of breach of warranty shall be
cause for cancellation or rescission of the contract of sale of any ECHO brand
56 Volt outdoor product. Proof of purchase will be required by the dealer to
substantiate any warranty claim. All warranty work must be performed by an
authorized ECHO dealer.
This warranty does not cover any units, battery or charger that has been
subject to misuse, neglect, negligence, or accident, or that has been operated
in any way contrary to the operating instructions as specied in the Operator’s
Manual. This warranty does not cover normal deterioration due to the use or
exposure, and any repairs made necessary by normal wear, improper
37
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
WARRANTY
maintenance, improper lubrication, improper storage, dirt, abrasives, impact,
moisture, water, rain, snow, rust, corrosion, varnish, or other similar conditions.
This warranty does not cover damage to chargers or batteries by improper
charging voltage and batteries that have been exposed to temperatures
beyond those specied in the Operator’s Manual, batteries that have not been
properly charged or batteries that have reached their useful life.
This warranty does not apply to any damage to the product that is the result
of improper maintenance or to any product that has been altered or modied.
The warranty does not extend to repairs made necessary by normal wear or by
the use of parts or accessories which are either incompatible with the ECHO
brand 56 Volt outdoor product or adversely affect its operation, performance, or
durability. In addition, this warranty does not cover wear to normal items such
as, but not limited to:
Wear items – Bump Knobs, Outer Spools, Cutting Lines, Inner Reels, Felt
Washers, Hitch Pins, Mulching Blades, Blower Fans, Blower and Vacuum
Tubes, Vacuum Bag and Straps, Guide Bars, Saw Chains, Grass Catch Bag,
Hedge Trimmer Blades, and Wheels
ECHO Incorporated, reserves the right to change or improve the design of
this product without assuming any obligation to modify any product previously
manufactured.
All implied warranties are limited in duration to the stated warranty period.
Accordingly, any such implied warranties including merchantability, tness for
a particular purpose, or otherwise, are disclaimed in their entirety after the
expiration of the appropriate ve-year, two-year, one-year, 90-day, 60-day, or
30-day warranty period. ECHO Incorporated’s obligation under this warranty is
strictly and exclusively limited to the repair or replacement
of defective parts. ECHO Incorporated, does not assume or authorize anyone
to assume for them any other obligation. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not
apply to you. ECHO Incorporated, assumes no responsibility for incidental,
consequential, or other damages including, but not limited to, expense of
returning the product to an authorized dealer for ECHO brand 56 Volt outdoor
products and expense of delivering it back to the owner, mechanic’s travel time,
telephone charges, rental of a like product during the time warranty service is
being performed, travel, loss or damage to personal property, loss of revenue,
loss of use of the product, loss of time, or inconvenience. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.
This warranty applies to all ECHO brand 56 Volt outdoor products
manufactured by or for ECHO Incorporated, and sold in the United States and
Canada.
To locate your nearest authorized ECHO dealer, visit www.ECHO-usa.com or
dial 1-800-432-ECHO (3246).
DLM-2100
9992223802538
©01/2023 ECHO Incorporated
WARRANTY
NOTES
39
DLM-2100
99922238025
© 01/2023 ECHO Incorporated
NOTES
NOTES
428LMP000001 - 428LMP999999
429LMP000001 - 429LMP999999
ECHO INCORPORATED
400 Oakwood Road
Lake Zurich, IL 60047
www.echo-usa.com
