ECHO DHS-3006BT Brushless Cordless Handheld Mini Pruning User Manual

99922238301

Operator’s

Manual

DHS-3006

Pruning saw

Note: This product complies with CAN ICES-003(B) / NMB-003(B)

Cancer and Reproductive Harm www.P65Warnings.ca.gov

Read and understand all provided literature before use.

Failure to do so could result in serious injury.

DHS-3006

999222383012

TABLE OF CONTENTS

Introduction............................................................................................................3

Servicing Information.........................................................................................................3

Parts / Serial Number................................................................................................3

Service.......................................................................................................................4

ECHO Consumer Product Support ........................................................................... 4

Product Registration...................................................................................................4

Additional Literature.....................................................................................................4

Safety.................................................................................................................................5

For safe use of your product....................................................................................5

International Symbols................................................................................................6

General Product Safety Warnings..............................................................................8

General Pruning Saw Safety Warnings.....................................................................11

Environmentally Safe Battery Disposal.....................................................................13

FCC Statement........................................................................................................14

Causes And Operator Prevention Of Kickback.......................................................15

General Precautions................................................................................................16

Precautions for Use.................................................................................................17

Protective Gear........................................................................................................20

Description.................................................................................................................21

Contents........................................................................................................................22

Assembly............................................................................................................23

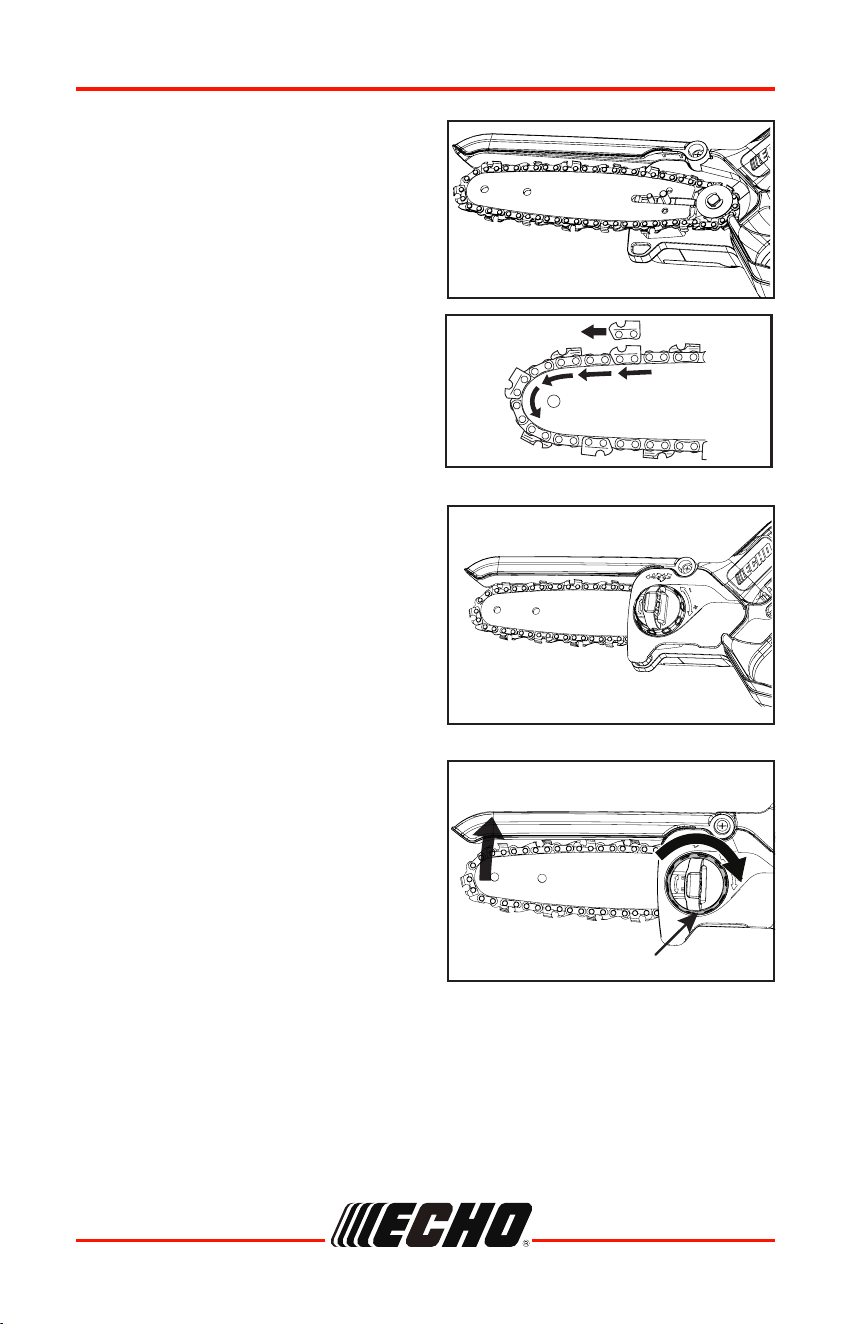

Guide Bar and Saw Chain Installation / Removal...................................................23

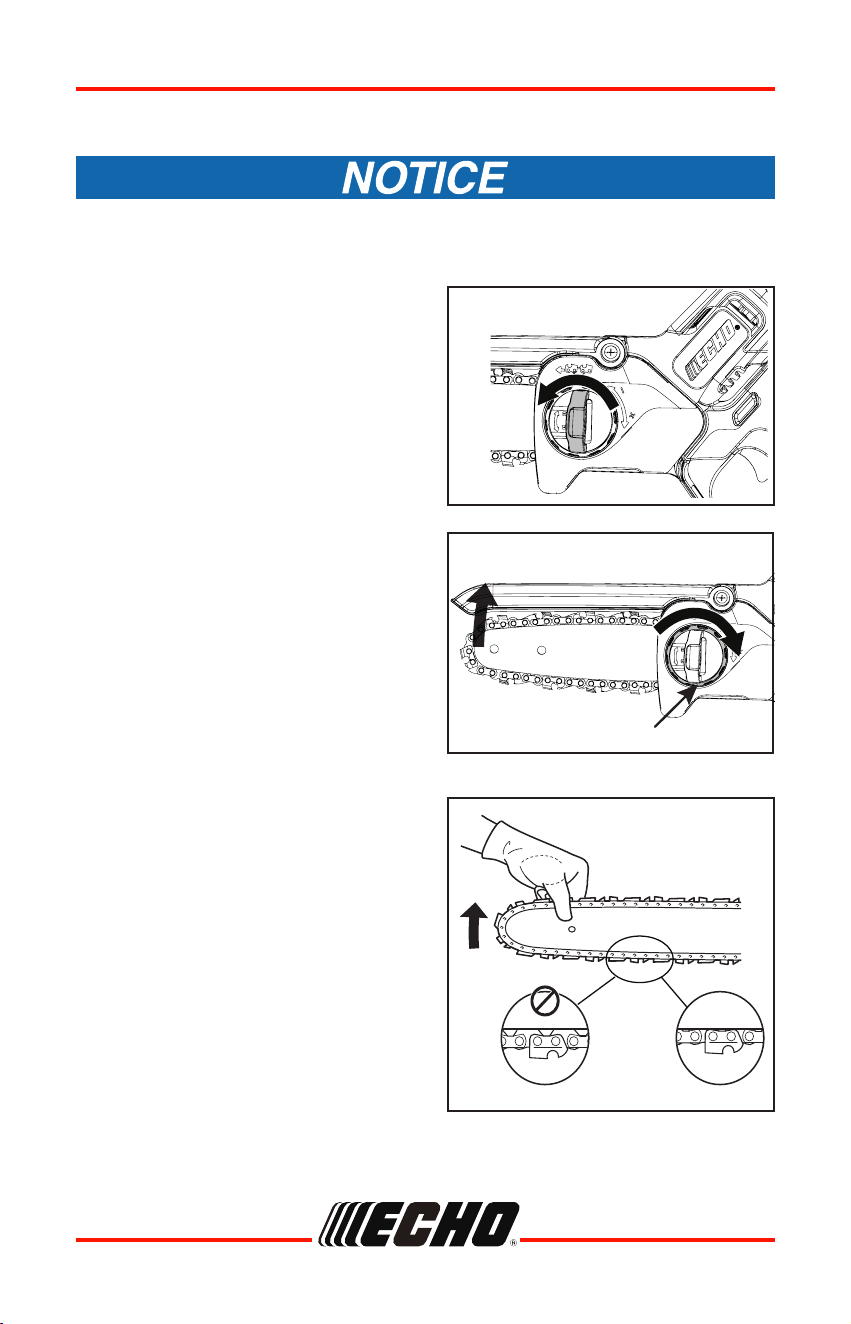

Adjusting Chain Tension..........................................................................................25

Chain Lubricant........................................................................................................26

Recommended Ambient Temperatures..................................................................26

Battery Charging......................................................................................................27

Installing and Removing the Battery.......................................................................30

Operation............................................................................................................30

Starting The Unit......................................................................................................30

Stopping The Unit....................................................................................................31

Before Use...............................................................................................................32

Cutting Instructions..................................................................................................33

Chain And Guide Bar Combination.........................................................................36

Maintenance..............................................................................................................37

Skill Levels...............................................................................................................37

Maintenance Intervals..............................................................................................38

Cleaning Battery And Battery Compartment..........................................................39

Guide Bar.................................................................................................................39

Sprocket...................................................................................................................40

Saw Chain Maintenance..........................................................................................40

Troubleshooting...............................................................................................................44

Storage......................................................................................................................46

Storage After Use................................................................................................. 46

Specications.............................................................................................................47

Product Registration........................................................................................................48

Warranty..............................................................................................................50

DHS-3006

99922238301

INTRODUCTION

SERVICING INFORMATION

Specications, descriptions and illustrative material in this literature are as

accurate as known at the time of publication, but are subject to change

without notice. Illustrations may include optional equipment and

accessories, and may not include all standard equipment.

For additional literature, including safety manuals where applicable, or

questions regarding terms used in this manual, visit:

https://www.echo-usa.com/manuals

Genuine ECHO Parts and

Assemblies for your ECHO products

are available only from an

Authorized ECHO Dealer. When

you do need to buy parts always

have the Model Number and Serial

Number of the unit with you. For

future reference write them in the

space provided below.

Model No. _______________ Serial No. _______________

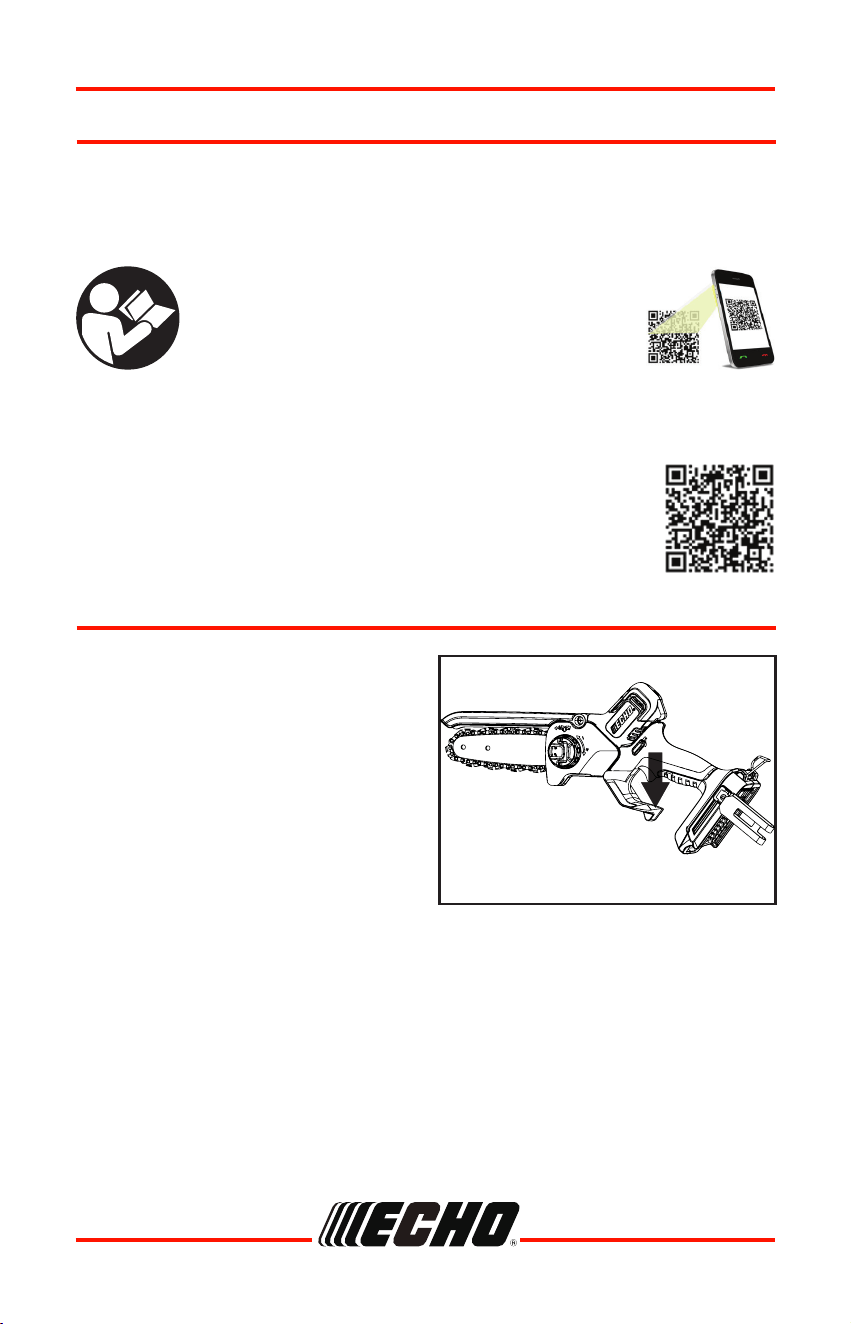

Parts / Serial Number

Read and understand all provided literature.

Literature contains specications and

information for safety, operation,

maintenance, storage, and assembly

specic to this product. Scan QR code for

more information.

Service of this product during the warranty period must be performed by an

Authorized ECHO Service Dealer. For the name and address of the

Authorized ECHO Service Dealer nearest you, ask your retailer or call:

1-800-432-ECHO (3246). Dealer information is also available on our Web

Site www.echo-usa.com. When presenting your unit for Warranty service/

repairs, proof of purchase is required.

Service

DHS-3006

999222383014

SERVICING INFORMATION

If you require assistance or have questions concerning the application,

operation, or maintenance of this product, call the ECHO Consumer

Product Support Department at 1-800-432-ECHO (3246) from 8:00 am to

5:00 pm (Central Standard Time) Monday through Friday. Before calling,

please know the model and serial number of your unit.

out the product registration sheet included in this manual. Registering your

product conrms warranty coverage and provides a direct link to ECHO if

we nd it necessary to contact you.

In addition to nding information online, information is available from your

Authorized ECHO Service Dealer, or by contacting ECHO Incorporated,

400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).

ECHO Consumer Product Support

Product Registration

Additional Literature

DHS-3006

99922238301

SAFETY

For safe use of your product

Throughout this manual and on the product itself, you will nd safety alerts

and helpful, informational messages preceded by symbols or key words. The

following is an explanation of those symbols and key words and what they

mean to you.

The safety alert symbol accompanied by the word “DANGER”

calls attention to an act or condition which WILL lead to serious

personal injury or death if not avoided.

The safety alert symbol accompanied by the word “WARNING”

calls attention to an act or condition which CAN lead to serious

personal injury or death if not avoided.

The safety alert symbol accompanied by the word “CAUTION”

calls attention to an act or condition which might lead to minor

or moderate personal injury if not avoided.

The enclosed message provides information necessary for the

protection of the unit.

Note: This enclosed message provides tips for use, care and

maintenance of the unit.

CIRCLE AND SLASH SYMBOL

This symbol means the specic action shown is prohibited.

Ignoring these prohibitions can result in serious or fatal injury.

SAFETY

Be careful to read this section before using your product.

• The precautions described in this section contain important safety

information. Please observe them carefully.

• You must also read the precautions that appear in the body of the manual

itself.

DHS-3006

999222383016

SAFETY

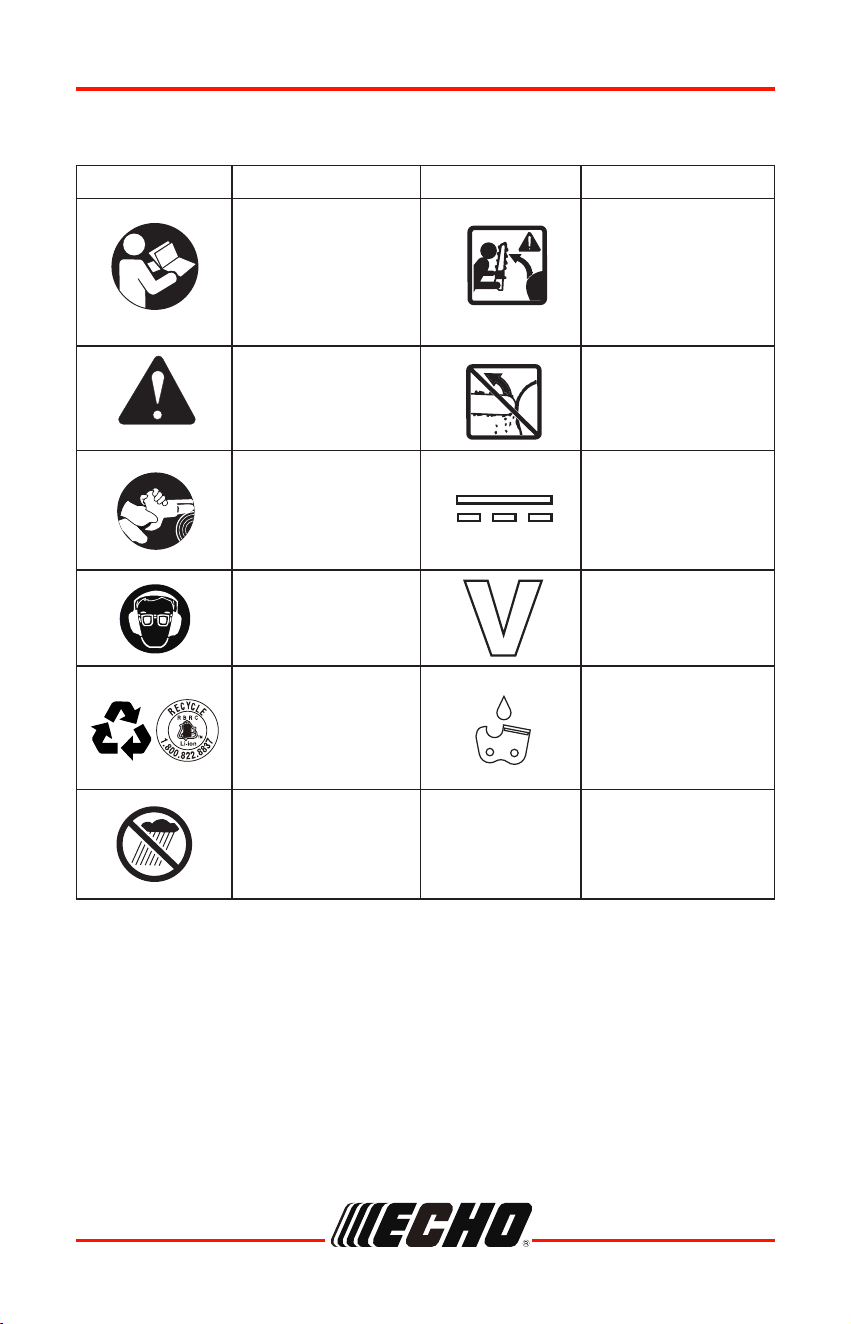

International Symbols

Note: Not all symbols will appear on your unit.

Symbol Description Symbol Description

WARNING!

Read and follow all

safety precautions in

the operator's manual.

Failure to follow

instructions could result

in serious personal

injury.

Tip contact may cause

the guide bar to move

suddenly upward and

backward, which may

cause serious injury.

Safety / Alert

Contact of the guide bar

tip with any object

should be avoided.

Both of the operator’s

hands must be used to

operate the product.

Direct current

Wear eye and ear

protection.

Volts

Environmentally safe

battery disposal

Chain oil ll

Do not expose the product

to rain or moist conditions.

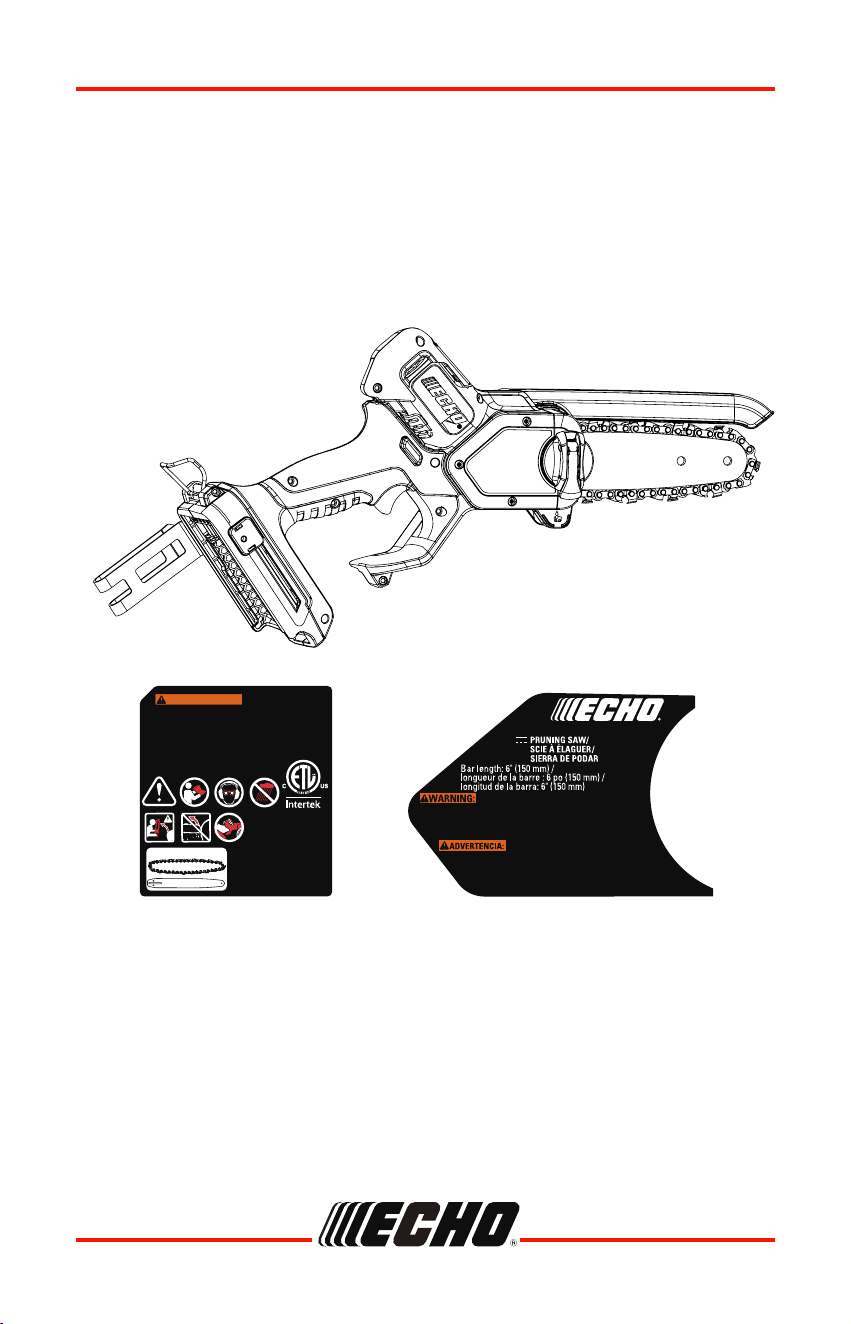

Location in which the safety decal is attached

• The safety decal shown below has been attached to the product described

in this manual. Ensure that you understand what the decal means before

using your product.

DHS-3006

99922238301

SAFETY

• If the decal becomes illegible due to wear and tear, damage, or peels off,

please purchase a replacement decal from your dealer and attach it in the

location shown in the illustration below. Ensure that the decal is readable

at all times.

Note: The safety decal is for example only. Your label may appear slightly

different.

AVERTISSEMENT:

6” (150m

06K4HS3230

80TXL030CQ

5021527

Pour réduire le risque de

blessure, l'utilisateur

doit lire le manuel d'instructions. Portez une protection

pour les yeux. Portez une protection auditive. Ne pas

exposer à la pluie. Attention au rebond de la scie

d'élagage et évitez tout contact avec la pointe du

guide-chaîne. Utilisez toujours la scie d'élagage à deux

mains. À utiliser uniquement avec la série de batteries

ECHO eFORCE 56V.

Conforms to UL Std. 82 /

Conforme à UL Std. 82 /

Cumple con UL Std. 82

CAN ICES-003(B) / NMB-003(B)

Certified to CSA Std.C22.2 No.147 /

Certifié selon la norme

CSA Std.C22.2 No.147 /

Certificado a CSA Std.C22.2 No.147

56V

To reduce the risk of injury, user must read

instruction manual. Wear eye protection. Wear ear protection. Do not

expose to rain. Beware of pruning saw kickback and avoid contact with

bar tip. Always use pruning saw two-handed. For use only with ECHO

eFORCE

56V battery series.

Para reducir el riesgo de lesiones, el usuario

debe leer el manual de instrucciones. Use

protección para los ojos. Use protección para los oídos. No exponga

la herramienta a la lluvia. Tenga cuidado con el contragolpe de la

sierrade podar y evite el contacto con la punta de la barra. Utilice

siempre la sierrade podar con las dos manos. Para uso exclusivo con

baterías de la serie ECHO eFORCE

de 56 V.

DHS-3006

999222383018

SAFETY

General Product Safety Warnings

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, re, and/or

serious injury.

Do not operate near electrical power lines. The product has

not been designed to provide protection from electric shock in

the event of contact with overhead electric lines. Consult local

regulations for safe distances from overhead electric power lines

and ensure that the operating position is safe and secure before

operating the product.

Save all warnings and instructions for future reference.

The term “product” in the warnings refers to your battery-operated

(cordless) power tool.

• Avoid Dangerous Environment – Don’t use product in damp or wet

locations.

• Don’t Use In Rain

• Keep Children Away – Children and bystanders should remain at a safe

distance while operating the product.

• Dress Appropriately – Avoid wearing loose clothing or jewelry that can get

caught in moving parts. It is recommended to use gloves and protective

footwear when working outdoors. Wear protective hair covering to contain

long hair.

• Use Safety Glasses – Always use face or dust mask if work area is dusty.

• Use Product Appropriately – Do not use product for any job except that for

which it is intended.

• Never grasp the exposed cutting blades or cutting edges when picking up

or holding the product.

• Avoid Overexerting the Product – The product performs better and safer

when operated at its designated rate.

• Don’t Overreach – Keep proper footing and balance at all times.

• Stay Alert – Watch what you are doing. Use common sense. Do not

operate product when you are tired.

• Store Idle Products Indoors – When not in use, store the products indoors

in a dry, elevated, or locked location out of reach of children.

DHS-3006

99922238301

SAFETY

• Maintain Product With Care – Keep cutting edge sharp and clean for

best performance and to reduce the risk of injury. Follow instructions for

lubricating and changing accessories. Inspect product cord periodically,

and if damaged, consult authorized service center for repair. Inspect

extension cords periodically and replace if damaged. Keep handles dry,

clean, and free from oil and grease.

• Check Damaged Parts – Before each use, thoroughly inspect product for

any damaged guards or other parts to ensure they will operate correctly

and fulll their intended function. Check for alignment of moving parts,

binding of moving parts, broken parts, mounting, and any other conditions

that may affect its operation. A guard or other parts that is damaged should

be properly repaired or replaced by an authorized service center unless

indicated elsewhere in this manual.

• Keep body parts away from the saw chain. Do not remove cut material or

hold material to be cut when blades are moving. Make sure the switch is

off when clearing jammed material. Saw chain continues to move after the

switch is turned off. A moment of inattention while operating the product

may result in serious personal injury.

• Carry the product by the handle with the saw chain stopped. When

transporting or storing the product, always use the saw chain device cover.

Proper handling of the product will reduce possible personal injury from

the saw chain.

• Hold the product by insulated gripping surfaces only, because the saw

chain can make contact with hidden wiring or its own cord. A saw chain

contacting a "live" wire may make exposed metal parts of the product "live"

and could give the operator an electric shock.

• Avoid using the product in bad weather conditions, especially during

lightning storms, to reduce the risk of being struck by lightning.

• To reduce the risk of electrocution, never use near any electrical power

lines. Contacting or using the product near power lines can lead to severe

injury or electric shock, which may result in death.

• Always use two hands when operating the product. Hold the product with

both hands to avoid loss of control.

• Always use head protection when operating the product overhead. Falling

debris can result in serious personal injury.

• To prevent unintentional starting, ensure the switch is in the off position

before connecting to a power source or battery, picking up, or carrying

the product. Avoid carrying the product with your nger on the switch or

powering it with your nger on the switch, as this can lead to personal

injury.

• Disconnect the battery pack from the product before making any

adjustments, changing accessories, or storing product. Such preventive

safety measures reduce the risk of starting the product accidentally.

• Recharge only with ECHO eFORCE

56V battery series chargers. A

DHS-3006

9992223830110

SAFETY

Proper Clothing

Wear snug-tting, durable clothing:

• Pants should have long legs, shirts should have long sleeves.

• DO NOT WEAR SHORTS.

• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose

or hanging items that could become entangled in moving parts or

surrounding growth.

• Keep clothing buttoned or zipped, and keep shirt tails tucked in.

• Wear sturdy work shoes with nonskid rubber soles.

• Wear sturdy, no-slip, rubber work gloves to improve your grip on the

handles. Gloves also provide protection against cuts and scratches,

cold environments, and reduce the transmission of machine vibration

to your hands.

• DO NOT WEAR OPEN TOED SHOES.

• DO NOT OPERATE UNIT WITH BARE FEET.

charger that is suitable for one type of battery may create a risk of re

when used with another battery.

• Use only with ECHO eFORCE

56V battery series. Use of any other

batteries may create a risk of injury and re.

• When battery pack is not in use, keep it away from other metal objects,

like paper clips, coins, keys, nails, screws, or other small metal objects,

that can make a connection from one terminal to another. Shorting the

battery terminals together may cause burns or a re.

• Avoid contact with liquid that may be ejected from the battery under

abusive conditions. If contact occurs, ush with water and seek medical

help if it gets into the eyes. Ejected liquid from the battery can cause

irritation or burns.

• Do not use a battery pack or appliance that is damaged or modied.

Damaged or modied batteries may exhibit unpredictable behavior

resulting in re explosion or risk of injury.

• Do not expose a battery pack or product to re or excessive temperature.

Exposure to re or temperature above 265°F (130°C) may cause

explosion.

• Follow all charging instructions and do not charge the battery pack or

product outside of the temperature range specied in the instructions.

Charging improperly or at temperatures outside of the specied range may

damage the battery and increase the risk of re.

• For service or repairs, consult your nearest service center that will use

identical replacement parts to ensure the safety of the product.

• Do not modify or attempt to repair the product or the battery pack (as

applicable) except as indicated in the instructions for use and care.

DHS-3006

99922238301

SAFETY

General Pruning Saw Safety Warnings

• Keep all parts of the body away from the saw chain when the pruning

saw is operating. Before you start the pruning saw, make sure the

saw chain is not contacting anything. A moment of inattention while

operating products may cause entanglement of your clothing or body with

the saw chain.

• Always grasp the pruning saw rmly with both hands when you are

working. This reduces the risk of serious or fatal injuries to the operator or

bystanders from loss of control.

• Hold the pruning saw by insulated gripping surfaces only, because

the saw chain may contact hidden wiring. Saw chains contacting a

"live" wire may make exposed metal parts of the product "live" and could

give the operator an electric shock.

• Wear eye protection. Further protective equipment for hearing, head,

hands, legs and feet is recommended. Adequate protective equipment

will reduce personal injury from ying debris or accidental contact with the

saw chain.

• Do not operate a pruning saw, on a ladder, from a rooftop, or any

unstable support. Operation of a product in this manner could result in

serious personal injury.

• Always keep proper footing and operate the pruning saw only when

standing on xed, secure and level surface. Slippery or unstable

surfaces may cause a loss of balance or control of the product.

• When cutting a limb that is under tension, be alert of spring back.

When the tension in the wood is released, the spring loaded limb may

strike the operator and/or throw the product out of control.

• Use extreme caution when cutting brush and saplings. The slender

material may catch the saw chain and be whipped toward you or pull you

off balance.

• Carry the pruning saw with the pruning saw switched off and away

from your body. When transporting or storing the product, always

t the guide bar cover. Proper handling of the product will reduce the

likelihood of accidental contact with the moving saw chain.

• Follow instructions for lubricating, chain tensioning and changing

the bar and chain. Improperly tensioned or lubricated chain may either

break or increase the chance for kickback.

• Cut wood only. Do not use pruning saw for purposes not intended.

For example: do not use product for cutting metal, plastic, masonry

or non-wood building materials. Use of the product for operations

different than intended could result in serious injury or death.

DHS-3006

9992223830112

SAFETY

• This pruning saw is not intended for tree felling.

Use of the pruning

saw for operations different than intended could result in serious injury to

the operator or bystanders.

• Keep handles dry, clean, and free from oil and grease. Greasy, oily

handles are slippery causing loss of control.

• Follow all instructions when clearing jammed material, storing or

servicing the product. Make sure the trigger switch is off and the

battery is removed. Unexpected actuation of the product while clearing

jammed material or servicing may result in serious personal injury.

• Do not operate pruning saw in a tree unless you have been

professionally trained to do so. Operation of a Pruner Saw in a tree

without proper training could increase the risk of serious personal injury. If

working in a tree, the operator must be trained in safe climbing techniques

and the use of all recommended safety equipment such as harnesses,

loops, strops, ropes, and carabiners, for the operator and for the saw.

DHS-3006

99922238301

SAFETY

Environmentally Safe Battery Disposal

Recycle your ECHO 56V battery system batteries FOR FREE at Rechargeable

Battery Recycling Corporation (RBRC) recycling locations. Call 1-800-822-8837

or visit https://www.call2recycle.org for details.

The toxic and corrosive materials below are in the batteries used in this

machine: Lithium-Ion, a toxic material.

Discard all toxic materials in a specied manner to prevent

contamination of the environment. Before discarding a damaged

or worn out Lithium-ion battery, contact your local waste disposal

agency, or the local Environmental Protection Agency for

information and specic instructions. Take the batteries to a local

recycling and/or disposal center, certied for Lithium-ion disposal.

If the battery cracks or breaks, with or without leaks, do not

recharge it and do not use. Discard it and replace with a new

battery. DO NOT TRY TO REPAIR IT! To prevent injury and risk

of re, explosion, or electric shock, and to avoid damage to the

environment:

• Cover the terminals of the battery with heavy-duty adhesive tape.

• DO NOT try to remove or destroy any of the battery components.

• DO NOT try to open the battery.

• If a leak develops, the released electrolytes are corrosive and toxic. DO

NOT get the solution in the eyes or on skin, and do not swallow it.

• DO NOT put these batteries in your regular household trash.

• DO NOT incinerate.

• DO NOT put them where they will become part of any waste landll or

municipal solid waste stream.

• Take them to a certied recycling or disposal center.

DHS-3006

9992223830114

FCC Statement

SAFETY

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference

that may cause undesired operation.

Changes or modications not expressly approved by the party

responsible for compliance could void the user's authority to

operate the equipment.

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy, and if not

installed and used in accordance with the instructions, may cause

harmful interference to radio or television reception. The reception

can be determined by turning the equipment off and on. The user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

DHS-3006

99922238301

Causes And Operator Prevention Of Kickback

Tip contact in some cases may cause

a sudden reverse reaction, kicking the

guide bar up and back towards the

operator.

Pinching the saw chain along the top

of the guide bar may push the guide bar

rapidly back towards the operator. Either

of these reactions may cause you to lose

control of the saw which could result

in serious personal injury. Do not rely

exclusively upon the safety devices built

into your saw. As a product user, you should take several steps to keep

your cutting jobs free from accident or

injury.

Kickback is the result of tool misuse

and/or incorrect operating procedures or

conditions and can be avoided by taking

proper precautions as given below:

• Maintain a rm grip with both

hands on the saw, and your body

and arms positioned to allow

you to resist kickback forces.

Kickback forces can be controlled

by the operator, if proper precautions are taken. Do not let go of the

product.

• Do not overreach and do not cut above shoulder height.

This helps

prevent unintended tip contact and enables better control of the product in

unexpected situations.

• Only use replacement bars and chains specied by the manufacturer.

Incorrect replacement bars and chains may cause chain breakage and/or

kickback.

• Follow the manufacturer’s sharpening and maintenance instructions

for the saw chain.

Decreasing the depth gauge height can lead to

increased kickback.

• With a basic understanding of kickback, you can reduce or eliminate the

element of surprise. Sudden surprise contributes to accidents. Understand

SAFETY

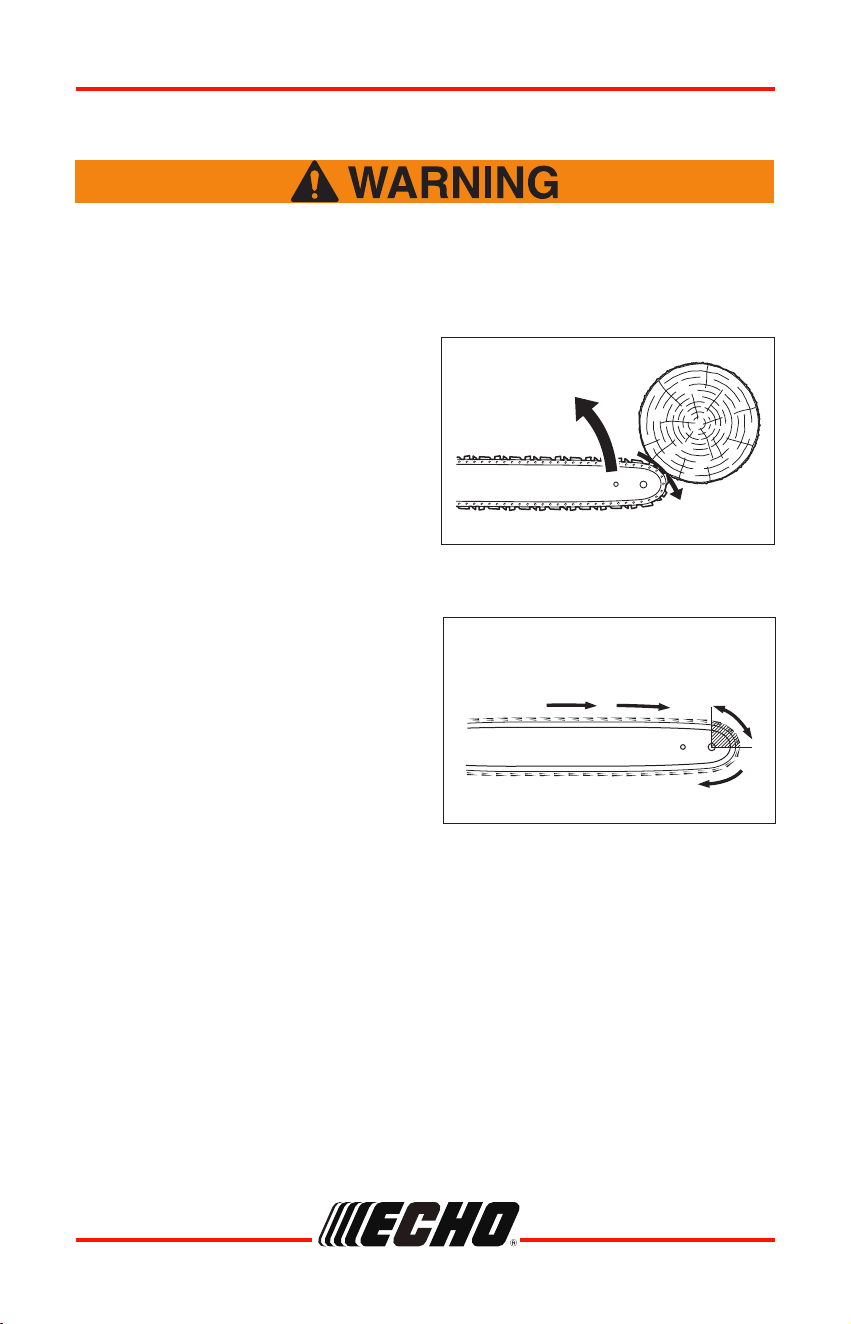

Kickback may occur when the nose or tip of the guide bar

touches an object, or when the wood closes in and pinches the

saw chain in the cut.

Rotational kickback

Chain moving downward at impact

Kickback Danger Zone

DHS-3006

9992223830116

SAFETY

that rotational kickback is preventable by keeping an unshielded bar nose

from touching an object or the ground.

• Do not operate a pruning saw with one hand! Serious injury to the

operator, helpers or bystanders may result from one-handed operation.

For proper control, always use two hands when operating a pruning saw,

one of which operates the trigger. Otherwise, this can result in the chain

saw "skating" or skidding, which can result in personal injury due to loss

of control.

• Keep a good rm grip on the saw which both hands when the unit is

running. Use a rm grip with thumbs and ngers encircling the pruning

saw handles. A rm grip will help you reduce kickback and maintain

control of the saw. Two hands must be used to control the saw at all times.

• Make sure that the area in which you are cutting is free from obstructions.

Do not let the bar nose contact a log, branch, or any other obstruction

which could be hit while you are operating the saw.

• Cutting at high speeds may reduce the likelihood of kickback. But cutting

at part-throttle or low speeds may be preferable to control the product in

tight situations and may also reduce the likelihood of kickback.

General Precautions

Do not modify the product

Loaning or assigning your product

You must not modify the product.

To do so could lead to an accident or serious

injury. Any malfunction resulting from a modication to the product will not be

covered by the manufacturer's warranty.

• When loaning your product to another party, ensure that the person

borrowing the product receives the operator's manual along with it.

• If you assign your product to another party, please enclose the operator's

manual with the product when handing it over.

Failure to do so could lead

to an accident or serious injury.

Being prepared in case of an injury

In the unlikely event of an accident or injury, please ensure that you are

prepared.

• First aid kit

• Towels and wipes (to stop any bleeding)

• Whistle or mobile phone (for calling for outside help).

If you are unable to

perform rst aid or call for outside help, the injury could get worse.

DHS-3006

99922238301

SAFETY

Precautions for Use

Starting the unit: Never try to start the unit by positioning

yourself on the saw chain side. Physical injury can occur if the

saw chain suddenly starts to move.

The product should not be used by:

• people who are pregnant

• people who are in poor physical condition

• people who have not read the operator’s manual

• children

• Failure to observe these instructions could lead to an accident.

Users of the product

The components of this machine generate an electromagnetic eld during

operation, which may interfere with some pacemakers. To reduce health

risks, we recommend that pacemaker users consult their physician and the

pacemaker manufacturer before operating this product.

If you have any physical condition which strenuous work could worsen, check

with your physician before using the pruning saw.

When transporting the pruning saw by hand or using the belt clip, install the

guide bar cover, hold it by the rear handle with the guide bar pointing down and

your nger off the trigger switch.

• Moving to the place where you are working

• Moving to another area while you are working

• Leaving the place where you have been working.

Failure to observe these precautions could cause serious injury.

Orient guide bar downward when carrying the product.

Transport of the product

DHS-3006

9992223830118

SAFETY

Be particularly careful to observe the following precautions when starting the

unit:

• Always ensure all handles and guards are tted.

• Check that none of the nuts and bolts are loose.

• Check that the guide bar is not damaged or excessively worn. If you nd

any abnormalities, do not use the product.

• Operate the unit only in well-ventilated areas. Oil mist (from lubrication) or

saw dust is harmful to health.

• Leave plenty of space around the product and do not allow people or

animals near it.

• Never operate the pruning saw when you are alone. Arrange to have

someone remain within calling distance in case you need help.

• Remove obstructions, if any.

Failure to observe the precautions could cause an accident or injury, or even

lead to a fatality.

Starting the unit

• whenever the machine is left by the user

• before clearing a blockage

• before checking, cleaning or working on the machine

• after striking a foreign object to inspect the machine for damage.

Accidents can occur if the product starts unexpectedly.

Check that there are no abnormal vibrations or sounds once the unit starts. Do

not use the product if there are abnormal vibrations or sounds. Contact your

dealer to have it repaired.

Accidents involving parts that fall or shatter off can

cause wounds or serious injury.

Remove the battery:

Once the unit has started, check for abnormal vibrations and

sounds.

When transporting the product by vehicle, install the guide bar cover, and

secure the product rmly in place to prevent it from moving around.

Secure the unit against unintentional startup. Remove the battery from the

unit before transporting or storing the unit. Do not use metal containers for

transporting batteries.

DHS-3006

99922238301

SAFETY

Observe the following precautions when checking and maintaining your

product after use:

Turn the unit off and do not attempt to check or maintain the product until unit

has cooled.

You could burn yourself on a hot unit.

Do not touch the following high temperature or high voltage

components while the product is running or for some time after it

stops.

• High temperature components.

You could burn yourself if

you touch a high temperature component.

• High voltage components.

You could receive an electric

shock if you touch a high voltage component while the

product is running.

Turn off the unit and remove battery when checking or maintaining

the product.

Do not touch high temperature or high voltage components while

the product is running.

In the following situations, turn off the unit immediately and ensure that the

cutting device has stopped before checking each area of the product. Replace

any damaged parts.

• If the cutting device hits a rock, tree, post, or other such obstruction while

you work.

• If the product suddenly starts to vibrate abnormally.

Continuing to use

parts when they are damaged could lead to an accident or serious injury.

Turn off the unit immediately if anything goes wrong.

The area within a 10 m (33 ft.) radius of the product is a danger zone. Be

careful to observe the following precautions while working with the product.

• If another person enters the danger zone, turn off the unit.

• Do not allow anyone to hold the material you are cutting. Any contact with

the saw chain could cause serious injury.

A ten meter radius is a danger zone.

DHS-3006

9992223830120

SAFETY

When you stop the unit, check to ensure the saw chain has stopped moving

before you lower the product to the ground. Even if the unit has been turned

off, the saw chain can still cause an injury while free-wheeling.

When using the product, pay special attention to observe the following

precautions.

• Do not operate a product that is damaged, improperly adjusted, or not

completely and securely assembled.

• Stay on the uphill side when bucking or limbing logs which might roll when

cut.

Failure to observe these instructions will cause the product to be held

unsteadily and could result in serious injury.

Make sure that the saw chain is stopped before putting the unit

on the ground

Using the product.

Always wear the following protective gear when working with the product.

a Head protection (cap, hat or helmet):

Protects the head

b Ear muffs or ear plugs:

Hearing protection

c Safety goggles:

Protect the eyes

Failure to observe these precautions could result in damage to your sight or

hearing, or lead to a serious injury.

When necessary, please use the protective gear below:

• Dust mask:

Breathing protection

• Bee net:

Insect protection

Protective Gear

Wear protective gear

DHS-3006

99922238301

DESCRIPTION

1112

DHS-3006

9992223830122

DESCRIPTION

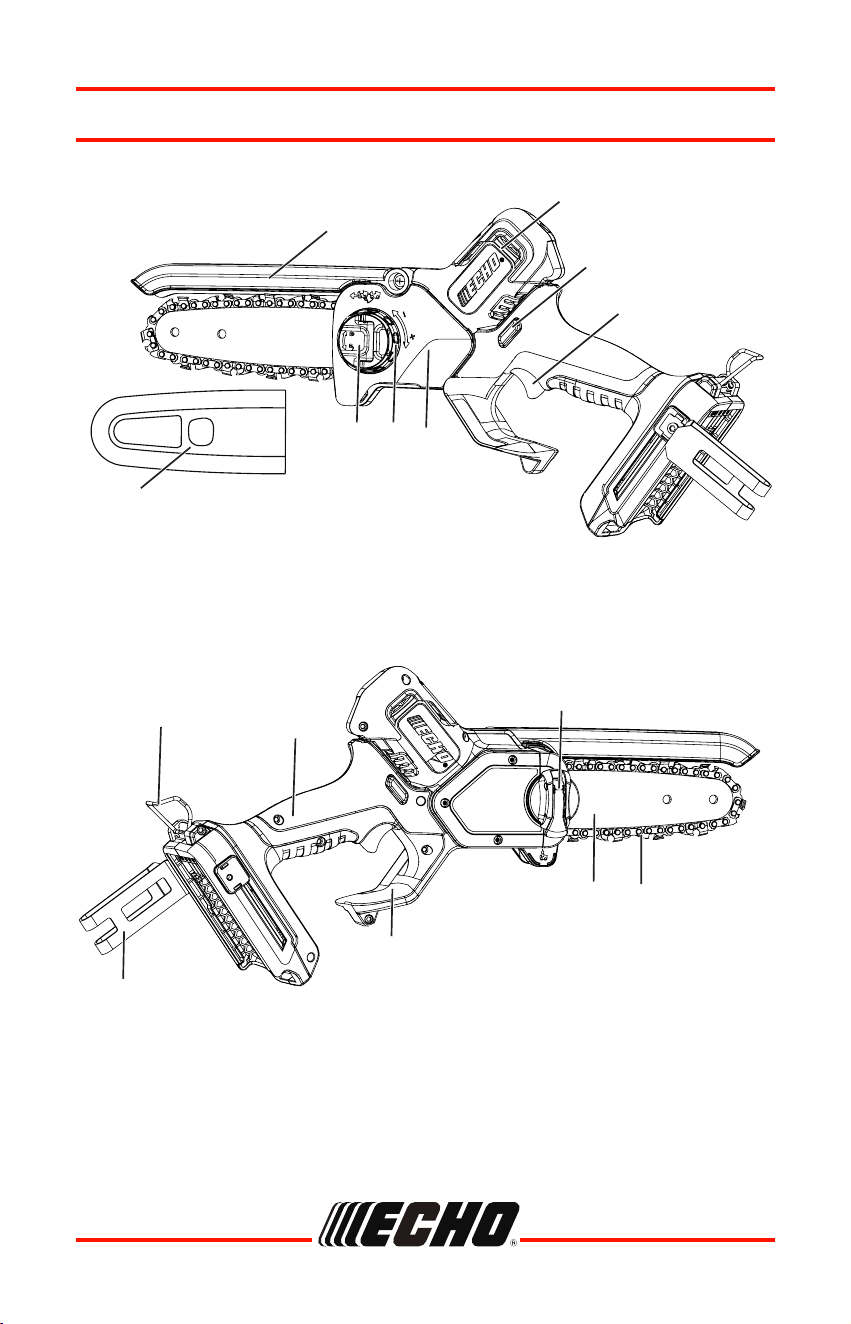

1. Guide bar cover

2. Guard

3. Front handle

4. Trigger switch lockout

5. Trigger switch

6. Sprocket cover

7. Chain tensioner knob

8. Sprocket cover knob

9. Rear handle

10. Oil tank cap

11. Saw chain

12. Guide bar

13. Protection plate

14. Lifting hook

15. Belt clip

The ECHO product you purchased has been factory pre-assembled for your

convenience. Due to packaging restrictions, some assembly may be

necessary.

After opening the carton, check for damage. Immediately notify your retailer

or ECHO Dealer of damaged or missing parts. Use the contents list to check

for missing parts.

1 Pruning saw

1 Operator's Manual

1 Guide bar cover

CONTENTS

For a complete list of compatible batteries for

this and all ECHO 56V battery system tools, scan

this code or visit

https://www. echo-usa.com/battery-information

DHS-3006

99922238301

ASSEMBLY

Always remove the battery before performing any of the following

operations, otherwise serious personal injury might result.

Guide Bar and Saw Chain Installation / Removal

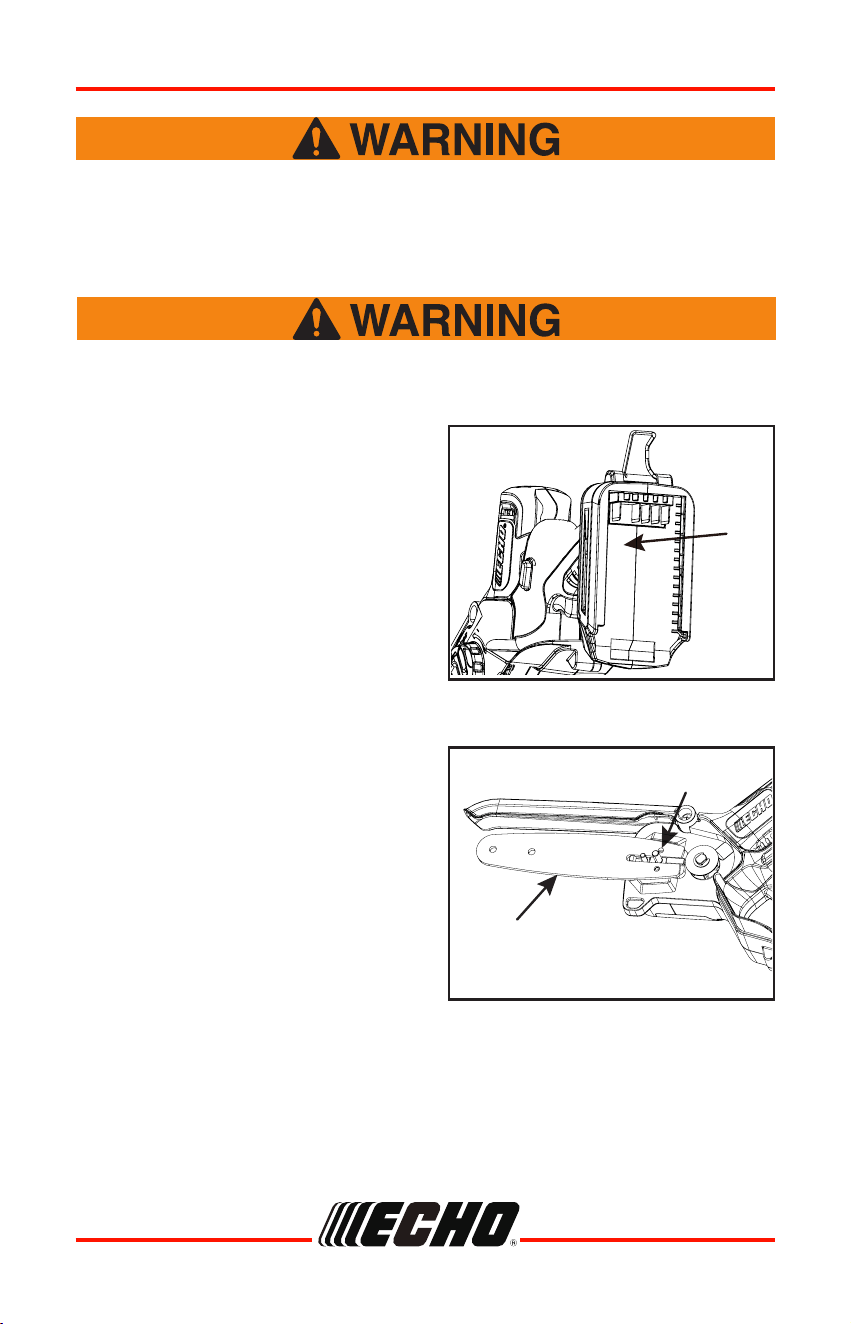

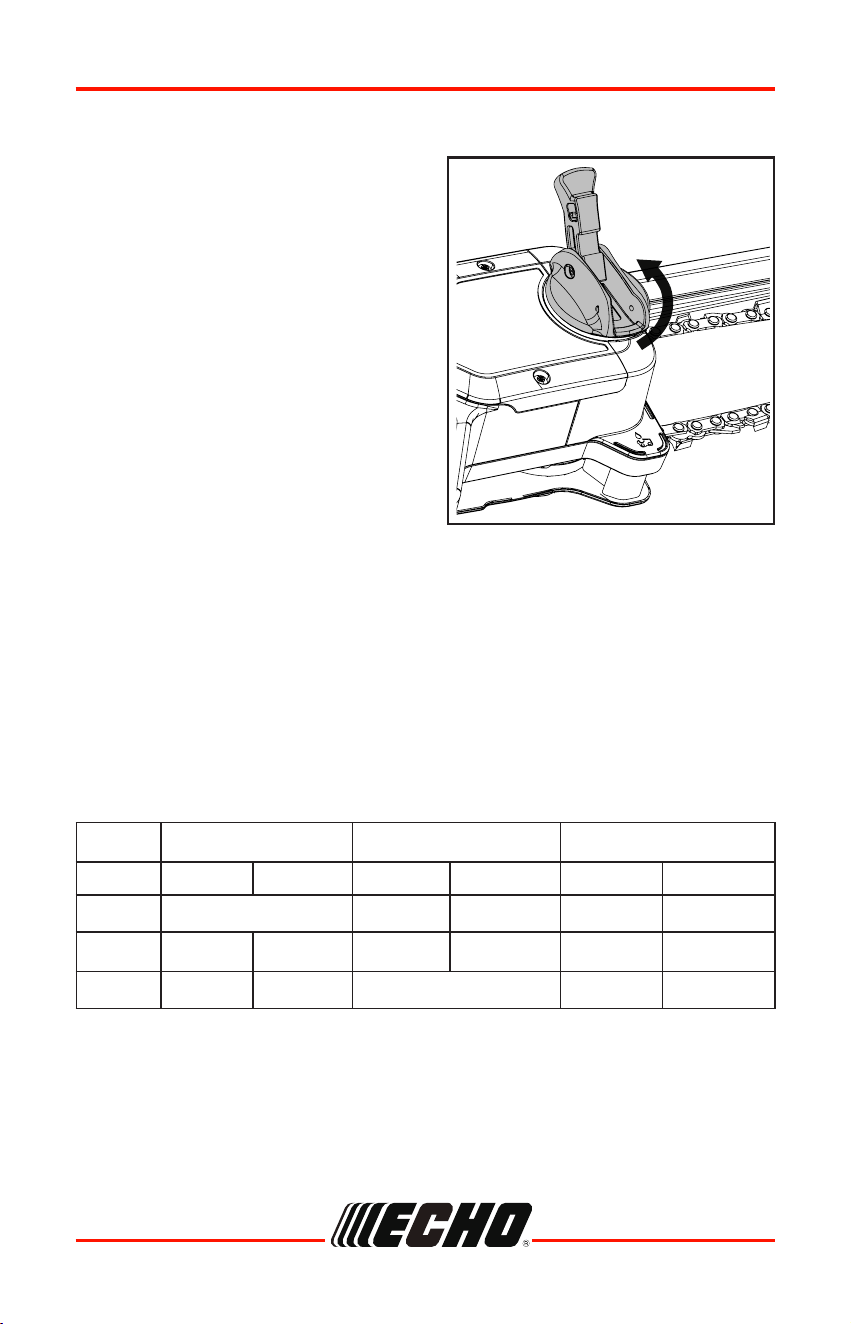

1. Raise the handle (A) of the sprocket

cover knob (B).

2. Loosen the sprocket cover (C) by

turning the sprocket cover knob (B)

counterclockwise.

3. Remove the sprocket cover (C).

4. Mount the guide bar (D) and slide

toward sprocket (E) to make saw

chain installation easier.

5. Ensure that chain tension adjuster

(F) ts into guide bar hole.

ASSEMBLY

All adjustments should be made cold. Always wear gloves when

working on a saw chain. Do not operate with a loose chain,

otherwise personal injury might result.

DHS-3006

9992223830124

ASSEMBLY

6. Install saw chain as shown (ensure

cutters are pointing in the right

direction).

7. Install sprocket cover onto guide bar

stud. Tighten sprocket cover knob

four turns.

8. Hold the guide bar nose up and turn

the chain tension knob (G) clockwise

until the chain ts snugly against the

underside of the guide bar.

9. Tighten sprocket cover knob with the

guide bar nose held up.

10. Pull the chain around the guide bar

by hand. Loosen the chain tension

knob if you feel tight spots while

rotating chain on the bar by hand.

DHS-3006

99922238301

ASSEMBLY

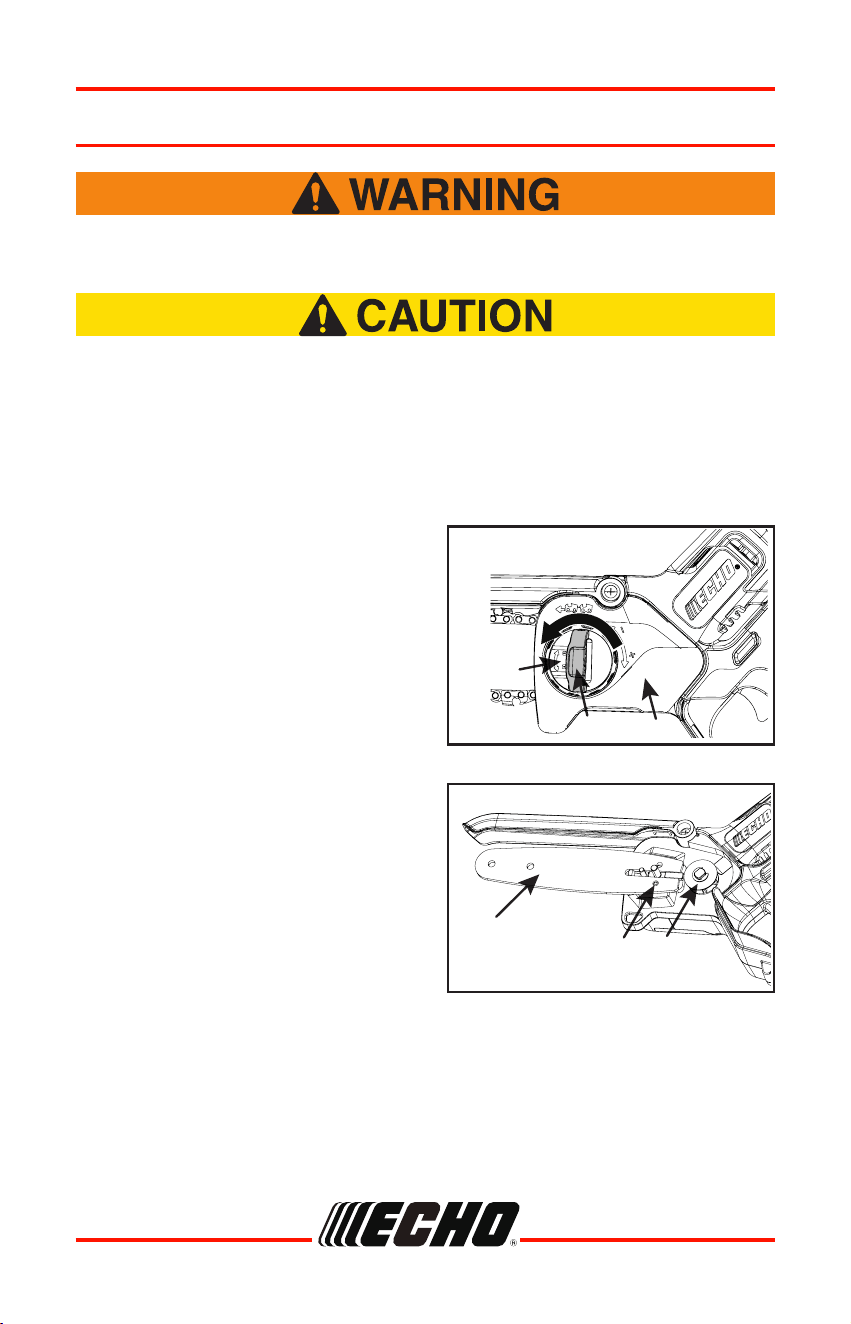

Adjusting Chain Tension

Always loosen sprocket cover knob before turning the chain tension

adjuster, otherwise the sprocket cover and tensioner will be damaged.

1. Loosen sprocket cover knob one

turn.

2. Hold the bar nose up, and turn the

chain tensioner knob (G) clockwise

towards (+) until chain contacts

underside of the bar.

3. Tighten sprocket cover knob with

the bar nose held up and under

tension.

4. Pull the chain around the guide bar

by hand. Loosen the chain tension

knob if you feel tight spots while

rotating chain on the bar by hand.

5. Assemble components in reverse

order.

6. Keep chain properly tensioned at

all times.

Note: All chains require frequent

adjustments.

DHS-3006

9992223830126

ASSEMBLY

Chain Lubricant

Proper lubrication of the chain while in

operation minimizes friction between

the chain, the guide bar and sprocket.

Use ECHO genuine chain oil or ECHO

recommended chain oil specially

formulated for bars and chains for

proper lubrication.

Consult your ECHO dealer for the

proper chain oil.

Never use waste or reclaimed oil

to avoid various malfunctions in oil

system, or on chain and guide bar.

Lubrication problems caused by

the use of improper oil will void the

warranty.

Especially, vegetable based chain oil

quickly turns to resin and adheres to oil

pump, chain and guide bar.

It causes malfunctions and will shorten

product life. If vegetable oil use is

required due to local / municipal rule or

any other reason, then ush chain oil

system with mineral or chemical based

chain oil after vegetable oil use.

(1)

Assumes the battery is just off the charger or stored at the temperature range

noted for Charger Usage 39° F (4°C) - 104°F (40°C).

(2)

Hot batteries in high ambient temperatures require longer charge times.

Recommended Ambient Temperature:

Charging Usage/Discharging Storage

Low High Low High Low High

Product

(1)

Not

Applicable 32°F (0°C) 113°F (45°C) 32°F (0°C) 113°F (45°C)

Battery

(2)(3)

39°F (4°C) 104°F (40°C) 32°F (0°C) 113°F (45°C) 32°F (0°C) 113°F (45°C)

Charger 39°F (4°C) 104°F (40°C) Not

Applicable 32°F (0°C) 113°F (45°C)

DHS-3006

99922238301

ASSEMBLY

Battery Charging

(3)

To maximize battery life of batteries being stored more than 3 months,

ECHO recommends batteries being stored at 3 green lights on the battery

capacity indicator (BCI) at an ambient temperature of 60°F (16°C) - 80°F (27°C),

and not in direct sunlight.

Note: Long term storage of batteries in conditions or charge levels on the

battery capacity indicator (BCI) other than noted above could reduce the

performance and runtime of the battery.

See separate operator’s manuals packaged with battery and charger.

◆

Use only with

ECHO eFORCE

56V battery series

batteries and

chargers.

◆

Keep charger and battery away from damp conditions and all

liquids.

◆

Do not operate the charger on an easily combustible surface

(e.g. paper, textiles) or in an environment with a high risk of

re.

◆

Do not cover the charger. Covering the charger will prevent it

from cooling.

◆

Do not operate the charger in explosive atmospheres, such as

in the presence of ammable liquids, gases or dust. Charger

can produce sparks which may ignite the dust or fumes - there

is a risk of explosion.

◆

Connect the charger only to the mains of voltage and

frequency specied on the rating plate.

◆

Connect the charger only to an easily accessible wall outlet.

◆

Never insert objects in the battery's or charger's cooling slots.

◆

Do not charge or use a defective, damaged or deformed

battery and charger.

◆

Do not open, damage or drop the battery or the charger.

◆

Fluid may leak from the battery if it is damaged or not used

properly; avoid contact with the skin. In the event of accidental

contact, wash the affected areas of the skin with plenty of

DHS-3006

9992223830128

ASSEMBLY

The battery comes partially charged from the factory and needs to be

fully charged before rst use. Charge the battery when it no longer

produces sufcient power to operate the unit or when battery lights

indicate that the battery is low.

Note: Your charger might look different from those pictured.

water and soap. If uid gets in the eyes, do not rub. Rinse the

eyes with plenty of water for at least 15 minutes. Also seek

medical assistance.

◆

Never bridge (short circuit) the battery contacts or the

charger's terminals with metallic objects.

◆

Protect from direct sunlight, heat and open ames and never

throw battery into re; there is a risk of explosion.

◆

In the event of smoke or re in the charger, disconnect it from

the wall outlet immediately.

◆

If the connecting cord is damaged, immediately disconnect

the plug from the power supply to avoid the risk of electric

shock.

◆

Do not expose battery to microwaves or high pressure.

◆

To reduce the risk of stumbling, position and mark the

connecting cord in such a way that it cannot be damaged or

endanger others.

DHS-3006

99922238301

ASSEMBLY

If charger detects a problem, LED will blink RED. Remove battery

from charger, clear obstructions from contacts and reinstall battery

into charger. If battery is outside acceptable temperature range (See

Recommended Ambient Temperature chart) LED will remain RED.

4. When charging is complete, LED will

remain GREEN. See battery manual

for charging time.

5. Verify battery is fully charged. Remove

battery from charger, press battery

charge status button (2), and check

LED display.

• One green light indicates that the

battery has 1-24% charge.

• Two green lights indicate that the

battery has 25-54% charge.

• Three green lights indicate that the battery has 55-79% charge.

• Four green lights indicate that the battery has 80-100% charge.

6. Unplug charger AC cord from the wall outlet.

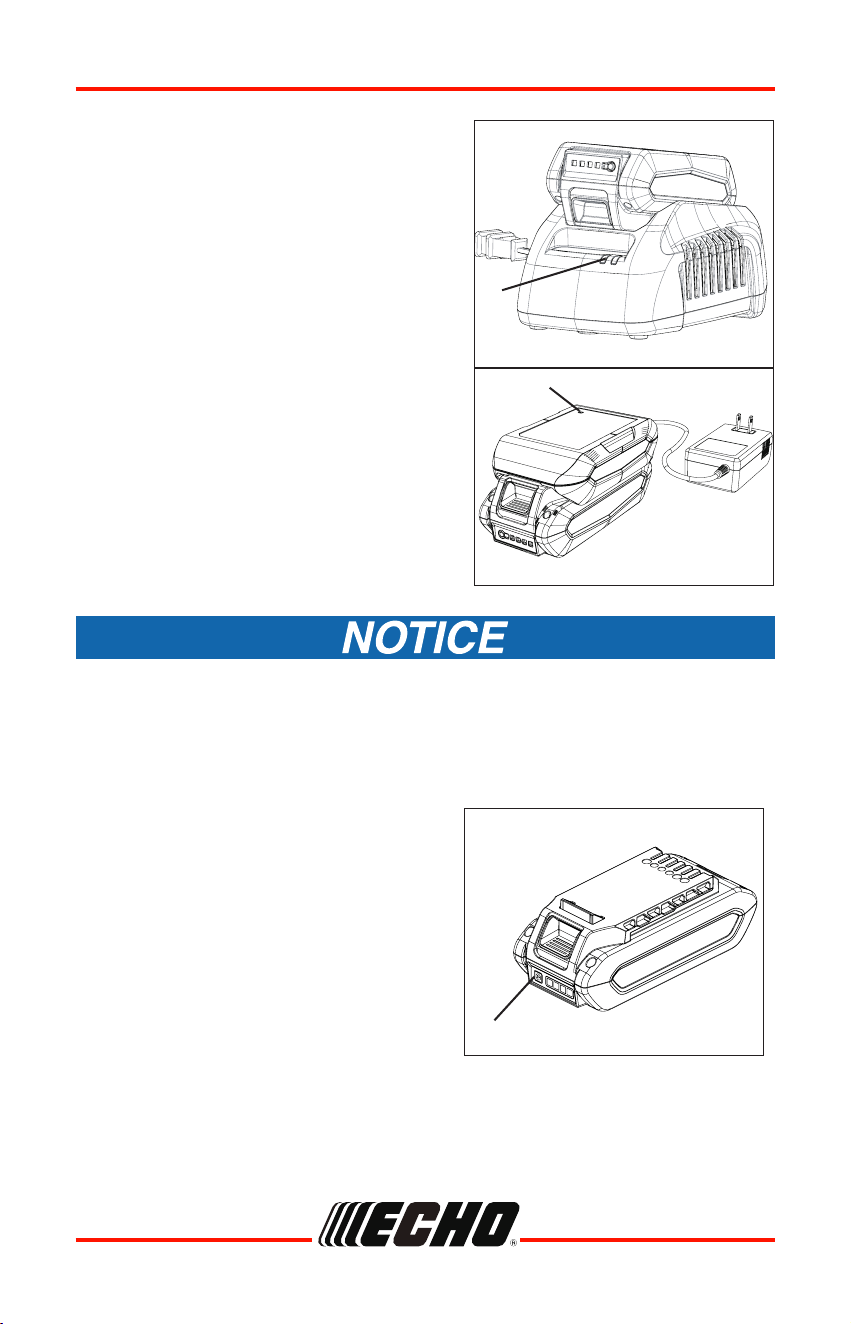

1. Plug charger AC cord in the wall

outlet.

2. Align ridges on battery with grooves

on charger, and slide battery into

charger.

3. During normal charging, the

charger LED (1) will blink GREEN.

DHS-3006

9992223830130

ASSEMBLY

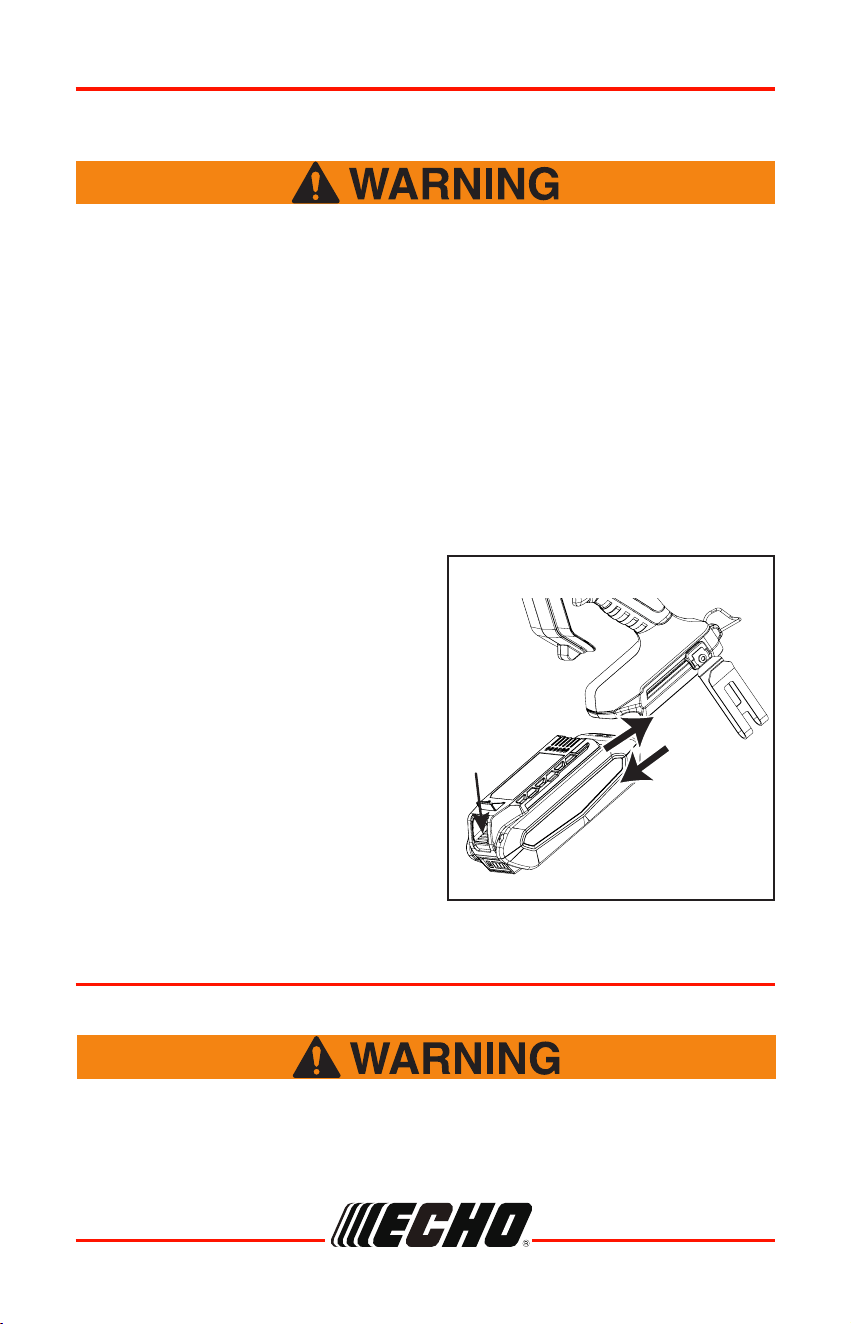

Installing the Battery

Removing the Battery

1. Align ridges on battery with groove

on unit, and insert battery until

battery latch (H) locks and a

clicking sound is heard.

1. To remove battery, depress battery

latch (H), and slide battery out of

the unit.

Installing and Removing the Battery

The product will operate when the battery is installed, and the

trigger switch and trigger switch lockout are engaged. Make sure

the product is properly positioned to prevent loss of control and

possible serious injury.

Keep movable parts of the product off the ground and away from

objects that could become entangled.

Note: The battery comes partially charged from the factory and needs

to be fully charged before rst use.

When starting the unit, observe the precautions described in the

"Safety" section. Failure to observe the precautions could cause

an accident or injury, or even lead to a fatality.

Starting the unit

OPERATION

DHS-3006

99922238301

◆

If the saw chain does not stop when the trigger switch and

trigger switch lockout are released, remove the battery to

stop the power supply to unit. Have your authorized ECHO

servicing dealer repair unit before using again.

◆

When the trigger switch is released, the saw chain

automatically stops. Motor control changes depending on

temperature of the battery therefore stop time of the saw chain

might not be consistent.

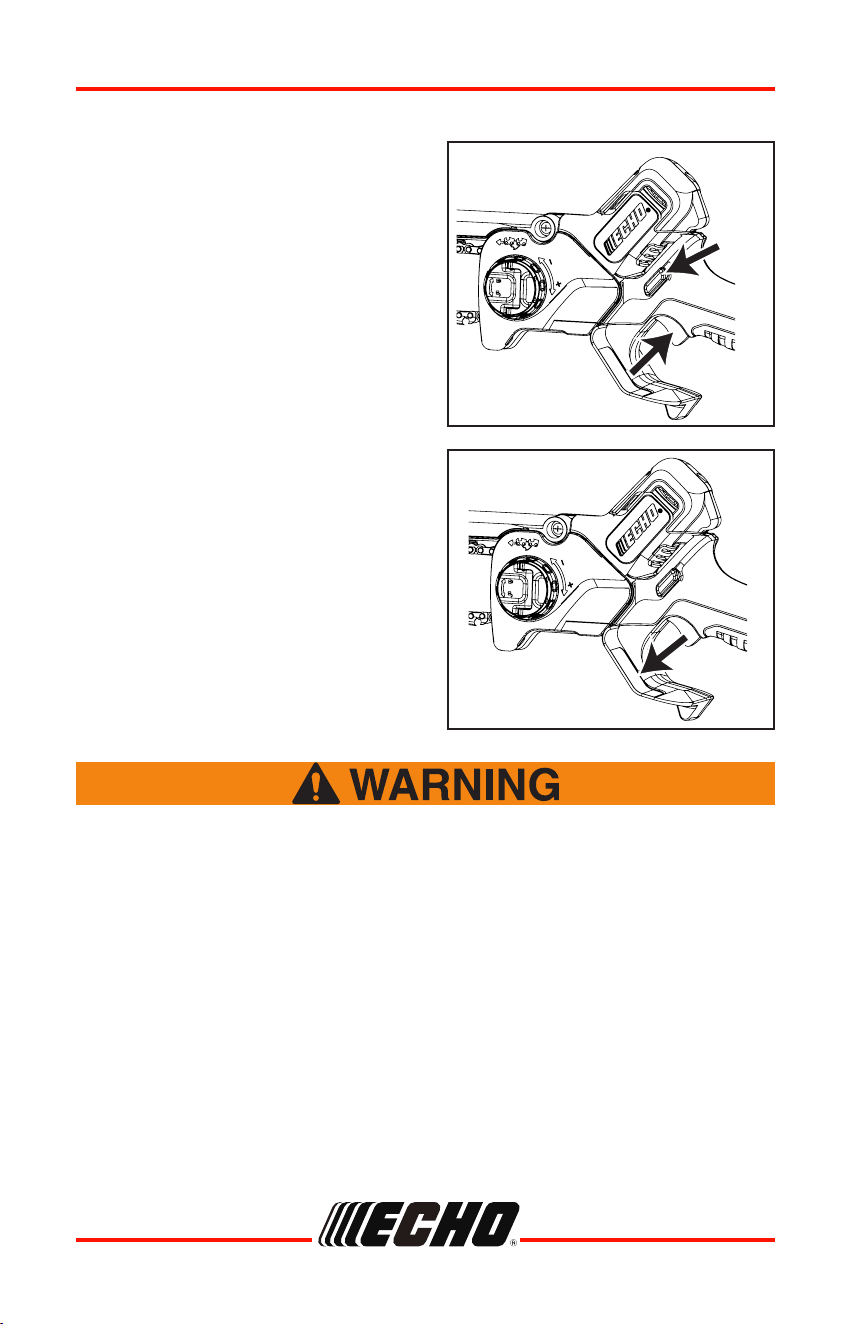

OPERATION

Stopping the unit

1. Remove guide bar cover.

2. Make sure guide bar and saw chain

are not touching anything when

starting the unit.

3. Hold the unit with both handles.

4. Hold down the trigger switch

lockout (I) and depress trigger

switch (J) to increase saw chain

speed.

1. Release trigger switch and trigger

switch lockout, and allow saw chain

to stop.

DHS-3006

9992223830132

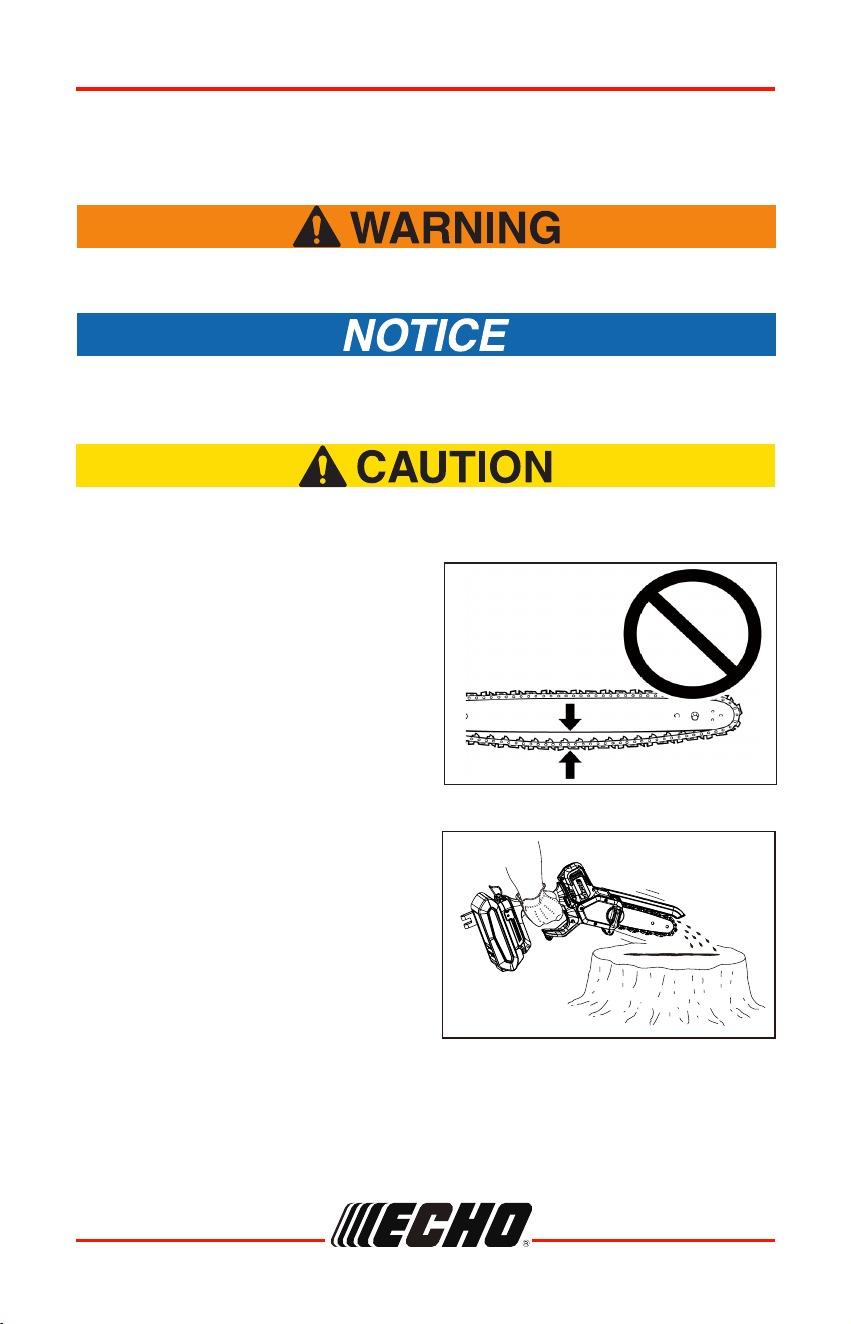

OPERATION

Checking Chain Tension

Before Use

Remove battery from unit when checking chain tension.

1. Chain tension should be checked

frequently during work and adjusted

as necessary.

2. Tension the chain as tight as

possible, but so it can still be pulled

easily along the guide bar by hand.

Always loosen sprocket cover knob before turning the chain tensioner

knob, otherwise damage can occur to the sprocket cover and tensioner.

Chain Lubrication Test

Pre Cutting Test

Hold the chain just above a dry surface

and open the throttle to half speed for

30 seconds.

A thin line of "thrown" oil should be seen

on the dry surface.

• Familiarize yourself with your product before you start actual cutting.

• For this purpose it may be wise to practice by cutting some small logs or

Do not operate with a loose chain. Serious injury can occur.

DHS-3006

99922238301

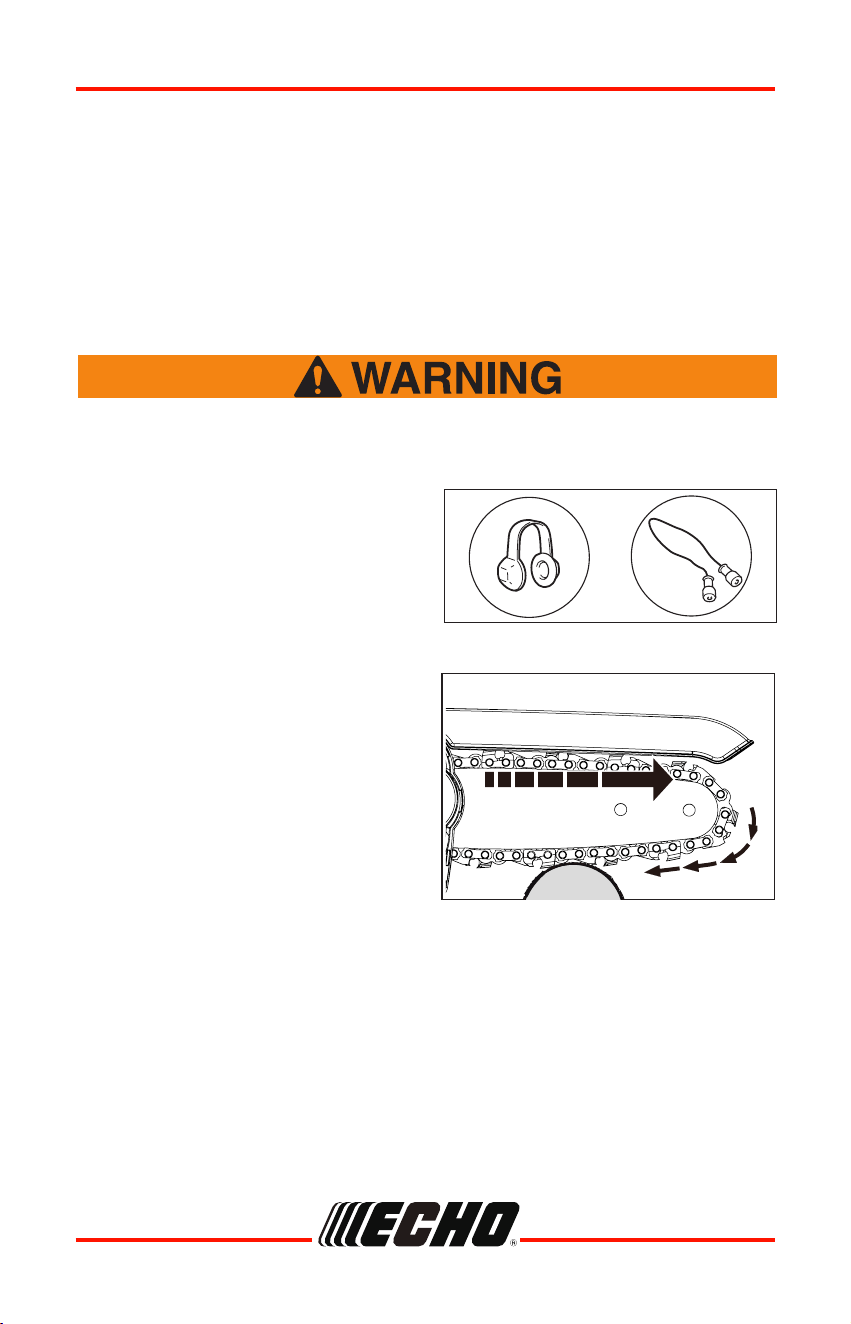

OPERATION

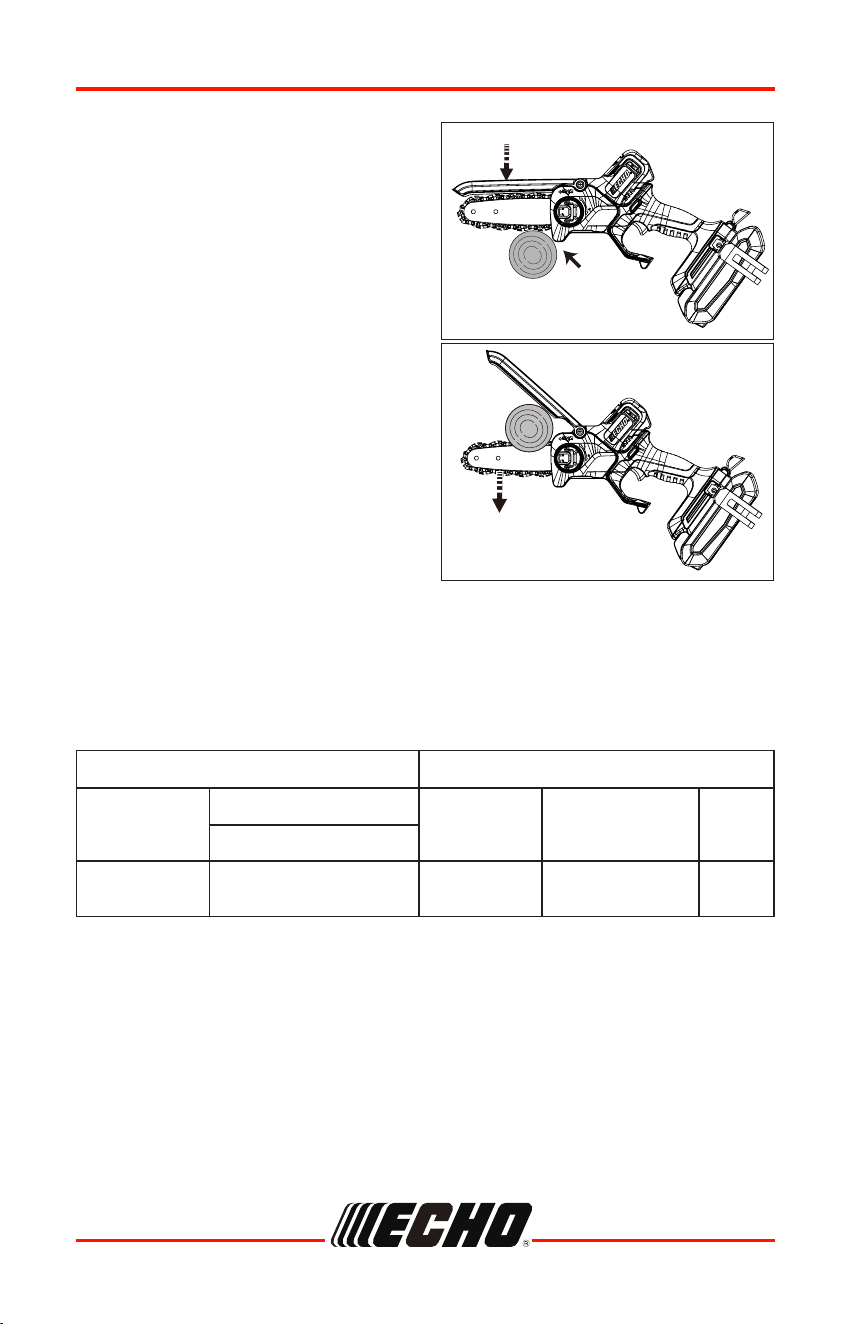

Pull-in occurs when the chain on the

bottom of the bar is suddenly stopped or

signicantly slowed when it is pinched,

caught or encounters a foreign object in

the wood. The reaction of the chain pulls

the product forward and may cause the

operator to lose control, which, in turn,

may cause serious or fatal injury.

Pull-in usually occurs when the bumper

of the product is not held securely

against the branch or limb and the chain

is not rotating at full speed before it

contacts the wood.

Pull-in

To reduce the risk of pull-in:

• Cut with a sharp, properly tensioned chain.

• Always start a cut with the chain rotating at full speed and with the bumper

in contact with the wood.

• Use caution when cutting small-size brush, branches and saplings which

may easily catch the chain, spring towards you or pull you off balance.

• Do not use the product with a damaged or missing guard.

Cutting Instructions

General

◆

This product is designed for cutting wood. Do not cut metal,

plastic or any non-wood material.

◆

Wear suitable hearing

protection such as earmuffs

or earplugs to protect

against objectionable or

uncomfortable loud noises.

limbs several times on a sawhorse or cradle.

• Do not allow either people or animals into the work area. Multiple

operators - Keep a safe distance between two or more operators when

working together simultaneously.

DHS-3006

9992223830134

OPERATION

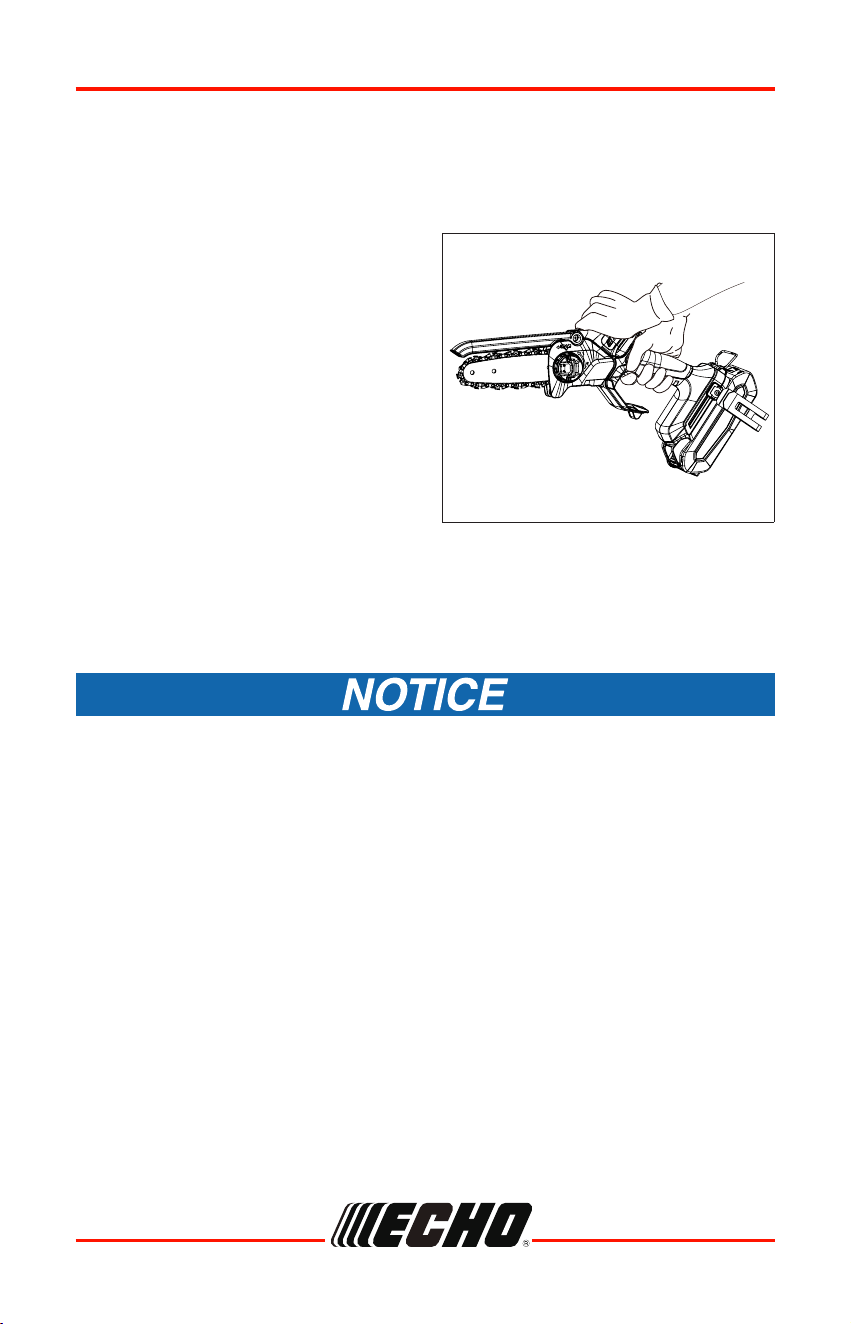

Holding and Controlling the Product

• Wear non-slip gloves for maximum

grip and protection.

• Hold the saw rmly with both

hands.

• Maintain a proper grip on the saw

whenever the unit is running. The

ngers should encircle the handle

and the thumb is wrapped under

the handlebar. This grip is least

likely to be broken (by a kickback

or other sudden reaction of the

saw). Any grip in which the thumb

and ngers are on the same side of

the handle, is dangerous because

a slight kick of the saw can cause

loss of control.

Sap from palm trees may corrode metal parts unless proper saw

maintenance is performed. Make sure to clean metal parts from palm

sap immediately after use.

• Remove sprocket guard. Clean wood chips and sawdust from guard and

motor.

• Never use metal tools for cleaning which can scratch the metal paint and

allow corrosion to develop.

• Clean sap accumulation from metal parts with cloth and warm water with

soap.

• Rinse with clean water and dry metal surfaces.

• Apply a light coating of engine or bar and chain oil to metal parts after they

are cleaned.

• Install and properly tension guide bar and chain. Run motor for one minute

alternating motor speed between maximum RPM for 5 seconds and stop

for 5 seconds to coat metal parts with additional protective chain oil.

DHS-3006

99922238301

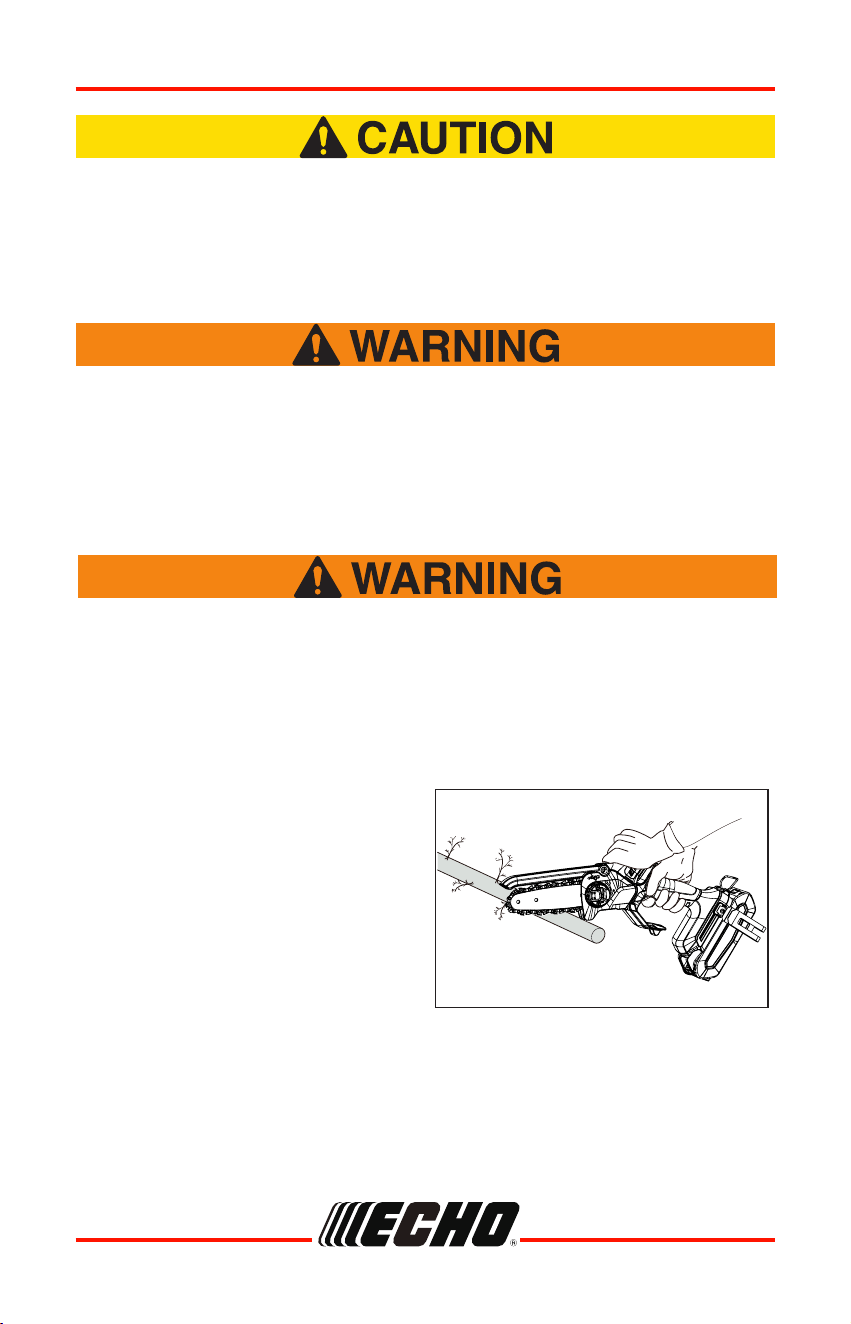

OPERATION

Cutting

To reduce the risk of serious or fatal injuries to the operator

or bystanders, keep hands, feet and other parts of the body

away from the saw chain. Do not touch the saw chain while the

battery is inserted into the product. Never touch the rotating saw

chain with your hand or any part of your body.

To reduce the risk of personal injury,

never work with the product in the rain

or in wet or damp conditions.

Always wear proper clothing and

protective apparel, including proper

eye protection. Work carefully and

maintain proper control of the product.

The product is designed for two-handed

operation.

• Do not operate a pruning saw with

one hand! Serious injury to the

operator, helpers or bystanders may

result from one-handed operation.

For proper control, always use two

hands when operating a pruning

saw, one of which operates the

trigger. Otherwise, this can result in

the chain saw "skating" or skidding,

which can result in personal injury

Never hold the material to be cut or attempt to remove cut

material without rst releasing the trigger switch and

removing the battery. Release the trigger switch and remove

the battery before clearing jammed material.

◆

Keep chain properly tensioned during operation to prevent

the chain from jumping out of the guide bar rail slot and

damaging motor parts.

DHS-3006

9992223830136

OPERATION

due to loss of control.

• Do not overreach and do not cut

above shoulder height. This helps

prevent unintended tip contact

and enables better control of the

product in unexpected situations.

• Always start a cut with the chain

rotating at full speed and with the

bumper in contact with the wood.

• Use caution when approaching

the end of a cut.

• Never put pressure on the product

when reaching the end of a cut.

• Do not cut more then one branch

at the same time.

Observe all applicable laws,

regulations, standards and ordinances.

Guide Bar Saw Chain

Length mm

(in.)

ECHO Part No.

Pitch mm

(in.)

Type Links

Low-kickback

152 (6) 06K4HS3230

8.25

(0.325)

80TXL030X 30

Chain And Guide Bar Combination

The following combinations are recommended for model DHS-3006.

DHS-3006

99922238301

MAINTENANCE

Moving parts can amputate ngers or cause severe injuries.

Keep hands, clothing and loose objects away from all openings.

Always stop motor, and make sure all moving parts have come to

a complete stop before removing obstructions, clearing debris, or

servicing unit. Allow unit to cool before performing service. Wear

gloves to protect hands from sharp edges and hot surfaces.

Operating a poorly maintained unit can result in serious injuries

to operator or bystanders. Always follow all maintenance

instructions as written, otherwise serious personal injury can

result.

MAINTENANCE

Skill Levels

Level 1

= Easy to do. Common tools may be required.

Level 2

= Moderate difculty. Some specialized tools may be required.

Level 3

= See your dealer.

Your unit is designed to provide many hours of trouble free service. Regular

scheduled maintenance will help your unit achieve that goal. If you are unsure

or are not equipped with the necessary tools, we recommend that you take

your unit to a Servicing Dealer for maintenance. To help you decide whether

you want to DO-IT-YOURSELF or have the Dealer do it, each maintenance

task has been graded. If the task is not listed, see your Dealer for repairs.

DHS-3006

9992223830138

MAINTENANCE

Maintenance Intervals

MAINTENANCE PROCEDURE NOTES:

* Replacement is recommended based on the nding of damage or wear

during inspection.

COMPONENT / SYSTEM MAINTENANCE

PROCEDURE

REQ’D

SKILL

LEVEL

Daily or Before Use

Guide Bar & Sprocket Nose Inspect / Clean *

Saw Chain

Inspect / Sharpen / Replace /

Tensioning*

Sprocket Inspect / Replace *

Screws / Nuts / Bolts Inspect / Tighten / Replace *

Battery and Battery

Compartment

Inspect / Clean *

If not maintained properly, the product may pose a serious risk

to physical health.

If not maintained properly, the product's performance may deteriorate.

Time intervals shown are maximum. Actual use and your experience

will determine the frequency of required maintenance. When you nd

anything wrong, ask your ECHO dealer for repair.

DHS-3006

99922238301

MAINTENANCE

Cleaning Battery and Battery Compartment

Risk of electric shock or re. Do not use conducting materials

to clean battery or battery compartment.

1. Depress battery latch release

and slide battery out of battery

compartment.

2. Use compressed air or a soft bristle

brush to remove debris from battery

and battery compartment (K).

Guide Bar

1. Clean before using.

2. Clean the groove (L) of the guide

bar with a small screwdriver.

3. Clean oil holes (M) with a wire.

4. Invert guide bar periodically.

5. Clean the guide bar mount area

before installing the guide bar.

Remove battery before performing maintenance procedures.

DHS-3006

9992223830140

MAINTENANCE

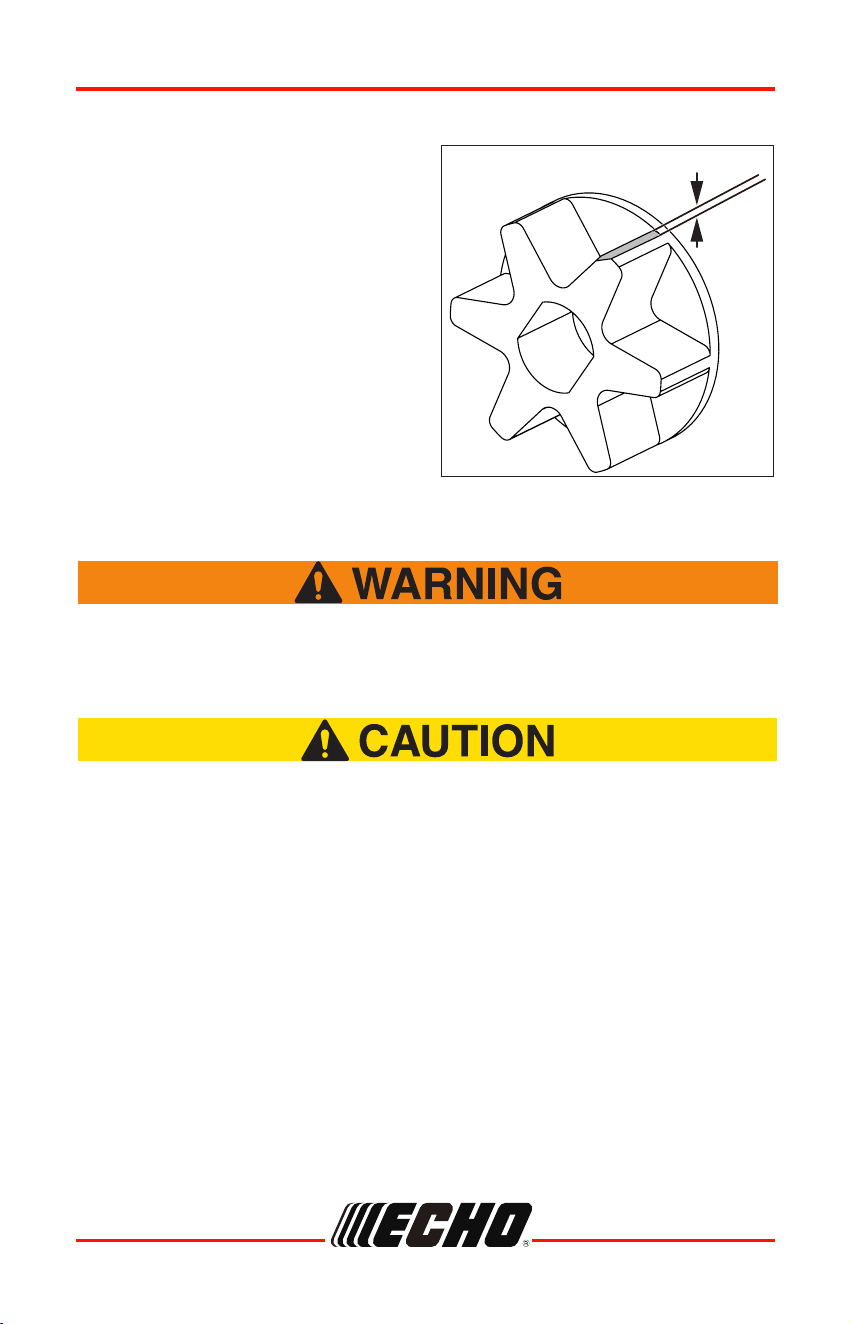

Sprocket

• A damaged sprocket will cause

premature damage or wear of saw

chain.

• When the sprocket has worn 0.5

mm (0.020 in.) or more, replace it.

• Check sprocket and the clutch and

clean the bar mount area before

installation of the bar.

• Replace either or both if worn.

Saw Chain Maintenance

Worn: 0.5 mm (0.020 in.)

Remove the battery before sharpening chain. Always wear gloves

when working on chain. Otherwise serious personal injury may

result.

The following factors will increase the risk of kickback:

◆

Top plate angle too large

◆

File diameter too small

◆

Depth gauge too large

Note: These angles are referred to as 80TXL. For chains of other

brands, follow manufacturers instructions.

DHS-3006

99922238301

MAINTENANCE

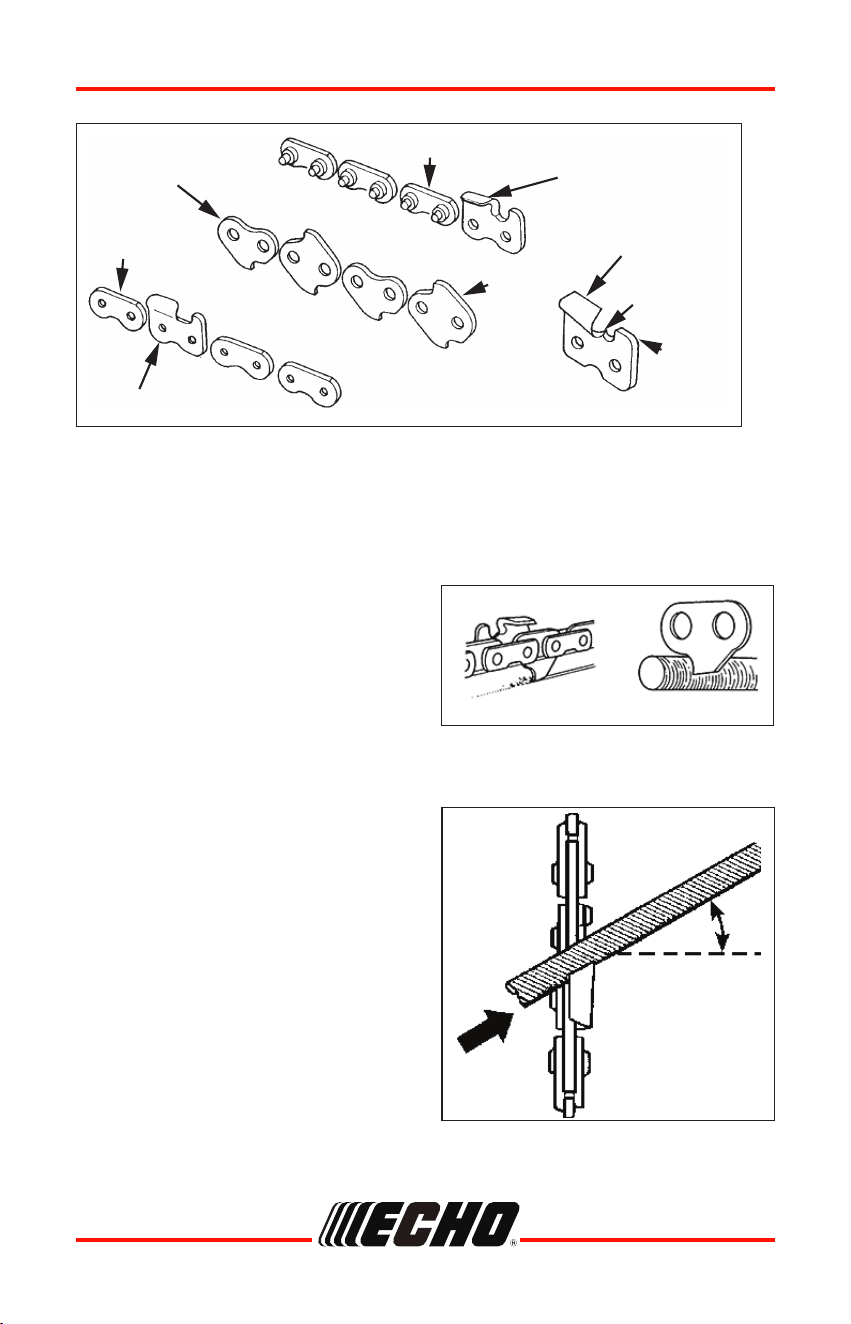

Important points for proper maintenance of saw chain:

• Keep the cutters sharp at all times.

• Keep the left and the right cutters properly aligned.

• Note that blunt or irregular cutters will result in poor cutting performance,

increased vibration of chains and premature breakage of the saw chain.

• Drive link serves to remove sawdust

from the groove of the guide bar.

Keep the lower edge of the drive

link sharp where indicated.

Preset Tie Strap

Drive Link

Tie Strap

Right Hand Cutter

Left Hand Cutter

Top

Plate

Side

Plate

Depth

Gauge

Guard

Link

• 80TXL Chain: Use a round 5/32"

le and at le.

• Push le as shown.

• To keep correct position and correct

angle, use a le holder.

25°

Keep this angle

Setting Saw Chain

DHS-3006

9992223830142

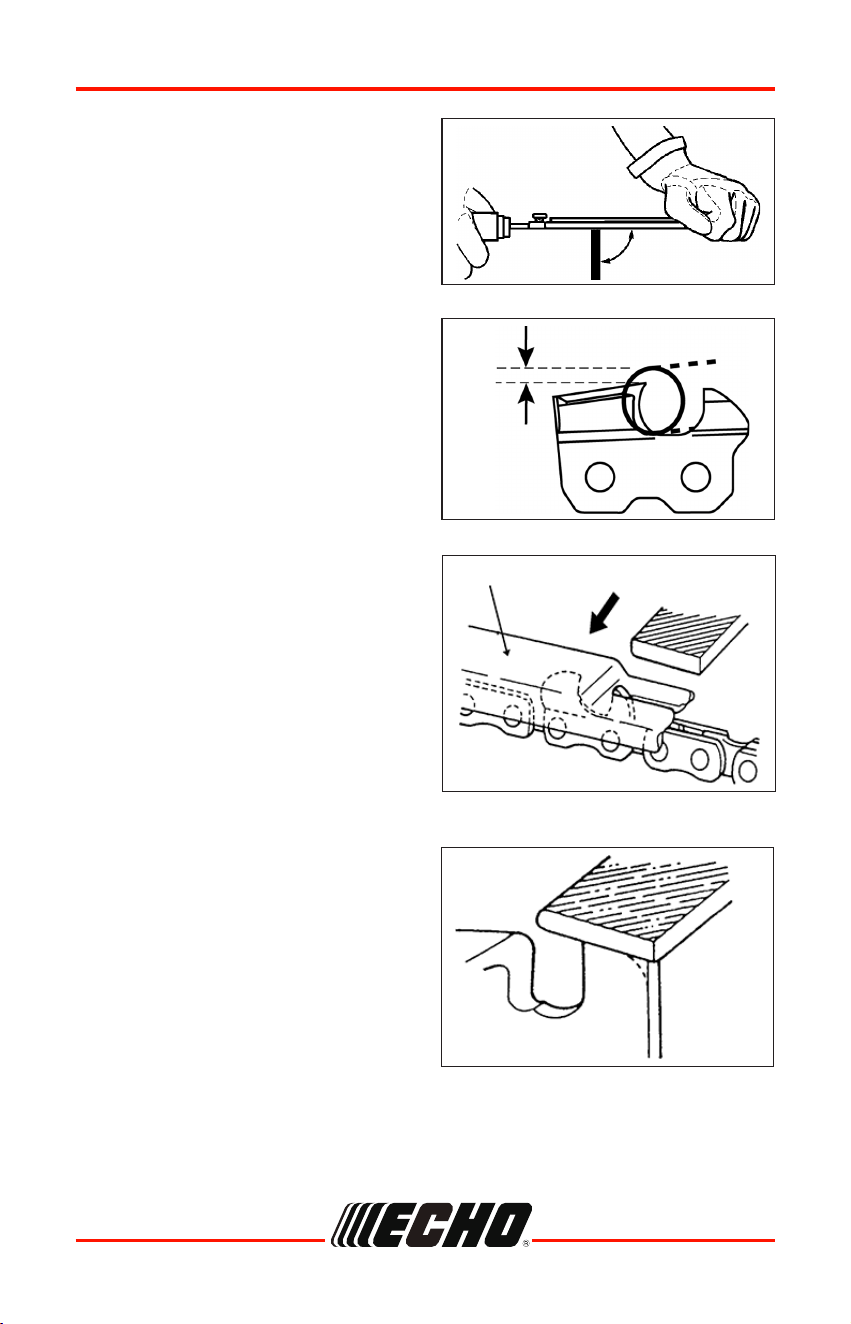

MAINTENANCE

• Hold the le horizontally.

• Place the depth gauge tool rmly

on guide bar so that depth gauge

protrudes. Then le top of depth

gauge with the at le until at with

top of the depth gauge tool.

• One fth of the le diameter

remains above cutter edge.

90°

1/5

• Be sure to round off the front edge

of the depth gauge.

Depth gauge tool

• Properly led cutters are shown in

illustration.

DHS-3006

99922238301

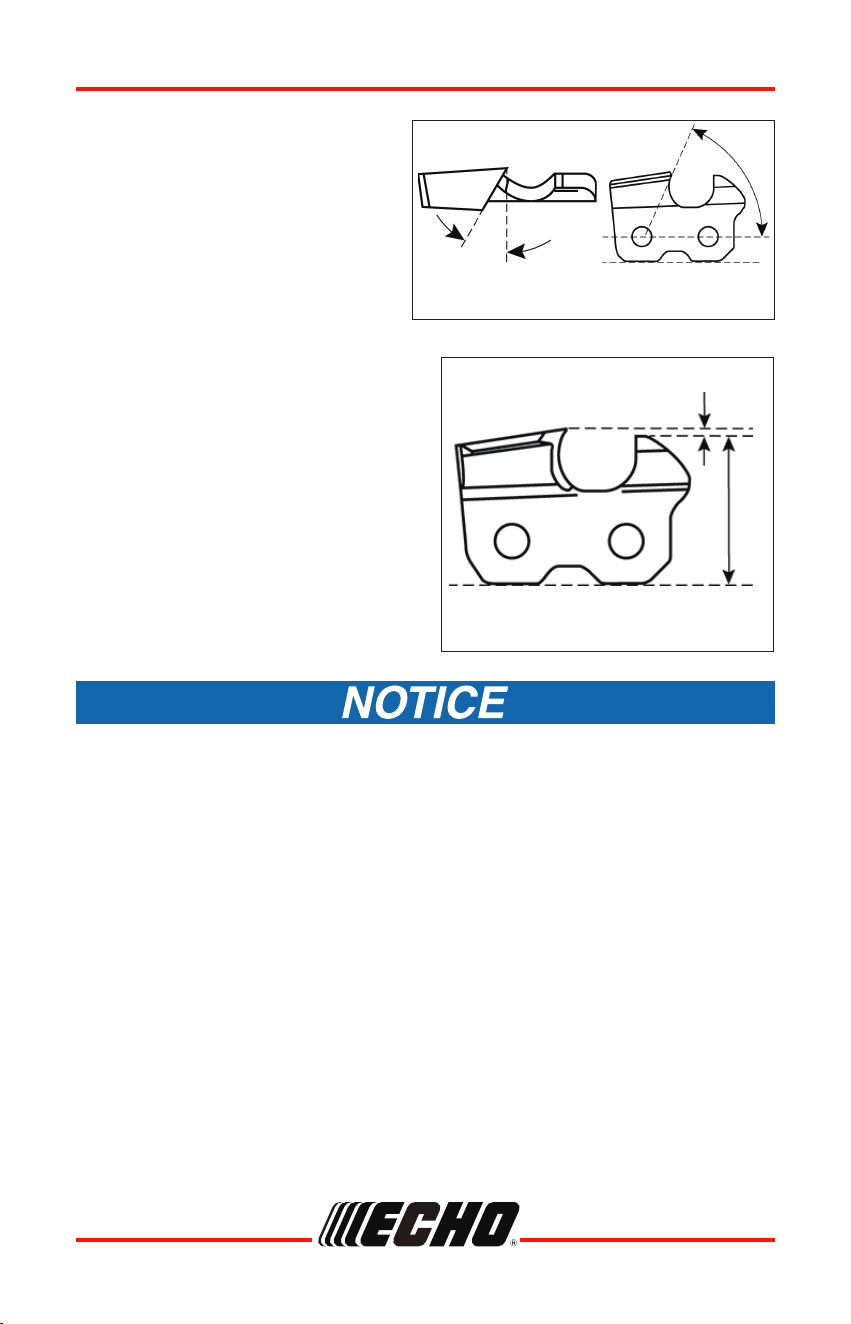

• When setting of the chain is

nished, soak it in oil and wash

away lings completely before

using.

• When chain has been led on the

bar, supply sufcient oil to it, move

the chain slowly to wash away the

lings before using again.

• If the product is operated with

lings clogged in the groove, the

saw chain and the guide bar will be

damaged prematurely.

• If the saw chain becomes soiled

with resin, for instance, clean it with

kerosene and soak in it oil.

Top plate

ling angle

Side plate angle

0.64 mm (0.025 in.)

Parallel

Depth gauge

25°

To sharpen other chains, follow chain manufacturer’s instructions.

MAINTENANCE

DHS-3006

9992223830144

TROUBLESHOOTING

Problem Cause Solution

The guide bar and

the chain become

hot and release

smoke.

The chain is too tight.

Adjust the chain

tension.

The oil tank is empty. Add oil.

Contamination causes

a blockage of the

discharge port.

Remove the guide

bar and clean the

discharge port.

Contamination causes a

blockage of the oil tank.

Clean the oil tank. Add

new oil.

Contamination causes

a blockage of the guide

bar and the oil tank cap.

Clean the guide bar

and the oil tank cap.

Contamination causes a

blockage of the sprocket

or guide wheels.

Clean the sprocket and

the guide wheels.

The motor runs but

the chain does not

rotate.

The chain is too tight.

Adjust the chain

tension.

The guide bar and the

chain are damaged.

Replace the guide bar

and the chain if it is

necessary.

The motor is damaged.

1. Remove the battery

from the machine.

2. Remove the guide

bar scabbard.

3. Remove the bar and

saw chain.

4. Clean the machine.

5. Install battery and

operate the machine.

If the sprocket rotates,

it means the motor

works properly. If not,

call an Authorized

ECHO Dealer.

DHS-3006

99922238301

The motor runs and

the chain rotates, but

the chain does not

cut.

The chain is dull.

Sharpen or replace the

saw chain.

The chain is in the

incorrect direction.

Turn the chain loop to

the other direction.

The chain is tight or

loose.

Adjust the chain

tension.

The motor does not

run.

The machine and battery

are not connected

correctly.

Make sure that the

battery release button

clicks when you install

the battery.

The battery level is low. Charge the battery.

The trigger switch

lockout and the trigger

switch are not pushed at

the same time.

Push the trigger switch

lockout and hold it.

Push the trigger switch

to start the machine.

The battery is too hot or

too cold.

Refer to battery and

charger manual.

The motor runs, but

the chain does not

cut correctly, or the

motor stops after

around 3 seconds.

The machine is in the

protection mode.

Release the trigger

switch and start the

machine again. Do not

force the machine to cut.

The battery is not

charged.

Charge the battery.

Refer to the battery

and charger manual

for correct charging

procedures.

The chain is not

lubricated.

Lubricate the chain to

decrease the friction.

Do not let the guide bar

and the chain operate

without sufcient oil.

Incorrect battery storage

temperature

Cool the battery until

it decreases to the

ambient temperature.

TROUBLESHOOTING

DHS-3006

9992223830146

STORAGE

Storage After Use

When storing the product for long periods of time, ensure that the following

preparations for storage are carried out.

Pruning saw

Battery

Charger

Do not store your unit without performing protective storage maintenance

which includes the following:

1. Remove battery from unit.

2. Remove accumulation of dirt and debris from exterior of unit.

3. Tighten all screws and nuts.

4. Install guide bar scabbard.

5. Cover battery compartment of unit.

6. Store unit in a dry, dust-free place, out of the reach of children.

1. Remove battery from unit.

2. Store in a dry, dust-free place, out of the reach of children.

3. Store in temperatures consistent with recommended ambient temperature

chart.

4. Charge battery according to ambient temperature chart.

1. Remove battery from charger.

2. Disconnect charger from power supply.

3. Store in a dry, dust-free place, out of the reach of children.

DHS-3006

99922238301

SPECIFICATIONS

MODEL DHS-3006

Guide bar length 6'' (152 mm)

Chain pitch 0.325" (8.25 mm)

Chain gauge 0.043" (1.09 mm)

Drive links 30

Oil tank capacity 1.7 oz (50 ml)

Chain speed 25.6 ft/s (7.8 m/s)

Guide bar 06K4HS3230

Saw chain 80TXL030X

Weight without battery 2.87 lbs (1.3 kg)

Battery:

Model

Type

Voltage

Charger type

Charger input voltage

ECHO eFORCE

56V battery series

batteries

Li-Ion

56 (rated 50.4) DC

CCCV

120V AC 60Hz

Charger model ECHO eFORCE

56V battery series charger

Charger Lights

OFF Green blinking

OFF Green

Red OFF

blinking

Battery is charging

Fully charged

Battery is too warm: (Remove for approx.30

minutes to allow to cool)

Defective battery: (Remove and replace with

new battery if this occurs)

Charge Time See Battery Operator's Manual

DHS-3006

9992223830148

PRODUCT REGISTRATION

Thank you for choosing ECHO Power Equipment

Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to

will never be sold or misused by ECHO, Incorporated.

Registering your purchase enables us to contact you in the unlikely event of

a service update or product recall, and veries your ownership for warranty

consideration.

If you do not have access to the Internet, you can complete the form below and

mail to:

ECHO Incorporated, Product Registration, PO Box 1139,

Lake Zurich, IL 60047.

PRODUCT REGISTRATION

DHS-3006

99922238301

PRODUCT REGISTRATION

DHS-3006

9992223830150

WARRANTY

Limited Warranty Statement for ECHO 56 Volt Handheld

Products and Walk Behind Mowers sold in USA and Canada

ECHO Incorporated warrants to the original retail purchaser that this ECHO

brand 56 Volt outdoor product is free from defects in material and workmanship

and agrees to repair or replace, at ECHO Incorporated’s discretion, any

defective product free of charge within these time periods from the date of

purchase:

■

If the product is for homeowner use:

• Units and Bare Tool – 5 Years

• Battery or charger – 2 years

■

If the product is for commercial use:

• Units and Bare Tool – 2 years

• Battery or charger – 2 years

■

If the product is for rental use: 90 days for all units, batteries, and chargers.

■

Cutting attachments such as, but not limited to, bars, chains, sprockets,

blades, tines, belts, PowerBroomTM and nylon trimmer heads for

homeowner or non-income producing use will be covered for failures due

to defects in material or workmanship for a period of 60 days from original

product purchase date and 30 days for commercial / rental use. Any misuse

from contact with concrete, rocks, or other structures is not covered by this

warranty.

This warranty extends to the original retail purchaser only and commences on

the date of the original retail purchase.

Any part of this product found in the reasonable judgment of ECHO

Incorporated, to be defective in material or workmanship will be repaired or

replaced without charge for parts and labor by an authorized ECHO dealer.

Units, repair parts and accessories replaced under this warranty are warranted

only for the balance of the original warranty period.

The product, including any defective part, must be returned to an authorized

ECHO dealer within the warranty period. The expense of delivering the product

to the service center for warranty work and the expense of returning it back

to the owner after repair or replacement will be paid by the owner. ECHO

Incorporated’s, responsibility in respect to claims is limited to making the

required repairs or replacements and no claim of breach of warranty shall be

cause for cancellation or rescission of the contract of sale of any ECHO brand

56 Volt outdoor product. Proof of purchase will be required by the dealer to

substantiate any warranty claim. All warranty work must be performed by an

authorized ECHO dealer.

This warranty does not cover any units, battery or charger that has been

subject to misuse, neglect, negligence, or accident, or that has been operated

in any way contrary to the operating instructions as specied in the Operator’s

Manual. This warranty does not cover normal deterioration due to the use

or exposure, and any repairs made necessary by normal wear, improper

DHS-3006

99922238301

WARRANTY

maintenance, improper lubrication, improper storage, dirt, abrasives, impact,

moisture, water, rain, snow, rust, corrosion, varnish, or other similar conditions.

This warranty does not cover damage to chargers or batteries by improper

charging voltage and batteries that have been exposed to temperatures

beyond those specied in the Operator’s Manual, batteries that have not been

properly charged or batteries that have reached their useful life.

This warranty does not apply to any damage to the product that is the result

of improper maintenance or to any product that has been altered or modied.

The warranty does not extend to repairs made necessary by normal wear or by

the use of parts or accessories which are either incompatible with the ECHO

brand 56 Volt outdoor product or adversely affect its operation, performance, or

durability. In addition, this warranty does not cover wear to normal items such

as, but not limited to:

Wear items – Bump Knobs, Outer Spools, Cutting Lines, Inner Reels, Felt

Washers, Hitch Pins, Mulching Blades, Blower Fans, Blower and Vacuum

Tubes, Vacuum Bag and Straps, Guide Bars, Saw Chains, Grass Catch Bag,

Hedge Trimmer Blades, and Wheels

ECHO Incorporated, reserves the right to change or improve the design of

this product without assuming any obligation to modify any product previously

manufactured.

All implied warranties are limited in duration to the stated warranty period.

Accordingly, any such implied warranties including merchantability, tness for

a particular purpose, or otherwise, are disclaimed in their entirety after the

expiration of the appropriate ve-year, two-year, one-year, 90-day, 60-day, or

30-day warranty period. ECHO Incorporated’s obligation under this warranty is

strictly and exclusively limited to the repair or replacement of defective parts.

ECHO Incorporated, does not assume or authorize anyone to assume for

them any other obligation. Some states do not allow limitations on how long

an implied warranty lasts, so the above limitation may not apply to you. ECHO

Incorporated, assumes no responsibility for incidental, consequential, or other

damages including, but not limited to, expense of returning the product to an

authorized dealer for ECHO brand 56 Volt outdoor products and expense of

delivering it back to the owner, mechanic’s travel time, telephone charges,

rental of a like product during the time warranty service is being performed,

travel, loss or damage to personal property, loss of revenue, loss of use of the

product, loss of time, or inconvenience. Some states do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation or

exclusion may not apply to you.

This warranty gives you specic legal rights, and you may also have other

rights which vary from state to state.

This warranty applies to all ECHO brand 56 Volt outdoor products manufactured

by or for ECHO Incorporated, and sold in the United States and Canada.

To locate your nearest authorized ECHO dealer, visit www.ECHO-usa.com or

dial 1-800-432-ECHO (3246).

DHS-3006

9992223830152

NOTES

DHS-3006

99922238301

NOTES

460HS0000001 - 460HS9999999

ECHO INCORPORATED

400 Oakwood Road

Lake Zurich, IL 60047

ECHO DHS-3006BT Brushless Cordless Handheld Mini Pruning Chainsaw Tool Professional Grade

Product's Documents

Use and Care Manual

Specifications

ECHO DHS-3006BT Questions and Answers
