ECHO DPAS-2600BT EFORCE 56V Brushless Cordless Power Head User Manual

X7508230802

Operator’s

Manual

DPAS-2600

Pro Attachment

Series™

Read and understand all provided literature before use. Failure

to do so could result in serious injury.

Cancer and Reproductive Harm

www.P65Warnings.ca.gov

Note: This product complies with CAN ICES-003(B) / NMB-003(B)

TABLE OF CONTENTS DPAS-2600

2 X7508230802

TABLE OF CONTENTS

Introduction................................................................................................................................................ 3

Servicing Information................................................................................................................................. 4

Parts and Serial Number ................................................................................................................. 4

Service............................................................................................................................................. 4

ECHO Consumer Product Support.................................................................................................. 4

Product Registration ........................................................................................................................ 4

Additional Literature......................................................................................................................... 4

Safety ........................................................................................................................................................ 5

Manual Safety Symbols and Important Information......................................................................... 5

International Symbols ...................................................................................................................... 6

Handling the Product ...................................................................................................................... 8

Equipment ..................................................................................................................................... 14

General Safety Warnings and Instructions for the following ECHO tools: Curved Shaft Edger,

Straight Shaft Edger, Tiller Cultivator, or Pole Pruner, or DPAS unit configured as a Curved Shaft

Edger, Straight Shaft Edger, Tiller Cultivator, or Pole Pruner. ....................................................... 16

General Safety Warnings and Instructions for the following ECHO tool: Blower or DPAS unit

configured as a Blower. ................................................................................................................. 18

General Safety Warnings and Instructions for the following ECHO tools: Hedge Trimmer, Mid-Reach

Hedge Trimmer, Shafted Hedge Trimmer, or Articulating Hedge Trimmer, or DPAS unit configured

as a Hedge Trimmer, Mid-Reach Hedge Trimmer, Shafted Hedge Trimmer, or Articulating Hedge

Trimmer. ........................................................................................................................................ 19

General Safety Warnings and Instructions for the following ECHO tools: All DSRM and DGT models,

and DPAS units configured as trimmers and brush cutters. .......................................................... 20

This section contains additional warnings and instructions contained in UL 62841-4-2 and 62841-4-

4. ................................................................................................................................................... 23

For grass trimmers, brush cutters, and brush saws, according to the type of supplied cutting

accessory: ..................................................................................................................................... 23

For hedge trimmers: ..................................................................................................................... 26

Description............................................................................................................................................... 29

Contents .................................................................................................................................................. 30

Assembly ................................................................................................................................................. 31

Support Handle Installation ........................................................................................................... 31

Power Head Shaft to Lower Shaft Assembly................................................................................. 31

Temperature Information ............................................................................................................... 32

Battery Charging............................................................................................................................ 32

Battery Removal ............................................................................................................................ 36

Operation................................................................................................................................................. 37

Starting Unit................................................................................................................................... 37

Stopping Unit ................................................................................................................................. 38

Applications ................................................................................................................................... 38

Operating Techniques - Nylon Line Head ...................................................................................... 39

Operating Techniques - Metal or Plastic Blade.............................................................................. 40

Reaction Forces ............................................................................................................................ 40

Blade Cutting Problems................................................................................................................. 42

Maintenance ............................................................................................................................................ 43

Skill Levels..................................................................................................................................... 43

Maintenance Intervals ................................................................................................................... 44

Maintenance and Care .................................................................................................................. 44

Lubrication ..................................................................................................................................... 45

Nylon Line Replacement ............................................................................................................... 46

Nylon Line Head Disassembly Instructions ................................................................................... 47

Sharpening Metal Blades .............................................................................................................. 48

Troubleshooting....................................................................................................................................... 50

Storage .................................................................................................................................................... 51

Storage ......................................................................................................................................... 51

Disposal......................................................................................................................................... 52

Specifications .......................................................................................................................................... 53

ECHO Optional Attachments ......................................................................................................... 54

Warranty .................................................................................................................................................. 56

Product Registration ................................................................................................................................ 57

Notes ....................................................................................................................................................... 59

DPAS-2600 INTRODUCTION

X7508230802 3

INTRODUCTION

Specifications, descriptions, and illustrative material in this literature are as

accurate as possible. Specifications are subject to change without notice.

Illustrations might include optional equipment and accessories, and might

not include all standard equipment. Your equipment might appear slightly

different than pictured equipment.

Read and understand all provided literature.

Literature contains specifications and

information for safety, operation,

maintenance, storage, and assembly

specific to this product. Scan QR codes for

more information.

For additional literature, including safety manuals where applicable, or

questions regarding terms used in this manual, visit:

https://www.echo-usa.com/manuals

https://www.shindaiwa-usa.com/manuals

SERVICING INFORMATION DPAS-2600

4 X7508230802

SERVICING INFORMATION

Parts and Serial Number

Genuine ECHO parts and

assemblies for your ECHO products

are available only from an

Authorized ECHO Dealer. When

you do need to buy parts, always

have the model number and serial

number of the unit with you. For

future reference write them in the

space provided below.

Model No. _____________________ Serial No. ____________________

Service

Service of this product during the warranty period must be performed by an

Authorized ECHO Service Dealer. For the name and address of the

Authorized ECHO Service Dealer nearest you, ask your retailer or call:

1-800-432-ECHO (3246). Dealer information is also available on our Web

Site www.echo-usa.com. When presenting your unit for Warranty service/

repairs, proof of purchase is required.

ECHO Consumer Product Support

If you require assistance or have questions concerning the application,

operation, or maintenance of this product, call the ECHO Consumer

Product Support Department at 1-800-432-ECHO (3246) from 8:00 a.m. to

5:00 p.m. (Central Standard Time) Monday through Friday. Before calling,

please know the model and serial number of your unit.

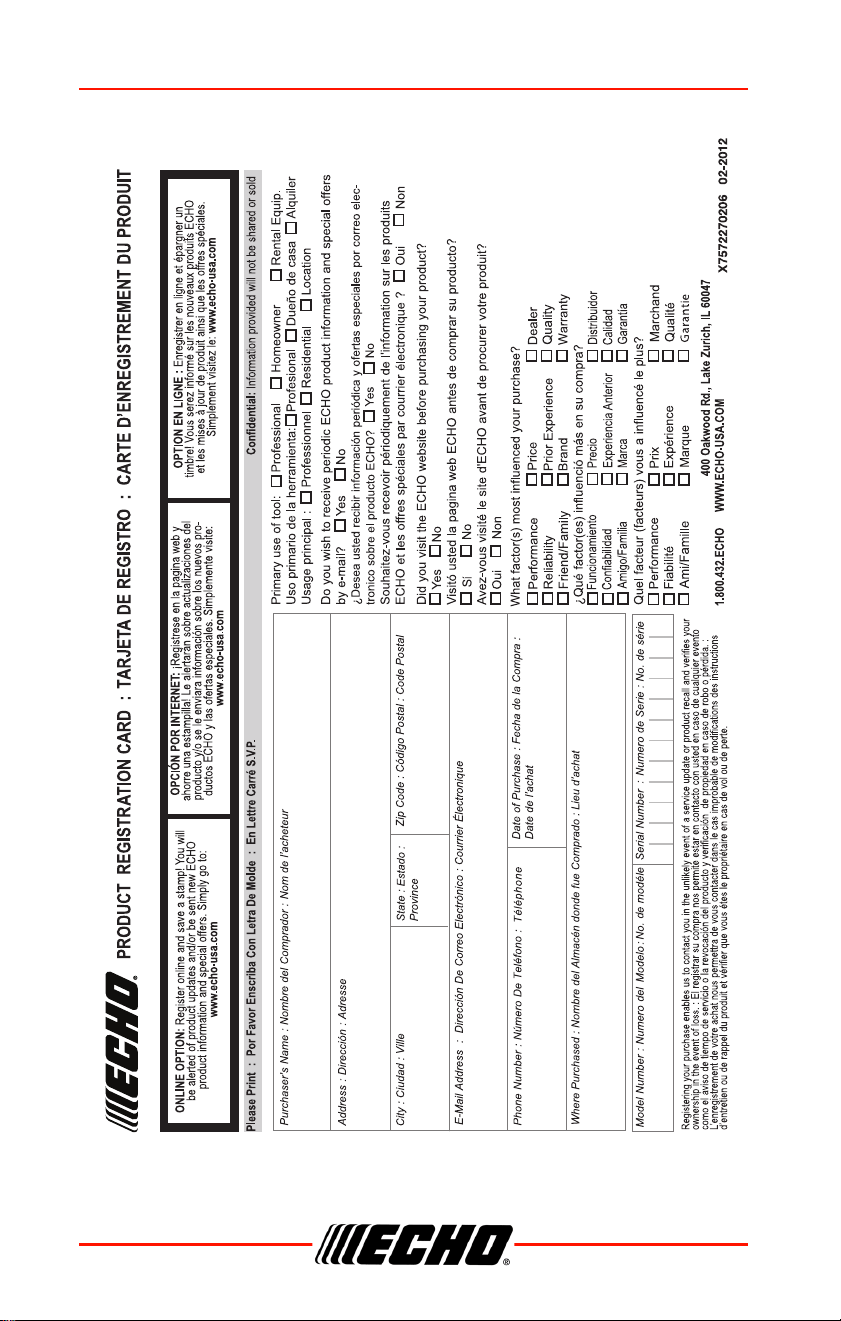

Product Registration

out the product registration sheet included in this manual. Registering your

product confirms warranty coverage and provides a direct link to ECHO if

we find it necessary to contact you.

Additional Literature

In addition to finding information online, information is available from your

Authorized ECHO Service Dealer, or by contacting ECHO Incorporated,

400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).

DPAS-2600 SAFETY

X7508230802 5

SAFETY

Manual Safety Symbols and Important Information

Throughout this manual and on the product itself, you will find safety alerts

and helpful, informational messages preceded by symbols or key words.

The following is an explanation of those symbols and key words and what

they mean to you.

The safety alert symbol accompanied by the word “DANGER”

calls attention to an act or condition which WILL lead to serious

personal injury or death if not avoided.

The safety alert symbol accompanied by the word “WARNING”

calls attention to an act or condition which CAN lead to serious

personal injury or death if not avoided.

The safety alert symbol accompanied by the word “CAUTION”

calls attention to an act or condition which might lead to minor

or moderate personal injury if not avoided.

The enclosed message provides information necessary for the

protection of the unit.

Note: This enclosed message provides tips for use, care and

maintenance of the unit.

CIRCLE AND SLASH SYMBOL

This symbol means the specific action shown is prohibited.

Ignoring these prohibitions can result in serious or fatal injury.

SAFETY DPAS-2600

6 X7508230802

International Symbols

Symbol Description Symbol Description

Warning, See

Operator’s Manual

Beware of Fire

Wear Eye, Ear and

Head Protection

Do Not Dispose in

Household Trash

Wear Hand and Foot

Protection

Guaranteed Sound

Power Level

Safety / Alert

DO NOT USE Line Head

- Blades Only

Hot Surface

DO NOT USE BLADES -

Line Head Only

AVOID KICKOUT

Keep Bystanders At Least

15 m (50 ft.) Away

Beware Thrown Objects

Wear Eye Protection

Keep Bystanders and Helpers

Away 15 m (50 ft.)

Keep Feet Away

From Blade

Rotating Cutting

Attachment

DPAS-2600 SAFETY

X7508230802 7

Note: Not all symbols will appear on your unit.

Read the Manuals

• Provide all users of this equipment with the operator’s manual for

instructions on safe operation.

Clear the Work Area

• Always clear the work area of foreign objects such as rocks, broken

glass, nails, wire, or string, which can be thrown or become entangled in

the cutting attachment, and check for any hidden hazards. Spectators and

fellow workers must be warned, and children and animals prevented from

coming nearer than 50 ft. (15 m) while the unit is in use.

• Outside the 50 ft. (15 m) zone, there is still a risk of injury from thrown

objects.

• Bystanders should be encouraged to wear eye protection.

• If you are approached, stop the unit and cutting attachment.

Thrown Objects Wear Face Shield

Finger Severing

Wear Slip Resistant

Footwear

Do not operate closer

than 15 m (50 ft.) from

electrical hazards.

Keep bystanders at

least 15 m (50 ft.) away.

Plan a retreat path from

falling objects.

Do not expose to rain

/ water

Avoid blade kickout.

Symbol Description Symbol Description

SAFETY DPAS-2600

8 X7508230802

• When a bladed unit is used, there is the added risk of injury to bystanders

being struck with the moving blade in the event of a blade thrust or other

unexpected reaction of the blade.

Keep a Firm Grip

• Always hold throttle handle and support handle with thumbs and fingers

tightly encircling the handles.

Keep a Solid Stance

• Maintain footing and balance at all times. Do not stand on slippery,

uneven or unstable surfaces. Do not work in odd positions or on ladders.

Do not overreach.

Handling the Product

General Safety Warnings and Instructions

This section contains the prescribed general safety warnings and

instructions for battery-powered products contained in UL 2595 and for

handheld tools, transportable tools and lawn and garden machinery

contained in UL 62841-1. Additional important warnings and instructions are

provided in subsequent sections of this manual.

Important Safety Instructions

Read all safety warnings, instructions, illustrations, and

specifications provided with this power tool. Failure to follow all

instructions listed below may result in electric shock, fire,

serious injury and/or property damage.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated

(corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite

accidents.

• Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

DPAS-2600 SAFETY

X7508230802 9

• Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce the risk of electric

shock.

• Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric

shock.

• When operating a power tool outdoors, use an extension cord suitable for

outdoor use. Use of a cord suitable for outdoor use reduces the risk of

electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground

fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces

the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool while you are tired, ill, or

under the influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in serious personal

injury.

• Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard

hat, or hearing protection used for appropriate conditions will reduce

personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position

before connecting to power source and/or battery, picking up or carrying

the tool. Carrying power tools with your finger on the switch or energizing

power tools that have the switch on invites accidents.

• Disconnect the battery pack from the appliance before making any

adjustments, changing accessories, or storing appliance. Such preventive

safety measures reduce the risk of starting the appliance accidentally.

SAFETY DPAS-2600

10 X7508230802

• Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This

enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewelry or

long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection

facilities, ensure these are connected and properly used. Use of dust

collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to

become complacent and ignore tool safety principles. A careless action

can cause severe injury within a fraction of a second.

Proper Clothing

Wear snug-fitting, durable clothing:

• Pants should have long legs, shirts should have long sleeves.

• DO NOT WEAR SHORTS.

• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or

hanging items that could become entangled in moving parts or

surrounding growth.

• Keep clothing buttoned or zipped, and keep shirt tails tucked in.

• Wear sturdy work shoes with nonskid rubber soles.

• Wear sturdy, no-slip, rubber work gloves to improve your grip on the

handles. Gloves also provide protection against cuts and scratches, cold

environments, and reduce the transmission of machine vibration to your

hands.

• DO NOT WEAR OPEN TOED SHOES.

• DO NOT OPERATE UNIT WITH BARE FEET.

Power Tool Use and Care

• Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at the

rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any

power tool that cannot be controlled with the switch is dangerous and

must be repaired.

DPAS-2600 SAFETY

X7508230802 11

• Disconnect the plug from the power source and/or the battery from the

power tool before making any adjustments, changing accessories, or

storing power tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow

persons unfamiliar with the power tool or these instructions to operate the

power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding

of moving parts, breakage of parts and any other condition that may affect

the power tool’s operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with

sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with

these instructions, taking into account the working conditions and the

work to be performed. Use of the power tool for operations different from

those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean, and free from oil and

grease. Slippery handles and grasping surfaces do not allow for safe

handling and control of the tool in unexpected situations.

Battery Tool Use and Care

• Recharge batteries only with ECHO eFORCE

56V battery series

chargers. A charger that is suitable for one type of battery may create a

risk of fire when used with another battery.

• Use only with ECHO eFORCE

56V battery series. Use of any other

battery may create a risk of injury and fire.

• When battery is not in use, keep it away from other metal objects, like

paper clips, coins, keys, nails, screws or other small metal objects, that

can make a connection from one terminal to another. Shorting the battery

terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid

contact. If contact accidentally occurs, flush with water. If liquid contacts

eyes, additionally seek medical help. Liquid ejected from the battery may

cause irritation or burns.

• Do not open or destroy the battery. Electrolytes contained within the

battery are corrosive and may cause damage to eyes or skin if released.

It may be toxic if swallowed.

SAFETY DPAS-2600

12 X7508230802

• Exercise care in handling batteries to avoid shorting the battery with

conducting materials such as rings, bracelets, keys, etc. The battery or

conductor may overheat and cause burns if contact with said materials is

made.

• Do not use a battery or tool that is damaged or modified. Damaged or

modified batteries may exhibit unpredictable behavior resulting in fire,

explosion or risk of injury.

• Do not expose a battery or tool to fire or excessive temperature.

Exposure to fire or temperature above 130°C (265°F) may cause

explosion.

• Follow all charging instructions and do not charge the battery or tool

outside the temperature range specified in the instructions. Charging

improperly or at temperatures outside the specified range may damage

the battery and increase the risk of fire.

Service

• Do not modify or attempt to repair the appliance or the battery pack (as

applicable) except as indicated in the instructions for use and care.

• Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power

tool is maintained.

• Never service damaged battery packs. Service of battery packs should

only be performed manufacturer or authorized service providers.

Environmentally Safe Battery Disposal

Recycle your ECHO ECHO eFORCE

56V battery FOR FREE at

Rechargeable Battery Recycling Corporation (RBRC) recycling locations.

Call 1-800-822-8837 or visit https://www.call2recycle.org for details.

The toxic and corrosive materials below are in the batteries used in this

machine: Lithium-Ion, a toxic material.

R B R C

Li - ion

DPAS-2600 SAFETY

X7508230802 13

Discard all toxic materials in a specified manner to prevent

contamination of the environment. Before discarding a

damaged or worn out Lithium-ion battery, contact your local

waste disposal agency, or the local Environmental Protection

Agency for information and specific instructions. Take the

batteries to a local recycling and/or disposal center, certified for

Lithium-ion disposal.

If the battery cracks or breaks, with or without leaks, do not

recharge it and do not use. Discard it and replace with a new

battery. DO NOT TRY TO REPAIR IT! To prevent injury and risk

of fire, explosion, or electric shock, and to avoid damage to

the environment:

• Cover the terminals of the battery with heavy-duty adhesive tape.

• DO NOT try to remove or destroy any of the battery components.

• DO NOT try to open the battery.

• If a leak develops, the released electrolytes are corrosive and toxic. DO

NOT get the solution in the eyes or on skin, and do not swallow it.

• DO NOT put these batteries in your regular household trash.

• DO NOT incinerate.

• DO NOT put them where they will become part of any waste landfill or

municipal solid waste stream.

• Take them to a certified recycling or disposal center.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference

that may cause undesired operation.

SAFETY DPAS-2600

14 X7508230802

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate equipment.

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy, and if not

installed and used in accordance with the instructions, may cause

harmful interference to radio or television reception. The reception

can be determined by turning the equipment off and on. The user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Equipment

Use only ECHO attachments. Serious injury may result from the

use of a non-approved attachment combination. ECHO

Incorporated will not be responsible for the failure of cutting

devices, attachments or accessories which have not been

tested and approved by ECHO. Read and comply with all safety

instructions.

◆ Do not attempt to modify this product. Serious injury can

result from the use of any modified product.

◆ Check unit for loose or missing nuts, bolts, and screws.

Tighten or replace as needed.

DPAS-2600 SAFETY

X7508230802 15

◆ Inspect shield for damage and ensure that shield is

properly installed, and that the cutoff knife is securely in

place. Replace if either is damaged or missing.

◆ Check that the cutting attachment is firmly attached and in

safe operating condition.

◆ Manufacturer recommended flexible non-metallic line is

installed in the trimmer head.

◆ Assure that power switch, lock off lever switch, operator

presence switch, and enable button all work properly.

◆ Check that handle and harness (if included) are installed

and adjusted for safe, comfortable operation. See

Assembly Section for proper adjustment.

Moving parts can amputate fingers or cause severe injuries.

Keep hands, clothing and loose objects away from all openings.

◆ ALWAYS stop unit and make sure all moving parts have

come to a complete stop before assembling unit, removing

obstructions, clearing debris, or servicing unit.

◆ DO NOT start or operate unit unless all guards and

protective covers are properly assembled to unit.

◆ ALWAYS remove battery or unplug unit before adjusting

guards or handles.

◆ ALWAYS stop machine, remove battery and inspect if unit

strikes a hard object, or if excessive vibration is felt.

◆ NEVER reach into any opening while the unit is running.

Moving parts may not be visible through openings.

◆ Position wiring safely to prevent snagging, separation of

connectors, or breakage during operation. Gather excess

wire, and secure with wiring clamp if provided on

equipment.

◆ Check wiring and connectors for nicks, cuts, exposed wire,

or other damage, and repair or replace as needed. Exposed

wire or connectors can cause shocks, sparks, and risk of

fire or explosion, resulting in serious injury.

◆ Check wire terminals for secure connections.

SAFETY DPAS-2600

16 X7508230802

General Safety Warnings and Instructions for the

following ECHO tools: Curved Shaft Edger, Straight

Shaft Edger, Tiller Cultivator, or Pole Pruner, or

DPAS unit configured as a Curved Shaft Edger,

Straight Shaft Edger, Tiller Cultivator, or Pole

Pruner.

This section contains the prescribed general safety warnings and

instructions for handheld, motor-operated electric trimmers, lawn edgers,

cultivators, and pole pruners contained in UL 82. Additional important

warnings and instructions are provided in subsequent sections of this

manual.

IMPORTANT SAFETY INSTRUCTIONS

When using electric trimmers, lawn edgers, cultivators, and

pole pruners basic safety precautions should always be

followed to reduce the risk of fire, electric shock, and personal

injury, including the following:

READ ALL INSTRUCTIONS.

1. Avoid Dangerous Environment - Don't use appliances in damp or wet

locations.

2. Don't Use in Rain.

3. Keep Children Away - All visitors should be kept at a distance from

work area.

4. Dress Properly - Do not wear loose clothing or jewelry. They can be

caught in moving parts. Use of rubber gloves and substantial footwear

is recommended when working outdoors. Wear protective hair covering

to contain long hair.

5. Use Safety Glasses - Always use face or dust mask if operation is

dusty.

6. Use Right Tool - Do not use tool for any job except that for which it is

intended.

7. Avoid Unintentional Starting - Don't carry tool with finger on switch. Be

sure switch is off when plugging in.

8. Don't grasp exposed cutting blades or cutting edges when picking up or

holding the tool.

9. Don't Force Tool - It will do the job better and with less likelihood of a

risk of injury at the rate for which it was designed.

DPAS-2600 SAFETY

X7508230802 17

10. Don't Overreach - Keep proper footing and balance at all times.

11. Stay Alert - Watch what you are doing. Use common sense. Do not

operate appliance when you are tired.

12. Store Idle Tools Indoors - When not in use, tools should be stored

indoors in dry, locked place out of reach of children with the battery

removed.

13. Maintain Tool with Care - Keep cutting edge sharp and clean for best

performance and to reduce the risk of injury. Follow instructions for

lubricating and changing accessories. Keep handles dry, clean, and

free from oil and grease.

14. Check Damaged Parts - Before further use of the appliance, a guard or

other part that is damaged should be carefully checked to determine

that it will operate properly and perform its intended function. Check for

alignment of moving parts, binding of moving parts, breakage of parts,

mounting, and any other condition that may affect its operation. A guard

or other part that is damaged should be properly repaired or replaced

by an authorized service center unless indicated elsewhere in this

manual.

15. Edger

• Keep guards in place and in working order.

• Keep metal blades sharp.

• Keep hands and feet away from cutting area

16. Cultivator

• Keep hands away from blades.

17. Pole Pruner

• Keep all parts of the body away from the saw chain. Do not remove cut

material or hold material to be cut when blades are moving. Make sure

the switch is off when clearing jammed material. Saw chain continues

to move after the switch is turned off. A moment of inattention while

operating the extended-reach pruner may result in serious personal

injury.

• Carry the extended-reach pruner by the handle with the saw chain

stopped. When transporting or storing the extended-reach pruner,

always fit the saw chain device cover. Proper handling of the extended-

reach pruner will reduce possible personal injury from the saw chain.

• Hold the extended-reach pruner by insulated gripping surfaces only,

because the saw chain may contact hidden wiring. A saw chain

contacting a "live" wire may make exposed metal parts of the

extended-reach pruner "live" and could give the operator an electric

shock.

• Do not use the extended-reach pruner in bad weather conditions,

especially when there is a risk of lightning. This decreases the risk of

being struck by lightning.

SAFETY DPAS-2600

18 X7508230802

• To reduce the risk of electrocution, never use near any electrical power

lines. Contact with or use near power lines may cause serious injury or

electric shock resulting in death.

• Always use two hands when operating the extended-reach pruner.

Hold the extended-reach pruner with both hands to avoid loss of

control.

• Always use head protection when operating the extended-reach

pruner overhead. Falling debris can result in serious personal injury.

General Safety Warnings and Instructions for the

following ECHO tool: Blower or DPAS unit

configured as a Blower.

This section contains the prescribed general safety warnings and

instructions for handheld, motor-operated electric blowers contained in UL

1017. Additional important warnings and instructions are provided in

subsequent sections of this manual.

IMPORTANT SAFETY INSTRUCTIONS

When using an electric blower, basic precautions should always be

followed, including the following:

READ ALL INSTRUCTIONS.

To reduce the risk of fire, electric shock, or injury:

1. Do not allow to be used as a toy. Close attention is necessary when

used by or near children.

2. Use only as described in this manual. Use only manufacturer's

recommended attachments.

3. Do not put any object into openings. Do not use with any opening

blocked; keep free of dust, lint, hair, and anything that may reduce air

flow.

4. Keep hair, loose clothing, fingers, and all parts of body away from

openings and moving parts.

5. Turn off all controls before unplugging.

6. Use extra care when cleaning on stairs.

7. Do not use to pick up flammable or combustible liquids, such as

gasoline, or use in areas where they may be present.

DPAS-2600 SAFETY

X7508230802 19

General Safety Warnings and Instructions for the

following ECHO tools: Hedge Trimmer, Mid-Reach

Hedge Trimmer, Shafted Hedge Trimmer, or

Articulating Hedge Trimmer, or DPAS unit

configured as a Hedge Trimmer, Mid-Reach Hedge

Trimmer, Shafted Hedge Trimmer, or Articulating

Hedge Trimmer.

This section contains the prescribed general safety warnings and

instructions for handheld, motor-operated electric hedge trimmers contained

in UL 62841-4-2. Additional important warnings and instructions are

provided in subsequent sections of this manual.

Read all safety warnings, instructions, illustrations, and

specifications provided with this power tool. Failure to follow all

instructions listed below may result in electric shock, fire and/

or serious injury.

Hedge Trimmer Safety Warnings:

1. Keep all parts of the body away from the blade. Do not remove cut

material or hold material to be cut when blades are moving. Blades

continue to move after the switch is turned off. A moment of inattention

while operating the hedge trimmer may result in serious personal injury.

2. Carry the hedge trimmer by the handle with the blade stopped and

taking care not to operate any power switch. Proper carrying of the

hedge trimmer will decrease the risk of inadvertent starting and

resultant personal injury from the blades.

3. When transporting or storing the hedge trimmer, always fit the

blade cover. Proper handling of the hedge trimmer will decrease the

risk of personal injury from the blades.

4. When clearing jammed material or servicing the unit, make sure

all power switches are off and the power cord is disconnected.

Unexpected actuation of the hedge trimmer while clearing jammed

material or servicing may result in serious personal injury.

5. Hold the hedge trimmer by insulated gripping surfaces only,

because the blade may contact hidden wiring or its own cord.

Blades contacting a "live" wire may make exposed metal parts of the

hedge trimmer "live" and could give the operator an electric shock

SAFETY DPAS-2600

20 X7508230802

6. Keep all power cords and cables away from cutting area. Power

cords or cables may be hidden in hedges or bushes and can be

accidentally cut by the blade.

7. Do not use the hedge trimmer in bad weather conditions,

especially when there is a risk of lightning. This decreases the risk

of being struck by lightning.

Extended-Reach Hedge Trimmer Safety Warnings:

1. To reduce the risk of electrocution, never use the extended-reach

hedge trimmer near any electrical power lines. Contact with or use

near power lines may cause serious injury or electric shock resulting in

death.

2. Always use two hands when operating the extended reach hedge

trimmer. Hold the extended-reach hedge trimmer with both hands to

avoid loss of control.

3. Always use head protection when operating the extended-reach

hedge trimmer overhead. Falling debris can result in serious personal

injury.

General Safety Warnings and Instructions for the

following ECHO tools: All DSRM and DGT models,

and DPAS units configured as trimmers and brush

cutters.

This section contains the prescribed general safety warnings and

instructions for handheld, motor-operated electric lawn trimmers, lawn edge

trimmers, grass trimmers, brush cutters, and brush saws contained in UL

62841-4-4. Additional important warnings and instructions are provided in

subsequent sections of this manual..

Read all safety warnings, instructions, illustrations, and

specifications provided with this power tool. Failure to follow all

instructions listed below may result in electric shock, fire and/

or serious injury.

Safety Warnings:

1. Do not use the machine in bad weather conditions, especially

when there is a risk of lightning. This decreases the risk of being

struck by lightning.

2. Thoroughly inspect the area for wildlife where the machine is to

be used. Wildlife may be injured by the machine during operation.

DPAS-2600 SAFETY

X7508230802 21

3. Thoroughly inspect the area where the machine is to be used and

remove all stones, sticks, wires, bones, and other foreign objects.

Thrown objects can cause personal injury.

4. Before using the machine, always visually inspect to see that the

cutter or blade and the cutter or blade assembly are not damaged.

Damaged parts increase the risk of injury.

5. Before use, check the supply cord and any extension cord for

signs of damage or aging. Do not use the machine if the cord is

damaged or worn. If the cord is damaged or worn during use,

switch off the machine and do not touch the cord before

disconnecting it from the supply. A damaged supply cord or

extension cord may result in electric shock, fire and/or serious injury.

6. Follow instructions for changing accessories. Improperly tightened

blade securing nuts or bolts may either damage the blade or result in it

becoming detached.

7. The rated rotational speed of the blade must be at least equal to

the maximum rotational speed marked on the machine. Blades

running faster than their rated rotational speed can break and fly apart.

8. Wear eye, ear, head, and hand protection. Adequate protective

equipment will reduce personal injury by flying debris or accidental

contact with the cutting line or blade.

9. While operating the machine, always wear non-slip and protective

footwear. Do not operate the machine when barefoot or wearing

open sandals. This reduces the chance of injury to the feet from

contact with the moving cutters or lines.

10. While operating the machine, always wear safety footwear. Do not

operate the machine when barefoot or wearing open sandals. This

reduces the chance of injury to the feet from contact with a moving

cutter, line, or blade.

11. While operating the machine, always wear long trousers. Exposed

skin increases the likelihood of injury from thrown objects.

12. Keep bystanders away while operating the machine. Thrown debris

can result in serious personal injury.

13. Always use two hands when operating the machine. Holding the

machine with both hands will avoid loss of control.

14. Hold the machine by insulated gripping surfaces only, because

the cutting line or blade may contact hidden wiring or its own

cord. Cutting line or blades contacting a "live" wire may make exposed

metal parts of the machine "live" and could give the operator an electric

shock.

15. Always keep proper footing and operate the machine only when

standing on the ground. Slippery or unstable surfaces may cause a

loss of balance or control of the machine.

SAFETY DPAS-2600

22 X7508230802

16. Do not operate the machine on excessively steep slopes. This

reduces the risk of loss of control, slipping and falling which may result

in personal injury.

17. When working on slopes, always be sure of your footing, always

work across the face of slopes, never up or down and exercise

extreme caution when changing direction. This reduces the risk of

loss of control, slipping and falling which may result in personal injury.

18. Keep the supply cord away from the cutter, line or blade. A

damaged supply cord may result in electric shock, fire and/or serious

injury.

19. Keep all parts of the body away from the cutter, line or blade when

the machine is operating. Before you start the machine, make sure

the cutter, line or blade is not contacting anything. A moment of

inattention while operating the machine may result in injury to yourself

or others.

20. Do not operate the machine above waist height. This helps prevent

unintended cutter or blade contact and enables better control of the

machine in unexpected situations.

21. When cutting brush or saplings that are under tension, be alert for

spring back. When the tension in the wood fibers is released, the

brush or sapling may strike the operator and/or throw the machine out

of control.

22. Use extreme caution when cutting brush and saplings. The slender

material may catch the blade and be whipped toward you or pull you off

balance.

23. Maintain control of the machine and do not touch cutters, lines or

blades and other hazardous moving parts while they are still in

motion. This reduces the risk of injury from moving parts.

24. When clearing jammed material or servicing the machine, make

sure the switch is off and the battery pack is removed. Unexpected

starting of the machine while clearing jammed material or servicing

may result in serious personal injury.

25. Carry the machine with the machine switched off and away from

your body. Proper handling of the machine will reduce the likelihood of

accidental contact with a moving cutter, line, or blade.

26. When transporting or storing the machine, always fit the cover on

metal blades. Proper handling of the machine will reduce the likelihood

of accidental contact with the blade.

27. Only use replacement cutters, lines, cutting heads and blades

specified by the manufacturer. Incorrect replacement parts may

increase the risk of breakage and injury.

DPAS-2600 SAFETY

X7508230802 23

Blade Thrust Safety Warnings:

1. Blade thrust is a sudden sideways, forward or backward motion of the

machine, which may occur when the blade jams or catches on an

object such as a sapling or a tree stump. It can be violent enough to

cause the machine and/or operator to be propelled in any direction, and

possibly lose control of the machine.

2. Maintain a firm grip with both hands on the machine and position

your arms to resist blade thrust. Position your body to the left side

of the machine. Blade thrust can increase the risk of injury due to the

machine moving unexpectedly. Blade thrust can be controlled by the

operator if proper precautions are taken.

3. If the blade binds, or when interrupting a cut for any reason,

switch the machine off and hold the machine motionless in the

material until the blade comes to a complete stop. While the blade

is binding, never attempt to remove the machine from the material

or pull the machine backward while the blade is in motion,

otherwise blade thrust may occur. Investigate and take corrective

actions to eliminate the cause of blade binding.

4. Do not use blunt or damaged blades. Blunt or damaged blades

increase the risk of jamming or catching on an object resulting in blade

thrust

5. Always maintain good visibility of the material being cut. Blade

thrust is more likely to occur in areas where it is difficult to see the

material being cut.

6. If you are approached by another person while operating the

machine, switch the machine off. There is an increased risk of injury

to other persons being struck by the moving blade in the event of blade

thrust.

This section contains additional warnings and

instructions contained in UL 62841-4-2 and 62841-4-

For grass trimmers, brush cutters, and brush saws,

according to the type of supplied cutting accessory:

◆ ALWAYS remove battery or unplug unit before adjusting

guards or handles.

◆ ALWAYS stop machine, remove battery and inspect if unit

strikes a hard object, or if excessive vibration is felt.

◆ Cutoff knife is sharp. Wear gloves to protect hands.

SAFETY DPAS-2600

24 X7508230802

◆ Always hold throttle handle with right hand and support

handle with left hand, placing unit on right side of body.

◆ Assure all ventilation openings are clear of debris.

Note: To advance trimmer line, tap trimmer head against the

ground while the head is turning at normal operating speed.

Operation With Blades:

Metal blades are very sharp and can cause severe injuries, even

if unit is off and blades are not moving. Avoid contact with

blades. Wear gloves to protect hands.

Blade use demands specific brushcutter configuration.

Operation without specified shield, barrier bar or U-handle, and

harness can result in serious personal injury. Follow installation

instructions.

*ANSI and UL standards require brushcutters be equipped with a barrier bar

or restrictive harness. U-handle ensures a higher safety factor.

Pro Maxi-Cut

Grass / Weed

Blade

Tri-Cut Grass /

Weed Blade

Metal Grass /

Weed Blade

Metal Brush /

Clearing

Blades

Support

Handle, with or

without barrier

bar

U-handle or support handle with

barrier bar

U-handle*

Shield with cut-

off knife

Shield without cut-off knife

Harness Harness

Upper plate/flat

washer

Upper / Lower blade plates

Hex nut Hex nut

New cotter pin New cotter pin

DPAS-2600 SAFETY

X7508230802 25

Do Not install blades on GT (Curved Shaft) model trimmers.

• Use only ECHO approved parts. Failure to use the correct parts can

cause the blade to fly off. Serious injury to the operator and/or bystanders

can occur.

• Arbor diameter of upper blade plate must match arbor diameter of blades.

• For barrier bar or U-handle, follow instructions supplied with either blade

conversion kit or U-handle kit, and verify blade is secured properly.

• A new cotter pin is required each time a blade is installed.

• Shoulder harnesses may be used on all trimmers and brushcutters to

reduce operator fatigue. Brushcutters over 7.5 kg (16.5 lbs.) dry weight

(without fuel) and U-handle brushcutters require a double shoulder

harness.

Note: The barrier bar is used to restrict rearward movement

of the unit. The barrier bar is not a handle and should

not be gripped when using or carrying the unit.

Blade Selection:

Not all blades are compatible with all trimmers. Visit www.echo-

usa.com or www.shindaiwa-usa.com to find compatible blades

The type of blade used MUST be matched to the type and size of

material cut. An improper or dull blade can cause serious

personal injury. Blades MUST be sharp. Dull blades increase the

chance of kick-out and injury to yourself and bystanders. Never

use an edging blade, circular saw blade, or any other type of

unapproved blade.

3-Tooth Grass/Weed Blades may be used wherever the nylon line head is

used. DO NOT use this blade for heavy weeds or brush.

SAFETY DPAS-2600

26 X7508230802

8-Tooth Weed/Grass Blade is designed for grass, garden debris and thick

weeds up to 19 mm (0.75 in.) diameter. DO NOT use this blade for brush or

heavy woody growth.

80-Tooth Brush Blade is designed for cutting brush and woody growth up

to 13 mm (0.5 in.) diameter.

22-Tooth Clearing Blade is designed for dense thickets and saplings up to

64 mm (2.5 in.) diameter.

A trimmer/brushcutter with a metal blade can cause serious

injuries if handled improperly.

Always use extreme care when

carrying or handling the equipment

to avoid contact with the cutting

edges of the blade. Use the optional

blade cover when unit is not in use.

Keep blades in protective packaging

until ready to install. Store blades

safely after removal to prevent injury

from accidental contact.

Use blade protectors to protect

blade teeth during unit

transportation.

For hedge trimmers:

Always check hedges and bushes for foreign objects before

trimming.

Articulating Hedge Trimmer Adjusting Cutting Angle:

Never adjust cutting assembly with battery installed.

DPAS-2600 SAFETY

X7508230802 27

Hedge Trimmer blades are sharp. Always wear gloves when ad-

justing cutting assembly.

DO NOT stand hedge trimmer on end when adjusting cutting an-

gle, otherwise serious injury may result.

1. Place unit on a flat surface with

blade guard (A) facing up.

Assure stop switch is in the

“STOP” position.

2. Grab blade adjustment handle

(B) and compress blade lock

levers (C) and (D) together.

Rotate blade to desired posi-

tion. Release the levers to lock

the blade.

Gear case assembly becomes HOT during use. Always grip

assembly at blade-adjustment handle when making cutting

angle adjustments, otherwise serious injury may result.

Always install the blade cover for storage or transportation.

Rotate Cutter Assembly:

Always use the unit from the right-hand side of your body – NEVER from the

left side. Rotate cutter assembly 180° on drive shaft in order to avoid cutting

directly above your head.

SAFETY DPAS-2600

28 X7508230802

1. Loosen gear case clamping

screw (A) and remove gear

case locating screw (B).

2. Rotate cutter assembly 180° on

drive shaft until locating hole in

drive shaft is visible through

locating hole in gear case.

3. Install gear case locating screw

(B), and securely tighten all

hardware.

Hedge Trimmer blades are very sharp. Wear gloves to protect

hands when rotating cutter assembly or serious personal injury

may result.

During operation, the complete unit, especially the drive shaft

housing and gear case may become too hot to touch. Avoid

contact when rotating cutter assembly.

DPAS-2600 DESCRIPTION

X7508230802 29

DESCRIPTION

Locate the safety decal(s) or etching(s) on your unit. Make sure they are

legible and that you understand and follow the instructions. If a decal or

etching cannot be read, replacement can be ordered from your ECHO

dealer. Safety label is for example only. Your label might appear slightly

different.

1. Power Head

2. Throttle Handle - For Right Hand

3. Operator Presence Switch

4. Enable Button

5. - Button

6. + Button

7. Lock Off Lever Switch

8. Power Switch

CONTENTS DPAS-2600

30 X7508230802

CONTENTS

The ECHO product you purchased has been factory pre-assembled for your

convenience. Due to packaging restrictions, some assembly may be

necessary.

After opening the carton, check for damage. Immediately notify your retailer

or ECHO Dealer of damaged or missing parts. Use the contents list to check

for missing parts.

*Not all units include battery, charger, or trimmer attachment.

For a complete list of compatible batteries for this

and all eFORCE

tools, scan this code or visit

https://www.echo-usa.com/battery-information

9. Support Handle - For Left Hand

10. Upper Drive Shaft Assembly

11. Drive Shaft Coupler

12. Harness Ring

13. Clamping Knob

1 Power Head with Upper Drive Shaft Assembly

1 Lower Drive Shaft Trimmer Attachment*

1 Operator’s Manual

1Battery*

1 Battery Charger*

DPAS-2600 ASSEMBLY

X7508230802 31

ASSEMBLY

Support Handle Installation

Note: Label shows minimum

spacing for support

handle location.

1. If necessary, position support

handle for comfortable

operation and securely tighten

screws.

Power Head Shaft to Lower Shaft Assembly

1. Set Power Head/Shaft Assembly on a level surface.

2. Pull locater pin (A) out, and turn counterclockwise one-quarter turn to

lock-out position.

3. Remove storage hook and cap from attachment drive shaft.

Note: Your coupler may appear different than coupler shown.

4. Carefully fit attachment drive

shaft assembly into coupler (B).

Rotate shaft (C) to make sure

inner lower drive shaft engages

square upper drive shaft

socket.

Note: Lower bearing housing

and head assembly must

be in line with power

head.

Note: Some models have an

assembly line decal to assist in assembly.

5. Rotate locater pin (A) one-

quarter turn clockwise to

engage lower shaft hole. Make

sure locater pin is fully engaged

by rotating lower drive shaft.

Locater pin should snap flush in

coupler. Full engagement will

prevent further shaft rotation.

6. Secure lower shaft assembly to

coupler by tightening clamping

knob (D).

ASSEMBLY DPAS-2600

32 X7508230802

Temperature Information

(1)

Assumes the battery is just off the charger or stored at the temperature

range noted for charger usage (39° F (4°C)) - 104°F (40°C)).

(2)

Hot batteries in high ambient temperatures require longer charge times.

(3)

To maximize life of batteries being stored more than 3 months, ECHO

recommends batteries being stored at 3 green lights on the battery capacity

indicator (BCI) and at room temperature.

Note: Long term storage of batteries in conditions or charge levels

on the battery capacity indicator (BCI) other than noted

above could degrade the performance and runtime of the

battery.

Battery Charging

See separate operator’s manuals packaged with battery and

charger.

◆ Use only with ECHO eFORCE

56V battery series batteries

and chargers.

◆ Keep charger and battery away from damp conditions and

all liquids.

◆ Do not operate the charger on an easily combustible

surface (e.g. paper, textiles) or in an environment with a

high risk of fire.

Recommended Ambient Temperatures:

Charging Usage/Discharge Storage

Low High Low High Low High

Product

(1)

Not Applicable 32°F (0°C) 113°F (45°C) 32°F (0°C) 113°F (45°C)

Battery

(2)(3)

39°F (4°C) 104°F (40°C) 32°F (0°C) 113°F (45°C) 32°F (0°C) 113°F (45°C)

Charger 39°F (4°C) 104°F (40°C) Not Applicable 32°F (0°C) 113°F (45°C)

DPAS-2600 ASSEMBLY

X7508230802 33

◆ Do not cover the charger. Covering the charger will prevent

it from cooling.

◆ Do not operate the charger in explosive atmospheres, such

as in the presence of flammable liquids, gases or dust.

Charger can produce sparks which may ignite the dust or

fumes - there is a risk of explosion.

◆ Connect the charger only to the mains of voltage and

frequency specified on the rating plate.

◆ Connect the charger only to an easily accessible wall

outlet.

◆ Never insert objects in the battery's or charger's cooling

slots.

◆ Do not charge or use a defective, damaged or deformed

battery and charger.

◆ Do not open, damage or drop the battery or the charger.

◆ Fluid may leak from the battery if it is damaged or not used

properly; avoid contact with the skin. In the event of

accidental contact, wash the affected areas of the skin with

plenty of water and soap. If fluid gets in the eyes, do not

rub. Rinse the eyes with plenty of water for at least 15

minutes. Also seek medical assistance.

◆ Never bridge (short circuit) the battery contacts or the

charger's terminals with metallic objects.

◆ Protect from direct sunlight, heat and open flames and

never throw battery into fire; there is a risk of explosion.

◆ In the event of smoke or fire in the charger, disconnect it

from the wall outlet immediately.

◆ If the connecting cord is damaged, immediately disconnect

the plug from the power supply to avoid the risk of electric

shock.

◆ Do not expose battery to microwaves or high pressure.

◆ To reduce the risk of stumbling, position and mark the

connecting cord in such a way that it cannot be damaged

or endanger others.

ASSEMBLY DPAS-2600

34 X7508230802

The battery comes partially charged from the factory and needs to be

fully charged before first use. Charge the battery when it no longer

produces sufficient power to operate the unit or when battery lights

indicate that the battery is low.

Note: Your charger might look different from those pictured.

1. Plug charger AC cord in the

wall outlet.

2. Align ridges on battery with

grooves on charger, and slide

battery into charger.

3. During normal charging, the

charger LED (A) will blink

GREEN.

If charger detects a problem, LED will blink RED. Remove battery

from charger, clear obstructions from contacts and reinstall battery

into charger. If battery is outside acceptable temperature range (See

Recommended Ambient Temperature chart) LED will remain RED.

DPAS-2600 ASSEMBLY

X7508230802 35

4. When charging is complete,

LED will remain GREEN. See

battery manual for charging

time.

5. Verify battery is fully charged.

Remove battery from charger,

press battery charge status

button (B), and check LED

display.

• One green light indicates that

the battery has 1-24% charge.

• Two green lights indicate that

the battery has 25-54% charge.

• Three green lights indicate that the battery has 55-79% charge.

• Four green lights indicate that the battery has 80-100% charge.

6. Unplug charger AC cord from the wall outlet.

The attachment will operate when the battery is installed, the

power indicator LED is lit, and the operator presence switch,

lock off lever switch (if applicable), and power switch are

engaged. Make sure the unit is properly positioned to prevent

loss of control and possible serious injury. Keep movable parts

of the attachment off the ground and away from objects that

could become entangled or thrown.

Note: The battery comes partially charged from the factory and

needs to be fully charged before first use.

ASSEMBLY DPAS-2600

36 X7508230802

1. Make sure power to unit

is turned off.

2. Align ridges (A) on

battery with grooves in

power head. Slide

battery into power head.

3. Assure the battery latch

(B) snaps into place and

battery is secure before

beginning operation.

Assure battery latch is fully engaged before using unit.

Battery Removal

To remove battery, depress

battery latch release (C)

slide battery out of power

head.

DPAS-2600 OPERATION

X7508230802 37

OPERATION

Starting Unit

The attachment will operate when the battery is installed, the

power indicator LED is lit, and the operator presence switch,

lock off lever switch (if applicable), and power switch are

engaged. Make sure the product is properly positioned to

prevent loss of control and possible serious injury.

Note: This model has three operating modes: low, medium, high.

Use + (E) and - (F) buttons to switch between modes. Power

indicator LED flashes twice when highest or lowest setting is

achieved by pushing + (E) and - (F) buttons. Use power

switch to increase RPM speed within each mode.

1. Keep movable parts of the attachment away from objects that could

become entangled or thrown, and surfaces that could cause loss of

control.

2. Push enable button (A) once

to turn on power to unit.

Power indicator LED (B)

illuminates when power to

unit is turned on.

3. Hold down operator

presence switch (C). Move

lock off lever switch (D)

backward to free power

switch (G), and then depress

power switch to increase

RPM.

OPERATION DPAS-2600

38 X7508230802

When power to unit is turned on:

• After 90 seconds of inactivity, unit will power itself off.

• If power indicator LED remains lit, operation is normal.

• If power indicator LED flashes once per second, the battery needs to be

charged.

• If power indicator LED flashes four times per second, there is a fault

within the product. Turn power off to unit. Remove battery. Clear debris

from around cutting attachment. Install battery. Turn power on to unit. If

flashing continues, have your authorized servicing dealer repair the

product.

Stopping Unit

The cutting attachment continues to run for a short period after

the unit is switched off.

1. Release power switch and

allow cutting attachment to

stop.

2. Push enable button (A) to

turn off power to unit.

• Power indicator LED (B) turns

off when power to unit is

turned off.

• If the unit does not stop when

power switch and operator

presence switch are released,

push enable button to turn off and remove the battery to stop the power

supply to product. Have your authorized servicing dealer repair unit

before using product again.

Applications

Always hold throttle handle with right hand and support handle

with left hand, placing unit on right side of body.

DPAS-2600 OPERATION

X7508230802 39

Do not install blades on GT (Curved Shaft) trimmers.

Operating Techniques - Nylon Line Head

Nylon line heads may be used for trimming, scything, edging, and scalping

of grass and light weeds.

Units with Speed Feed

line heads ONLY: To advance trimmer line,

tap trimmer head against the ground while the head is turning at

normal operating speed.

Trimming

Feed the spinning line into the material to be cut. Tilt the line head to one

side to direct cutting debris away from you:

• Model SRM/DSRM/PAS/DPAS/SB/TX/C/T (Straight shaft, counter-

clockwise line head rotation) - Tilt the cutting head down on the right side

while cutting to direct cutting debris away from operator. Feed the line

gradually into the material you wish to cut, avoiding contact with fences or

other barriers.

• GT models: Tilt cutting head to the left while cutting to direct debris away

from the operator.

Scything

Scything - Swing the cutting head in a level arc, gradually feeding the line

into the material being cut. Move forward with each arc to cut a swath.

Width of cutting swath depends on arc. Use a larger arc for a wider swath,

or a smaller arc for a narrow swath. Keep line head tilted to direct cutting

debris forward or away from you.

Edging and Scalping

Both of these are done with the nylon line cutting head tilted at a steep

angle. Scalping is removing top growth, leaving the earth bare. Edging is

trimming the grass back where it has spread over a pavement or driveway.

During both edging and scalping, hold the unit at a steep angle in a position

where the debris, and any dislodged dirt and stone, will not come back

towards you even if it ricochets off the hard surface.

OPERATION DPAS-2600

40 X7508230802

General

• Debris flows in direction of line head rotation. Change line head position

to assure debris flow is directed away from operator.

• Keep cutting line away from wire fences to avoid entanglement.

• Operate trimmer only with cutting head below knee height.

Operating Techniques - Metal or Plastic Blade

Brushcutter blades may be used to cut and trim a wide variety of materials.

Refer to the blade selection section for determining the correct blade for the

application.

Scything (3, 8, and 80 tooth weed/grass, and brush blades)

• To cut large sections of field grass and weeds swing the cutting head in a

level arc, gradually feeding the blade into the material being cut. Adjust

throttle speed according to your work.

• Do not swing the main pipe with arms. Turn hips to

swing the blade horizontally from right to left, and cut

weeds on the left side of the blade.

• Do not scythe back and forth as the grass may scatter

and kickback may occur easily.

• Tilt blade left by 5 to 10 degrees so that cut grasses will

push left, making progress easier.

• Move forward with each arc to cut a swath.

• Width of cutting swath depends on arc. Use a larger arc

for a wider swath, or a smaller arc for a narrow swath.

Suggested cutting width is about 1.5 m (4.9 ft).

• When scything large brush up to 12.7 mm (0.5 in.)

diameter from right to left, avoid cutting with highlighted

section.

Reaction Forces

◆ The cutting attachment will continue to rotate even after

the throttle is released, maintain control of the unit until it

has come to a complete stop.

DPAS-2600 OPERATION

X7508230802 41

◆ Blade thrust may occur when the spinning blade contacts

an object that it does not immediately cut. Following

proper cutting techniques will prevent blade thrust.

◆ Blade thrust can be violent enough to cause the unit and/or

operator to be propelled in any direction, and possibly lose

control of the unit.

◆ Blade thrust can occur without warning if the blade snags,

stalls or binds.

◆ Blade thrust is more likely to occur in areas where it is

difficult to see the material being cut.

Push or Pull - Kickout

During normal use, operating a brushcutter with a circular metal blade can

produce sudden strong reaction forces that are difficult to control. Strong

reaction forces can cause a loss of balance or loss of control of the

equipment, resulting in serious injury to operator and bystanders.

Understanding what causes these reactive forces may help you to avoid

them, and can help you to maintain control of the equipment if you

experience a sudden reaction during cutting. Reactive forces occur when

the force being applied by the cutting teeth of a blade meet resistance, and

some of the cutting force is directed back toward the equipment. The

greater the cutting force or the amount of resistance, the greater the

reactive force.

Push and Pull Forces

Push and pull forces are reactive forces that push the

equipment directly toward the operator, or that pull the

equipment directly away from the operator. These forces are

the result of cutting on the sides of the blade. The direction of

the force depends on the side of the blade being used, and

the direction of blade rotation at the point of contact. The

reactive force is in the opposite direction of blade rotation at

the contact point, regardless of where the contact is being

made. These types of reactive forces are also called “Blade

Thrust.”

OPERATION DPAS-2600

42 X7508230802

As shown in the illustration, a blade turning

counterclockwise will cause the equipment to pull away

from the operator if the point of cutting resistance is on the

left side of the blade. If the point of cutting resistance is on

the right side of the blade, the equipment will push back

toward the operator. In both examples, the reactive force is

in the opposite direction of blade rotation at the contact

point where resistance occurs.

Kickout

Kickout is also a reactive force caused by resistance

to cutting, but the direction of blade thrust is lateral (to

the left or right of the blade), instead of forward or

back toward the operator. In most cases, Push, Pull,

and Kickout can be reduced or eliminated by:

• Using the correct blade for the cutting job

• Using properly sharpened blades

• Applying consistent, even force to the blade during

the cut

• Avoiding obstacles and ground hazards

• Using extra care when cutting harder materials

such as extremely dry brush, saplings, and small

trees

• Cutting from a stable, secure position

Blade Cutting Problems

Binding - Blades may bind in the cut if dull or

forced. Binding can damage blade, and result in

blade breakage or injury from fragments and

flying debris. If a blade binds in a cut, don’t try to

get it out by applying “up and down” force to pry

the cut open. Applying prying force to the blade

can bend the blade, and result in blade failure

and injury.

To free a blade that is bound in the cut, stop the unit, and support the

trimmer or brushcutter to keep stress off the blade. Push the tree away from

the entry point of the cut to open the cut, and pull the blade directly away

from the cut in a straight-line motion. Use caution when releasing the tree to

avoid being struck by spring-back or falling.

DPAS-2600 MAINTENANCE

X7508230802 43

Inspect the blade for damage before proceeding. Sharpen teeth if dull, or

replace blade if cracked, bent, missing teeth, or otherwise damaged.

To prevent binding:

• Keep blades sharp

• Avoid excessive pressure during cuts

• Don’t exceed cutting capacity of blade

• Don’t use blades with damaged or missing cutting teeth

• Don’t rock blades in cut

MAINTENANCE

Moving parts can amputate fingers or cause severe injuries.

Keep hands, clothing and loose objects away from all openings.

Always stop unit and make sure all moving parts have come to

a complete stop before removing obstructions, clearing debris,

or servicing unit. Allow unit to cool before performing service.

Wear gloves to protect hands from sharp edges and hot

surfaces.

Operating a poorly maintained unit can result in serious injuries

to operator or bystanders. Always follow all maintenance

instructions as written, otherwise serious personal injury can

result.

Your unit is designed to provide many hours of trouble-free service. Regular

scheduled maintenance will help your unit achieve that goal. If you are

unsure or are not equipped with the necessary tools, we recommend that

you take your unit to a Servicing Dealer for maintenance. To help you

decide whether you want to DO-IT-YOURSELF or have the Dealer do it,

each maintenance task has been graded. If the task is not listed, see your

Dealer for repairs.

Skill Levels

Level 1 = Easy to do. Common tools may be required.

Level 2 = Moderate difficulty. Some specialized tools may be required.

MAINTENANCE DPAS-2600

44 X7508230802

Level 3 = See your dealer.

Click HERE or go to http://www.echo-usa.com/products/maintenance-kit

Maintenance Intervals

MAINTENANCE PROCEDURE NOTES:

Apply lithium based grease every 25 hours of use.

If not maintained properly, the product may pose a serious risk

to physical health.

If not maintained properly, the product's performance may

deteriorate. Time intervals shown are maximum. Actual use and your

experience will determine the frequency of required maintenance.

When you find anything wrong, ask your ECHO dealer for repair.

Maintenance and Care

Remove battery before performing maintenance procedures.

Cleaning battery and battery compartment

Risk of electric shock or fire. Do not use conducting materials

to clean battery or battery compartment. Otherwise serious

personal injury may result.

COMPONENT OR

SYSTEM

MAINTENANCE PROCEDURE Skill Level

Daily Or Before Use

Battery / Battery

Compartment

Inspect / Clean / Charge

Screws / Nuts / Bolts Inspect / Tighten / Replace 1

Drive Shaft Grease

DPAS-2600 MAINTENANCE

X7508230802 45

1. Release power switch and operator presence switch, and allow unit to

stop.

2. Make sure power indicator LED is not illuminated.

3. Depress battery latch

release (A) and slide

battery out of power

head.

4. Use compressed air or

a soft bristle brush to

remove debris from

battery and battery

compartment.

Lubrication

Level 1.

Parts Required: Lithium Based Grease.

Drive Shaft

1. Loosen handle clamping screw

(B) and slide throttle handle

forward.

2. Loosen clamping screw (C)

and slide shaft out of power

head.

MAINTENANCE DPAS-2600

46 X7508230802

3. Pull flex cable (D) out of shaft

housing, wipe clean and re-

coat with 15 ml (0.5 oz.)

grease.

4. Slide flex cable (D) back into

shaft housing. DO NOT get dirt

on flex cable.

5. Reassemble in reverse order.

Nylon Line Replacement

Wear gloves or personal injury may result:

◆ Cut-off knife is sharp.

◆ Gearcase and surrounding area may be hot.

Never use wire or wire-rope that can break off and become a

dangerous “projectile.” Serious injury can occur.

1. Cut one piece of line to

recommended length.

2.0 mm (0.080 in.) diameter

6 m (20 ft.).

2.4 mm (0.095 in.) diameter

6 m (20 ft.).

2. Align arrows on top of knob with

openings in eyelets.

DPAS-2600 MAINTENANCE

X7508230802 47

3. Insert one end of trimmer line

into an eyelet, and push line

equal distance through trimmer

head.

4. Hold trimmer head while turning

knob clockwise to wind line

onto spool until about 13 cm

(5 in.) of each line remains

exposed.

Trimmer head is now fully loaded

and ready for operation.

When the wear indicators

located at the bottom of the

Speed-Feed

head are worn

smooth, or if holes appear,

replacement of the cover or the

entire Speed-Feed

head

required.

Nylon Line Head Disassembly Instructions

Note: For normal use, Speed Feed

head disassembly is not

necessary. However, if circumstances require disassembly,

follow these instructions.

MAINTENANCE DPAS-2600

48 X7508230802

1. Press top of locking tabs (A) on

both sides of Speed Feed

head to release cover (B) from

knob (C).

2. Remove cover from knob.

Sharpening Metal Blades

Metal blades are very sharp and can cause severe injuries, even

if unit is off and blades are not moving. Avoid contact with

blades. Wear gloves to protect hands.

Several styles of metal blades are

approved for use on the

Brushcutter. The 8-tooth blade can

be sharpened during normal

maintenance. The clearing blade

and 80-tooth blade require

professional service.

Before sharpening, CLOSELY

inspect blade for cracks (look at the

bottom of each tooth and the center

mounting hole closely), missing

teeth and bending. If ANY of these

problems are discovered, replace

the blade.

When sharpening a blade, always

remove the same amount of materials from each tooth to maintain balance.

A blade that is not balanced will cause unsafe handling due to vibration and

can result in blade failure.

DPAS-2600 MAINTENANCE

X7508230802 49

1. File each tooth at a 30° angle a

specific number of times, e.g.,

four strokes per tooth. Work

your way around the blade until

all teeth are sharp.

2. DO NOT file the ‘gullet’ (radius)

of the tooth with the flat file. The

radius must remain. A sharp

corner will lead to a crack and

blade failure.

If an electric grinder is used, use care not to overheat teeth, do not

allow tips/tooth to glow red or turn blue. DO NOT place blade in

cooling water. This will change the temper of the blade and could

result in blade failure.

3. After sharpening teeth, check

each tooth radius for evidence

of a square (sharp) corner. Use

the round (rat tail) file to renew

the radius.

30º

CUTTING

TOOTH

AREA

CUTTING

TOOTH

RADIUS

GULLET

(RADIUS)

TROUBLESHOOTING DPAS-2600

50 X7508230802

TROUBLESHOOTING

TROUBLESHOOTING CHART

Problem Cause Remedy

Red Charger light

flashes or does not light

Plug not connected

to power outlet.

Plug in charger.

Battery pack not

installed properly.

Check the battery

installation.

Obstructed

connection.

Reinstall battery after

removing obstructions.

Fault in the charger. Consult your dealer.

Fault in the battery

pack.

Consult your dealer.

Unit will not turn on

Battery pack not

installed properly.

Check battery

installation.

Unit does not run when

turned on

Battery pack

discharged.

Charge battery .

Battery pack outside

acceptable

temperature range.

Remove the battery

and allow to cool.

Running time is too

short

Battery pack outside

acceptable

temperature range.

Remove battery and

allow to cool.

Unit electronics too

hot.

Turn unit off and allow

to cool.

Battery pack

discharged.

Charge the battery.

DPAS-2600 STORAGE

X7508230802 51

STORAGE

Storage

Do not store in an enclosure where combustible fumes may

accumulate. Fire may result.

When storing the product for long periods of time, ensure that the following

preparations for storage are carried out.

Unit

Do not store your unit without performing protective storage maintenance

which includes the following:

1. Turn power to unit off.

2. Remove battery.

3. Remove accumulation of dirt and debris from exterior of unit.

4. Tighten all screws and nuts.

5. Cover battery compartment, battery and charger.

6. Store unit in a dry, dust-free place out of the reach of children.

Battery

1. Remove battery.

2. Store in a dry, dust-free place, out of the reach of children.

3. Store in temperatures consistent with recommended ambient

temperature chart.

4. Charge battery according to ambient temperature chart.

Charger

1. Remove battery from charger.

2. Disconnect charger from power supply.

3. Store in a dry, dust-free place, out of the reach of children.

STORAGE DPAS-2600

52 X7508230802

Disposal

Major plastic parts making up the product have codes

showing their materials. The codes refer to the

following materials; dispose of those plastic parts in

accordance with local regulations.

• Battery contains lithium. Dispose of only at a designated collection point.

• Lithium-ion batteries must be disposed of properly.

• Please contact your dealer in case you do not know how to dispose of or

recycle waste plastic parts.

Materials

Mark Material

>PA6-GF< Nylon 6 - Glass fiber

>PP-GF< Polypropylene - Glass fiber

>PE-HD< Polyethylene

>PP< Polypropylene

DPAS-2600 SPECIFICATIONS

X7508230802 53

SPECIFICATIONS

MODEL DPAS-2600

Length (without battery or trimmer

attachment)

1082 mm (42.60 in.)

Width (without battery or trimmer

attachment)

215 mm (8.46 in.)

Height (without battery or trimmer

attachment)

184 mm (7.24 in.)

Weight (without battery, or trimmer

attachment)

2.6 kg (5.73 lb)

Battery ECHO eFORCE™ 56V series batteries

Type Li-Ion

Battery voltage 56 V (rated 50.4)

Capacity See battery manual

Charger type ECHO eFORCE™ 56V series charger

Charger input voltage 120 V AC 60 Hz

Charging time See battery manual

Operating Rod 25.0 mm (0.98 in.) aluminum tube

Drive Shaft 6.15 mm (0.25 in.) flexible shaft

Cutter Head

Speed Feed

400 LH nylon line head, line

capacity 6.1 m (20 ft ) 0.095 trimmer line*.

Rotating Direction Counterclockwise, viewed from top

Motor Type DC / Brushless

Speed 4860 - 9200 RPM

Gear Case Ratio 1.62:1

Green blinking - battery is charging

Green - battery is fully charged

Red - Battery is too warm. Remove for

approximately 30 minutes to cool down.

Red blinking - Defective battery. Remove and

replace with new battery

Charger Lights

OFF Green blinking

OFF Green

Red OFF

blinking

SPECIFICATIONS DPAS-2600

54 X7508230802

* For best unit run time, use 0.095” Silentwist

trimmer line. Other 0.095”

line might shorten run time.

ECHO Optional Attachments

The following ECHO Pro Attachment Series attachments have

been verified by ECHO to be compatible for use with this

powerhead. Seperately, the the listed Compliant attachments

have been verified by a NRTL (National Recognized Test Lab) to

comply with the applicable standards. The attachments listed

that are not compliant have still undergone significant testing to

ensure compatiblity with this powerhead. Please be sure to read

and understand all safety and operation in this Operator's

Manual for all attachments listed. Serious injury may result from

the use of non ECHO attachment combinations. Read and

comply with all safety instructions listed in this manual and

attachment manual. ECHO, INC. will not be responsible for the

failure of cutting devices, attachments or accessories which

have not been tested and approved by ECHO for use with these

units..

DPAS-2600 Spindle Ratings

Attachment No. Maximum Spindle Speed (RPM)

99944200540 5680 +/- 3%

99944200545 4444 +/- 3%

99944200615 7829 +/- 3%

COMPATIBLE ATTACHMENTS

Speed-Feed® Trimmer 99944200540

Rapid Loader™ Curved Shaft Trimmer 99944200615

Pro-Torque Trimmer 99944200545

Power Pruner™ 99944200532

Pro Paddle 99944200620

Pro Sweep 99944200553

Tiller/Cultivator 99944200513

3' Extension

99944200536

Power Blower 99944200490

Brush Cutter 99944200601

DPAS-2600 SPECIFICATIONS

X7508230802 55

Other Pro Attachment Series attachments approved by ECHO for this

powerhead may become available after the publication of this operator's

manual. See www.echo-usa.com or call 1-800-432-ECHO for the current list

of approved attachments for this powerhead.

Curved Shaft Edger 99944200470

Straight Shaft Edger 99944200475

Bed Redefiner 99944200465

Std Hedge Trimmer 99944200486

Mid Reach Hedge Trimmer 99944200640

Articulating Hedge Trimmer 99944200596

1. For use with: Articulating Hedge Trimmer, Hedge Trimmer, and Power Pruner™ Attachments

ONLY.

COMPLIANT ATTACHMENTS

Speed-Feed® Trimmer 99944200540 UL 62841-4-4; CSA C22.2 NO. 62841-4-4:21

Rapid Loader™ Curved

Shaft Trimmer

99944200615 UL 62841-4-4; CSA C22.2 NO. 62841-4-4:21

Pro-Torque Trimmer 99944200545 UL 62841-4-4; CSA C22.2 NO. 62841-4-4:21

Brush Cutter 99944200601 UL 62841-4-4; CSA C22.2 No. 62841-4-4

Power Pruner™ 99944200532 UL 82, 9th Edition and CSA C22.2 No. 147-15

Tiller/Cultivator 99944200513 UL 82, 9th Edition and CSA C22.2 No. 147-15

3' Extension

99944200536 UL 82, 9th Edition and CSA C22.2 No. 147-15

Curved Shaft Edger 99944200470 UL 82, 9th Edition and CSA C22.2 No. 147-15

Straight Shaft Edger 99944200475 UL 82, 9th Edition and CSA C22.2 No. 147-15

Bed Redefiner 99944200465 UL 82, 9th Edition and CSA C22.2 No. 147-15

2 For use with: Power Pruner™ attachments only

COMPATIBLE ATTACHMENTS

WARRANTY DPAS-2600

56 X7508230802

WARRANTY

Limited Warranty Statement for ECHO 56 Volt

Handheld Products and Walk Behind Mowers

sold

in USA and Canada

ECHO Incorporated warrants

to the original retail purchaser

that this ECHO brand 56 Volt outdoor product is free from de-

fects in material and workmanship and agrees to repair or re-

place, at ECHO Incorporated’s discretion, any defective prod-

uct free of charge within these time periods from the date of

purchase:

 If the product is for homeowner use:

• Units and Bare Tool – 5 Years

• Battery or charger – 2 years

 If the product is for commercial use:

• Units and Bare Tool – 2 years

• Battery or charger – 2 years

 If the product is for rental use: 90 days for all units, batter-

ies, and chargers.

 Cutting attachments such as, but not limited to, bars,

chains, sprockets, blades, tines, belts, PowerBroom

and

nylon trimmer heads for homeowner or non-income pro-

ducing use will be covered for failures due to defects in

material or workmanship for a period of 60 days from origi-

nal product purchase date and 30 days for commercial /

rental use. Any misuse from contact with concrete, rocks,

or other structures is not covered by this warranty.

This warranty extends to the original retail purchaser only and

commences on the date of the original retail purchase.

Any part of this product found in the reasonable judgment of

ECHO Incorporated, to be defective in material or workmanship

will be repaired or replaced without charge for parts and labor

by an authorized ECHO dealer. Units, repair parts and acces-

sories

replaced under this warranty are warranted only for the

balance of the original warranty period.

The product, including any defective part, must be returned to

an authorized ECHO dealer within the warranty period. The ex-

pense of delivering the product to the service center for war-

ranty work and the expense of returning it back to the owner

after repair or replacement will be paid by the owner. ECHO

Incorporated’s, responsibility in respect to claims is limited to

making the required repairs or replacements

and no claim of

breach of warranty shall be cause for cancellation or rescission

of the contract of sale of any ECHO brand 56 Volt outdoor prod-

uct. Proof of purchase will be required by the dealer to substan-

tiate any warranty claim. All warranty work must

be performed

by an authorized ECHO dealer.

This warranty does not cover any units, battery or charger

that

has been subject to misuse, neglect, negligence, or accident,

or that has been operated in any way contrary to the operating

instructions as specified in the Operator’s Manual. This war-

ranty does not cover normal deterioration due to the use or ex-

posure, and any repairs made necessary by normal wear, im-

proper maintenance, improper lubrication, improper storage,

dirt, abrasives, impact, moisture, water, rain, snow, rust, corro-

sion, varnish, or other similar conditions.

This warranty does not cover damage to chargers or batteries

by improper charging voltage and batteries that have been ex-

posed to temperatures beyond those specified in the Opera-

tor’s Manual, batteries that have not been properly charged or

batteries that have reached their useful life.

This warranty does not apply to any

damage to the product that

is the result of improper maintenance or to any product that has

been altered or modified. The warranty does not extend to re-

pairs made necessary by normal wear or by the use

of parts or

accessories which are either incompatible with the ECHO

brand 56 Volt outdoor product or adversely affect its operation,

performance, or durability. In addition, this warranty does not

cover wear to normal items such as, but not limited to:

Wear items –

Bump Knobs, Outer Spools, Cutting Lines, Inner

Reels, Felt Washers, Hitch Pins, Mulching Blades, Blower

Fans, Blower and Vacuum Tubes, Vacuum Bag and Straps,

Guide Bars, Saw Chains, Grass Catch B

ag, Hedge Trimmer

Blades, and Wheels

ECHO Incorporated,

reserves the right to change or improve

the design of this product without assuming any obligation to

modify any product previously manufactured.

All implied warranties are limited in duration to the stated war-

ranty period. Accordingly, any such implied warranties includ-

ing merchantability, fitness for a particular purpose, or other-

wise, are disclaimed in their

entirety after the expiration of the

appropriate

five-year, two-year, one-year, 90-day, 60-

day, or

30-day warranty period.

ECHO Incorporated’s

obligation under

this warranty is strictly and

exclusively limited to the repair or re-

placement

of defective parts. ECHO Incorporated, does not as-

sume or

authorize anyone to assume for them any other obliga-

tion. Some states do not allow limitations

on how long an implied

warranty lasts, so the above limitation may not apply to you.

ECHO Incorporated, assumes no responsibility for incidental, con-

sequential,

or other damages including, but not limited to, ex-

pense of returning the product to an authorized dealer

for

ECHO brand 56 Volt outdoor products and expense of deliver-

ing it back to the owner, mechanic’s travel time, telephone

charges, rental of a like product during the time warranty ser-

vice is being performed, travel, loss or damage to

personal prop-

erty, loss of revenue, loss of use

of the product, loss of time, or

inconvenience. Some states do not allow the exclusion or limi-

tation of incidental or conse

quential damages, so the above

limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.

This warranty applies to all ECHO brand 56 Volt outdoor prod-

ucts

manufactured by or for ECHO Incorporated, and sold in

the United States and Canada.

To locate your nearest authorized ECHO dealer, visit

www.ECHO-usa.com or dial 1-800-432-ECHO (3246).

–––

99922205724

11/2022

DPAS-2600 PRODUCT REGISTRATION

X7508230802 57

PRODUCT REGISTRATION

Thank you for choosing ECHO Power Equipment

Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to

information will never be sold or misused by ECHO, Incorporated.

Registering your purchase enables us to contact you in the unlikely event of

a service update or product recall, and verifies your ownership for warranty

consideration.

If you do not have access to the Internet, you can complete the form below

and mail to:

ECHO Incorporated, Product Registration, PO Box 1139,

Lake Zurich, IL 60047.

PRODUCT REGISTRATION DPAS-2600

58 X7508230802

ECHO Incorporated

DPAS-2600 NOTES

X7508230802 59

NOTES

ECHO INCORPORATED

400 Oakwood Road

Lake Zurich, IL 60047

www.echo-usa.com

U56300013000 - U56300999999

ECHO DPAS-2600BT EFORCE 56V Brushless Cordless Power Head Tool

Product's Documents

User Manual

Specifications

ECHO DPAS-2600BT Questions and Answers
