ECHO DPAS-2100C1 EFORCE Brushless Cordless Power Head

99922238047

© 12/2022 ECHO Incorporated

Operator’s

Manual

DPAS-2100

Pro Attachment

Series™

Read and understand all provided literature before use. Failure

to do so could result in serious injury.

Servicing Information..........................................................................................................4

Safety.................................................................................................................................6

Description.......................................................................................................................29

Operation............................................................................................................37

Product Registration.........................................................................................................54

not include all standard equipment.

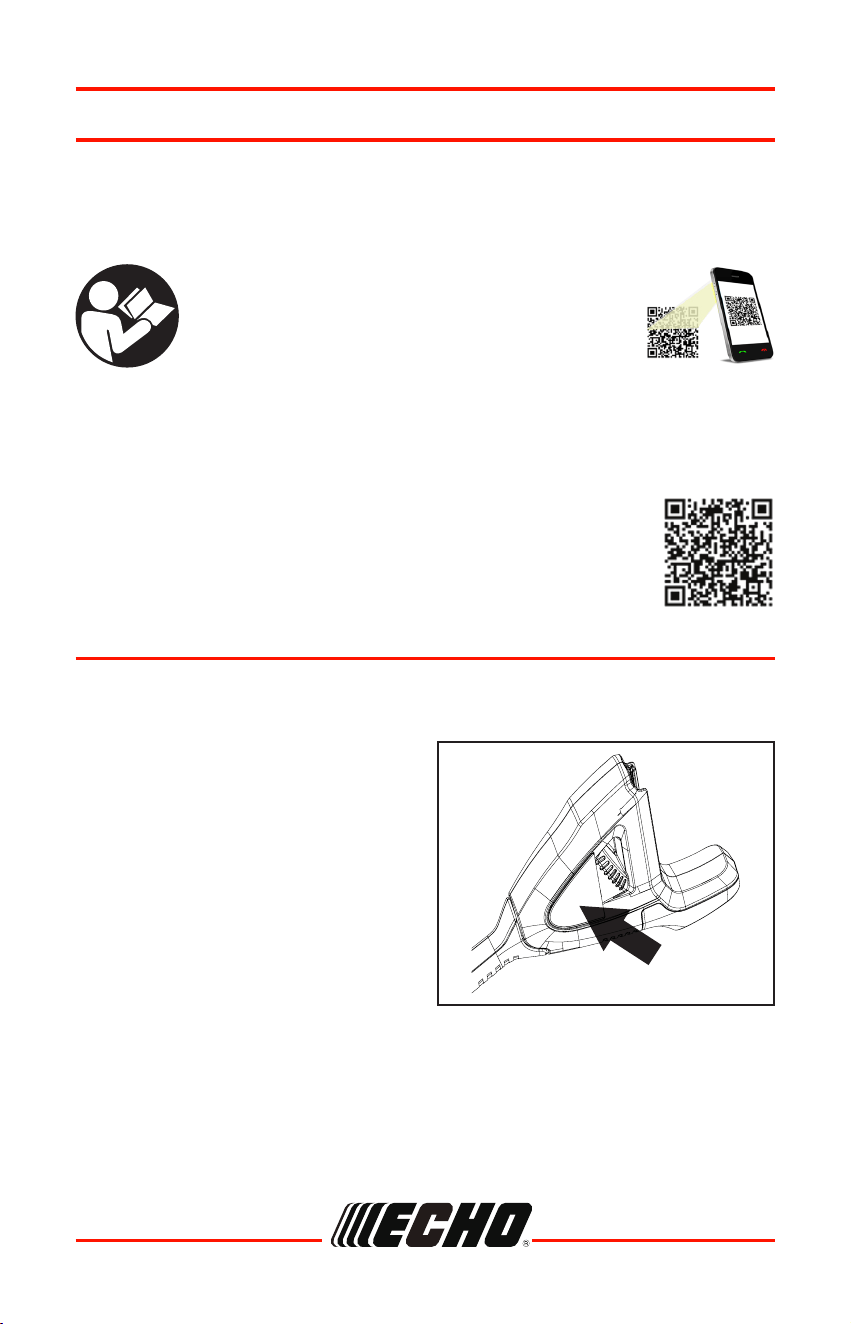

For additional literature, including safety manuals where applicable, or

questions regarding terms used in this manual, visit:

https://www.echo-usa.com/manuals

Genuine ECHO Parts and Assemblies

for your ECHO products are available

only from an Authorized ECHO Dealer.

When you do need to buy parts always

have the Model Number and Serial

Number of the unit with you. For future

Service of this product during the warranty period must be performed by an

Authorized ECHO Service Dealer. For the name and address of the Authorized

ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO

(3246). Dealer information is also available on our Web Site www.echo-usa.

is required.

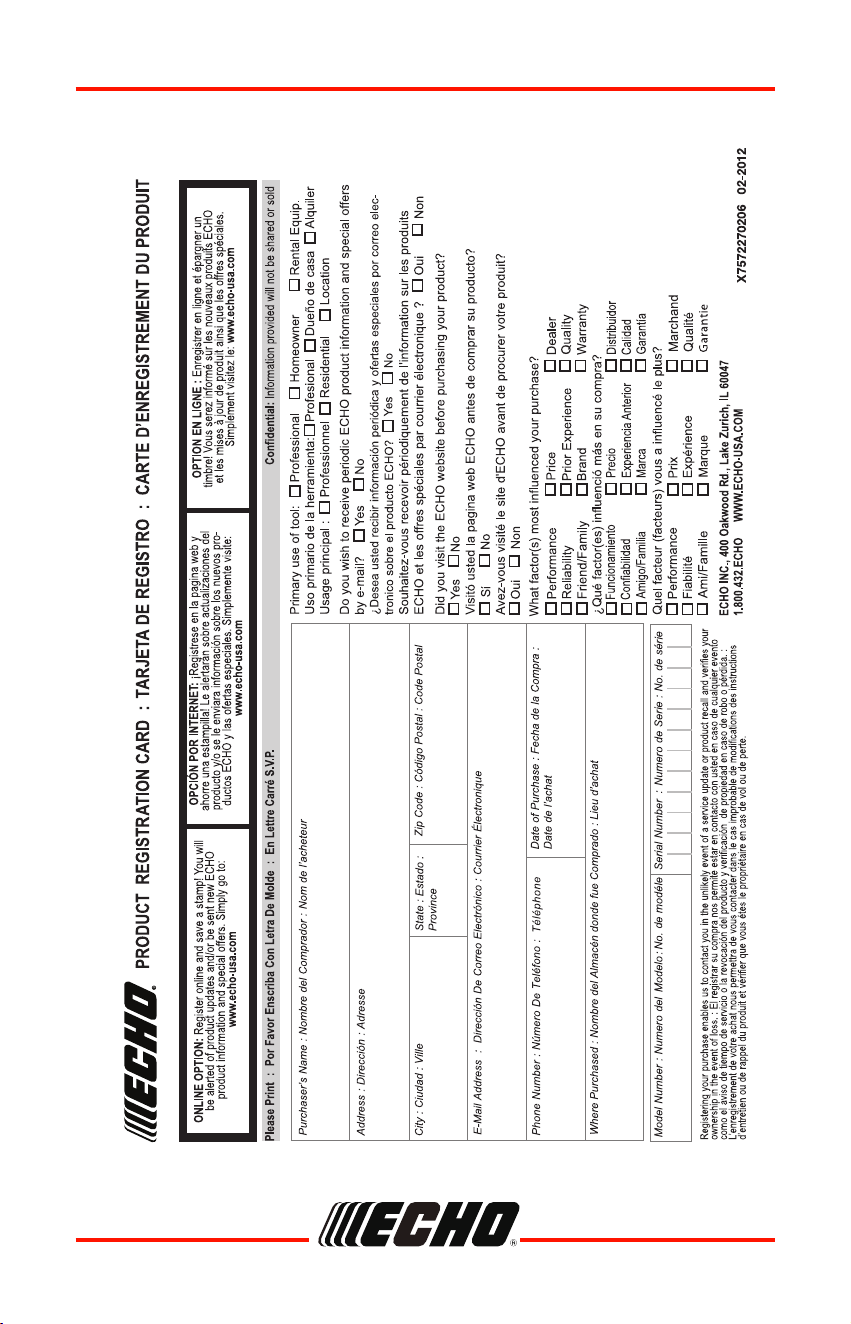

the product registration sheet included in this manual. Registering your product

conrms warranty coverage and provides a direct link to ECHO if we nd it

necessary to contact you.

In addition to nding information online, information is available from your

Authorized ECHO Service Dealer, or by contacting ECHO Incorporated, 400

Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).

Service

ECHO Consumer Product Support

Product Registration

Additional Literature

The safety alert symbol accompanied by the word “DANGER”

calls attention to an act or condition which WILL lead to serious

personal injury or death if not avoided.

The safety alert symbol accompanied by the word “WARNING”

calls attention to an act or condition which CAN lead to serious

personal injury or death if not avoided.

The safety alert symbol accompanied by the word “CAUTION”

calls attention to an act or condition which might lead to minor or

moderate personal injury if not avoided.

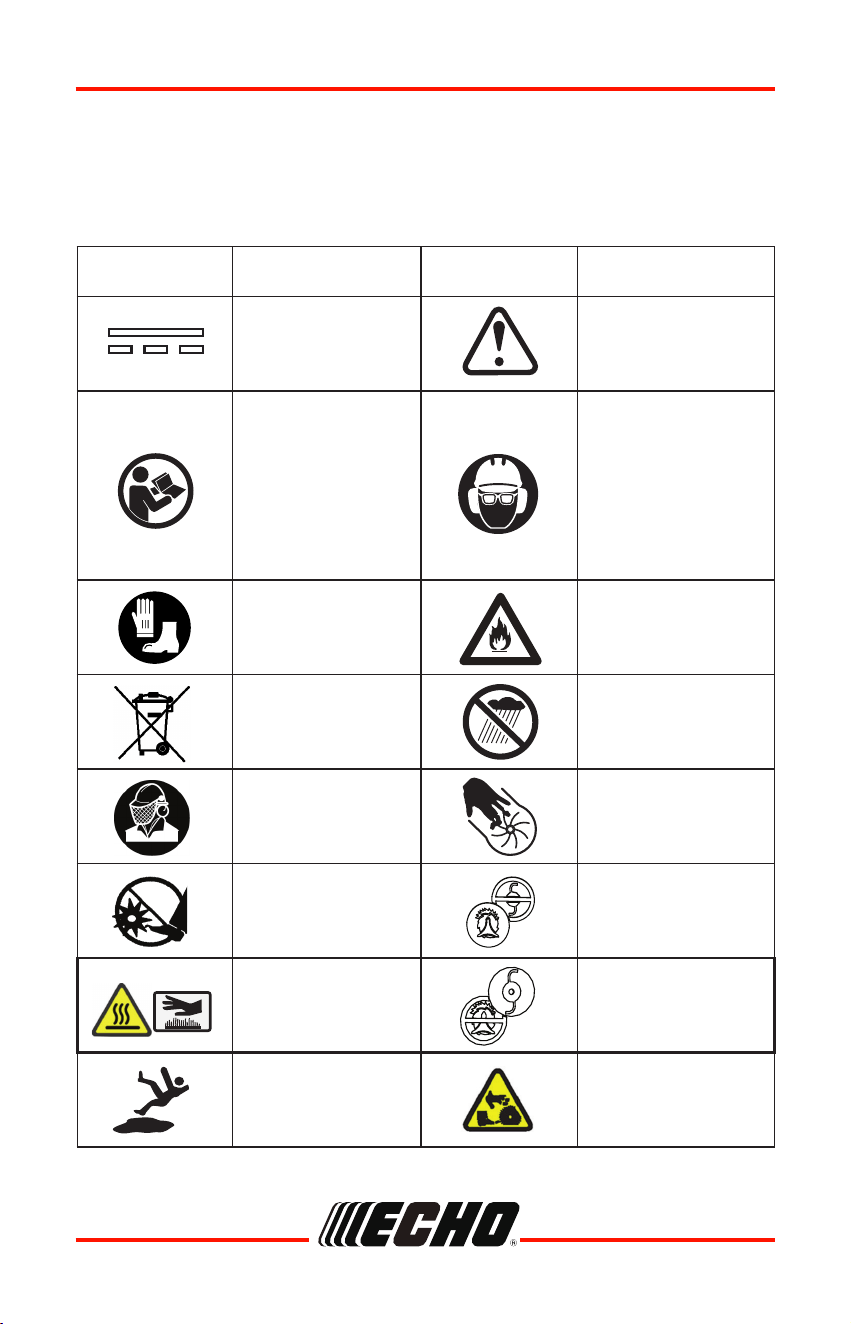

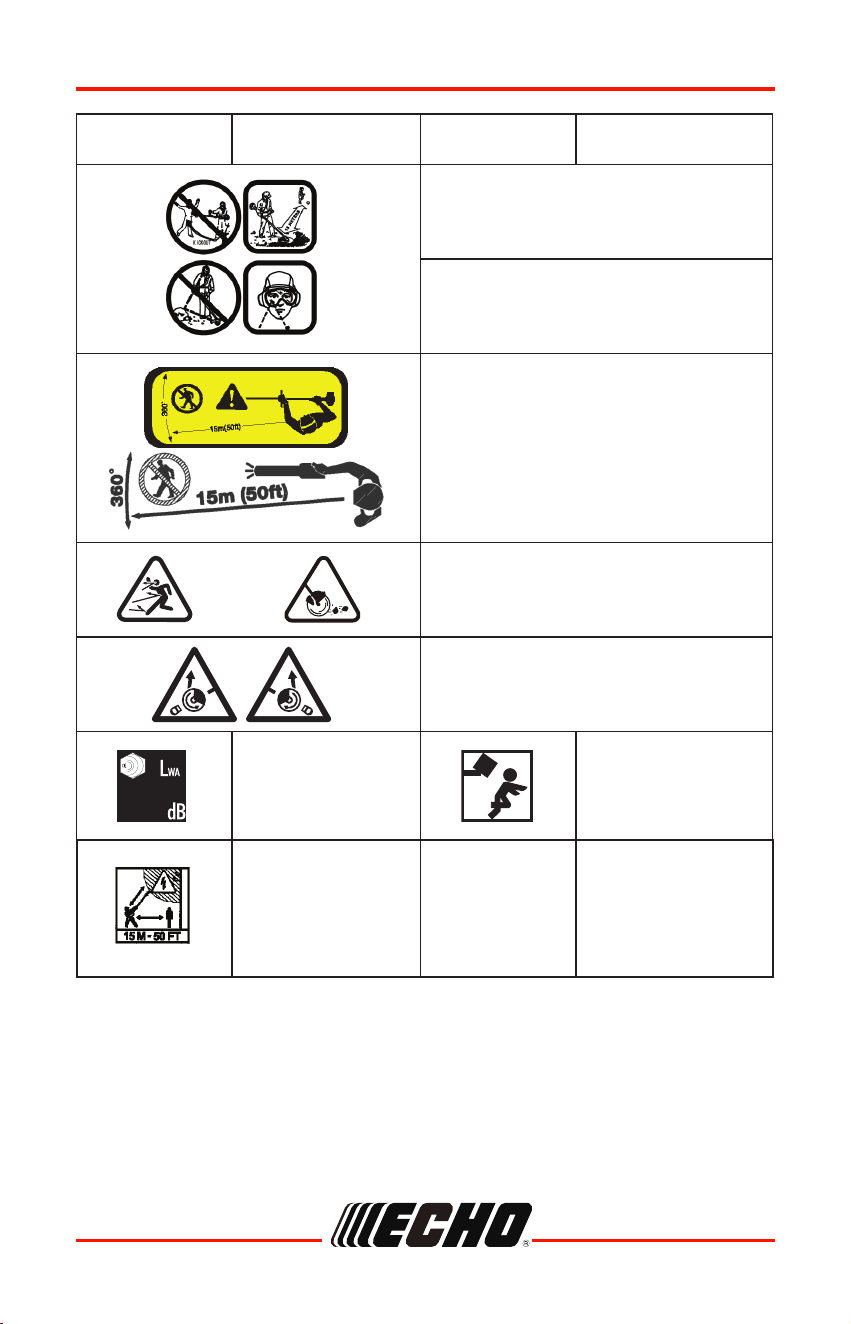

Symbol Description Symbol Description

Direct current Safety / Alert

Read and follow all

safety precautions

in the operator's

manual. Failure to

follow instructions

• Carry the extended-reach pruner by the handle with the saw chain

stopped. When transporting or storing the extended-reach pruner, always

t the saw chain device cover. Proper handling of the extendedreach

pruner will reduce possible personal injury from the saw chain.

• Hold the extended-reach pruner by insulated gripping surfaces only,

because the saw chain may contact hidden wiring. A saw chain

contacting a "live" wire may make exposed metal parts of the extended-

• Do not use the extended-reach pruner in bad weather conditions,

especially when there is a risk of lightning. This decreases the risk of

being struck by lightning.

This section contains the prescribed general safety warnings and instructions

for handheld, motor-operated electric blowers contained in UL 1017. Additional

important warnings and instructions are provided in subsequent sections of this

manual.

When using an electrical appliance, basic precautions should always be

followed, including the following:

3. Do not put any object into openings. Do not use with any opening blocked;

keep free of dust, lint, hair, and anything that may reduce air ow.

4. Keep hair, loose clothing, ngers, and all parts of body away from openings

and moving parts.

5. Turn off all controls before unplugging.

6. Use extra care when cleaning on stairs.

7. Do not use to pick up ammable or combustible liquids, such as gasoline,

or use in areas where they may be present.

following ECHO tools: Hedge Trimmer, Mid-Reach

Hedge Trimmer, Shafted Hedge Trimmer, or Articulating

sections of this manual.

Read all safety warnings, instructions, illustrations, and

or serious injury.

Blades

continue to move after the switch is turned off. A moment of inattention

Proper handling of the hedge trimmer will decrease the risk of

personal injury from the blades.

or servicing may result in serious personal injury.

or cables may be hidden in hedges or bushes and can be accidentally cut

by the blade.

power lines may cause serious injury or electric shock resulting in death.

General Safety Warnings and Instructions for the

following ECHO tools: All DSRM and DGT models, and

This section contains the prescribed general safety warnings and instructions

for handheld, motor-operated electric lawn trimmers, lawn edge trimmers,

grass trimmers, brush cutters, and brush saws contained in UL 62841-4-4.

Additional important warnings and instructions are provided in subsequent

sections of this manual.

This decreases the risk of being struck by

lightning.

Wildlife may be injured by the machine during operation.

Thrown objects can cause personal injury.

Improperly tightened

blade securing nuts or bolts may either damage the blade or result in it

becoming detached.

Blades running

faster than their rated rotational speed can break and y apart.

equipment will reduce personal injury by ying debris or accidental contact

with the cutting line or blade.

can result in serious personal injury.

machine with both hands will avoid loss of control.

Cutting line or blades contacting a "live" wire may make exposed metal

A moment of

the risk of breakage and injury.

result in serious personal injury. Follow installation instructions.

Support Handle,

with or without

barrier bar

U-handle or support handle with

barrier bar

U-handle*

Shield with cut-off

Shield without cut-off knife.

*ANSI and UL standards require brushcutters be equipped with a barrier bar or

restrictive harness. U-handle ensures a higher safety factor.

Do Not install blades on GT (Curved Shaft) model trimmers.

Note: The barrier bar is used to restrict rearward movement of the unit.

The barrier bar is not a handle and should not be gripped when using

or carrying the unit.

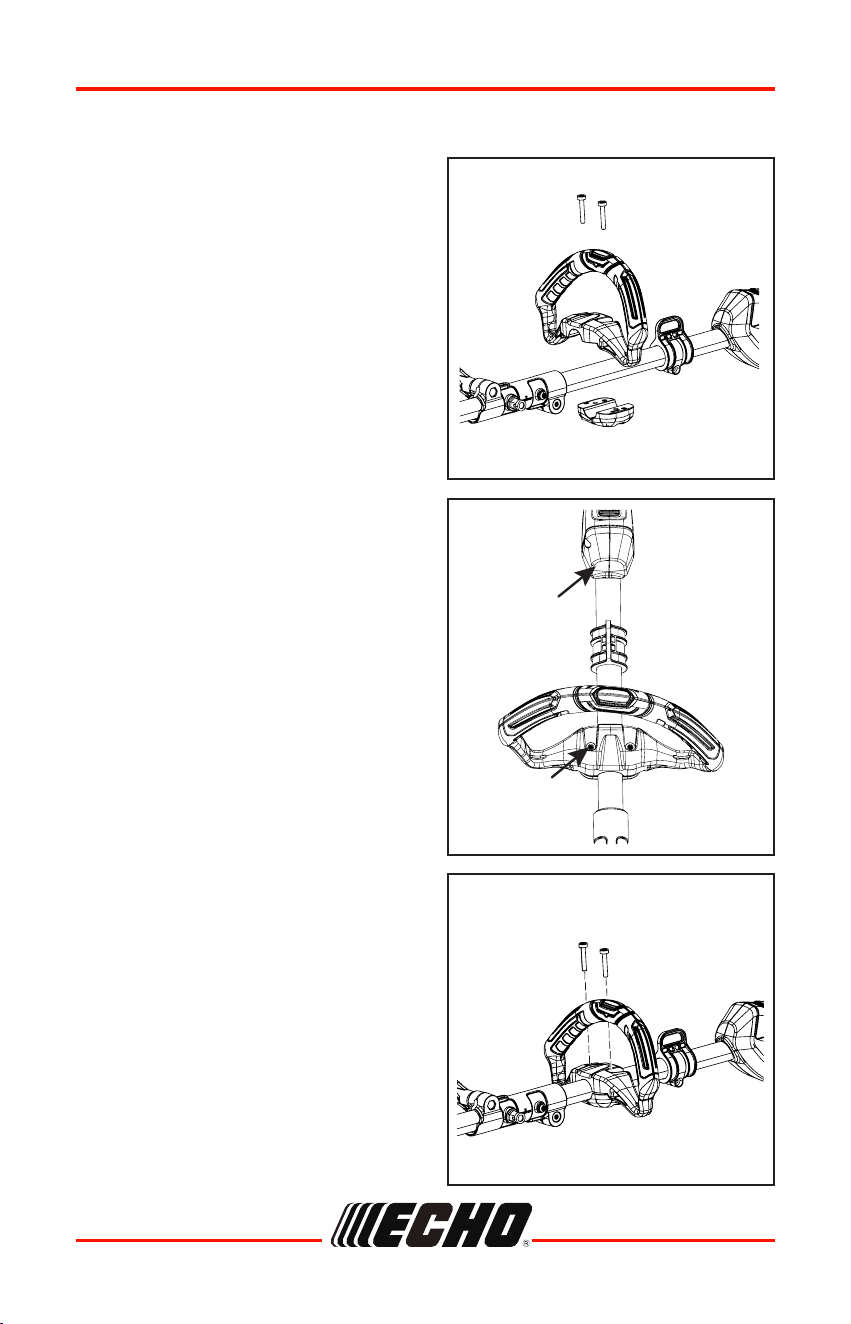

Attach the Support Handle

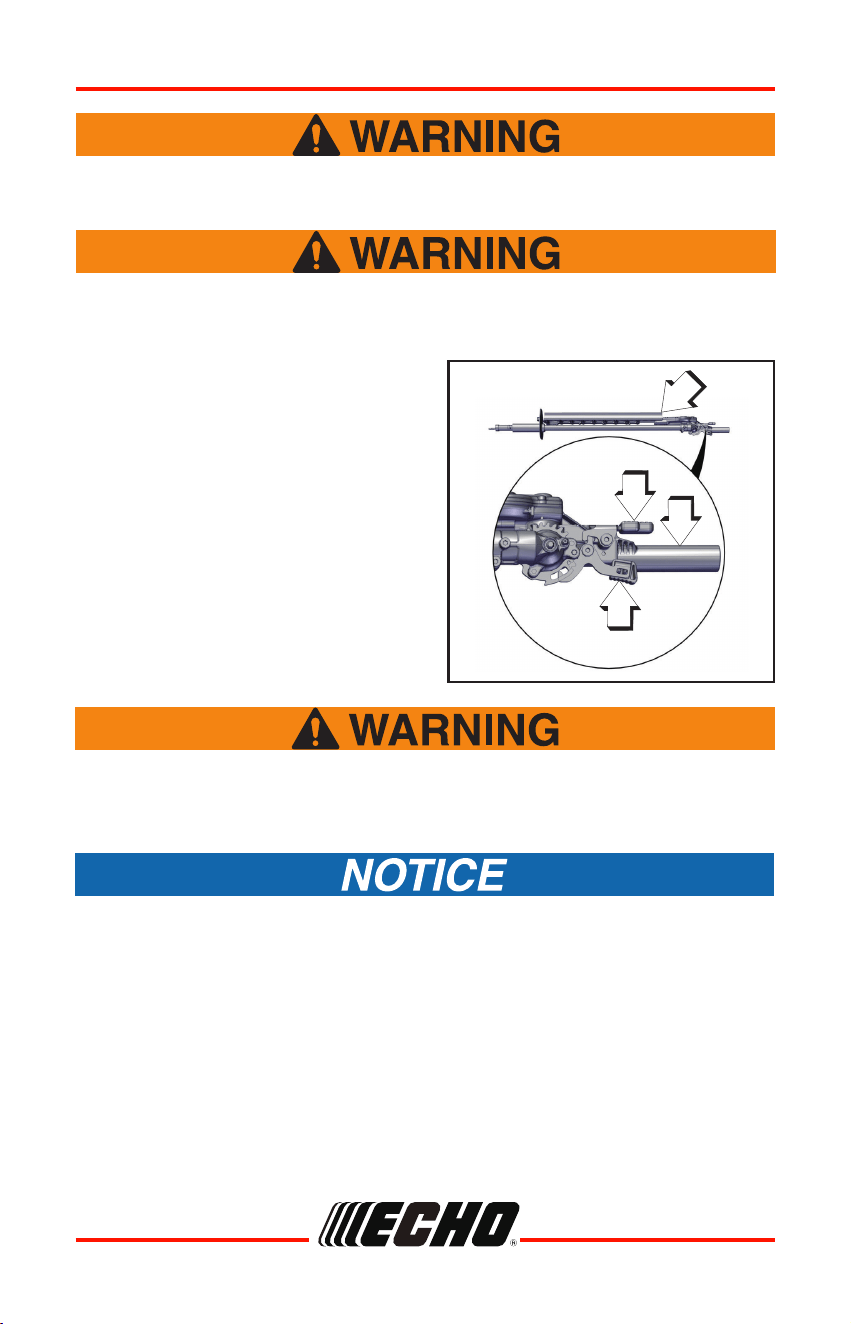

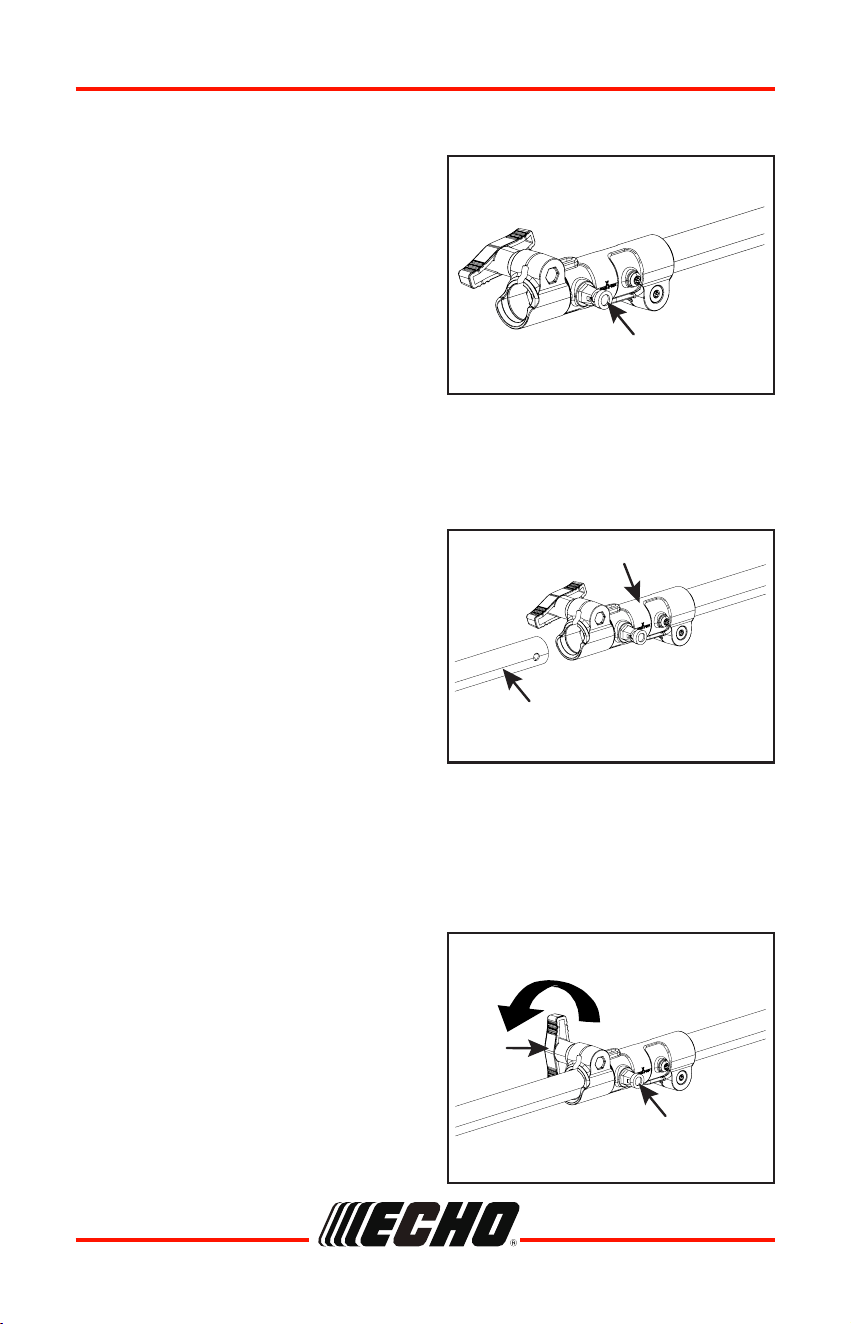

Power Head Shaft to Lower Shaft Assembly

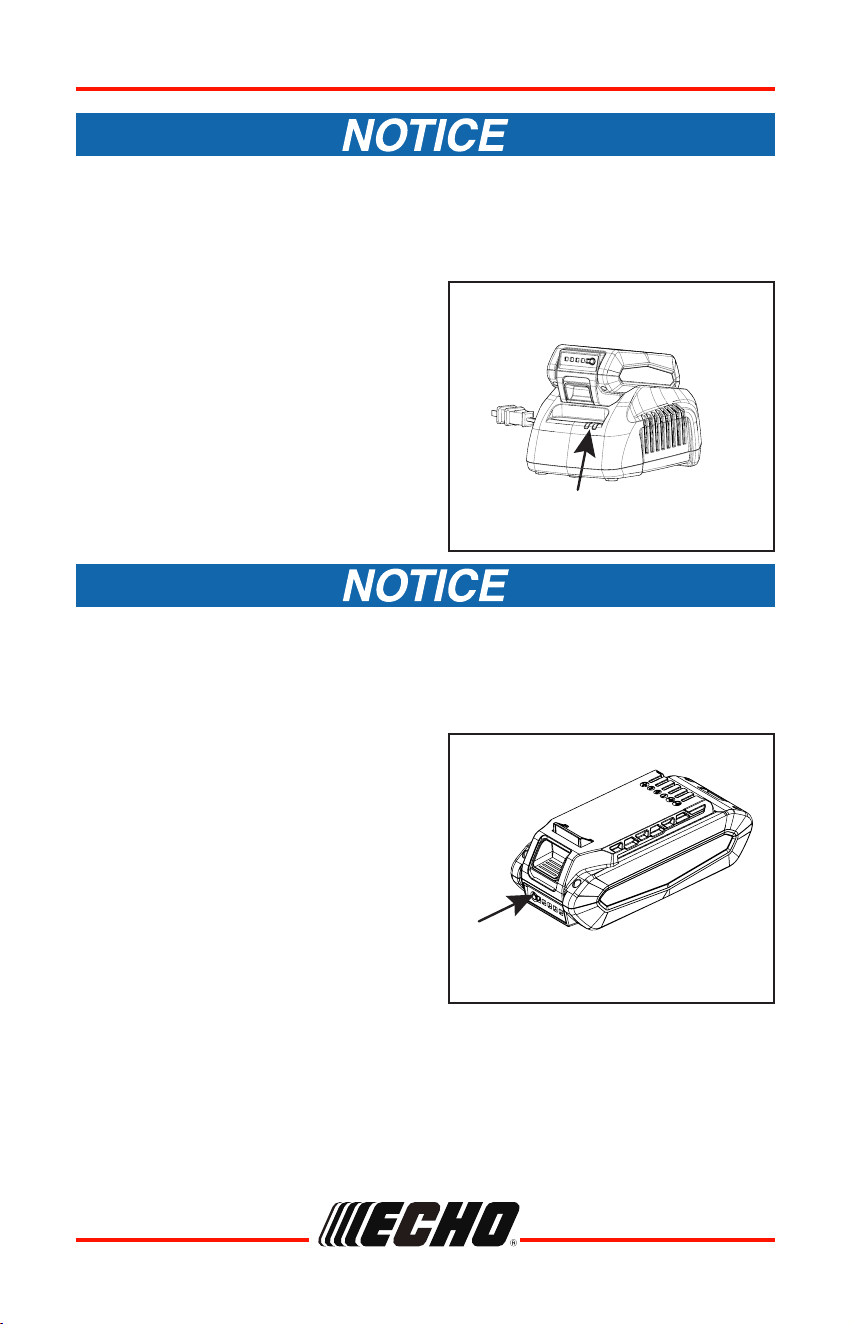

Battery Charging

4. When charging is complete, LED

5. Verify battery is fully charged.

• One green light indicates that the

battery has 75-100% charge.

6. Unplug charger AC cord from the

A

The attachment will operate when the battery is installed, the

preventloss of control and possible serious injury. Keep movable

parts of the attachment off the ground and away from objects that

could become entangled or thrown.

3. Assure the battery latch (B) snaps

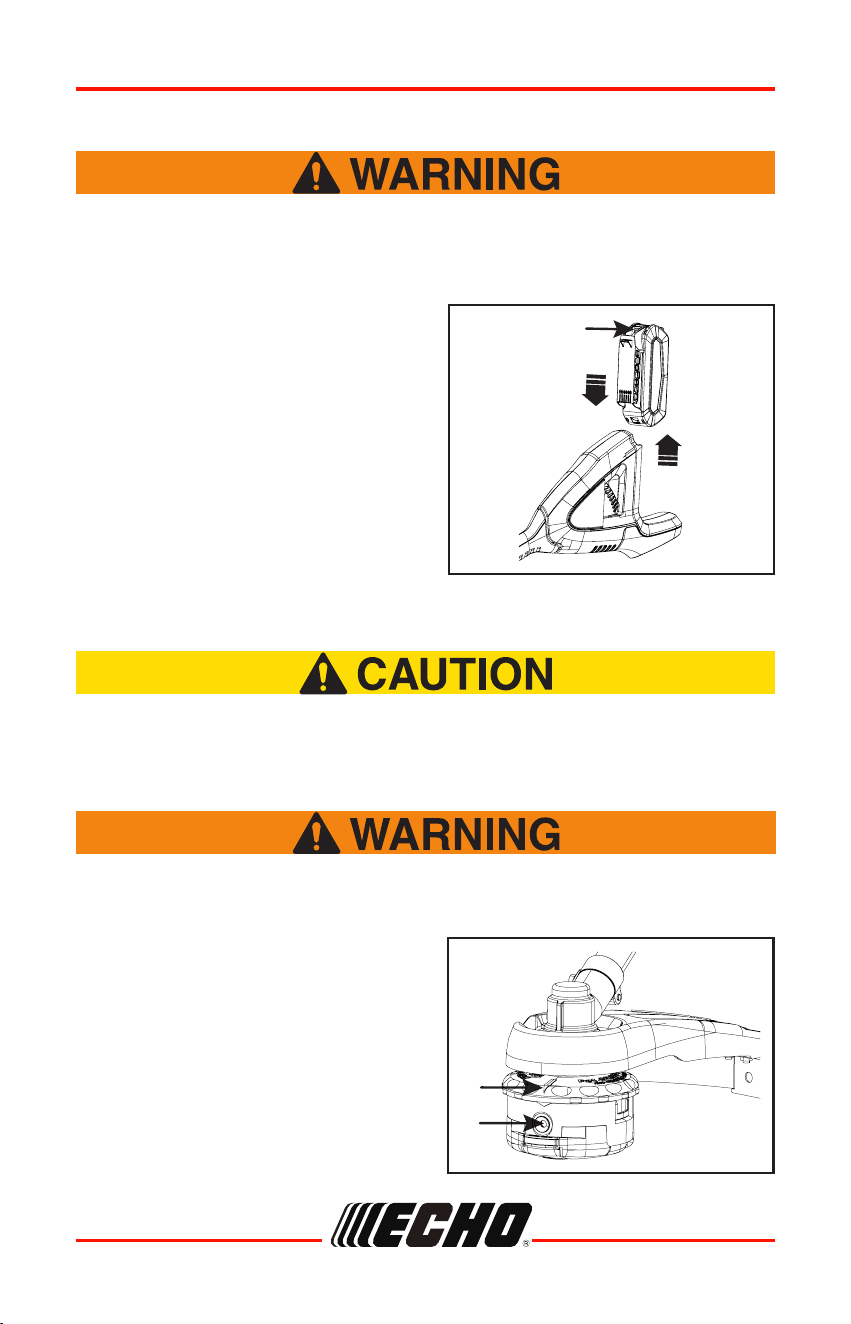

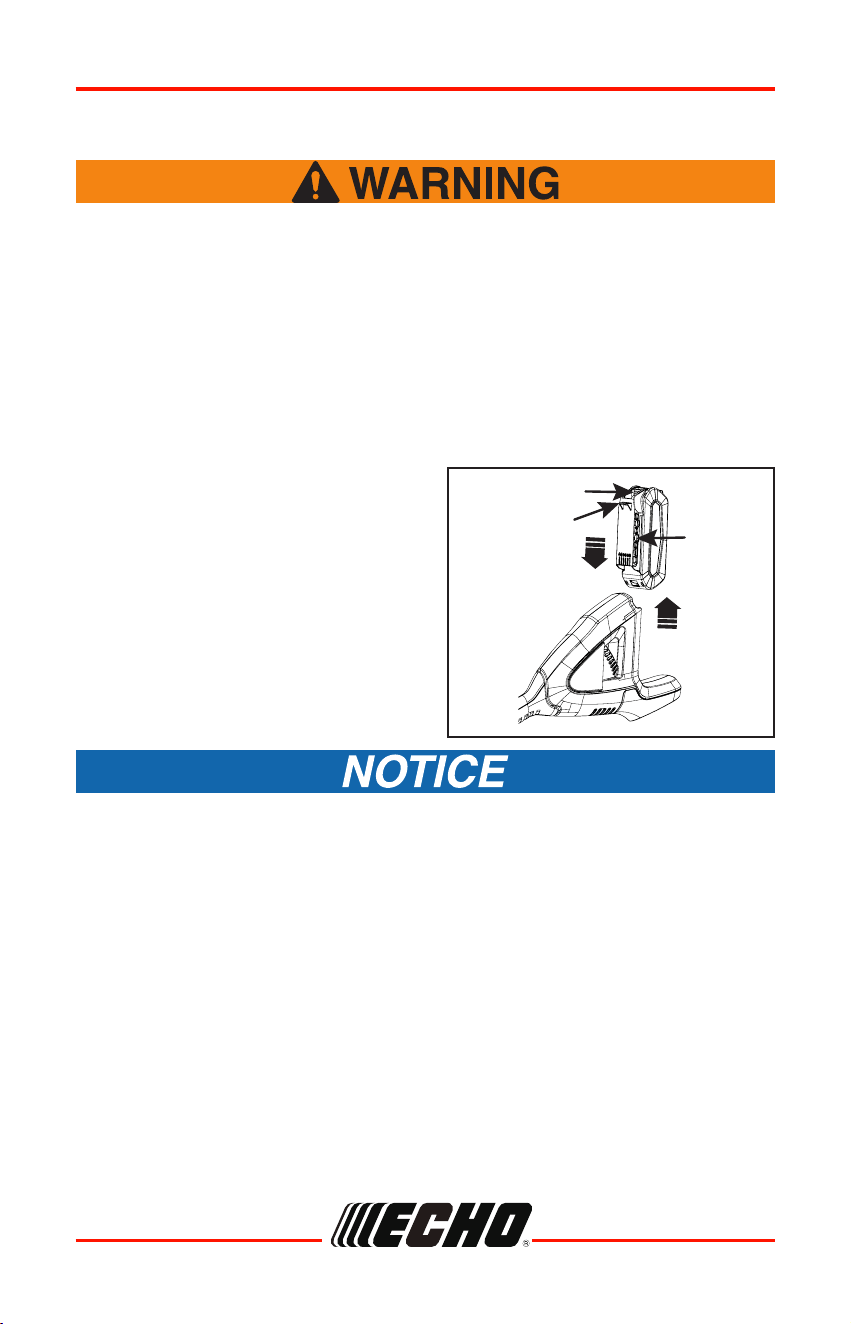

Install the Battery

Remove the Battery

1. To remove battery, depress battery latch release (C) slide battery out of

C

to prevent loss of control and possible serious injury.

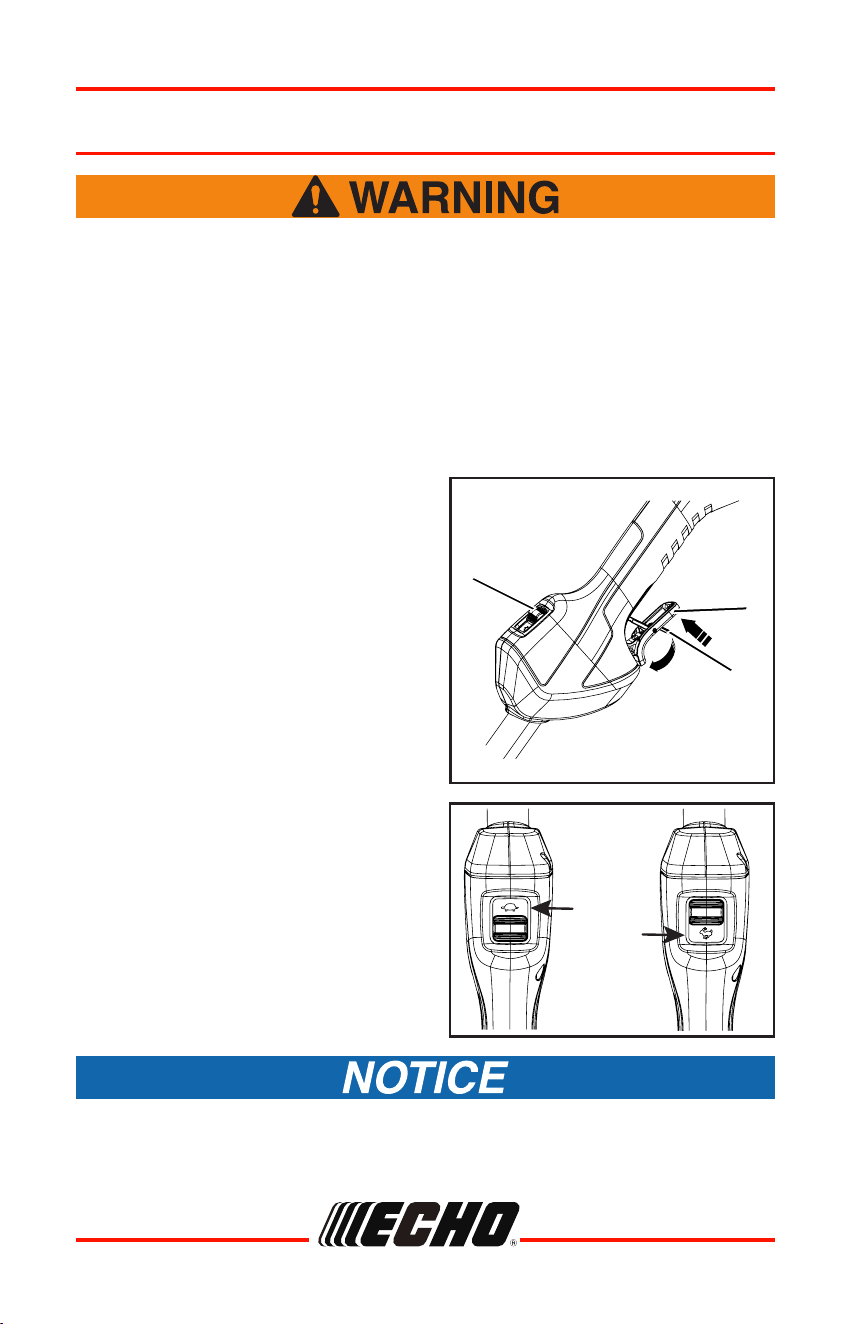

Start the Machine

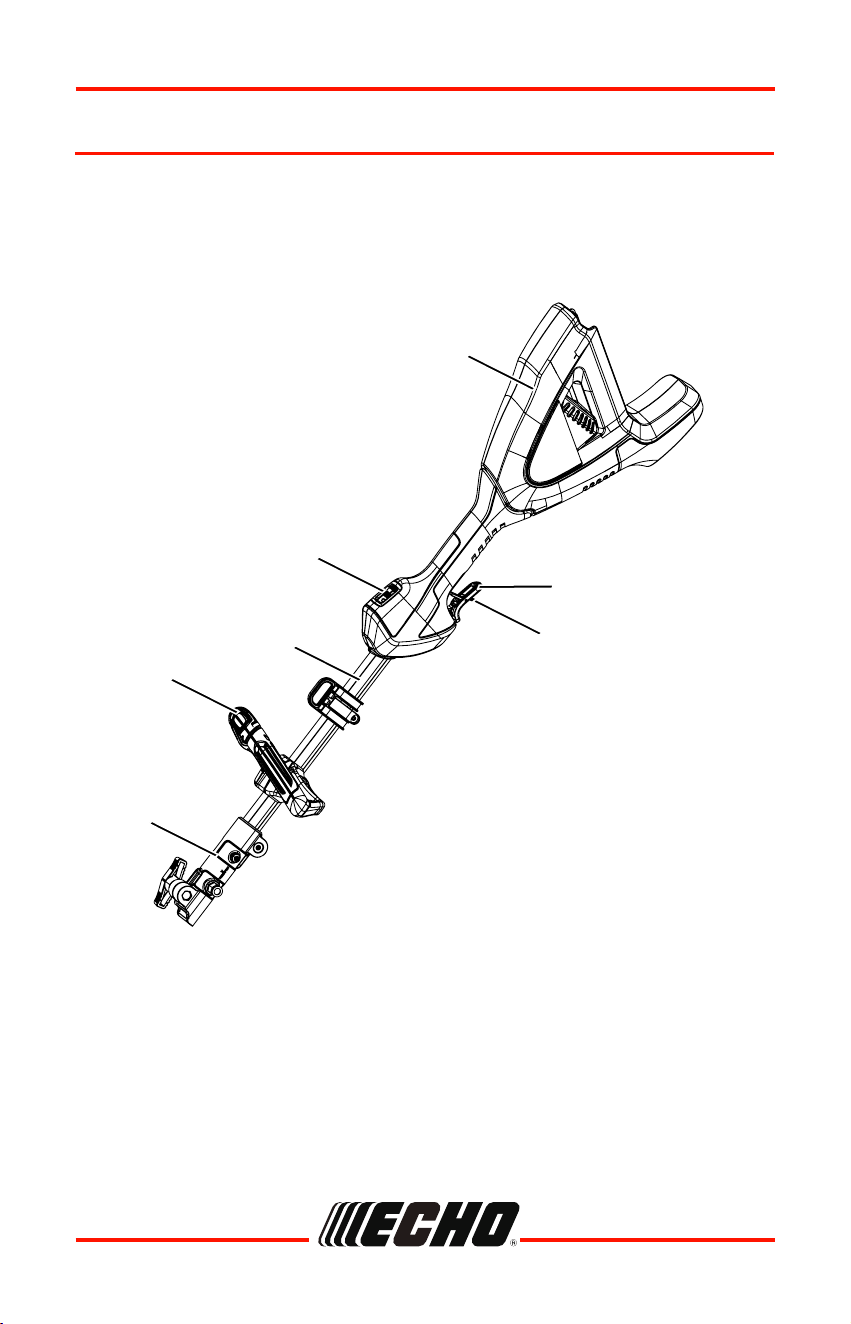

1. Push the lock-off lever switch (3)

2. Push the speed switch (4) to the

3. Push the speed switch to position

When power to unit is turned on:

• After 90 seconds of inactivity, unit will power itself off.

OPERATION

Applications

Always hold throttle handle with right hand and support handle

with left hand, placing unit on right side of body.

Do not install blades on GT (Curved Shaft) trimmers.

grass and light weeds.

• GT models: Tilt cutting head to the left while cutting to direct debris away

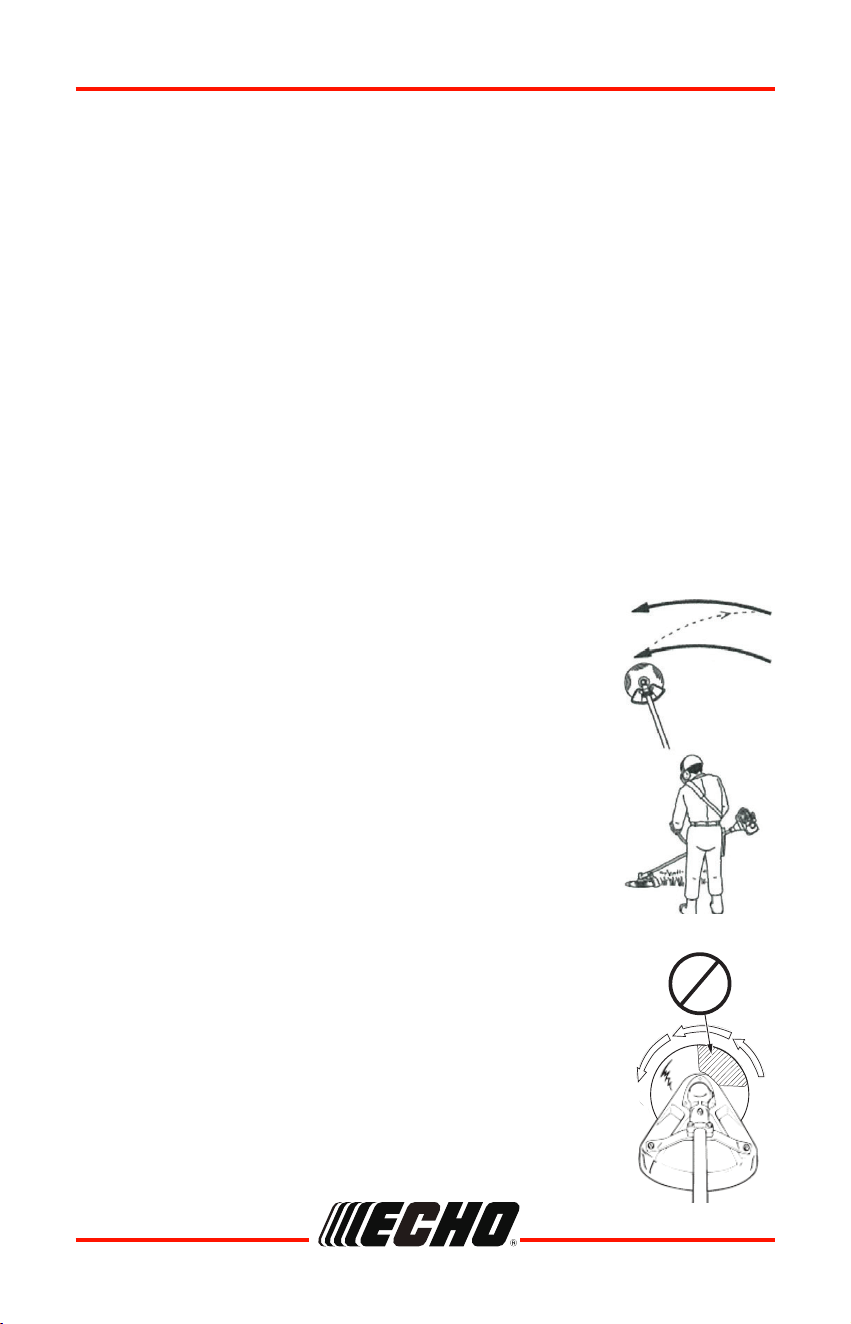

Scything - Swing the cutting head in a level arc, gradually feeding the line into

the material being cut. Move forward with each arc to cut a swath. Width of

cutting swath depends on arc. Use a larger arc for a wider swath, or a smaller

arc for a narrow swath. Keep line head tilted to direct cutting debris forward or

away from you.

debris, and any dislodged dirt and stone, will not come back towards you even

if it ricochets off the hard surface.

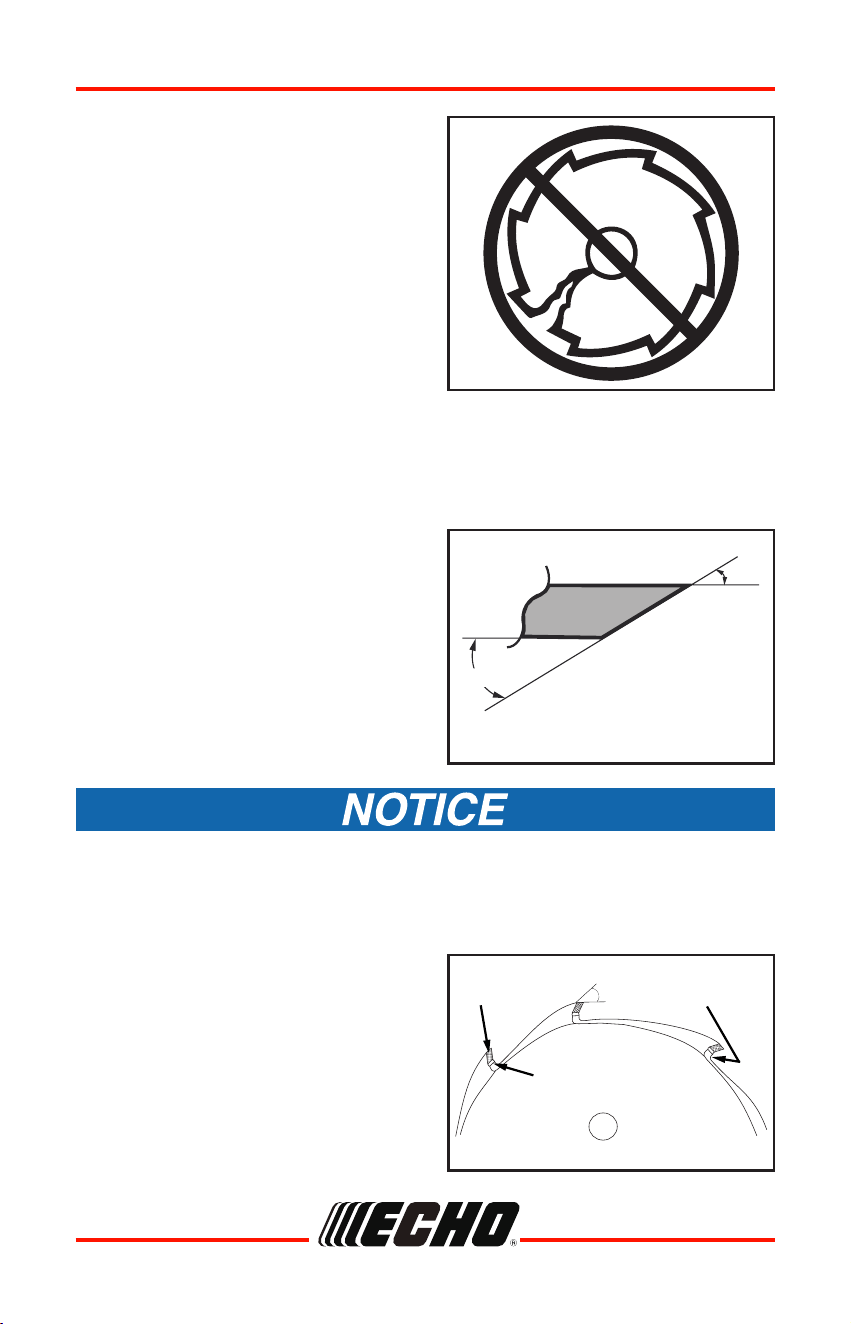

Brushcutter blades may be used to cut and trim a wide variety of materials.

Refer to the blade selection section for determining the correct blade for the

application.

• To cut large sections of eld grass and weeds swing

• Tilt blade left by 5 to 10 degrees so that cut grasses

• Move forward with each arc to cut a swath.

• Width of cutting swath depends on arc. Use a larger

• When scything large brush up to 12.7 mm (0.5

Reaction Forces

resulting in serious injury to operator and bystanders.

Understanding what causes these reactive forces may help you to avoid them,

and can help you to maintain control of the equipment if you experience a

sudden reaction during cutting. Reactive forces occur when the force being

applied by the cutting teeth of a blade meet resistance, and some of the cutting

force is directed back toward the equipment. The greater the cutting force or

the amount of resistance, the greater the reactive force.

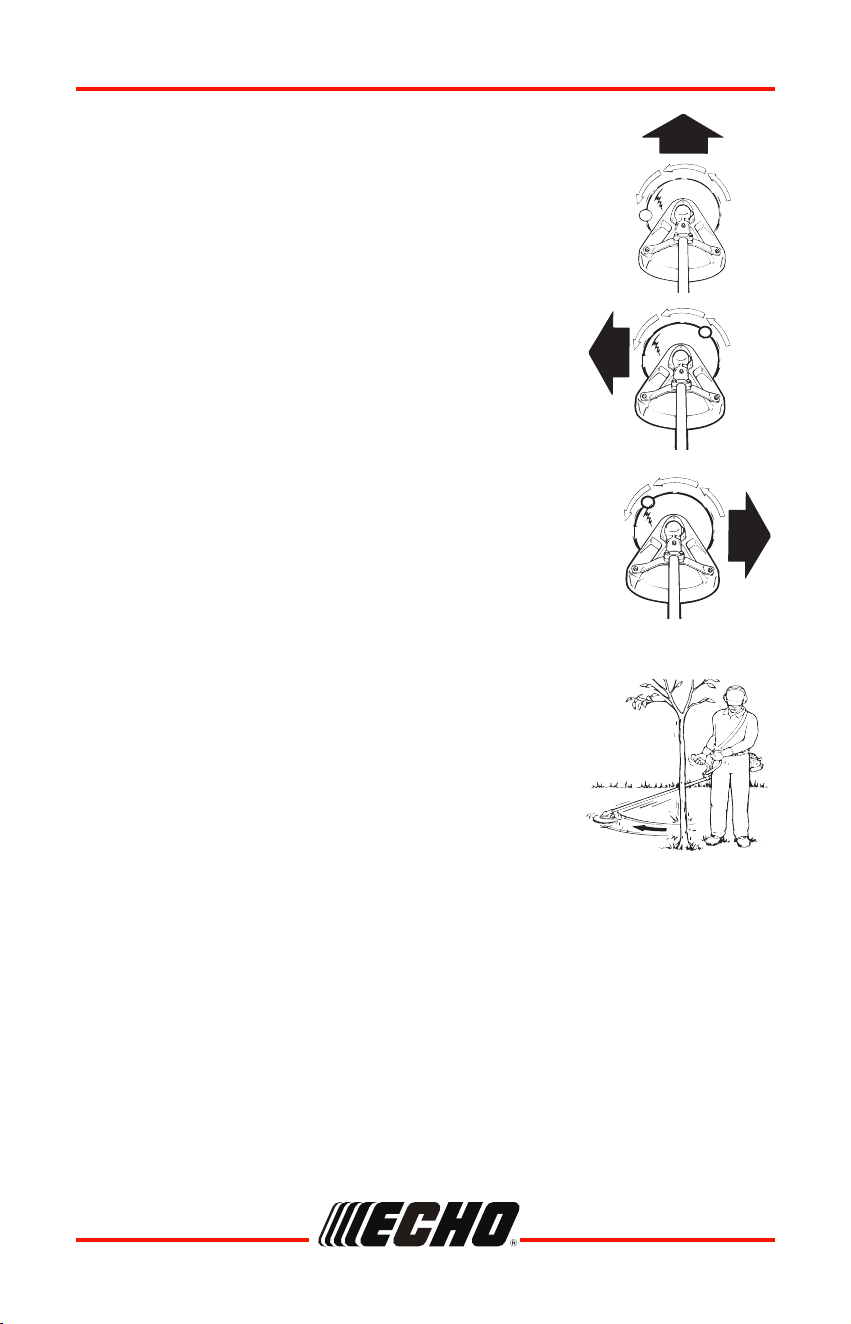

Push and pull forces are reactive forces that push the

equipment directly toward the operator, or that pull the

TROUBLE SHOOTING

The machine

1. Remove battery.

again.

1. Push the lock-off lever switch and

hold it.

2. Pull the power switch to start the

machine.

The machine

stops when

1. Cool the battery until its func-tion

returns to normal.

Red Charger

light ashes

or does not

light up.

Plug in charger.

Check the battery installation.

obstructions.

turned on

Remove the battery and allow to cool.

Running time

is too short.

Remove battery and allow to cool.

Charge the battery.

• Remove battery.

• Remove accumulation of dirt and debris from exterior of unit.

• Tighten all screws and nuts.

• Cover battery compartment, battery and charger.

• Store unit in a dry, dust-free place, out of the reach of children.

• Remove battery.

• Store in a dry, dust-free place, out of the reach of children.

• Store in temperatures between 32°F (0°C) and 113°F (45°C).

• If battery is stored for longer than six months, charge it to 100% capacity.

Tiller/Cultivator 99944200513 UL Std. 82; CAN/CSA Std.

C22.2 No. 147-15

3' Extension

C22.2 No. 147-15

Power Blower 99944200490 UL Std. 1017; CAN/CSA Std.

C22.2 No. 243-17

2. For use with: Power Pruner™ attachments only

Curved Shaft Edger 99944200470

Straight Shaft Edger 99944200475

Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to

will never be sold or misused by ECHO, Incorporated.

Registering your purchase enables us to contact you in the unlikely event of

a service update or product recall, and veries your ownership for warranty

consideration.

If you do not have access to the Internet, you can complete the form below and

mail to:

60047.

purchase:

■ If the product is for homeowner use:

• Units and Bare Tool – 5 Years

• Battery or charger – 2 years

■ If the product is for commercial use:

• Units and Bare Tool – 2 Years

• Battery or charger – 2 years

■ If the product is for rental use: 90 days for all units, batteries, and chargers.

■ Cutting attachments such as, but not limited to, bars, chains, sprockets,

the date of the original retail purchase.

Any part of this product found in the reasonable judgment of ECHO

Incorporated, to be defective in material or workmanship will be repaired or

replaced without charge for parts and labor by an authorized ECHO dealer.

Units, repair parts and accessories replaced under this warranty are warranted

only for the balance of the original warranty period.

The product, including any defective part, must be returned to an authorized

ECHO dealer within the warranty period. The expense of delivering the product

to the service center for warranty work and the expense of returning it back

to the owner after repair or replacement will be paid by the owner. ECHO

subject to misuse, neglect, negligence, or accident, or that has been operated

in any way contrary to the operating instructions as specied in the Operator’s

Manual. This warranty does not cover normal deterioration due to the use

or exposure, and any repairs made necessary by normal wear, improper

maintenance, improper lubrication, improper storage, dirt, abrasives, impact,

moisture, water, rain, snow, rust, corrosion, varnish, or other similar conditions.

This warranty does not cover damage to chargers or batteries by improper

charging voltage and batteries that have been exposed to temperatures

beyond those specied in the Operator’s Manual, batteries that have not been

properly charged or batteries that have reached their useful life.

This warranty does not apply to any damage to the product that is the result

Wear items – Bump Knobs, Outer Spools, Cutting Lines, Inner Reels, Felt

Washers, Hitch Pins, Mulching Blades, Blower Fans, Blower and Vacuum

Tubes, Vacuum Bag and Straps, Guide Bars, Saw Chains, Grass Catch Bag,

Hedge Trimmer Blades, and Wheels

ECHO Incorporated, reserves the right to change or improve the design of

this product without assuming any obligation to modify any product previously

manufactured.

All implied warranties are limited in duration to the stated warranty period.

Accordingly, any such implied warranties including merchantability, tness for

a particular purpose, or otherwise, are disclaimed in their entirety after the

Incorporated, assumes no responsibility for incidental, consequential, or other

damages including, but not limited to, expense of returning the product to an
