ZKTeco ZK-D4330 User Manual

ZK-D4330 User Manual

Contents 1

User Manual

Walk Through Metal Detector

ZK-D4330

Date: March 2024

Doc Version: 1.2

English

Thank you for choosing our product. Please read the instructions

carefully before operation. Follow these instructions to ensure that the

product is functioning properly. The images shown in this manual are

for illustrative purposes only.

For further details, please visit our Company’s website

www.zkteco.com

.

ZK-D4330 User Manual

Page | 1

Without the prior written consent of ZKTeco, no portion of this manual can be copied or

forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries

(hereinafter the "Company" or "ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual

are owned by their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco

equipment. The copyright in all the documents, drawings, etc. in relation to the ZKTeco

supplied equipment vests in and is the property of ZKTeco. The contents hereof should not be

used or shared by the receiver with any third party without express written permission of

ZKTeco.

The contents of this manual must be read as a whole before starting the operation and

maintenance of the supplied equipment. If any of the content(s) of the manual seems unclear

or incomplete, please contact ZKTeco before starting the operation and maintenance of the

said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the

operating and maintenance personnel are fully familiar with the design and that the said

personnel have received thorough training in operating and maintaining the machine/

unit/equipment. It is further essential for the safe operation of the machine/unit/ equipment

that personnel has read, understood and followed the safety instructions contained in the

manual.

In case of any conflict between terms and conditions of this manual and the contract

specifications, drawings, instruction sheets or any other contract-related documents, the

contract conditions/documents shall prevail. The contract specific conditions/ documents

shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any

information contained in this manual or any of the amendments made thereto. ZKTeco does

not extend the warranty of any kind, including, without limitation, any warranty of design,

merchantability or fitness for a particular purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or

documents which are referenced by or linked to this manual. The entire risk as to the results

and performance obtained from using the information is assumed by the user.

ZK-D4330 User Manual

Page | 2

ZKTeco in no event shall be liable to the user or any third party for any incidental,

consequential, indirect, special, or exemplary damages, including, without limitation, loss of

business, loss of profits, business interruption, loss of business information or any pecuniary

loss, arising out of, in connection with, or relating to the use of the information contained in

or referenced by this manual, even if ZKTeco has been advised of the possibility of such

damages.

This manual and the information contained therein may include technical, other inaccuracies

or typographical errors. ZKTeco periodically changes the information herein which will be

incorporated into new additions/amendments to the manual. ZKTeco reserves the right to

add, delete, amend or modify the information contained in the manual from time to time in

the form of circulars, letters, notes, etc. for better operation and safety of the

machine/unit/equipment. The said additions or amendments are meant for improvement

/better operations of the machine/unit/equipment and such amendments shall not give any

right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions

due to any non-compliance of the instructions contained in this manual (ii) in case of

operation of the machine/unit/equipment beyond the rate limits (iii) in case of operation of

the machine and equipment in conditions different from the prescribed conditions of the

manual.

The product will be updated from time to time without prior notice. The latest operation

procedures and relevant documents are available on http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business-related queries, please write to us at sales@zkteco.com

.

To know more about our global branches, visit www.zkteco.com.

ZK-D4330 User Manual

Page | 3

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial,

Finger-vein) readers. Product offerings include Access Control readers and panels, Near &

Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License

Plate Recognition (LPR) gate controllers and Consumer products including battery-operated

fingerprint and face-reader Door Locks. Our security solutions are multi-lingual and localized

in over 18 different languages. At the ZKTeco state-of-the-art 700,000 square foot

ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of

biometric verification procedures and the productization of biometric verification SDK, which

was initially widely applied in PC security and identity authentication fields. With the

continuous enhancement of the development and plenty of market applications, the team

has gradually constructed an identity authentication ecosystem and smart security ecosystem,

which are based on biometric verification techniques. With years of experience in the

industrialization of biometric verifications, ZKTeco was officially established in 2007 and now

has been one of the globally leading enterprises in the biometric verification industry owning

various patents and being selected as the National High-tech Enterprise for 6 consecutive

years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of the ZK-D4330 Walk-through Metal Detector.

All figures displayed are for illustration purposes only. Figures in this manual may not be

exactly consistent with the actual products.

ZK-D4330 User Manual

Page | 4

Table of Contents

1 OVERVIEW ....................................................................................................... 6

1.1 INTRODUCTION ............................................................................................................ 6

1.2 APPEARANCE ................................................................................................................ 6

1.3 COMPONENTS .............................................................................................................. 7

2 PRODUCT SPECIFICATIONS ............................................................................ 8

2.1 DIMENSIONS ................................................................................................................. 8

2.2 TECHNICAL SPECIFICATIONS ..................................................................................... 8

3 INSTALLATION ................................................................................................ 9

3.1 SAFETY PRECAUTIONS ................................................................................................ 9

3.2 INSTRUCTIONS FOR THE PEDESTRIANS ................................................................... 9

3.3 INSTALLATION SITE ................................................................................................... 10

3.3.1 METALLIC ITEMS ..................................................................................................... 10

3.3.2 FLOOR ........................................................................................................................ 10

3.3.3 ELECTROMAGNETIC RADIATION AND INTERFERENCE ............................... 10

3.3.4 PARALLEL INSTALLATION ..................................................................................... 10

3.4 INSTALLATION STEPS ............................................................................................... 11

4 PERFORMANCE AND TECHNICAL FEATURES ............................................... 18

5 CONTROL PANEL ........................................................................................... 19

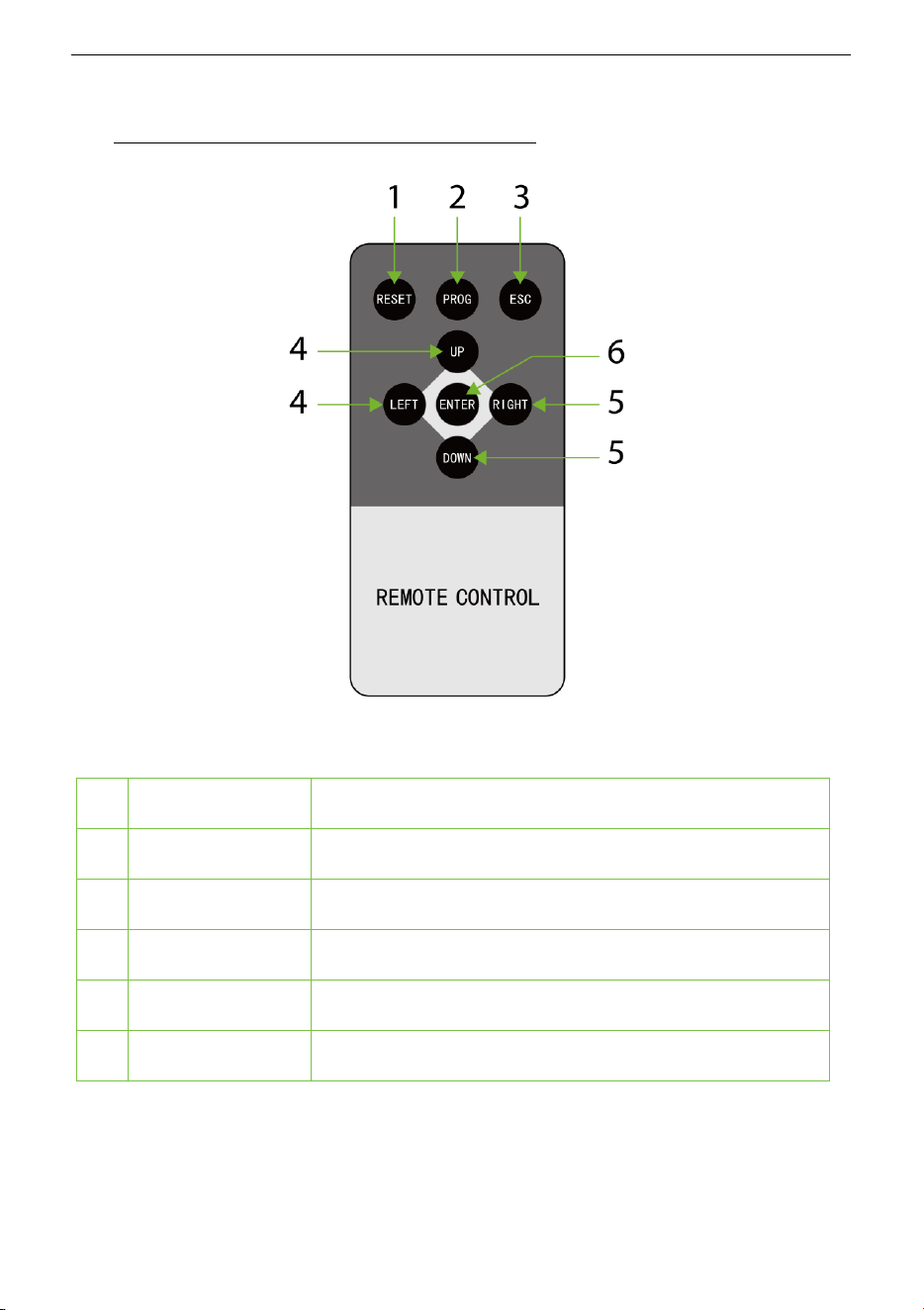

6 REMOTE CONTROL DESCRIPTION ................................................................ 20

ZK-D4330 User Manual

Page | 5

7 DETECTION ZONES ....................................................................................... 21

7.1 ADJUSTMENT OF DETECTION ZONE’S SENSITIVITY ............................................ 21

8 OPERATIONAL PROCEDURE ......................................................................... 22

8.1 STANDBY INTERFACE ................................................................................................ 22

8.2 MAIN MENU ............................................................................................................... 23

8.3 SENSITIVITY ADJUSTMENT ...................................................................................... 25

8.4 ZONE MODE ............................................................................................................... 26

8.5 CHANNEL SETTINGS ................................................................................................. 28

8.6 ALARM SETTINGS ..................................................................................................... 30

8.7 AUTO TESTING ........................................................................................................... 33

8.8 SECURITY LEVEL ........................................................................................................ 36

8.9 SCENARIO ................................................................................................................... 36

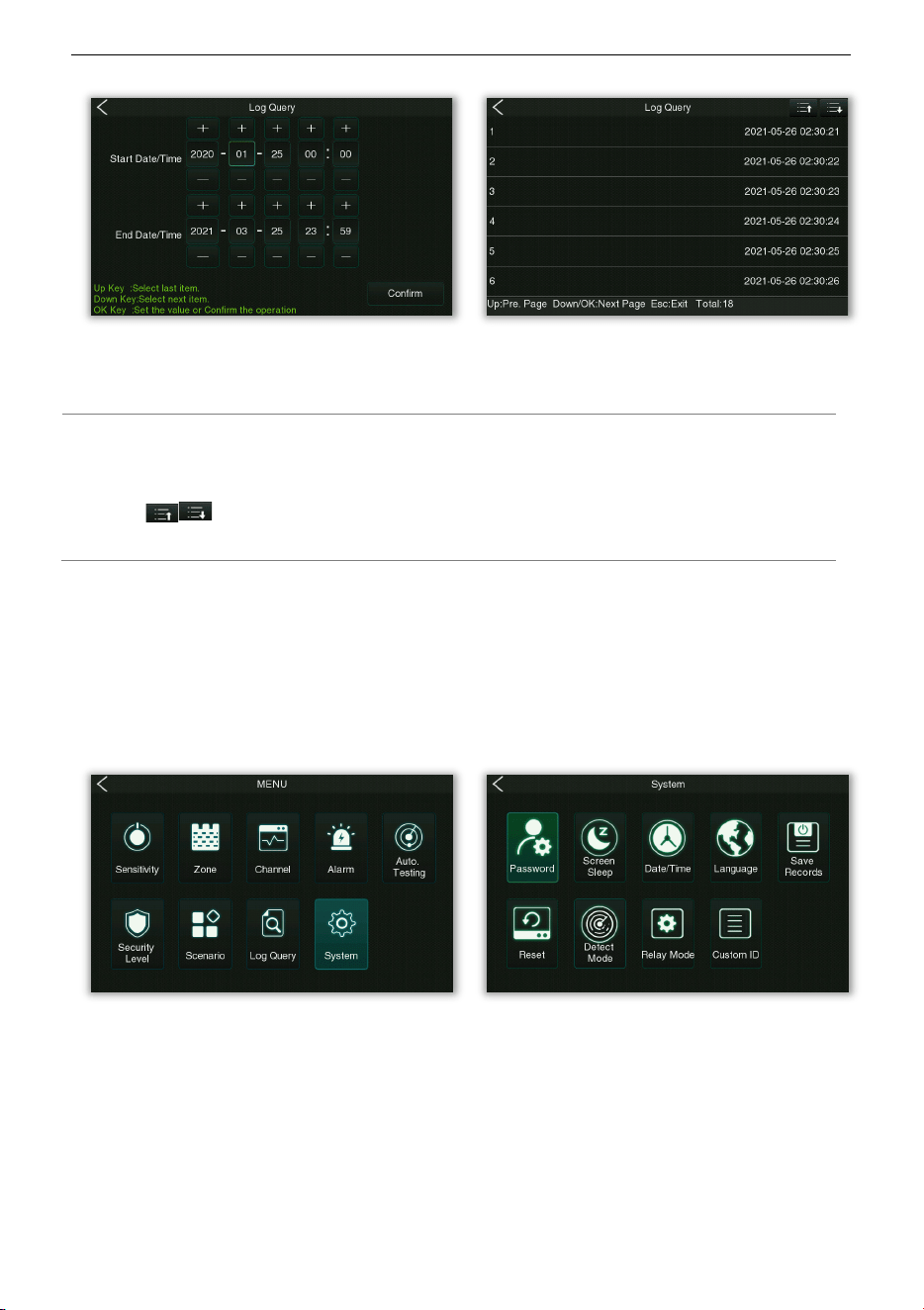

8.10 LOG QUERY ................................................................................................................ 37

8.11 SYSTEM SETTINGS .................................................................................................... 38

8.12 WEB SERVER .............................................................................................................. 44

8.13 DEFAULT PARAMETERS ............................................................................................ 46

TROUBLESHOOTING ............................................................................................. 47

PACKING LIST......................................................................................................... 48

WARRANTY CARD .................................................................................................. 49

ZK-D4330 User Manual

Page | 6

1 Overview

1.1 Introduction

ZK-D4330 Walk Through Metal Detector, also known as Security Door, is a fixed detection

device used primarily for inspecting the metal items concealed on the body. When a person

passes through the device carrying metal object(s) larger than the preset size, the device will

immediately generate alarms, and display the alarm location as well. The people detected

with metal need to be checked by the security guard thoroughly and the prohibited metal

articles should be ceased, if found. It is highly sensitive to magnetic metals and have a

strong detection capability, but are weak in detecting non-magnetic metals.

This device features faster induction, more accurate detection, higher sensitivity level, and

stronger interference immunity.

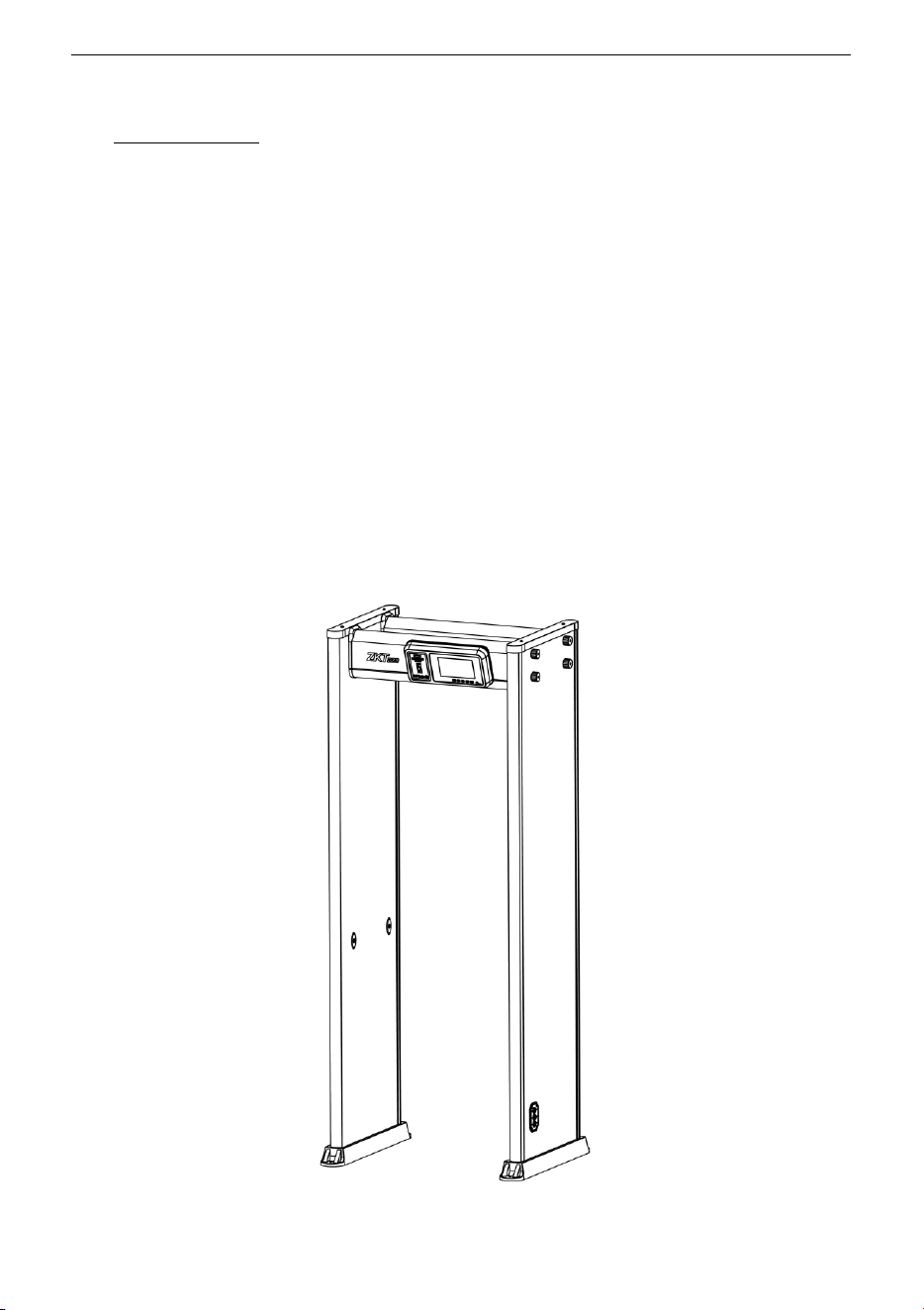

1.2 Appearance

ZK-D4330 User Manual

Page | 7

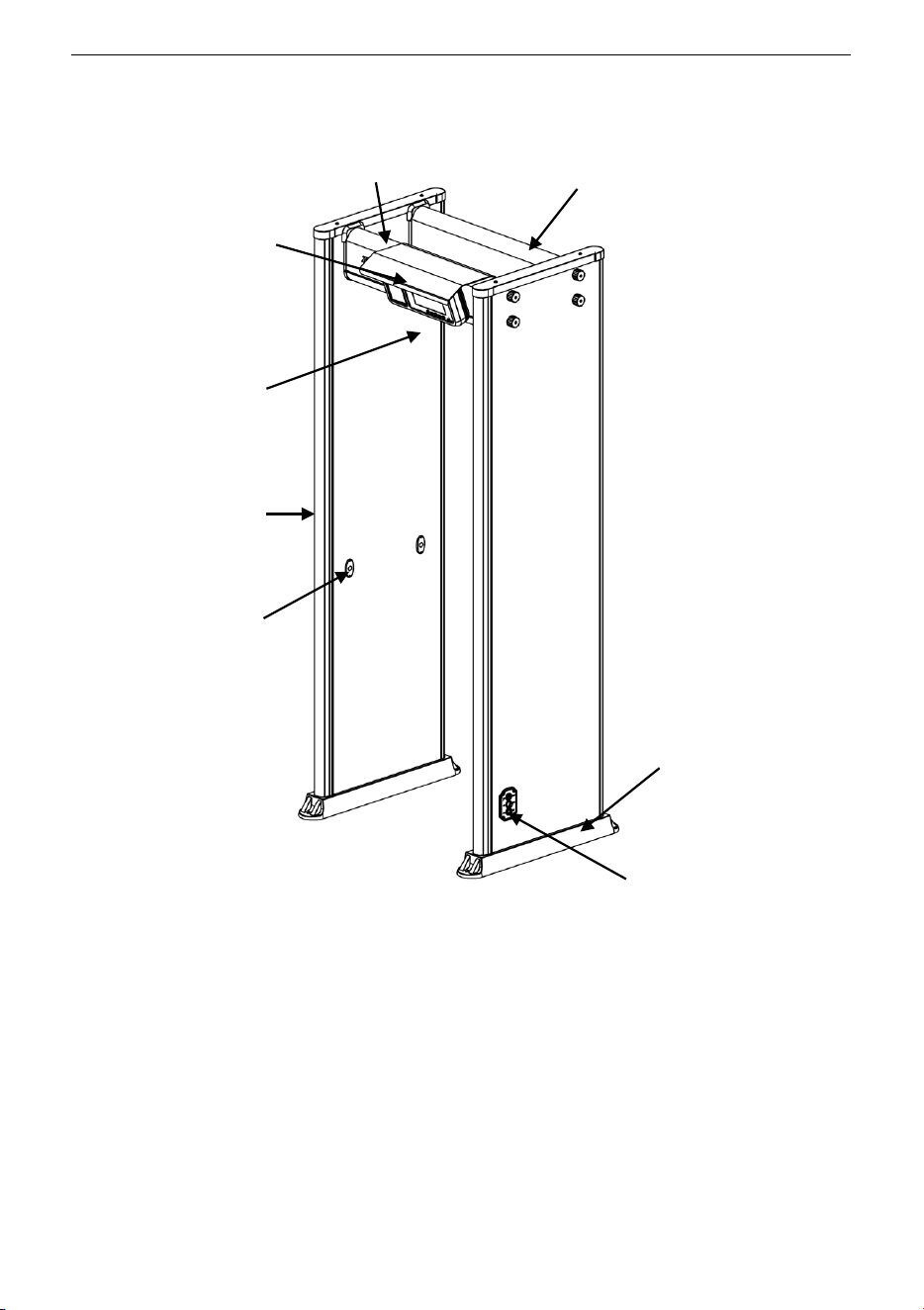

1.3 Components

1. Transparent Rainproof

Canopy (Optional)

2. Front Beam

3. Rear Beam

4. Host

5. Alarm Indicator Post

6. Infrared Sensors

7. Waterproof Foot Cover

8.

Power Interface, Reserved Linkage

Interface & Power Button

1

3

2

4

5

6

7

8

ZK-D4330 User Manual

Page | 8

2 Product Specifications

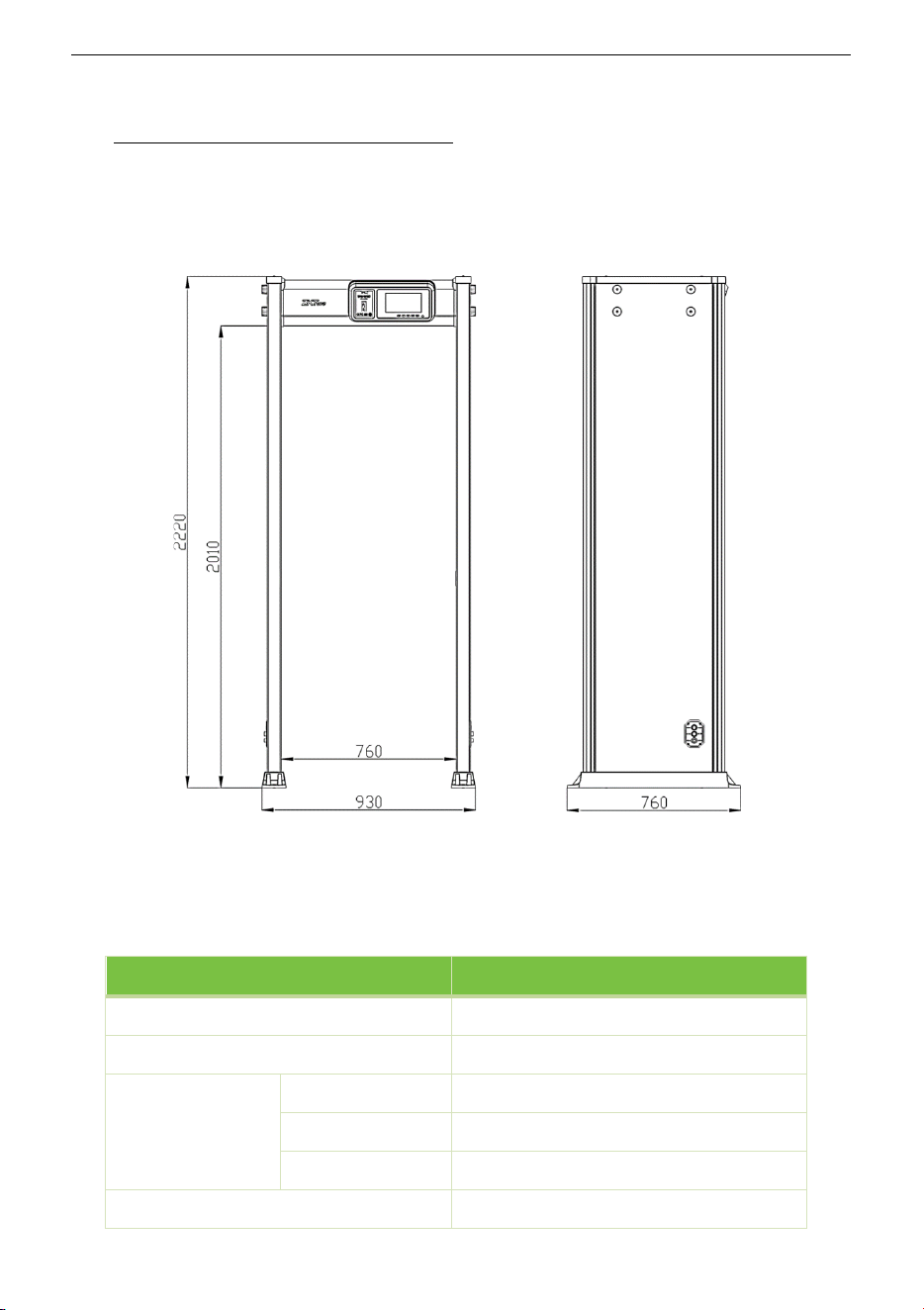

2.1 Dimensions

Front View Side View

2.2 Technical Specifications

Feature Specifications

Power DC 15V, 5A

Operating Temperature -20°C to 50°C

Dimensions

External 2220(H) x 930(W) x 760(D) mm

Channel

2010(H) x 760(W) x 760(D) mm

Package

2300(H) x 335(W) x 800(D) mm

Weight 70 kg

ZK-D4330 User Manual

Page | 9

3 Installation

3.1 Safety Precautions

• Install the detector in a flat and stable area. Make sure that the detector is installed

firmly in the selected area.

• Before installation, make sure the left and right door panels are placed at the

corresponding location. Avoid high temperatures and wet environments.

• Wait for 1 minute for the self-diagnosis of the detector when it starts. Do not touch the

detector during a security check to avoid any false alarm.

• Install the detector away from radio-frequency devices to avoid interference. Make

sure that there is no large metal object or strong magnetic field around the detector

for at least 2 meters.

• Do not hit the detector hardly, as it may cause false alarms.

• Do not disassemble the unit without the guidance of a professional technician.

• Each device has a warranty card, with which users can have their devices maintained

or repaired free of charge within the warranty period.

If you want to install in semi-outdoor, please use it as follows:

1. Please select this model semi-outdoor configuration.

2. No soaking of device in water, prohibit prolonged contact with rainwater(no more

than 3 minutes).

3. Device can be used continuously for three months in a semi-outdoor dry

environment (humidity less than 60%), and for seven days in a semi-outdoor rainy or

humid environment.

3.2 Instructions for the Pedestrians

• A line must be drawn at a distance of 50 cm away from the detector. And the

pedestrians must cross the line one-by-one while passing through the detector to

ensure a smooth operation.

• Pedestrians should walk at a normal speed. They must not deliberately form a crowd,

rush, walk slowly, or damage the door panel.

• Before passing through the metal detector, the pedestrians must remove all the metal

objects he/she is carrying (such as keys, mobile phone, watch, coins, etc.), and place it

ZK-D4330 User Manual

Page | 10

on the security chute or a table, and pick it up after the security check.

• If the detector alarms when someone passes through indicates that there is/are some

metal object(s) concealed in his/her body. The security guard can use a hand-held

metal detector to precisely detect the metals position according to the alarm zones.

3.3 Installation Site

The following section describes the requirements of the installation environment.

3.3.1 Metallic Items

The detector must be installed at a distance of 1 m from the fixed metallic items such as

aluminum alloy/stainless-steel windows, doors, etc. to prevent false alarms which may

affect the sensitivity of the detector. Also, the portable metallic objects must be kept at

least 2 m away from the detector to avoid false alarms.

3.3.2 Floor

The installation floor must be flat and rigid to avoid any shake from the movement of the

people walking through the detector.

3.3.3 Electromagnetic Radiation and Interference

Since the detector uses Bilateral Receiver technology, it must be installed at a distance of

at least 1 m away from the sources of electromagnetic radiation or electromagnetic

interference as it may affect the sensitivity of the detector. The parameters that define the

distance are determined by the installation environment and it varies for different

installation environments.

The sources of electromagnetic radiation and electromagnetic interference can be

Electrical Control Box, Radiofrequency equipment, Interphone, High Power Motor, Power

Transformer, Ac Power Lines, Thyristor Control Circuit (High Power Switching Power Supply,

Inverter Welder), Engine, Motor, etc.

3.3.4 Parallel Installation

No. of detectors installed parallelly Distance between the detectors

2 > 10 cm

3 > 30 cm

4 or more > 50 cm

ZK-D4330 User Manual

Page | 11

NOTE: The detectors must operate at a different frequency to avoid interference. The

distance varies according to the actual working environment.

3.4 Installation Steps

Make sure that the device is installed as per the following installation instructions. If you

want to open the chassis, you should contact the agent for permission. Otherwise, you will

bear any consequence resulting from your actions.

After reading the precautions and checking the packing list, please follow the steps below

for installation.

Step 1: Open the package, and then place the left and right door panels on the ground in

the direction shown in the figure 3-1 below. Pay attention to distinguish the left, right and

direction of the door panel (the signal line interface faces upward and inward).

Figure 3-1

Step 2: Connect the rear beam with the left and right door panels with bolts, as shown in

the figure 3-2 below (note that the bolts are not tightened at this time).

ZK-D4330 User Manual

Page | 12

Figure 3-2

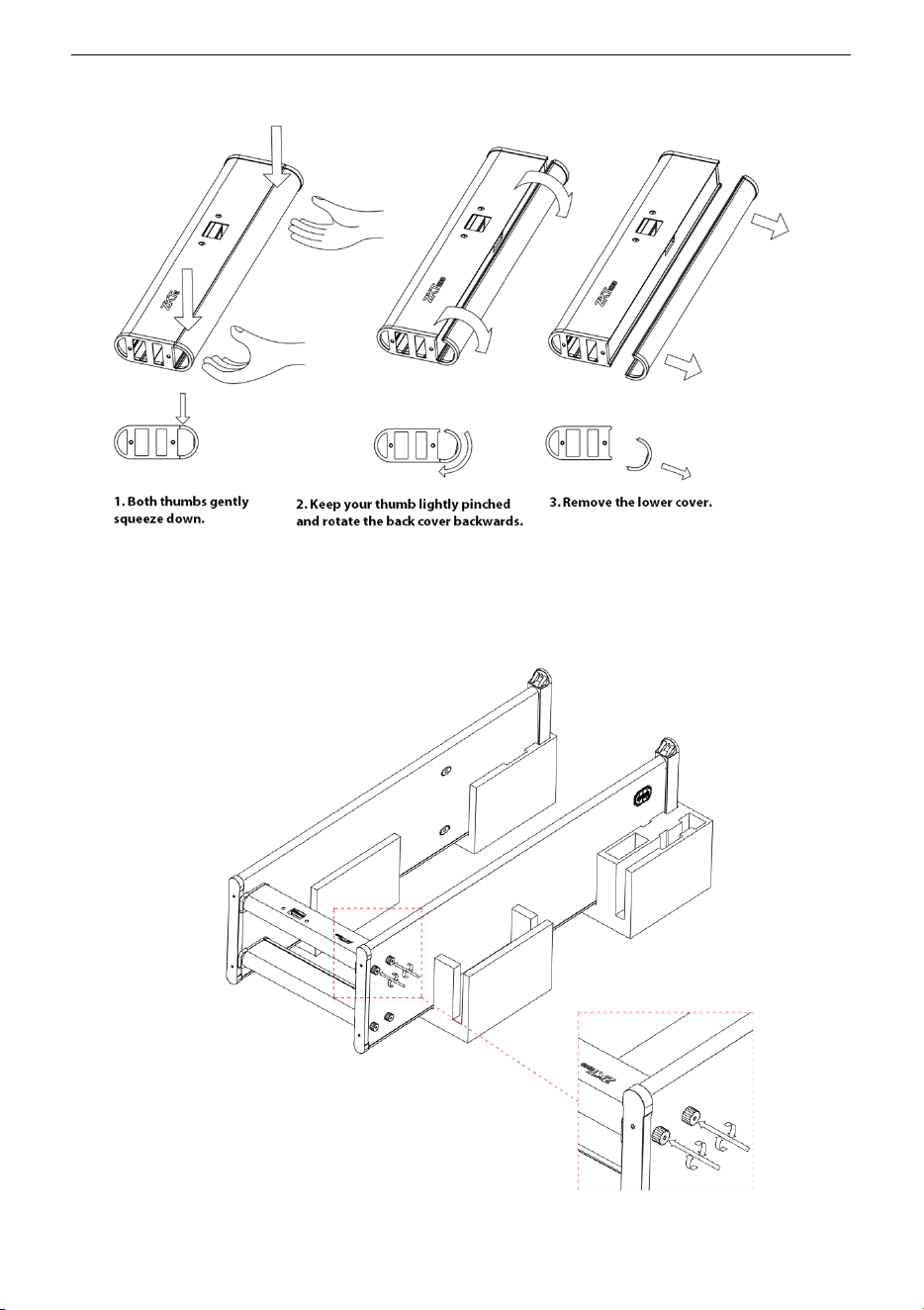

Step 3: Open the beam cover, as shown in the figure3-3 below.

Figure 3-3

ZK-D4330 User Manual

Page | 13

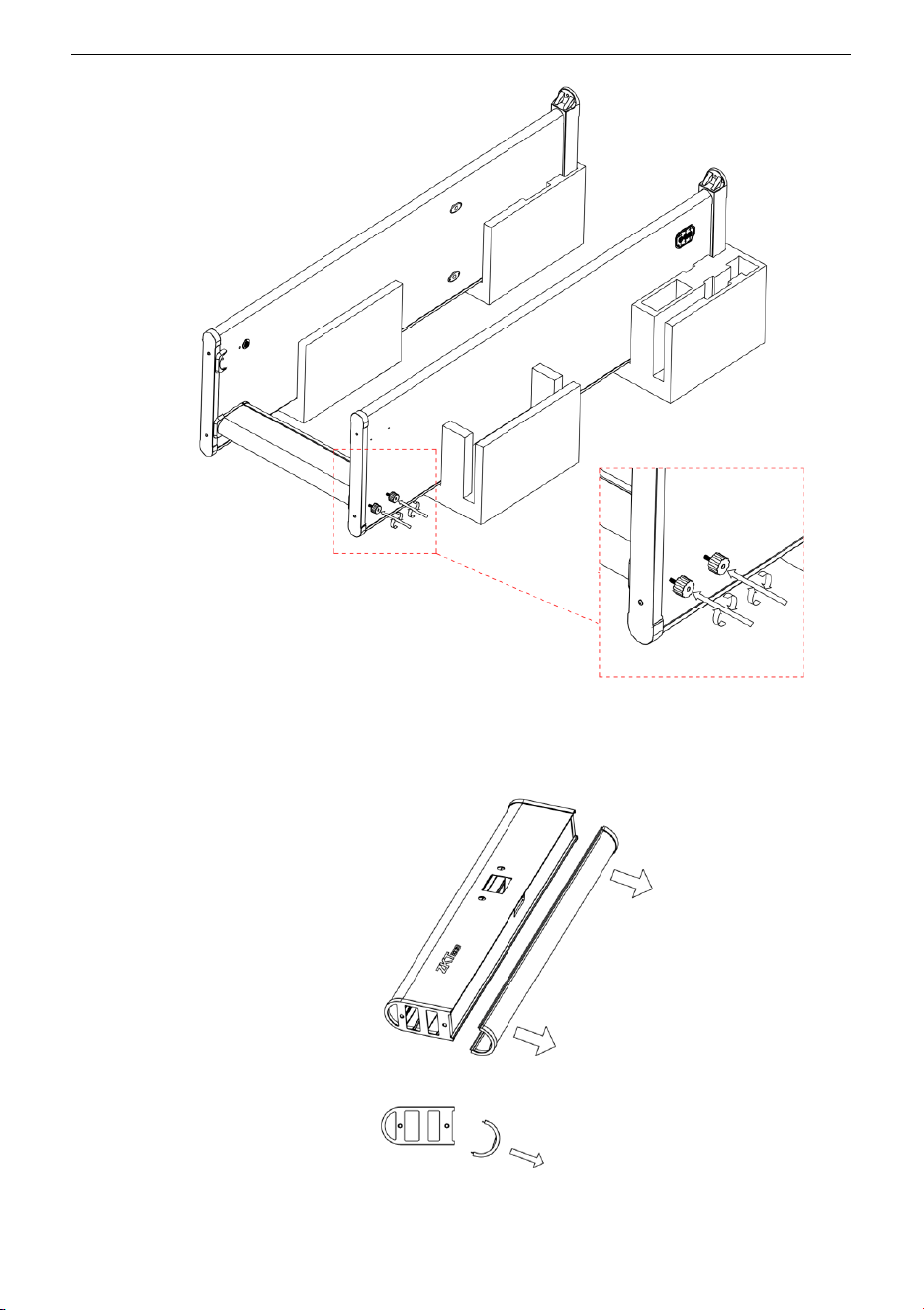

The disassembly skills are shown in the figure 3-4 below:

Figure 3-4

Step 4: Connect the front beam with the left and right door panels with bolts and tighten

8 bolts, as shown in the figure 3-5 below.

Figure 3-5

ZK-D4330 User Manual

Page | 14

Step 5: Install the adjustable metal bracket on the host. The screws and holes on both

sides of the bracket can fix and adjust the display angle of the host, as shown in the figure

3-6 below.

Figure 3-6

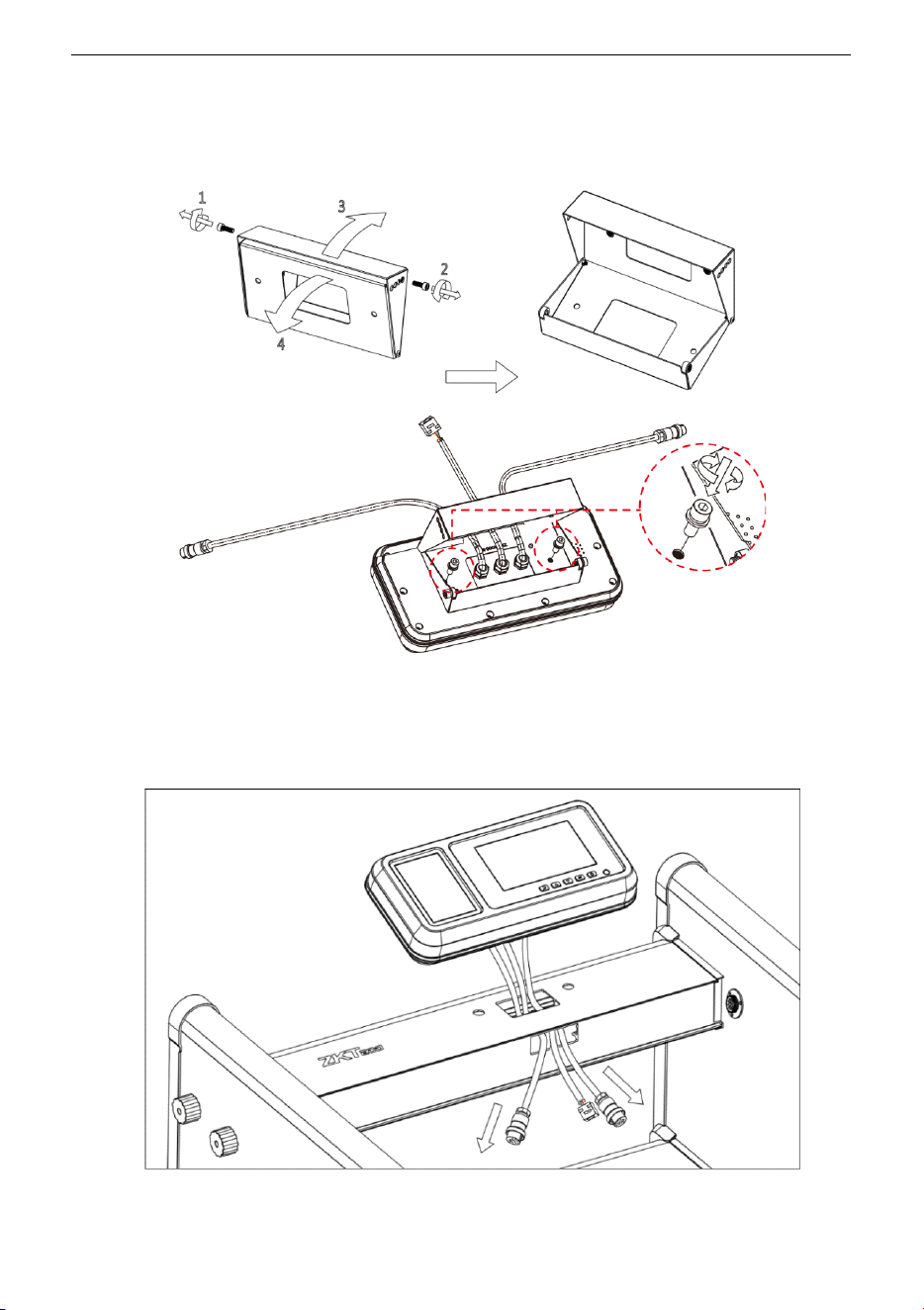

Step 6: Pass the host signal line and network line through the opening of the front beam,

as shown in the figure 3-7 below.

Figure 3-7

ZK-D4330 User Manual

Page | 15

Step 7: Connect the host and the front cross beam with bolts, as shown in the figure 3-8

below (if the rain cover is optional, it can be installed together).

Figure 3-8

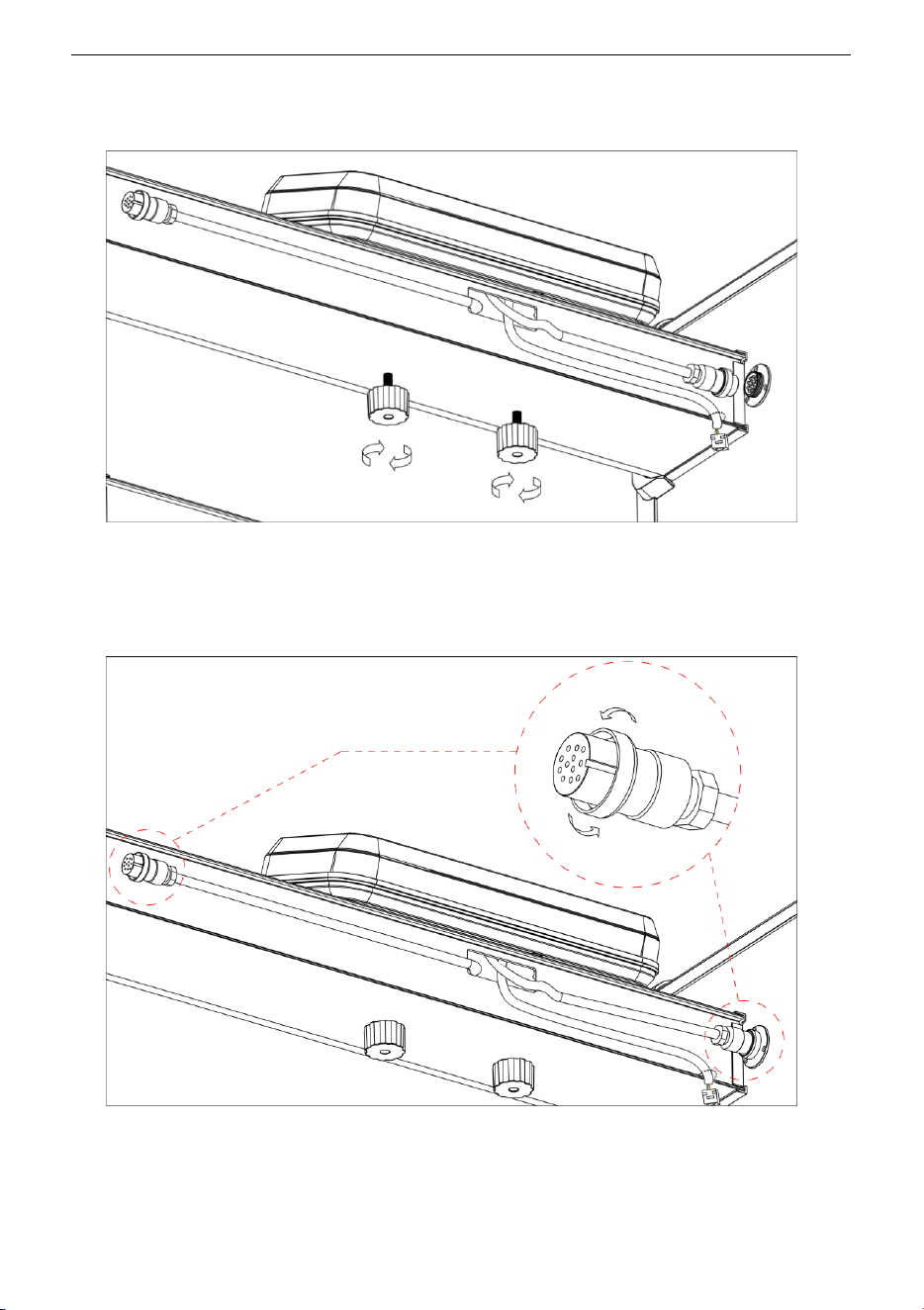

Step 8: Insert and tighten the left and right signal wire plugs, as shown in the figure 3-9

below (pay attention to distinguish the left and right signal wires).

Figure 3-9

ZK-D4330 User Manual

Page | 16

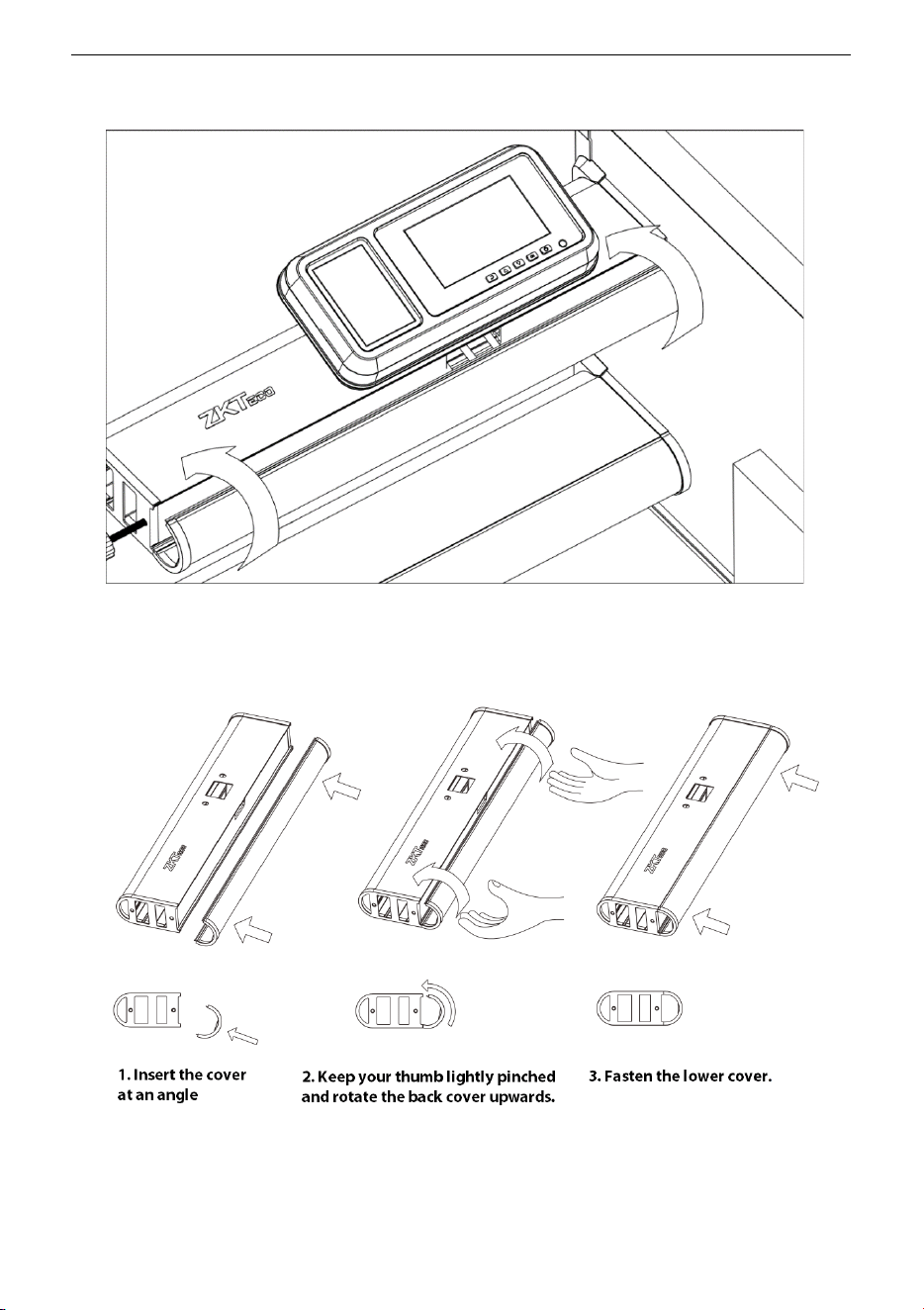

Step 9: Cover the beam cover, as shown in the figure 3-10 below.

Figure 3-10

The installation skills are shown in the figure 3-11 below:

Figure 3-11

ZK-D4330 User Manual

Page | 17

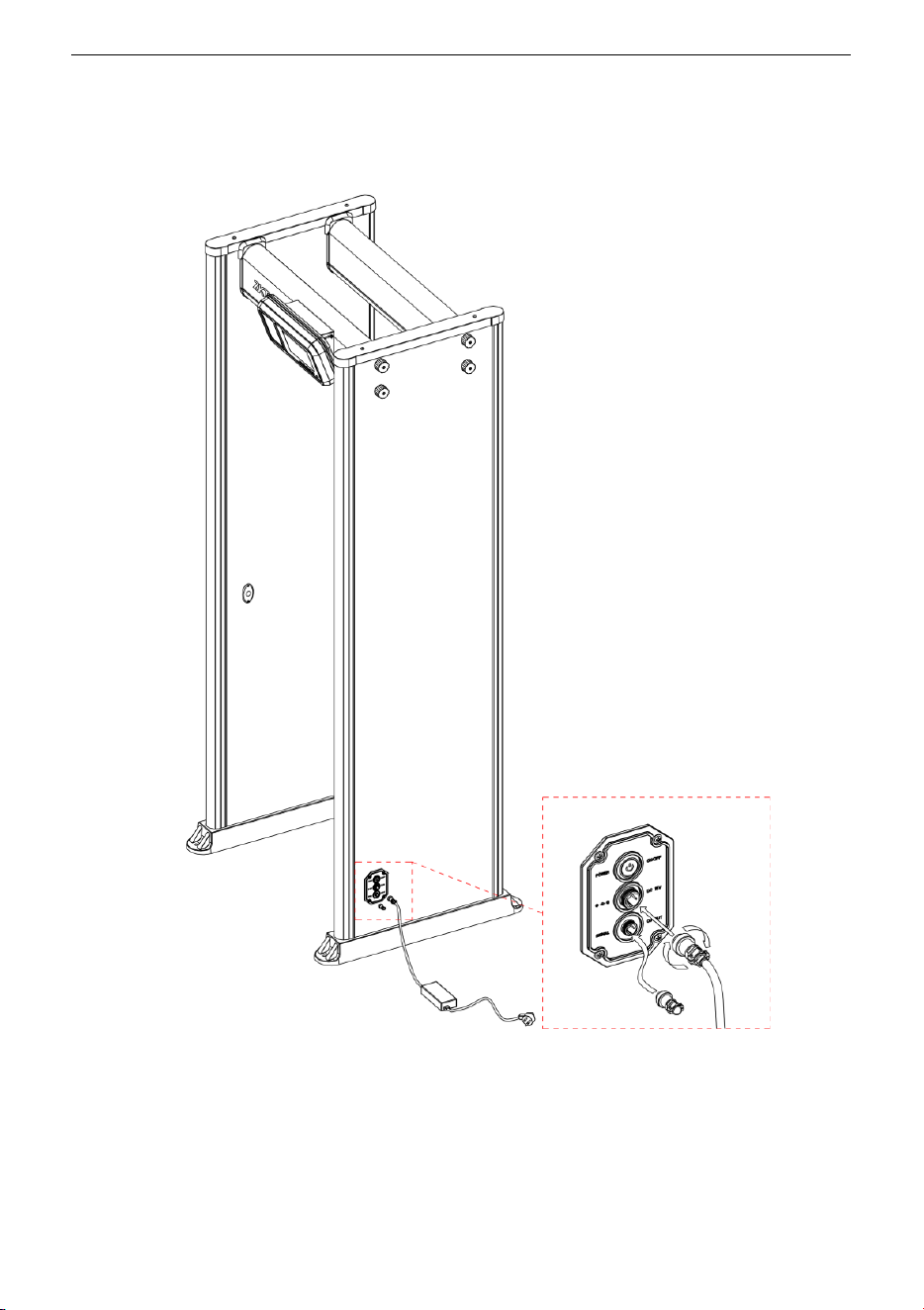

Step 10: Lift and move the security gate to the designated working position, connect the

side power cord, and press the power switch to enter the working state, as shown in the

figure 3-12 below.

Figure 3-12

ZK-D4330 User Manual

Page | 18

4 Performance and Technical Features

Accurate Positioning: There is an option to select 1, 6, 11, 18, or 33 overlapping detection

zones with bilateral transmit and receive technology. The detection zones can accurately

detect the objects with an intuitive display of the target location.

Micro Processor Technology: The Microprocessor Control Unit generates the

electromagnetic waves for scanning. The scanning rate can be precisely controlled.

Adjustable Sensitivity: ZK-D4330 detection zones have 1 to 500 sensitivity levels. You can

preset the metal size for excluding items like coins, keys, jewelry, buckle, etc.

Visual Sensitivity Adjustment: When you adjust the sensitivity level of a detection zone, the

LED light mapping of the detection zone turns on.

Digital Pulse Technology: Digital signal processing and filtering system in the detector has

excellent anti-interference ability.

Password Protection: Only the correct password can change the sensitivity and other

parameters. The password contains six digits.

Count Statistics: The detector displays the number of pedestrians passed and Alarm count

accurately.

Harmless: The detector is harmless to heart pacemakers, pregnant women, magnetic floppy

disks, recording tapes, etc.

Waterproof Foot Cover: The waterproof foot cover helps to fix the device firmly and also

protects the device against water.

Easy to install: The detector has an integrated design and it can be effortlessly installed or

disassembled in 15 minutes.

Linkage: A signal cable connector is delivered with the device. You can connect it to

implement linkage between the turnstile and the walk through metal detector.

ZK-D4330 User Manual

Page | 19

5 Control Panel

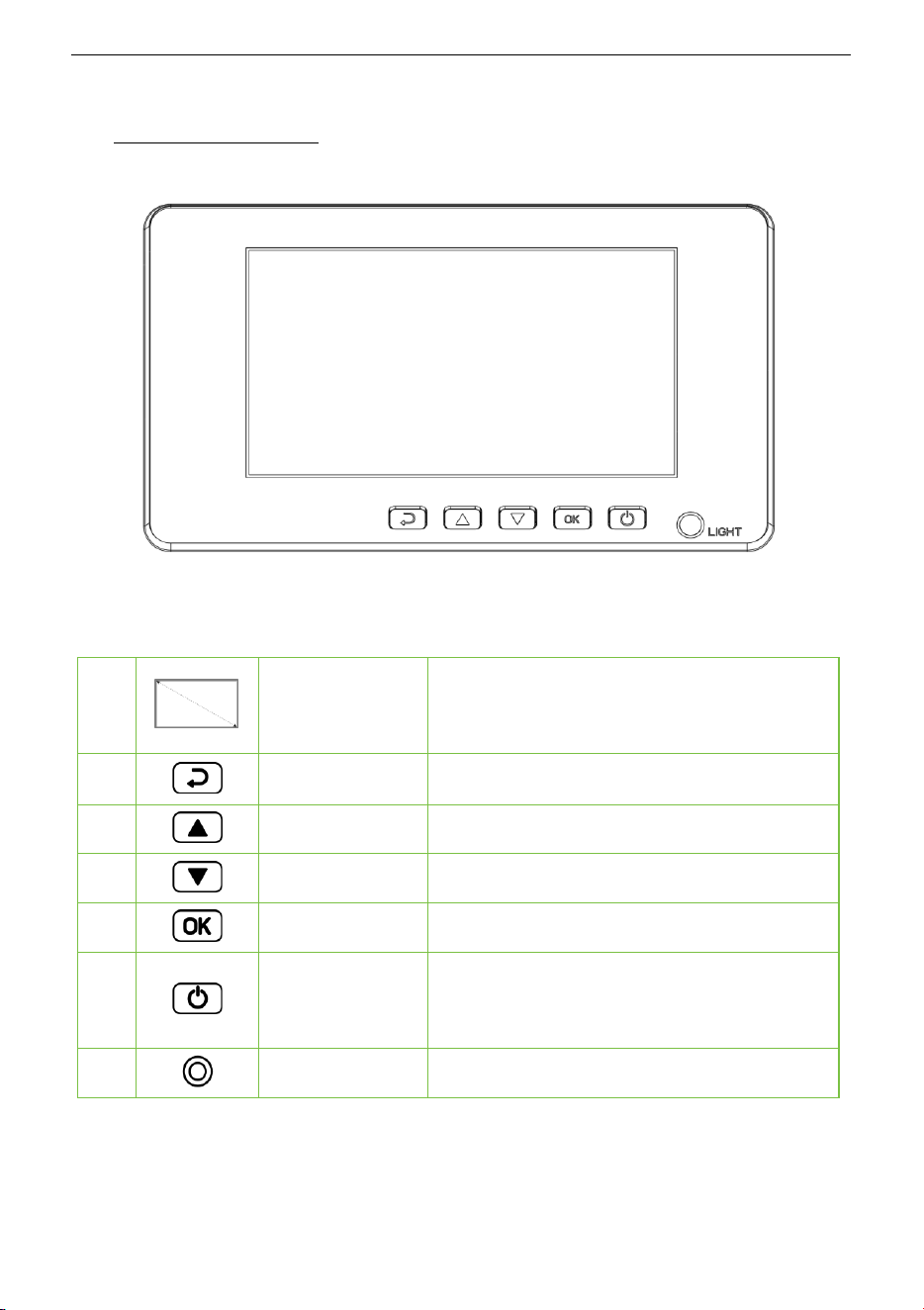

The components of the Control Panel are given below:

1

7'' Touch Screen

Displays information such as the number of

passengers, alarms, detection signal strength,

time, and channel etc.

2

Return Button

Exits the current menu item.

3

Up Button

Selects a menu item or increases a value.

4

Down Button

Selects a menu item or decreases a value.

5

OK Button

Enters a menu item or save settings.

6

Power Button

Turn on the device or press and hold for 3

seconds on the standby interface to turn off

the device.

7

Light

Infrared remote signal receive terminal.

1

7

2

3

4

5

6

ZK-D4330 User Manual

Page | 20

6 Remote Control Description

The buttons of the Remote Control and their description are given below:

1 RESET Undefined.

2

PROG

Long press 3 seconds to turn off the device.

3

ESC

Exits the current menu item.

4

UP / LEFT

Selects a menu item or increases a value.

5 DOWN / RIGHT Selects a menu item or decreases a value.

6 ENTER Menu key, confirmation key and adjustment value.

ZK-D4330 User Manual

Page | 21

7 Detection Zones

A. 7'' Touch screen and control buttons

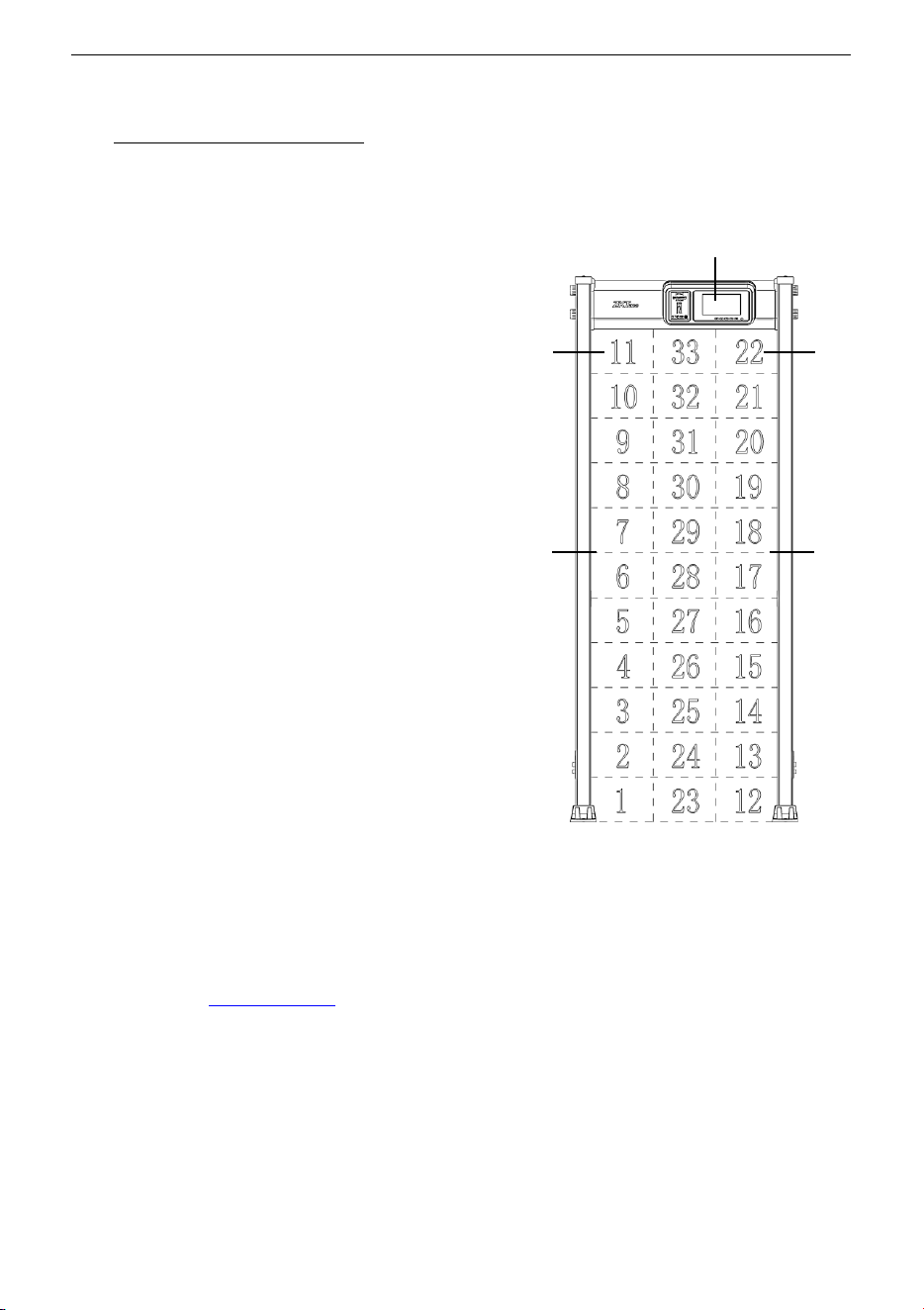

B. Detection zone display

There are four unique sets of precise

positioning LEDs evenly distributed on the

door panels, showing the status of 33

detection zones, as shown on the right. The

zone indicators can be turned on or off. If the

walkthrough metal detector detects metals of

the size that reach or exceed the preset value,

the alarm indicator of the detection zone turns

on, and an alarm is generated.

(No alarm is generated if the device is in mute

state.)

C. Infrared sensor

After being connected to a power supply, the

metal detector starts to work. When no person

or object passing through the device, the

infrared sensors stop alarming to avoid false

alarm and accurately count passengers and

alarm times.

7.1 Adjustment of Detection Zone’s Sensitivity

1. The device must be in a firm and stable position to achieve the best detection result

(refer to Installation Site

). To check whether the device is in a stable state, perform the

following steps:

a) Power on the detector and check whether it is shaking or not, after one minute.

b) The device should not alarm when the testing person is not carrying any metal

items while walking through the detector.

2. You can exclude the small portable metal objects from being scanned such as rings,

key, belt buckle, shoes, and so on, by following the steps given below :

A

B

C

ZK-D4330 User Manual

Page | 22

a) Choose a small metal as a sample. Increase the sensitivity, so that the device

alarms when the testing person carries the sample and pass through the

detector.

b) You need to decrease the sensitivity a little and pass through the detector again

carrying the sample. If it still alarms, you need to reduce the sensitivity once again,

until the device does not alarm when the sample is passed through.

Note: If you want to decrease the sensitivity in a certain zone, you must only adjust the

sensitivity of the related zone. After implementing the above adjustments, the metal smaller

than the sample will not generate an alarm, but the metal objects bigger than the sample

can be detected accurately.

8 Operational Procedure

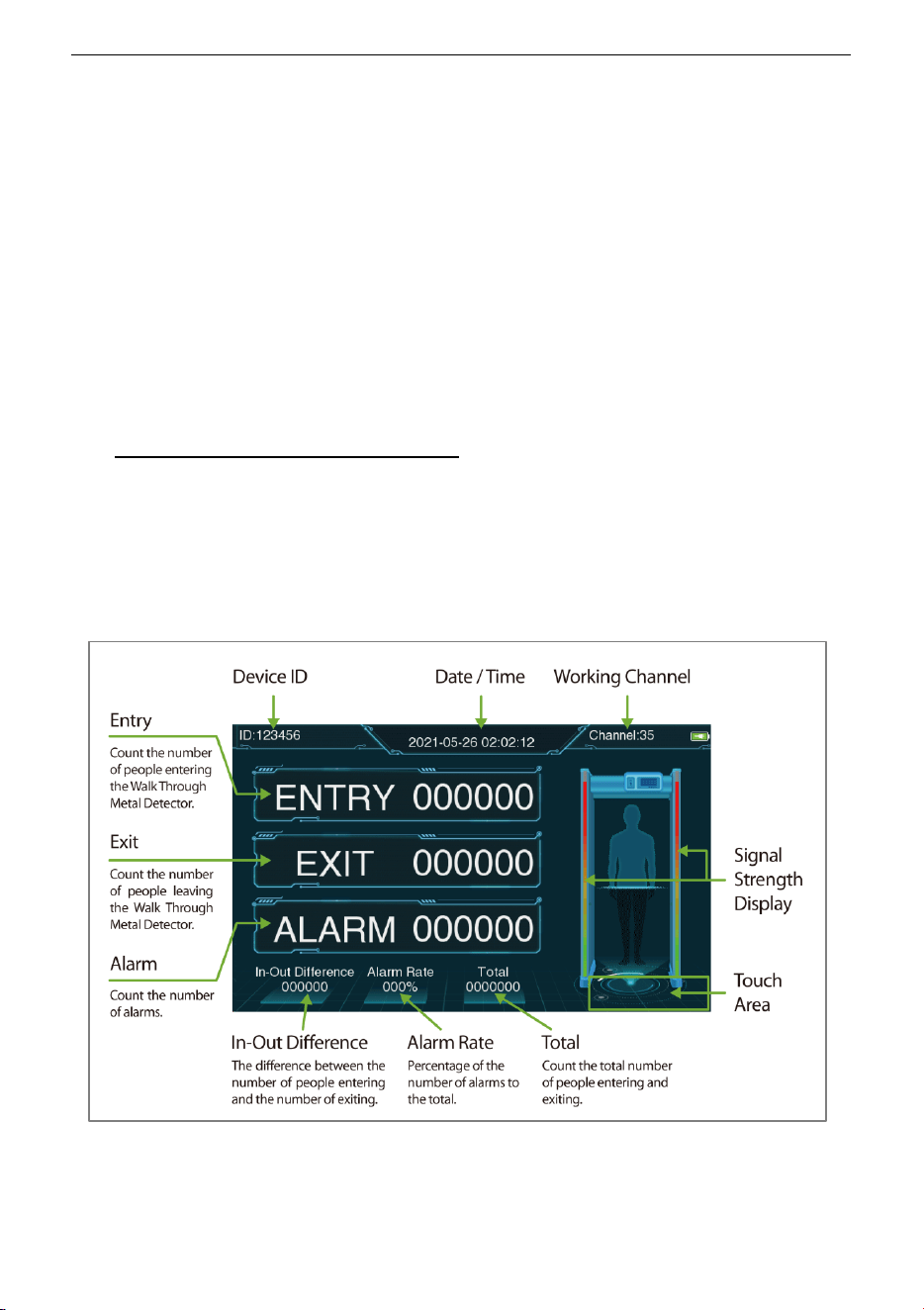

8.1 Standby Interface

Connect the power supply to the detector and long press the power button. After 2 seconds

of initialization, the following standby interface is displayed:

The standby interface displays the following content: Device ID Number, Date and Time,

Working Channel, Entry Count, Exit Count, Alarm Count, In-Out Difference, Alarm Rate, Total

number and detection signal strength, etc.

ZK-D4330 User Manual

Page | 23

8.2 Main Menu

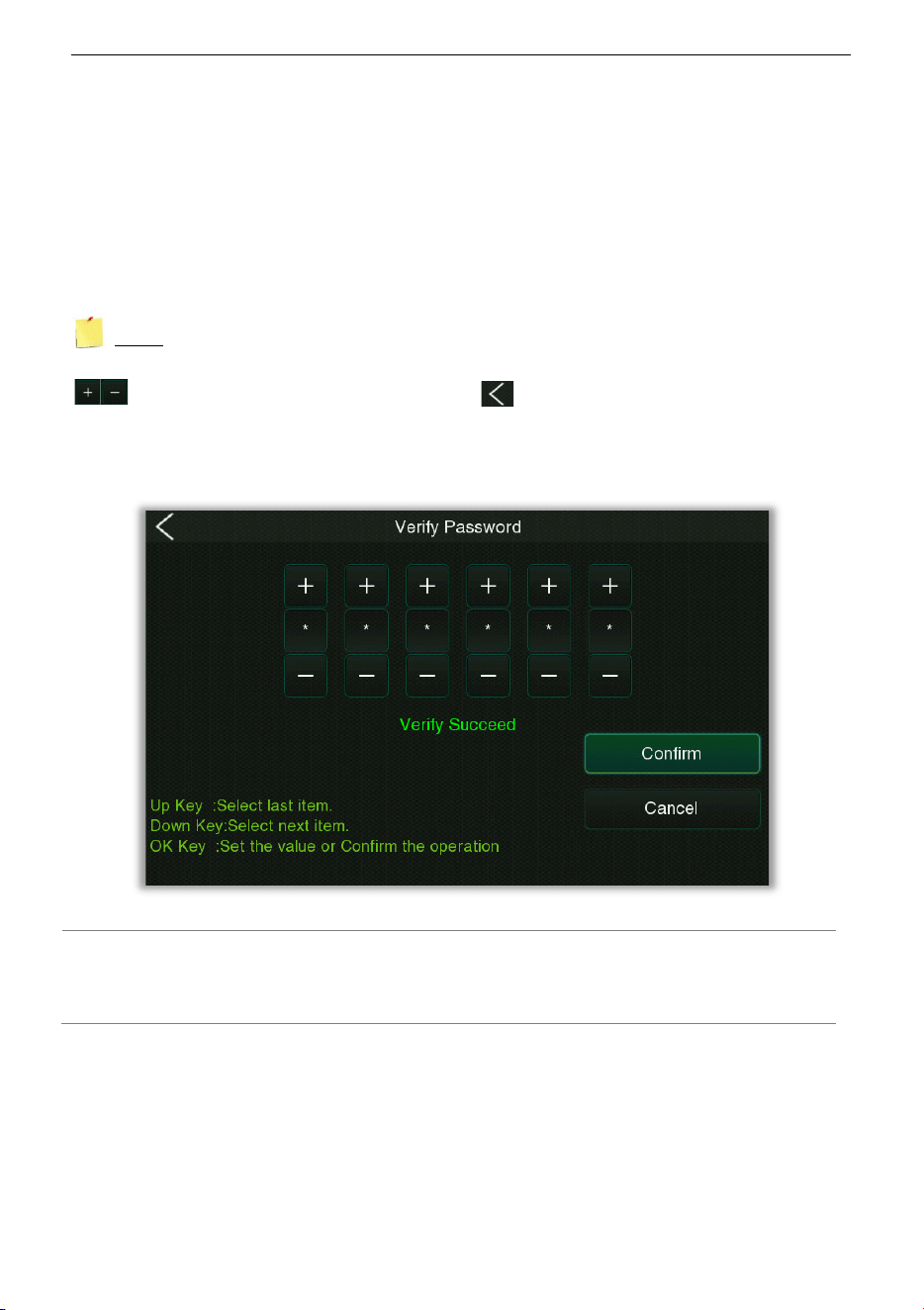

In the standby mode, tap the "Touch Area" at the bottom right corner of the screen, or press

the OK button on the control panel to enter the verification password input interface. For the

first operation of the device, please enter the factory password of the device: 100000, and

select "Confirm" after completion. When the prompt "Verify Succeed", the verification is

completed, as shown in the following figure.

NOTE: There are two ways to operate this device, the first is to click on the touch screen

for operation, such as directly clicking on the screen icon to select the content, clicking on the

icon to set the value, and clicking on the back icon to confirm save and return to

the upper menu. The second is to use the control buttons for operation, and the following

mainly introduces the operation method of the control buttons.

Operation: Press the [OK] button to enter the verification password input interface, then press the

[OK] button to set the value, press the

[▲]

/

[▼]

button to switch, select "Confirm" and then press the

[OK] button to save and exit.

ZK-D4330 User Manual

Page | 24

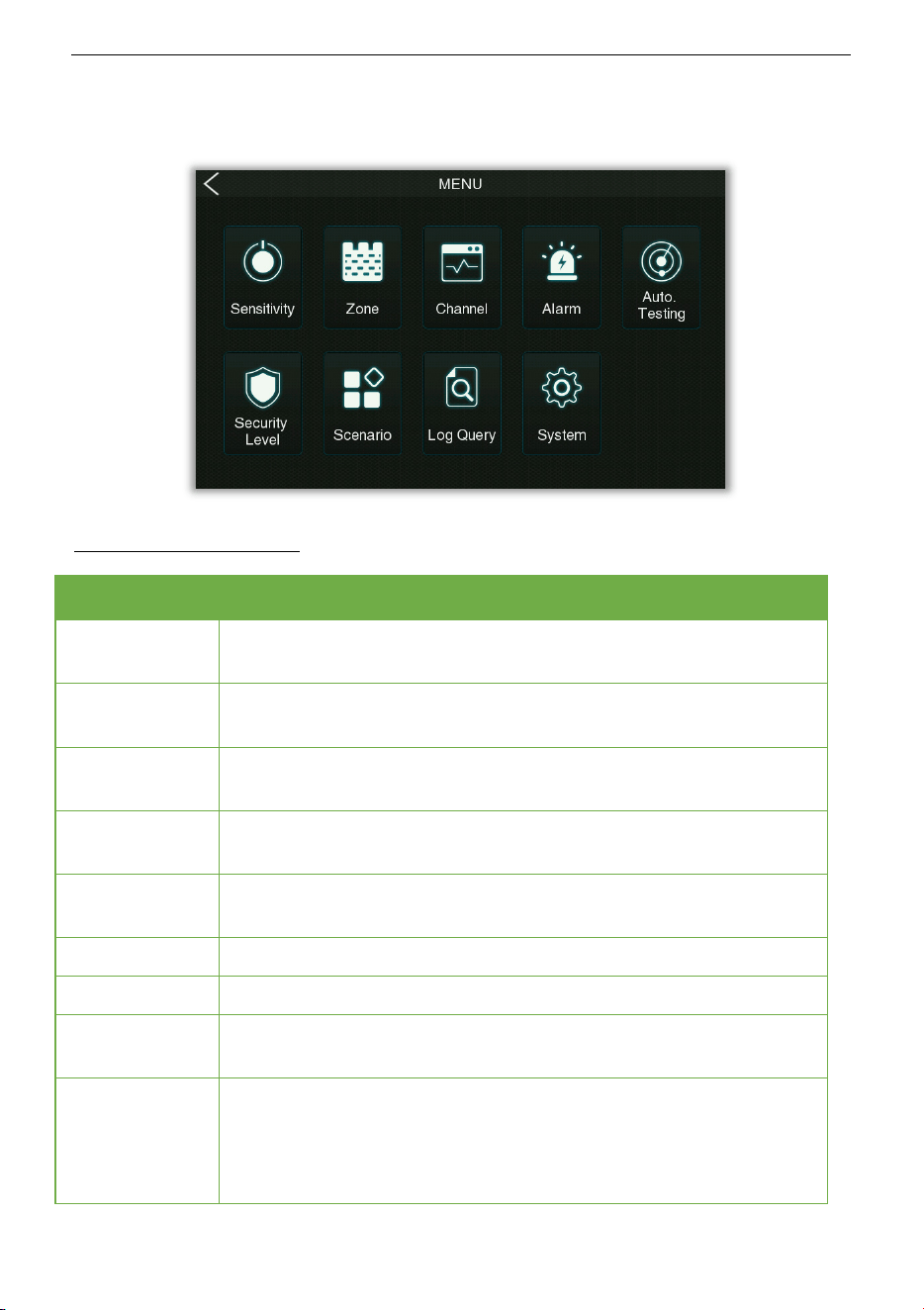

After entering the password successfully, you will enter the main menu interface as shown

below:

Function Description

Menu Descriptions

Sensitivity

Used to set the detection sensitivity threshold, including Global

Sensitivity and Zone Sensitivity.

Zone

Used to set up independent zones to facilitate precise positioning of

detected objects.

Channel

Used to set the frequency band, including Manual Setting and Auto

Setting.

Alarm

Used for alarm settings, including parameters such as Volume, Delay,

Ring Tone, Random Alarm, and Alarm Mode.

Auto. Testing

Automatically detect whether the functions of each module are

available, including Zone, LED and Speaker test.

Security Level

Used to set the security level.

Scenario

It is used to set the application scenarios of the device.

Log Query

Record query function, convenient for users to query the logs saved in

the device.

System

Set the relevant parameters of the system to maximize the function

and display of the device to meet user needs, including Password,

Screen Sleep, Date / Time, Language, Saved Records, Reset, Detect

Mode, Relay Mode, and Custom ID etc.

ZK-D4330 User Manual

Page | 25

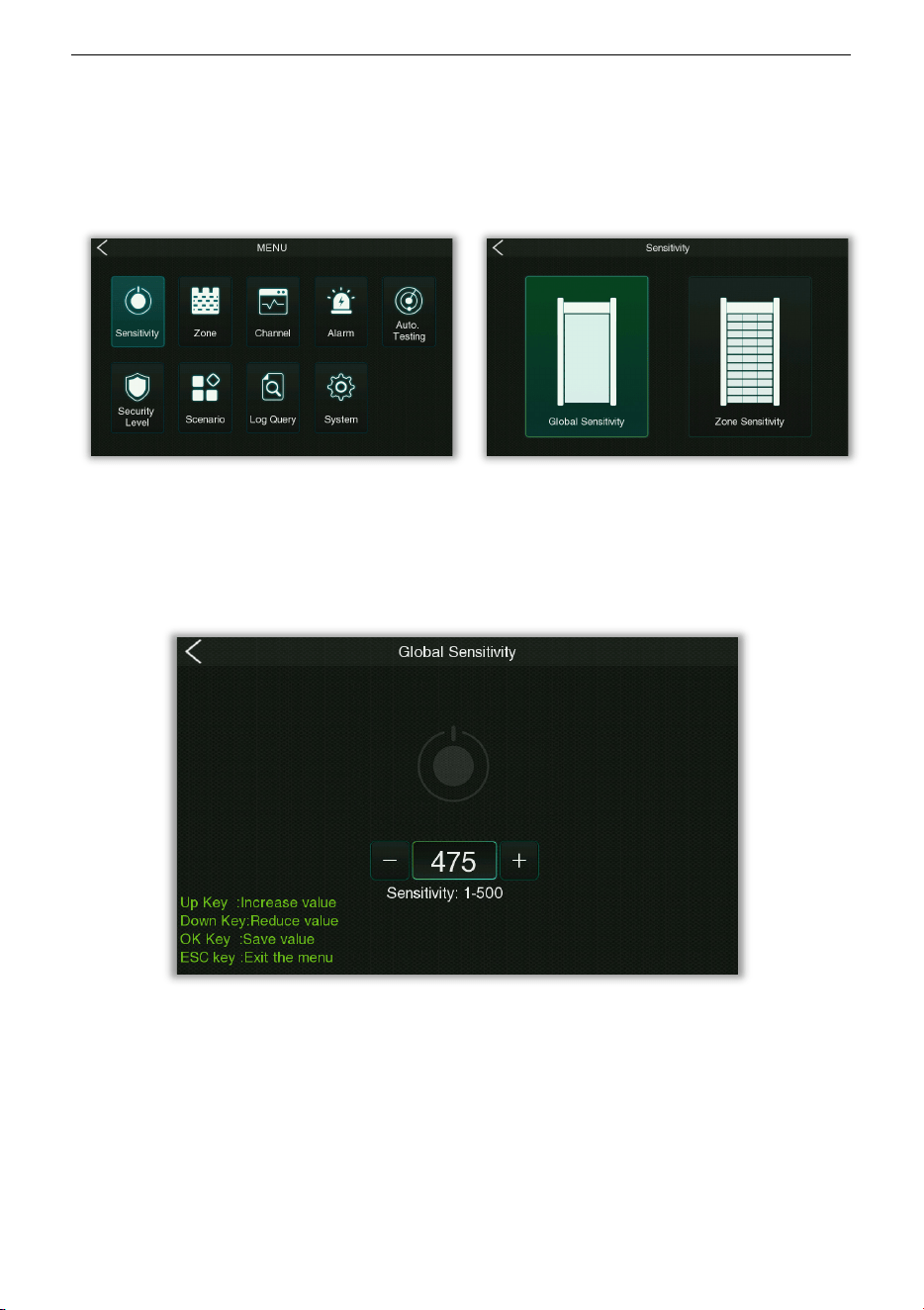

8.3 Sensitivity Adjustment

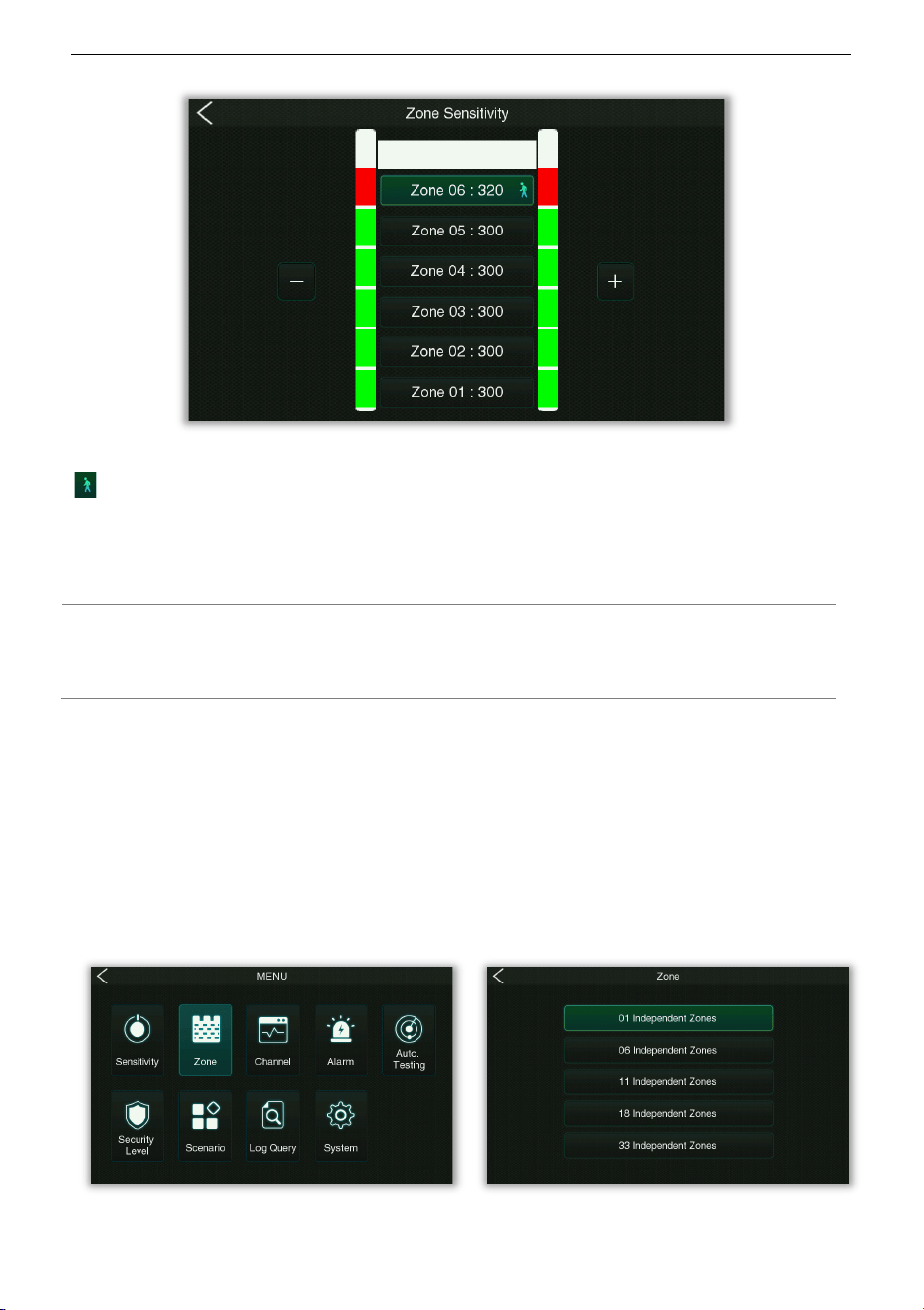

Select Sensitivity on the Main Menu interface, and press OK to set the sensitivity level of

each detection zone, as shown in the following:

 Global Sensitivity

Select Global Sensitivity on the Sensitivity interface and press OK to get into its setting

interface, as shown in the following:

The larger the global sensitivity threshold the higher the sensitivity, and the effective value is

1 to 500, the default value is 475.

 Zone Sensitivity

Select Zone Sensitivity on the Sensitivity interface and press OK to get into its setting

interface, as shown in the following:

ZK-D4330 User Manual

Page | 26

After selecting the partitions, set them separately. The selected partition will appear with a

icon. Then you will not be able to select other partitions, only click this partition again or

press OK to confirm and the icon will disappear. The greater the zone sensitivity threshold, the

higher the sensitivity, the effective value is 1-500, and the default value is 475. Note: You need

to set up independent defense zones in the Defense Zone Settings interface first.

Operation: Press the [OK] button to enter the sensitivity setting interface, then press the

[▲]

/

[▼]

button to increase or decrease the value, press [OK] button to save and exit to the upper menu after

finishing, directly press [

⏎] button to exit to the upper menu without saving the current value.

8.4 Zone Mode

In the zone mode, you can select the number of independent zone according to the

operational needs of the device.

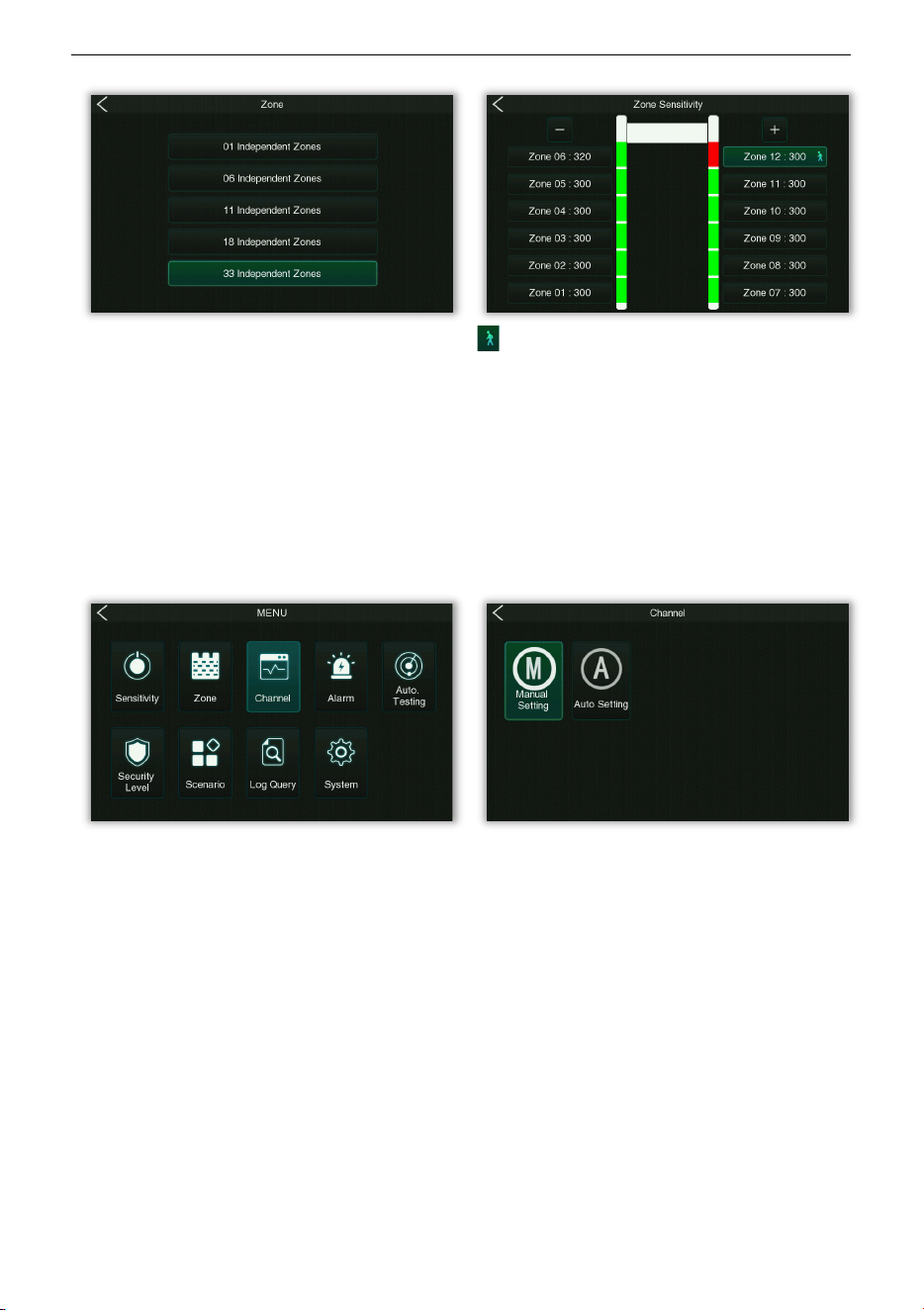

Select Zone on the Main Menu interface, and press OK to select the particular zone settings,

as shown in the following:

ZK-D4330 User Manual

Page | 27

Operation: Press the [OK] button to enter the zone setting interface, then press the

[▲]

/

[▼]

button

to select, press [OK] button to save and exit.

Remark: Different independent zones, the Zone Sensitivity interface is as follows:

ZK-D4330 User Manual

Page | 28

Note: The selected partition will appear with a icon. Then you will not be able to select

other partitions, only click this partition again or press OK to confirm and the icon will

disappear.

8.5 Channel Settings

Select Channel on the Main Menu interface, and press OK to enter the band setting interface,

as shown in the following:

 Manual Setting

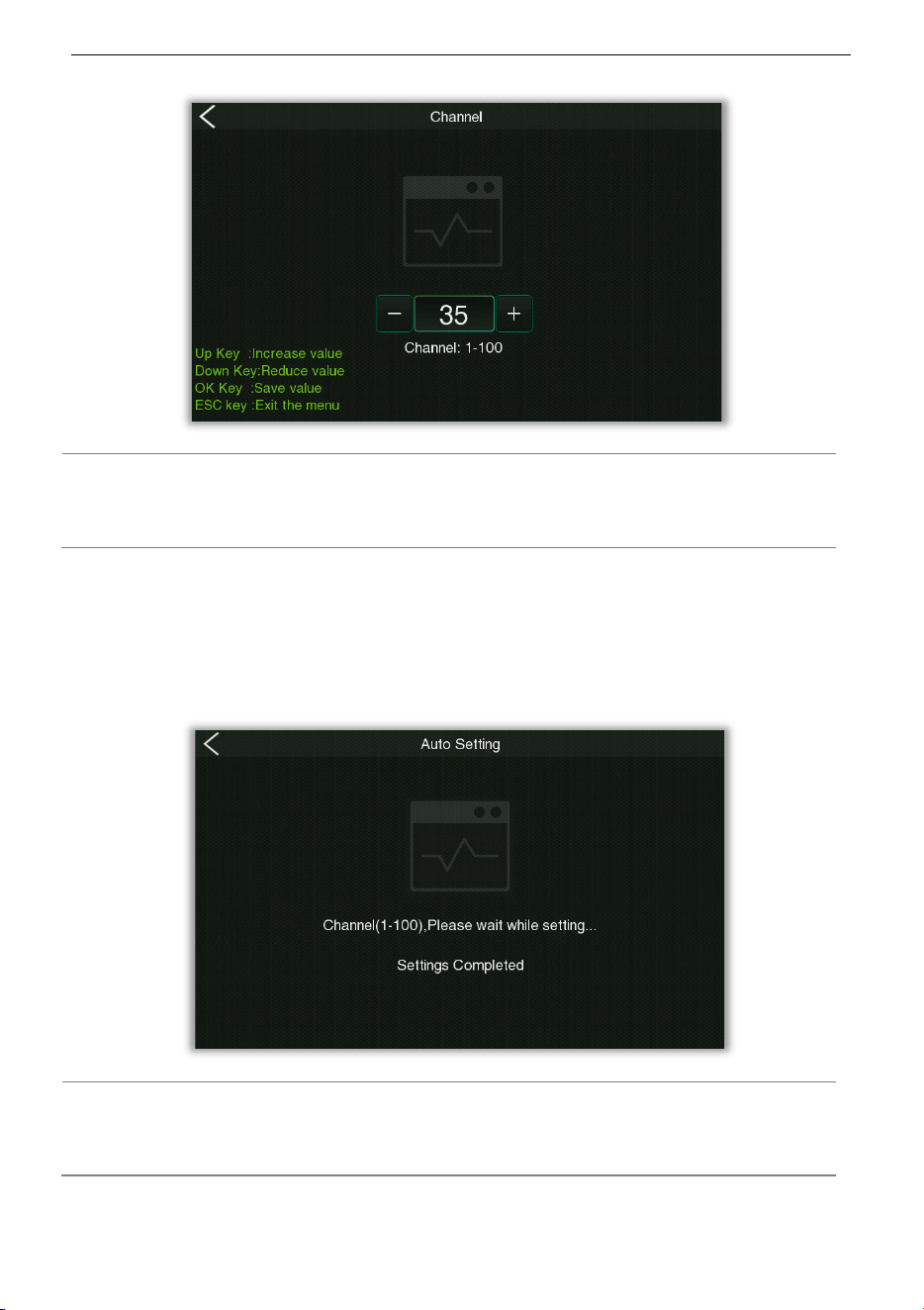

Select Manual Setting on the Channel interface and press OK to get into its setting interface.

The channel range is from 1 to 100, the default value is 35.

ZK-D4330 User Manual

Page | 29

Operation: Press the [OK] button to enter the setting interface, then press the

[▲]

/

[▼]

button to

increase or decrease the value, press [OK] button to save and exit to the upper menu after finishing,

directly press [

⏎] button to exit to the upper menu without saving the current value.

 Auto Setting

Select Auto Setting on the Channel interface and press OK to get into its setting interface, as

shown in the following:

Operation: Press the [OK] button to enter the auto setting interface and the device will execute the

automatic setting. When it prompts "Settings Completed", it will complete the automatic setting of the

frequency band and jump to the main menu.

ZK-D4330 User Manual

Page | 30

8.6 Alarm Settings

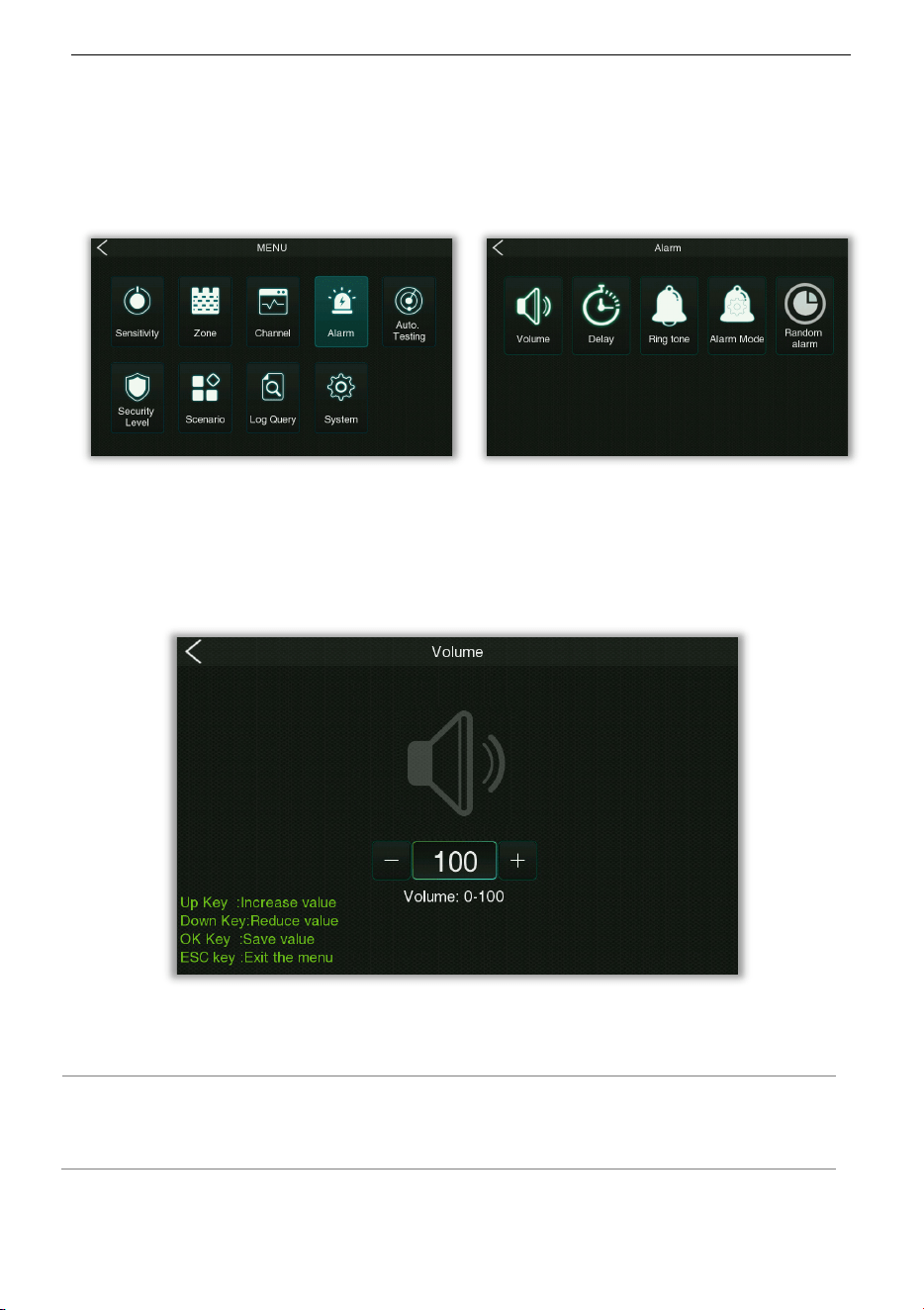

Select Alarm on the Main Menu interface, and press OK to enter the alarm settings interface,

as shown in the following:

 Volume

Select Volume on the Alarm setting interface, and press OK to enter the alarm volume

settings interface, as shown in the following:

Used to set the alarm volume, the larger the value the higher the volume, valid values are 0 to

100, the default value is 80.

Operation: Press the [OK] button to enter the volume setting interface, then press the

[▲]

/

[▼]

button to increase or decrease the value, press [OK] button to save and exit to the upper menu after

finishing, directly press [

⏎] button to exit to the upper menu without saving the current value.

ZK-D4330 User Manual

Page | 31

 Delay

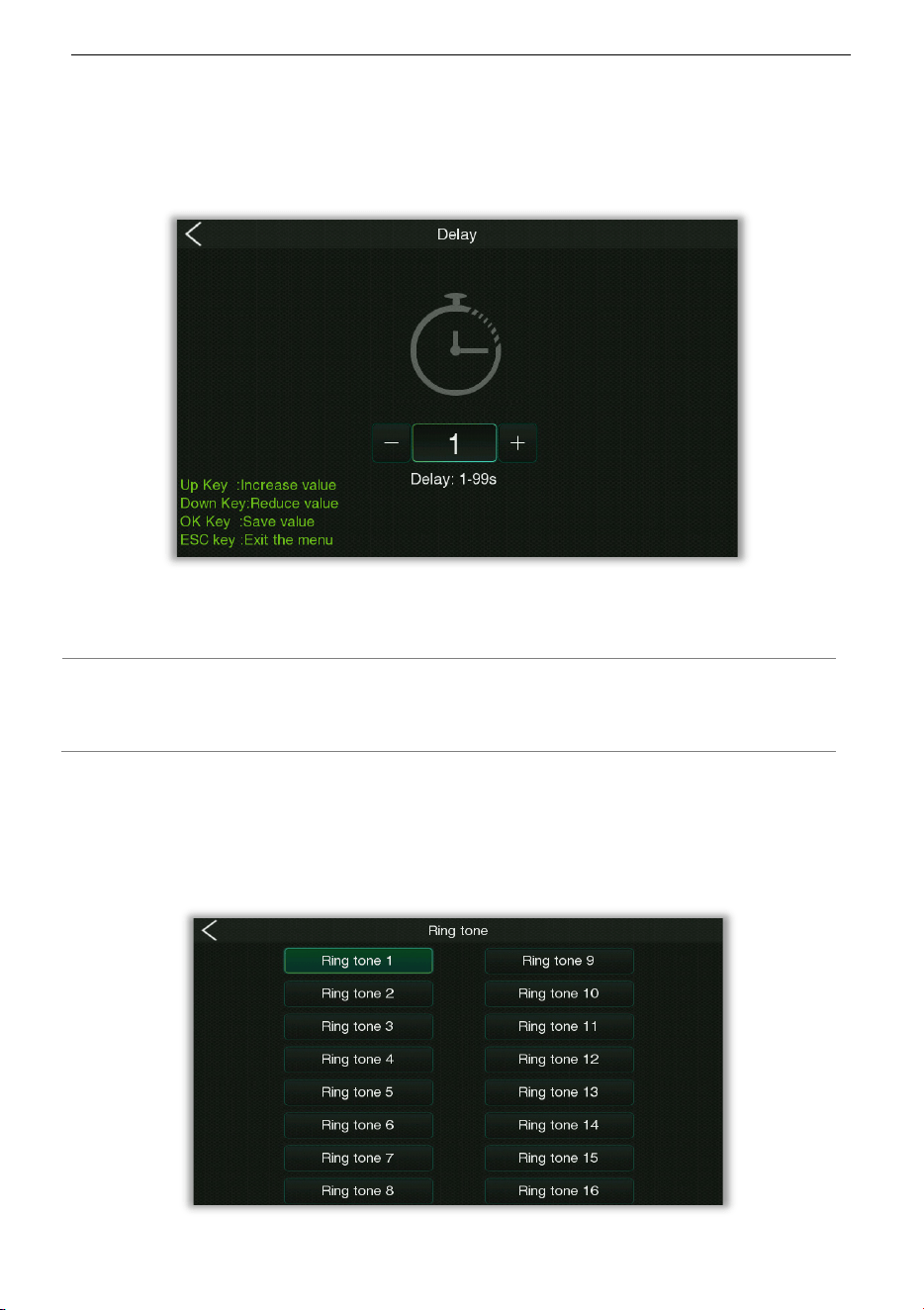

Select Delay on the Alarm setting interface, and press OK to enter the alarm delay duration

setting, as shown in the following:

Used to set the length of time for the alarm to ring, the effective value is 1 to 99 seconds, the

default value is 1 second.

Operation: Press the [OK] button to enter the setting interface, then press the

[▲]

/

[▼]

button to

increase or decrease the value, press [OK] button to save and exit to the upper menu after finishing,

directly press [

⏎] button to exit to the upper menu without saving the current value.

 Ring Tone

Select Ring Tone on the Alarm setting interface, and press OK to enter the alarm alarm ring

setting interface, as shown in the following:

ZK-D4330 User Manual

Page | 32

It is used to set the ringtone when the alarm rings, a total of 16 ringtones can be selected.

Operation: Press the [OK] button to enter the ring tone setting interface, then press the

[▲]

/

[▼]

button to select, press [OK] button to save and exit.

 Alarm Mode

NOTE: When the Zone is selected as "06 Independent Zones", the Alarm Mode function can

be set in the alarm setting interface.

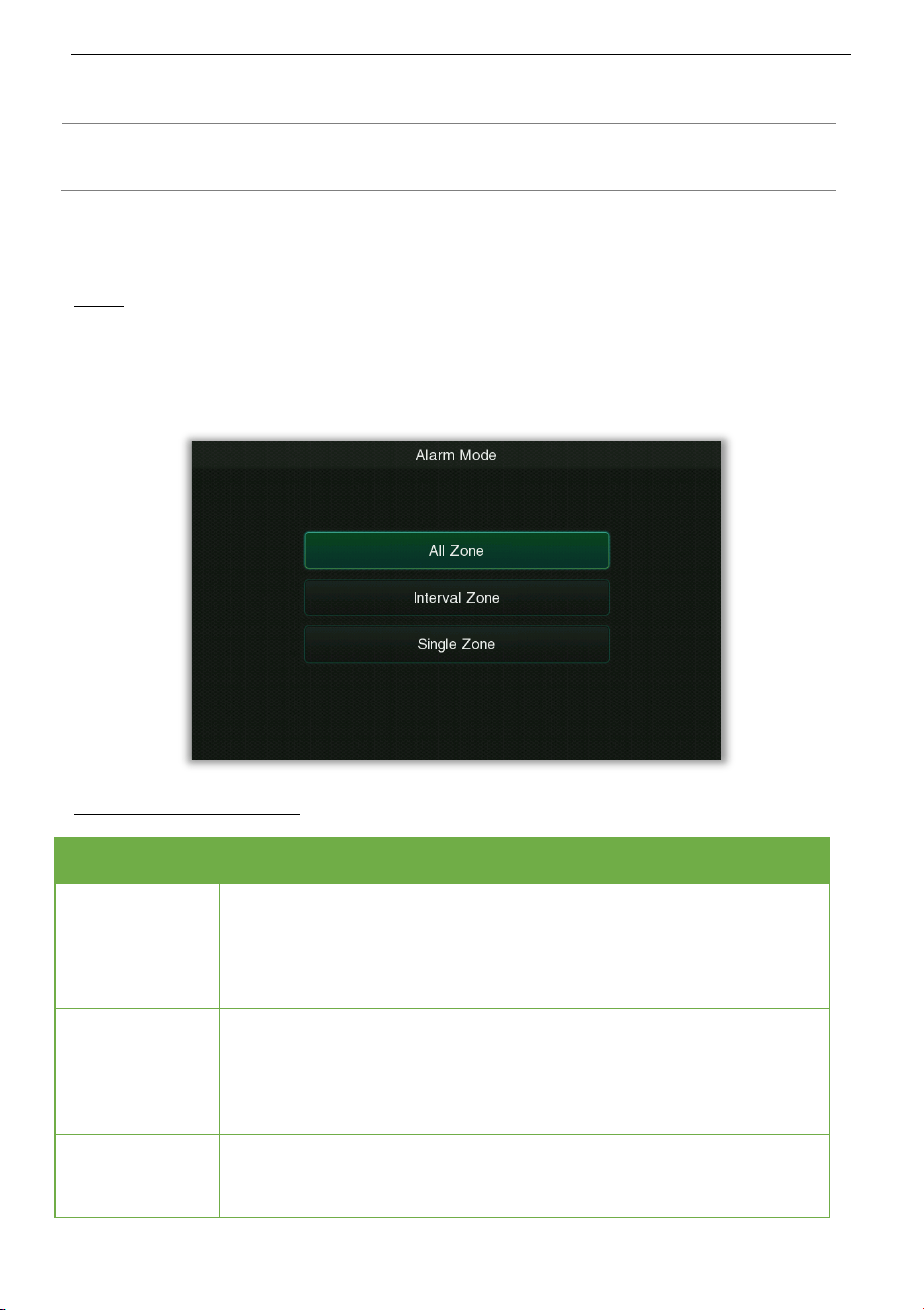

Select Alarm Mode on the Alarm setting interface, and press the OK to enter the alarm mode

setting interface, as shown in the following:

Function Description

Menu Descriptions

All Zone

In the All Zone alarm mode, when the detected metal content reaches

or exceeds the set metal content, the area alarm light of the detected

metal will be serial lit, and an alarm will sound at the same time.

Suitable for normal mode.

Interval Zone

In the Interval Zone alarm mode, the zone warning lights that detect

strong metal content will light up at intervals, that is, two consecutive

zones will not light up at the same time. Facilitates identification and

focused detection of stronger zones by security personnel.

Single Zone

In the Single Zone alarm mode, only the zone with the strongest metal

content is detected and the alarm lamp lights up. Facilitate the security

personnel to precisely focus on the area for detection.

ZK-D4330 User Manual

Page | 33

Operation: Press the [OK] button to enter the alarm mode setting interface, then press the

[▲]

/

[▼]

button to select, press [OK] button to save and exit.

 Random alarm

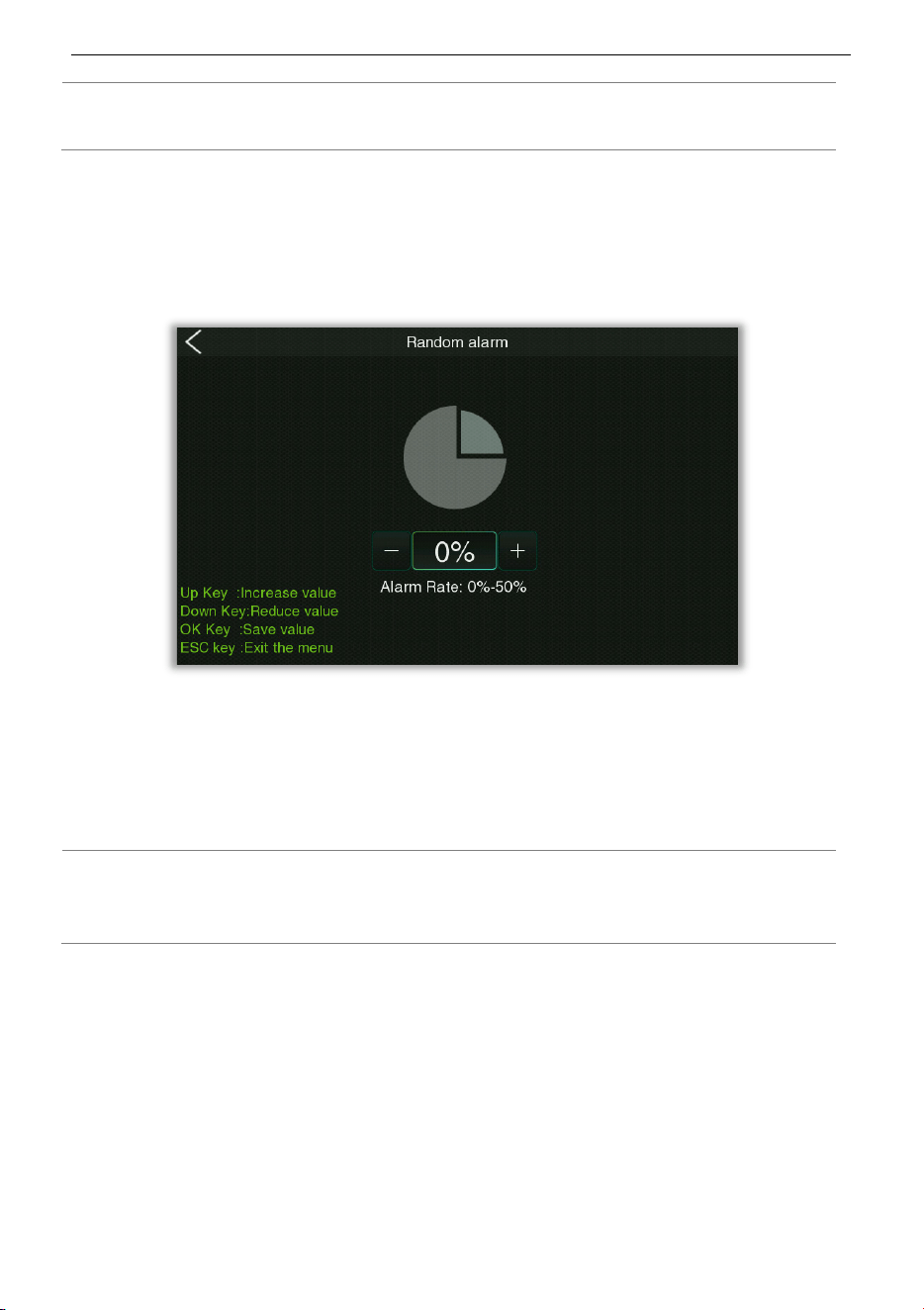

Select Random alarm on the Alarm setting interface, and press OK to enter the random alarm

setting interface, as shown in the following:

Under normal circumstances, the alarm is generated when the amount of metal signal

reaches the set sensitivity threshold, while it can pass normally when it is less than the

threshold. When a random alarm value is set, there will be a n% probability that a normal pass

without alarm will be turned into an alarm, so that it can be checked and confirmed again

manually.

Operation: Press the [OK] button to enter the random alarm setting interface, then press the

[▲]

/

[▼]

button to set the value, press [OK] button to save and exit to the upper menu after finishing, directly

press [

⏎] button to exit to the upper menu without saving the current value.

8.7 Auto Testing

Select Auto Testing on the Main Menu interface, and press OK to enter this option where the

system self-checks its functions. As shown in the following:

ZK-D4330 User Manual

Page | 34

 Zone Test

Select Zone Test on the Alarm setting interface, and press OK to enter the partition test. The

test example is shown below.

Operation: Press the [OK] button to enter the partition test, then press [⏎] button to exit to the

upper menu.

 LED Test

Select LED Test on the Alarm setting interface, and press OK to enter the lighting test. The test

example is shown below.

ZK-D4330 User Manual

Page | 35

Operation: Press the [OK] button to enter the lighting test, then press the

[▲]

/

[▼]

button to select

the test content. When “Light Up the Green Light” is selected, the green light of the light bar around

the door panel will light up immediately, and when “Light Up the Red Light” is selected, the red light of

the light bar around the door panel will light up immediately. It means that this function is normal,

press the [

⏎] button to exit to the upper menu.

 Speaker Test

Select Speaker Test on the Alarm setting interface, and press OK to enter the voice test. The

test example is shown below.

Operation: Press the [OK] button to enter the voice test. Then continue to press the [OK] button to

play 5 voice content one by one, press the [⏎] button to exit and return to the previous menu.

ZK-D4330 User Manual

Page | 36

8.8 Security Level

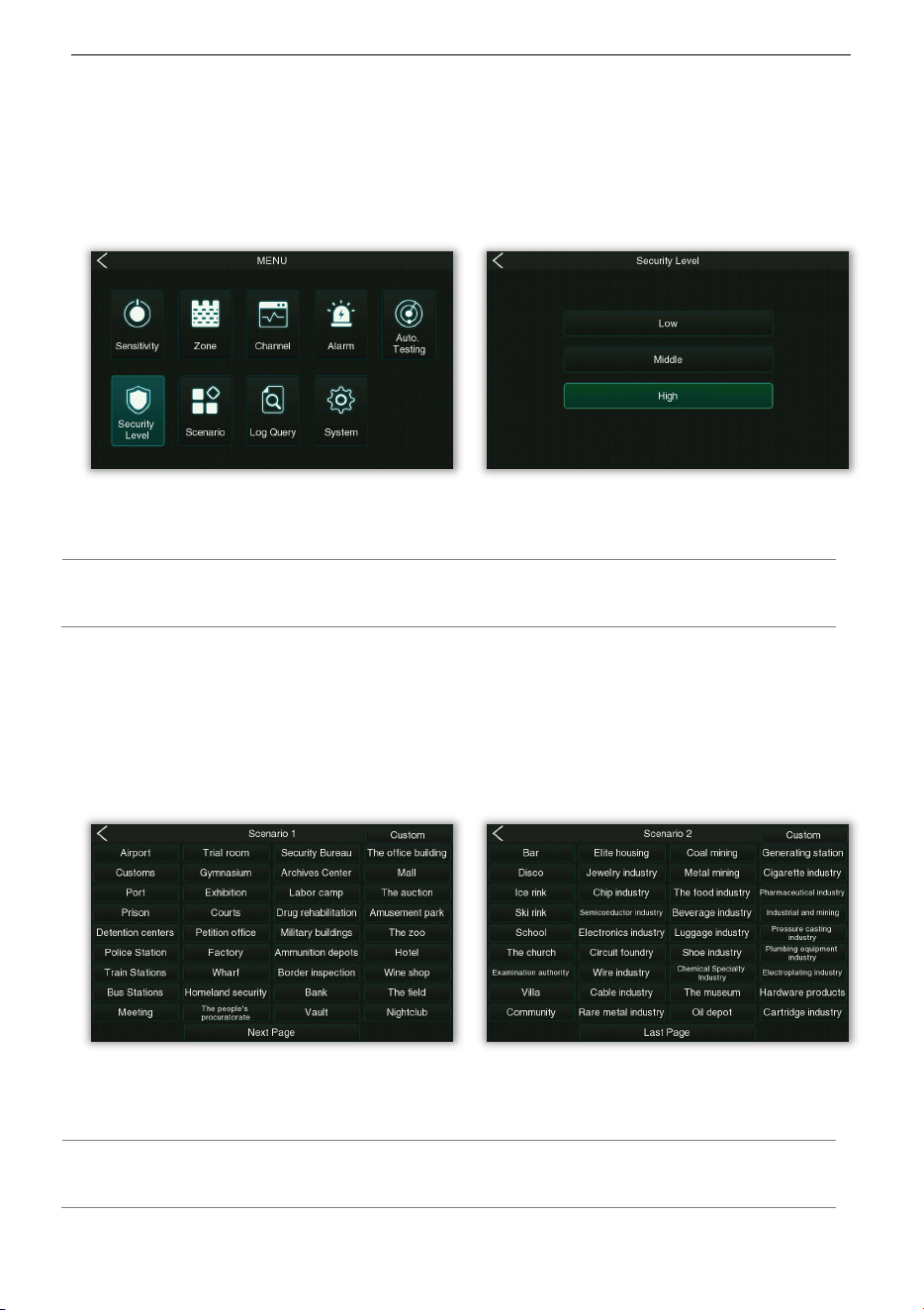

Select Security Level on the Main Menu interface, and press OK to enter the security level

setting interface, as shown in the following:

Three security levels can be set as Low, Middle and High. The higher the security level, the

higher the corresponding sensitivity.

Operation: Press the [OK] button to enter the security level setting interface, then press the

[▲]

/

[▼]

button to select, press [OK] button to save and exit.

8.9 Scenario

Select Scenario on the Main Menu interface, and press OK to enter the application scenario

setting interface, as shown in the following:

The user can select different scenarios in Scenario 1 and Scenario 2, or can choose a Custom

scenario.

Operation: Press the [OK] button to enter the application scenario setting, then press the

[▲]

/

[▼]

button to select the scenarios, press [OK] button to save and exit.

ZK-D4330 User Manual

Page | 37

 Custom scenario

In the Scenario setting interface, the user can enter the custom setting interface by clicking

the

icon in the upper right corner of the screen or pressing the power button.

There are 50 custom scenes in total, as shown in the following:

Operation: Click the custom scene icon in the upper right corner of the screen or press the power

button to enter the setting interface. Click on the screen to select a custom scene, click on the zone to

set in the zone sensitivity setting interface that pops up, click on the screen＋－icon or press the

[

▲

]/[

▼

] button to set the value, click on the zone again to confirm, and then click the screen 〈 return

icon to save and exit.

8.10 Log Query

Select Log Query on the Main Menu interface, and press OK to enter the log query interface,

as shown in the following:

ZK-D4330 User Manual

Page | 38

Each page of the query result displays 6 historical alarm records, and the total number of

alarm records can be viewed at the lower right corner of the page.

Operation: Press the [OK] button to enter the log query interface, then press the

[▲]

/

[▼]

button to

select, press [OK] button to set the Start Day/Time and End Day/Time of the query and confirm the

query. On the query result page, when there are many records, you can press the

[▲]

/

[▼]

button or

click the button on the screen to turn the page to view. Press the [

⏎] button to exit the

record query.

8.11 System Settings

Select System on the Main Menu interface, and press OK to enter the system settings

interface, as shown in the following:

It is used to set the relevant parameters of the system so that the device can maximize the

user requirements in terms of function, display, etc.

 Password

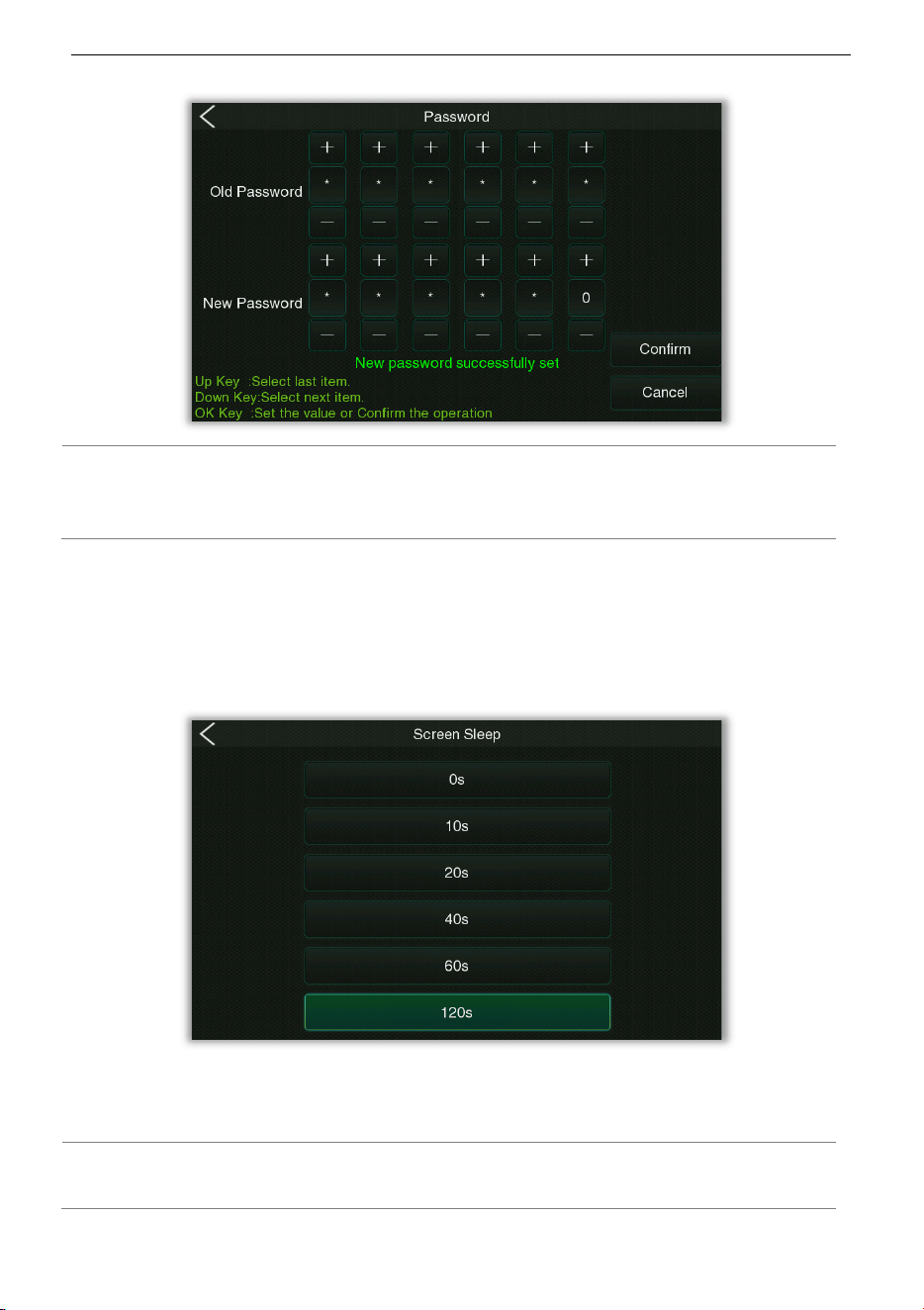

Select Password on the System setting interface, and press OK to enter the password setting

interface, as shown in the following:

ZK-D4330 User Manual

Page | 39

Operation: Press the [OK] button to enter the password setting interface, then press the

[▲]

/

[▼]

button to select. Press [OK] button to set the value, after inputting the old password and new

password, select "Confirm" and press [OK] button to save and exit.

 Screen Sleep

Select Screen Sleep on the System setting interface, and press OK to enter the screen

hibernation setting interface, as shown in the following:

You can set the screen hibernation duration here, there are 0s, 10s, 20s, 40s, 60s and 120s

optional. Note: The 0s means the screen will not hibernation.

Operation: Press the [OK] button to enter the screen hibernation setting, then press the

[▲]

/

[▼]

button to select. Press [OK] button to save and exit to the upper menu after finishing.

ZK-D4330 User Manual

Page | 40

 Date/Time

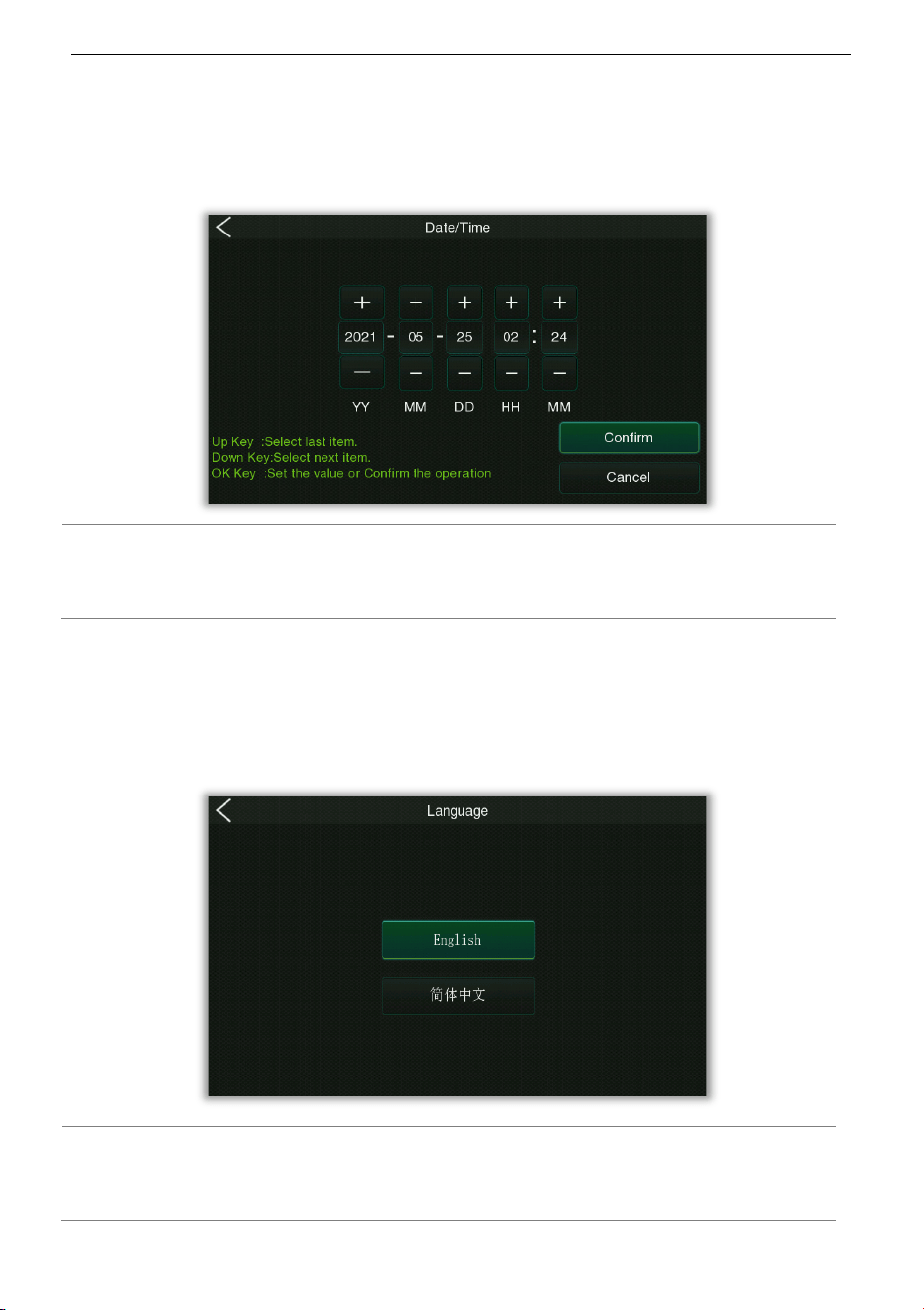

Select Date/Time on the System setting interface, and press OK to enter the system Date &

Time setting interface, as shown in the following:

Operation: Press the [OK] button to enter the system Date & Time setting, then press the

[▲]

/

[▼]

button to select. Press [OK] button to set the value, select "Confirm" and press the [OK] button to save

and exit.

 Language

Select Language on the System setting interface, and press OK to enter the language setting

interface, as shown in the following:

Operation: Press the [OK] button to enter the language setting, press the [▲]/ [▼] button to switch

languages. Select "Confirm" in the pop-up confirmation window and press the [OK] button to confirm,

the device will automatically restart, and the set language interface will be displayed after completion.

ZK-D4330 User Manual

Page | 41

 Save Records

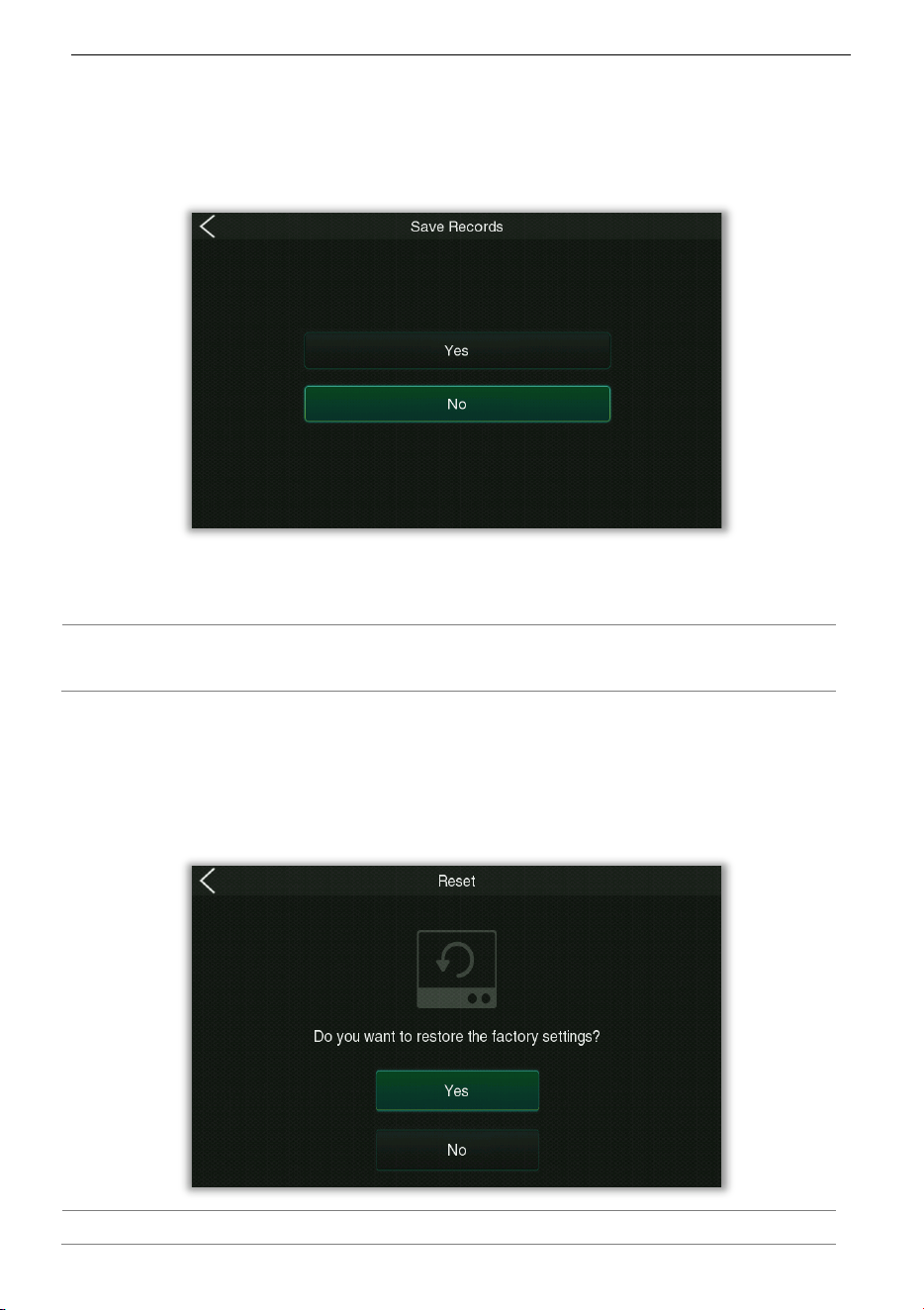

Select Save Records on the System setting interface, and press OK to enter the setting

interface, as shown in the following:

It is used to set whether to save the number of alarm records after the device is turned off,

select "Yes" to save and select "No" to clear.

Operation: Press the [OK] button to enter the setting interface, then press the

[▲]

/

[▼]

button to

select. Press [OK] button to save and exit to the upper menu.

 Reset

Select Reset on the System setting interface, and press OK to enter the restore factory

settings interface, as shown in the following:

Operation: Press the [OK] button to enter the restore factory settings, then press the [▲]/ [▼] button

ZK-D4330 User Manual

Page | 42

to choose whether to restore factory settings. When you select Yes, a confirmation window will pop

up, select "Confirm" and press the [OK] button. And then the device will automatically restart and

restore to factory settings.

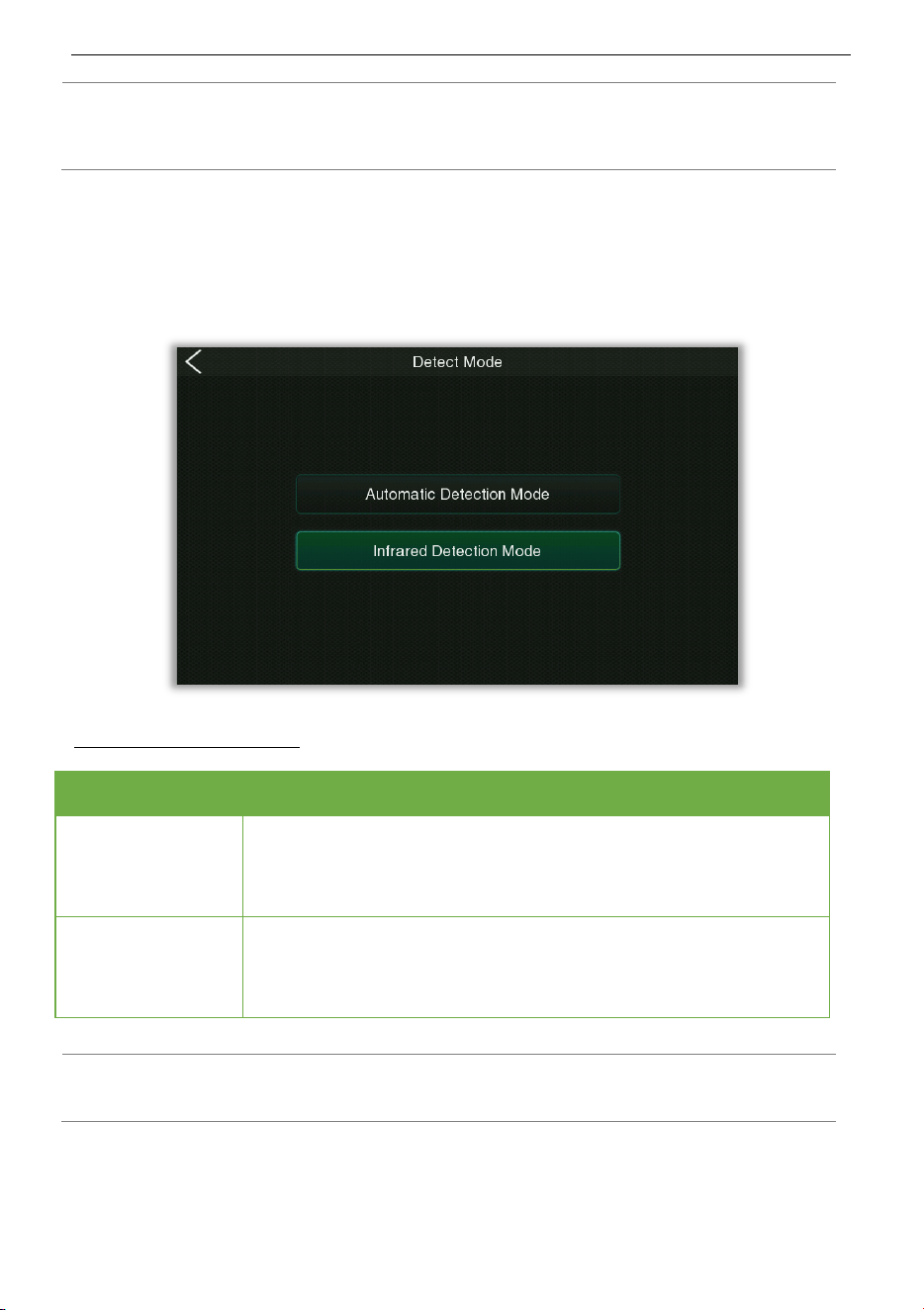

 Detect Mode

Select Detect Mode on the System setting interface, and press OK to enter the detect mode

setting interface, as shown in the following:

Function Description

Menu Descriptions

Automatic

Detection Mode

In this mode, an alarm is generated when the amount of metal

signal reaches the set sensitivity threshold, and no counting

statistics are performed.

Infrared Detection

Mode

In this mode, when the infrared detector is triggered and the

amount of metal signal reaches the set sensitivity threshold, an

alarm will be generated, and counting statistics will be performed.

Operation: Press the [OK] button to enter the detect mode setting interface, then press the

[▲]

/

[▼]

button to select, press [OK] button to save and exit.

ZK-D4330 User Manual

Page | 43

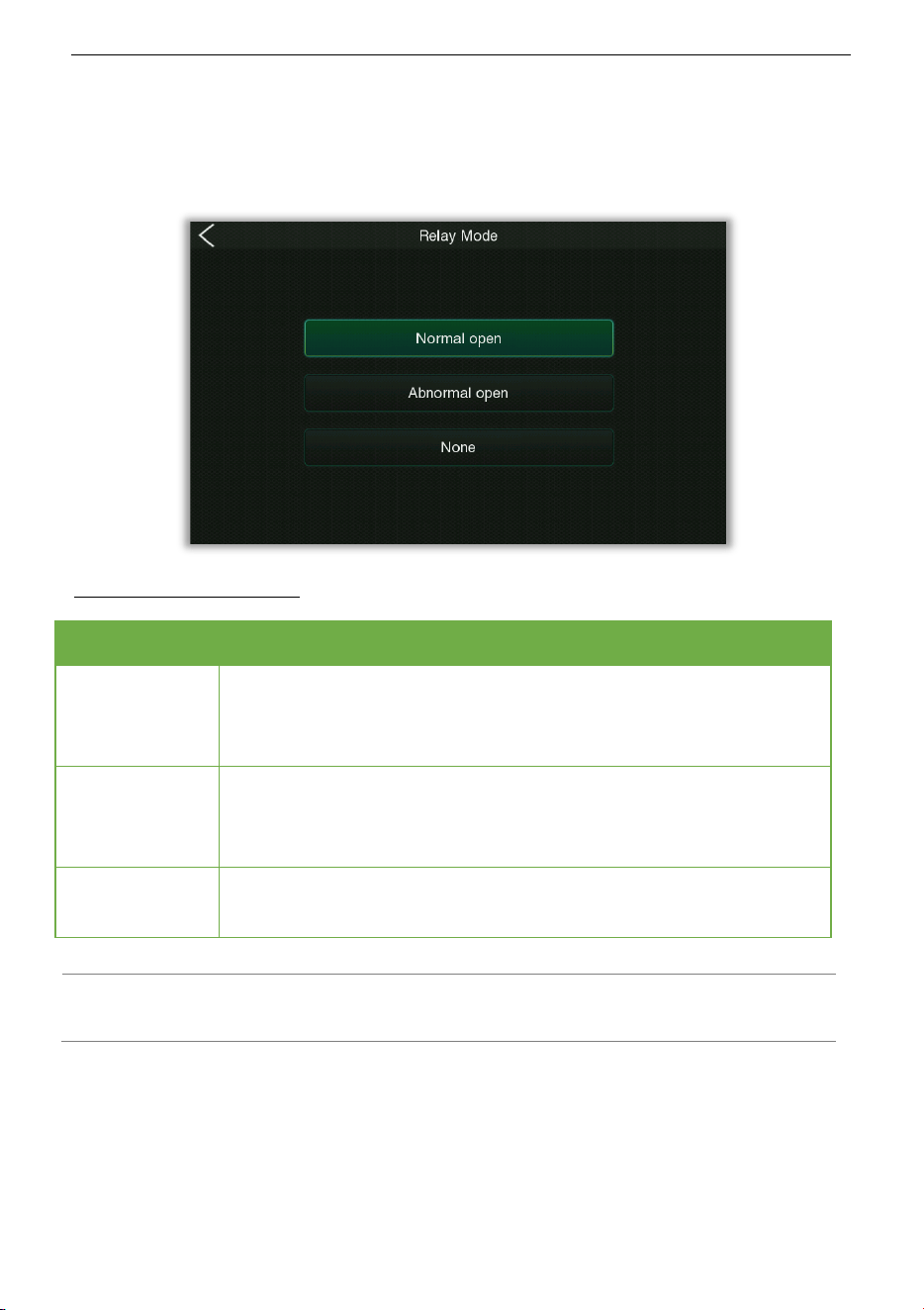

 Relay Mode

Select Relay Mode on the System setting interface, and press OK to enter the relay control

setting interface, as shown in the following:

Function Description

Menu Descriptions

Normal open

In this mode, when the metal content carried is less than the alarm

threshold, the relay will be triggered to output a switch signal when the

machine does not alarm;

Abnormal open

In this mode, when the metal content exceeds the alarm threshold, the

machine will trigger the relay to output a switch signal when the

machine alarms;

None

Means that the relay is always in the off state and does not output a

switch signal.

Operation: Press the [OK] button to enter the relay mode setting interface, then press the

[▲]

/

[▼]

buttonto select trigger setting, press [OK] button to save and exit.

 Custom ID

Select Custom ID on the System setting interface, and press OK to enter the custom ID setting

interface, as shown in the following:

ZK-D4330 User Manual

Page | 44

The ID is the device ID (the default value is 123456).

Operation: Press the [OK] button to enter the custom ID setting interface, then press the

[▲]

/

[▼]

button to select setting item. Press the [OK] button to set the value of 0 to 9, select "confirm" and press

the [OK] button to save and exit.

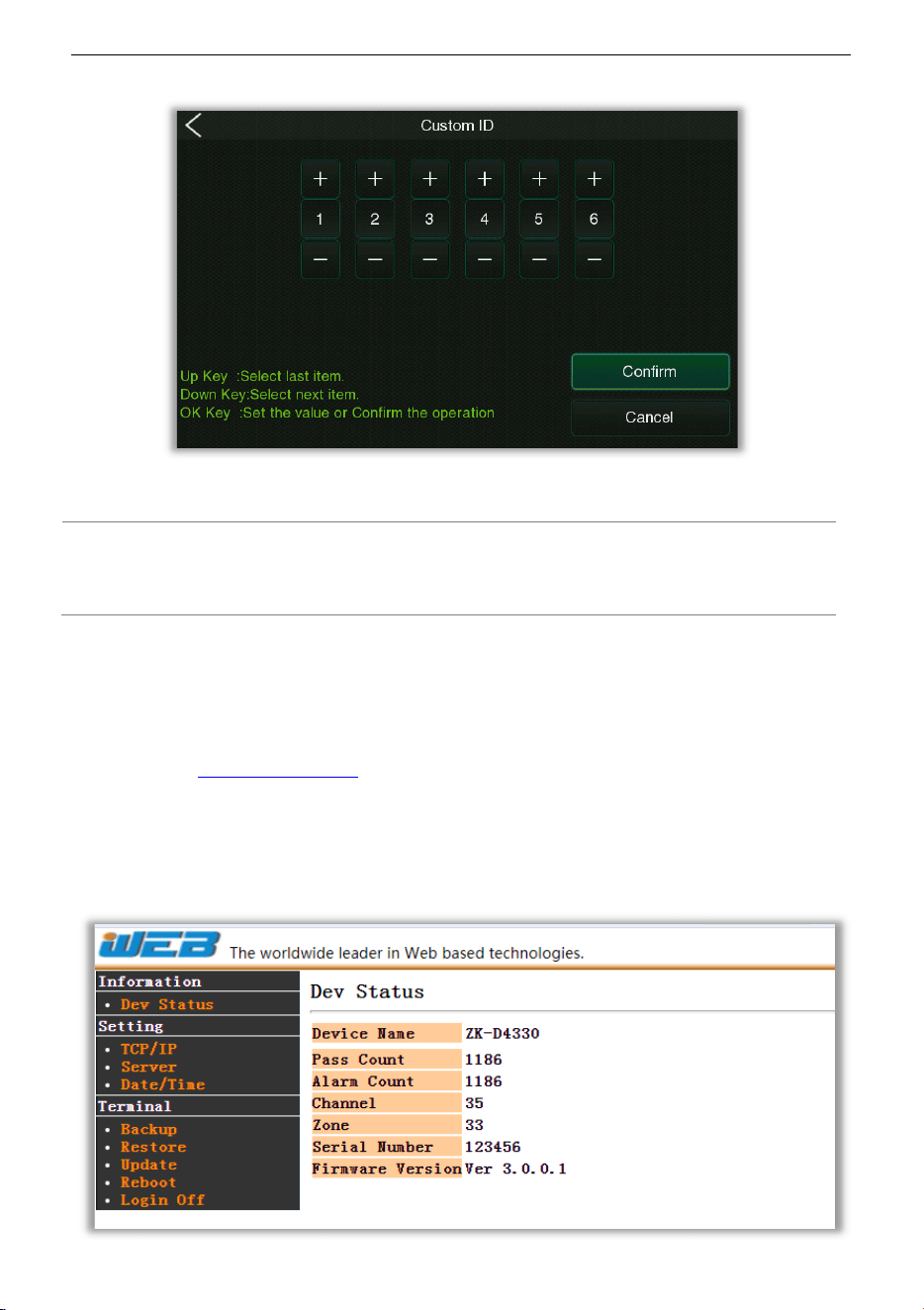

8.12 Web Server

The default IP address of the device is 192.168.1.201. You can access the Web Server through

a browser (e.g. http://192.168.1.201

).

Enter the account and password, the default account is: admin, password: admin.

After successful login, you can view the device basic information by clicking Dev Status.

ZK-D4330 User Manual

Page | 45

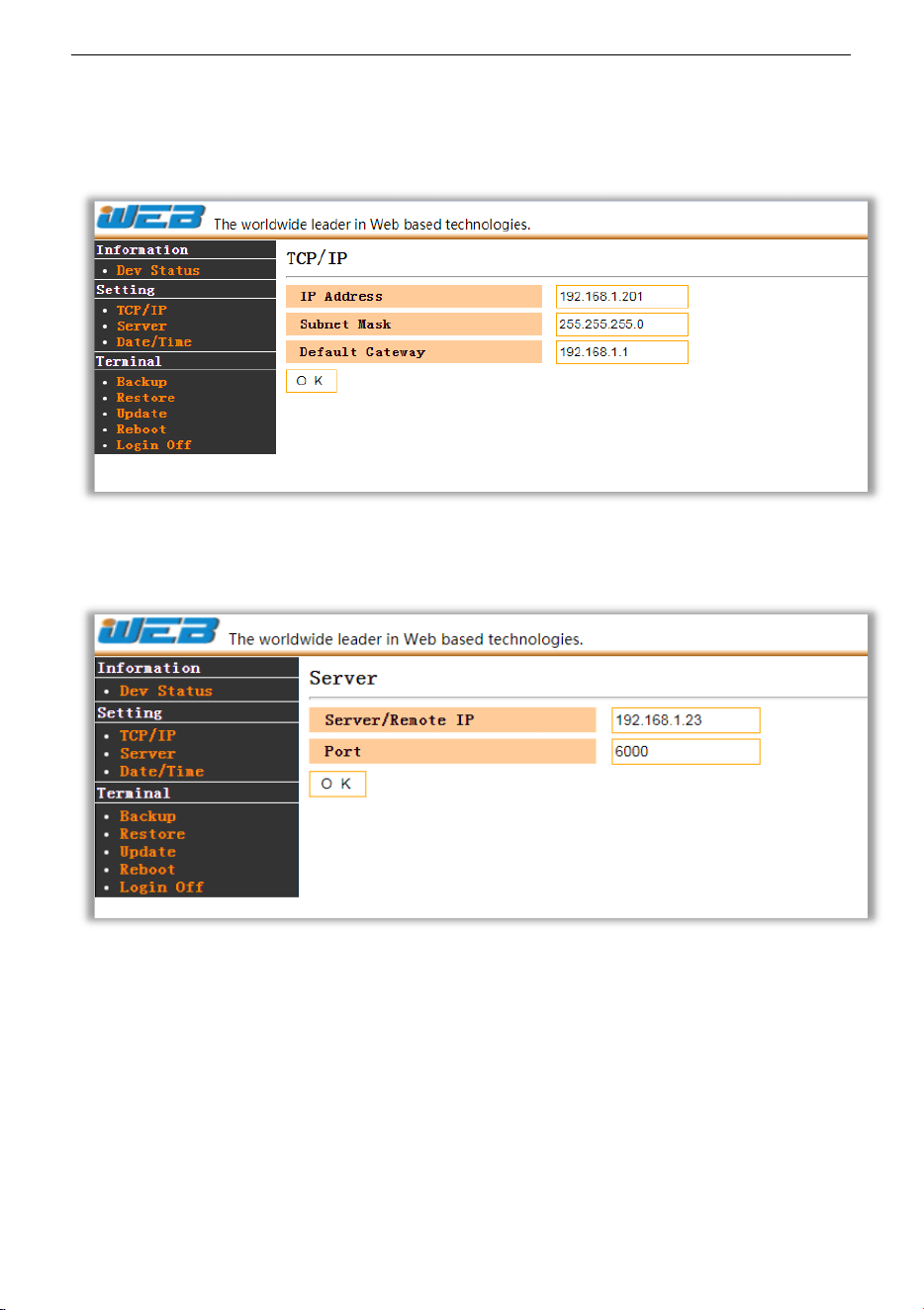

Click TCP/IP to set the IP address of the device.(Note: If you modify the IP address of the

device, then the web server link will be changed accordingly.)

Click Server to set the server address and port.

ZK-D4330 User Manual

Page | 46

8.13 Default Parameters

Parameter Default Value

Default password

100000

Alarm Duration

1s

Zone Sensitivity

475

Overall Sensitivity

475

Screen Hibernation

120s

Alarm Bell

Ring Tone 1

Security Level

High

Detection Mode

Infrared Detection Mode

Device ID

123456

Language

English

IP Address

192.168.1.201

ZK-D4330 User Manual

Page | 47

Troubleshooting

What to do if an error is prompted during the auto testing?

a) When the message "EFT ZONE ERROR RIGHT ZONE ERROR" is prompted during the

auto testing, please pay attention to whether the left and right signal cable plugs are

inserted tightly.

b) When it prompts "The infrared receiving error", please check whether the left and right

signal wires of the door panel are connected properly, whether the infrared sensors

are connected properly, and whether the two sets of infrared sensors are blocked.

What to do if the Sensor could not count?

a) Check whether the probe cables are connected firmly with the door panels.

b) Check whether there is any infrared interference beside the device, such as infrared

surveillance system, infrared remote control, outdoor sunlight, etc.

c) If both, condition a and condition b are OK, then the issue is with the infrared sensor

and need to be replaced.

What to do if the detector gives a false alarm?

If the device gives false alarms frequently after installation, perform the following steps:

a) Firstly, check the installation environment. Make sure there are no movable or

stationary large metal objects around 1.5 meters from the detector. If there is any

metal object, try to place the device away from the large metal objects.

b) Make sure that the installation location is firm and stable and free from physical

movements. If not, change the installation location.

c) If the false alarm is not caused by environmental interference, then reduce the

sensitivity level of all zones.

d) Change the frequency.

ZK-D4330 User Manual

Page | 48

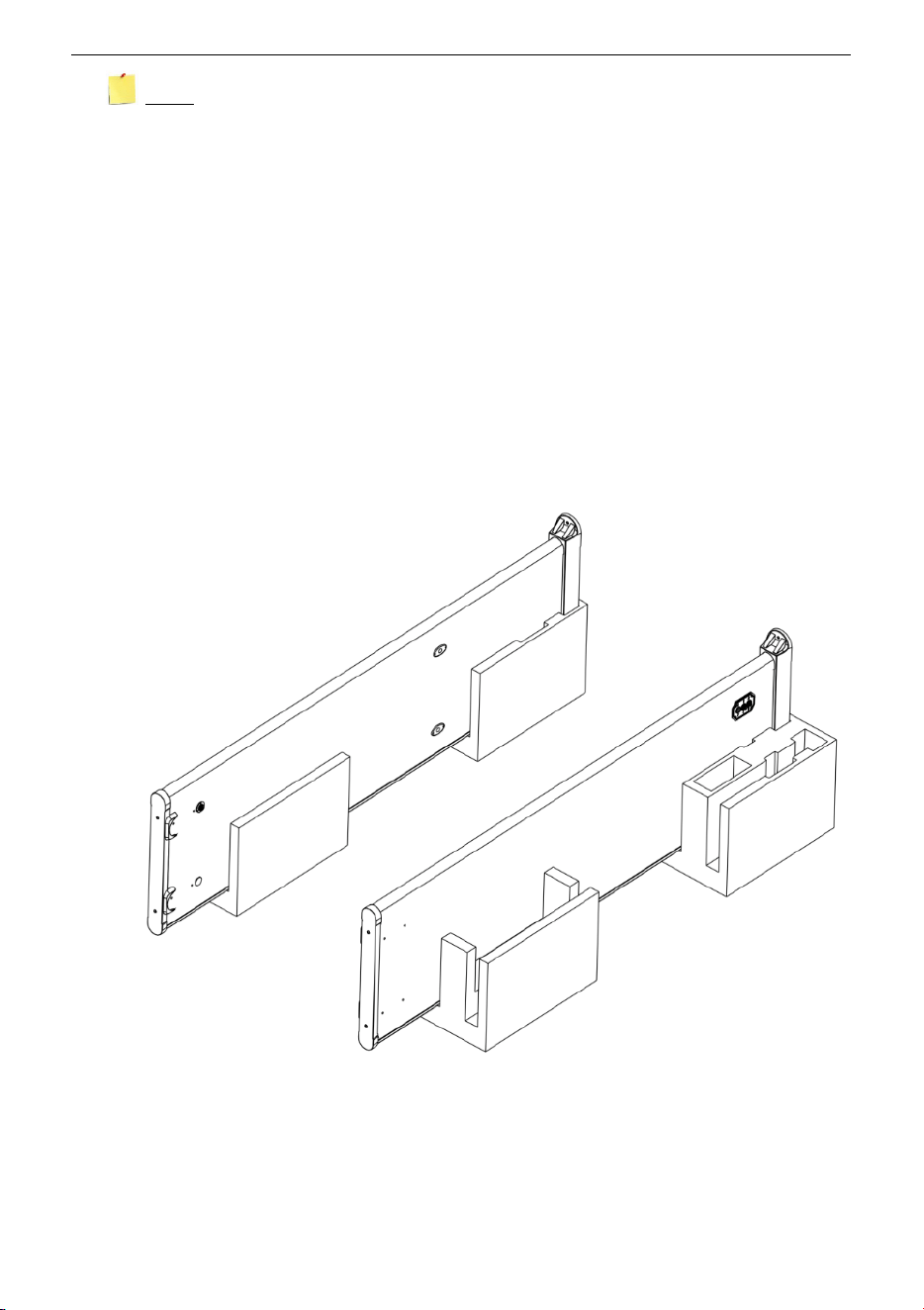

Packing List

The package consists of the following items:

No Component Quantity

1

L Side Panel 1 set

2

R Side Panel 1 set

3

Front Beam 1 pc

4

Rear Beam 1 pc

5

Accessory Box 1 pc

6

Universal Wheel (Optional) 4 pcs

7

Transparent Rainproof Canopy (Optional) 1 pc

Accessory Box List

No Component Quantity

1

Host 1 pc

2

Adjustable Metal Bracket 1 set

3

Power Adapter 1 set

4

Remote Control 1 pc

5

Bolt 10 pcs

6

Torx Screwdriver 1 pc

7

Allen Screw 4 pcs

ZK-D4330 User Manual

Page | 49

Warranty Card

1. Please keep this card safe and produce the same during maintenance.

2. This card will be invalid without the signature or stamp of the designated dealer.

3. This card will be regarded as invalid if the details are not filled in guarantees column and

the acknowledgment of the receipt. Please confirm whether the data filled in the

guarantees column and acknowledgment of receipt is correct or not when purchasing it,

and then hand it over to the dealer.

4. This card will not be issued again if it is lost.

Model Number

ID

Date of Acquisition

User

Post Code

Address

User’s Phone Number

Fax

ZK-D4330 User Manual

Page | 50

Date of Maintenance Record of Maintenance Technician

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com

ZKTeco ZK-D4330

Product's Documents

PDF ZK ZK-D4330 User Manual V1.2 20240325 User Manual 6.91MB 2024-03-27

Specifications

ZKTeco ZK-D4330 Questions and Answers
