ZKTeco MB560-VL User Manual

Product Name and Model Number User

Manual

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

For further details, please visit our Company’s website

www.zkteco.com

.

User Manual

MB560-VL (ZAM70)

Date: July 2025

Doc Version: 1.0

English

MB560-VL (ZAM70) User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in

any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the

"Company" or "ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned

by their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

copyright in all the documents, drawings, etc. in relation to the ZKTeco supplied equipment vests in

and is the property of ZKTeco. The contents hereof should not be used or shared by the receiver with

any third party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of

the supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please

contact ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for

the safe operation of the machine/unit/equipment that personnel has read, understood and followed

the safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract

conditions/documents shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the

warranty of any kind, including, without limitation, any warranty of design, merchantability or fitness

for a particular purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents

which are referenced by or linked to this manual. The entire risk as to the results and performance

obtained from using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential,

indirect, special, or exemplary damages, including, without limitation, loss of business, loss of profits,

business interruption, loss of business information or any pecuniary loss, arising out of, in connection

with, or relating to the use of the information contained in or referenced by this manual, even if ZKTeco

has been advised of the possibility of such damages.

MB560-VL (ZAM70) User Manual

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated

into new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or

modify the information contained in the manual from time to time in the form of circulars, letters, notes,

etc. for better operation and safety of the machine/unit/equipment. The said additions or amendments

are meant for improvement /better operations of the machine/unit/equipment and such amendments

shall not give any right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment

in conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures

and relevant documents are available on http://www.zkteco.com

.

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business related queries, please write to us at: sales@zkteco.com

.

To know more about our global branches, visit www.zkteco.com.

MB560-VL (ZAM70) User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial

Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate

controllers and Consumer products including battery-operated fingerprint and face template-reader

Door Locks. Our security solutions are multi-lingual and localized in over 18 different languages. At the

ZKTeco state-of-the-art 700,000 square foot ISO9001-certified manufacturing facility, we control

manufacturing, product design, component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of

biometric verification procedures and the productization of biometric verification SDK, which was

initially widely applied in PC security and identity authentication fields. With the continuous

enhancement of the development and plenty of market applications, the team has gradually

constructed an identity authentication ecosystem and smart security ecosystem, which are based on

biometric verification techniques. With years of experience in the industrialization of biometric

verifications, ZKTeco was officially established in 2007 and now has been one of the globally leading

enterprises in the biometric verification industry owning various patents and being selected as the

National High-tech Enterprise for 6 consecutive years. Its products are protected by intellectual

property rights.

About the Manual

This manual introduces the operations of MB560-VL (ZAM70).

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly

consistent with the actual products.

Features and parameters with

★ are not available in all devices.

MB560-VL (ZAM70) User Manual

Document Conventions

Conventions used in this manual are listed below:

GUI Conventions

For Software

Convention Description

Bold font Used to identify software interface template names e.g. OK, Confirm, Cancel.

>

Multi-level menus are separated by these brackets. For example, File > Create >

Folder.

For Device

Convention Description

< >

Button or key names for devices. For example, press <OK>.

[ ]

Window names, menu items, data table, and field names are inside square

brackets. For example, pop up the [New User] window.

/

Multi-

level menus are separated by forwarding slashes. For example,

File/Create/Folder.

Symbols

Convention Description

This represents a note that needs to pay more attention to.

The general information which helps in performing the operations faster.

The information which is significant.

Care taken to avoid danger or mistakes.

The statement or event that warns of something or that serves as a cautionary

example.

MB560-VL (ZAM70) User Manual

TABLE OF CONTENTS

DATA SECURITY STATEMENT ................................................................................................................... 8

SAFETY MEASURES ................................................................................................................................... 8

1 INSTRUCTION FOR USE ................................................................................................................... 10

Finger Positioning .................................................................................................................................................................................. 10 1.1

Standing Position, Posture and Facial Expression ..................................................................................................................... 10 1.2

Face Template Registration ................................................................................................................................................................ 11 1.3

Standby Interface ................................................................................................................................................................................... 12 1.4

T9 Mode ...................................................................................................................................................................................................... 14 1.5

Verification Mode ................................................................................................................................................................................... 15 1.6

1.6.1 Fingerprint Verification .............................................................................................................................................................................. 15

1.6.2 Card Verification ........................................................................................................................................................................................... 16

1.6.3 Facial Verification ......................................................................................................................................................................................... 18

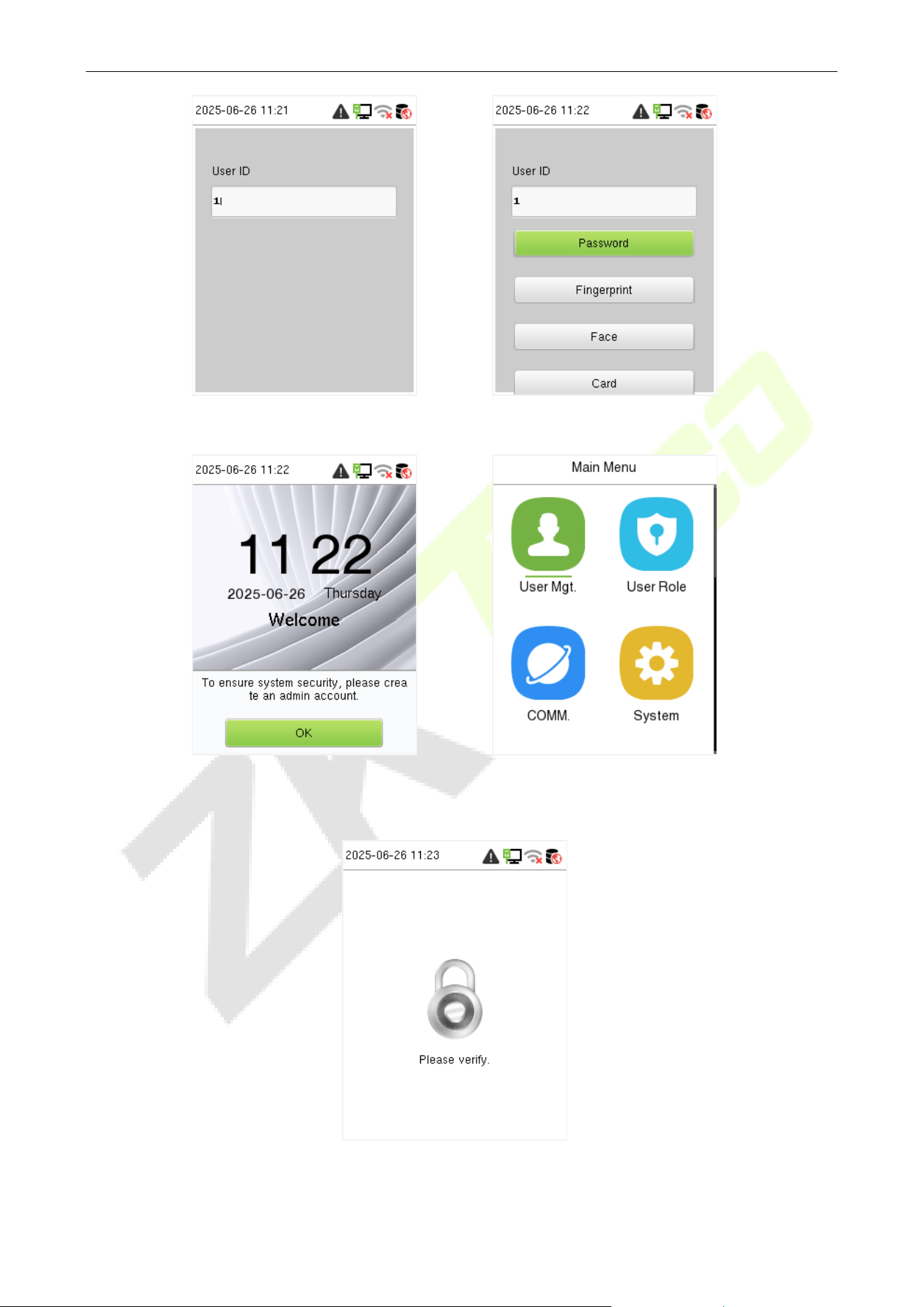

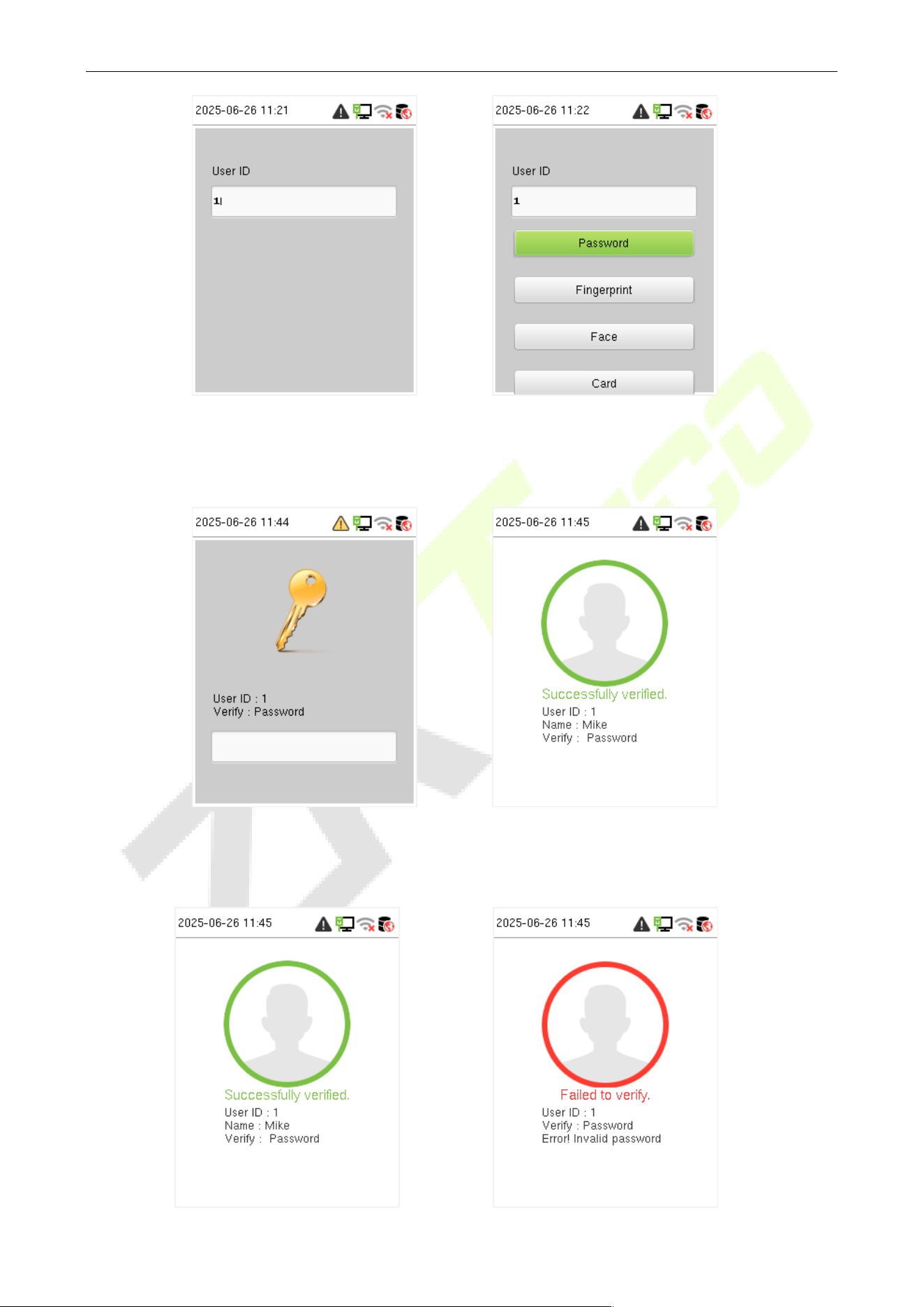

1.6.4 Password Verification.................................................................................................................................................................................. 19

1.6.5 Combined Verification ................................................................................................................................................................................ 21

2 MAIN MENU ..................................................................................................................................... 22

3 USER MANAGEMENT ....................................................................................................................... 24

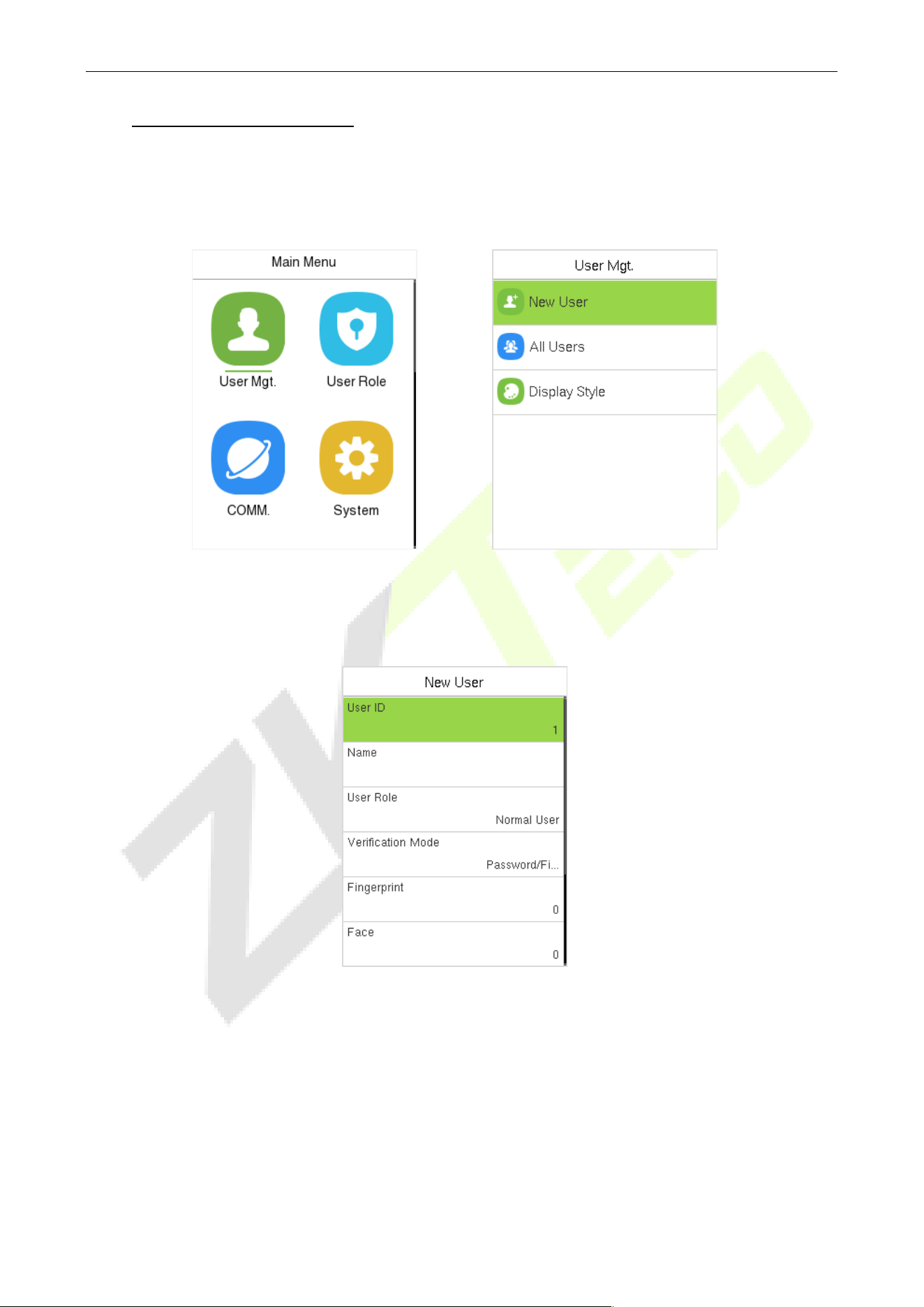

User Registration..................................................................................................................................................................................... 24 3.1

3.1.1 User ID and Name ........................................................................................................................................................................................ 24

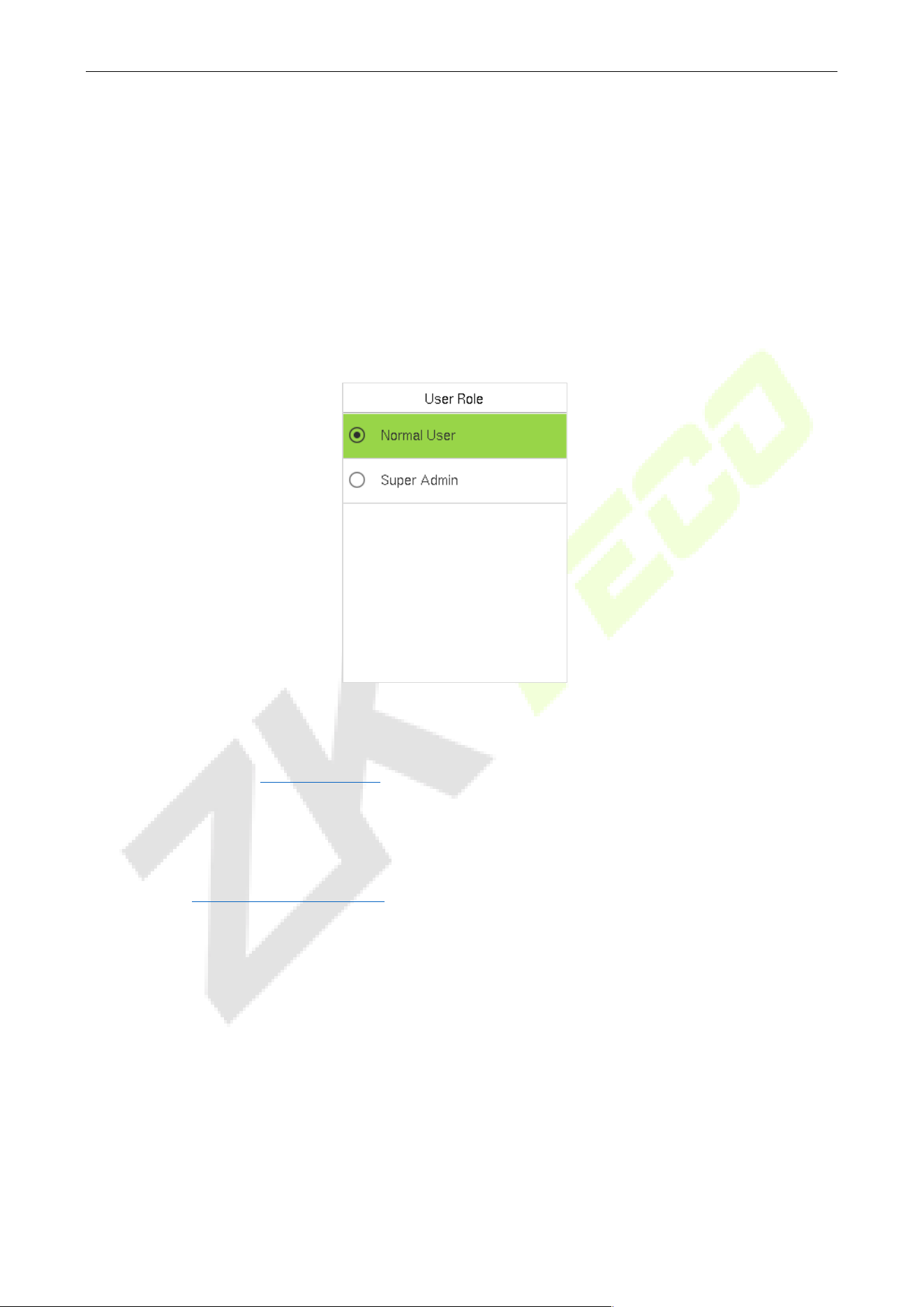

3.1.2 User Role ......................................................................................................................................................................................................... 25

3.1.3 Verification Mode ......................................................................................................................................................................................... 25

3.1.4 Register Fingerprint ..................................................................................................................................................................................... 26

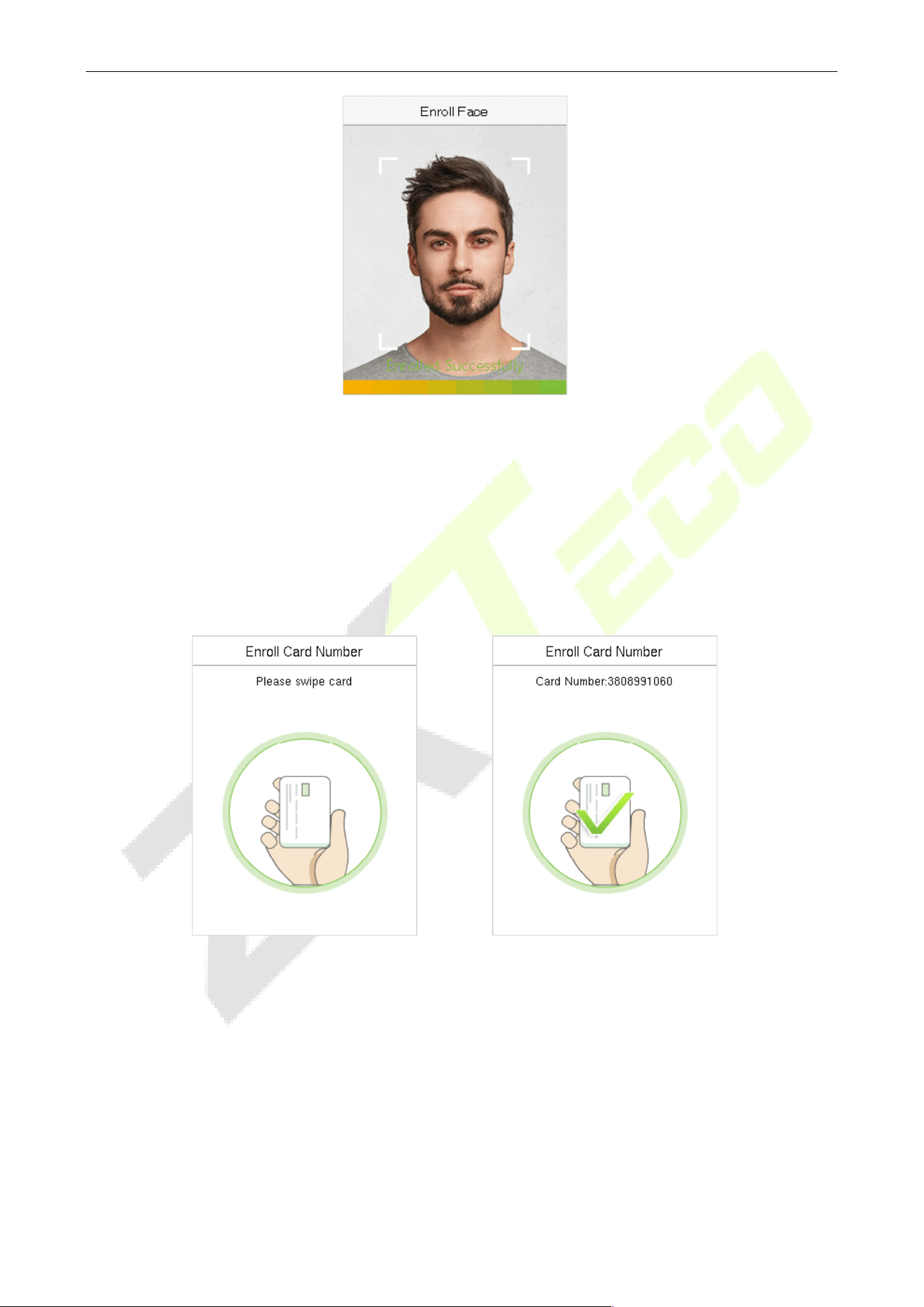

3.1.5 Register Face Template .............................................................................................................................................................................. 26

3.1.6 Card .................................................................................................................................................................................................................. 27

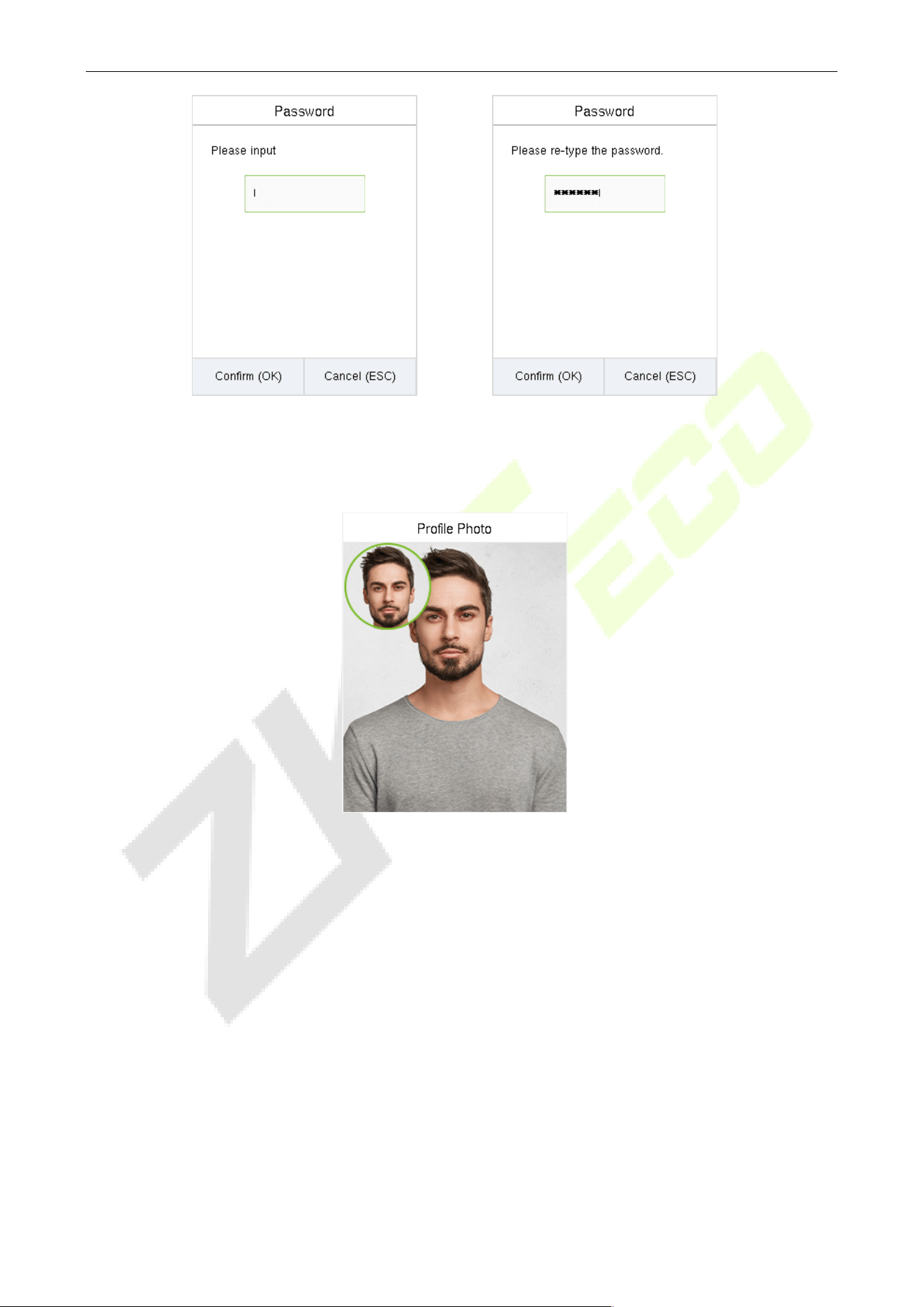

3.1.7 Password ......................................................................................................................................................................................................... 27

3.1.8 Profile Photo .................................................................................................................................................................................................. 28

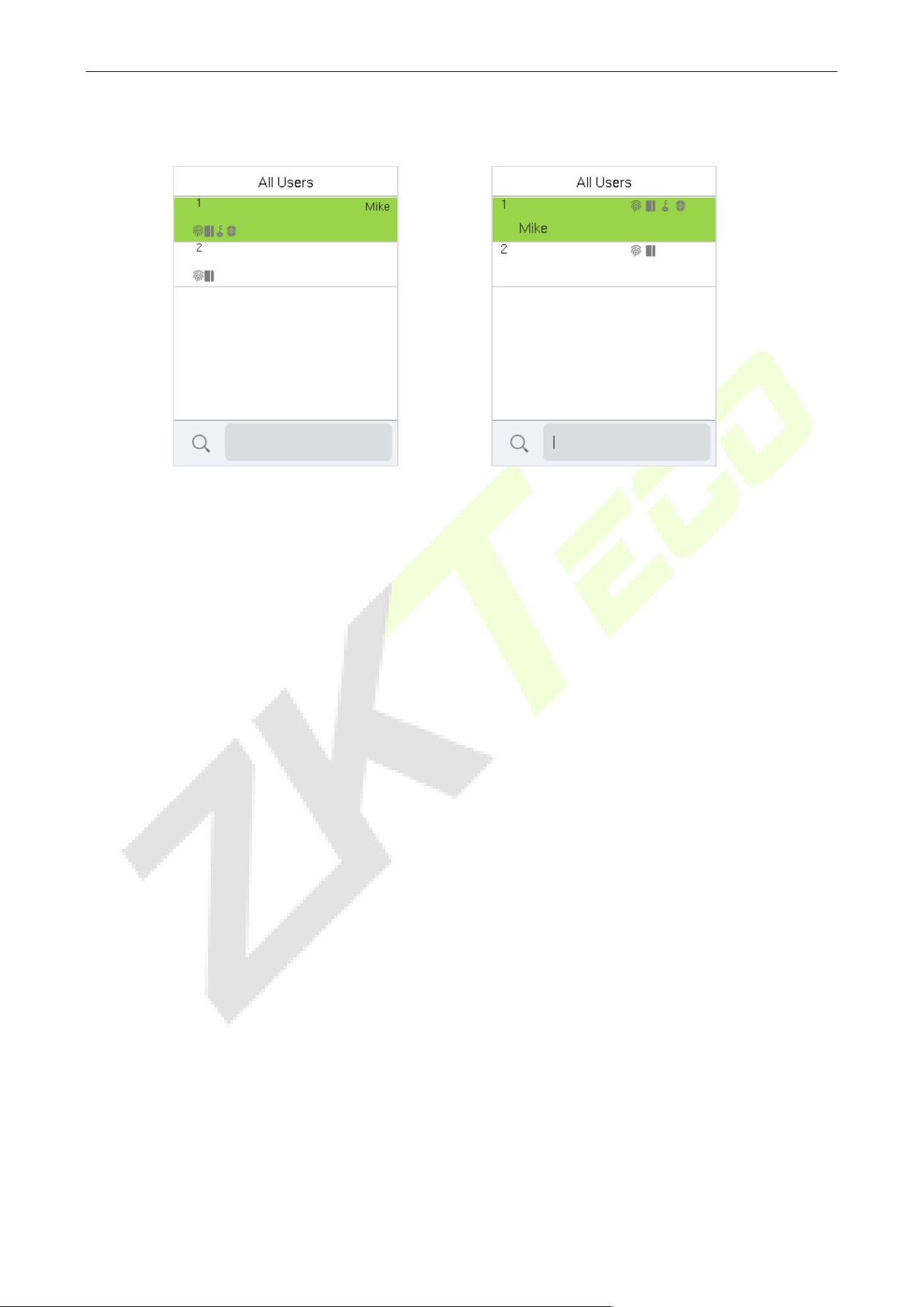

Search for Users ....................................................................................................................................................................................... 28 3.2

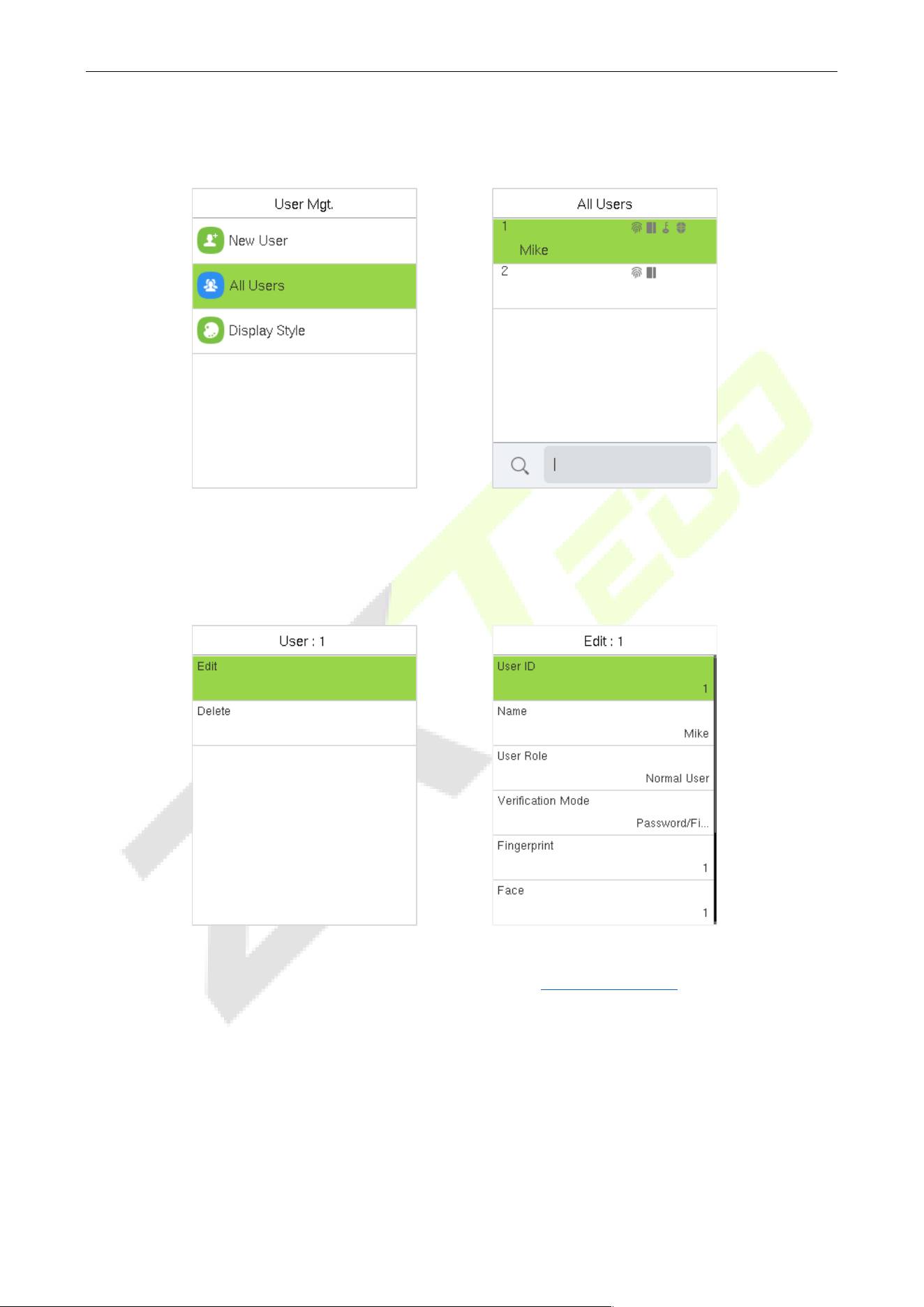

Edit User ..................................................................................................................................................................................................... 29 3.3

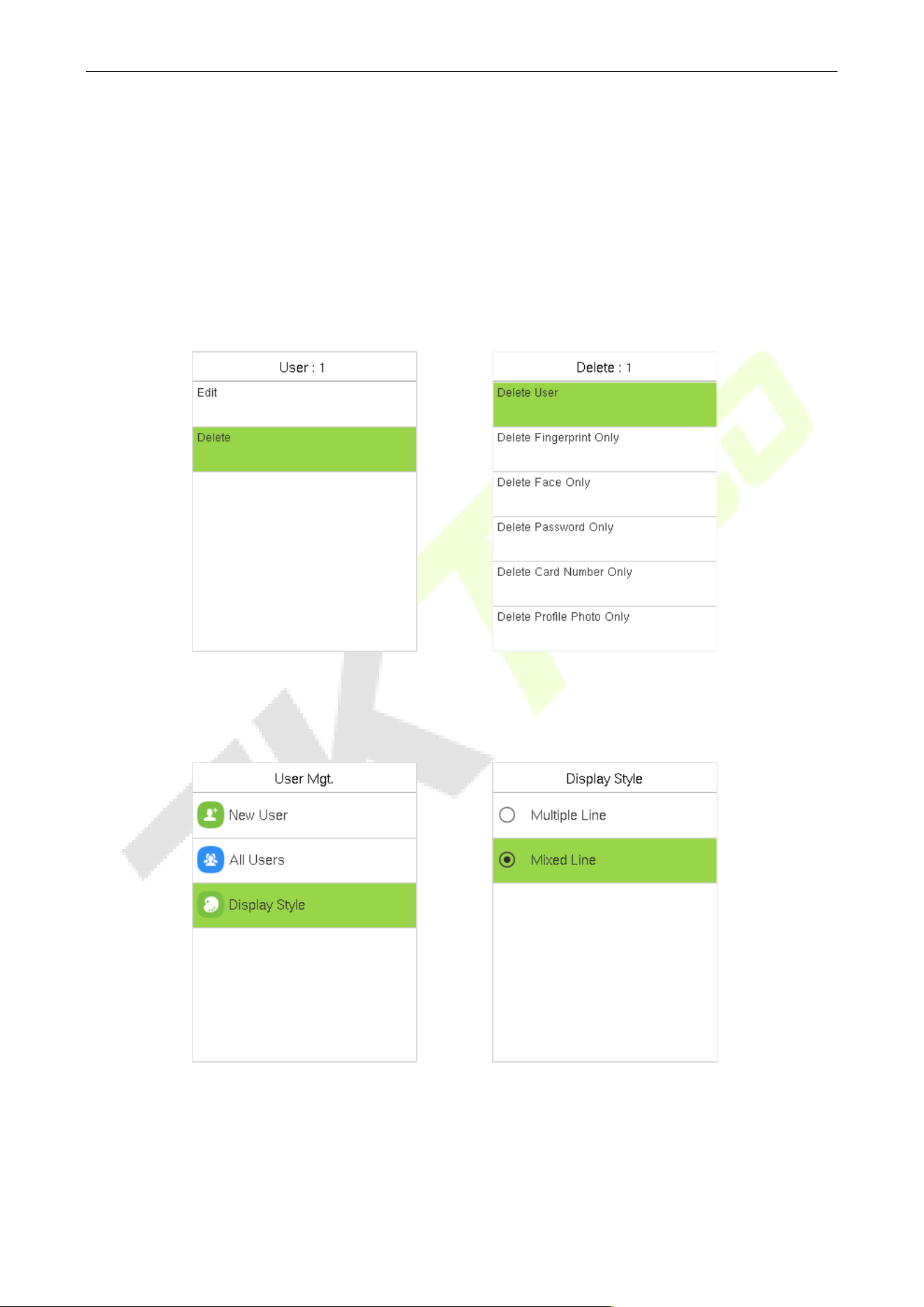

Delete User ................................................................................................................................................................................................ 29 3.4

Display Style ............................................................................................................................................................................................. 30 3.5

4 USER ROLE ....................................................................................................................................... 32

5 COMMUNICATION SETTINGS .......................................................................................................... 33

Network Settings .................................................................................................................................................................................... 33 5.1

Serial Comm★ ......................................................................................................................................................................................... 34 5.2

PC Connection ......................................................................................................................................................................................... 35 5.3

Wireless Network★ ............................................................................................................................................................................... 35 5.4

Cloud Server Setting.............................................................................................................................................................................. 37 5.5

Network Diagnosis ................................................................................................................................................................................. 38 5.6

6 SYSTEM SETTINGS ........................................................................................................................... 39

Date and Time .......................................................................................................................................................................................... 39 6.1

Attendance ............................................................................................................................................................................................... 40 6.2

MB560-VL (ZAM70) User Manual

Face Template Parameters ................................................................................................................................................................. 41 6.3

Fingerprint Parameters ........................................................................................................................................................................ 43 6.4

Device Type Settings ............................................................................................................................................................................. 44 6.5

Security Settings ..................................................................................................................................................................................... 45 6.6

USB Upgrade ............................................................................................................................................................................................ 46 6.7

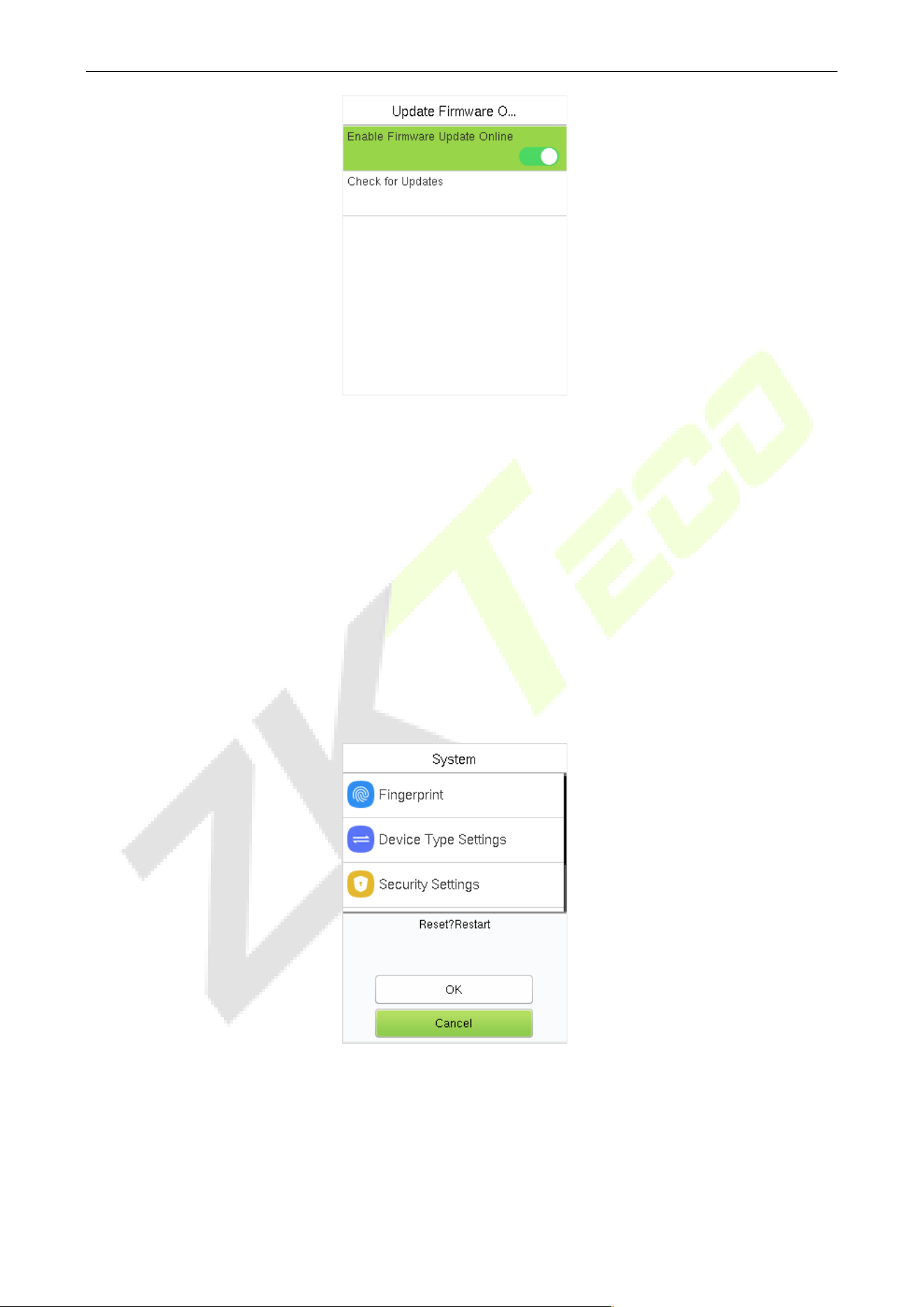

Update Firmware Online ..................................................................................................................................................................... 46 6.8

Factory Reset ............................................................................................................................................................................................ 47 6.9

7 PERSONALIZE SETTINGS ................................................................................................................. 48

User Interface Settings ......................................................................................................................................................................... 48 7.1

Voice Settings .......................................................................................................................................................................................... 49 7.2

Bell Schedules .......................................................................................................................................................................................... 49 7.3

Punch States Options ............................................................................................................................................................................ 51 7.4

Shortcut Key Mappings ........................................................................................................................................................................ 52 7.5

8 DATA MANAGEMENT ...................................................................................................................... 54

9 WORK CODE ..................................................................................................................................... 56

Add a Work Code .................................................................................................................................................................................... 56 9.1

All Work Codes ......................................................................................................................................................................................... 57 9.2

Work Code Options................................................................................................................................................................................ 57 9.3

10 ACCESS CONTROL ........................................................................................................................ 59

Access Control Options ........................................................................................................................................................................ 59 10.1

11 USB MANAGER ............................................................................................................................. 61

USB Download ......................................................................................................................................................................................... 61 11.1

USB Upload ............................................................................................................................................................................................... 62 11.2

Download Options ................................................................................................................................................................................. 63 11.3

12 ATTENDANCE SEARCH ................................................................................................................ 64

13 PRINT SETTINGS★ ....................................................................................................................... 66

Print Data Field Settings ...................................................................................................................................................................... 66 13.1

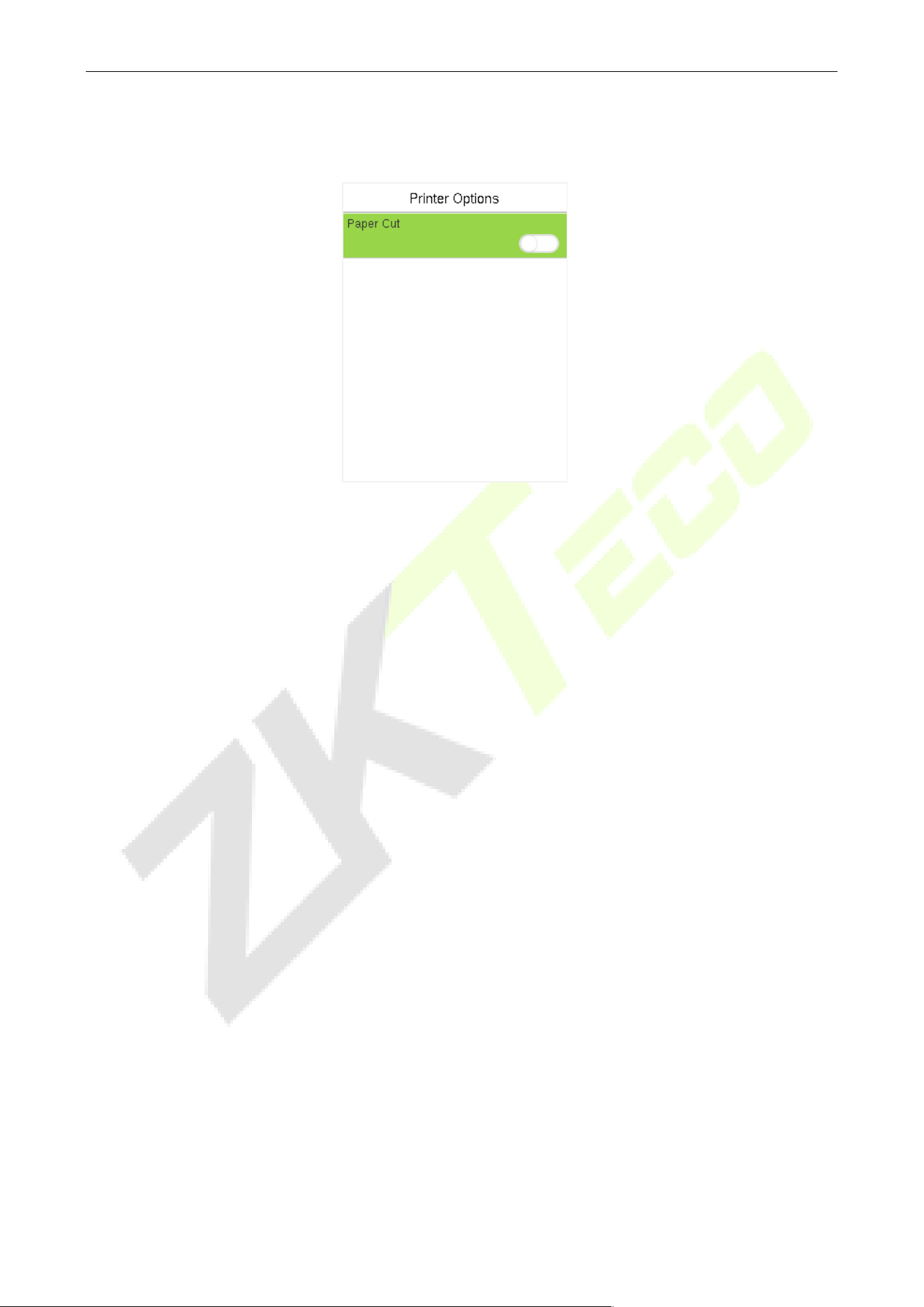

Print Options Settings ........................................................................................................................................................................... 67 13.2

14 AUTOTEST .................................................................................................................................... 68

15 SYSTEM INFORMATION ............................................................................................................... 69

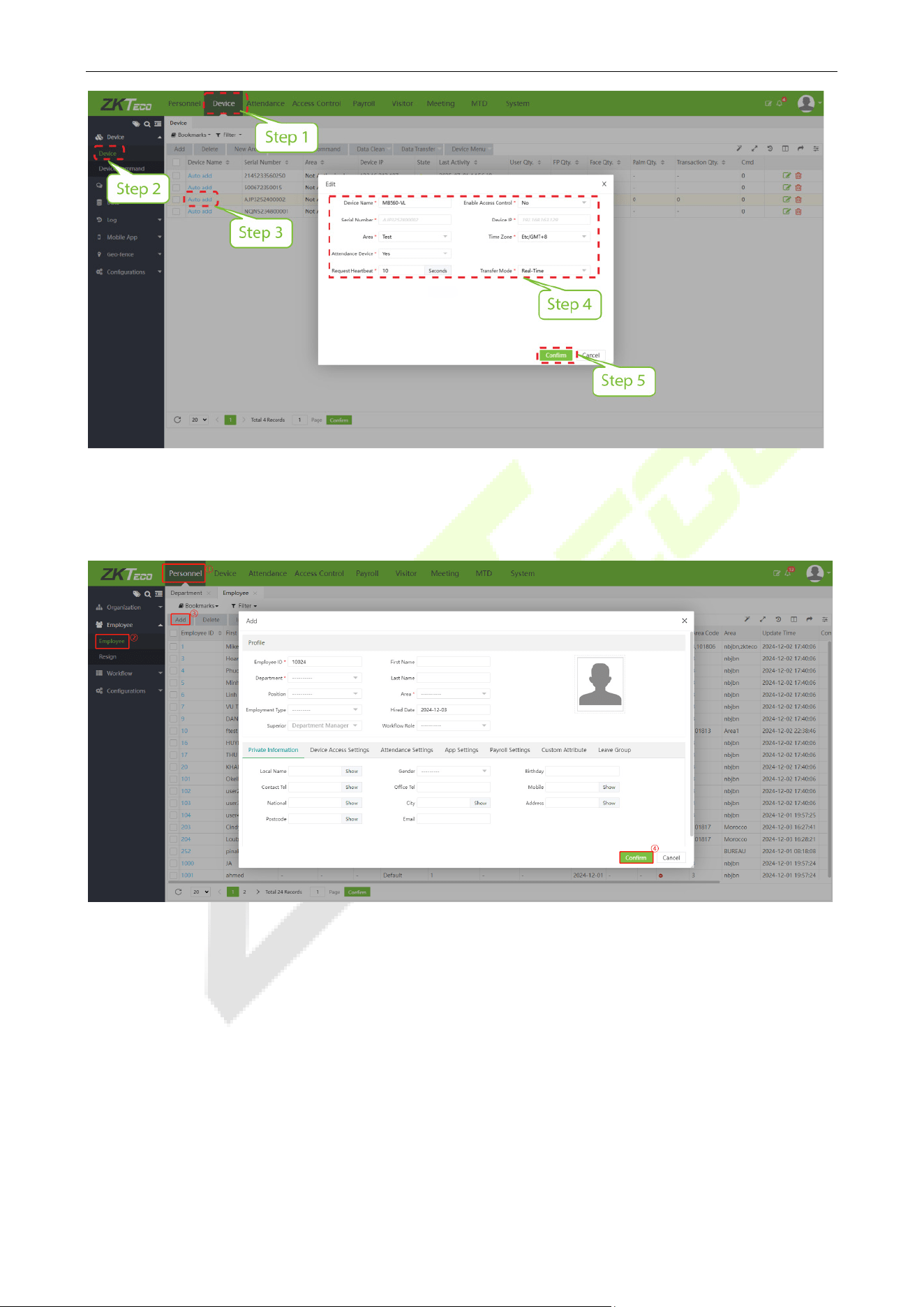

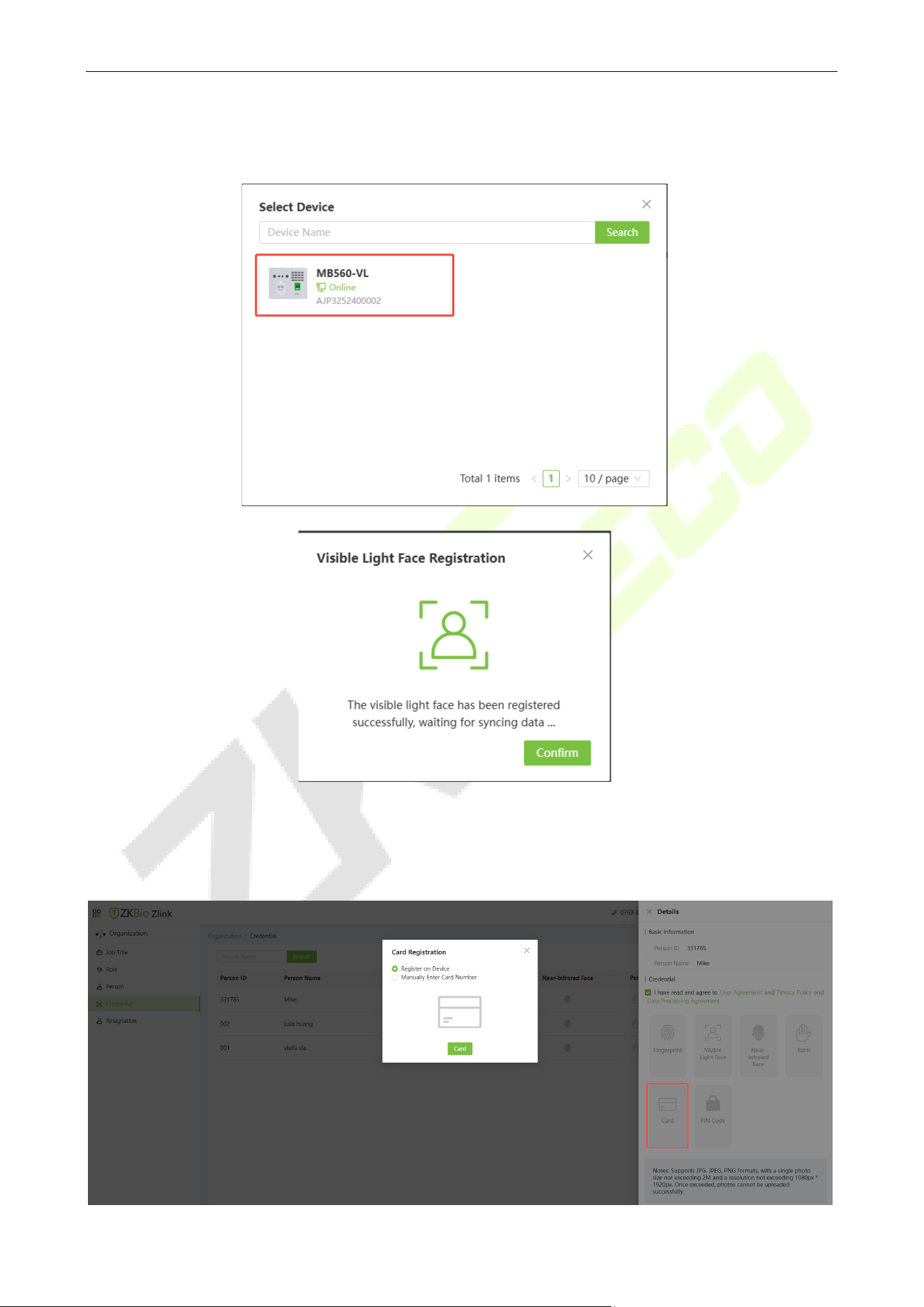

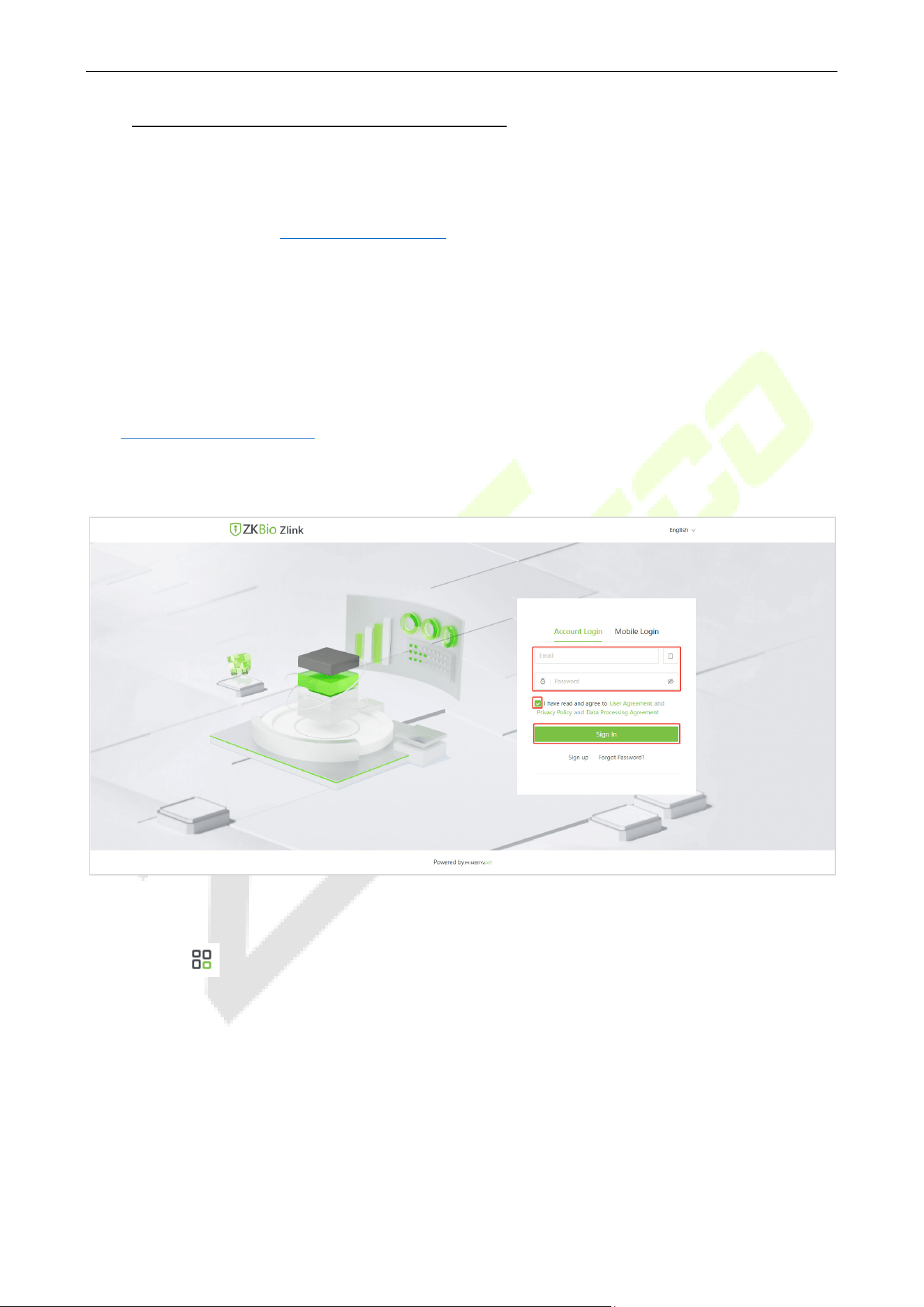

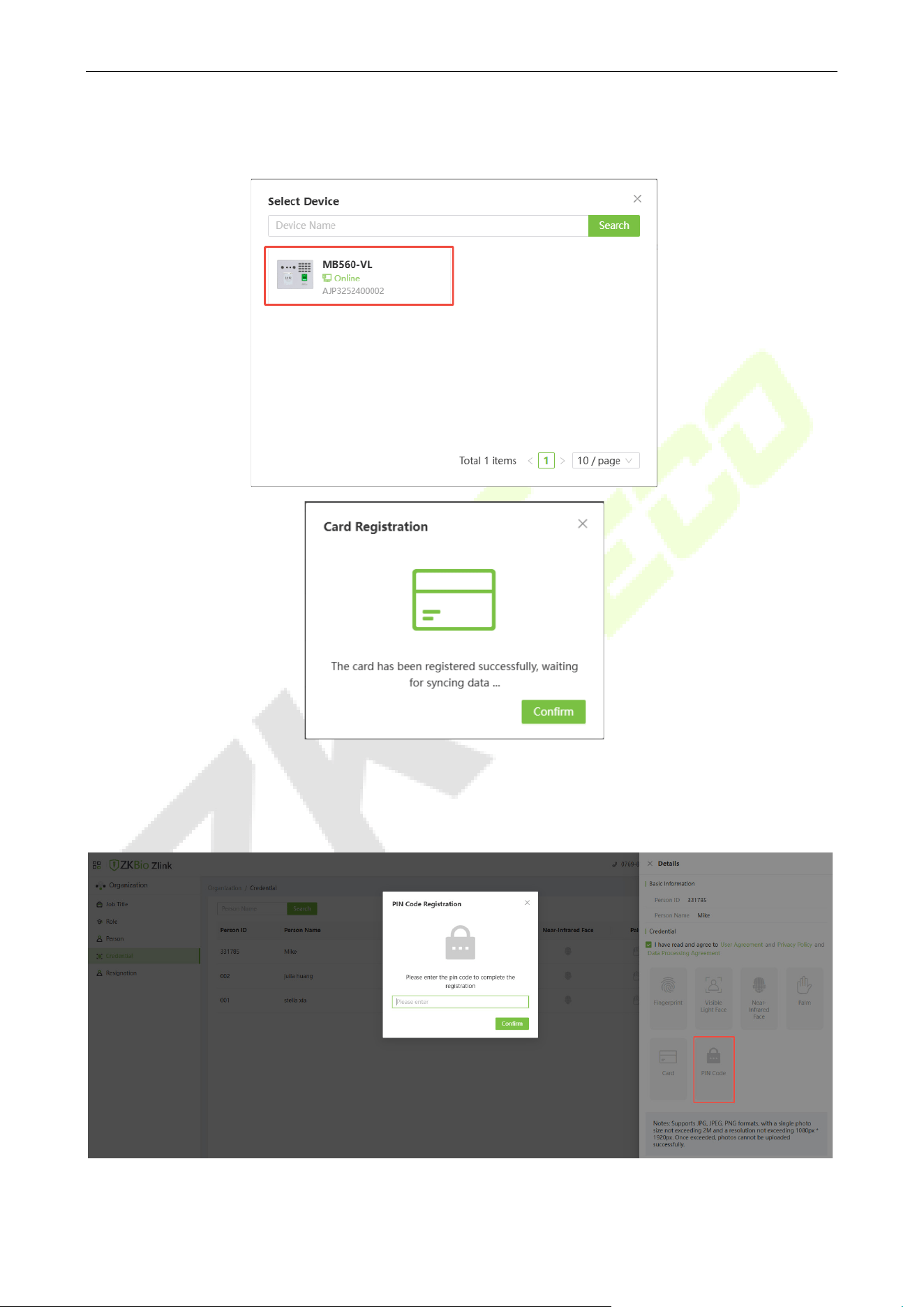

16 CONNECT TO ZKBIO TIME SOFTWARE ........................................................................................ 70

Add Device on the Software .............................................................................................................................................................. 70 16.1

Add Personnel on the Software ........................................................................................................................................................ 71 16.2

17 CONNECTING TO ZKBIO ZLINK APP ............................................................................................ 73

Login to the App ..................................................................................................................................................................................... 73 17.1

Add Device on the App ........................................................................................................................................................................ 74 17.2

Manage and Add Person in Device.................................................................................................................................................. 75 17.3

Register Verification Mode on the App .......................................................................................................................................... 75 17.4

18 CONNECTING TO ZKBIO ZLINK WEB ........................................................................................... 79

MB560-VL (ZAM70) User Manual

Login to the Web .................................................................................................................................................................................... 79 18.1

Add Device on the Web ....................................................................................................................................................................... 79 18.2

Manage and Add Person to Device ................................................................................................................................................. 81 18.3

Register Verification Mode on the Web ......................................................................................................................................... 82 18.4

APPENDIX 1 ............................................................................................................................................. 87

Requirements of Live Collection and Registration of Visible Light Face Templates ................................................................ 87

Requirements for Visible Light Digital Face Template Data .............................................................................................................. 88

APPENDIX 2 ............................................................................................................................................. 89

Privacy Policy ........................................................................................................................................................................................................ 89

Eco-friendly Operation ..................................................................................................................................................................................... 91

MB560-VL (ZAM70) User Manual

Data Security Statement

ZKTeco, as a smart product supplier, may also need to know and collect some of your personal

information to better assist you in using ZKTeco's goods and services, and will treat your privacy

carefully by developing a Privacy Policy.

Please read and understand completely all the privacy protection policy regulations and key points that

appear on the device before using ZKTeco products.

As a product user, you must comply with applicable laws and regulations related to personal data

protection when collecting, storing, and using personal data, including but not limited to taking

protective measures for personal data, such as performing reasonable rights management for devices,

strengthening the physical security of device application scenarios, and so on.

Safety Measures

The following precautions are to keep the user’s safety and prevent any damage. Please read carefully

before installation.

1. Read, follow, and retain instructions - All safety and operational instructions must be properly

read and followed before bringing the device into service.

2. Do not ignore warnings - Adhere to all warnings on the unit and in the operating instructions.

3. Accessories - Use only manufacturer-recommended or product-sold accessories. Please do not use

any other components other than manufacturer suggested materials.

4. Precautions for the installation – Do not place this device on an unstable stand or frame. It may

fall and cause serious injury to persons and damage to the device.

5. Service - Do not try to service this unit yourself. Opening or removing covers may expose you to

hazardous voltages or other hazards.

6. Damage requiring service - Disconnect the system from the main AC or DC power source and

refer service personnel under the following conditions:

 When cord or connection control is affected.

 When the liquid was spilled, or an item dropped into the system.

 If the system is exposed to water and/or inclement weather conditions (rain, snow, and more).

 If the system is not operating normally under operating instructions.

Just change controls defined in operating instructions. Improper adjustment of other controls may

result in damage and involve a qualified technician to return the device to normal operation.

7. Replacement parts - When replacement parts are required, service technicians must only use

replacement parts provided by the supplier. Unauthorized substitutes can lead to the risk of burns,

electric shock, or other hazards.

8. Safety check - On completion of service or repair work on the unit, ask the service technician to

MB560-VL (ZAM70) User Manual

perform safety checks to ensure proper operation of the unit.

9. Power sources - Operate the system only from the label's power source form. If the sort of power

supply to use is unclear, call your dealer.

10. Lightning – Can install external lightning conductors to protect against electrical storms. It stops

power-ups destroying the system.

The devices should be installed in areas with limited access.

MB560-VL (ZAM70) User Manual

1 Instruction for Use

Before getting into the Device features and functions, it is recommended to be familiar with the below

fundamentals.

Finger Positioning 1.1

Recommended fingers: The index, middle, or ring fingers are recommended fingers to use, and avoid

using the thumb or pinky, as they are difficult to position correctly onto the fingerprint reader.

Note: Please use the correct method when pressing your fingers onto the fingerprint reader for registration

and identification. Our company will assume no liability for recognition issues that may result from incorrect

usage of the product. We reserve the right of final interpretation and modification concerning this point.

Standing Position, Posture and Facial Expression 1.2

 The recommended distance

The distance between the device and a user whose height is

in a range of 1.55 m to 1.85 m is recommended to be

0.3m~2m. Users may slightly move forward or backward to

improve the quality of facial images captured.

Too close to the edge

Vertical

Too low

MB560-VL (ZAM70) User Manual

 Recommended Standing Posture and Facial Expression:

Standing Posture Facial Expression

Note: During enrollment and verification, please remain natural facial expression and standing posture.

Face Template Registration 1.3

Please make sure that the face template in the centre of the screen during registration. Please face

towards the camera and stay still during face template registration. The screen should look like the

image below:

Correct face Registration and Authentication Method

 Recommendation for Registering a Face Template

• When registering a face template, maintain a distance of 40 cm to 80 cm space between the

device and the face template.

• Be careful not to change your facial expression. (Smiling face template, drawn face template,

wink, etc.)

MB560-VL (ZAM70) User Manual

• If you do not follow the instructions on the screen, the face template registration may take

longer or may fail.

• Be careful not to cover the eyes or eyebrows.

• Do not wear hats, masks, sunglasses, or eyeglasses.

• Ensure only one person is visible in the camera's frame during face template registration.

• It is recommended for a user wearing glasses to register both face templates with and without

glasses.

 Recommendation for Authenticating a Face Template

• Ensure that the face template appears inside the guideline displayed on the screen of the

device.

• If the glasses have been changed, authentication may fail. If the face template without glasses

has been registered, authenticate the face template without glasses further. If the face template

with glasses has been registered, authenticate the face template with the previously worn

glasses.

• If a part of the face template is covered with a hat, a mask, an eye patch, or sunglasses,

authentication may fail. Do not cover the face template, allow the device to recognize both the

eyebrows and the face template.

Standby Interface 1.4

The device uses a 2.8-inch color screen, which all operations are performed through the keypad. After

connecting the power supply, the following standby interface is displayed:

• Enter any number to access the User ID input interface.

MB560-VL (ZAM70) User Manual

• When there is no Super Administrator set in the device, press M/OK to go to the menu.

• After adding a Super Administrator on the device, it requires the Super Administrator’s

verification before opening the menu functions.

Note: For the security of the device, it is recommended to register super administrator the first time

you use the device.

MB560-VL (ZAM70) User Manual

• On the standby interface, the punch state options can also be shown and used directly. The

shortcut key mappings will be displayed on the screen if you press the relevant shortcut key on

the keypad, as shown in the picture below. For the specific operation method, please see

"Shortcut Key Mappings

."

T9 Mode 1.5

T9 mode allows you to enter the Uppercase, Lowercase, and Special characters in the text input fields.

You can enter the alphabets and special characters by pressing one keystroke per letter. Press the < ▶>

key in the text box to activate T9 mode.

1. Navigate to the required text field and press <M/OK>.

2. Each key on the keypad has a few letters printed above them. For example, pressing 3 can enter D,

E, and F. To enter "F", press 3 thrice. This is accomplished by comparing the number of keystrokes

with the internal syntactical dictionary to determine the letter.

3. Press < ▶> to switch between Uppercase, Lowercase, and Special characters.

4. To add the special character, press the corresponding key once. For example, to enter "@" press 2

once.

MB560-VL (ZAM70) User Manual

5. After the input is complete, press the <M/OK> key twice to save.

Verification Mode 1.6

1.6.1 Fingerprint Verification

 1: N Fingerprint Verification Mode

The device compares the current fingerprint with the available fingerprint data stored in its database.

Fingerprint authentication mode is activated when a user places their finger onto the fingerprint

scanner.

Please follow the recommended way to place your finger onto the sensor. For details, please refer to

section Finger Positioning

.

Verification is successful: Verification is failed:

 1: 1 Fingerprint Verification Mode

The device compares the current fingerprint with the fingerprints linked to the entered User ID through

the keyboard.

In case users are unable to gain access using the 1:N authentication method, they can attempt to verify

their identity using the 1:1 verification mode.

Enter the user ID and press M/OK to enter the 1:1 fingerprint verification mode.

If the user has registered card, face, and password in addition to the fingerprint, and the verification

method is set to Password/Fingerprint/Card/Face, the following screen will appear. Select Fingerprint

to enter the fingerprint verification mode.

MB560-VL (ZAM70) User Manual

Press the fingerprint to verify.

Verification is successful: Verification is failed:

1.6.2 Card Verification

 1:N card verification

The 1:N card verification mode compares the card number in the card induction area with all the card

number data registered in the device; The following screen displays on the card verification:

MB560-VL (ZAM70) User Manual

 1:1 Card Verification

The 1:1 card verification mode compares the card number in the card induction area with the number

associated with the employee's User ID registered in the device.

Enter the user ID and press M/OK to enter the 1:1 card verification mode.

If the user has registered fingerprint, face, and password in addition to the card, and the verification

method is set to Password/Fingerprint/Card/Face, the following screen will appear. Select Card to enter

the card verification mode.

After successful verification, the prompt box displays "Successfully verified", as shown below:

MB560-VL (ZAM70) User Manual

1.6.3 Facial Verification

 1:N Facial Verification

Device compares the currently acquired facial images with all the registered face template data stored

in its database. The following is the pop-up prompt box displaying the result of the comparison.

 1:1 Facial Verification

In this verification mode, the device compares the face captured by the camera with the facial template

related to the entered user ID. Enter the user ID and press M/OK to enter the 1:1 facial verification mode.

If the user has registered fingerprint, card and password in addition to the face, and the verification

method is set to Password/Fingerprint/Card/Face, the following screen will appear. Select Face to enter

the face verification mode.

MB560-VL (ZAM70) User Manual

After successful verification, the prompt box displays "Successfully verified", as shown below:

1.6.4 Password Verification

The device compares the entered password with the registered password and User ID.

Enter the user ID and press M/OK to enter the 1:1 password verification mode. Then, input the user ID

and press M/OK.

MB560-VL (ZAM70) User Manual

If the user has registered fingerprint, card and face in addition to the password, and the verification

method is set to Password/Fingerprint/Card/Face, the following screen will appear. Select Password to

enter the password verification mode.

The following screen displays, after inputting a correct password and a wrong password respectively.

Verification is successful: Verification is failed:

MB560-VL (ZAM70) User Manual

1.6.5 Combined Verification

To increase security, this device offers the option of using multiple forms of verification methods. A

total of 21 different verification combinations can be used, as shown below:

Combined Verification Symbol Definition:

Symbol Definition Explanation

/

or

This method compares the entered verification of a person with the related

verification template previously stored to that Personnel ID in the Device.

+

and

This method compares the entered verification of a person with all the

verification template previously stored to that Personnel ID in the Device.

 Procedure to set for Combined Verification Mode:

• Combined verification requires personnel to register all the different verification method.

Otherwise, employees will not be able to successfully verify the combined verification process.

• For instance, when an employee has registered only the data, but the Device verification mode

is set as “Face + Password”, the employee will not be able to complete the verification process

successfully.

• This is because the Device compares the scanned face template of the person with registered

verification template (both the Face template and the Password) previously stored to that

Personnel ID in the Device.

• But as the employee has registered only the Face template but not the Password, the

verification will not get completed and the Device displays “Verification Failed”.

MB560-VL (ZAM70) User Manual

2 Main Menu

Press M/OK to enter the Main Menu, the following screen will be displayed:

Menu Descriptions

User Mgt.

To add, edit, view, and delete basic information of a User.

User Role

To set the permission scope of the custom role for the users, that is, the rights to

operate the system.

COMM.

To set the relevant parameters of network, Serial comm★, PC connection,

wireless network★, cloud server and network diagnosis.

System

To set the parameters related to the system, including date time, attendance,

face template & fingerprint parameters, device type settings, security setting,

update firmware online, USB upgrade, and reset to factory.

Personalize

This includes user interface

, voice, bell schedules, punch state options and

shortcut key mappings settings.

Data Mgt.

To delete all relevant data in the device.

MB560-VL (ZAM70) User Manual

Work Code

Set different type of work.

Access Control

To set the parameters of the lock and the relevant access control device.

USB Manager

To upload or download the specific data by a USB drive.

Attendance

Search

To query the specified event logs, check attendance photos and blocklist

attendance photos.

Print★

To set printing information and functions (if printer is connected to the device).

Autotest

To automatically test whether each module functions properly, including the

LCD screen, audio, keyboard, camera, fingerprint sensor and real-time clock.

System Info

To view data capacity, device and firmware information and privacy policy of the

device.

Note: When users use the product for the first time, they should operate it after setting administrator

privileges. Enter User Mgt. to add an administrator or edit user permissions as a super administrator. If the

product does not have an administrator setting, the system will show an administrator setting command

prompt every time you enter the device menu.

MB560-VL (ZAM70) User Manual

3 User Management

User Registration 3.1

When the device is on the initial interface, press M/OK and enter User Mgt. > New User.

3.1.1 User ID and Name

Enter the User ID and Name.

Notes:

• A username can contain a maximum of 34 characters.

• The user ID may contain 1 to 14 digits by default, supporting both numbers and alphabetic

characters.

• During the initial registration, you can modify your ID, which cannot be modified after registration.

• If a message "Duplicated!" pops up, you must choose another ID as the enter User ID already exists.

MB560-VL (ZAM70) User Manual

3.1.2 User Role

On the New User interface, select User Role to set the user’s role as either Normal User or Super

Admin.

• Super Admin: The Super Administrator owns all management privileges in the Device.

• Normal User: If the Super Admin is already registered in the Device, then the Normal Users will

not have the privileges to manage the system and can only access authentication verifications.

• User Defined Roles: The Normal User can also be set with User Defined Role which are the

custom roles that can be set to the Normal User.

Note: If the selected user role is the Super Admin, the user must pass the identity authentication to access the

main menu. The authentication is based on the authentication method(s) that the super administrator has

registered. Please refer to Verification Mode

.

3.1.3 Verification Mode

Select the mode of verification for the user, a total of 21 different verification combinations can be used.

Please refer to 1.6.5 combined verification

for details.

MB560-VL (ZAM70) User Manual

3.1.4 Register Fingerprint

Select Fingerprint in the New User interface to enter the fingerprint registration page.

• Select the finger to be enrolled.

• Press the same finger on the fingerprint reader three times.

• Green indicates that the fingerprint was enrolled successfully.

3.1.5 Register Face Template

Select Face in the New User interface to enter the face registration page.

• Please face towards the camera and position your face template inside the white guiding box

and stay still during face template registration.

• A progress bar shows up while registering the face template and a “Enrolled successfully” is

displayed as the progress bar completes.

• If the face template is registered already then, the “Duplicated Face” message shows up. The

registration interface is as follows:

MB560-VL (ZAM70) User Manual

3.1.6 Card

Select Card in the New User interface to enter the card registration page.

• On the Card interface, swiping card underneath the card reading area. The card registration will

be successful.

• If the card is registered already then, the “Duplicate Card” message shows up. The registration

interface is as follows:

3.1.7 Password

Select Password in the New User interface to enter the password registration page.

• On the Password interface, enter the required password and re-enter to confirm it and press

M/OK.

• If the re-entered password is different from the initially entered password, then the device

prompts the message as "Password not match!", where the user needs to re-confirm the

password again.

• The password may contain 6 to 8 digits by default.

MB560-VL (ZAM70) User Manual

3.1.8 Profile Photo

Select Profile Photo in the New User interface to go to the Profile Photo registration page.

• When a user registered with a photo passes the authentication, the registered photo will be

displayed (enter [System] > [Attendance] to enable Display User Photo).

• Enter Profile Photo, the device’s camera will open, then press M/OK to take a photo. The

captured photo is displayed on the top left corner of the screen. The camera remains active to

allow for additional photos if needed.

Note: While registering a face template, the system automatically captures a photo as the user profile photo.

If you do not register a profile photo, the system automatically sets the photo captured while registration as

the default photo.

Search for Users 3.2

When the device is on the initial interface, press M/OK and enter User Mgt. > All Users.

MB560-VL (ZAM70) User Manual

• On the All Users interface, select the search bar on the user’s list to enter the required retrieval

keyword (where the keyword may be the user ID or full name) and the system will search for

the related user information.

Edit User 3.3

On the All Users interface, select the required user from the list and press M/OK and select Edit to edit

the user information.

Note: The process of editing a user is the same as that of adding a user, except that the user ID cannot be

modified when editing a user’s detail. The process in detail refers to "User Management"

.

Delete User 3.4

On the All Users interface, select on the required user from the list and press M/OK and select Delete

to delete the user or specific user information from the device. On the Delete interface, select on the

required operation, and then press M/OK to confirm the deletion.

MB560-VL (ZAM70) User Manual

 Delete operations:

Delete User: All information of the user will be deleted (deletes the selected User as a whole) from the

Device.

Delete Fingerprint Only: Deletes the fingerprint information of the selected user.

Delete Face Only: Deletes the face template information of the selected user.

Delete Password Only: Deletes the password information of the selected user.

Delete Card Number Only: Deletes the card information of the selected user.

Delete Profile Photo Only: Deletes the profile photo of the selected user.

Display Style 3.5

When the device is on the initial interface, press M/OK and enter User Mgt. > Display Style.

MB560-VL (ZAM70) User Manual

Different display styles are shown as below:

Multiple Line: Mixed Line:

MB560-VL (ZAM70) User Manual

4 User Role

User Role facilitates to assign some specific permissions to specific users, based on the requirement.

• When the device is on the initial interface, press M/OK and enter User Role > User Defined

Role to set the user defined permissions.

• The permission scope of the custom role can be set up into 3 roles, that is, the custom

operating scope of the menu functions of the user.

• Then, by selecting on Define User Role, select the required privileges for the new role, and then

press the M/OK key.

• First select the required Main Menu function name, then press M/OK and select its required

sub-menus from the list.

Note: If the User Role is enabled for the Device, enter User Mgt. > New User > User Role to assign the

created roles to the required users. But if there is no super administrator registered in the Device, then the

device will prompt "Please enroll super admin first!” when enabling the User Role function.

MB560-VL (ZAM70) User Manual

5 Communication Settings

Communication Settings are used to set the parameters of the Network, Serial Comm★, PC Connection,

Wi-Fi★, Cloud Server, and Network Diagnosis.

When the device is on the initial interface, press M/OK and select COMM.

Network Settings 5.1

When the device needs to communicate with a PC over the Ethernet, you need to configure network

settings and ensure that the device and the PC are connecting to the same network segment.

Select Ethernet on the COMM. Settings interface to configure the settings.

Function Name Descriptions

Display in Status Bar

Toggle to set whether to display the network icon on the status bar.

IP Address

The default IP address is 192.168.1.201. It can be modified according to the

network availability.

Subnet Mask

The default Subnet Mask is 255.255.255.0. It can be modified according to

MB560-VL (ZAM70) User Manual

the network availability.

Gateway

The default Gateway address is 0.0.0.0. It can be modified according to the

network availability.

DNS

The default DNS address is 0.0.0.0.

It can be modified according to the

network availability.

DHCP

Dynamic Host Configuration Protocol is to dynamically allocate IP addresses

for clients via server.

Serial Comm

★

5.2

Serial Comm function establishes communication with the device through a serial port

(RS232(PC)/Print Function).

Select Serial Comm. on the COMM. Settings interface.

Function Description

Function Name Description

Serial Port

No Using: No communication with the device through the serial port.

RS232(PC): When RS232 is used as the function of "RS232(PC)", it can be

connected to the PC.

Print Function: The device can be connected to the printer when RS232

enables the print function.

Baudrate

When the serial port is set as RS232(PC), there are 4 baudrate options. They

are: 115200 (default), 57600, 38400 and 19200.

When the serial port is set as Print Function, there are 5 baudrate options.

They are: 115200 (default), 57600, 38400, 19200 and 9600.

The higher the baudrate, the faster is the communication speed, but also less

reliable.

Hence, a higher baudrate can be used when the communication distance is

short; when the communication distance is long, choosing a lower baudrate

is more reliable.

MB560-VL (ZAM70) User Manual

PC Connection 5.3

Select PC Connection on the COMM. Settings interface to configure the communication settings.

Function Name Descriptions

Comm Key

This menu only appears after enabling Standalone Communication function in

System> Security Settings.

To improve the security of data, the Comm Key needs to be entered before the

device can be connected to the C/S software. It can be changed as needed.

Device ID

The identity number of the device, which ranges between 1 and 254.

TCP COMM. Port

The default TCP COMM Port value is 4370. It can be modified according to the

network availability.

HTTPS

To increase the security of software access, users can enable the HTTPS protocol

to create a secure and encrypted network transmission and assure the security of

sent data through identity authentication and encrypted communication.

This function is enabled by default. This function can be enabled or disabled

through the menu interface, and when changing the HTTPS status, the device

will pop up a security prompt, and restart after confirmation.

Wireless Network★ 5.4

The device provides a Wi-Fi module, which can be built-in within the device mould.

The Wi-Fi module enables data transmission via Wi-Fi (Wireless Fidelity) and establishes a wireless

network environment. Wi-Fi is enabled by default in the device. If you don't need to use the Wi-Fi

network, you can toggle the Wi-Fi to disable button.

Select Wi-Fi Settings on the COMM. Settings interface to configure the Wi-Fi settings.

 Search the Wi-Fi Network

• Wi-Fi is enabled in the Device by default. Toggle on button to enable or disable Wi-Fi.

• Once the Wi-Fi is turned on, the device will search for the available Wi-Fi within the network

range.

MB560-VL (ZAM70) User Manual

• Choose the appropriate Wi-Fi name from the available list, and input the correct password in

the password interface, and then press M/OK.

• When the Wi-Fi is connected successfully, the initial interface will display the Wi-Fi logo.

 Add Wi-Fi Network Manually

The Wi-Fi can also be added manually if the required Wi-Fi does not show on the list.

Note: After successfully adding the Wi-Fi manually, follow the same process to search for the added Wi-Fi

name.

 Advanced Setting

On the Wireless Network interface, select Advanced to set the relevant parameters as required.

Wi-Fi Enabled: Press on the required

network from the searched network

list.

Press on the password field to enter

the password, and then press on

M/OK.

Select Add Wi-Fi Network to add

the Wi-Fi manually.

On this interface template, enter the Wi-

Fi network parameters. (The added

network must exist.)

MB560-VL (ZAM70) User Manual

Function Name Description

DHCP

Dynamic Host Configuration Protocol (DHCP) dynamically allocates IP addresses to

network clients. If the DHCP is enabled, then the IP cannot be set manually.

IP Address

IP address for the Wi-Fi network, the default is 0.0.0.0. It can be modified according

to the network availability.

Subnet Mask

The default Subnet Mask of the Wi-Fi network is 255.255.255.0. It can be modified

according to the network availability.

Gateway

The default Gateway address is 0.0.0.0. Can be modified according to the network

availability.

DNS

The default DNS address is 0.0.0.0. It can be modified according to the network

availability.

Cloud Server Setting 5.5

Select Cloud Server Setting on the COMM. Settings interface to connect with the ADMS server.

MB560-VL (ZAM70) User Manual

Function Name Description

Enable

Domain

Name

Server Address

Once this function is enabled, the domain name mode “https://...”

will be used, such as https://www.XYZ.com, while “XYZ” denotes

the domain name (when this mode is turned ON).

Disable

Domain

Name

Server Address

IP address of the ADMS server.

Server Port

Port used by the ADMS server.

Enable Proxy Server

When you choose to enable the proxy, you need to set the IP

address and port number of the proxy server.

Note: When the Communication Protocol of the device is switched to BEST Protocol, you don’t need

to configure the cloud sever settings.

Network Diagnosis 5.6

It helps to set the network diagnosis parameters.

Select Network Diagnosis on the COMM. Settings interface. Enter the IP address that needs to be

diagnosed and select Start the Diagnostic Test to check whether the network can connect to the

device.

MB560-VL (ZAM70) User Manual

6 System Settings

Set related system parameters to optimize the performance of the device.

When the device is on the initial interface, press M/OK and select System.

Date and Time 6.1

Select Date Time on the System interface to set the date and time.

• Select NTP Server to enable automatic time synchronization based on the service address you

enter.

• Select Manual Date and Time to manually set the date and time and then press M/OK and

save.

• Select Time Zone to manually select the time zone where the device is located.

• Enable or disable this format by select 24-Hour Time. If enabled, then select Date Format to

set the date.

• Select Daylight Saving Time to enable or disable the function. If enabled, enter Daylight

Saving Mode to select a daylight-saving mode and then enter Daylight Saving Setup to set

MB560-VL (ZAM70) User Manual

the switch time.

Week Mode Date Mode

• When restoring the factory settings, the time (24-hour) and date format (YYYY-MM-DD) can be

restored, but the device date and time cannot be restored.

Note: For example, the user sets the time of the device (18:35 on March 15, 2019) to 18:30 on January 1, 2020.

After restoring the factory settings, the time of the equipment will remain 18:30 on January 1, 2020.

Attendance 6.2

Select Attendance on the System interface.

Function Name Description

Duplicate Punch

Period(m)

Within a set time period (unit: minutes), the duplicated attendance record

will not be reserved (value ranges from 1 to 999999 minutes).

MB560-VL (ZAM70) User Manual

Camera Mode

This function is disabled by default. When enabled, a security prompt will

pop-

up and the sound of shutter in the camera will turn on mandatorily.

There are 5 modes:

No photo: No photo is taken during user verification.

Take photo, no save: Photo is taken but not saved during verification.

Take photo and save: All the photos taken during verification is saved.

Save on successful verification

: Photo is taken and saved for each

successful verification.

Save on failed verification: Photo is taken and saved only for each failed

verification.

Display User Photo

This function is disabled by default. When enabled, a security prompt will

pop-up.

Alphanumeric User ID

Enable/Disable the alphanumeric as User ID.

Attendance Log Alert

When the record space of the attendance reaches the maximum threshold

value, the device automatically displays the memory space warning.

Users may disable the function or set a valid value between 1 and 9999.

Periodic Del of T&A

Data

When attendance records reach its maximum storage capacity, the device

automatically deletes a set of old attendance records.

Users may disable the function or set a valid value between 1 and 999.

Periodic Del of T&A


When attendance photos reach its maximum storage capacity, the device

automatically deletes a set of old attendance photos.

Users may disable the function or set a valid value between 1 and 99.

Periodic Del of

Blocklist Photo

When blocklisted photos reach its maximum storage capacity, the device

automatically deletes a set of old block listed photos.

Users may disable the function or set a valid value between 1 and 99.

Authentication

Timeout(s)

The amount of time taken to display a successful verification message.

Valid value: 1~9 seconds.

Recognition

Interval(s)

After the interval identifying is clicked (s

elected), for example, if the

comparison interval is set to 5 seconds, then the face recognition will verify

the face every 5 seconds. Valid value: 0 to 9 seconds. 0 means continuous

identifying, 1 to 9 means identifying at intervals.

Face Template Parameters 6.3

Select Face on the System interface to go to the face template parameter settings.

MB560-VL (ZAM70) User Manual

Function Name

Description

1:N Threshold

Under 1:N verification mode, the verification will only be successful when the

similarity

between the acquired facial image and all registered facial

templates is greater than the set value.

The valid value ranges from 0 to 100. The higher the thresholds, the lower the

misjudgement rate, the higher the rejection rate, and vice versa.

It is

recommended to set the default value of 40.

1:1 Threshold

Under 1:1 verification mode, the verification will only be successful when the

similarity between the acquired facial image and the user’s facial templates

enrolled in the device is greater than the set value.

The valid value ranges from 0 to 100. The higher the thresholds, the lower the

misjudgement rate, the higher the rejection rate, and vice versa.

It is

recommended to set the default value of 30.

Face Enrollment

Threshold

During face template enrollment, 1:N comparison is used to determine

whether the user has already registered before.

When the similarity between the acquired facial image and all registered facial

templates is greater than this threshold, it indicates that the face template has

already been registered.

Image Quality

Image quality for facial registration and comparison. The higher the value, the

clearer the image requires.

Facial Recognition

Distance

The farther the individual is, the smaller the face, and the smaller number of

p

ixels of the face obtained by the algorithm. Therefore, adjusting this

parameter can adjust the farthest comparison distance of faces.

LED Light Trigger

Value

This value controls the turning on and off of the LED light. The larger the

value, the LED light will turn on or off more frequently.

Live Detection

It detects the spoof attempt using visible light images to determine if the

provided biometric source sample is of a real person (a live human being) or a

false representation.

Live Detection

Threshold

It facilitates judging whether the captured visible image is a real person (a live

human being). The larger the value, the better the anti-spoofing performance

using visible light.

MB560-VL (ZAM70) User Manual

Anti-spoofing Using

NIR

Using near-infrared spectra imaging to identify and prevent fake photos and

videos attack.

Binocular Live

Detection Threshold

It is convenient to judge whether the near-infrared spectral imaging is fake

photo and video. The larger the value, the better the anti-spoofing

performance of near-infrared spectral imaging.

Face AE

When the face is in front of the camera in Face AE mode, the brightness of the

face area increases, while the other areas become darker.

WDR

Wide Dynamic Range (WDR) balances light and extends image visibility for

surveillance videos under high contrast lighting scenes and improves object

identification under bright and dark environments.

Anti-flicker Mode

Used when WDR is turned off. This helps reduce flicker when the device’s

screen flashes at the same frequency as the light.

Face Algorithm

Facial algorithm related information and pause facial template update.

Note: Improper adjustment of the exposure and quality parameters may severely affect the performance of

the device. Please adjust the exposure parameter only under the guidance of the after-sales service personnel

of our company.

 Process to modify the Face Recognition Accuracy

• On the System interface, select Face and then toggle to enable Anti-Spoofing using NIR to

set the anti-spoofing.

• Then, on the Main Menu, select Autotest > Cam Test and perform the face test.

• Press the "8" key, then press "9" key to enter the calibration mode.

• After entering calibration mode, the face detection frame displays in red. After successful

calibration, it automatically switches to black & white face images, and the face detection frame

displays in green.

Note: Without entering calibration mode, press the left and right keys to switch between

viewing black & white and color face images.

Fingerprint Parameters 6.4

Select Fingerprint on the System interface to go to the Fingerprint parameter settings.

MB560-VL (ZAM70) User Manual

Function Name Descriptions

1:1 Threshold

Under 1:1 verification method, the verification will only be successful when the

similarity between the acquired fingerprint data and the fingerprint template

associated with the entered user ID enrolled in the device is greater than the set

value.

1:N Threshold

Under 1:N verification method, the verification will only be successful when the

similarity between the acquired fingerprint data and the fingerprint templates

enrolled in the device is greater than the set value.

FP Sensor

Sensitivity

To set the sensibility of fingerprint acquisition. It is recommended to use the

default level "Medium". When the environment is dry, resulting in slow fingerprint

detection, you can set the level to "High"

to raise the sensibility; when the

environment is humid, making it hard to identify the fingerprint, you can set the

level to "Low".

1:1 Retry

Attempts

In 1:1 Verification, users might forget the registered fingerprint, or press the finger

improperly. To reduce the process of re-entering user ID, retry is allowed.

Fingerprint

Algorithm

Fingerprint algorithm version. Default support ZKFinger VX13.0, can change to

ZKFinger VX10.0.

Fingerprint Image

This function is disabled by default. After disabling it, the fingerprint image will

not be displayed when registering and verifying fingerprints. The menu interface

allows to enable or disable this function, and there are security prompts when

switching. Four choices are available:

Show for Enroll

: to display the fingerprint image on the screen only during

enrollment.

Show for Match

: to display the fingerprint image on the screen only during

verification.

Always Show: to display the fingerprint image on screen during enrollment and

verification.

None: not to display the fingerprint image.

Device Type Settings 6.5

Select Device Type Settings on the System interface to go to the device type settings.

MB560-VL (ZAM70) User Manual

Function Name Description

Communication

Protocol

Set the device communication protocol, PUSH Protocol or BEST Protocol. (BEST

protocol is suitable for ZKBio Zlink, please refer to

17 Connecting to ZKBio Zlink

App and 18 Connecting to ZKBio Zlink Web.)

Device Type

It is T&A PUSH by default, and cannot be modified.

Note: After changing the device type, the device will delete all the data and restart, and some functions

will be adjusted accordingly.

Security Settings 6.6

Select Security Settings on the System interface to go to the Security settings.

Function Name Description

Standalone

Communication

By default, this function is disabled. It is used to connect the C/S software (like

ZKTime.Net, etc.). When it is switched on, a security prompt appears, and you

need to set the Comm Key, the device will restart after you confirm.

SSH

The device does not support the Telnet feature, hence SSH is typically used for

MB560-VL (ZAM70) User Manual

remote debugging. By default, SSH is enabled. The menu interface allows you

to enable and disable SSH. When enabled, there will be a security prompt, but

the device will not need to be restarted after confirmation.

User ID Masking

After enabled, the User ID will be partially displayed after the personnel

verification result (only the User ID with more than 2 digits supports the

masking display), and it is enabled by default.

Display

Verification Name

After enabled, the user's name will be displayed after the personnel verification

result. The verification result will not show the name after disabling it.

Display

Verification Mode

After enabled, the personnel verification result will show the user's verification

mode. The verification result will not show the verification mode after you

disable it.

Save Photo as

Template

After disabling this function, face template re-registration is required after an

algorithm upgrade.

USB Upgrade 6.7

Select USB Upgrade on the System interface.

The device's firmware program can be upgraded with the upgrade file in a USB drive. Before

conducting this operation, please ensure that the USB drive contains the correct upgrade file and is

properly inserted into the device.

If no USB disk is inserted in, the system gives the following prompt after you select USB Upgrade on

the System interface.

Note: If upgrade file is needed, please contact our technical support. Firmware upgrade is not recommenced

under normal circumstances.

Update Firmware Online 6.8

Select Update Firmware Online on the System interface.

Select Enable Firmware Update Online function, the device will prompt that the update may bring

some data security risks, which requires manual confirmation by the user.

MB560-VL (ZAM70) User Manual

Select Check for Updates it may have the following 3 scenarios:

• If the query fails, the interface will prompt "Query Failed".

• If the firmware version of the device is latest, it will prompt “Already the Latest Version”.

• If the firmware version of the device is not the latest, the version number and change log

of the latest version will be displayed. Users can choose whether to update to the latest

firmware version.

Factory Reset 6.9

The Factory Reset function restores the device settings such as communication settings and system

settings, to the default factory settings (This function does not clear registered user data).

Select Reset on the System interface and then press M/OK to restore the default factory settings.

MB560-VL (ZAM70) User Manual

7 Personalize Settings

When the device is on the initial interface, press M/OK and select Personalize to customize the

interface settings, voice, bell, punch state options, and shortcut key mappings.

User Interface Settings 7.1

Select User Interface on the Personalize interface to customize the display style of the main interface.

Function Name Description

Wallpaper

The main screen wallpaper can be selected according to the user preference.

Language

Select the language of the device.

Menu Timeout (s)

When there is no operation, and the time exceeds the set value, the device

will automatically go back to the initial interface.

The function either can be disabled or set the required value between 60 and

99999 seconds.

MB560-VL (ZAM70) User Manual

Idle Time to Slide

Show (s)

When there is no operation, and the time exceeds the set value, a slide show

will be played. The function

can be disabled, or you may set the value

between 3 and 999 seconds.

Slide Show Interval

(s)

It is the time interval in switching between different slide show photos. The

function can be disabled, or you may set the interval between 3 and 999

seconds.

Idle Time to Sleep

(m)

If the sleep mode is activated, and when there is no operation in the device,

then the device will enter standby mode.

This function can be disabled or set a value within 1-999 minutes.

Main Screen Style

The main screen style can be selected according to the user preference.

Voice Settings 7.2

Select Voice on the Personalize interface to configure the voice settings.

Function Name Description

Voice Prompt

Toggle to enable or disable the voice prompts during function operations.

Keyboard Prompt

Toggle to enable or disable the keypad sounds.

Volume

Adjust the volume of the device which can be set between 0 to 100.

Bell Schedules 7.3

Select Bell Schedules on the Personalize interface to configure the Bell settings.

MB560-VL (ZAM70) User Manual

 New Bell Schedule

Select New Bell Schedule on the Bell Schedule interface to add a new bell schedule.

Function Name Description

Bell Status

Toggle to enable or disable the bell status.

Bell Time

Once the required time is set, the device will automatically trigger to ring

the bell during that time.

Repeat

Set the required number of counts to repeat the scheduled bell.

Ring Tone

Select a ring tone.

Internal Bell Delay(s)

Set the replay time of the internal bell. Valid values range from 1 to 999

seconds.

 All Bell Schedules:

Once the bell is scheduled, on the Bell Schedules interface, select All Bell Schedules to view the newly

scheduled bell.

MB560-VL (ZAM70) User Manual

 Edit the Scheduled Bell:

On the All Bell Schedules interface, select on the required bell schedule, and select Edit to edit the

selected bell schedule. The editing method is the same as the operations of adding a new bell schedule.

 Delete a Bell:

On the All Bell Schedules interface, select the required bell schedule, and select Delete, and then

press M/OK to delete the selected bell.

Punch States Options 7.4

Select Punch States Options on the Personalize interface to configure the punch state settings.

Function Name Description

Punch State Mode

Off: Disable the punch state function. Therefore, the

punch state key set

under Shortcut Key Mappings menu will become invalid.

Manual Mode: Switch the punch state key manually, and the punch state key

will disappear after Punch State Timeout.

Auto Mode: The punch state key will automatically switch to a specific punch

status according to the predefined time schedule which can be set in the

Shortcut Key Mappings.

Manual and Auto Mode: The main interface will display the auto-switch

punch state key. However, the users will still be able to select alternative that

is the manual attendance status. After timeout, the manual switching punch

state key will become auto-switch punch state key.

Manual Fixed Mode: After the punch state key is set manually to a particular

punch status, the function will remain unchanged until being manually

switched again.

Fixed Mode: Only the manually fixed punch state key will be shown. Users

cannot change the status by pressing any other keys.

Punch State

Timeout(s)

It is the time for which the punch state displays. The value ranges from 5 to

999 seconds.

MB560-VL (ZAM70) User Manual

Punch State

Required

Select whether an attendance state needs to be selected after verification.

ON: Attendance state needs to be selected after verification.

OFF: Attendance state need not requires to be selected after verification.

Shortcut Key Mappings 7.5

Users may define shortcut keys for attendance status and for functional keys which will be defined on

the main interface. So, on the main interface, when the shortcut keys are pressed, the corresponding

attendance status or the function interface will be displayed directly.

Select Shortcut Key Mappings on the Personalize interface to set the required shortcut keys.

• On the Shortcut Key Mappings interface, select the required shortcut key to configure the

shortcut key settings.

• On the Shortcut Key interface, select Function to set the functional process of the shortcut key

either as punch state key or function key.

• If the Shortcut key is defined as a function key (such as New user, All users, etc.), the

configuration is completed as shown in the image below.

MB560-VL (ZAM70) User Manual

• If the Shortcut key is set as a punch state key (such as check in, check out, etc.), then it is

required to set the punch state value (valid value 0~250), name.

 Set the Switch Time

• The switch time is set in accordance with the punch state options.

• When the Punch State Mode is set to Auto Mode, the switch time should be set.

• On the Shortcut Key interface, select Set Switch Time to set the switch time.

• On the Switch Cycle interface, select the switch cycle (Monday, Tuesday, etc.) as shown in the

image below.

• Once the Switch cycle is selected, set the switch time for each day, and press M/OK to confirm,

as shown in the image below.

Note: When the function is set to Undefined, the device will not enable the punch state key.

MB560-VL (ZAM70) User Manual

8 Data Management

When the device is on the initial interface, press M/OK and select Data Mgt. to manage the relevant

data in the device.

Select Delete Data on the Data Mgt. interface to delete the required data.

Function Name Description

Delete Attendance Data

To delete attendance data conditionally.

Delete Attendance Photo

To delete attendance photos of designated personnel.

Delete Blocklist Photo

To delete the photos taken during failed verifications.

Delete All Data

To delete information and attendance logs of all registered users.

Delete Admin Role

To remove all administrator privileges.

Delete User Photo

Templates

To delete user photo templates in the device. When deleting template

photos, there is a risk reminder: “Face re-

registration is required

after an algorithm upgrade.”

MB560-VL (ZAM70) User Manual

Delete Profile Photo

To delete all user photos in the device.

Delete Wallpaper

To delete all wallpapers in the device.

Delete Screen Savers

To delete the screen savers in the device.

The user may select Delete All or Delete by Time Range when deleting the attendance data,

attendance photos or block listed photos. Selecting Delete by Time Range, you need to set a specific

time range to delete all data within a specific period.

Select Delete by Time Range. Set the time range and press M/OK.

MB560-VL (ZAM70) User Manual

9 Work Code

Employees’ salaries are subject to their attendance records. An employee can be engaged in more than

one type of work which may vary with time. As the pay varies according to the work types, the FFR

terminal provides a parameter to indicate the corresponding work type for every attendance record to

facilitate rapid understanding of different attendance situations during the handling of attendance

data.

Select Work Code on the main menu interface.

Add a Work Code 9.1

Menu Description

ID

It is the digital code of the work code. Users may set a valid value between

1 and 99999999.

MB560-VL (ZAM70) User Manual

Name It is the naming of the work code.

All Work Codes 9.2

You can view, edit and delete work codes in All Work Codes. The process of editing a work code is the

same as adding a work code, except that the ID is not allowed to be modified.

Work Code Options 9.3

To set whether entering the work code is a must and whether the entered work code must exist during

authentication.

In 1: N or 1:1 verification, the system will automatically pop up the following window. Select the

corresponding Word Code manually to verify successfully.

MB560-VL (ZAM70) User Manual

10 Access Control

When the device is on the initial interface, press M/OK and select Access Control to set the locks

control and to configure other parameters settings related to access control.

Access Control Options 10.1

Select Access Control Options on the Access Control interface to set the parameters of the control

lock of the terminal and related equipment.

Function

Name

Description

Door Lock

Delay (s)

The length of time that the device controls the electric lock to be in unlock state.

Valid value: 1~10 seconds; 0 seconds represents disabling the function.

Door Sensor

Delay (s)

If the door is not locked and is left open for a certain duration (Door Sensor Delay), an alarm

will be triggered.

The valid value of Door Sensor Delay ranges from 1 to 255 seconds.

MB560-VL (ZAM70) User Manual

Door Sensor

Type

There are three Sensor types: None, Normal Open(NO), and Normal Close (NC).

None: It means the door sensor is not in use.

Normal Open(NO): It means the door is always left open when electric power is on.

Normal Close(NC): It means the door is always left closed when electric power is on.

Speaker Alarm

It transmits a sound alarm or disassembly alarm from the local. When the door is

closed or the verification is successful, the system cancels the alarm from the local.

MB560-VL (ZAM70) User Manual

11 USB Manager

You can import the user information, and attendance data in the machine to matching attendance

software for processing by using a USB disk, or import the user information to other devices for backup.

Before uploading/downloading data from/to the USB disk, insert the USB disk into the USB slot first.

Select USB Manager on the main menu interface.

Note: Only FAT32 format is supported when downloading data using USB disk.

USB Download 11.1

On the USB Manager interface, select Download.

Function Name Description

Attendance Data

To download all attendance data in specified time period into USB disk.

User Data

To download all user information from the device into USB disk.

User Portrait

To download all user portraits from the device into USB disk.

MB560-VL (ZAM70) User Manual

Attendance Photo

To download all attendance photos from the device into USB disk.

Blocklist Photo

To download all blocklisted photos (photos taken after failed verifications)

from the device into USB disk.

Work Code

To download all work code from the device into USB disk.

USB Upload 11.2

On the USB Manager interface, select Download.

Function Name Description

Screen Saver

To upload all screen savers from USB disk into the device. You can choose

Upload selected photo or upload all photos. The images will be displayed on

the device’s main interface after upload.

Wallpaper

To upload all wallpapers from USB disk into the device. You can choose

Upload selected photo or upload all photos. The images will be displayed on

the screen after upload.

User Data

To upload all the user information from USB disk into the device.

User Portrait

To upload all user portraits from USB disk into the device.

Upload Work Code

To upload all work code from USB disk into the device.

MB560-VL (ZAM70) User Manual

Download Options 11.3

On the USB Manager interface, select Download Options.

Function Name Description

Encrypt Attendance

Date

The attendance data is encrypted during the uploading and downloading.

Delete T&A Data

After successful downloading, the attendance data on the device is deleted.

MB560-VL (ZAM70) User Manual

12 Attendance Search

Once the identity of a user is verified, the Event Logs will be saved in the device. This function enables

users to check their attendance records.

When the device is on the initial interface, press M/OK and select Attendance Search to search for the

required attendance record.

The process of searching for attendance and blocklist photos is similar to that of searching for event

logs. The following is an example of searching for attendance record.

On the Attendance Search interface, select Attendance Record to search for the required record.

1. Enter the user ID to be

searched and press M/OK. If

you want to search for records

of all users, press M/OK without

entering any user ID.

2. Select the time range in

which the records need to

be searched.

MB560-VL (ZAM70) User Manual

3. Once the record search

completes. Press the record

highlighted in green to view its

details.

4. The figure shows the details

of the selected record.

MB560-VL (ZAM70) User Manual

13 Print Settings

★

Devices with printing function can print attendance records out when a printer is connected (this

function is optional and only be equipped in some products).

Select Print on the main menu interface.

Print Data Field Settings 13.1

Select Data Field Setup on the Print interface. Press M/OK to turn on / off the fields needing to be

printed.

Remarks: In printing, the fields position of the information can be adjusted by the left / right key: press

left key to move to the previous item, and press right key to move to the next item.

MB560-VL (ZAM70) User Manual

Print Options Settings 13.2

Select Printer Options on the Print interface. Press M/OK to turn on / off the Paper Cut function.

Remarks: To turn on the Paper Cut function, it is required to connect the device with a printer with

paper cutting function, so that the printer will cut papers according to the selected printing

information when printing.

MB560-VL (ZAM70) User Manual

14 Autotest

When the device is on the initial interface, press M/OK and select Autotest, it enables the system to

automatically test whether the functions of various modules are working normally, including the LCD,

Voice, Keyboard, Fingerprint, Camera and Real-Time Clock (RTC).

Function Name Description

Test All

To automatically test whether the LCD, Audio, Camera and RTC are normal.

Test LCD

To automatically test the display effect of LCD screen by displaying full-

color, pure white, and pure black to check whether the screen displays

colors normally.

Test Voice

To automatically test whether the audio files stored in the device are

complete and the voice quality is good.

Test Keyboard

The terminal tests whether every key on the keyboard works normally. Press

any key on the Test Keyboard interface to check whether the pressed key

matches the key displayed on the screen. The keys are displayed as dark

grey before and turn green after pressed. Press ESC to exit the test.

Test Fingerprint

Sensor

To test the fingerprint sensor by pressing a finger on the scanner to check if

the acquired fingerprint image is clear. When you are pressing a finger on

the scanner, the fingerprint image will display on the screen.

Cam Test

To test if the camera functions properly by checking the photos taken to see

if they are clear enough. (Same as "Test Face".)

Test Clock RTC

To test the RTC. The device tests whether the clock works normally and

accurately with a stopwatch. Press M/OK to start counting and press it again

to stop counting.

MB560-VL (ZAM70) User Manual

15 System Information

When the device is on the initial interface, press M/OK and select System Info to view the storage

status, version information of the device, firmware information and privacy policy.

Function Name Description

Device Capacity

Displays the current device's user storage, password, face template, fingerprint

and card storage, T&A records, attendance and blocklist photos, and profile

photos.

Device Info

Displays the device's name, serial number, MAC address, fingerprint algorithm,

face template algorithm, platform information, MCU Version, BAT MCU and

manufacturer.

Firmware Info

Displays the firmware version and other version information of the device.

Privacy Policy

The privacy policy control will appear when the gadget turns on for the first time.

After selecting "I have read it," the customer can use the product regularly. Enter

System Info > Privacy Policy to view the content of the privacy policy. The

privacy policy's content does not allow for U disc export.

Note: The current privacy policy's text is only available in Simplified Chinese/ English.

However, translation of other multi-

language content is underway, with more

iterations.

MB560-VL (ZAM70) User Manual

16 Connect to ZKBio Time Software

Add Device on the Software 16.1

1. Enter COMM. > Ethernet in the main menu to set the IP address and gateway of the device. (Note:

The IP address should be able to communicate with the ZKBio Time server.)

2. In the main menu, enter COMM. > Cloud Server Settings to set the server address and server port,

Server Address: Set the IP address as of ZKBio Time server.

Server Port: Set the server port as of ZKBio Time server.

Or you can choose to enable Domain Name and set the server address.

3. After setting on the device, the device will be automatically added to the software. Open ZKBio

Time software, click Device > Device > Device, select the device in the list, change the Device

Name and Area.

Note: The devices added automatically must be assigned to custom areas to communicate with

the software.

MB560-VL (ZAM70) User Manual

Add Personnel on the Software 16.2

1. Click Personnel > Employee > Employee > Add:

2. Fill in all the required fields and click Confirm to register a new user.

3. Click Device > Device > Device, select the device in the list, click Data Transfer > Sync Data to the

Device to synchronize all the data to the device including the new users.

MB560-VL (ZAM70) User Manual

For more details, please refer to the ZKBio Time User Manual.

MB560-VL (ZAM70) User Manual

17 Connecting to ZKBio Zlink App

The App pages may vary depending on the version, and the document is for reference only.

Change the device communication protocol to BEST protocol, then the device can be managed by

ZKBio Zlink, please refer to 6.5 Device Type Setting.

 Download the ZKBio Zlink App

Search for the "ZKBio Zlink" App in the iOS App Store or Google Play Store. Or scan the QR code below

to install the app.

Login to the App 17.1

Enter your registered account and password, check “I have read and agree to User Agreement, Privacy

Policy and Data Processing Agreement” and click Sign In to log in to the App.

Note: For more operations, refer to the ZKBio Zlink App's user manual.

MB560-VL (ZAM70) User Manual

Add Device on the App 17.2

 Access the ZKBio Zlink App and click on [Device] > + icon > [Add Device] > [Time Attendance] >

[Time Attendance Terminal]. (1,2,3,4,5)

 Click icon to scan the QR code on the device. The serial number of the device will be displayed

in the bar. Then click [Search Device]. (6,7,8)

 Enter the device name and specify the device to a site and zone. Click [Added Successfully] to

complete the addition. At the same time, the device voice prompts “Device is added successfully”

indicating that the addition is complete. (9,10,11)

 Once successfully added, the device is displayed in the list of the device interface.

MB560-VL (ZAM70) User Manual

Manage and Add Person in Device 17.3

 Click [Device], select the device in the list to enter the Device Details interface. (1,2)

 Click [Attendance Person] > [Add Person], select the persons and click [Confirm] to add them to

the device. (3,4,5)

 Click [Confirm] in the pop-up confirmation window. (6)

 After completion, the personnel will be synchronized to the device, and you can click [Edit] to edit

and modify. (7)

Register Verification Mode on the App 17.4

Once you have added persons to the device, you can register verification modes to them.

Note: It must be based on the functions actually supported by the device.

Click [Contacts] > [Organization] > [Credential] to enter the Credential screen, select the person who

needs to register verification mode. (1,2,3,4)

MB560-VL (ZAM70) User Manual

Register Password

In the Details interface, click on the icon and enter the password in the pop-up window, then click

[Confirm]. (1,2)

Register Card



In the Details interface, click on the icon. You can select Register on Device or Manually Enter

Card Number. If you want to register on device, then click Register on Device. (1,2)



Select the registration device, at the same time, the device displays the Enroll Card Number

interface. Place the card in the swipe area, when the display shows “Card registered successfully”,

it means the card is successfully registered. (3)

MB560-VL (ZAM70) User Manual

Register Face



In the Details interface, click on the icon. You can select Register via App or Invite to Register.

If you want to register via App, then click Register via App > Start to Register to take a shot.



You can also click Invite to Register to send a message to the person to upload the facial photo.

(Note: The person should be activated.)

Register Fingerprint



In the Details interface, click on the or icon (it depends on the fingerprint algorithm that

set in System > Fingerprint), select the fingerprint and click Register on Device > Register on

Device. (1,2,3)



Select the registration device, at the same time, the device displays the fingerprint registration

screen. According to the prompts, place your finger on the fingerprint sensor and press 3 times.

When the interface prompts “Enrolled successfully”, it means the fingerprint registration is

successful. (4)

MB560-VL (ZAM70) User Manual

18 Connecting to ZKBio Zlink Web

The web pages may vary depending on the version, and the document is for reference only.

Change the device communication protocol to BEST protocol, then the device can be managed by

ZKBio Zlink, please refer to 6.5 Device Type Setting

.

Users can use the created account to access ZKBio Zlink Web to connect devices, add new personnel,

register the verification method of registered personnel, synchronize personnel to devices and query

records.

Login to the Web 18.1

1. Please open the recommended browser and enter the IP address to access the ZKBio Zlink Web:

http://zlink.minervaiot.com

.

2. Enter your Email ID and password on the login screen, check “I have read and agree to User

Agreement and Privacy Policy and Data Processing Agreement” and click [Sign In] to login.

Add Device on the Web 18.2

1. Click the icon on the top left corner, and click [Device Center] > [Device] to enter the device

setting interface.

MB560-VL (ZAM70) User Manual

2. Then click [Add Device] to enter the Add Device interface.

3. Enter the Serial Number and click [Search].

4. Then enter the device name and specify the device to a site. Select Site from the drop- down menu.

Click [Save] to complete the addition.

MB560-VL (ZAM70) User Manual

Note: Wait a moment for the device status to change from “Offline” to “Online”.

Manage and Add Person to Device 18.3

1. Click the icon on the top left corner, and click [Device Center] > [Device] to enter the device

setting interface. Select the device in the list, click the icon > [Attendance Person] to enter the

Select Person interface.

2. Tick the person in the pop-up window and click [OK] to add the person to the device.

MB560-VL (ZAM70) User Manual

Register Verification Mode on the Web 18.4

1. Click the icon on the top left corner, and click [Organization] > [Credential] to enter the

credentials setting interface.

2. Select the person and click the icon > Details, check “I have read and agree to User Agreement

and Privacy Policy and Data Processing Agreement” and click Fingerprint/Visible Light

Face/Card/PIN Code to remotely register the personnel biometric verification mode.

MB560-VL (ZAM70) User Manual

 Register Fingerprint

1. Click Fingerprint in the Details page. Click 13.0Version or 10.0Version (it depends on the

fingerprint algorithm that set in System > Fingerprint). Choose the hand and finger to be enrolled

in the pop-up prompt window.

2. Select the registration device, the device will display the fingerprint registration screen. According

to the prompts, place your finger on the fingerprint sensor and press 3 times. When the interface

prompts “Enrolled Successfully”, it means the fingerprint registration is successful.

MB560-VL (ZAM70) User Manual

3. And you can repeat the above operation to register other fingers.

 Register Face

1. Click Face in the Details page. You can select Register on Device or Upload photo. If you want to

register on device, then click Register on Device.

MB560-VL (ZAM70) User Manual

2. Select the registration device, at the same time, the device displays the Enroll Face interface. Face

towards the camera and stay still during face template registration, when the display shows

“Enrolled successfully”, it means the face is successfully registered.

 Register Card

1. Click Card in the Details page. You can select Register on Device or Manually Enter Card Number. If

you want to register on device, then click Register on Device.

MB560-VL (ZAM70) User Manual

2. Select the registration device, the device will display the Enroll Card Number interface. Place the

card in the swipe area, when the display shows green √, it means the card is successfully

registered.

 Register Password

Click PIN Code in the Details page. Set the password in the pop-up prompt window, and then click

[Confirm].

For more details, please refer to the ZKBio Zlink User Manual.

MB560-VL (ZAM70) User Manual

Appendix 1

Requirements of Live Collection and Registration of Visible Light

Face Templates

1） It is recommended to perform registration in an indoor environment with appropriate lighting

to avoid underexposure or overexposure.

2） Do not place the device towards outdoor light sources like door or window or other harsh light

sources.

3） Dark-color apparels, different from the background color is recommended for registration.

4） Please expose your face template and forehead properly and do not cover your face template

and eyebrows with your hair.

5） It is recommended to show a plain facial expression. (A smile is acceptable, but do not close

your eyes, or tilt your head to any direction).

6） Two templates are required for a person with eyeglasses, one template with eyeglasses and the

other without the eyeglasses.

7） Do not wear accessories like a scarf or mask that may cover your mouth or chin.

8） Please face template right towards the capturing device, and locate your face template in the

template capturing area as shown in the example below.

9） Do not include more than one face template in the capturing area.

10） A distance of 50cm to 80cm is recommended for capturing the template. (The distance is

adjustable, subject to body height).

MB560-VL (ZAM70) User Manual

Requirements for Visible Light Digital Face Template Data

The digital photo should be straight-edged, colored, half-portrayed with only one person, and the person

should be uncharted and in casuals. Persons who wear eyeglasses should remain to put on eyeglasses for

getting photo captured.

 Eye distance

200 pixels or above are recommended with no less than 115 pixels of distance.

 Facial expression

Neutral face template or smile with eyes naturally open are recommended.

 Gesture and angle

Horizontal rotating angle should not exceed ±10°, elevation should not exceed ±10°, and depression

angle should not exceed ±10°.

 Accessories

Masks or colored eyeglasses are not allowed. The frame of the eyeglasses should not cover eyes and

should not reflect light. For persons with thick eyeglasses frame, it is recommended to capture two

templates, one with eyeglasses and the other one without the eyeglasses.

 Face template

Complete face template with clear contour, real scale, evenly distributed light, and no shadow.

 Template format

Should be in BMP, JPG or JPEG.

 Data requirement

Should comply with the following requirements:

1） White background with dark-colored apparel.

2） 24bit true color mode.

3） JPG format compressed template with not more than 20kb size.

4） Resolution should be between 358 x 441 to 1080 x 1920.

5） The vertical scale of head and body should be in a ratio of 2:1.

6） The photo should include the captured person’s shoulders at the same horizontal level.

7） The captured person’s eyes should be open and with clearly seen iris.

8） A neutral facial expression or a slight smile is preferred, but showing teeth is not recommended.

9） The captured person should be clearly visible, natural in color, no harsh shadow or light spot or

reflection in face template or background. The contrast and lightness level should be

appropriate.

MB560-VL (ZAM70) User Manual

Appendix 2

Privacy Policy

Notice:

To help you better use the products and services of ZKTeco (hereinafter referred as "we", "our", or "us")

a smart service provider, we consistently collect your personal information. Since we understand the

importance of your personal information, we took your privacy sincerely and we have formulated this

privacy policy to protect your personal information. We have listed the privacy policies below to

precisely understand the data and privacy protection measures related to our smart products and

services.

Before using our products and services, please read carefully and understand all the rules and

provisions of this Privacy Policy. If you do not agree to the relevant agreement or any of its terms,

you must stop using our products and services.

I. Collected Information

To ensure the normal product operation and help the service improvement, we will collect the

information voluntarily provided by you or provided as authorized by you during registration

and use or generated as a result of your use of services.

1. User Registration Information: At your first registration, the feature template

(Fingerprint template/Face template template/Palm template) will be saved on the

device according to the device type you have selected to verify the unique similarity

between you and the User ID you have registered. You can optionally enter your Name

and Code. The above information is necessary for you to use our products. If you do not

provide such information, you cannot use some features of the product regularly.

2. Product information: According to the product model and your granted permission

when you install and use our services, the related information of the product on which our

services are used will be collected when the product is connected to the software,

including the Product Model, Firmware Version Number, Product Serial Number, and

Product Capacity Information. When you connect your product to the software, please

carefully read the privacy policy for the specific software.

II. Product Security and Management

1. When you use our products for the first time, you shall set the Administrator privilege

before performing specific operations. Otherwise, you will be frequently reminded to set

the Administrator privilege when you enter the main menu interface. If you still do not

set the Administrator privilege after receiving the system prompt, you should be

aware of the possible security risk (for example, the data may be manually

modified).

2. All the functions of displaying the biometric information are disabled in our products by

MB560-VL (ZAM70) User Manual

default. You can choose Menu > System Settings to set whether to display the biometric

information. If you enable these functions, we assume that you are aware of the personal

privacy security risks specified in the privacy policy.

3. Only your user ID is displayed by default. You can set whether to display other user

verification information (such as Name, Department, Photo, etc.) under the Administrator

privilege. If you choose to display such information, we assume that you are aware of

the potential security risks (for example, your photo will be displayed on the device

interface).

4. The camera function is disabled in our products by default. If you want to enable this

function to take pictures of yourself for attendance recording or take pictures of strangers

for access control, the product will enable the prompt tone of the camera. Once you

enable this function, we assume that you are aware of the potential security risks.

5. All the data collected by our products is encrypted using the AES 256 algorithm. All the

data uploaded by the Administrator to our products are automatically encrypted using

the AES 256 algorithm and stored securely. If the Administrator downloads data from our

products, we assume that you need to process the data and you have known the

potential security risk. In such a case, you shall take the responsibility for storing the data.

You shall know that some data cannot be downloaded for sake of data security.

6. All the personal information in our products can be queried, modified, or deleted. If you

no longer use our products, please clear your personal data.

III. How we handle personal information of minors

Our products, website and services are mainly designed for adults. Without consent of parents or

guardians, minors shall not create their own account. If you are a minor, it is recommended that

you ask your parents or guardian to read this Policy carefully, and only use our services or

information provided by us with consent of your parents or guardian.

We will only use or disclose personal information of minors collected with their parents' or

guardians' consent if and to the extent that such use or disclosure is permitted by law or we have

obtained their parents' or guardians' explicit consent, and such use or disclosure is for the purpose

of protecting minors.

Upon noticing that we have collected personal information of minors without the prior consent

from verifiable parents, we will delete such information as soon as possible.

IV. Others

You can visit https://www.zkteco.com/cn/index/Index/privacy_protection.html

to learn more

about how we collect, use, and securely store your personal information. To keep pace with the

rapid development of technology, adjustment of business operations, and to cope with customer

needs, we will constantly deliberate and optimize our privacy protection measures and policies.

Welcome to visit our official website at any time to learn our latest privacy policy.

MB560-VL (ZAM70) User Manual

Eco-friendly Operation

The product's "eco-friendly operational period" refers to the time during which this

product will not discharge any toxic or hazardous substances when used in accordance

with the prerequisites in this manual.

The eco-friendly operational period specified for this product does not include batteries or

other components that are easily worn down and must be periodically replaced. The

battery's eco-friendly operational period is 5 years.

Hazardous or Toxic substances and their quantities

Component

Name

Hazardous/Toxic Substance/Element

Lead (Pb)

Mercury

(Hg)

Cadmiu

m (Cd)

Hexavalent

chromium

(Cr6+)

Polybrominate

d Biphenyls

(PBB)

Polybrominated

Diphenyl Ethers

(PBDE)

Chip Resistor ×

○ ○ ○ ○ ○

Chip Capacitor ×

○ ○ ○ ○ ○

Chip Inductor ×

○ ○ ○ ○ ○

Diode ×

○

ESD

component

×

○ ○ ○ ○ ○

Buzzer ×

○

Adapter ×

○

Screws

○

×

○

This table is prepared in accordance with the provisions of SJ/T 11364.

○ indicates that the total amount of toxic content in all the homogeneous materials is below the

limit as specified in GB/T 26572.

× indicates that the total amount of toxic content in all the homogeneous materials exceeds the limit

as specified in GB/T 26572.

Note: 80% of this product’s components are manufactured using non-toxic and eco-friendly

materials. The components which contain toxins or harmful elements are included due to the

current economic or technical limitations which prevent their replacement with non-toxic materials

or elements.

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com

ZKTeco MB560-VL

Product's Documents

PDF ZK MB560-VL ZAM70 User Manual 20250804 User Manual 4.67MB 2025-08-05

Specifications

ZKTeco MB560-VL Questions and Answers
