English user manual

This is the main product document for model 3PACH18000.

The file format is pdf, 20 pages, you can download this manual here .

background
Distributed by:
Perfect Aire, LLC
5401 Dansher Road
Countryside, IL 60525
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
WINDOW
AIR CONDITIONER
FOR MODEL:
3PNC18000
3PNC28000
3PACH18000
WITH ELECTRIC HEAT
3PACH25000
WITH ELECTRIC HEAT
Before using your air conditioner, please
read this manual carefully and keep it for
future reference, along with your receipt.
Specification and performance data is subject to change without notice.
Printed in China
PA/User3PNC18000_3PNC28000_3PACH18000_3PACH25000/12192018
USER MANUAL
background
For your own records, please attach a copy of your sales receipt to this manual and complete the following:
Model Number: _____________________________________ Serial Number: _______________________________________
Purchase Date: ____________________________________ Store Purchased: _____________________________________
Installation Date: ___________________________________ Installation Co.: _______________________________________
Installer Name: _____________________________________ Installer Phone No.: ___________________________________
CONSUMER PRODUCT INFORMATION
background
SAFETY PRECAUTIONS ...................................................................1
IMPORTANT SAFETY INSTRUCTIONS ...........................................3
INSTALLATION INSTRUCTIONS .....................................................4
NORMAL SOUNDS ...........................................................................10
AIR CONDITIONER FEATURES .......................................................10
CARE AND CLEANING ....................................................................13
TROUBLESHOOTING ....................................................................... 14
CONTENTS
This manual provides the information needed for proper use and maintenance
of this air conditioner. Basic preventative care can help extend the life of
this unit. The “Troubleshooting” section in this manual contains a chart with
solutions to the most common problems. Referring to this section may save
time and prevent the need for a service call in the event of a problem.
CAUTIONS
● Contactanauthorizedservicetechnicianforrepairormaintenanceofthisunit.
● Contactaninstallerforinstallationofthisunitifnecessary.
● Theairconditionerisnotintendedforusebyyoungchildrenwithoutadultsupervision.Youngchildrenshouldbe
supervised to ensure that they do not play with the air conditioner.
● Disabledpersonsmayrequireassistancewithsetup.
● Ifthepowercordistobereplaced,replacementworkshouldbeperformedbyauthorizedpersonnelonly.
● Installationandrepairworkmustbeperformedinaccordancewiththenationalwiringstandardsbyauthorized
personnel only.
● Donotoperateyourairconditionerinawetroomsuchasabathroomorlaundryroom.
NOTE:Alltheillustrationsinthismanualareforexplanationpurposesonly.Unitpurchasedmaybeslightlydierent.
Thedesignandspecicationsaresubjecttochangewithoutpriornoticeforproductimprovement.ContactConsumer
Services at 844-472-2473 for details.
background
1
WARNINGS
Plug in power cord properly. Failuretodosomaycauseelectricshockorredueto
excess heat generation.
DO NOT operate or stop the unit by inserting or pull-
ing out the power plug directly from the wall.
Doingsomaycauseelectricshockorredueto
heat generation.
DO NOT use a damaged power cord.
Doingsomaycauseelectricshockorre.Ifthepower
cord is damaged, it must be replaced by the manufactur-
eroranauthorizedservicecenterorasimilarlyqualied
personinordertoavoidahazard.
DO NOT modify power cord length or share the
outlet with other appliances.
Doingsomaycauseelectricshockorredueto
heat generation.
DO NOT operate with wet hands or in
damp environment.
Doingsomaycauseelectricshock.
DO NOTdirectairowdirectlyatroomoccupants.
This could cause health issues.
Alwaysensureeectivegrounding. Incorrectgroundingmaycauseelectricshock.
DO NOT allow water to run into electric parts.
Doingsomaycausefailureofmachineorelectricshock.
Alwaysinstallcircuitbreakerandadedicated
power circuit.
Incorrectinstallationmaycausereandelectricshock.
Always unplug the unit if strange sounds, smell or
smokecomesfromtheunit.
Failuretodosomaycausereandelectricshock.
DO NOTusethesocketifitislooseordamaged.
Doingsomaycausereandelectricshock.
DO NOT open the unit during operation.
Doingsomaycauseelectricshock.
DO NOTuserearmsnearunit.
Doingsomaycausere.
DO NOT use the power cord close to
heating appliances.
Doingsomaycausereandelectricshock.
DO NOT disassemble, modify, or drill holes into
the air conditioner.
Doingsomaycausefailureandelectricshockandvoid
the manufacturer’s warranty.
Ventilate room before operating air conditioner if
thereisagasleakfromanotherappliancesuchas
a stove.
Failuretodosomaycauseexplosion,reandburns.
DO NOT
usethepowercordnearammablegasor
combustibles,suchasgasoline,benzene,thinner,etc.
Doingsomaycauseanexplosionorre.
READ SAFETY PRECAUTIONS BEFORE INSTALLATION
Topreventinjurytotheuserorotherpeopleandpropertydamage,thefollowinginstructionsmustbefollowed.
Incorrectoperationduetoignoringofinstructionsmaycauseharmordamage.Theseriousnessisclassiedbythe
following indications.
THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE
DEATH OR SERIOUS INJURY.
NEVER DO THIS.OTHER SYMBOLS: ALWAYS DO THIS.
THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE
MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR
OTHER PROPERTY.
SAFETY PRECAUTIONS
background
2
CAUTIONS
Whenremovingairlter,DO NOT touch metal parts of
the unit.
Doingsomaycauseaninjury.
DO NOT clean with water.
Water may enter the unit and degrade the insulation,
causinganelectricshock.
Ensure proper ventilation, especially in rooms with a
stove or other appliances.
Failure to do so may result in an oxygen shortage.
Unitandcircuitbreaker/fusemustbeswitchedOFF
when cleaning.
CleaningunitwhenpowerisONmaycausereand
electricshockandmaycauseaninjury.
DO NOT put a pet or house plant where it will be ex-
posedtodirectairow.
Thiscouldinjurethepetorplant.
Use ONLY as intended. This unit is NOT intended to preserve precision devic-
es,food,pets,plants,andartobjects.Itmaycause
deteriorationofquality,etc.
Stop operation and close the window in severe
storms or hurricanes.
Operationwithwindowsopenmaycausemoistureto
enter the room.
Hold the plug by the head of the power plug when
takingitout.
Failuretodosomaycauseelectricshock
and damage.
If unit will not be used for a long period of time,
unplug or turn OFF main power switch.
Leavingpoweronmaycauseunitfailureorre.
DO NOT place obstacles around air-inlets or inside of
air-outlet.
Obstaclesmaycauseappliancefailureoraccident.
Periodicallycheckinstallationbracketfordamage. Prolonged exposure to outdoor elements may cause
damagetoinstallationbracket,causingunittofall.
Alwaysinsertlter(s)securely.Cleanlter(s)AT LEAST
onceeverytwoweeks.
Operationwithoutsecurelyinstalledltersmaycause
failure.Adirtyltercancausetheunittonotrun
eciently.
Use only a soft cloth to clean the unit. Cleaners or detergents may change the color or
scratch the surface of the unit.
Usecautionwhenunpackingandinstalling. Sharpedgescouldcauseinjury.
NEVERdrinkwaterdrainedfromairconditioner.
Water from unit contains contaminants and could
cause illness.
DO NOTplaceheavyobjectsonthepowercordand
always ensure that the cord is not compressed.
Thereisdangerofreorelectricshock.
If water enters the unit’s electrical components, turn
theunitoatthepoweroutletandswitchothecir-
cuitbreaker.Isolatesupplybytakingthepower-plug
outandcontactaqualiedservicedtechnician.
Thereisdangerofelectricshock.
background
3
IMPORTANT SAFETY INSTRUCTIONS
NOTE
:
The power supply cord with this air
conditioner contains a current detection
devicedesignedtoreducetherisk
ofre.Pleaserefertothesection
“OperationofCurrentDevice”(below)
for details. In the event that the power
supply cord is damaged, it cannot be
repaired. It must be replaced by an
authorizedrepairtechnicianwithacord
from the Product Manufacturer.
WARNING
Avoidrehazardsorelectricshock.
DO NOT use an extension cord or an
adapter plug. DO NOT remove any prong
from the power cord.

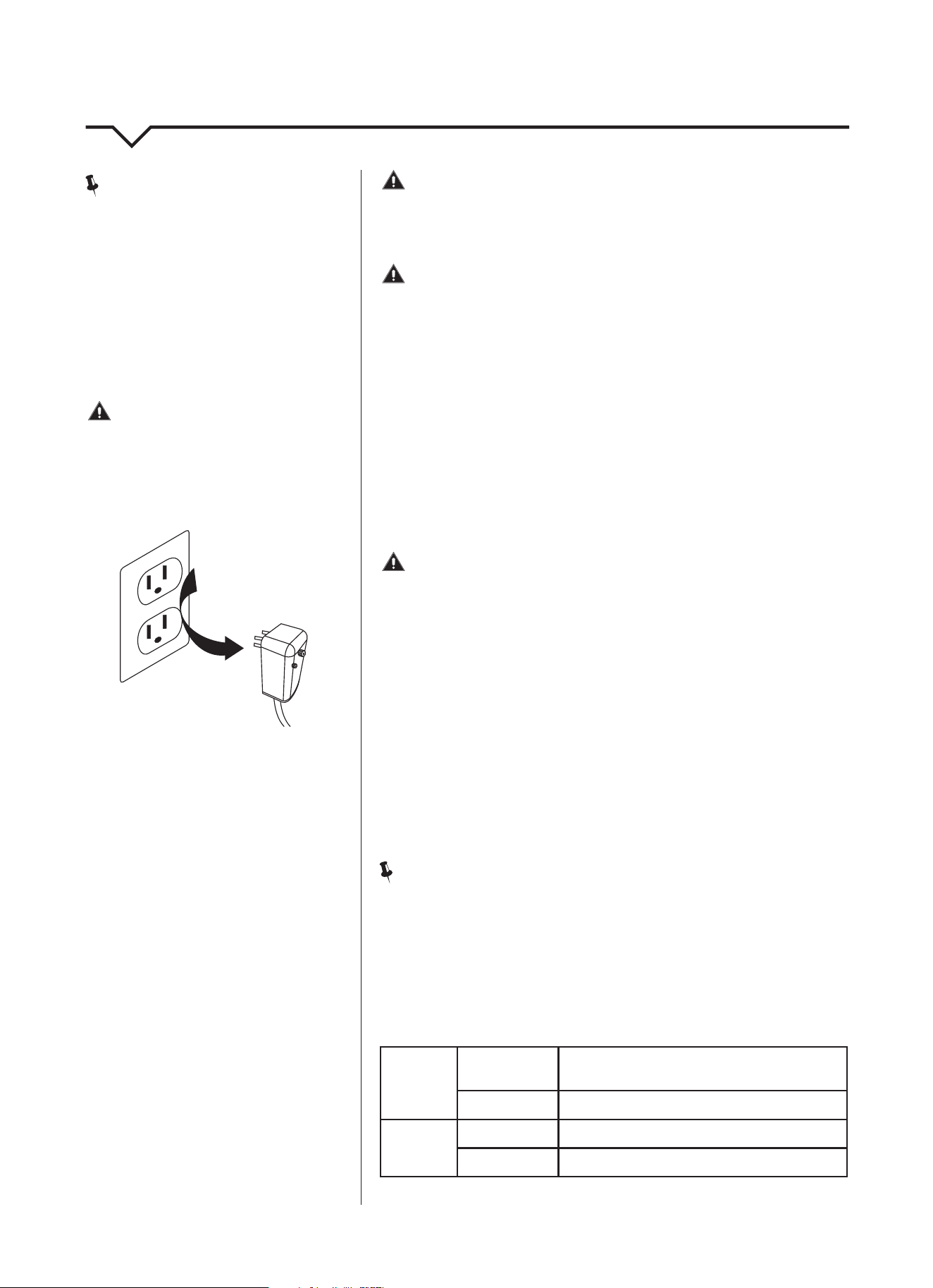

OPERATION OF
CURRENT DEVICE:
The power supply cord contains a
current device that senses damage
to the power cord. To test your power
supply cord, do the following:
1. Plug in the air conditioner.
2. The power supply cord will have
TWObuttonsontheplughead.Press
theTESTbutton.Youwillnoticea
clickastheRESETbuttonpopsout.
3. Press the RESET button. Again,
youwillnoticeaclickasthebutton
engages.
4. The power supply cord is now
supplyingelectricitytotheunit.(On
some products this is also indicated
byalightontheplughead.)
WARNING
FORYOURSAFETY:Donotstoreorusegasolineorotherammable
vaporsandliquidsinthevicinityofthisoranyotherappliances.
WARNING - PREVENT ACCIDENTS
Toreducetheriskofre,electricalshock,orinjurytopersonswhenusing
your air conditioner, follow basic precautions, including the following:
● Besuretheelectricalserviceisadequateforthemodelyouhave
chosen. This information can be found on the serial plate, which is
located on the side of the cabinet and behind the grille.
● Iftheairconditioneristobeinstalledinawindow,youwillprobably
wanttocleanbothsidesoftheglassrst.Ifthewindowisatriple-
tracktypewithascreenpanelincluded,removethescreencompletely
before installation.
● Besuretheairconditionerhasbeensecurelyandcorrectlyinstalled
according to the installation instructions in this manual.
●
Save this manual for possible future use in removing or installing this unit.
● Whenhandlingtheairconditioner,becarefultoavoidcutsfromsharp
metalnsonfrontandrearcoils.
WARNING - ELECTRICAL INFORMATION
The complete electrical rating of your new room air conditioner is
statedontheserialplate.Refertotheratingwhencheckingthe
electricalrequirements.
● Besuretheairconditionerisproperlygrounded.Tominimizeshock
andrehazards,propergroundingisimportant.Thepowercordis
equippedwithathree-pronggroundingplugforprotectionagainst
shockhazards.
● Yourairconditionermustbeusedinaproperlygroundedwall
receptacle.Ifthewallreceptacleyouintendtouseisnotadequately
groundedorprotectedbyatimedelayfuseorcircuitbreaker,havea
qualiedelectricianinstalltheproperreceptacle.
● Ensurethereceptacleisaccessibleaftertheunitinstallation.
● DO NOT run air conditioner without side protective cover in place. This
could result in mechanical damage within the air conditioner.
● DO NOT use an extension cord or an adapter plug.
NOTE
:
DO NOTusetheplugtoturntheunitonoro.
● AlwaysmakesuretheRESETbuttonispushedinforcorrectoperation.
● ThepowersupplymustbereplacedifitfailsresetwheneithertheTEST
button is pushed or it cannot be reset.
● Ifpowersupplycordisdamaged,itcannotberepaired.Pleasecall
Consumer Services at 844-472-2473 to assist with replacement.
NOTE: This air conditioner is designed to be operated under the
following conditions:
Cooling
Operation
Outdoor Temp:
64–109°F/18–43°C
(64–125°F/18–52°Cforspecialtropicalmodels)
Indoor Temp:
62–90°F/17–32°C
Heating
Operation
Outdoor Temp:
23–76°F/-5–24°C
Indoor Temp:
32–80°F/0–27°C
Performance may be reduced outside of these operating temperatures.
Grounding Type
Wall Receptacle
Do not, under any
circumstances, cut,
remove, or bypass the
ground prong.
Power supply cord
with 3-prong grounding
plug and current
detection device
background
4
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT- Save these instructions.
IMPORTANT-Observeallgoverningcodesand
ordinances.
Note to Installer- Be sure to leave these instructions with
the Consumer.
Note to Consumer- Keep these instructions for future
reference.
Skill level-Installationofthisappliancerequiresbasic
mechanicalskills.
Completion time- Approximately 1 hour.
We recommend that two people install this product.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the Warranty.
YouMUSTuseallsuppliedpartsanduseproper
installation procedures as described in these
instructions when installing this air conditioner.
CAUTION
Do not, under any circumstances, cut or remove the
third(ground)prongfromthepowercord.
Do not change the plug on the power cord of the air
conditioner.
Aluminum house wiring may present special problems-
consultaqualiedelectrician.
When handling unit, be careful to avoid cuts from sharp
metaledgesandaluminumnsonfrontandrearcoils.
REQUIRED TOOLS/HARDWARE
● Pencil
● Level
● Tapemeasure
● Socketwrenches
● Phillipsscrewdriver
● Adjustablewrenchorpliers
● Largeatbladescrewdriver

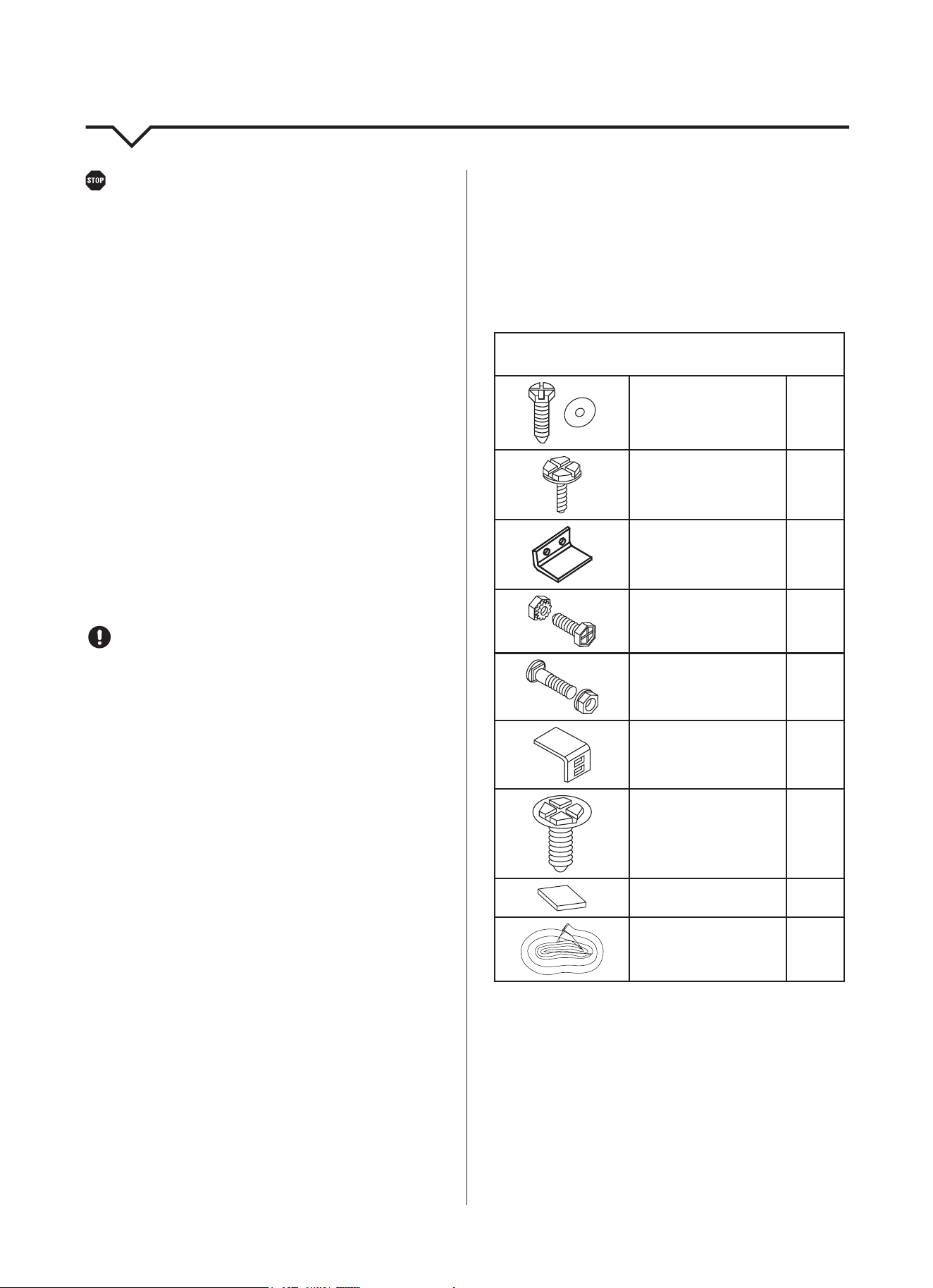

HARDWARE
(Included - Packed with the Unit)
7/16inchlocking
screwandatwasher
for window panels
2 ea.
3/4(or1/2)inchLong
Hex-head Screw
4
SafetyLock
1
3/4inchLongFlat
Head Bolt and
Locknut
2 ea.
1/2inchLongScrew
andLocknut
4 ea.
SillAngleBracket
2
Longhex-headlocking
screw for tape angle,
sideretailer5/16inch
long
10
Foam insert
2
Window sash seal
foam
1
INSTALLATION INSTRUCTIONS
background
5
Please read ALL instructions before installing. It is
recommended that two people install this product.
Ifanewelectricaloutletisrequired,havetheoutlet
installedbyaqualiedelectricianbeforeinstallingthe
air conditioning unit.
Window Sash Seal
Top Angle
Foam Gasket
Side Retainer
Locknut
Safety Lock and
3/4″ (or 1/2″)
Long Hex Head Screw
1/2
″
Long
Screw and
Locknuts
Washer Head
Locking Screw
Seal Bottom
Rail to Unit
Frame
Assembly
(Left)
Frame Assembly
(Right)
3/4″ Long
Flat Head
Bolt
Sill Angle
Bracket
Window Support
Bracket

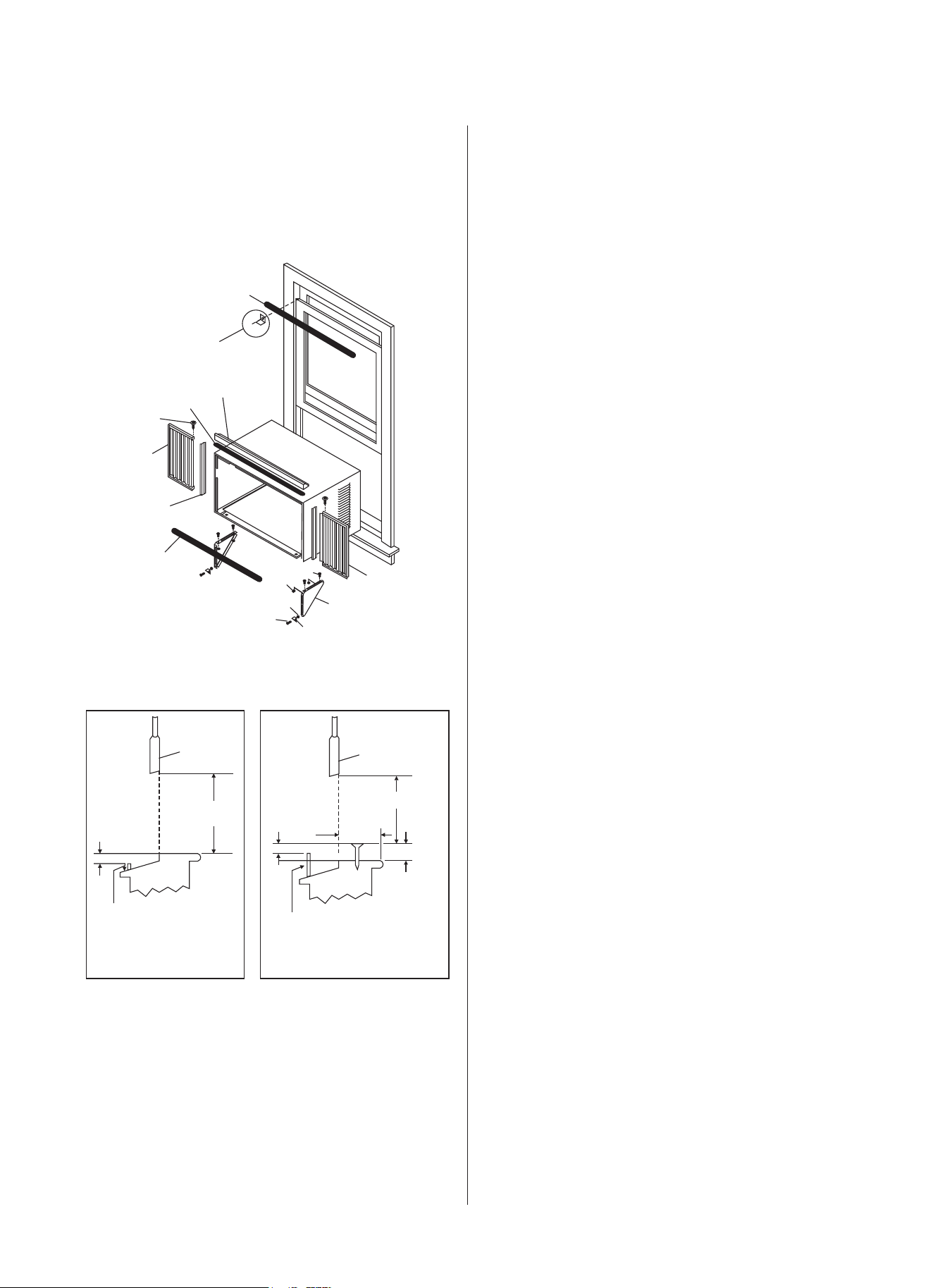

FIG. A
SASH
SASH
19″ MIN.
19″ MIN.
1/2″ MIN.
1/2″ MIN.
1/2″ MIN.
Board
thickness
as required
along entire
stool. Fasten
with 2 Nails
or Screws.
Storm window
frame or other
obstruction
Storm window
frame or other
obstruction
FIG. B FIG. C
PRELIMINARY INSTRUCTIONS
Dothefollowingbeforeinstallingtheunit.(See
illustrationsonleft.)
Checkdimensionsofyourunittodetermineproper
window dimensions:
Unit Height: 17
5
/8 or 18
5
/8
Unit Width: 23
5
/8 or 26
1
/2
Min. Window Height: 18
1
/2 or 19
1
/2
Min. Window Width: 26
1
/2 or 31
Max. Window Width: 40
1
/2 or 42
1. CHECK WINDOW OPENING SIZE — The mounting parts
furnished with this air conditioner are made to install
in a wooden sill, double-hung window. The standard
partsareforwindowdimensionslistedabove.Open
sashtoaminimumof19in.(483mm).SeeFig.B.
2. CHECK CONDITION OF WINDOW — All wood parts of
windowMUSTbeingoodshapeandabletormly
holdtheneededscrews.Ifnot,makerepairsbefore
installing unit.
3. CHECK YOUR STORM WINDOWS — If your storm
windowframedoesnotallowtheclearancerequired,
correct by adding a piece of wood as shown in Fig.
C, or by removing storm window while room air
conditioner is being installed.
4. CHECK FOR ANYTHING THAT COULD BLOCK AIRFLOW —
Checkareaoutsideofwindowforthingssuchas
shrubs, trees, or awnings. Inside, be sure furniture,
drapes,orblindswillnotstopproperairow.
5. CHECK THE AVAILABLE ELECTRICAL SERVICE — Power
supply MUST be the same as that shown on the
unit serial nameplate. Power cord is 48 inches long.
Besureyouhaveanoutletnear.DONOTusean
extension cord.
6. CAREFULLY UNPACK THE AIR CONDITIONER — Remove
allpackagingmaterial.Covertheoorduring
installation to prevent damage. Two people should be
used to move and install unit.
background
6
STEP 1:
REMOVE CHASSIS
1. Pulldownfrontgrilleandremovelter.
(SeeFig.1.)
2. Lift front grille upwards and place to one side.
3. Locate and remove the four front screws. These
screws will be needed to re-install the front panel
later.(SeeFig.2.)
4. Push metal cabinet side and pull on plastic frame
to release plastic tabs on each side of front panel.
(SeeFig.3.)
5. Gentlyliftfrontpanelounit.
(SeeFig.3A.)
6. Disconnect the control board plug and place front
paneltotheside.(SeeFig.4.)
7. Remove shipping screws from top of unit and also
onthesidebythebaseifinstalled.(SeeFig.5.)
8. Hold the cabinet while pulling on the base handle,
and carefully remove the unit.
9. Add two foam inserts to holes in top of cabinet
where shipping screws were removed from.
(SeeFig.6.)
10. Yourunitmaycomewithinternalpackaging.This
packagingMUSTberemovedpriortoinstalling
theairconditionerbackintothecabinet.
(SeeFig.7.)
DO NOT LIFT, PULL, OR REMOVE ANY EXPANDED
POLYSTYRENE (FOAM) FROM INSIDE OF THE AIR
CONDITIONER. IT IS NOT PACKING MATERIAL.
WINDOW MOUNTING INSTALLATION INSTRUCTIONS

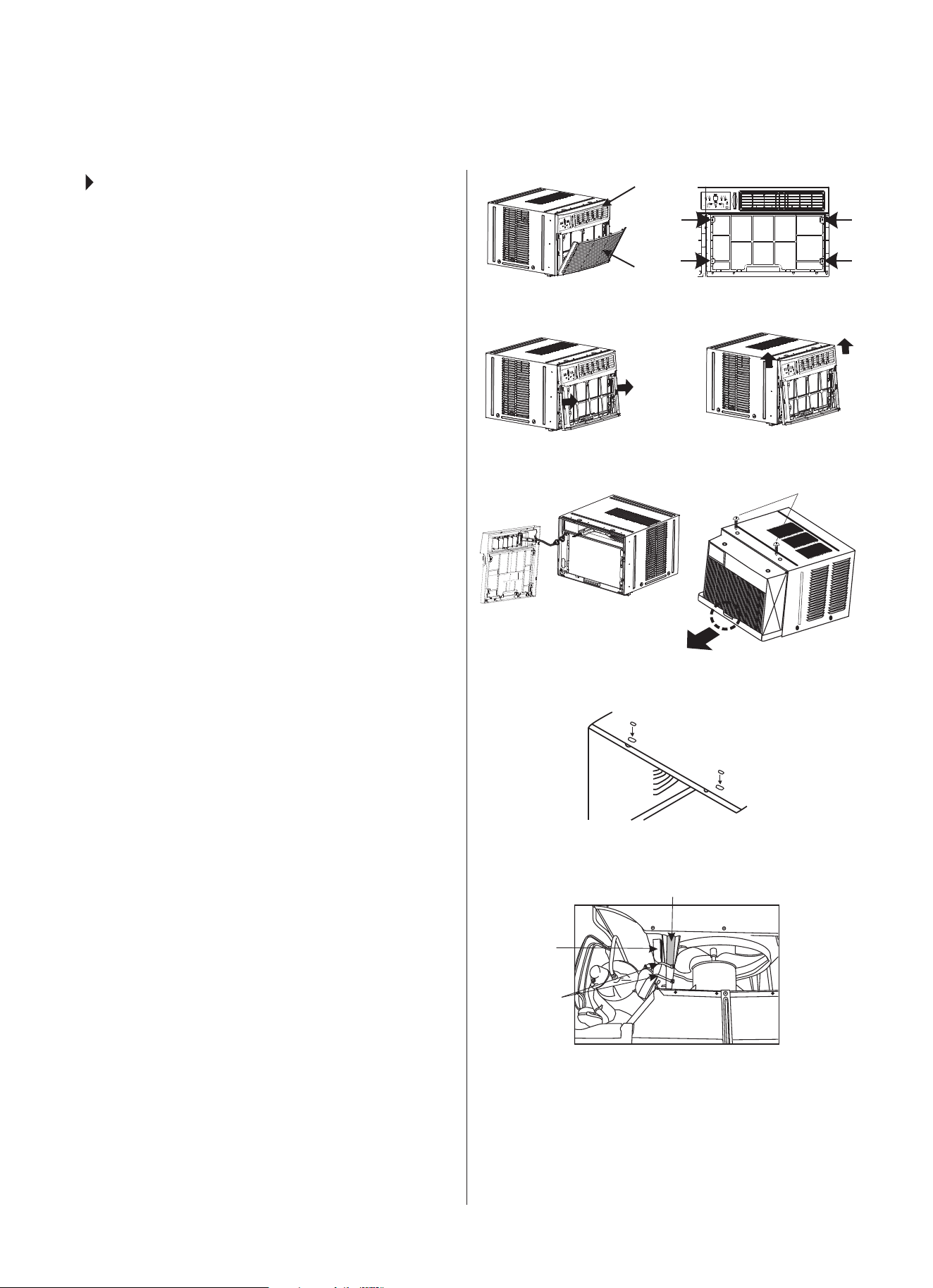

FIG. 1
FIG. 4
FIG. 3
FIG. 2
FIG. 5
FIG. 6
FIG. 7
FIG. 3A
Shipping
Packaging
Shipping
Screws
Plastic Tie
Front Grille
Front Panel
Gray Foam
Padding
background
7
STEP 2:
INSTALL TOP ANGLE AND
SIDE BRACKET

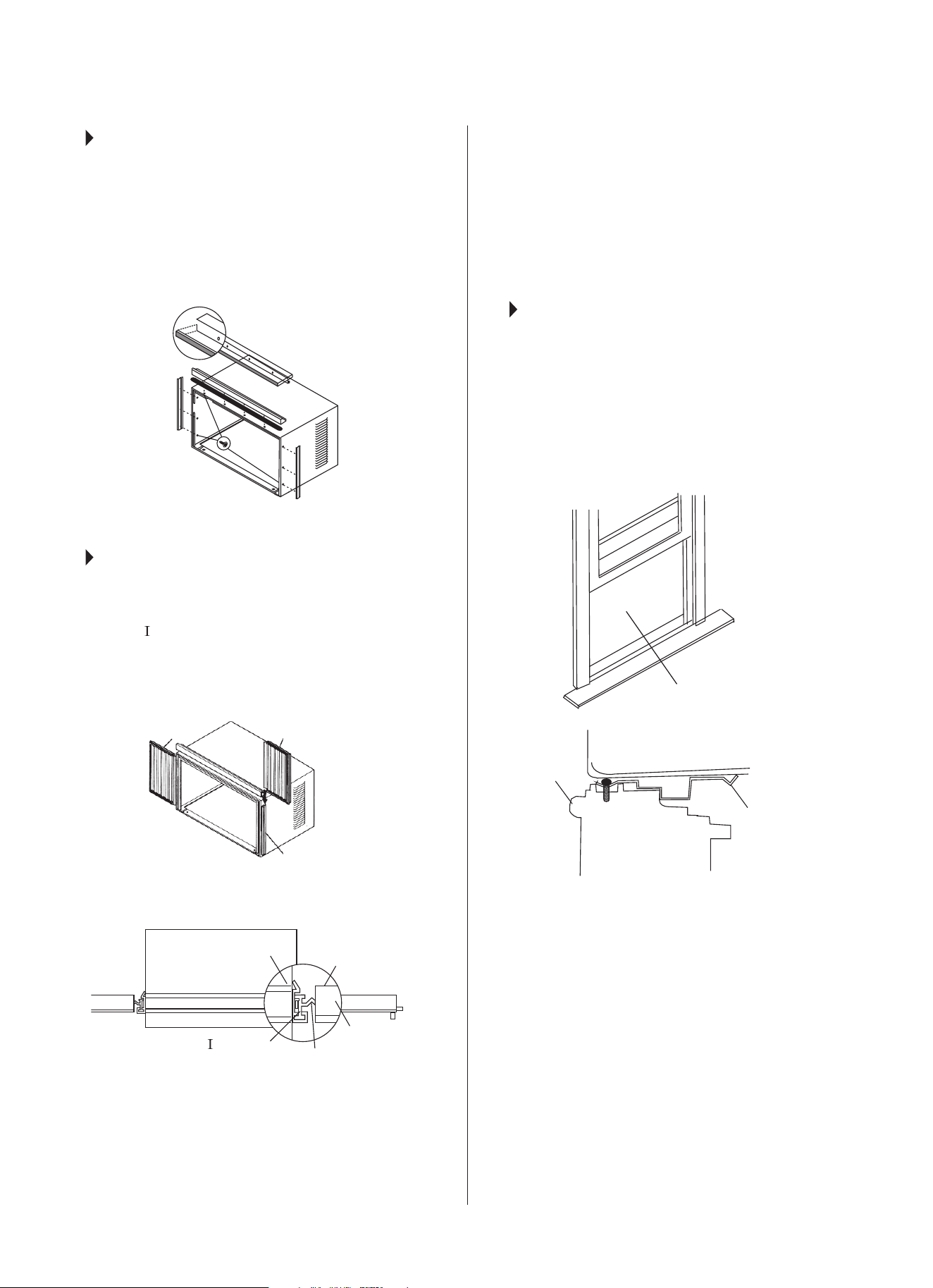

1. Attachfoamgaskettotopangleaboveholesas
shown in Fig. 6 on previous page.
2. Install top angle and side retainers to cabinet as
showninFig.8.(10screws)
FIG. 8
5/16
″
long
hex-head
STEP 3:
ASSEMBLE ACCORDION PANELS
1. Placecabinetonoor,abench,oratable.
2. Slide “ ” section of accordion panel into side
retaineronthesideofthecabinet.(SeeFig.9)Do
this on both sides.
FIG. 9
FIG. 10
Accordion
Panel
Air Conditioner
Cabinet
Top
View
Plastic
Frame
Locking
Screw
Hole
Accordion
Panel
“ “ Section
Side Retainer
Plastic
Frame
3. Insert top and bottom legs of accordion panel
frame into channel in the top angle and bottom rail.
(SeeFig.10)Dothisonbothsides.
4. Insertwasherheadlocking7/16″screws(2)into
holesintoplegofaccordionpanelframe.(See
Step6onnextpage.)Donottotallytighten.Allow
leg to slide freely. Screws will be tightened after
Step 6.
STEP 4:
PLACE CABINET IN WINDOW
1. Openwindowandmarkcenterofwindowsill.
(Fig.11)
2. Place cabinet in window with bottom sill angle
rmlyseatedoverwindowsillasshown.Bring
window down temporarily behind top angle to hold
cabinetinplace.(Fig.12)
FIG. 12
FIG. 11
Sill
Angle
Sill
3. Shift cabinet left or right as needed to line up
centerofcabinetoncenterlinemarkedonsill.
4. Fasten cabinet to window sill with 2 screws into
holes.(Youmaywishtopre-drillpilotholes.)
5. Addbottomrailsealoverscrewtowindowsill.
(SeeFig.13onnextpage.)
background
8
FIG. 13
Bottom
Rail Seal
3/4″ (or 1/2″) long
Hex-head Screw
STEP 5:

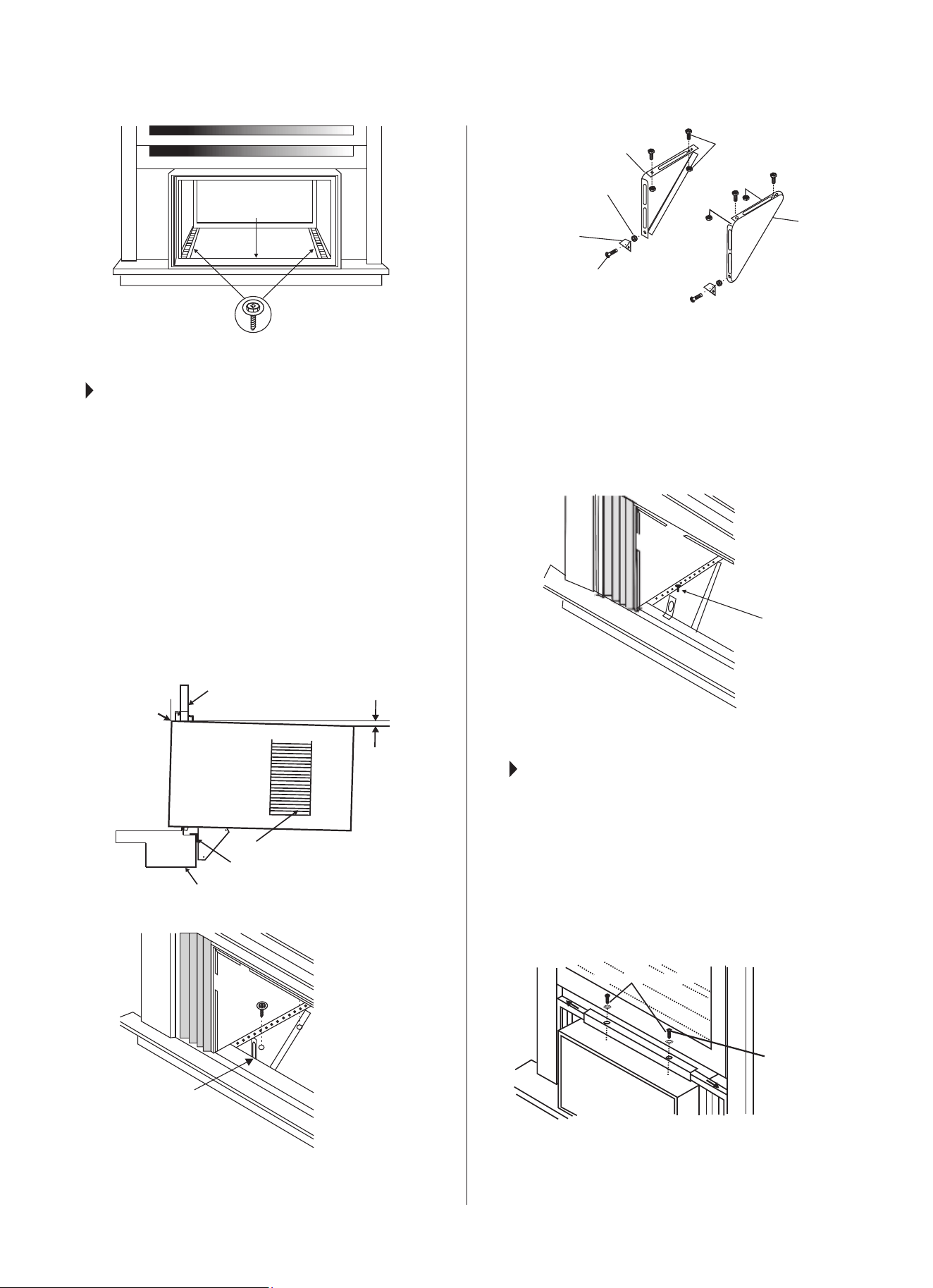

INSTALL SUPPORT BRACKET
1. Holdeachsupportbracketushagainstoutside
of sill and tighten to bottom of cabinet as shown
inFig.15A.Markbracketsattoplevelofsill,
and remove.
2. Assemblesillanglebrackettosupportbracketsat
themarkedposition.(SeeFig.15B.)Handtighten,
but allow for changes later.
NOTE:Checkthatairconditioneristiltedbackabout
1
1
/2” to 1
5
/8”(tiltedabout3ºto4ºdownwardtoward
theoutside).If,afterproperinstallation,condensation
doesnotdrainfromtheoverowdrainholeduring
normaluse,adjustslope.(Fig14)
FIG. 14
FIG. 15A
Mark
About 1
1
/2″
to 1
5
/8″
Window Sash
Side Louvers
Sill Angle Bracket
Window Sill
Measure from the
cabinet edge.
5
FIG. 15B
Right
Left
Locknut
1/2″ Log Screws
and Locknuts
2 Each Required for
Each Support Bracket
Sill Angle
Bracket
Flat Head
Bolt
3. Installsupportbrackets(withsillanglebrackets
attached)tocorrectholeinbottomofcabinetas
shown in Fig. 16.
4. Securely tighten all 6 bolts.
1/2″ Long
Screws and
Locknuts
FIG. 16
STEP 6:
EXTEND ACCORDION PANELS
1. Carefully raise window to expose accordion panel
lockingscrews.Loosenscrewssoaccordion
panels slide easily.
2.Extendpanelstollwindowopeningcompletely.
Tightenlockingscrewsontop(Fig.17A).
3. Close window behind top angle.
Locking Screw
7/16″ Locking
Screw and
Washer
FIG. 17A
background
9

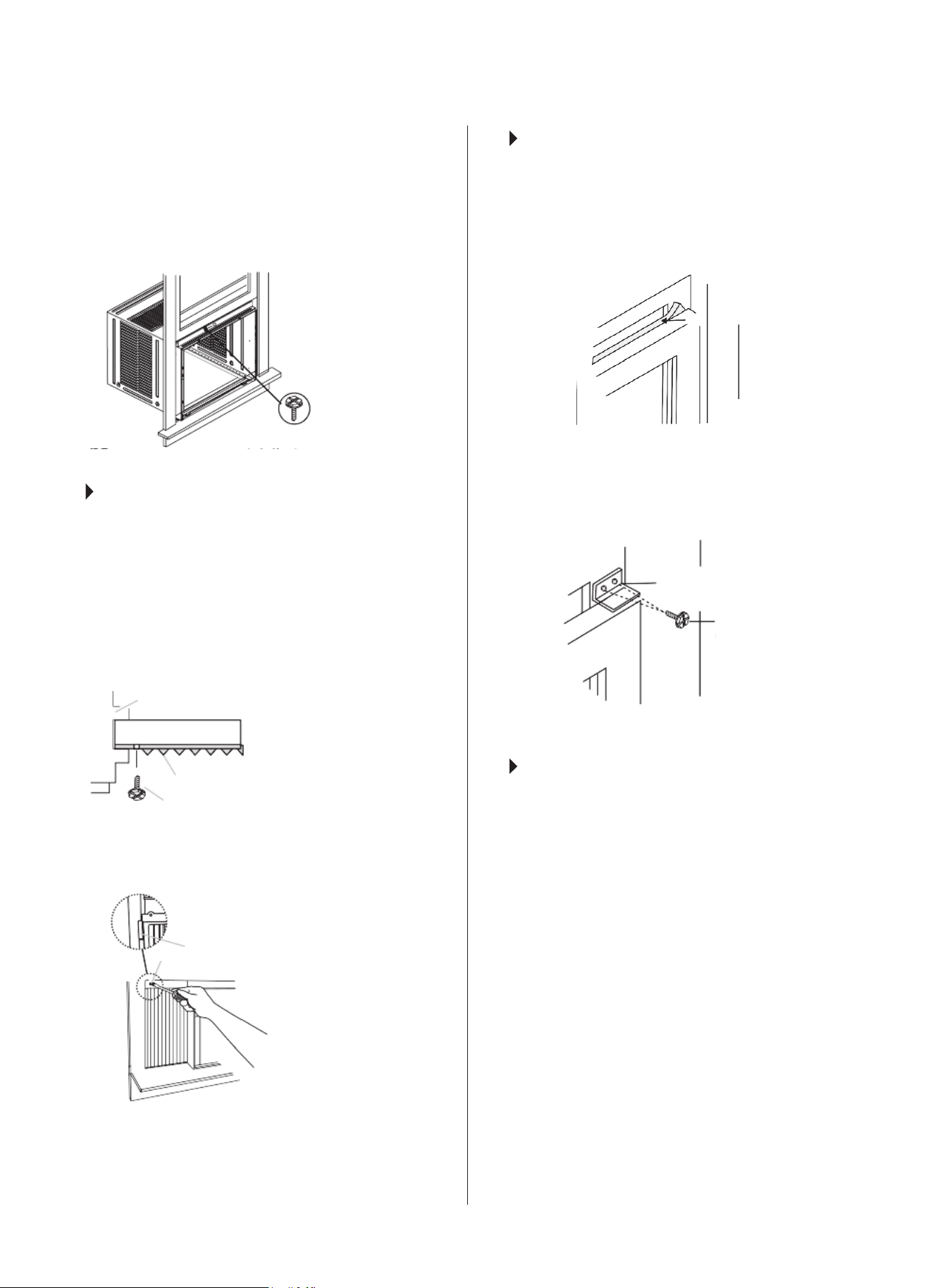

4. Attachthetopangletowindowframe:Usea3/32″
drill bit to drill one hole through the hole in the
middle of top angle into the window frame, and
driveone3/4″(or1/2″)HEX-HEADlockingscrew
through hole in the middle of top angle into the
windowframeasshown(Fig.17B).
3/4″ (or 1/2″) long
hex head screw
FIG. 17B
STEP 7:
ATTACH ACCORDION PANELS TO
WINDOW FRAME
1. Extend the accordion panels out against the
window frame.
2. Use1/8″drillbittodrillastarterholethroughthe
hole in the top leg of each accordion panel and
intothewindowsash.(Fig.18AandFig.18B)
Connectwithone3/4″(or1/2″)longhex
head screw.
A. 3/4″ (or 1/2″)
long hex head
screw
B. Left-hand
Accordion Panel
Top Leg
C. Window channel
A. 3/4″ (or 1/2″)
long hex head
screw
A
A
B
C
Window Sash
Weather Seals
FIG. 18A
FIG. 18B
STEP 8:
INSTALL WINDOW SASH SEAL AND
SAFETY LOCK
1. Trimsashsealtotwindowwidth.Insertinto
spacebetweenupperandlowersashes.(Fig19A)
Window Sash Seal
FIG. 19A
2. Attachrightanglesafetylock.(Fig.19B)
FIG. 19B
Safety Lock
3/4″ (or 1/2″)
long hex head
screw
STEP 9:
INSTALL CHASSIS INTO CABINET
AND INSTALL FRONT TO UNIT
1. Lift air conditioner and carefully slide into cabinet.
2. DONOTpushoncontrolsornnedcoils.
3. Besurechassisisrmlyseatedtowardrear
of cabinet.
4. Installation of front panel is the reverse of removal
outlined in Step 1.
background
10
NORMAL SOUNDS
AIR CONDITIONER FEATURES
Sleep
Check
Filter
Follow
Me
Auto
On/off
Fan
High
Med
Low
Energy
Saver
on
off
Timer
Auto
Fan
Cool
Dry
Mode
TEMP/TIMER
TEMP/TIMER
Heat
VIBRATION
Unitmayvibrateandmake
noise because of poor wall or
window construction or incorrect
installation.ThisDOESNOT
indicate a defective unit.
PINGING OR SWITCHING
Droplets of water hitting
condenser during normal
operation may cause “pinging”
or “switching” sounds.
HIGH PITCHED CHATTER
Higheciencycompressors
may have a high pitched chatter
during the cooling cycle.
SOUND OF RUSHING AIR
At the front of the unit,
the sound of rushing air
being moved by the fan
may be heard.
GURGLE/HISS
“Gurgling”or“hissing”
noise may be heard due
to refrigerant passing
through evaporator during
normal operation.
NOTE: Allofthepicturesinthismanualareforexplanatorypurposesonly.Theactualshape/lookof
theairconditionerpurchasedmaybeslightlydierent,buttheoperationsandfunctionsaresimilar.
Thoroughlyfamiliarizeyourselfwiththecontrolpanelshownbelowandallofitsfunctions.Afterwards,followthe
symbolforthefunctionsyoudesireBEFOREoperatingtheunit.Thisunitcanbecontrolledbytheunitcontrolorthe
remote control.
Remote Signal
Receptor
TO TURN UNIT ON OR OFF:
Press ON/OFFbuttontoturntheunitonoro.
NOTE: The unit will automatically initiate the Energy Saver
functionunderCOOL,DRYandAUTO(onlyAUTO-COOLING
andAUTO-FANmodes).
TO CHANGE TEMPERATURE SETTING:
Press
/
UP/DOWNbuttonstochangethe
temperature setting.
NOTE: PressorholdeitherUP(
)orDOWN(
)button
until the desired temperature is seen on the display. The
temperature will be automatically maintained anywhere
between62°F(17°C)and86°F(30°C).Ifyouwantthedisplay
toreadtheactualroomtemperature,see“ToOperateonFan
Only”section.
TO ADJUST FAN SPEEDS:
Press to select the Fan Speed in four steps: Auto, Low,
Med or High. Each time the button is pressed, the fan speed
isshifted.InDRYmode,thefanspeediscontrolledatLow
automatically. For some models with heating capabilities, the
fanspeedcannotbeadjustedunderHEATmode.

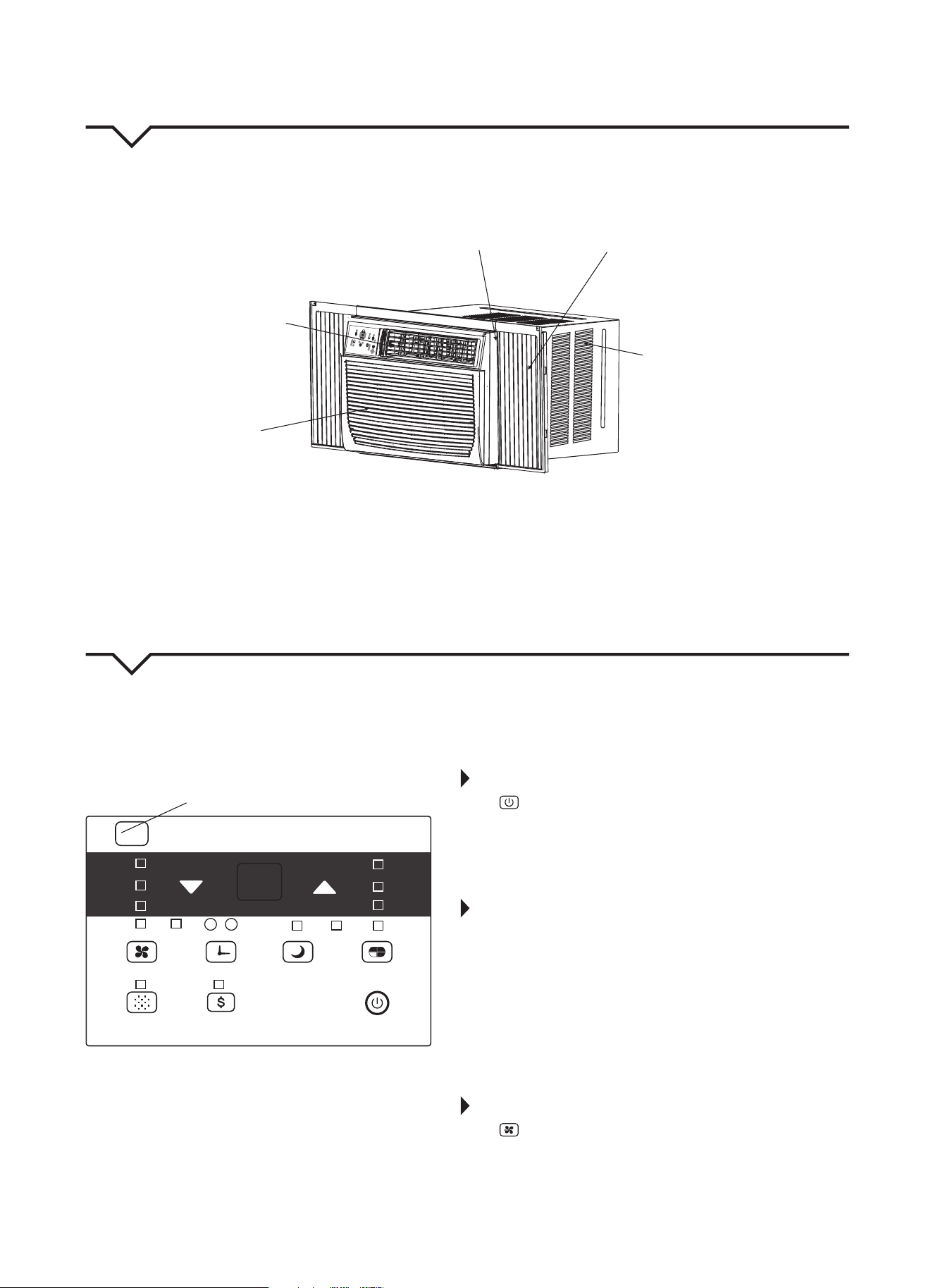

UNIT CONTROL PANEL
Heat indicator on models with
heating capabilities only.
Auto
Low
Med
High
Auto
Cool
Dry
Fan
TEMP/TIMER
On O
Sleep
Timer
Mode
Check
Filter
Energy
Saver
Fan
Follow
Me
Heat
background
11
SLEEP FEATURE:
Press the SLEEP button to initiate the SLEEP
mode. In this mode, the selected temperature will
increaseby2°F(1°C)30minutesafterthemodeis
selected.Thetemperaturewillthenincrease(cooling)
ordecrease(unitswithheatingonly)byanother
2°F(1°C)afteranadditional30minutes.Thisnew
temperature will be maintained for 6 hours before it
returns to the originally selected temperature. This
ends the SLEEP mode and the unit will continue
to operate as originally programmed. The SLEEP
mode program can be canceled at any time during
operation by pressing the SLEEP button again.
CHECK FILTER FEATURE:
Press the CHECK FILTER button to initiate this
feature. This feature is a reminder to clean the Air
Filterformoreecientoperation.TheLED(light)will
illuminateafter250hoursofoperation.Toresetafter
cleaningthelter,presstheCHECK FILTER button
andthelightwillgoo.
ENERGY SAVER FEATURE:
Press the ENERGYSAVER button to initiate this
function. This function is available on COOL, DRY
and AUTO(onlyAUTO-COOLINGand AUTO-FAN)
modes. In this mode, the fan will continue to run for 3
minutesafterthecompressorshutso.Thefanthen
cycles on for 2 minutes, at 10 minute intervals, until
the room temperature is above the set temperature,
atwhichtimethecompressorturnsbackonand
cooling starts.
FOLLOW ME FEATURE:
This feature can ONLY be activated
from the remote control. The
remote control serves as a remote
thermostat allowing for precise
temperature control at its location.
To activate the Follow Me feature, point the remote
control toward the unit and press the FOLLOWME
button. The remote displays the actual temperature
at its location. The remote control will send this
signal to the air conditioner every 3 minutes until the
FOLLOWME button is pressed again. If the unit does
not receive the Follow Me signal during any 7 minute
interval, the unit will beep to indicate use of the
Follow Me feature has ended. The actual temperature
can be displayed at the unit by pressing the FAN only
mode.WhenintheCOOLmode,theunitdisplay
indicates the set temperature.
TO SELECT THE OPERATING MODE:
To choose operating mode, press the MODE
button. Each time you press the button, a mode is
selectedinasequencethatgoesfromAUTO,COOL,
DRY,HEAT(forunitswithheatingfunction)andFAN.
The indicator light will be illuminated and remain on
once the mode is selected. The unit will automatically
initiate the Energy Saver function under COOL, DRY, and
AUTO (only AUTO-COOLING and AUTO-FAN) modes.
TO OPERATE AUTO FEATURE:
When you set the air conditioner in AUTO mode, it
willautomaticallyselectcooling,heating(onmodels
withheatingcapabilities)orfanonlyoperation
depending on what temperature you have selected
and the room temperature. The air conditioner will
automatically control room temperature around the
temperature you set. In this mode, the fan speed
cannot be adjusted. It starts automatically at a speed
according to the room temperature.
TO OPERATE FAN ONLY:
Usethisfunction( )onlywhencoolingisnot
desired, such as for room air circulation or to exhaust
staleair.(Remembertoopentheventduringthis
function,butkeepitclosedduringcoolingfor
maximumcoolingeciency.)Youcanchooseany
fan speed you prefer. During this function, the display
will show the actual room temperature, not the set
temperature as in the cooling mode.
TO OPERATE DRY MODE:
In this mode, the air conditioner will reduce air
humidity. If the space is a closed or sealed area,
some degree of cooling will continue.
TIMER: AUTO START/STOP FEATURE:
● Whentheunitisonoro,pressthe TIMER
button.TheTIMERONindicatorlightilluminates
and indicates the Auto Start program is initiated.
● WhenTIMERONisdisplayed,pressingtheTIMER
buttonagainilluminatestheTIMEROFFindicator
and indicates the Auto Stop program is initiated.
● PressorholdtheUPorDOWNbuttontochange
theAutotimeby0.5hourincrements,upto10
hours, then by 1 hour increments, up to 24 hours.
The control will count down the time remaining
until start.
● Theselectedtimewillregisterin5secondsand
thesystemwillautomaticallyrevertbackto
displaying the previous temperature setting or the
roomtemperature(dependingonwhethertheunit
ispoweredonoroandthemodeitisin).
● TurningtheunitONorOFFatanytimeor
adjustingthetimersettingto0.0willcancelthe
AutoStart/Stopprogram.
A NOTE ABOUT THE TIMER:
When you set the timer, the
unitwillonlygoononceandoonce.Ifyouwantthe
airconditionertocycleonandobasedondesired
room temperature, you do not need to set the timer.
Instead, set your desired temperature and the unit will
cycleonandobasedonthattemperaturesetting.
Light
Flashing
Follow
Me
background
12
DISPLAY:
Shows the set temperature in °F or °C and the Auto-
timer settings. While on FAN only mode, it shows the
room temperature.
ERROR CODES:
AS - Room Temperature Sensor Error - Unplug the
unitandplugitbackin.Iferrorrepeats,call
Consumer Services at 844-472-2473.
HS - Electric Heating Sensor Error - Unplug the
unitandplugitbackin.Iferrorrepeats,call
Consumer Services at 844-472-2473.
●- Evaporator Temperature Sensor Error - Unplug
theunitandplugitbackin.Iferrorrepeats,call
Consumer Services at 844-472-2473.
NOTE: If an error code occurs in FAN only mode, the
unitwilldisplay“LO”(looseconnection)or“HI”
(shortcircuit).
NOTE
:
Iftheunitbreaksounexpectedlyduetopowerbeing
cut, it will restart with the previous function setting
automatically when the power resumes.
AIR DIRECTIONAL LOUVERS:
Usethe4-waydirectionallouverstodirecttheairow
up or down and left or right throughout the room as
needed.Pivothorizontallouversuntilthedesiredup/
down direction is obtained.
Move the center handles from side to side until the
desiredLeft/Rightdirectionisobtained.
ADDITIONAL THINGS YOU
SHOULD KNOW:
● TheCoolcircuithasanautomatic3minute
time-delayedstartiftheunitisturnedoandon
quickly.Afterunitisturnedo,leavetheunito
for a minimum of 3 minutes before attempting to
turnbackon.Thispreventsoverheatingofthe
compressorandpossiblecircuitbreakertripping.
The fan will continue to run during this time.
● Thecontroliscapableofdisplayingtemperaturein
degrees Fahrenheit or degrees Celsius. To convert
from one to the other, press and hold the left and
right TEMP/TIMERbuttons(
and
)atthe
same time for 3 seconds.

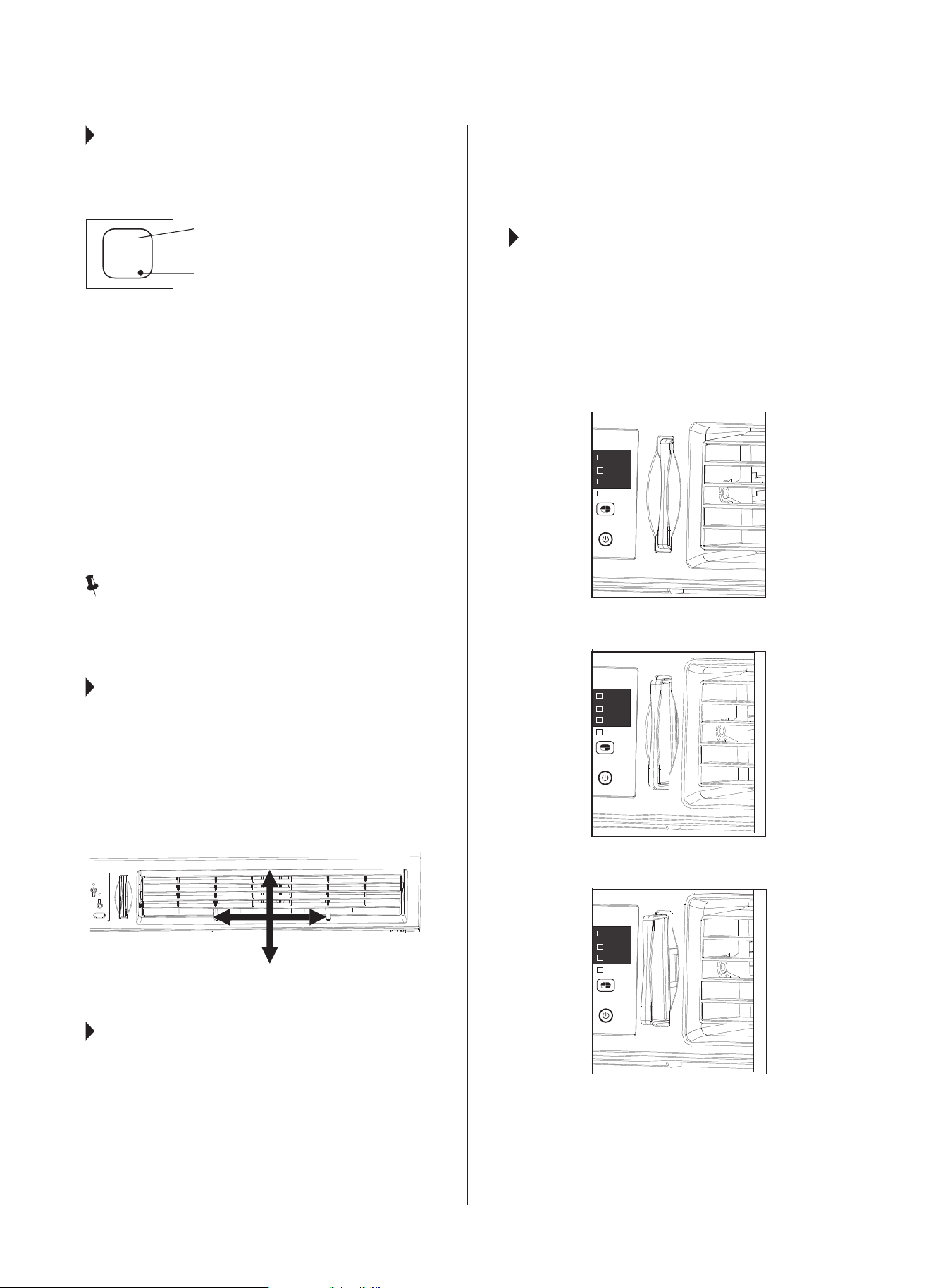

FRESH AIR VENT CONTROL
The Fresh Air Vent allows the air conditioner to:
1. Recirculateinsideair(VentClosed-Fig.A)
2. Drawfreshairintotheroom(VentOpen-FigB)
3. Exchange air from the room and draw fresh air into
theroom(VentandExhaustOpen-FigC)
Air Direction (4-way)
Air Directional Louvers
Display
Evaporator Temperature Sensor Error
Auto
Cool
Dry
Fan
Mode
Auto
Cool
Dry
Fan
Mode
Auto
Cool
Dry
Fan
Mode
Fig. A (VENT CLOSED)
Fig. B (VENT OPEN)
Fig. C (VENT AND EXHAUST OPEN)
background
13

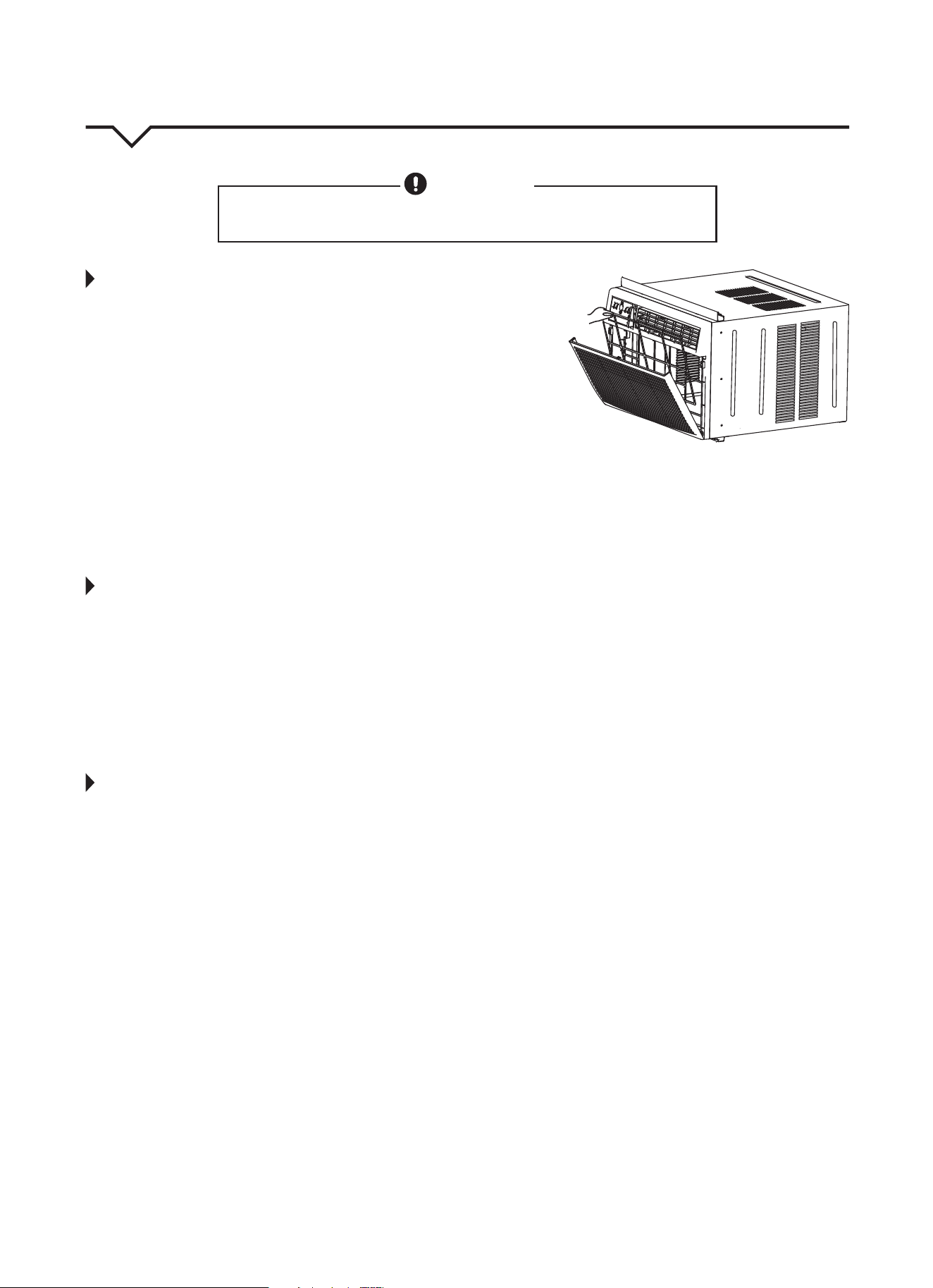

CARE AND CLEANING
CAUTION
Cleanairconditioneroccasionallytokeepitlookingandoperatinglikenew.
Be sure to unplug the unit before cleaning to prevent shock or fire hazards.
AIR FILTER CLEANING
Theairltershouldbecleanedatleasteverytwoweeksoras
necessary.Trappedparticlesintheltercanbuildup,causean
accumulationoffrostonthecoolingcoils,andreduceeciency.
● PushtheventhandletotheVentClosedposition(whereapplicable).
● Placeonehandoneachsideoftheunitandtiltopenthefrontpanel.
● Graspthelterbythecentertopullupandout.
● Washthelterusingliquiddish-washingdetergentandwarmwater.
Rinselterthoroughly.
● Gentlyshakeexcesswaterfromthelter.Besurethelteris
thoroughly dry before replacing.
● Asanalternativetowashingthelter,vacuumthelterclean.
NOTE: Neverusehotwaterover104°F(40°C)tocleantheairfilter.
Never attempt to operate the unit without the air filter.
CABINET CLEANING
● Besuretounplugtheairconditionertopreventshockorrehazard.
The cabinet and front may be dusted with an oil-free cloth or with a
clothdampenedinasolutionofwarmwaterandmildliquiddish-
washing detergent. Rinse thoroughly and wipe dry.
● Neveruseharshcleaners,waxorpolishonthecabinetfront.
● Besuretowringexcesswaterfromtheclothbeforewipingthe
controls. Excess water in or around the controls may cause damage
to the air conditioner.
● Pluginairconditionerafterunithasdriedcompletely.
WINTER STORAGE
If air conditioner will be stored during the winter, remove it carefully
from the window according to the installation instructions. Cover it with
plastic or return it to the original carton.
ALWAYS STORE UNIT IN UPRIGHT POSITION IN A COOL, DRY LOCATION.
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
background
14
NOTE
Ahighlyrecommendedtroubleshootforanyissueingeneralconsistsofturningounitandunpluggingfor5
minutes. It is also recommended to try another wall outlet. For further assistance, contact Consumer Services at
844-472-2473.
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW
ISSUE POSSIBLE CAUSES
AIR CONDITIONER NOT
COOLING ROOM, OR NOT BLOWING
COLD AIR
•Besureunitisnottoolargeortoosmallfortheareaoftheroom.
•Verifythatalldoors,windows,curtainsandanyotheropeningsareclosedo.
Verify nothing is obstructing the front grille of unit, such as curtains, etc.
•Allowenoughtimeforroomtocool,especiallyifoutsidetempisveryhigh.
•Checkthatthelterisnotdirtyandlouversareopenallthewayandblowinginthe
desired direction.
•CheckthatunitissettoCOOLmodeandthattemperatureisdownenough(but
nottoolow).
•Ifunitisnearaheatsource,suchasastove,etc.,relocateunit.
•Ifaircomingfromunitiscooltothetouch,thenunitisworkingproperly;please
doublechecktherstthreebulletpointsabove.
•IfusingFollowMeremotefeature,moveremoteawayfromunit.
•Temperaturesensorbehindairltertouchingcoldcoil.Thesetwoelementsshould
not be touching. Carefully straighten tube away from coil.
•Unplugunitforatleast5minutes.FollowResetinstructionsonplug.
AIR CONDITIONER COOLING
BUT ROOM IS TOO WARM - ICE
FORMING ON COOLING COIL
BEHIND DECORATIVE FRONT
•Outdoortemperatureisbelow64ºF(18ºC).Todefrostthecoil,settoFAN
only mode.
•Airltermaybedirty.Cleanlter.RefertoCareandCleaningsection.Todefrost,
set to FAN only mode.
•Thermostatissettoocoldfornight-timecooling.Todefrostthecoil,settoFAN
only mode. Then, set temperature to a higher setting.
AIR CONDITIONER CYCLING ON
AND OFF TOO FREQUENTLY OR
NOT ENOUGH
•Besureunitisnottoolargeortoosmallfortheareaoftheroom.
•Removegrilleandmakesurethetemperaturesensorisnottooclosetothecoils.
These two elements should not be touching. Carefully straighten tube away
from coil.
•Makesurenothingisblockingthegrilleorsidevents.
•Makesurethereisnodirtordebrisinsidetheunitoronthelter.
UNIT WILL NOT TURN ON
•Resetcircuitbreaker.Makesuretherearenottoomanyitems(i.e.lamps,TV’s,
etc.)workingothesamebreaker.
•Checkplugconnection.
•Ifplugisoperatingonanon/oswitch,besurethattheswitchis‘on’.
•Trypluggingunitintoanotheroutlet.
•Unplugunitforatleast5minutes.FollowResetinstructionsonplug.
UNIT BLOWS FUSES OR POPS
CIRCUIT BREAKER
•Makesurethereareenoughavailableampsonthecircuitfortheairconditioner.
•Largeunitswhichrunona230vwillrequireadedicated20or30ampcircuit.
AIR CONDITIONER IS
MAKING NOISES
•Checktobesuretheunitisfreefromdebrissuchasleaves,sticks,etc.Verify
nothing is obstructing the unit.
•Checkthefanbladeforcracksorchips.
•Makesuretheunitisproperlyandsecurelymountedinsidethewindoworwall.
•Cleantheairlter.
WATER PUDDLES INSIDE UNIT OR IS
COMING INTO ROOM
•Adjusttheslopeoftheunitsothatitdrainsdownwardtowardtheexteriorofthe
home.(SeeInstallationInstructions.)
•Makesurethatthereisnodebrisblockingthedrainageareaoftheunit.
WATER DRIPPING OUTSIDE
•Unitisremovingalargequantityofmoisturefromahumidroom.Thisisnormal
during excessively humid days.
REMOTE SENSING / FOLLOW ME
DEACTIVATING PREMATURELY
•Remotecontrolnotlocatedwithinrange.Placeremotecontrolwithin20ftand
180ºradiusofthefrontoftheunit.
•Remotecontrolsignalobstructed.Removeobstruction.
background
background
background
Distributed by:
Perfect Aire, LLC
5401 Dansher Road
Countryside, IL 60525
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
WINDOW
AIR CONDITIONER
FOR MODEL:
3PNC18000
3PNC28000
3PACH18000
WITH ELECTRIC HEAT
3PACH25000
WITH ELECTRIC HEAT
Before using your air conditioner, please
read this manual carefully and keep it for
future reference, along with your receipt.
Specification and performance data is subject to change without notice.
Printed in China
PA/User3PNC18000_3PNC28000_3PACH18000_3PACH25000/12192018
USER MANUAL

Specifications

PerfectAire 3PACH18000 Questions and Answers

Find answers or ask new question.
See other models: 3PACH25000 PEVP560 1PACU8000 5PAC25000 5PMC5000
Questions and Answers
