Disassembling the Detector
2
The Printed Circuit Board（PCB）
3
4 5
Installation Hints
6
The 18 m Lens
7
Resistor Wiring
8
Choose the Connection Type
9
Powering up
10
11
Dimension and Weight
(a) Lens (b) LED Light Pipe
(c) Lens Holder
(e) Nut
(d) PCB
(f) Casing Screw
DS-PDP18-EG2
(b) Tamper
Resistor Headers
(d) Alarm
Resistor Headers
1K, 2K2,
4K7, 5K6, 8K2
(a) PIR Sensor
(c) Terminals
(e) Tamper
Spring
5K6, 4K7,
2K2, 1K
1
1
2
2
3
3
(1) Ceiling Bracket Fing (Non EN compliant)
EN50131-2-2:2017
EN50131-1:2006+A1:2009+A2:2017
Security Grade (SG) 2
Environmental Class (EC) II
(2) Wall Bracket Fing
(2) Single End of Line Wiring(1) Normally Closed (3) Double End of Line Wiring (4) Two Double End of Line Detectors to One Input
68 g
(2.4 oz)
1
2
3
4
The detector has two method for resistor wiring:
(1) Using headers to select the End of Line resistance (Control panel dependent) on the ALARM/TAMPER header pins.
(2) Select an resistance (Control panel dependent), and add the resistor to ALARM/TAMPER wiring ports of the detector.
Note: If EOL (End of Line) wiring is not used, leave the headers OFF. If the headers and the header pins does not
match, do not force the header, please select the method 2 to wire the resistor. Method 1 and method 2 should not
be used on the ALARM/TAMPER at the same me.
+
-
+
-
Technical Specification
=
=
(a) Alarm
Resistance
(b) Tamper
Resistance
1K,
2K2,
4K7,
5K6,
8K2
5K6,
4K7,
2K2,
1K
COPYRIGHT ©2020 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
About this Manual
The Manual includes instrucons for using and managing the
Product. Pictures, charts, images and all other informaon
hereinaer are for descripon and explanaon only. The informaon
contained in the Manual is subject to change, without noce, due to
firmware updates or other reasons. Please find the latest version of
this Manual at the Hikvision website (hps://www.hikvision.com/).
Please use this Manual with the guidance and assistance of
professionals trained in supporng the Product.
and other Hikvision's trademarks and logos are the
properes of Hikvision in various jurisdicons.
Other trademarks and logos menoned are the properes of their
respecve owners.
This product and - if applicable - the supplied accessories too are marked
with "CE" and comply therefore with the applicable harmonized
European standards listed under the EMC Direcve 2014/30/EU, the LVD
Direcve 2014/35/EU, the RoHS Direcve 2011/65/EU.
2012/19/EU (WEEE direcve): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collecon points.
For more informaon see: www.recyclethis.info
UD13284B-D
IC Information
CLASS B: CAN ICES-3 (B)/NMB-3(B)
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s). Operaon is
subject to the following two condions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operaon of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitaon est autorisée aux deux condions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'ulisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est suscepble d'en compromere le fonconnement.
Under Industry Canada regulaons, this radio transmier may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmier by Industry
Canada. To reduce potenal radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communicaon.
Conformément à la réglementaon d'Industrie Canada, le présent émeeur radio peut
fonconner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émeeur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intenon des autres ulisateurs, il faut choisir le type d'antenne et
son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
pas l'intensité nécessaire à l'établissement d'une communicaon sasfaisante.
This equipment should be installed and operated with a minimum distance 20cm
between the radiator and your body.
Cet équipement doit être installé et ulisé à une distance minimale de 20 cm entre le
radiateur et votre corps.
FCC Informaon
Please take aenon that changes or modificaon not expressly approved by
the party responsible for compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protecon against harmful interference in a residenal installaon.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instrucons, may cause harmful interference to
radio communicaons. However, there is no guarantee that interference will not occur in
a parcular installaon. If this equipment does cause harmful interference to radio or
television recepon, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separaon between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between
the radiator and your body.
FCC Condions
This device complies with part 15 of the FCC Rules. Operaon is subject to the following
two condions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operaon
a. Alarm Control Panel a. Alarm Control Panel
b1. Detector 1 b2. Detector 2
b. Detector
b. Detector
a. Alarm Control Panel a. Alarm Control Panel
b. Detector
Aer powering on, the indicator flashes rapidly. Once the
detector self test is completed, the LED indicator will go
out unl the detector detects movement.
45.5 mm
65.4 mm
86.8 mm
Class B: This device is intended for mainly home use (Class B) and may be
used in all areas
B급 기기: 이 기기는 가정용(B급) 전자파적합기기로써 주로 가정에서
사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다.
The connecon shows
the example:
1. Normal: 1K
2. Alarm: 2K
3. Tamper: 0 K or infinite
The connecon shows
the example:
1. Normal: 1K
2. Alarm: Infinite
3. Tamper: 0 K
NOT READY READY
(g) Sensivity Sengs
LOW
AUTO (Default)
HIGH
(f) LED ON/OFF
LED ON
LED OFF
Screw Model
number
PA_3.5 ×25
4
Installation Method - Detector Backplane Installation
Installation Method - Bracket Installation
1K
ALARMTAMPER
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
+-
ALARMTAMPER
EOLEOL
ALARMTAMPER
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
+-
ALARMTAMPER
EOLEOL
ALARMTAMPER
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
+-
ALARMTAMPER
EOLEOL
ALARMTAMPER
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
+-
ALARMTAMPER
EOLEOL
ZONE2
COM
ZONE1
COM
+
-
ALARMTAMPER
+-
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
ALARMTAMPER
EOLEOL
ALARMTAMPER
+-
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
ALARMTAMPER
EOLEOL
ALARMTAMPER
+-
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
ALARMTAMPER
EOLEOL
ALARMTAMPER
+-
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
ALARMTAMPER
EOLEOL
ALARMTAMPER
+-
8K2
5K6
4K7
2K2
1K
1K
2K2
4K7
5K6
ALARMTAMPER
EOLEOL
ZONE2
COM
ZONE1
COM
+
-
ZONE2
COM
ZONE1
COM
+
-
ZONE2
COM
ZONE1
COM
+
-
1K
Low is non EN and non INCERT compliant.

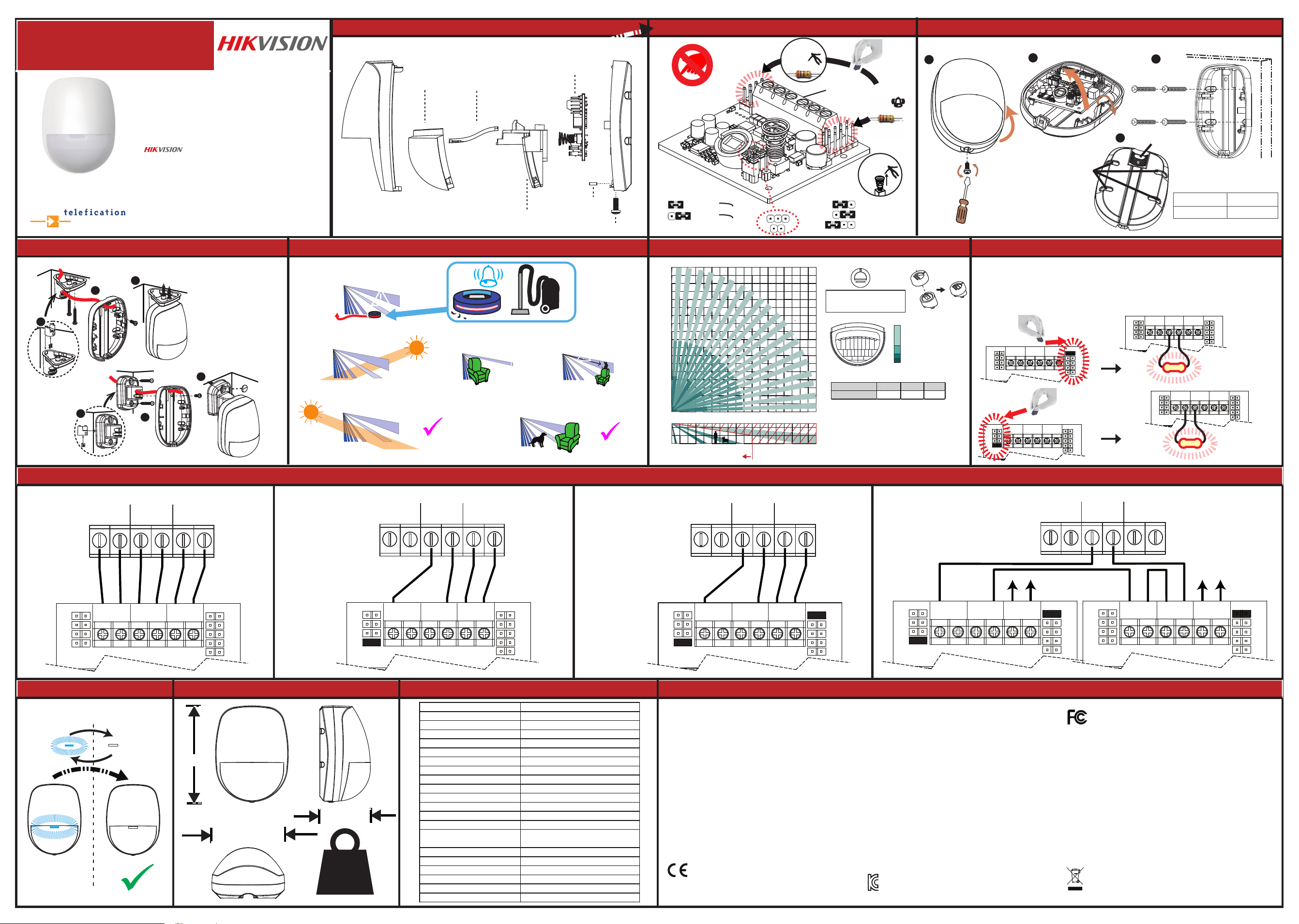

18m Digital PIR Detector
(16m EN and INCERT compliant, 10m Pet Tolerance)
Cerfied by Teleficaon
Note: Brackets are oponal.
85.9°
(a) Detecon Range
(b) Mounng Height
52 zones
4 planes
Mounng height range from 1.8 m to 2.4 m.
PET Table
Note: PET immunity is available up to 10 m
and at a height that is below the top plane
of view.
10m 12m
1m 2m 4m 6m 8m
2.4m
10m
12m
1m
2m
6m
8m
14m
16m
18m
14m 16m 18m
4m
Pet immunity is available within 10 m
To use the pet immunity
funcon, please install a pet
mask.
Sensivity mode High Auto Low
Weight 5 kg 10 kg 15 kg
10m 12m1m 2m 4m 6m 8m 14m 16m 18m
Detecon range
18m, 85.9°
Detecon speed 0.3 ~ 2 m/s
Sensivity High, Auto, Low
Auto sensivity Yes
Onboard EOL Yes
Digital temperature compensaon Yes
Technology Digital microprocessor based
Sealed opcs Yes
Creep zone protecon Yes
Tamper protecon Front
LED indicator Blue (alarm)
Pet immunity See PET Table above
Power supply 9 to 16 VDC (standard: 12 VDC)
Current consumpon 11mA quiescent, 8mA Alarm
Operang temperature
-10 °C to 55 °C (14 °F to
131 °F)
-10 °C to 40 °C (14 °F to 104 °F) Cerfied
Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operang humidity 10% to 90%
Installaon height 1.8 to 2.4m
Detector Dimension (H × W × D) 86.8mm x 65.4mm x 45.5mm
Weight 68 g
Bracket Oponal wall & ceiling accessory
