1
Appearance
2
Enrollment
Note: The enrollment progress will be completed in 3 to 10 seconds normally, and the maximum enrollment duration is 3 minutes.
1
Enroll the Peripheral Locally
1. Log in to the APP Store, download and install Hik-Pro.
2. Power on the security control panel.
3. Log in the APP and tap the icon "+" . Scan the QR code or input the control panel serial No. to add the control panel.
1. In the APP, tap the "Enrollment Mode" button on the control panel page to make the control panel enter the enrollment status.
2. Loosen the screw and remove rear panel.
3. Power on the peripheral, and it will be automatically enrolled to the control panel.
CAUTION
RISK OF EXPLOSION IF BATTERY
IS REPLACED BY AN INCORRECT
TYPE.
REPLACEMENT OF A BATTERY
WITH AN INCORRECT TYPE THAT
CAN DEFEAT A SAFEGUARD.
CAUTION
CHEMICAL BURNING DANGER
DO NOT SWALLOW THE
BATTERY
KEEP NEW AND USED
BATTERIES AWAY FROM THE
CHILDREN.
IF YOU THINK BATTERIES MIGHT
HAVE BEEN SWALLOWED OR
PLACED INSIDE ANY PART OF
THE BODY, SEEK IMMEDIATE
MEDICAL ATTENTION.
CAUTION
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUC-
TIONS AND LOCAL REGULATION.
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
xxxx
Enrollment Mode
CAUTION
IF THE BATTERY COMPARTMENT
DOES NOT CLOSE SECURELY,
STOP USING THE PRODUCT AND
KEEP IT AWAY FROM CHILDREN.
Indicator
Bracket Tamper Port
Battery
Tamper Switch
Power Switch
7 Times
Wireless PIR Detector
DS-PDP15P-EG2-WB/WE
1
1. Check Signal Strength
Enter the signal checking mode by operating on the control panel. Trigger the detector.
Solid Green for 3 s - Strong Signal
Solid Orange for 3 s - Medium Signal
Solid Red for 3 s - Weak Signal
Red light ashes for 3S - Failure
2. Check the installation environment
Note: Hold the tamper button, and make the device power o and then power on for re-enrollment.
3
Installation
2
Enroll the Peripheral with QR and serial No.
1. In the APP, tap the icon "+"and scan the QR code or serial No. on the peripheral.
2. Loosen the screw and remove rear panel.
3. Power on the peripheral, and it will be automatically enrolled to the control panel.
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
HIK-PRO
xxxx
Device
Signal Strength Test
7 Times
2
3. Install the Detector
Note: The additional force shall be equal to three times the weight of the equipment but not less than 50N. The equipment
and its associated mounting means shall remain secure during the installation. After the installation, the equipment,
including any associated mounting plate, shall not be damaged.
with Screws
a. Knock out the screw holes on the rear panel.
with the Sponge Tape
Paste the device on the wall with sponge tape.
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
b. Secure the rear panel on the wall with four screws.
3
Note: Installing with sponge tape is non EN compliant.
Bracket Installation
Ceiling Bracket Fitting (Non EN compliant)
Wall Bracket Fitting
4
Test
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
Detector zones and planes
The zones and plans of the detector are shown below.
10m 12m
1m 2m 4m 6m 8m
10m 12m 15m1m
2.1m
2m 4m 6m 8m
10m
12m
15m
1m
2m
4m
6m
8m
85.9°
(a) Detection Range
52 zones
4 planes
4
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China

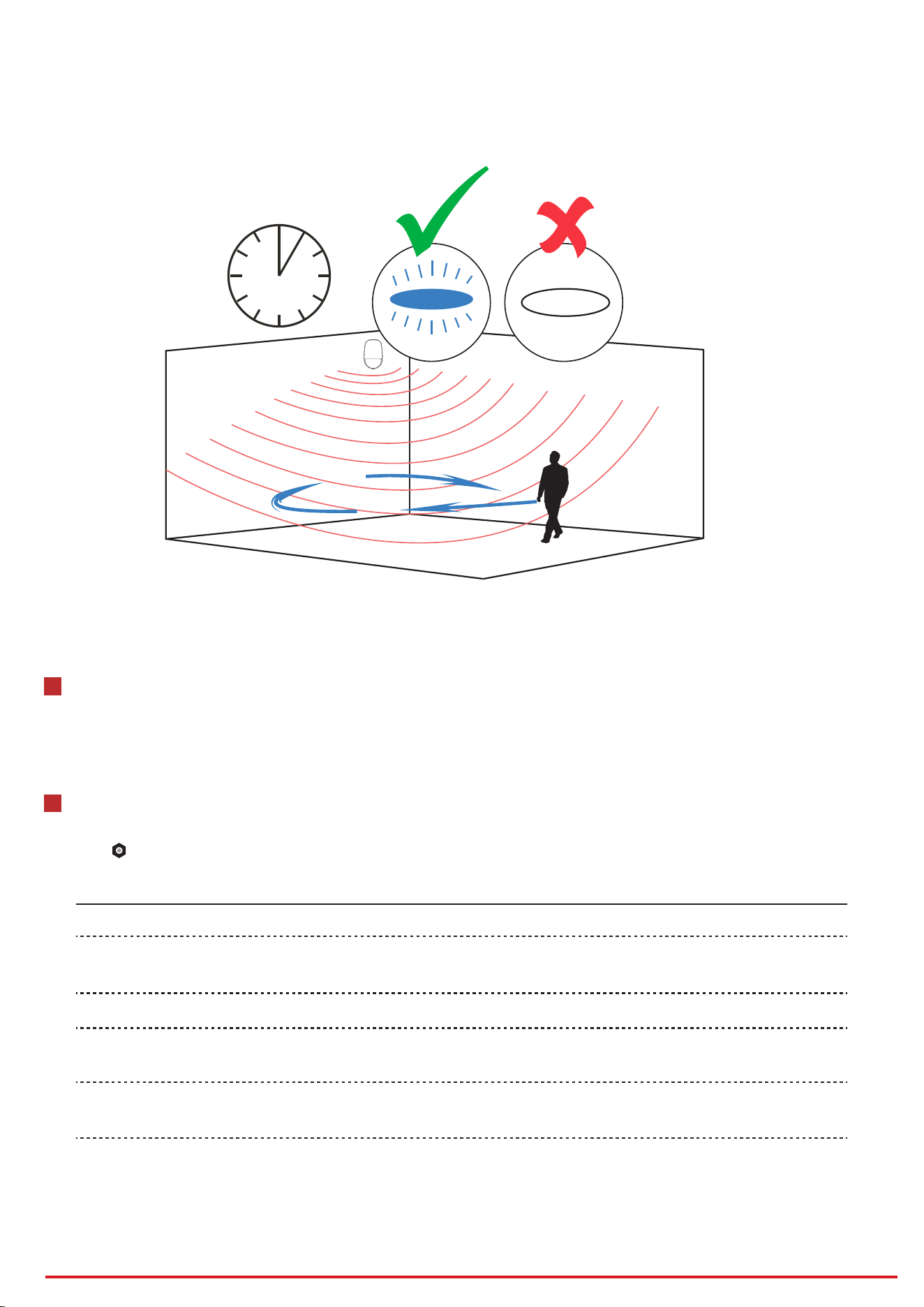

The detector will enter the walk test mode (3 minutes) after being enrolled.
Trigger the detector within the detection range.
If the LED indicator turns blue, the installation position is properly. If the LED indicator is still o, adjust the position of the detector.
3min
5
Formatting
6
Set up with App
Hold the tamper switch for 8 s and power the device on at the same time. The red LED ashes 3 times when the formatting
operation is completed.
5
Function
Zone Type
Stay Arm Bypass
Chime
Enable Silent Zone
Slide to green to enable the chime.
Slide to green to make the zone keep
silent while alarm is triggered.
Select the zone type of the detector.
Description
You can view the device status including temperature, signal intensity, battery level, lid, arming/disarming, etc.,on the device page.
Tap the button to enter the settings page.
Double Knock
Slide to green to make the zone alarm
with double knock.
Cross Zone
Slide to green to bypass the zone from
stay arming.
If the alarm triggered in both of the linked
zones within the set time, two alarm
messages will be reported.
6
Operation Caution and Device Maintenance
- All the electronic operation should be strictly compliance with the electrical safety regulations, re prevention
regulations and other related regulations in your local region.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation.
Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment
damage).
- Please make sure that the power has been disconnected before you wire, install or dismantle the device.
- If smoke, odors or noise rise from the device, turn o the power at once and unplug the power cable, and then
please contact the service center.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation.
Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment
damage).
- Do not place the device in extremely hot (refer to the specication of the device for the detailed operation
temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
- The device for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden
(ignorance can cause re danger).
- Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not
a malfunction however), and aecting the endurance of sensor at the same time.
- Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufactur-
er.
- Do not expose the device to the corrosive gas. Otherwise the equipment damage may occur.
- Do not expose the device to the explosive situation.
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
6
Function Description
Sensitivity
Set the sensitivity of the detector.
Higher sensitivity makes the intruder easier
to be detected.
Swinger limit activation
Set the limit times of swinger activition .
Trigger Interval, sec
Set the interval of trigger, and the alarm
message will not be repeated within the
time.
LED
Turn On/O the LED.
Polling Rate
Set the interval of heartbeat.
Signal Strength Test
Enter the test mode, and view the LED
indication.
Detection Zone Test
Enter the test mode, and start walk test.
Zone Bypass
By pass the zone.
7
Specication
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
7
Note: when the low voltage message appears there will be at least 30 days of use.
DS-PDP15P-EG2-WB/WE
Detection Method Passive Infrared
Sensor Model SFG321-711
Detection Range 15m( 12 metre EN compliant)
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3～2m/s
Sensitivity Auto,High,Pet
Pet Immunity 30Kg
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone Protection Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front,Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Power Switch Power Up Enrolling
LED Indicator Blue(Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 433MHz/868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.2Km(433MHz)/1.6Km(868MHz)
Frequency Hopping Support
Enrolling Method Power up,Remote ID,QR Code
Power Supply Battery Powered
Battery Type
Lithium Battery CR123A x 1 (included), 3VDV/1600mAh
Typical Voltage 3V
Low Voltage Value 2.45 V
Consumption
Max. current: 60mA
Quiescent current: 32uA (disarmed), 12uA (armed)
PS Type Type C
Standard Battery Life 5 Years
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimension(WxHxD) 65.5mm × 103mm × 48.5mm
Weight 128g
Mounting Height 1.8 to 2.4m
Mounting Method Wall
Application Scenario Indoor
Bracket Optional Wall & Ceiling Accessory
Transmission
Electrical Characteristics
General
Model
Detection Performance
Feature
Interface
