FAST LOCK TIE DOWN SYSTEM
MODEL NO: SPL01
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! The warnings, cautions and instructions referred to in this manual cannot cover all possible conditions and situations
that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator. It is the operator’s responsibility to secure the load. Check with vehicle manufacturer’s Manual
before installing.
WARNING! Before use, ensure that there is nothing attached to the front forks or the fairing of the motorcycle that will foul the unit.
9 Proper use and installation of this product is critical to safety. Improper use may result in personal or property damage which is not
covered by the warranty.
9 Proper care and maintenance of the unit is critical to safety.
9 Keep the unit clean for the best and safest performance.
9 Maintain correct balance and footing whilst positioning the motorcycle in the unit.
9 Ensure that the floor is not slippery and wear non-slip shoes.
9 Ensure that the motorcycle is adequately secured to the unit if to be used for transportation purposes.
9 Keep children and unauthorised persons away from work area.
9 Inspect unit before each use. Check fasteners for tightness, replace any worn or damaged parts.
9 Before removing a motorcycle from the unit, ensure that there are no obstructions or persons in the path of the motorcycle.
8 DO NOT attempt to use a unit that is damaged in any way.
8 DO NOT modify the unit in any way.
8 DO NOT use the unit for a purpose it is not designed to perform.
8 DO NOT operate the unit if it is damaged.
8 DO NOT use the unit when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT allow untrained persons to use the unit.
2. INTRODUCTION
Securely holds your motocross bike on to a trailer or van, with the Fast Lock system, no ratchet straps or wheel chock required.
Provided with mounting plates and quick release latches, allowing for fast installation and removal of the clamp, freeing your vehicle
forotheruses.EachmountingplatehasaD-ringcreatingadditionalanchorpointstothetraileroor.
3. SPECIFICATION
Model No: ............................................................ SPL01
Foot peg width from tip to tip:18”-20” (455mm-510mm), foot peg height: 15”-17.5” (380mm-445mm)).
TheSPL01isdesignedtot125-500ccbikeswithsimilargeometry(Footpegwidthfromtiptotip:18“-20”(455mm-510mm),foot
peg height: 12.5”-14.75” (320mm-375mm)). NOTE: Often trail bikes WITHOUT a folding shift lever will not t.
SPL01 Issue 1 12/12/22
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
4. INSTALLATION
4.1. INSTALLATION FOR TRANSPORTATION
4.1.1. When used for the transport of motorcycles, the base must be firmly bolted to the floor of a trailer or van.
4.1.2. If mounting to a trailer or other vehicle, ensure that the floor is strong enough to take the weight of the motorcycle/s plus the tie downs.
4.1.3. The tie down is secured to the base by means of the four wing bolts and spring washers. When using the chock for
transportation purposes, the front wheel of the motorcycle must be securely strapped to the tie down utilising the strap gap.
4.1.4. For additional security, consideration should also be given to securing the rear wheel as well.
5. OPERATION

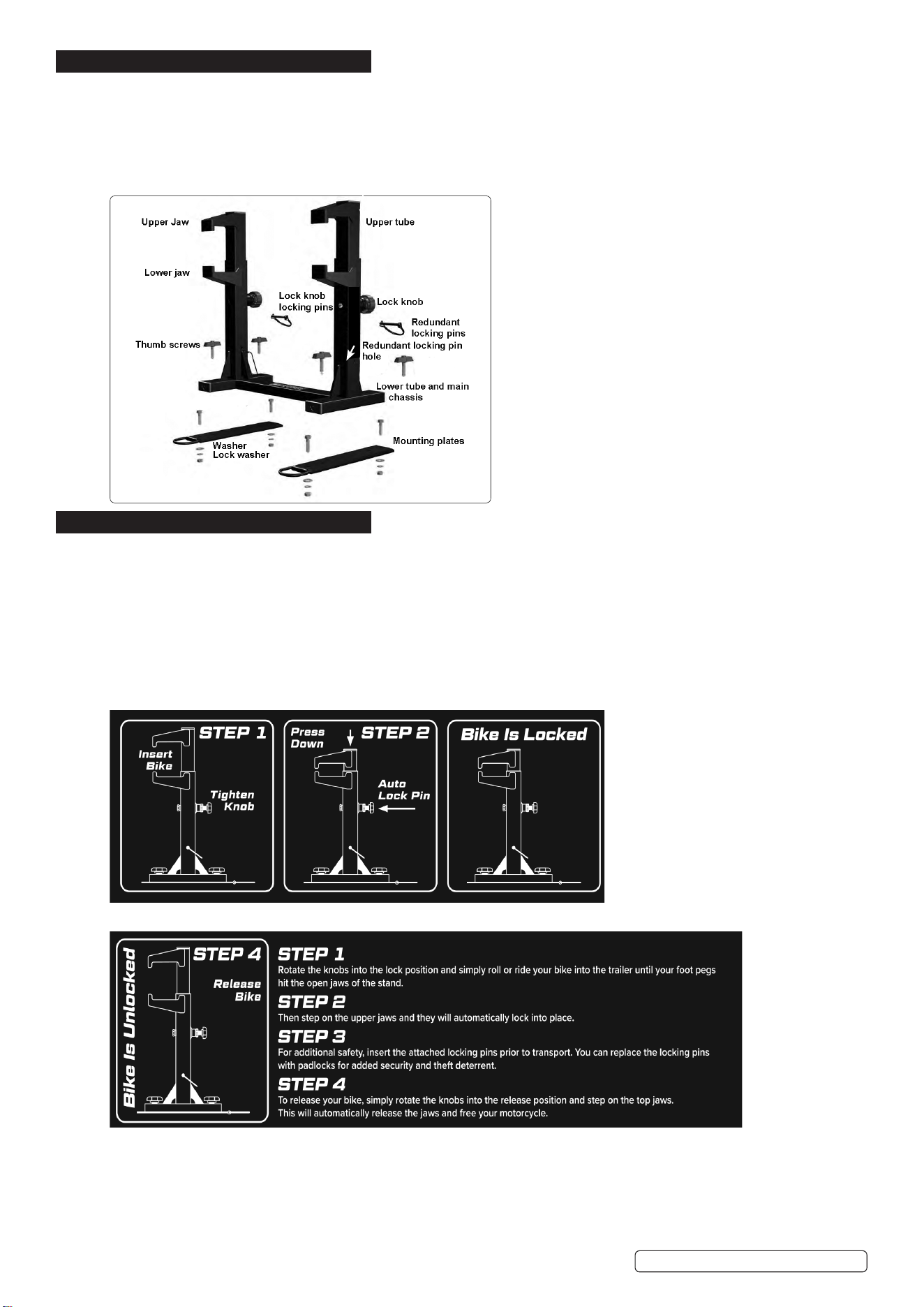

5.1. To operate the unit, rotate the knobs into the lock position and simply roll or ride your bike into the trailer until your foot pegs hit the
open jaws of the SPL01.
5.2. Press down on the upper jaws and they will automatically lock into place.
5.3. Tighten the locking knob
5.4. To release your bike, simply rotate the knobs into the release position and step on the top jaws. This will automatically release the jaws
and free your motorcycle.
5.5. For additional safety, insert the attached locking pins prior to transport. You can replace the locking pins with padlocks for added
security and a theft deterrent.
SPL01 Issue 1 12/12/22
Original Language Version
© Jack Sealey Limited
6. MAINTENANCE
6.1. When the jaws are not in use, leave it in the open position.
6.2. Keep the jaws clean and wipe off any oil or grease.
6.3. Before each use check all parts. If any part of the tie down is damaged or defective, remove the tie down from service and take the
necessary action to remedy the problem.
SPL01 Issue 1 12/12/22
Original Language Version
© Jack Sealey Limited
