3/8”SQ DRIVE POWER SPEED RATCHET
1/2”SQ DRIVE POWER SPEED RATCHET
MODEL NO’S: SPR001, SPR002
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
USE ONLY THE SUPPLIED MAINS CHARGER PLUG FOR CONNECTING TO THE MAINS POWER SUPPLY.
WARNING! It is the user’s responsibility to read, understand and comply with the following electrical instructions:
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices. An RCCB (Residual Current
Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD (Residual Current Device) is
used with all electrical products, particularly portable equipment which is plugged into an electrical supply not protected by an RCCB.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT).
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and
thesafetyoftheapplianceoperator.Ifinanydoubtaboutelectricalsafety,contactaqualiedelectrician.
Inspect the charger plug, cable and connector for wear and damage to ensure items are safe before connecting to the mains power
supply. If worn or damaged DO NOT use.
9 Check cables are always protected against short circuit and overload.
9 Important: Uncoil the cable between charger and the floodlight.
8 DO NOT pull the charger plug from the mains socket by the lead.
8 DO NOT use any other type of charger with this product.
8 DO NOT try to take the charger plug apart.
8 DO NOT use the charger plug to charge or power any other electrical item.
8 DO NOT get the charger wet, or use in wet, damp conditions (for indoor use only).
WARNING! NEVER substitute a standard 13Amp 3 pin plug, or any other type of plug, for the charger plug.
1.2. BATTERY CHARGER SAFETY INSTRUCTIONS
WARNING! DO NOT use the charging base to charge any battery other than that required for the tool. Other types of batteries may
explode!
9 Inspect the plug, cable and the charging base for wear and damage to ensure items are safe before connecting to the mains power
supply. If worn or damaged DO NOTuse,immediatelyreplace,orcontactaqualiedelectrician.
9 Check cables are always protected against short circuit and overload.
9 Uncoil the power cable between the plug and the charging base before use.
8 DO NOT pull or carry the charging base by the charger power lead, or pull the plug from the mains socket by the power lead.
8 DO NOT use any other type of transformer with the charging base.
8 DO NOT try to open or dis-assemble the plug or charging base.
8 DO NOT use the plug to power any other electrical item.
9 Disconnect the charging base from the mains power supply when not in use.
8 DO NOT expose the charging base to damp or wet conditions (for indoor use only).
8 DO NOT operate the charging base if it has been dropped, or has received a sharp knock, or is damaged. Contact an authorised
service agent.
8 DO NOT dismantle the charging base as this may cause damage or personal injury and will invalidate your warranty.
8 DO NOT insert foreign objects or material into the slot reserved for the battery.
8 DO NOT immediately charge a second battery. Consecutive charging will overheat the charging base. Allow the unit to cool for 15
minutes before charging the next battery.
9 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9 Ensure that cables are always protected against short circuit and overload.
8 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item replaced by a qualified electrician.
1.3. BATTERY SAFETY PRECAUTIONS
WARNING!BatterycontainsLithium-ionwhichisdangerous.Handlewithcaretoavoiddamage,re,corrosionorpersonalinjury.
9 Chargebatterypriortoitsrstuse.Thebatterywillhavebeenshippedinalowchargestatetoreducetheriskofburnsorre.
8 DO NOT Attempt to open, disassemble, modify or service the battery pack.
8 DO NOTCrush,puncture,shortexternalcontactsordisposeofinreorwater.
8 DO NOT Expose to temperatures above 40°C (104°F).
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
SPR001, SPR002 Issue 2(1) 27/04/21
9 Replace only with the battery pack designated for this product.
9 Use only the supplied charging base provided to charge the battery.
8 DO NOT attempt recharging the battery by means of an engine generator or a DC power source.
WARNING! Dispose of spent batteries correctly as they contain Lithium-ion. DANGER! DO NOT attempt to disassemble the
battery. For safety and environmental reasons DO NOT discard in domestic waste or by burning. ONLY discard or recycle
according to local authority regulations.
WARNING! DO NOT allow a leaking battery to contact your person.
1.4. GENERAL SAFETY
9 Maintain the Ratchet Wrench and battery in good condition. Check moving parts alignment on a regular basis.
9 Replace or repair damaged parts. Use an authorised service agent and recommended parts only. Unauthorised parts may be
dangerous and will invalidate the warranty.
9 EnsuretheRatchetWrenchisswitchedobeforeinstallingthebatterypack.
9 Keep the Ratchet Wrench and charger clean for best and safest performance.
9 Removeillttingclothing.Removeties,watches,ringsandotherloosejewelleryandcontainlonghair.
9 EvaluateyourworkingareabeforeusingtheRatchetWrench;e.g.ceilings,oorsandenclosuresmaycontainelectricalitemsor
water piping.
9 Ensure battery pack is correctly inserted into the Ratchet Wrench handle and latched in place before attempting to switch on
Ratchet Wrench.
9 Secure loose work pieces with a clamp, vice or other adequate holding device.
9 Avoid unintentional starting.
9 Wear approved safety eye protection (standard spectacles are not adequate).
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-skid shoes.
9 Keep children and unauthorised persons away from the working area.
8 DO NOTusetheRatchetWrenchwherethereareammableliquids,solidsorgases,suchaspaintsolvents,etc.
8 DO NOT allow children to operate the Ratchet Wrench.
8 DO NOT operate the Ratchet Wrench if any parts are missing as this may cause failure and/or personal injury.
8 DO NOT hold unsecured work piece in your hand.
8 DO NOT leave the Ratchet Wrench operating unattended.
8 DO NOT carry the Ratchet Wrench with your finger on the power switch. Keep switch lock in the locked position.
8 DO NOT use the Ratchet Wrench for a task it is not designed to perform.
8 DO NOT operate the Ratchet Wrench when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT get the Ratchet Wrench or battery charger wet or use in damp or wet locations.
2. INTRODUCTION
TheSealeySpeedRatchetcombinesthehightorqueofatraditionalhandratchetwiththefastereciencyofanelectricpowertool,providing
working speeds 10-20 times quicker when tightening/loosening fasteners. No load speed 200rpm saving the time and fatigue of a traditional
hand ratchet wrench. The clutch mechanism is designed so that when the maximum torque is reached (1Nm/0.74ft/lb) a tactile vibration
indicates to change over to manual mode for continued tightening or loosening of fasteners. Includes a rechargeable lithium-ion battery, full
recharge in just 45 minutes and is fully protected from over-charge, over-discharge or over-heating. Ultra smooth 60-tooth ratchet action,
twist-reverse and quick release with spring-ball socket retention, power button with LED indicator and locking switch. Fitted with a contoured,
soft grip handle. Supplied with AC adaptor, charging base and storage case.
3. SPECIFICATION
Model no ..................................................................SPR001
Battery ..................................................3.6V 2000mAh Li-ion
Drive ........................................................................... 3/8”sq.
Max. torque .......................... 244Nm (manual) 1Nm (electric)
Overall length ............................................................. 295mm
Model no ...................................................................SPR002
Battery ..................................................3.6V 2000mAh Li-ion
Drive ........................................................................... 1/2”sq.
Max. torque .......................... 610Nm (manual) 1Nm (electric)
Overall length ............................................................. 315mm
4. OPERATION
WARNING: Remove battery before maintenance is carried out.
NOTE: When new, the batteries may have been shipped in a low charge state. Fully charge the batteries before using your tool.
4.1. Ensure that you have read, understood and comply with all the safety instructions in Section 1.
4.2. BATTERY CHARGER
4.2.1. To remove the battery from the equipment, depress the spring loaded tabs on the sides of the battery. Remove the battery by
sliding it out. DO NOT touch the battery terminals.
4.2.2. Thebatteryisdesignedtotintothechargeronewayonly.Insertthebatteryfullyandrmlytoseatthebatteryintothecharging
base.
4.2.3. Take the base charger and plug it into the mains, switch on the power and the red LED on the charger will illuminate.
4.2.4. The battery has 3 LED charge level indicators that show full or partial charges levels.
4.2.5. WhenthebatteryisonchargetheredLEDonthechargerwillashintermittently.
4.2.6. When the green LED on the charger illuminates permanently the battery is fully charged.
4.2.7. When both green and red LEDs flash the battery is not charging. Replace battery.
4.2.8. Remove the battery from the charger. Switch off and remove the plug from the mains.
4.2.9. Relocate battery into tool ensuring correct alignment. DO NOT force the battery in.
Original Language Version
© Jack Sealey Limited
SPR001, SPR002 Issue 2(1) 27/04/21
4.3. RATCHET
4.3.1. Attachtherequiredsockettothetoolandsetthedirectionofrotationaccordingtothetaskbeingundertaken(g.1).
4.3.2. Theratchetcanbeusedinbothpoweredandmanualmodes.Whentheswitchlockispushedbackwardsintothehandle,theon/o
switch is disabled and the ratchet can be used in manual mode.
NOTE: The motor has over-torque protection in which a clutch mechanism activates a tactile vibrating response in the unit. This alerts
the user to switch to manual mode (i.e. push switch lock rearwards).
4.3.3. Thebatterystate,whilstinuse,isindicatedbythebatterylevelindicator(g.1andthetableabove).
5. MAINTENANCE
WARNING: Always disconnect the battery before carrying out any inspection, maintenance or cleaning.
5.1. GENERAL INSPECTION
5.1.1. Regularly check that all features are in working order.
5.1.2. CLEANING
WARNING: Always wear protective equipment including eye protection and gloves when cleaning this tool.
5.1.3. Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly and shorten the device’s service life.
5.1.4. Clean the body of your machine with a soft brush, or dry cloth.
5.1.5. Neverusecausticagentstocleanplasticparts.Ifdrycleaningisnotsucient,amilddetergentonadampclothisrecommended.
5.1.6. Water must never come into contact with the tool. Ensure the tool is thoroughly dry before using it.
5.1.7. If available, use clean, dry compressed air to blow through the ventilation holes (where applicable).
5.2. LUBRICATION
5.2.1. Lightly lubricate all moving parts at regular intervals with a suitable lubricant.
5.3. STORAGE
5.3.1. Store this tool carefully in a secure, dry place out of the reach of children.

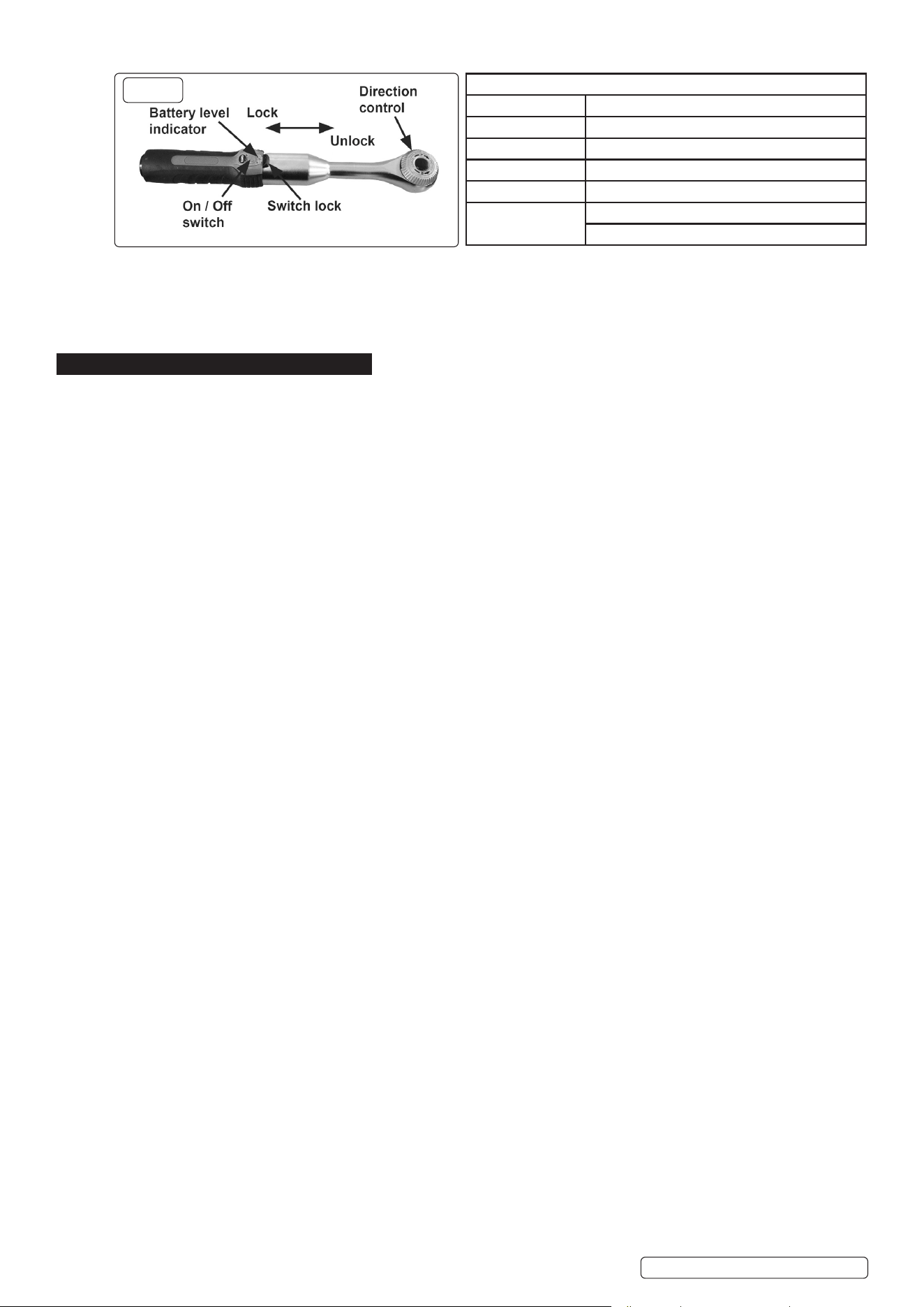

g.1
Battery level indicator light
Continuous green Power status normal, battery 50 - 100%
Continuous blue Power status normal, battery 20 - 50%
Flashing blue Charging required, battery at 5 - 20%
Continuous red Charging required, battery <5%
Flashing red Overcurrentprotectionactive.Autoshuto
Flashing green Overtemp.protectionactive.Autoshuto
Battery pack temp. exceeded discharge rate.
Original Language Version
© Jack Sealey Limited
SPR001, SPR002 Issue 2(1) 27/04/21
WARNING! – Risk of Hand Arm Vibration Injury.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
Measured vibration emission value (a): ...........1.263 m/s²
Uncertainty value (k): ..........................0.618 m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a
specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration
Syndrome.
Health surveillance.
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can be modified
accordingly.
Personal protective equipment.
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and dry and
maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and
Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on the HSC website
www.hse.gov.uk - Hand-Arm Vibration at Work.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
BATTERY REMOVAL
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack
Sealey Ltd’s Batteries Producer Registration Number (BPRN) is BPRN00705.
Parts support is available for these products. Please email sales@sealey.co.uk or telephone 01284 757500
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Original Language Version
© Jack Sealey Limited
SPR001, SPR002 Issue 2(1) 27/04/21
