Legal Considerations
Liability
Every care has been taken in the preparation of this
document. Please inform your local Axis ofce of any
inaccuracies or omissions. Axis Communications AB cannot
be held responsible for any technical or typographical errors
and reserves the right to make changes to the product and
manuals without prior notice. Axis Communications AB
makes no warranty of any kind with regard to the material
contained within this document, including, but not limited
to, the implied warranties of merchantability and tness for
a particular purpose. Axis Communications AB shall not
be liable nor responsible for incidental or consequential
damages in connection with the furnishing, performance
or use of this material. This product is only to be used for
its intended purpose.
Intellectual Property Rights
Axis AB has intellectual property rights relating to
technology embodied in the product described in this
document. In particular, and without limitation, these
intellectual property rights may include one or more of
the patents listed at www.axis.com/patent.htm and one or
more additional patents or pending patent applications in
the US and other countries.
Equipment Modications
This equipment must be installed and used in
strict accordance with the instructions given in the
user documentation. This equipment contains no
user-serviceable components. Unauthorized equipment
changes or modications will invalidate all applicable
regulatory certications and approvals.
Trademark Acknowledgments
AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX
are registered trademarks or trademark applications of Axis
AB in various jurisdictions. All other company names and
products are trademarks or registered trademarks of their
respective companies.
Regulatory Information
Europe
This product complies with the applicable CE marking
directives and harmonized standards:
• Electromagnetic Compatibility (EMC) Directive
2014/30/EU. See Electromagnetic Compatibility (EMC)
on page 2 .
• Low Voltage (LVD) Directive 2014/35/EU. See Safety
on page 2 .
• Restrictions of Hazardous Substances (RoHS) Directive
2011/65/EU. See Disposal and Recycling on page 3 .
A copy of the original declaration of conformity may be
obtained from Axis Communications AB. See Contact
Information on page 3 .
Electromagnetic Compatibility (EMC)
This equipment has been designed and tested to fulll
applicable standards for:
• Radio frequency emission when installed according to
the instructions and used in its intended environment.
• Immunity to electrical and electromagnetic phenomena
when installed according to the instructions and used
in its intended environment.
USA
This equipment has been tested using a shielded network
cable (STP) and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
The product shall be connected using a shielded network
cable (STP) that is properly grounded.
Canada
This digital apparatus complies with CAN ICES-3 (Class B).
The product shall be connected using a shielded network
cable (STP) that is properly grounded. Cet appareil
numérique est conforme à la norme CAN NMB-3 (classe B).
Le produit doit être connecté à l'aide d'un câble réseau
blindé (STP) qui est correctement mis à la terre.
Europe
This digital equipment fullls the requirements for RF
emission according to the Class B limit of EN 55022. The
product shall be connected using a shielded network cable
(STP) that is properly grounded.
This product fullls the requirements for immunity
according to EN 61000-6-1 residential, commercial and
light-industrial environments.
This product fullls the requirements for immunity
according to EN 61000-6-2 industrial environments.
This product fullls the requirements for immunity
according to EN 55024 ofce and commercial
environments.
This product fullls the requirements for immunity
according to EN 50130-4 residential, commercial,
light-industrial and industrial environments.
Australia/New Zealand
This digital equipment fullls the requirements for RF
emission according to the Class B limit of AS/NZS CISPR 22.
The product shall be connected using a shielded network
cable (STP) that is properly grounded.
Japan
この装置は、クラスB情報技術装置です。この装置
は、家庭環境で使⽤することを⽬的としています
が、この装置がラジオやテレビジョン受信機に近
接して使⽤されると、受信障害を引き起こすこと
があります。取扱説明書に従って正しい取り扱い
をして下さい。本製品は、シールドネットワーク
ケーブル(STP)を使⽤して接続してください。また
適切に接地してください。
Safety
This product complies with IEC/EN/UL 60950-1 and
IEC/EN/UL 60950-22, Safety of Information Technology

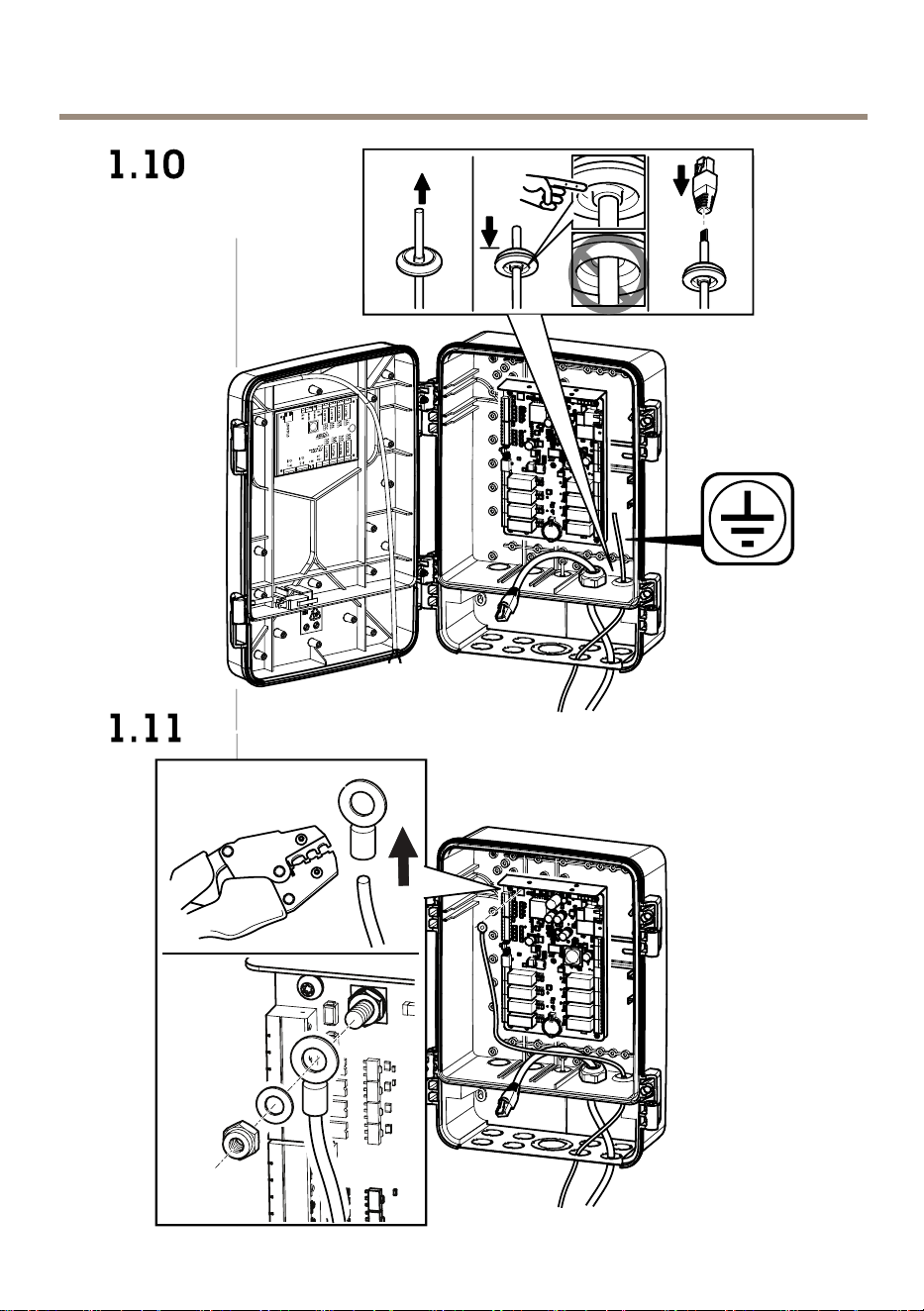

Equipment. The product shall be grounded either through a
shielded network cable (STP) or other appropriate method.
Disposal and Recycling
When this product has reached the end of its useful life,
dispose of it according to local laws and regulations. For
information about your nearest designated collection point,
contact your local authority responsible for waste disposal.
In accordance with local legislation, penalties may be
applicable for incorrect disposal of this waste.
Europe
This symbol means that the product shall not be
disposed of together with household or commercial waste.
Directive 2012/19/EU on waste electrical and electronic
equipment (WEEE) is applicable in the European Union
member states. To prevent potential harm to human health
and the environment, the product must be disposed of in
an approved and environmentally safe recycling process.
For information about your nearest designated collection
point, contact your local authority responsible for waste
disposal. Businesses should contact the product supplier for
information about how to dispose of this product correctly.
This product complies with the requirements of
Directive 2011/65/EU on the restriction of the use of
certain hazardous substances in electrical and electronic
equipment (RoHS).
China
This product complies with the requirements of the
legislative act Administration on the Control of Pollution
Caused by Electronic Information Products (ACPEIP).
Contact Information
Axis Communications AB
Emdalavägen 14
223 69 Lund
Sweden
Tel: +46 46 272 18 00
Fax: +46 46 13 61 30
www.axis.com
Support
Learn More!
Visit Axis learning center www.axis.com/academy/ for
useful trainings, webinars, tutorials and guides.
Requirements for Compliance with UL294 6th Edition
This section contains information and instructions required
for UL compliance. To make sure the installation is UL
compliant, follow the instructions below in addition to the
general information and instructions provided throughout
this document. In cases where pieces of information
contradict each other, the requirements for UL compliance
always replace general information and instructions.
Safety Instructions
• The Axis product shall be installed and serviced by a
factory trained professional.
• The Axis product shall be installed within the protected
premises (secured area).
• The Axis product shall be mounted indoors. Outdoor
use has not been evaluated or approved by UL.
• All interconnecting devices shall be UL Listed and Class
2 low-voltage power limited.
• All wiring methods shall be performed in accordance
with NFPA70, local codes and authorities having
jurisdiction.
• When the Axis product has reached the end of its
useful life, dispose of it according to local laws and
regulations. The product should not be disposed of
together with household or commercial waste. See
Disposal and Recycling on page 3 .
• Battery
- The 3.0 V lithium battery used by
the Axis product is a UL Recognized
component. (Type: BR2032,
diameter: 20 mm (0.78 in),
manufacturers: Rayovac,
Panasonic). The following battery
type is also a UL Recognized
component: Type CR2032,
manufacturers: Fuji, Maxell,
Renata, Varta, Panasonic, JHIH
- Users shall not replace the battery.
If the battery needs replacing, a
factory trained service professional
shall contact Axis support
at www.axis.com/techsup for
assistance.
- Used batteries shall be disposed
of according to local laws and
regulations, which may vary from
state to state. Waste BR/CR
lithium cells are neither listed
nor exempted from the USEPA
hazardous waste regulations. Waste
lithium batteries can be considered
reactive hazardous waste if there is
a signicant amount of unreacted,
or unconsumed lithium remaining.
For information about how to
dispose of used lithium batteries,
contact your local authority for
waste disposal.
Specications
• Operating Conditions
- Classication IEC 60721-4-3 Class
3M3
- Temperatures
0 °C to 50°C (32 °F to 122 °F).
- Humidity 20–85% RH (non-
condensing)
• Wire area
- UL Listed or R/C AWM wires that
have an conductor gauge range of
AWG 22–14 shall be used.
- The minimum conductor gauge for
connection between the power
sourcing equipment (PSE) or power
injector and the powered device
(PD) is 26 AWG.

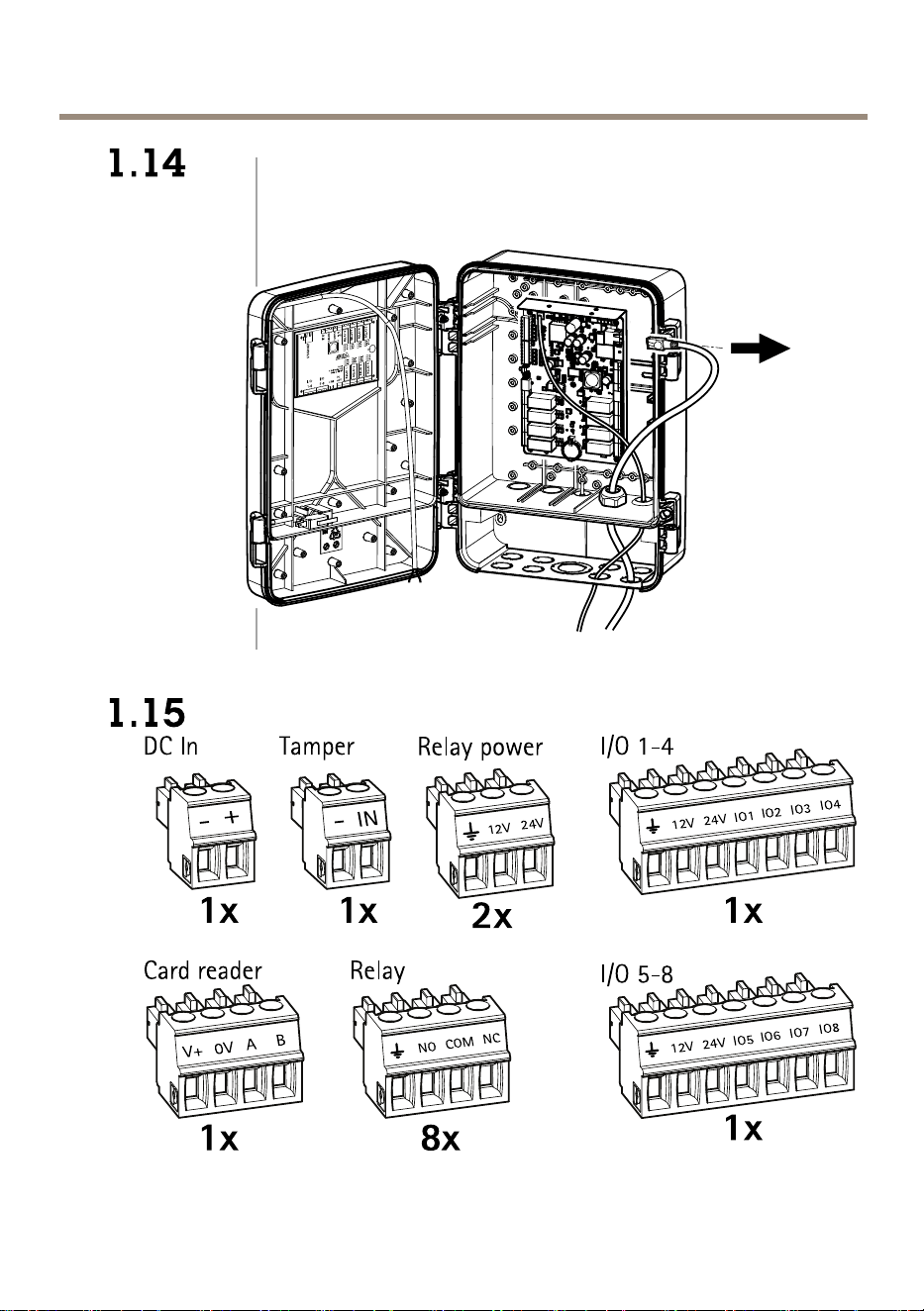

• Connectors
- This product is not intended for
outside wiring as covered by Article
800 in the National Electrical Code,
NFPA 70.
- Power Connector – For UL security
applications, the product shall be
powered by a UL 294 Listed or
UL 603 Listed Class 2 low-voltage
power SELV and limited power
supply that is capable of 4 hours of
standby power.

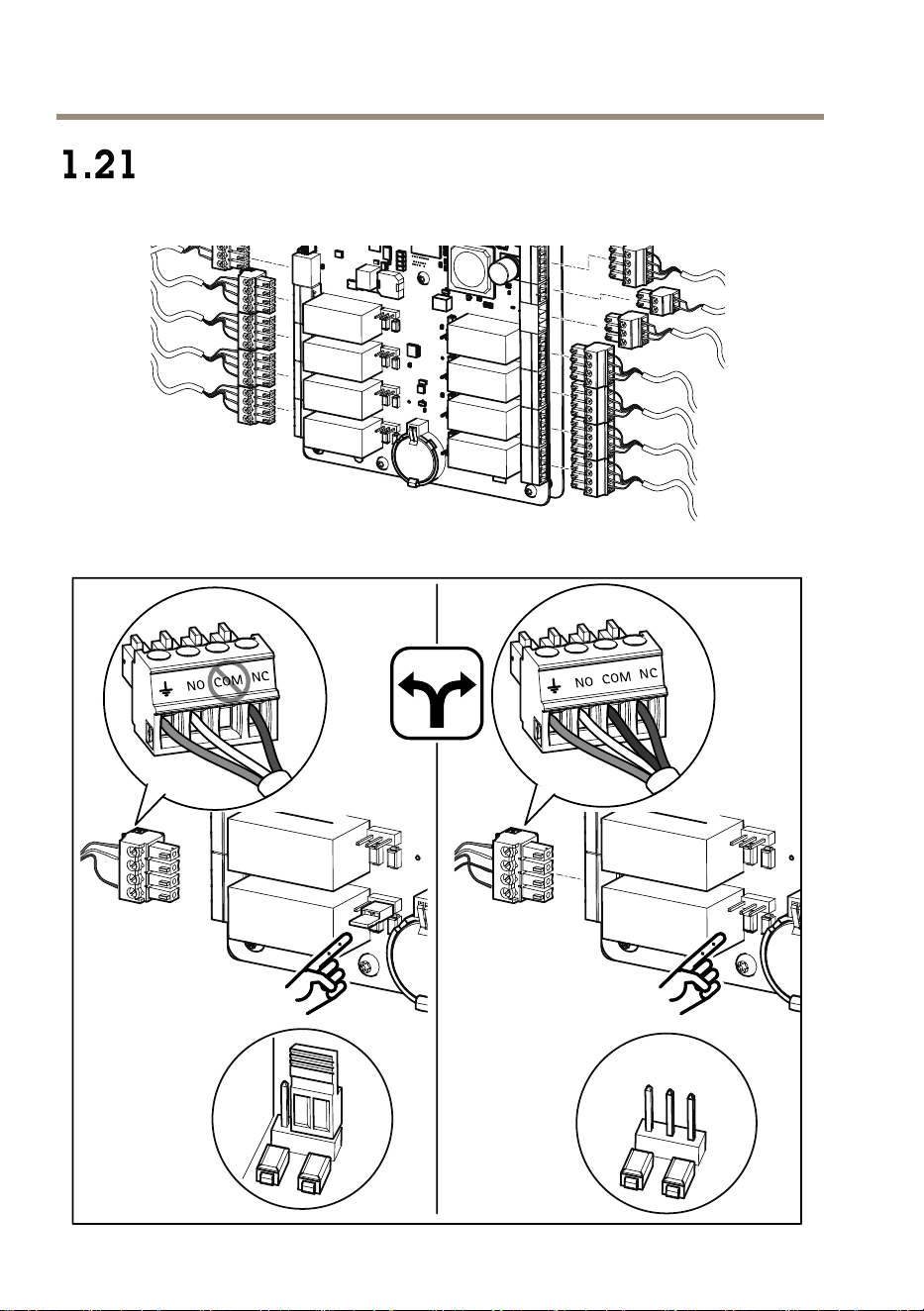

- External power to relays - If the
relays are connected to an external
power source this must be UL 294
Listed or UL 603 Listed Class 2
low-voltage power SELV and limited
power supply that is capable of 4
hours of standby power.
- Network Connector – Power over
Ethernet (PoE) shall be supplied by a
UL 294 Listed Power over Ethernet
IEEE 802.3af/802.3at Type 1 Class
3 or Power over Ethernet Plus
(PoE+) IEEE 802.3at Type 2 Class 4
power limited injector that provides
44–57 V DC, 15.4 W / 30 W and 4
hours of standby power.
- Compliance with IEEE 802.3 (at or
af) specications is not veried as
part of UL 294B.

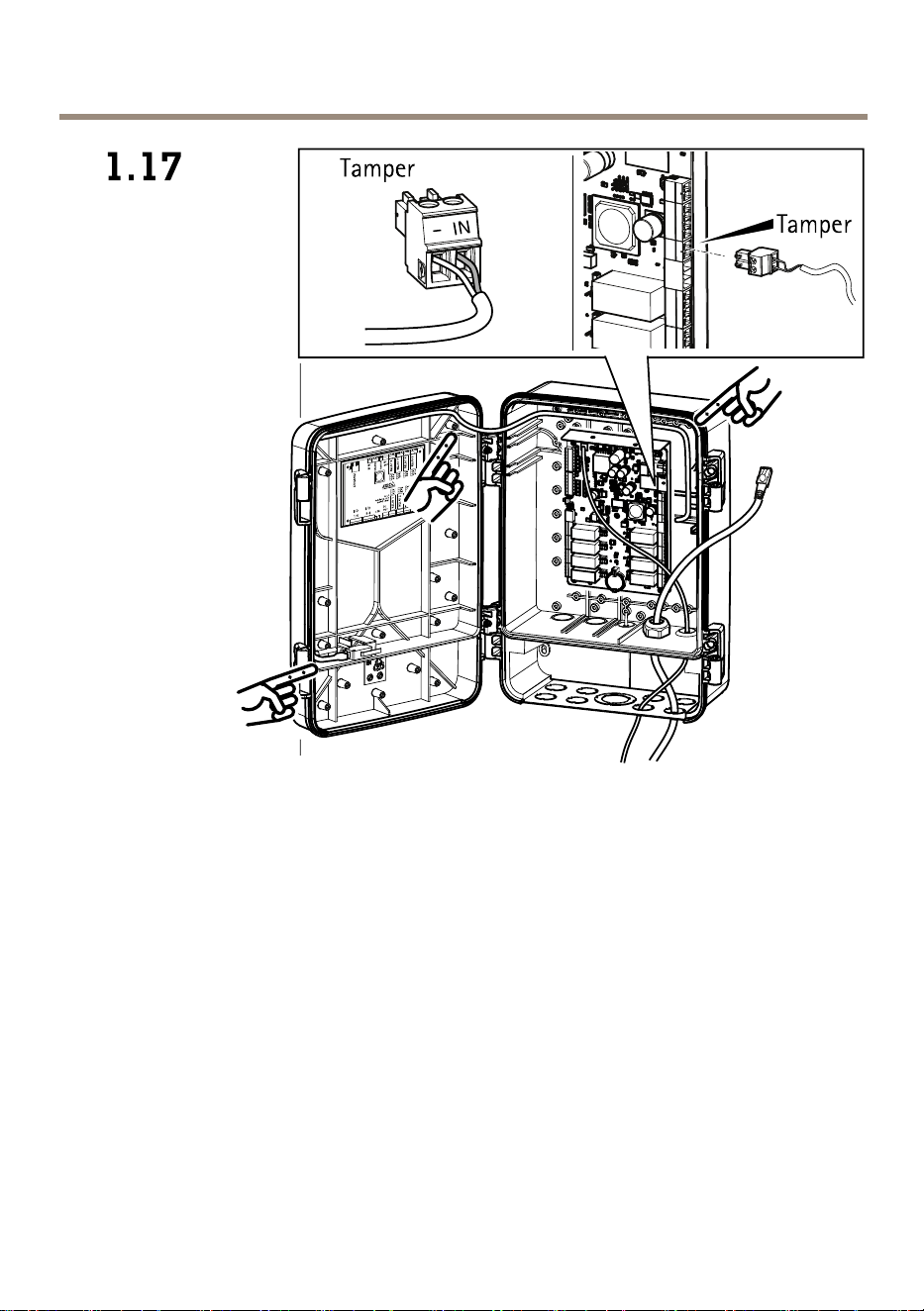

- Tampering Alarm Pin
Header – To comply with
UL 294/7.2.1 (Enclosure), the
tampering alarm shall be connected
to a sound alarm.
• System Considerations
- The Axis product shall not impair
the intended operation of the panic
hardware used in conjunction with
it.

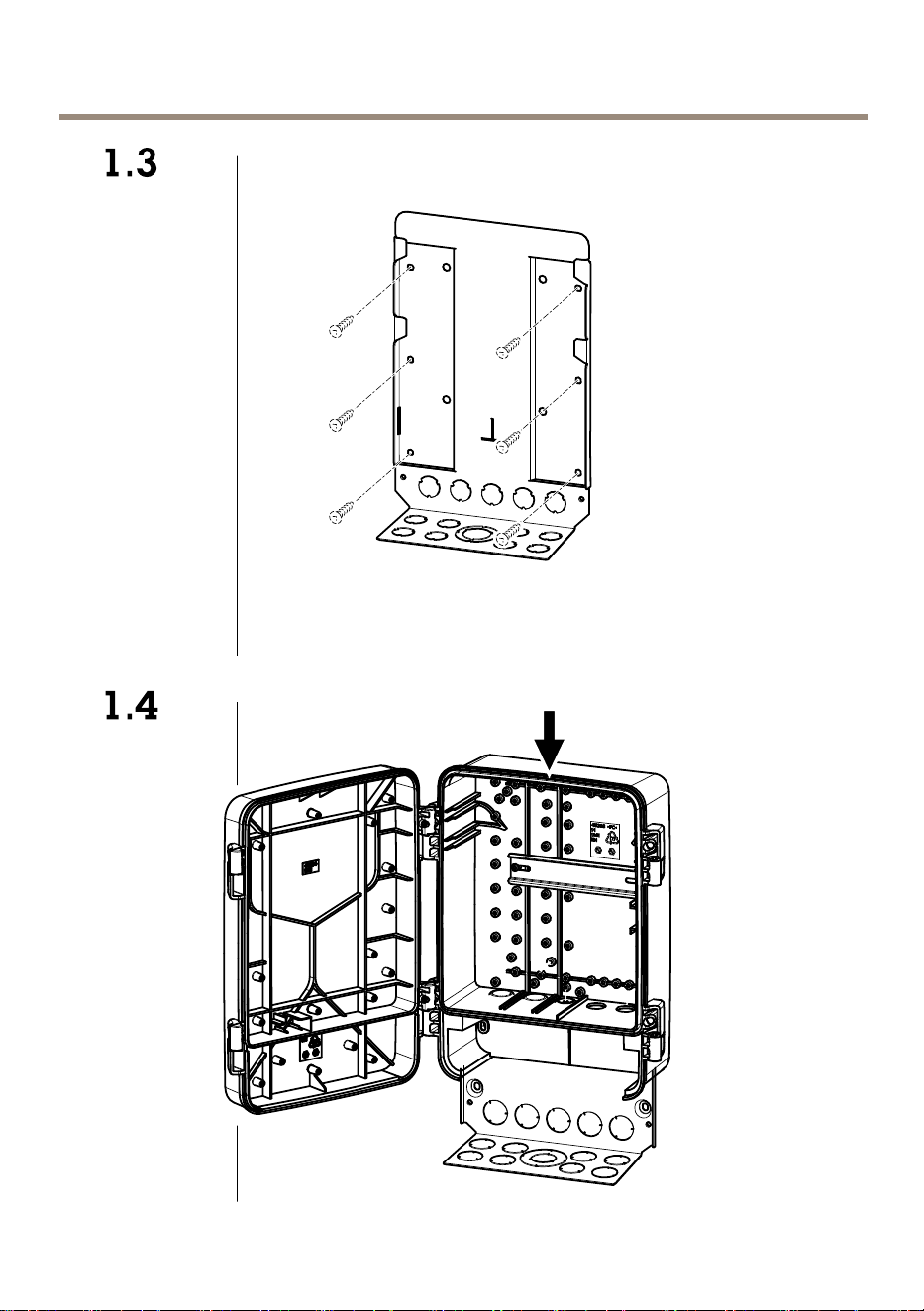

• Wall and Ceiling Mount
- If using a junction box to mount the
Axis product, the junction box shall
be UL Listed.
• Assign an IP Address
- The functionality of AXIS Camera
Management has not been
evaluated by UL.
• Maintenance Instructions
- For maintenance instructions and
for information about how to
congure the Axis product, see the
User Manual.
• Further Information
- Firmware version: Network I/O
Relay Module, Model A9188-VE -
1.0
English
Safety Information
Read through this Installation Guide carefully before
installing the product. Keep the Installation Guide for
future reference.
Hazard Levels
DANGER
Indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NONO
NO
TICETICE
TICE
Indicates a situation which, if not avoided, could result in
damage to property.
Other Message Levels
Important
Indicates signicant information which is essential for the
product to function correctly.
Note
Indicates useful information which helps in getting the
most out of the product.
Safety Instructions
WARNING
• The Axis product shall be installed by a trained
professional.
NONO
NO
TICETICE
TICE
• The Axis product shall be used in compliance with local
laws and regulations.
• To use the Axis product outdoors, or in similar
environments, it shall be installed in an approved
outdoor housing.
• Store the Axis product in a dry and ventilated
environment.
• Avoid exposing the Axis product to shocks or heavy
pressure.
• Do not install the product on unstable poles, brackets,
surfaces or walls.
• Use only applicable tools when installing the Axis
product. Using excessive force with power tools could
cause damage to the product.
• Do not use chemicals, caustic agents, or aerosol cleaners.
• Use a clean cloth dampened with pure water for
cleaning.
• Use only accessories that comply with the technical
specication of the product. These can be provided by
Axis or a third party.
• Use only spare parts provided by or recommended by
Axis.
• Do not attempt to repair the product yourself. Contact
Axis support or your Axis reseller for service matters.
• The power supply shall be plugged in to a socket outlet
installed near the product and shall be easily accessible.
Transportation
NONO
NO
TICETICE
TICE
• When transporting the Axis product, use the original
packaging or equivalent to prevent damage to the
product.
Battery
Lithium coin cell 3.0 V batteries contain
1,2-dimethoxyethane; ethylene glycol dimethyl
ether (EGDME), CAS no. 110-71-4.
WARNING
• Risk of explosion if the battery is incorrectly replaced.
• Replace only with an identical battery or a battery which
is recommended by Axis.
• Dispose of used batteries according to local regulations
or the battery manufacturer's instructions.
Français
Informations sur la sécurité
Lisez attentivement ce guide d'installation avant d'installer
l'appareil. Conservez le guide d'installation pour toute
référence ultérieure.
Niveaux de risques
DANGER
Indique une situation dangereuse qui, si elle n'est pas
évitée, entraînera le décès ou des blessures graves.
AVERTISSEMENT
Indique une situation dangereuse qui, si elle n'est pas
évitée, pourrait entraîner le décès ou des blessures graves.
ATTENTION
Indique une situation dangereuse qui, si elle n'est pas
évitée, pourrait entraîner des blessures légères ou modérées.
AA
A
VISVIS
VIS
Indique une situation qui, si elle n'est pas évitée, pourrait
endommager l'appareil.
Autres niveaux de message
Important
Indique les informations importantes, nécessaires pour
assurer le bon fonctionnement de l’appareil.
Note
Indique les informations utiles qui permettront d’obtenir le
fonctionnement optimal de l’appareil.
Consignes de sécurité
AVERTISSEMENT
• Le produit Axis doit être installé par un professionnel
habilité.
AA
A
VISVIS
VIS
• Le produit Axis doit être utilisé conformément aux lois
et règlementations locales en vigueur.
• Pour pouvoir utiliser le produit Axis à l'extérieur, ou dans
des environnements similaires, il doit être installé dans
un boîtier d'extérieur homologué.
• Conserver ce produit Axis dans un environnement sec
et ventilé.
• Ne pas exposer ce produit Axis aux chocs ou aux fortes
pressions.
• Ne pas installer ce produit sur des poteaux, supports,
surfaces ou murs instables.
• Utiliser uniquement des outils recommandés pour
l'installation de l'appareil Axis. L'application d'une force
excessive sur l'appareil avec des outils puissants pourrait
l'endommager.
• Ne pas utiliser de produits chimiques, de substances
caustiques ou de nettoyants pressurisés.
• Utiliser un chiffon propre imbibé d'eau pure pour le
nettoyage.
• Utiliser uniquement des accessoires conformes aux
caractéristiques techniques du produit. Ils peuvent être
fournis par Axis ou un tiers.
• Utiliser uniquement les pièces de rechange fournies ou
recommandées par Axis.
• Ne pas essayer de réparer vous-même ce produit.
Contacter l'assistance technique d'Axis ou votre
revendeur Axis pour des problèmes liés à l'entretien.
• L'alimentation électrique doit être branchée à une
prise de courant installée près de l'équipement et être
facilement accessible.
Transport
AA
A
VISVIS
VIS
• Lors du transport du produit Axis, utilisez l'emballage
d'origine ou un équivalent pour éviter d'endommager
le produit.
Batterie
Les piles boutons 3,0 V au lithium contiennent du
1,2-diméthoxyéthane, éthylène glycol diméthyl éther
(EGDME), CAS N° 110-71-4.
AVERTISSEMENT
• Risque d'explosion si la batterie est remplacée de façon
incorrecte.
• Remplacez-la uniquement par une batterie identique ou
une batterie recommandée par Axis.
• Mettez au rebut les batteries usagées conformément
aux réglementations locales ou aux instructions du
fabricant de la batterie.
Deutsch
Sicherheitsinformation
Lesen Sie das Installationshandbuch sorgfältig durch
bevor sie das Produkt installieren. Bewahren Sie das
Installationshandbuch für zukünftige Zwecke auf.
Gefährdungsstufen
GEFAHR
Weist auf eine gefährliche Situation hin, welche, falls nicht
verhindert, zu Tod oder schweren Verletzungen führt.
WARNUNG
Weist auf eine gefährliche Situation hin, welche, falls nicht
verhindert, zu Tod oder schweren Verletzungen führen kann.
VORSICHT
Weist auf eine gefährliche Situation hin, welche, falls
nicht verhindert, zu geringfügiger oder mäßiger Verletzung
führen kann.
HINWEISHINWEIS
HINWEIS
Weist auf eine gefährliche Situation hin, welche, falls nicht
verhindert, zu Sachschäden führen kann.
Weitere Nachrichtenstufen
Wichtig
Weist auf wichtige Informationen hin, die den richtigen
Betrieb des Produkts gewährleisten.
Beachten
Weist auf nützliche Informationen hin, die die optimale
Verwendung des Produkts unterstützen.
Sicherheitsanweisungen
WARNUNG
• Das Axis Produkt darf nur von geschultem Fachpersonal
installiert werden.
HINWEISHINWEIS
HINWEIS
• Die Anwendung des Axis Produkts muss unter Beachtung
der örtlich geltenden rechtlichen Bestimmungen
erfolgen.
• Bei der Anwendung von Axis Produkten im Außenbereich
oder ähnlichen Umgebungen, müssen diese in
zugelassenen Außengehäusen installiert werden.
• Lagern Sie das Axis Produkt in einer trockenen und
belüfteten Umgebung.
• Achten Sie darauf, dass das Axis Produkt weder Stößen
noch starkem Druck ausgesetzt ist.
• Installieren Sie das Produkt nicht an instabilen Masten,
Halterungen, Oberächen oder Wänden.
• Verwenden Sie bei der Installation des Axis Produkts
ausschließlich passende Werkzeuge. Ein zu großer
Kraftaufwand mit elektrischen Werkzeugen kann das
Produkt beschädigen.
• Verwenden Sie keine chemischen, ätzenden oder
aerosolhaltigen Reinigungsmittel.
• Verwenden Sie zum Reinigen ein sauberes, mit
destilliertem Wasser angefeuchtetes Tuch.
• Verwenden Sie nur Zubehör, das den technischen
Daten des Produkts entspricht. Dieses ist von Axis oder
Drittanbietern erhältlich.
• Verwenden Sie ausschließlich Ersatzteile die von Axis
bereitgestellt oder empfohlen werden.
• Versuchen Sie nicht, das Produkt selbstständig zu
reparieren. Wenden Sie sich bezüglich Reparatur und
Wartung an den Axis Support oder Ihren Axis Händler.
• Das Netzteil sollte an eine Steckdose in der Nähe
des Produkts angeschlossen werden und sollte leicht
zugänglich sein.
Transport
HINWEISHINWEIS
HINWEIS
• Bei Bedarf transportieren Sie das Axis Produkt in
der Originalverpackung oder einer entsprechenden
Verpackung, so dass Schäden vermieden werden.
Batterie
Lithium-Knopfzellen (3,0 V) enthalten 1,2-Dimethoxyethan;
Ethylenglycoldimethylether (EGDME), CAS-Nr. 110-71-4.
WARNUNG
• Explosionsgefahr bei fehlerhaftem Batteriewechsel.
• Die Batterie darf nur durch eine identische Batterie oder
eine von Axis empfohlene Batterie ersetzt werden.
• Verbrauchte Batterien sind gemäß den örtlichen
Vorschriften oder den Anweisungen des Herstellers zu
entsorgen.
Italiano
Informazioni di sicurezza
Leggere con attenzione questa guida all'installazione prima
di installare il dispositivo. Conservare questo documento
per usi futuri.
Livelli di pericolo
PERICOLO
Indica una situazione pericolosa che, se non evitata,
provoca morte o lesioni gravi.
AVVERTENZA
Indica una situazione pericolosa che, se non evitata,
potrebbe provocare la morte o lesioni gravi.
ATTENZIONE
Indica una situazione pericolosa che, se non evitata, può
provocare lesioni medie o minori.
AA
A
VVISOVVISO
VVISO
Indica una situazione che, se non evitata, può danneggiare
la proprietà.
Altri livelli di messaggio
Importante
Indica informazioni importanti, essenziali per il corretto
funzionamento del dispositivo.
Nota
Indica informazioni utili che aiutano a ottenere il massimo
dal dispositivo.
Informazioni di sicurezza
AVVERTENZA
• Il dispositivo Axis deve essere installato da un
professionista qualicato.
AA
A
VVISOVVISO
VVISO
• Il dispositivo Axis deve essere utilizzato in conformità
alle leggi e alle disposizioni locali.
• Per utilizzare il dispositivo Axis in ambienti esterni, o in
ambienti simili, deve essere installato in una custodia
per esterni approvata.
• Conservare il dispositivo Axis in un ambiente asciutto
e ventilato.
• Evitare di esporre il dispositivo Axis a urti o pressioni
eccessive.
• Non installare il dispositivo su supporti, superci, pareti
o pali instabili.
• Utilizzare solo strumenti applicabili quando si installa
il dispositivo Axis. Se si utilizza una forza eccessiva
con strumenti non adatti è possibile causare danni al
dispositivo.
• Non utilizzare sostanze chimiche, agenti caustici o
detergenti aerosol.
• Utilizzare un panno pulito inumidito in acqua pura per
la pulizia.
• Utilizzare solo accessori compatibili con le speciche
tecniche del dispositivo. Questi possono essere forniti da
Axis o da terze parti.
• Utilizzare solo parti di ricambio fornite o consigliate da
Axis.
• Non tentare di riparare il dispositivo da soli. Contattare
l'assistenza o il rivenditore Axis per questioni relative
alla manutenzione.
• L'alimentazione sarà collegate alla presa installata vicino
al dispositivo e sarà facilmente accessibile.
Trasporto
AA
A
VVISOVVISO
VVISO
• Durante il trasporto del dispositivo Axis, utilizzare
l'imballaggio originale o equivalente per evitare danni al
dispositivo.
Batteria
La batteria a bottone al litio 3,0 V contiene
1,2-dimetossietano; etere dimetilico di glicole etilenico
(EGDME), CAS n. 110-71-4.
AVVERTENZA
• Rischio di esplosione se la batteria viene sostituita in
modo errato.
• Sostituire solo con una batteria identica o una batteria
consigliata da Axis.
• Smaltire le batterie usate in base alle normative locali o
alle istruzioni del produttore della batteria.
Español
Información de seguridad
Lea esta Guía de instalación con atención antes de instalar
el producto. Guarde la Guía de instalación para poder
consultarla en otro momento.
Niveles de peligro
PELIGRO
Indica una situación peligrosa que, si no se evita, provocará
lesiones graves o la muerte.
ADVERTENCIA
Indica una situación peligrosa que, si no se evita, puede
provocar lesiones graves o la muerte.
ATENCIÓN
Indica una situación peligrosa que, si no se evita, puede
provocar lesiones moderadas o leves.
AA
A
VISOVISO
VISO
Indica una situación peligrosa que, si no se evita, puede
provocar daños materiales.
Otros niveles de mensaje
Importante
Indica información importante que es fundamental para
que el producto funcione correctamente.
Nota
Indica información útil que ayuda a aprovechar el producto
al máximo.
Instrucciones de seguridad
ADVERTENCIA
• El encargado de instalar el producto de Axis debe ser un
profesional con experiencia.
AA
A
VISOVISO
VISO
• El producto de Axis debe utilizarse de acuerdo con las
leyes y normativas locales.
• Para usar el producto de Axis en exteriores, o en
entornos similares, debe instalarse en una carcasa
exterior aprobada.
• Almacene el producto de Axis en un entorno seco y
ventilado.
• Evite la exposición del producto de Axis a choques o a
una fuerte presión.
• No instale el producto en postes, soportes, supercies
o paredes inestables.
• Utilice solo las herramientas correspondientes cuando
instale el producto de Axis. La aplicación de una fuerza
excesiva con herramientas eléctricas puede provocar
daños en el producto.
• No utilice limpiadores en aerosol, agentes cáusticos ni
productos químicos.
• Limpie con un paño limpio humedecido con agua pura.
• Utilice solo accesorios que cumplan con las
especicaciones técnicas del producto. Estos accesorios
los puede proporcionar Axis o un tercero.
• Utilice solo piezas de repuesto proporcionadas o
recomendadas por Axis.
• No intente reparar el producto usted mismo. Póngase
en contacto con el servicio de asistencia técnica de
Axis o con su distribuidor de Axis para tratar asuntos
de reparación.
• La fuente de alimentación se enchufará a una toma
de conector instalada cerca del producto y a la que se
podrá acceder fácilmente.
Transporte
AA
A
VISOVISO
VISO
• Cuando transporte el producto de Axis, utilice el
embalaje original o un equivalente para evitar daños
en el producto.
Batería
Las pilas de botón de litio de 3,0 V contienen
1,2-dimetoxietano; éter dimetílico de etilenglicol (EGDME),
n.º CAS 110-71-4.
ADVERTENCIA
• La sustitución incorrecta de la batería implica riesgo de
explosión.
• Sustituya la batería por una batería idéntica u otra
batería recomendada por Axis.
• Deseche las baterías usadas de conformidad con la
normativa local o las instrucciones del fabricante.
⽇本語
安全情報
本製品を設置する前に、このインストールガイド
をよくお読みください。インストールガイドは、
後で参照できるように保管しておいてください。
危険レベル
危険
回避しない場合、死亡または重傷につながる危
険な状態を⽰します。
警告
回避しない場合、死亡または重傷につながるおそ
れのある危険な状態を⽰します。
注意
回避しない場合、軽傷または中程度の怪我につな
がるおそれのある危険な状態を⽰します。
注記
回避しない場合、器物の破損につながるおそれの
ある状態を⽰します。
その他のメッセージレベル
重要
製品を正しく機能させるために不可⽋な重要情報
を⽰します。
注意
製品を最⼤限に活⽤するために役⽴つ有⽤な情報
を⽰します。
安全⼿順
警告
• 本製品の設置は、訓練を受けた専⾨技術者が
⾏ってください。
注記
• 本製品は、お使いになる地域の法律や規制に準
拠して使⽤してください。
• 本製品を屋外またはそれに準じる環境で使⽤す
る場合は、認定済みの屋外⽤筐体に収納して設
置する必要があります。
• 本製品は乾燥した換気のよい環境に保管して
ください。
• 本製品に衝撃または強い圧⼒を加えないでく
ださい。
• 本製品を不安定なポール、ブラケット、表⾯、
または壁に設置しないでください。
• 本製品を設置する際には、適切な⼯具のみを使
⽤してください。電動⼯具を使⽤して過剰な⼒
をかけると、製品が損傷することがあります。
• 化学薬品、腐⾷剤、噴霧式クリーナーは使⽤し
ないでください。
• 清掃には、きれいな⽔に浸した清潔な布を使
⽤してください。
• 製品の技術仕様に準拠したアクセサリーのみを
使⽤してください。これらのアクセサリーは、
Axisまたはサードパーティから⼊⼿できます。
• Axisが提供または推奨する交換部品のみを使⽤
してください。
• 製品を⾃分で修理しないでください。修理に
ついては、Axisサポートまたは販売代理店にお
問い合わせください。
• 電源は、製品の近くで簡単に⼿の届く場所にあ
るコンセントに接続してください。
輸送
注記
• 本製品を運搬する際は、製品が損傷しないよう、
元の梱包か同等の梱包を使⽤してください。
バッテリー
リチウムコイン型3.0V電池は、1,2-ジメトキシ
エタン(エチレングリコールジメチルエーテル
(EGDME)、CAS番号110-71-4)を含有しています。
警告
• バッテリーは、正しく交換しないと爆発する
危険があります。
• 交換⽤バッテリーとしては、同⼀品またはAxisが
推奨するバッテリーのみを使⽤してください。
• 使⽤済みバッテリーは、地域の規制またはバッ
テリーメーカーの指⽰に従って廃棄してくださ
い。
Português
Informações de segurança
Leia com atenção este Guia de Instalação até o nal antes
de instalar o produto. Guarde o Guia de Instalação para
referência futura.
Níveis de perigo
PERIGO
Indica uma situação perigosa que, se não evitada, irá
resultar em morte ou lesões graves.
ATENÇÃO
Indica uma situação perigosa que, se não evitada, poderá
resultar em morte ou lesões graves.
CUIDADO
Indica uma situação perigosa que, se não evitada, poderá
resultar em lesões leves ou moderadas.
AA
A
VISOVISO
VISO
Indica uma situação perigosa que, se não evitada, poderá
resultar em danos à propriedade.
Outros níveis de mensagens
Importante
Indica informações signicativas que são essenciais para o
produto funcionar corretamente.
Nota
Indica informações úteis que ajudam a obter o máximo do
produto.
Instruções de segurança
ATENÇÃO
• O produto Axis deve ser instalado por um prossional
treinado.
AA
A
VISOVISO
VISO
• O produto Axis deve ser usado em conformidade com as
leis e regulamentações locais.
• Para usar o produto Axis em ambientes externos ou
semelhantes, ele deverá ser instalado em uma caixa
aprovada para uso externo.
• Armazene o produto Axis em um ambiente seco e
ventilado.
• Evite expor o produto Axis a impactos ou pressão
elevada.
• Não instale o produto em suportes, superfícies ou
paredes instáveis.
• Use apenas as ferramentas recomendadas ao instalar o
produto Axis. O uso de força excessiva com ferramentas
elétricas poderia danicar o produto.
• Não use produtos químicos, agentes cáusticos ou
limpadores aerossóis.
• Use um pano limpo úmido para limpar o produto.
• Utilize apenas acessórios que atendam às especicações
técnicas do produto. Esses poderão ser fornecidos pela
Axis ou por terceiros.
• Utilize apenas peças sobressalentes fornecidas ou
recomendadas pela Axis.
• Não tente reparar o produto por conta própria. Entre
em contato com o suporte ou seu revendedor Axis para
quaisquer questões relacionadas a serviços.
• A fonte de alimentação deve ser conectada em uma
tomada elétrica instalada próxima ao produto e deverá
poder ser acessada com facilidade.
Transporte
AA
A
VISOVISO
VISO
• Ao transportar o produto Axis, use a embalagem original
ou equivalente para evitar danos ao produto.
Bateria
As baterias tipo célula de íons de lítio de 3,0 V contêm
1,2-dimetoxietano; etileno glicol éter dimetílico (EGDME),
nº CAS 110-71-4.
ATENÇÃO
• A troca incorreta da bateria poderá representar risco
de explosão.
• Substitua somente por uma bateria idêntica ou uma
bateria recomendada pela Axis.
• Descarte as baterias usadas de acordo com as
regulamentações locais ou as instruções do fabricante
da bateria.
РУССКИЙРУССКИЙ
РУССКИЙ
СведенияСведения
Сведения
попо
по
безопасностибезопасности
безопасности
Перед установкой изделия внимательно ознакомьтесь
с руководством по установке. Сохраните его для
дальнейшего использования.
УровниУровни
Уровни
опасностиопасности
опасности
OПACHO
Опасная ситуация, которая, если ее не устранить,
приведет к смерти или опасным травмам.
ОСТОРОЖНО
Опасная ситуация, которая, если ее не устранить, может
привести к смерти или опасным травмам.
BHИMAHИE
Опасная ситуация, которая, если ее не устранить,
может привести к травмам незначительной или средней
тяжести.
УВЕДОМЛЕНИЕ
Опасная ситуация, которая, если ее не устранить, может
вызвать повреждение имущества.
ПрочиеПрочие
Прочие
уведомленияуведомления
уведомления
Важно
Означает существенную информацию, которая важна
для правильной работы изделия.
Примечание
Означает полезную информацию, которая помогает
использовать все возможности изделия.
ПравилаПравила
Правила
безопасностибезопасности
безопасности
ОСТОРОЖНО
• Это изделие Axis должно устанавливаться обученным
специалистом.
УВЕДОМЛЕНИЕ
• Это изделие Axis должно использоваться в
соответствии с местными законами и нормативами.
• Для использования камеры Axis на открытом воздухе
или в аналогичных средах применения оно должно
быть установлено в корпусе, предназначенном для
наружного применения.
• Устройство Axis должно храниться в сухом, хорошо
проветриваемом помещении.
• Не допускайте ударов или приложения высокого
давления к устройству Axis.
• Не монтируйте устройство на неустойчивых
кронштейнах, поверхностях или стенах.
• При установке устройства Axis используйте
только предназначенные для этого инструменты.
Приложение чрезмерных усилий к инструментам
может привести к повреждению устройства.
• Не используйте химикалии, едкие вещества или
аэрозольные очистители.
• Для очистки используйте чистую ткань, смоченную
чистой водой.
• Используйте только принадлежности, которые
соответствуют техническим характеристикам
устройства. Они могут поставляться компанией Axis
или сторонним производителем.
• Используйте только запасные части, поставляемые
или рекомендованные компанией Axis.
• Не пытайтесь отремонтировать устройство
самостоятельно. По вопросам обслуживания
обращайтесь в службу поддержки Axis или к своему
реселлеру Axis.
• Блок питания следует включать в розетку, которая
должна быть легко доступной и располагаться
недалеко от изделия.
ТранспортировкаТранспортировка
Транспортировка
УВЕДОМЛЕНИЕ
• При транспортировке устройства Axis используйте
оригинальную упаковку или ее эквивалент во
избежание повреждения изделия.
БатареяБатарея
Батарея
Плоские литиевые батареи (3 В) содержат
1,2-диметоксиэтан; диметиловый эфир этиленгликоля
(EGDME), CAS № 110-71-4.
ОСТОРОЖНО
• Риск взрыва при неправильной замене батареи.
• Замену следует проводить только на идентичную
батарею или батарею, рекомендуемую компанией
Axis.
• Утилизация использованных батарей должна
выполняться в соответствии с местными
нормативными требованиями или указаниями
производителя батарей.
中中
中
文文
文
安安
安
全全
全
信信
信
息息
息
安装该产品前请仔细通读该安装指南。请保管好安
装指南以供以后查阅。
危危
危
险险
险
等等
等
级级
级
危险
表示有危险的情形，如果不能避免，将导致死亡或
严重的个人伤害。
警告
表示有危险的情形，如果不能避免，将导致死亡或
严重的个人伤害。
小心
表示有危险的情形，如果不能避免，将导致轻微或
中度的个人伤害。
注意
表示一种情形，如果不能避免，将导致对财产的
损坏。
其其
其
它它
它
消消
消
息息
息
等等
等
级级
级
重要
表示对于产品正常运行必不可少的重要信息。
备注
表示有助于充分利用产品的有用信息。
安安
安
全全
全
说说
说
明明
明
警告
• 应由接受过相关培训的专业人员进行安讯士产
品的安装。
注意
• 使用该安讯士产品必须符合当地法律法规要求。
• 如要在室外或相似环境中使用该安讯士产品，必
须将其安装在符合标准的室外防护罩中。
• 安讯士产品应存放在干燥通风的环境中。
• 应避免对安讯士产品造成冲撞或重压。
• 不得将本产品安装于不稳固的立杆、支架、表
面或墙面上。
• 安装安讯士产品时，请使用适用工具。使用电动
工具时过度用力可能对产品造成损坏。
• 请勿使用化学制剂、腐蚀性制剂或气雾性清洁剂。
• 使用浸有净水的干净抹布进行清洁。
• 所用附件必须符合该产品的技术规格要求。可由
安讯士或第三方供应商提供。
• 必须使用安讯士提供或推荐的零件。
• 请勿试图自己修理该产品。维修事务请联系安讯
士支持人员或您的安讯士经销商。
• 电源应该插入安装在产品附近的插座，并易于使
用。
运运
运
输输
输
注意
• 安讯士产品运输途中，应使用其原包装或等效包
装，以防对产品造成损坏。
电电
电
池池
池
3.0 V 锂钮扣电池包含 1,2-二甲氧基乙烷；乙二醇二
甲醚 (EGDME)，CAS 号为 110-71-4。
警告
• 电池更换不当将引发爆炸危险。
• 请务必使用相同或安讯士推荐的电池进行更换。
• 请按照当地法规或电池制造商的说明来处理废
旧电池。
한한
한
국국
국
어어
어
안안
안
전전
전
정정
정
보보
보
제품을 설치하기 전에 설치 안내서를 주의 깊게 읽
어보시고 설치 안내서를 보관하여 향후 참조하시
기 바랍니다.
위위
위
험험
험
레레
레
벨벨
벨
위위
위
험험
험
방지하지 않을 경우 사망이나 심각한 상해가 발생하
는 위험한 상황을 나타냅니다.
경경
경
고고
고
방지하지 않을 경우 사망이나 심각한 상해가 발생할
수 있는 위험한 상황을 나타냅니다.
주주
주
의의
의
방지하지 않을 경우 경미한 상해가 발생할 수 있는 위
험한 상황을 나타냅니다.
주주
주
의의
의
사사
사
항항
항
방지하지 않을 경우 재산 피해가 발생할 수 있는 상황
을 나타냅니다.
기기
기
타타
타
메메
메
시시
시
지지
지
레레
레
벨벨
벨
중요
제품이 올바르게 작동하는 데 필요한 중요한 정보
를 나타냅니다.
정보
제품을 가장 효과적으로 사용하는 데 도움이 되는 유
용한 정보를 나타냅니다.
안안
안
전전
전
지지
지
침침
침
경경
경
고고
고
• Axis 제품은 자격을 갖춘 전문 직원이 설치해야
합니다.
주주
주
의의
의
사사
사
항항
항
• 본 Axis 제품은 해당 지역 법률 및 규정을 준수하여
사용해야 합니다.
• 본 Axis 제품을 실외나 비슷한 환경에서 사용하려
면 승인된 실외 하우징에 설치해야 합니다.
• 통풍이 잘되고 건조한 장소에 Axis 제품을 보관
하십시오.
• Axis 제품에 충격이나 강한 압력을 가하지 마십
시오.
• 불안정한 브래킷, 표면 또는 벽에 제품을 설치하
지 마십시오.
• Axis 제품을 설치할 때에는 적합한 도구만을 사용
하십시오. 전원 도구에 과도한 힘을 가하면 제품
이 손상될 수 있습니다.
• 화학약품, 부식제 또는 에어로졸 세정제를 사용하
지 마십시오.
• 깨끗한 물에 적신 천을 사용하여 닦으십시오.
• 해당 제품의 기술 사양을 준수하는 액세서리만 사
용하십시오. 이러한 액세서리는 Axis 또는 타사에
서 구입할 수 있습니다.
• Axis가 제공하거나 권장하는 예비 부품만 사용하
십시오.
• 고객이 직접 제품을 수리하지 마십시오. 서비스
문제에 대해서는 Axis 지원 팀이나 해당 지역 Axis
리셀러에게 문의하십시오.
• 전원 공급 장치는 제품 주변에 설치된 소켓 콘센트
에 꽂아야 하며, 쉽게 액세스할 수 있어야 합니다.
운운
운
반반
반
주주
주
의의
의
사사
사
항항
항
• Axis 제품을 운반할 때는 원래 포장이나 이에 준
하는 포장을 사용해 제품이 손상되지 않도록 하
십시오.
배배
배
터터
터
리리
리
리튬 코인 셀 3.0V 배터리에 1,2-디메톡시에탄,
EGDME(에틸렌글리콜디메틸에테르), CAS no. 110-71-4
가 들어 있습니다.
경경
경
고고
고
• 배터리를 올바르게 교체하지 않으면 폭발할 위험
이 있습니다.
• 동일한 배터리나 Axis에서 권장한 배터리로 교
체합니다.
• 사용한 배터리는 현지 규정이나 배터리 제조업체
의 지침에 따라 폐기합니다.

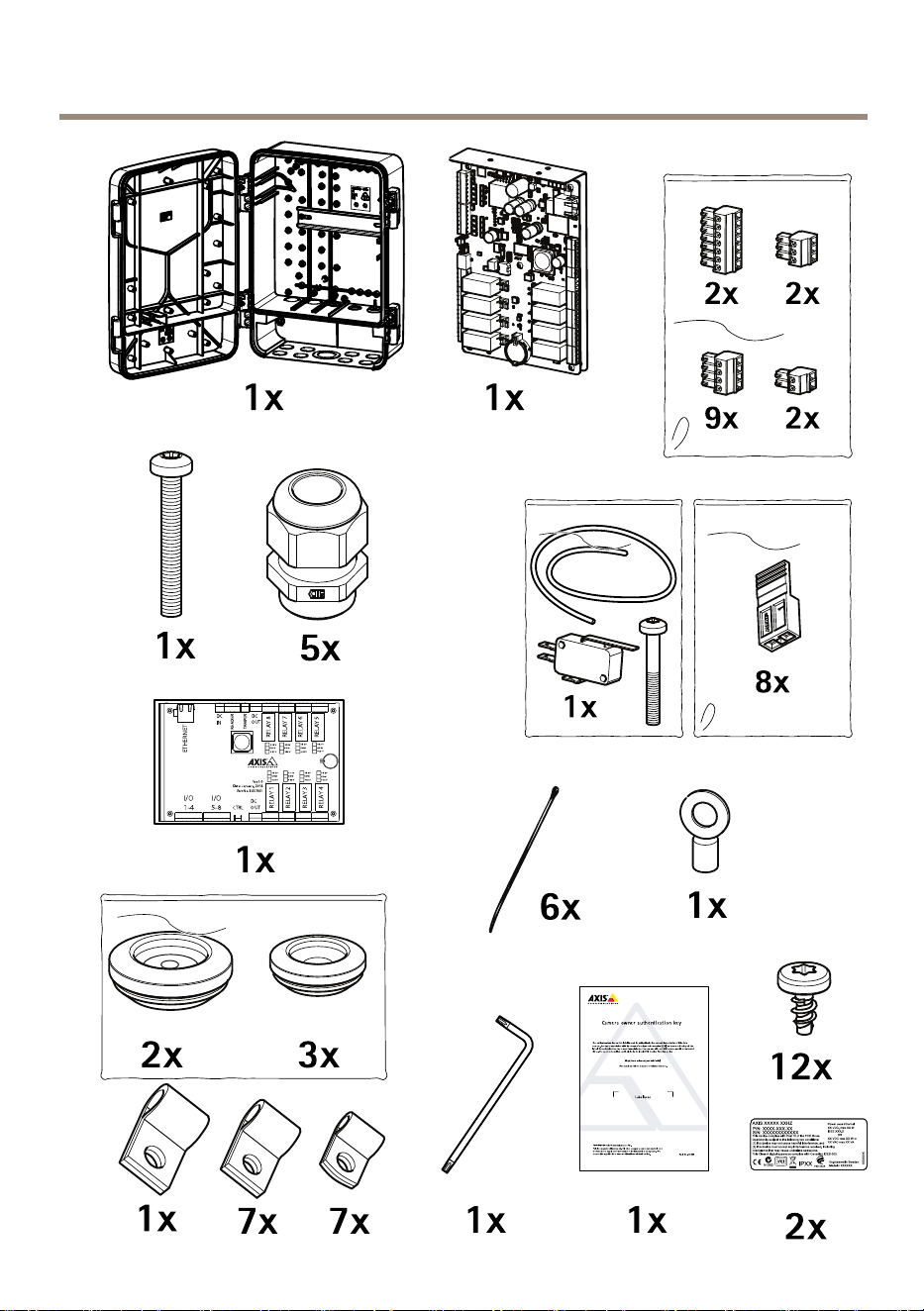

AXIS A9188-VE
13
AXIS A9188-VE
14
AXIS A9188-VE
15

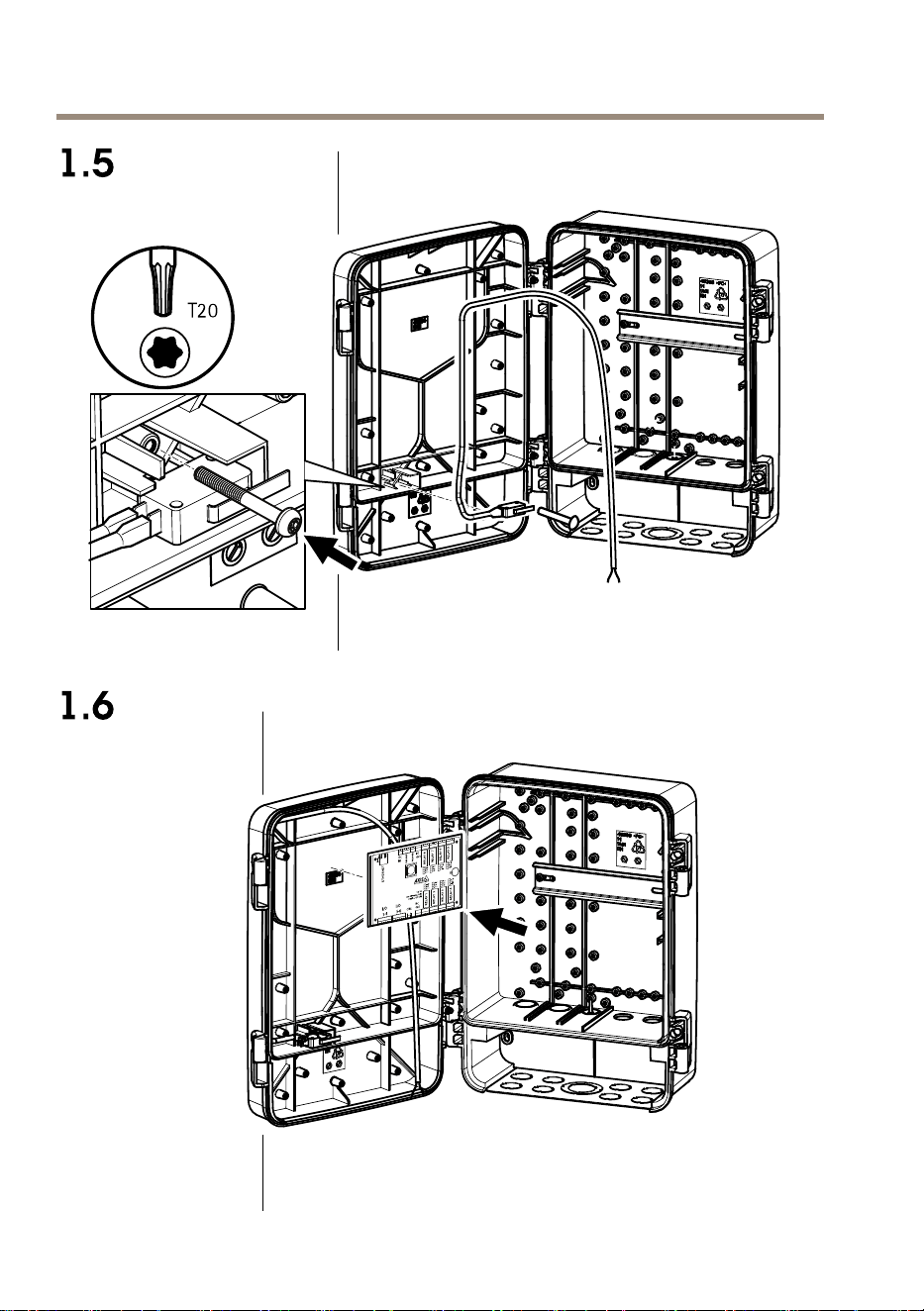

AXIS A9188-VE
16

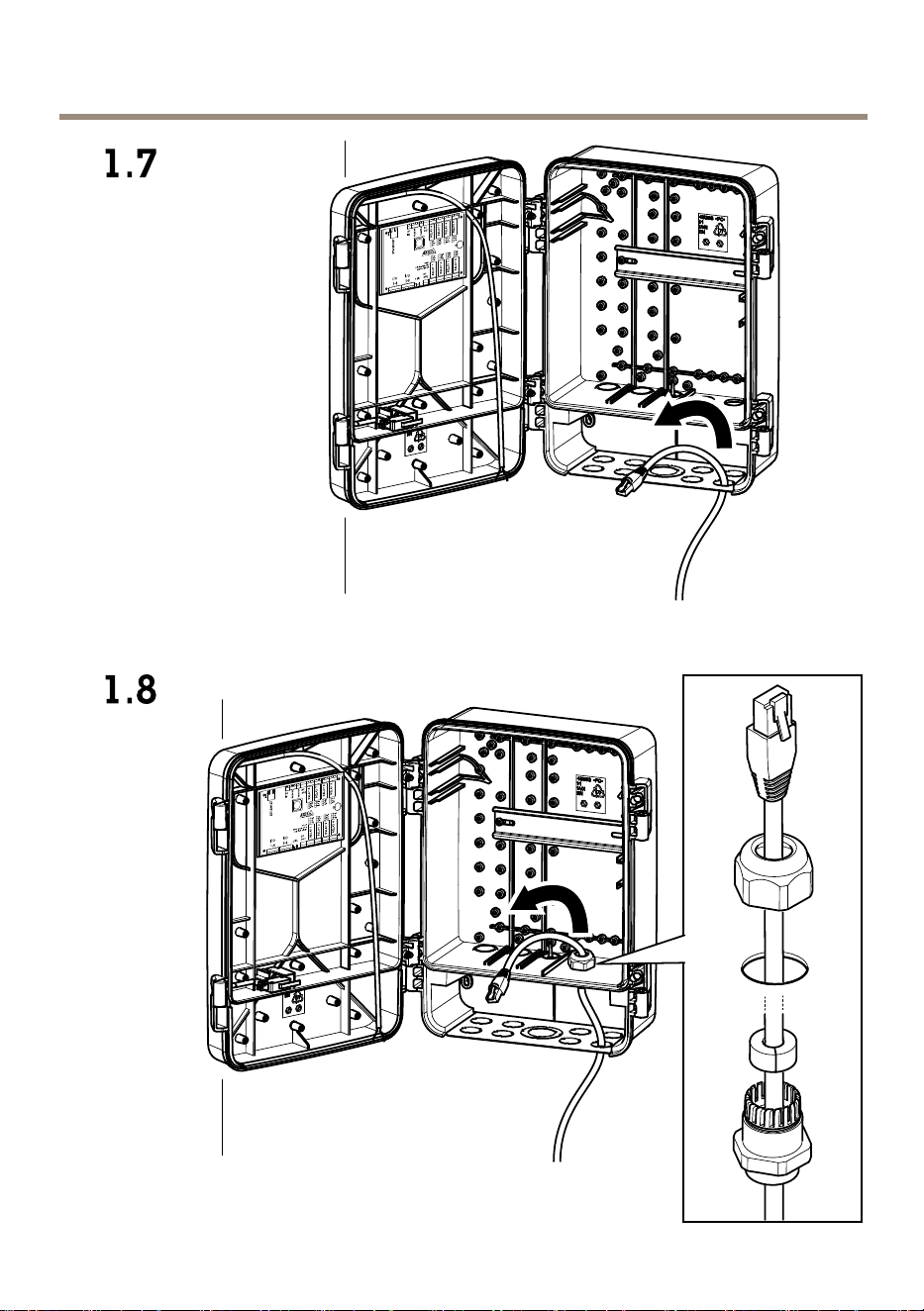

AXIS A9188-VE
17

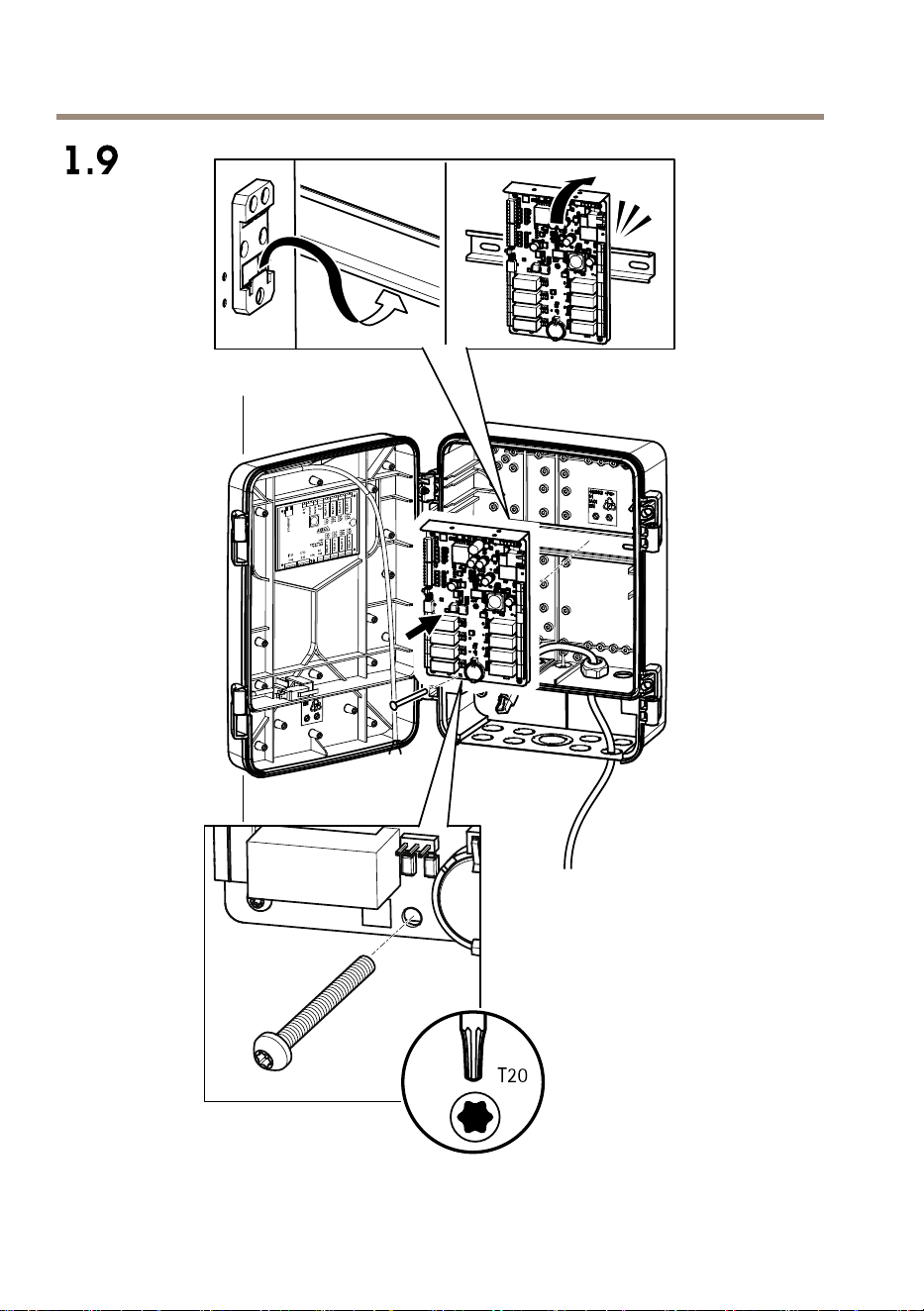

AXIS A9188-VE
18
AXIS A9188-VE
19
AXIS A9188-VE
20
AXIS A9188-VE
21
AXIS A9188-VE
22
AXIS A9188-VE
23

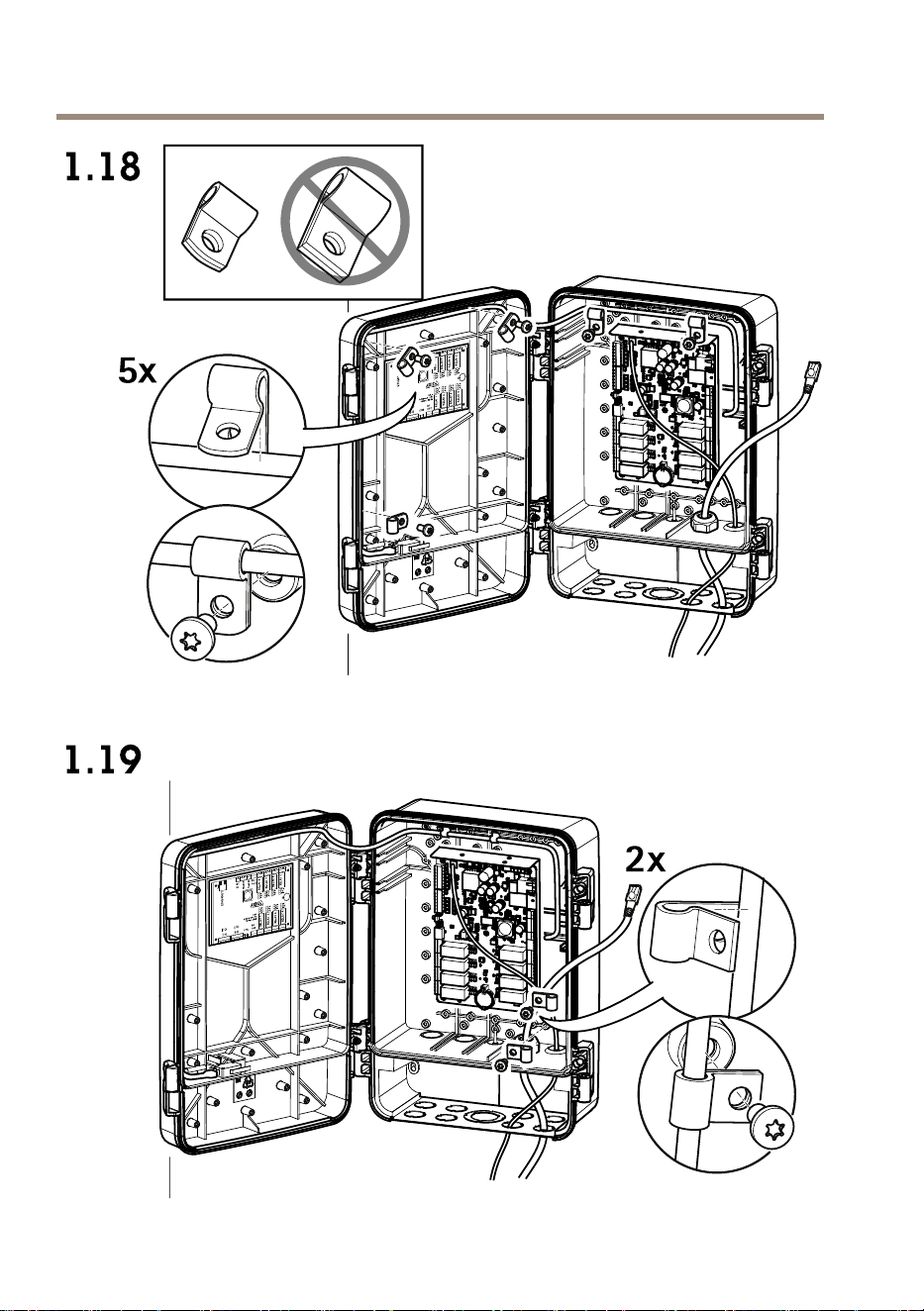

AXIS A9188-VE
24

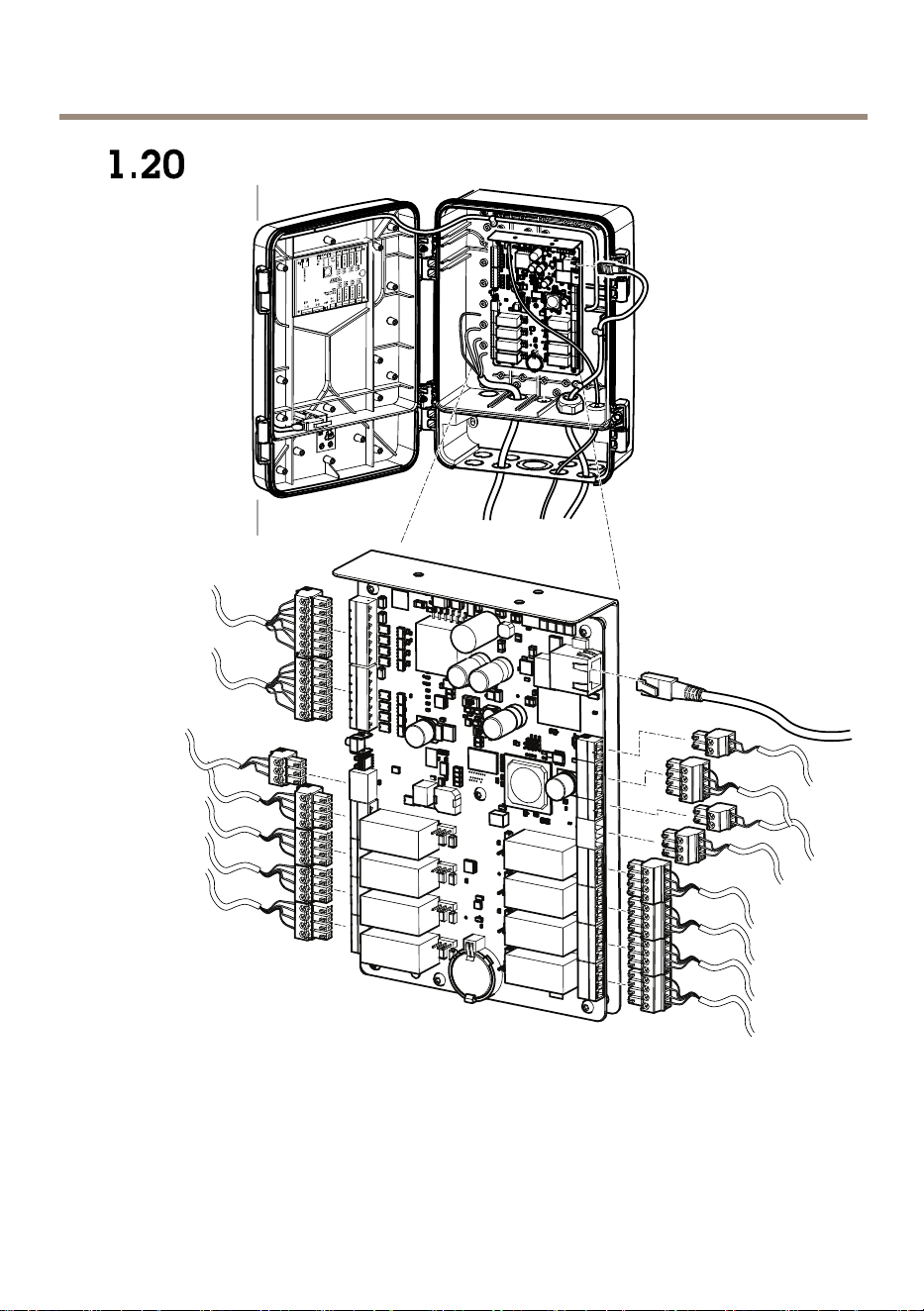

AXIS A9188-VE
25
AXIS A9188-VE
26

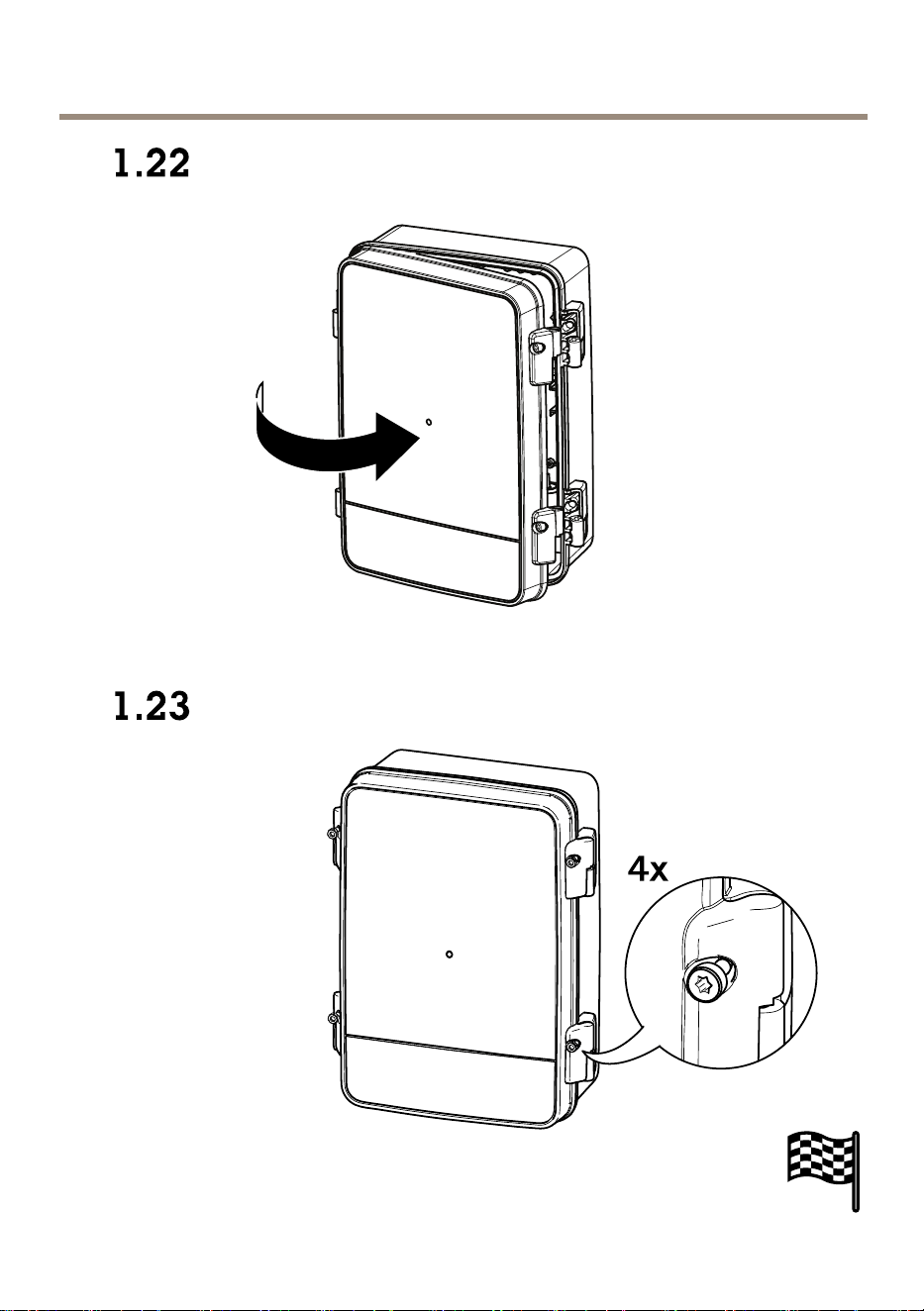

AXIS A9188-VE
27
Installation Guide
Ver. M2.2
AXIS A9188-VE Date: October 2016
© Axis Communications AB, 2016
Part No. 1537795
